Description

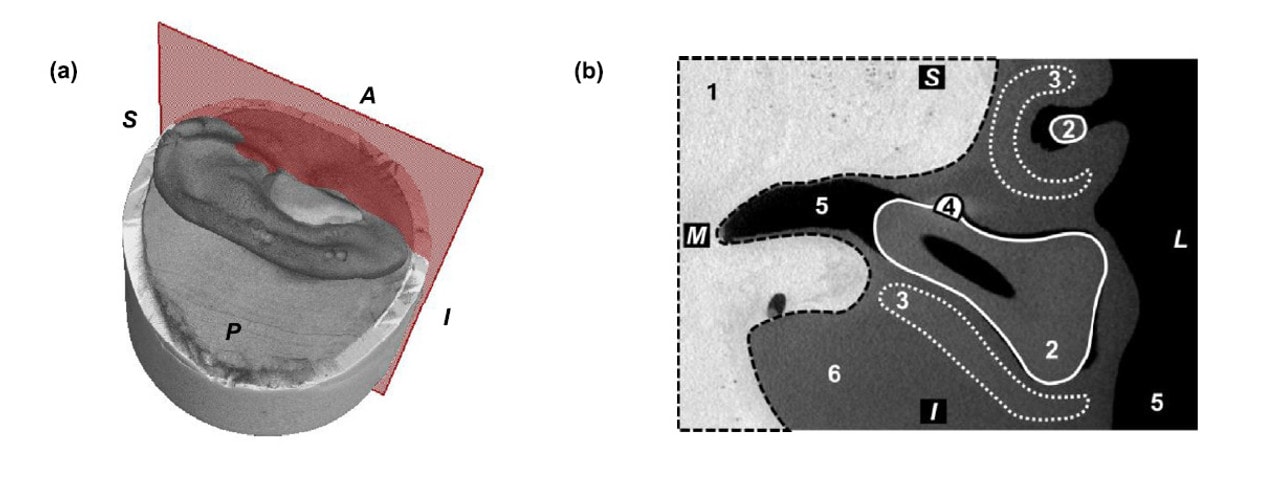

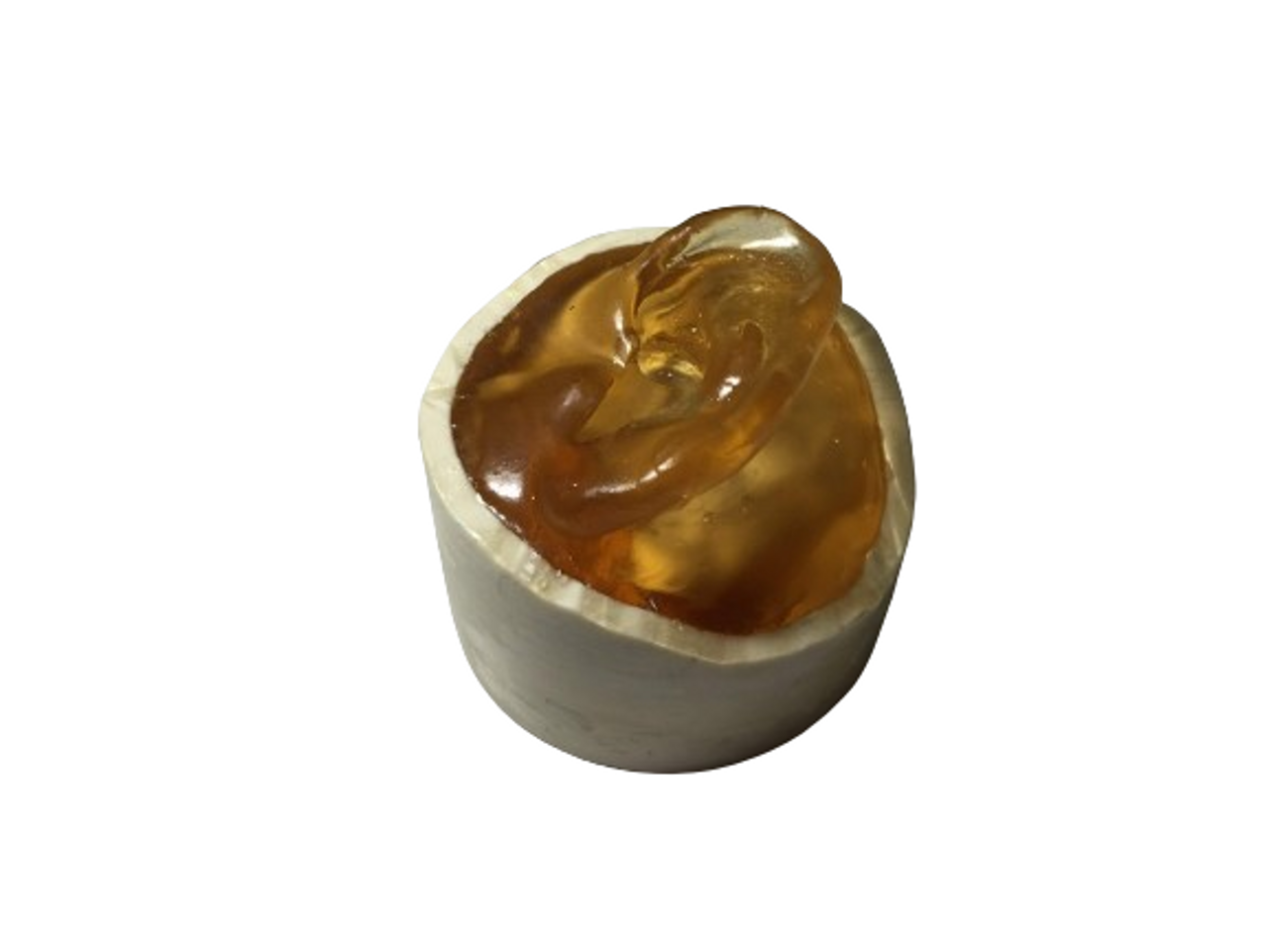

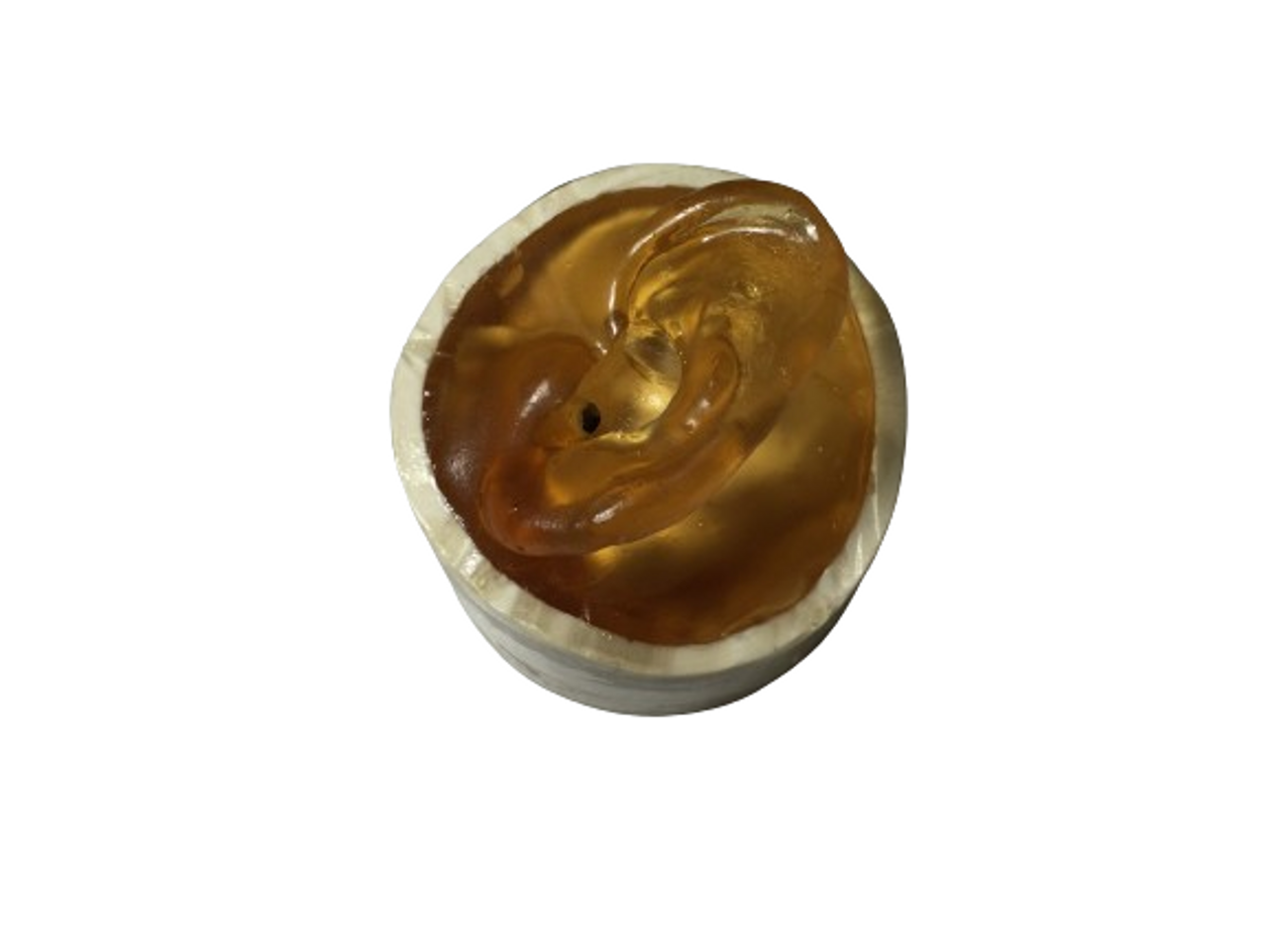

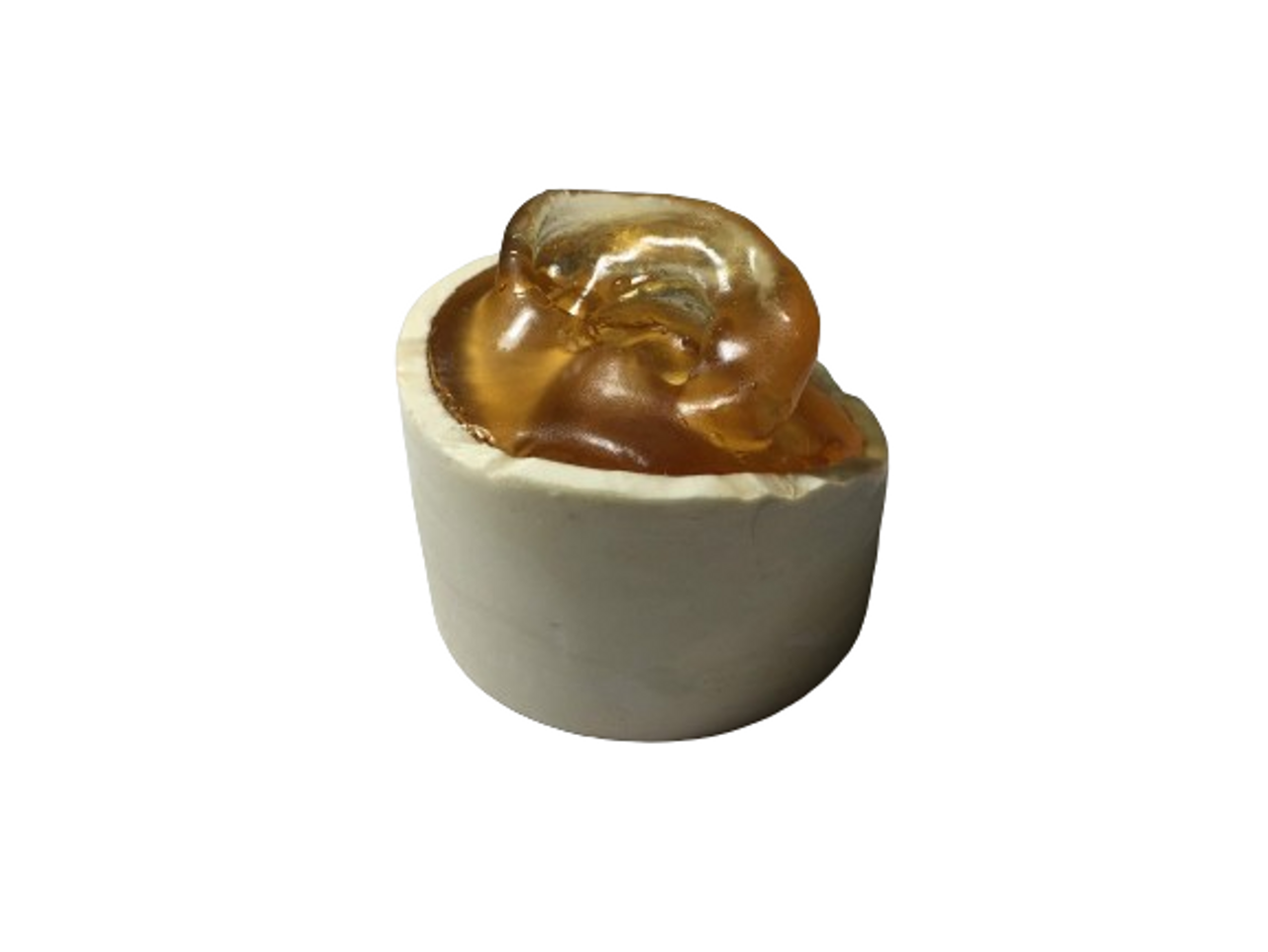

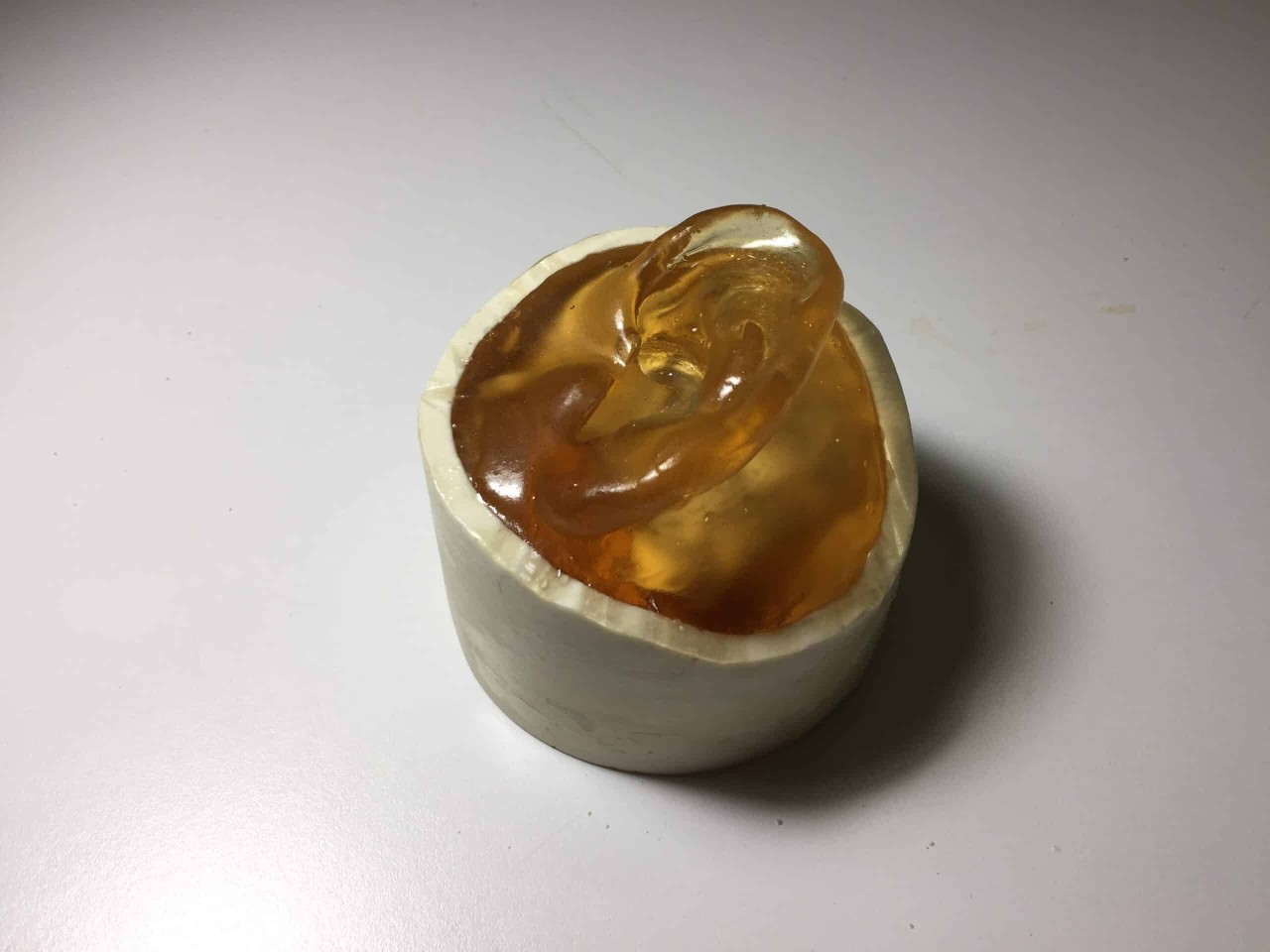

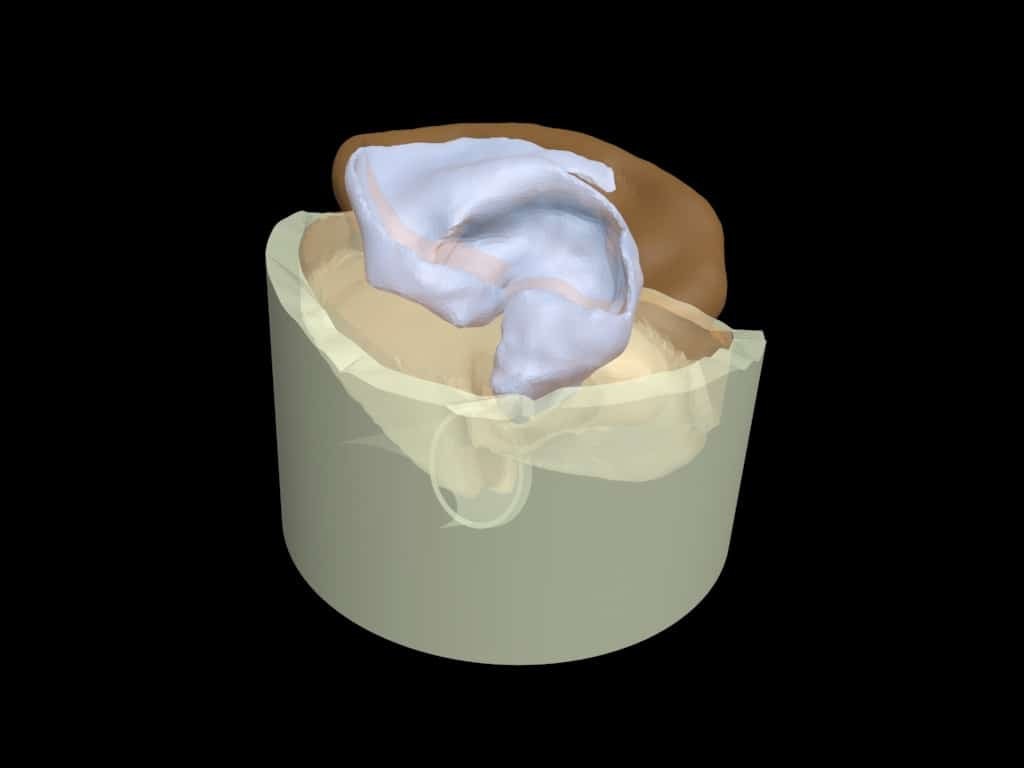

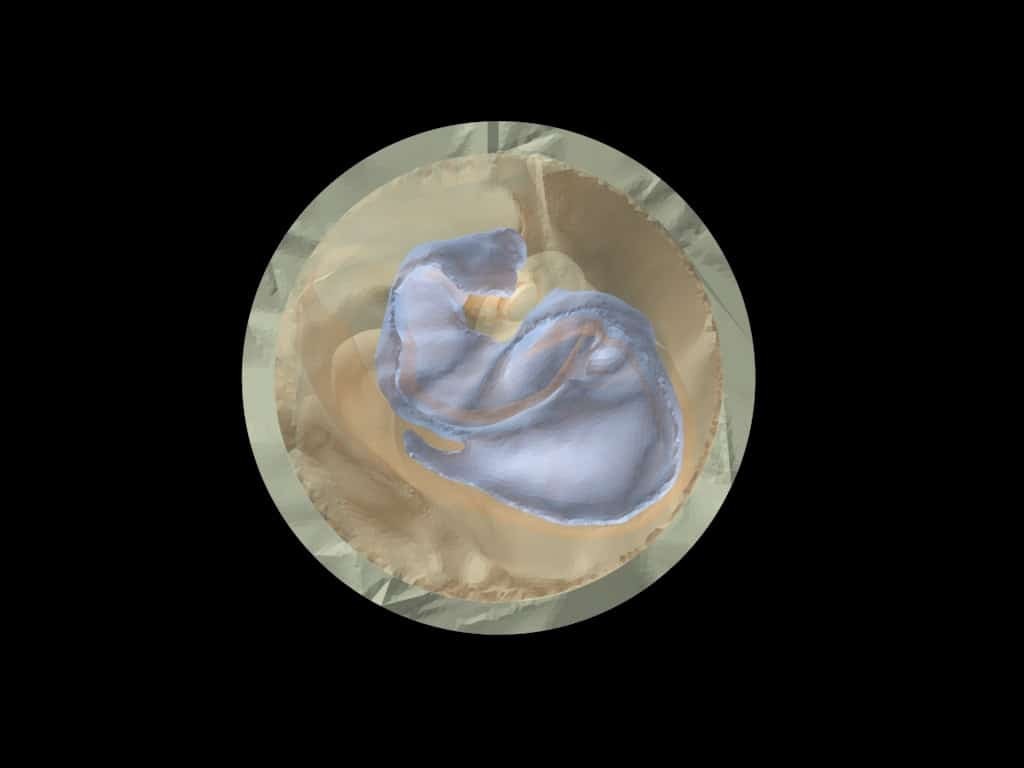

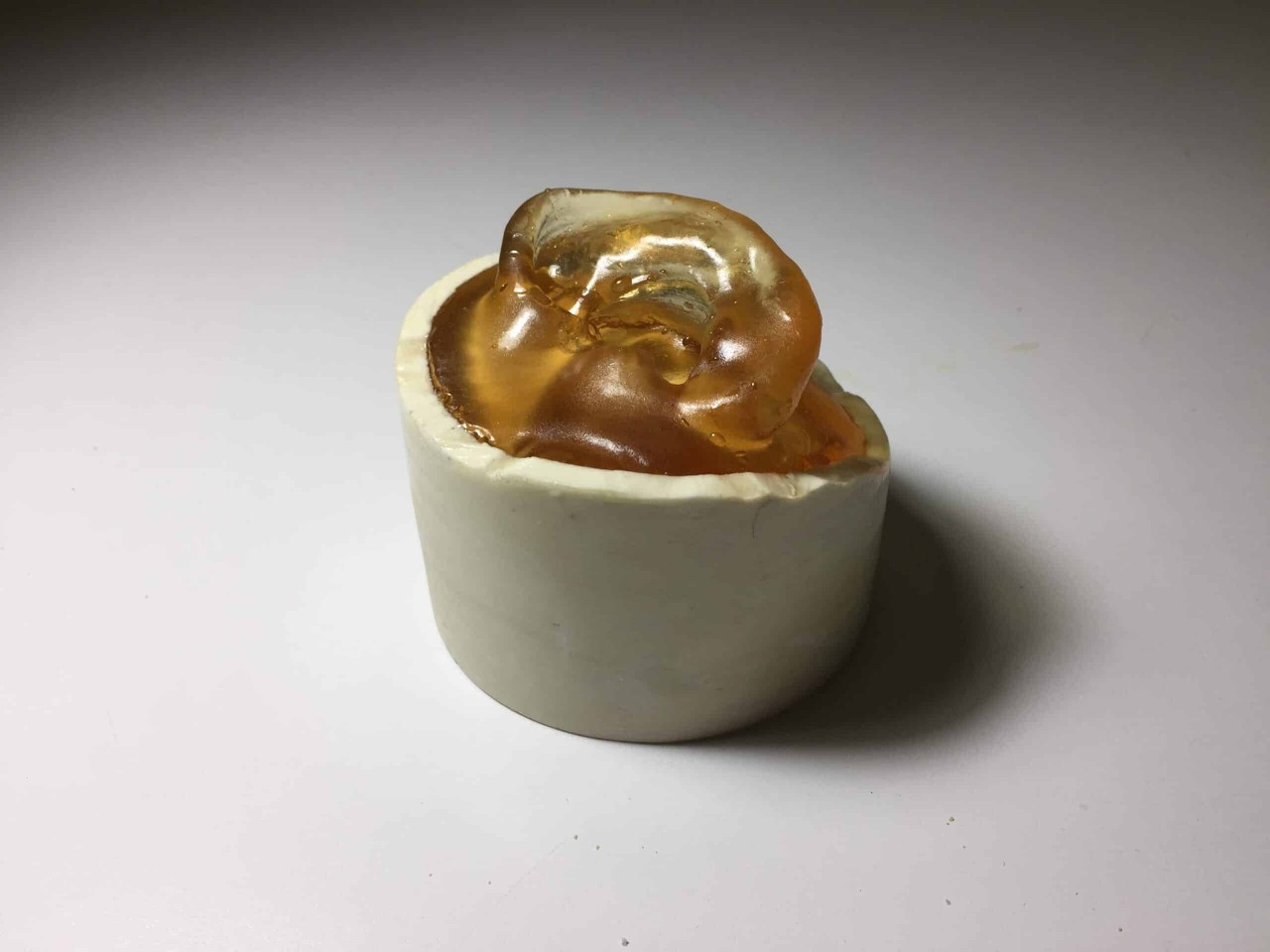

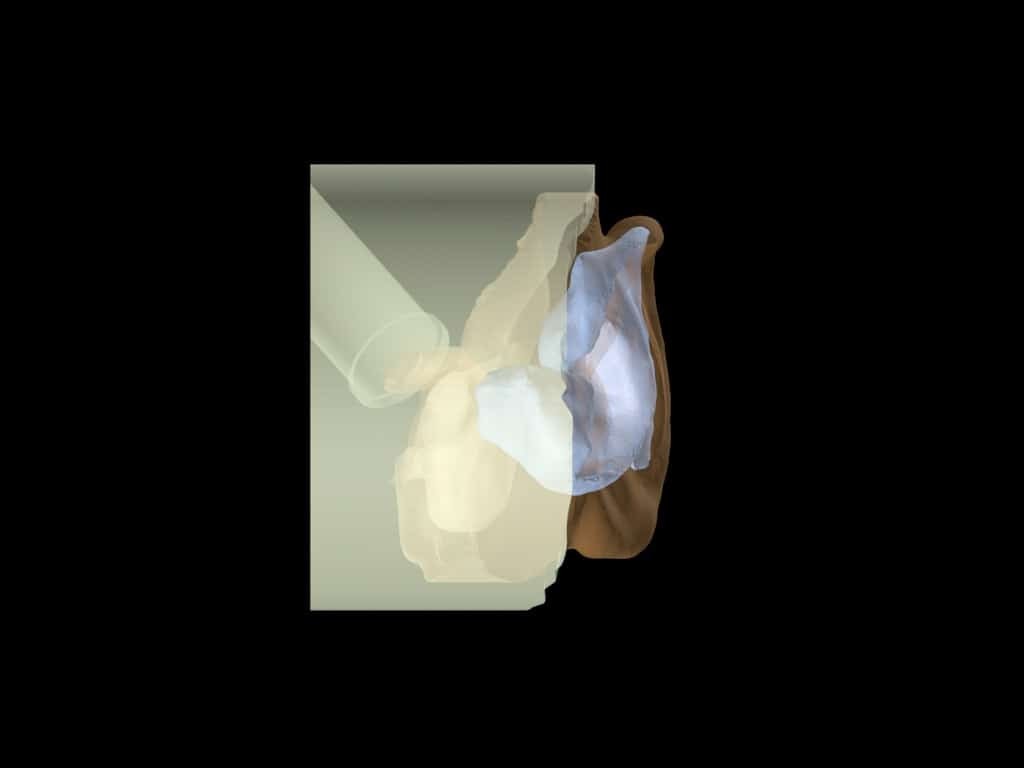

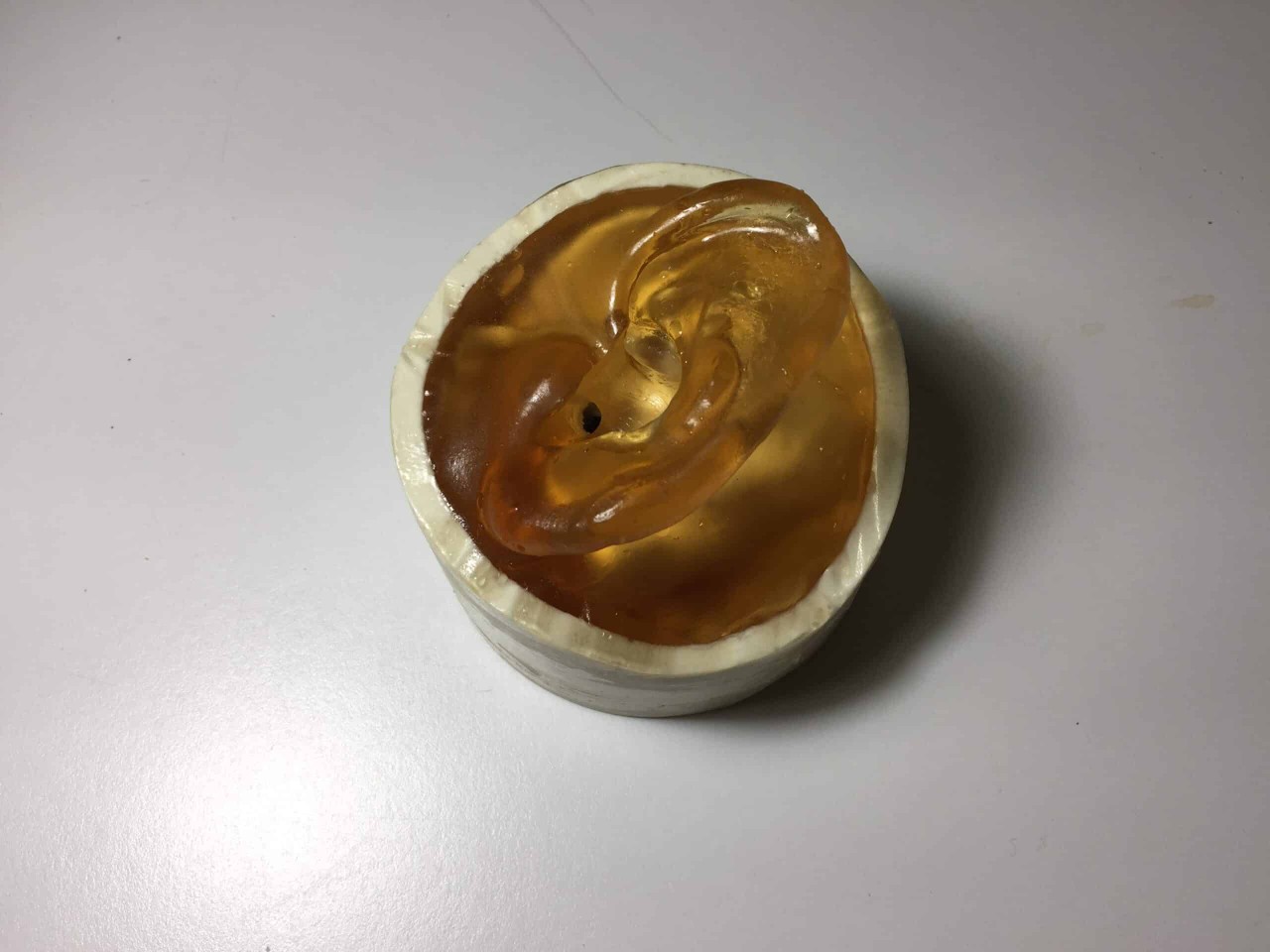

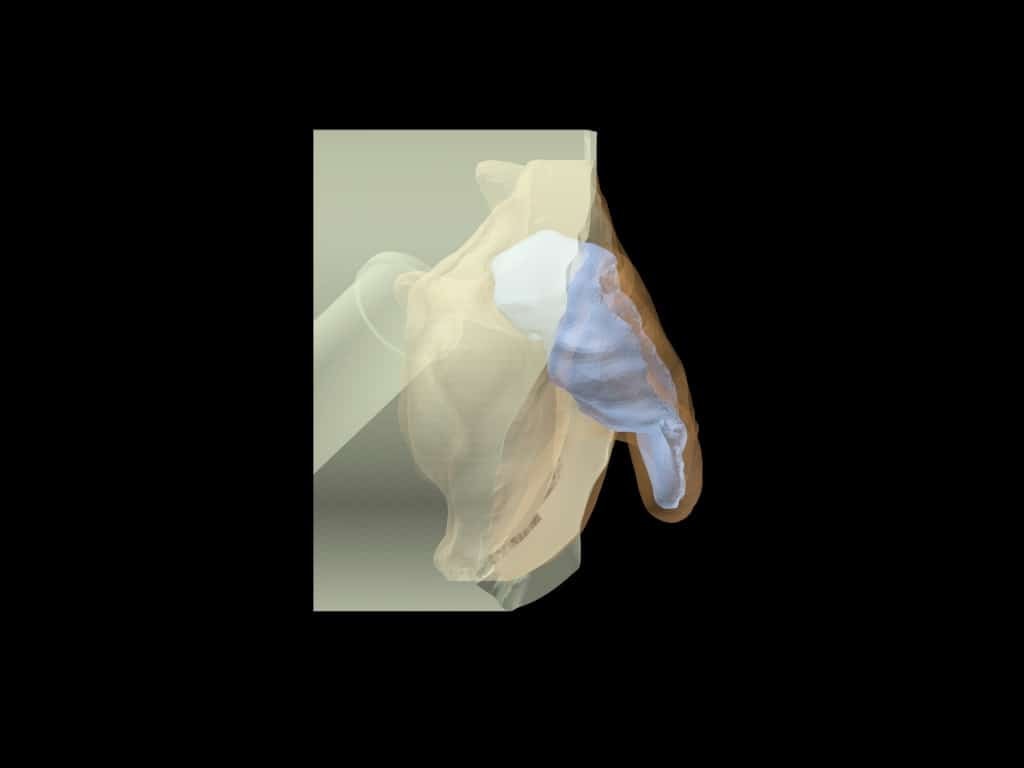

The Ear Phantom is a product with the complex anatomy of a human ear, and it can be used for research and development of noise reduction equipment. The phantom can be customized to match a wide variety of pro-jects that involve Ultrasound, X-Ray/CT, and MRI imaging methods. The ear phantom could be your ideal tool to test and do calibration-related work on any hearing aid equipment.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

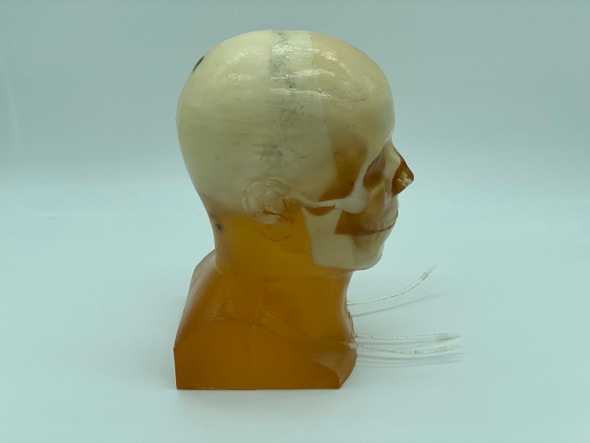

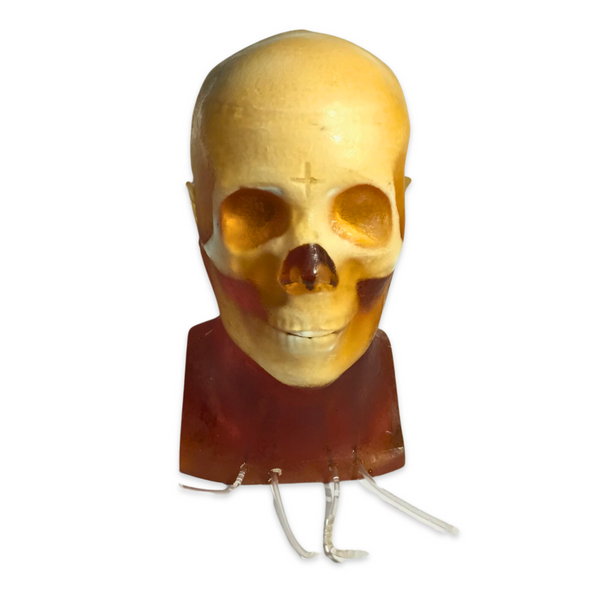

It can be fabricated as a stand-alone product or implemented to the full skull and/or head phantom.

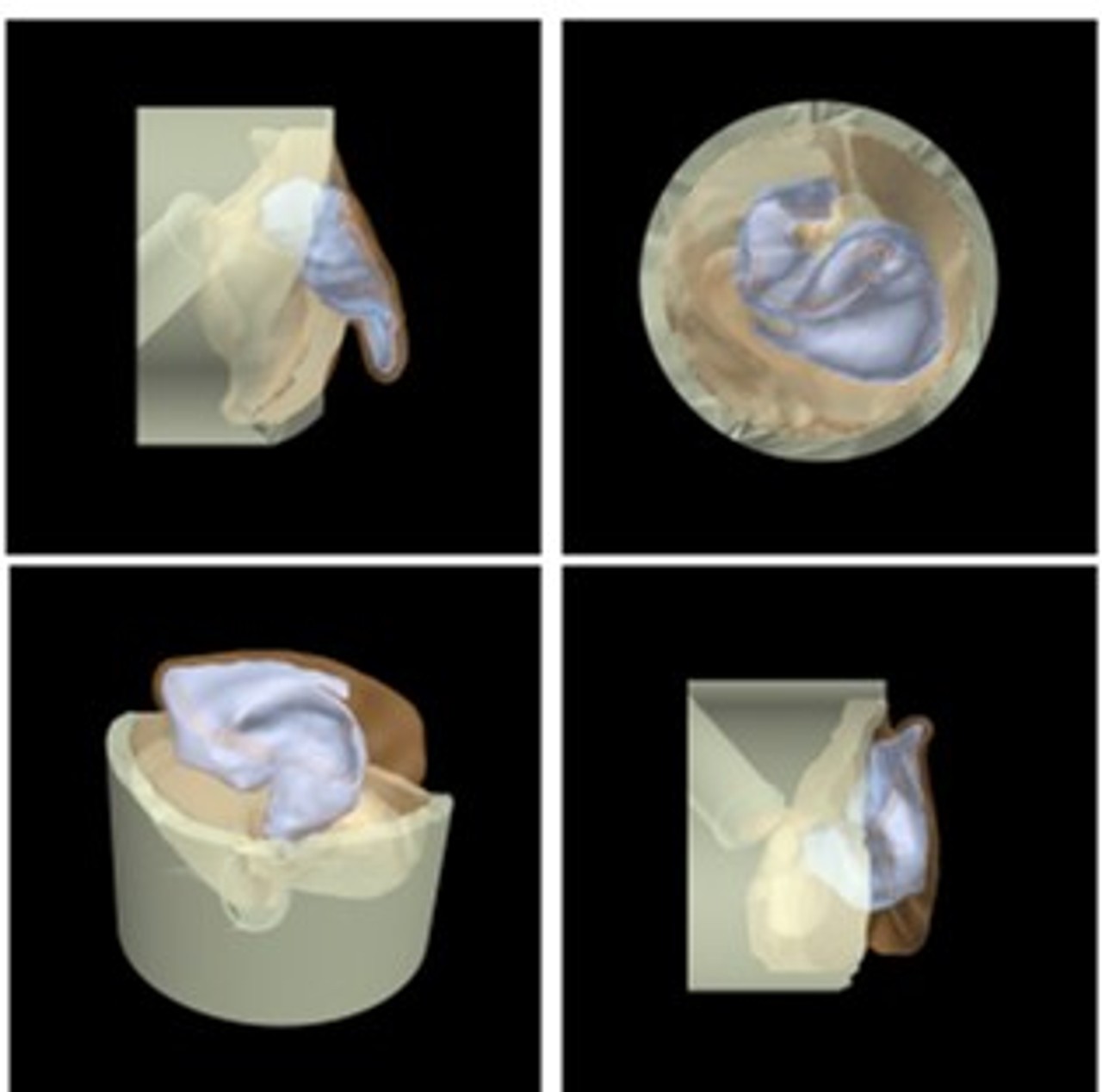

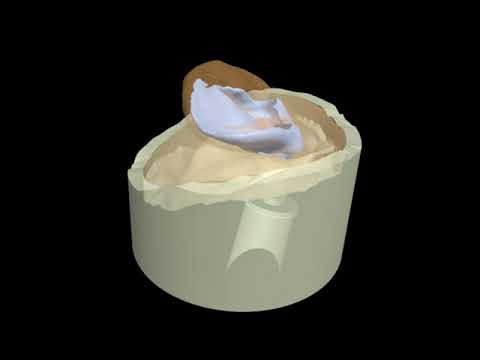

Anatomy:
- Ear Cartilage Tissue

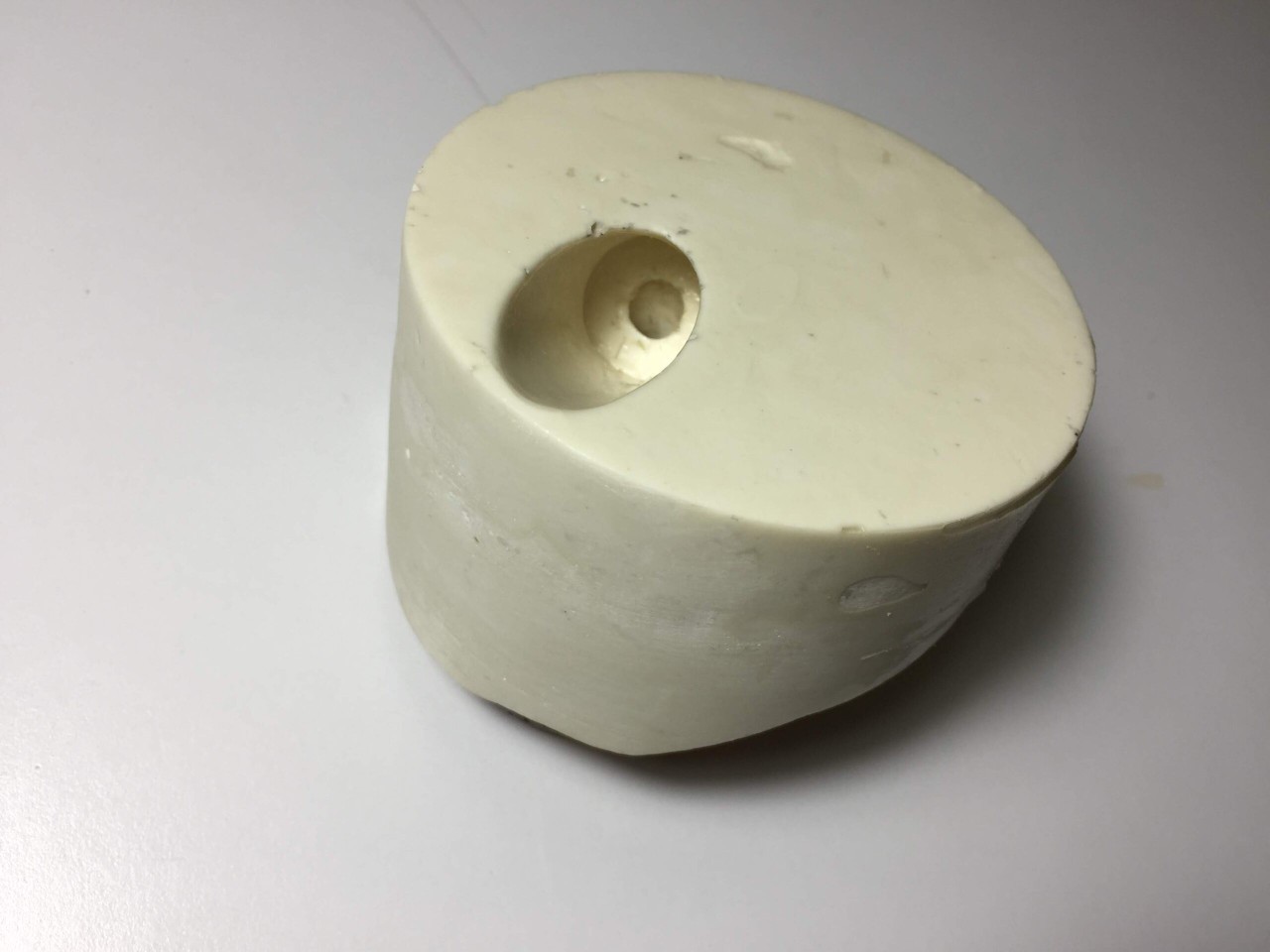

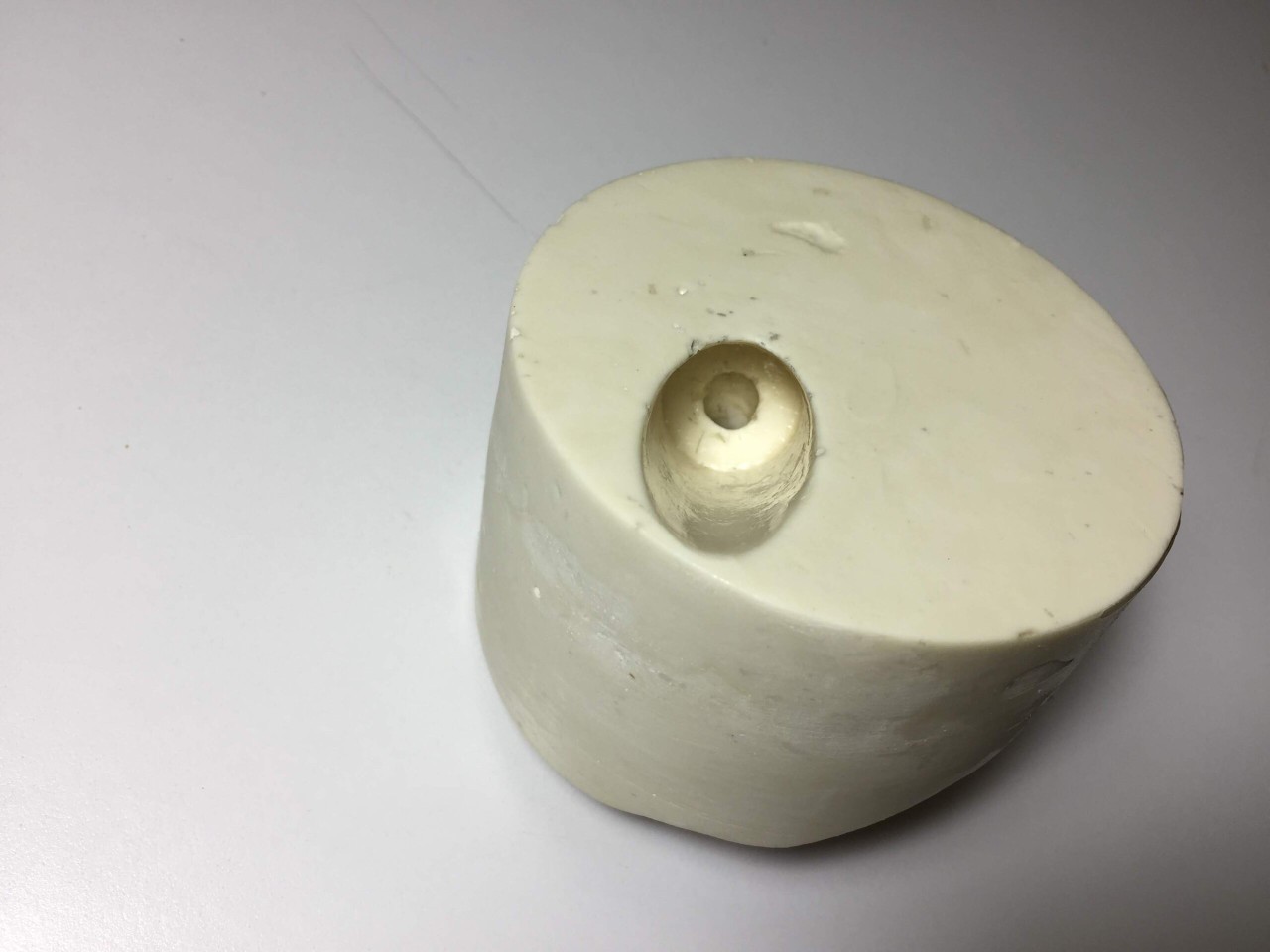

- Bone with Ear Canal
- Acoustically Accurate Skin Mimicking-Tissue
Dimensions
- Phantom Size: 3 x 3 x 3 in.
- Phantom Weight: 1 lbs. (approx)
- Shipping Size: 12 x 10 x 10 in.
- Shipping Weight: 3 lbs. (approx)
Material Used:
- Soft tissue and organs: Composition of urethane base soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
PROPERTIES OF OUR ADULT HUMAN EAR PHANTOM:
| Type of tissue phantom | Sound velocity
[m/s] |
Density [g/cm3] | Attenuation measured at 2.25 MHz [dB/cm] | Hardness | Speckles |
| Soft tissue | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 Shore OO | NO |
| Cartilage | 1800 ± 10 | 1.03 | 25 ± 2 | 65 Shore A | NO |
| Temporal bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A |
THERMAL PROPERTIES OF OUR BONE MIMICKING MATERIAL
| Thermal Conductivity: | Volumetric Specific Heat Capacity: | Thermal Diffusivity: | Thermal Resistivity: | Specific Heat: | Speed of Sound: |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
