Guardian Baby Model Overview

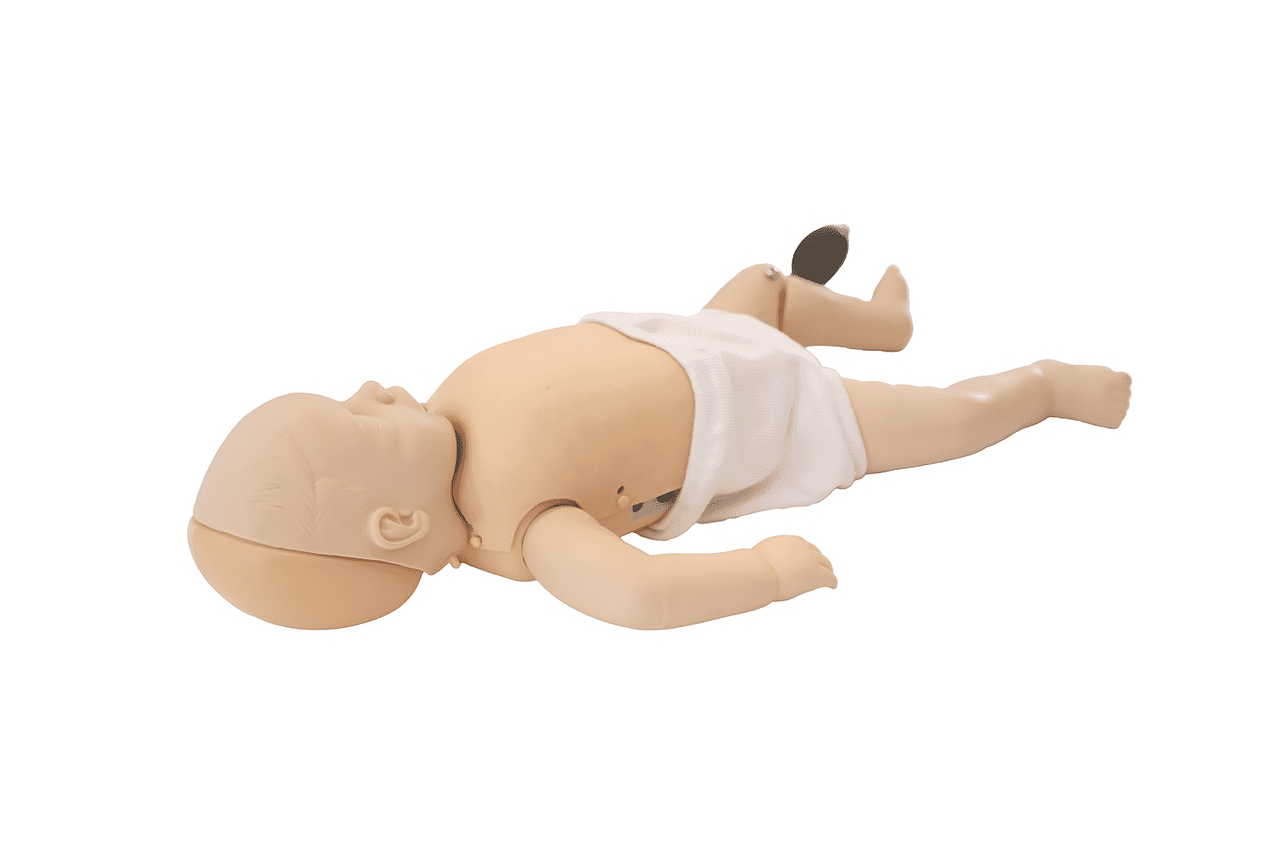

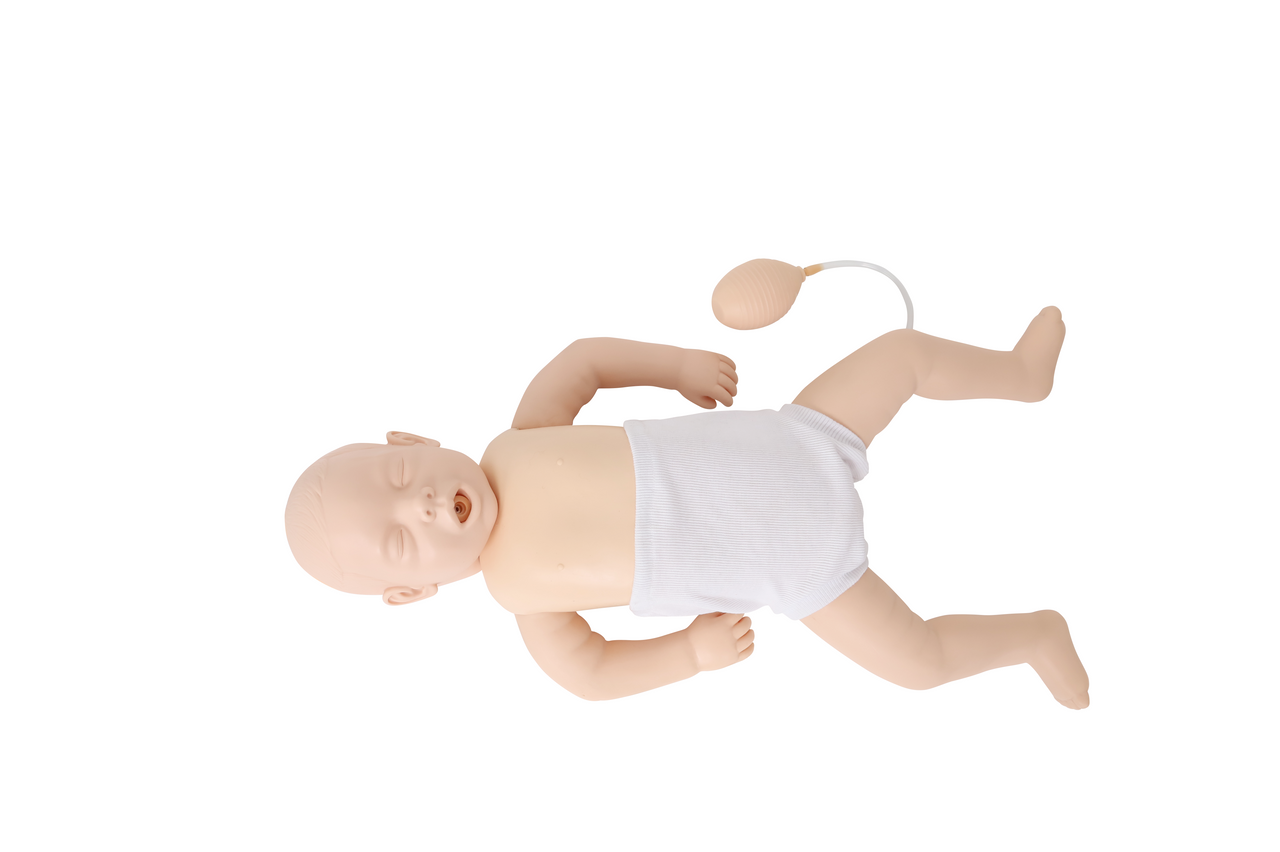

The Guardian Baby model simulates a three-month-old infant and is designed for basic CPR training, assessment, and debriefing. It provides real-time operation data to enhance learning and performance evaluation. This model is an excellent choice for trainees learning to perform high-quality CPR.

Skills Developed:

• Understanding of infant anatomy
• Clear grasp of CPR principles and techniques, enhanced by real-time feedback
• Knowledge of performing tibial puncture

Key Features

Manikin:

• Realistic baby model with accurate anatomical structures, including palpable bony landmarks such as the manubrium sterni and xiphoid process
• Movable neck and limbs with a soft, lifelike feel
• Airway management through head tilt-chin lift and jaw thrust, with detection of whether the airway is open

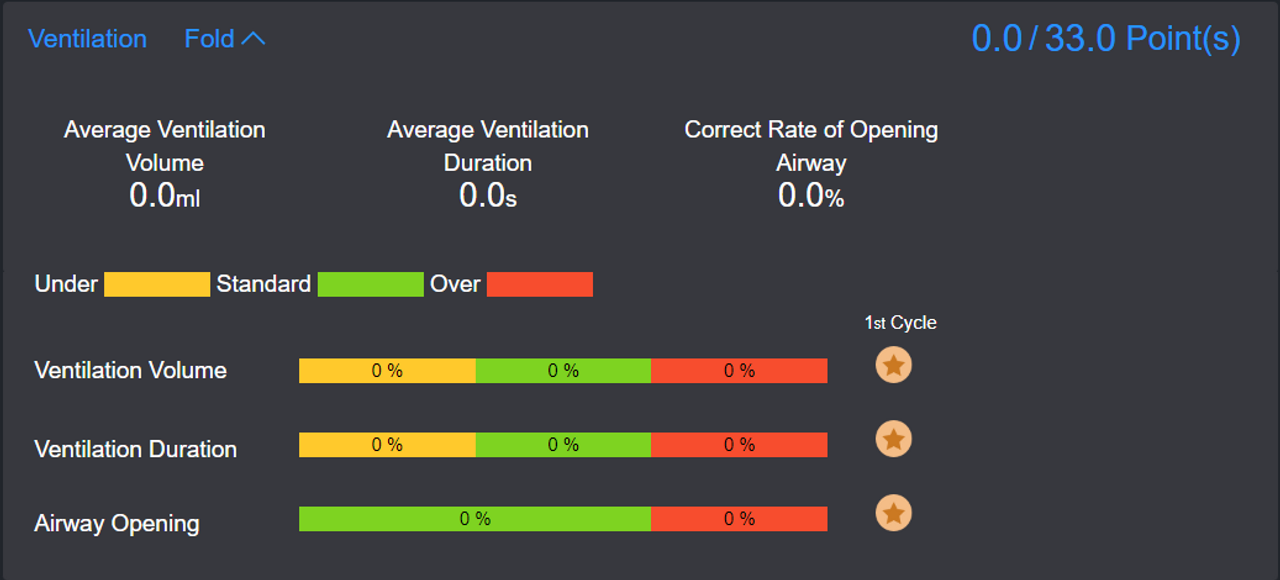

• Ventilation via mouth-to-mouth or BVM (bag-valve mask), with automatic detection and evaluation of tidal volume
• Compression positioning indicated by the nipple line
• Supports both one-person and two-person CPR, with 30:2 and 15:2 compression-to-ventilation ratios
• Real-time display of compression data during CPR; the manikin is durable enough to support over 80,000 chest compressions

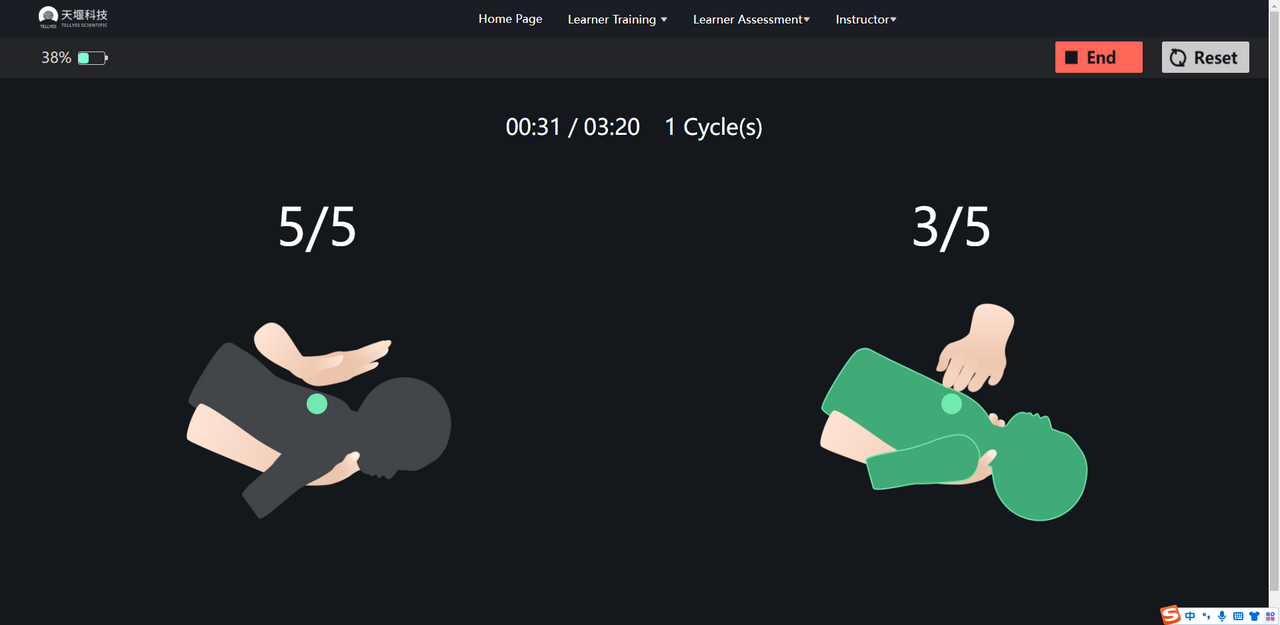

• Heimlich maneuver capability, with detection of backslaps and abdominal thrusts; operation cycles are automatically recorded
• Artificial brachial artery pulse simulation
• Tibial puncture can be performed using real needles; fluid can be withdrawn or injected. The puncture site is replaceable and durable
• Built-in lithium battery with a continuous runtime of over 3 hours
• Wireless design for easy operation
• Supports over 100,000 chest compressions

Guardian Baby (Pack of 6):

• Manages up to six baby models for training and assessment, with operation data displayed for each individual model

Software:

• Compatible with mobile phones, tablets, PCs, and other devices, supporting Windows, Android, and other mainstream operating systems. No pre-installation required for wireless communication

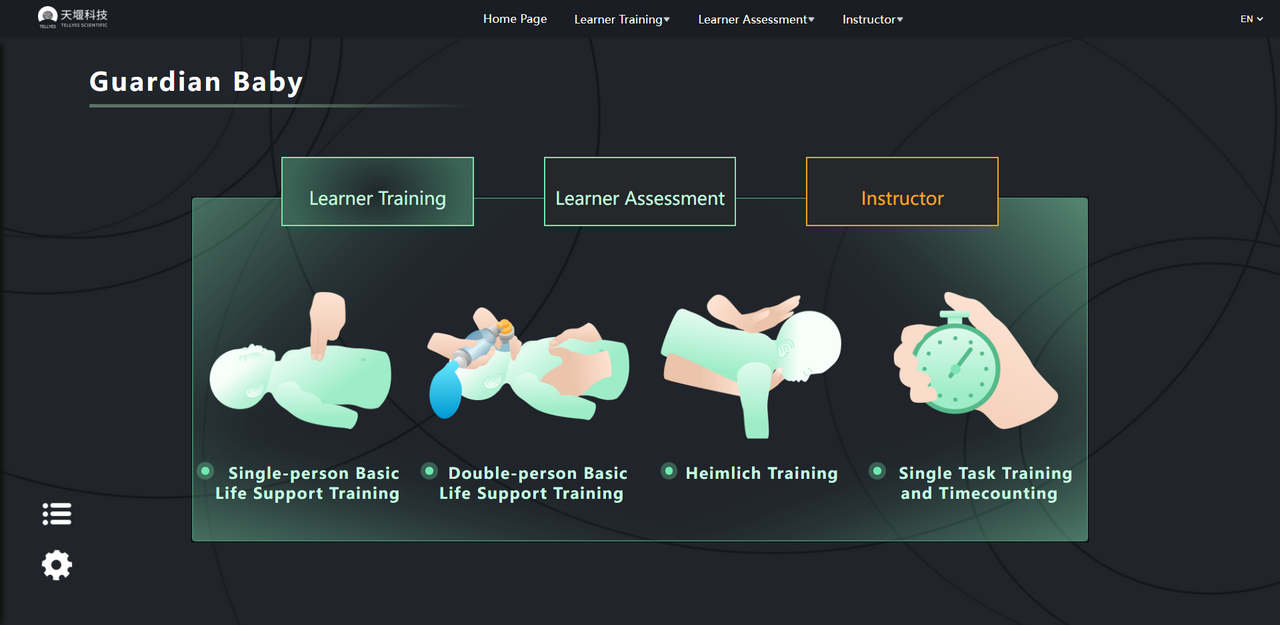

• Two modes available: Instructor Mode and Learner Mode
• CPR training with real-time data display and objective evaluation
• Customizable training duration
• Compliant with 2020 AHA (American Heart Association) guidelines

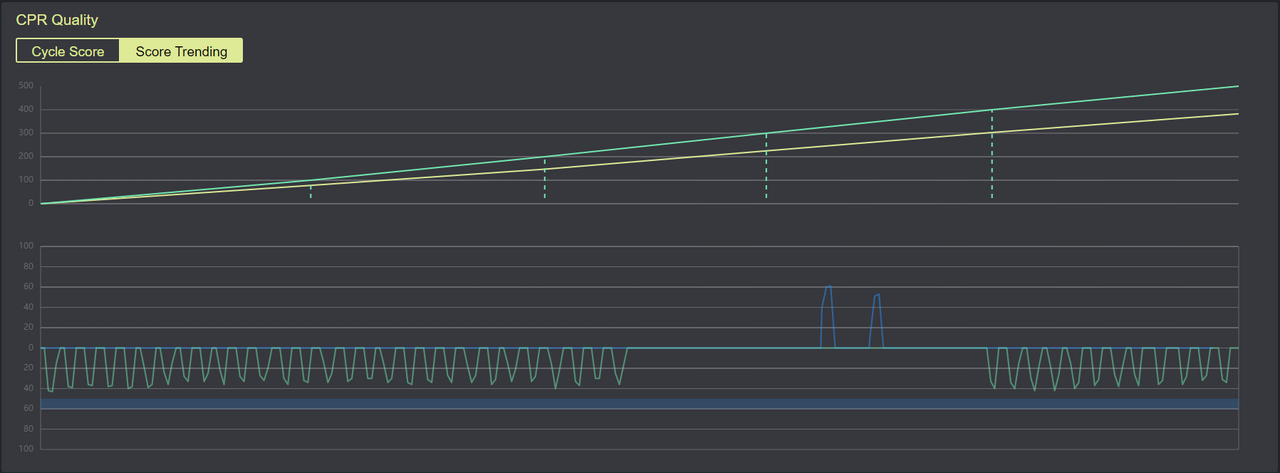

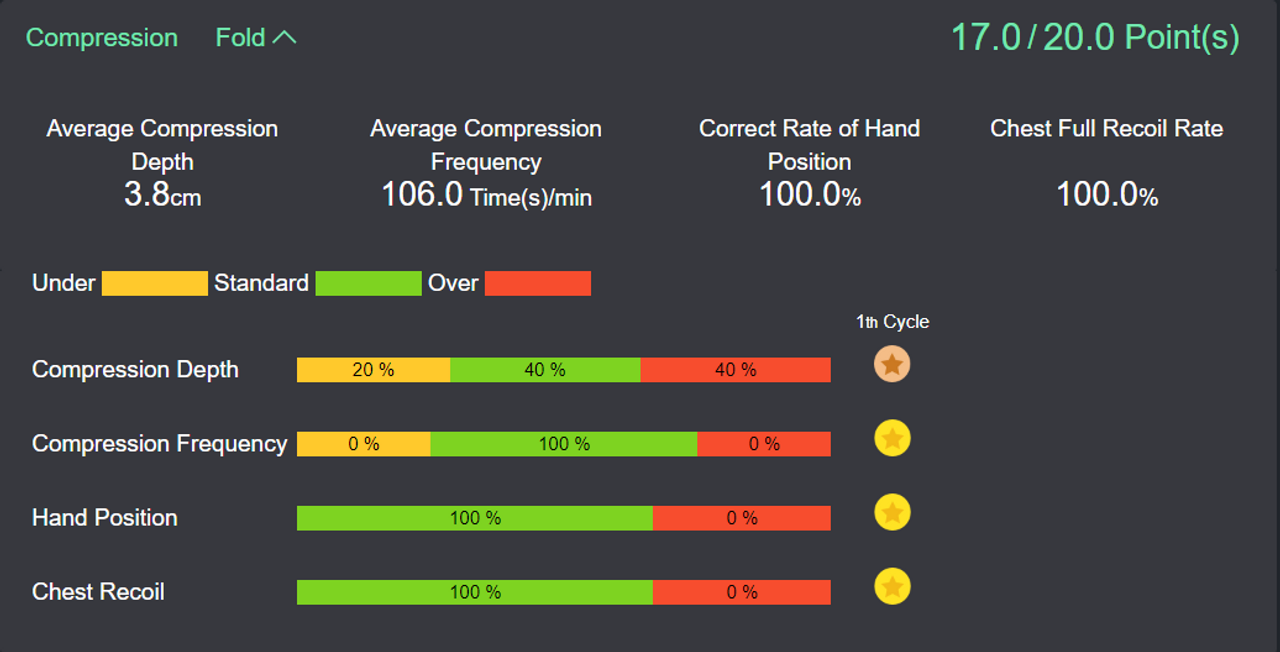

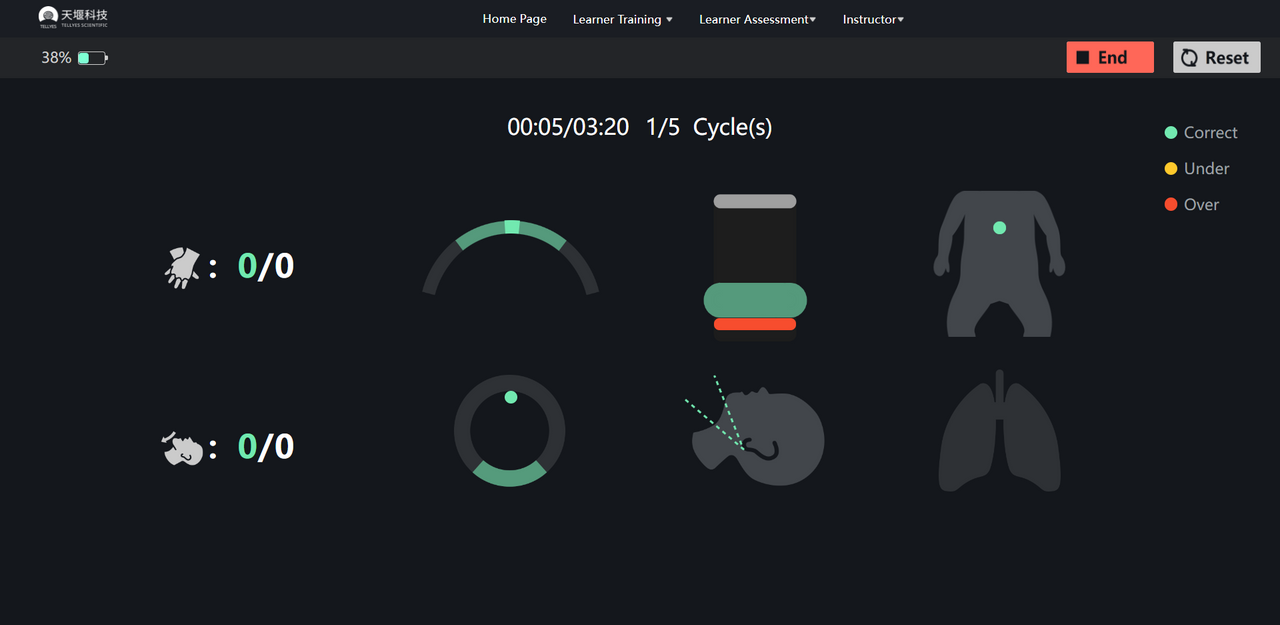

• Real-time data display includes compression depth, rate, position, and airway opening; users can easily correct improper actions based on this feedback

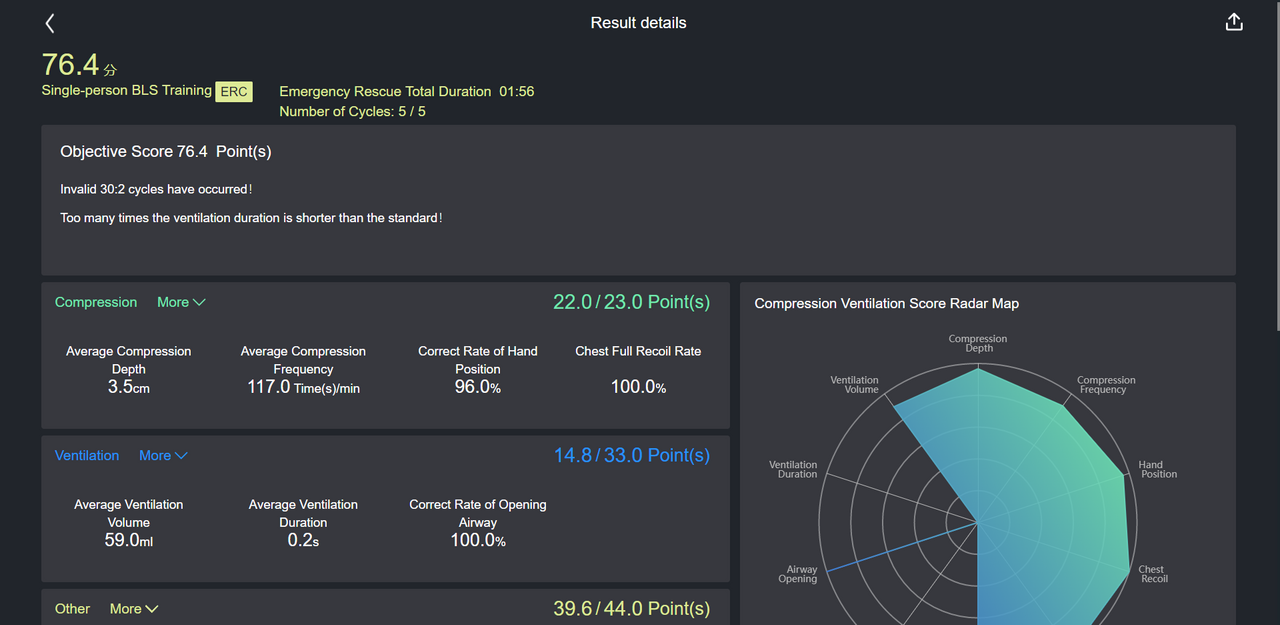

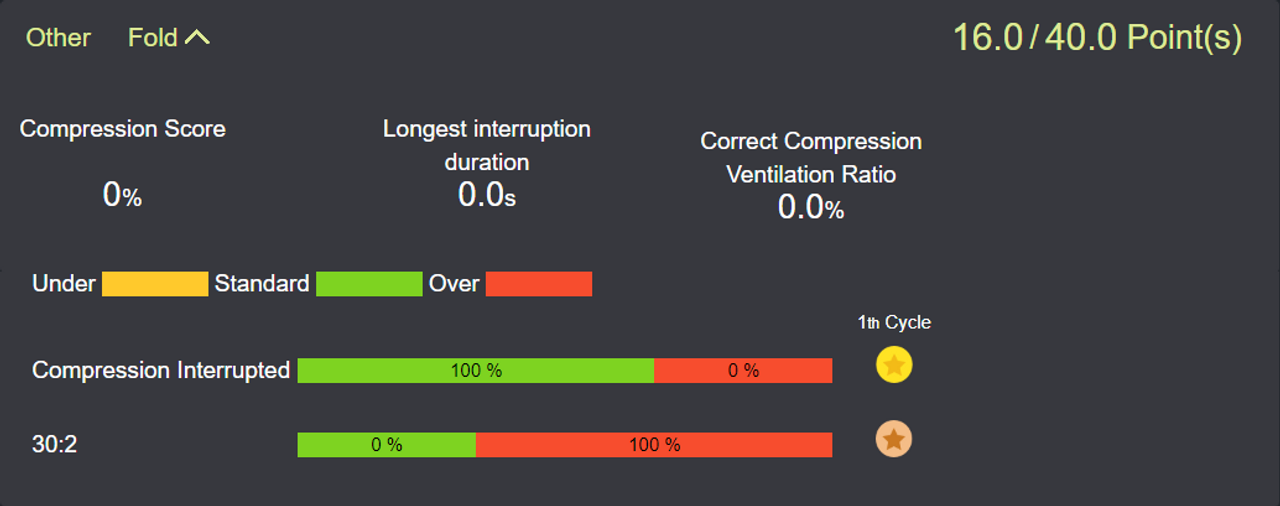

• All training and assessment data is automatically saved, allowing users to review detailed training history, including total scores, training duration, number of cycles, compressions, ventilations, and airway management
• Playback feature for reviewing, evaluating, and debriefing
• Results can be saved and exported for future reference
• Automatic calibration ensures synchronization between the device and the score list
• Guardian Baby can integrate objective training data from sensors with subjective data from the instructor to generate an exportable training transcript
• Optional router and network modes available
