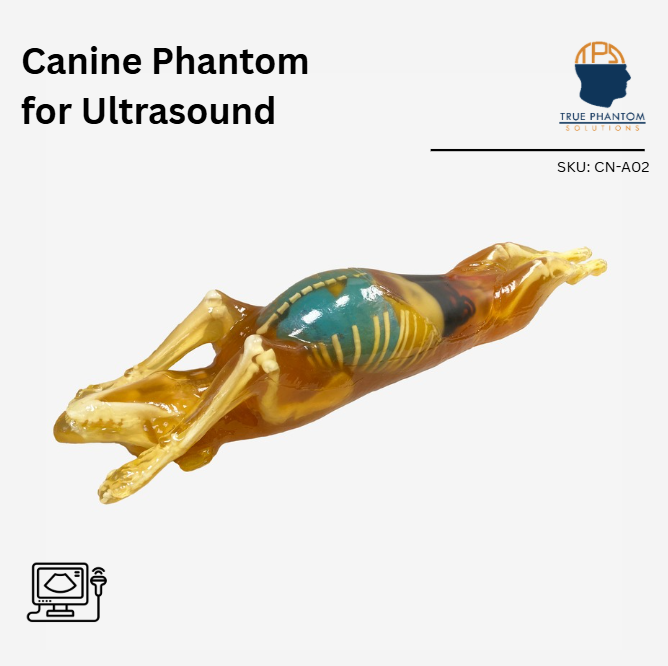

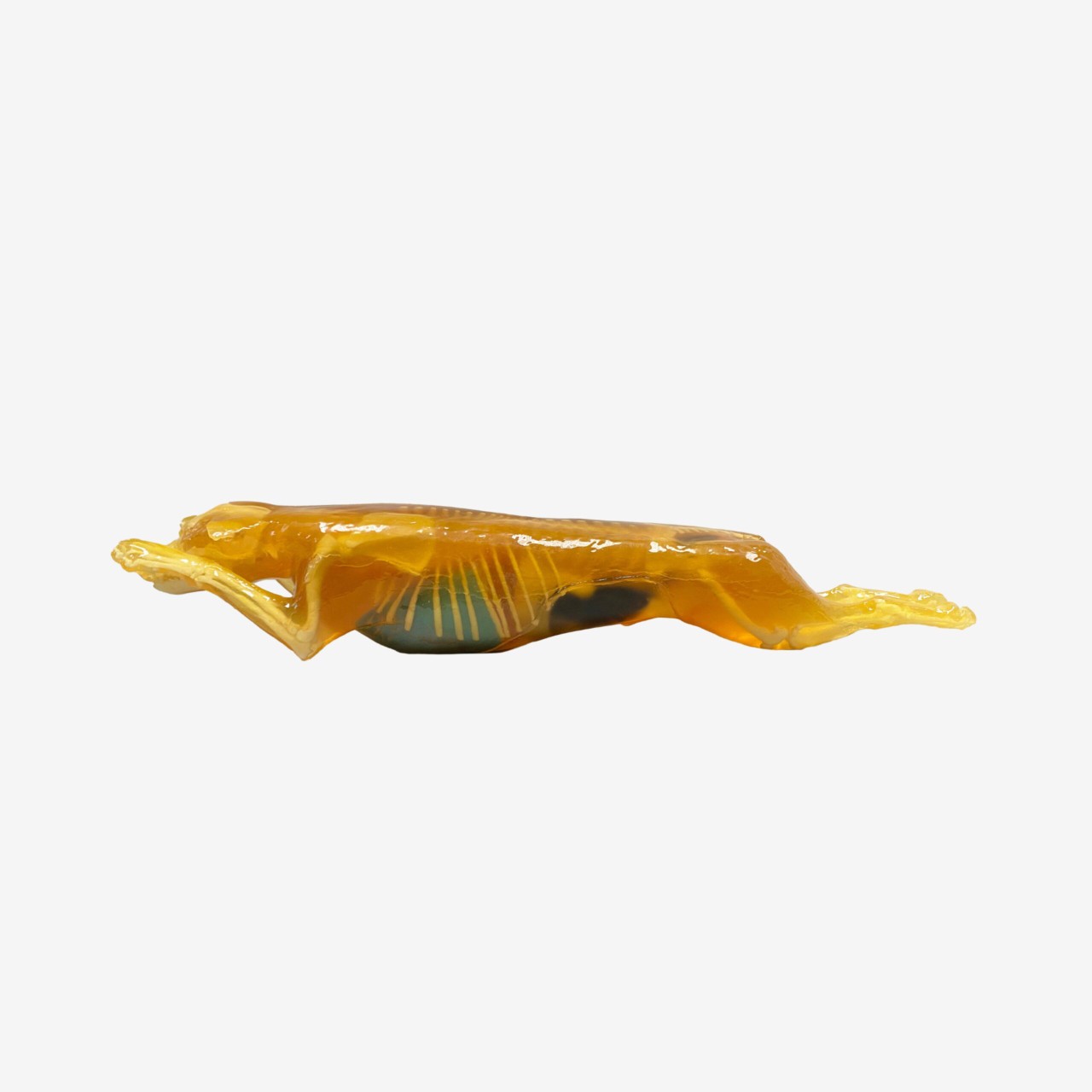

Canine Phantom for Ultrasound
Product Description

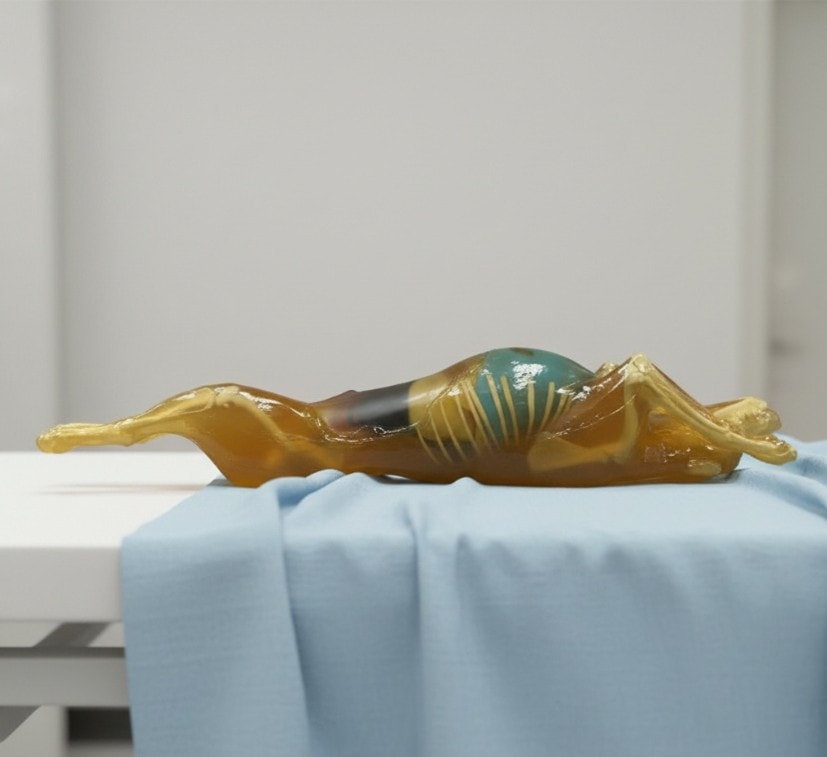

The Canine Phantom for Ultrasound is engineered for high-fidelity veterinary education and hands-on training. This model features ultrasoft abdominal tissue to provide realistic scanning feedback. Based on a CT dataset of a male Bull MastiffRhodesian Ridgeback cross, it delivers exceptional anatomical authenticity through AI-refined reconstruction.
This phantom supports a wide spectrum of applications, including ultrasound instruction, diagnostic imaging, and ultrasound-guided biopsy procedures within the abdominal area. While primarily designed for ultrasound, it remains compatible with X-Ray and CT imaging.
Note: By default, the phantom comes in a translucent amber appearance. It includes a protective coat that increases tissue hardness from Shore OO 30 to approximately OO 60.
Anatomy
- Head: 3D-Printed Skull and Jaw Bone
- Torso: 3D-Printed Complete Spine, Ribcage, Shoulder (Scapula), and Pelvis
- Tail: 3D-Printed Tailbone with Skin-Mimicking Material
- Realistic Heart: Internal Structures including Valves, Chambers, and Major Vessels (IVC, SVC, Aorta)
- Internal Organs: Lungs, Diaphragm, Stomach, Liver with Vessels, Gallbladder, Kidneys with Vessels/Arteries, Spleen, Intestinal Tract (Large/Small Intestine, Caecum, Rectum), Pancreas, Bladder, and Ureters
- Limbs: Front Arms and Rear Legs
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00]* | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
*Measured without the protective coat; coating increases hardness by approx. 30 points.
HU Values of Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (Average) |
|---|---|---|
| 1 | Body Tissue | -25 |
| 2 | Aorta | 40 |
| 3 | Vena Cava | 40 |
| 4 | Trachea | 80 (Tissue) / -1000 (Air) |
| 5 | Pancreas | 110 |
| 6 | Spleen | 110 |
| 7 | Kidneys | 110 |
| 8 | Bladder | 35 |
| 9 | Rectum Wall | 100 |
| 10 | Sigmoid Colon Wall | 100 |
| 11 | Heart | 40 |
| 12 | Liver | 110 |
| 13 | Gallbladder | 35 |
X-Ray Positioning References
| View | Thickness (cm) | kV | mAs | Time (s) |
|---|---|---|---|---|
| Lateral | 15 | 82 | 300 | 1/30 |
| VD | 19 | 86 | 300 | 1/30 |
Included in Order
- Canine Phantom (Ultrasound Optimized)
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 110 x 20 x 20 cm (44 x 8 x 8 Inches) | Weight: ~16 kg (35 lbs)
Shipment: 120 x 42 x 24 cm (48 x 17 x 10 Inches) | Weight: ~29 kg (65 lbs)
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: 3D-printed realistic bones (fixed, non-articulating)
Imaging Scans

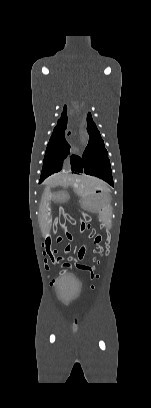

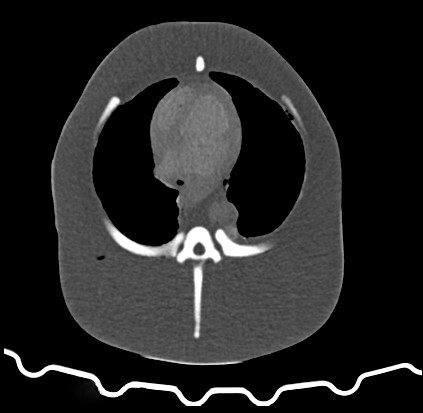

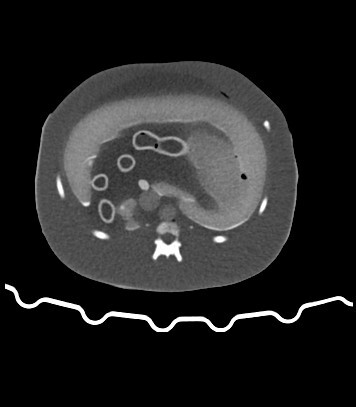

CT Image Scans

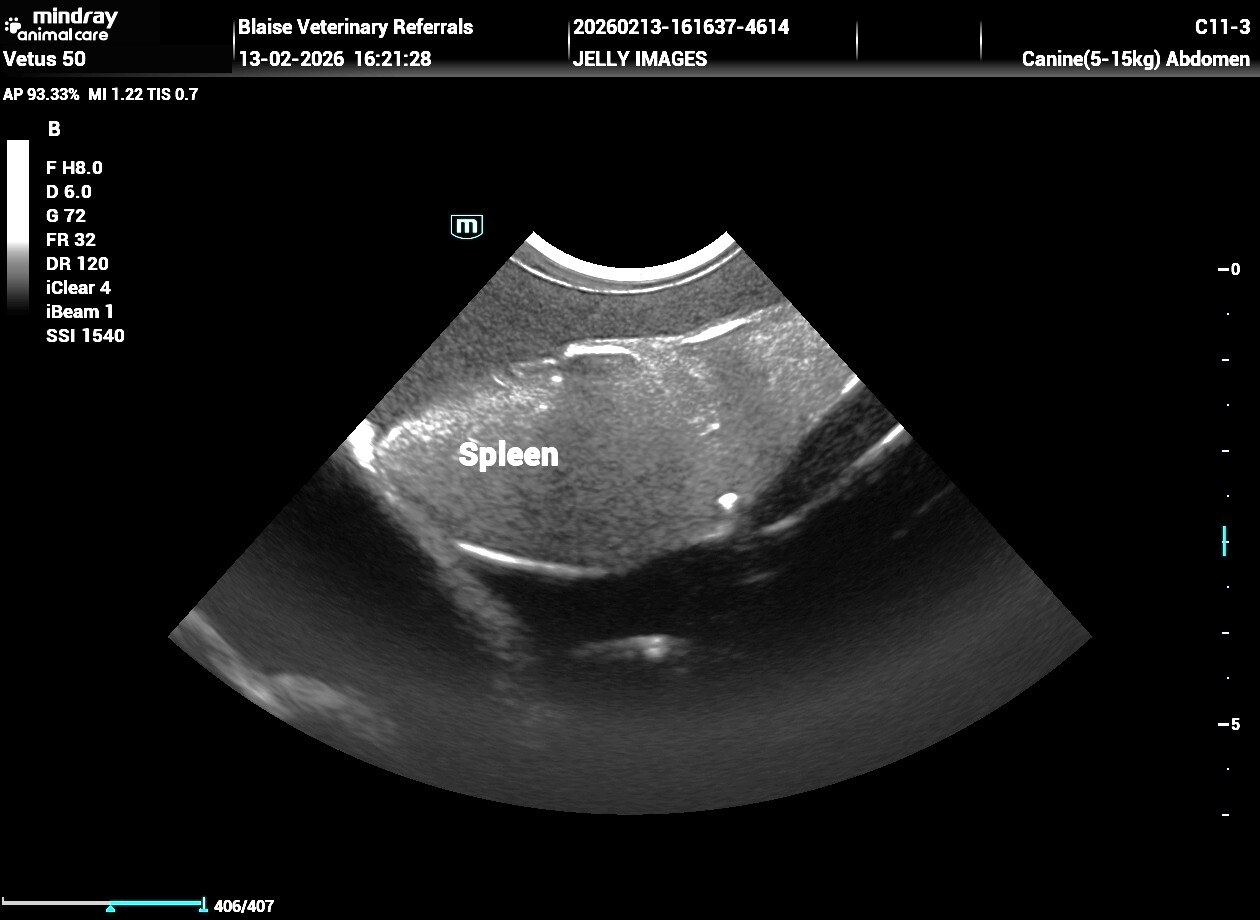

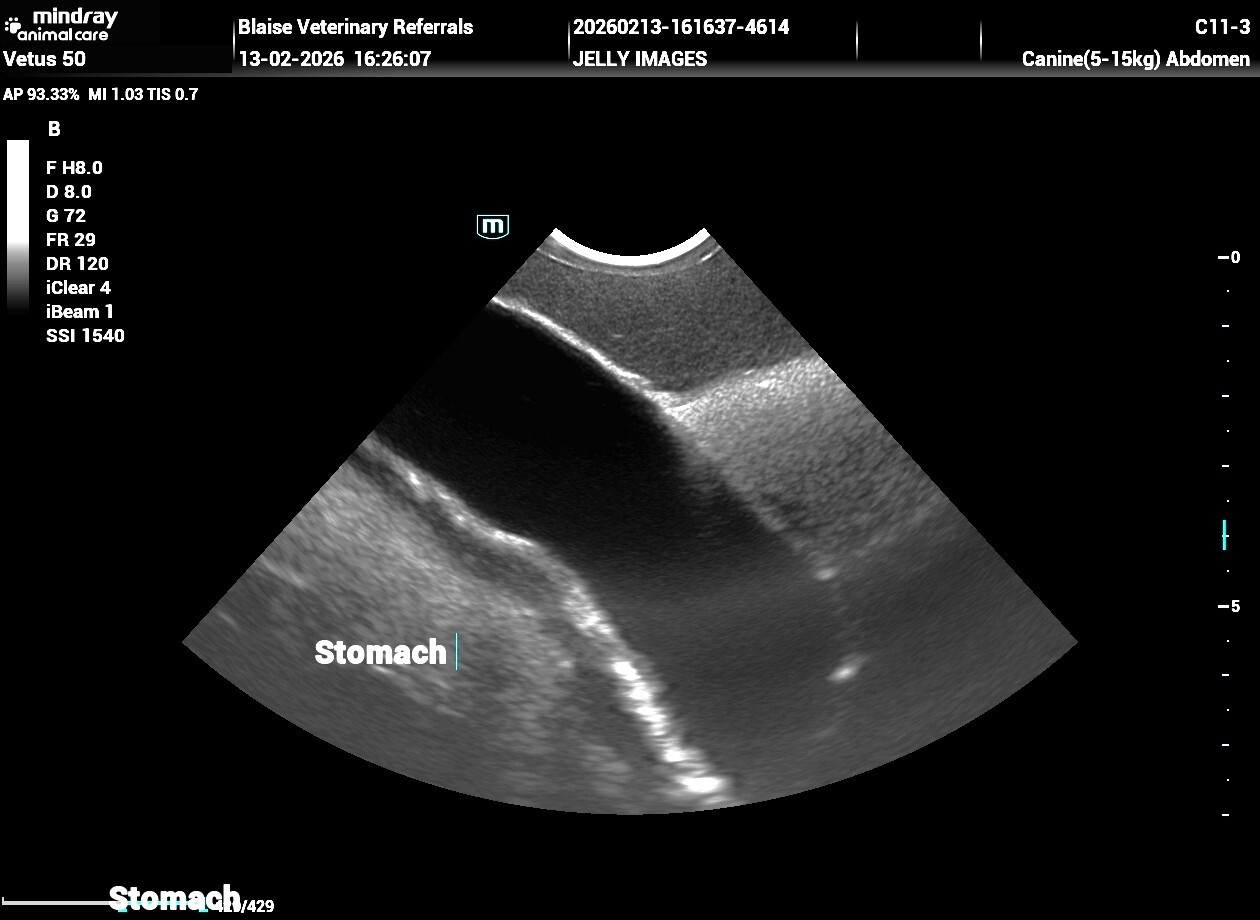

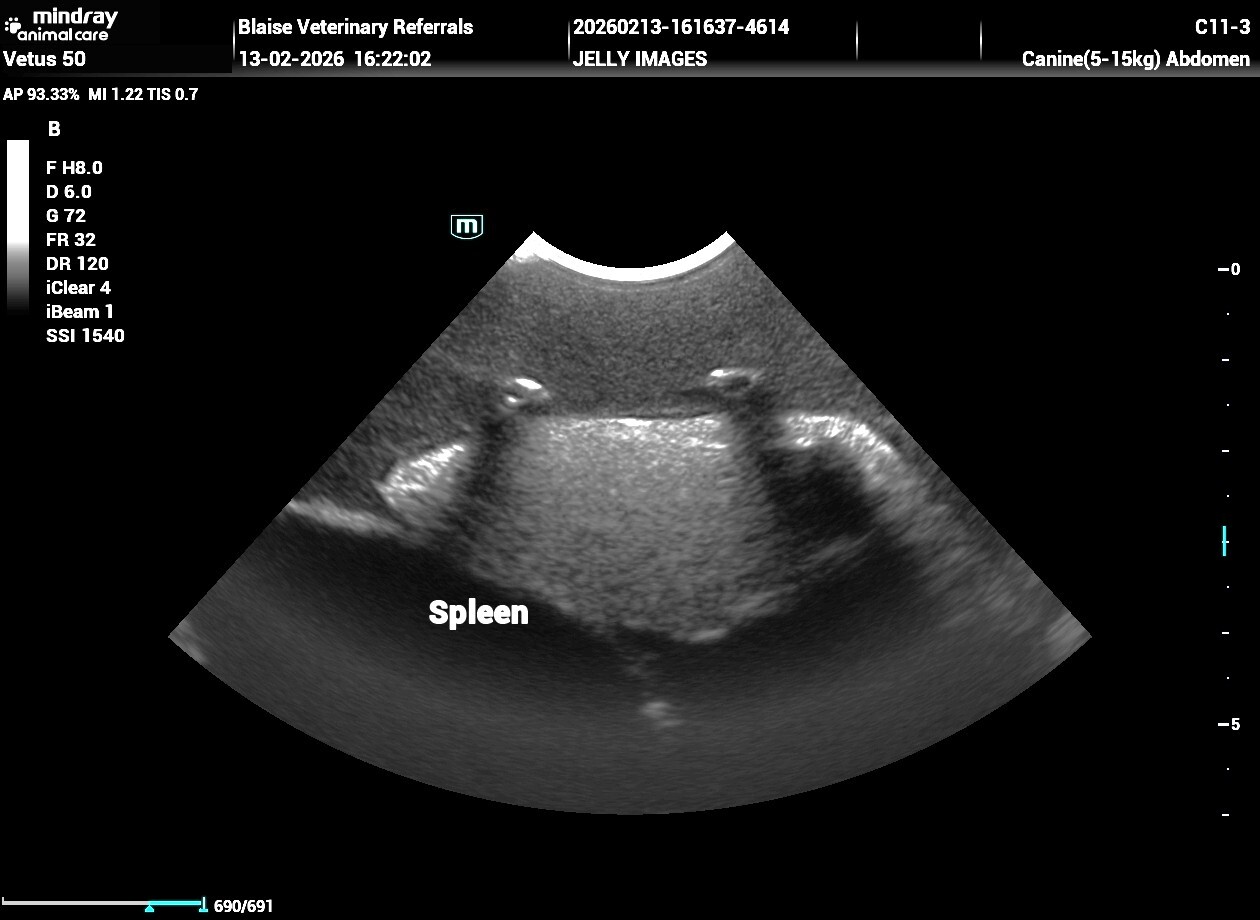

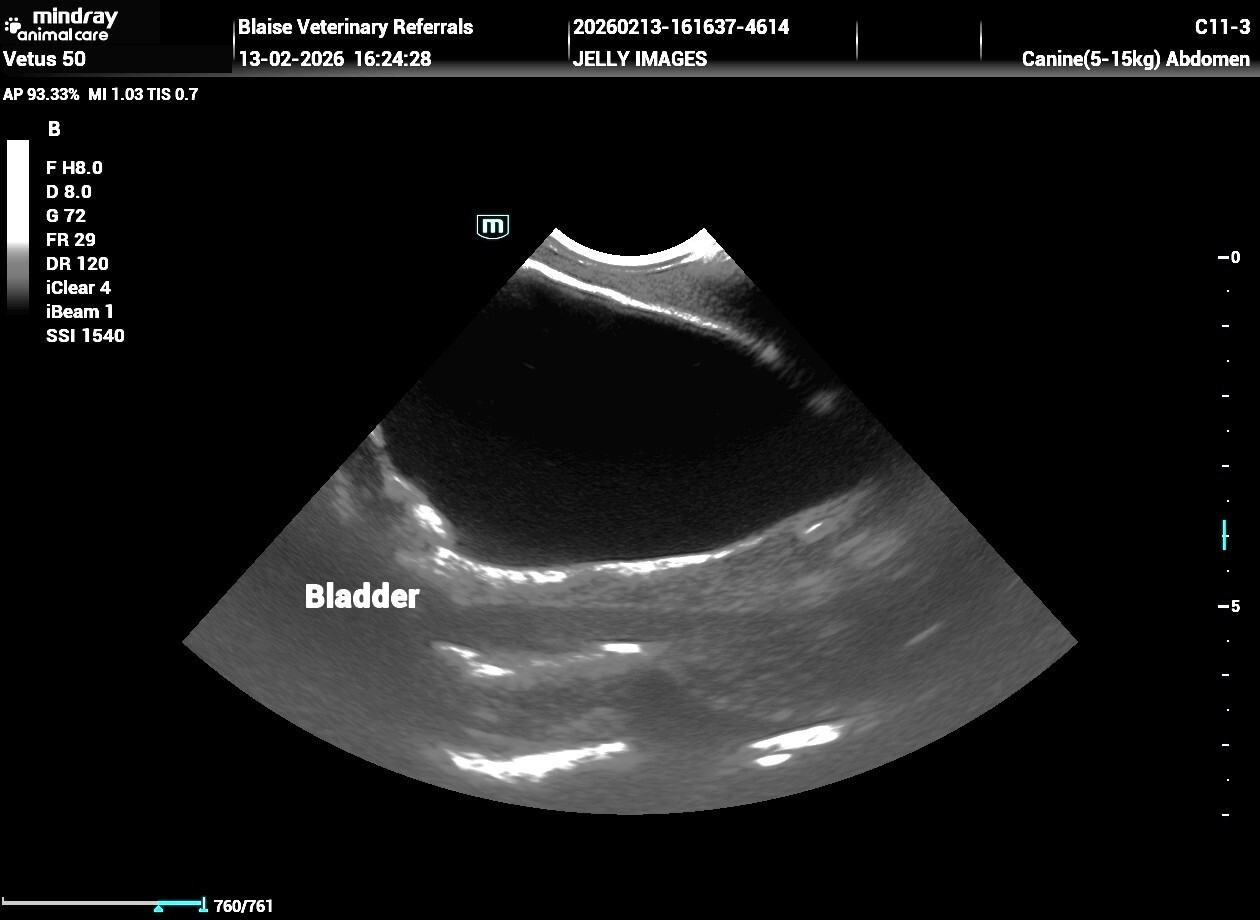

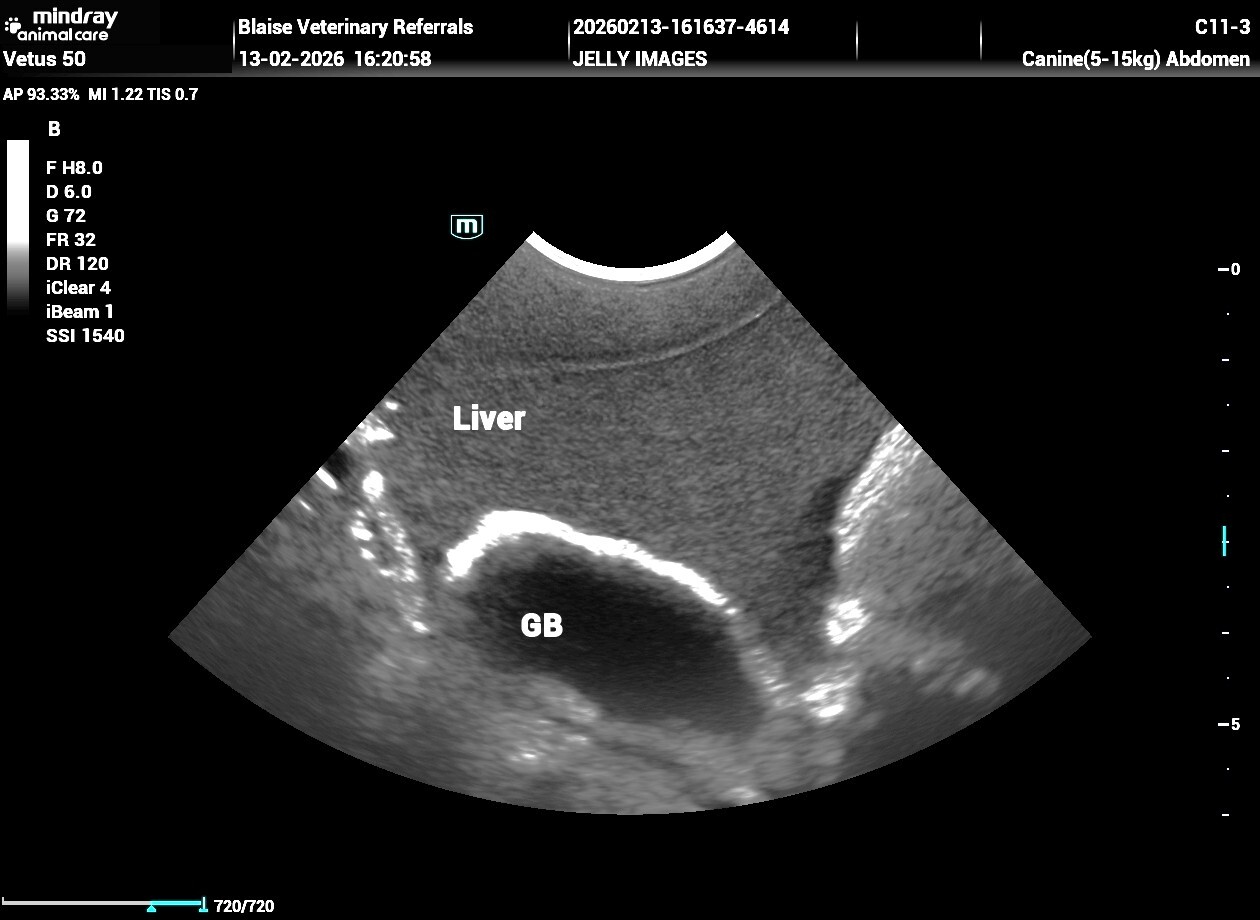

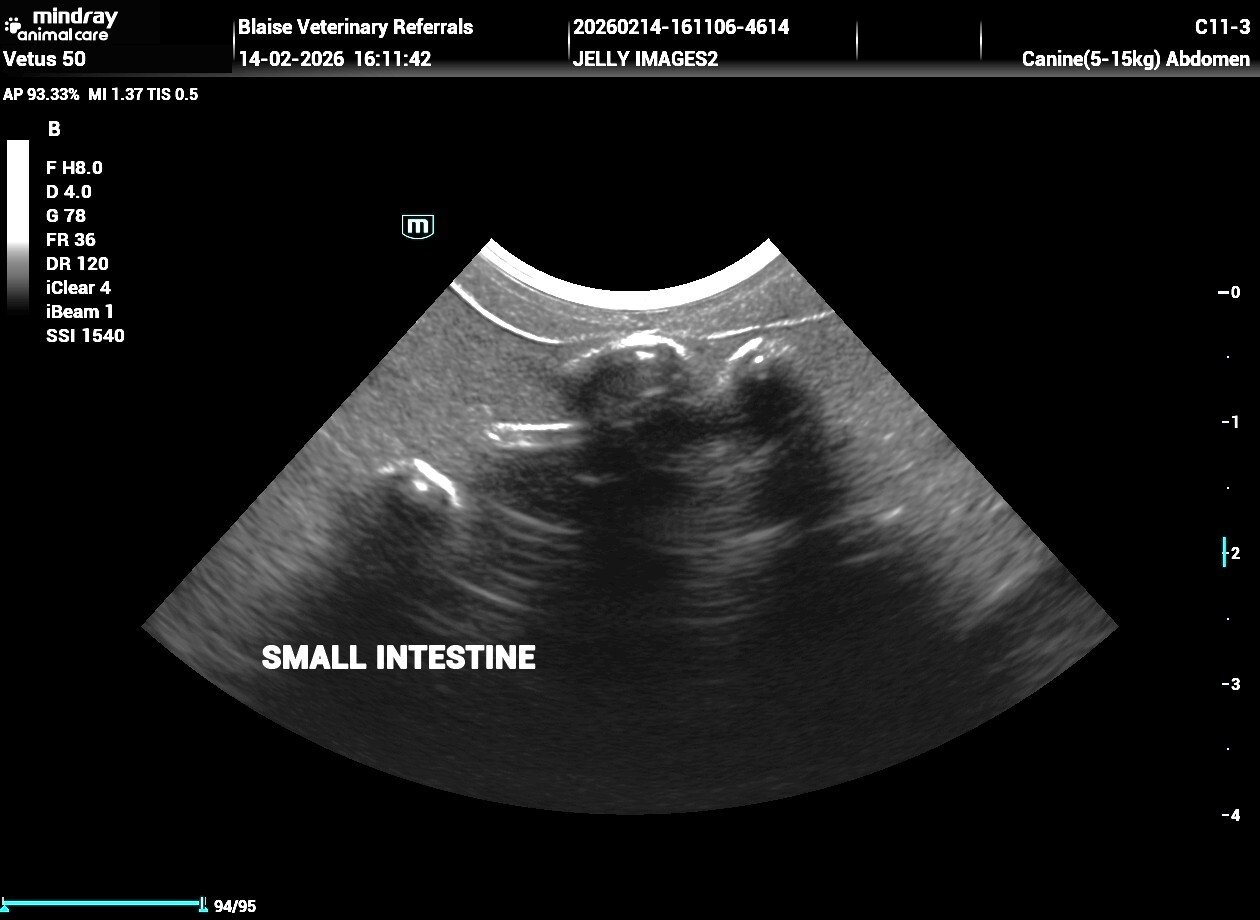

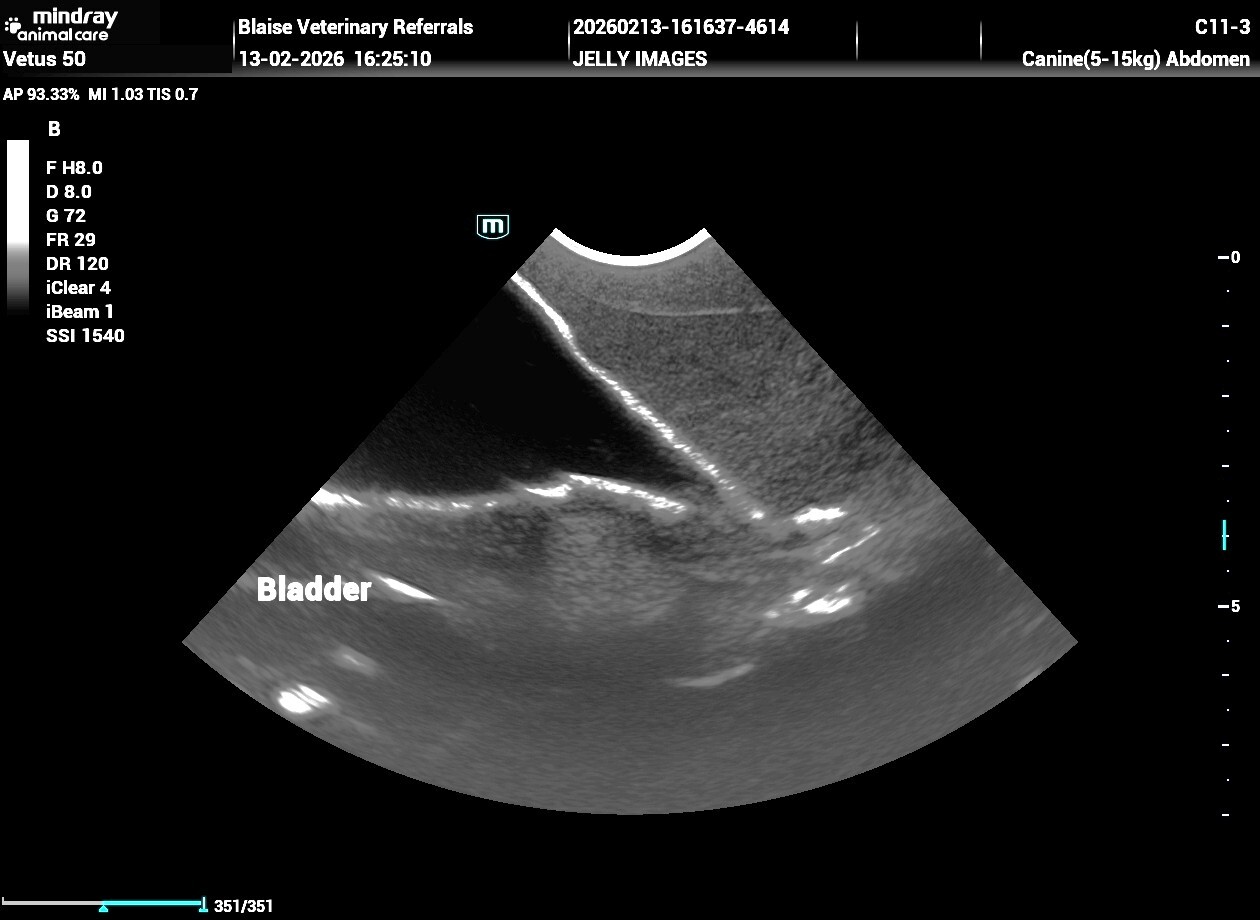

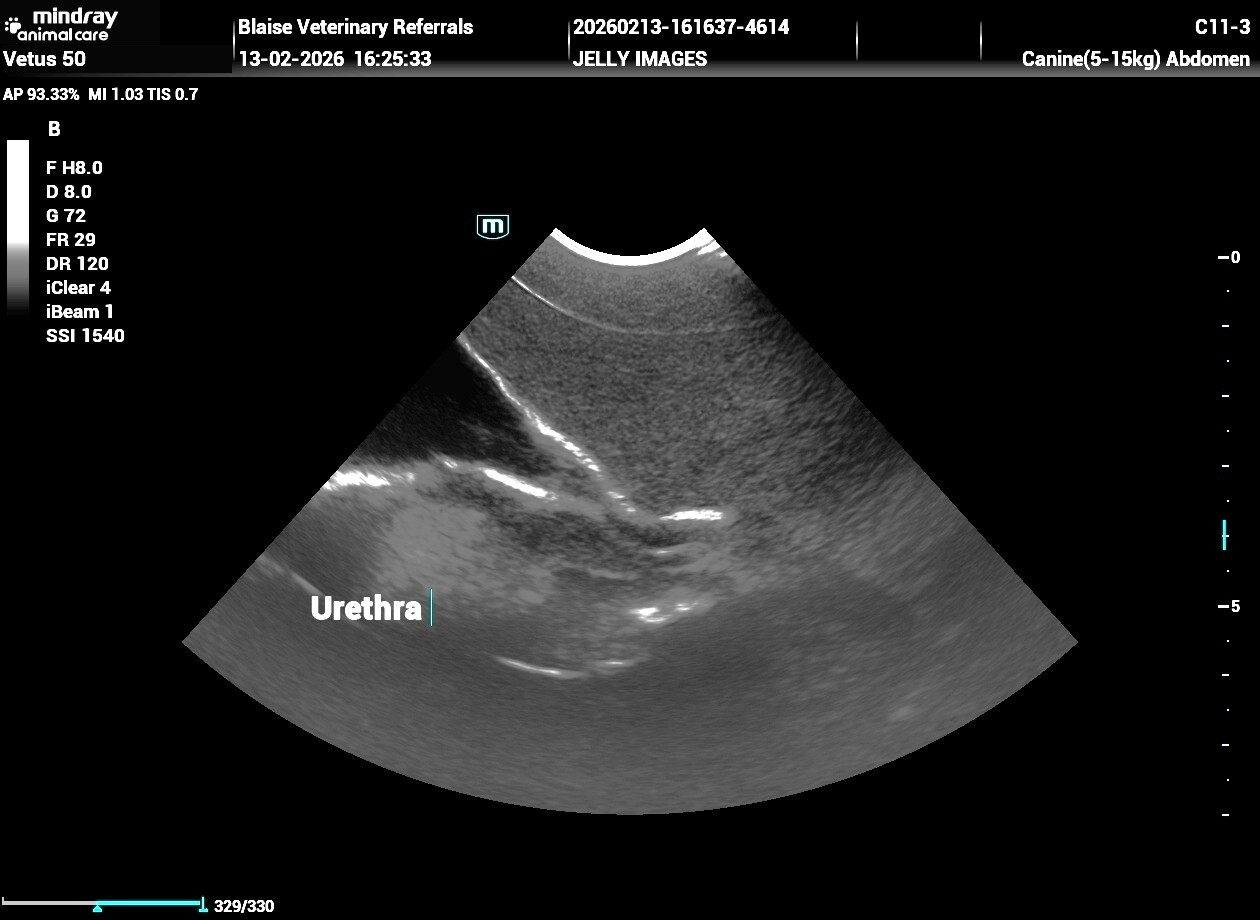

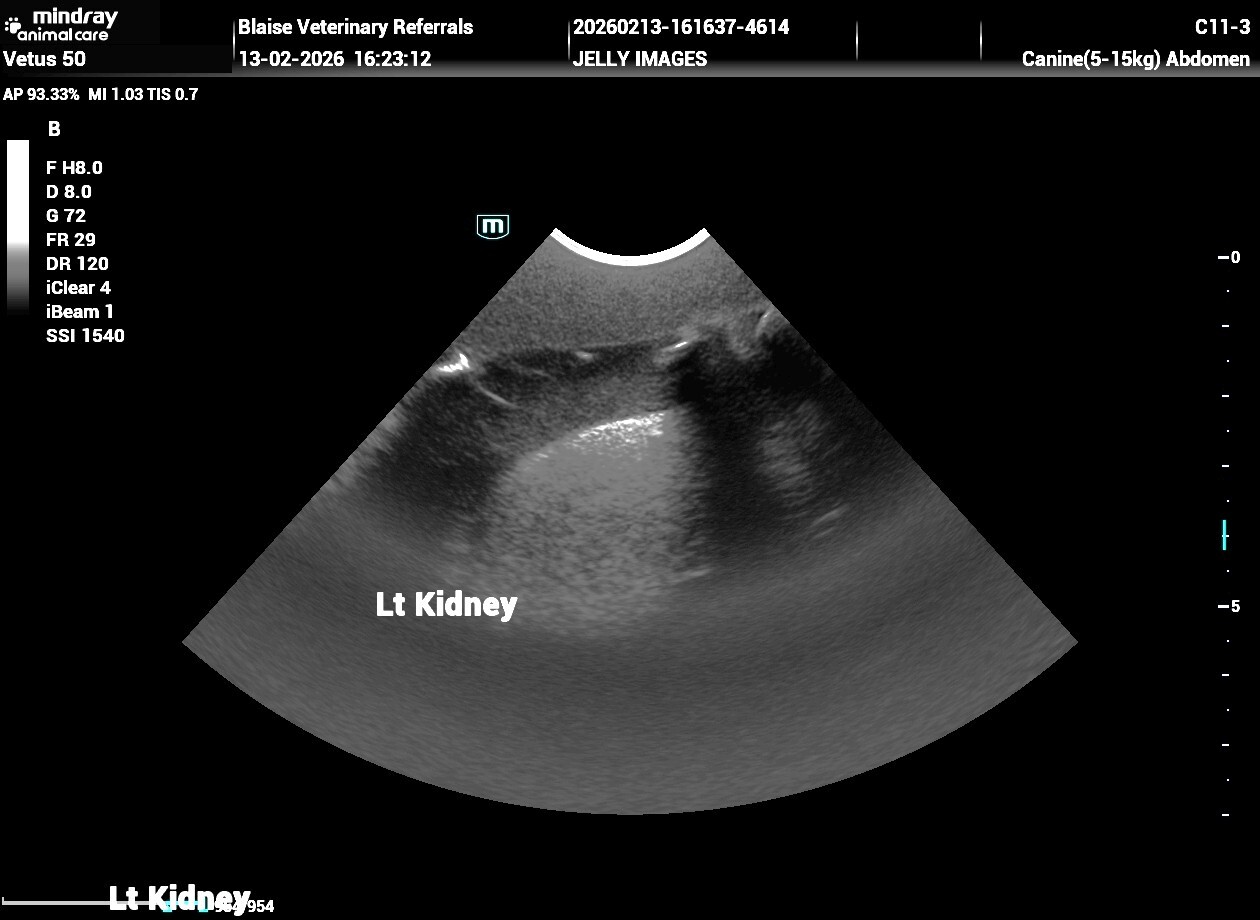

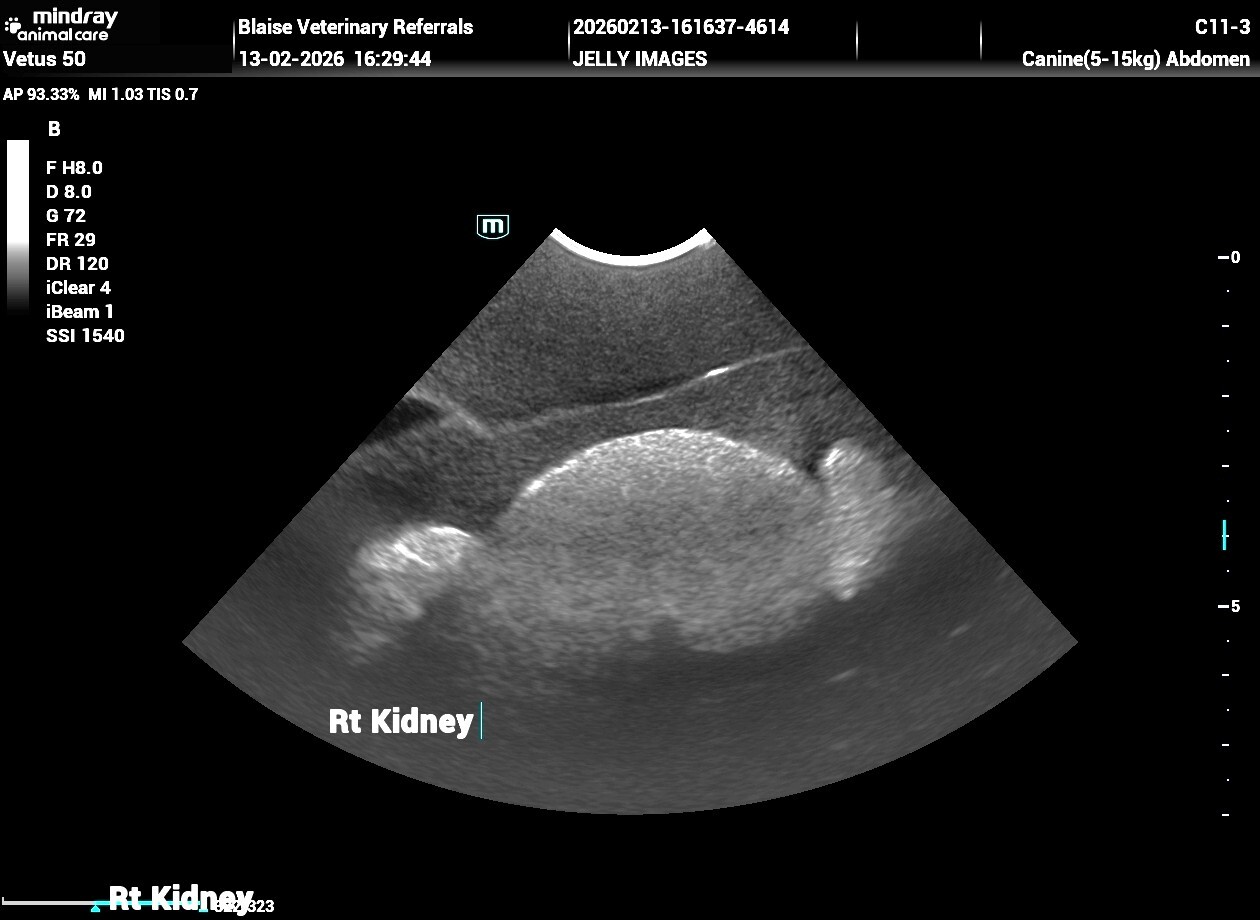

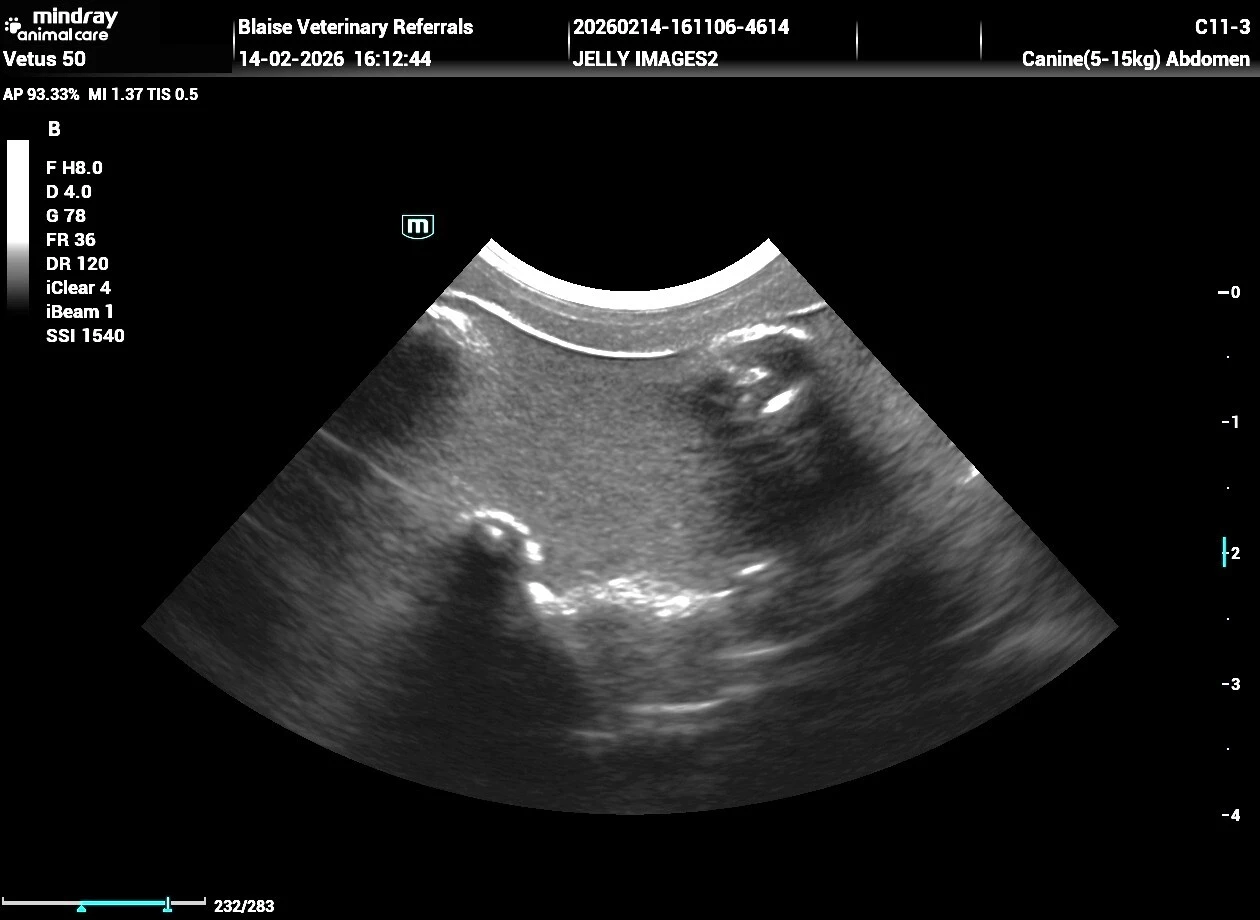

Ultrasound Image Scans

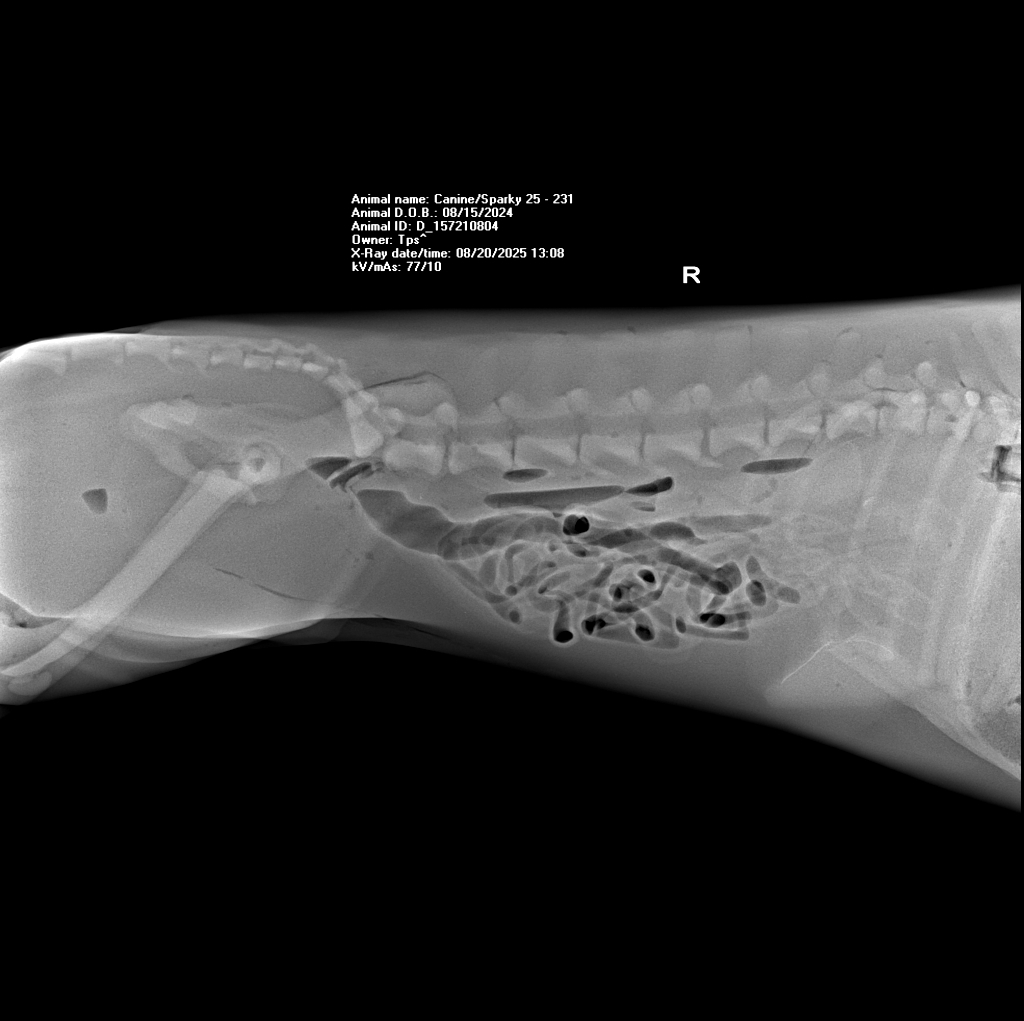

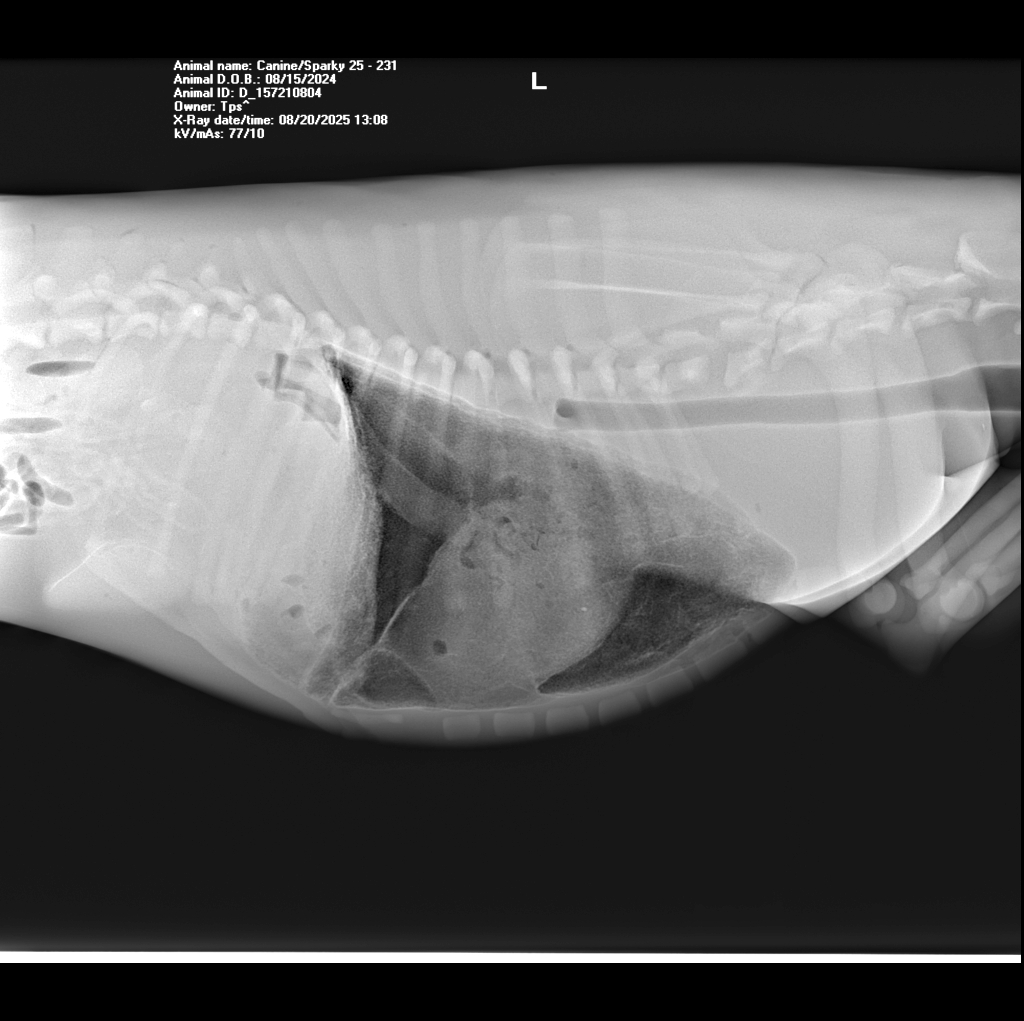

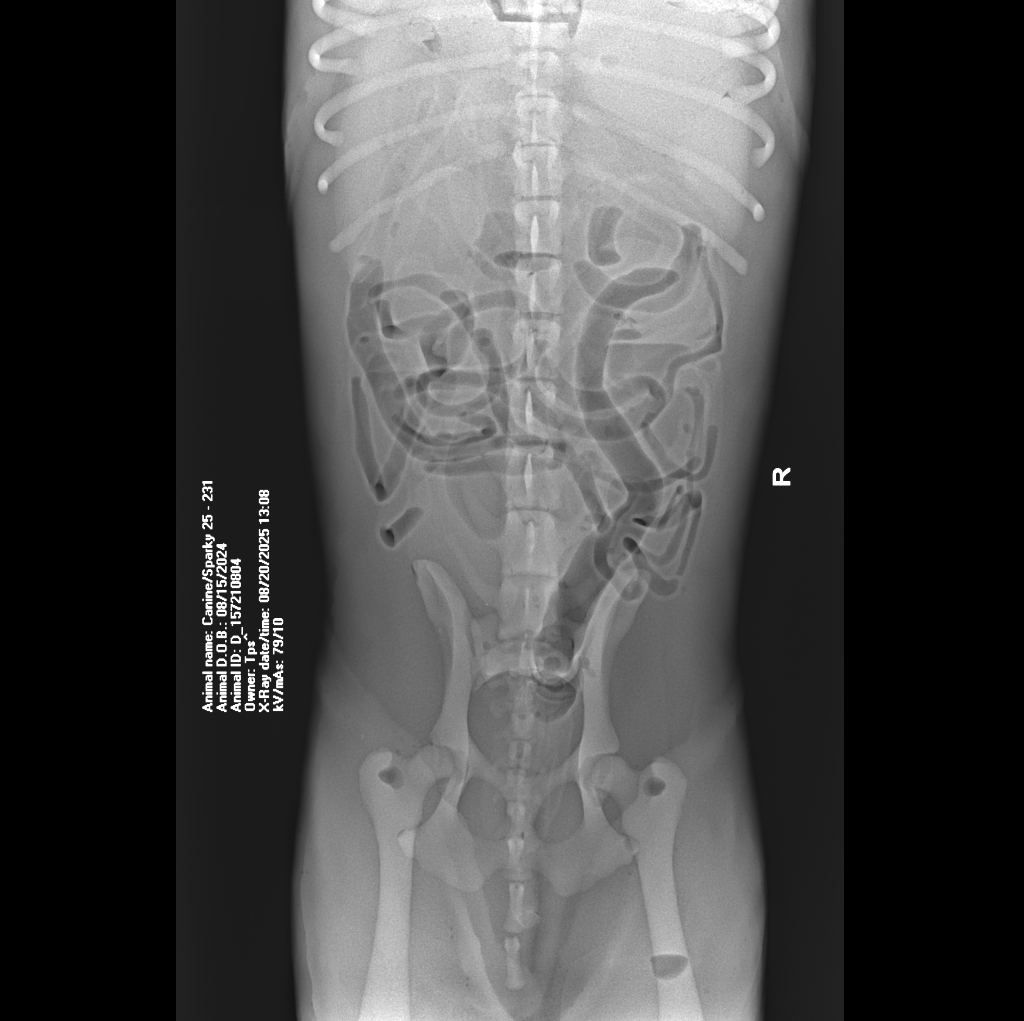

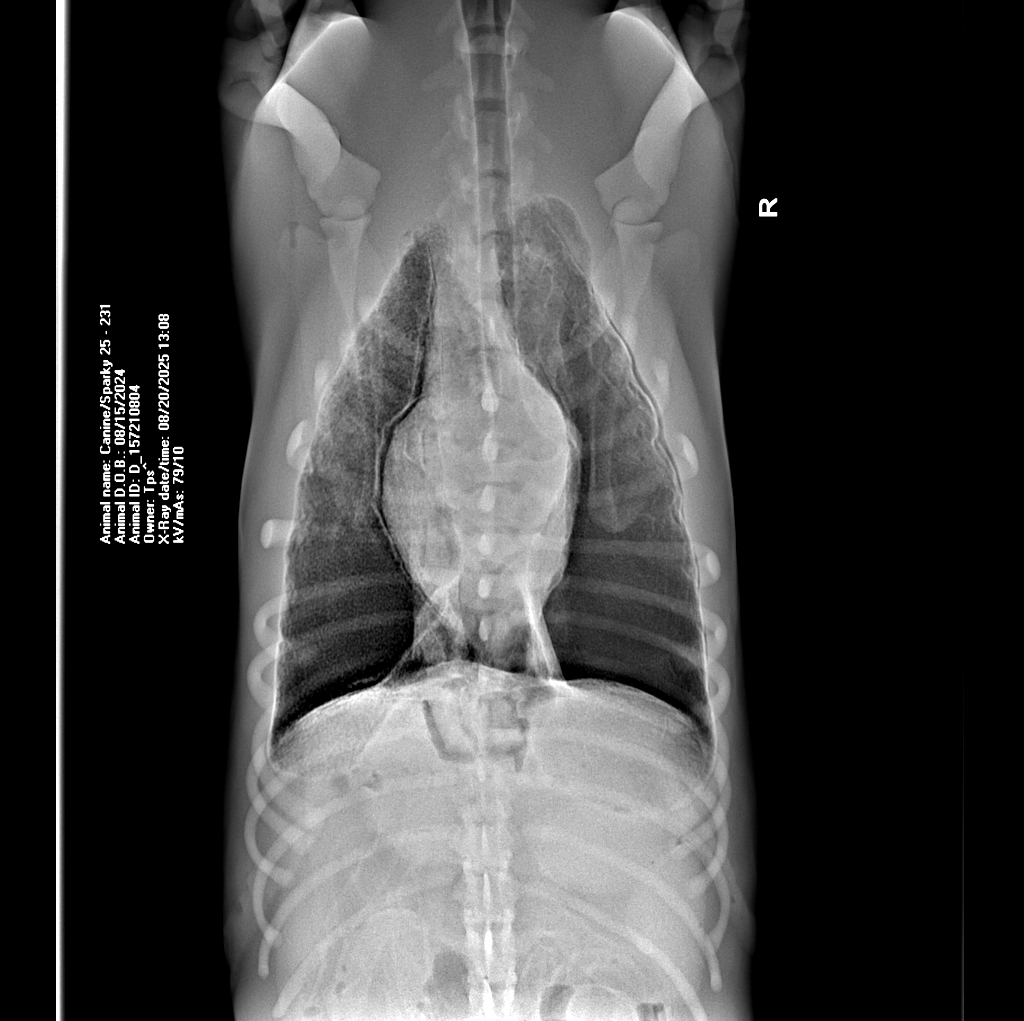

X-Ray Image Scans
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
