Sectional Mouse for X-Ray CT
Product Description

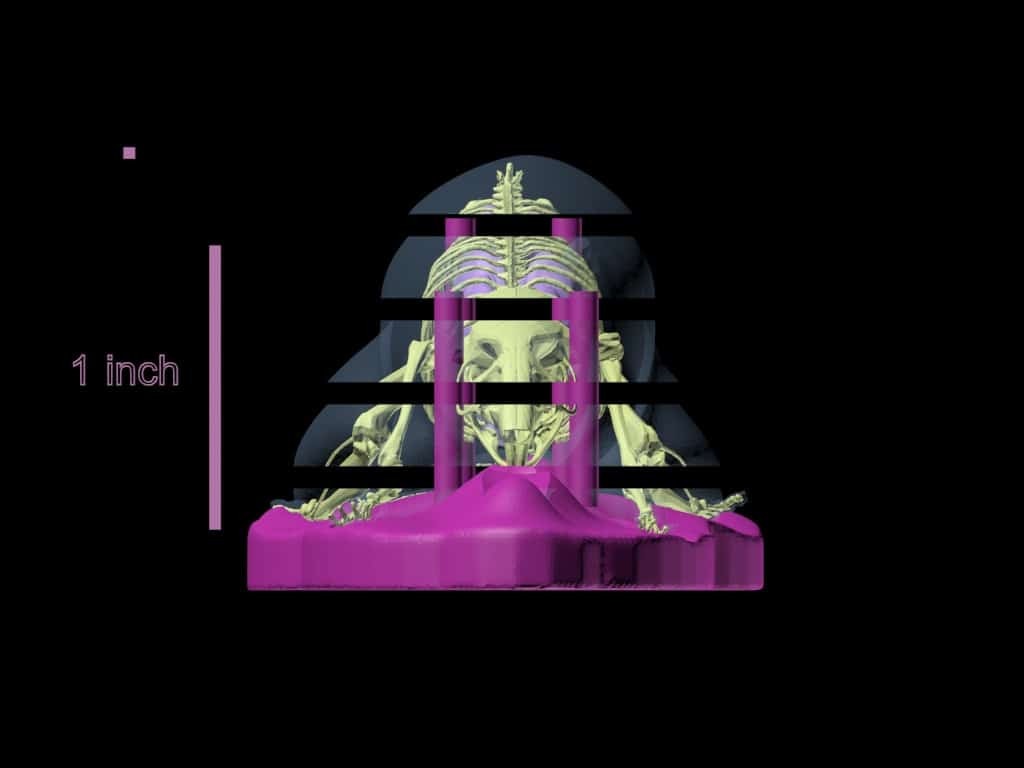

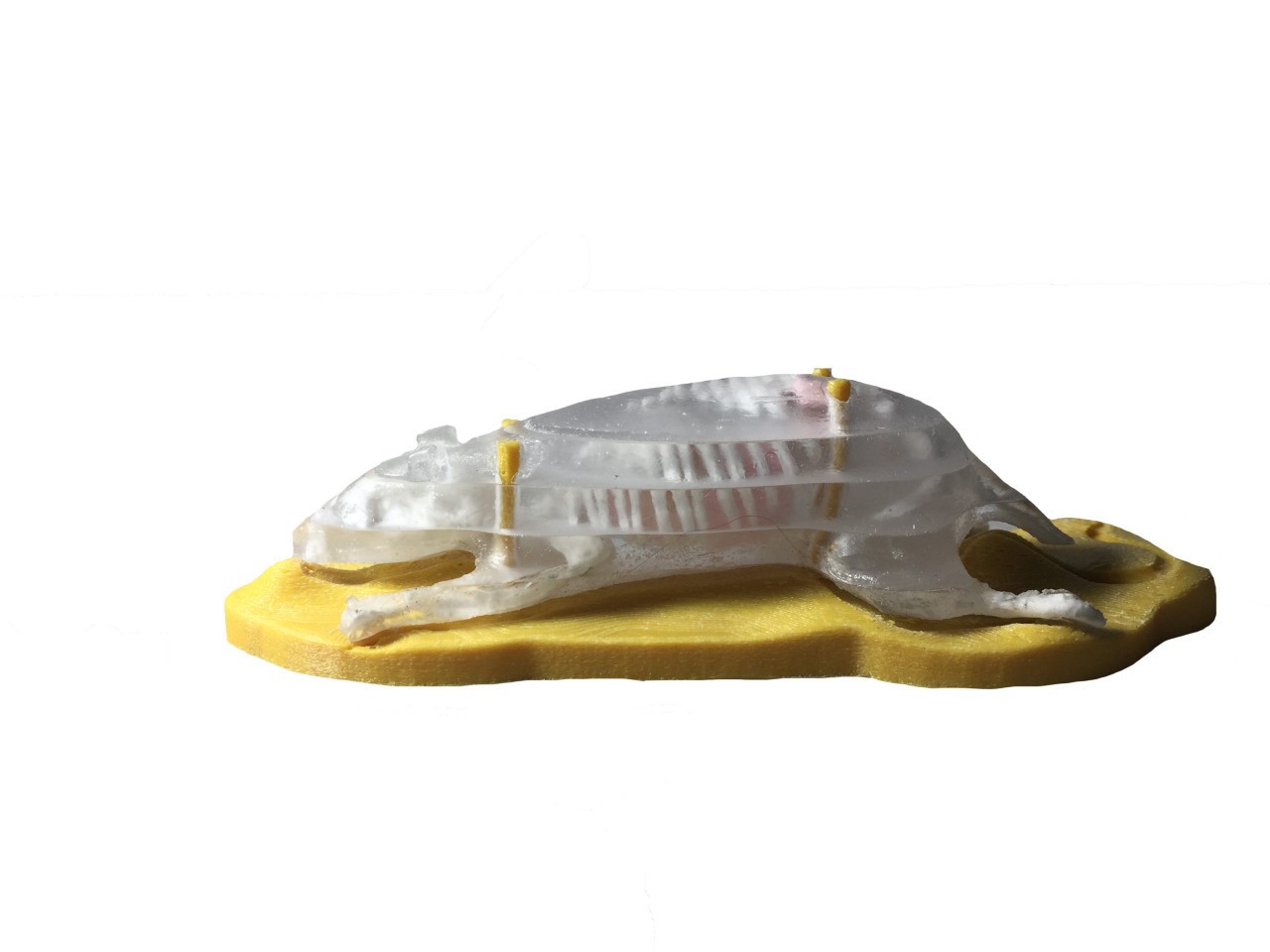

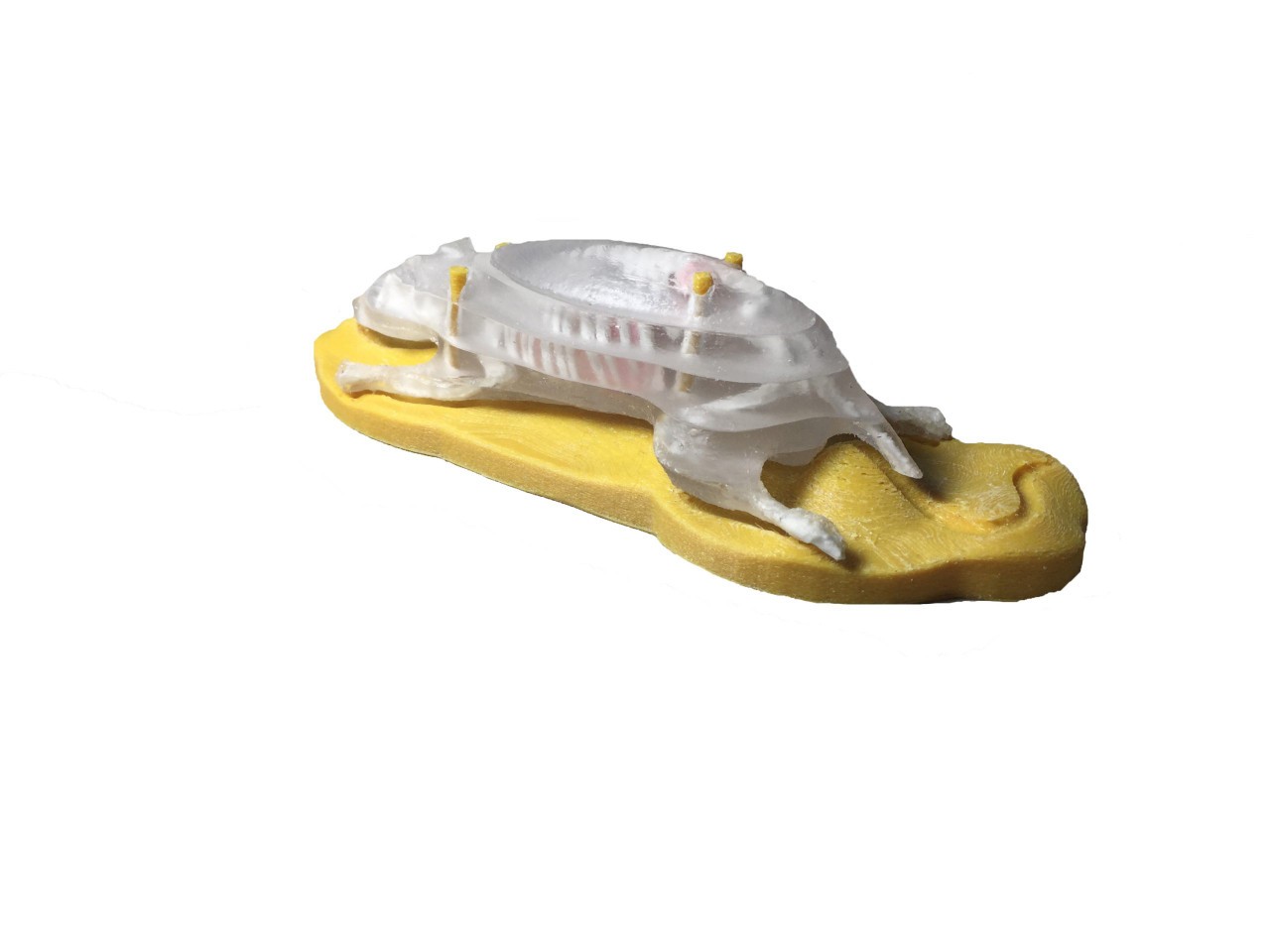

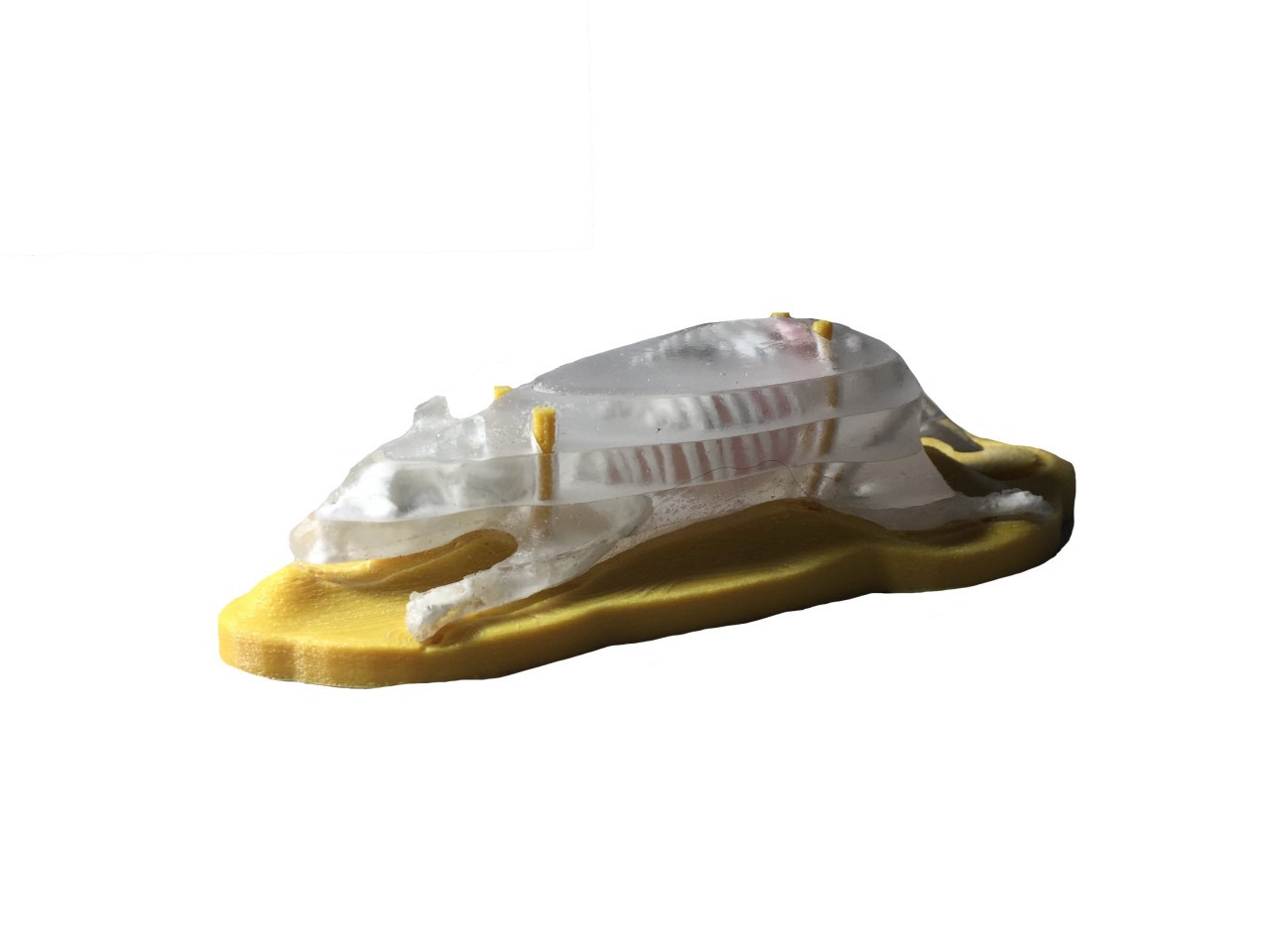

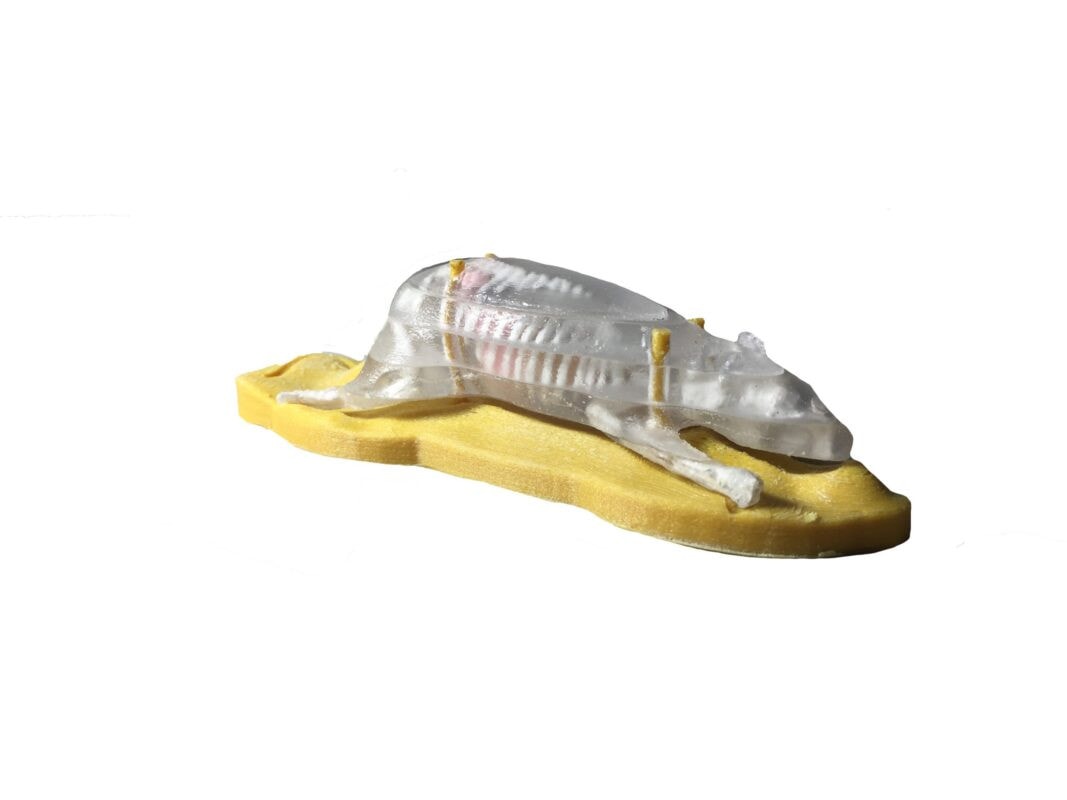

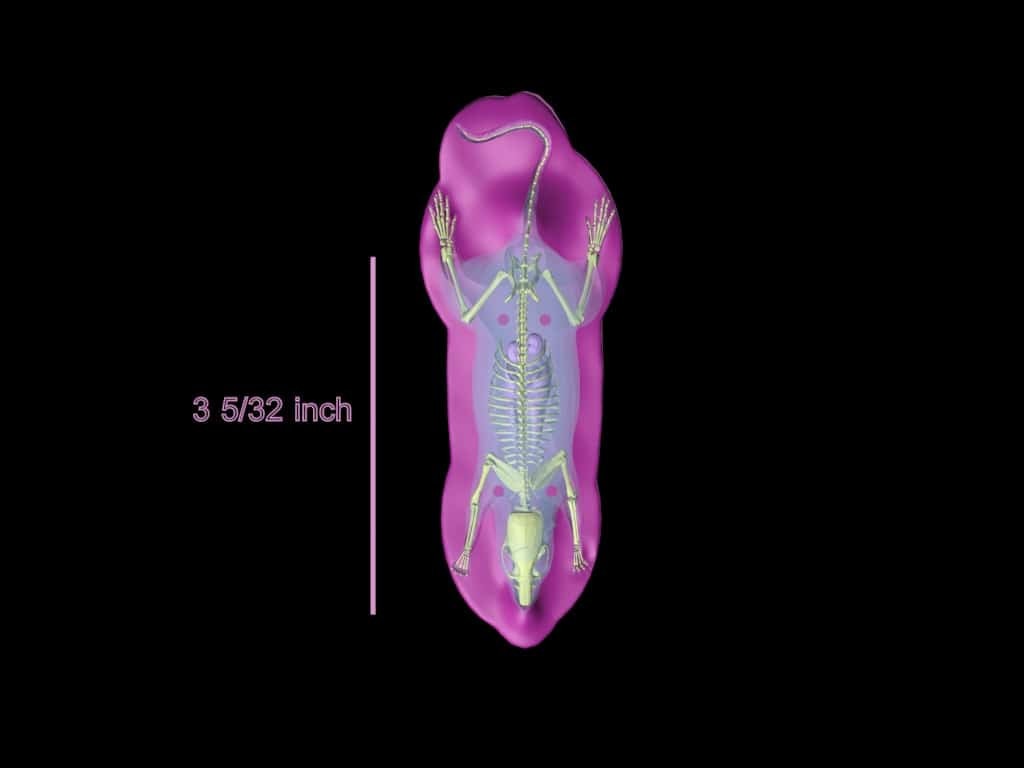

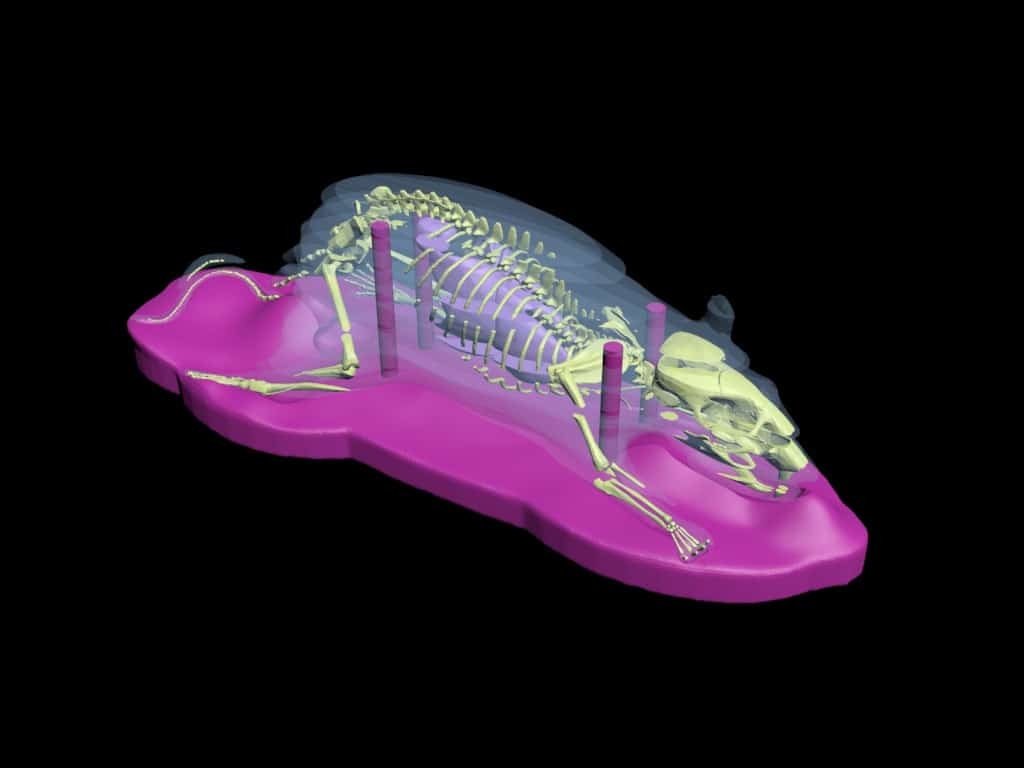

The Sectional Mouse Phantom is a high-fidelity tool designed based on the average anatomy of a mouse, specifically optimized for X-Ray and CT imaging. This phantom is sliced into four 5 mm thick segments, making it an ideal device for medical imaging research, development, testing, and calibration-related work. It provides a detailed representation of internal structures in a sectional format.
Constructed using patented synthetic bone material and realistic soft tissue-mimicking resins, the phantom accurately reflects the physical properties of small animal tissues. It is highly customizable, allowing for modifications in size, shape, and internal features to meet the specific requirements of various biomedical research projects.
Note: By default, the phantom features four distinct segments. Additional customization of tissue properties or anatomical features is available upon request.
Anatomy
- Full Skeleton
- Heart
- Lungs
- Diaphragm
- Liver
- Kidneys
- Pancreas
- Spleen
Technical Properties
| Type of Tissue | Averaged HU Value | Density [g/cm³] |
|---|---|---|
| Soft Tissue | 25 | 1.03 |
| Bones | 1300 | 2.31 |
| Lungs | -900 | N/A |
| Organs | 90 | 1.01 |
Included in Order
- Sectional Mouse Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 2 x 4 x 1 Inches | Weight: ~0.5 Lbs
Shipment: 10 x 8 x 6 Inches | Weight: ~3 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
