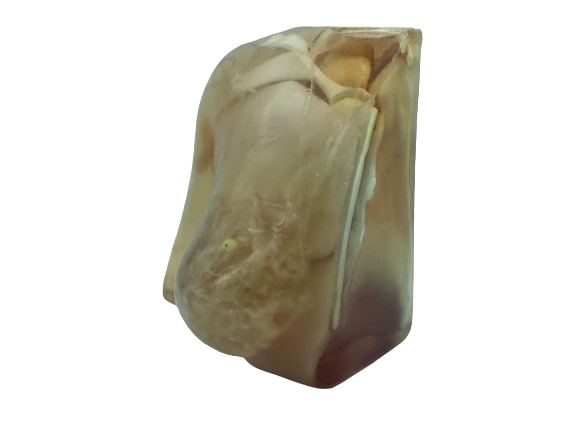

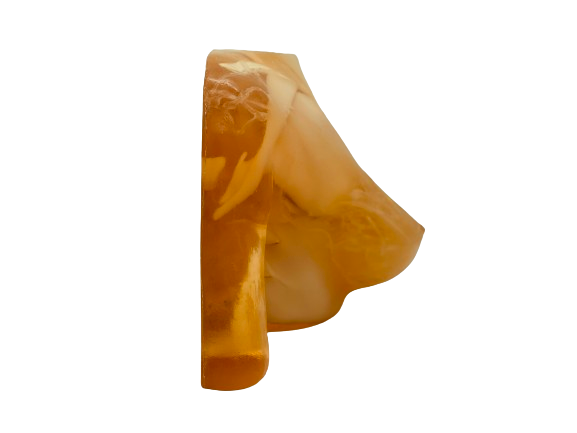

Adult Breast (Simple) for X-Ray CT, US, MRI
Product Description

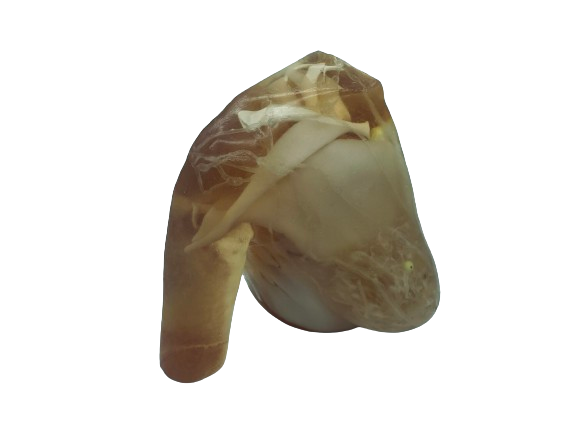

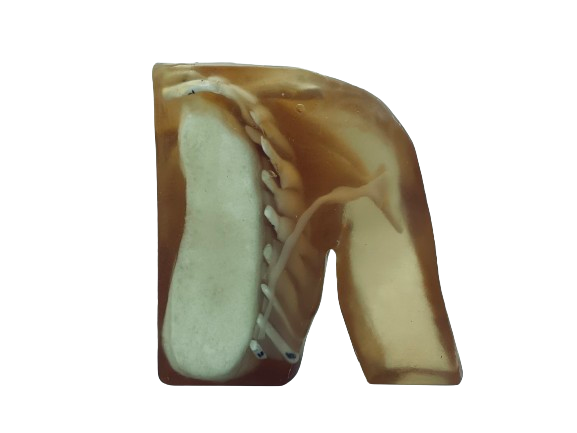

The Adult Breast (Simple) Phantom is an anatomically realistic model designed for multi-modality imaging evaluation, including mammography, X-ray, CT, MRI, and ultrasound. Engineered to replicate average adult female breast anatomy, it serves as a critical tool for medical imaging research, device testing, calibration, and clinical training.
The phantom features a balanced composition of 50% glandular tissue and 50% adipose (fat) tissue by volume to accurately mimic human breast properties. It contains embedded lesions designed with an attenuation coefficient similar to glandular tissue but a higher electron density; this makes them challenging to detect on X-ray but easily identifiable via ultrasound.
Note: We can customize this product based on your requirements, including lesion properties and overall tissue composition.

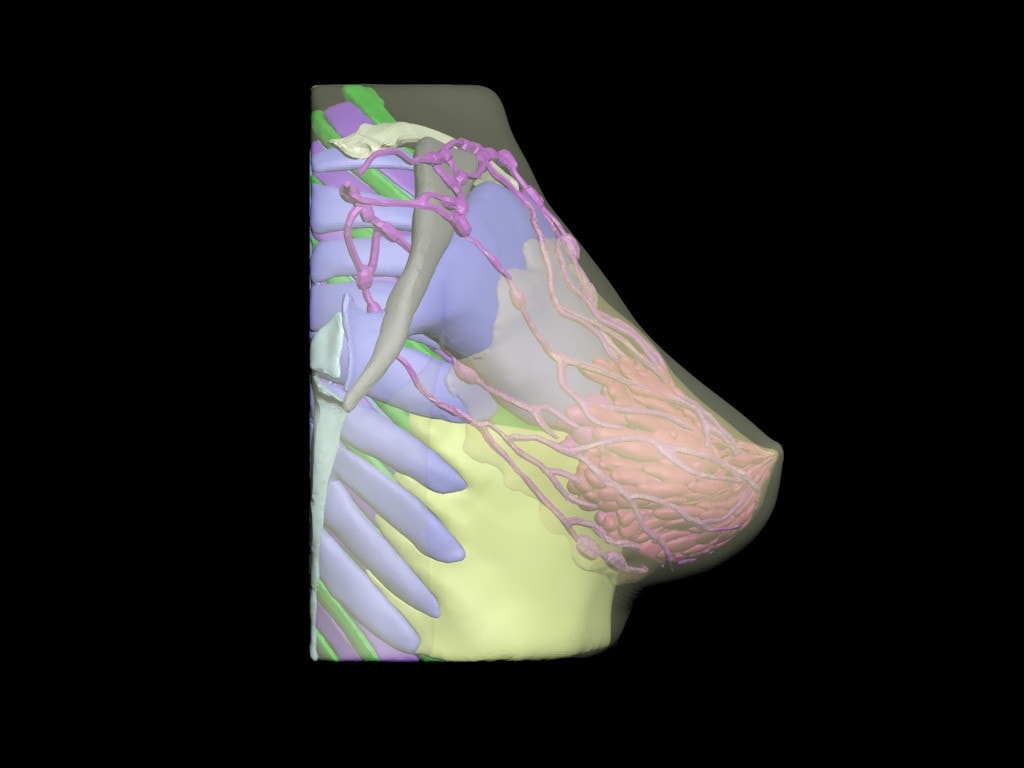

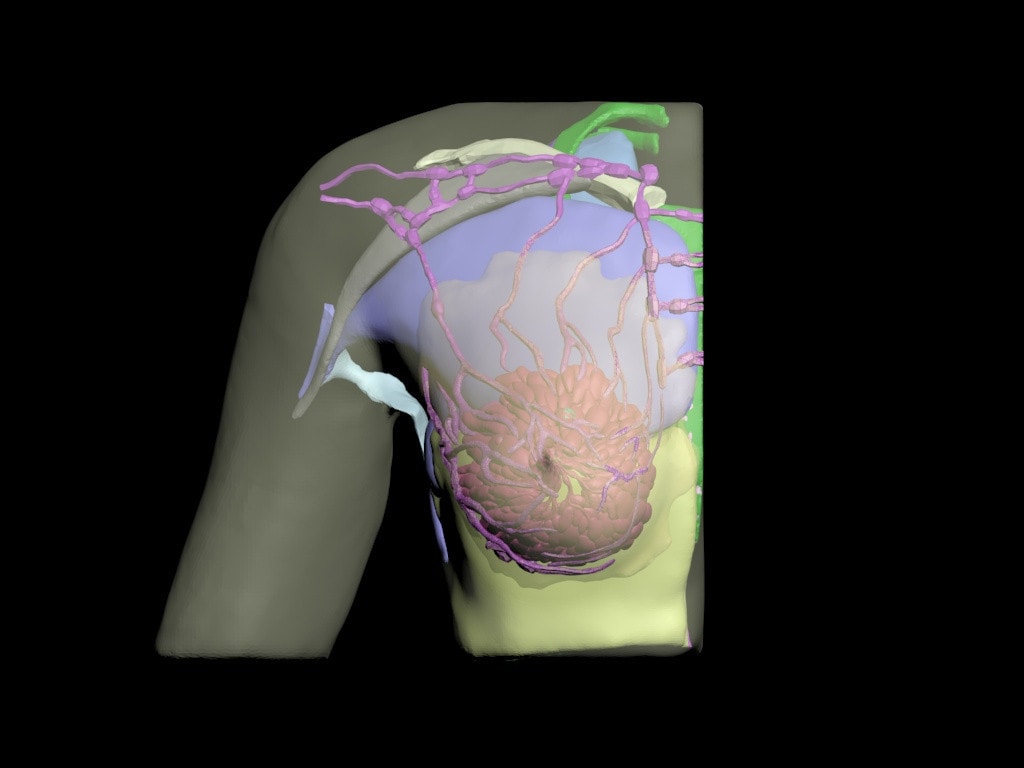

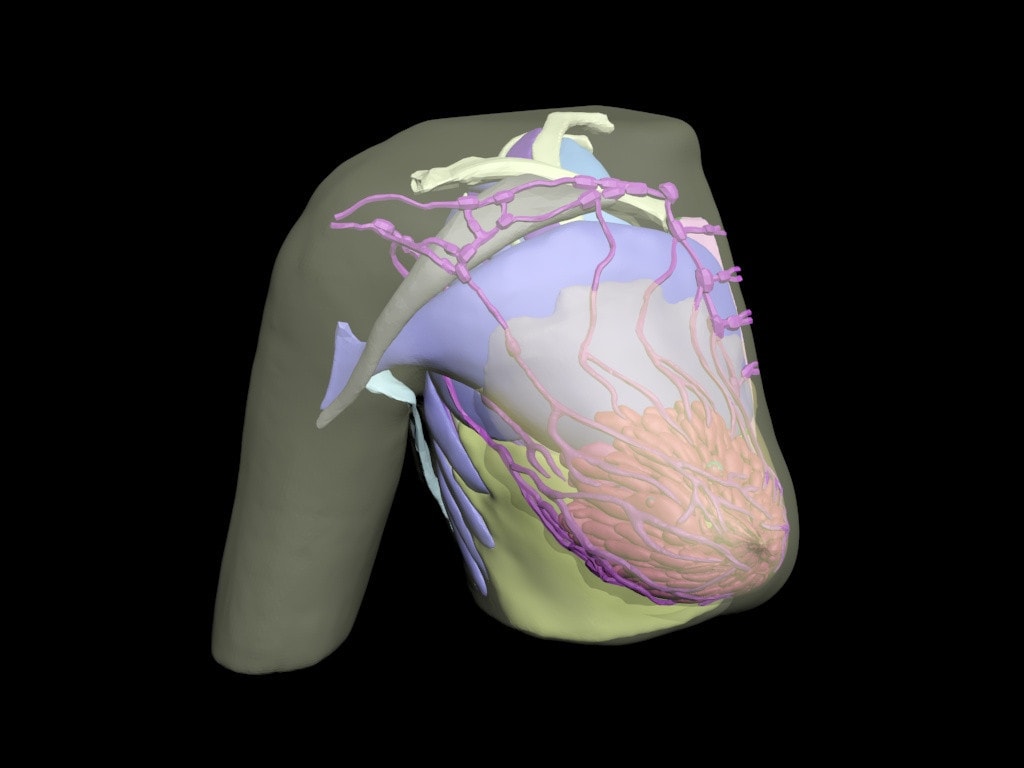

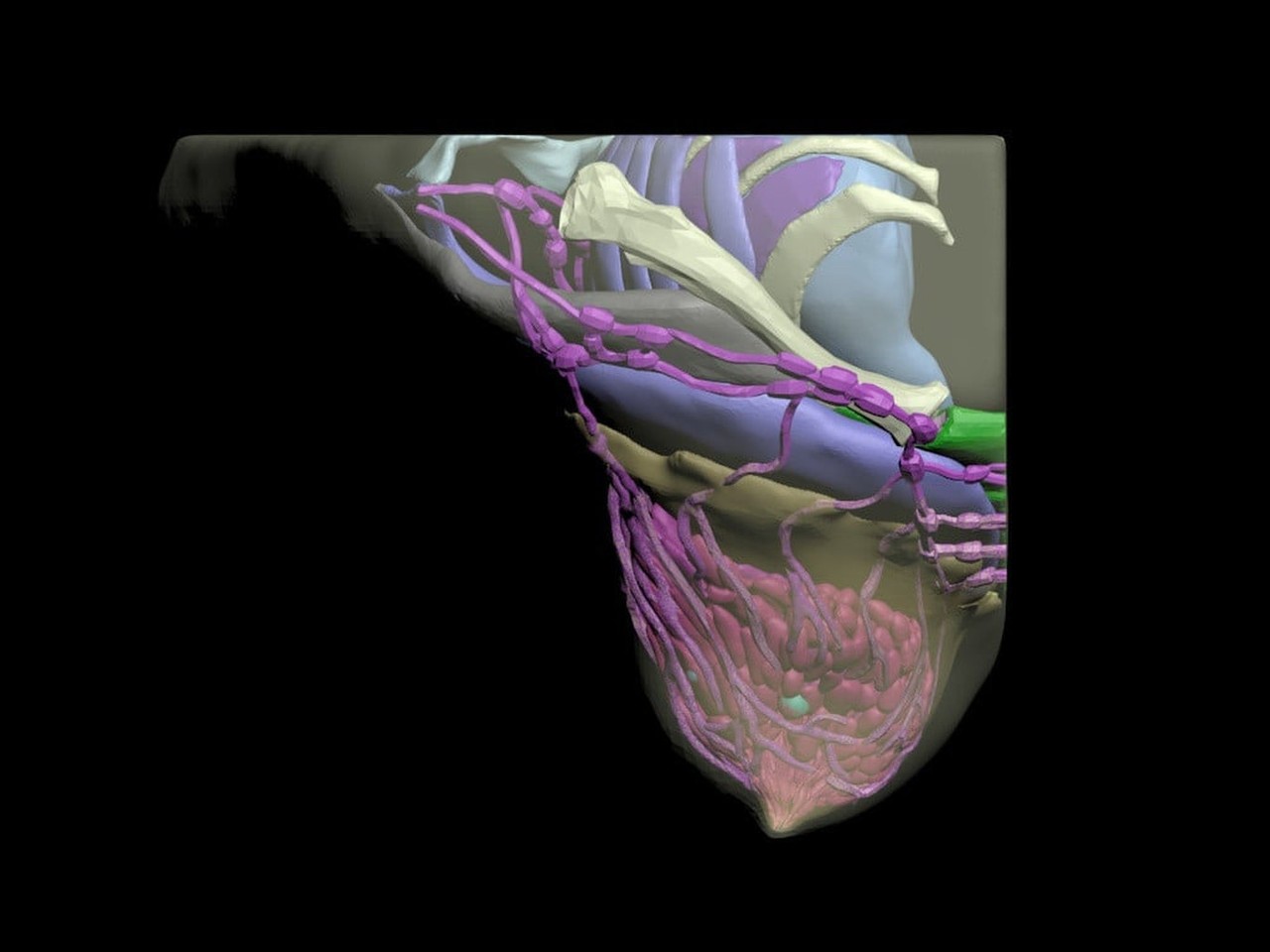

Anatomy
- Body Tissue Mimicking Material
- Mammary Fat Tissues
- Mammary Gland Tissues
- 5 Radiolucent Lesions
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Body Tissue | -25 |
Included in Order
- Adult Breast (Simple) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 4.7 x 4.7 x 4.7 Inches | Weight: ~1.8 Lbs
Shipment: 12 x 10 x 10 Inches | Weight: ~6 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
Available Options
- Breast (Complex)
- Breast (Simple)
Imaging Scans

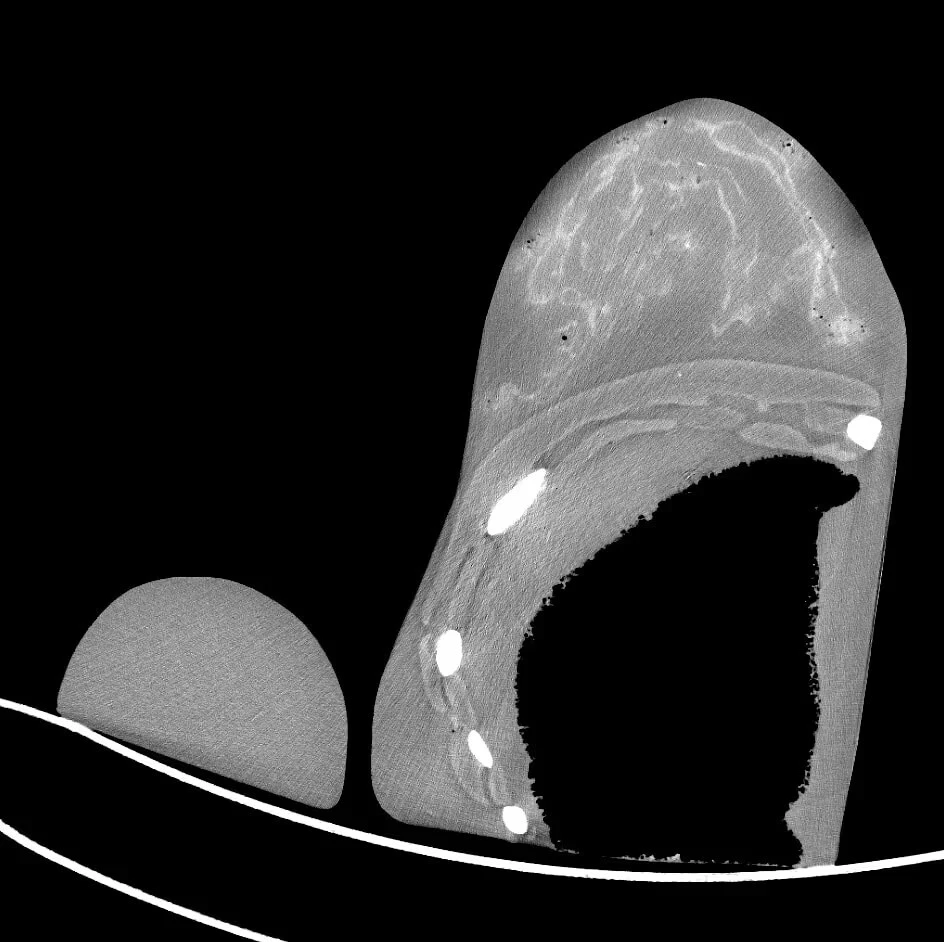

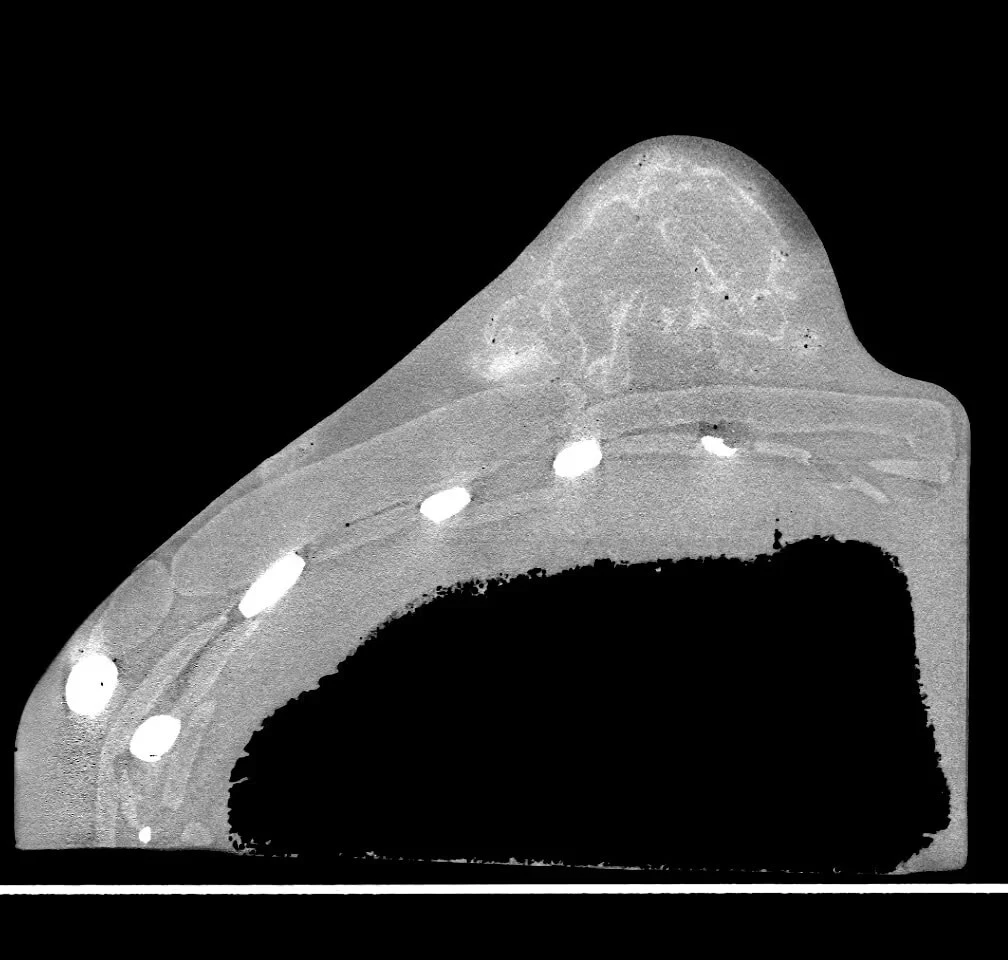

CT Image Scans

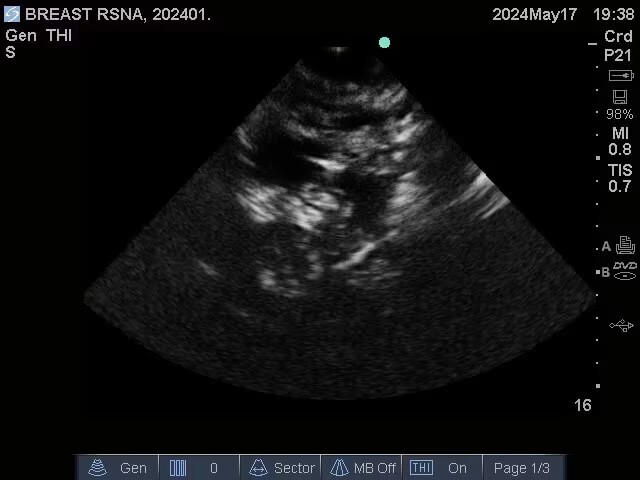

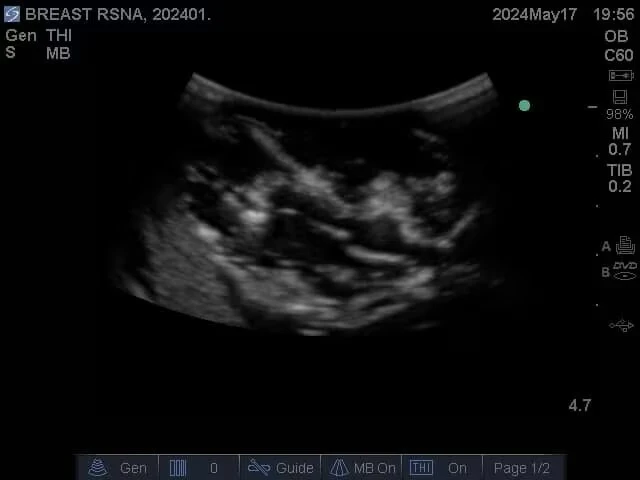

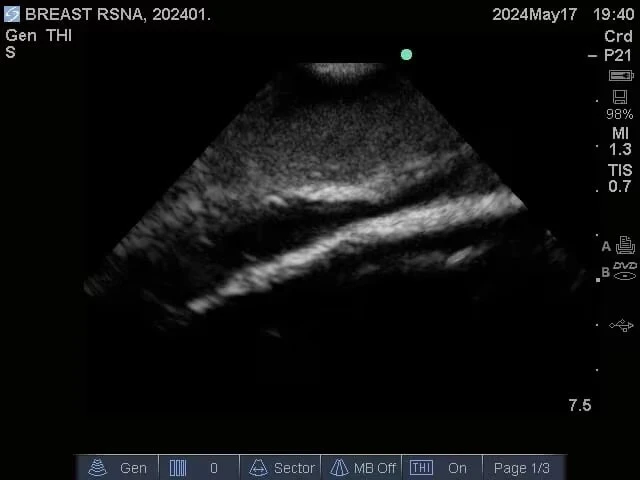

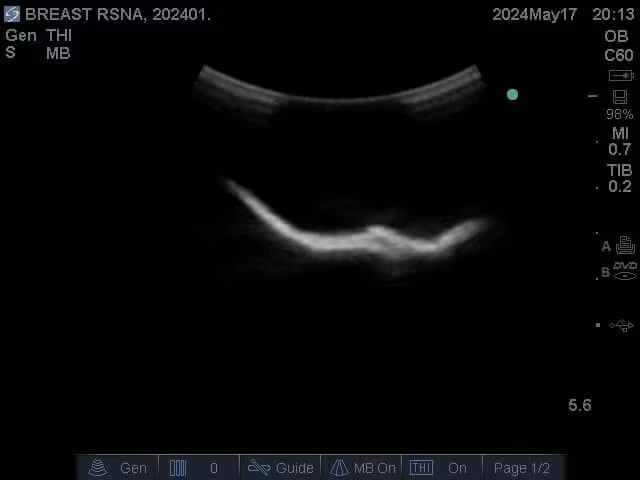

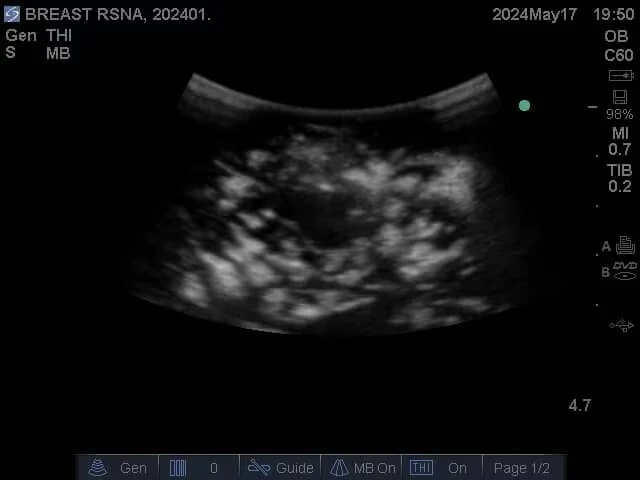

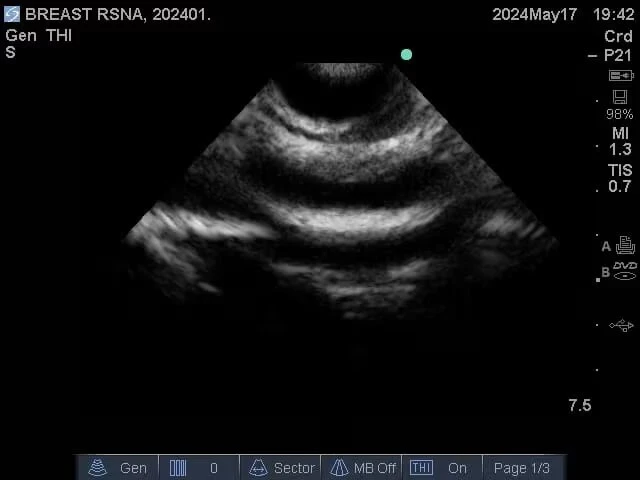

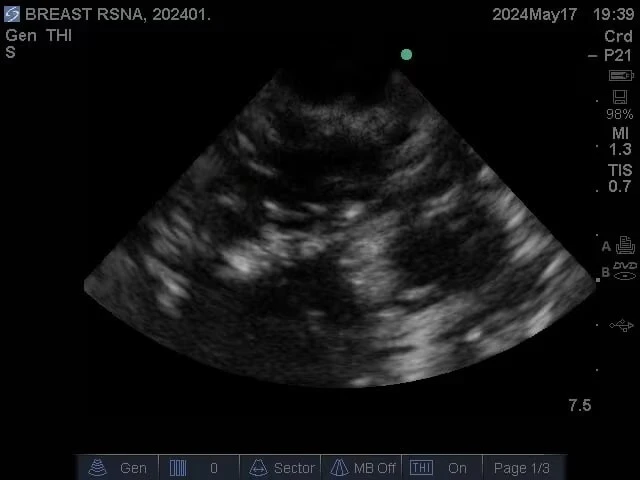

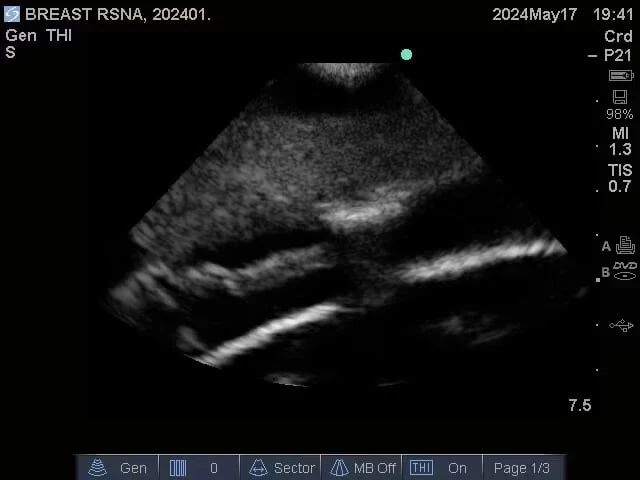

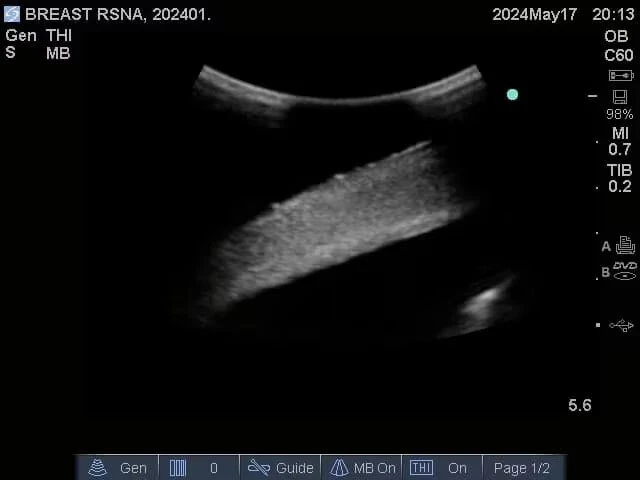

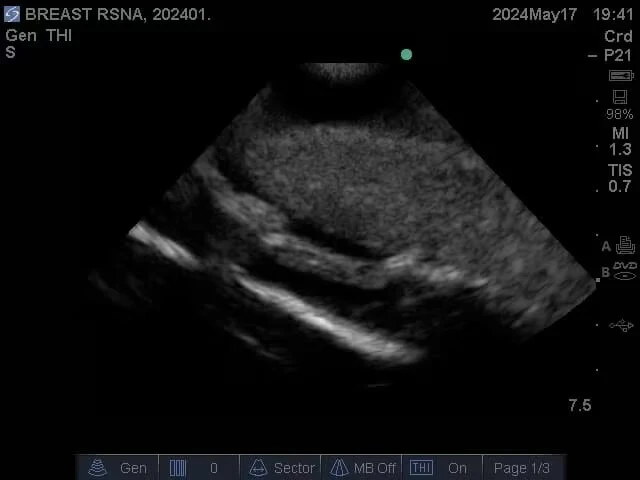

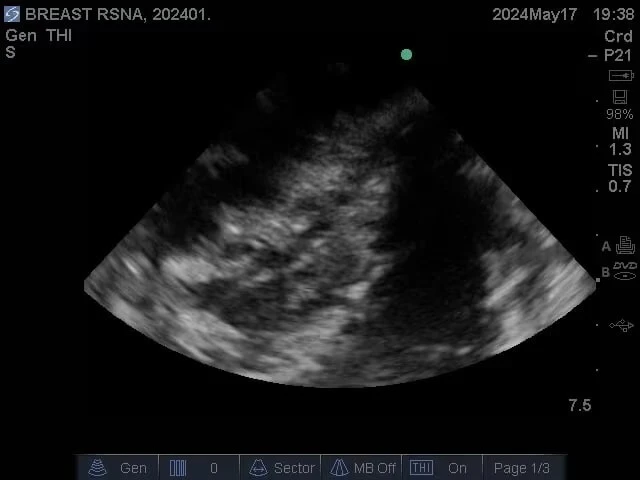

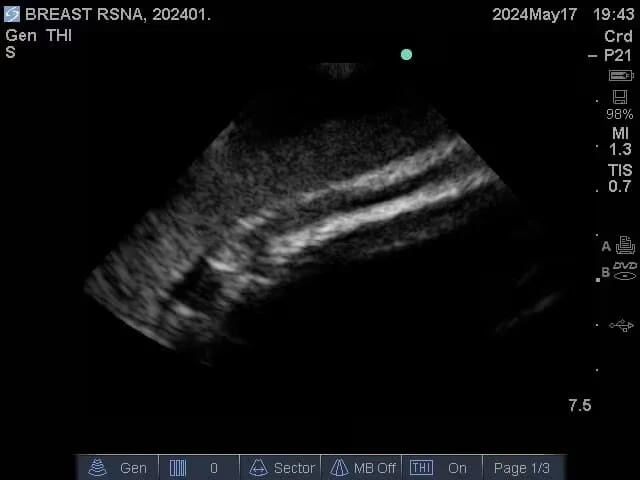

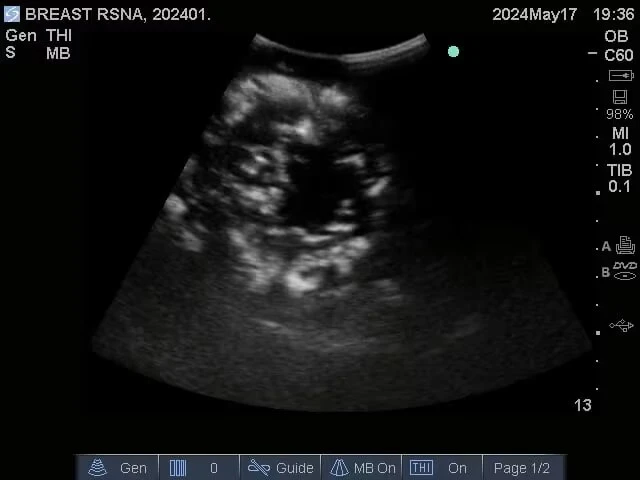

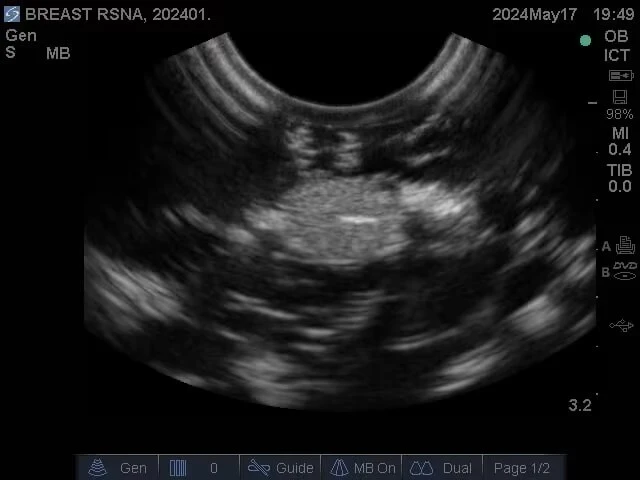

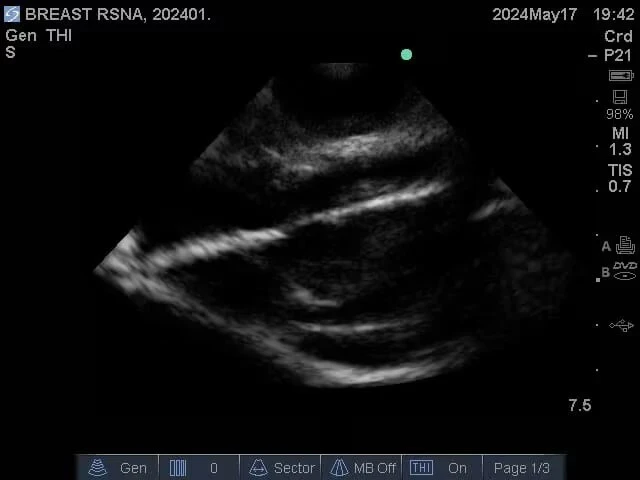

Ultrasound Image Scans

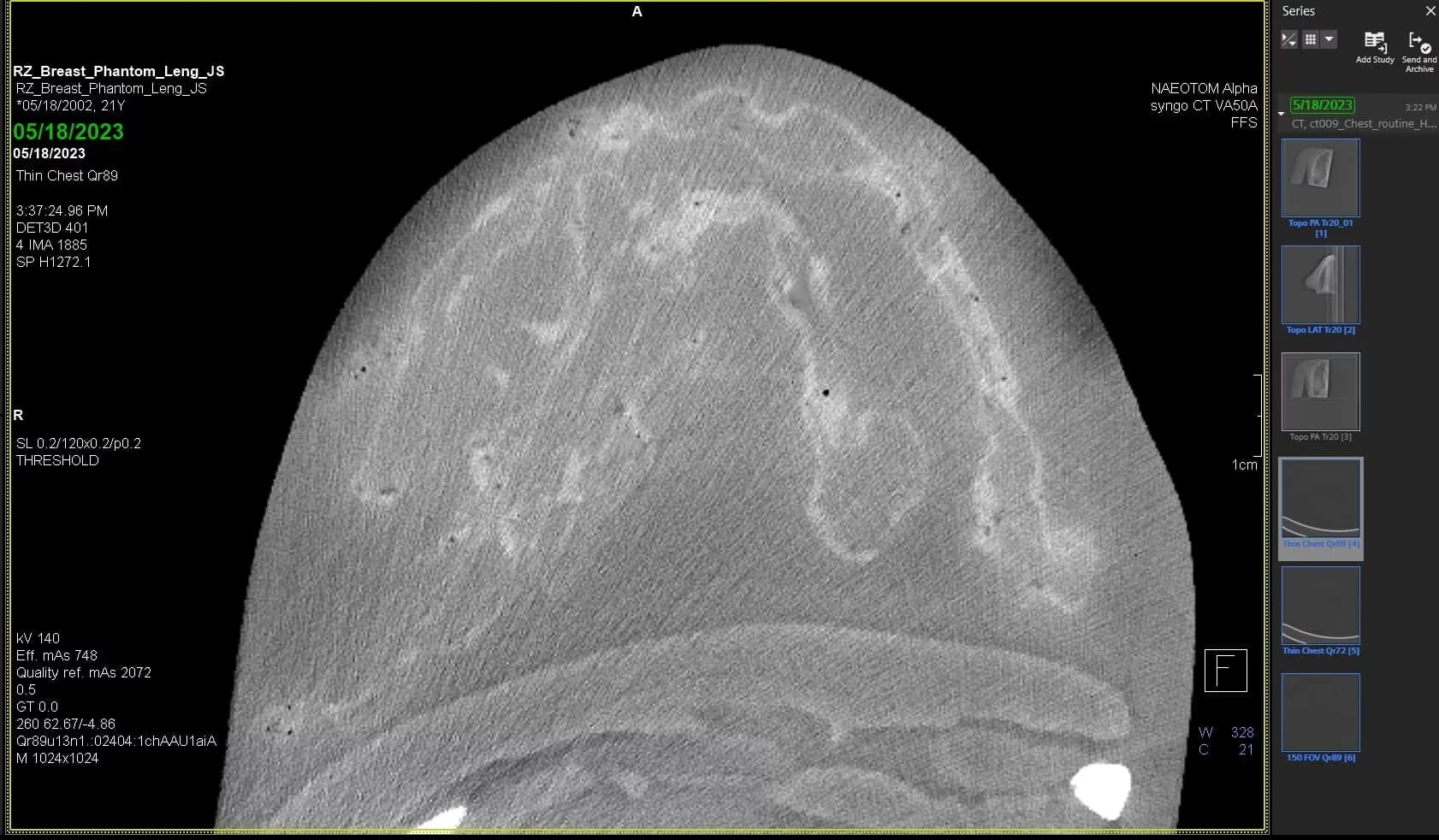

X-Ray Image Scans
