Adult Female Heart for X-Ray CT, US, MRI
Product Description

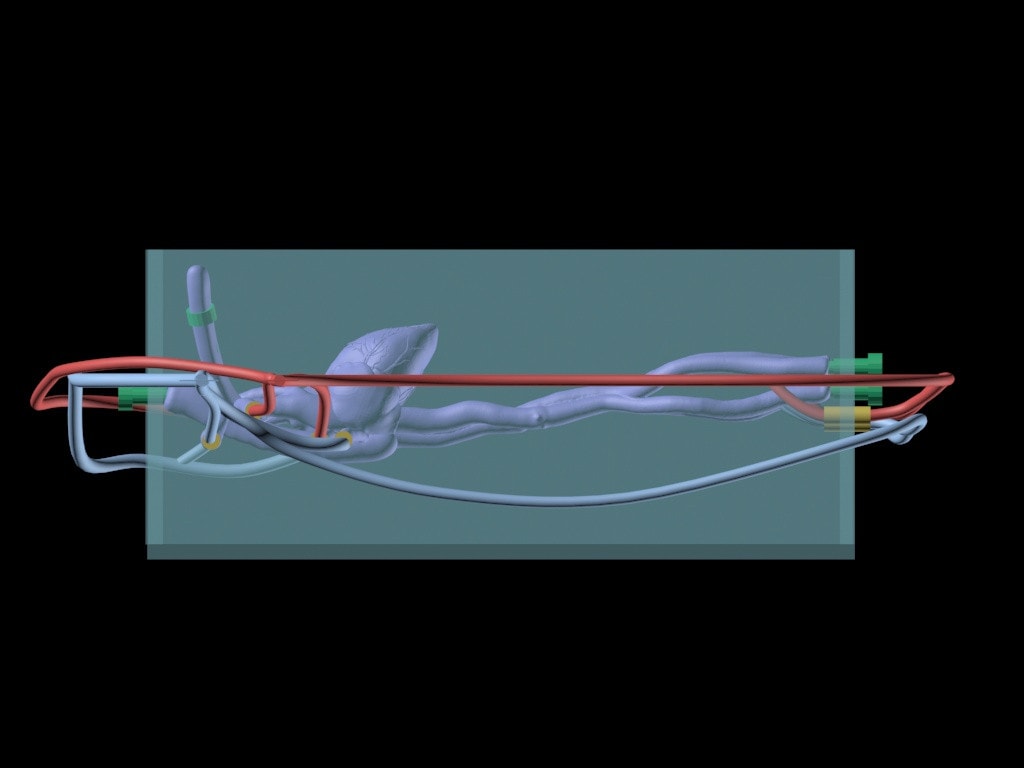

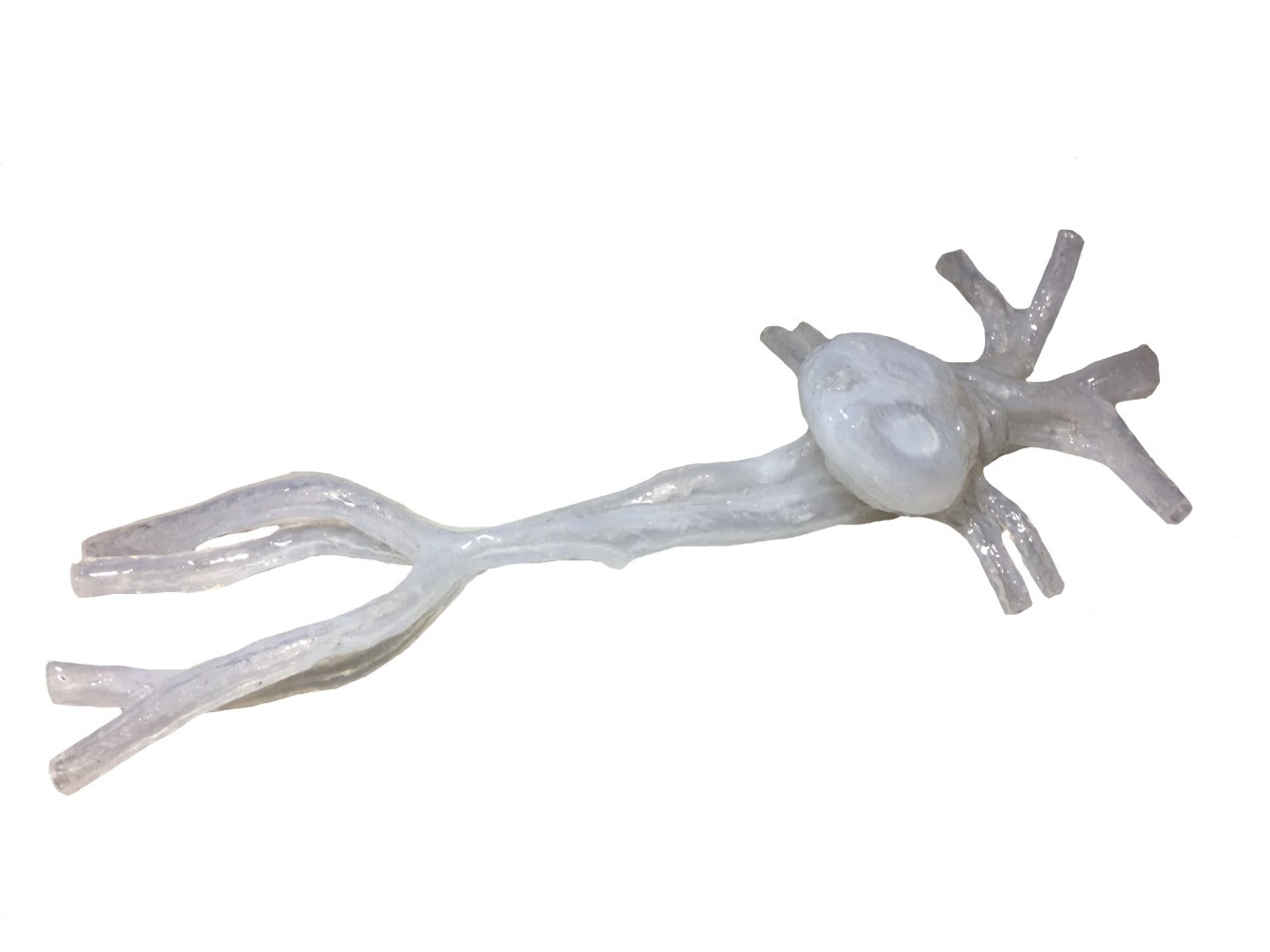

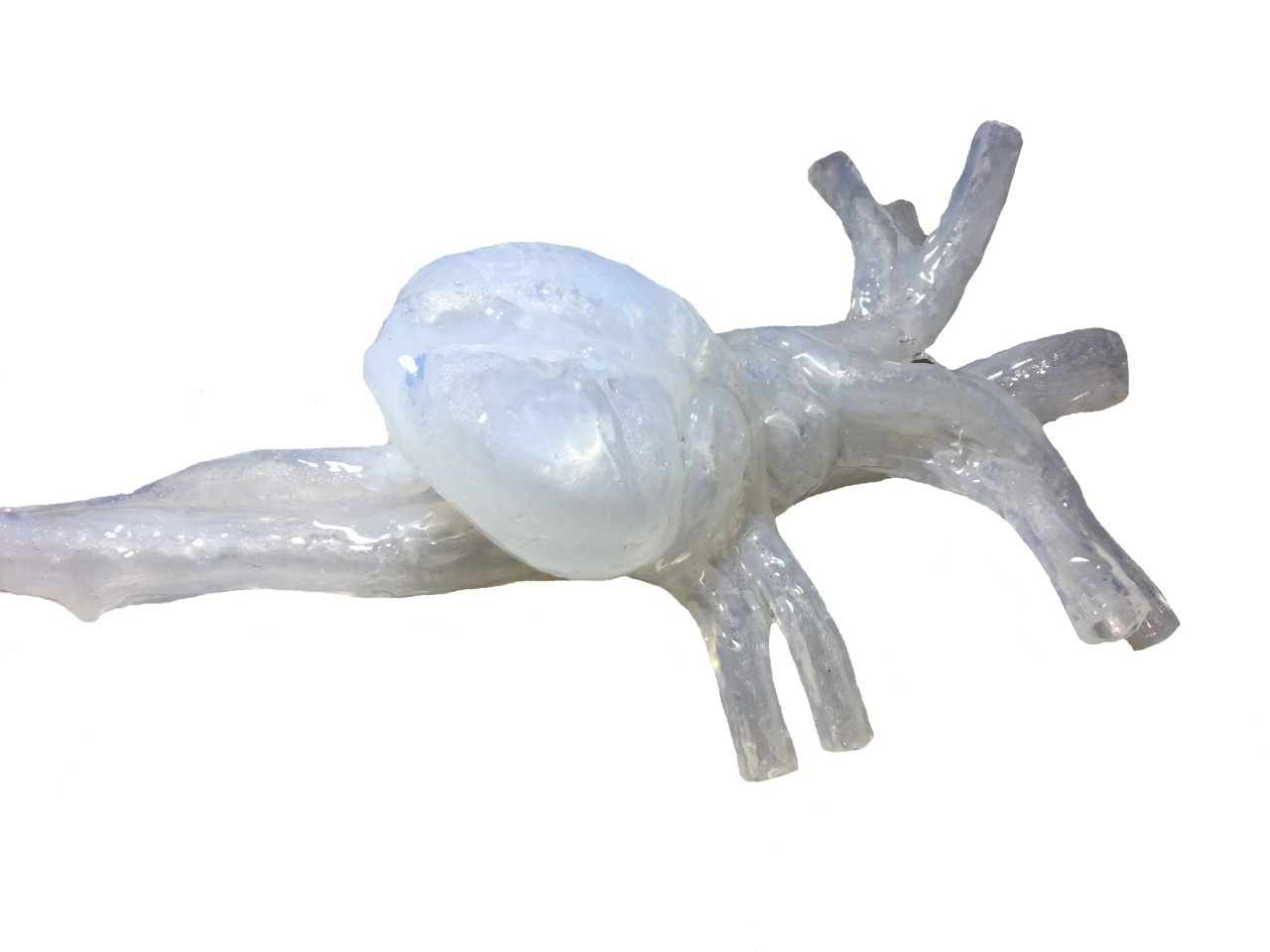

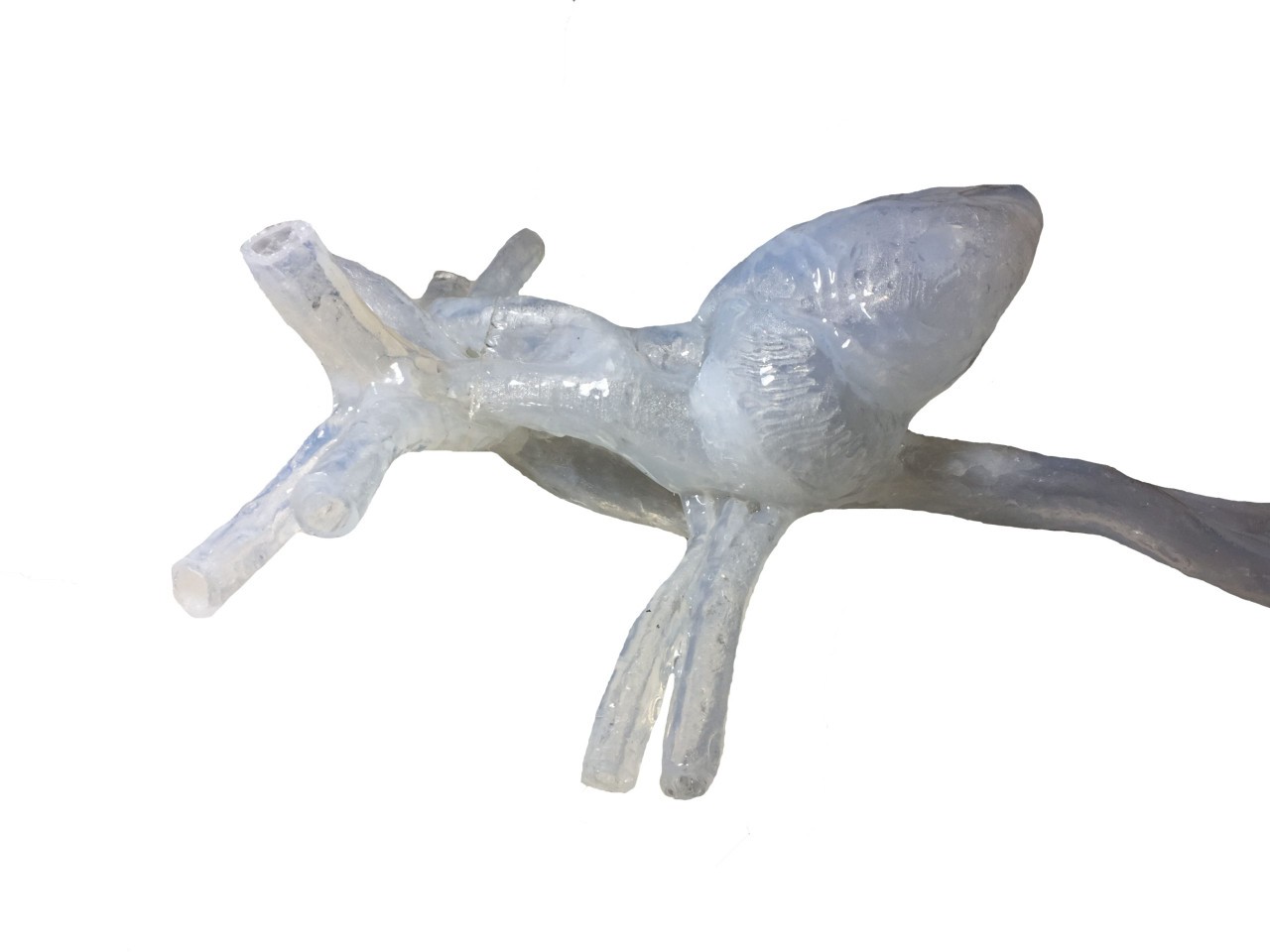

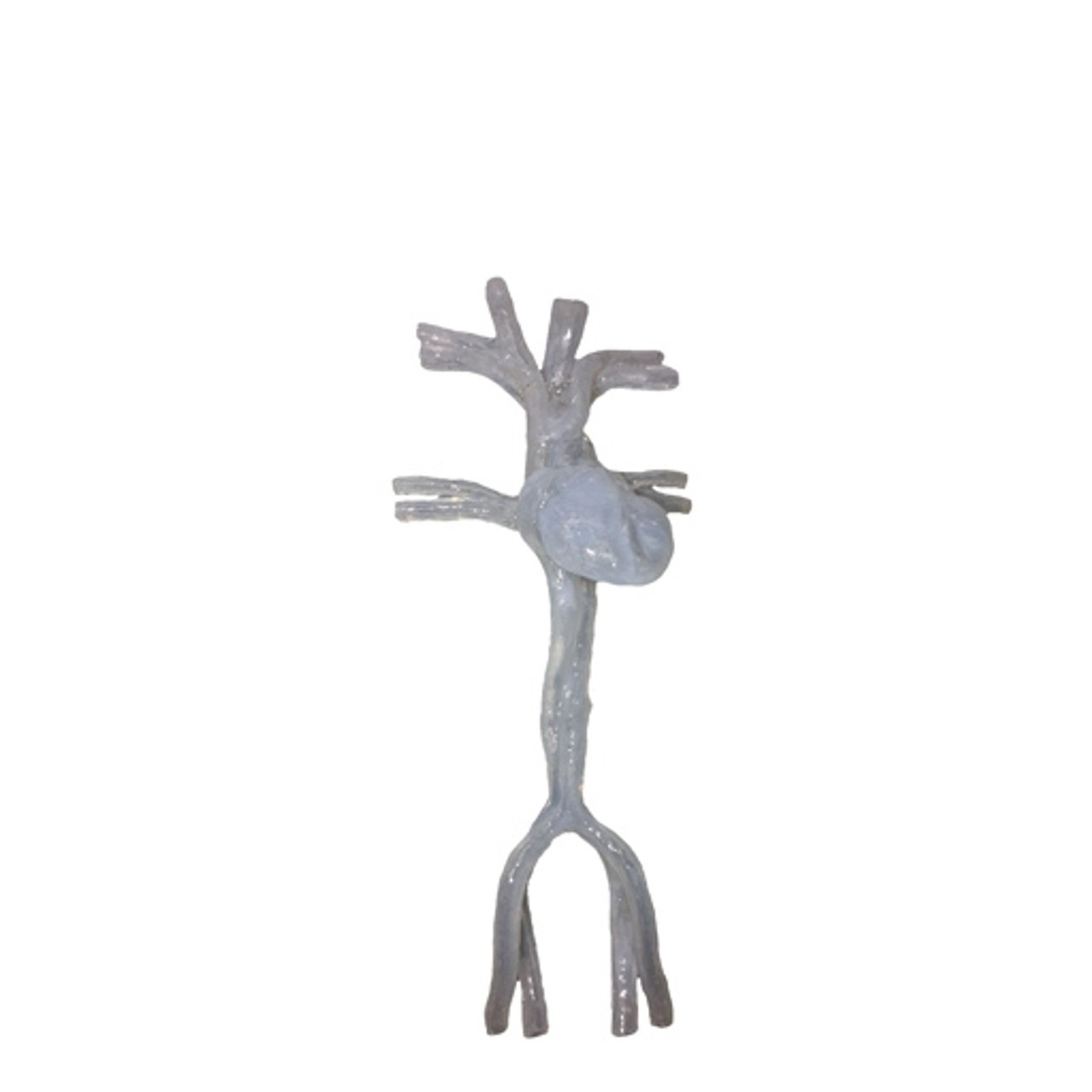

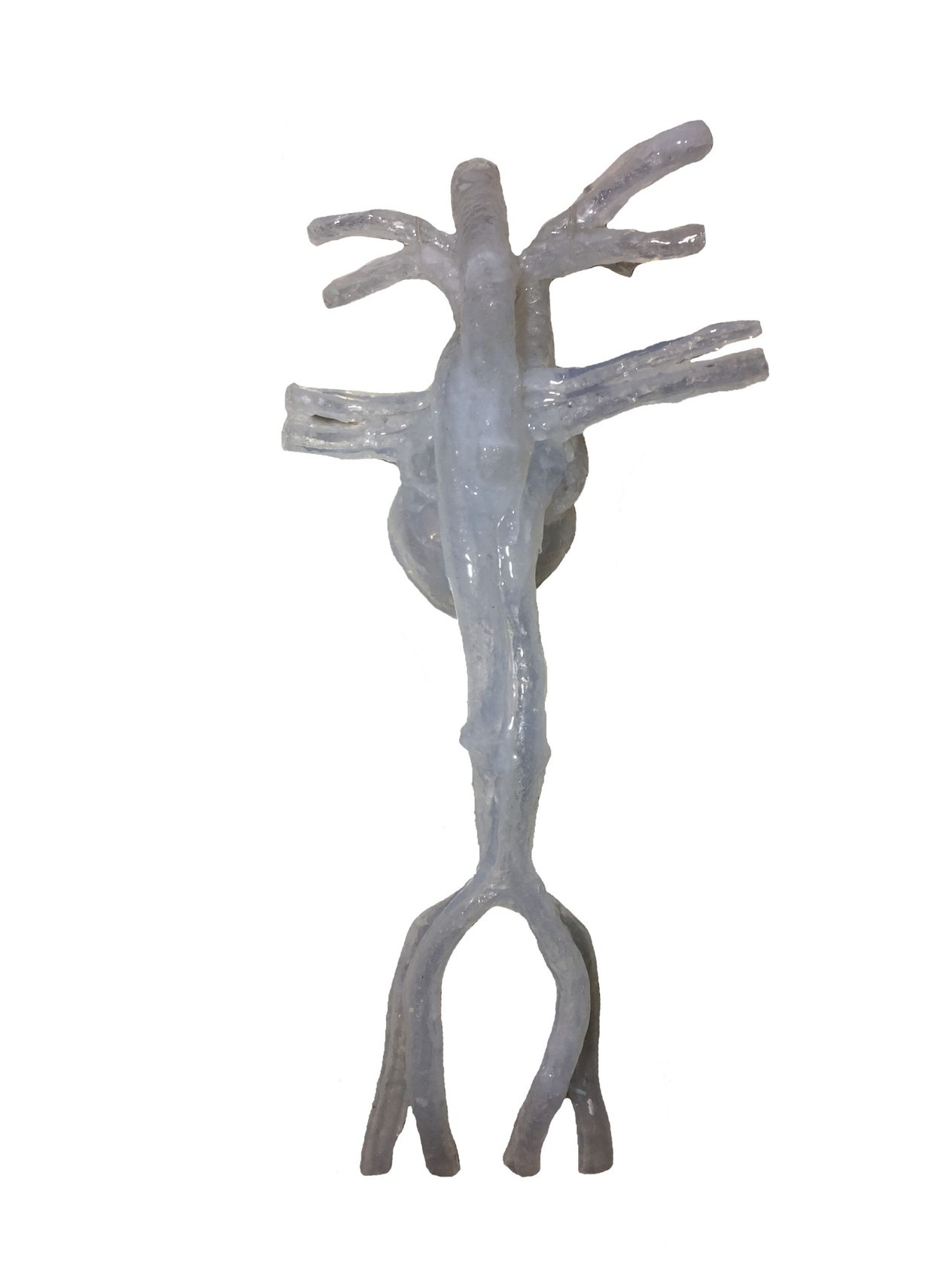

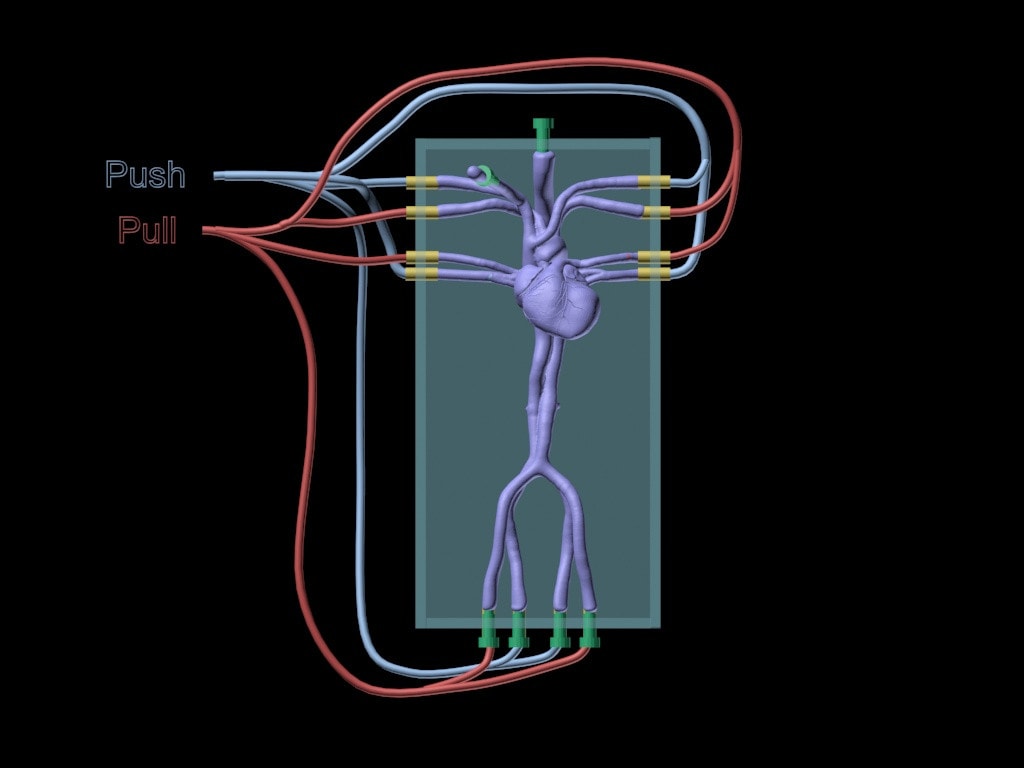

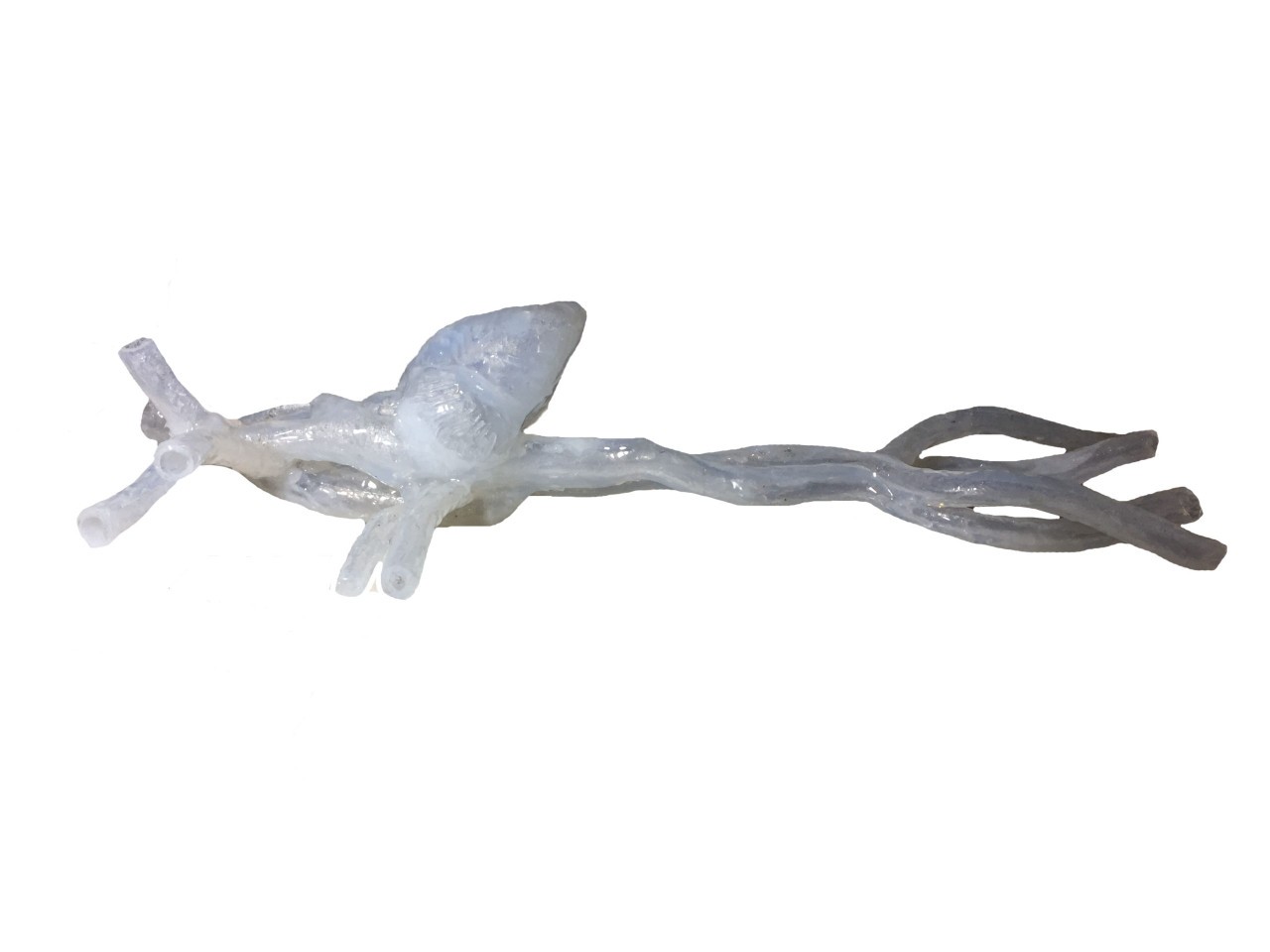

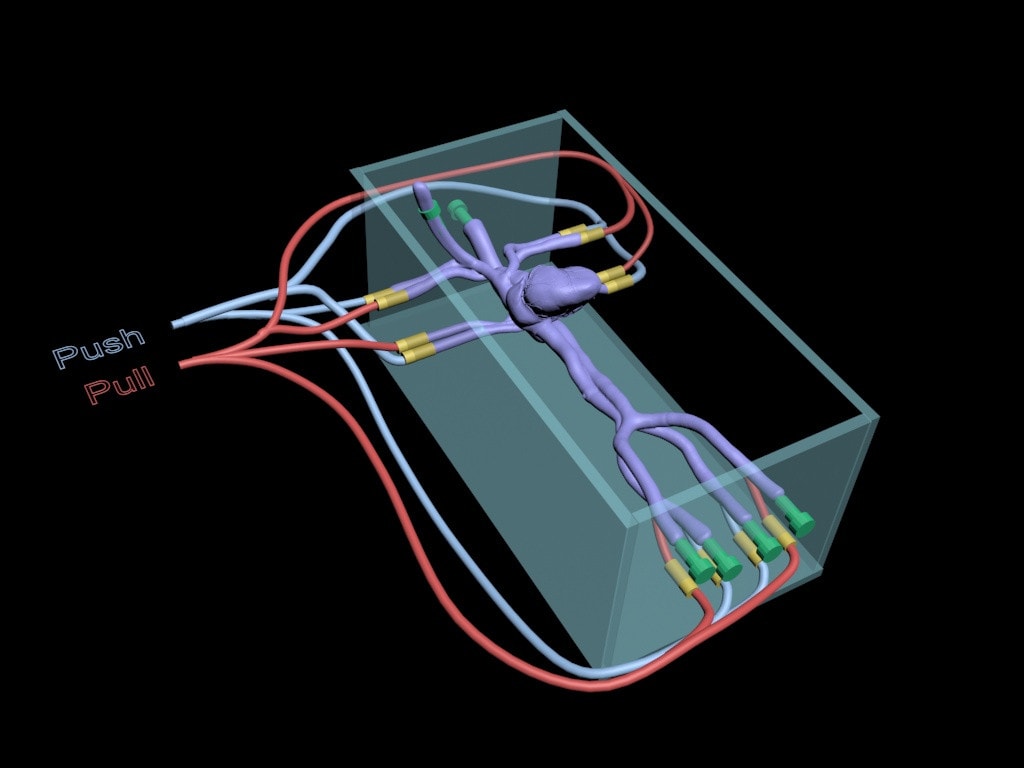

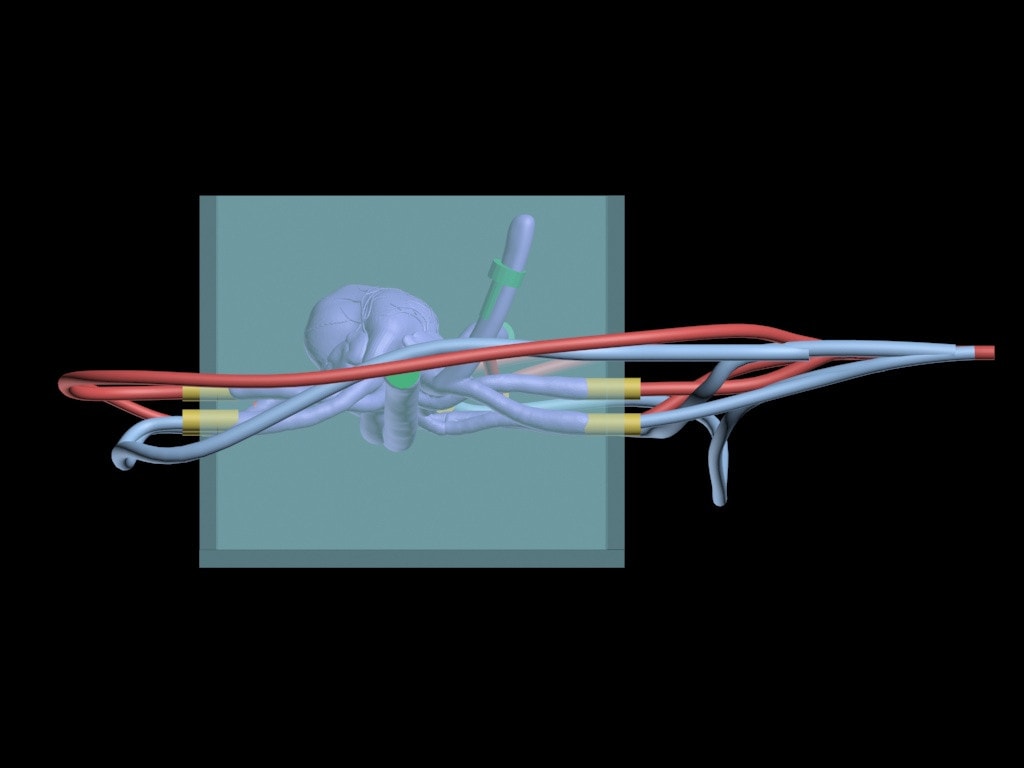

The Adult Female Heart Phantom is a high-precision simulator of a healthy human heart. The anatomical details were designed using AI software to extract CT data from a healthy 35-year-old female patient, ensuring highly accurate vessel size and placement. Compatible with X-Ray/CT, Ultrasound, and MRI, the phantom features an elastic nature that allows it to be connected to a heart pump for simulating lifelike cardiac motion.

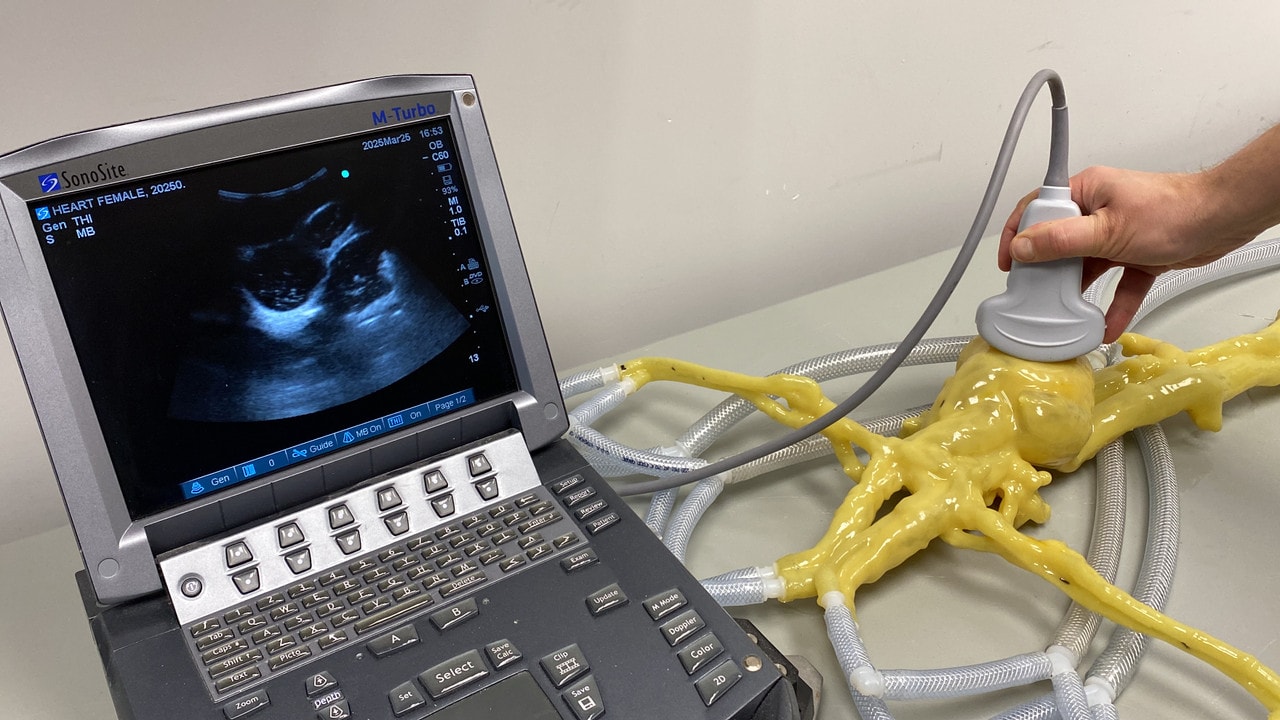

This phantom is an essential tool for training and research in transesophageal and transthoracic echocardiograms, ultrasound-navigated endoscopies, and catheter insertion. It includes a hollow esophageal tube for TEE ultrasound probe insertion. For MRI, the synthetic tissues provide realistic T2 relaxation time values for authentic imaging results across T2-weighted and proton-density methods.
Note: This product includes a transparent water tank for proper mounting and viewing. Coronary arteries are not included by default but are available as a simplified option upon request. A heart pump for beating motion must be purchased separately.
Anatomy
- Chambers:
- Right Ventricle (48 ml) with Moderator Band
- Left Ventricle (74 ml) with Papillary Muscles
- Right Atrium (52 ml) with distinct muscle structures
- Left Atrium (64 ml) with unique muscle structure to the appendage
- Valves: 4 flexible valvular structures.
- Vessels: SVC, IVC, Aorta.
- Arteries: Right/Left Subclavian, Carotid, and Femoral Arteries.
- Veins: Right/Left Subclavian, Jugular, and Femoral Veins.
- Other Features: Esophageal tube and appendage features.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Heart Tissue | 1400 ± 10 | 1.02 | 60 | 30 (at 0.35 T) | YES | 1.7 ± 0.2 |
Imaging Compatibility
The phantom is compatible with various contrast mediums, including:
- Barium-sulfate
- Iodine-based
- Gadolinium-based
- Microbubble and Iron Oxide-based
Included in Order
- Adult Female Heart Phantom
- Water Tank for Heart Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
Size & Weight
Phantom: 23 x 7 x 12 Inches | Weight: ~3 Lbs
Shipment: 36 x 24 x 12 Inches | Weight: ~22 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
Available Options
- Gender: Female (Default) or Male
- Coronary Arteries: Default (Not Included) or Included (Simplified)
Imaging Scans

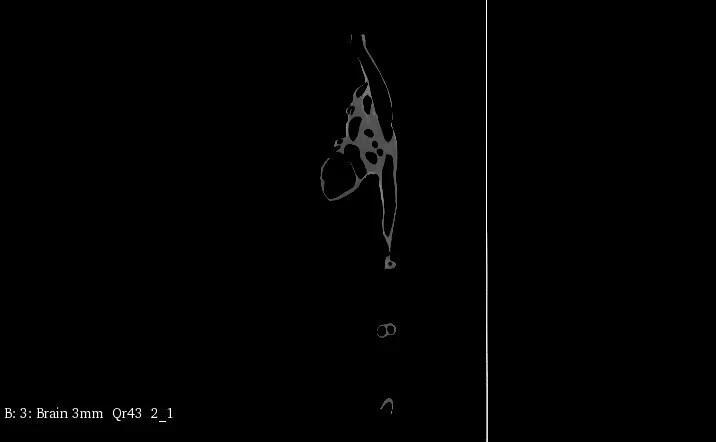

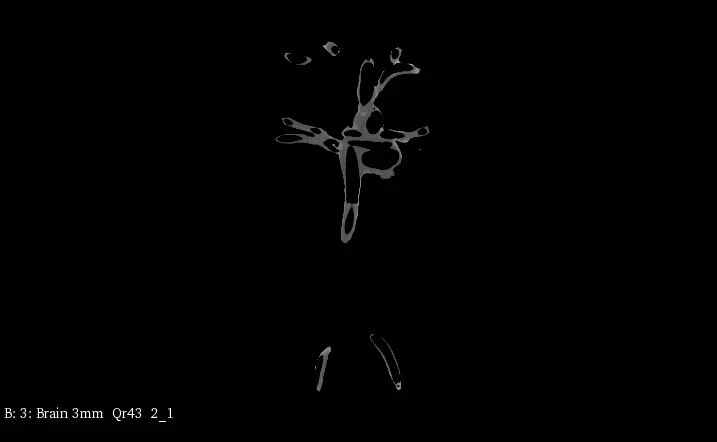

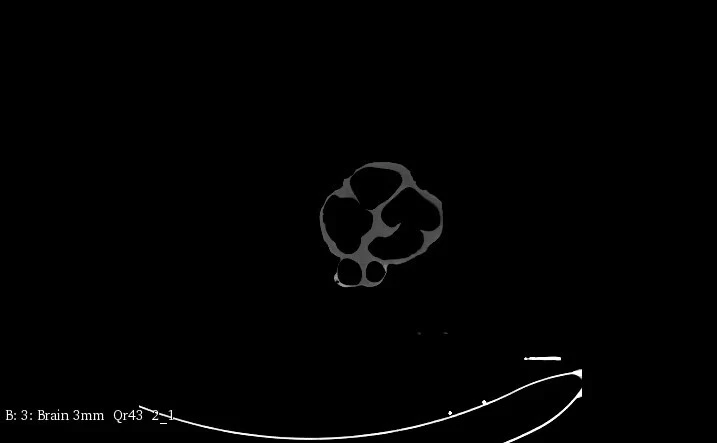

CT Image Scans

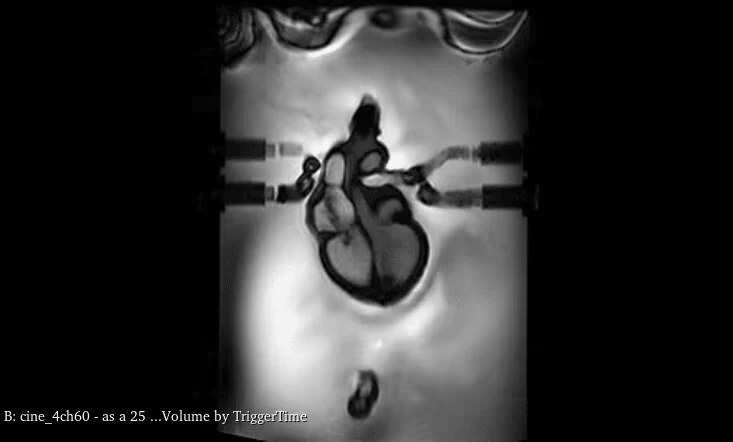

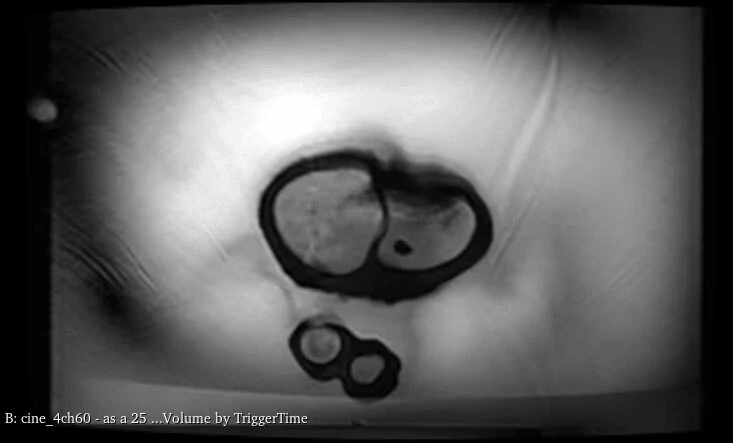

MRI Image Scans

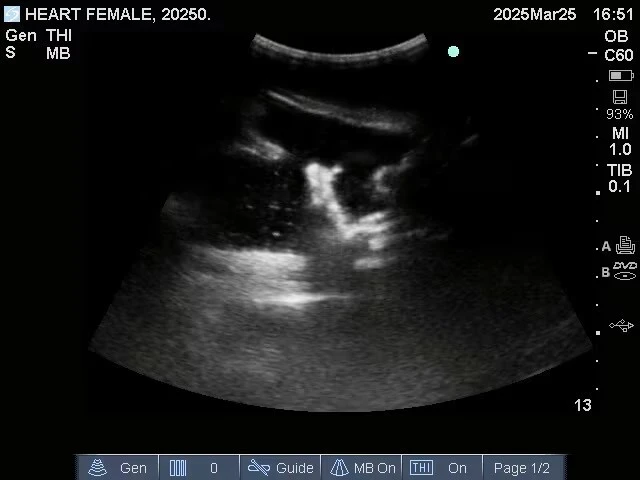

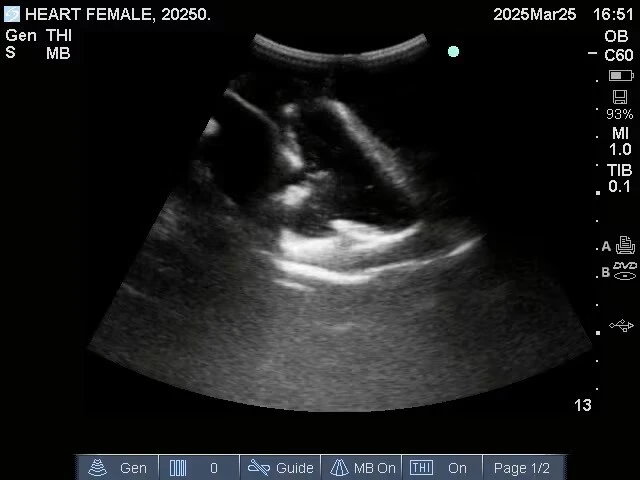

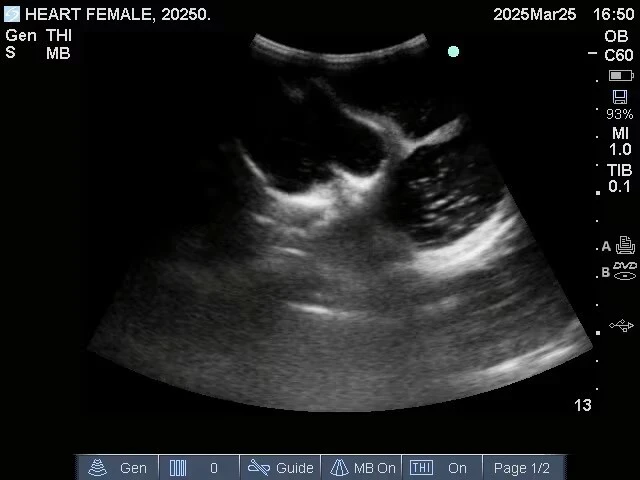

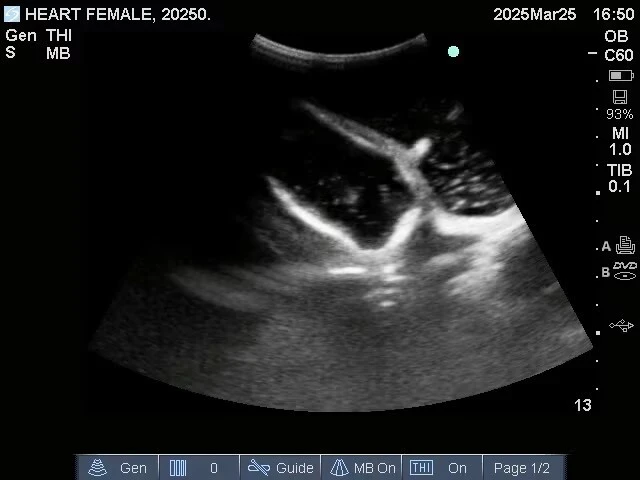

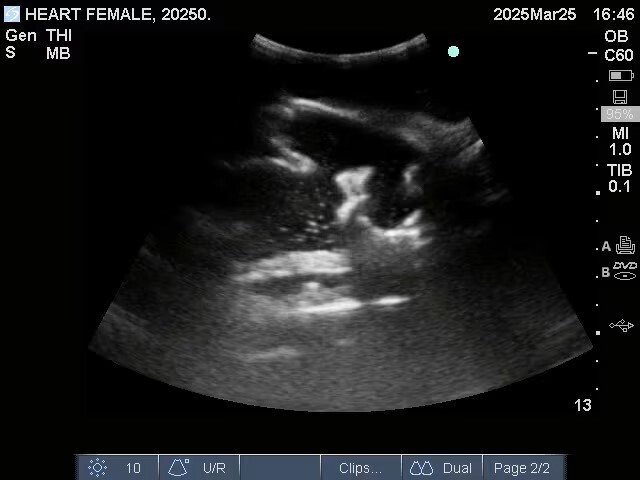

Ultrasound Image Scans

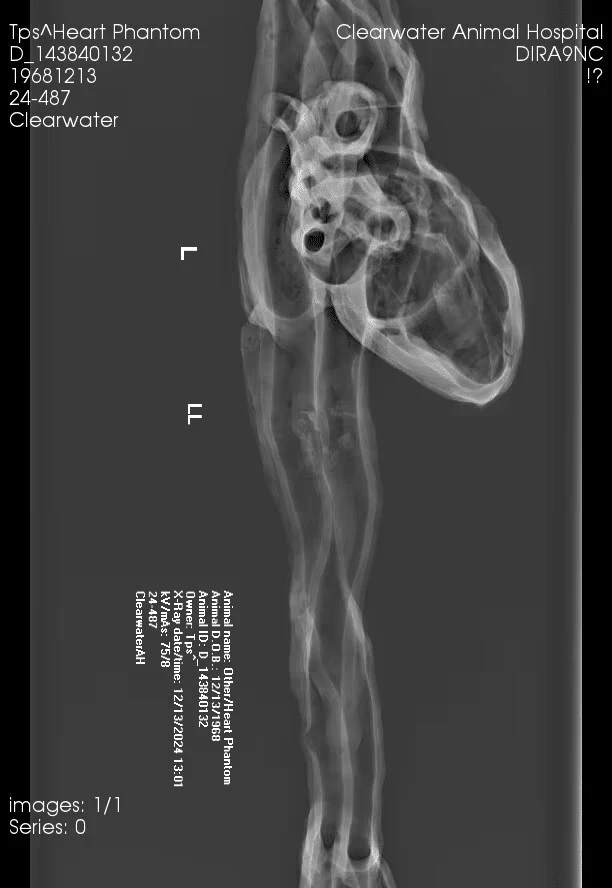

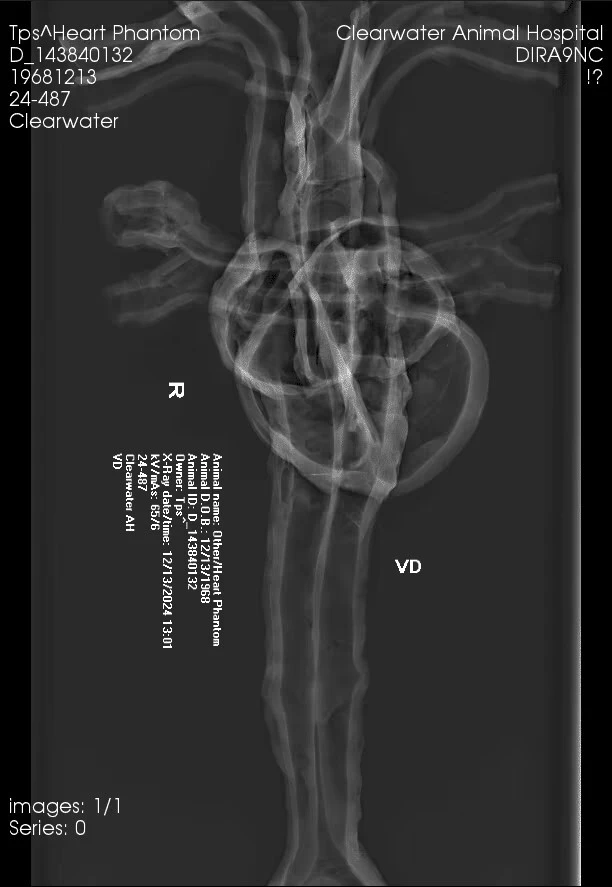

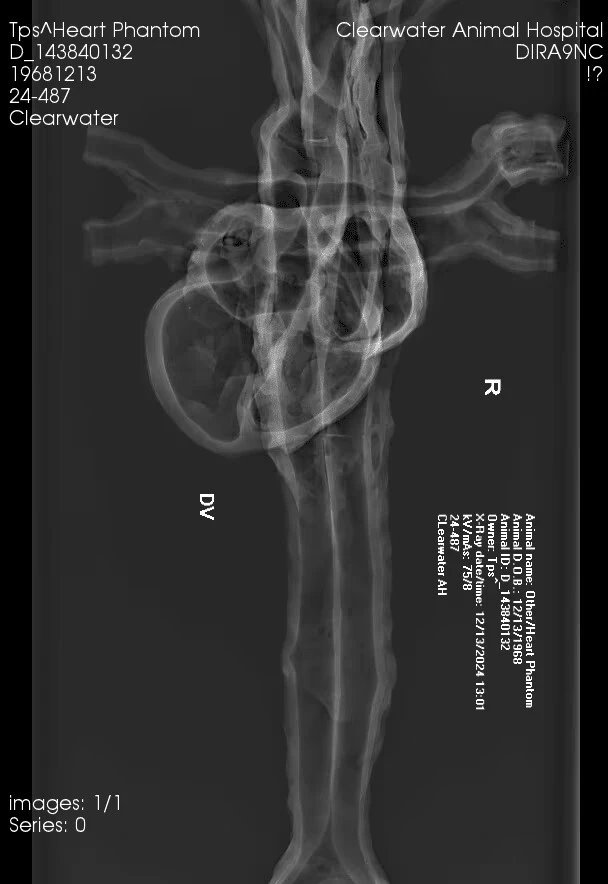

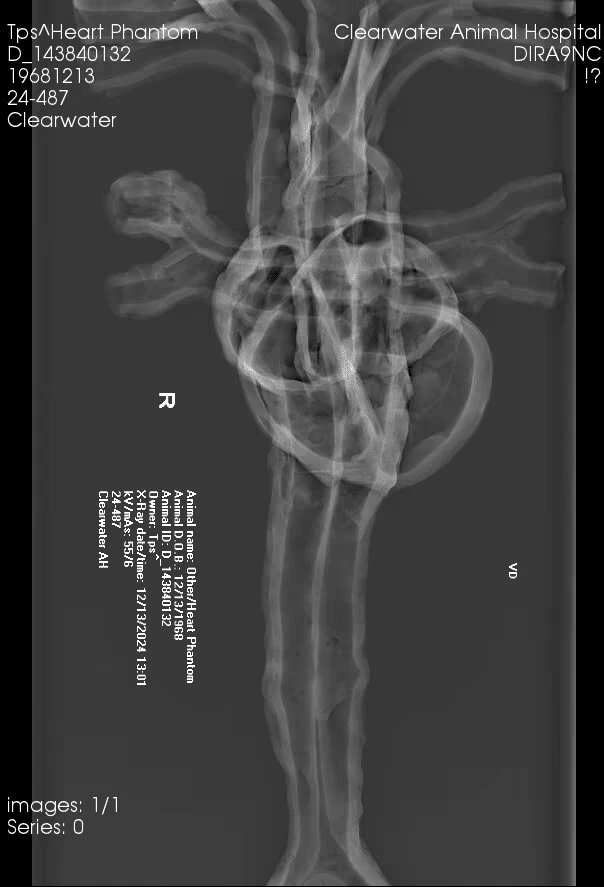

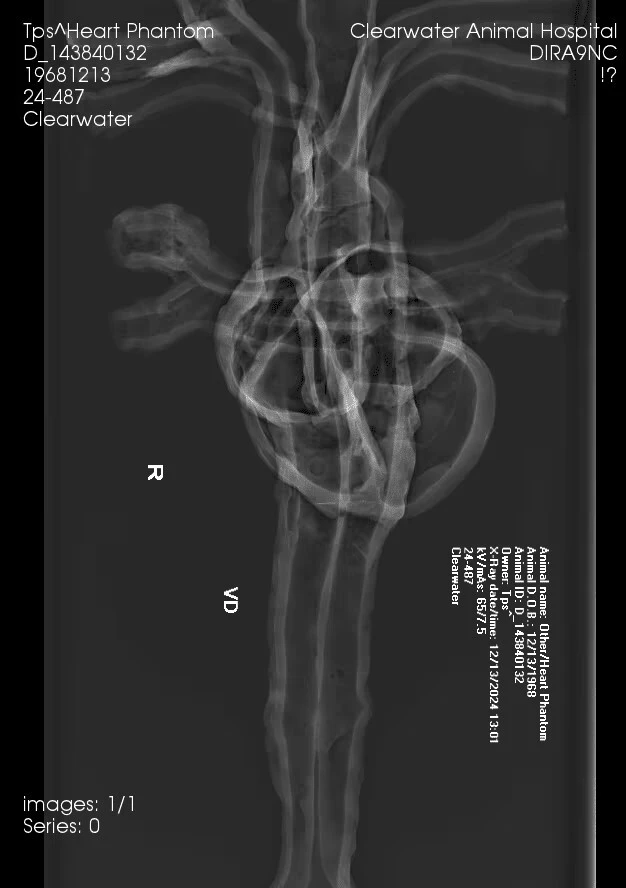

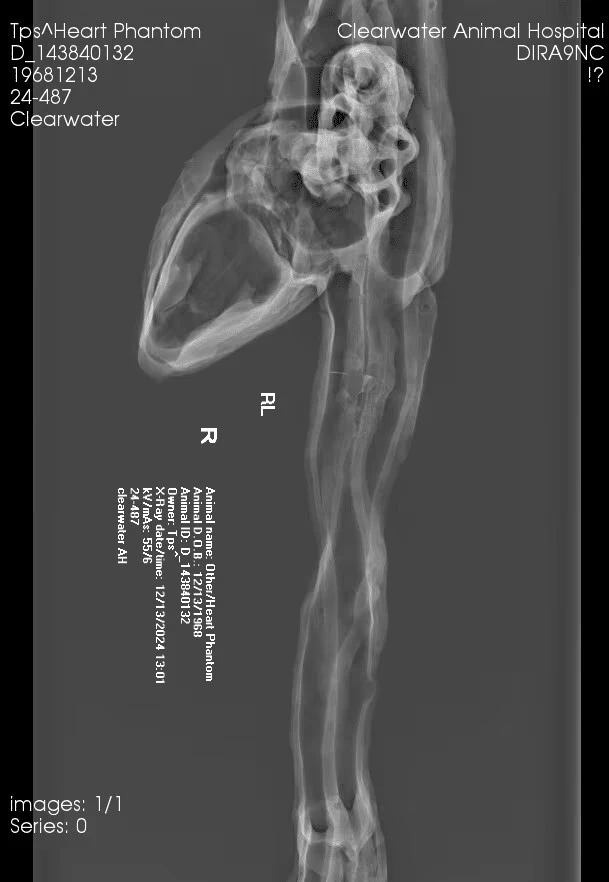

X-Ray Image Scans
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
