Adult Female Torso for X-Ray CT, MRI
Product Description
The Adult Female Torso Phantom is a high-fidelity simulator designed using a CT dataset from a healthy 35-year-old female (168 cm tall, BMI 22). Developed using advanced AI algorithms, it ensures exceptional anatomical accuracy and realistic organ positioning. This multi-modality phantom is optimized for X-Ray, CT, and MRI, serving as a versatile tool for radiology training, medical system development, and research.
It provides specialized insights into women's health fields such as gynecology, breast oncology, and mammography. For MRI, the phantom tissues feature realistic T2 relaxation time values, making it ideal for T2-weighted and proton-density imaging. The hollow trachea (6.15 mm diameter) allows for the insertion of catheters and airway devices.

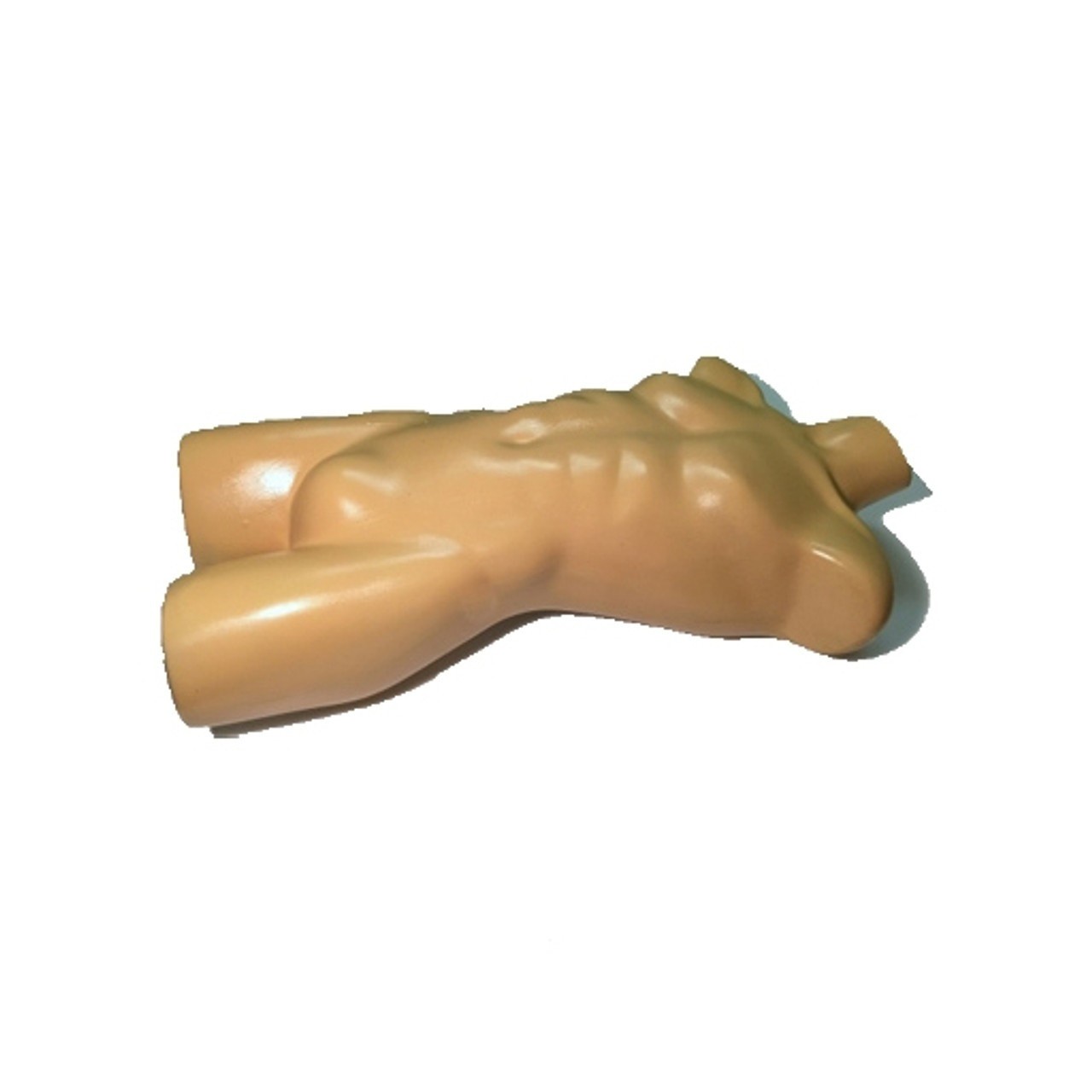

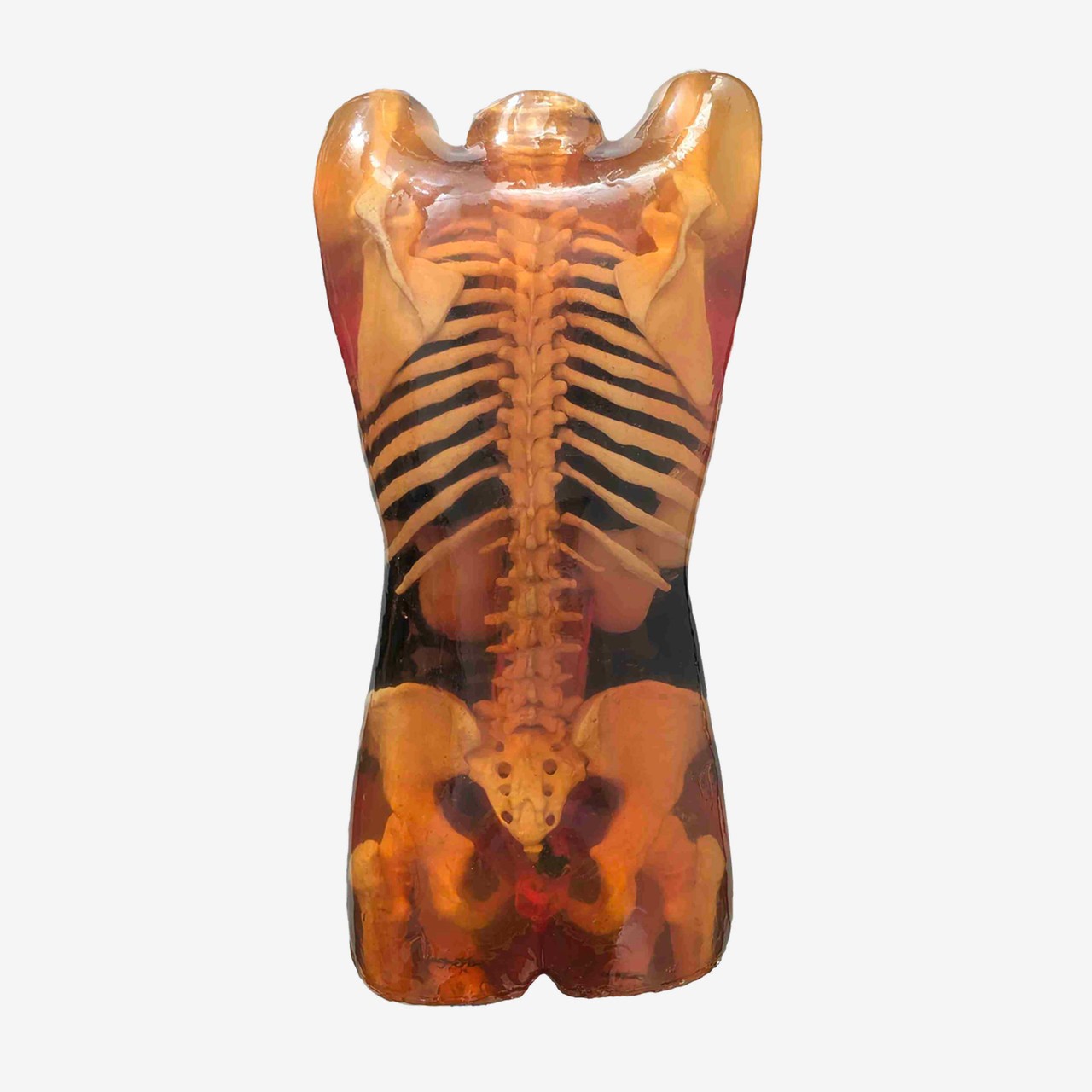

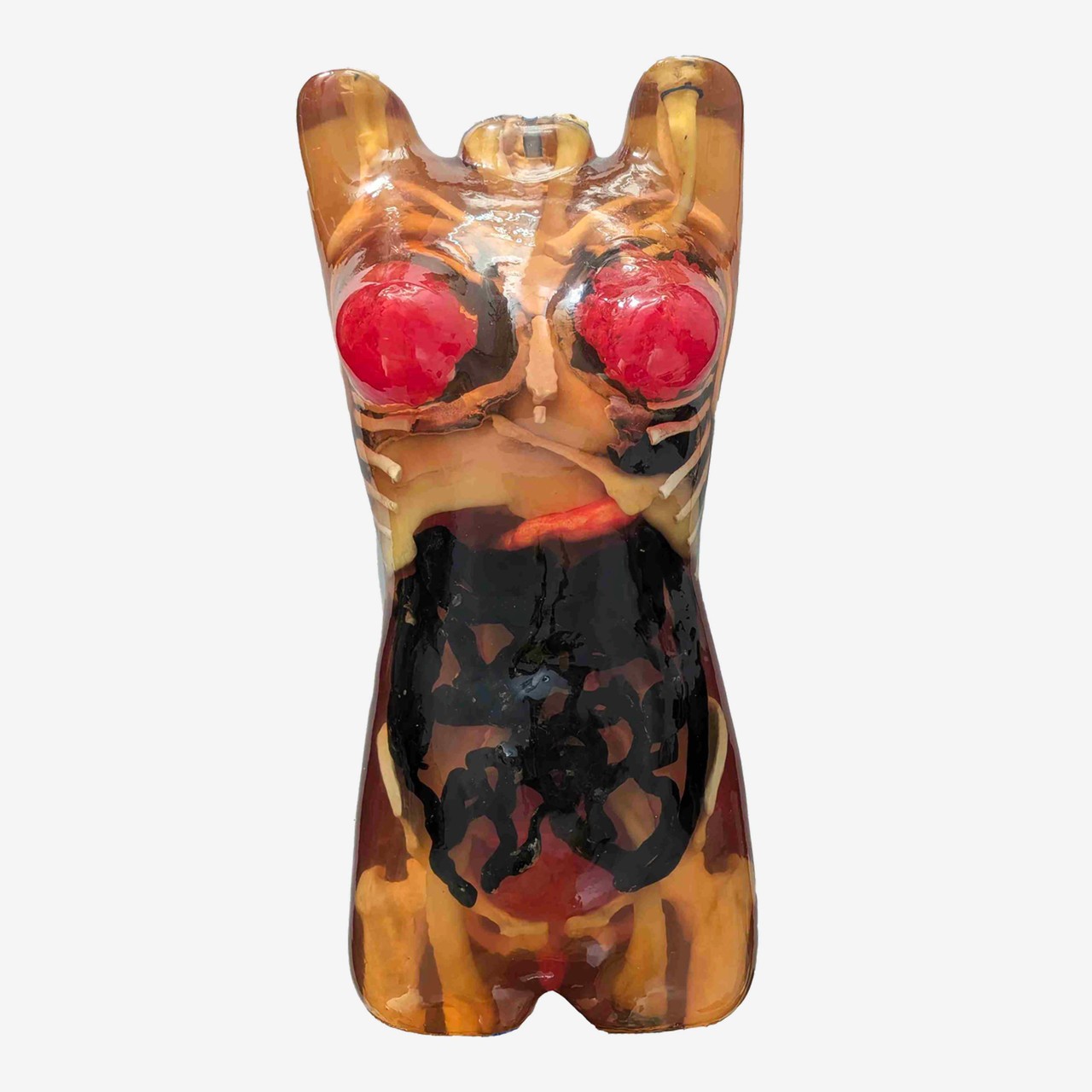

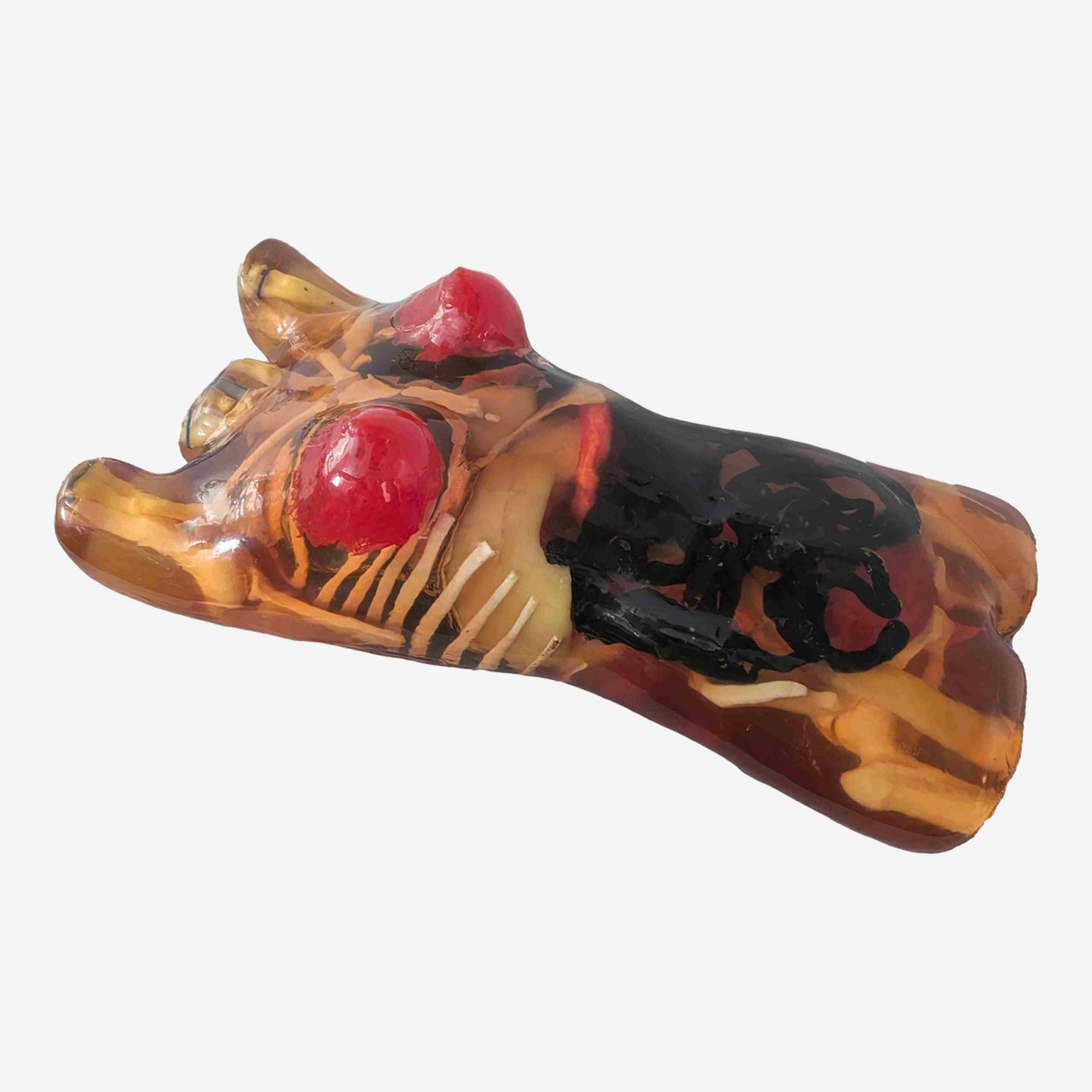

Note: By default, the phantom comes in a translucent amber appearance. The skin feature and customization (including childbirth/pregnancy or custom BMI fat layers of 28 or 35) are available upon request.
Anatomy

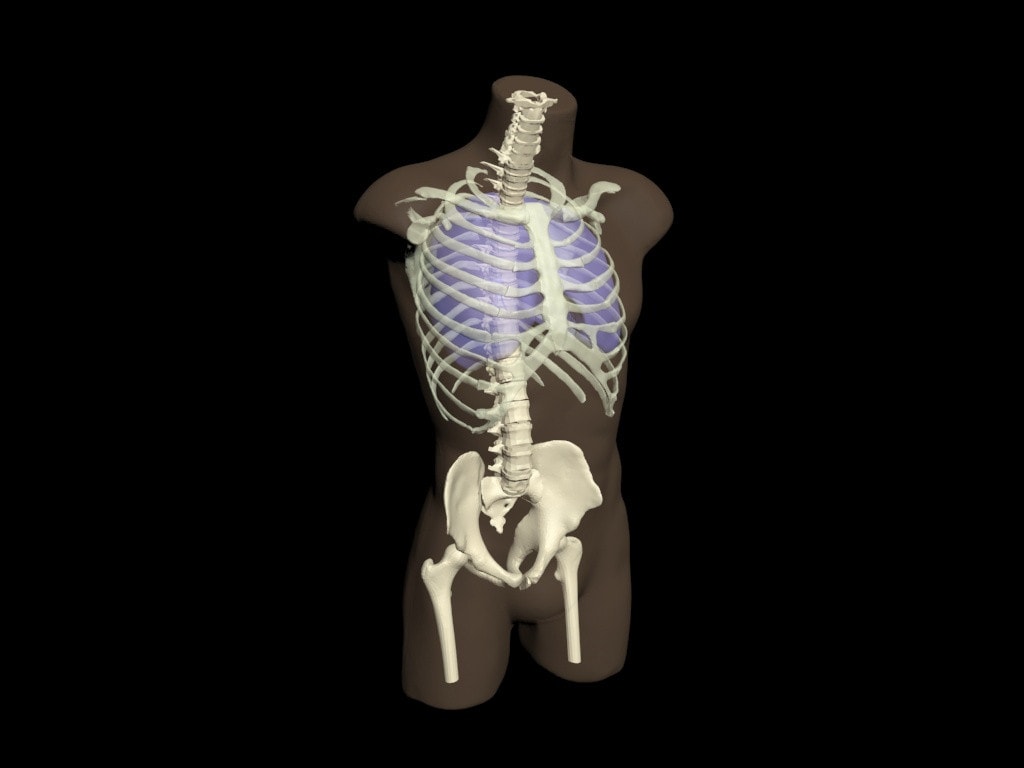

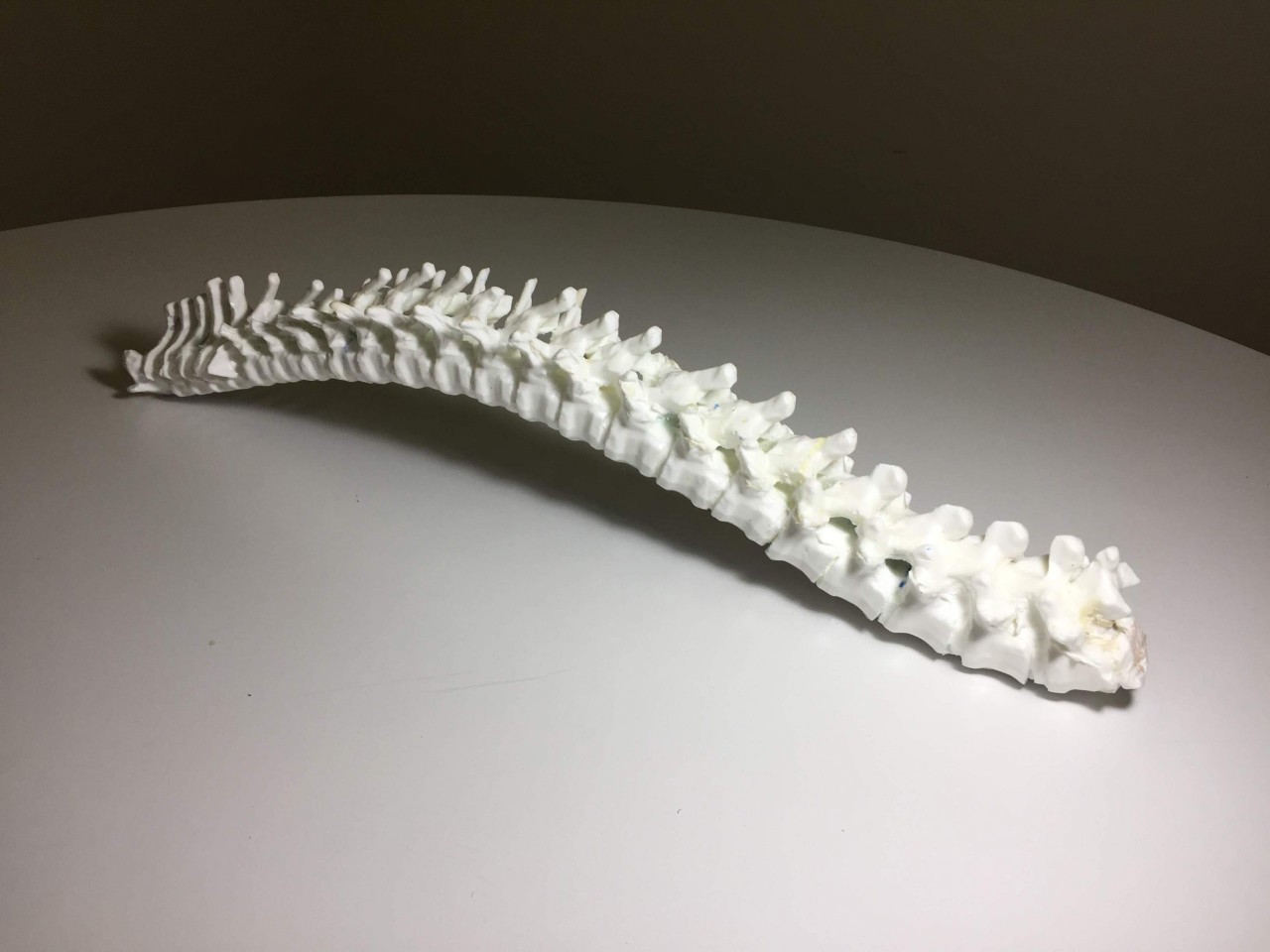

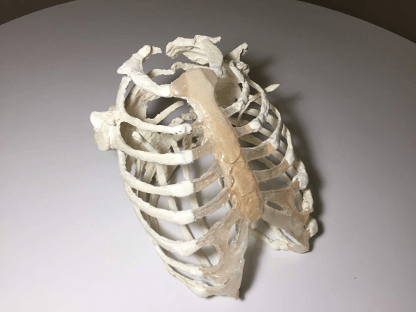

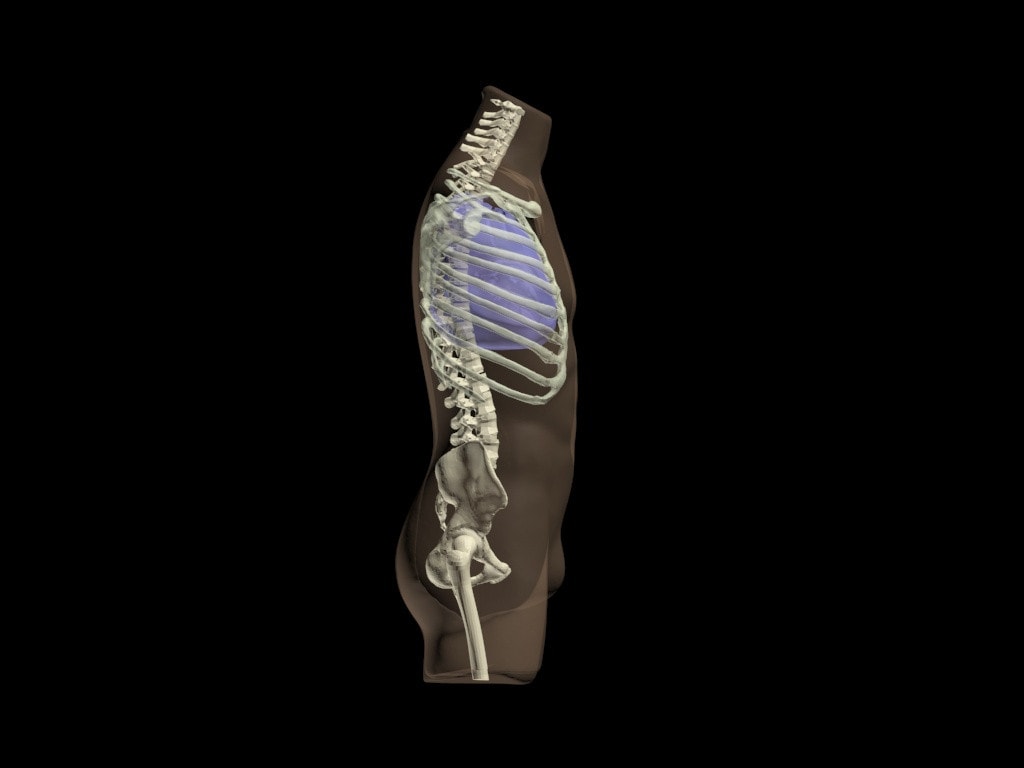

- Complete Spine and Ribcage
- Shoulders and Clavicles

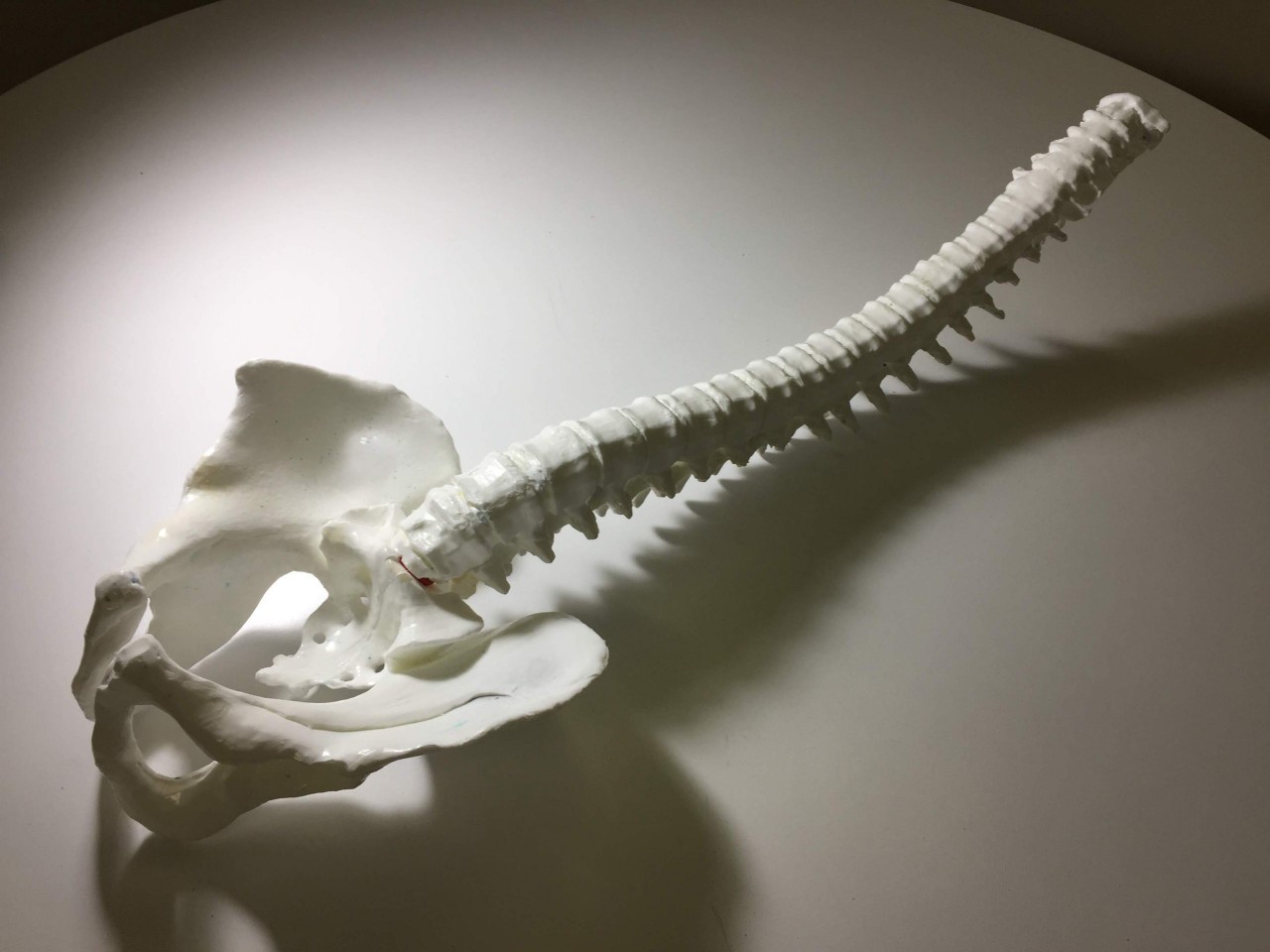

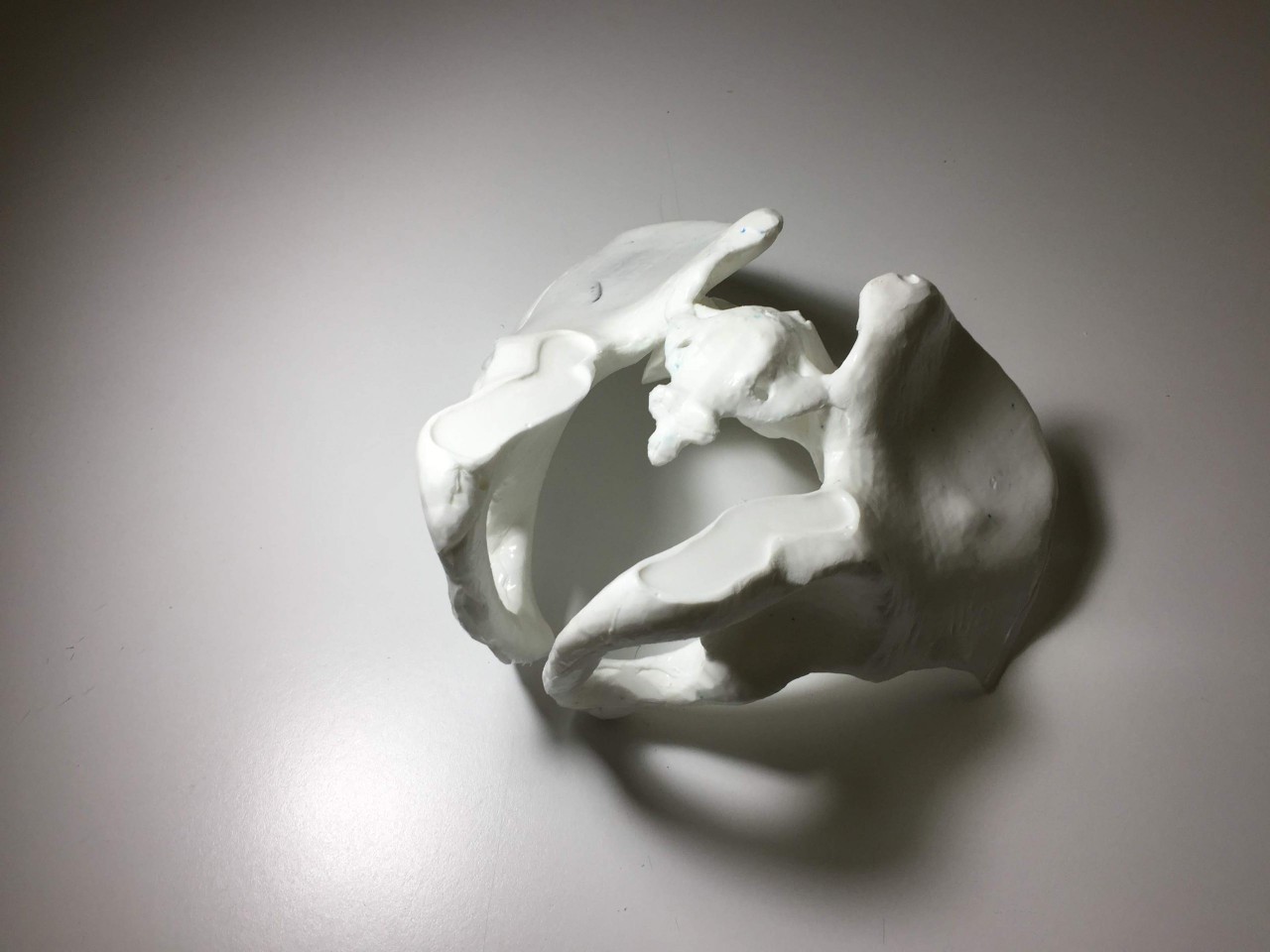

- Pelvis and Partial Femoral Bones
- Trachea, Heart, and Lungs
- Diaphragm and Breasts (Body Tissue, Mammary Fat, and Gland Tissues)
- Liver, Gallbladder, Stomach, Kidneys, Spleen, and Pancreas
- Large and Small Intestines
- Bladder, Cervix, Vaginal Canal, Ovaries, and Uterus
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |

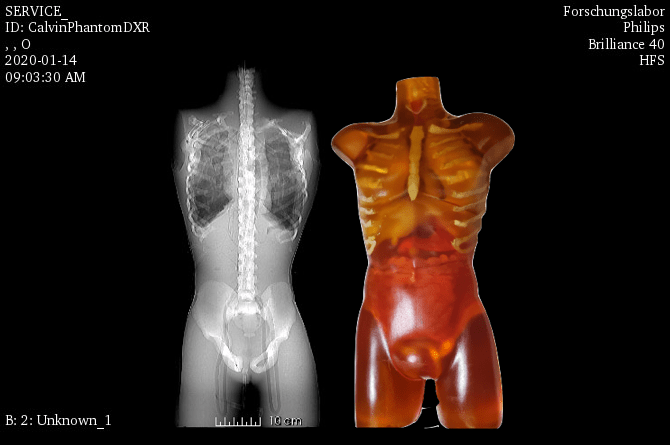

HU Values of the Tissue-Mimicking Material
| Tissue Type | HU Value (Average) | Tissue Type | HU Value (Average) |
|---|---|---|---|
| Body Tissue | -25 | Spleen / Kidneys / Liver | 110 |
| Trabecular Bone | 800 | Bladder / Gallbladder | 35 |
| Cortical Bone | 1300 | Rectum / Sigmoid Colon Wall | 100 |
| Aorta / Vena Cava / Heart | 40 | Diaphragm / Intestines (Tissue) | 80 |
| Trachea (Tissue) | 80 | Mammary Gland Tissues | 35 |
| Trachea (Air) / Intestines (Air) | -1000 | Cervix / Vaginal Canal / Ovaries / Uterus | 50 |
| Lungs / Stomach | -850 | Mammary Fat Tissues | -25 |
| Pancreas | 110 | - | - |
Optional Add-Ons
- Dynamic Motion: Heart and lung pumps to simulate respiratory and cardiac motion.
- Fat Layers: BMI customization to 28 or 35.
- Custom Anatomy: Additional organs or pregnancy/obstetrics features.
Included in Order
- Adult Female Torso Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 29 x 14 x 11 Inches | Weight: ~80 Lbs
Shipment: 46 x 36 x 17 Inches (with case) | Weight: ~136 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Model Options
- Torso Models: Female (Standard), Female (Dynamic)
- Modality: X-Ray CT, MRI (Standard) or X-Ray CT, US
