Description
Adult Full Body for X-Ray CT, MRI
Product Description

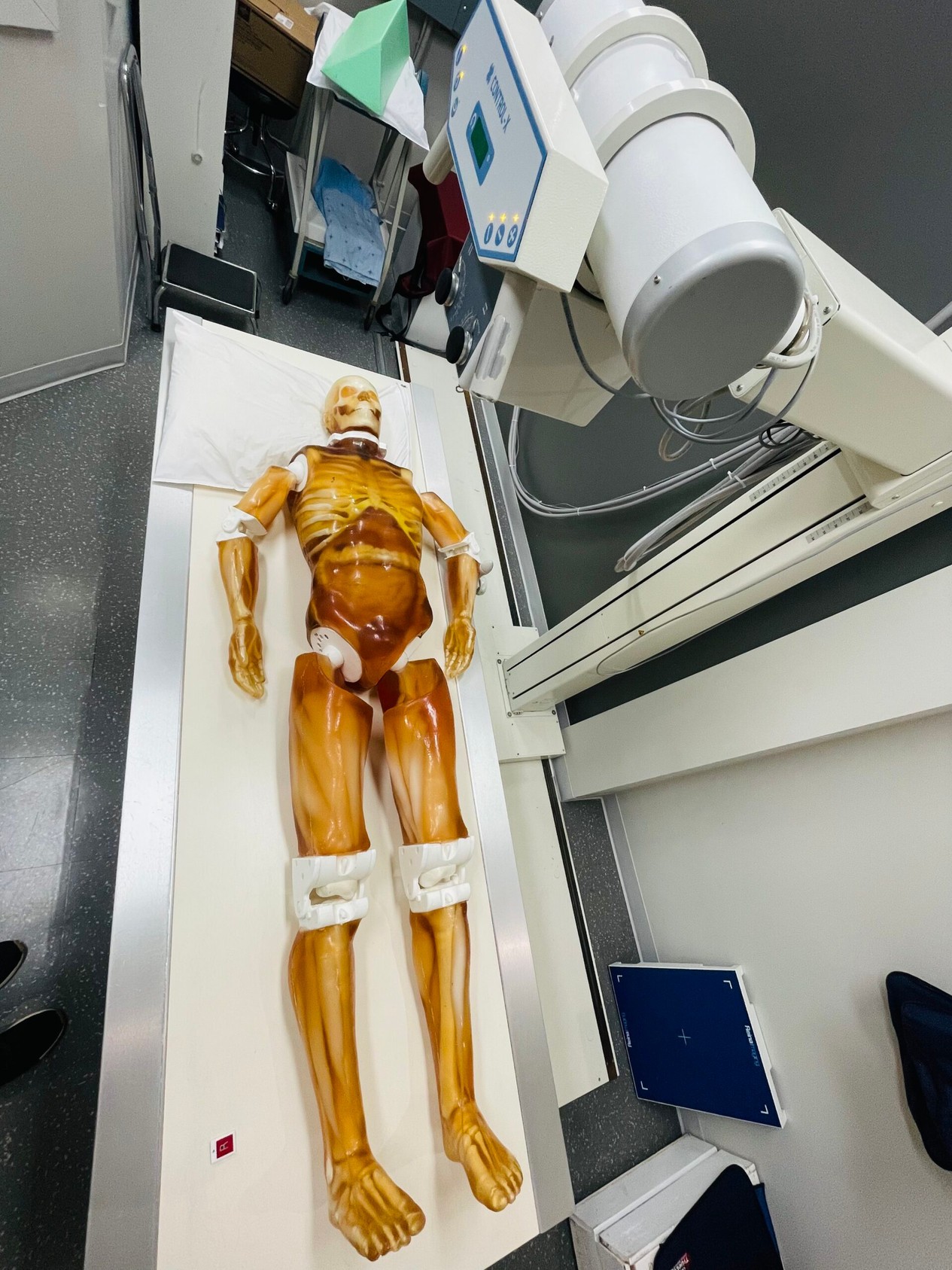

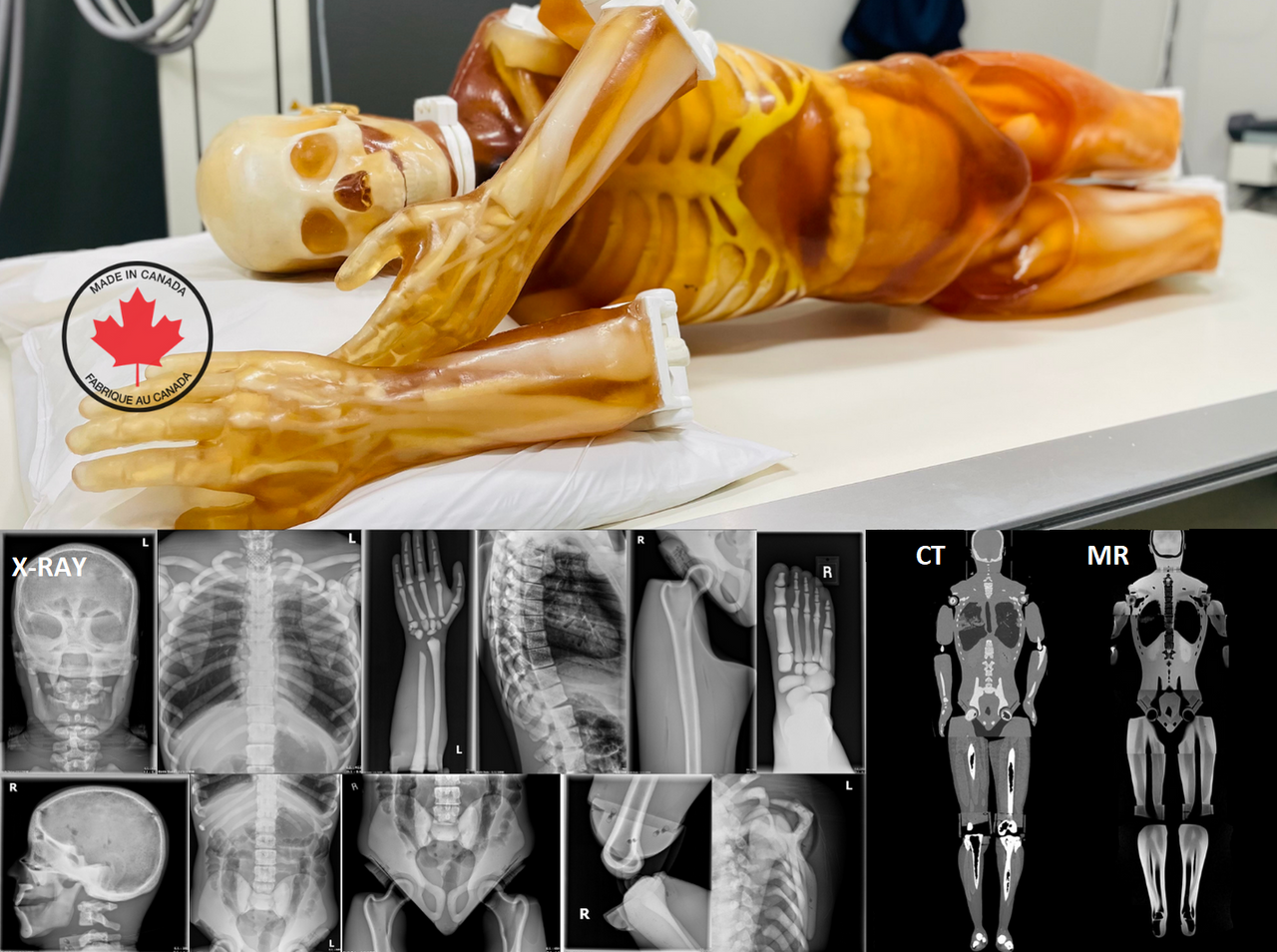

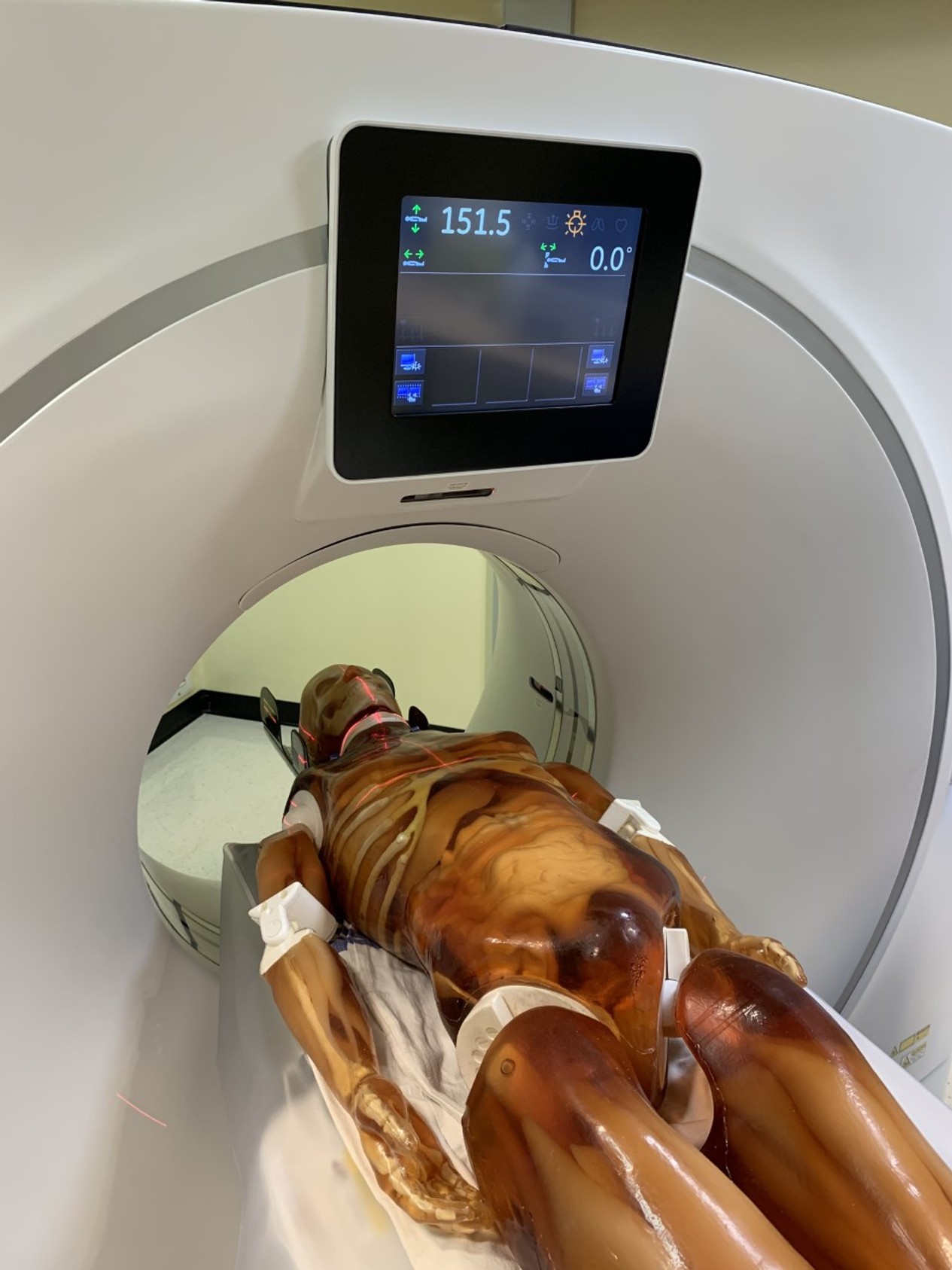

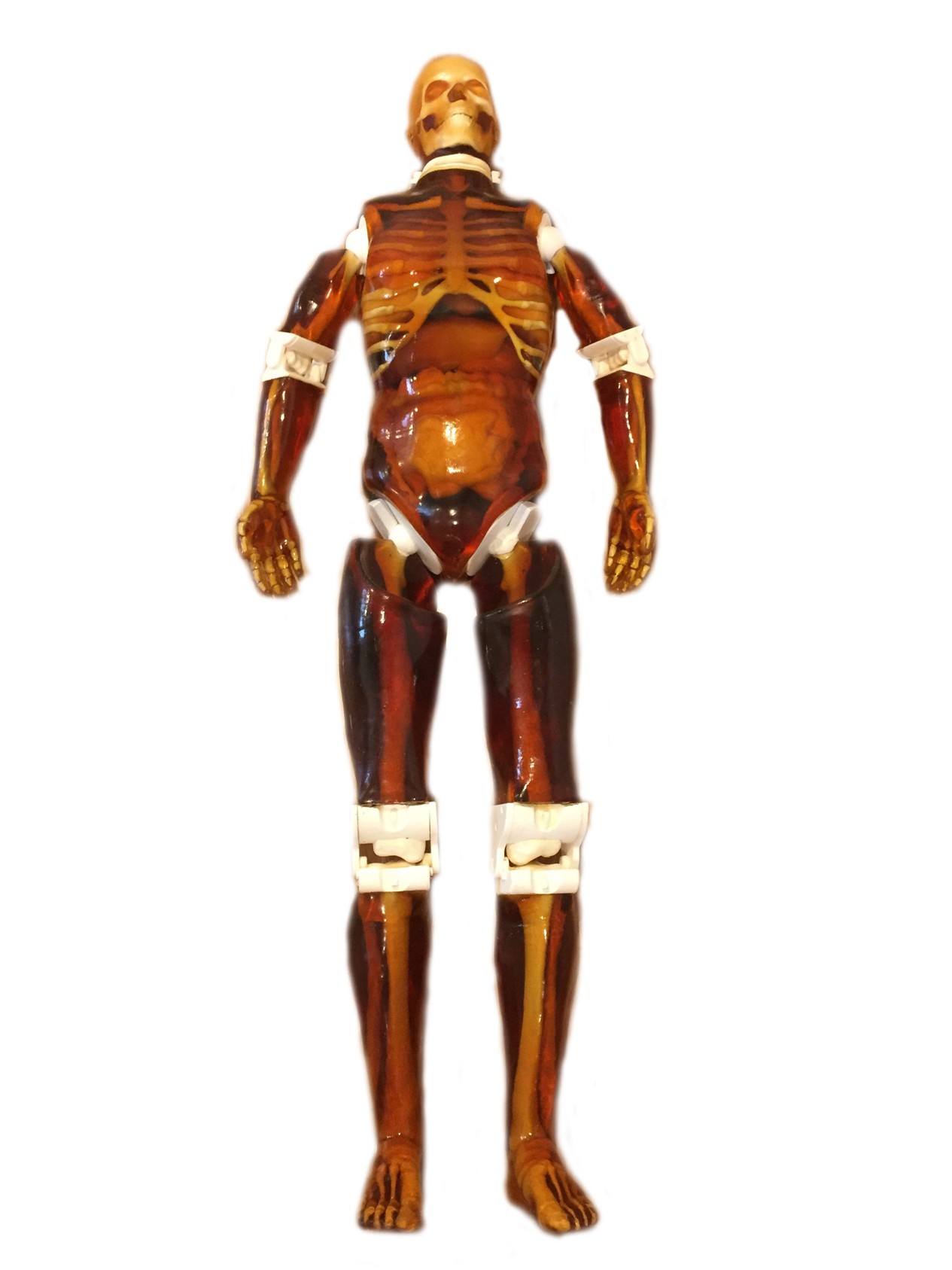

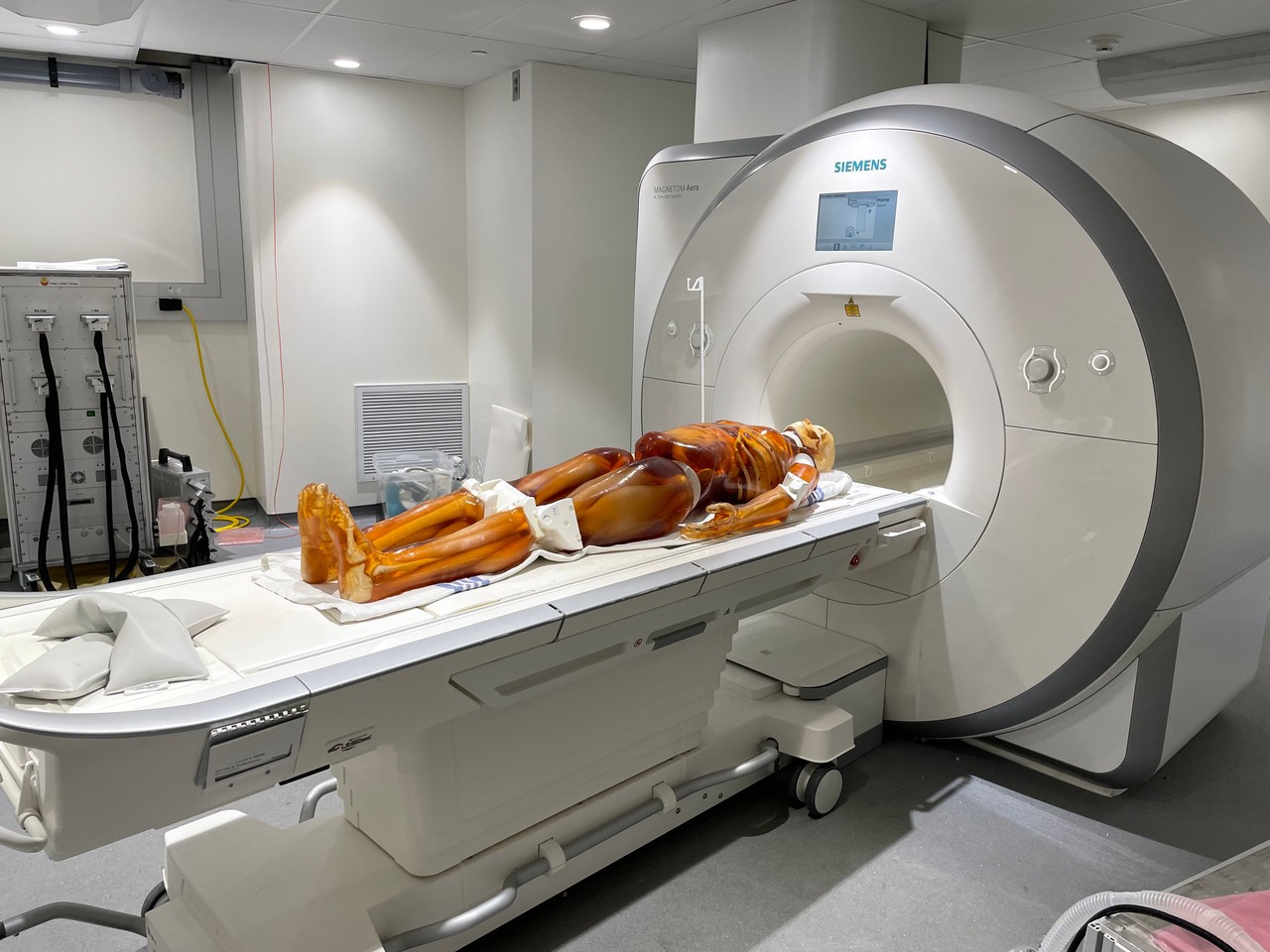

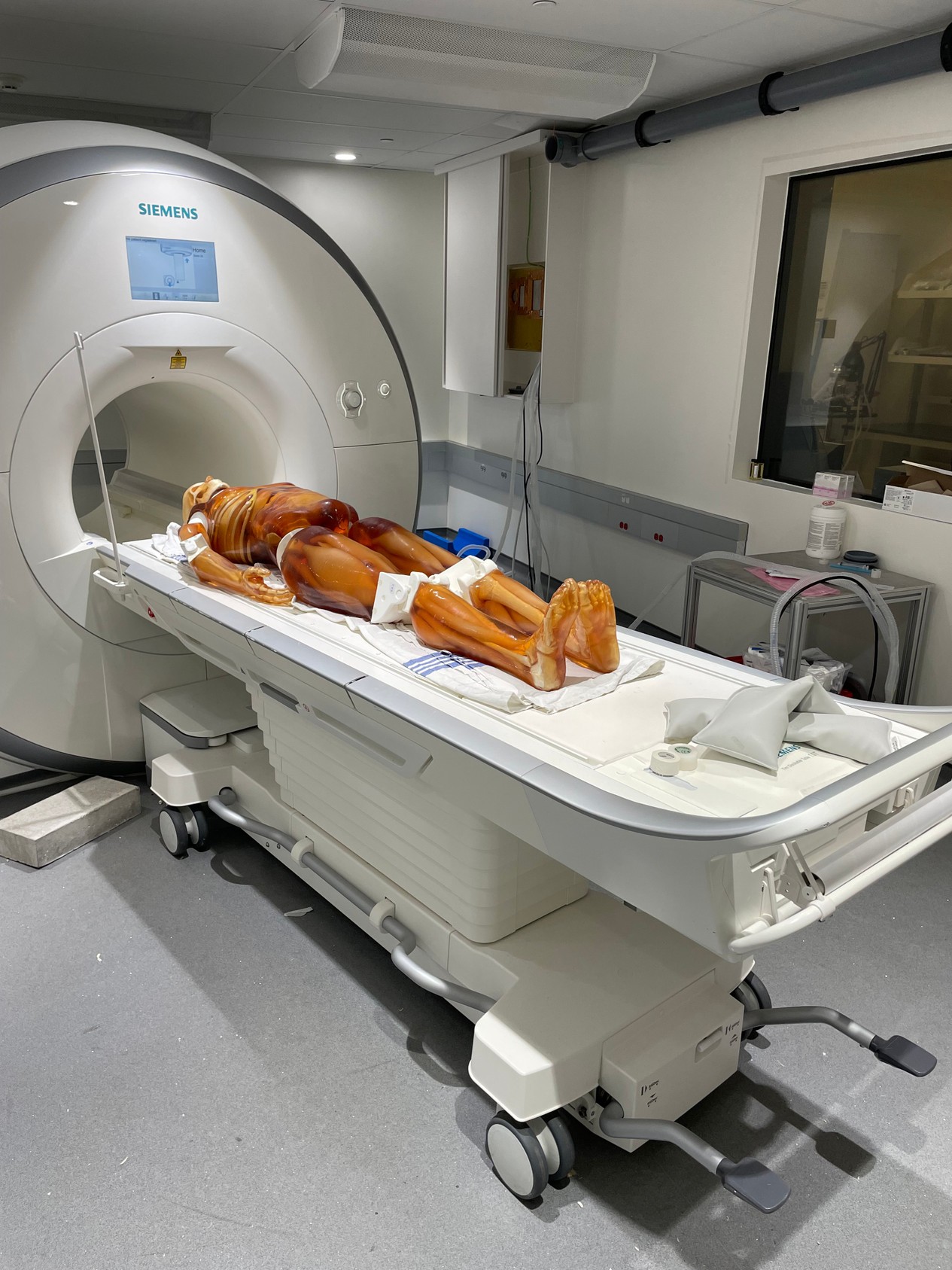

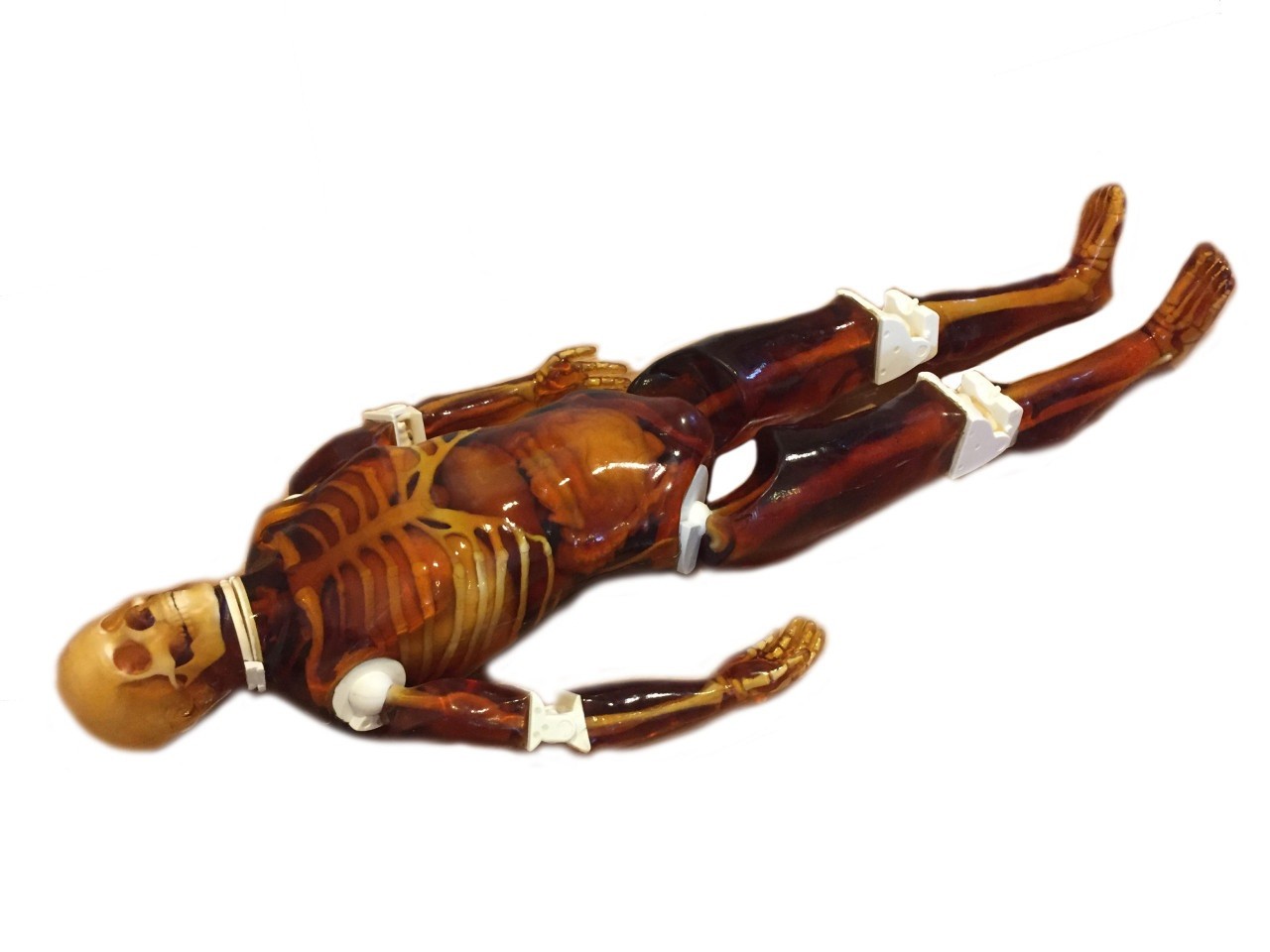

The Adult Full Body Phantom (FB-A01) is a comprehensive training simulator designed to mimic an adult male body (172 cm height, 70 kg weight). It is engineered for X-Ray/CT and MRI compatibility, providing a safe, ethical alternative to cadavers or volunteers for medical imaging research and education. The phantom is constructed with ten detachable parts, including rotatable shoulders and movable hip, knee, and elbow joints.
For MRI, the tissues exhibit realistic T2 relaxation time values, making the phantom highly suitable for T2-weighted and proton-density imaging. Each bone is individually cast with a realistic three-layered structure and inner porosity that can be adjusted to specific project requirements. It is designed for repeated scanning without the danger of radiation harm or deterioration.
Note: By default, the phantom comes in a translucent amber appearance. A skin-colored version is available upon request. Unlike the FB-A02 model, this standard version (FB-A01) does not include muscles in the legs and arms.
Anatomy
- Full Human Body (10 Parts): Detachable head, torso, and limbs.
- Adult Head: Skull, Brain (Gray and White matter), Air Cavities, and Frontal Sinus with air gaps.

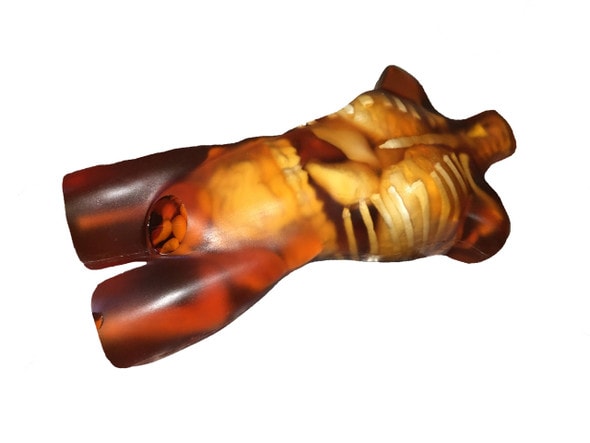

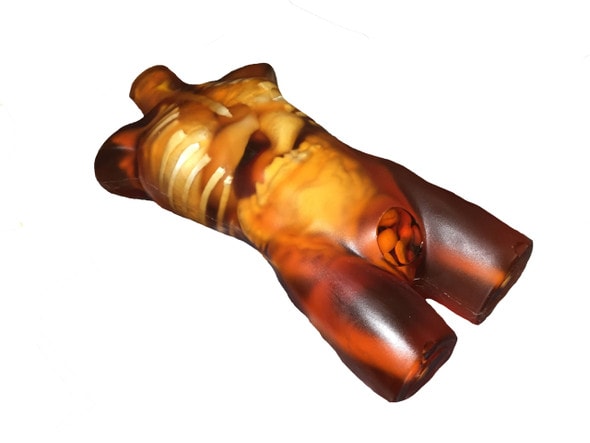

- Adult Torso: Spine, Ribcage, Shoulders, Clavicles, Pelvis, Trachea, Heart, Lungs with Bronchi, Diaphragm, Liver, Gallbladder, Stomach, Kidneys, Spleen, Pancreas, Large and Small Intestines, Bladder, and Prostate.
- Adult Arms: Humerus, Elbow Joints, Radius, Ulna, Wrist, and Fingers.
- Adult Legs: Femur, Knee Joints, Tibia, Fibula, Foot, and Toes.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of Tissue-Mimicking Materials
| Tissue Type | HU Value (Average) | Tissue Type | HU Value (Average) |
|---|---|---|---|
| Body Tissue | -25 | Lungs | -850 |
| Brain Tissue | -25 | Pancreas / Spleen / Kidneys / Liver | 110 |
| Trabecular Bone | 800 | Bladder / Gallbladder | 35 |
| Cortical Bone | 1300 | Rectum / Sigmoid Colon Wall | 100 |
| Aorta / Vena Cava / Heart | 40 | Diaphragm | 80 |
| Trachea (Tissue) | 80 | Intestines (Tissue) | 80 |
| Trachea (Air) | -1000 | Intestines (Air) | -1000 |
| Stomach | -850 | - | - |
Included in Order
- Adult Full Body Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 69 Inches (172 cm) | Weight: ~154 Lbs (70 kg)
Shipment: 46 x 36 x 17 Inches | Weight: ~199 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Customization
Customization is offered for almost any phantom. This model can be tailored with different pathologies (lesions, tumors, infections) or adjusted internal bone porosity based on client requirements.

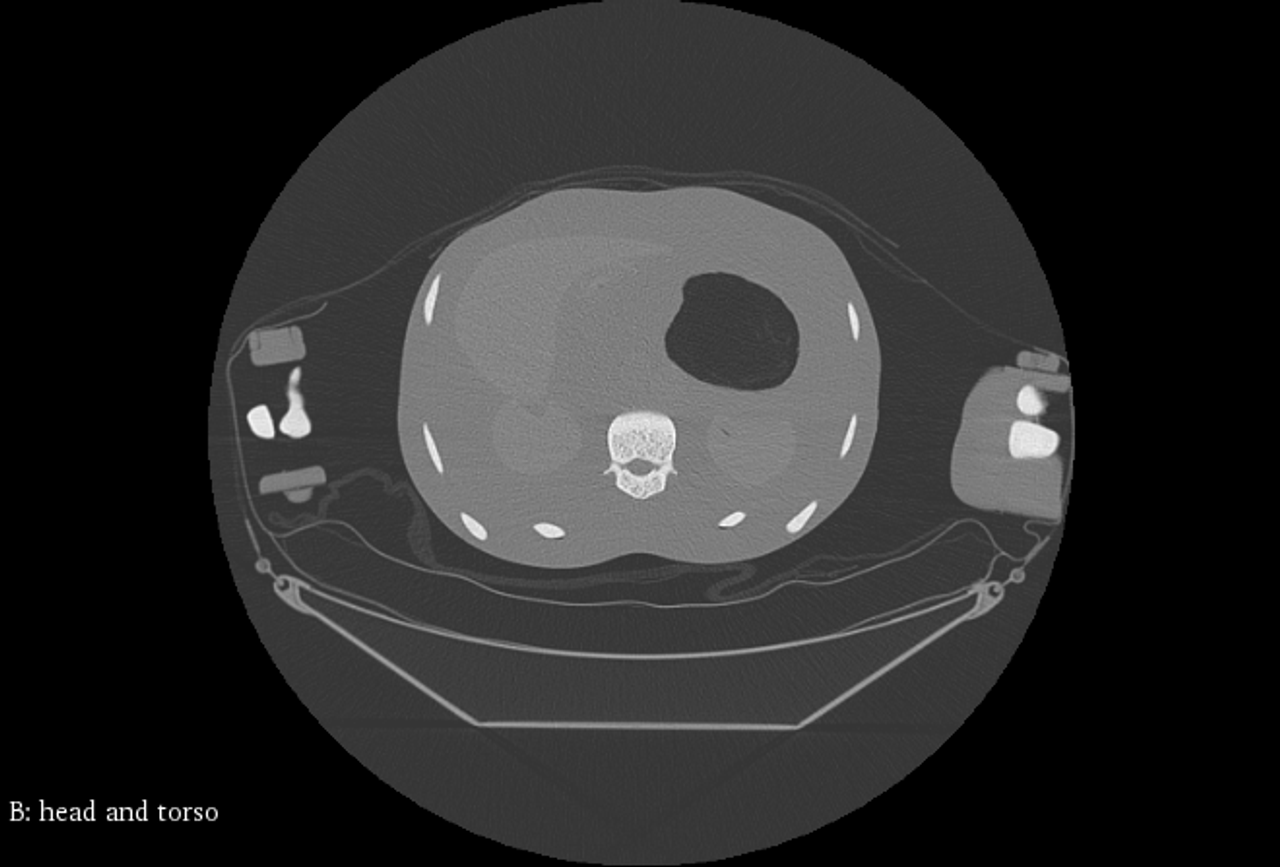

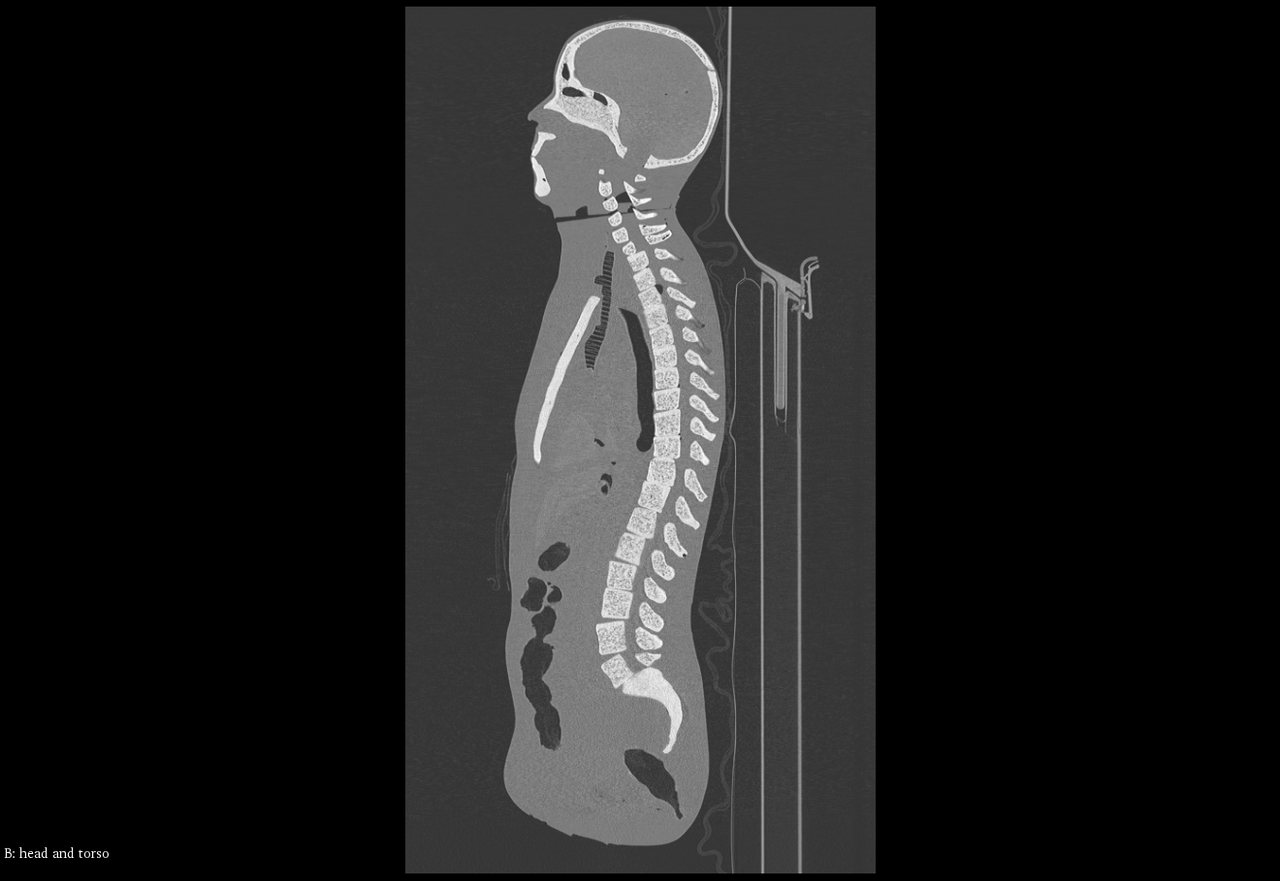

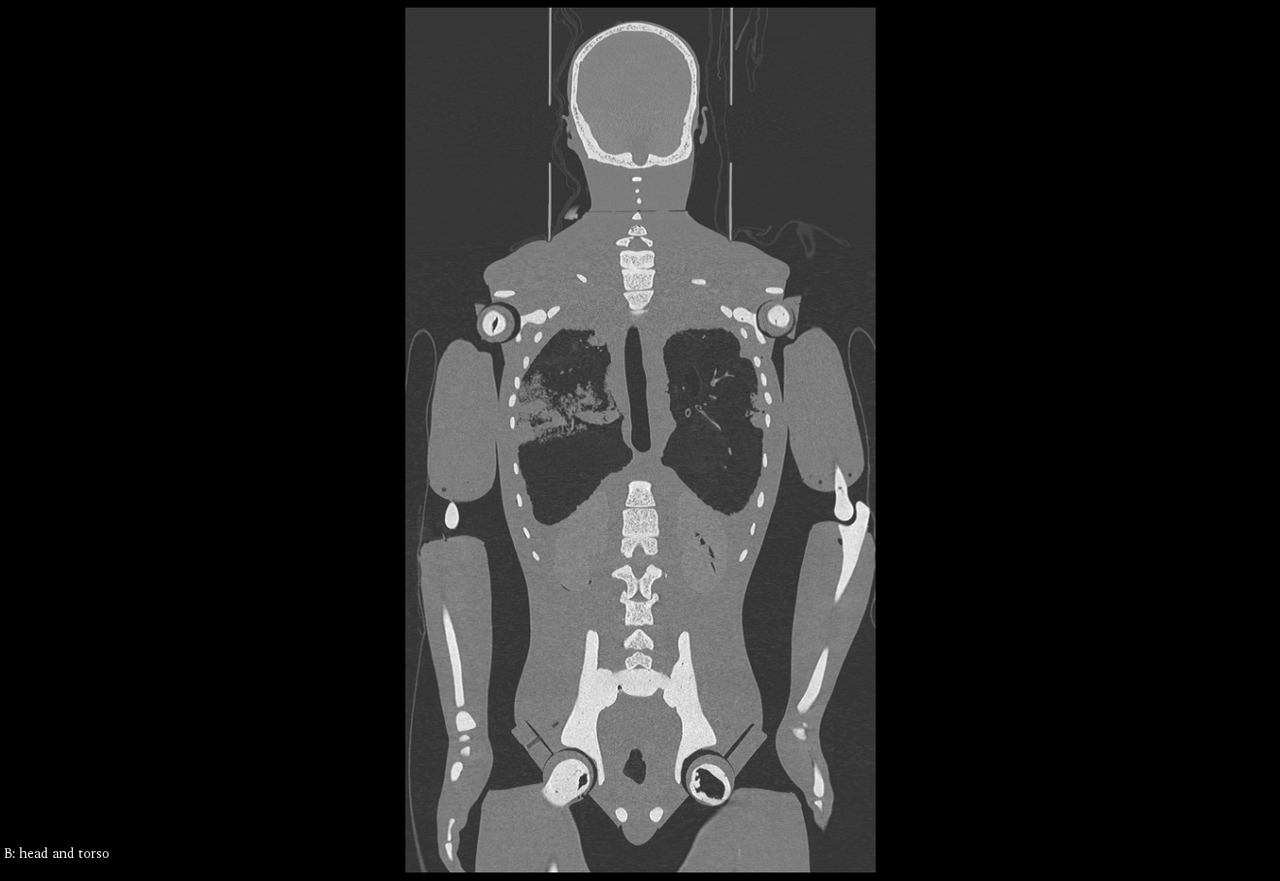

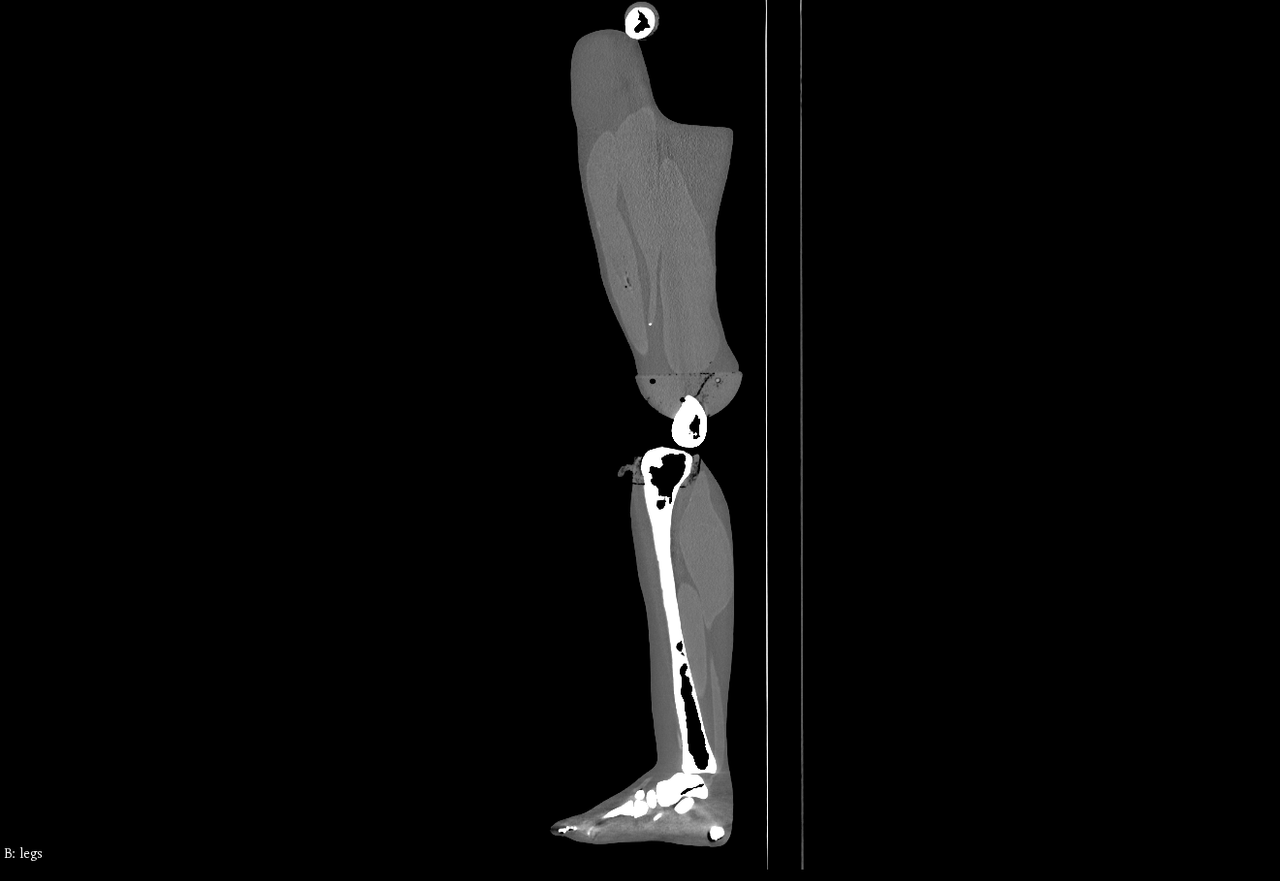

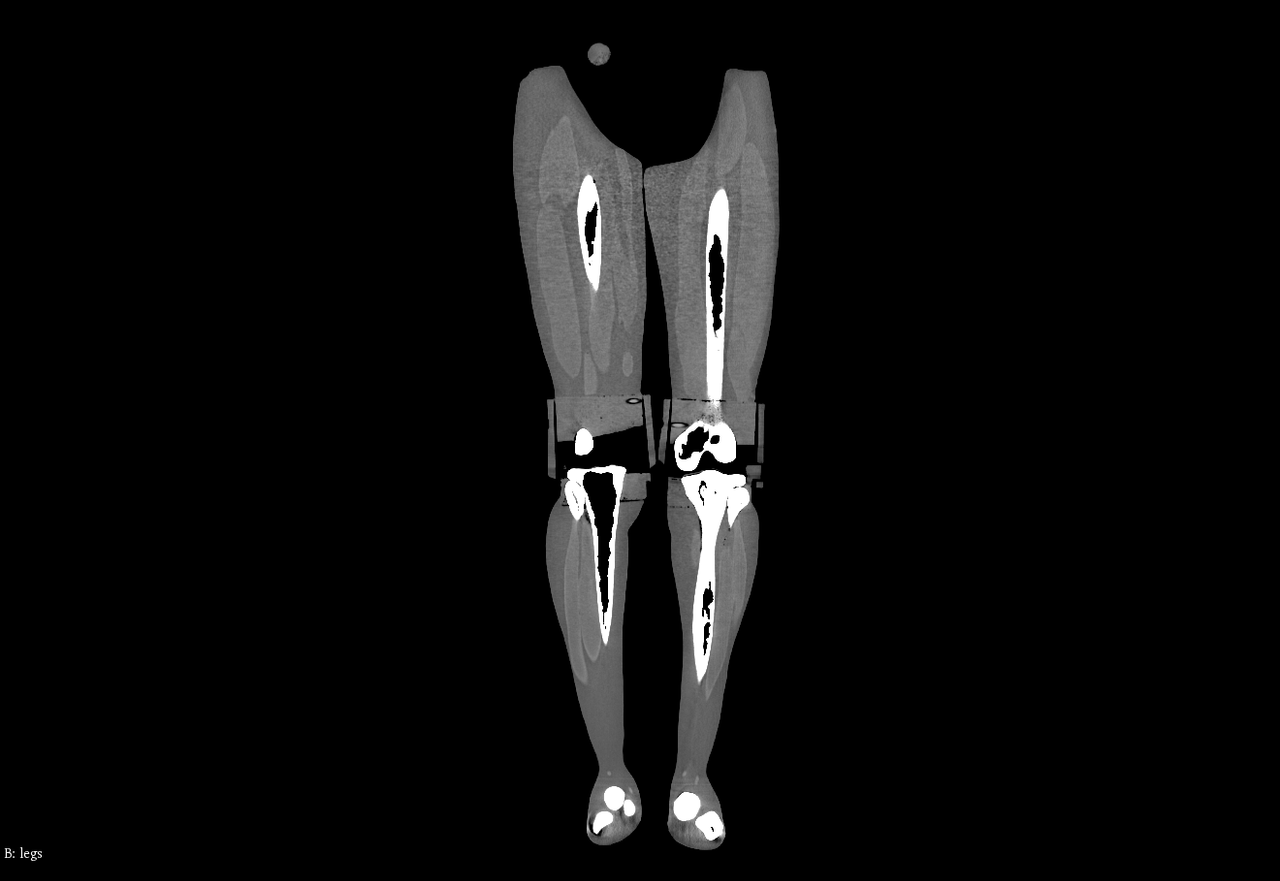

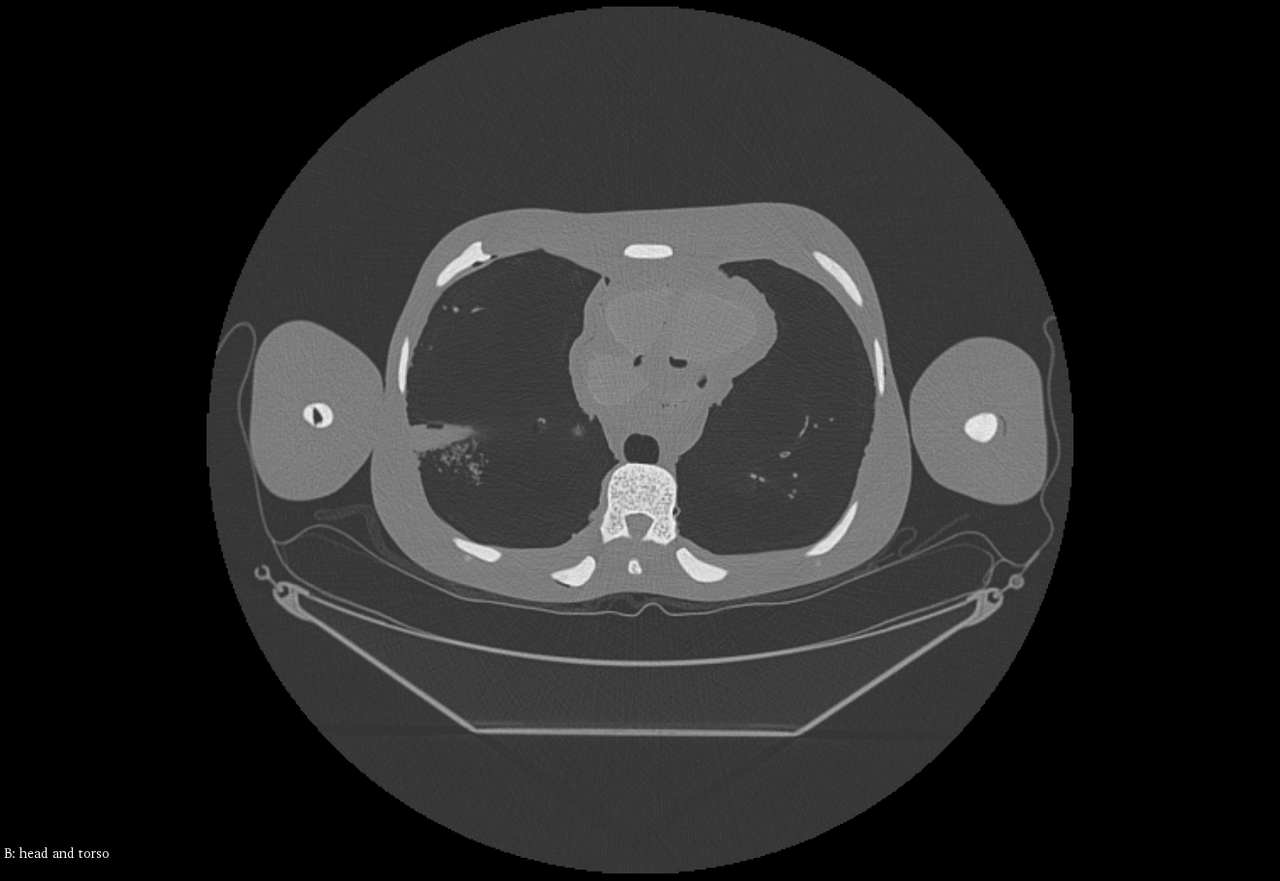

Imaging Scans

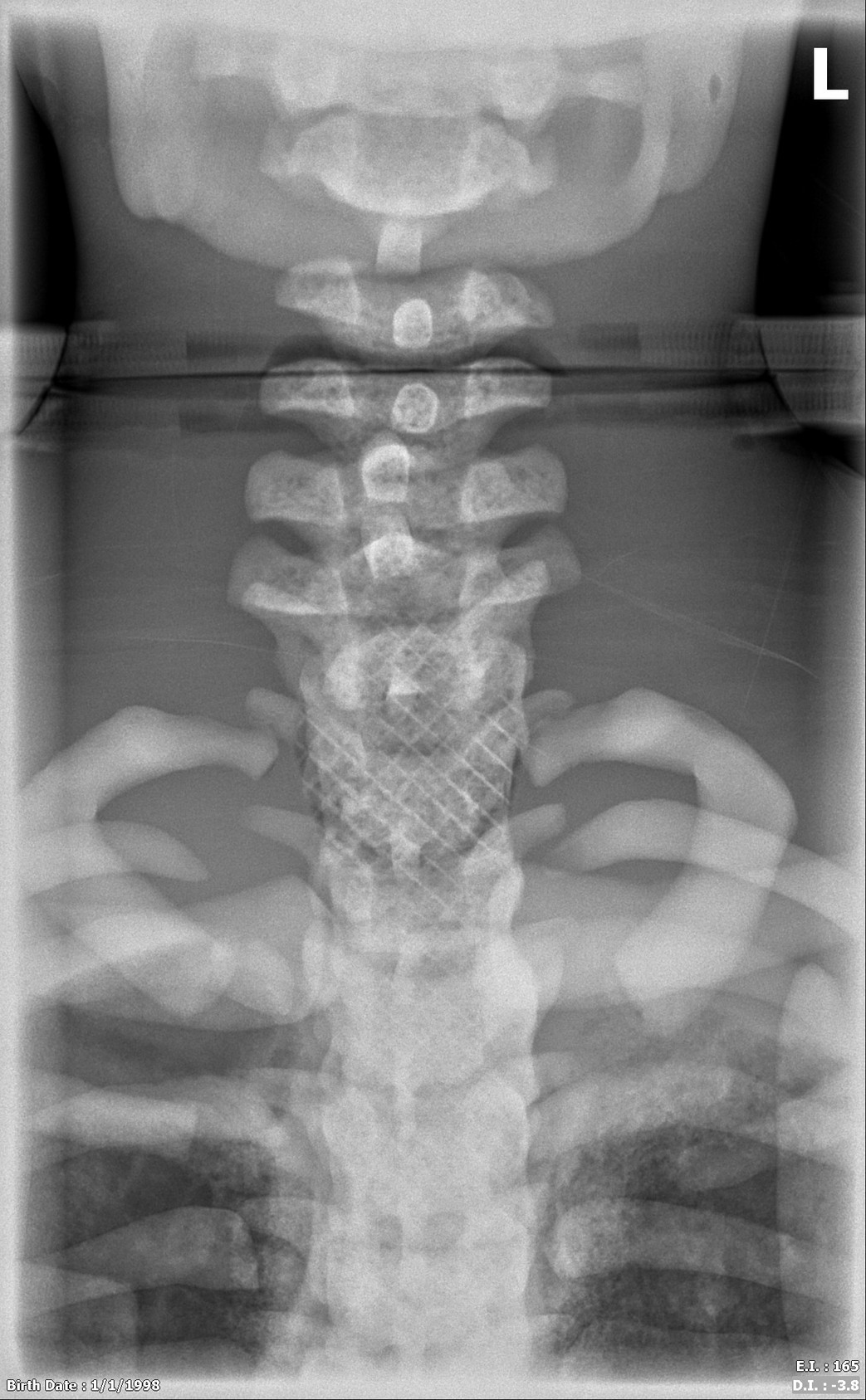

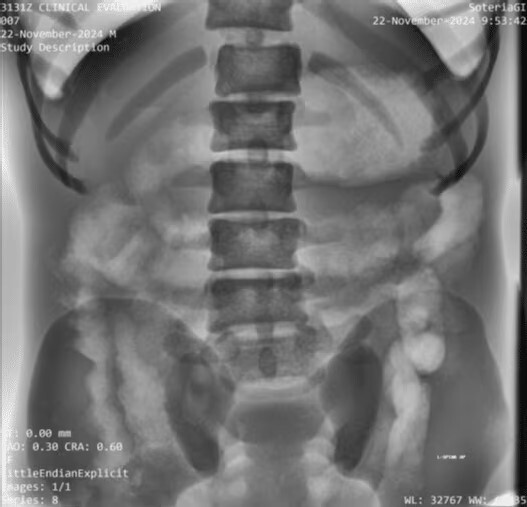

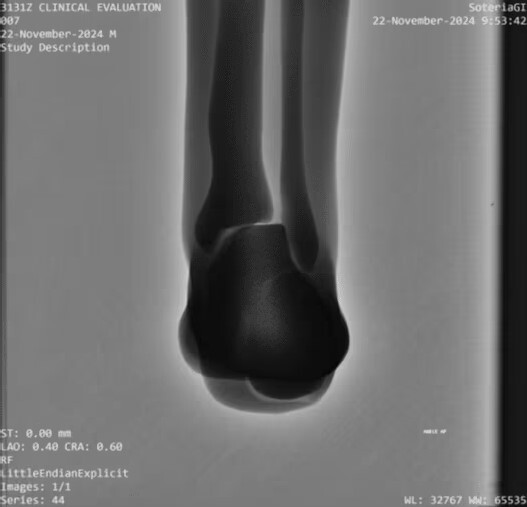

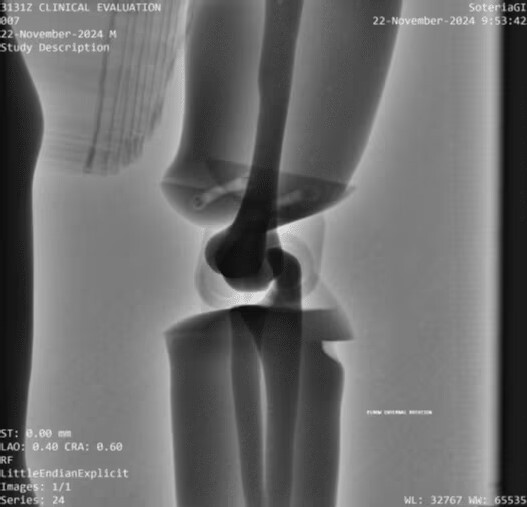

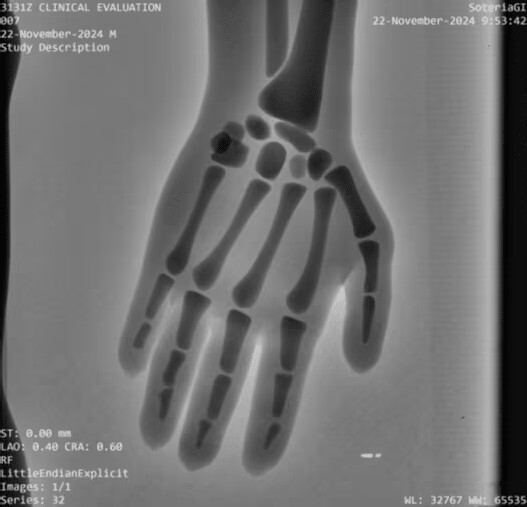

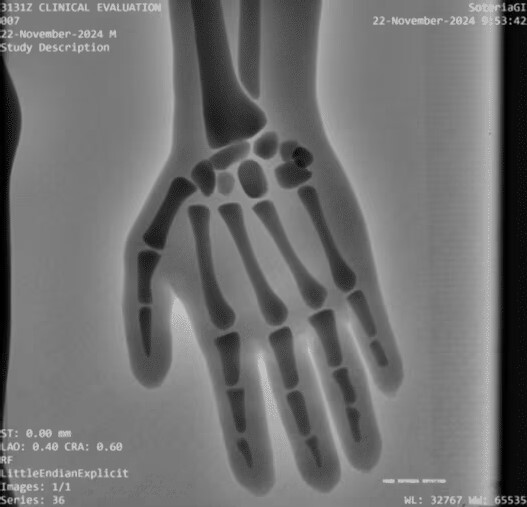

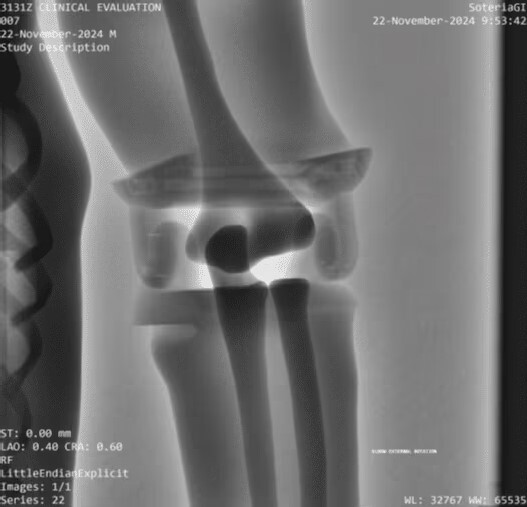

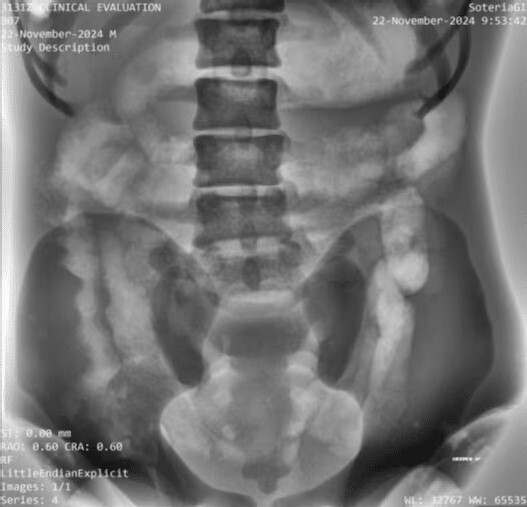

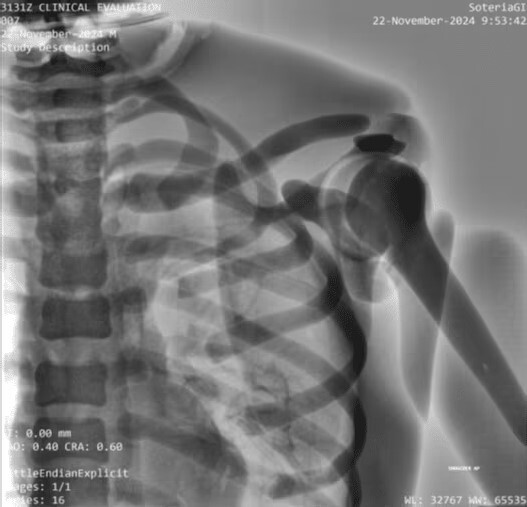

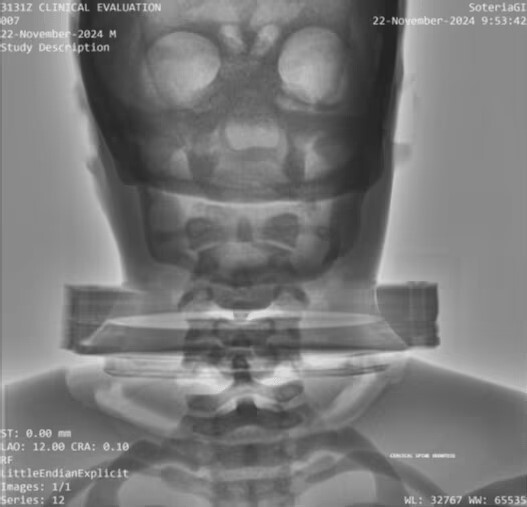

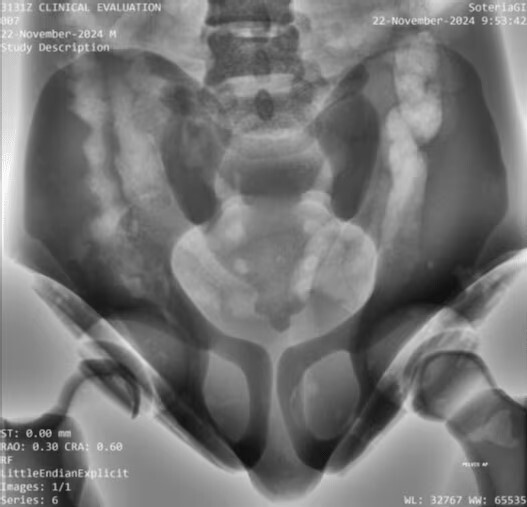

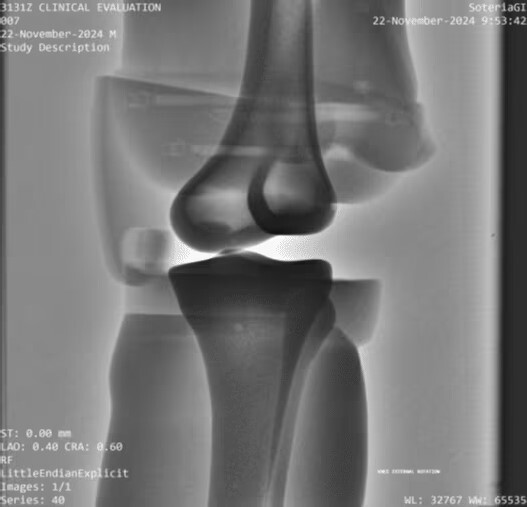

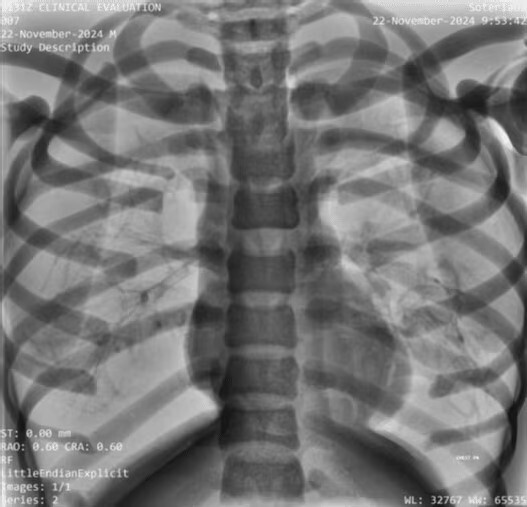

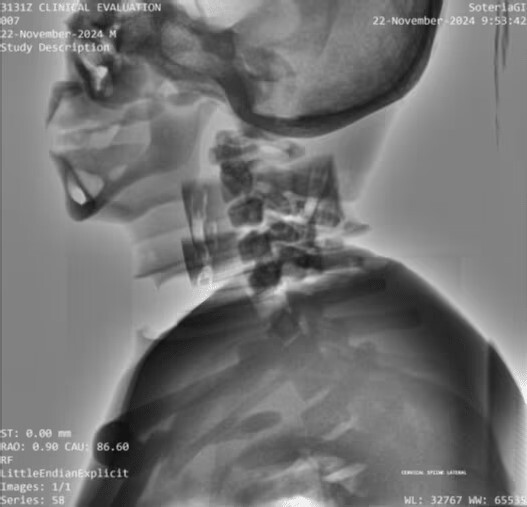

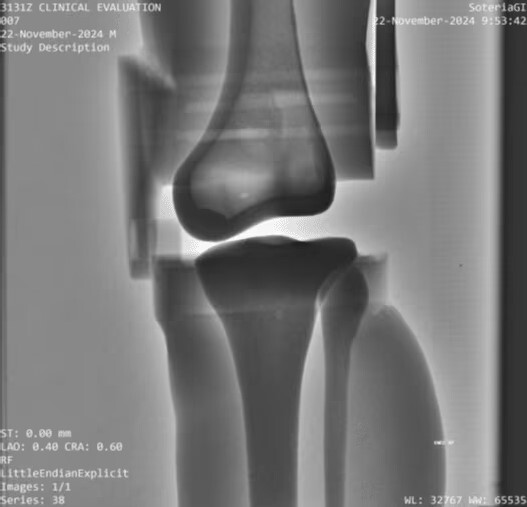

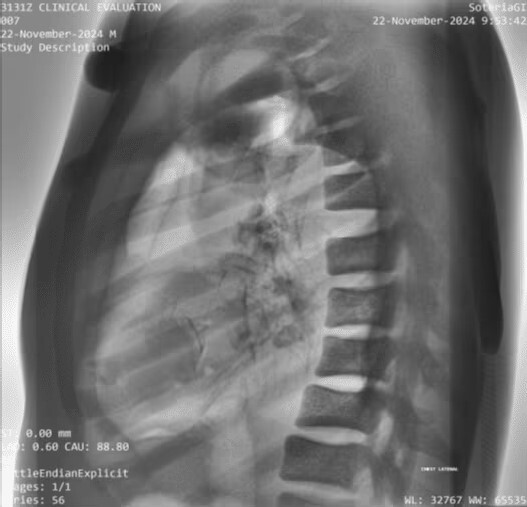

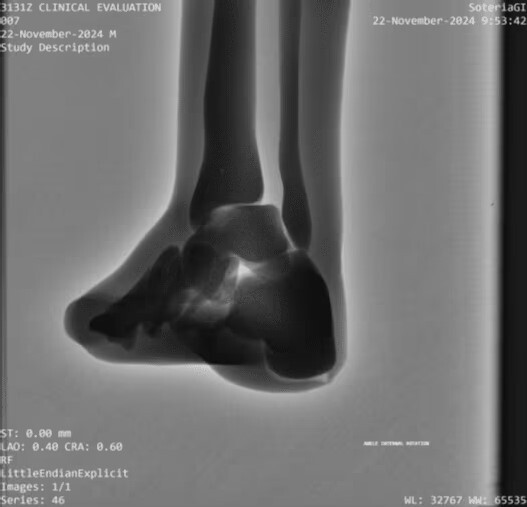

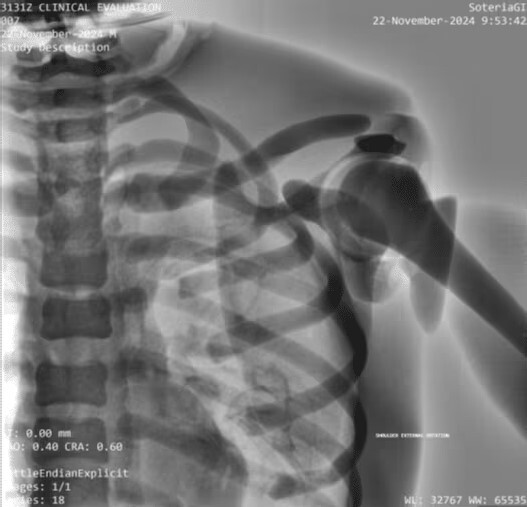

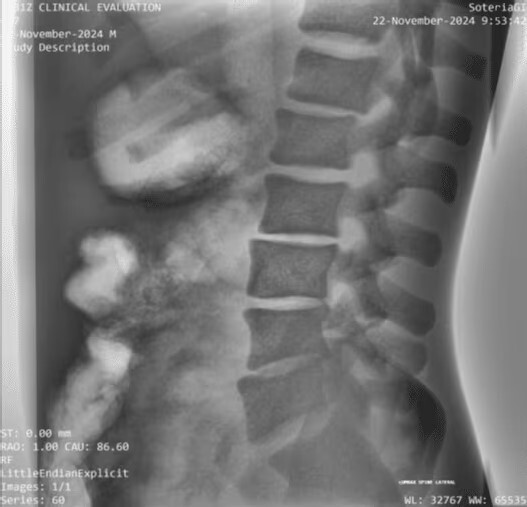

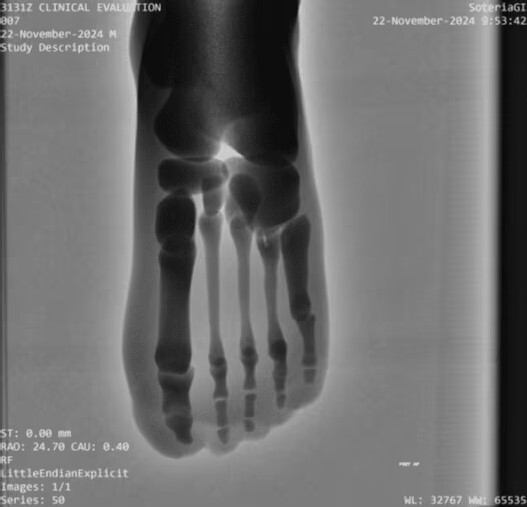

Spot Image X-Ray Scans

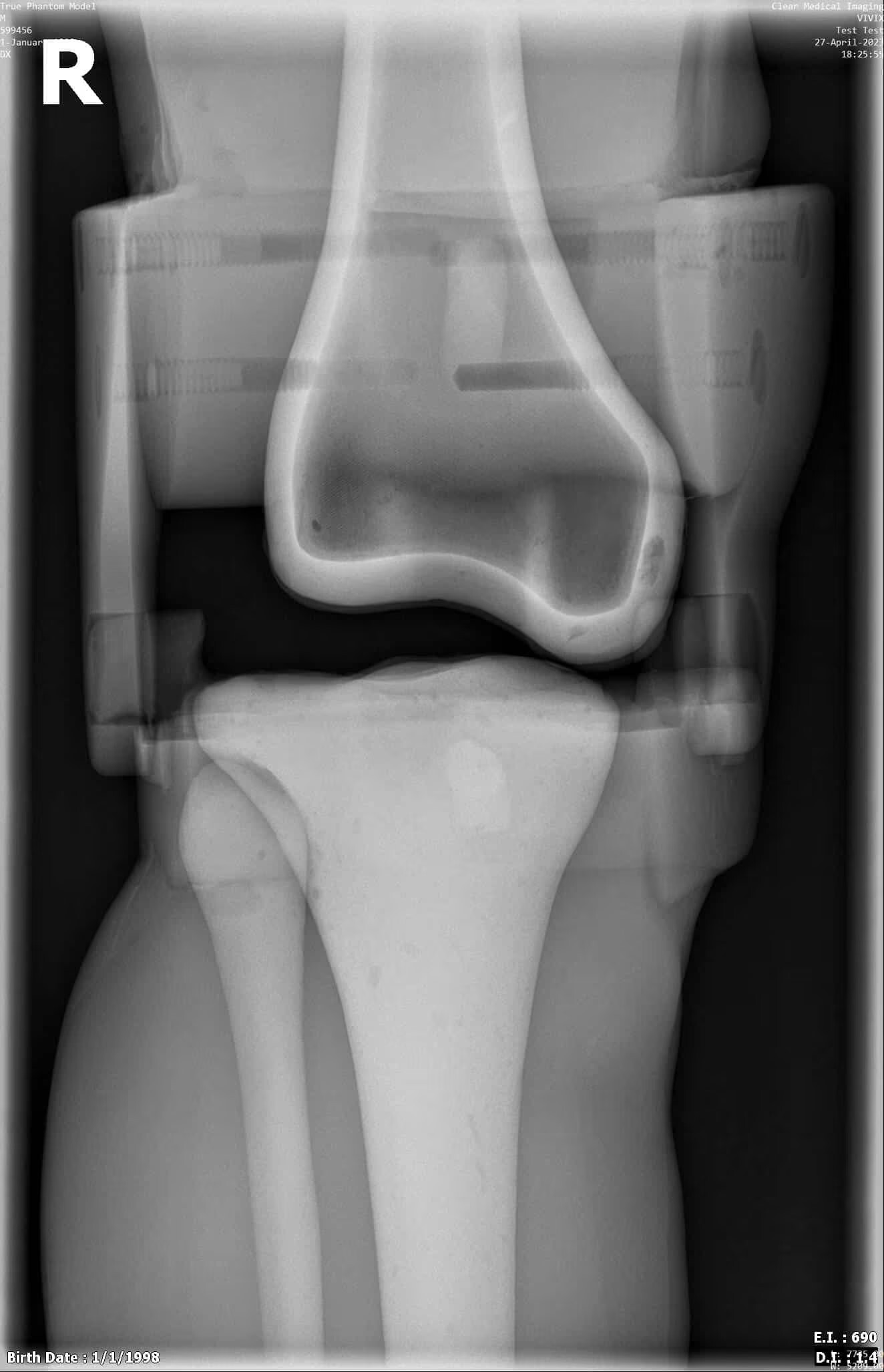

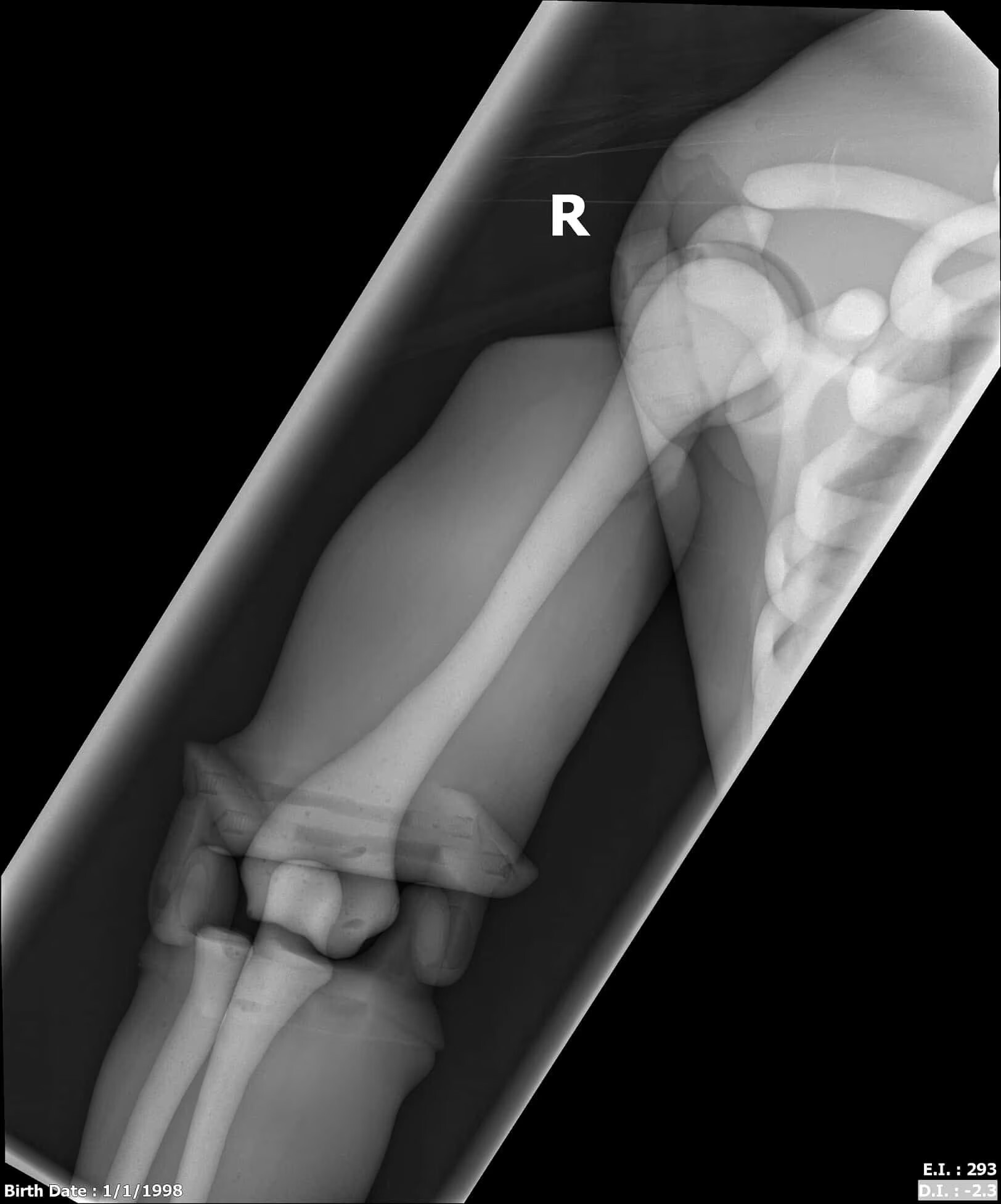

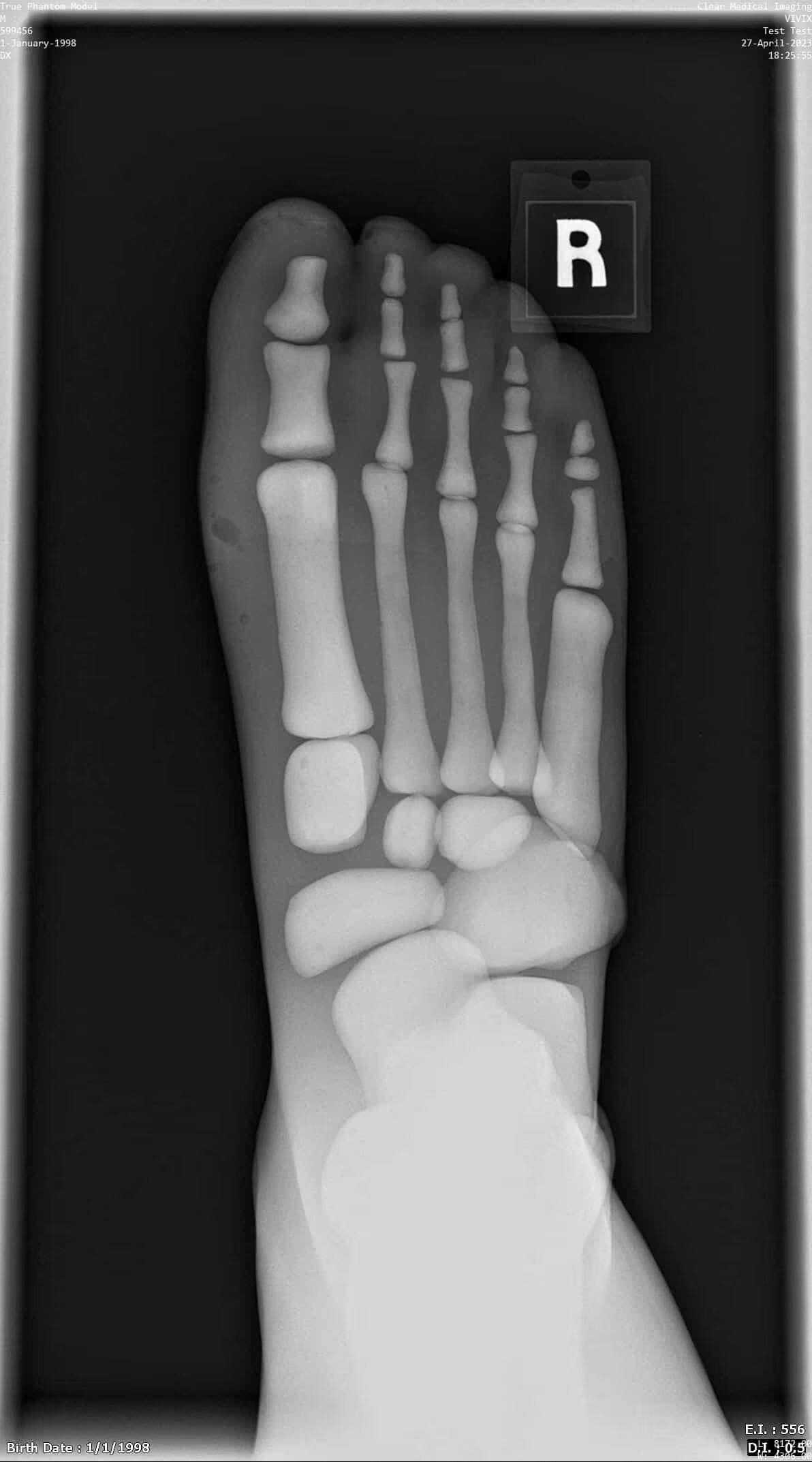

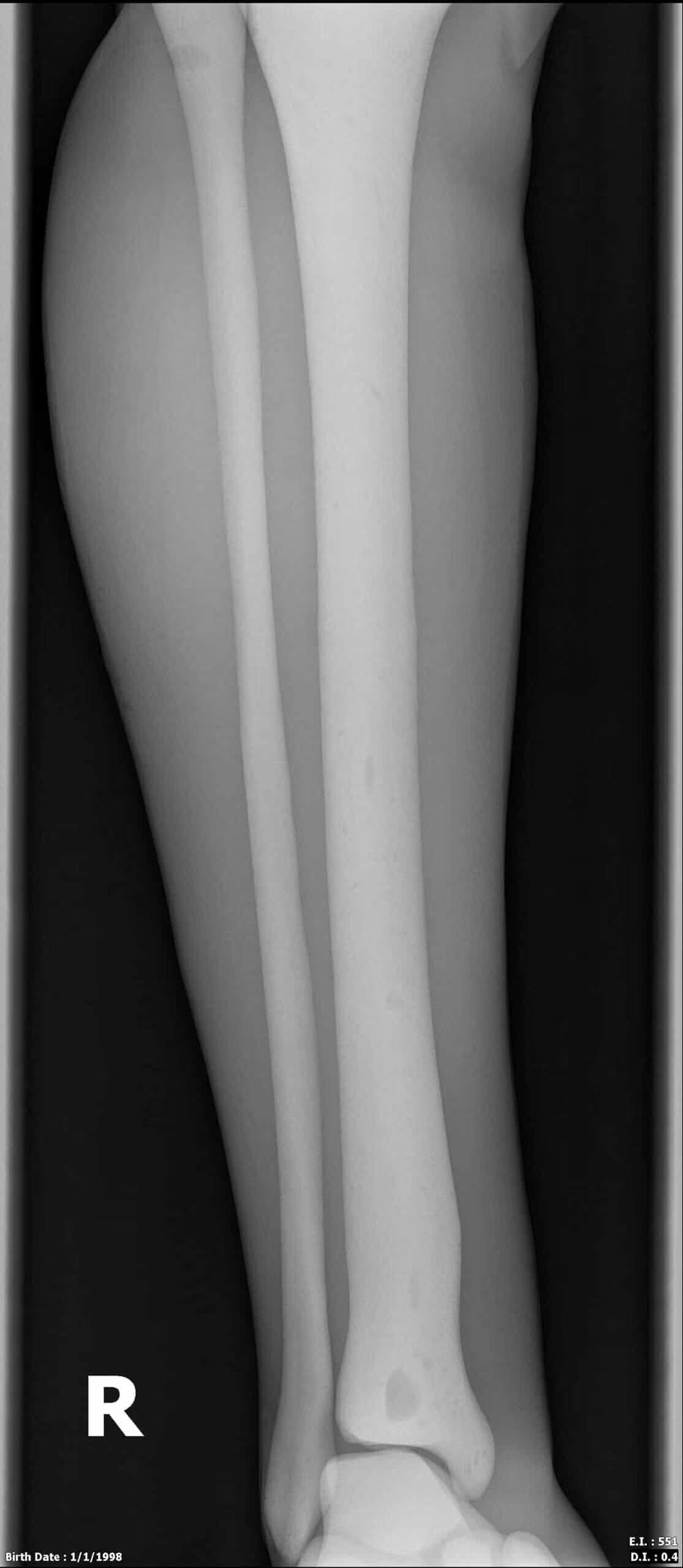

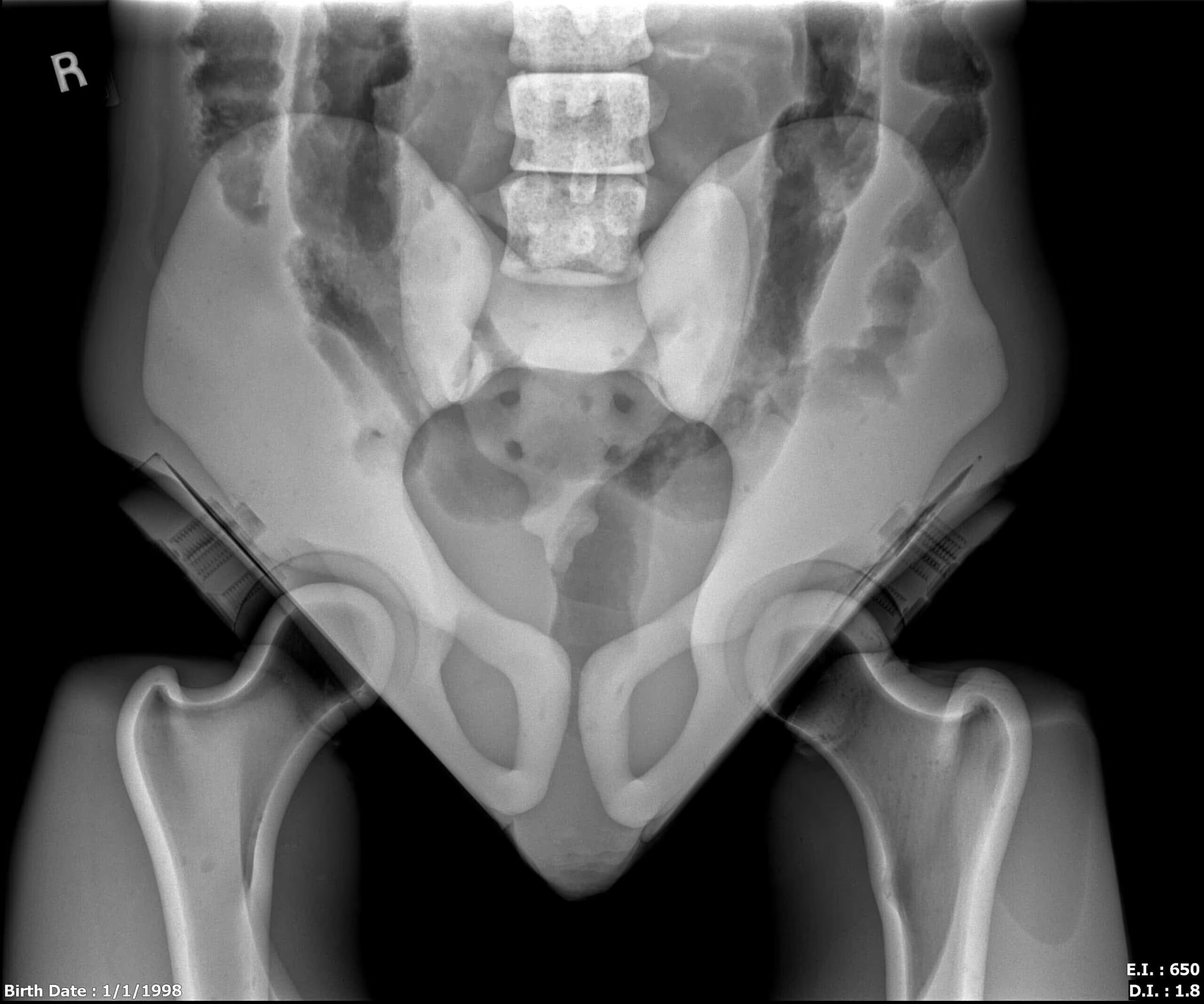

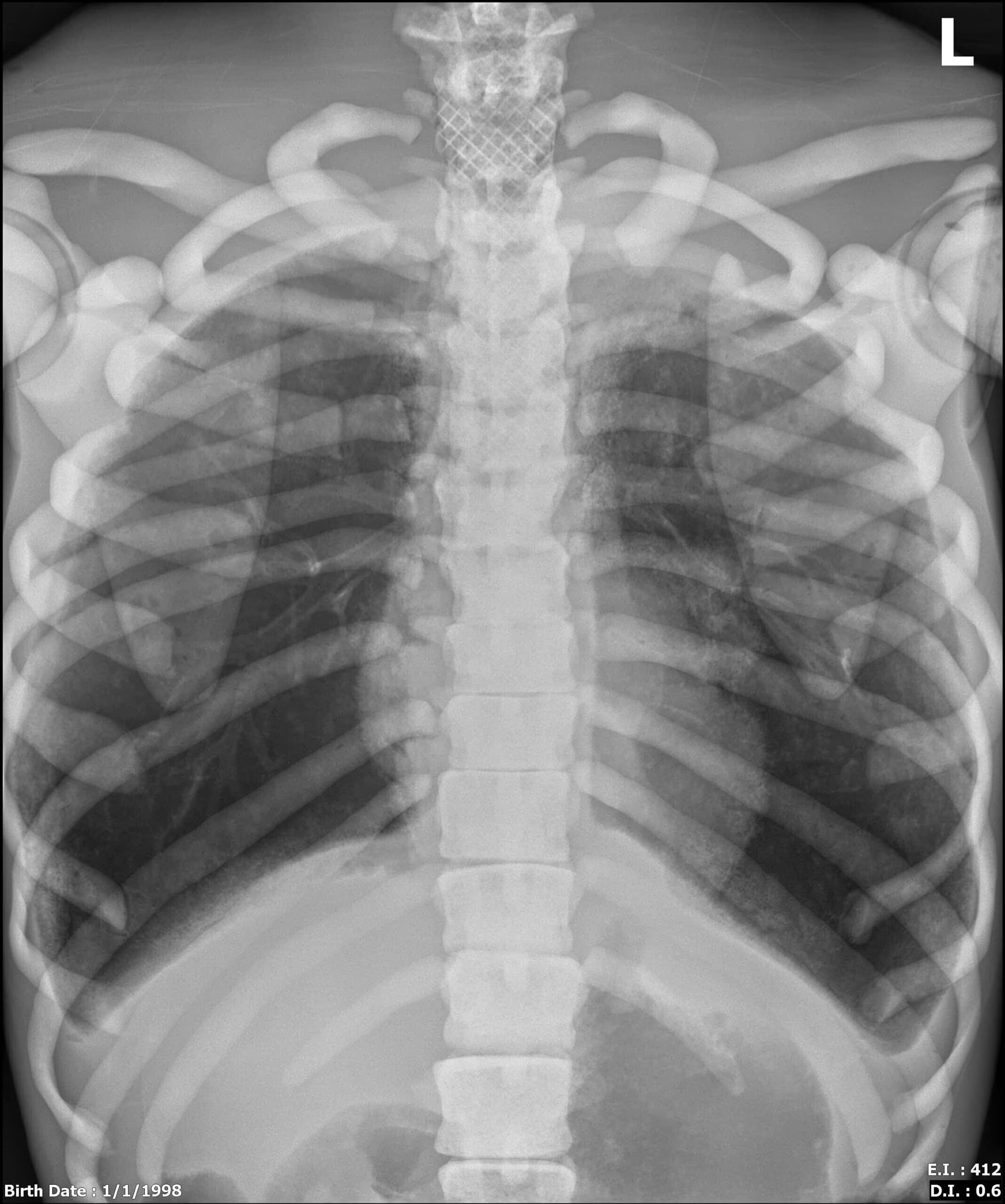

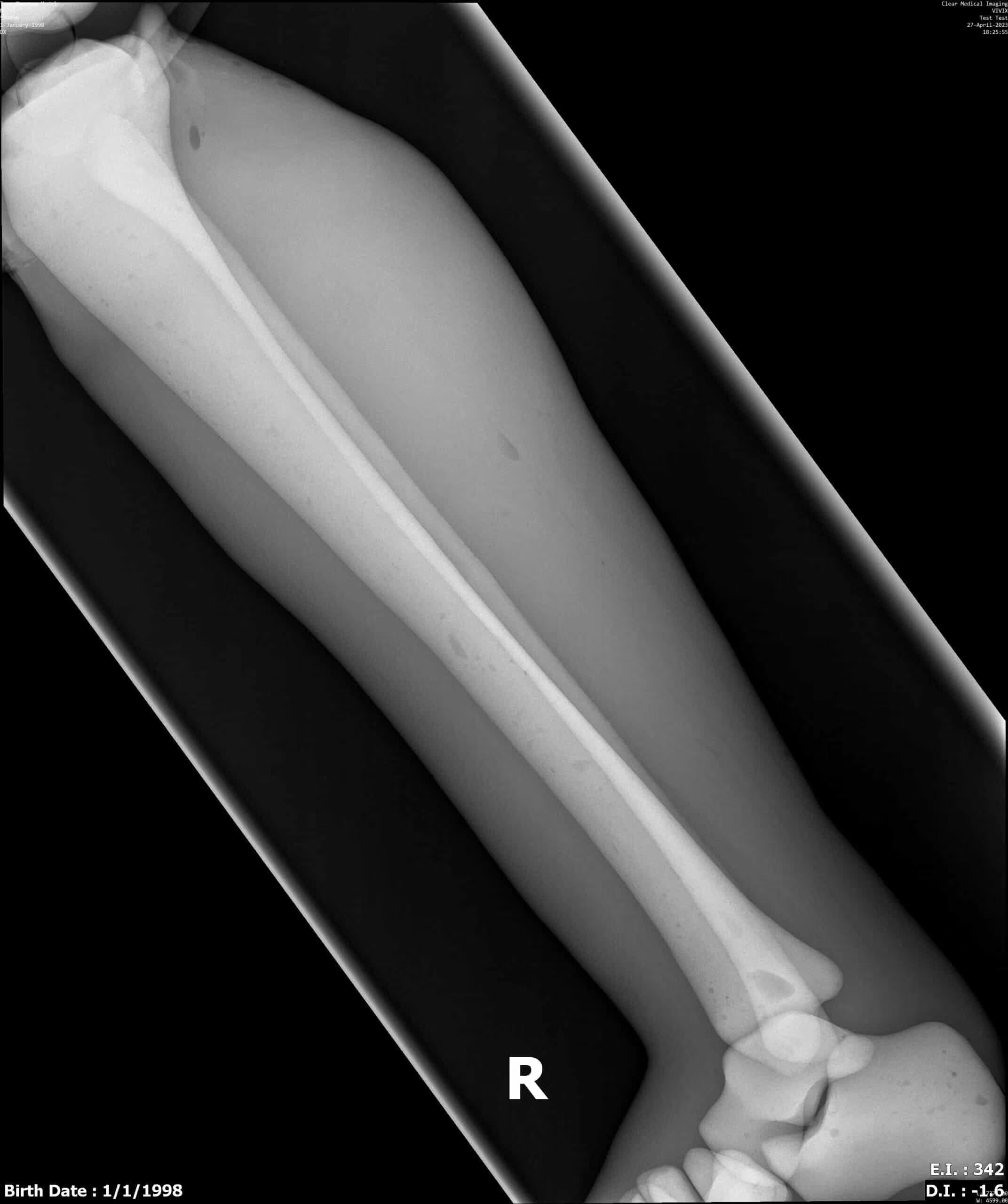

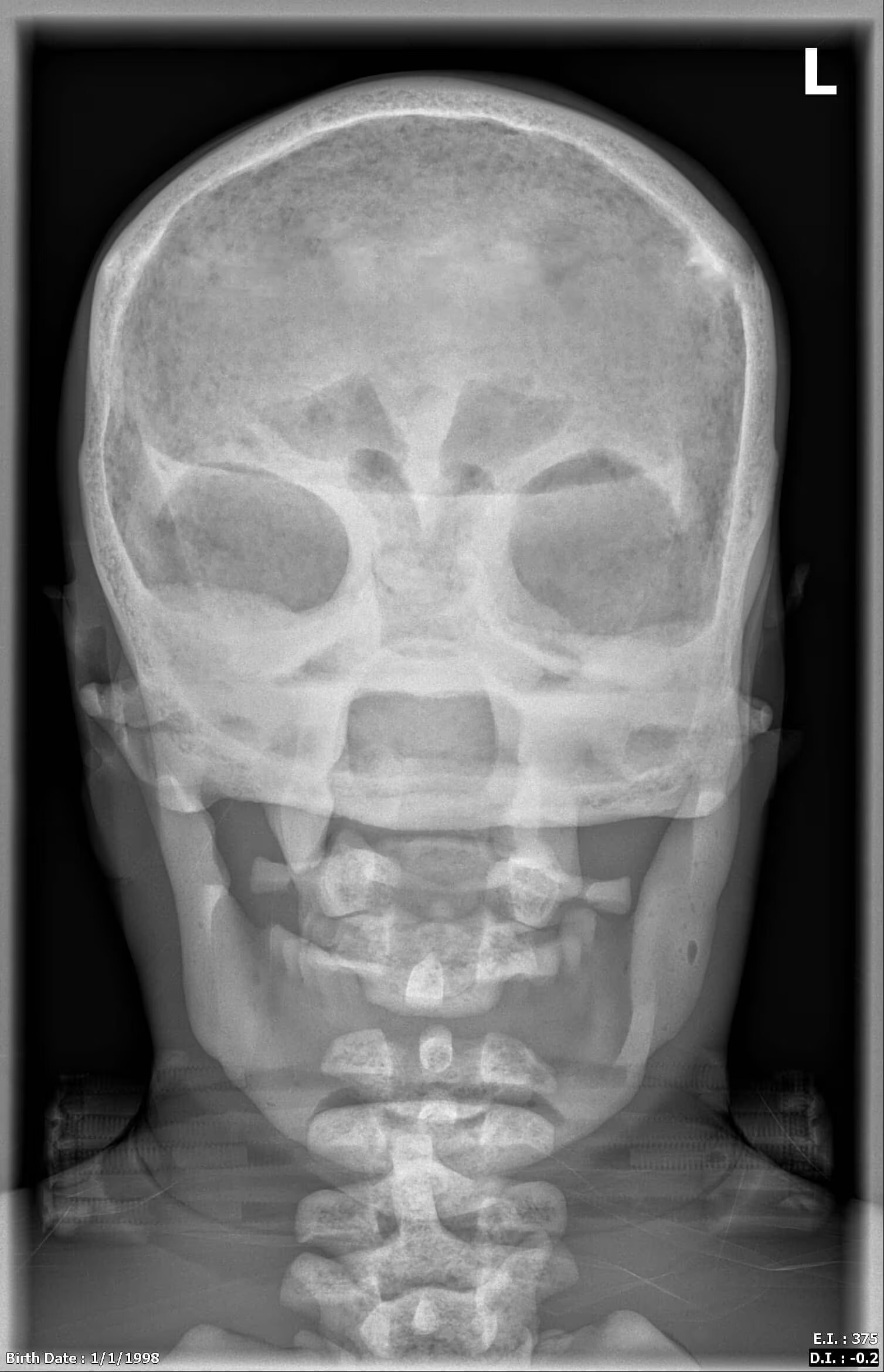

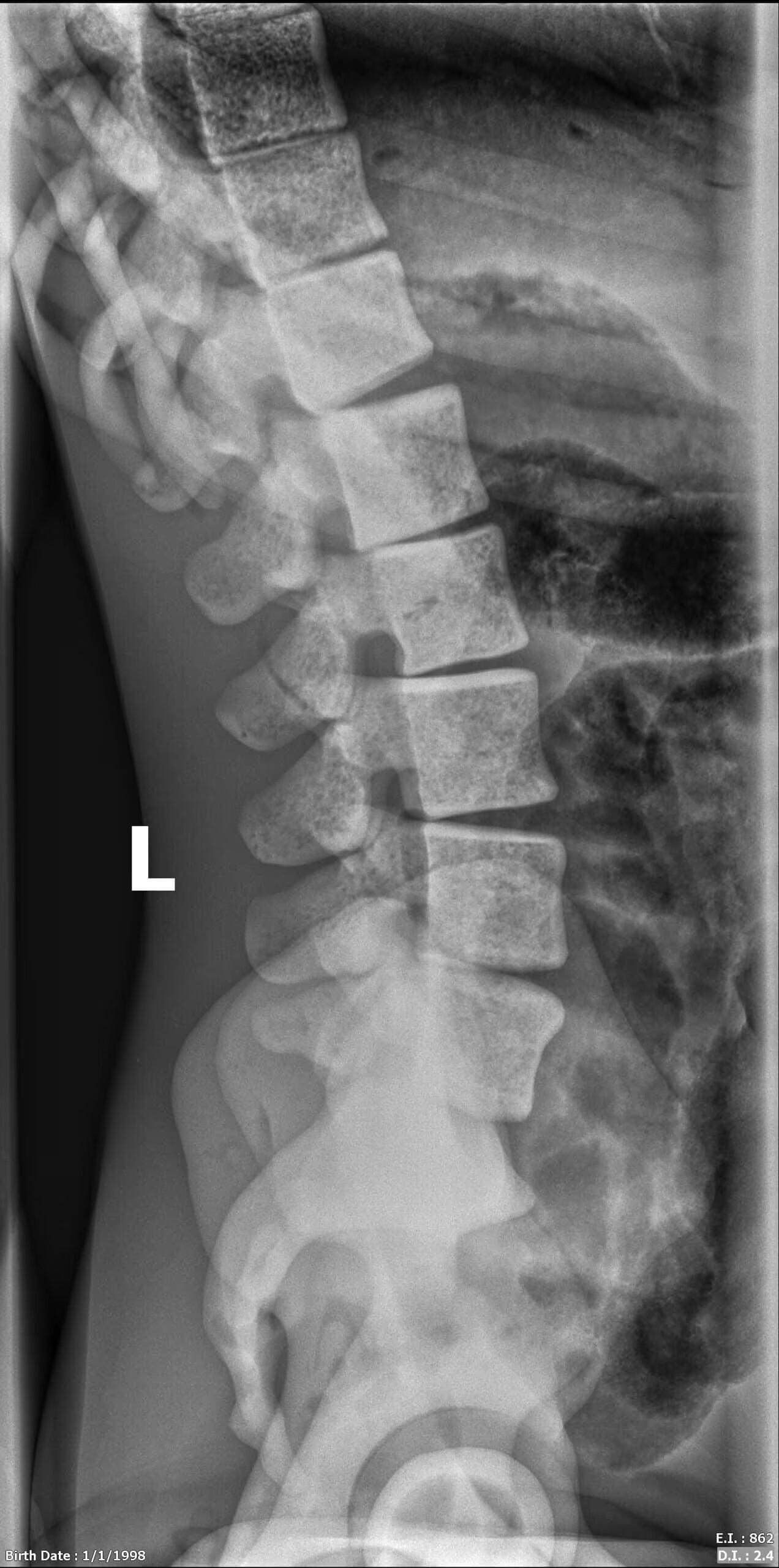

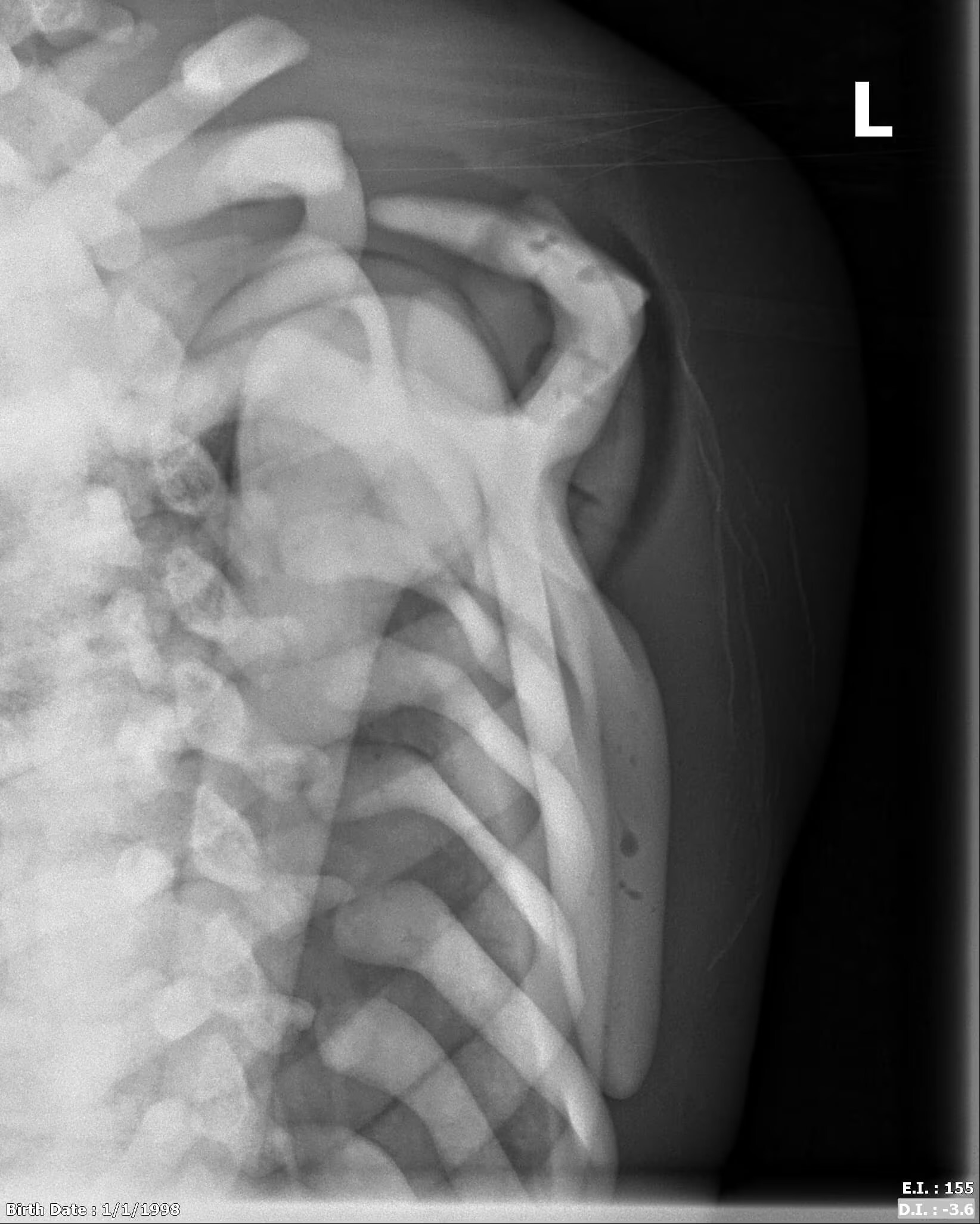

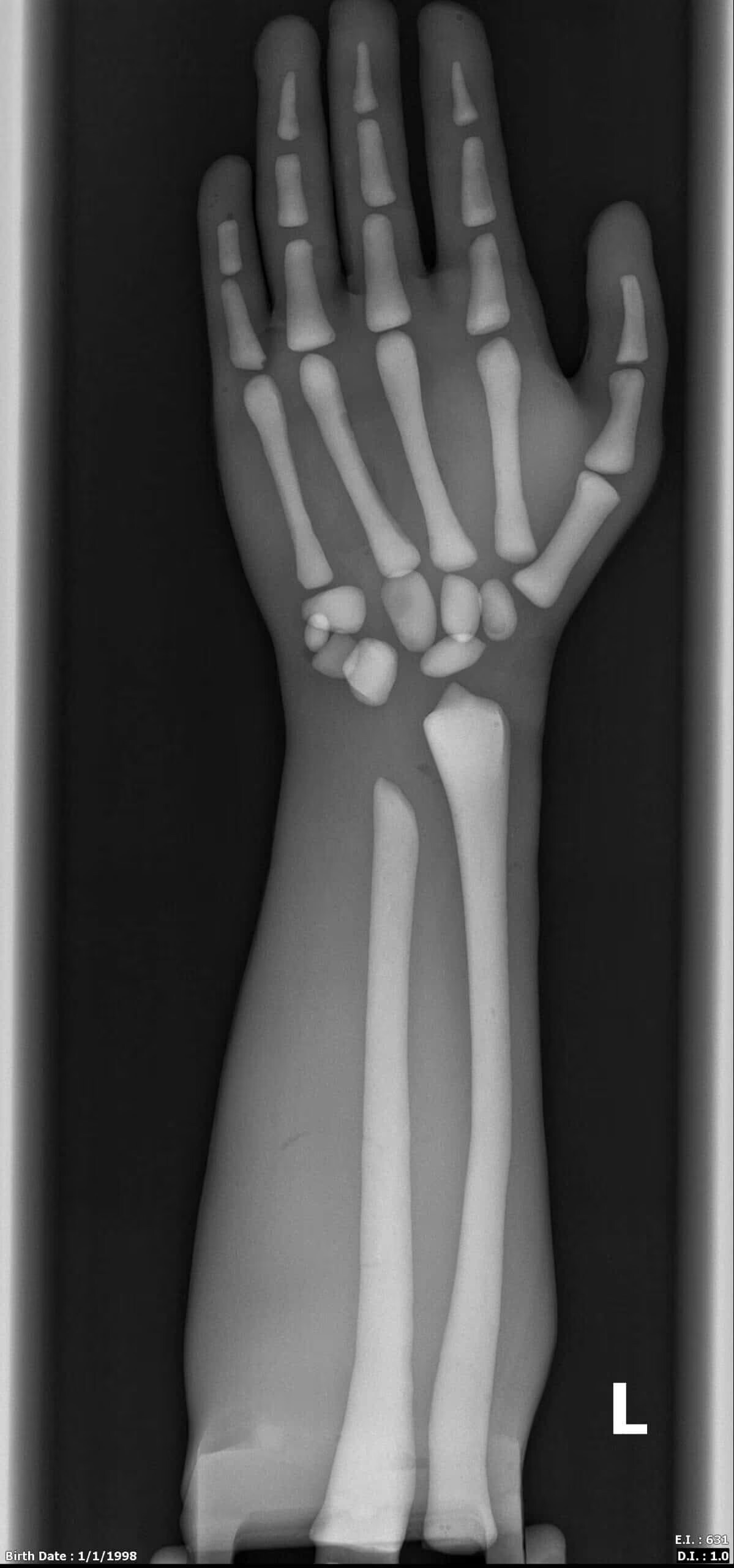

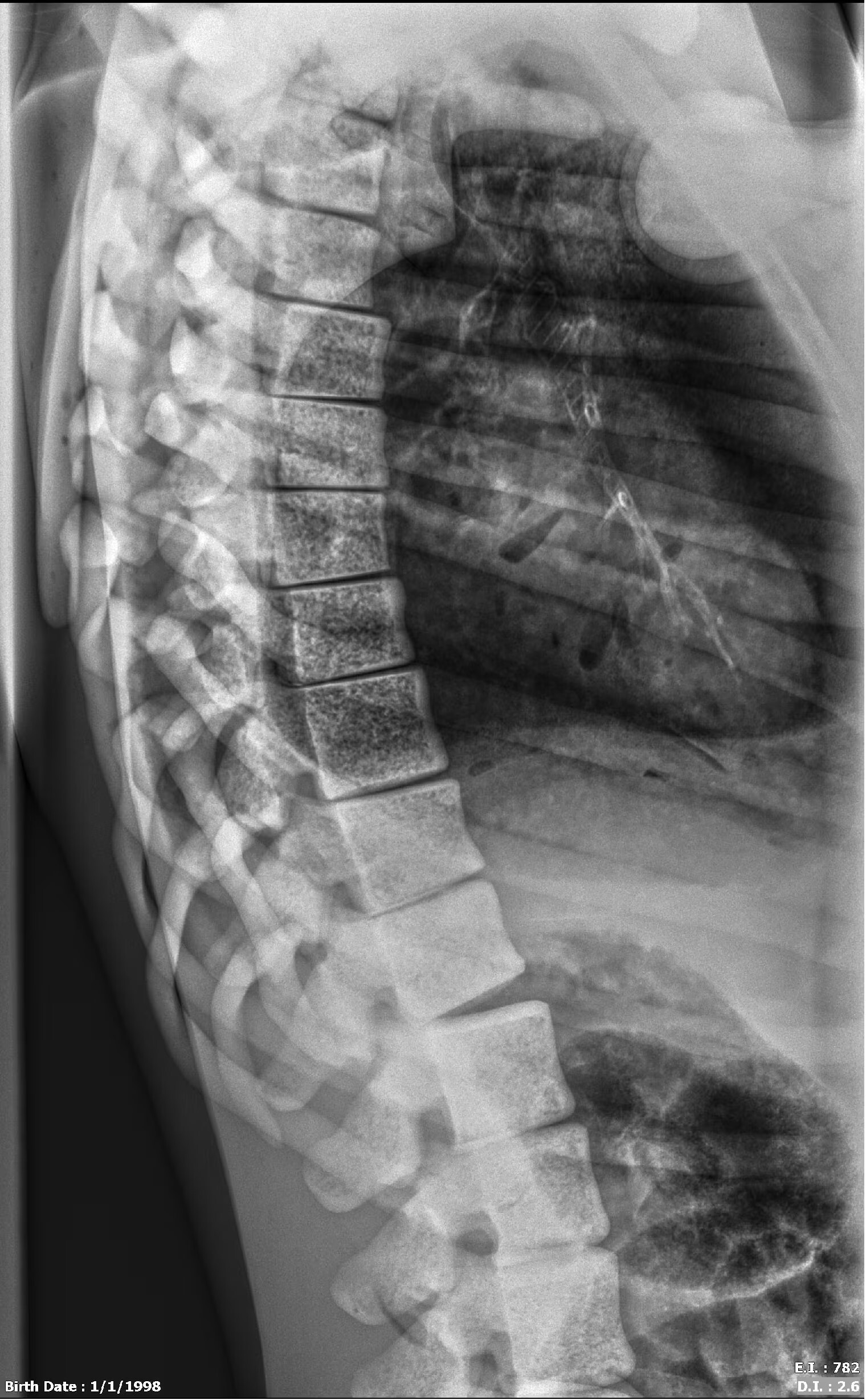

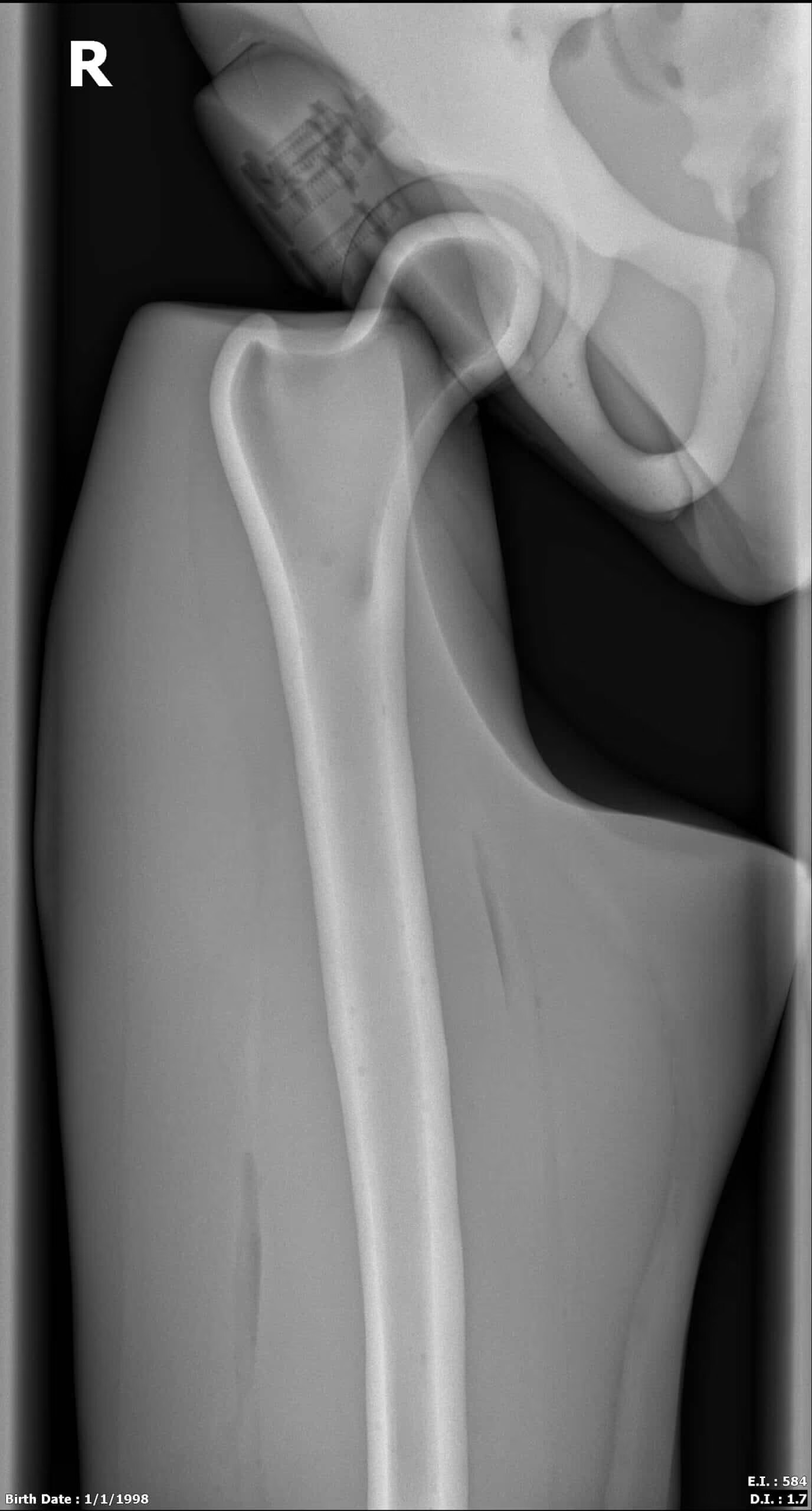

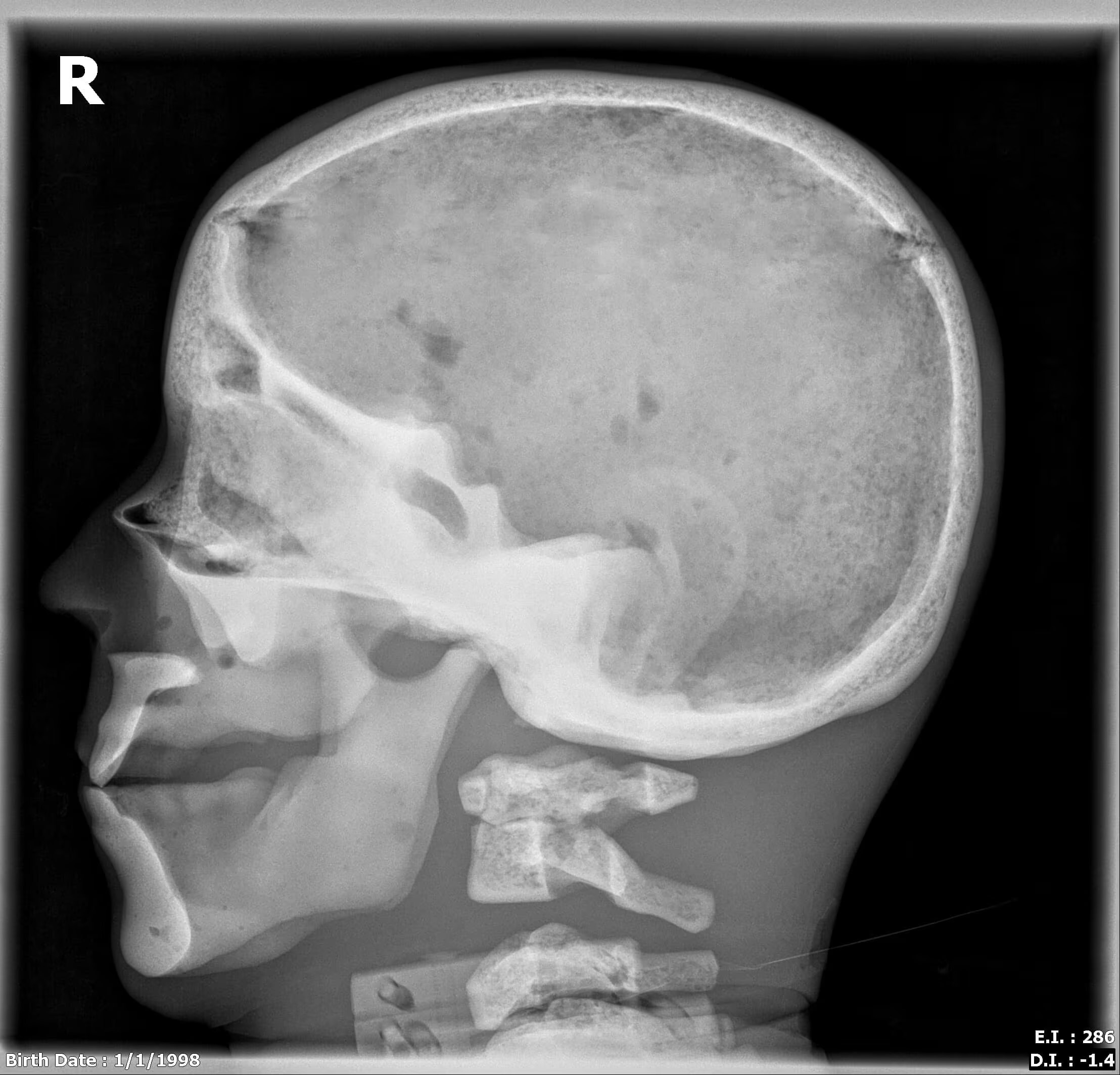

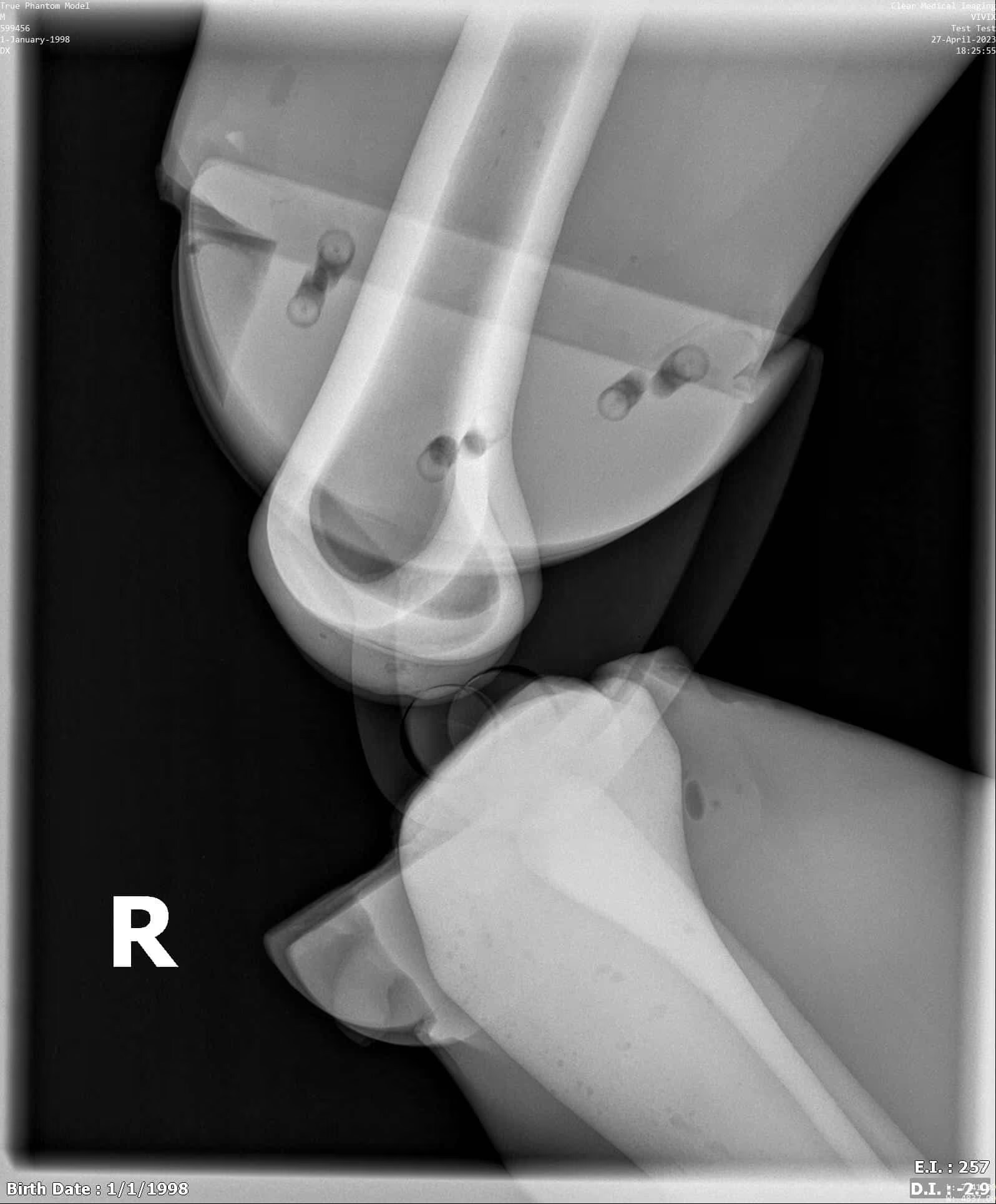

2D X-Ray Scans

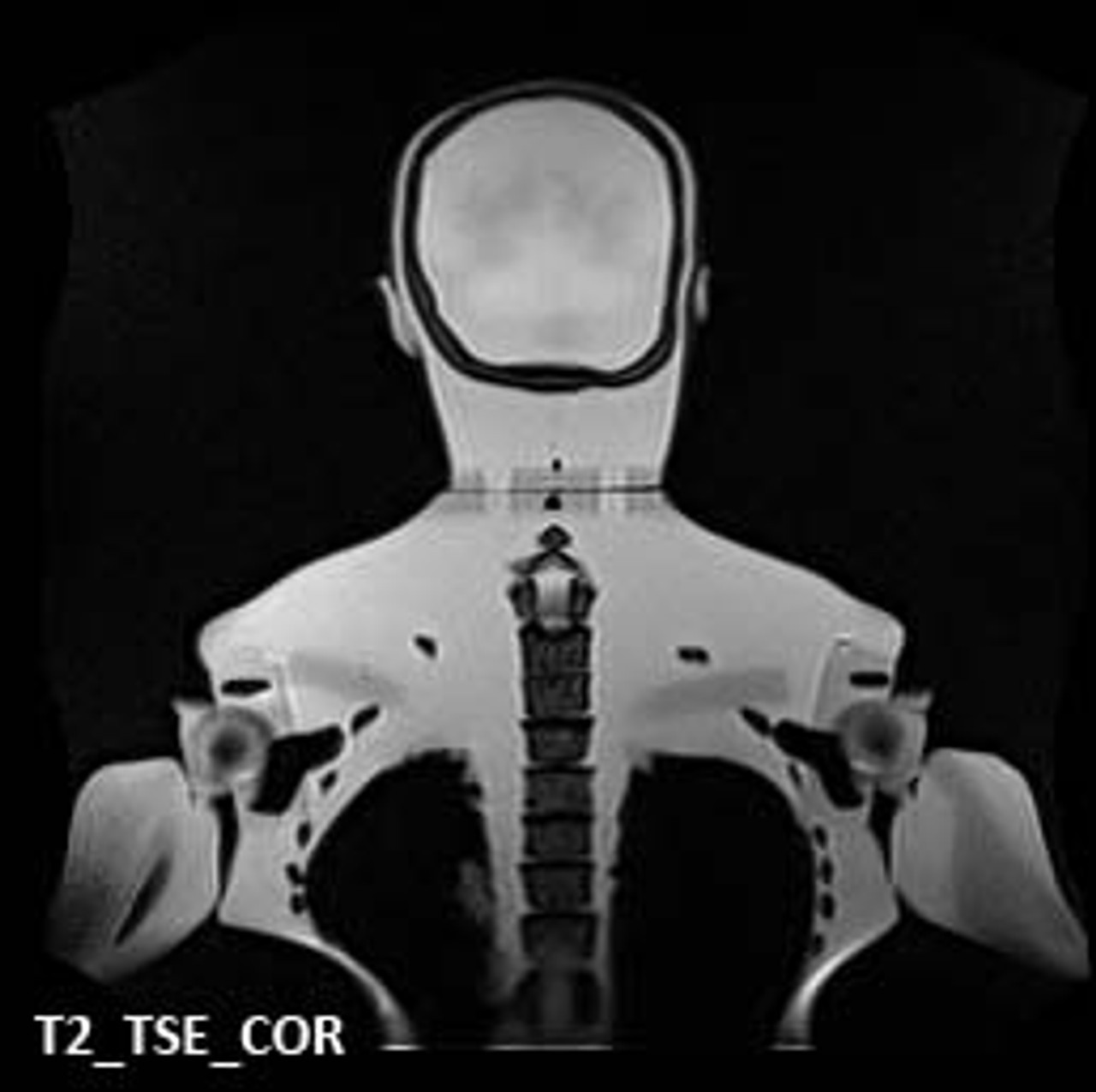

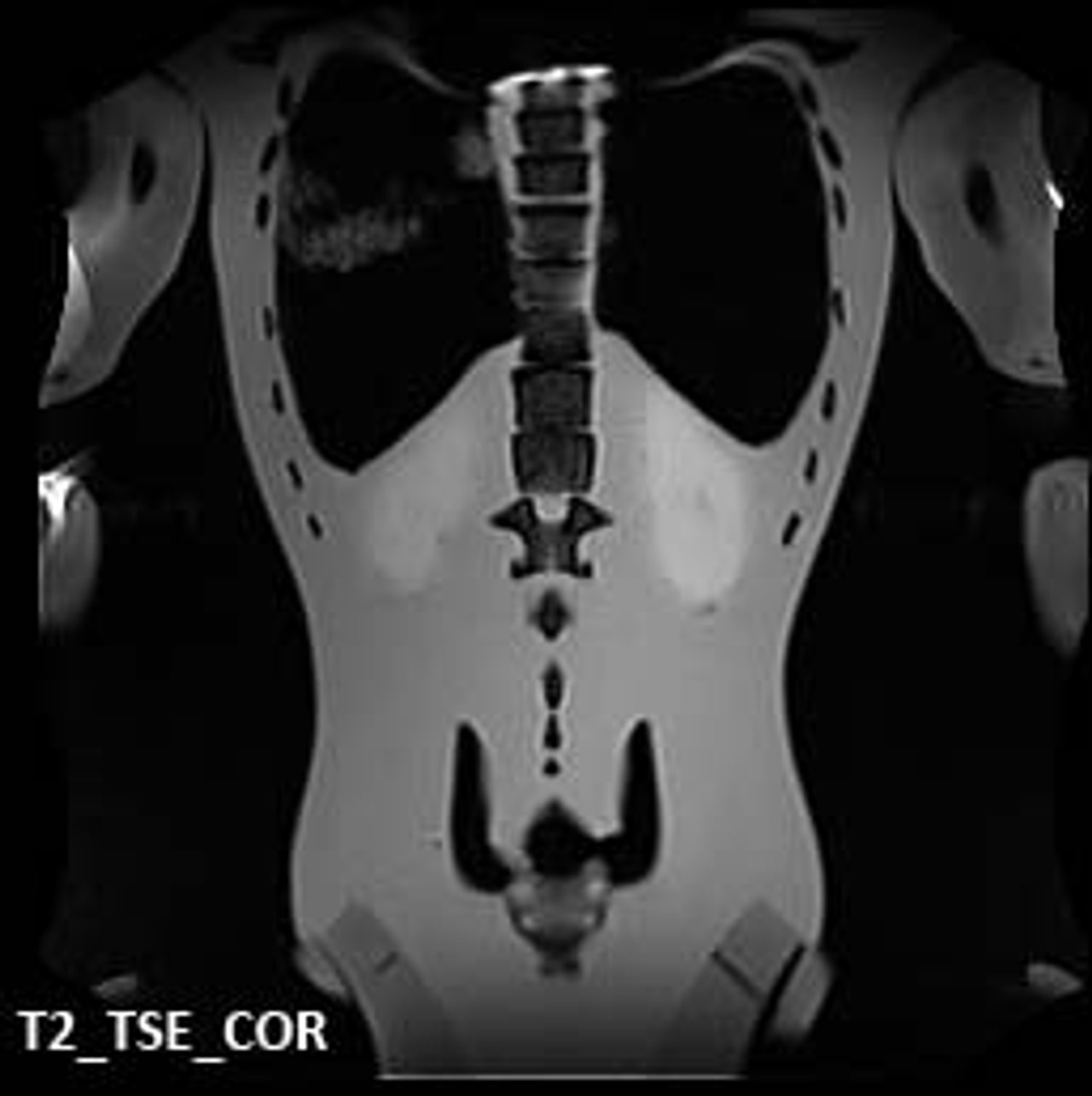

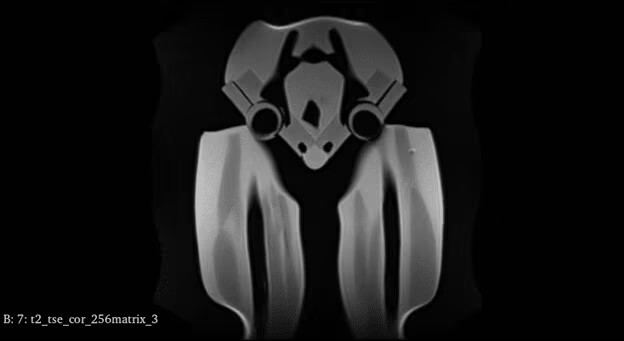

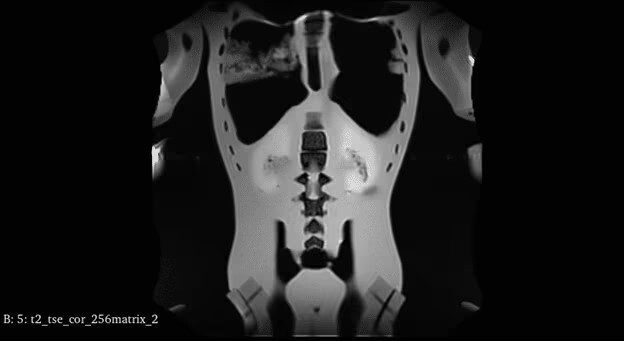

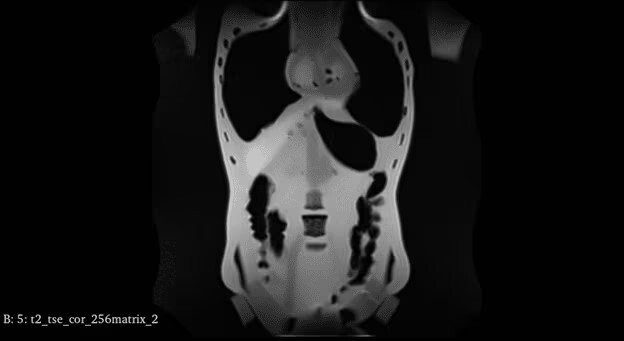

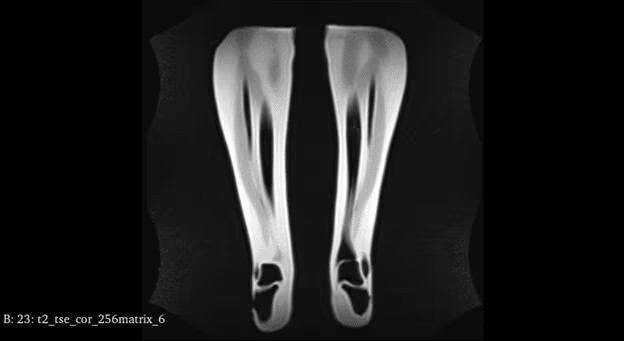

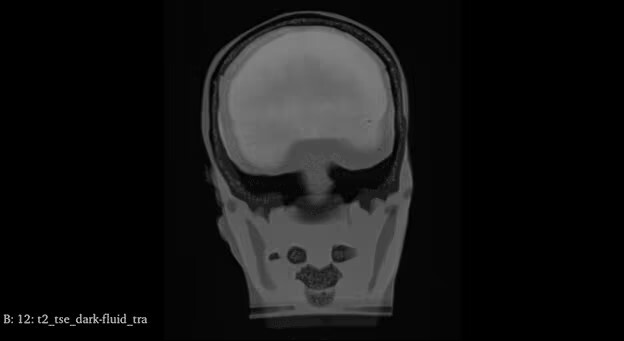

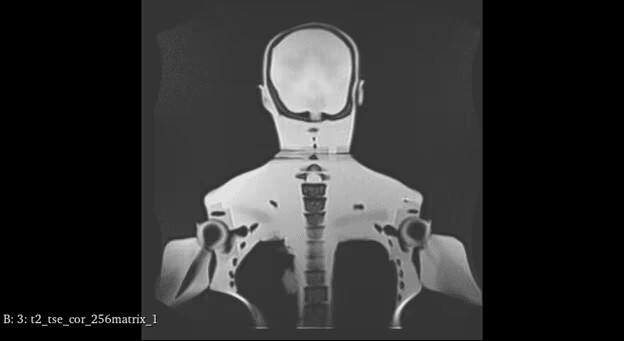

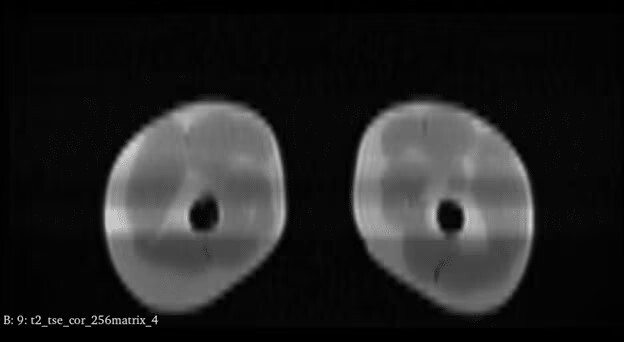

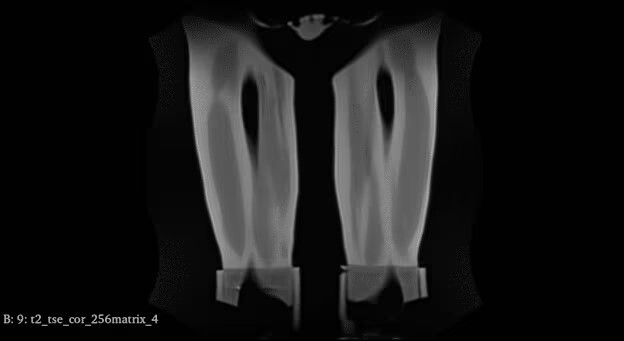

MRI Image Scans
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
