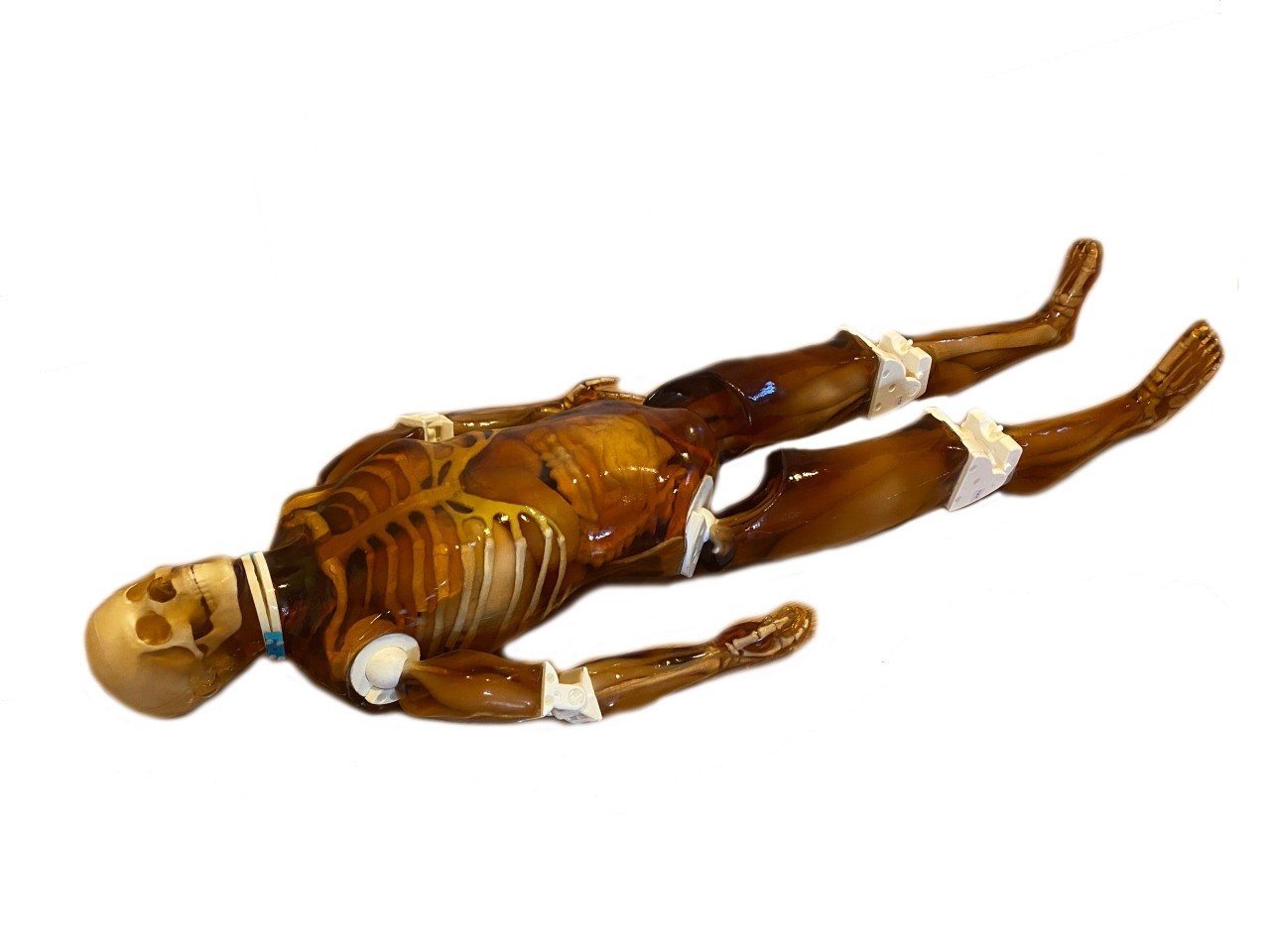

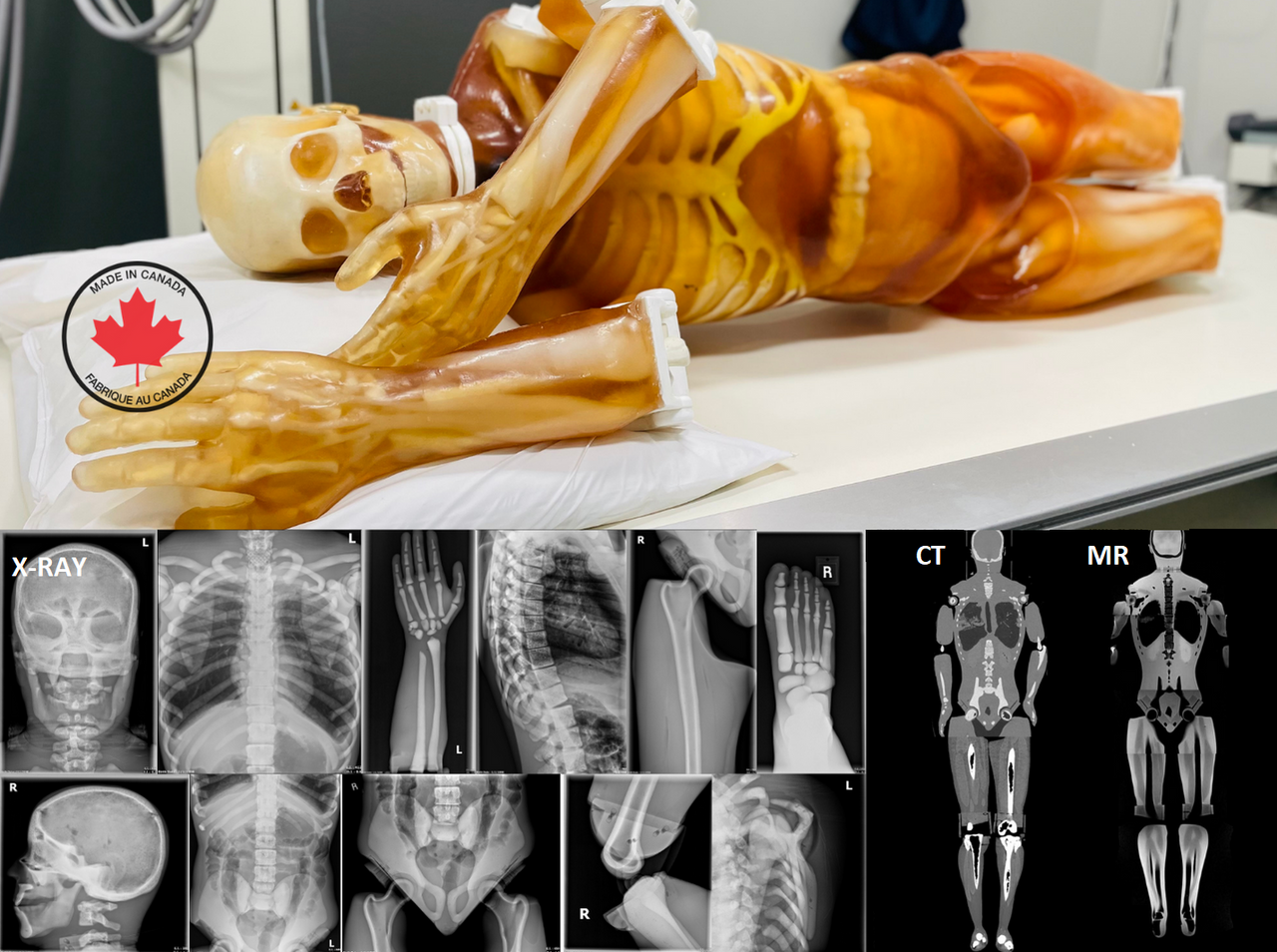

Description
The Adult Full Body Phantom with Muscles is a multipurpose phantom that comes with realistic muscles in the arms and legs that truly mimic human anatomy. This phantom can be used to:
- Teach X-Ray positioning techniques

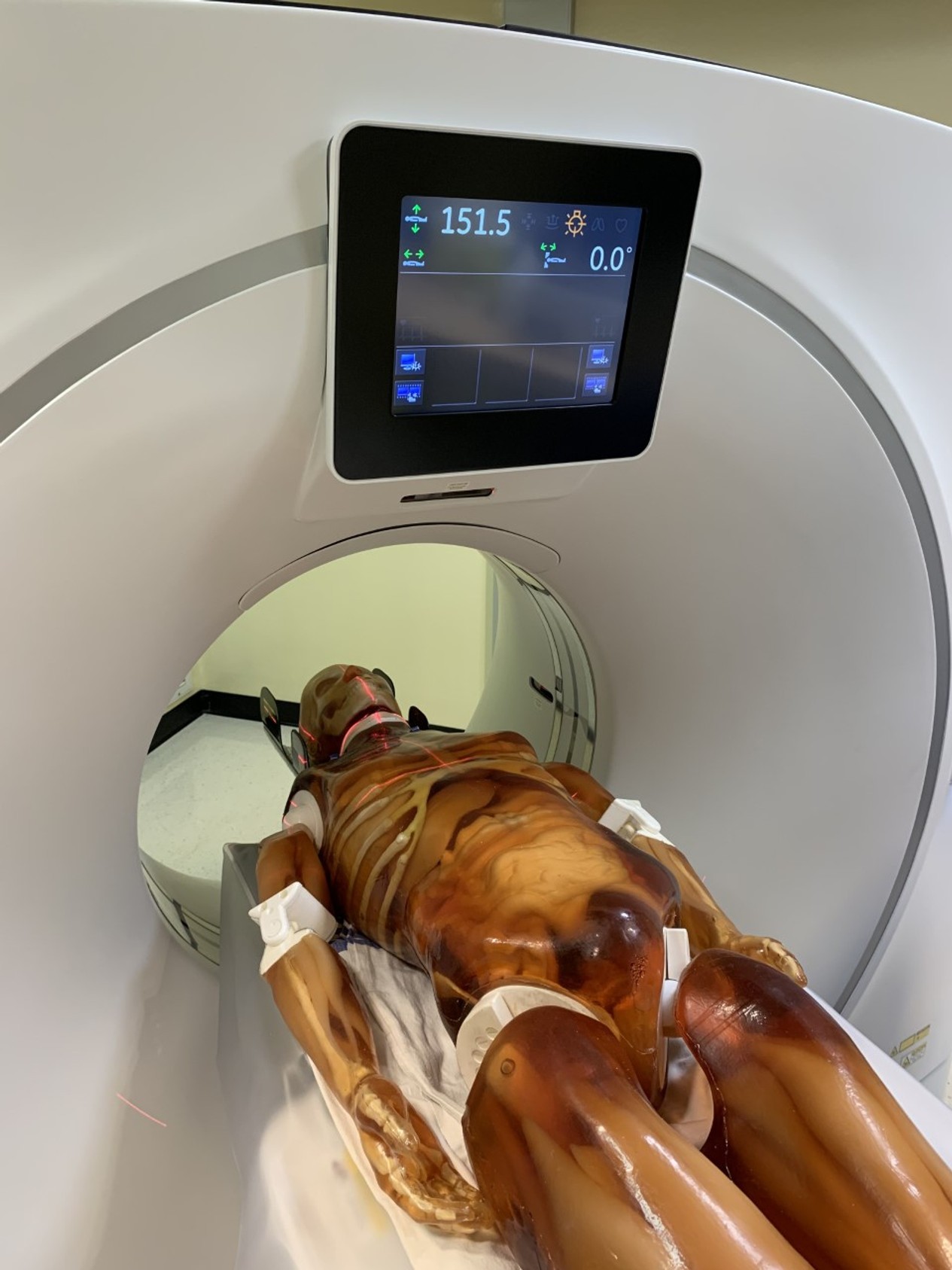

- Learn CT & MR imaging procedures
- Find optimal scanning conditions
- Test and conduct research and development for diagnostic imaging applications.
Why Choose the Adult Full Body Phantom with Muscles for X-Ray/CT & MRI?
- Multipurpose use and applications

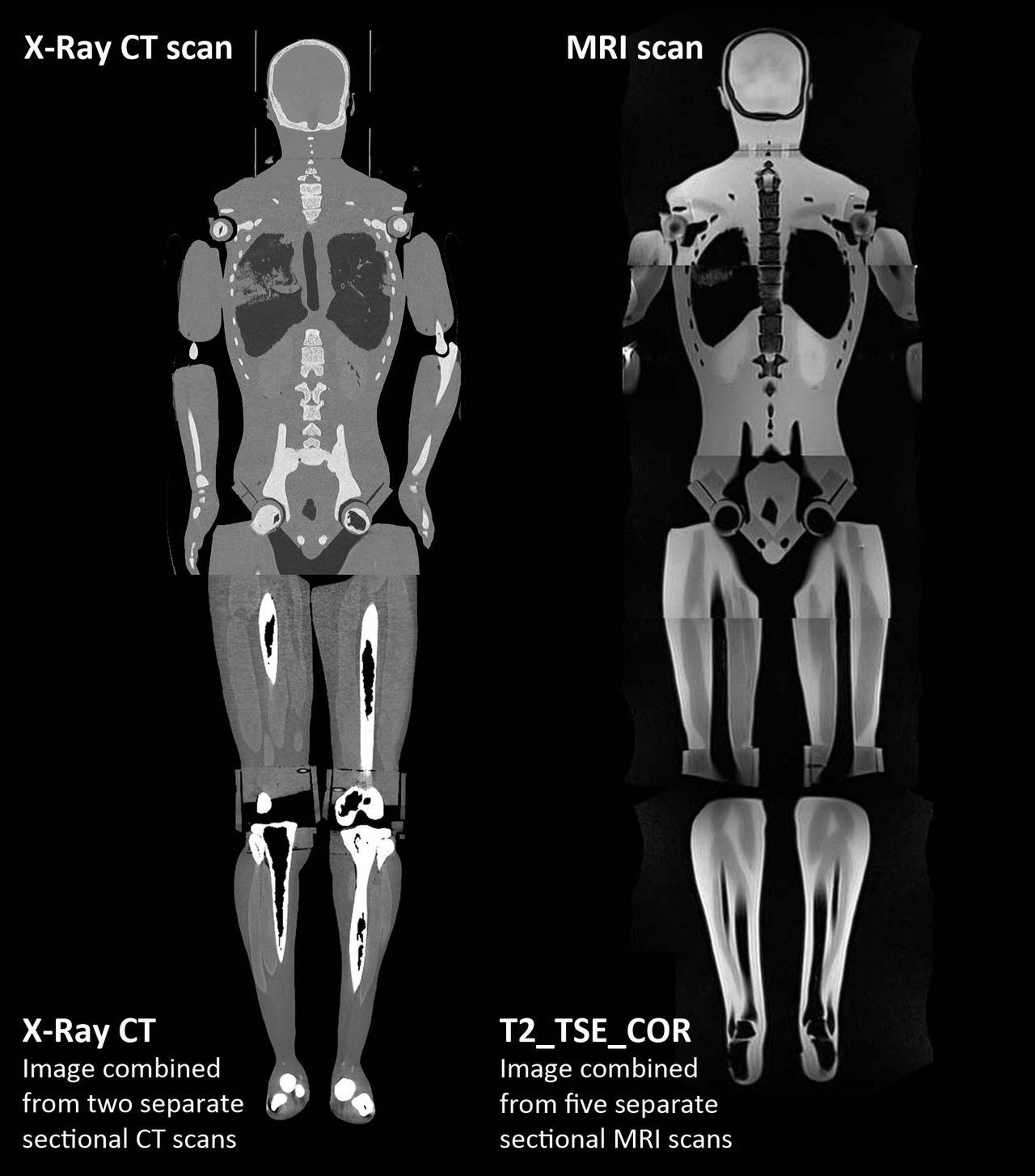

- Realistic CT and MR images
- Lifelike anatomy and patient weight
- including muscles in the arms and legs
- Customizable with pathologies (ask our Sales team!)
- High durability with joints
- Flexible joints to train X-Ray positioning
- Improved anatomical structures
- Realistic air cavities inside the skull
- Includes realistic brain with Grey and white matter
- Ceramic reinforced patented bone material
- Closest alternative to human bones
- 2-Year Warranty
- Quick delivery times
Other Features You Can Expect from This Phantom:
- Anatomically correct full body divided into ten parts.
- Shoulders can be rotated 360 degrees round ways and 180 degrees sideways.
- Movable joints, including the hip, knees, and elbows at respective degrees.
- Detachable head, torso, and limbs.
- The bones have a realistic three-layered structure with inner porosity
- The phantom can be ordered in a transparent or skin-colored version
- Ask our Sales Team about the following customizations:
- Bone porosity can be adjusted according to the customer's requirements
- Include pathologies, like, lesions, tumors, infections, abnormalities
Description of Each Section of this Phantom:
- Human Head

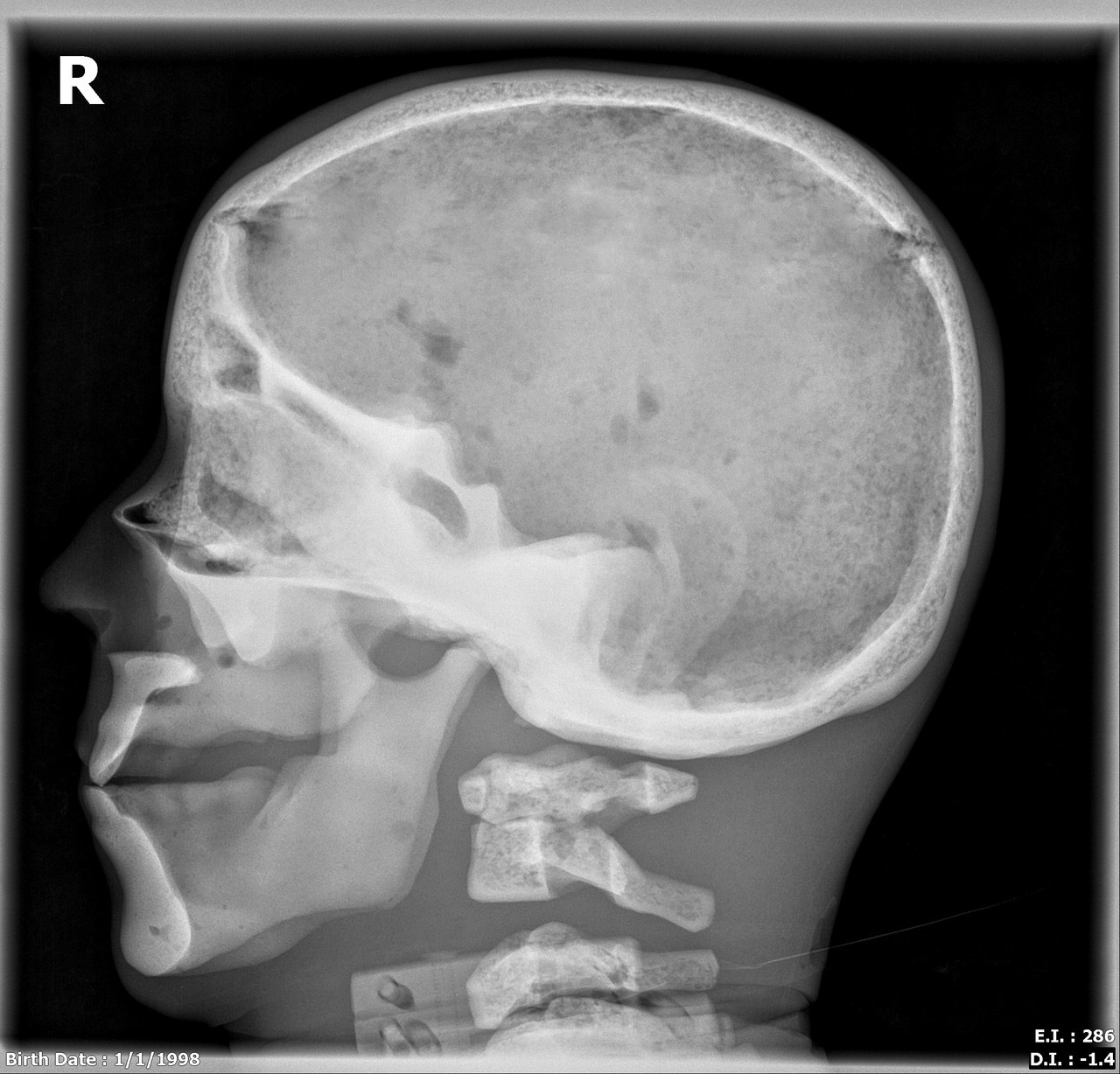

- Anatomically correct realistic skull phantom
- Realistic brain phantom:
- Realistic brain tissue
- Gray matter (contrast x)
- White matter (contrast x’)
- Realistic air cavities within the phantom
- Acoustically correct opaque skin-mimicking material
- Cervical spine
- Alignment markings
- Frontal sinus with air gaps
- Adult Human Arms
- Shoulder (Clavicle & Scapula)
- Arm (Humerus)
- Major Muscles
- Elbow joints
- Forearm (Radius, Ulna)
- Hand (wrist with fingers)
- Acoustically correct skin-mimicking material surrounding the arm
- Adult Human Torso
- Bones included:

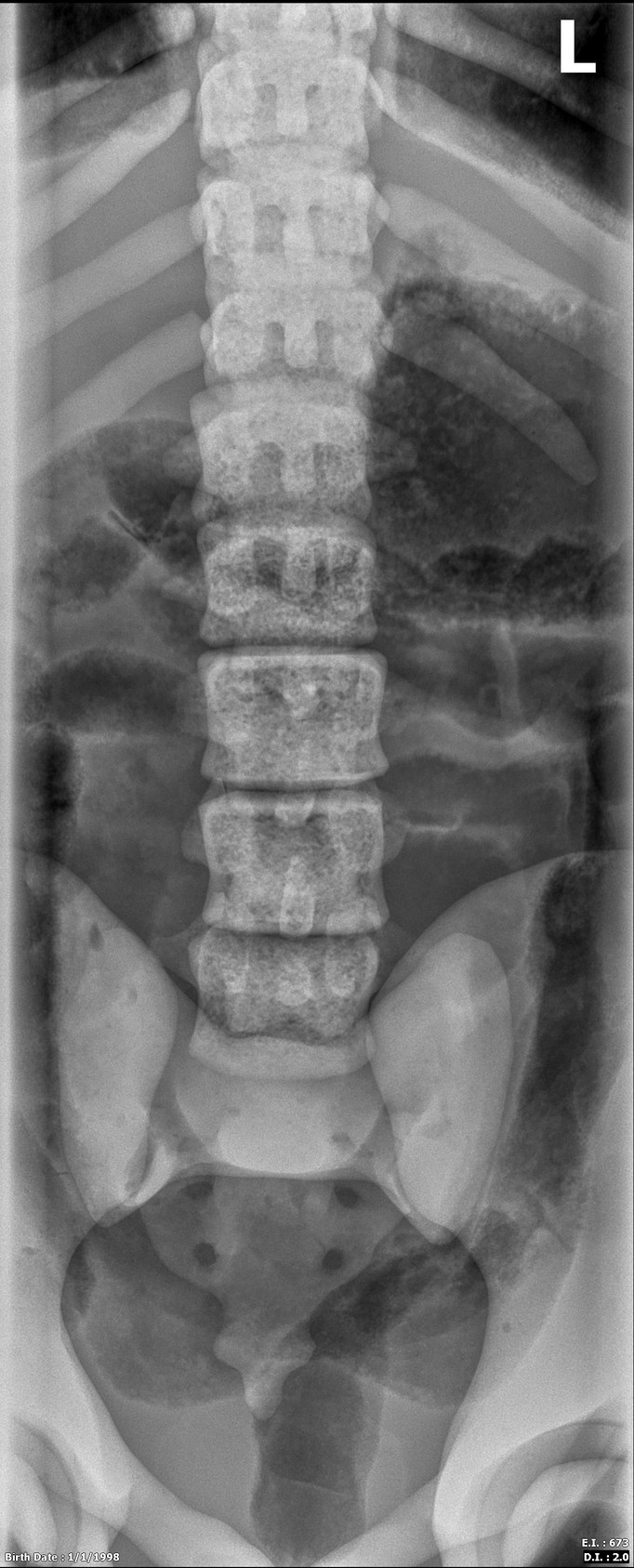

- Complete Spine
- Complete Ribcage
- Shoulders and clavicles
- Pelvis structure
- Partial Femur bones
- Thoracic organs included:
- Trachea
- Anatomically correct Heart
- Lungs
- Major abdominal organs included:
- Diaphragm
- Liver
- Gallbladder
- Stomach
- Kidneys
- Spleen
- Pancreas
- Large & small intestines
- Bladder
- Prostate
- Bones included:
- Adult Human Legs
- Thigh (Femur)

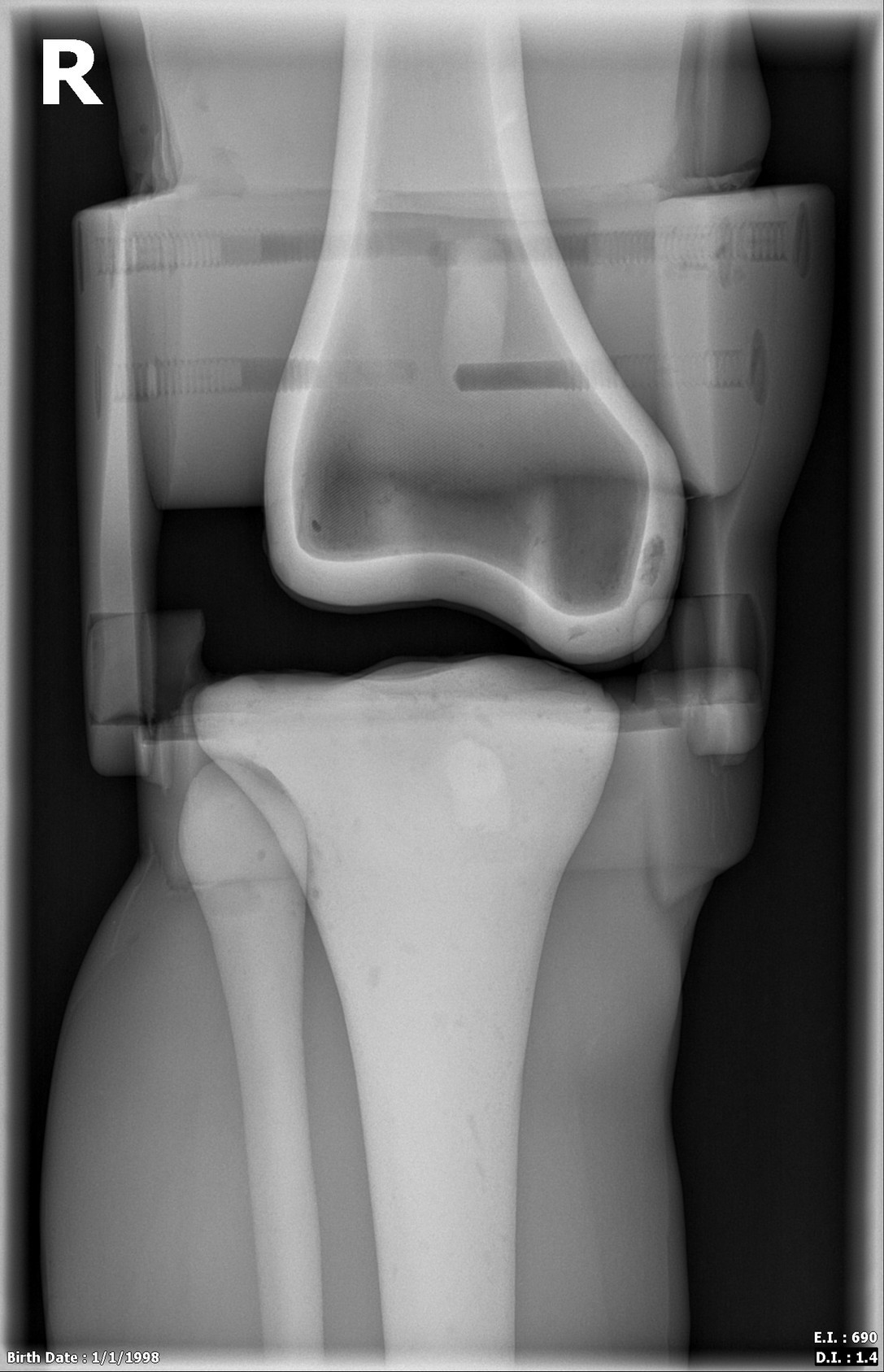

- Knee joints
- Major Muscles

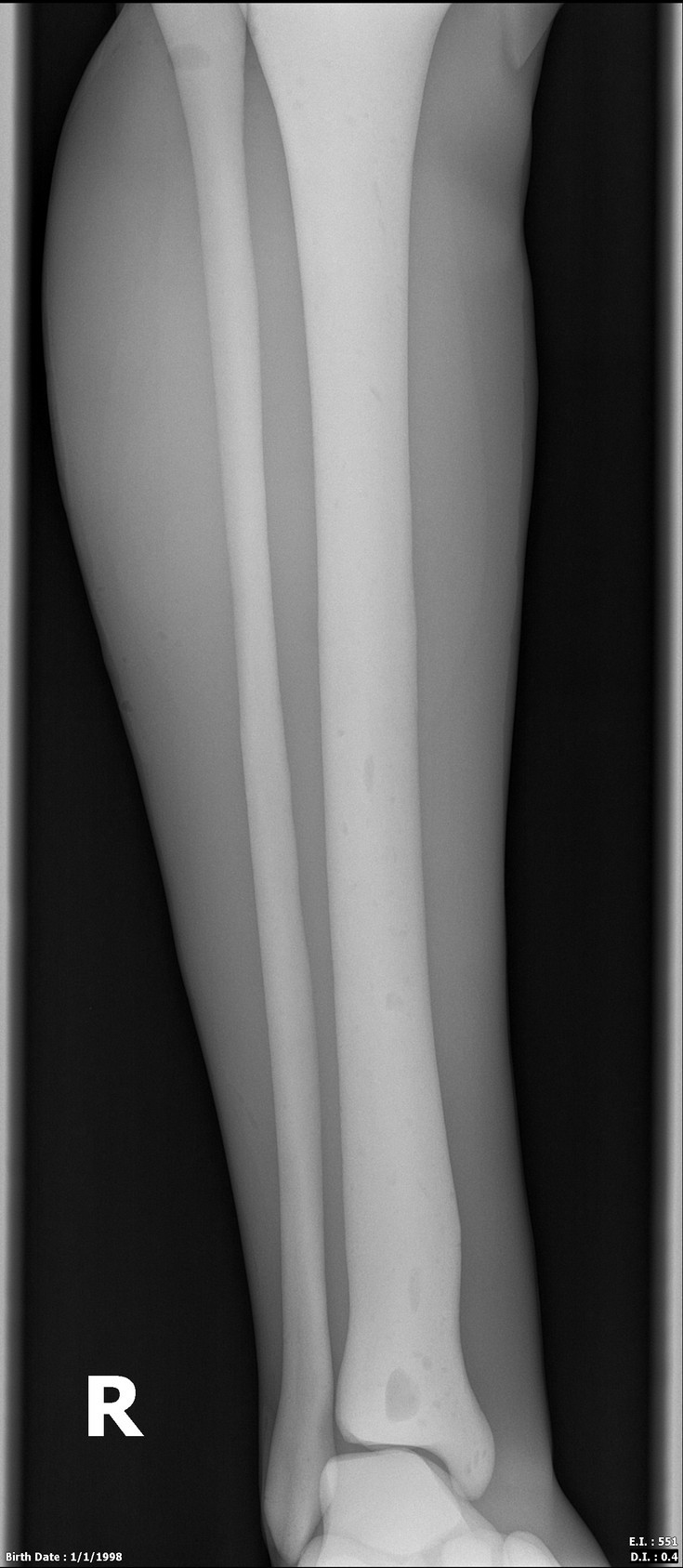

- Leg (Tibia, Fibula)
- Foot (Finger bones)
- Acoustically correct skin-mimicking material surrounding the arm
Materials
- Soft tissue and organs: Composition of urethane base soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Dimensions
- Product Height: Approximately 68.9 inches
- Product Weight: Approximately 154.3 lbs.
- Shipping Dimensions: 47.25 in. x 25.6 in. x 17.7 in.
- Shipping Weight: 198.4 lbs.
What is Included with My Phantom?
1 x Full body phantom divided into ten parts
1 x Product Design video
1 x Product Manual
1 x Hard carry case
Videos
-
Design Video: Adult Full Body with Muscles
Adult Human Full Body Phantom with muscles Design Animation. ...
-

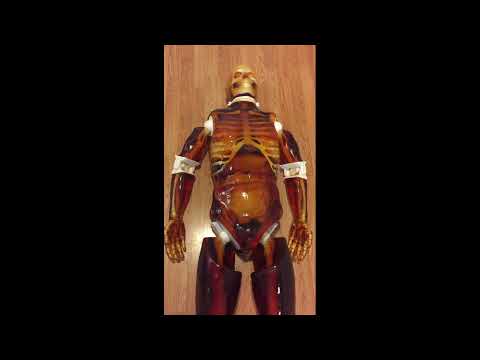

Limbs Motion in Adult Full Body Phantom
The video demonstrates the limb motion in the body parts of ou...
-
Adult Full Body with Muscles Clinical Application
Adult Full Human Body Phantom with Muscles is an X-RAY CT and ...
