Adult Torso for X-Ray CT, MRI
Product Description

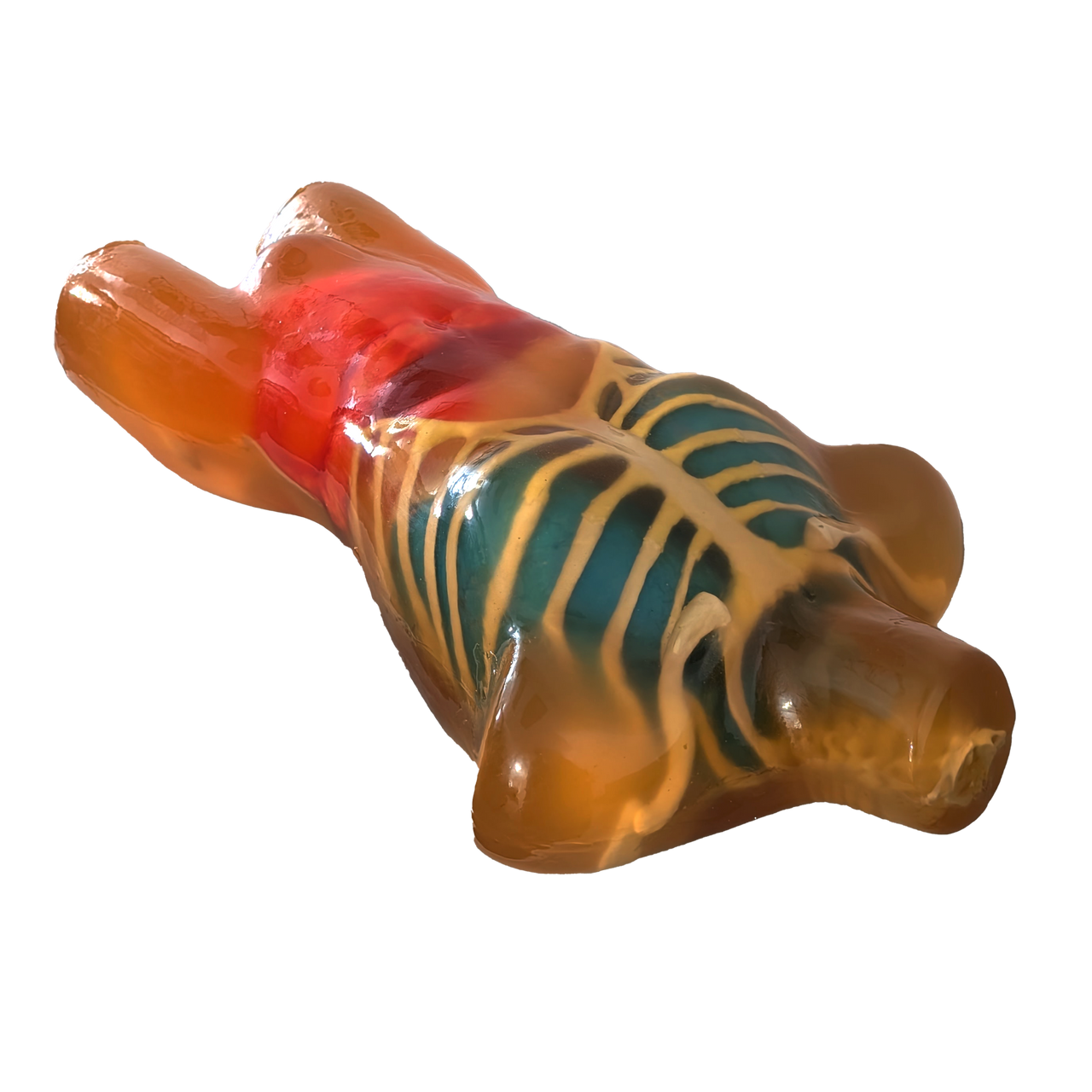

Designed based on average human anatomy, the Adult Torso phantom is constructed with realistic bone and soft tissue-mimicking materials suitable for X-Ray/CT and MRI applications. It serves as an essential tool for medical imaging research, radiology training, and equipment calibration. The skeleton features individually cast bones with vertebrae that have a realistic three-layered structure and inner porosity.
For MRI applications, the tissues provide realistic T2 relaxation time values, making it an ideal fit for T2-weighted and proton-density imaging methods. T1-weighted methods are possible, with values typically within the 100 ms range. The lungs can be customized to simulate various pathologies, such as mucus, lesions, or typical infections, making it a viable simulator for COVID-19-related diagnostic training.

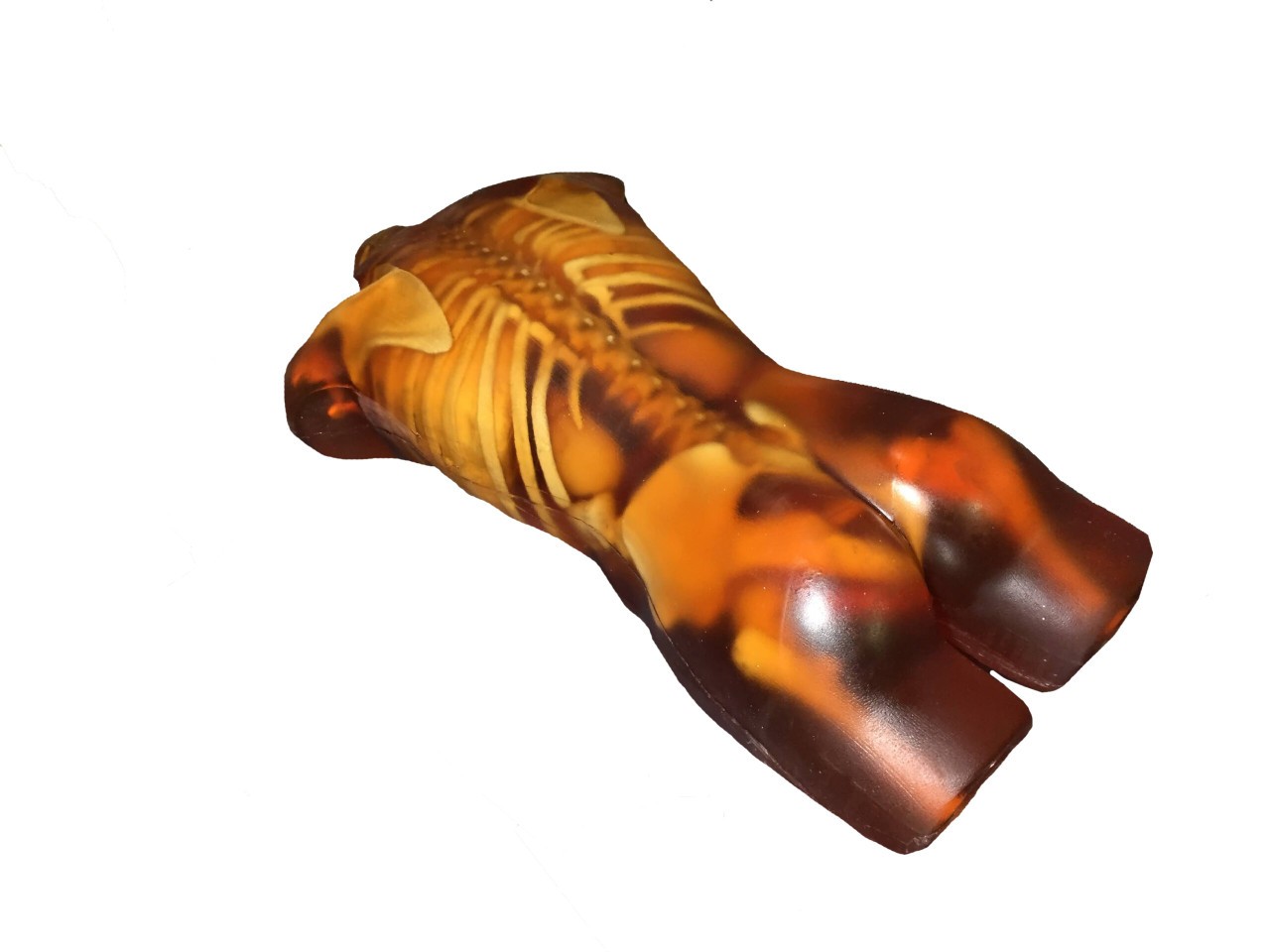

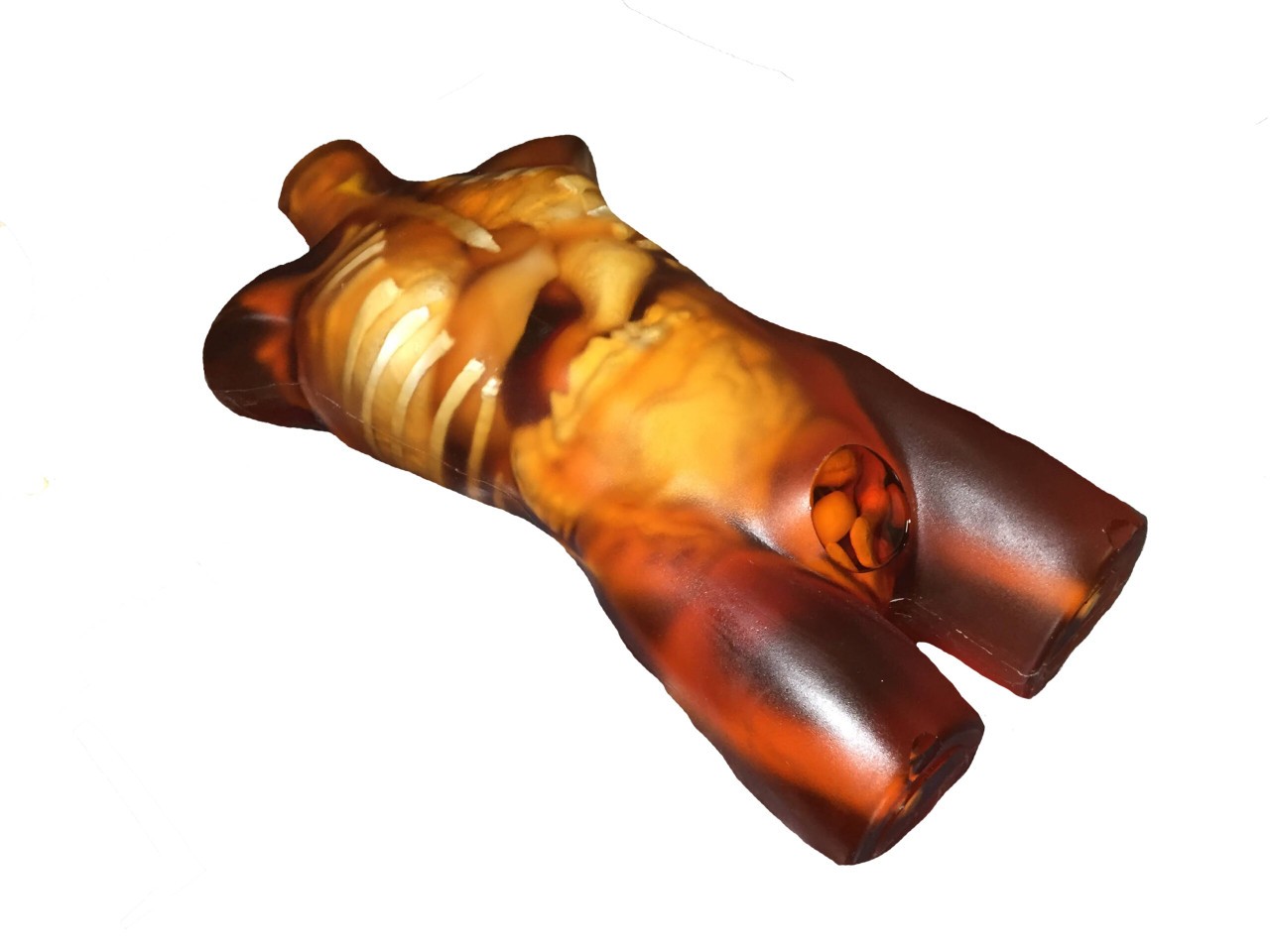

Note: By default, the phantom comes in a translucent amber appearance. The skin feature and customization in size and shape (based on individual CT scans) are available upon request.

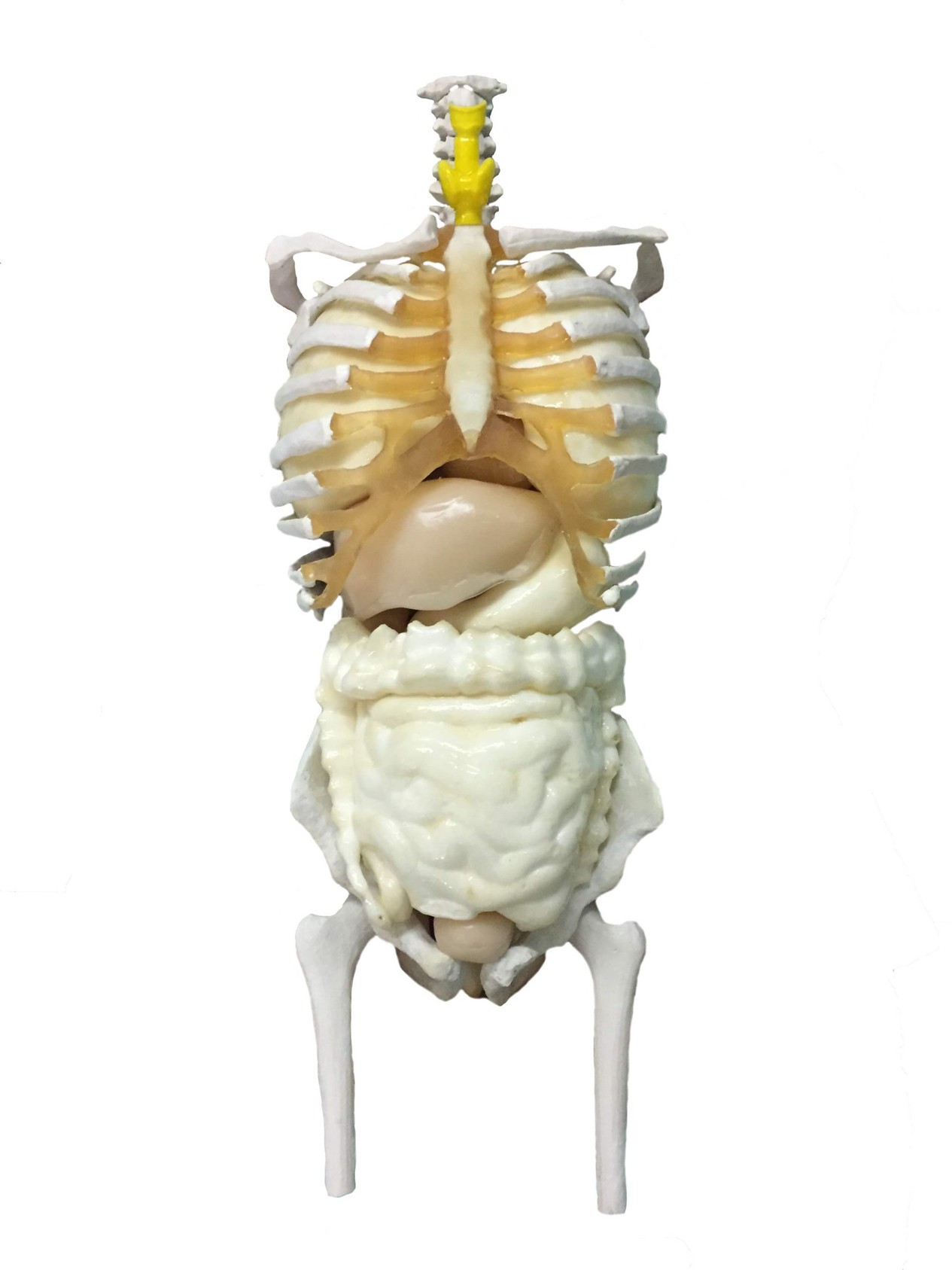

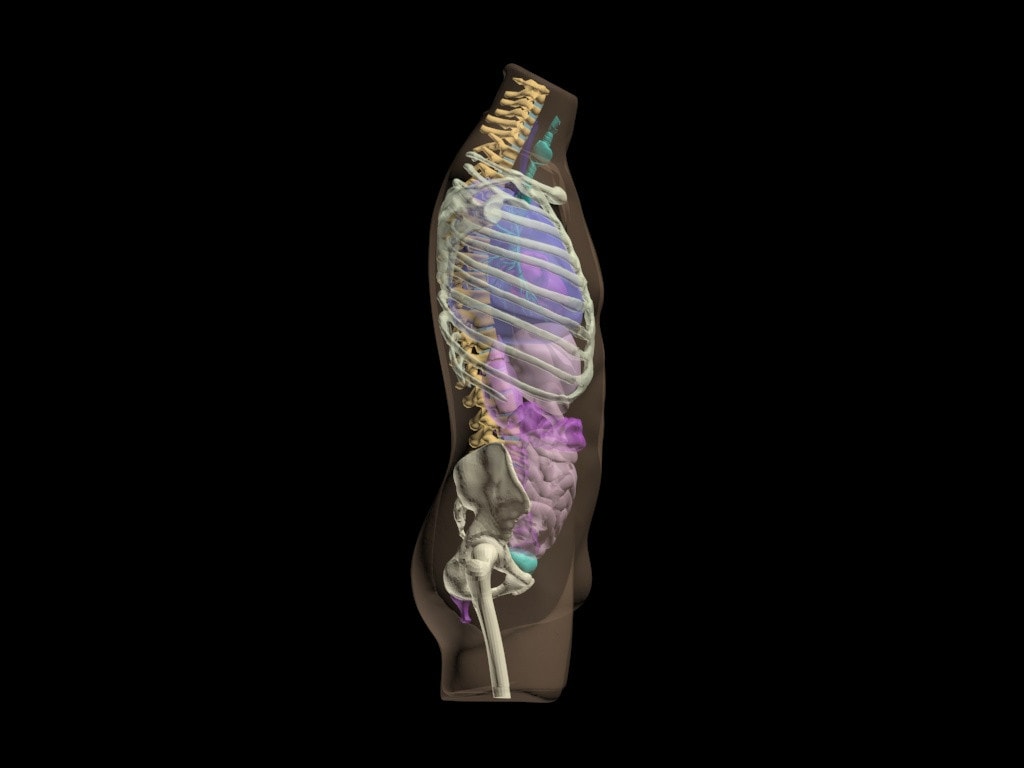

Anatomy
- Complete Spine and Ribcage
- Shoulders & Clavicle
- Pelvis and Partial Femur Bones

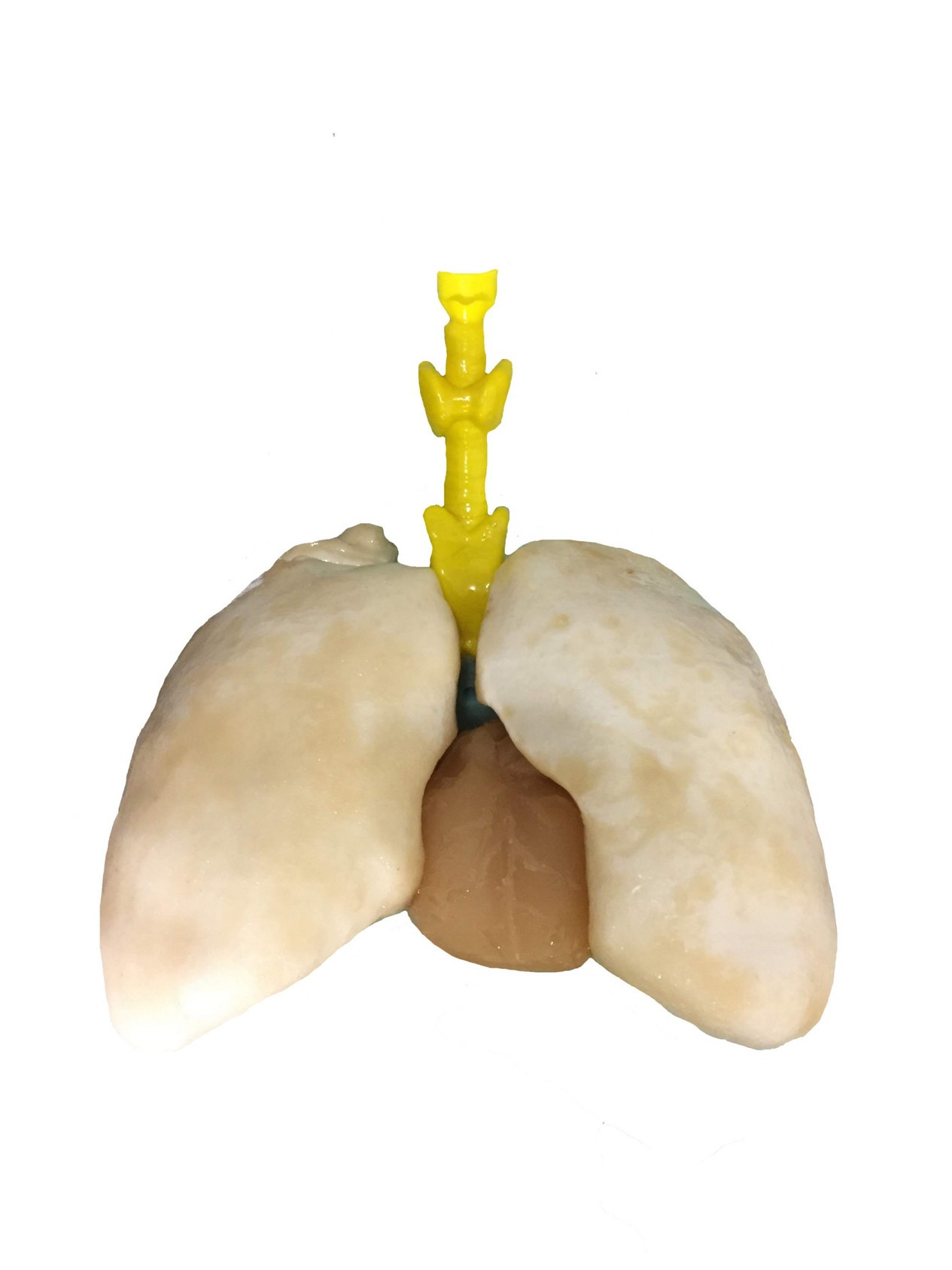

- Trachea, Heart, and Lungs
- Diaphragm, Gallbladder, and Liver (including Ligaments and Bile Ducts)
- Stomach, Kidneys, and Spleen
- Pancreas, Large & Small Intestines
- Bladder and Prostate
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| Tissue Type | HU Value (Average) | Tissue Type | HU Value (Average) |
|---|---|---|---|
| Body Tissue | -25 | Kidneys | 110 |
| Trabecular Bone | 800 | Bladder | 35 |
| Cortical Bone | 1300 | Rectum Wall | 100 |
| Aorta | 40 | Sigmoid Colon Wall | 100 |
| Vena Cava | 40 | Heart | 40 |
| Trachea (Tissue) | 80 | Liver | 110 |
| Trachea (Air) | -1000 | Gallbladder | 35 |
| Lungs | -850 | Diaphragm | 80 |
| Pancreas | 110 | Intestines (Tissue) | 80 |
| Spleen | 110 | Intestines (Air) | -1000 |
| Stomach | -850 | - | - |
Included in Order
- Adult Torso Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 34 x 18 x 10 Inches | Weight: ~88 Lbs
Shipment: 46 x 36 x 17 Inches (with case) | Weight: ~142 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Model Options
- Torso Models: Male (Standard), Male (Dynamic), Male (Cardiac), Male (Cardiac/Fast), Male (Skin)
- Modality: X-Ray CT, MRI (Standard) or X-Ray CT, US
Imaging Scans

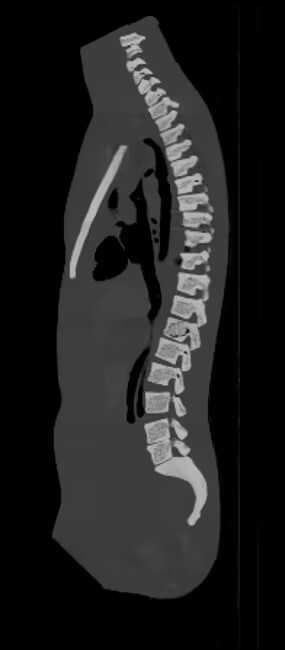

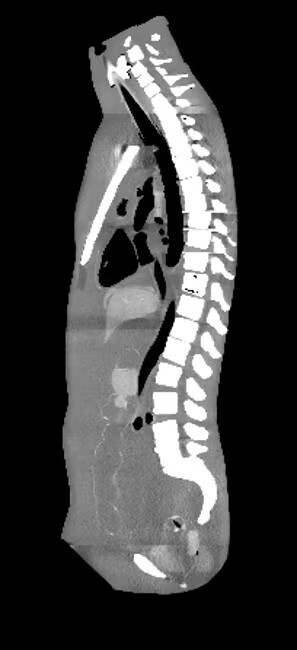

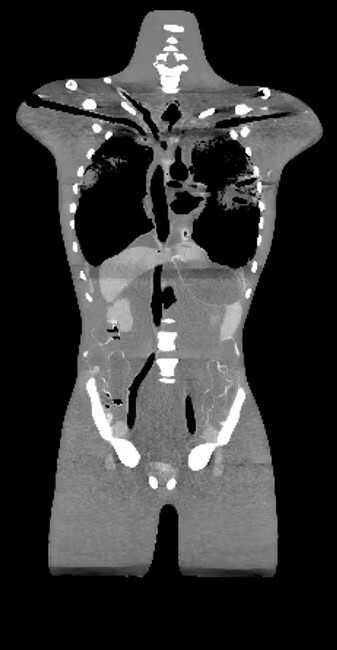

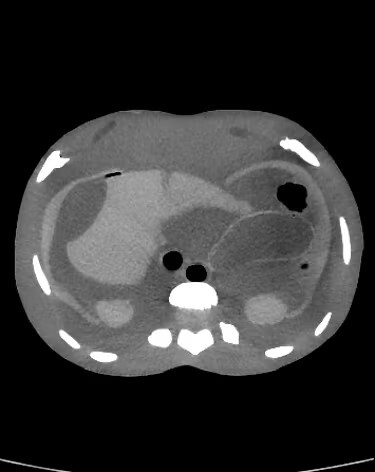

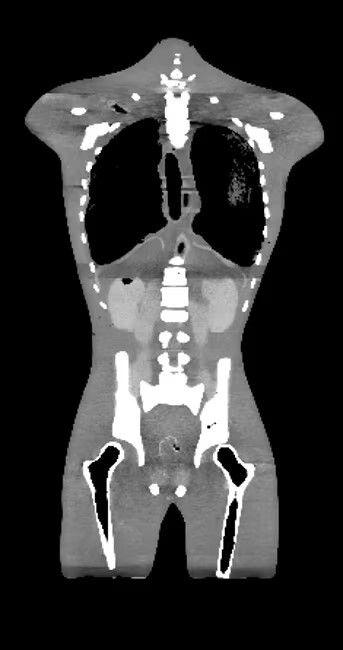

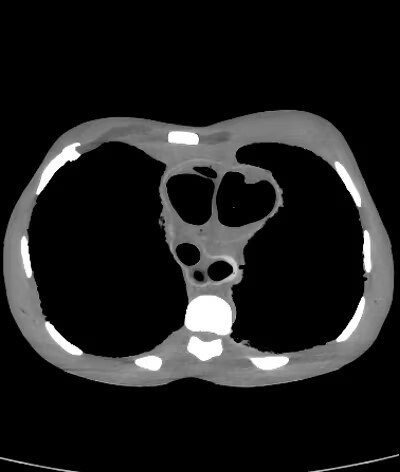

CT Image Scans

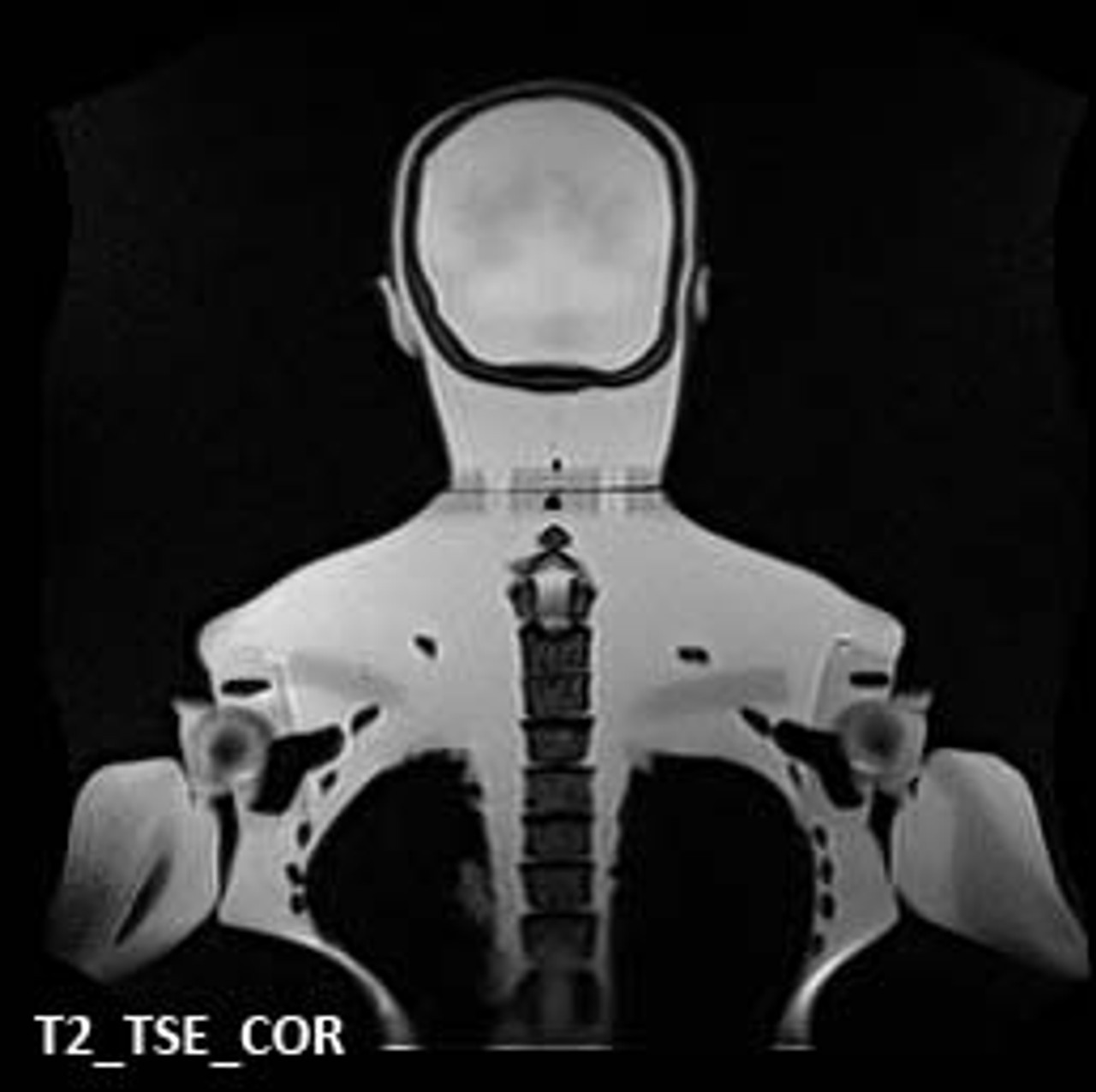

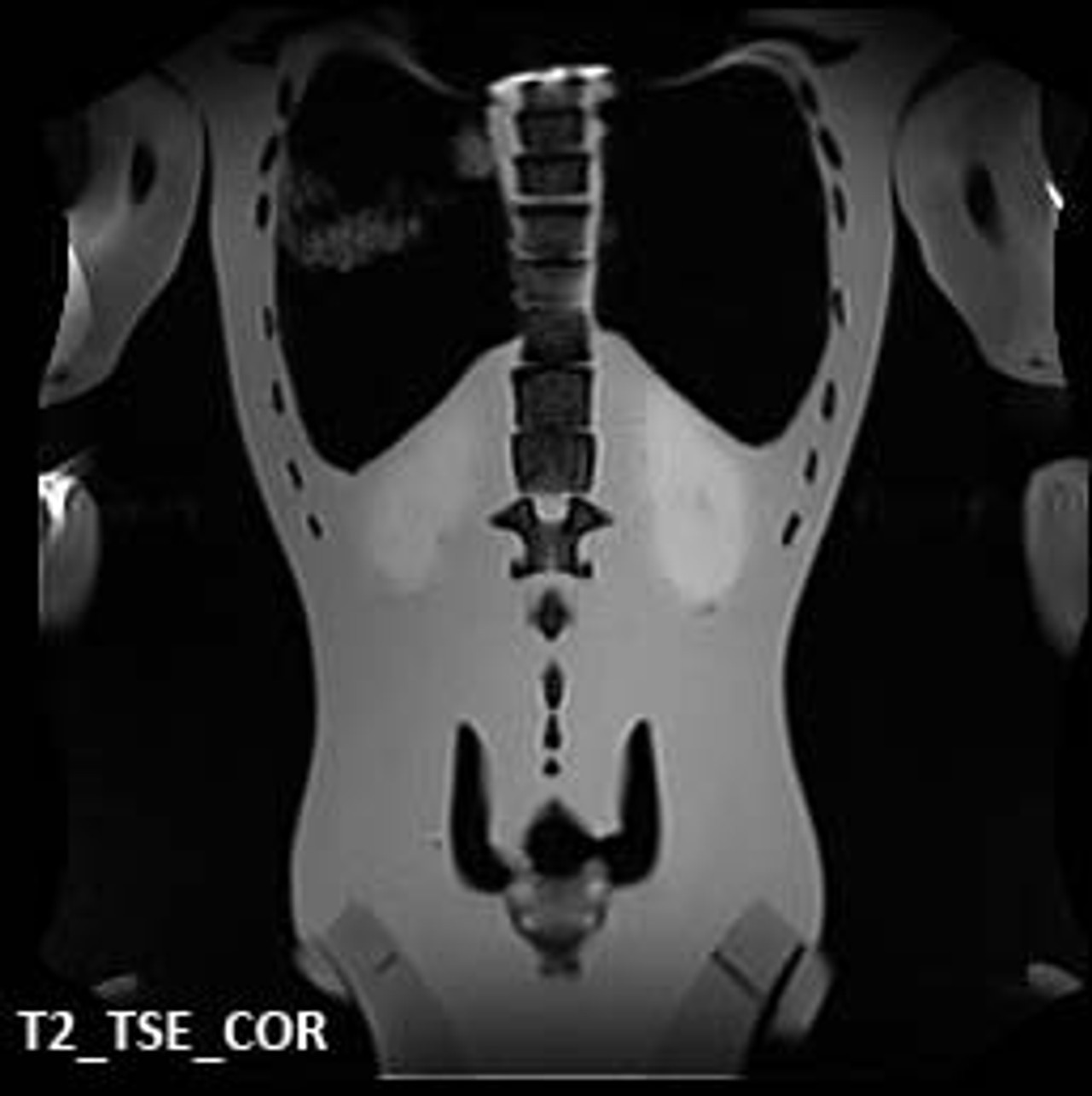

MRI Image Scans

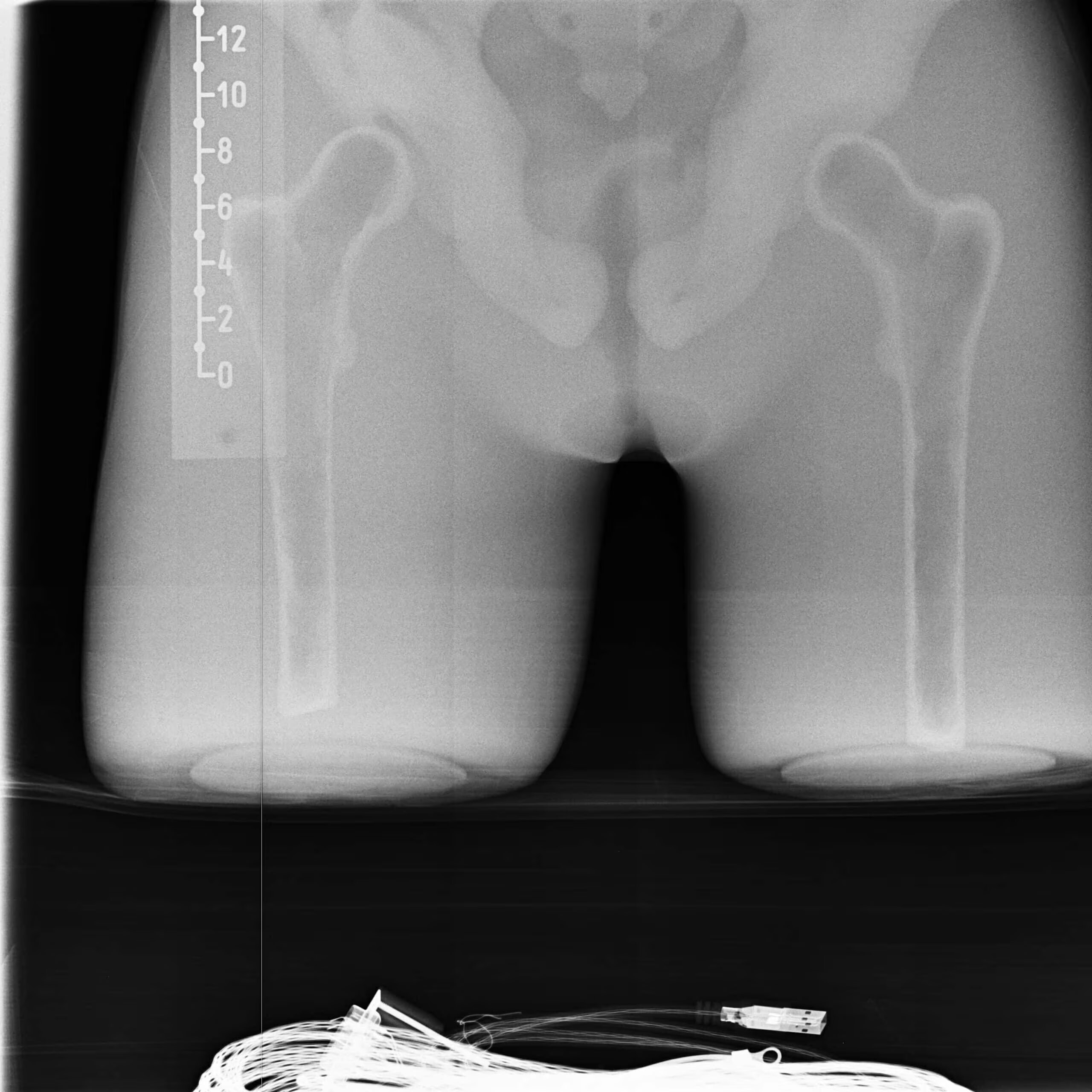

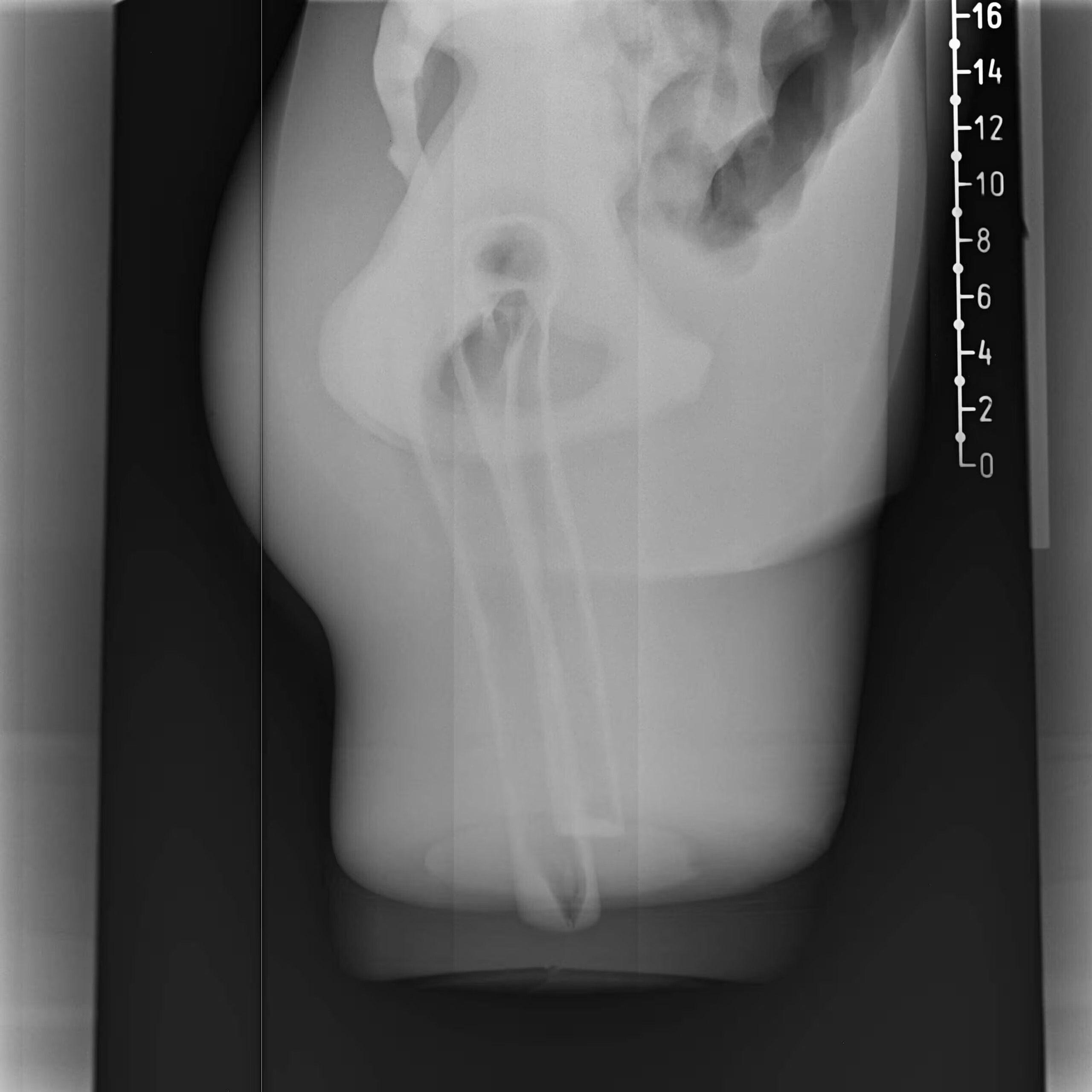

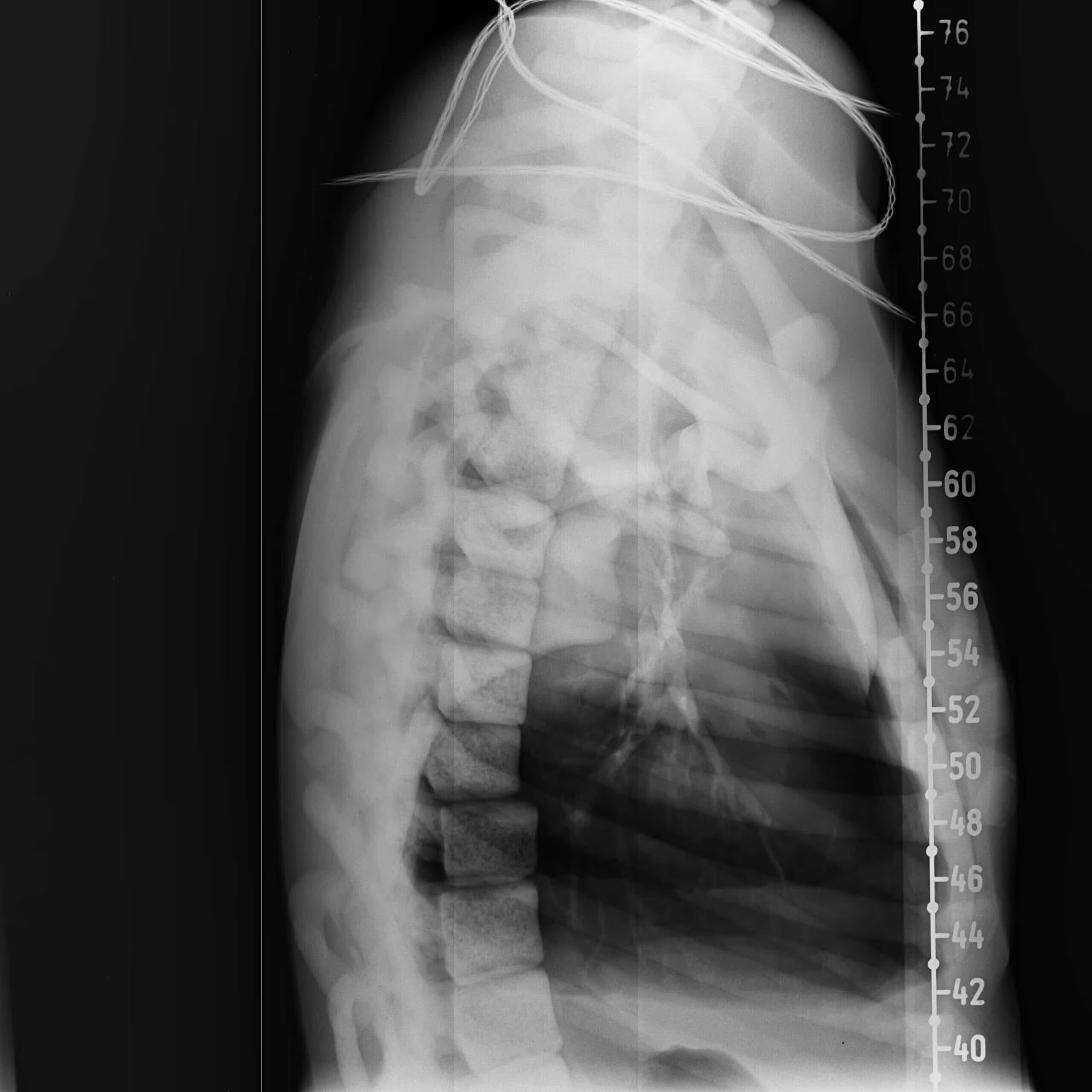

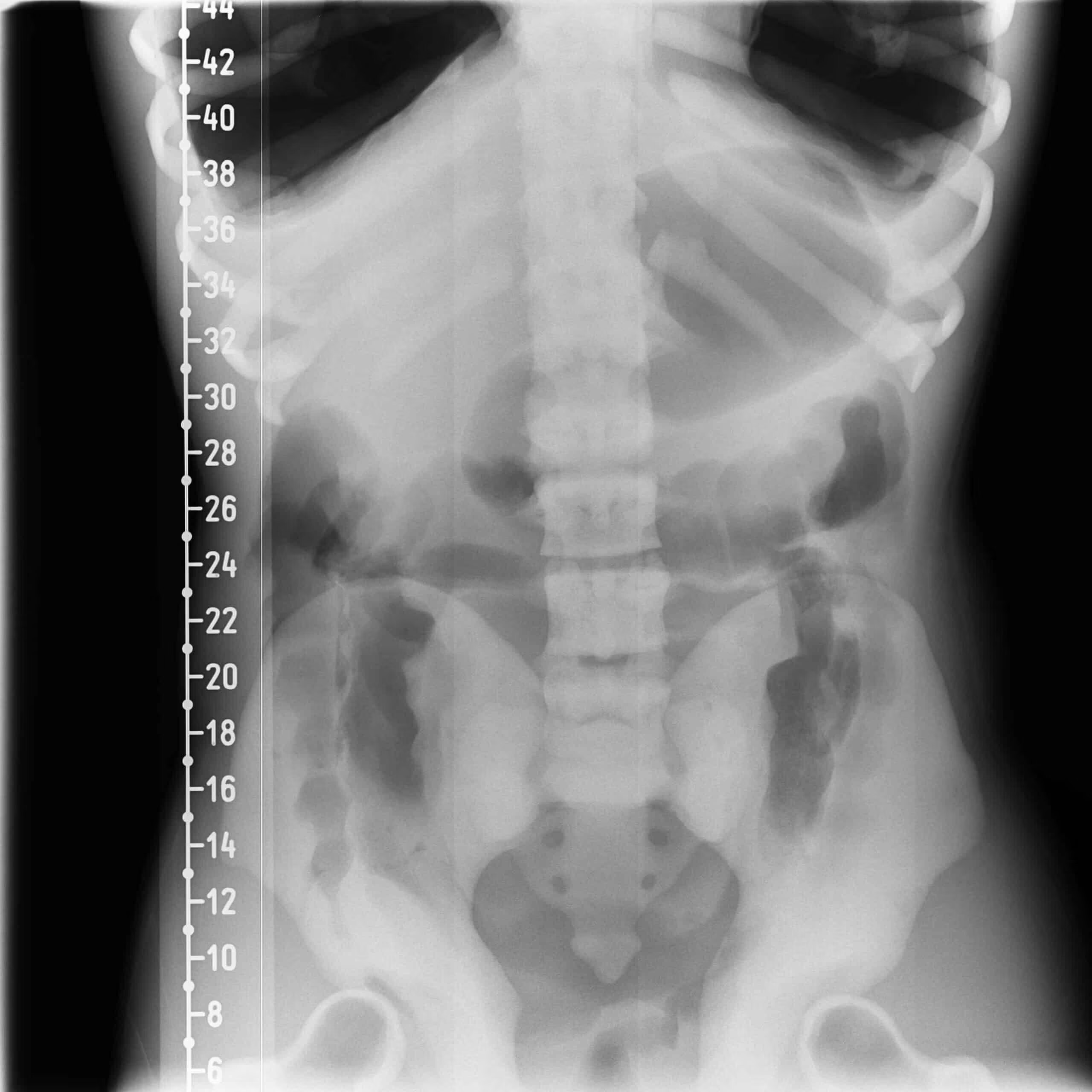

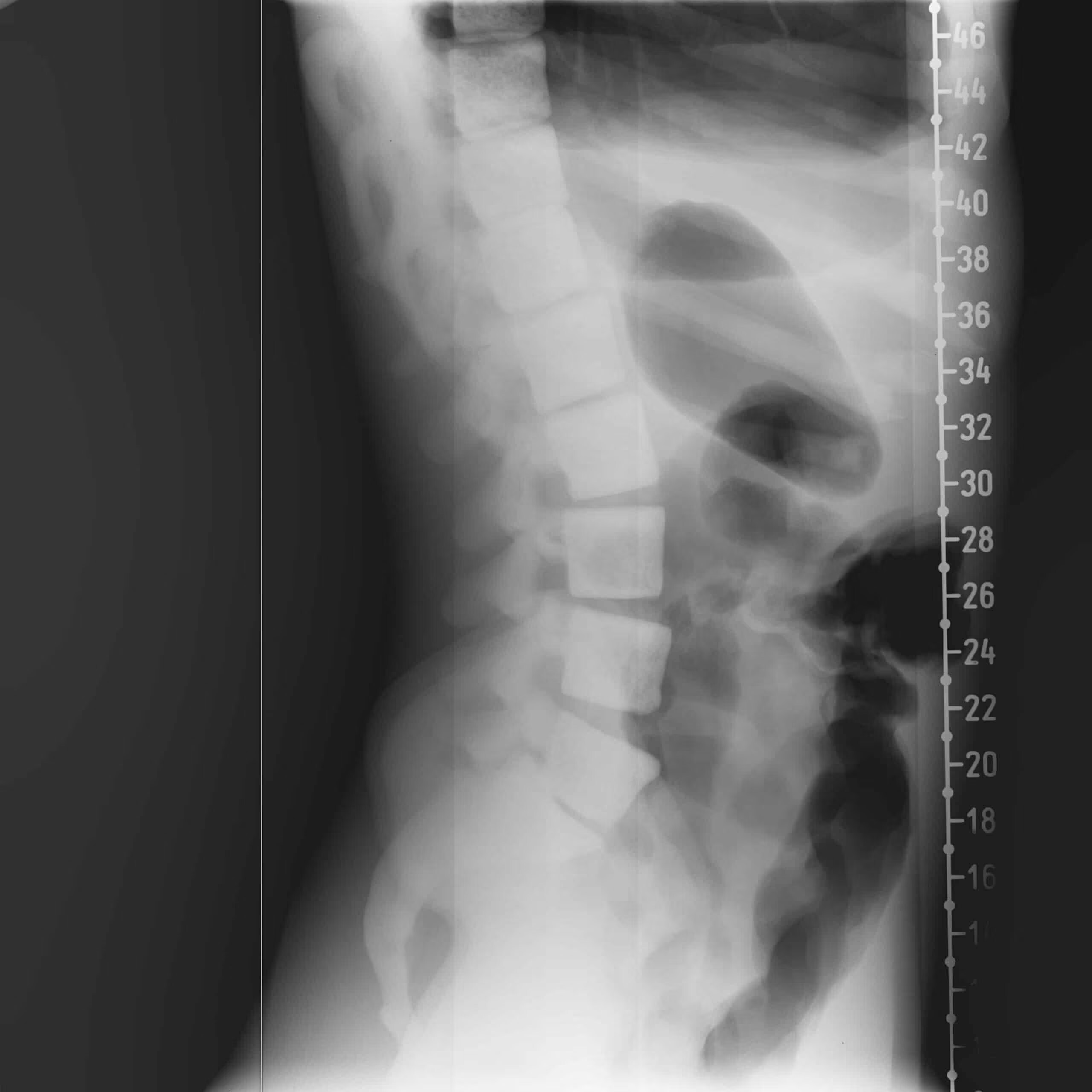

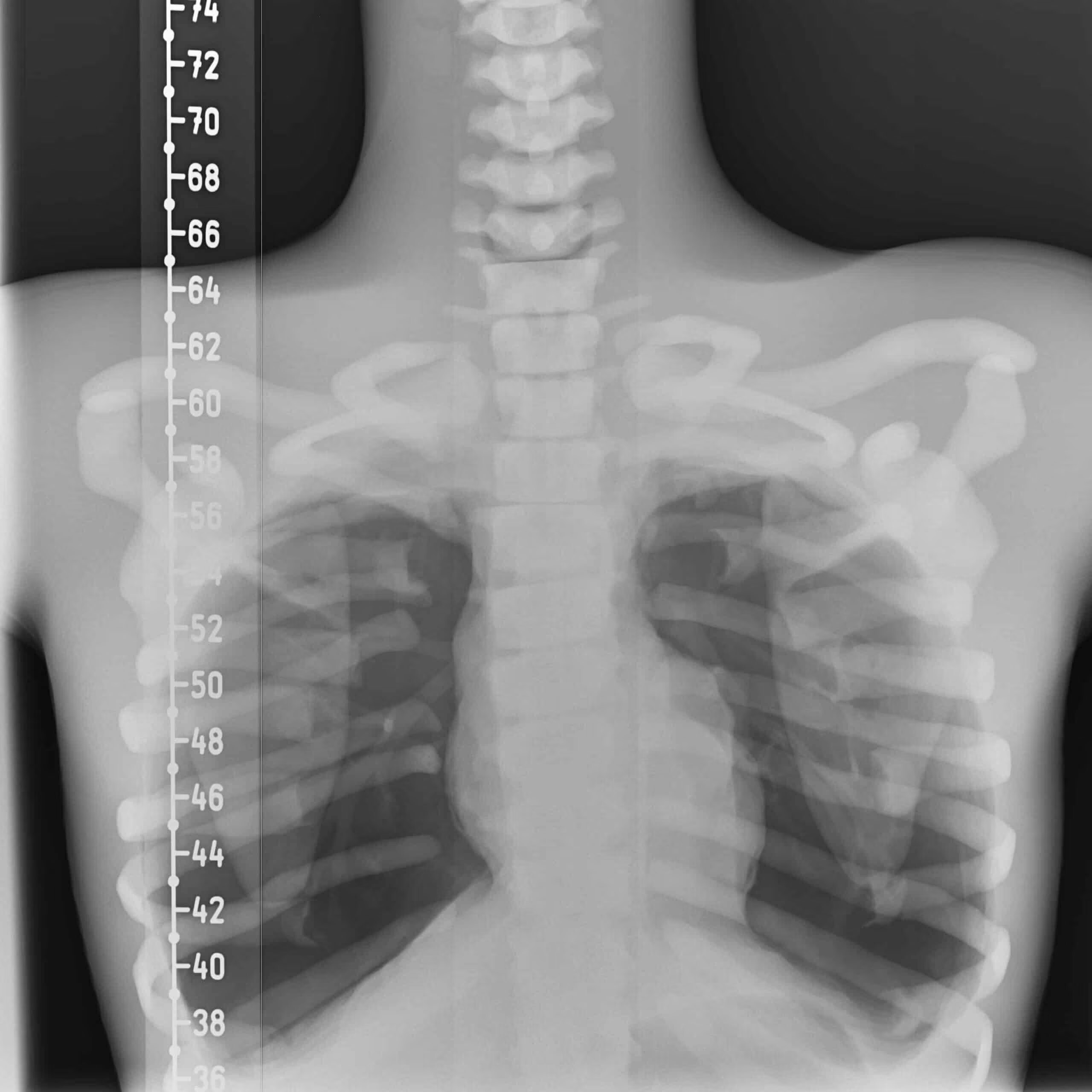

X-Ray Image Scans

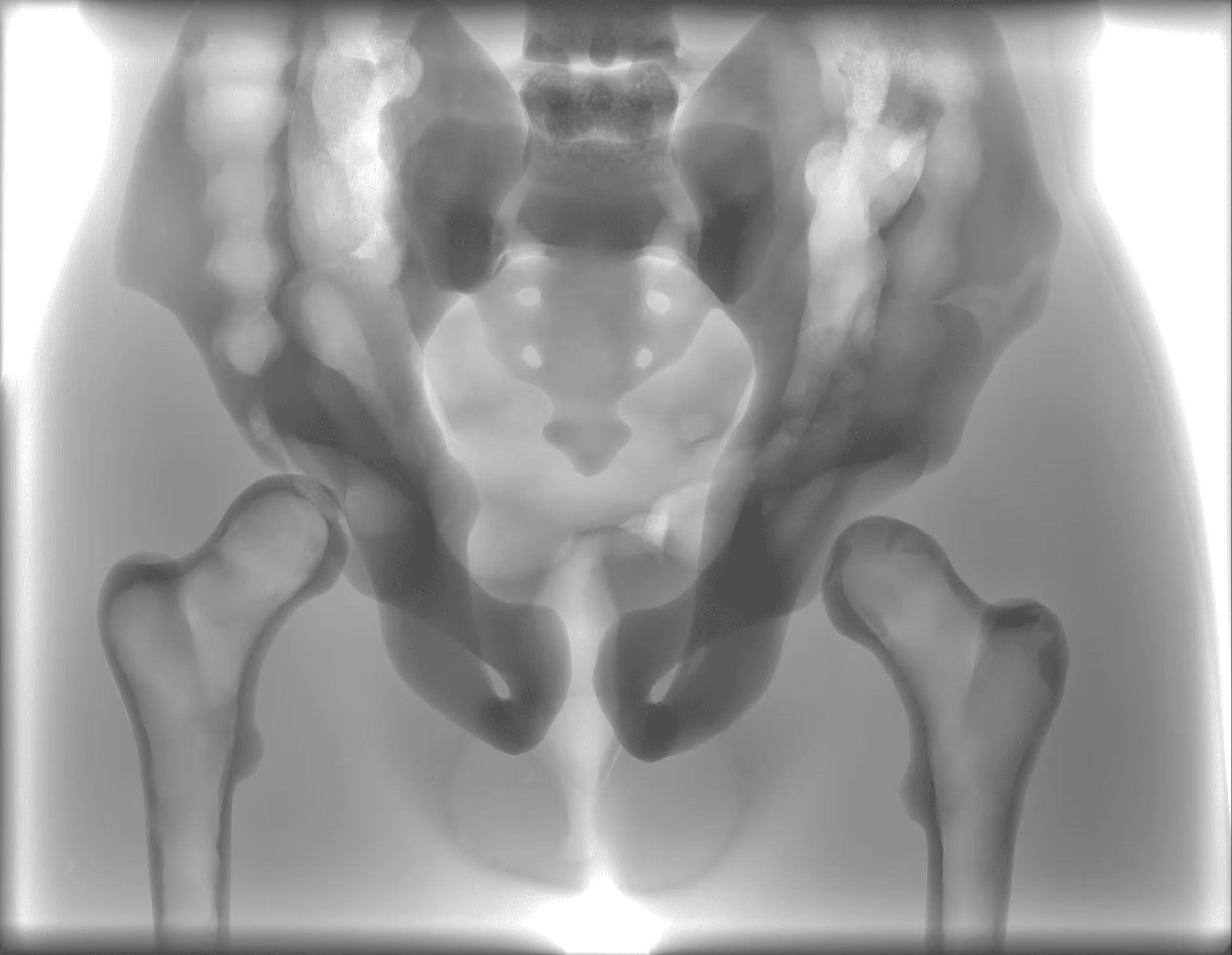

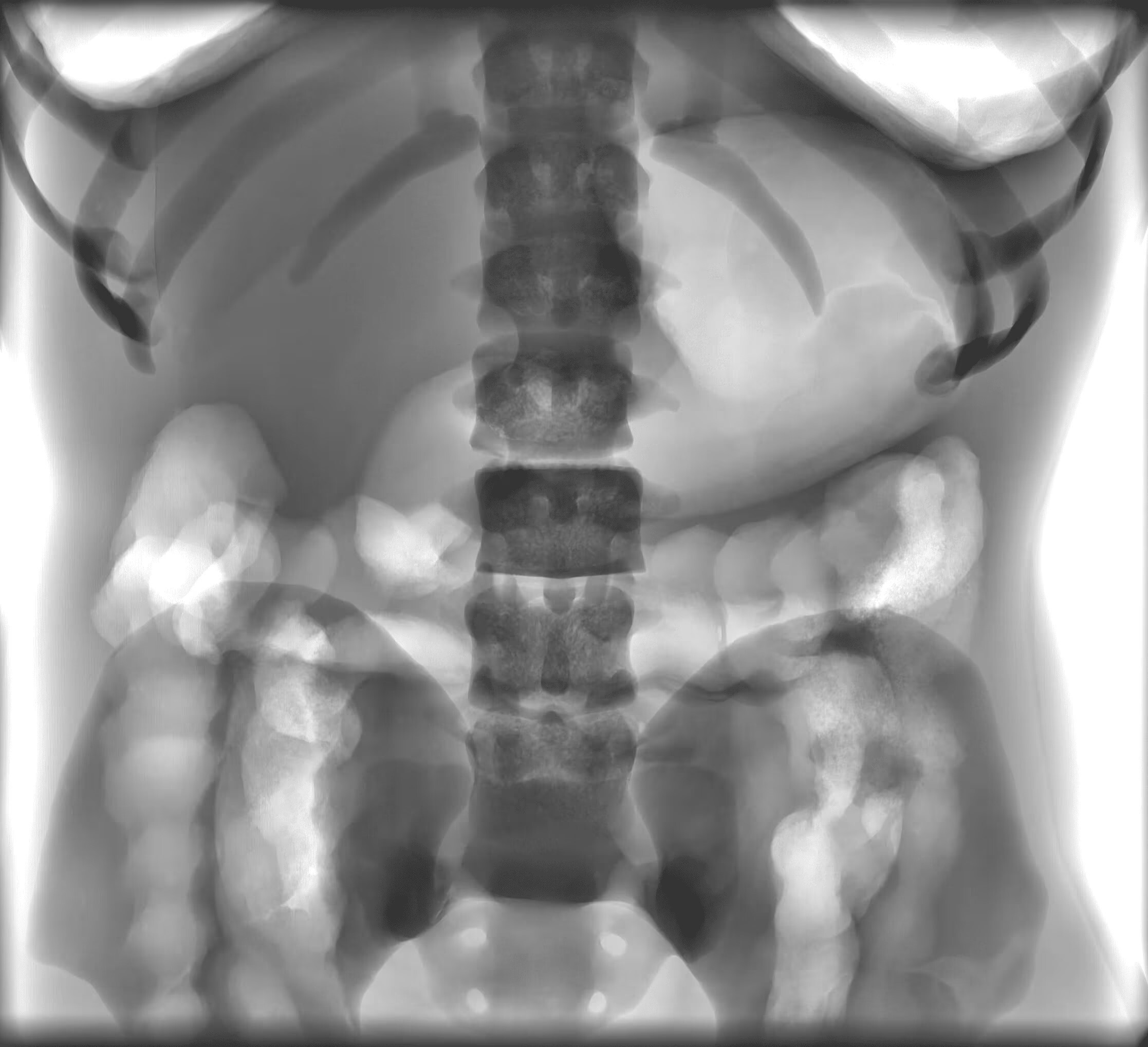

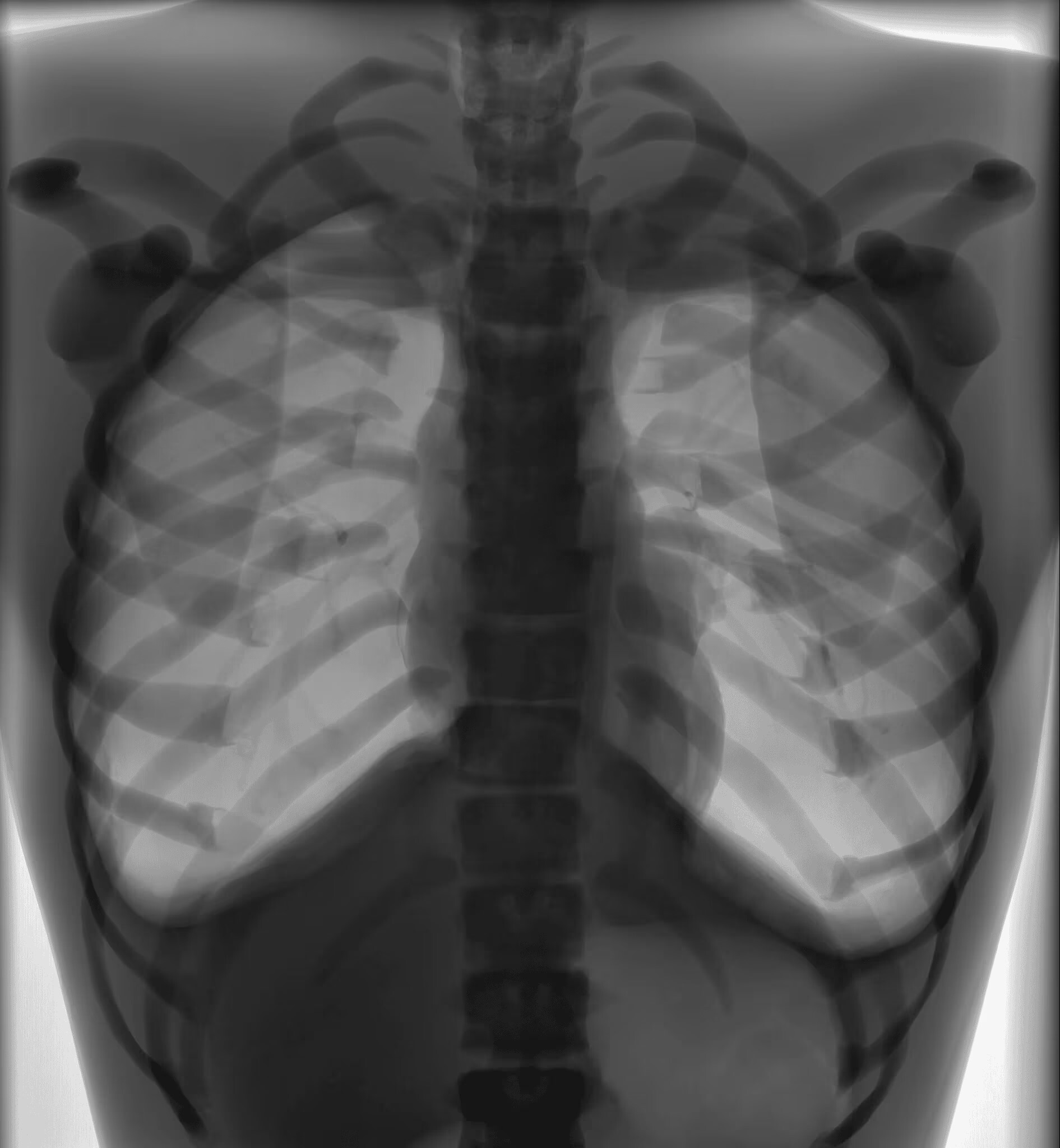

X-Ray Fluoro Image Scans
