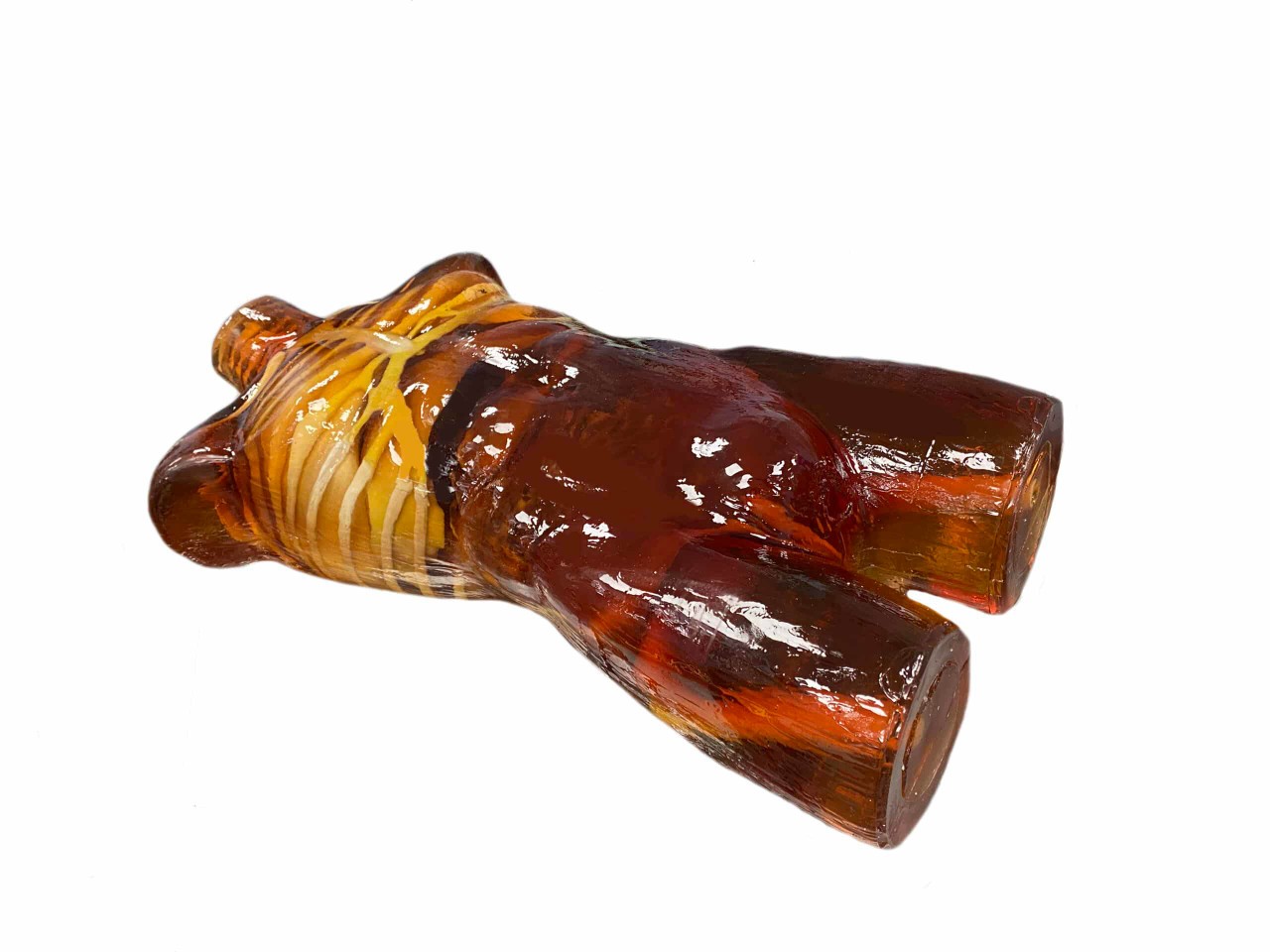

Adult Torso for X-Ray CT, US
Product Description

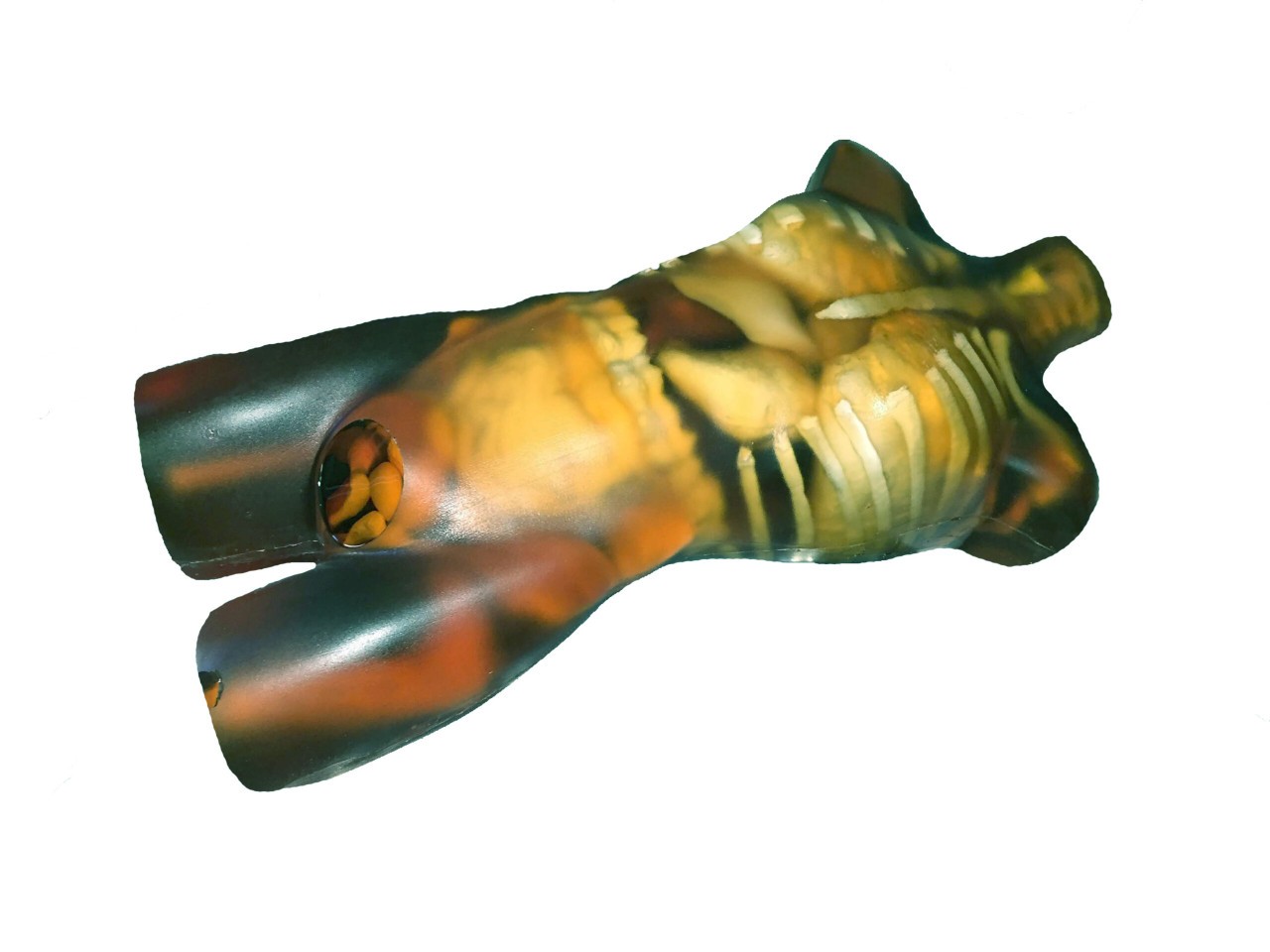

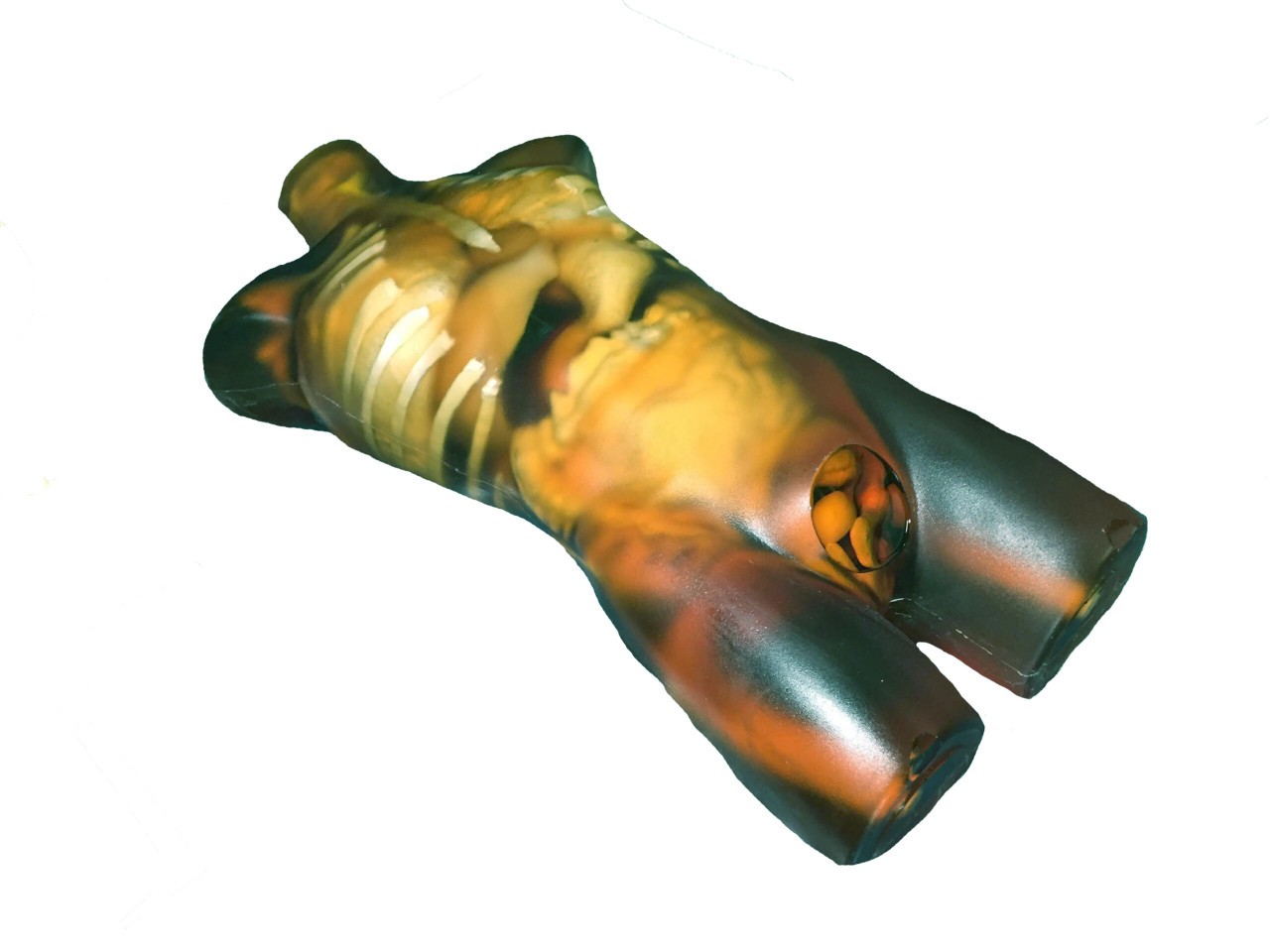

The Adult Torso Phantom is designed based on the average anatomy of a healthy adult human male. It is a multi-modality tool compatible with X-Ray/CT and Ultrasound imaging. This phantom features a realistic synthetic skeleton and all essential internal organs, making it an ideal simulator for medical students and ultrasound technicians.
The model is highly customizable and can be configured with specific pathologies to support procedural training, including FAST (Focused Assessment with Sonography for Trauma), FAMUS (Focused Acute Medicine Ultrasound), and pericardial effusion techniques. The synthetic bones are made from patented ceramic-reinforced epoxy, while soft tissues and organs are composed of realistic urethane-based resins.

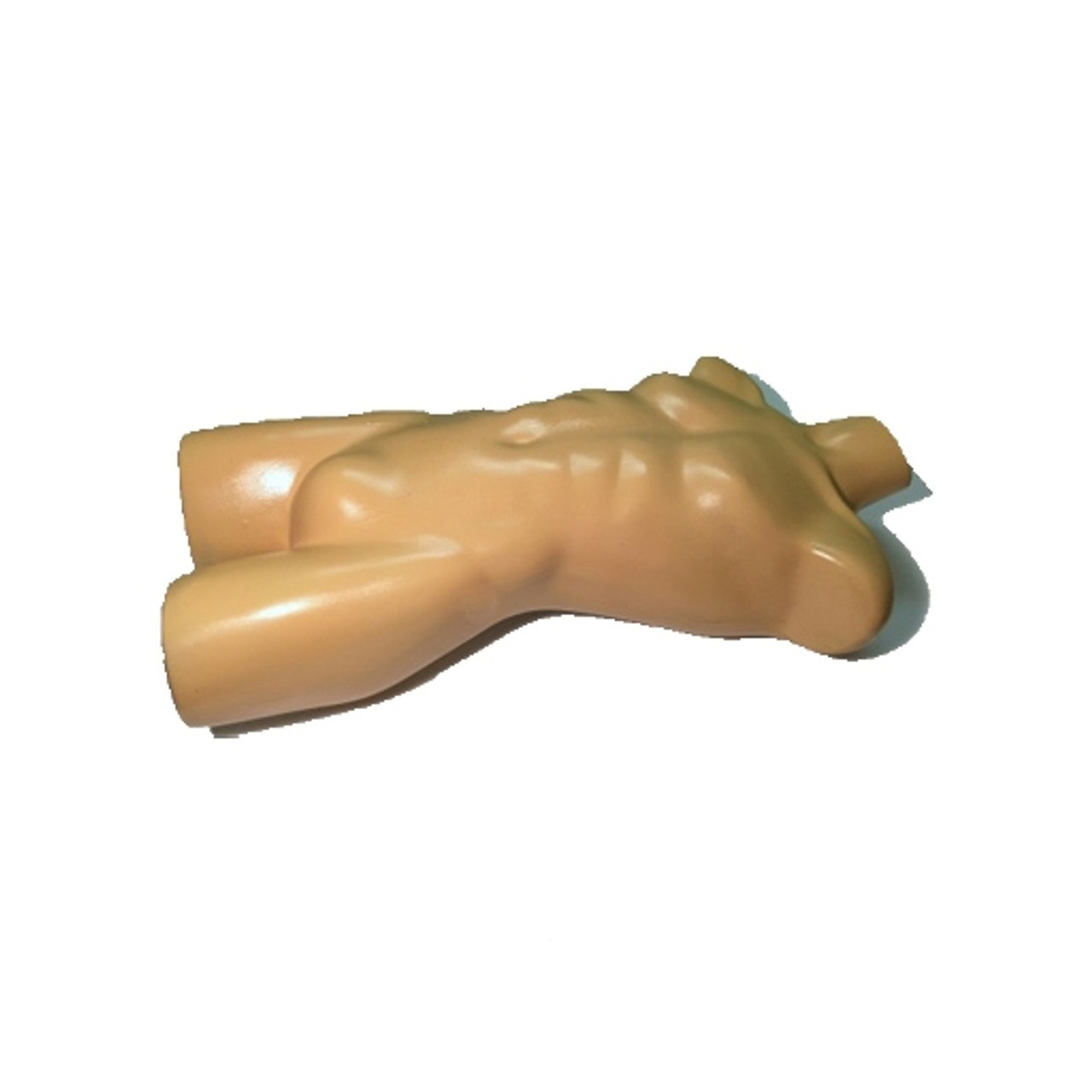

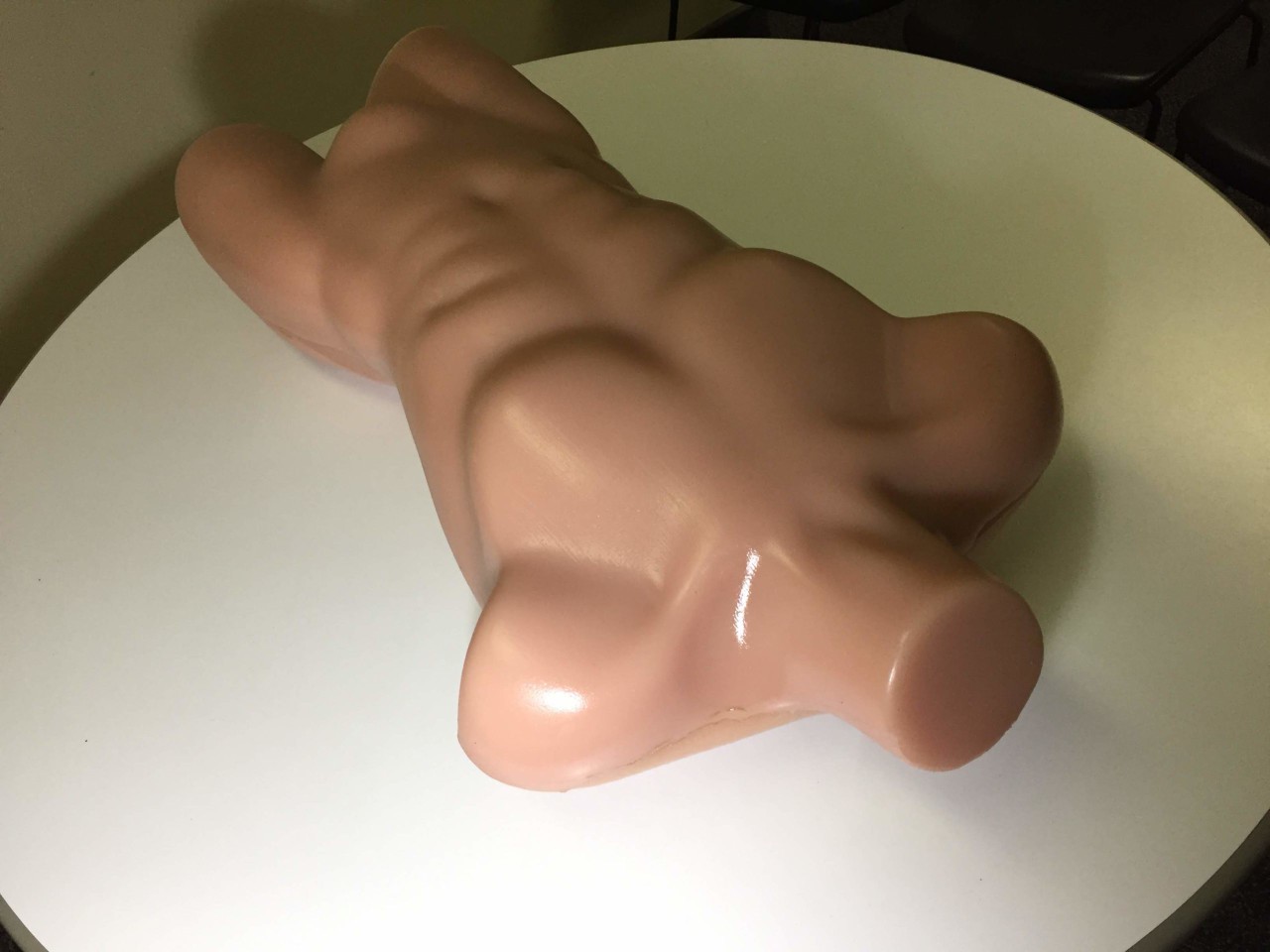

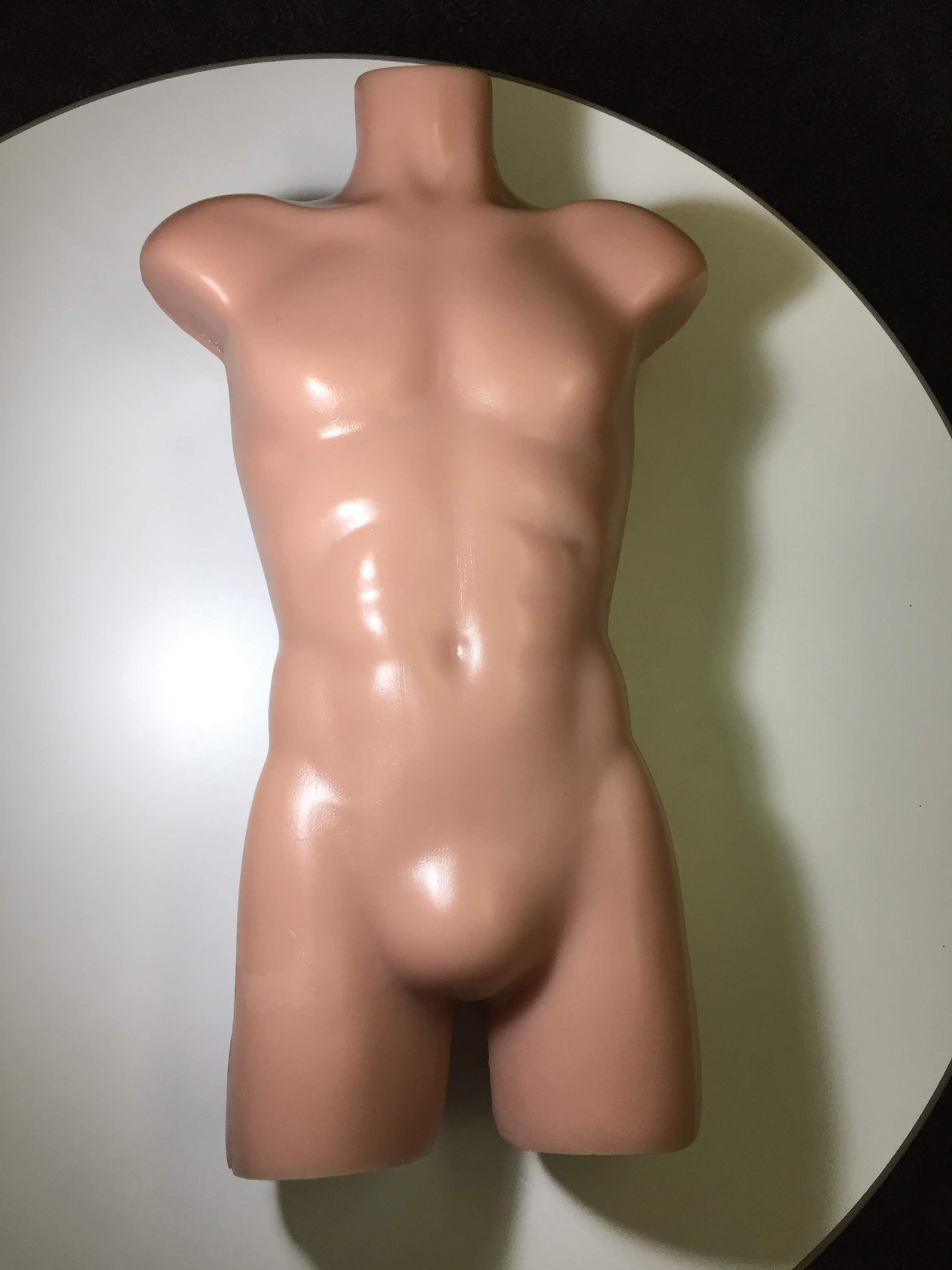

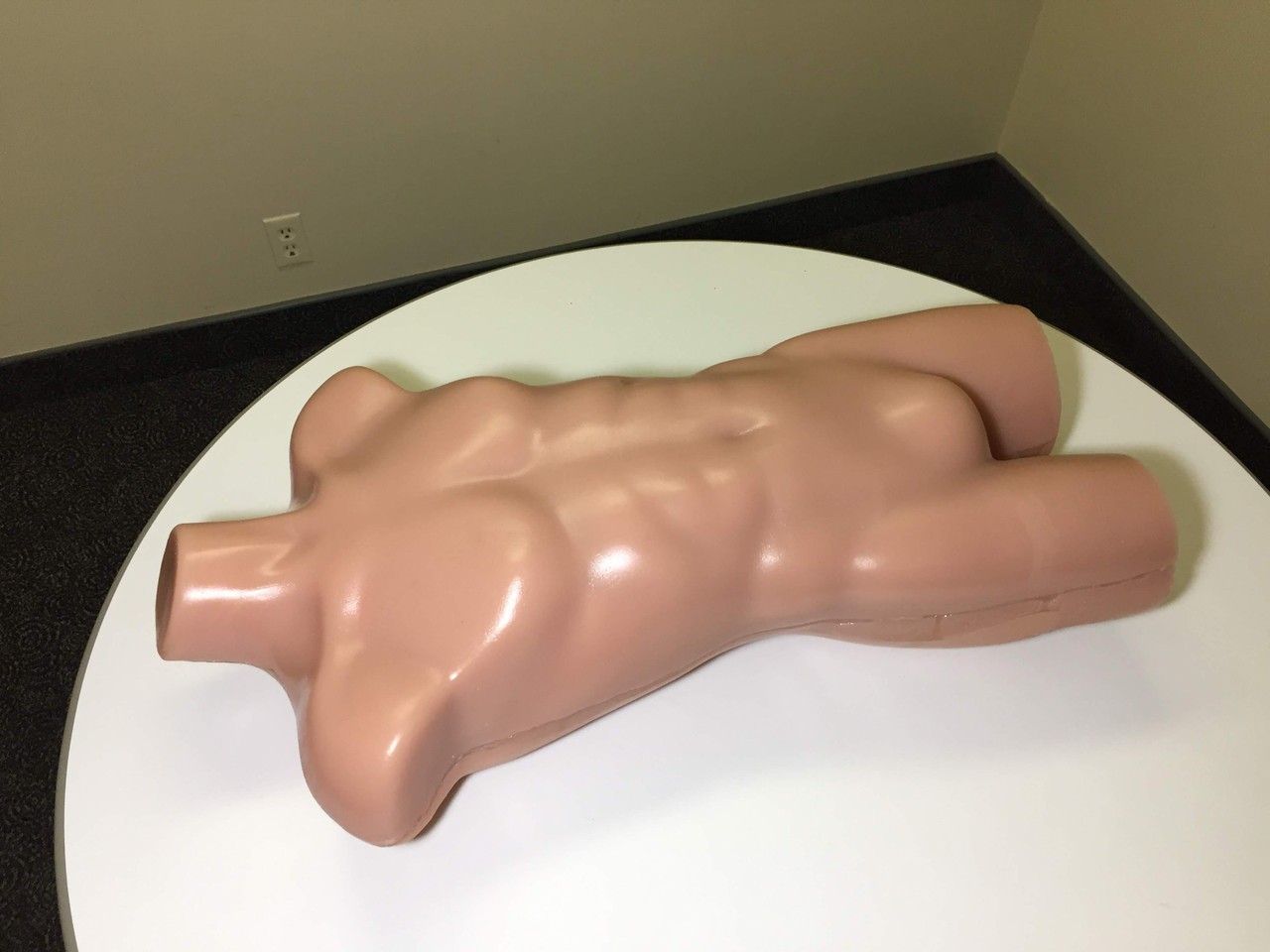

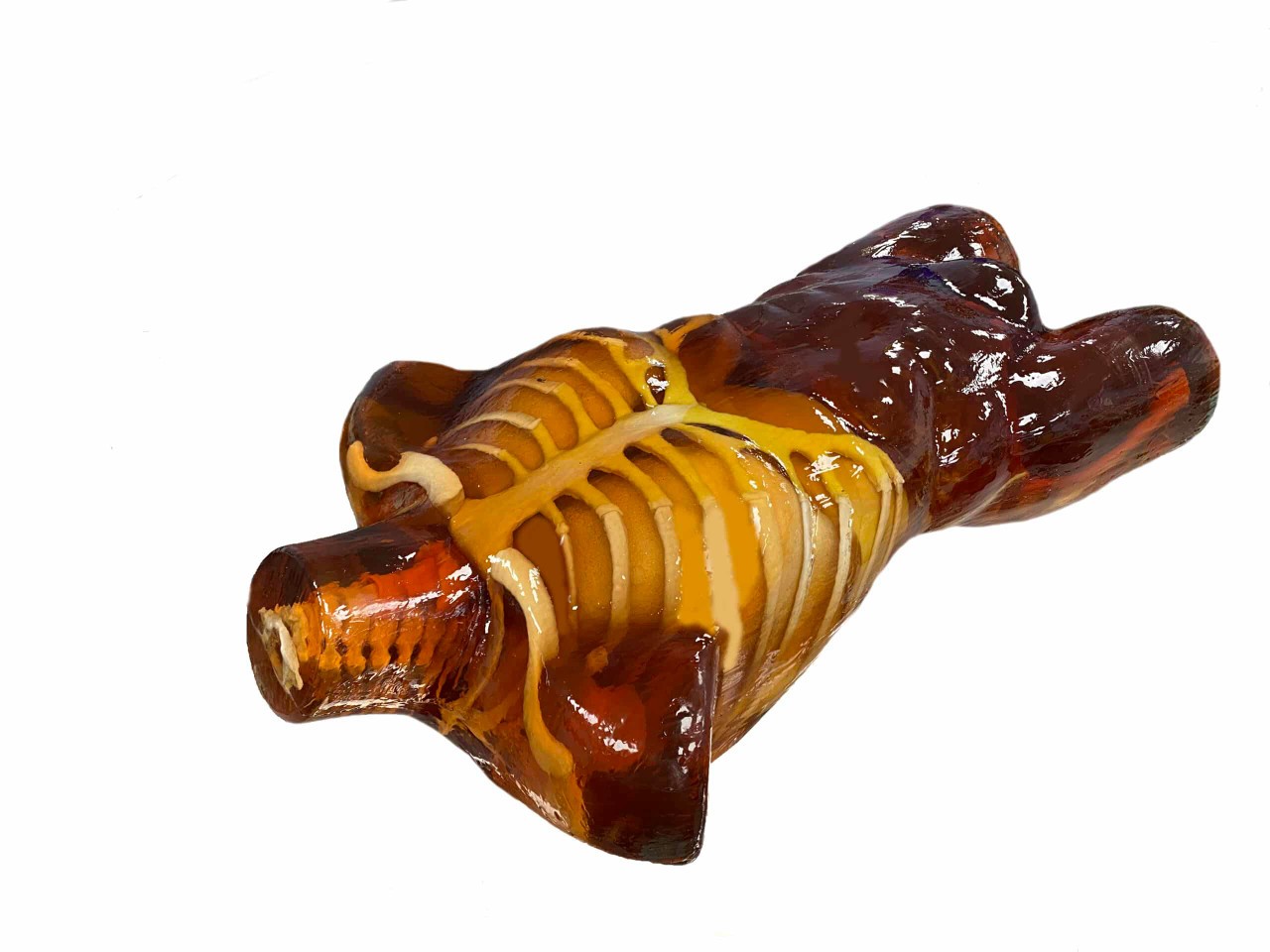

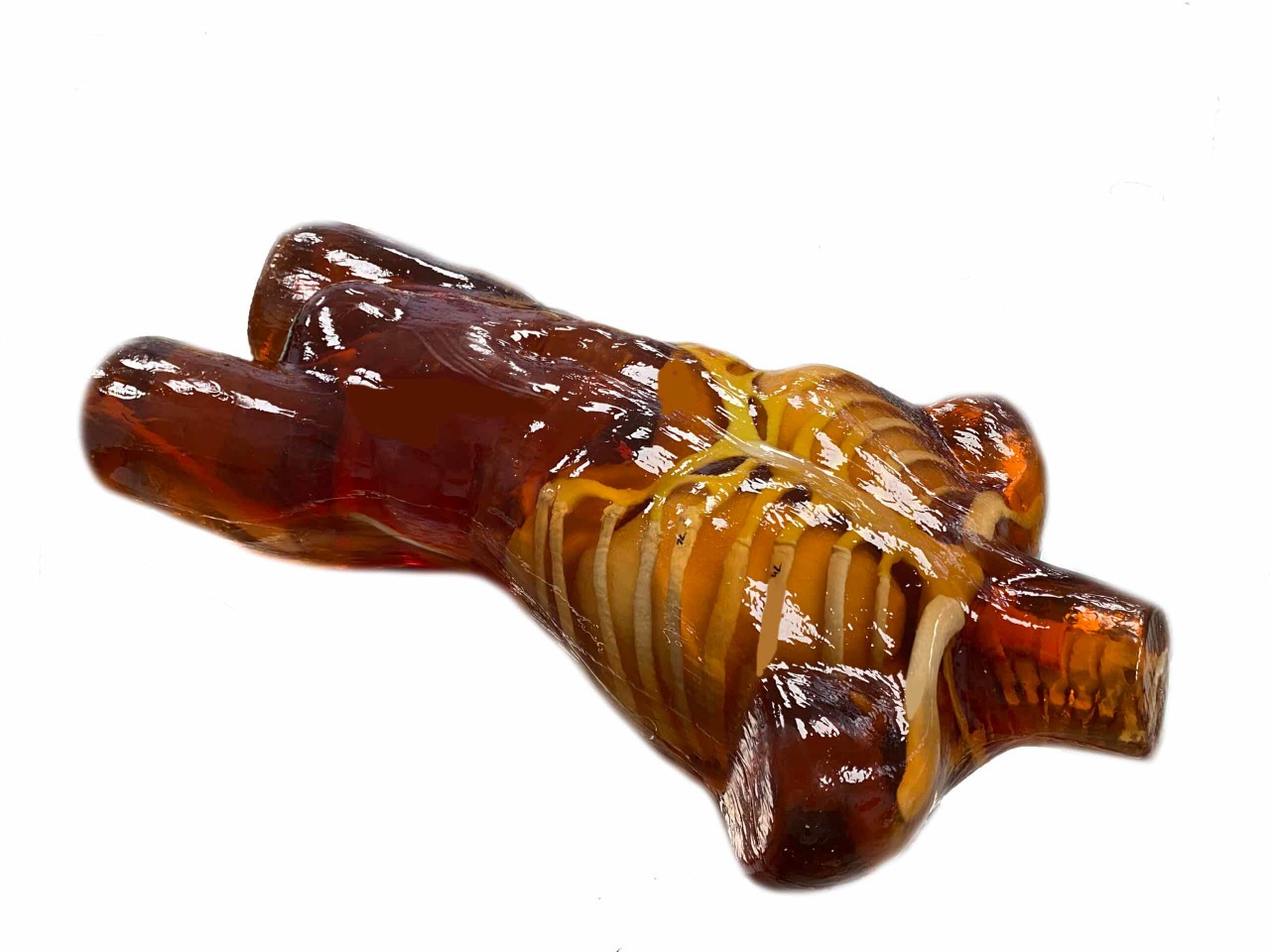

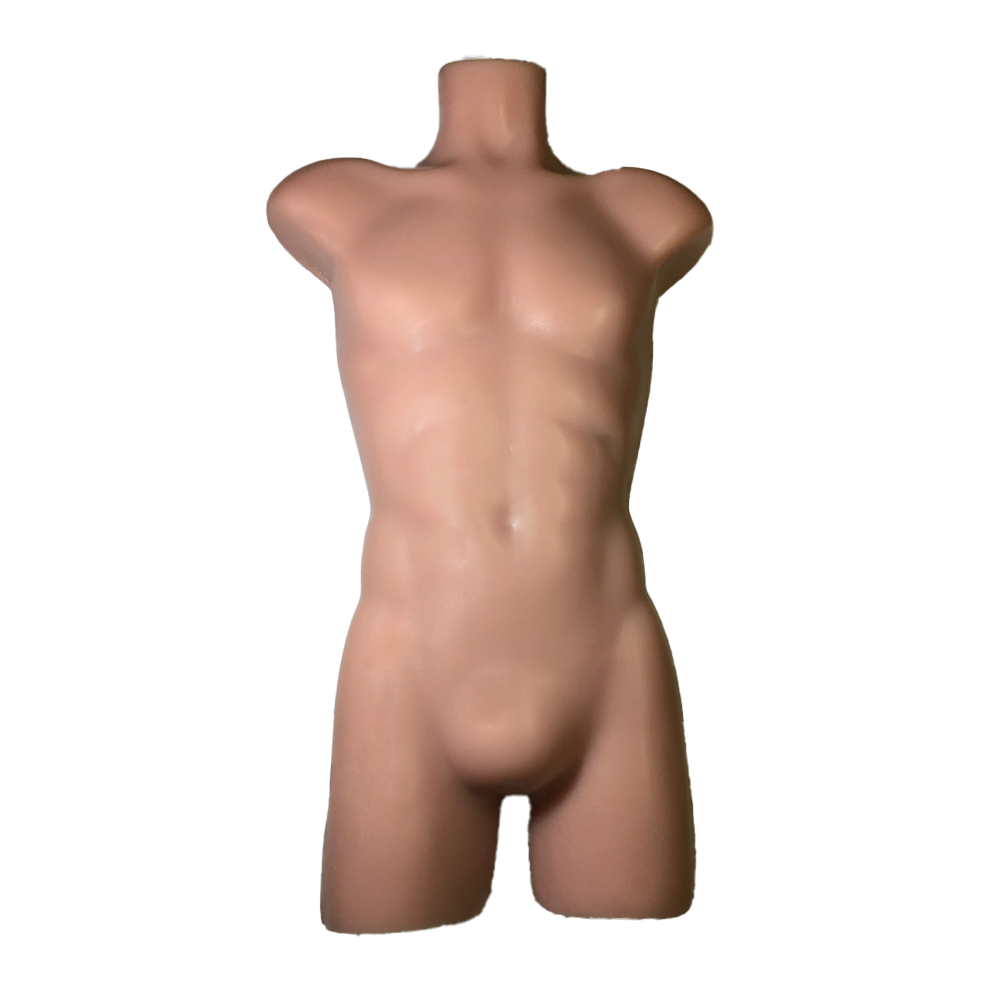

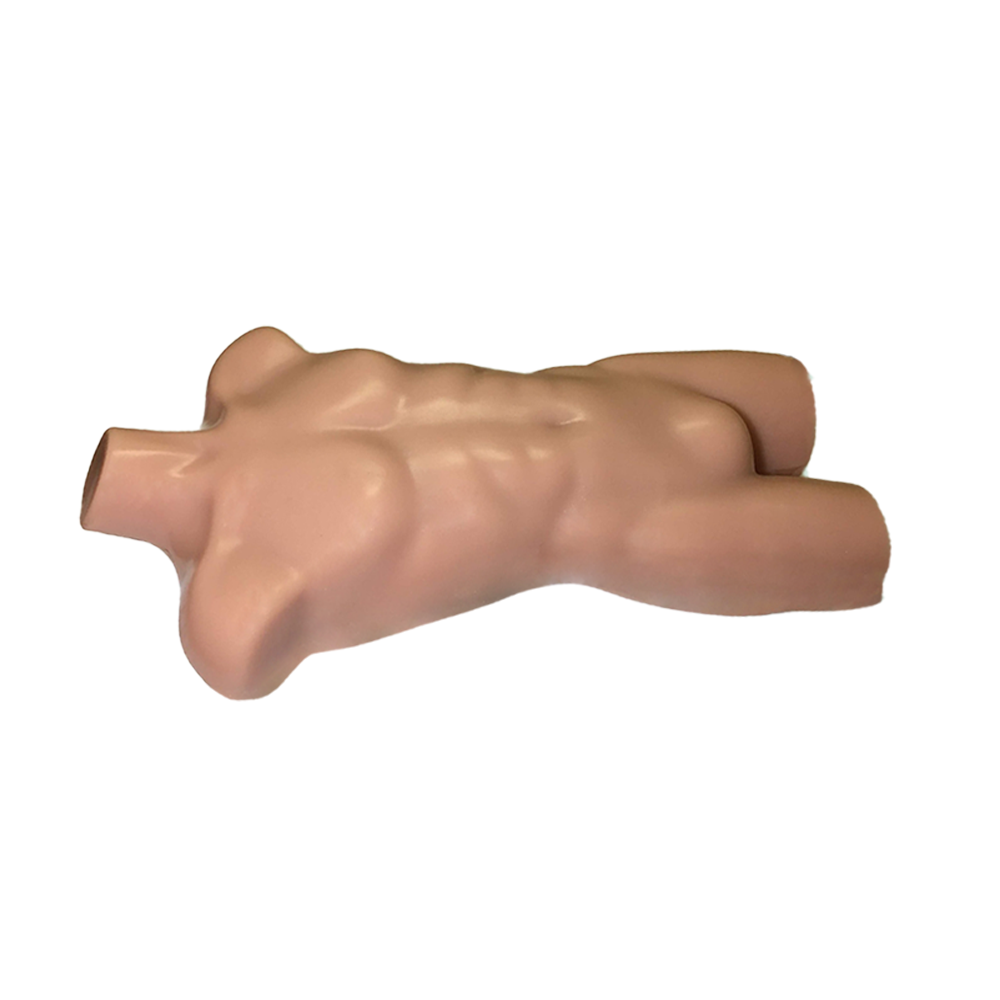

Note: By default, the phantom comes in a translucent amber appearance. A skin (opaque) feature can be included upon request. This is the standard ""Static"" version of the torso.

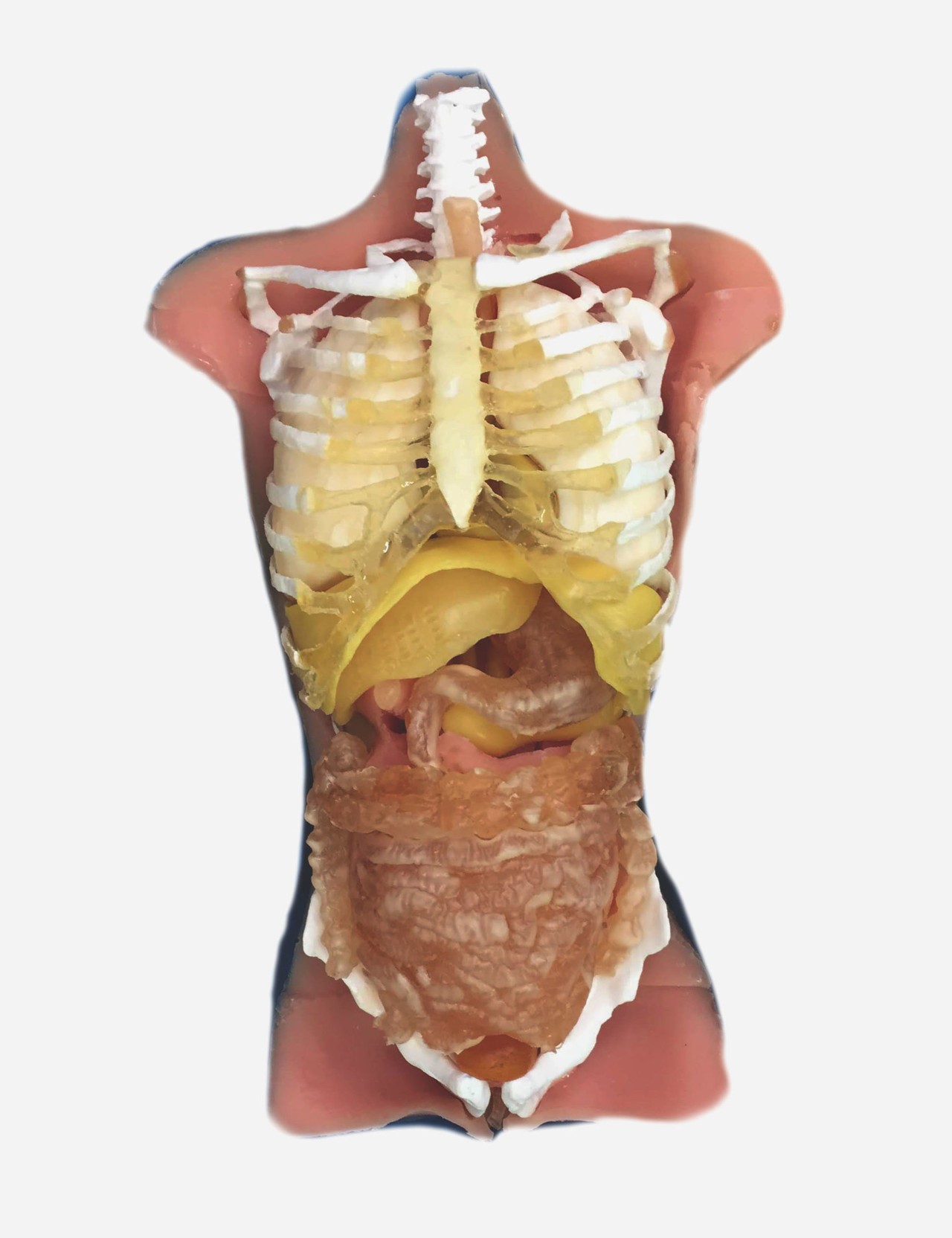

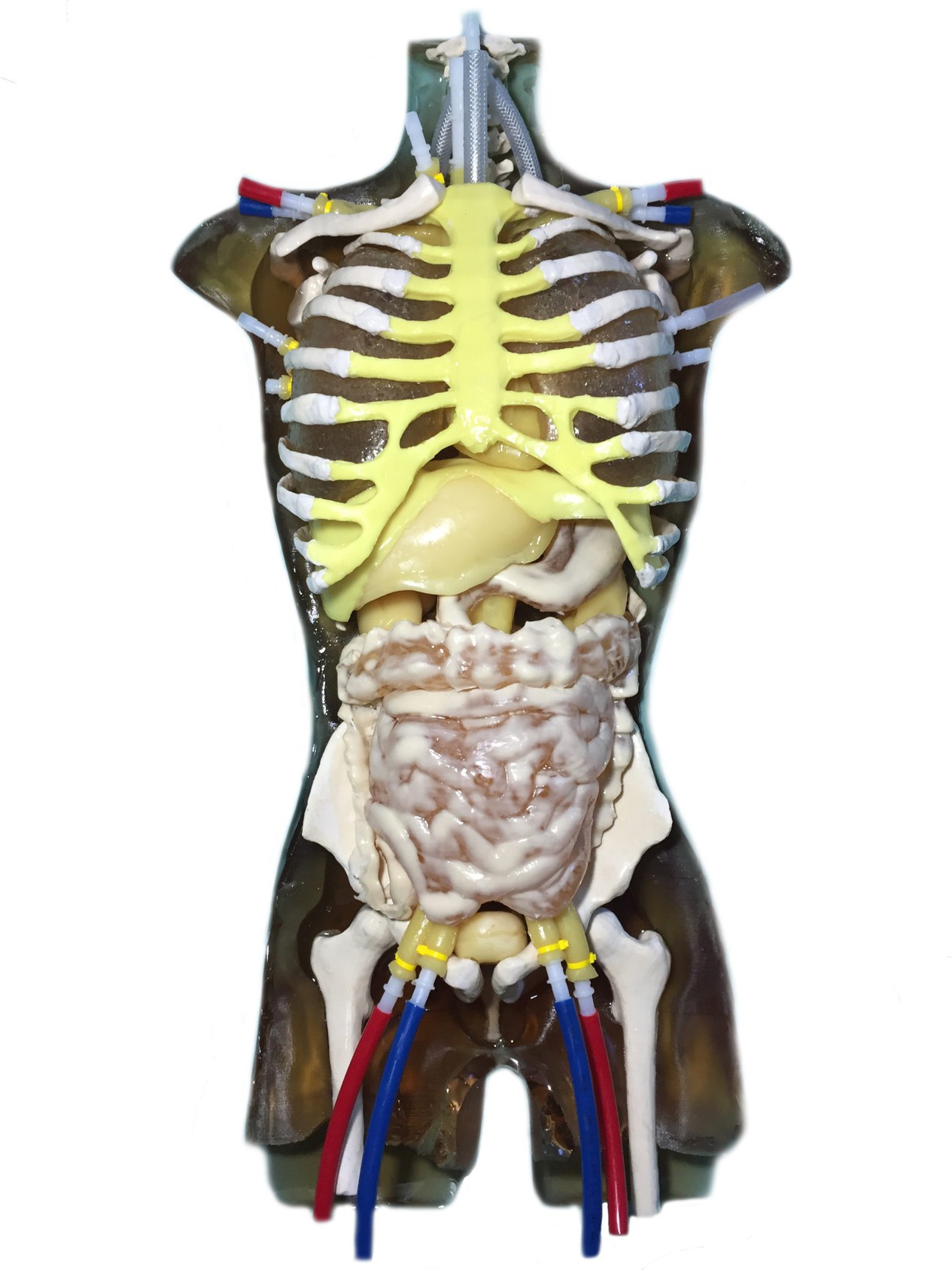

Anatomy
- Skeletal: Complete Spine, Complete Ribcage, Shoulders & Clavicles, Pelvis, and Partial Femur Bones.
- Organs: Trachea, Heart, Lungs, Diaphragm, Liver (with ligaments and bile ducts), Gallbladder, Stomach, Kidneys, Spleen, Pancreas, Large and Small Intestines, Bladder, and Prostate.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values (Averaged at 120kV)
| Tissue Type | HU Value | Tissue Type | HU Value |
|---|---|---|---|
| Body Tissue | -25 | Kidneys / Liver | 110 |
| Cortical Bone | 1300 | Pancreas / Spleen | 110 |
| Lungs | -850 | Bladder / Gallbladder | 35 |
| Heart / Aorta | 40 | Rectum / Sigmoid Wall | 100 |
Included in Order
- Adult Human Torso Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 34 x 18 x 10 Inches | Weight: ~88 Lbs
Shipment: 46 x 36 x 17 Inches | Weight: ~142 Lbs (shipped on a wooden pallet)
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
Imaging Scans

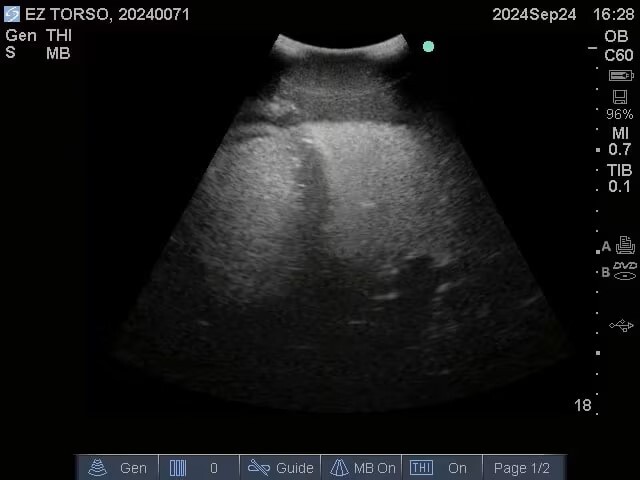

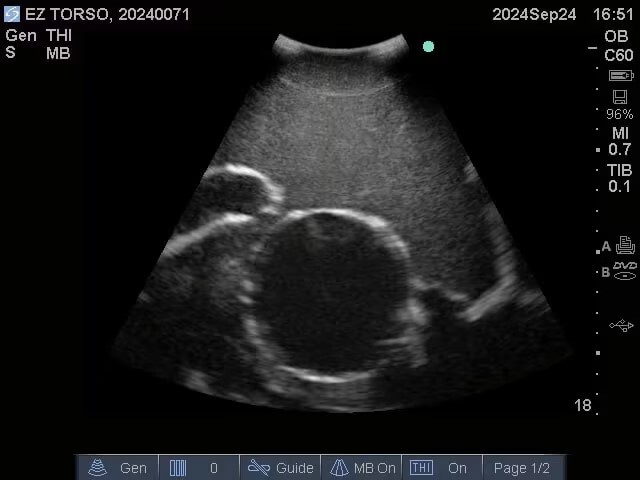

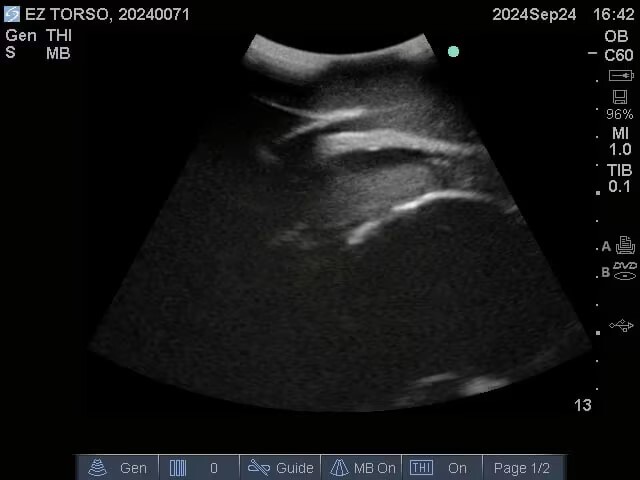

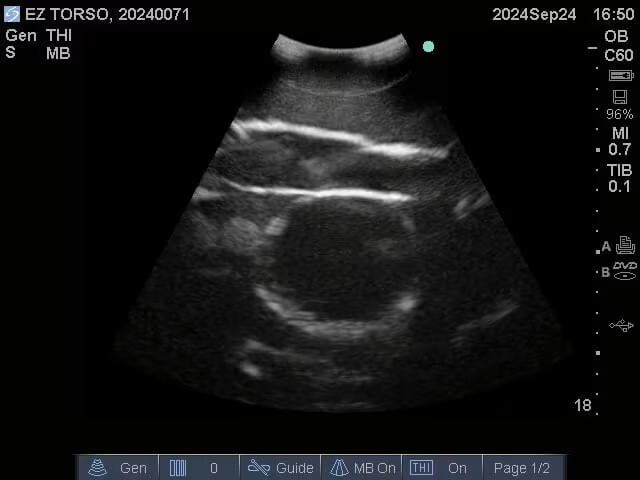

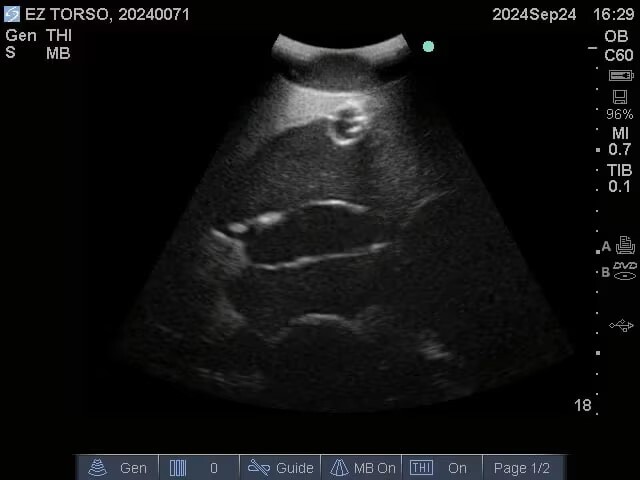

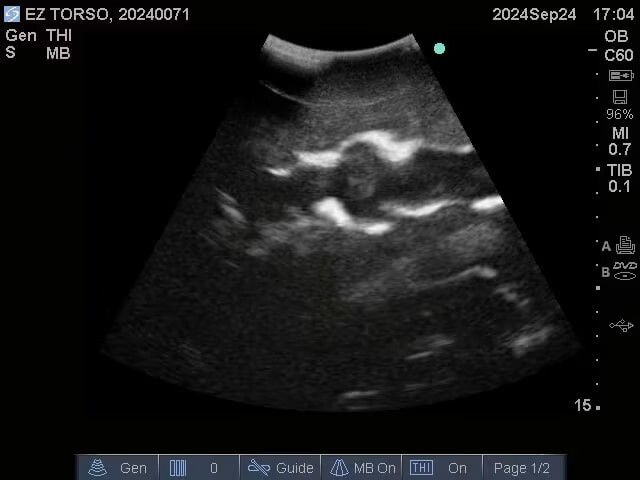

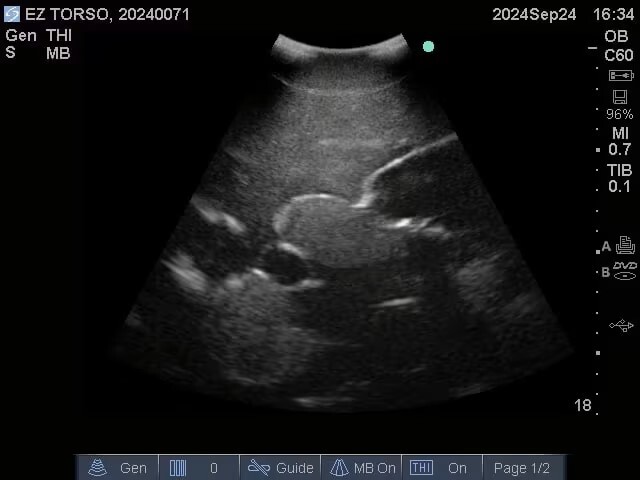

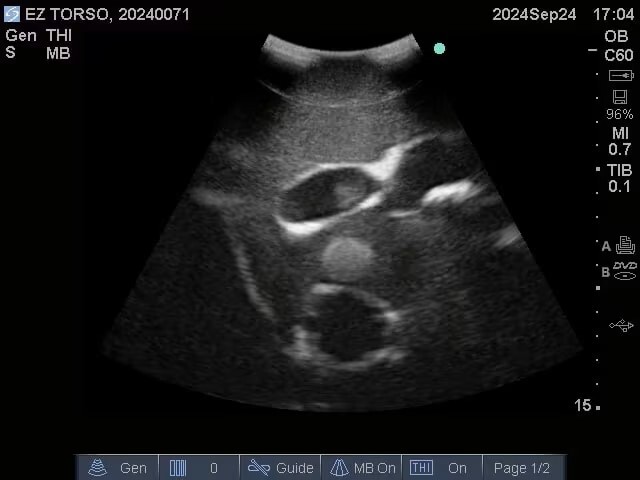

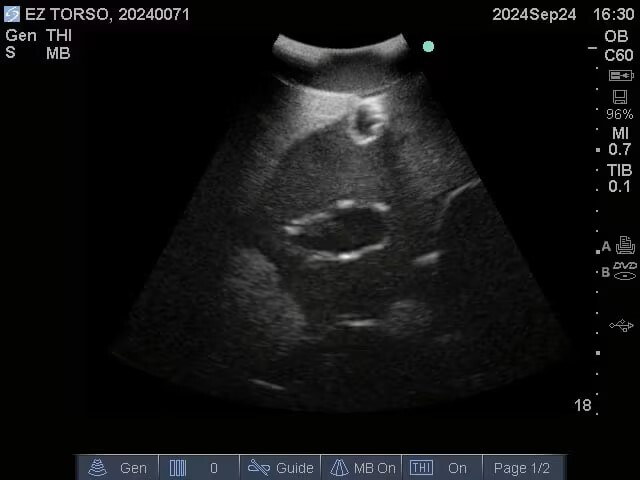

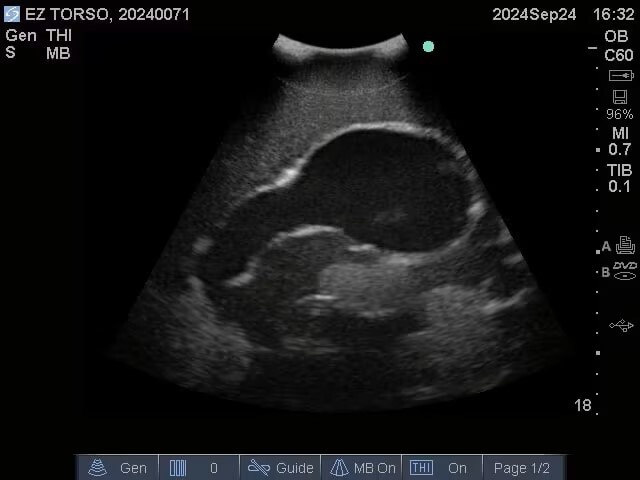

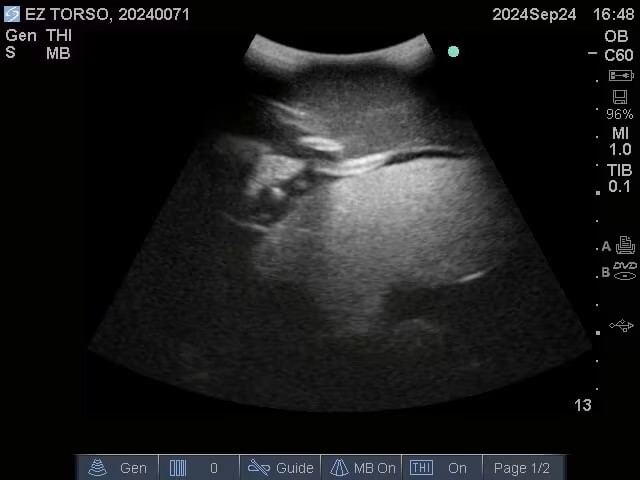

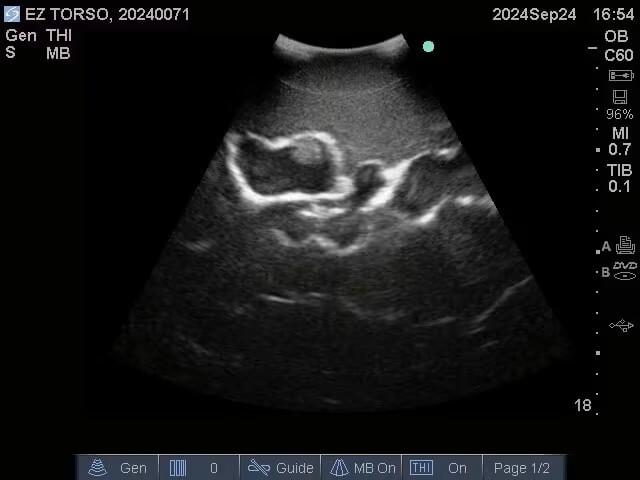

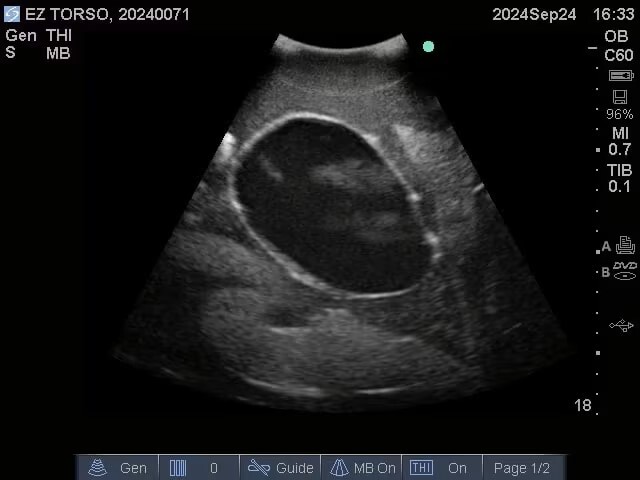

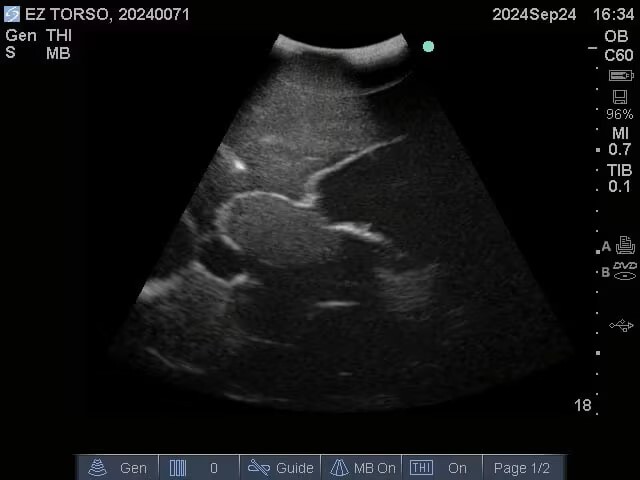

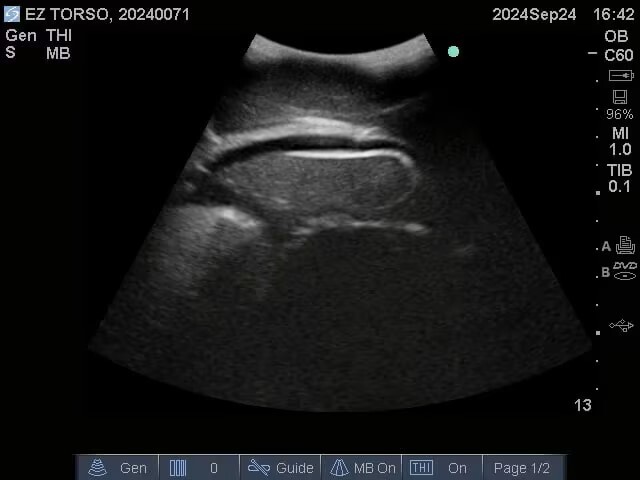

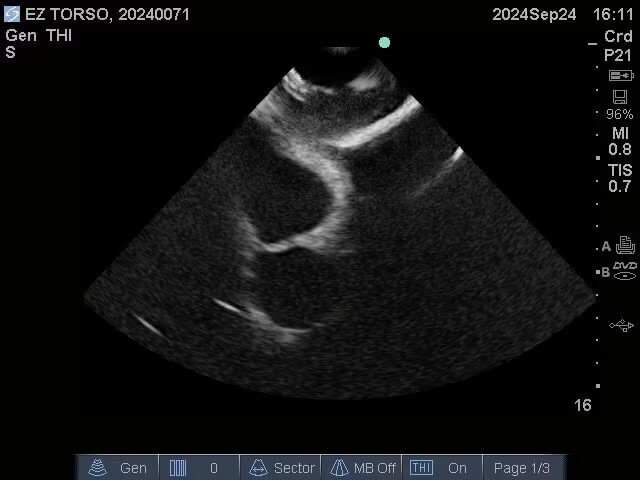

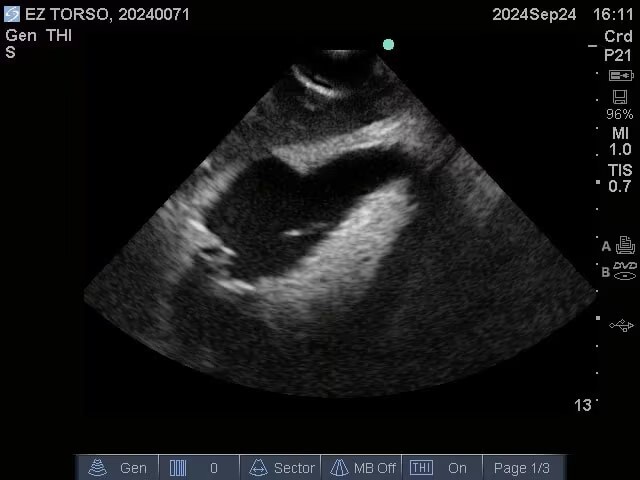

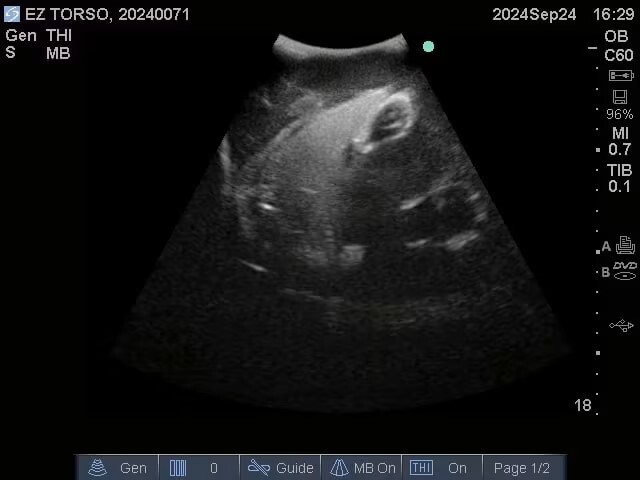

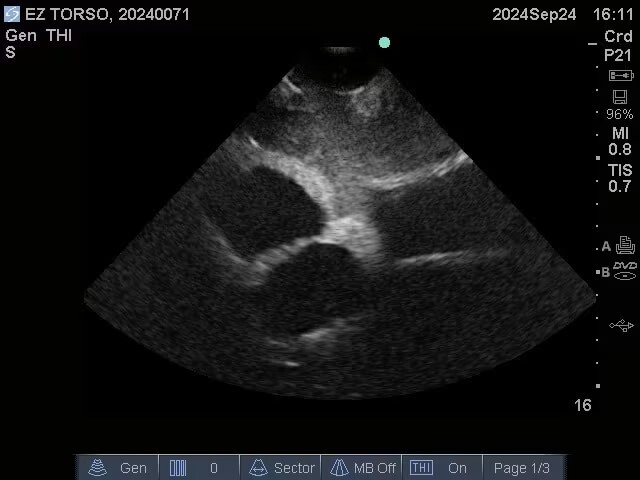

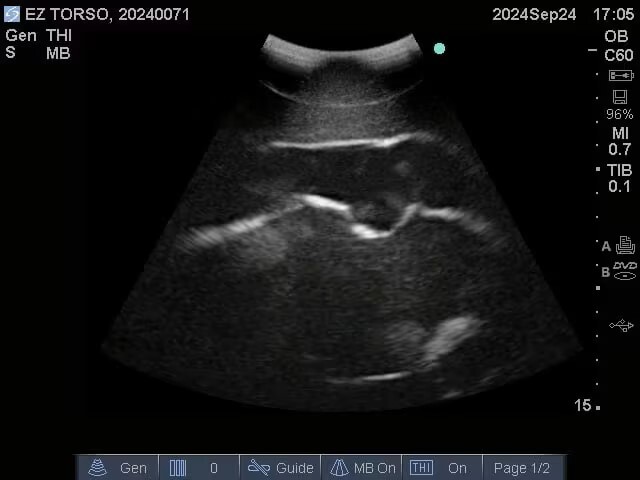

Ultrasound Image Scans
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
