Adult Torso (Cardiac) for X-Ray CT, MRI
Product Description

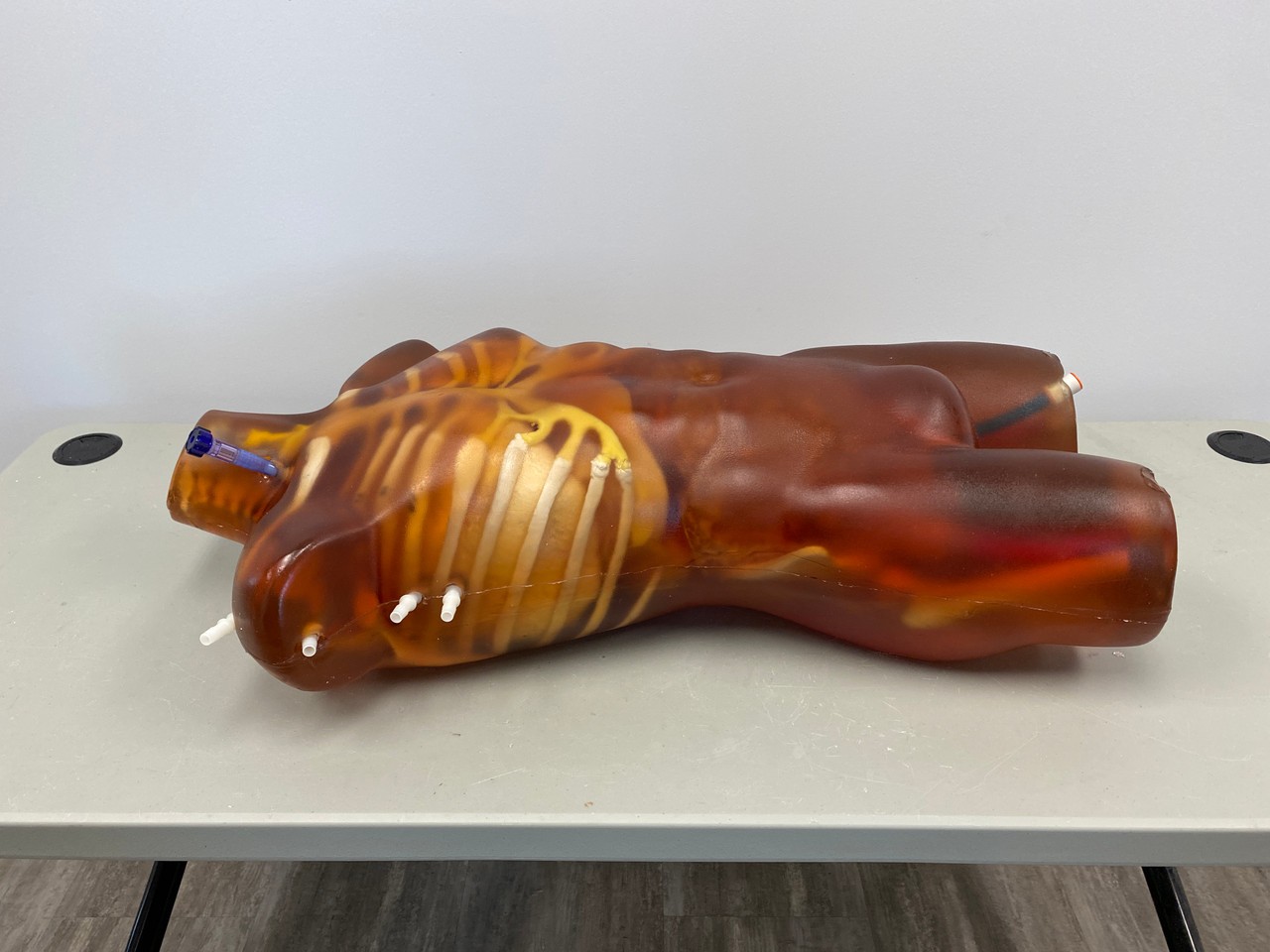

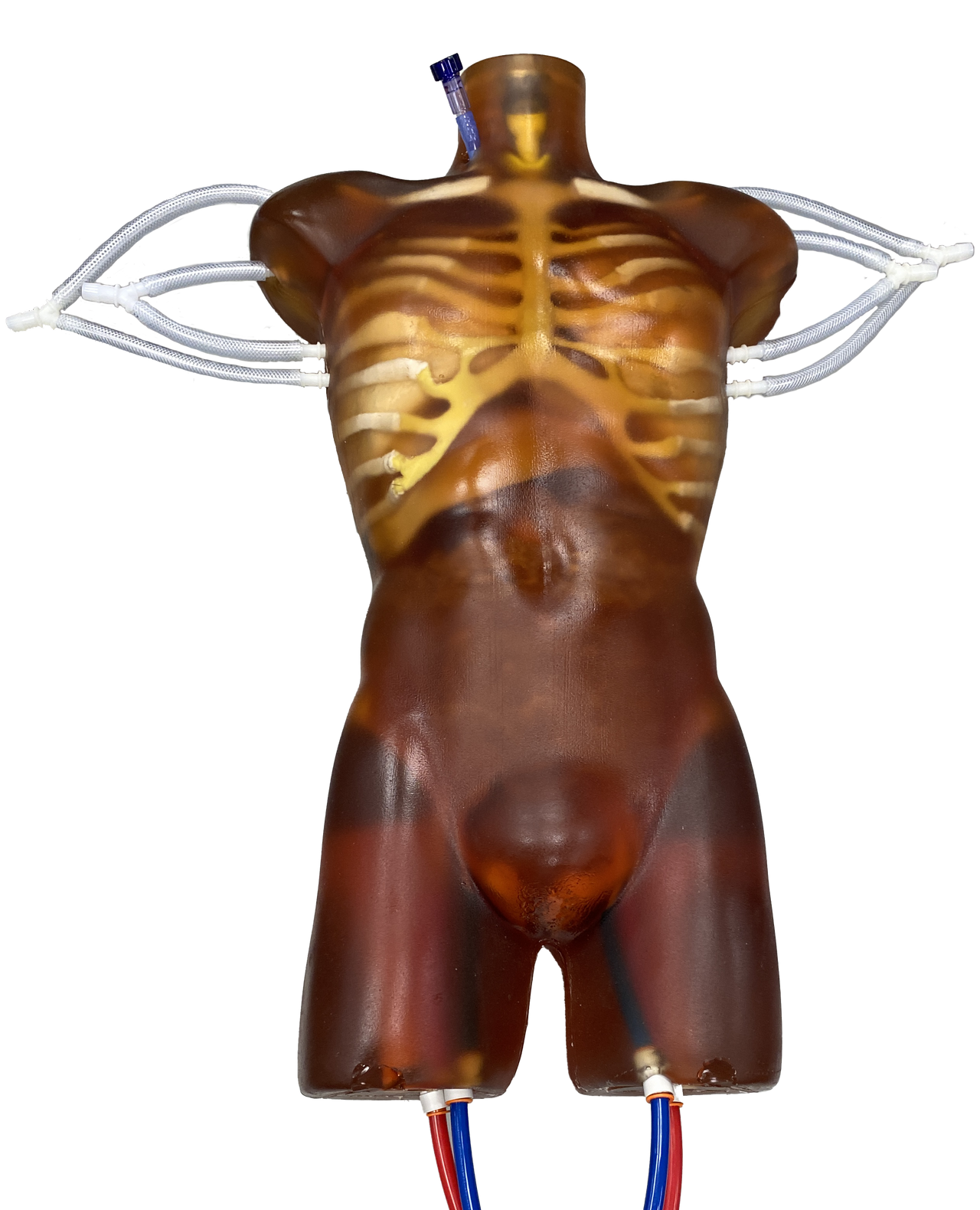

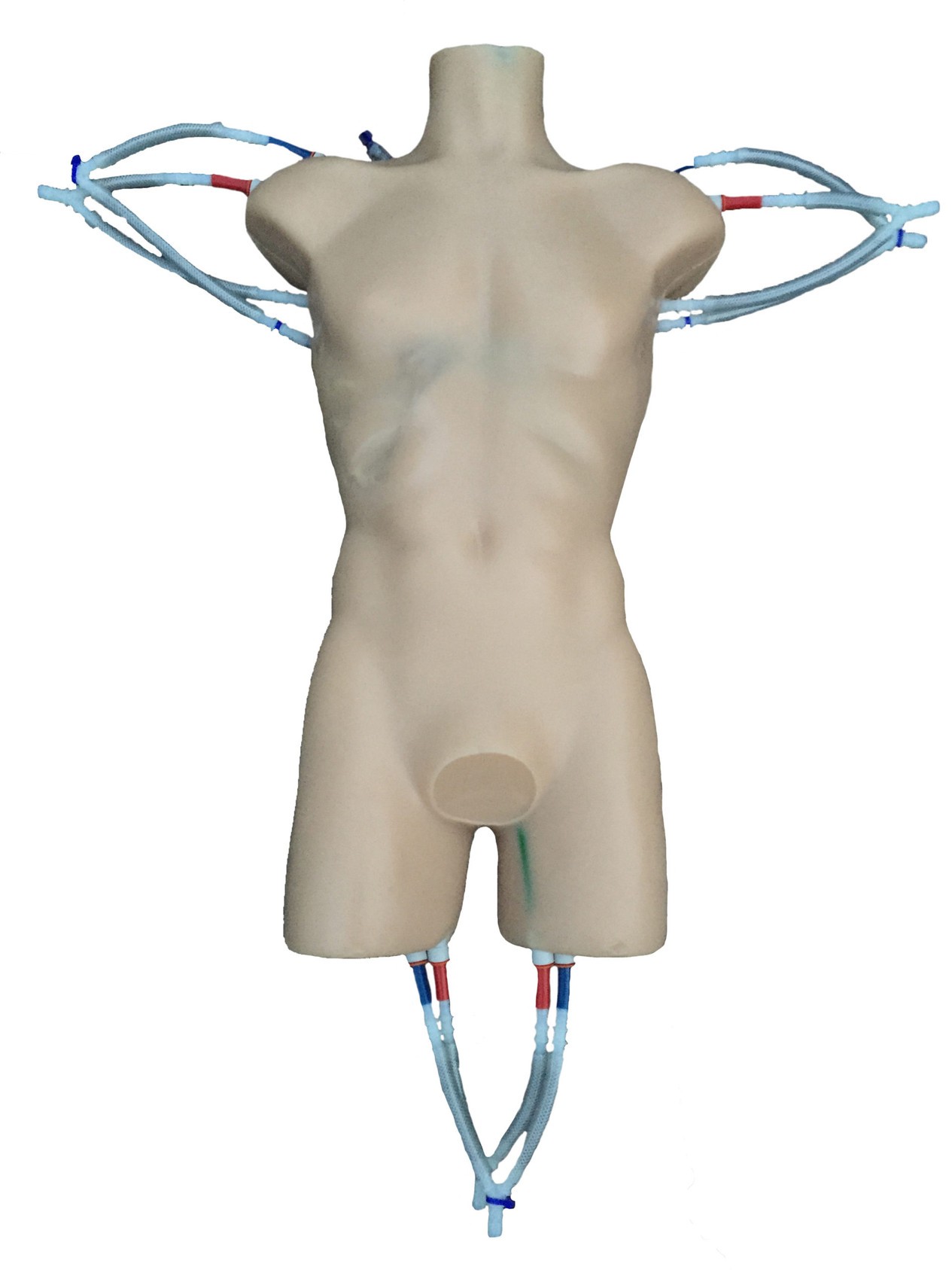

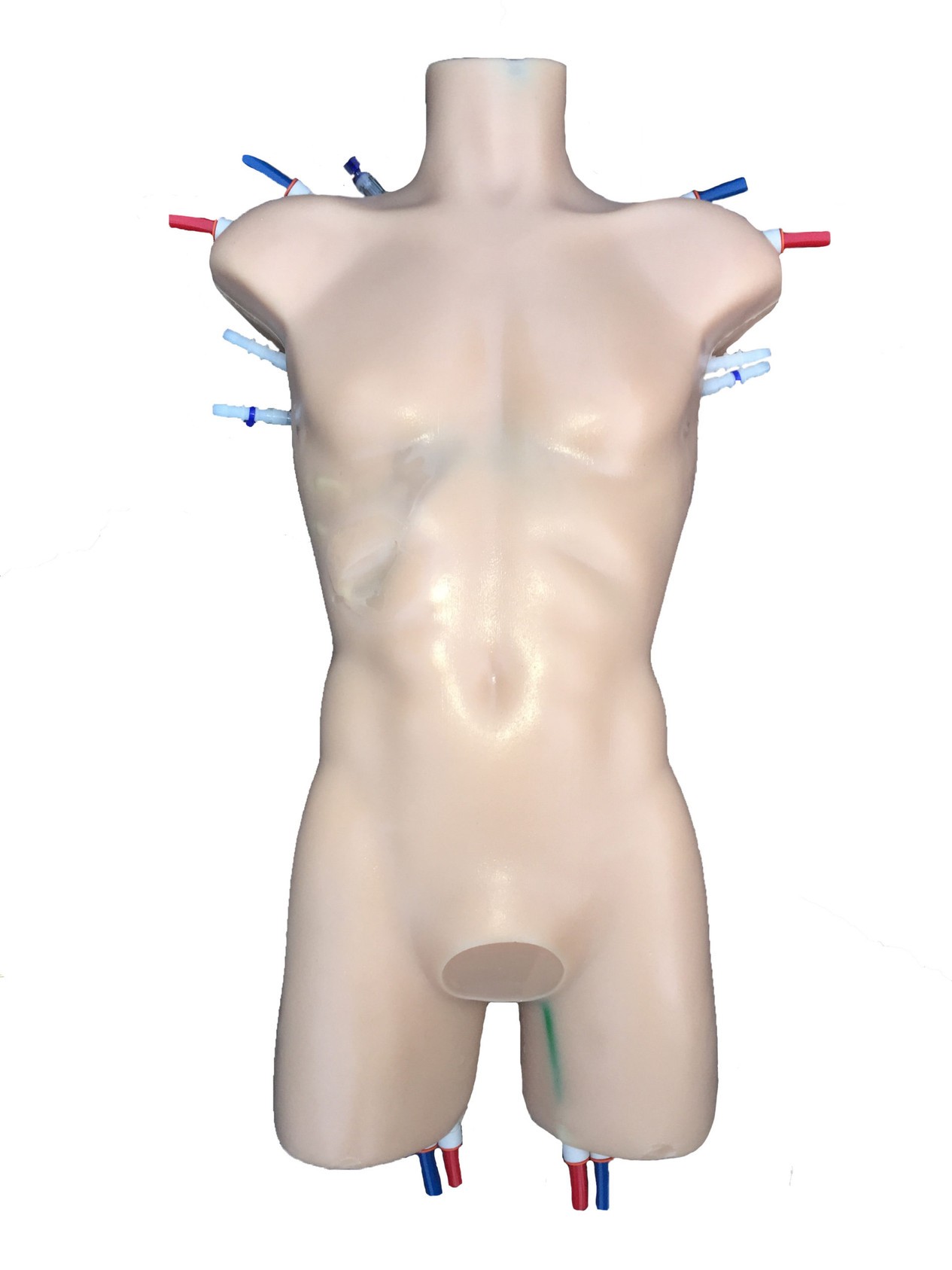

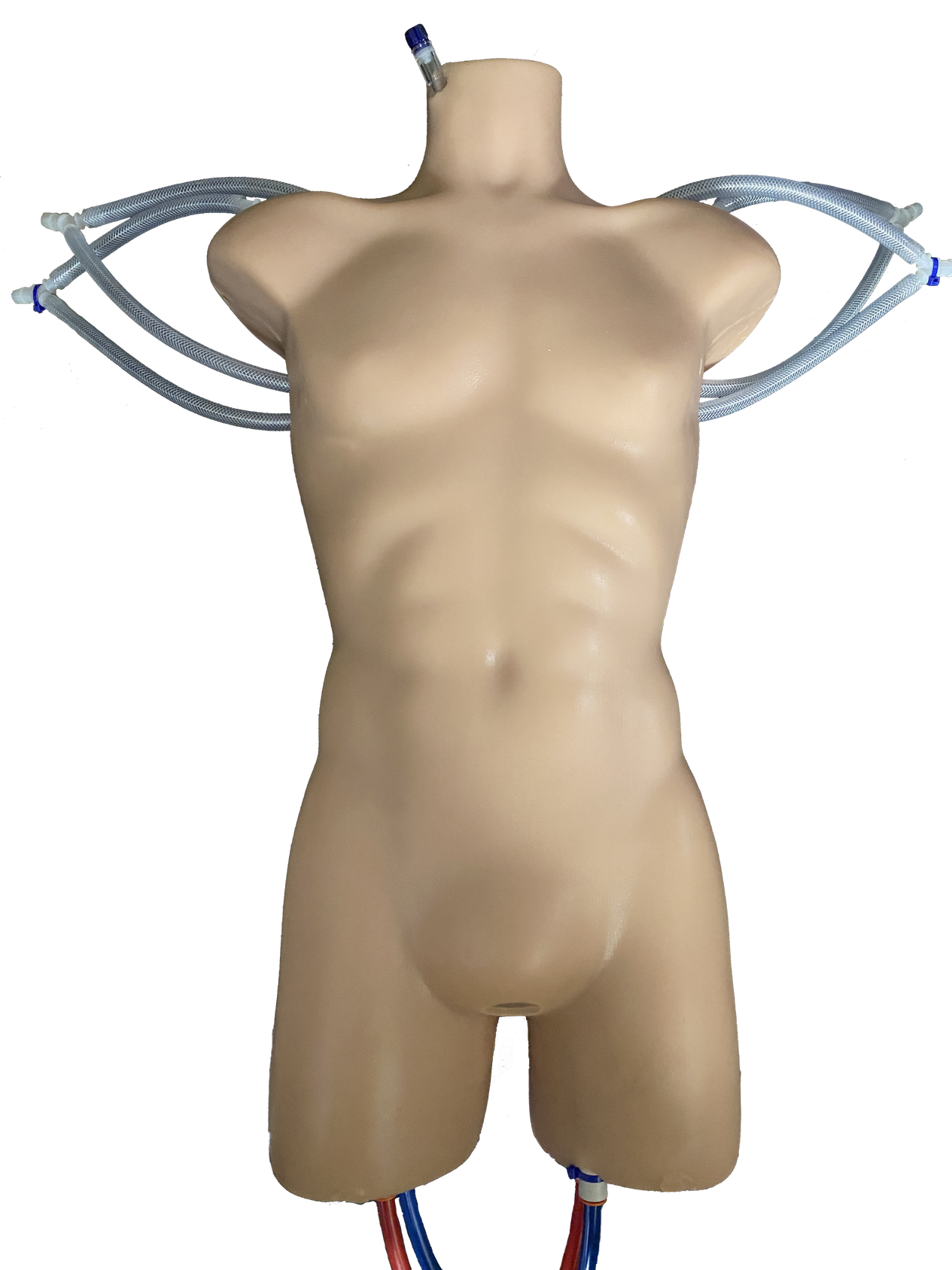

The Adult Human Torso (Cardiac) is an anatomically realistic simulator covering the area from the neck to the pelvis. Specifically optimized for X-Ray/CT and MRI, it serves as an ideal tool for cardiovascular research and angiography. The phantom includes all essential internal organs and a specialized beating heart system that closely mimics the acoustical, physical, and mechanical properties of an adult human body.

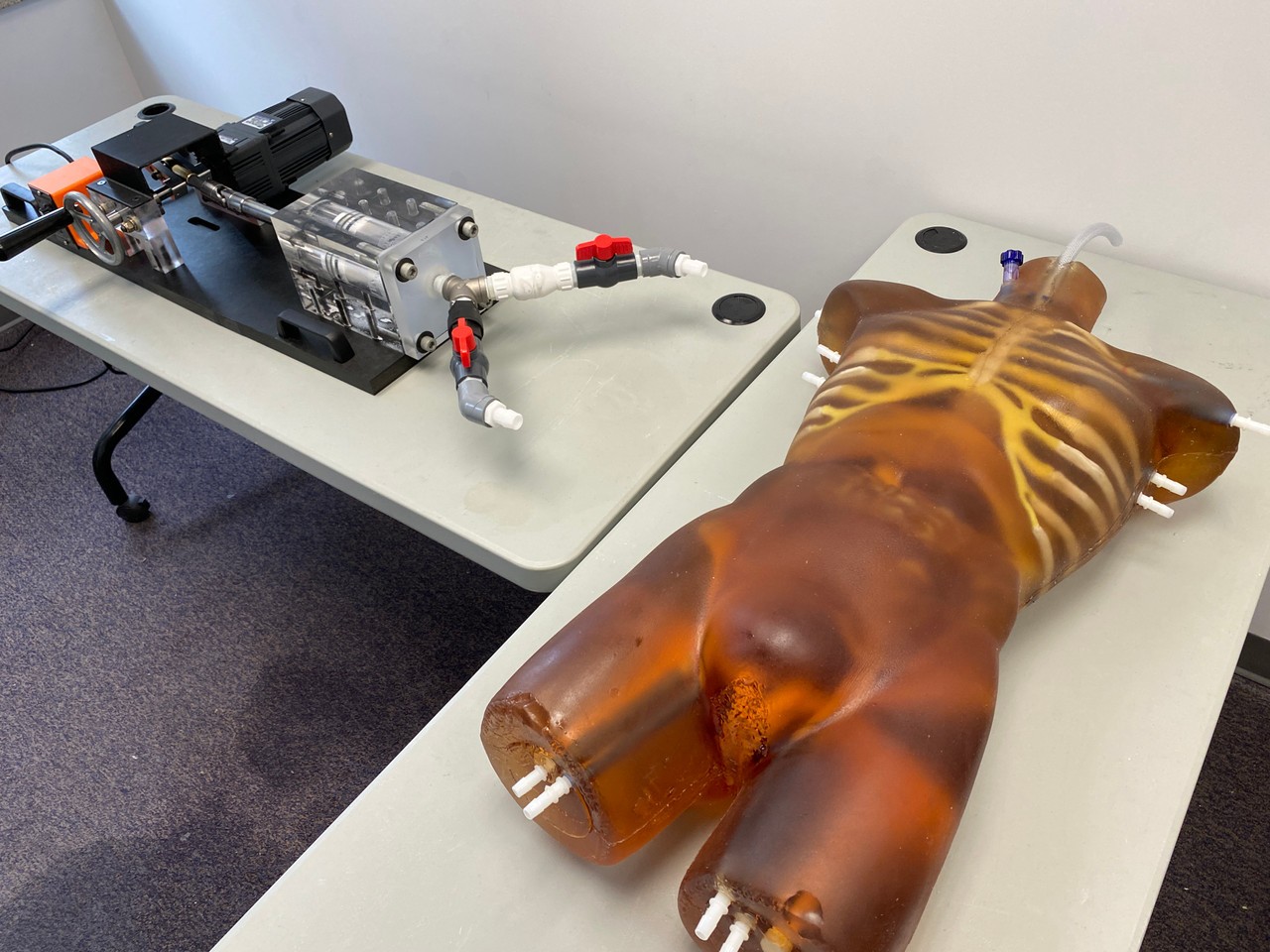

Constructed with patented synthetic bones and realistic urethane-based tissue-mimicking materials, the phantom supports various contrast mediums, including Barium-sulfate, Iodine, Gadolinium, and Iron Oxide. For MRI, the synthetic tissues exhibit realistic T2 relaxation time values (5570 ms), making it excellent for T2-weighted and proton-density imaging. The included TPS heart pump enables lifelike heartbeat and wall motion.

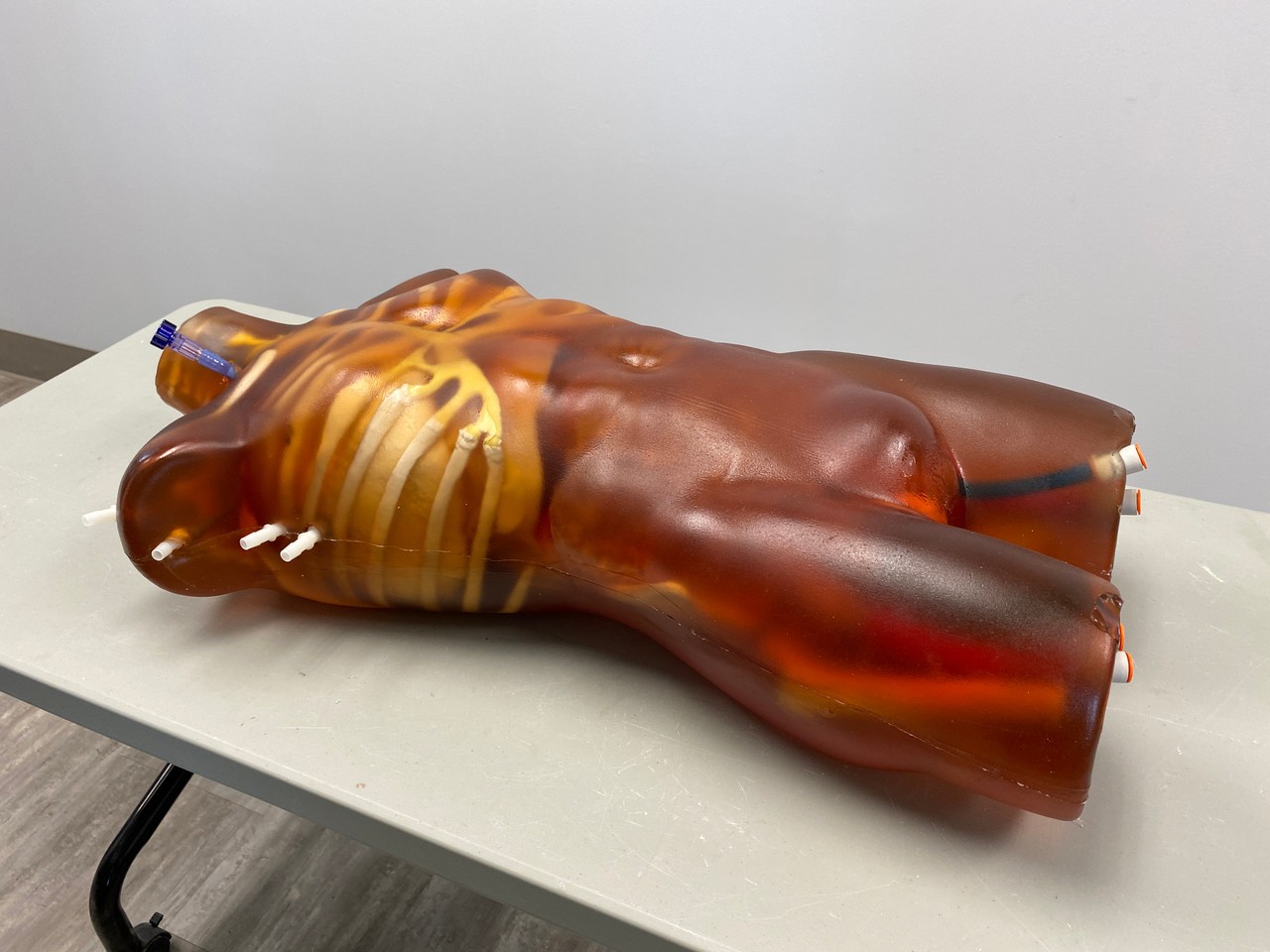

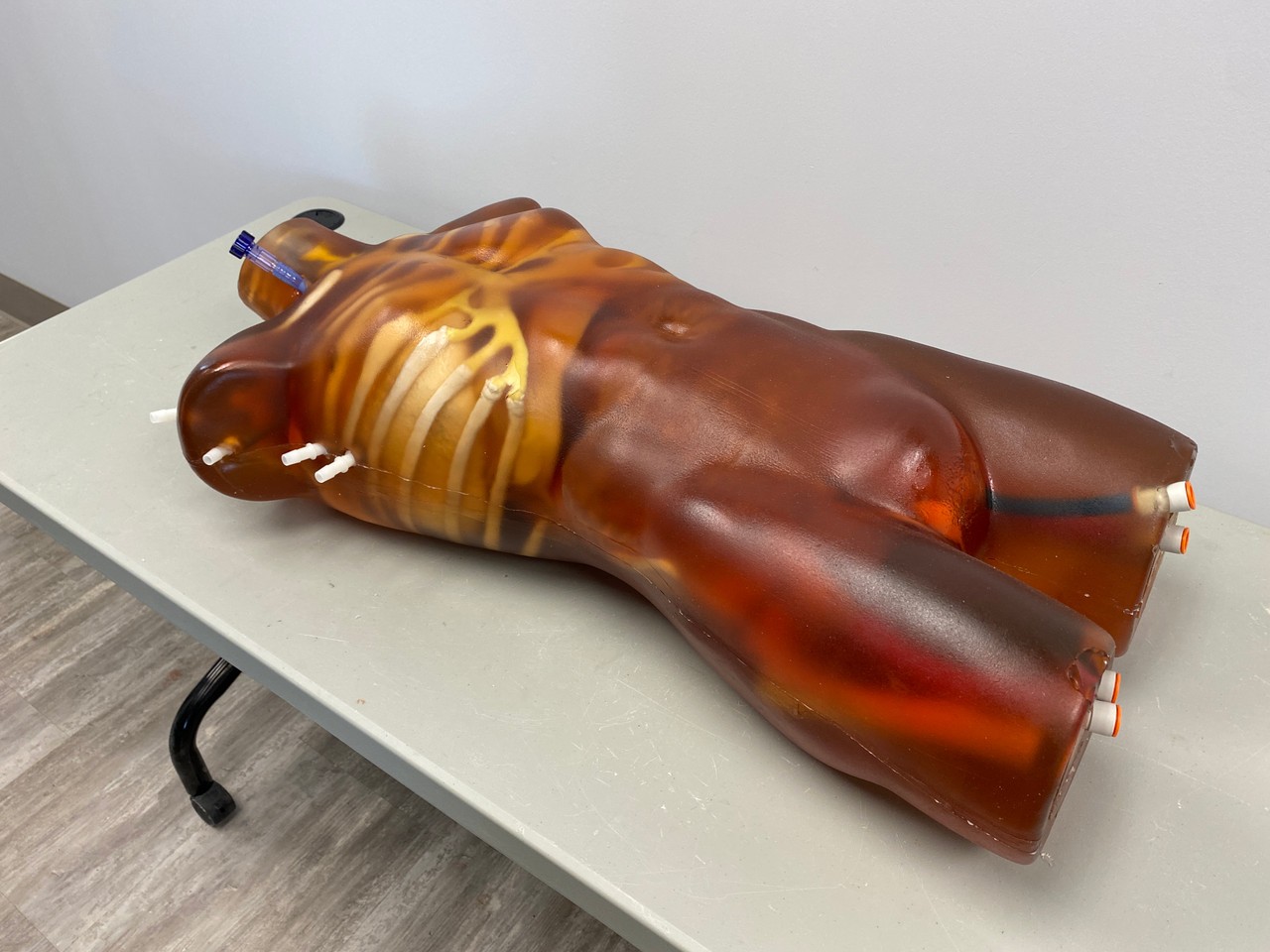

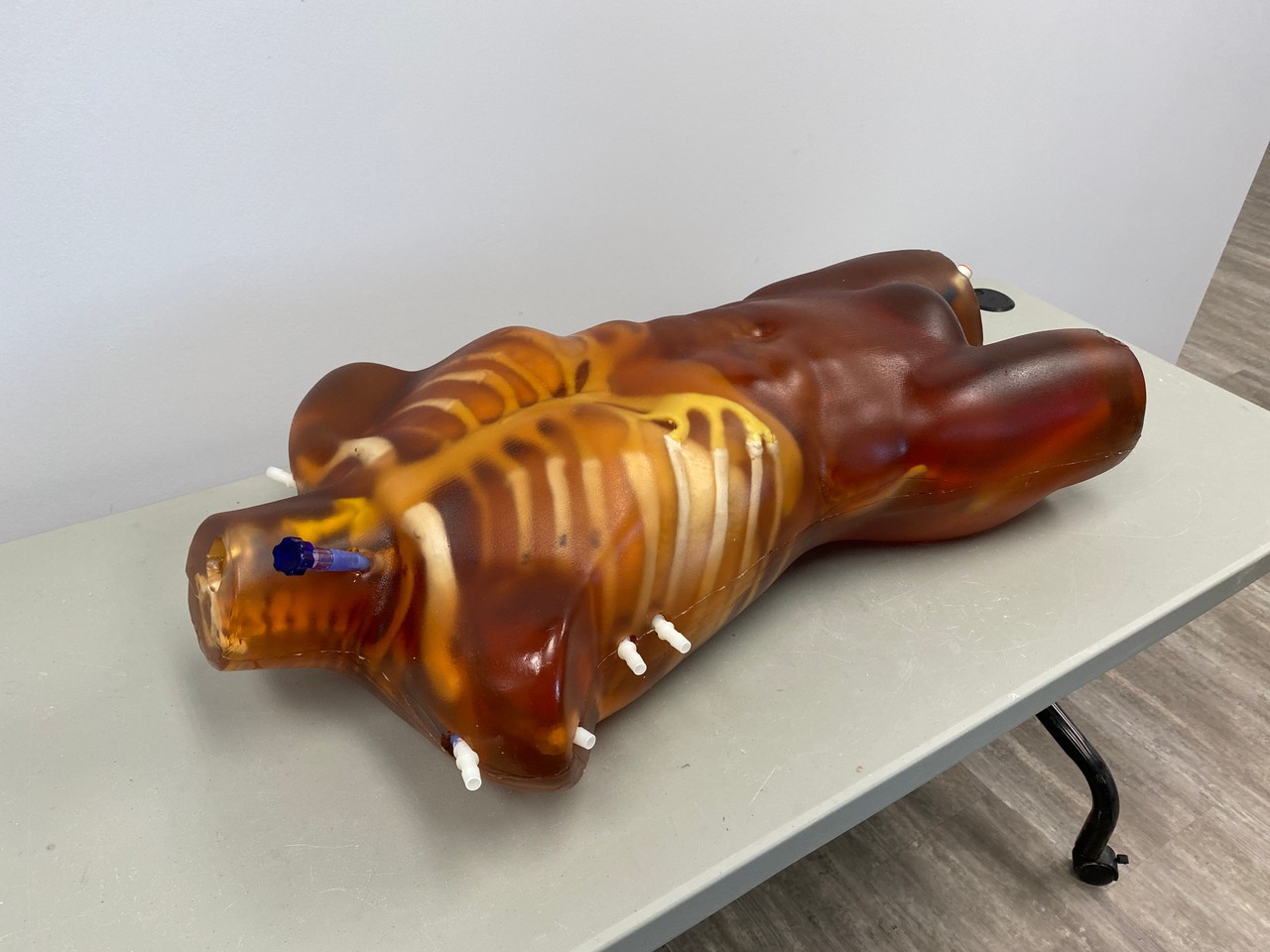

Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. The beating heart system requires the included heart pump for full functionality.

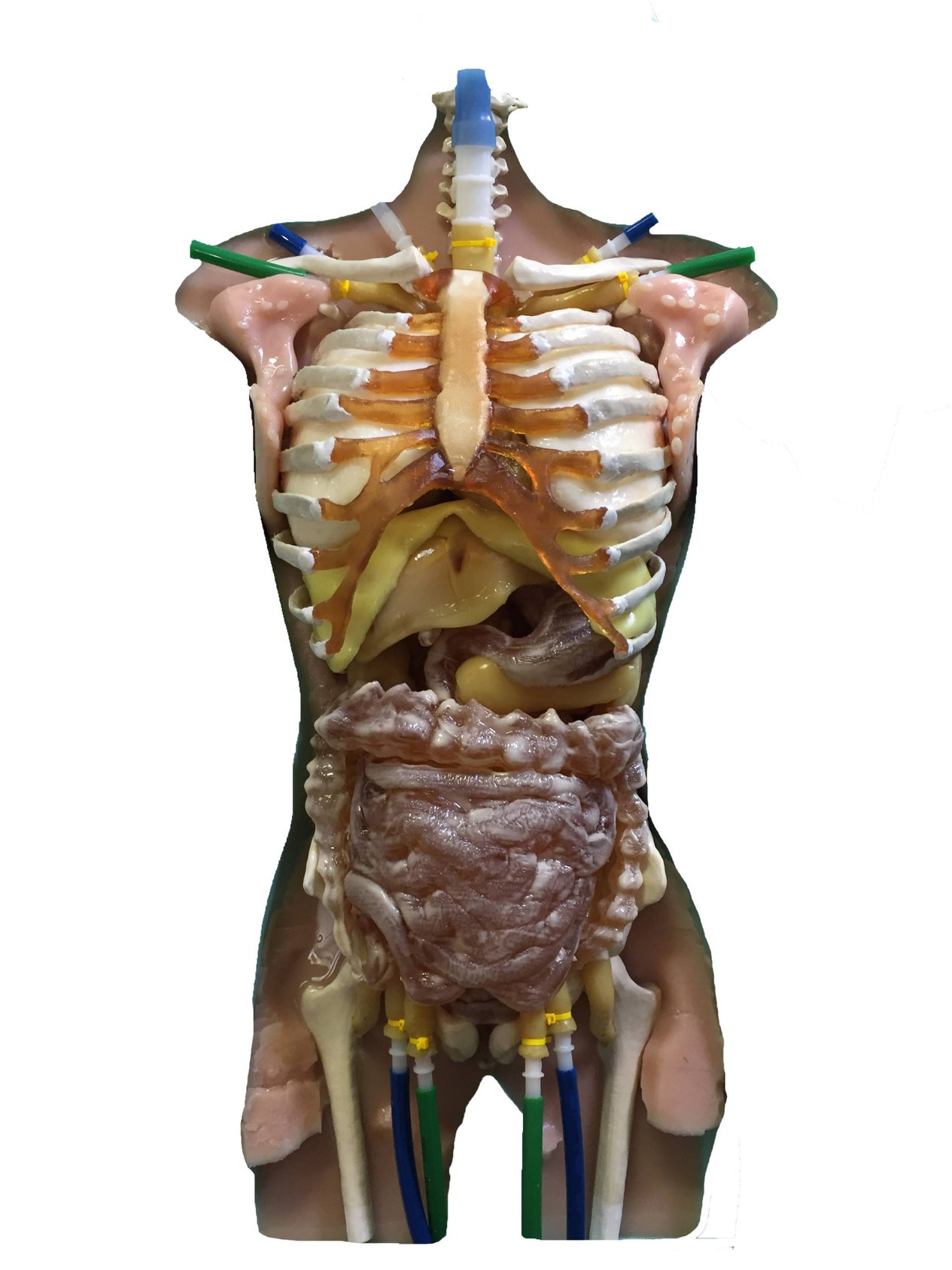

Anatomy

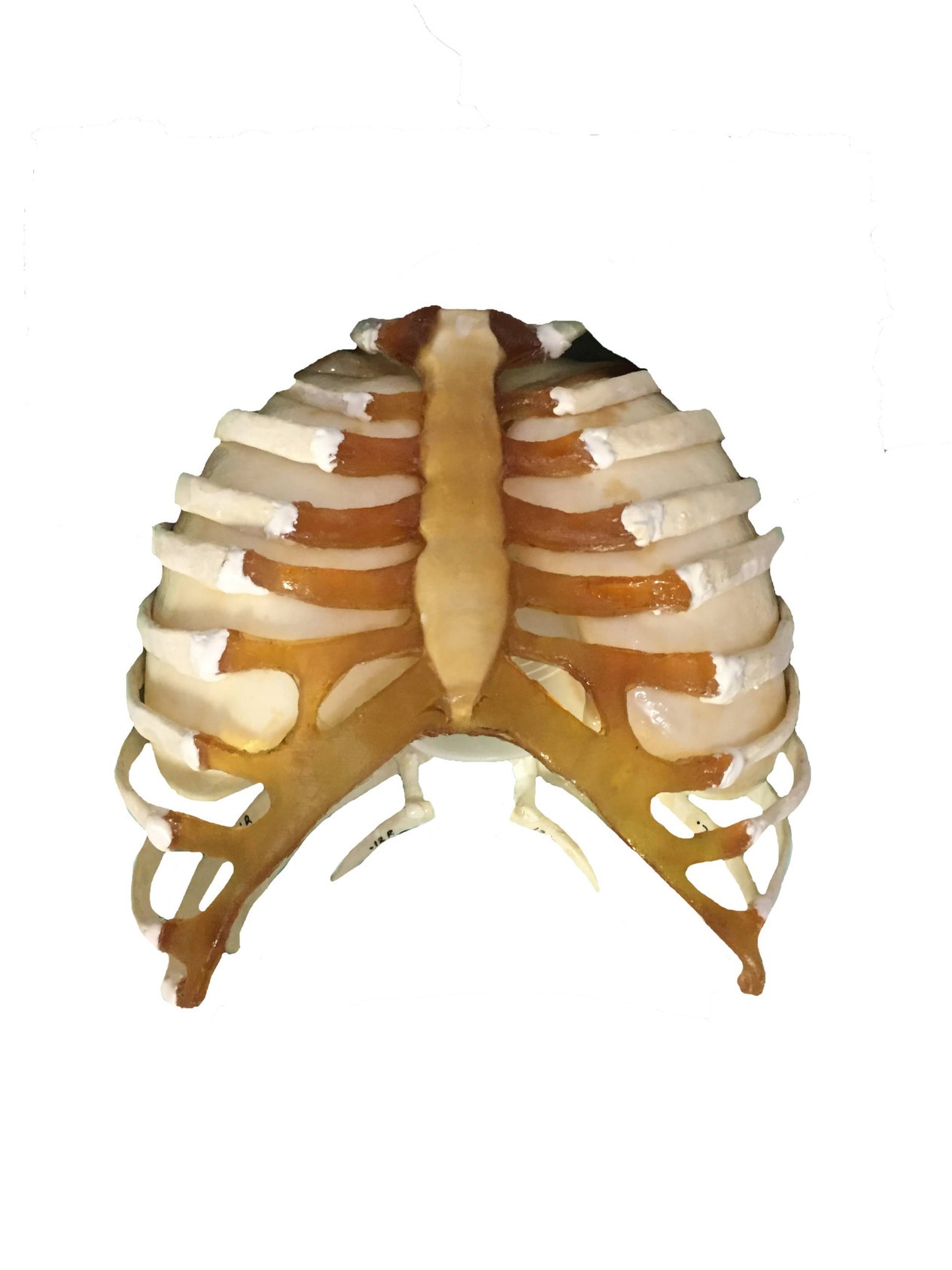

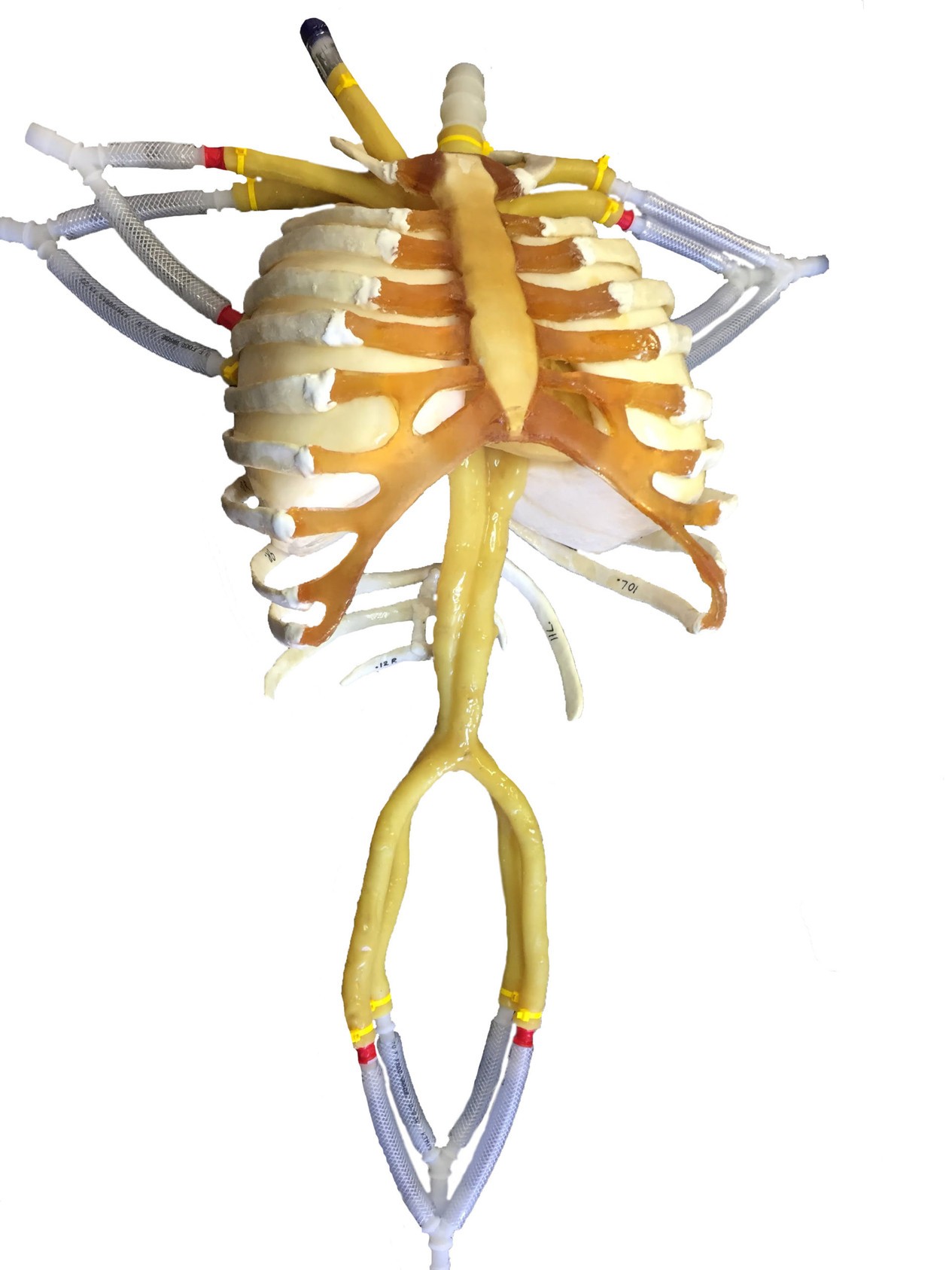

- Skeletal: Complete Spine, Complete Ribcage, Shoulders, Clavicles, Pelvis, and Partial Femoral Bones.
- Organs: Trachea, Lungs, Diaphragm, Liver (with ligaments), Gallbladder (with bile ducts), Stomach, Kidneys, Spleen, Pancreas, Large/Small Intestines, Bladder, and Prostate.
- Heart: Detailed chambers (RV: 60ml, LV: 63ml, RA: 45ml, LA: 29ml) with moderator band, papillary muscles, aorta, SVC/IVC, jugular vessels, and flexible valvular structures.
Beating Heart Features
- Realistic cyclic motion of heart walls with diastole/systole hysteresis.
- Water-fillable chambers with minimal air pockets.
- Access for intravenous catheter insertion.
- Adjustable heart rate (20 140 BPM) and stroke volume (40 150 ml in 10ml increments).
- System installed on a stable plexiglass base.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
HU Values (Averaged at 120kV)
| Tissue Type | HU Value | Tissue Type | HU Value |
|---|---|---|---|
| Body Tissue | -25 | Kidneys / Liver | 110 |
| Cortical Bone | 1300 | Pancreas / Spleen | 110 |
| Lungs | -850 | Bladder / Gallbladder | 35 |
| Heart / Aorta | 40 | Rectum / Sigmoid Wall | 100 |
Included in Order
- Adult Torso (Cardiac) Phantom

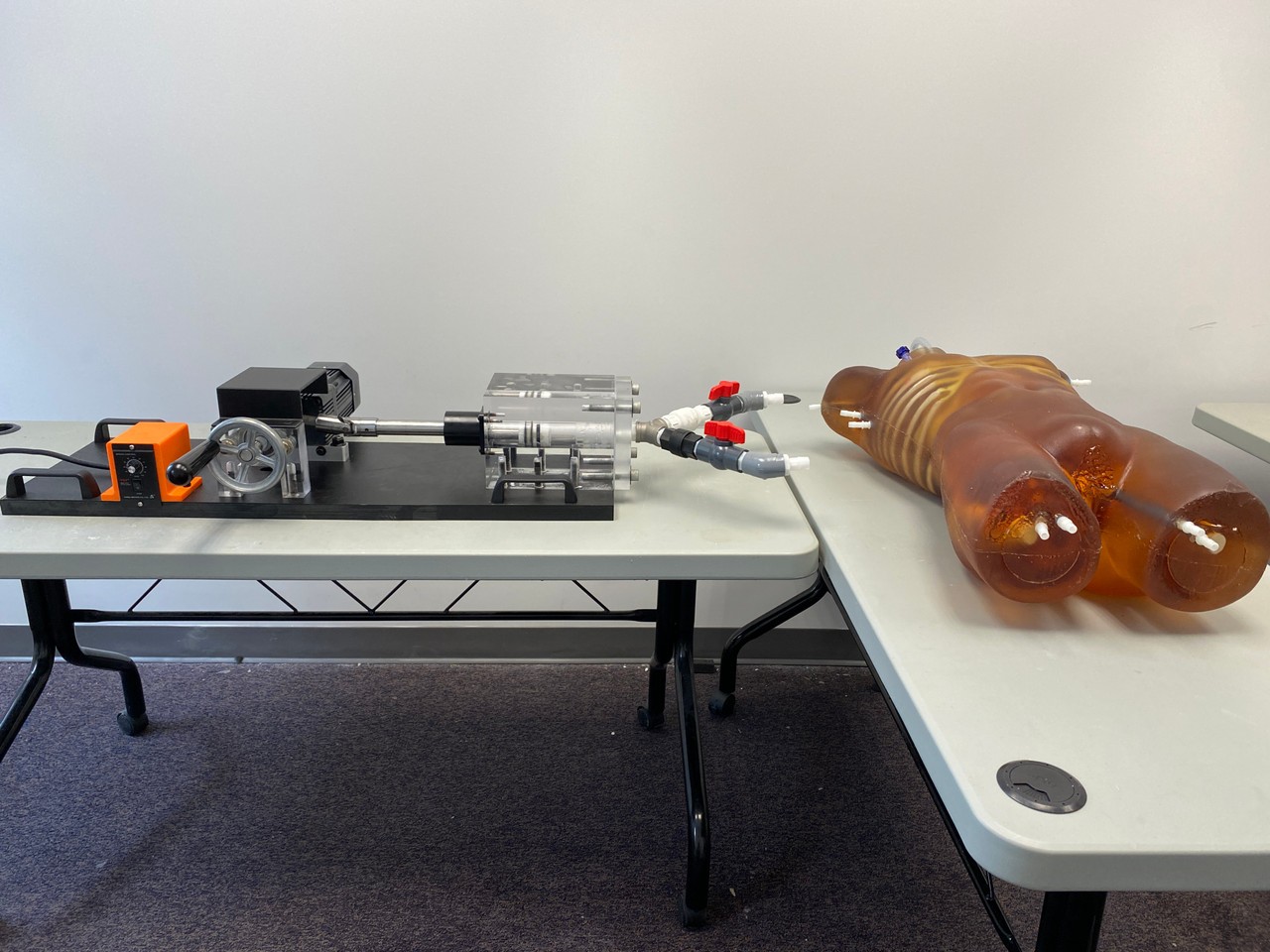

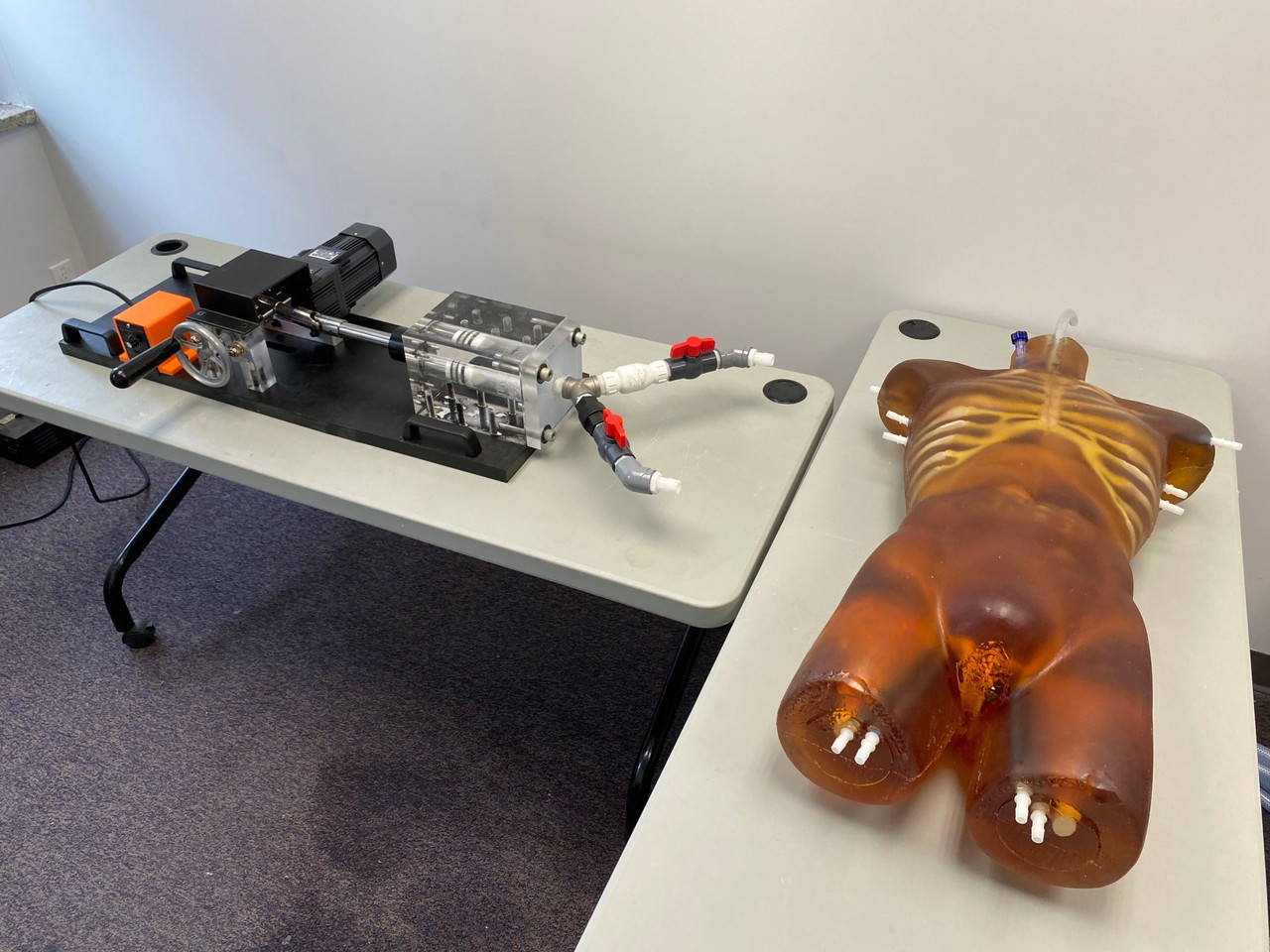

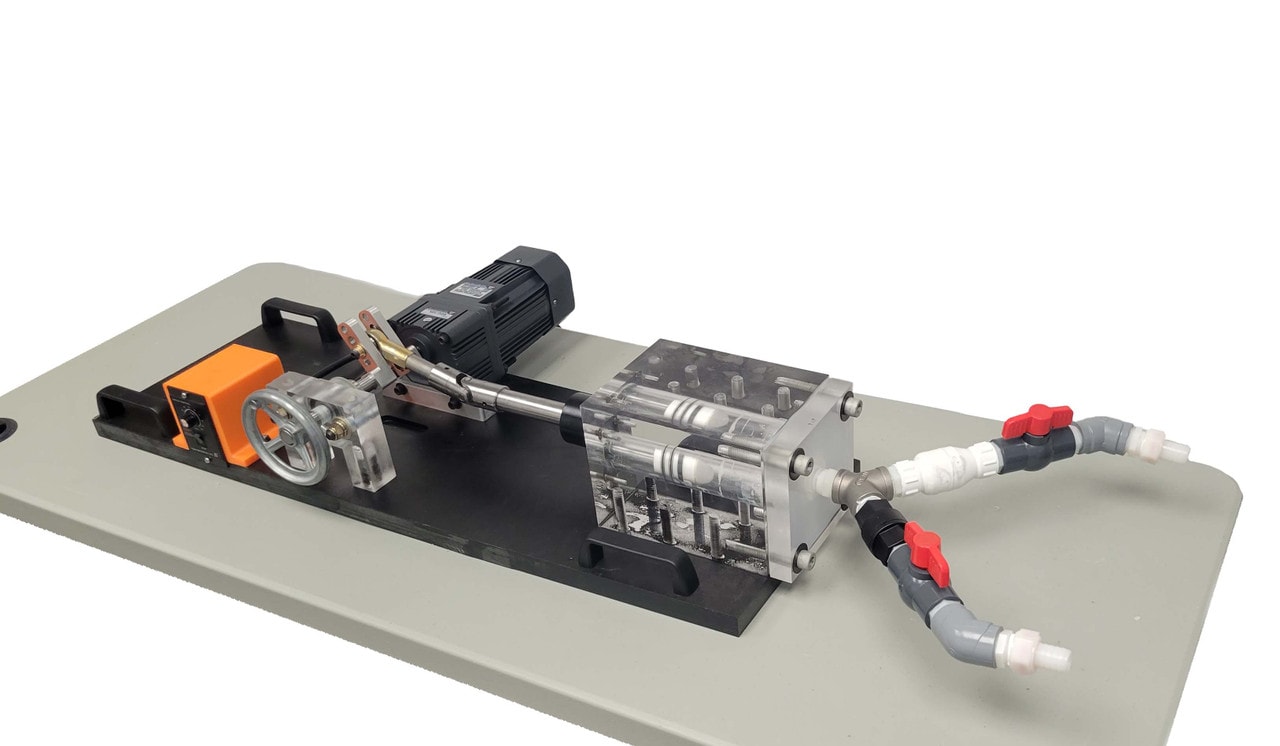

- TPS Heart Pump
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 34 x 18 x 10 Inches | Weight: ~88 Lbs
Heart Pump: 36 x 12 x 8 Inches | Weight: ~88 Lbs
Total Shipment: Weight ~232 Lbs (shipped on a wooden pallet)
