Adult Male Heart for X-Ray CT, US, MRI
Product Description

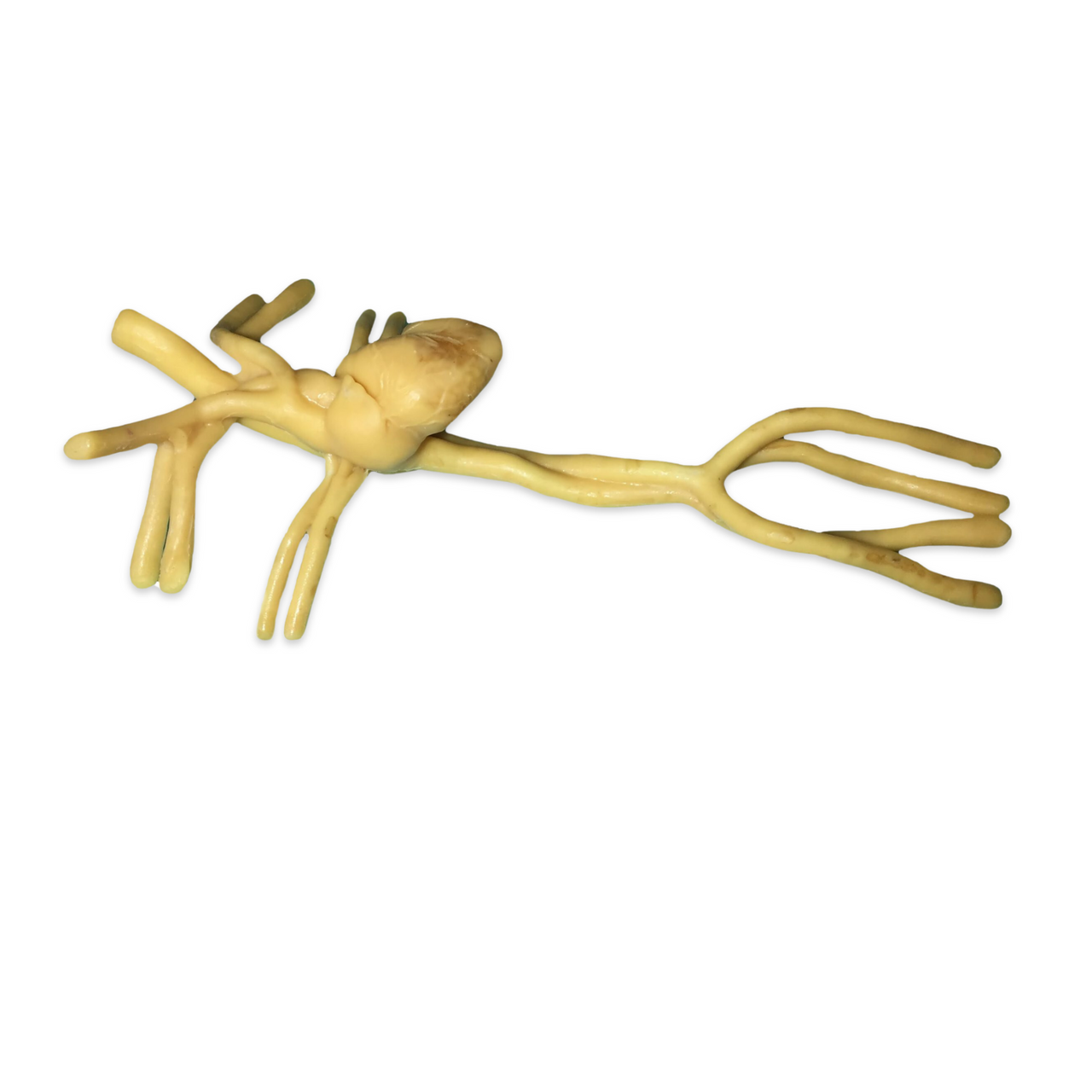

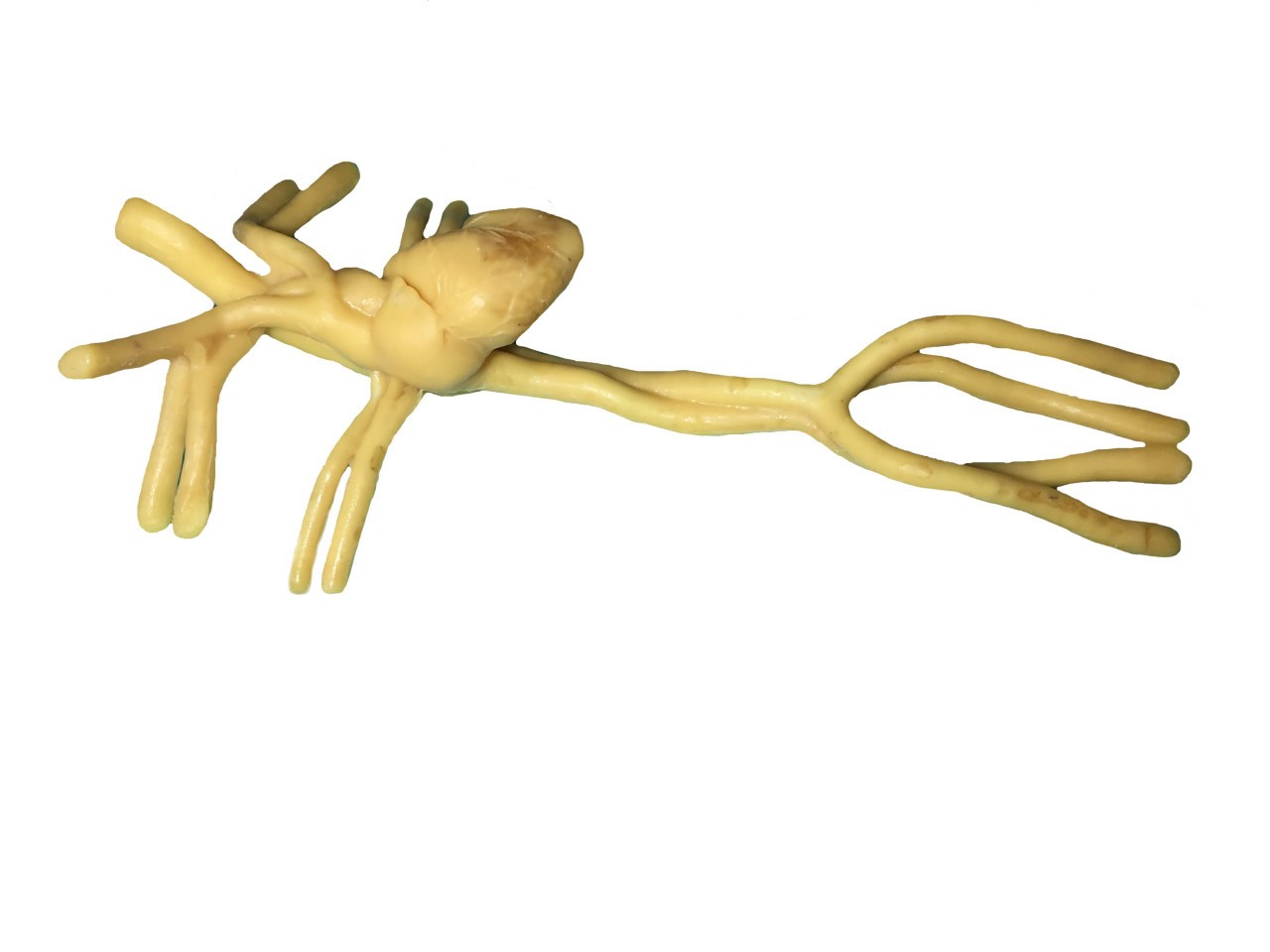

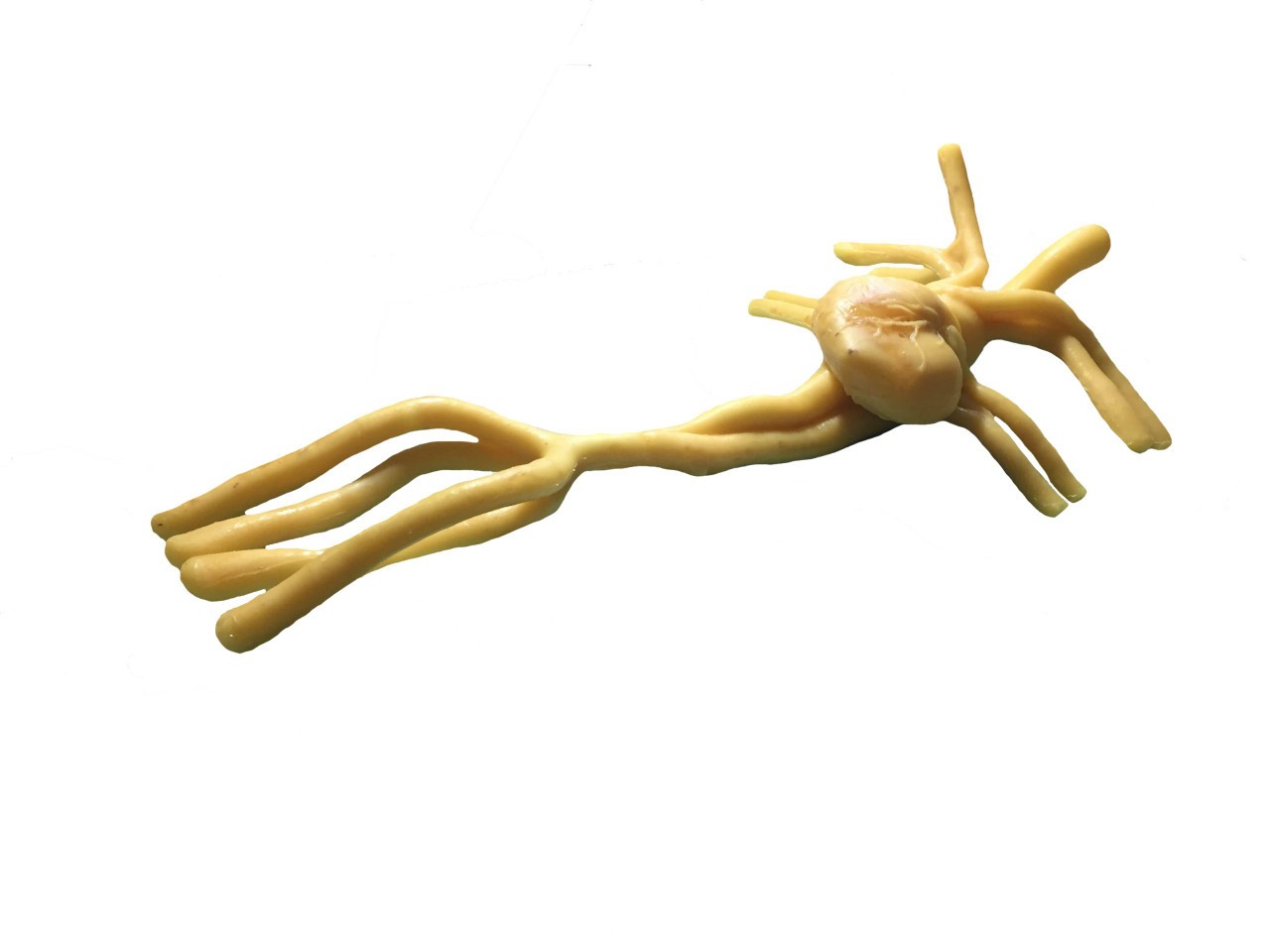

The Adult Male Heart Phantom is a high-fidelity simulator of a healthy human heart, compatible with X-Ray/CT, Ultrasound, and MRI. It is designed for various applications, including transthoracic and transesophageal echocardiograms (TEE), angiography, and cardiovascular research. The phantom features a hollow esophageal tube, allowing for TEE ultrasound probe insertion to image the heart internally.
Constructed using 3D printing and synthetic materials, the phantom mimics the acoustical and mechanical properties of real biological tissues. It has the potential to support beating functionality and generate life-like motions when paired with a heart pump. For MRI, the tissues exhibit realistic T2 relaxation time values for authentic imaging results.

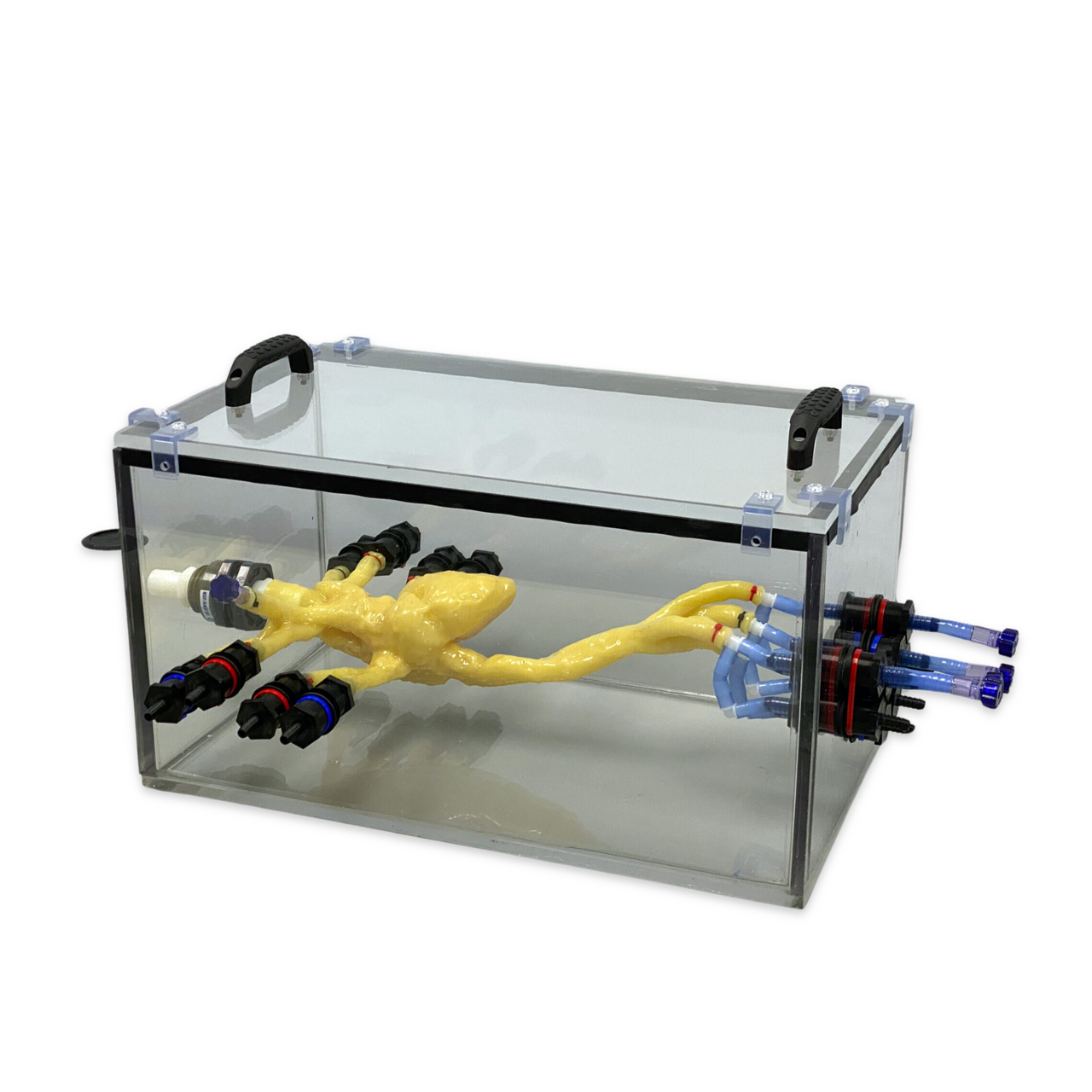

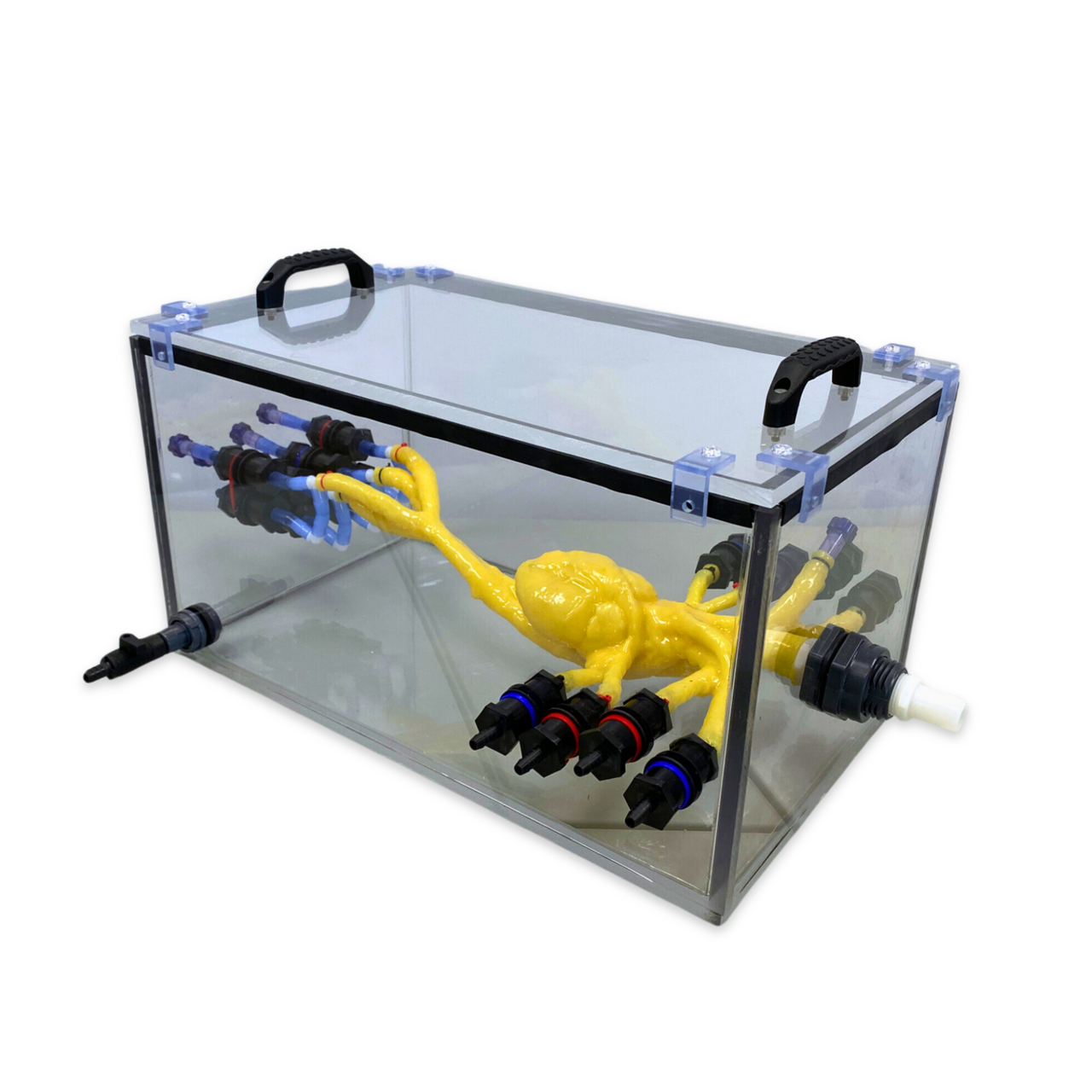

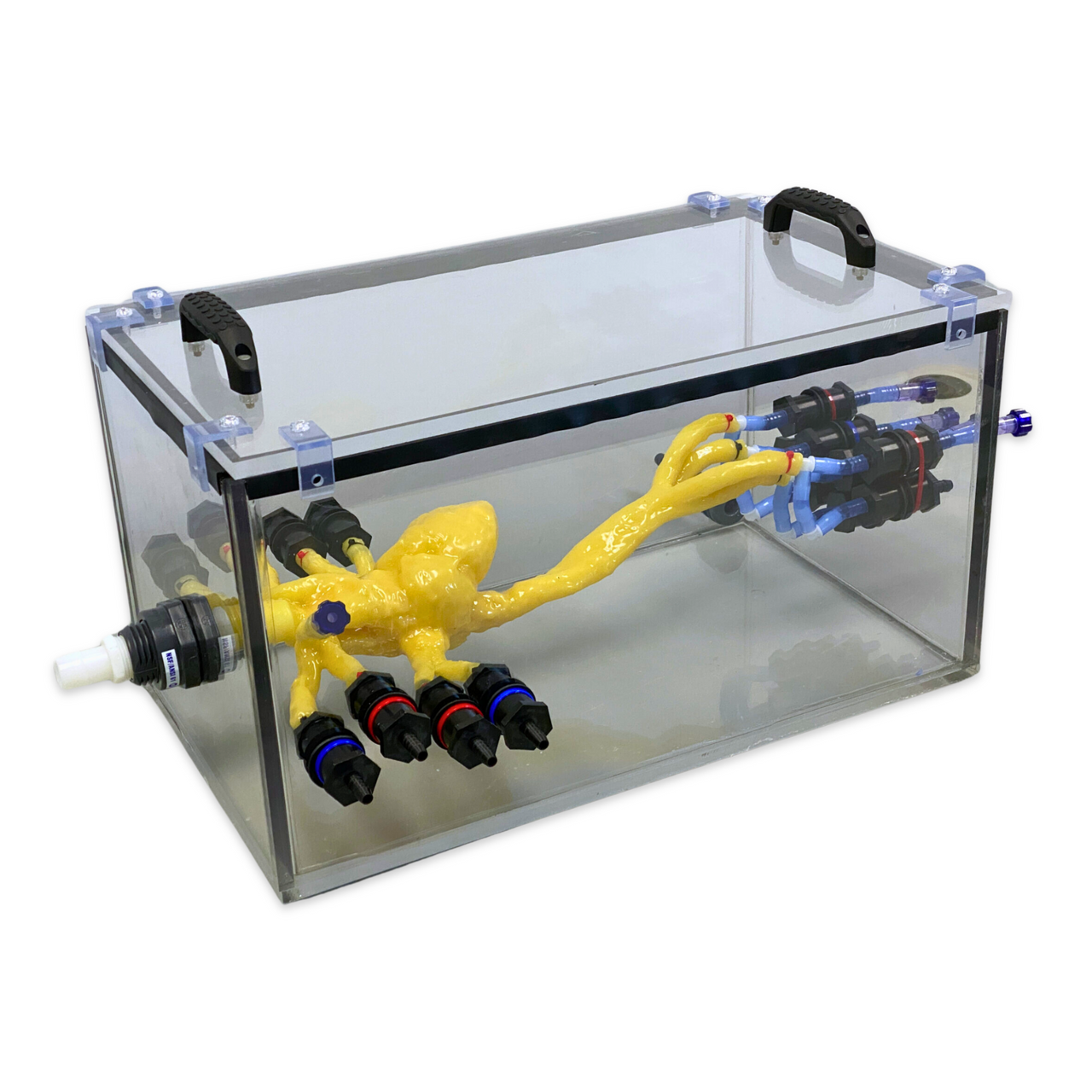

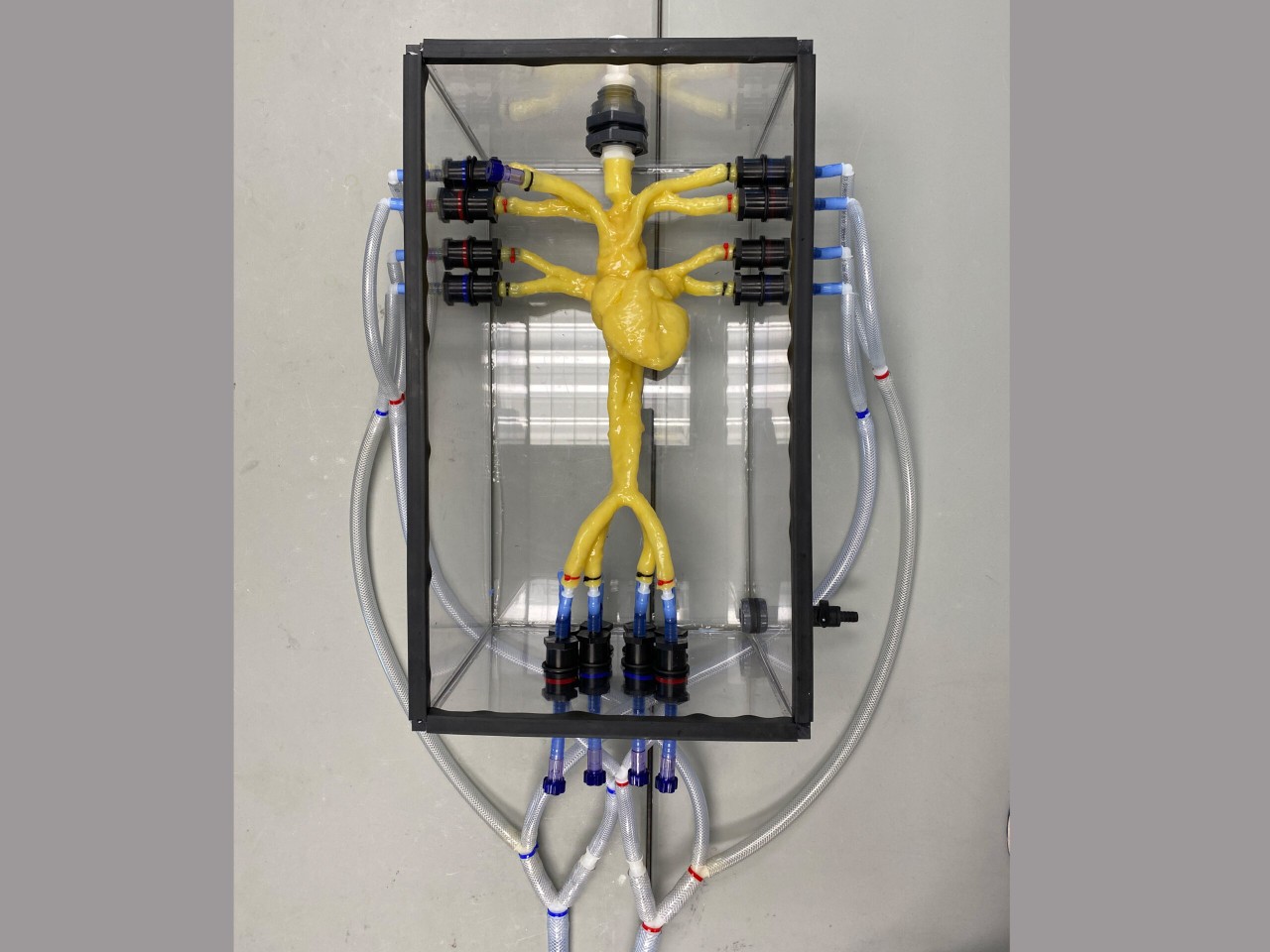

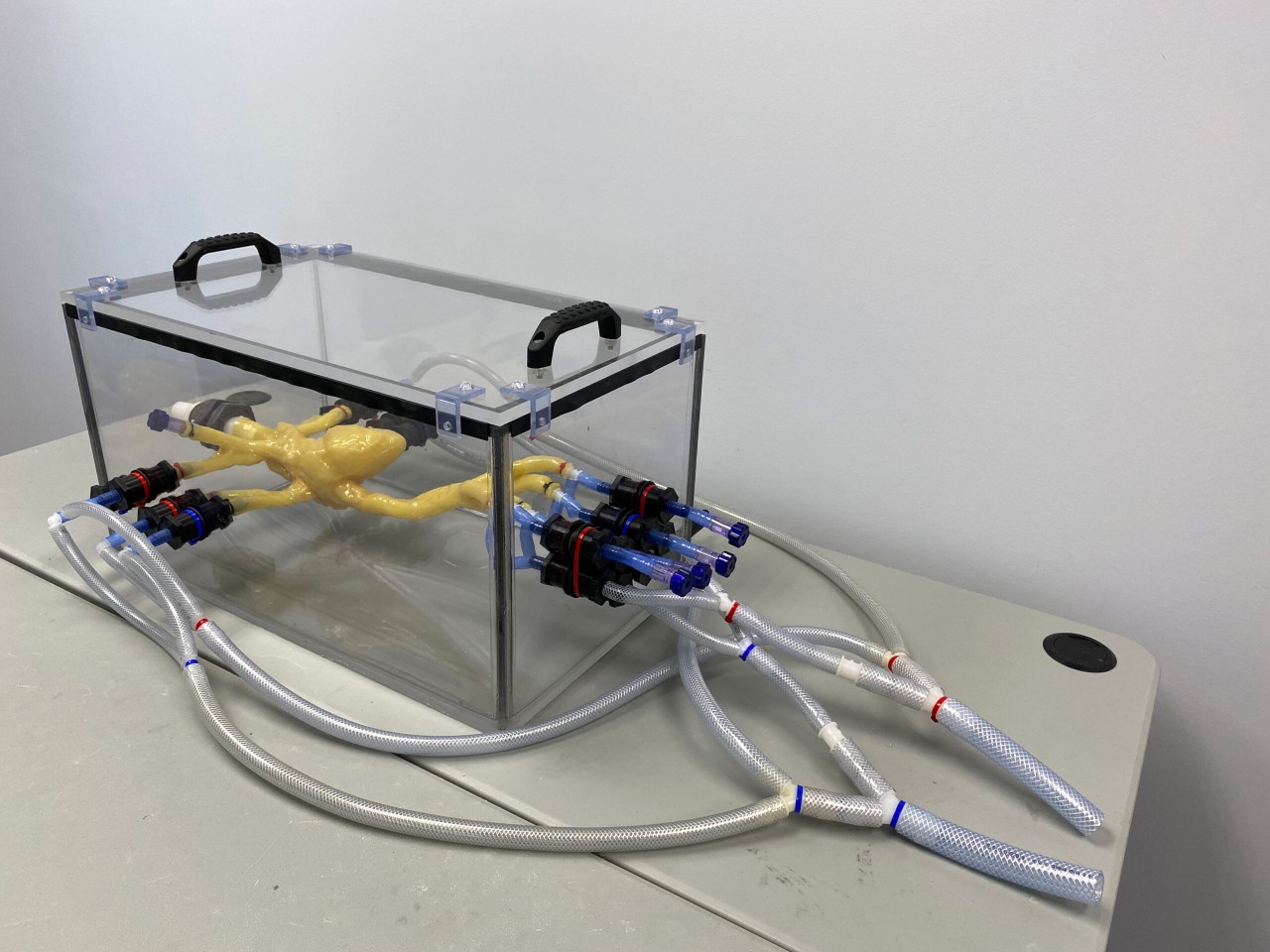

Note: This product includes a transparent water tank for proper mounting and viewing of internal structures. Coronary arteries are not included by default but are available as a simplified option upon request. A heart pump for beating motion must be purchased separately.
Anatomy
- Chambers:
- Right Ventricle (60 ml) with Moderator Band
- Left Ventricle (63 ml) with Papillary Muscles
- Right Atrium (45 ml) with distinct muscle structures
- Left Atrium (29 ml) with unique muscle structure to the appendage
- Valves: 4 flexible valvular structures.
- Vessels: SVC, IVC, Aorta.
- Arteries: Right/Left Subclavian, Pulmonary, and Femoral Arteries.
- Veins: Right/Left Subclavian, Pulmonary, and Femoral Veins.
- Other Features: Esophageal tube and appendage features.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Heart Tissue | 1400 ± 10 | 1.02 | 60 | 30 (at 0.35 T) | YES | 1.7 ± 0.2 |
Imaging Compatibility
The phantom is compatible with various contrast mediums, including:
- Barium-sulfate
- Iodine-based
- Gadolinium-based
- Microbubble and Iron Oxide-based
Included in Order
- Adult Male Heart Phantom
- Water Tank for Heart Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
Size & Weight
Phantom: 23 x 7 x 12 Inches | Weight: ~3 Lbs
Shipment: 36 x 24 x 12 Inches | Weight: ~22 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
Available Options
- Gender: Male (Default) or Female
- Coronary Arteries: Default (Not Included) or Included (Simplified)
Imaging Scans

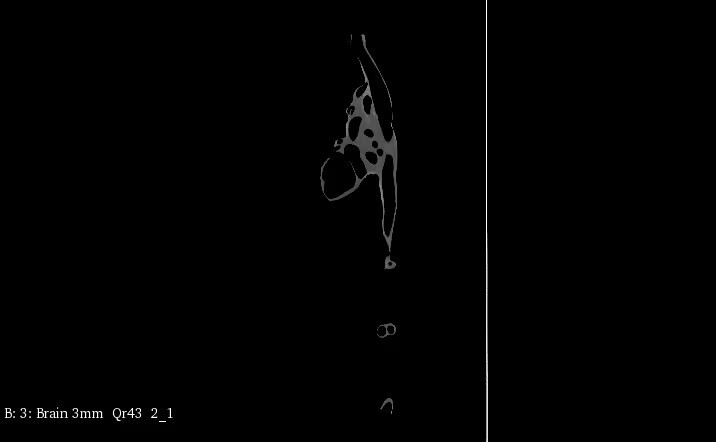

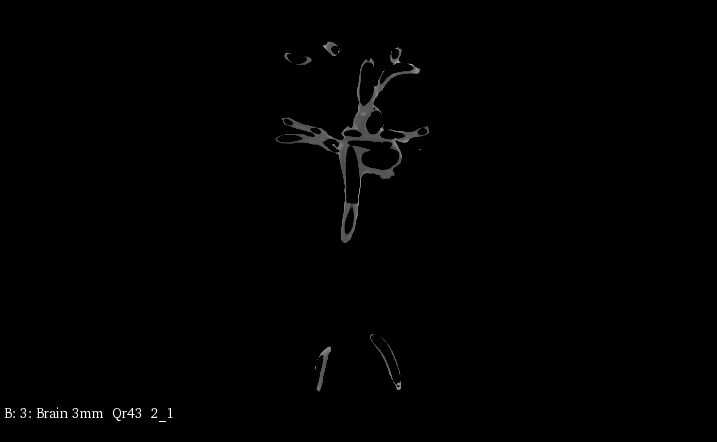

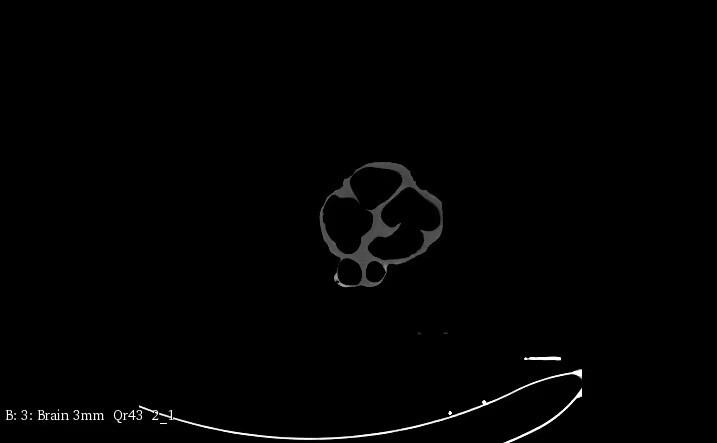

CT Image Scans
![]("https:/cdn11.bigcommerce.com/s-pimv2ff7eu/images/stencil/original/image-manager/a-112416-ct-1.jpg?t=1776147859)

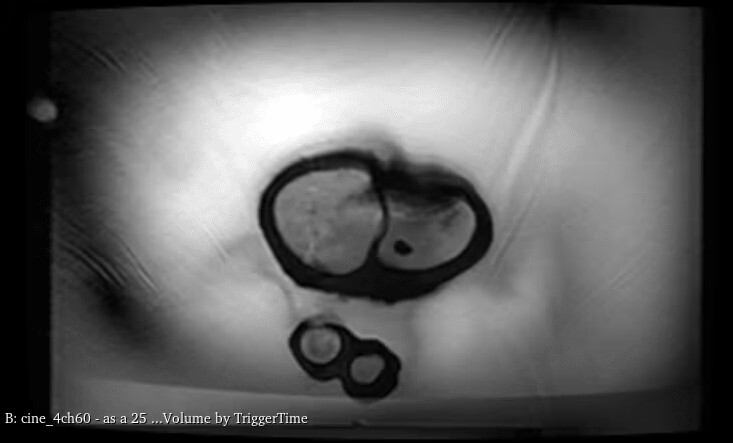

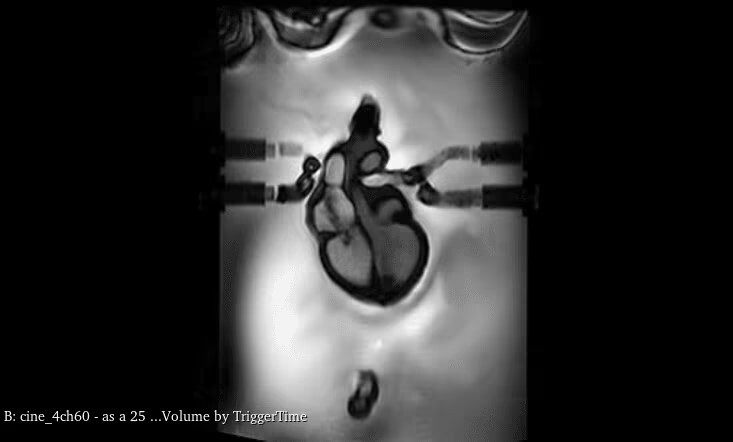

MRI Image Scans

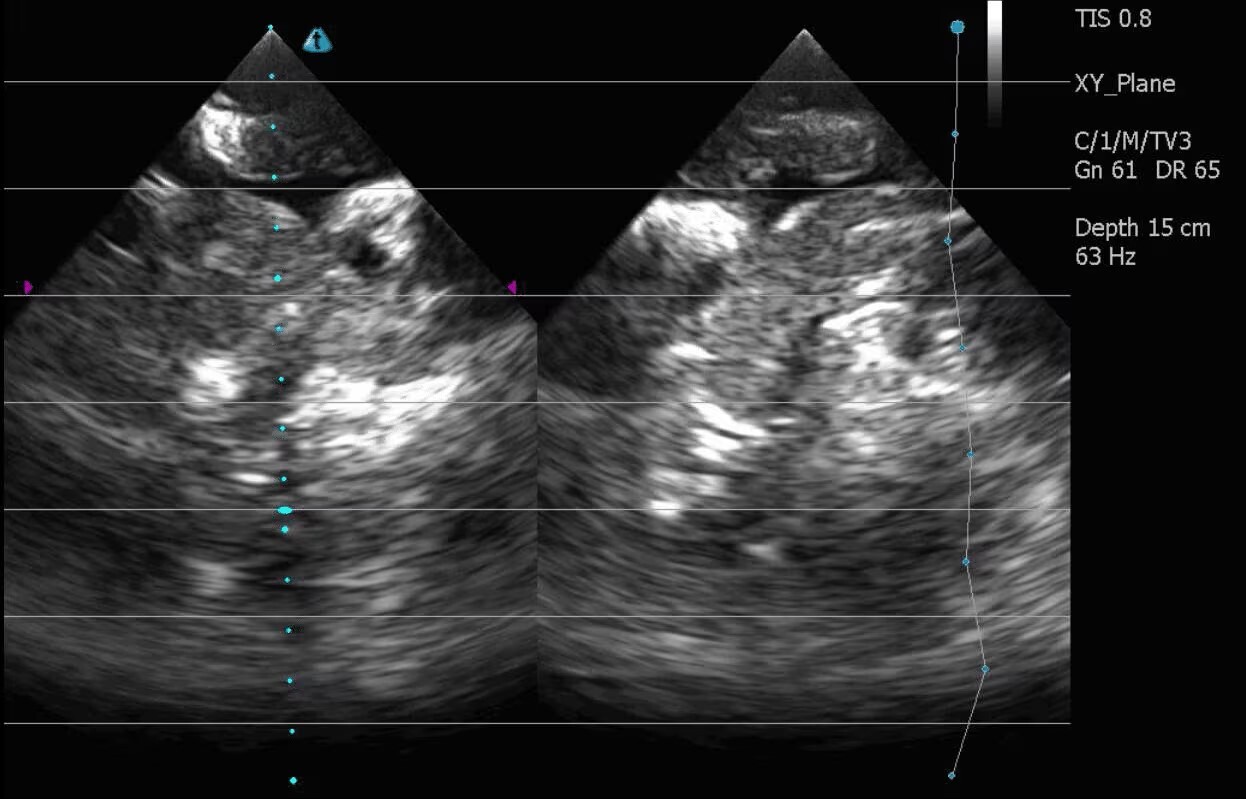

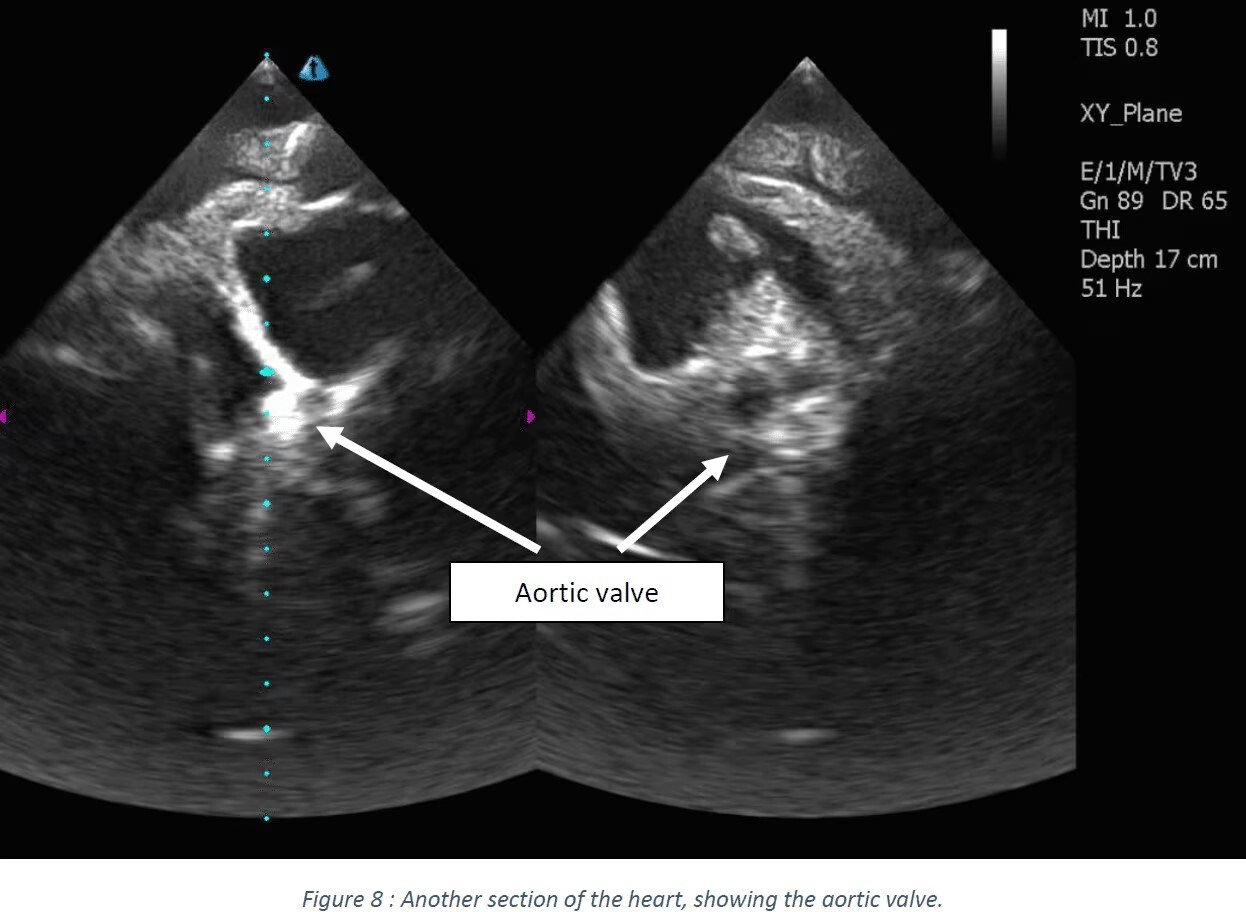

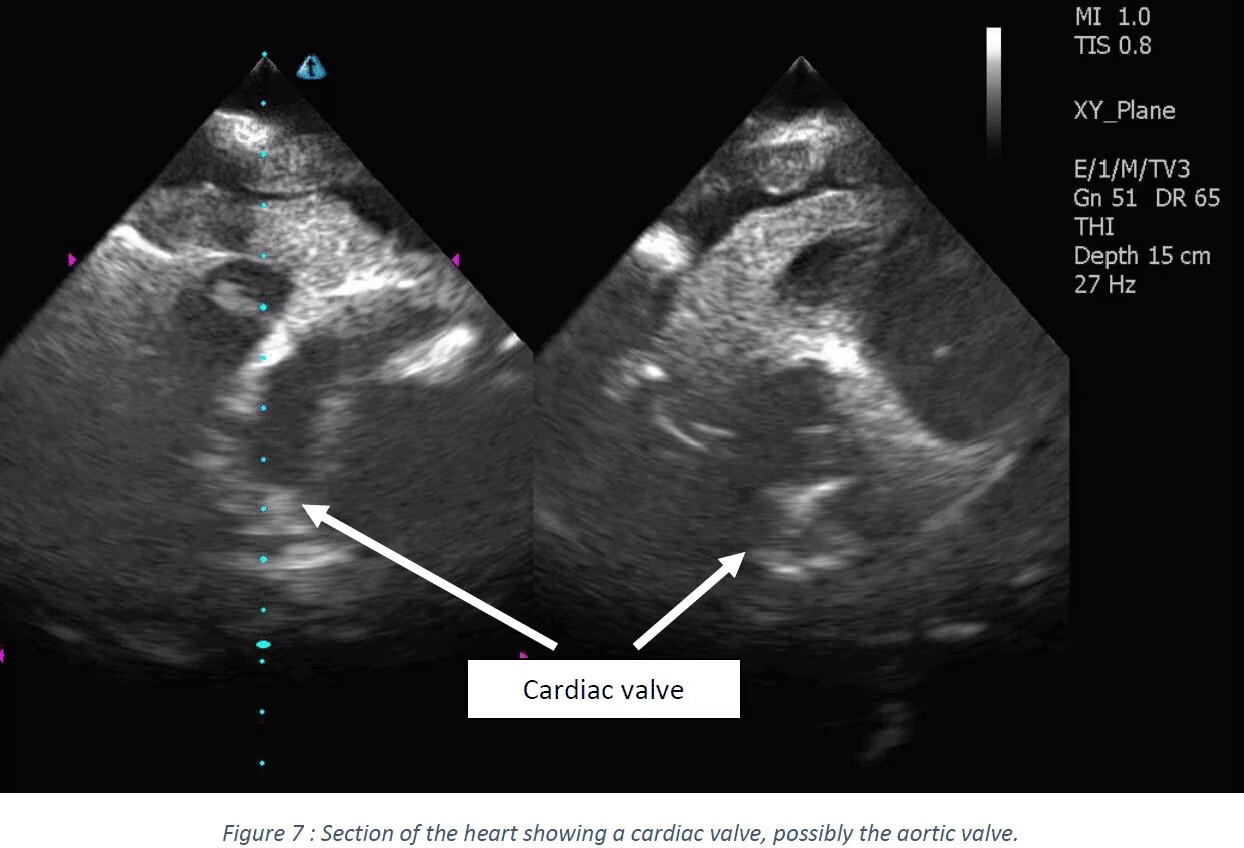

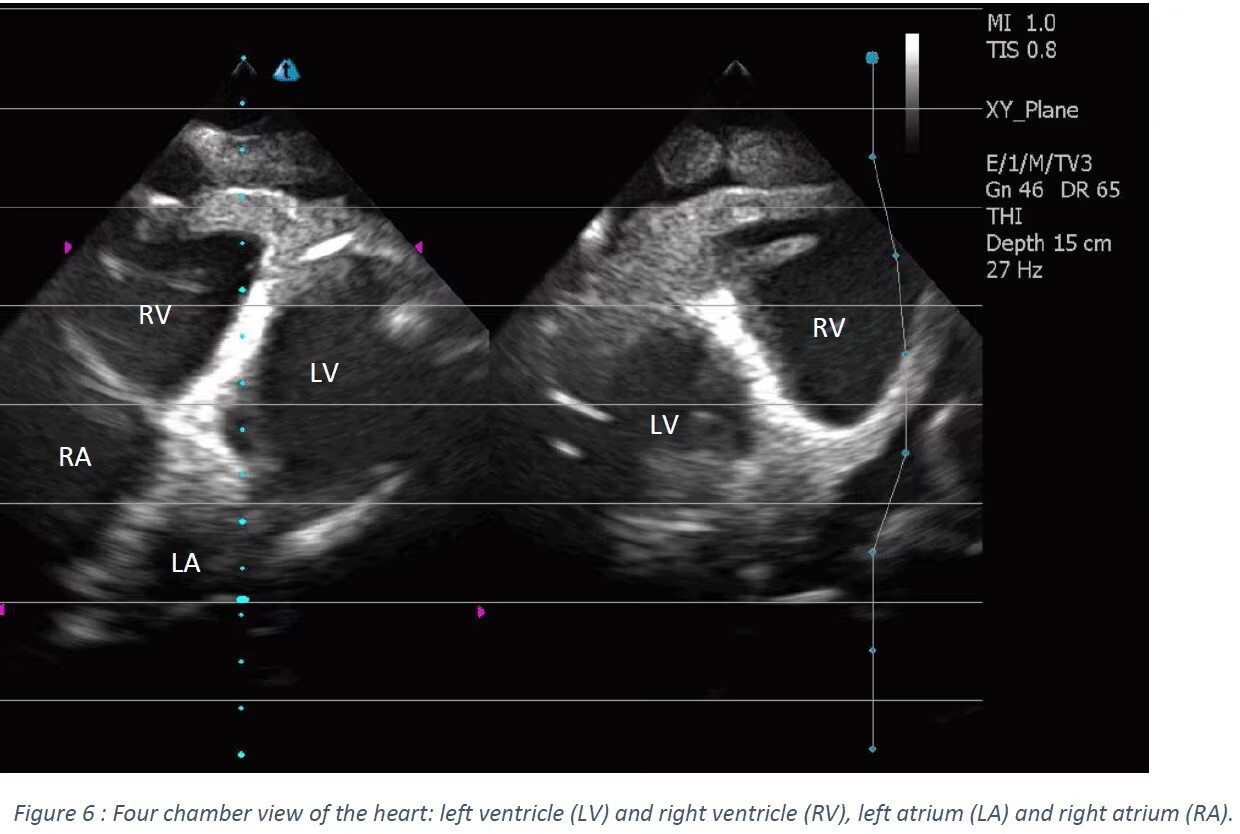

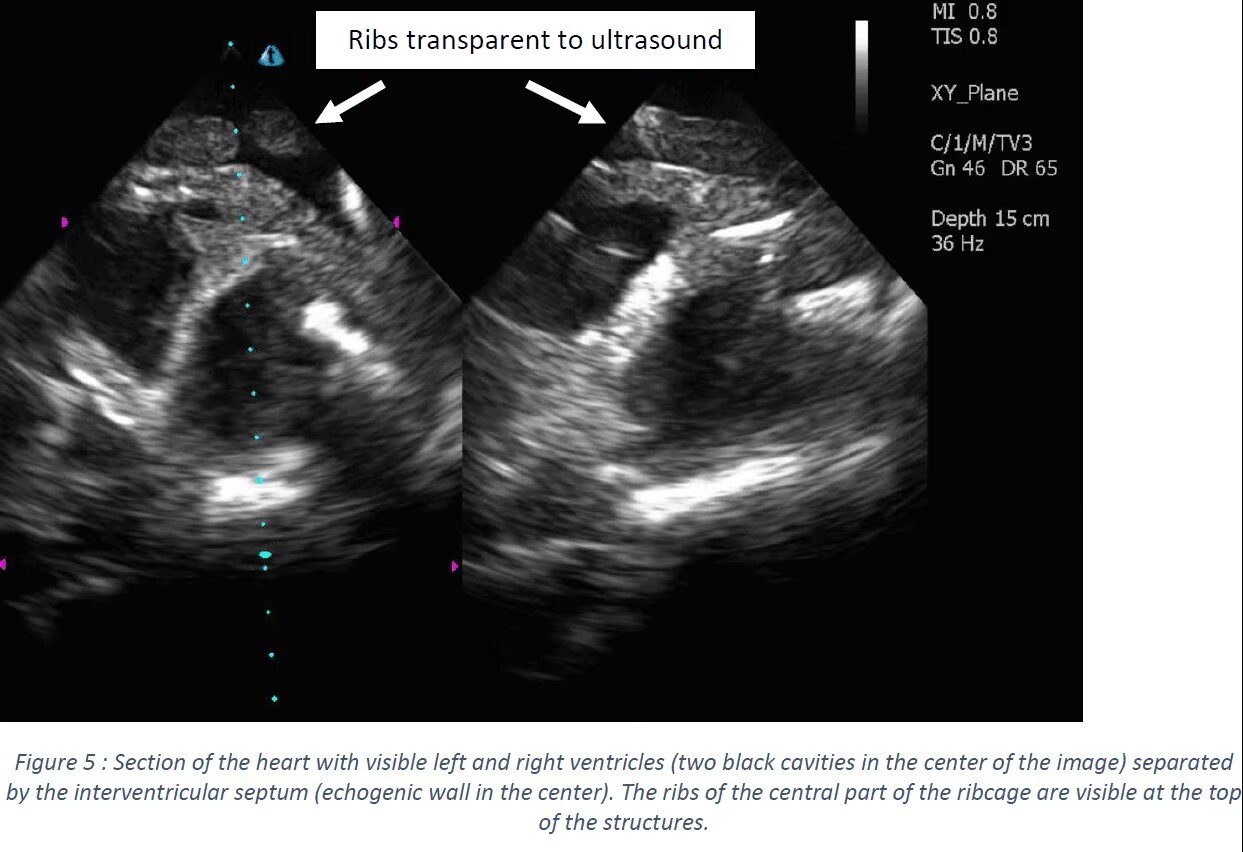

Ultrasound Image Scans

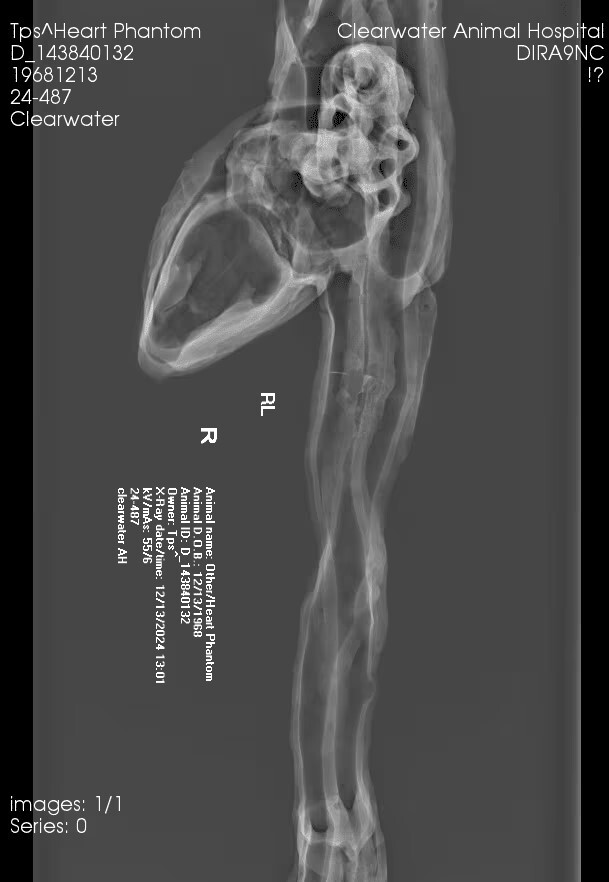

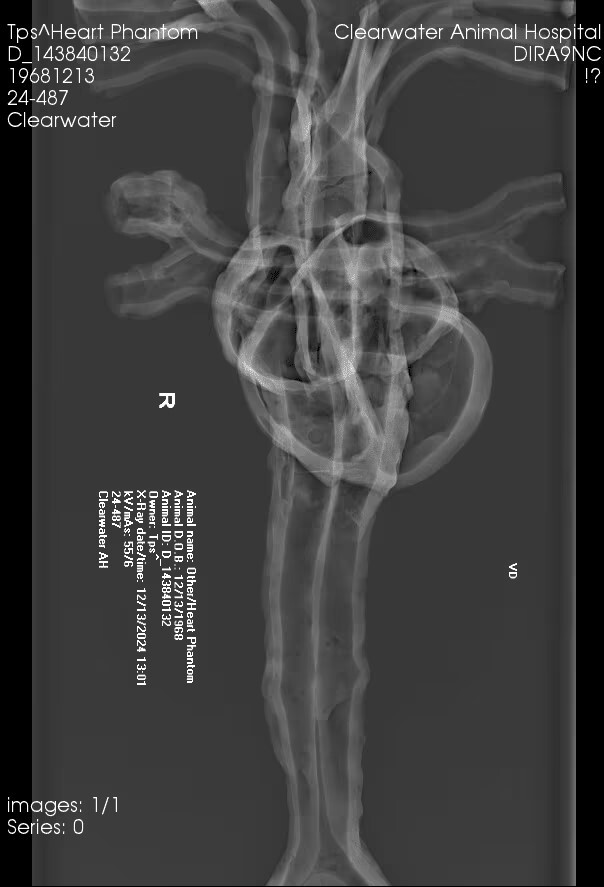

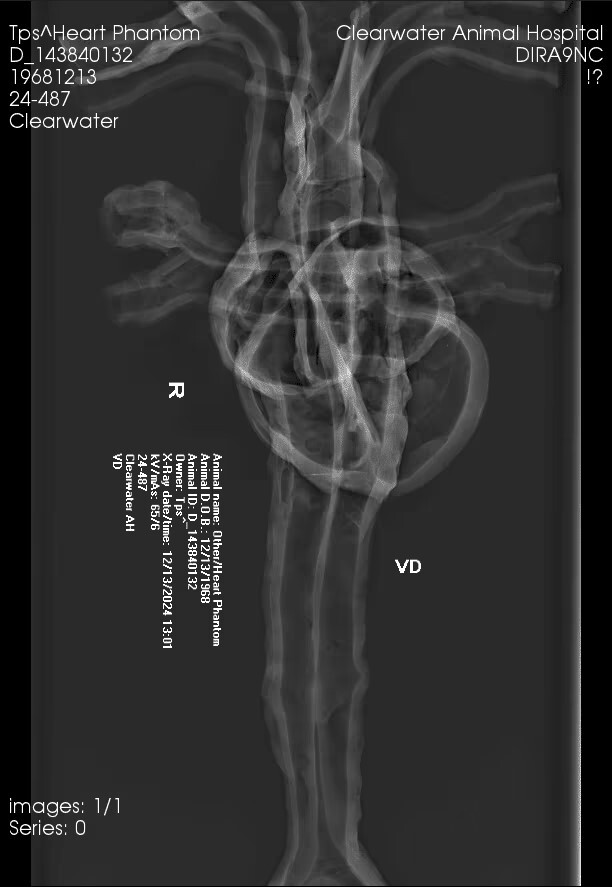

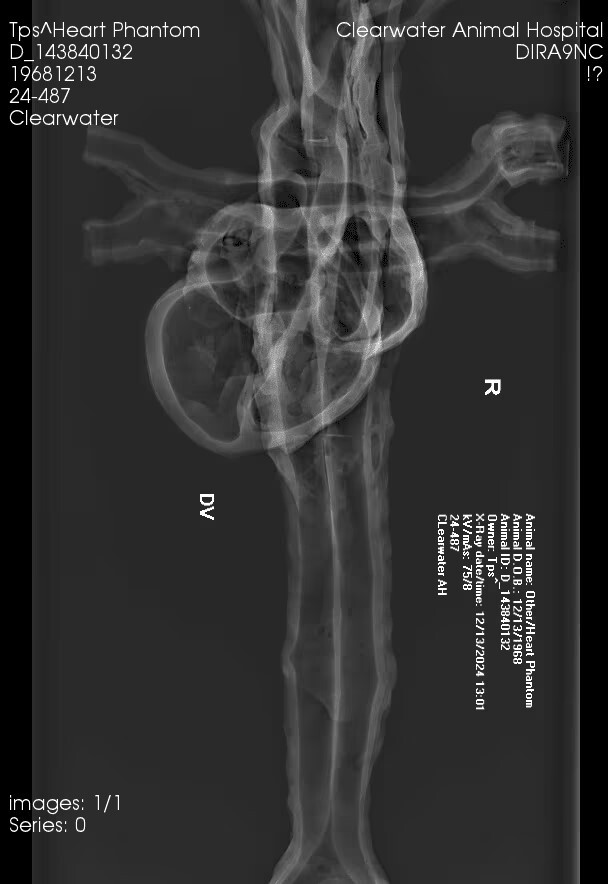

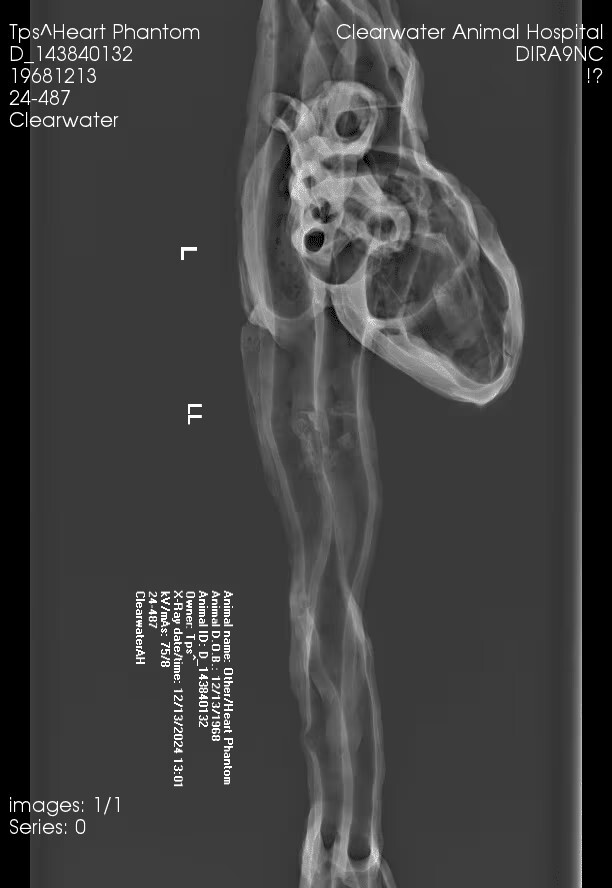

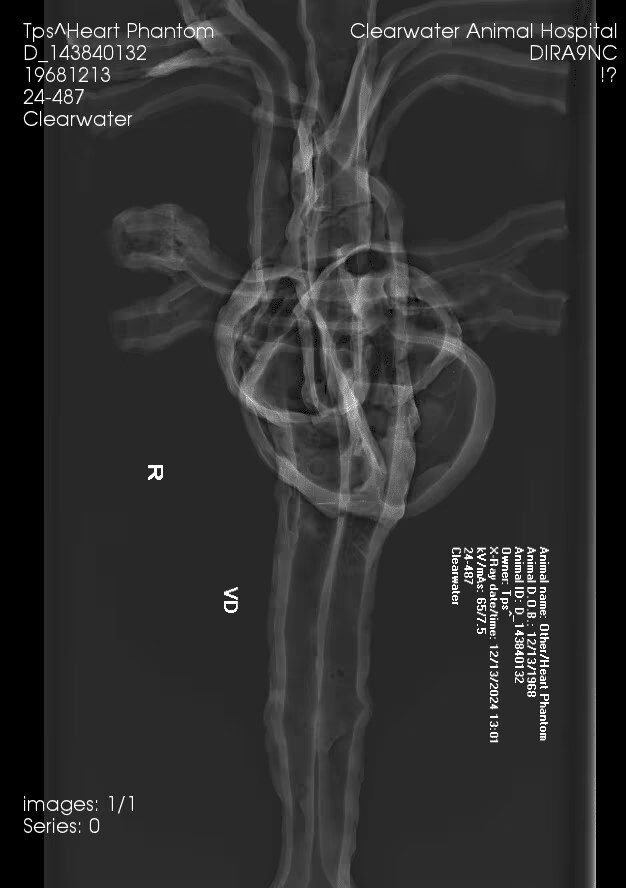

X-Ray Image Scans
