Adult Head (Standard) for X-Ray CT, US, MRI
Product Description

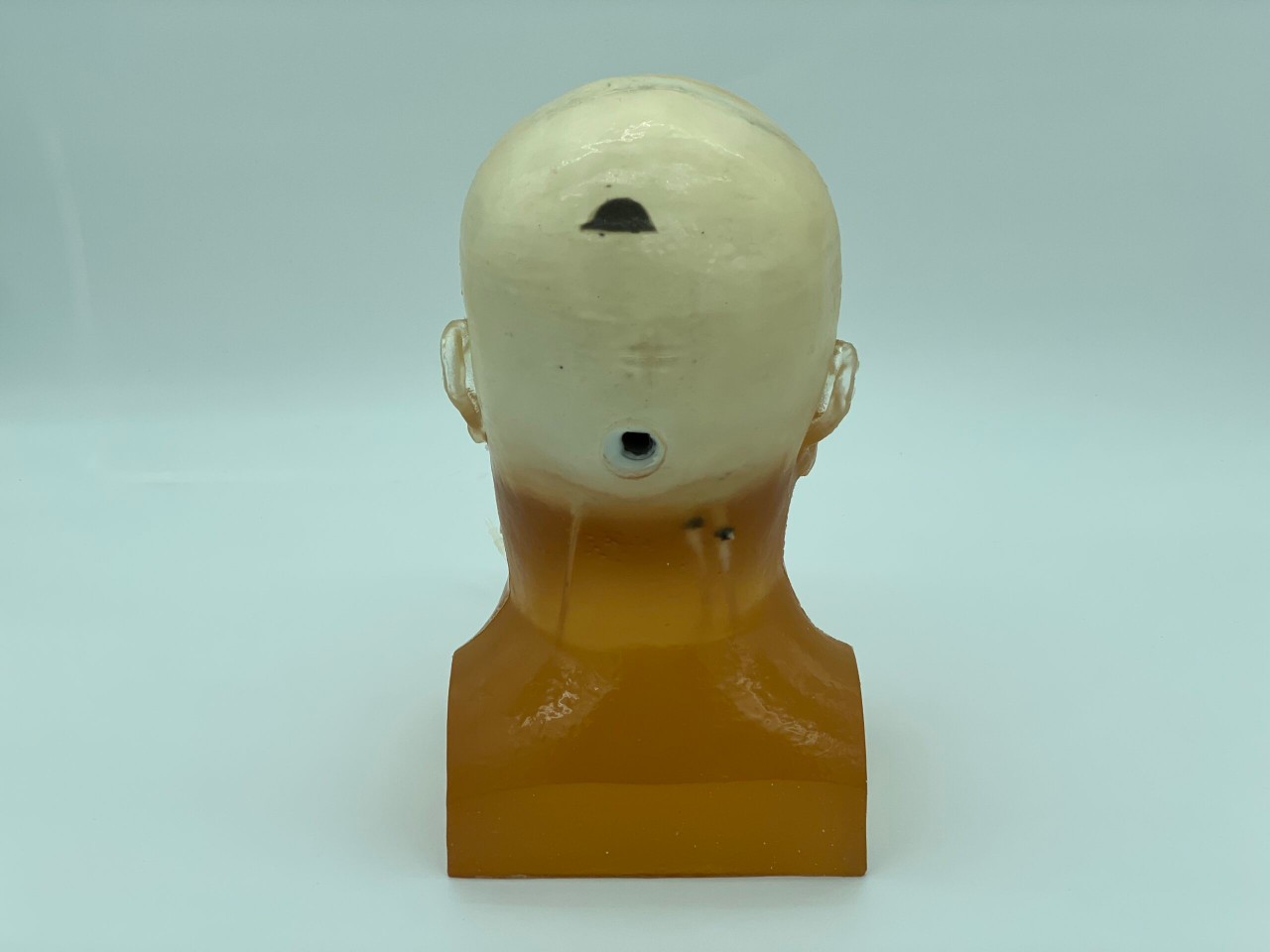

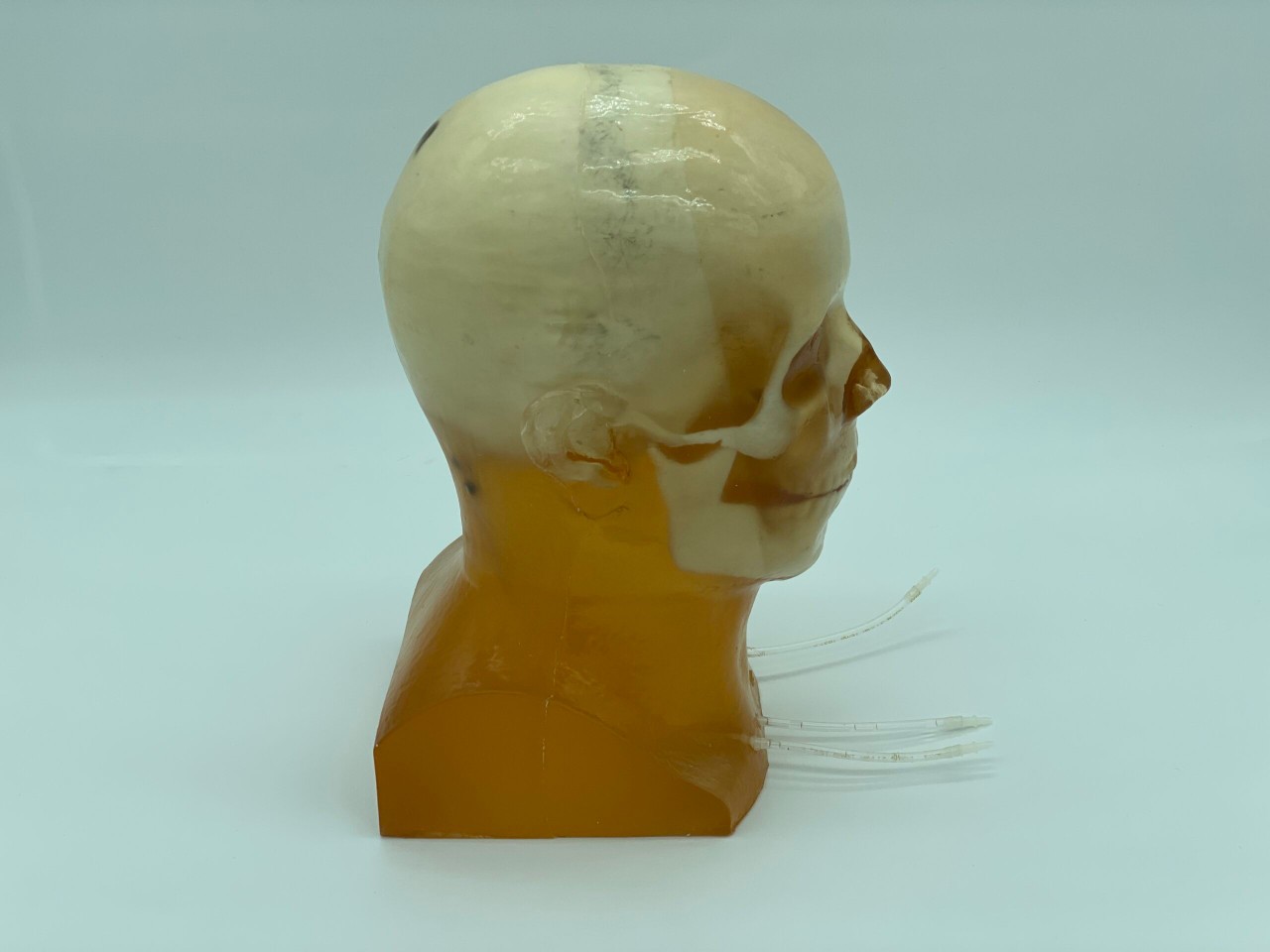

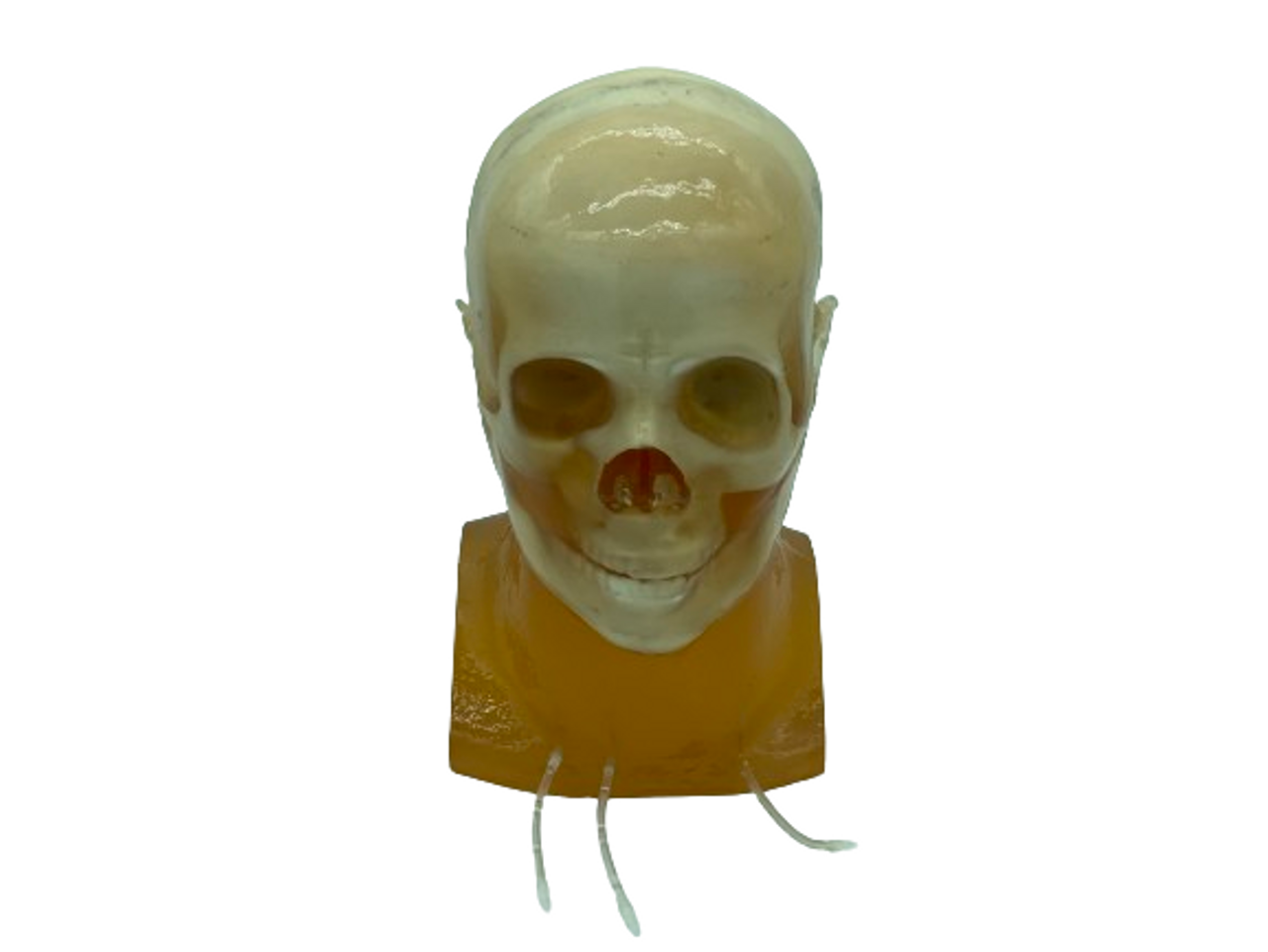

The Adult Head (Standard) phantom is designed based on an average human male head using realistic tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT. This versatile phantom includes inflatable ventricles that can be filled with liquid to closely approximate real cerebral anatomy. The brain parenchyma is made from an ultra-soft polyurethane-based material that mimics soft tissue and is stable over time.
The model is suitable for angiography purposes and compatible with various contrast mediums (Barium-sulfate, Iodine, Gadolinium, etc.). For MRI applications, the phantom provides realistic T2 relaxation time values, perfectly fitting T2-weighted and proton-density imaging methods. T1-weighted imaging is possible, with values typically within the 100 ms range.
Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. Protective urethane coating increases body tissue hardness by approx. 30 points (e.g., from OO 60 to OO 90).
Anatomy
- Skull: Realistic three-layered structure with inner diploe layer.
- Brain: Grey Matter, Falx Cerebri, and inflatable Brain Ventricles (lateral, third, and fourth).
- Pathology: One Brain Tumor and one Bifurcation.
- Vessels: Brain vessels connected with the neck.
- External: Alignment markings and acoustically correct skin-mimicking material.
Head Phantoms Comparison
| Features | Standard Head | Dynamic Head | Static Head | Hematoma Head |
|---|---|---|---|---|
| Skull | ? | ? | ? | ? |
| Brain (Gray Matter) | ? | ? | ? | ? |
| Brain Ventricles | ? | ? | ? | ? |
| Brain Tumor | ? | ? | ? | ? |
| Falx Cerebri | ? | ? | ? | ? |
| Brain Vessels | ? | ? (Circle of Willis) | ? | ? |
| Cervical Spine | ? | Optional | ? | ? |
| Alignment Markings | ? | ? | ? | ? |
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00]* | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Tumor | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Skin/Body Tissue | 1400 ± 10 | 1.02 | 1.7 ± 0.2 | 60 | 50 | NO |
*Measured without protective coat; coating increases hardness by approx. 30 points.
HU Values of Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Skin Tissue | -25 |
Included in Order
- Adult Head (Standard) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 12 x 9 x 7 Inches | Weight: ~17 Lbs
Shipment: 23 x 14 x 10 Inches | Weight: ~22 Lbs
Materials Used
- Soft tissue and parenchyma: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Imaging Scans

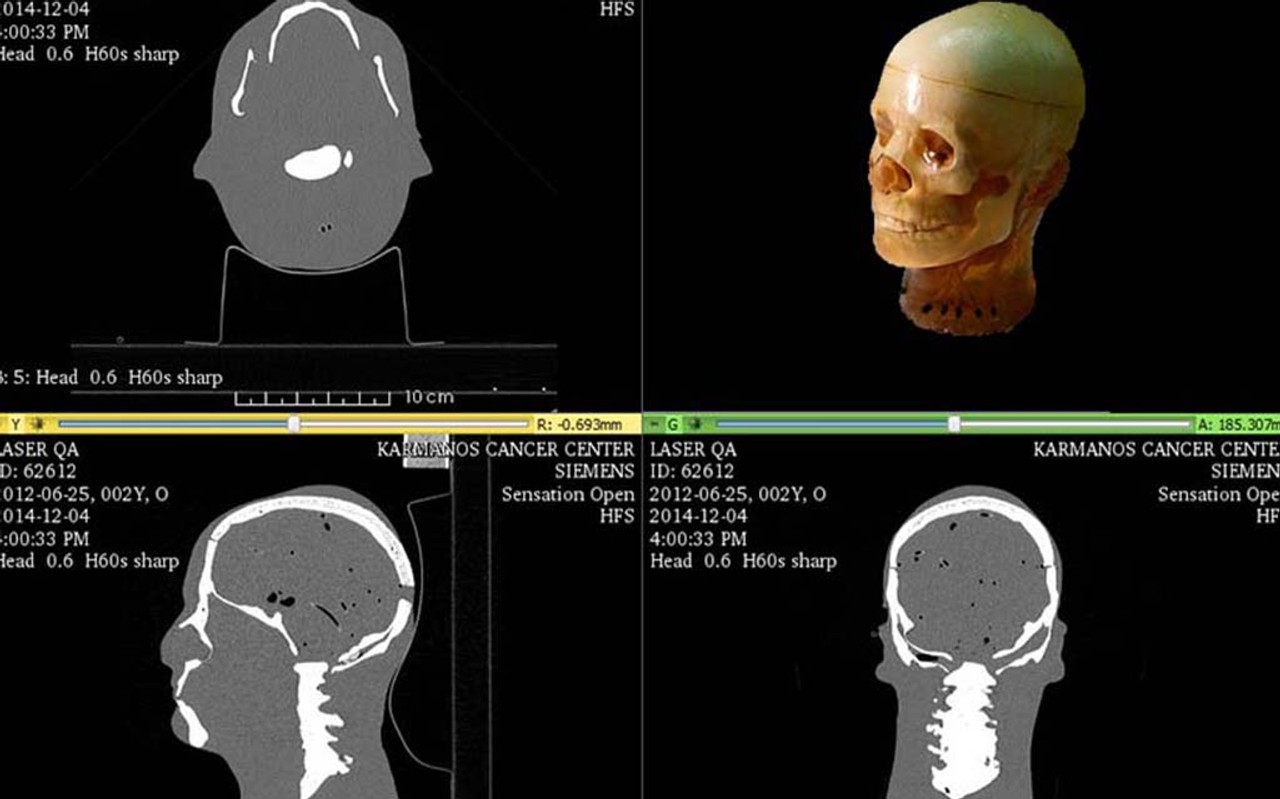

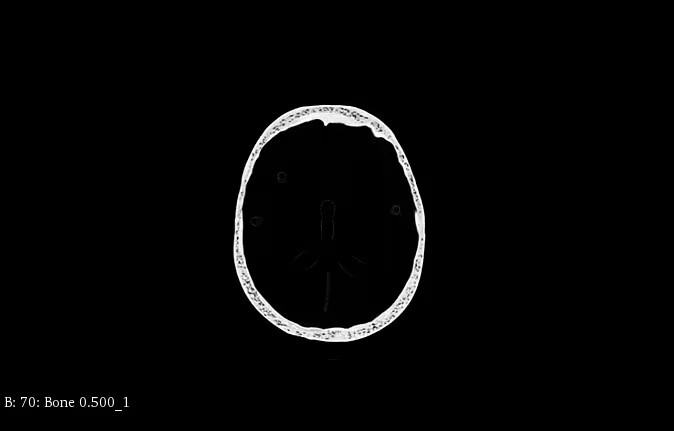

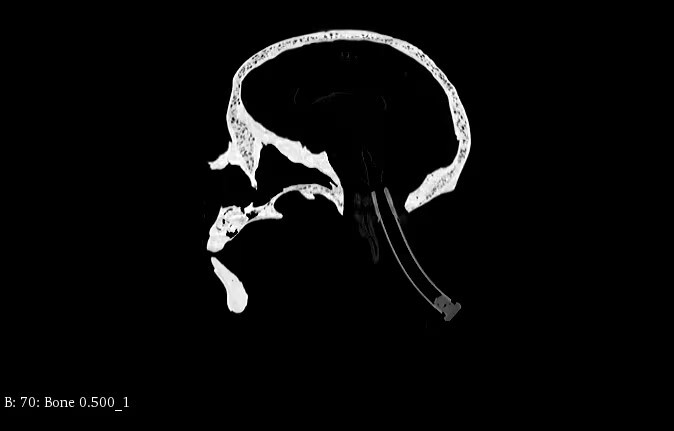

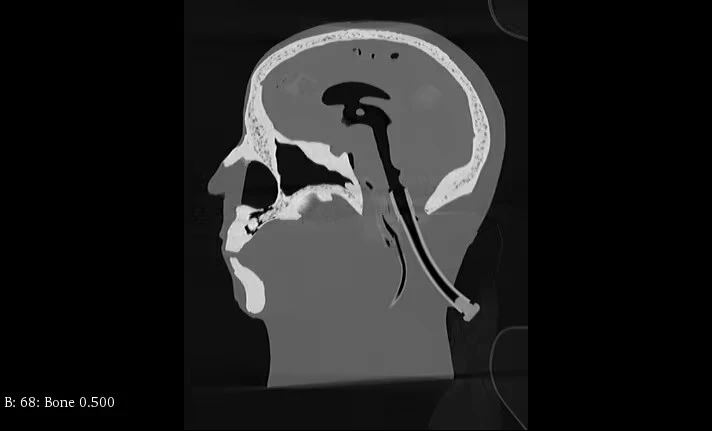

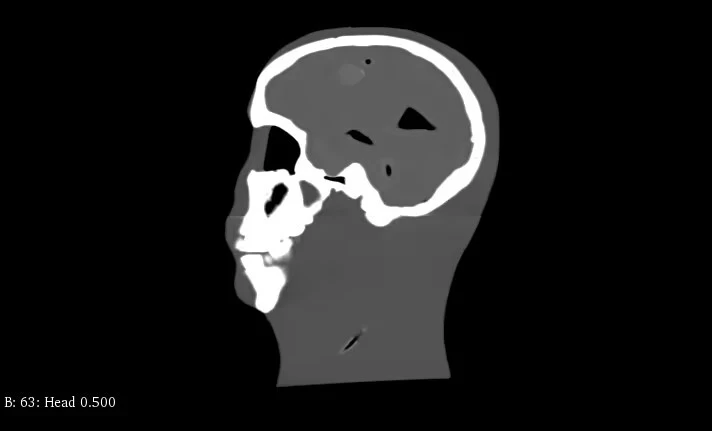

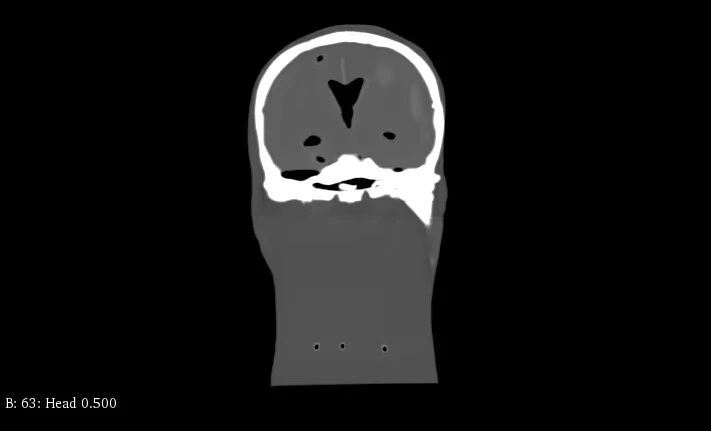

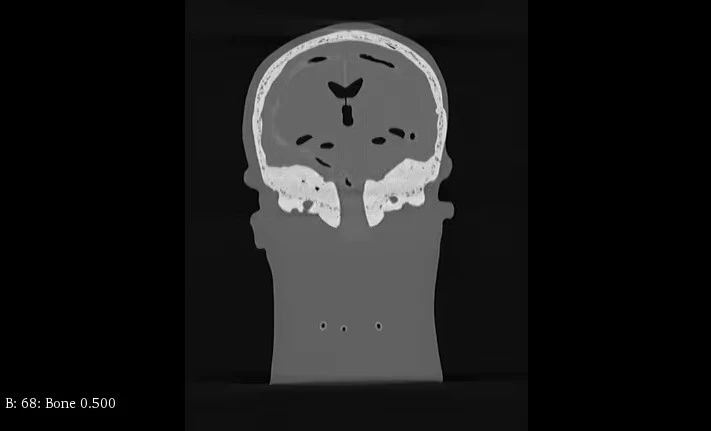

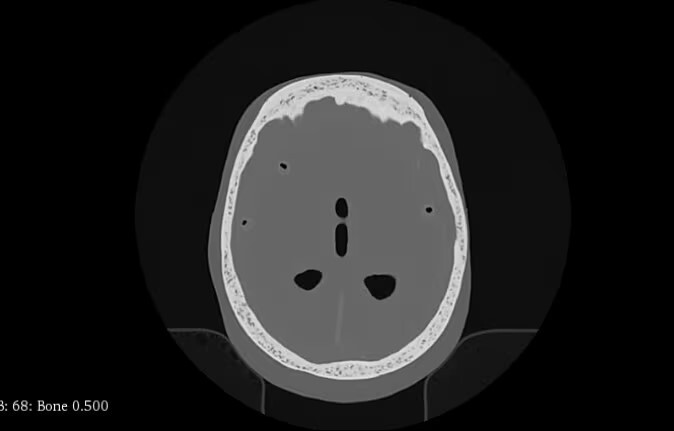

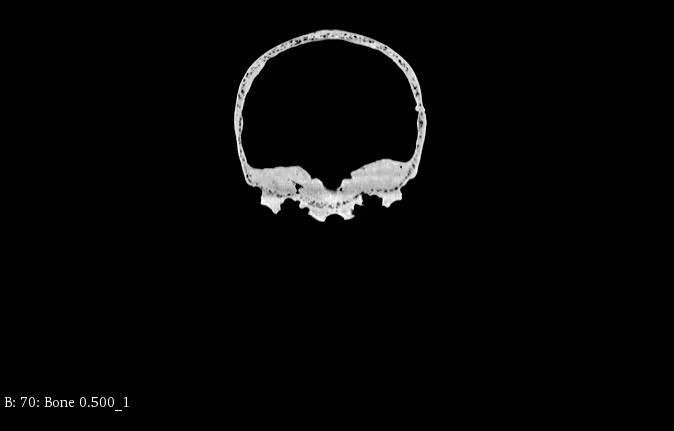

CT Image Scans

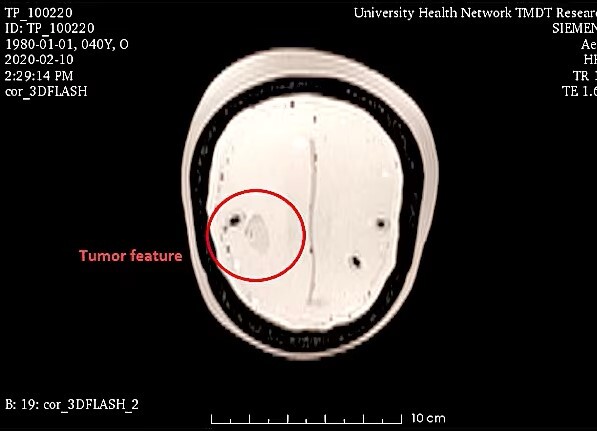

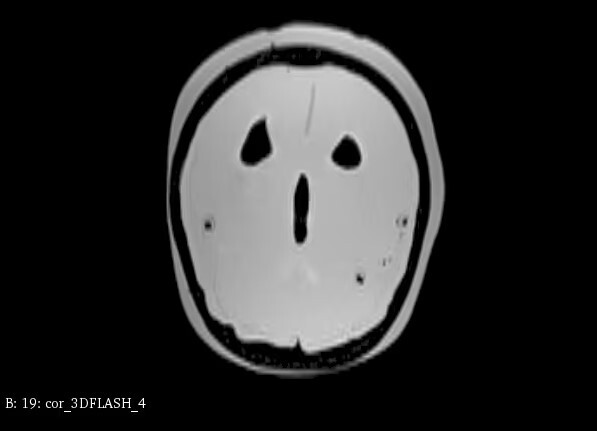

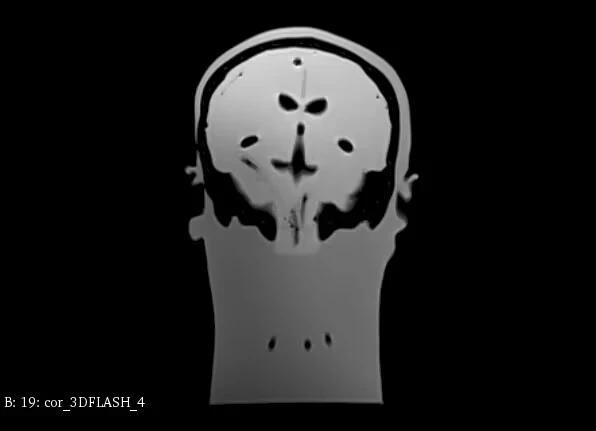

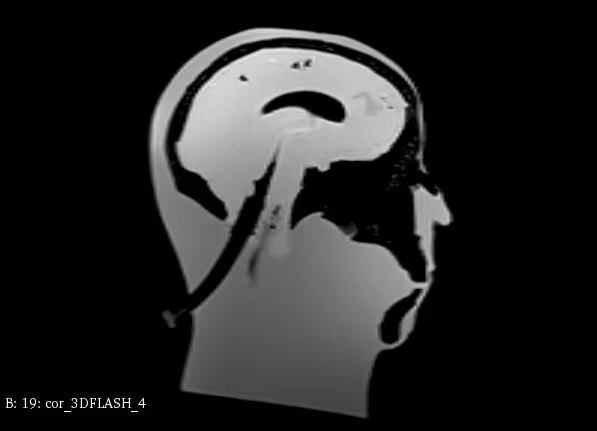

MRI Image Scans

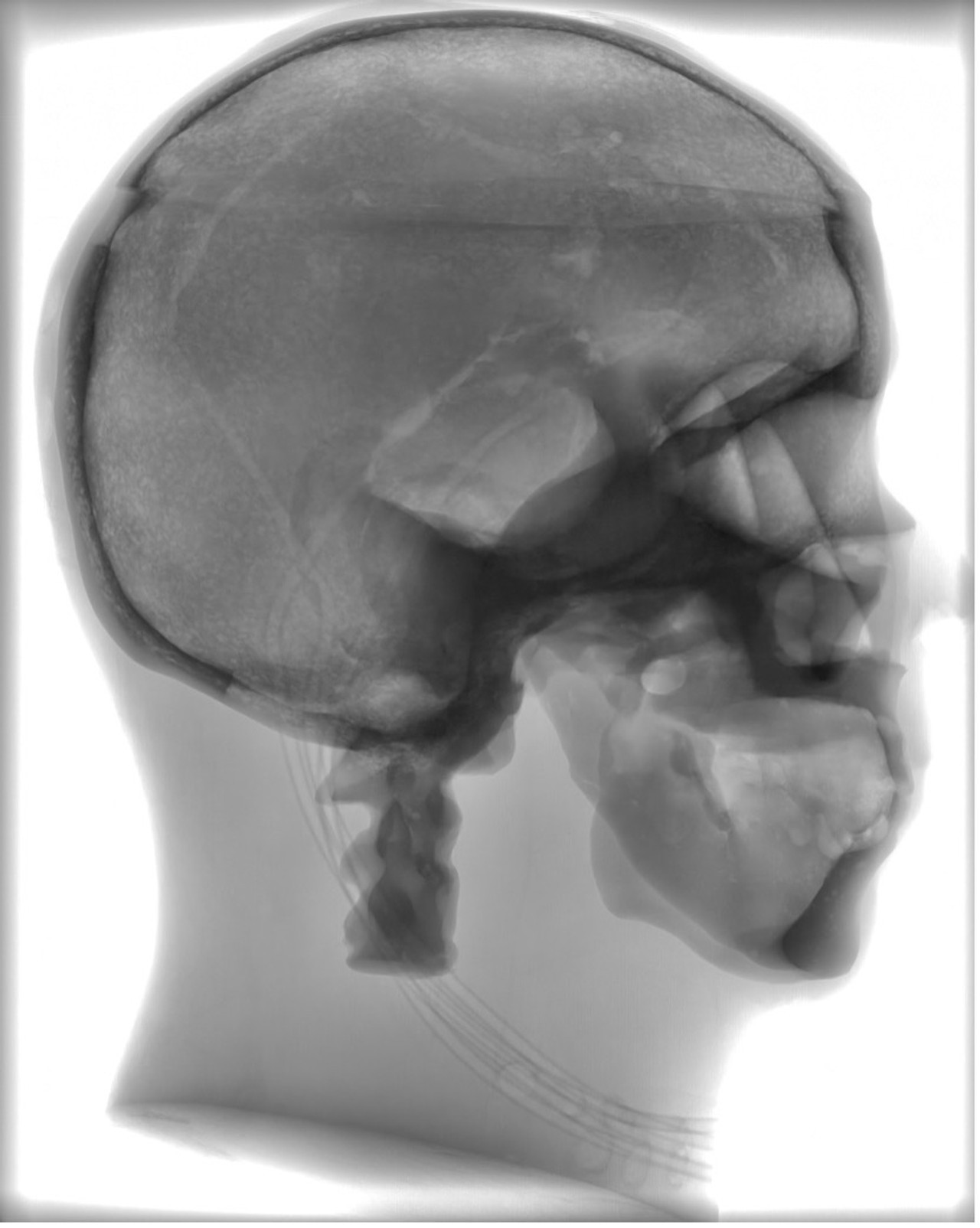

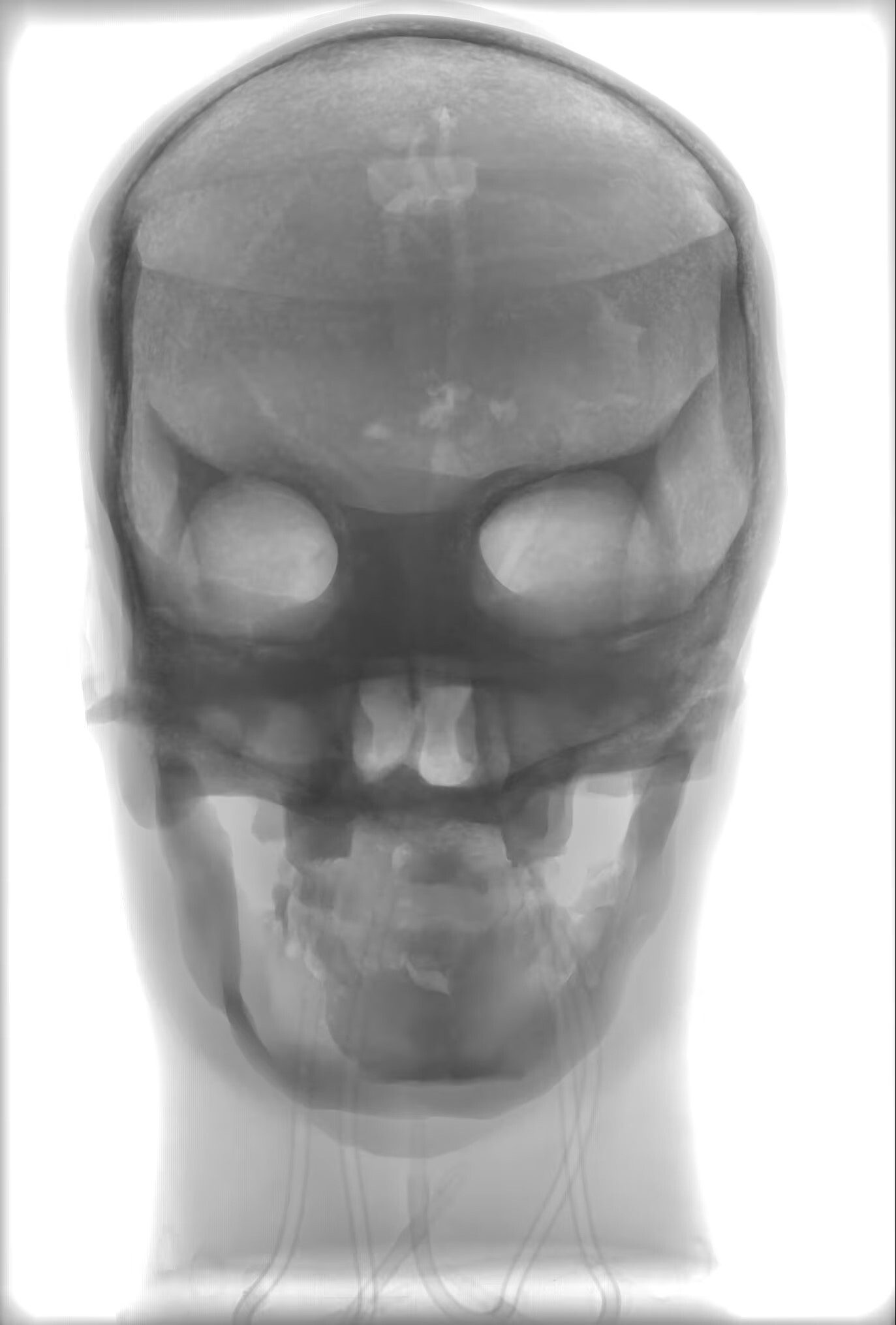

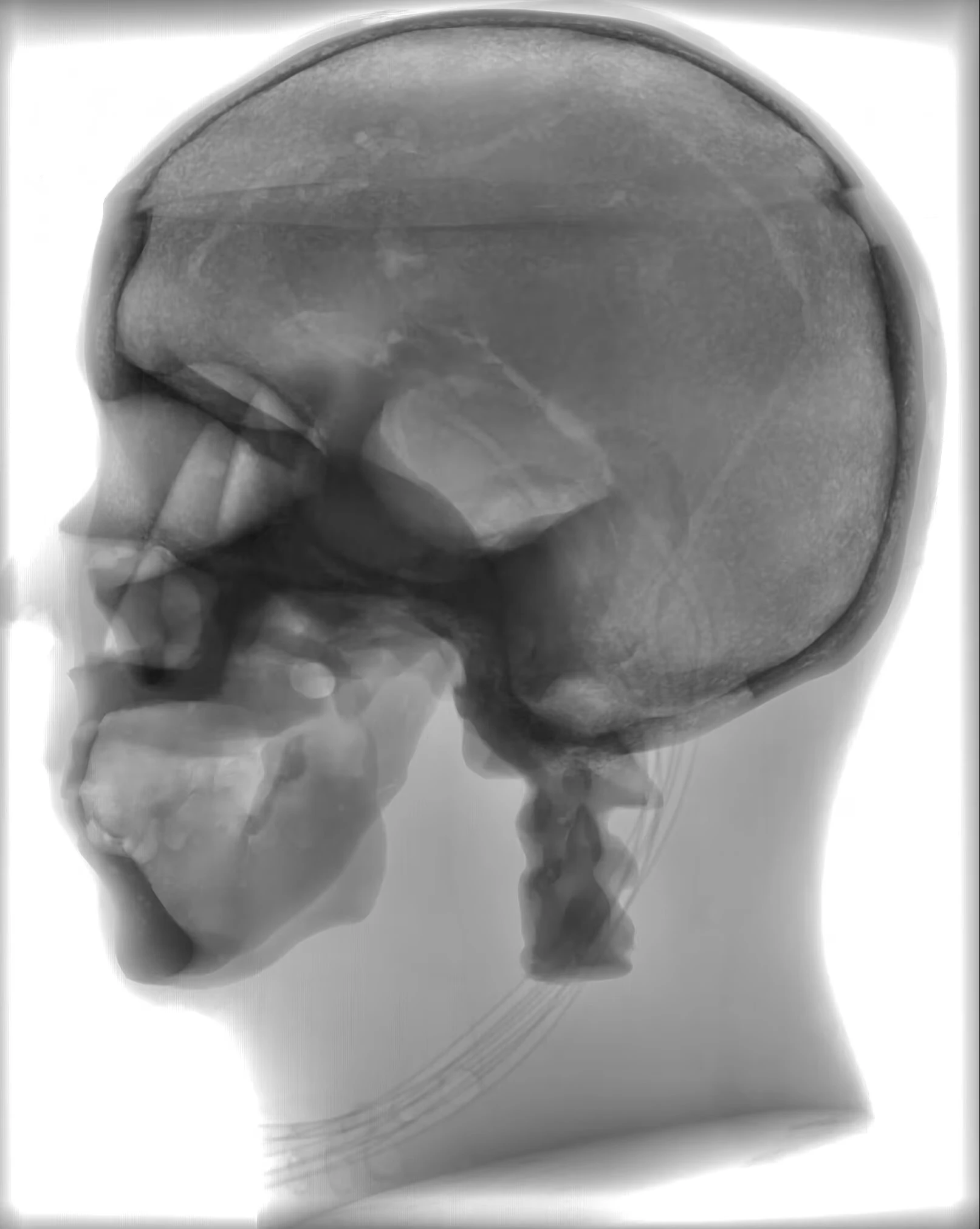

X-Ray Image Scans
