True Phantom

Static Adult Male Head Phantom Model

(No reviews yet) Write a Review
SKU:
A-112415
MPN:
HD-A01
Availability:
Typically Ships in 12-16 Weeks. Contact us if you have a firm Delivery Date Requirement.
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
  • Static Adult Male Head Phantom Model
Retail Price $8,600.00
Today's Price $7,820.00
— You save $780.00

Description

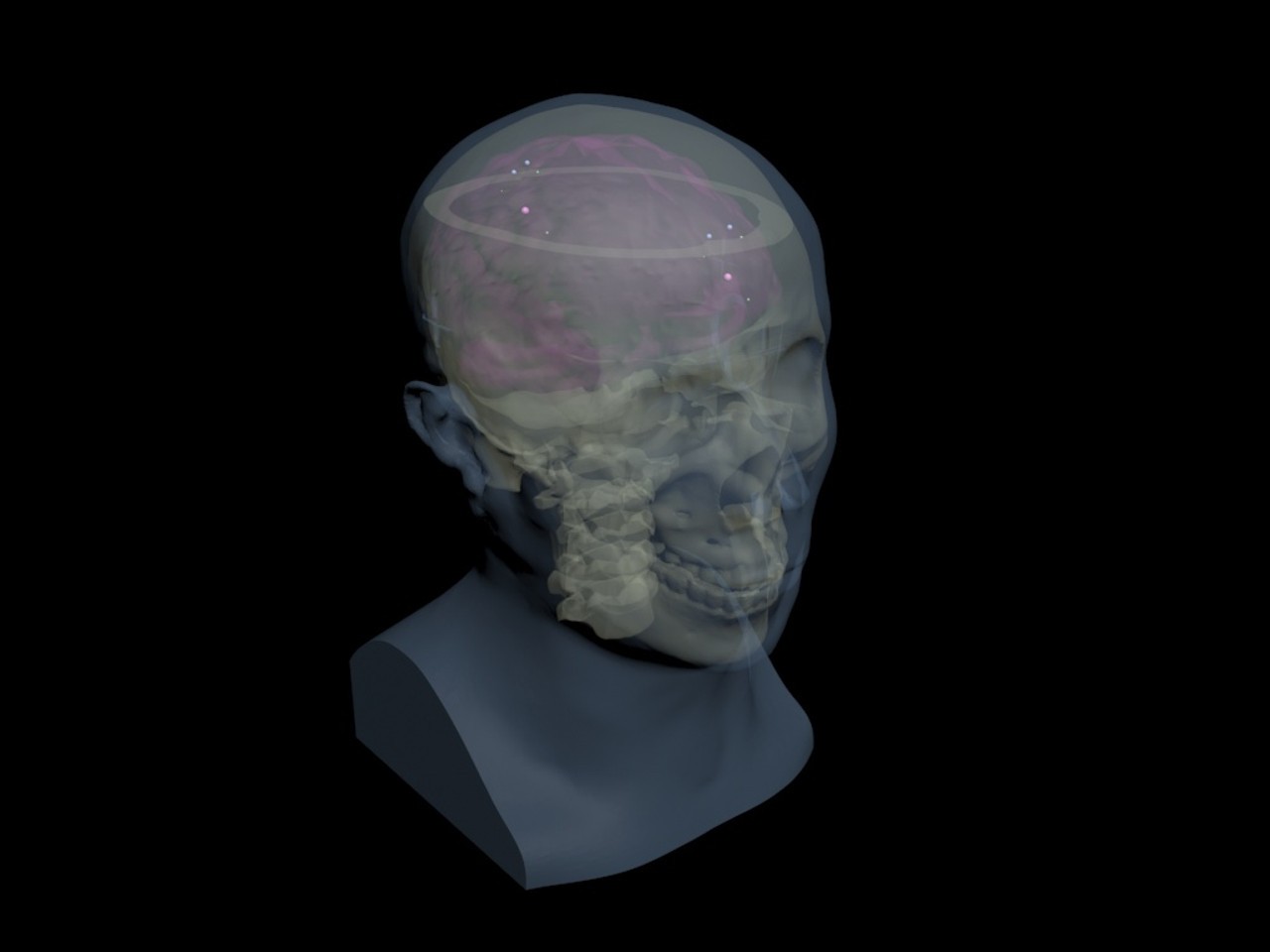

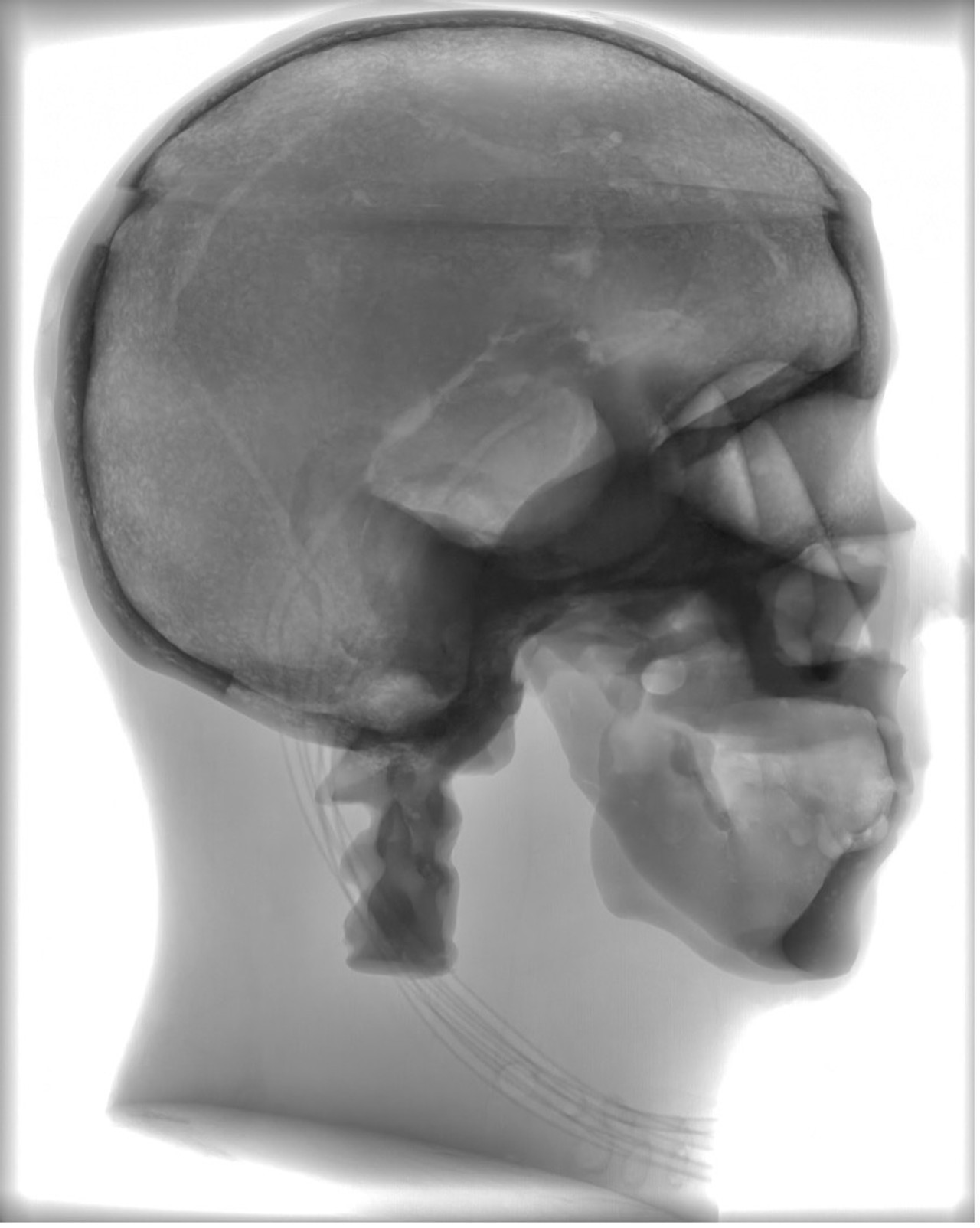

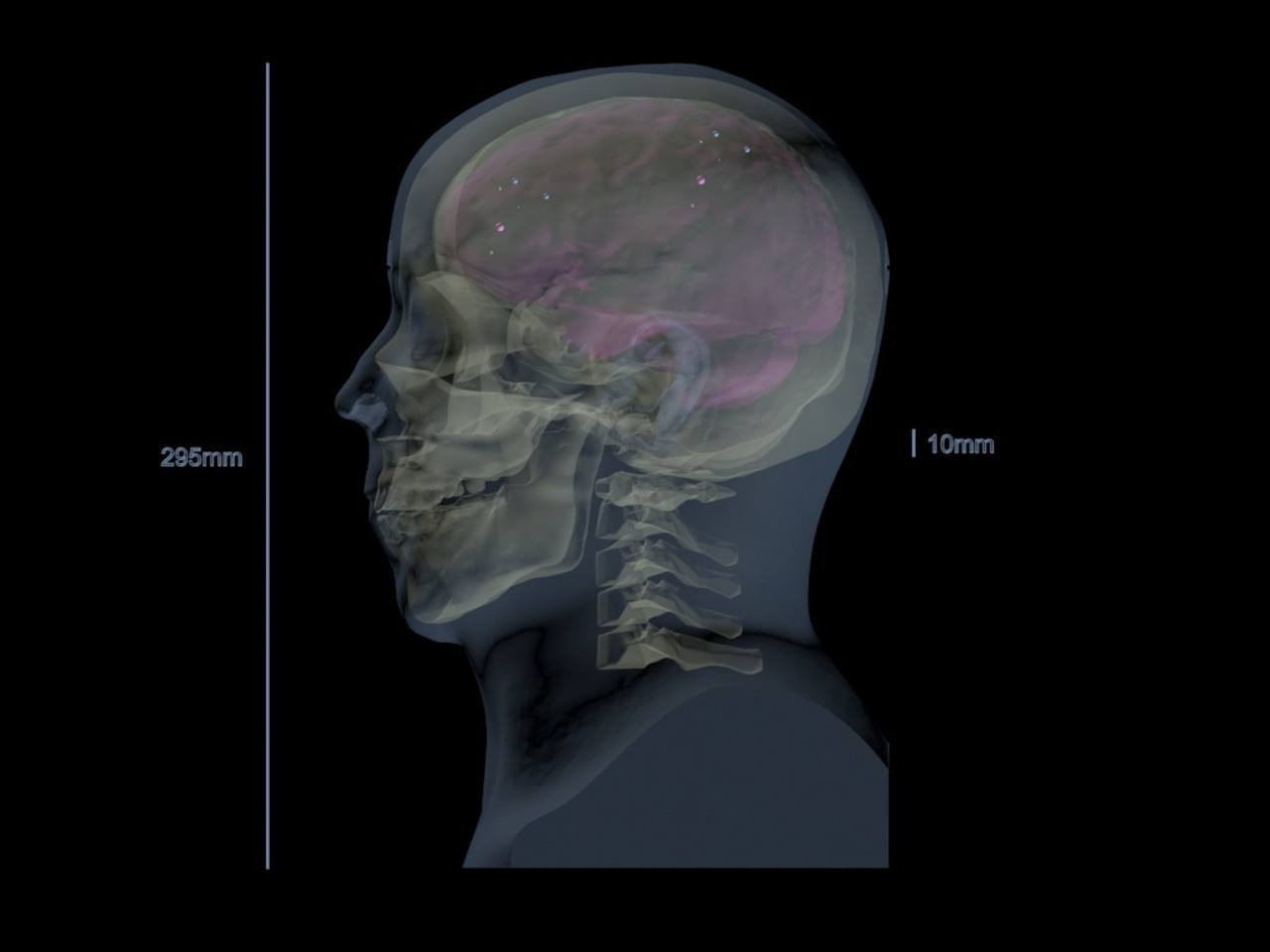

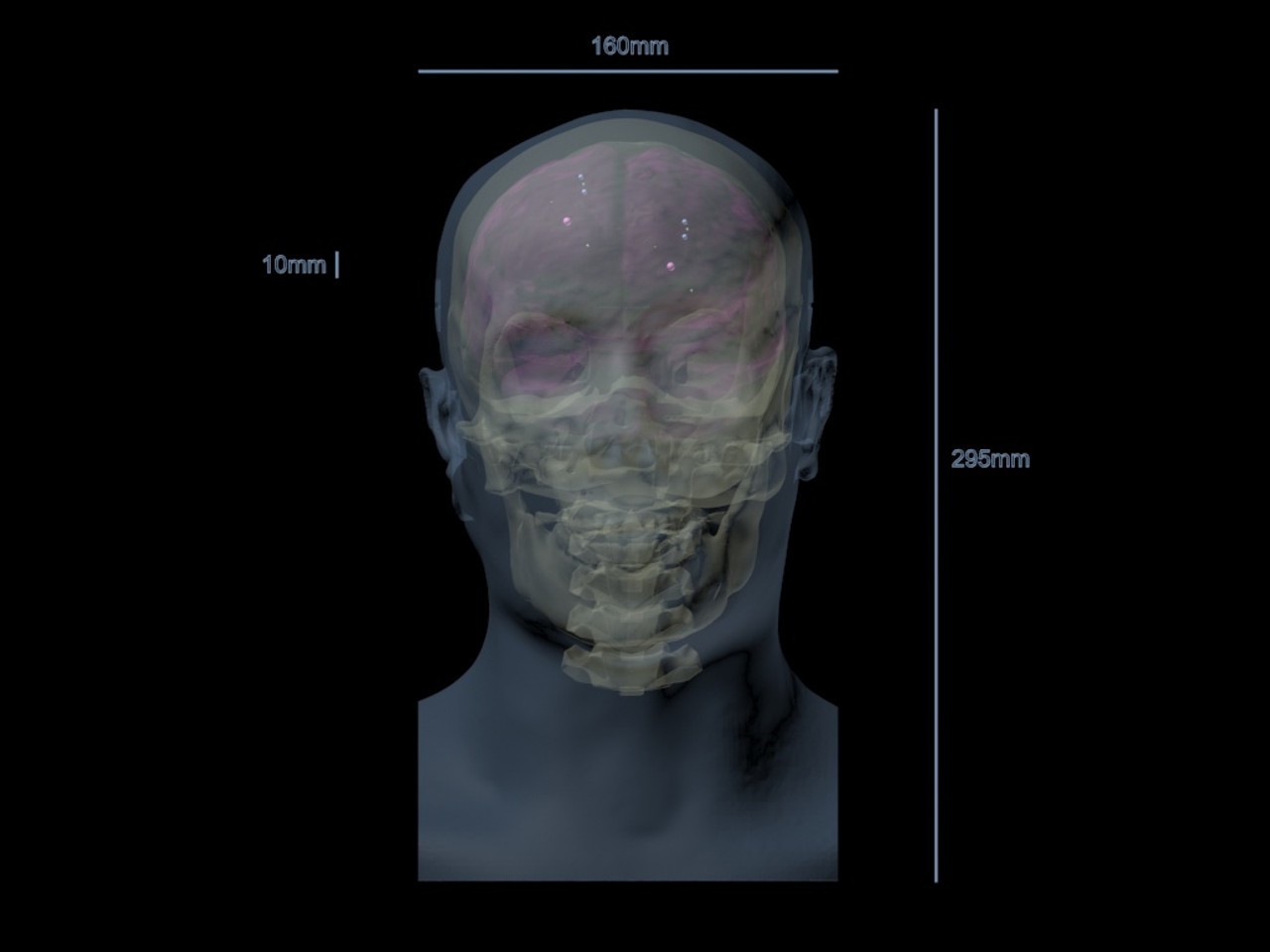

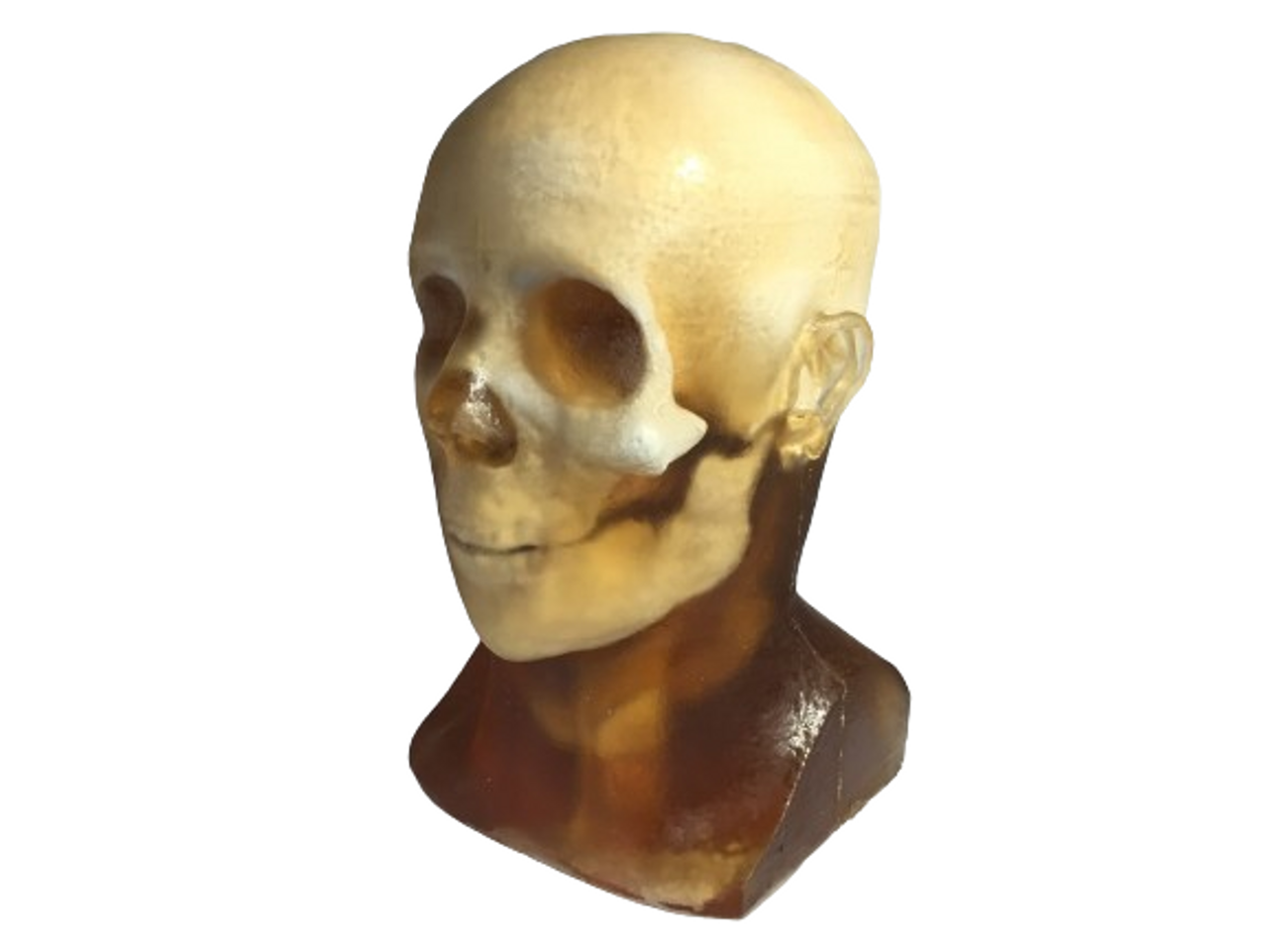

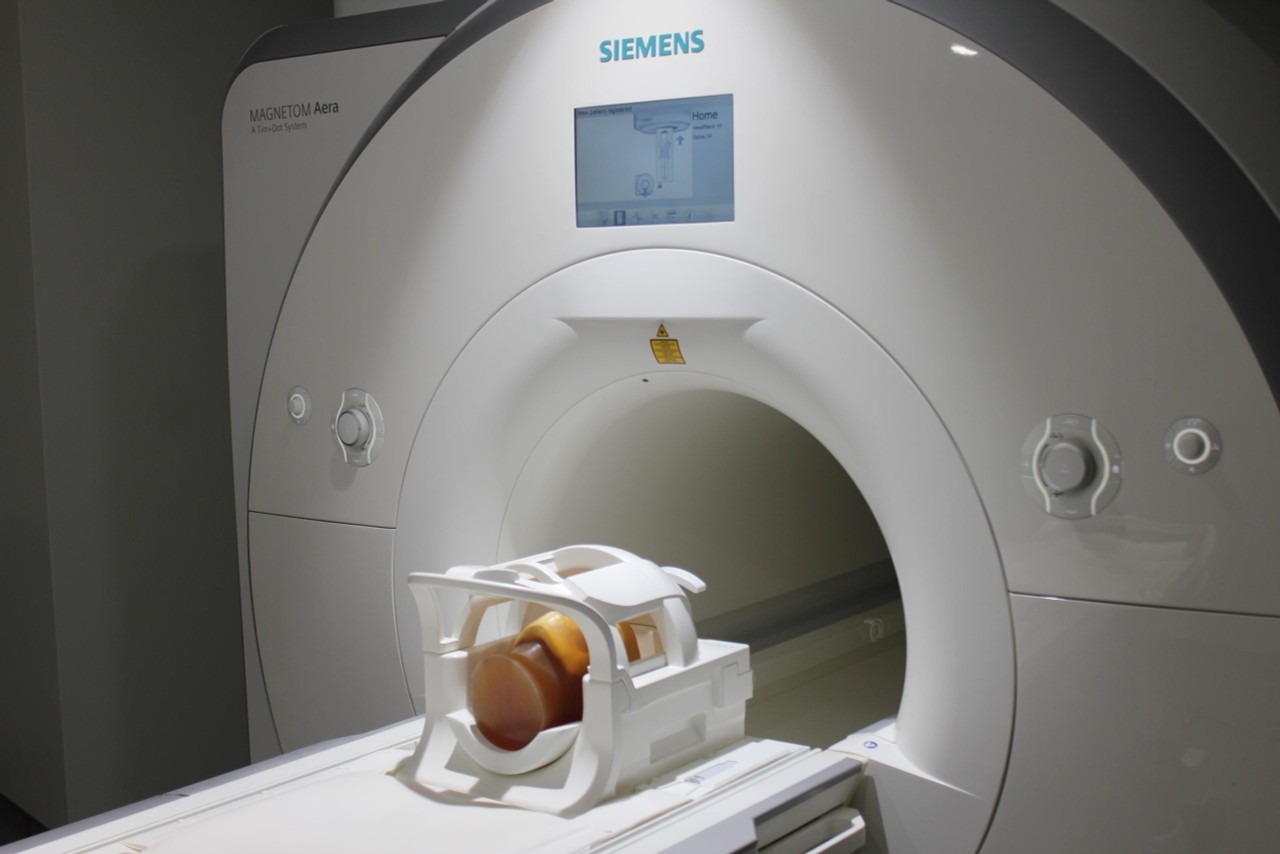

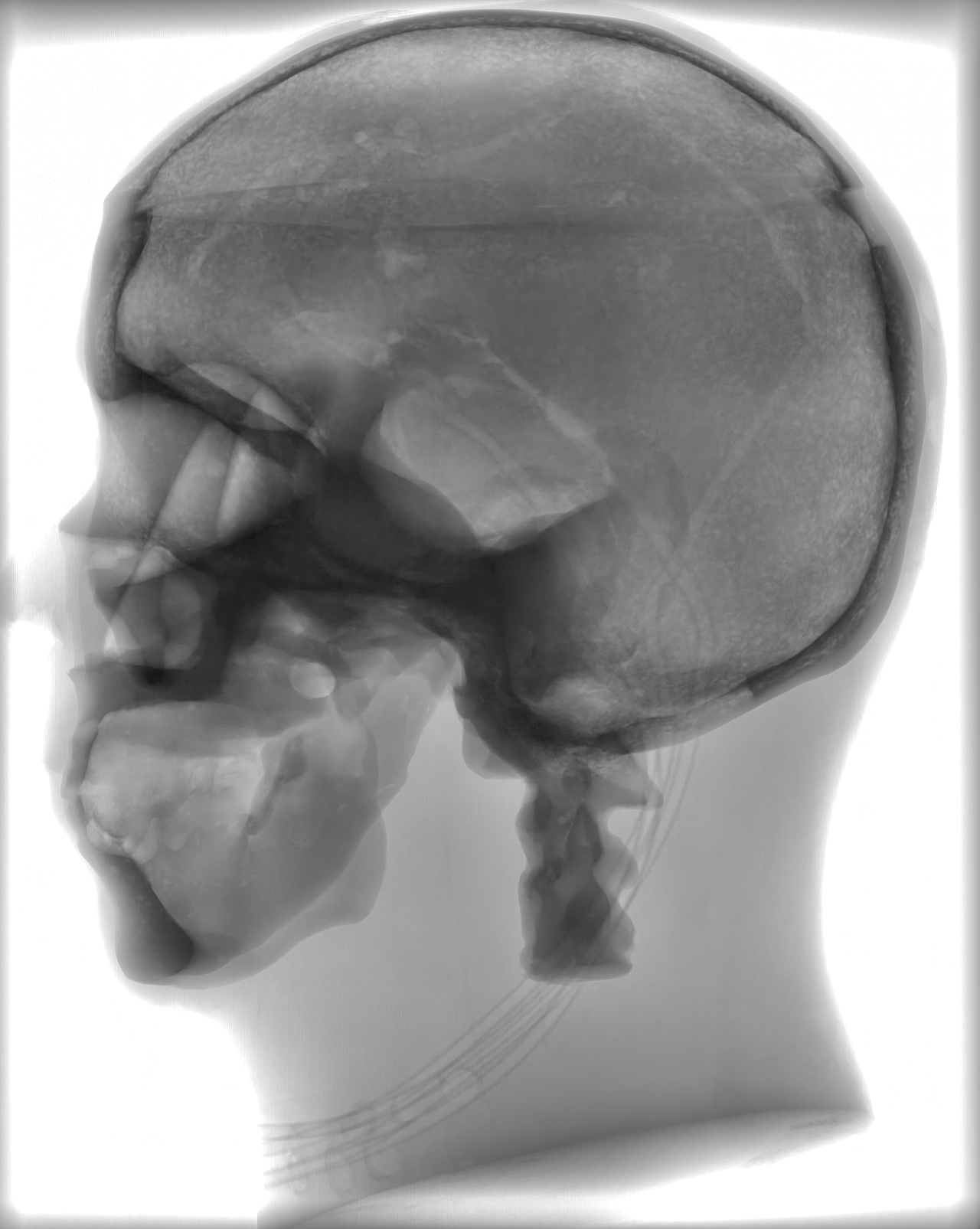

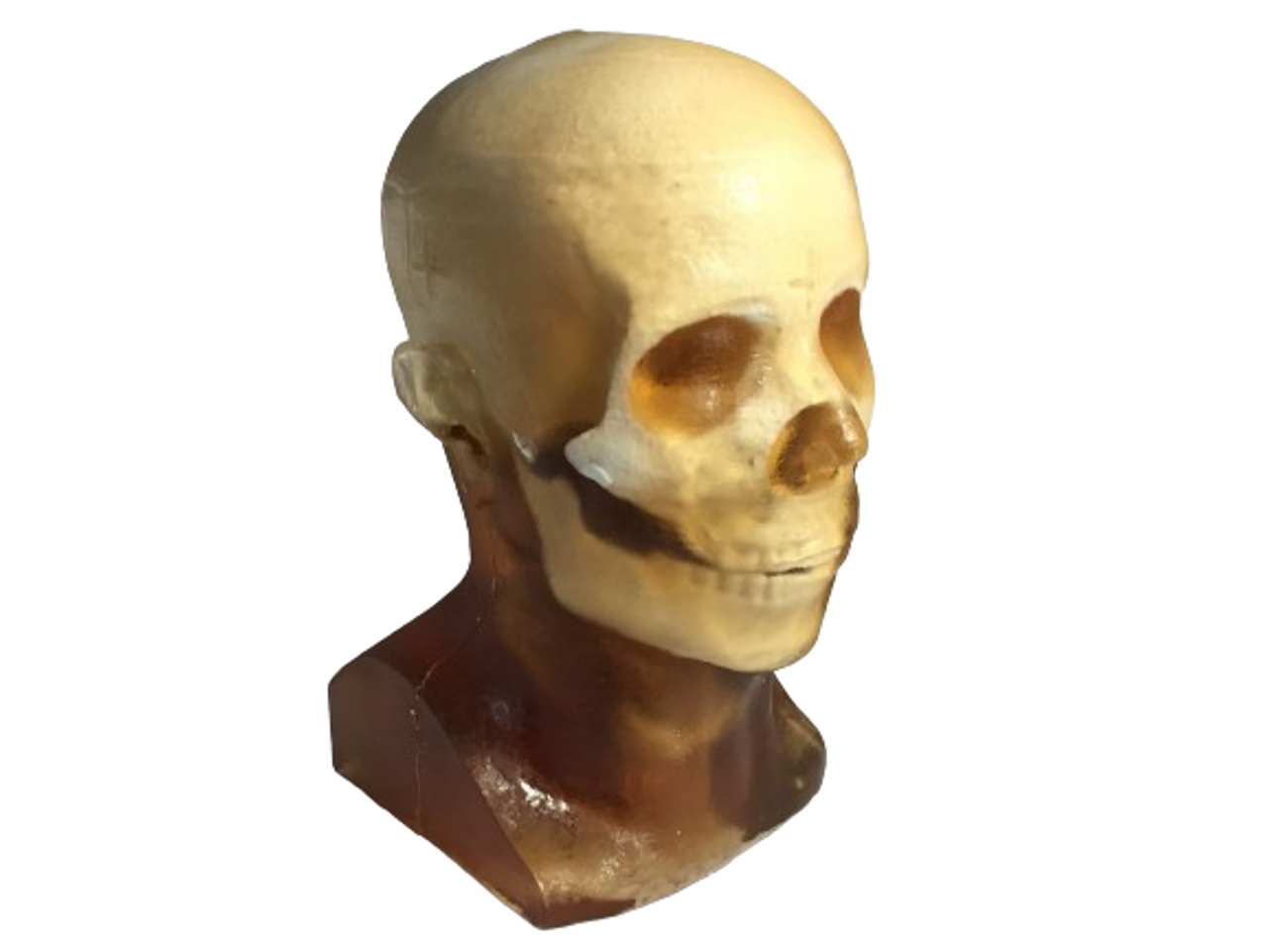

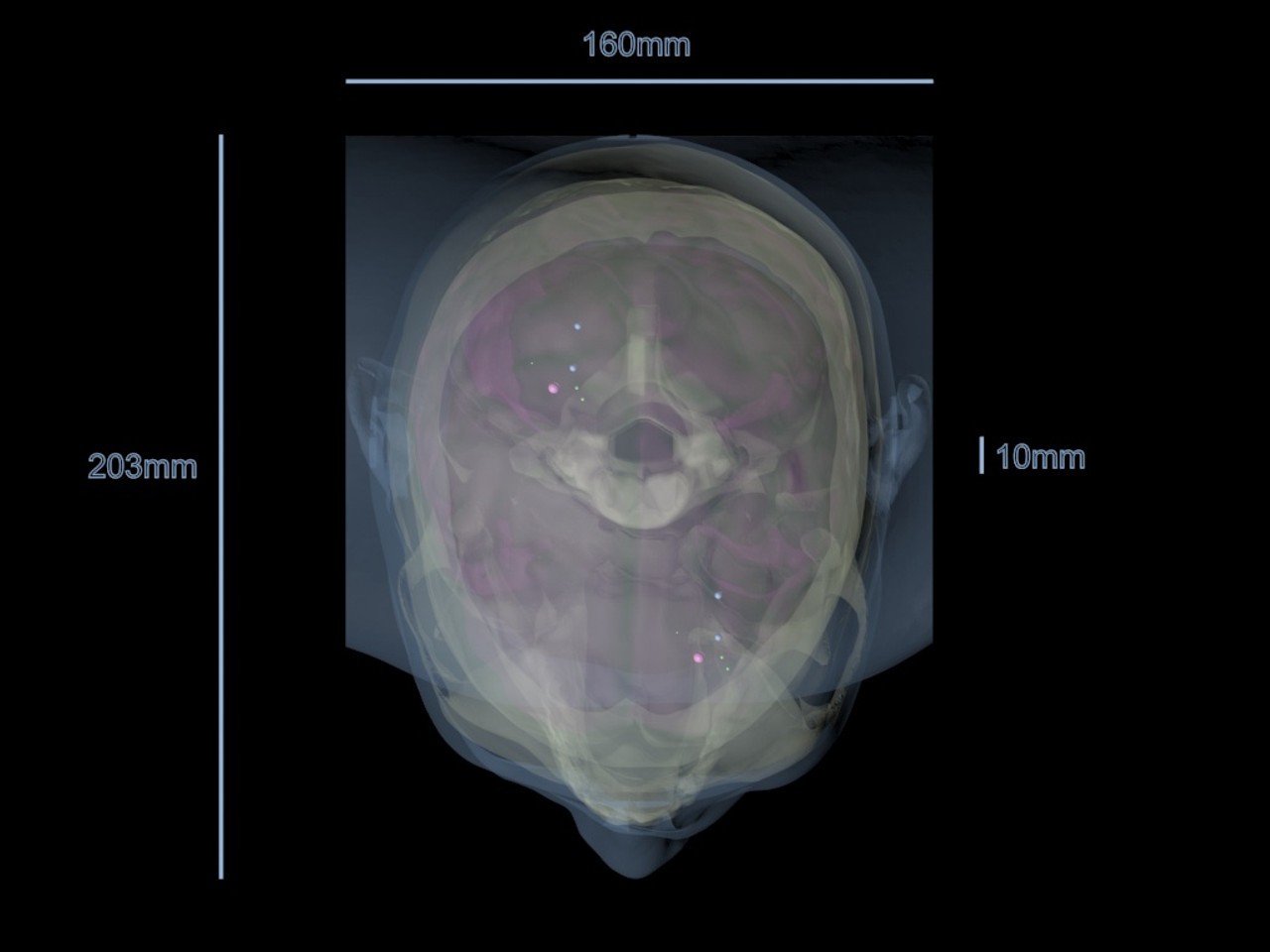

Static Adult Human Head Phantom is designed to be suitable for medical imaging of foreign static objects such as small bone pieces, shrapnel, bullets and any other metal or non-metal targets. The phantom is designed based on an average anatomy of a human male head and it is made out of realistic soft and hard tissue mimicking materials suitable for Ultrasound, MRI and CT applications.

The phantom consists of following components:

  • Anatomically correct realistic skull
  • Realistic brain phantom
  • Set of small static objects (bone and metal pieces with the following diameters: 0.5mm, 1mm, 2mm and 3mm)



Tissue Properties

Type of the tissue Sound velocity [m/s] Density Type of the tissue Sound velocity [m/s] Speckles Type of the tissue
Cortical bone material used to fabricate the skull bone phantom 3000 ± 30 2.31 N/A N/A N/A 6.4 ± 0.3
Trabecular bone material used to fabricate the trabecular layer within the bone phantom 2800 ± 50 2.03 N/A N/A N/A 21 ± 2
Brain matter 1400 ± 10 0.99 20 70 YES 1.0 ± 0.2
Skin tissue 1400 ± 10 1.02 60 50 NO 1.7 ± 0.2



Thermal Properties Of Our Bone Mimicking Material:

Thermal Conductivity: Volumetric Specific Heat Capacity: Thermal Diffusivity: Thermal Resistivity: Specific Heat: Speed of Sound:
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
