Adult Head (Dynamic) for X-Ray CT, US, MRI
Product Description

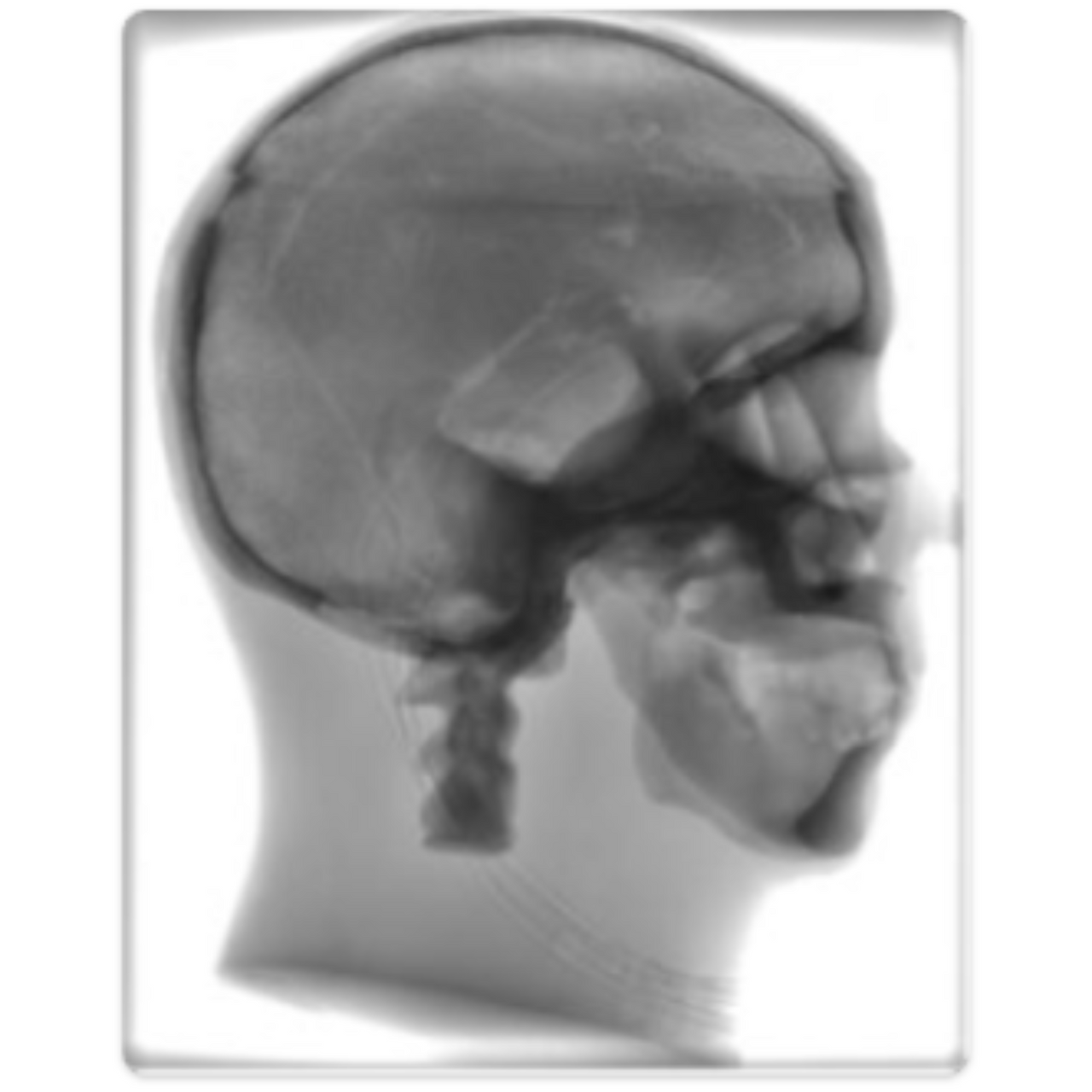

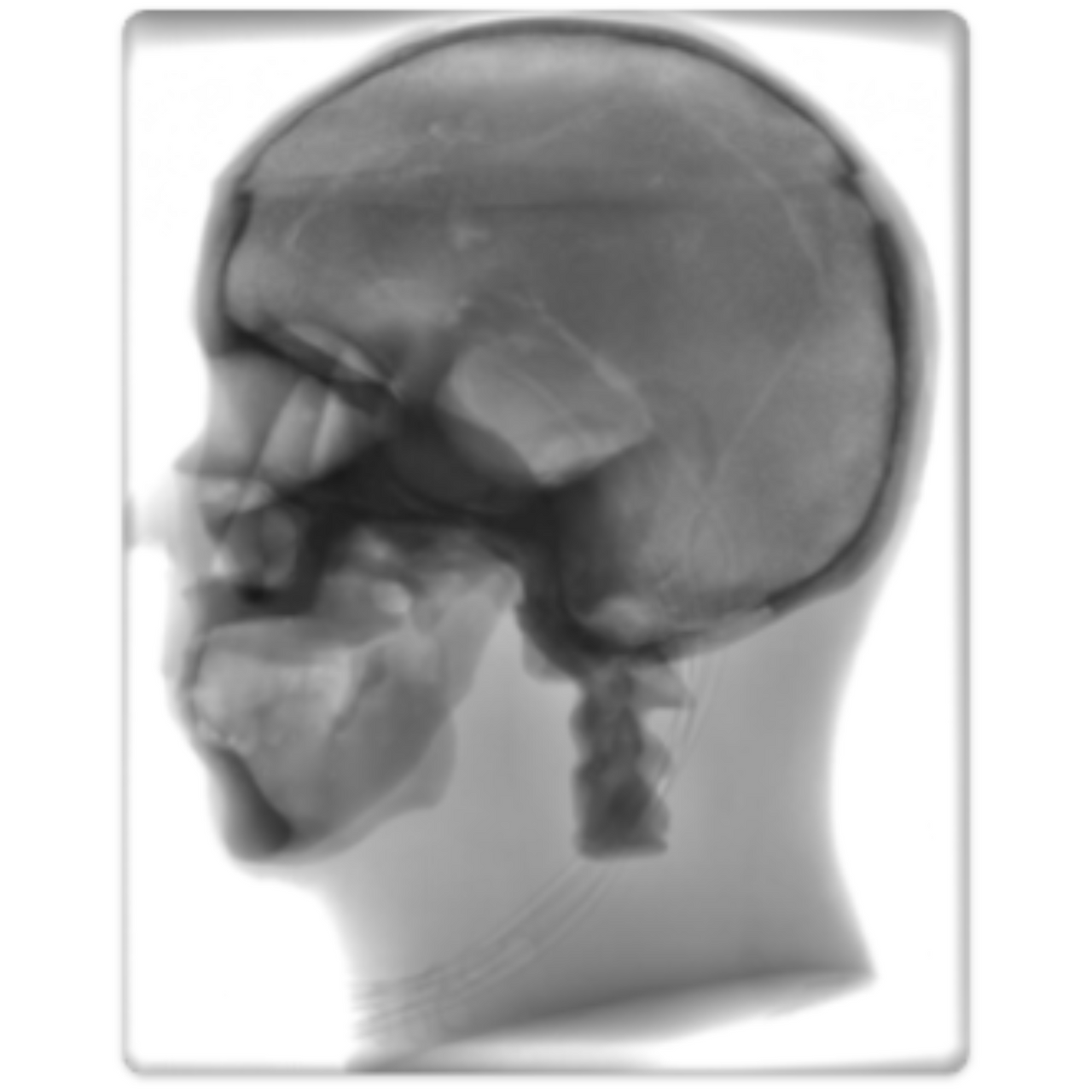

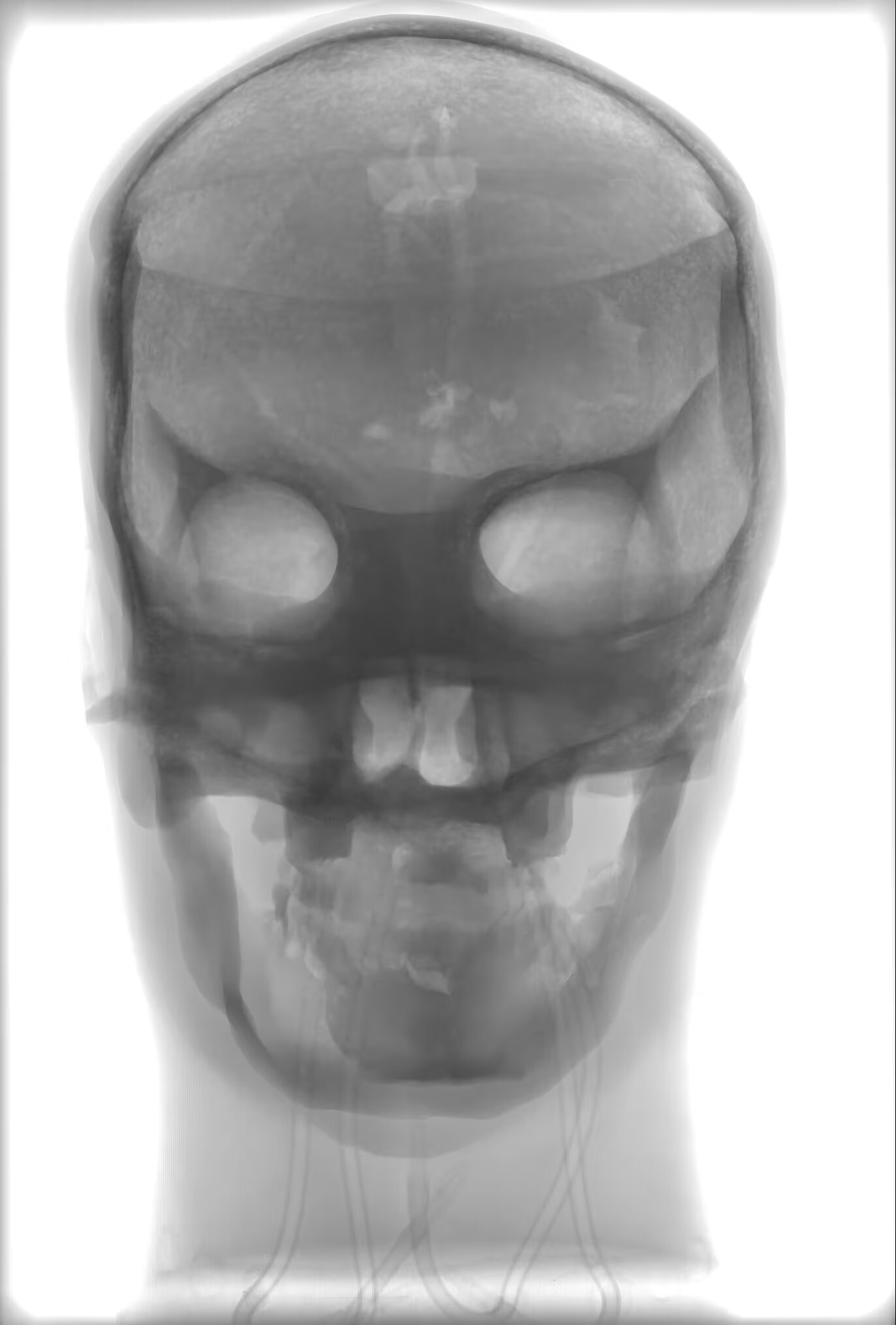

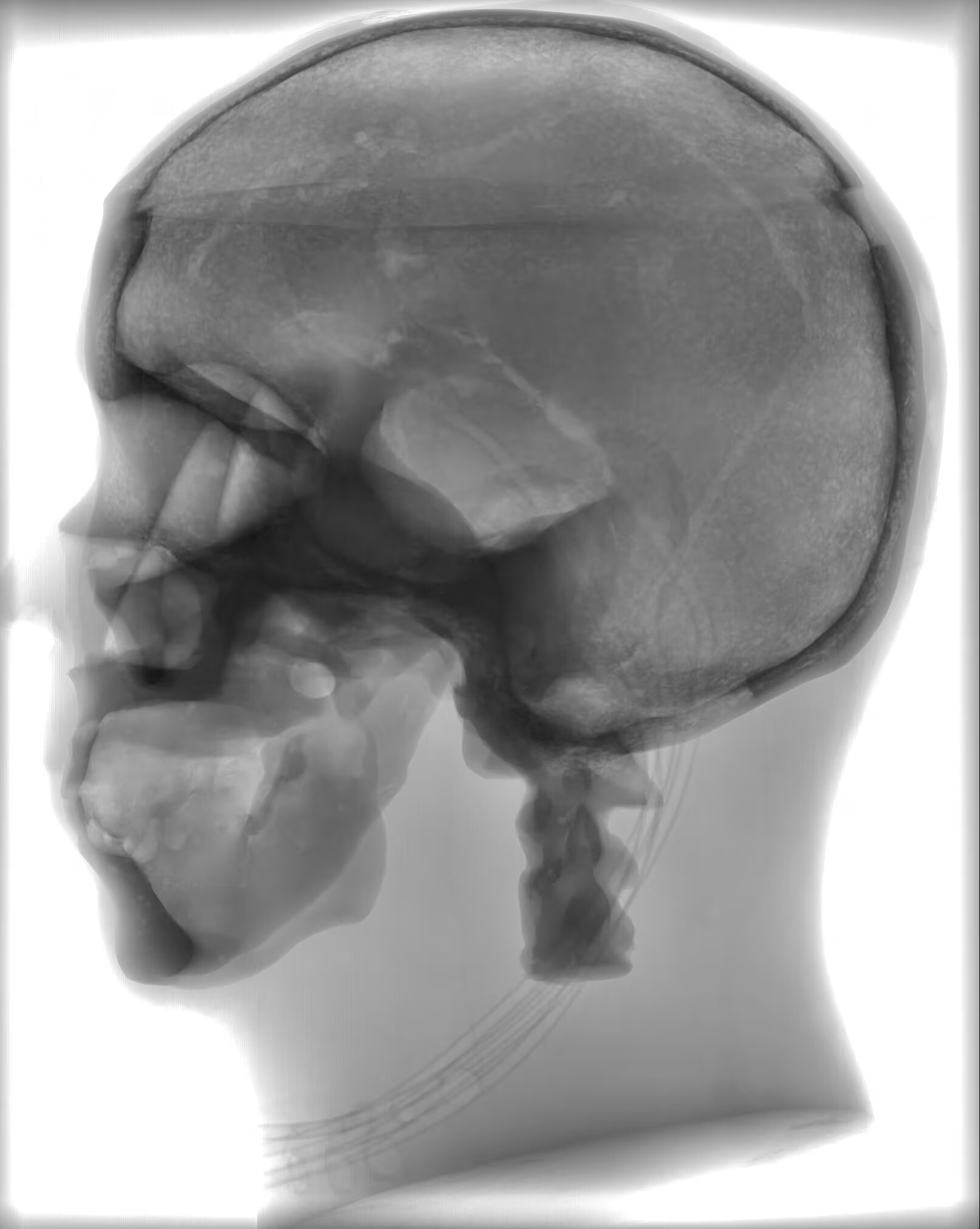

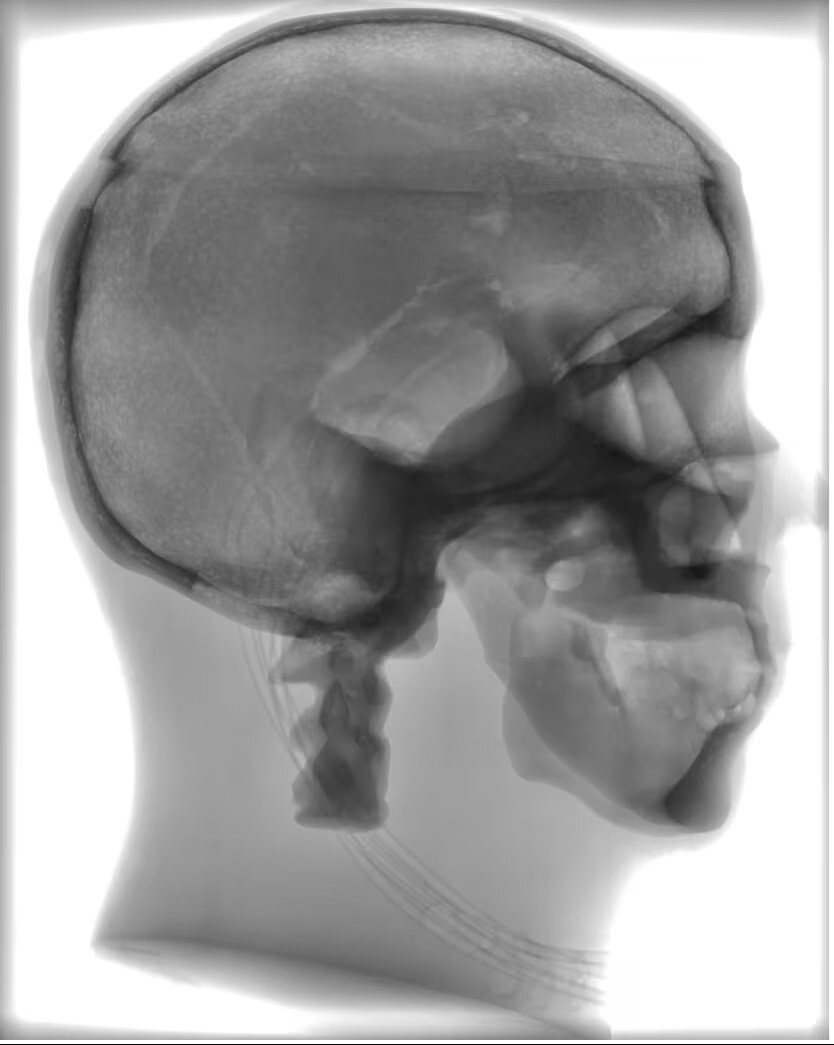

The Adult Head (Dynamic) Phantom is highly realistic and visible on Ultrasound, MRI, and X-Ray/CT scans. It is particularly valuable for angiography training and applications. The brain parenchyma is crafted from ultra-soft polyurethane-based material that mimics living soft tissue, and its anatomical shape is based on human MRI datasets. The materials are engineered for long-term stability and will not dry out over time.

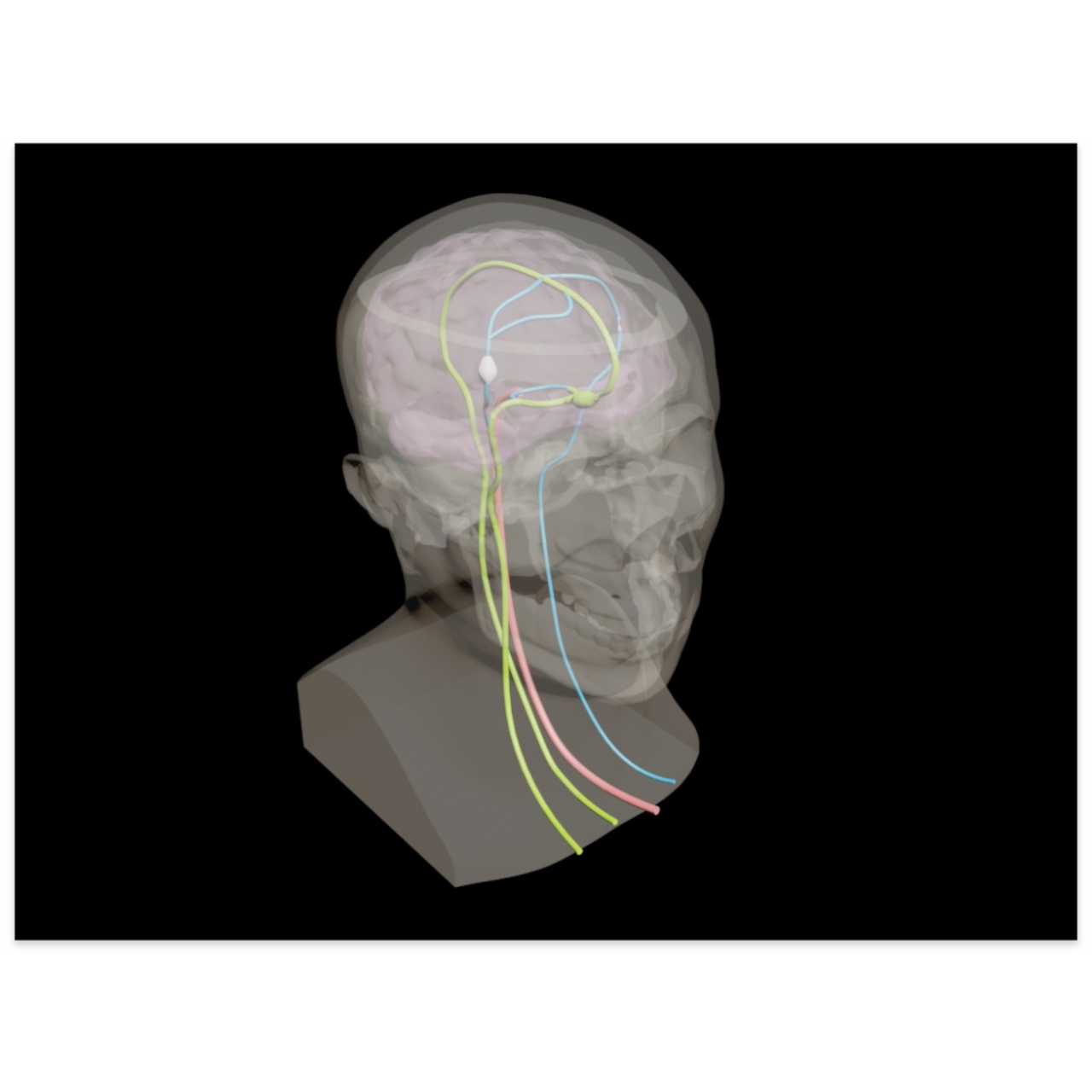

The phantom includes a realistic vascular system with an incorporated Circle of Willis, featuring bifurcations, stenosis, and aneurysms. These vessels can be filled with blood-mimicking fluid or contrast agents (Barium-sulfate, Iodine, Gadolinium, etc.). For MRI, the phantom provides realistic T2 relaxation time values, making it ideal for T2-weighted and proton-density imaging.

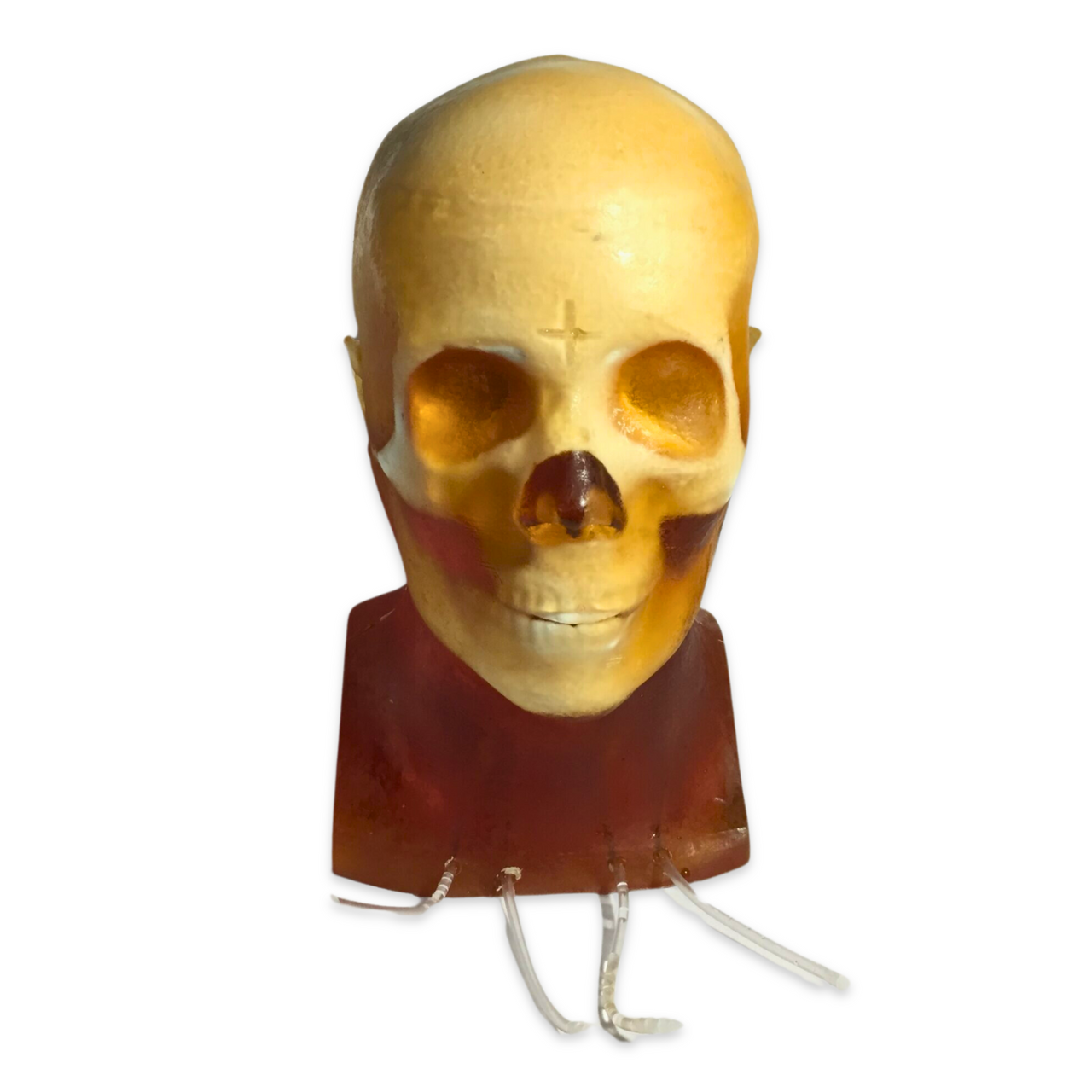

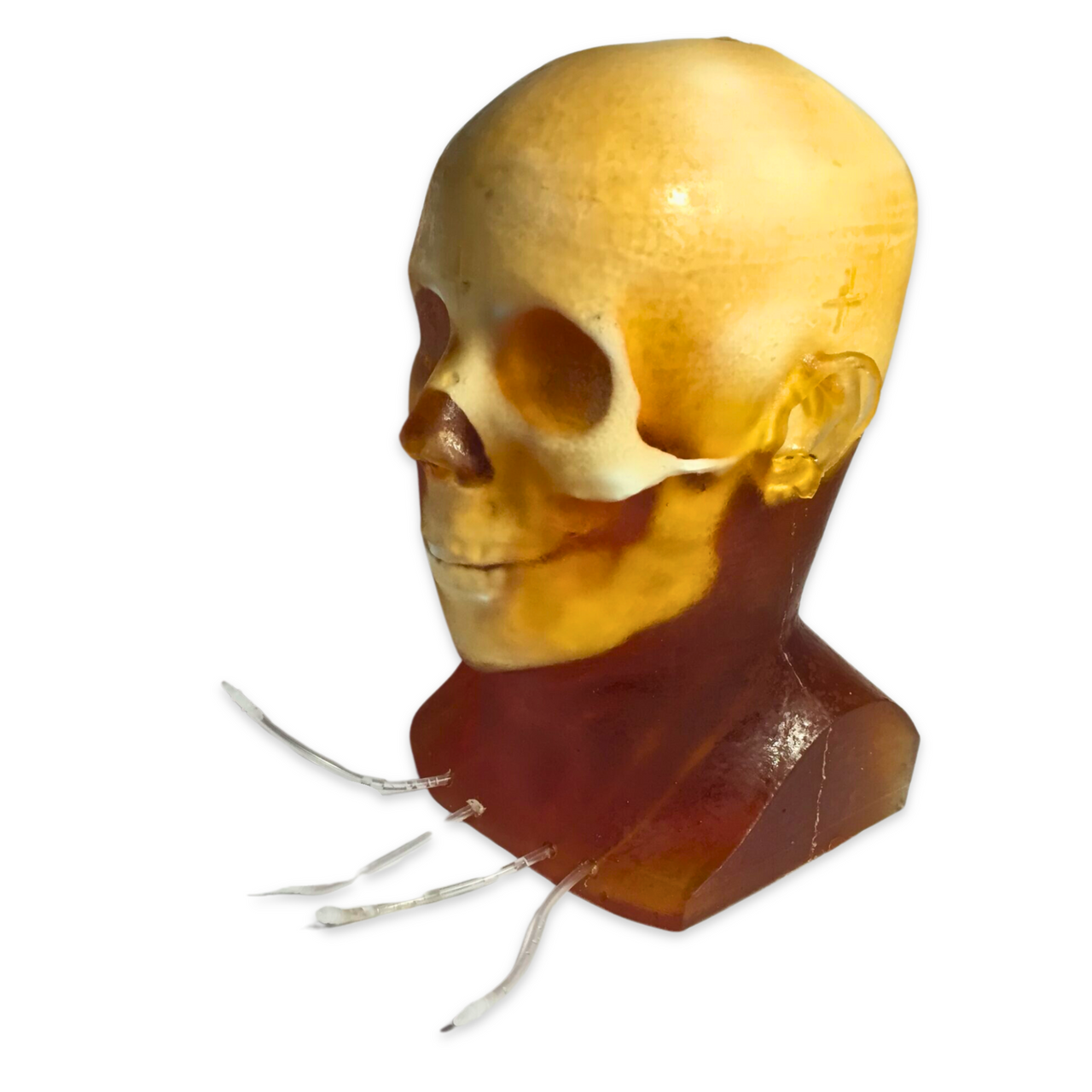

Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. For best imaging results, blood vessels should be pre-filled with water or contrast agent.
Anatomy
- Skull: Realistic three-layered structure with inner diploe layer.
- Brain: Grey Matter parenchyma.
- Vascular System: Complex brain vessels (2mm, 3mm, 4mm), Circle of Willis, one bifurcation, one stenosis, and two aneurysms.
- Neck: Vessels connected with the neck and plastic connectors.
- External: Alignment markings and acoustically correct skin-mimicking material.
Head Phantoms Comparison
| Features | Dynamic Head | Static Head | Standard Head | Hematoma Head |
|---|---|---|---|---|
| Skull | ? | ? | ? | ? |
| Skin Mimicking Material | ? | ? | ? | ? |
| Brain (Gray Matter) | ? | ? | ? | ? |
| Brain Ventricles | ? | ? | ? | ? |
| Circle of Willis Vessels | ? | ? | ? | ? |
| Bifurcation / Stenosis | ? | ? | ? / ? | ? |
| Cervical Spine | Optional | ? | ? | ? |
| Hematoma | ? | ? | ? | ? |
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00]* | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Skin/Body Tissue | 1400 ± 10 | 1.02 | 1.7 ± 0.2 | 60 | 50 | NO |
*Hardness measured without protective coat; coating adds ~30 points to Shore OO value.
HU Values of Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Skin Tissue | -25 |
Included in Order
- Adult Head (Dynamic) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 12 x 9 x 7 Inches | Weight: ~17 Lbs
Shipment: 23 x 14 x 10 Inches | Weight: ~22 Lbs
Materials Used
- Soft tissue and parenchyma: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
