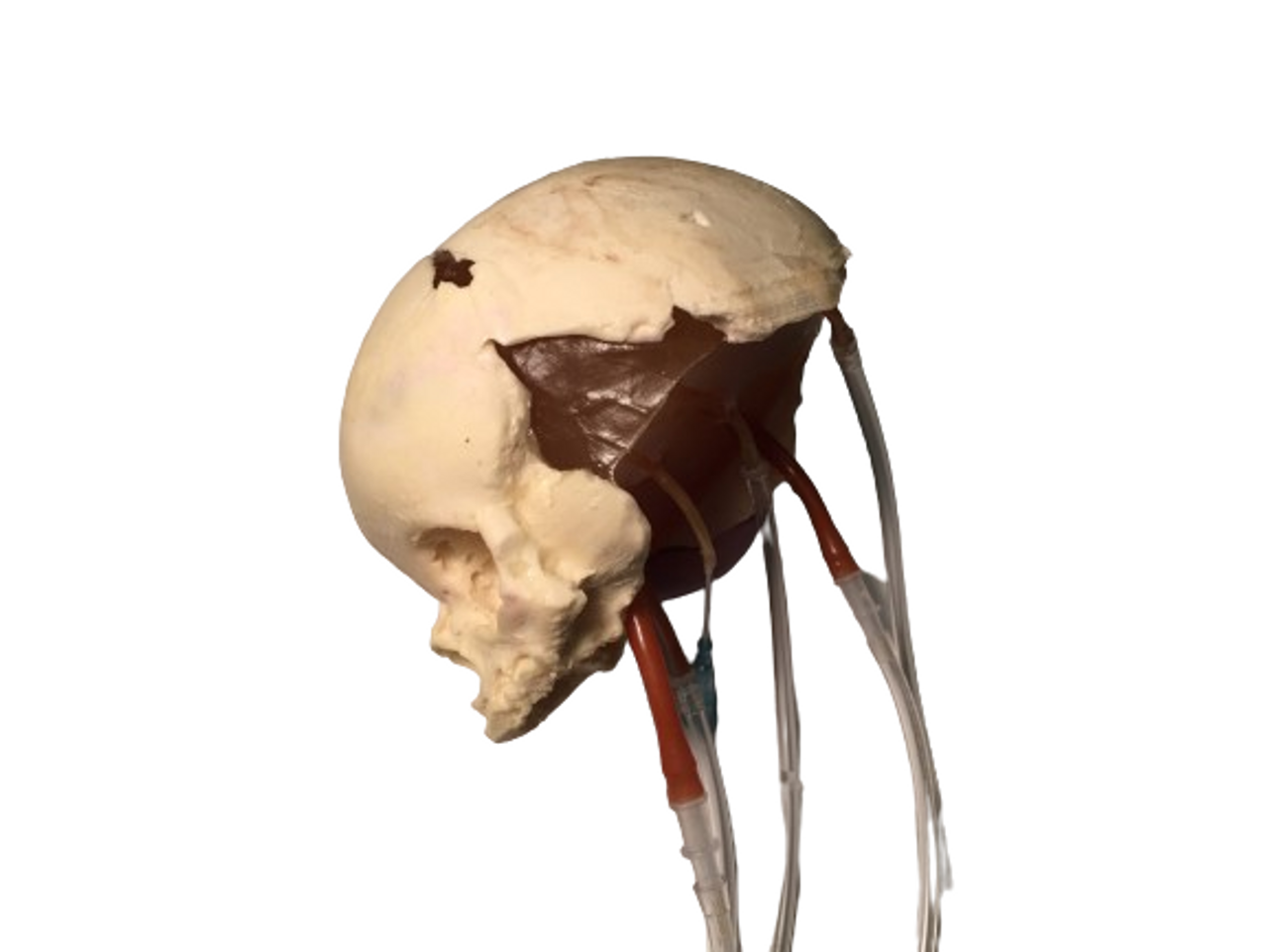

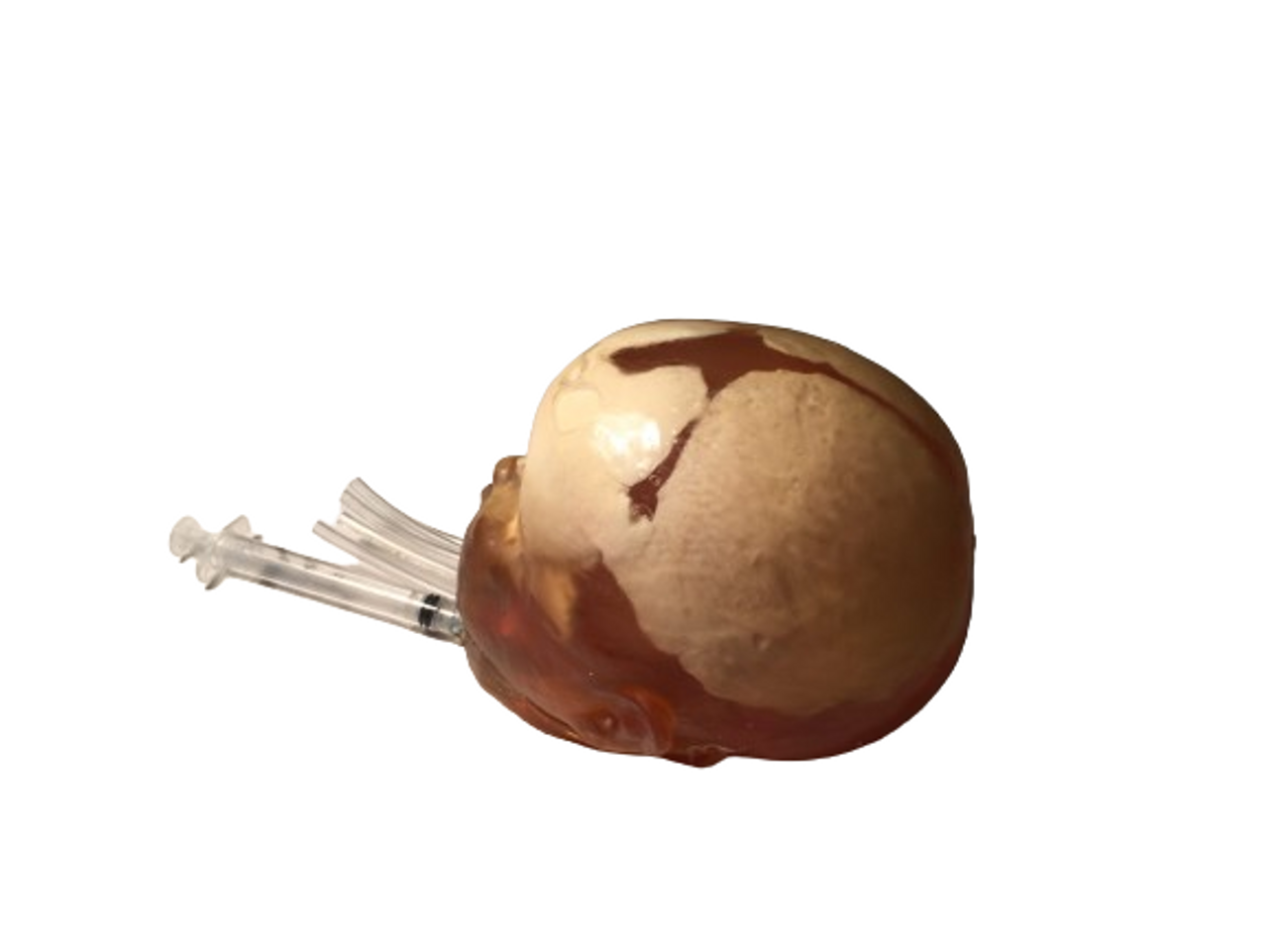

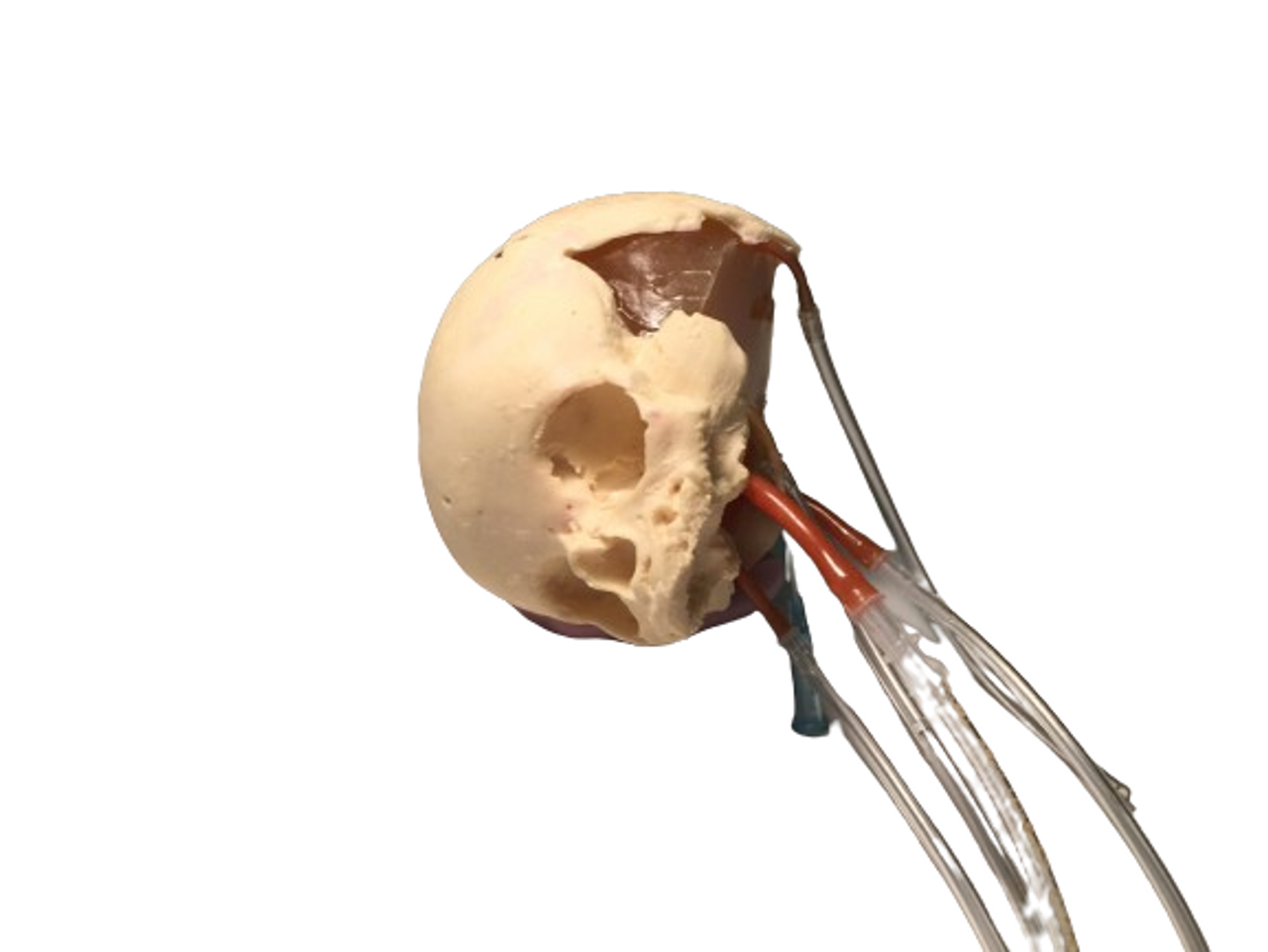

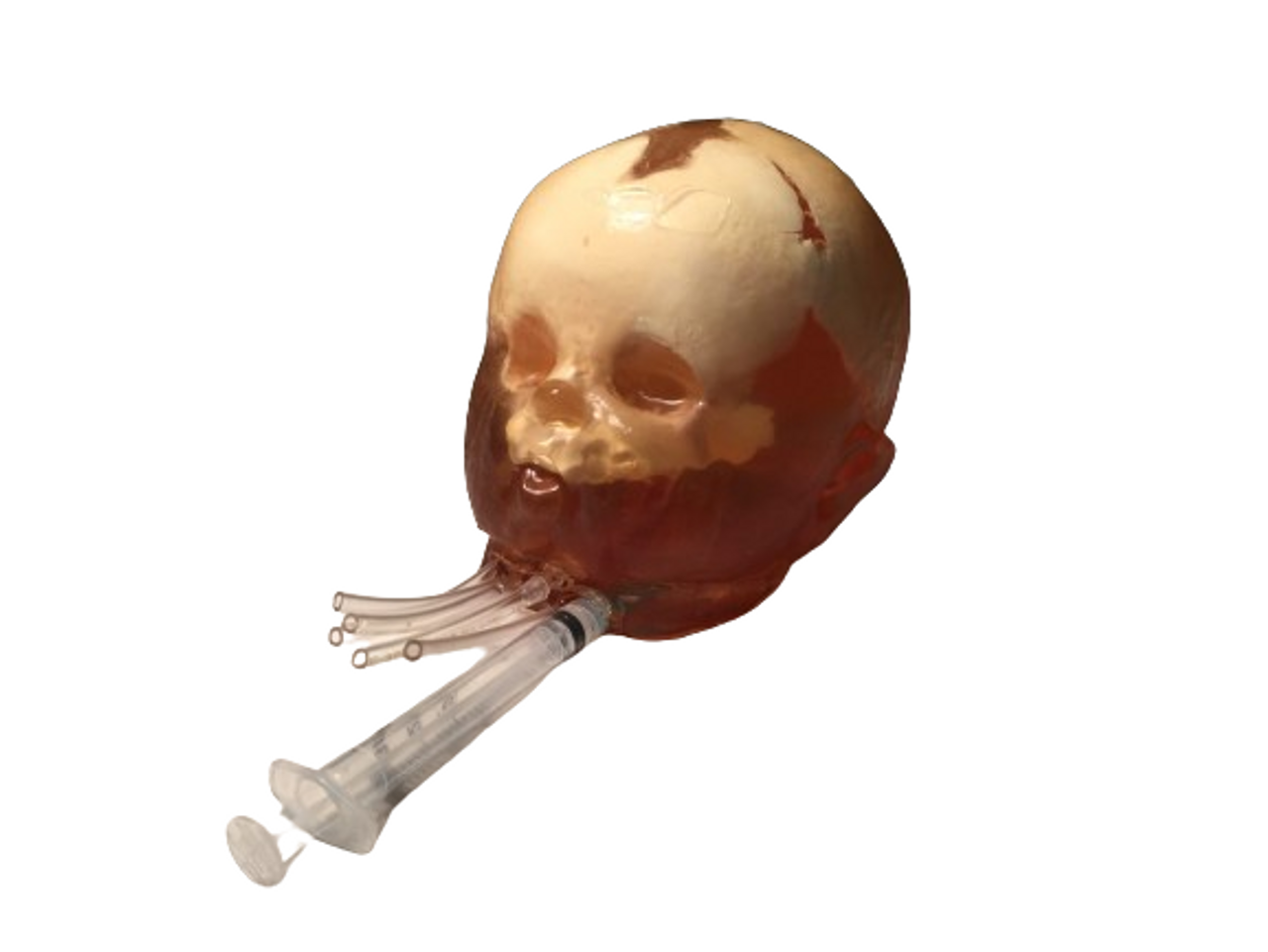

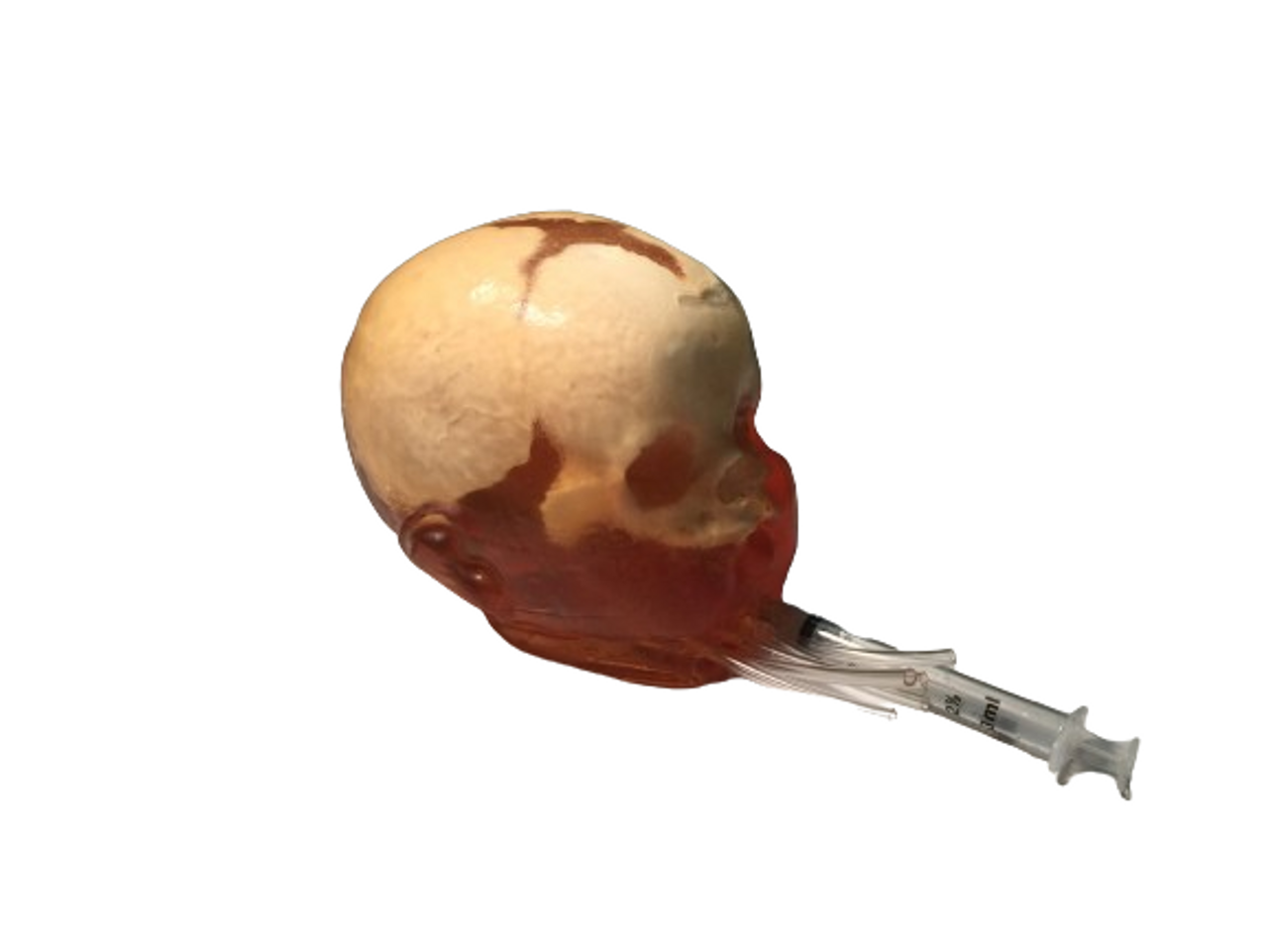

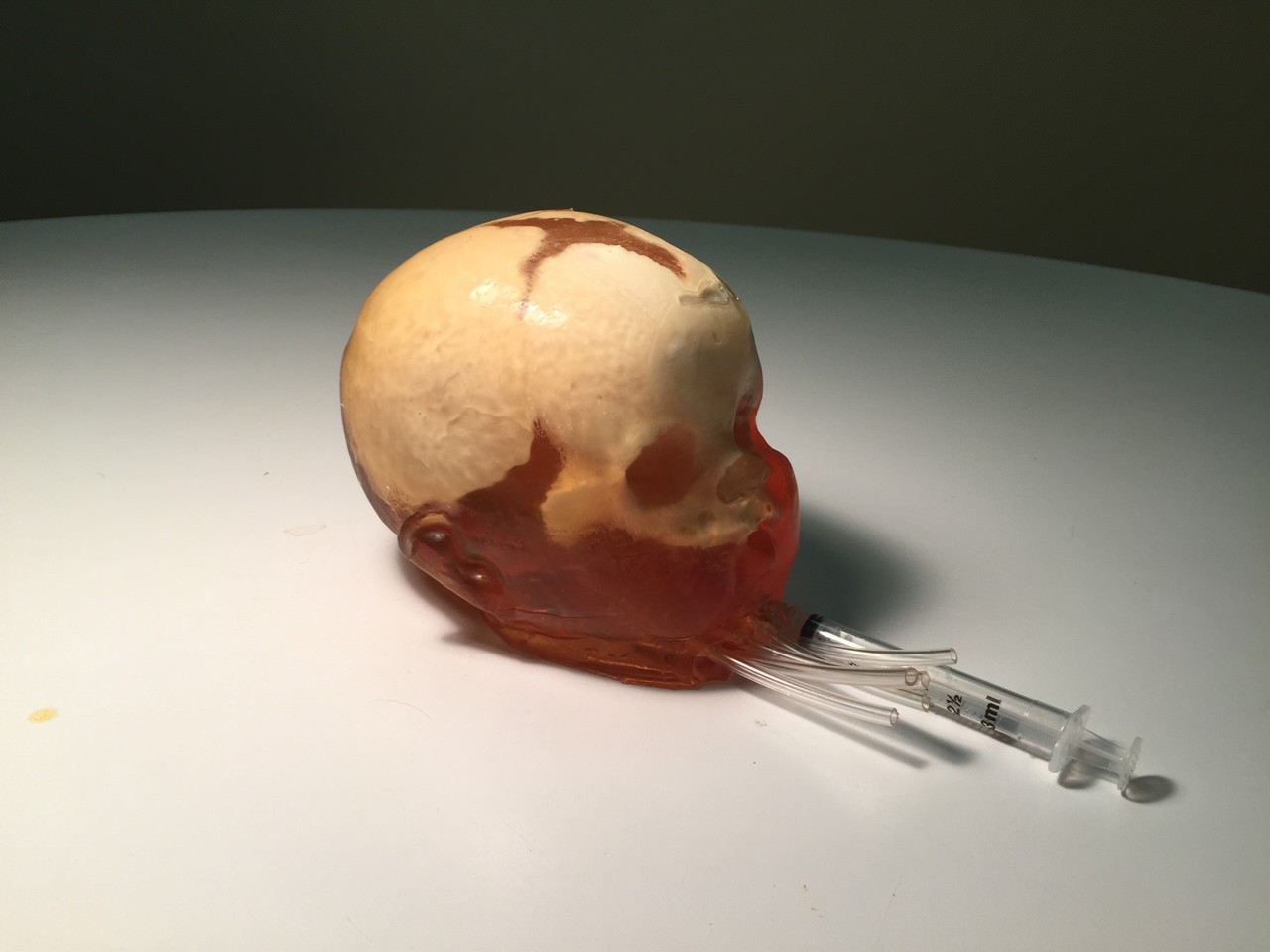

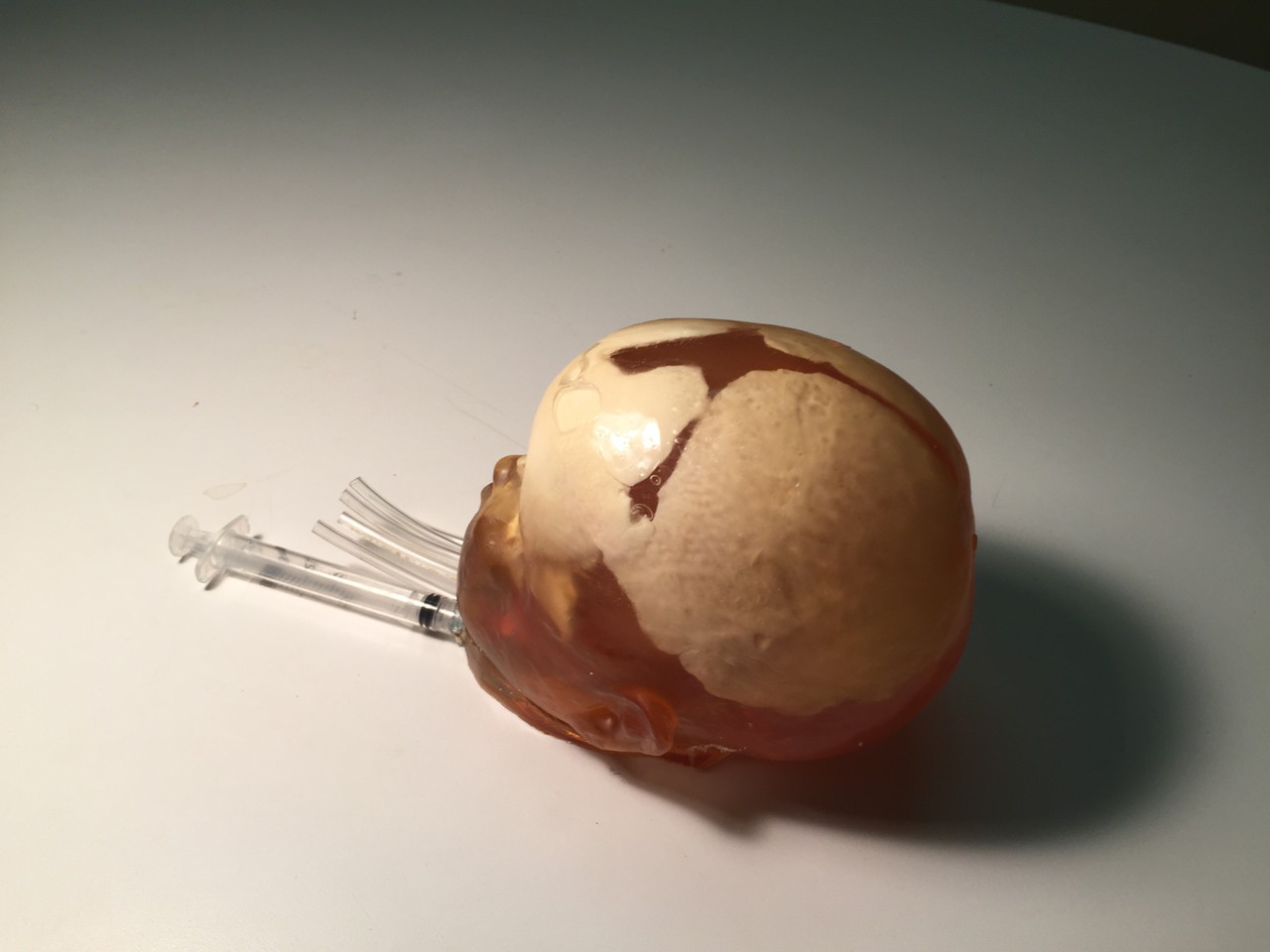

Newborn Head (Dynamic) for X-Ray CT, US, MRI
Product Description

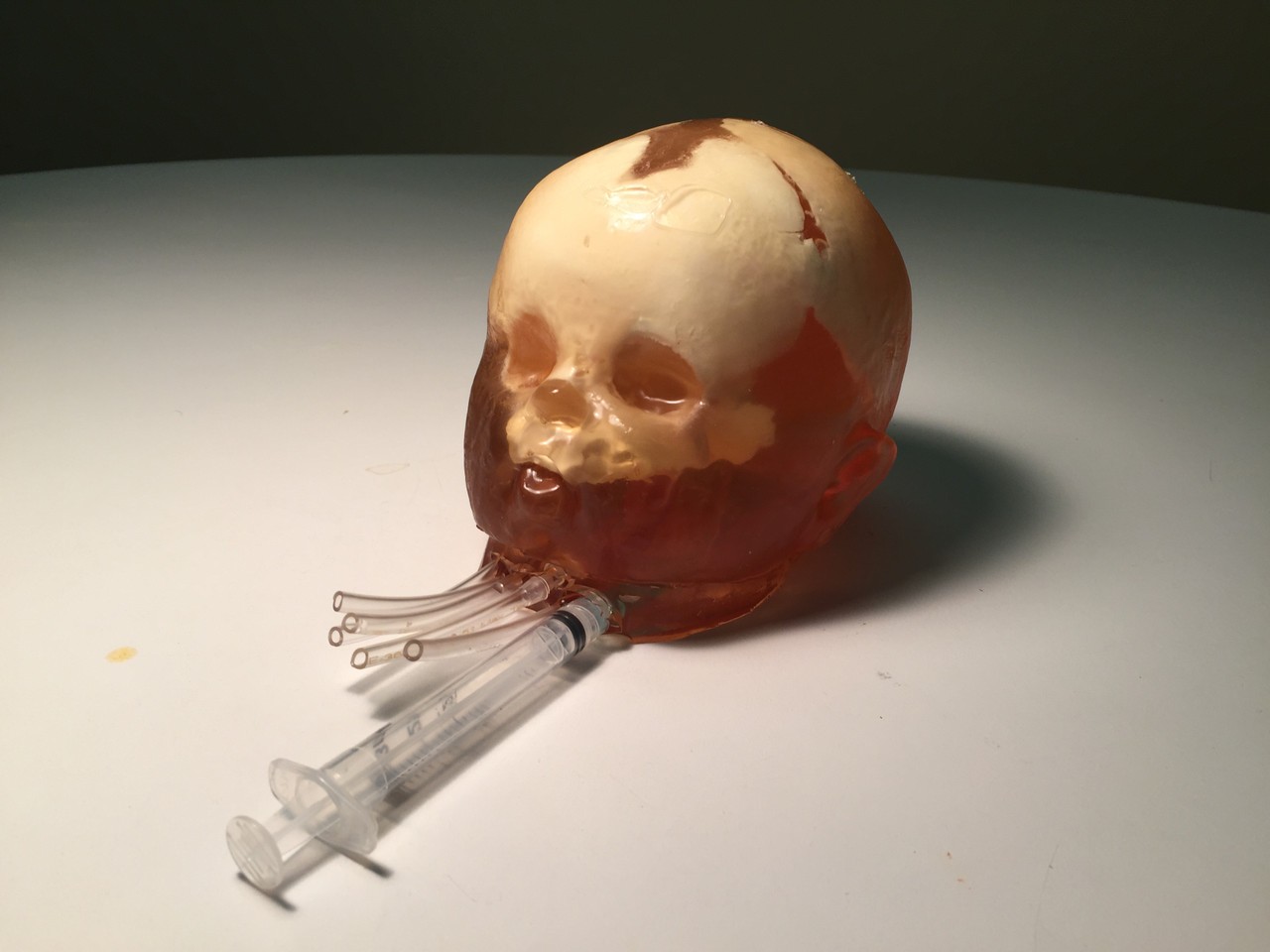

The Newborn Head (Dynamic) phantom is meticulously designed for medical imaging of blood flow underneath the skull. Based on average newborn anatomy, it uses realistic soft and hard tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT applications. This model is an excellent tool for angiography training and research.
For MRI, the tissues feature realistic T2 relaxation time values, optimized for T2-weighted and proton-density imaging methods. While T1-weighted imaging is possible, values fall within the less realistic range of approximately 100 ms. The phantom is compatible with multiple contrast mediums, including Barium-sulfate, Iodine, Gadolinium, Microbubble, and Iron Oxide-based products.
Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. Customization is available to fit specific biomedical application needs.

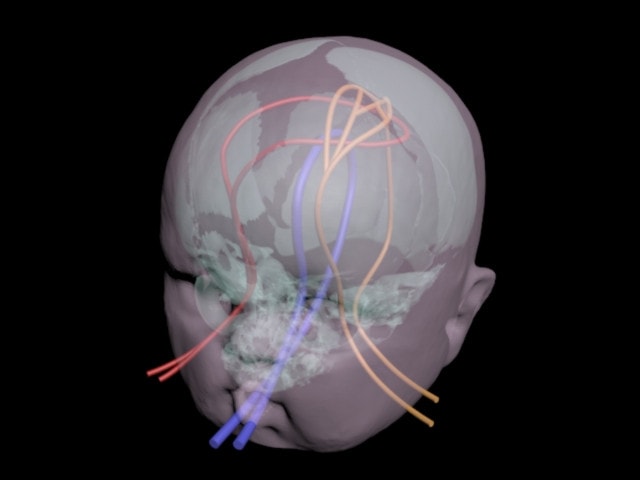

Anatomy
- Newborn Skull (Skull pieces individually cast)
- Realistic Newborn Brain Tissue
- Complex Network of Small Brain Vessels
- Single Vessels with 3 mm Inner Diameter
- Single Vessels with 2 mm Inner Diameter
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Soft Tissue | 1400 ± 10 | 1.01 | 35 | N/A | NO | 1.3 ± 0.2 |
Thermal Properties of Bone-Mimicking Tissue
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
| 2 | Cortical Bone | 1300 |
Included in Order
- Newborn Head (Dynamic) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 5 x 6 x 5 Inches | Weight: ~4 Lbs
Shipment: 12 x 10 x 10 Inches | Weight: ~8 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Key Options
- Newborn Head Models: Complex, Simple, or Dynamic (Standard)
