Newborn Skull for X-Ray CT, US, MRI
Product Description
The Newborn Skull Phantom is a high-fidelity multipurpose tool designed for medical imaging research and treatment planning, specifically for non-invasive High-Intensity Focused Ultrasound (HIFU) brain surgeries. This phantom is modeled after the average anatomy of a newborn human skull and is cast from a patented ceramic-reinforced epoxy-based bone material.
The material properties are optimized to accurately replicate the physical, acoustical, and thermal characteristics of real newborn bone across X-Ray/CT, Ultrasound, and MRI modalities. It provides a realistic platform for studying ultrasound wave propagation and MRI signal characteristics (T2 signal) in a pediatric context. The phantom is modular, and any specific part of the skull can be fabricated or customized based on specific research orders.
Note: Customization is a core strength of this product line, allowing for variations in bone density or specific anatomical focus to suit the needs of medical practitioners and researchers.
Anatomy

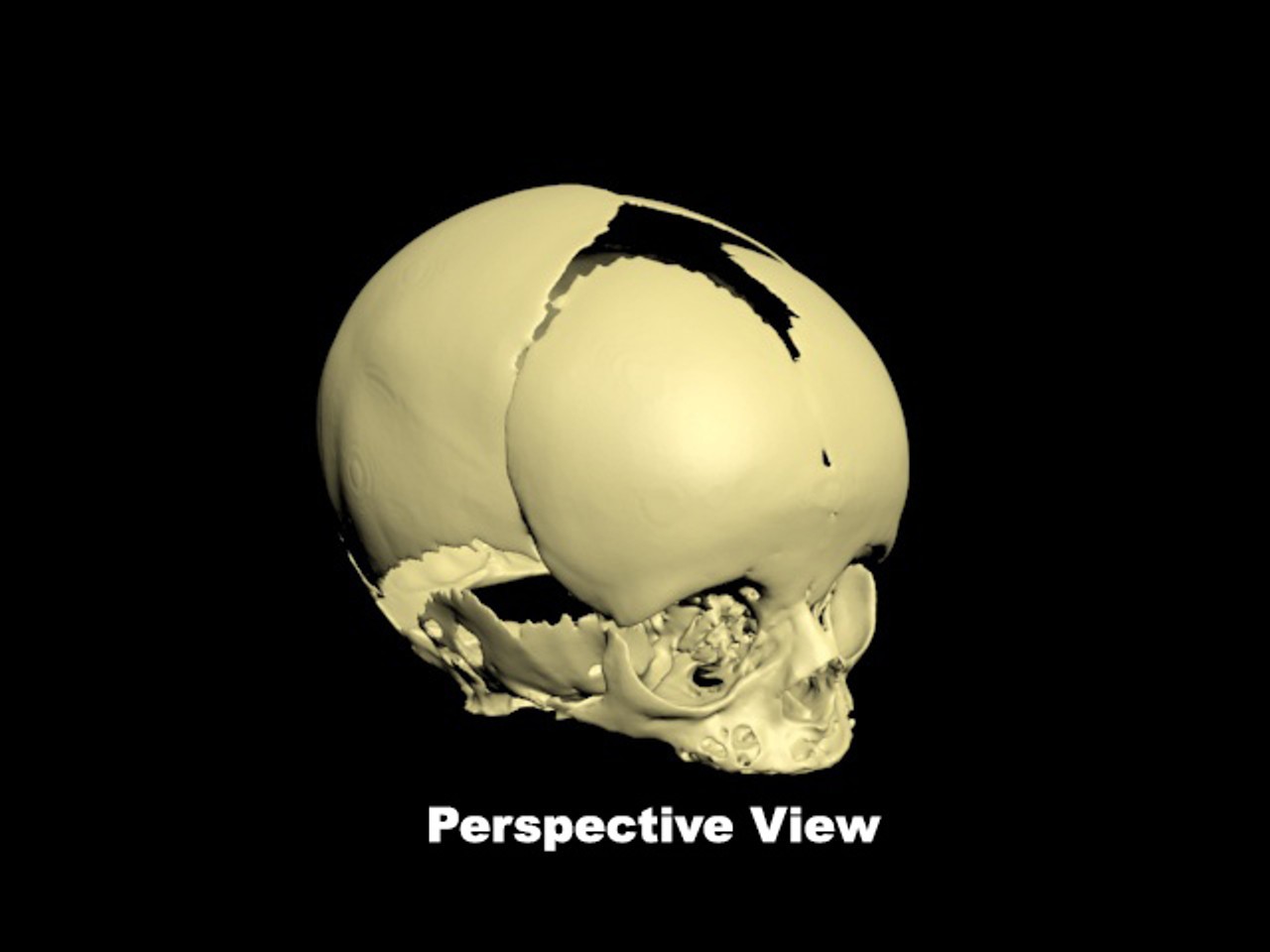

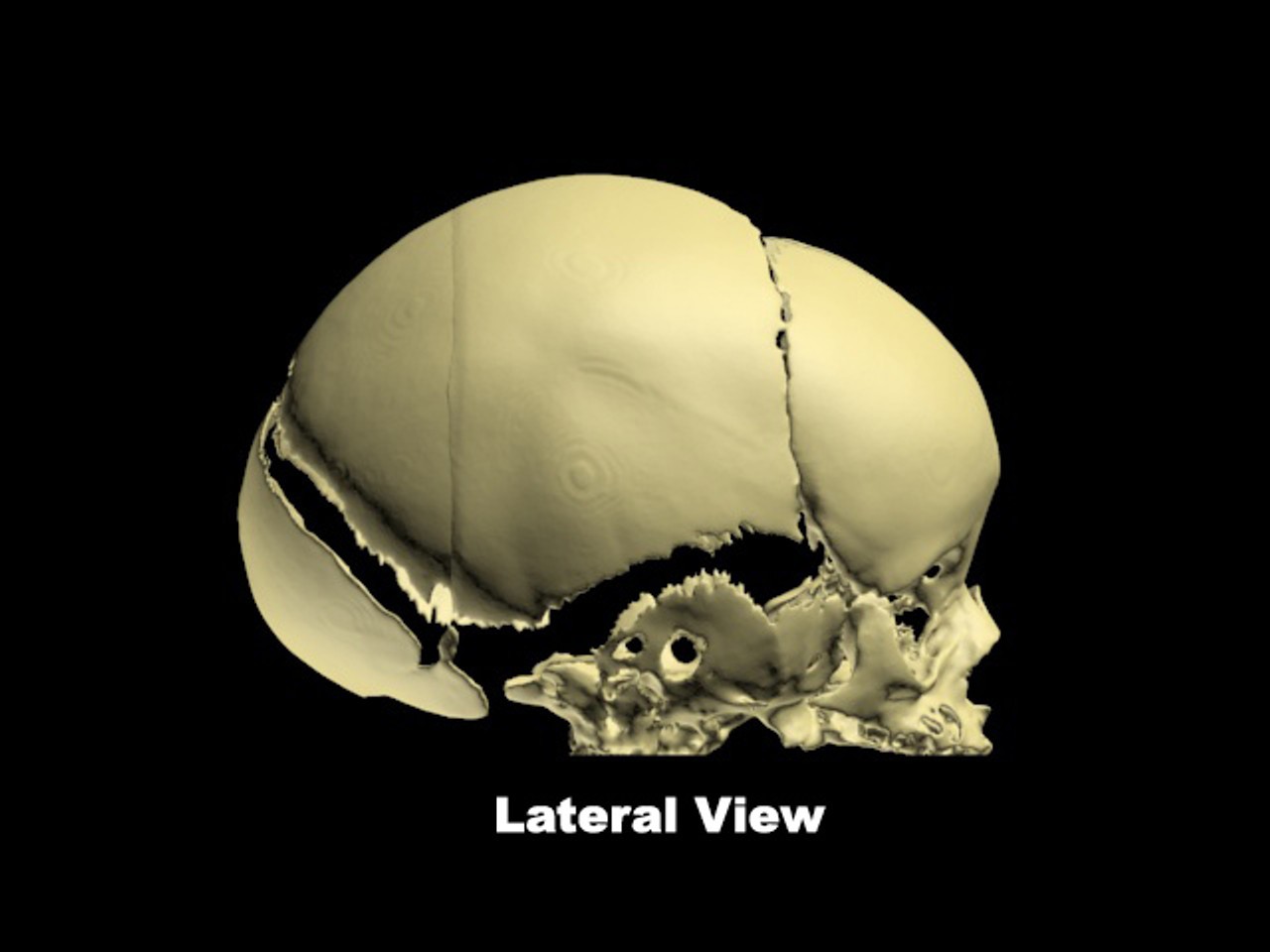

- Modeled on an average Newborn Human Skull

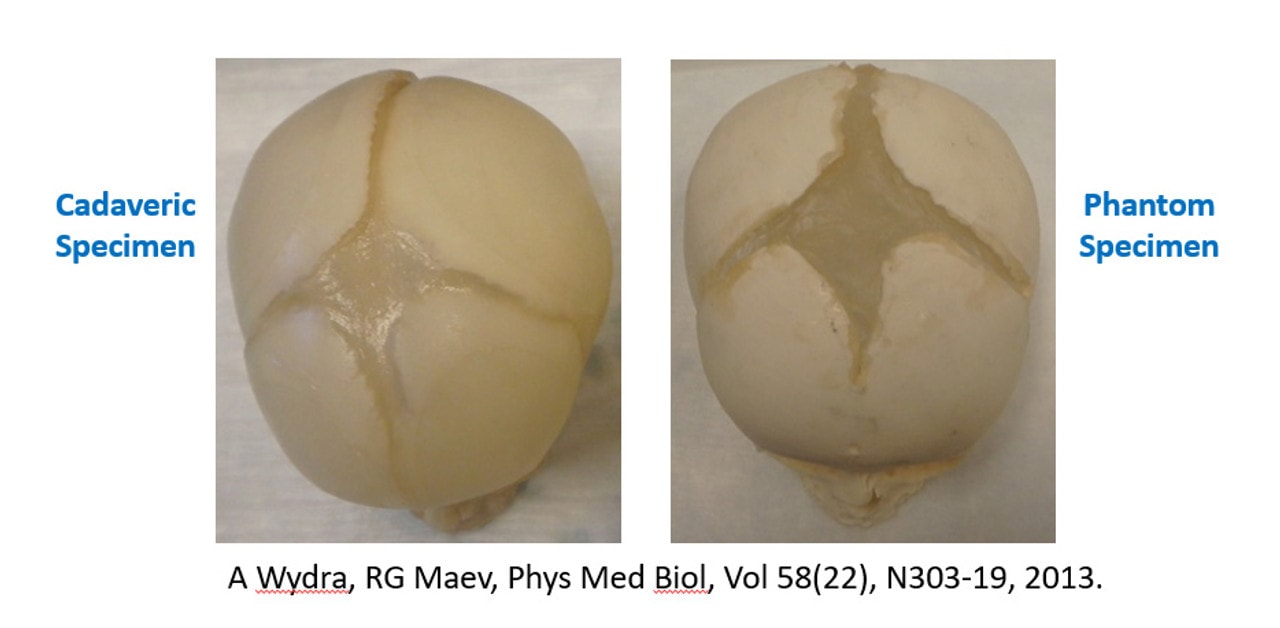

- Realistic Bone-Mimicking Material
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hounsfield Value (HU) | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | 1300 | 6.4 ± 0.3 |
Thermal Properties of Bone-Mimicking Tissue
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
Included in Order
- Newborn Skull Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 4 x 6 x 5 Inches | Weight: ~2 Lbs
Shipment: 12 x 10 x 10 Inches | Weight: ~6 Lbs
Materials Used
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
Imaging Scans

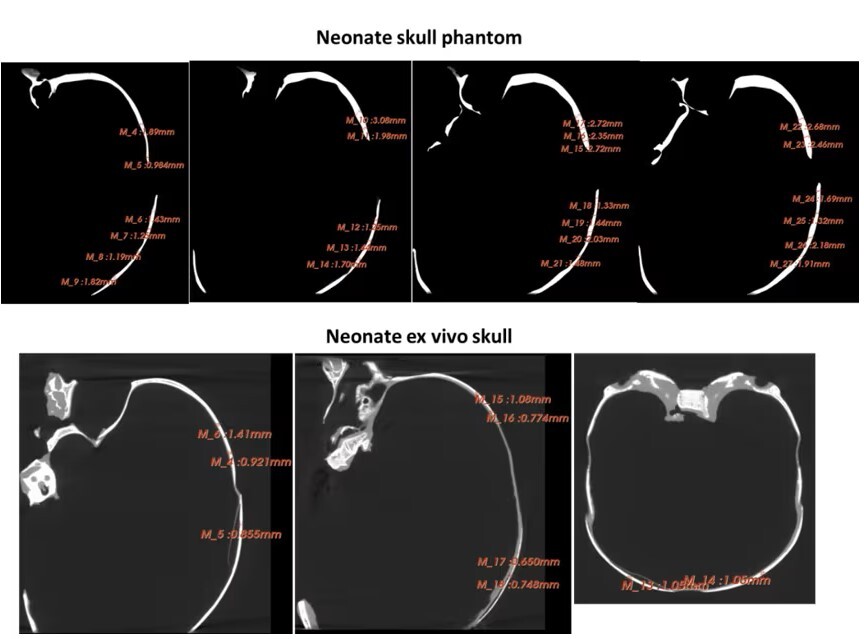

CT Image Scans
