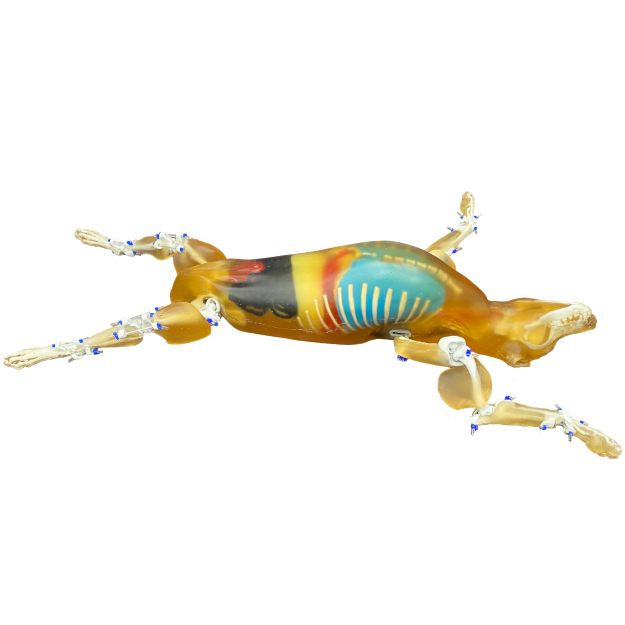

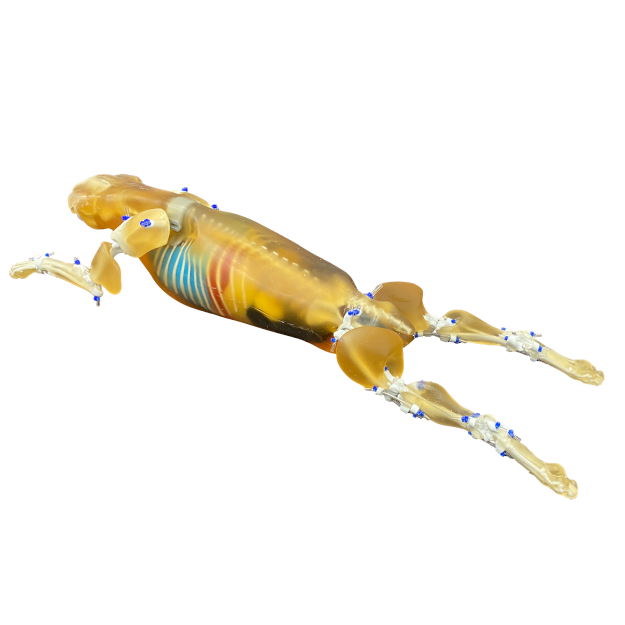

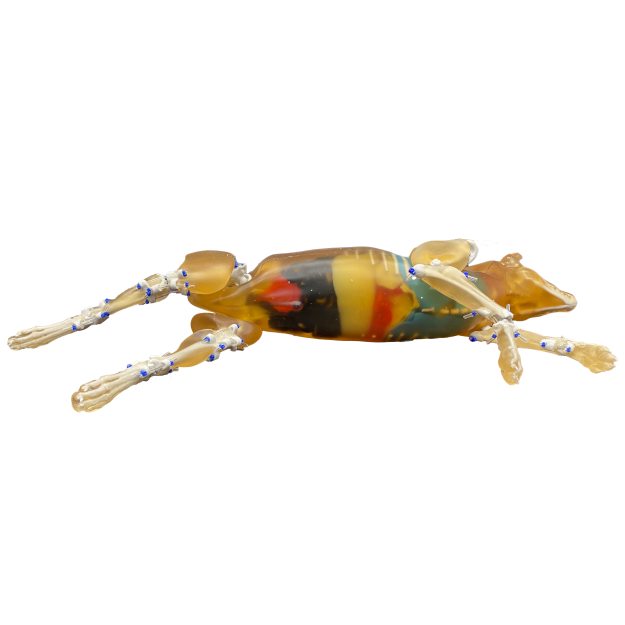

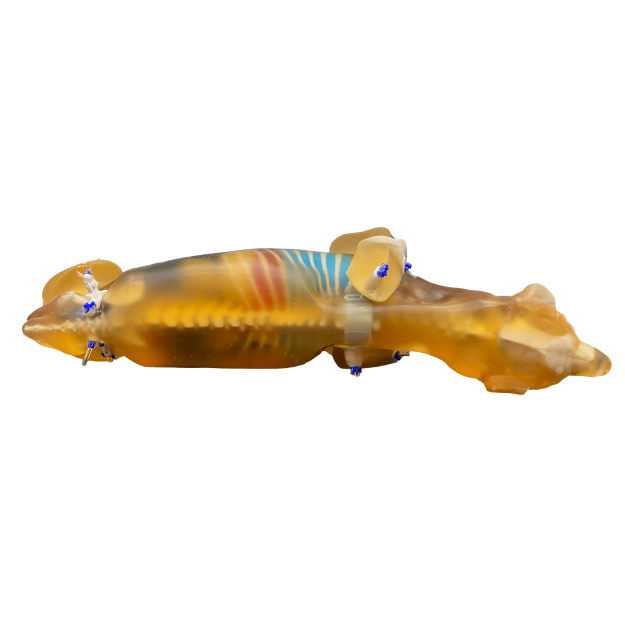

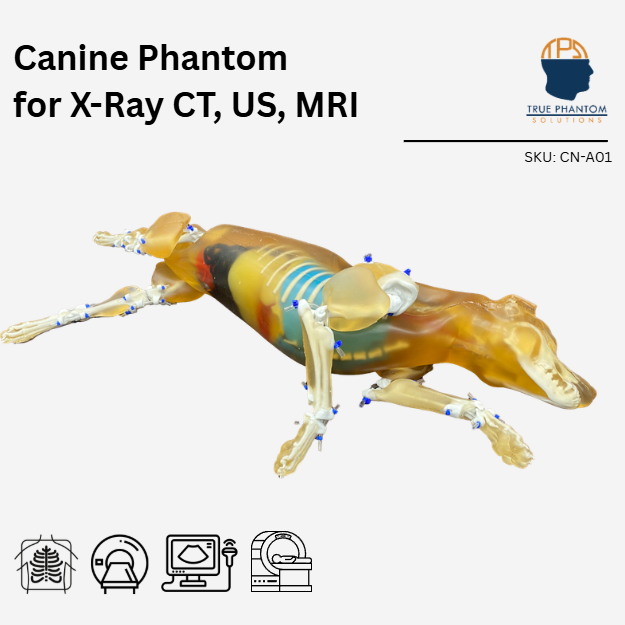

Canine Phantom for X-Ray CT, US, MRI
Product Description

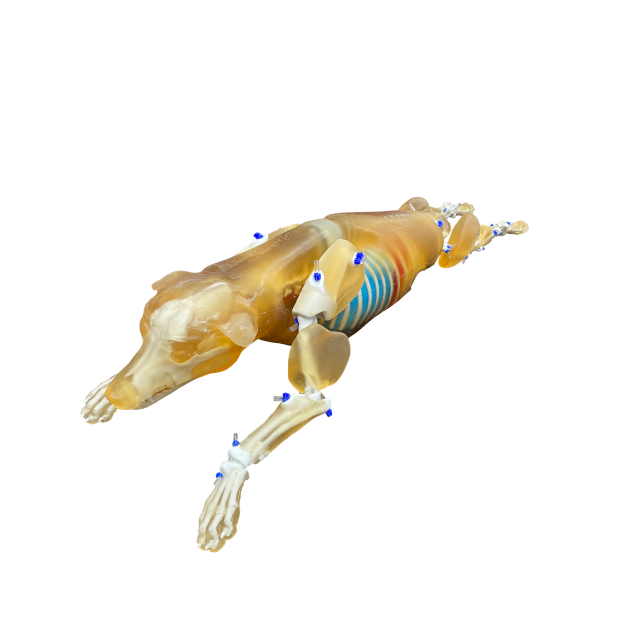

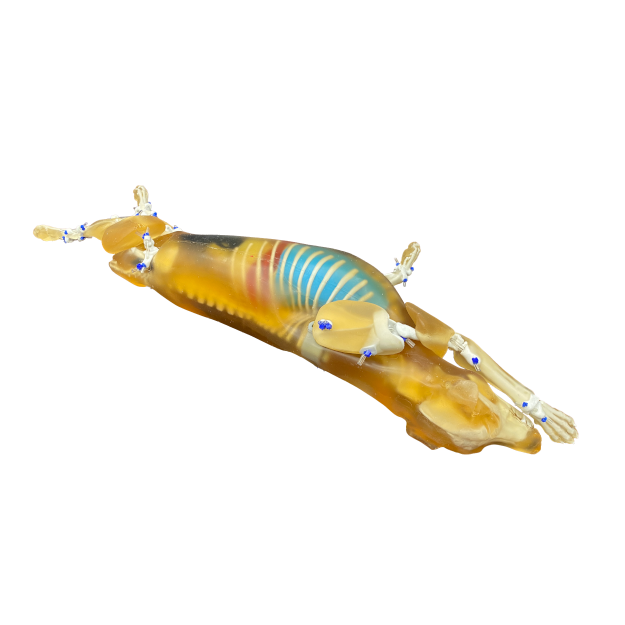

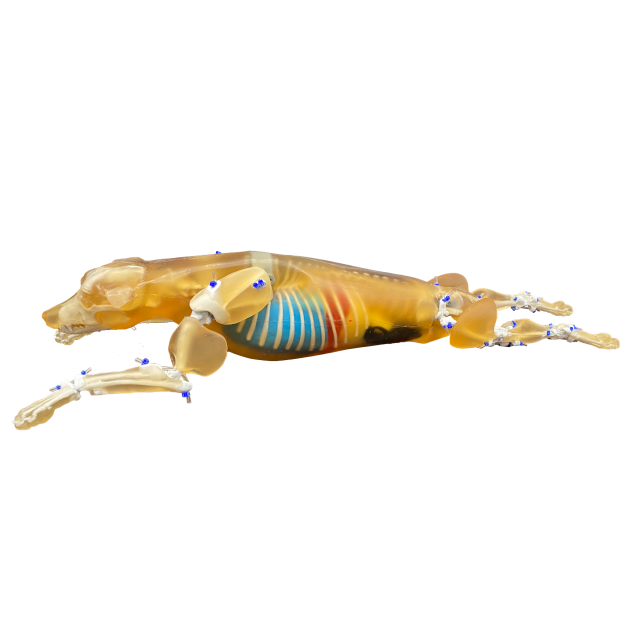

The Canine Phantom is an advanced veterinary training model derived from a real CT dataset of a male Bull MastiffRhodesian Ridgeback cross. Developed in collaboration with global veterinary institutions, this upgraded model features significant enhancements in joint articulation for realistic X-ray positioning and refined vascular detailing for procedural training.
The model supports multi-modality imaging including X-ray/CT, Ultrasound, and MRI. For MRI applications, the tissues provide realistic T2 relaxation time values, making it ideal for T2-weighted and proton-density imaging. Advanced AI algorithms were used to extract and replicate intricate anatomical structures with exceptional fidelity.
Note: By default, the phantom comes in a translucent amber appearance. All standard phantoms are coated with a protective urethane rubber layer that increases hardness by approximately 30 points (from Shore OO 30 to OO 60).
Anatomy
- Head: Skull and Jaw Bone
- Torso: Complete Spine, Ribcage, Scapula, and Pelvis
- Realistic Heart: Chambers, Valves, and Major Vessels (IVC, SVC, Aorta)
- Organs: Lungs, Diaphragm, Stomach, Liver with Vessels, Gallbladder, Kidneys with Vessels/Arteries, Spleen, Large/Small Intestines, Caecum, Rectum, Pancreas, Bladder, and Ureters
- Limbs: Front Arms and Rear Legs with articulating joints
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00]* | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
*Measured without the protective coat; coating increases hardness by approx. 30 points.
HU Values of Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (Average) |
|---|---|---|
| 1 | Body Tissue | -25 |
| 2 | Aorta | 40 |
| 3 | Vena Cava | 40 |
| 4 | Trachea | 80 (Tissue) / -1000 (Air) |
| 5 | Pancreas | 110 |
| 6 | Spleen | 110 |
| 7 | Kidneys | 110 |
| 8 | Bladder | 35 |
| 9 | Rectum Wall | 100 |
| 10 | Sigmoid Colon Wall | 100 |
| 11 | Heart | 40 |
| 12 | Liver | 110 |
| 13 | Gallbladder | 35 |
Included in Order
- Canine Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 110 x 20 x 20 cm (44 x 8 x 8 Inches) | Weight: ~16 kg (35 lbs)
Shipment: 120 x 42 x 24 cm (48 x 17 x 10 Inches) | Weight: ~29 kg (65 lbs)
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: 3D-printed realistic bones
Key Features
- Improved joint articulation for realistic mobility
- AI-refined intricate anatomical details
- Durable build for repeated clinical training
- Full internal organ structures including heart valves and vasculature
Imaging Scans

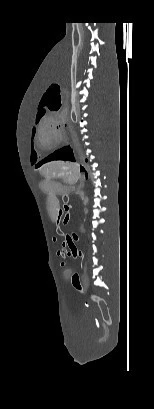

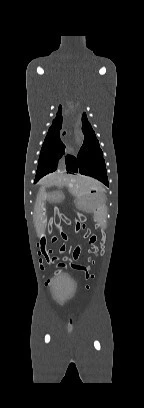

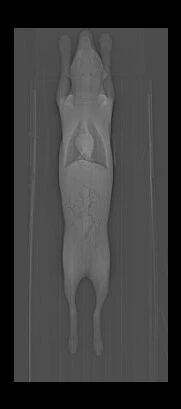

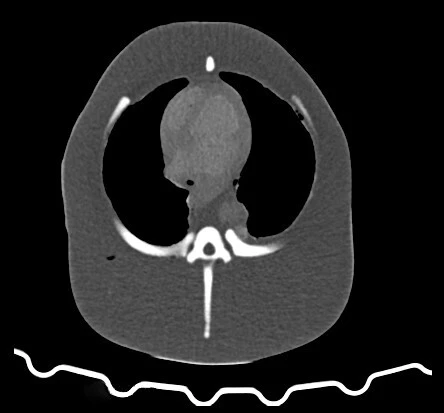

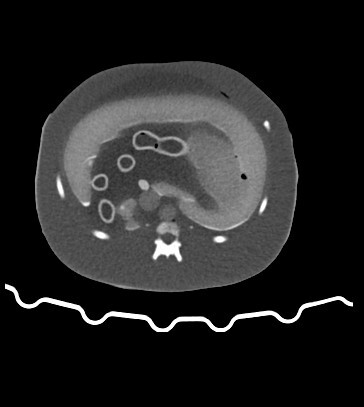

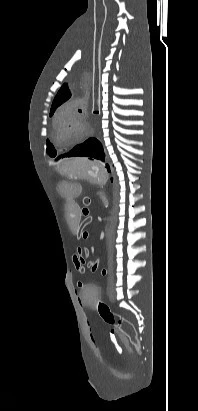

CT Image Scans

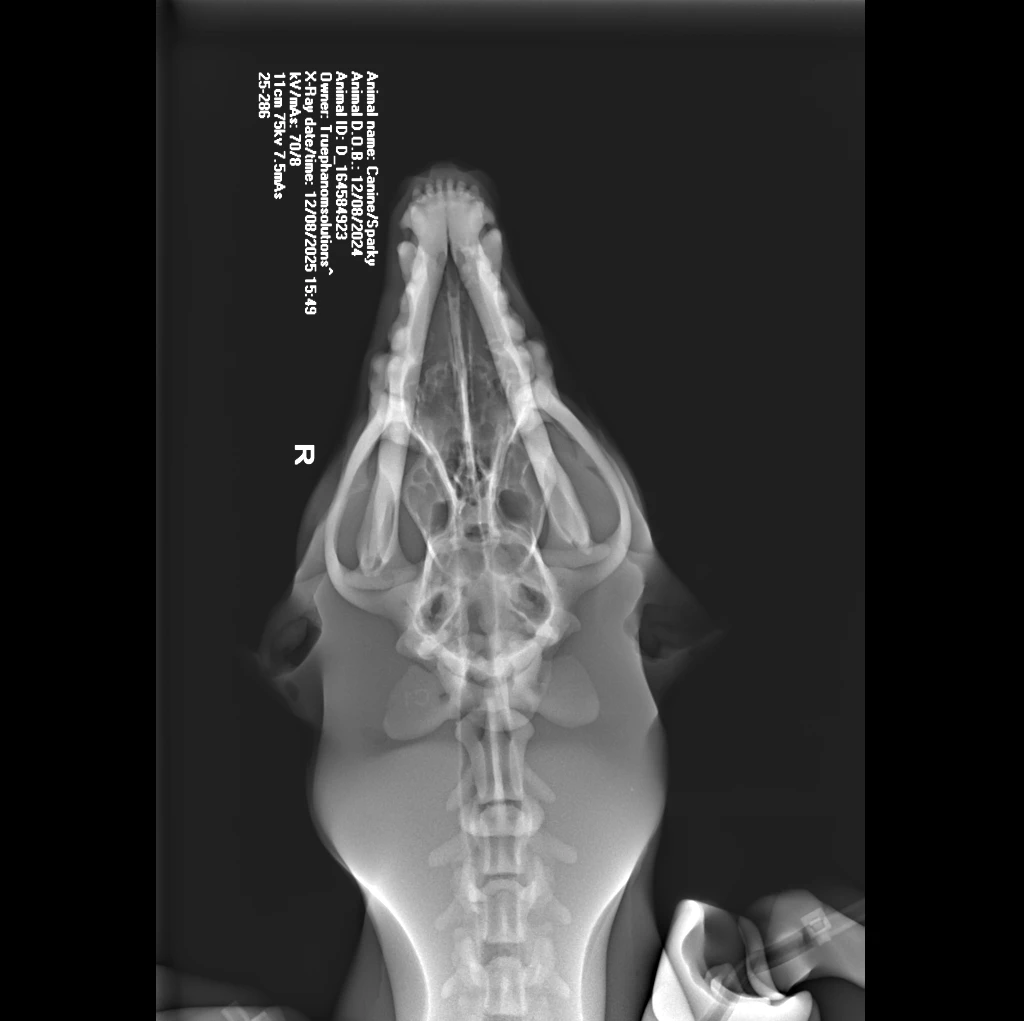

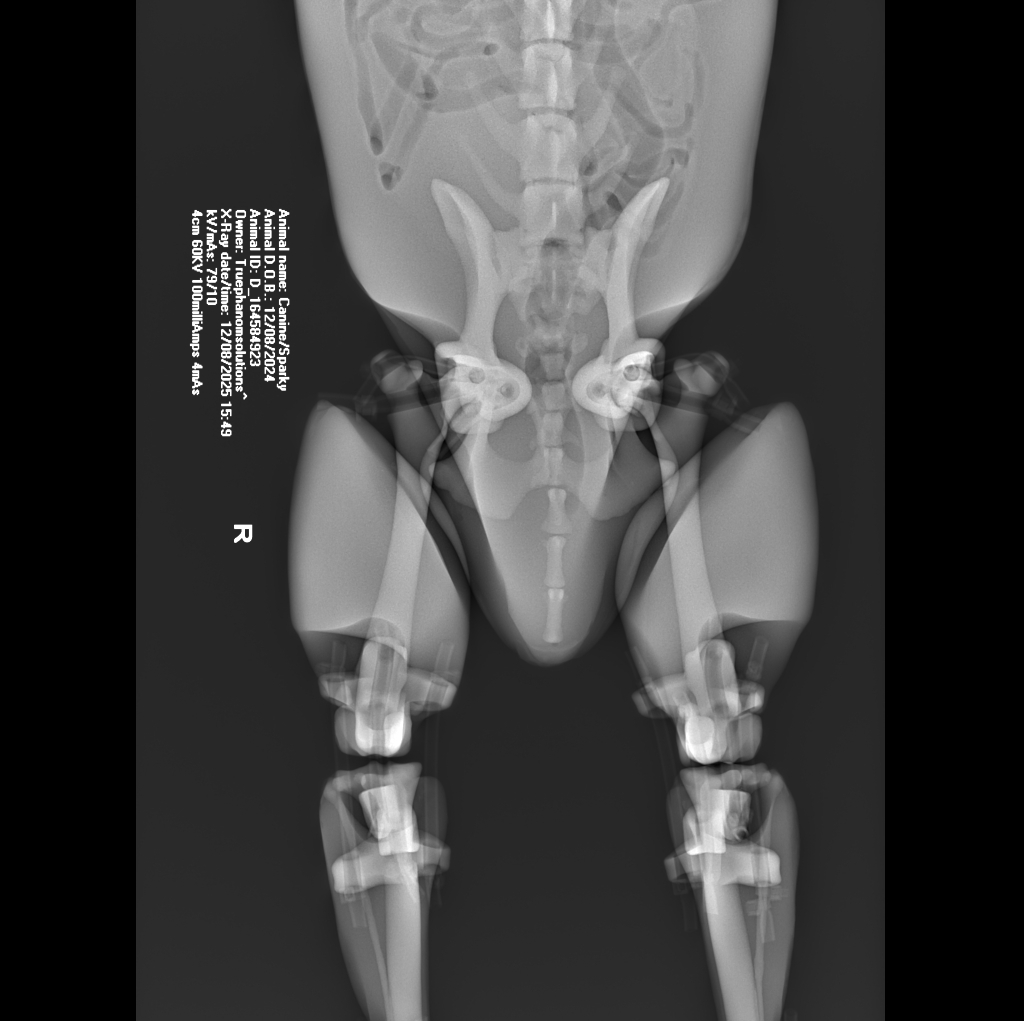

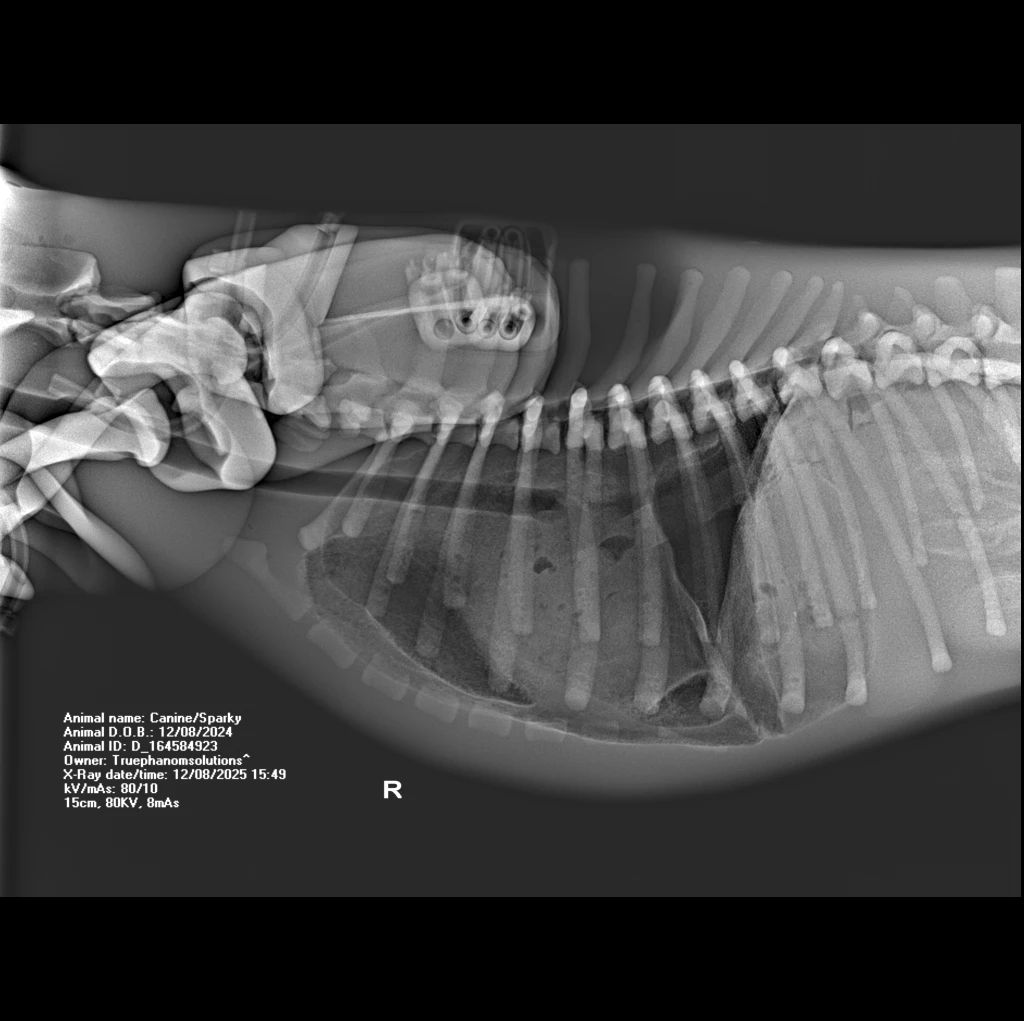

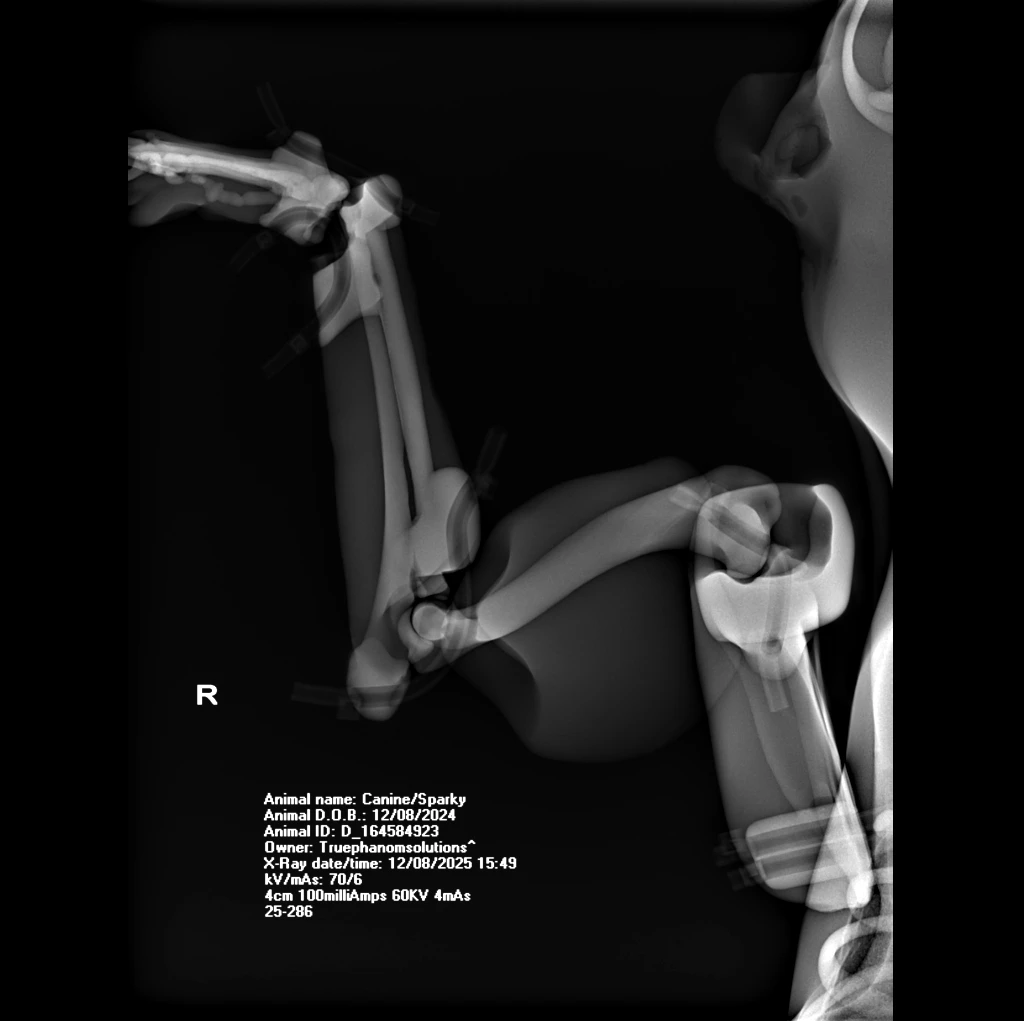

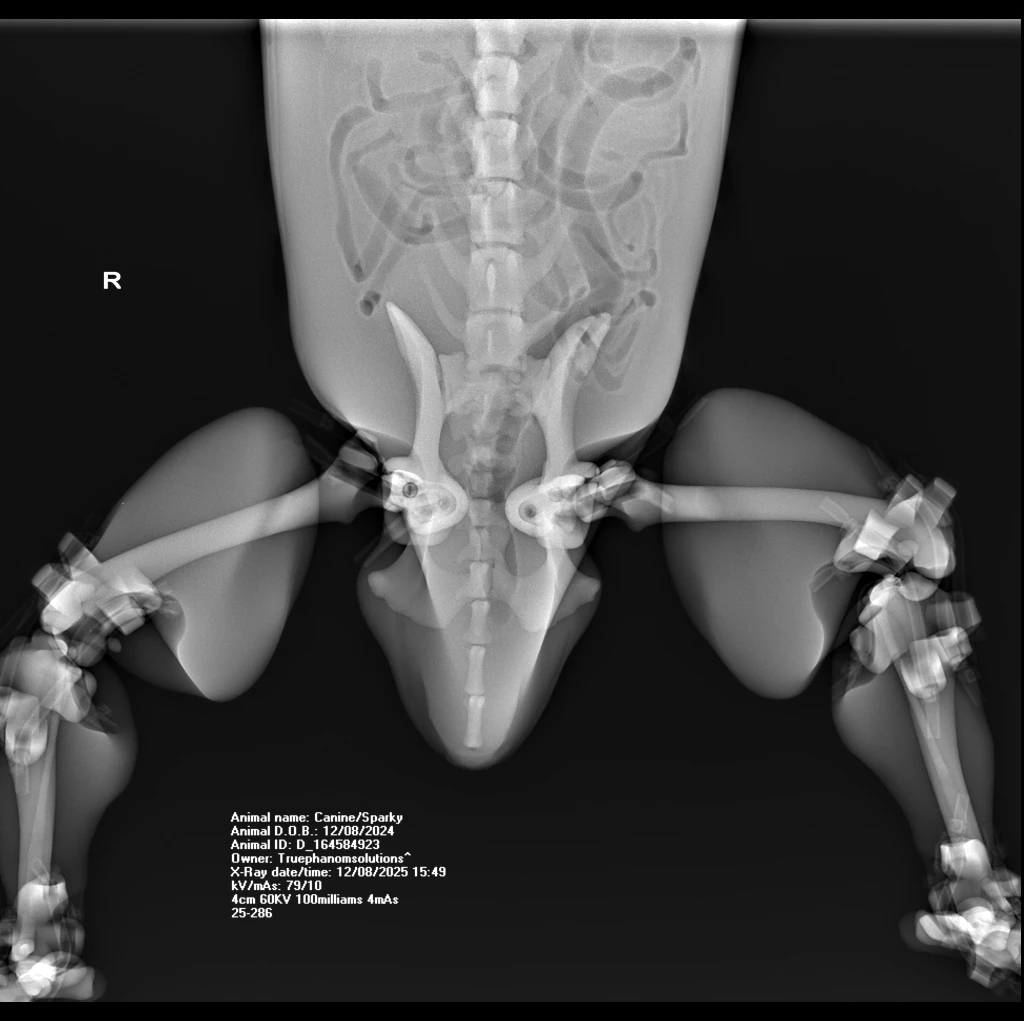

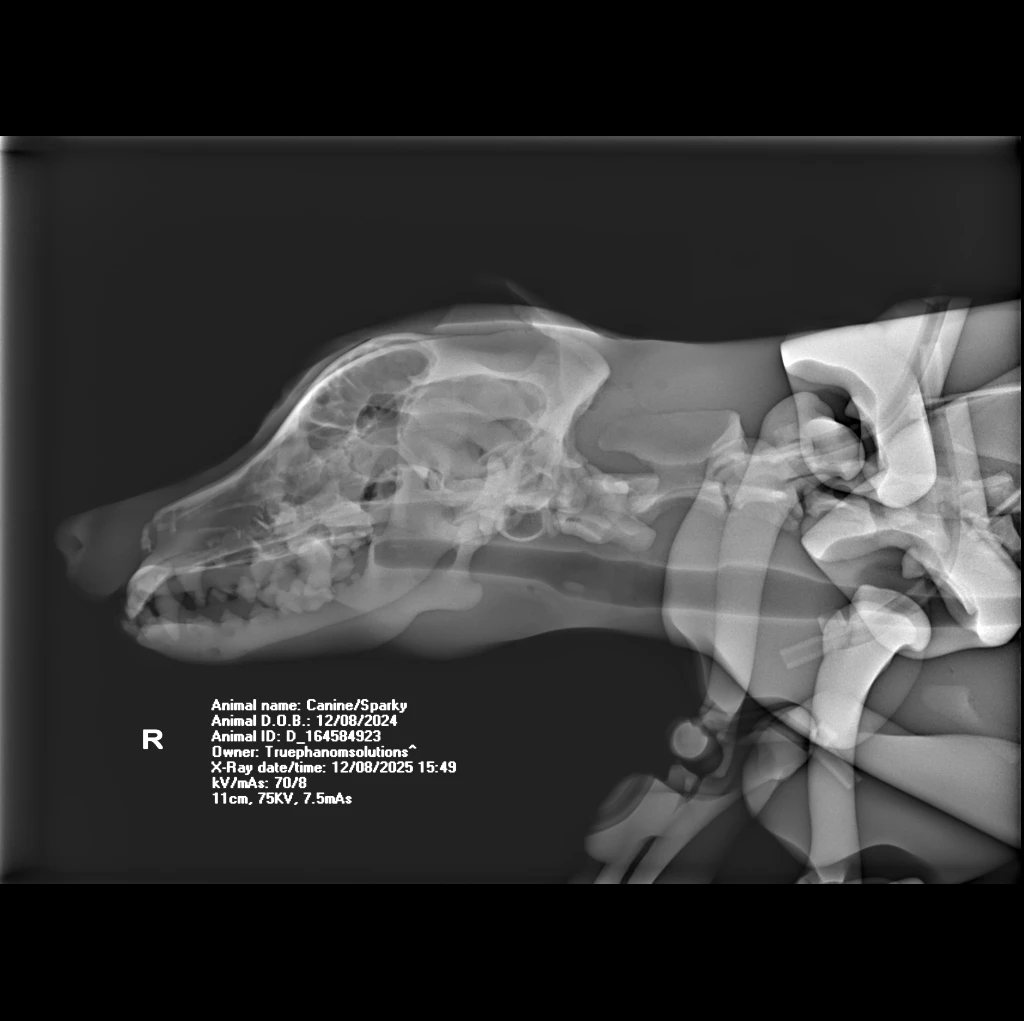

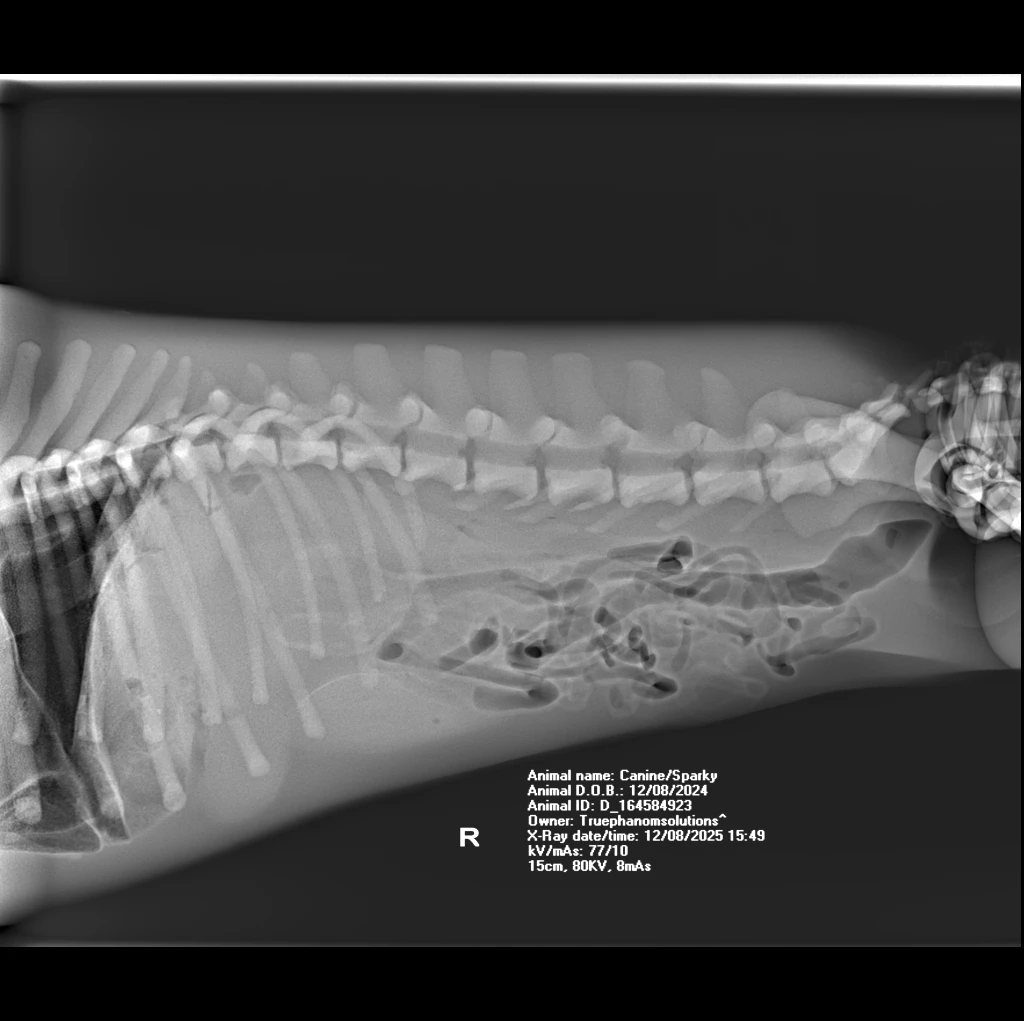

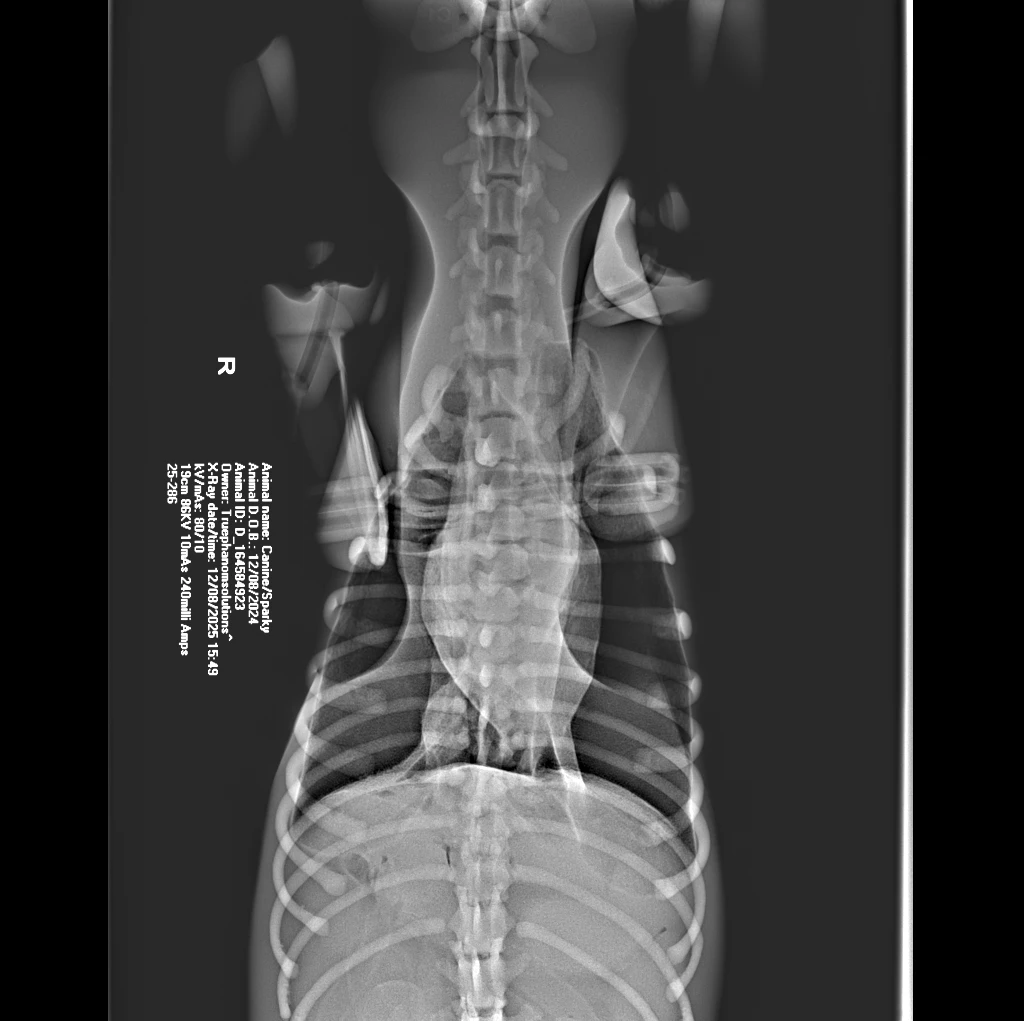

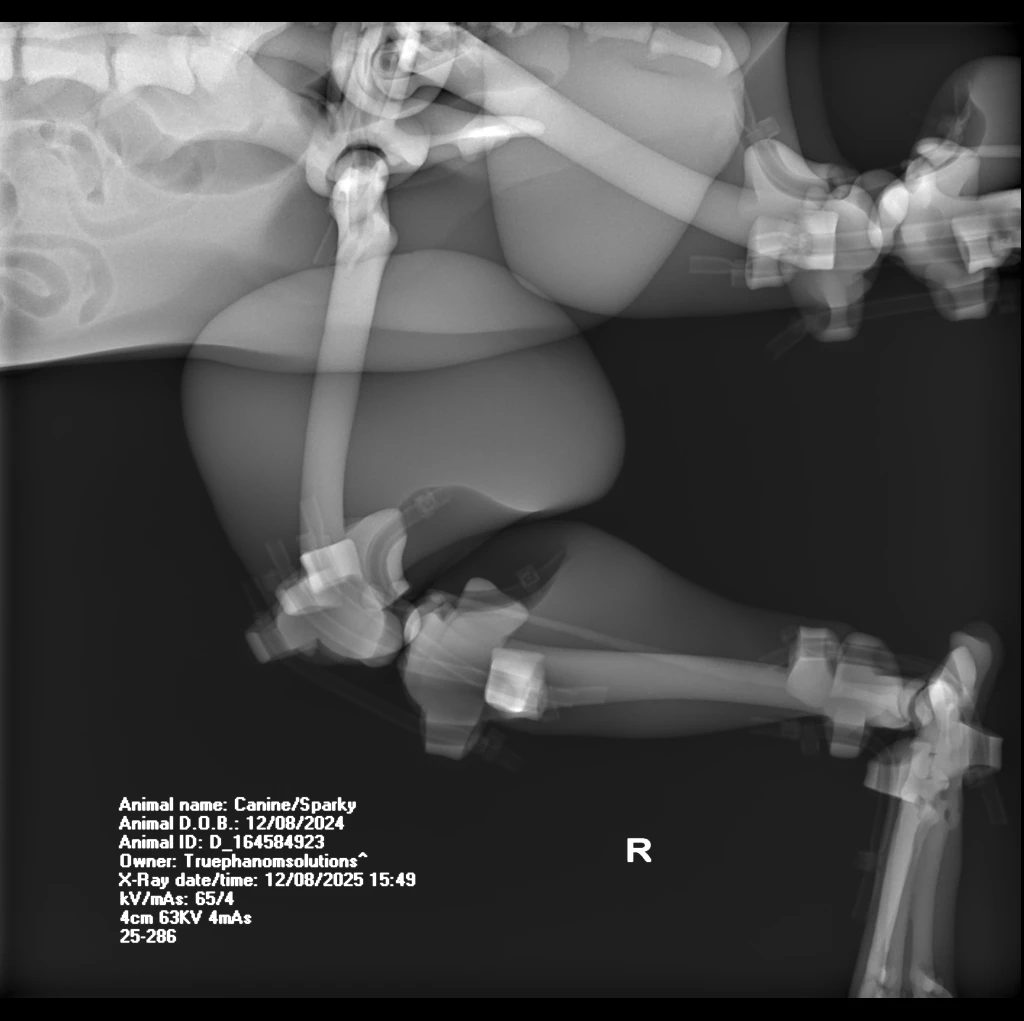

X-Ray Image Scans
