Description

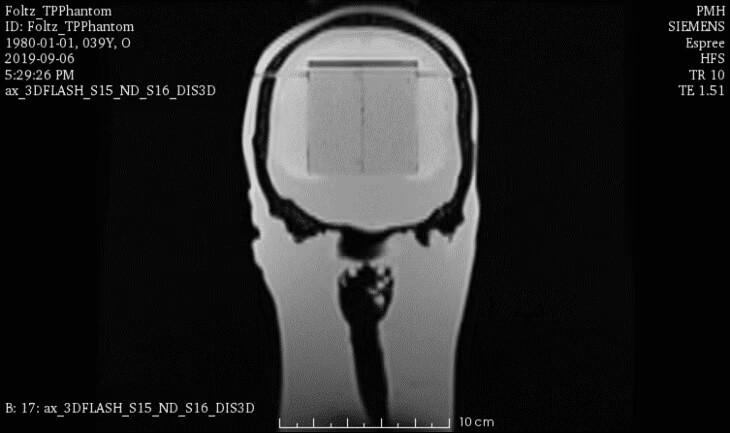

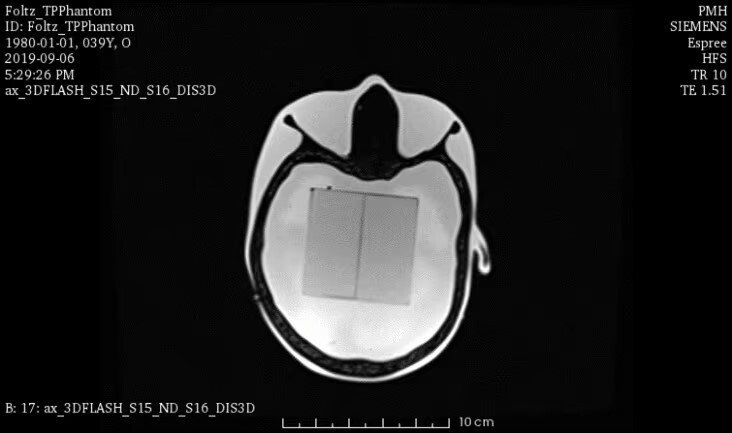

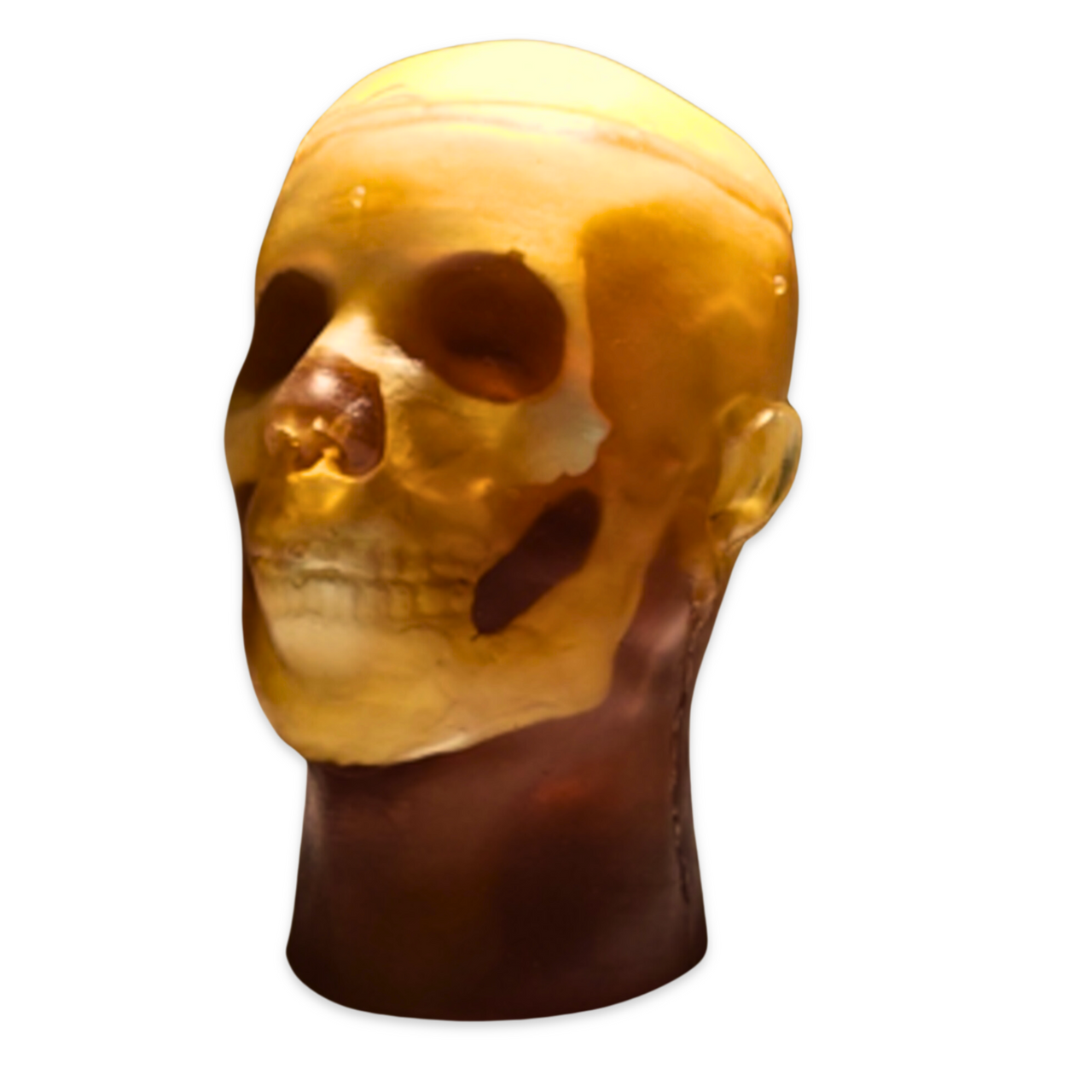

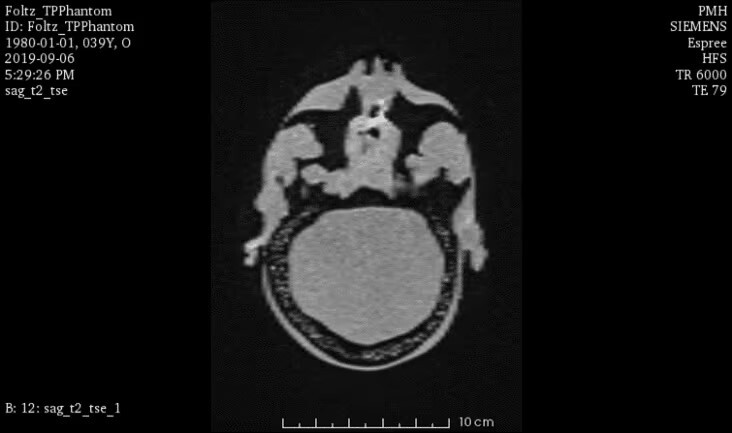

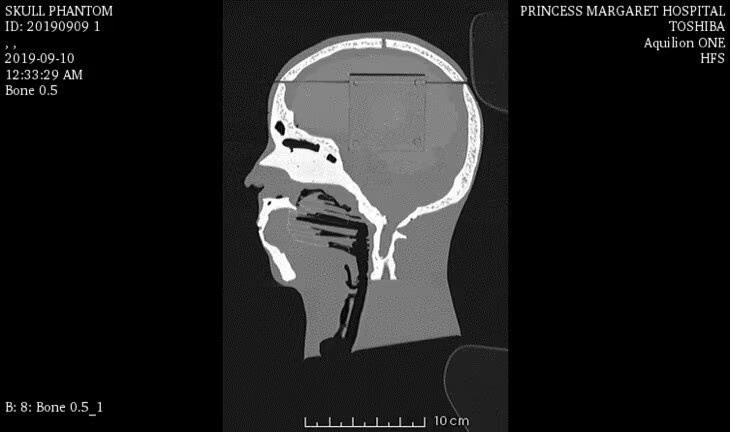

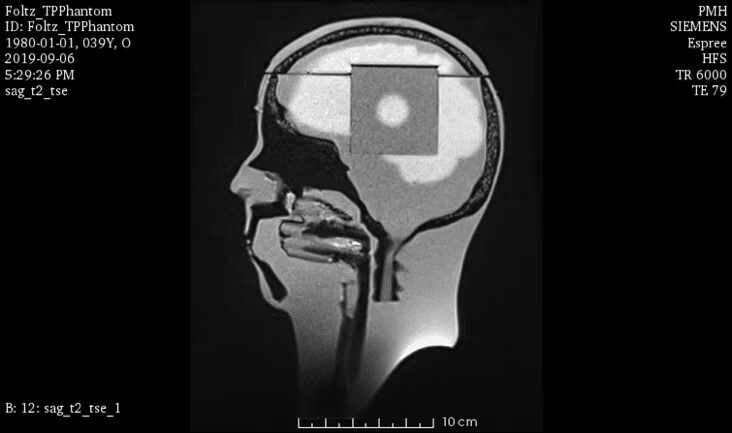

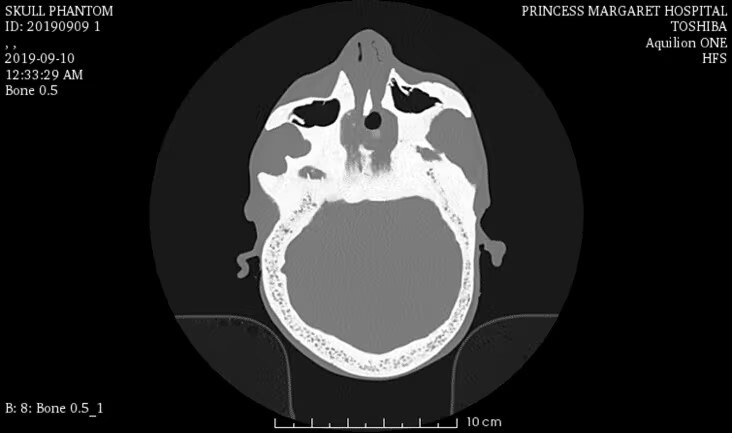

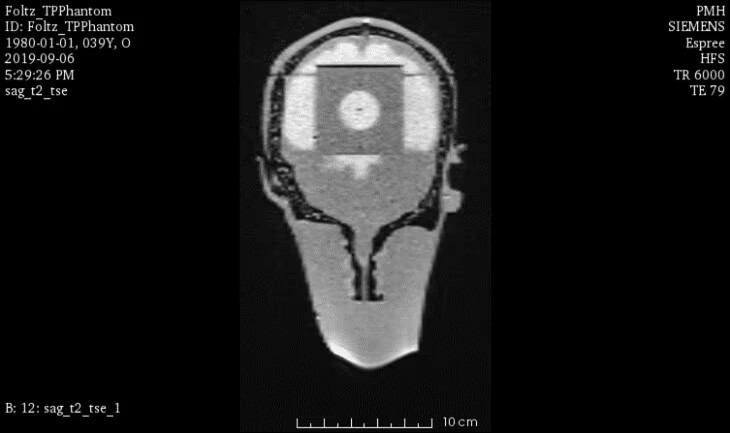

The HD-QC1 is an anthropomorphic adult human head phantom that can be used for applications related to Image guided radiotherapy (IGRT), Stereotactic radiosurgery (SRS), and potential quality assurance (QA) applications. It serves as an ideal tool to study target localization and dose delivery under the image guidance of CT, MRI and PET.

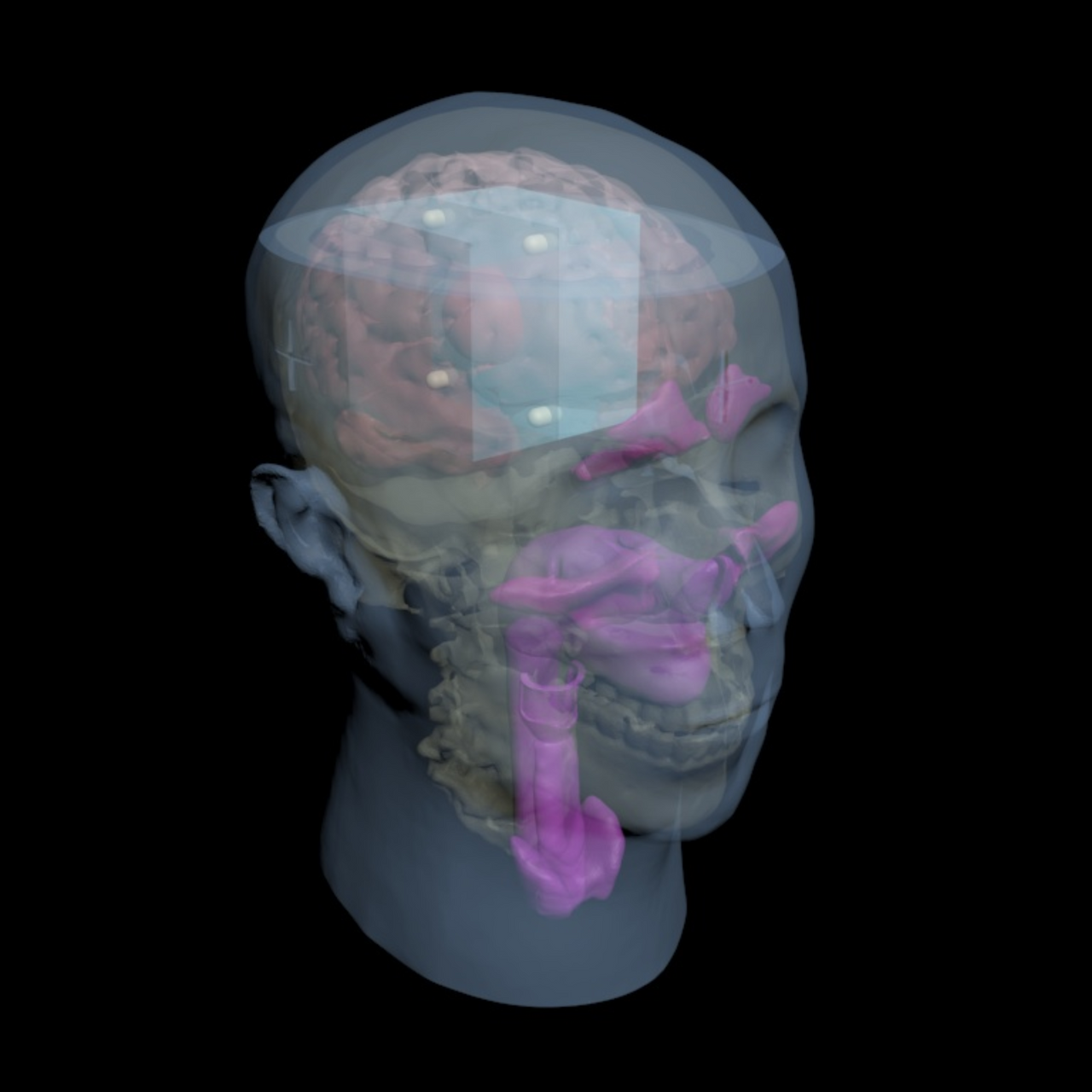

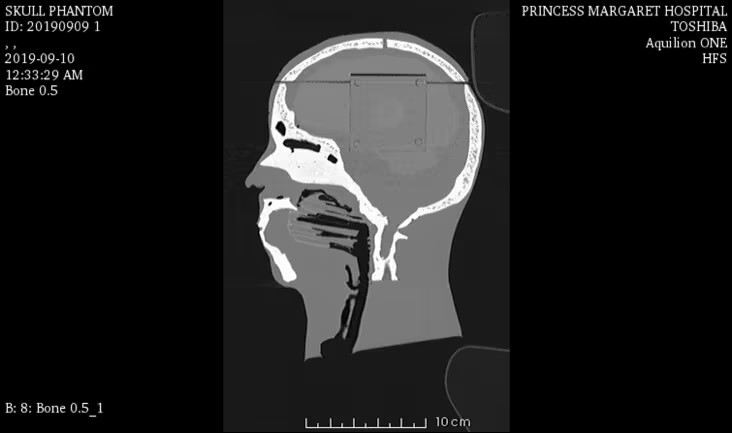

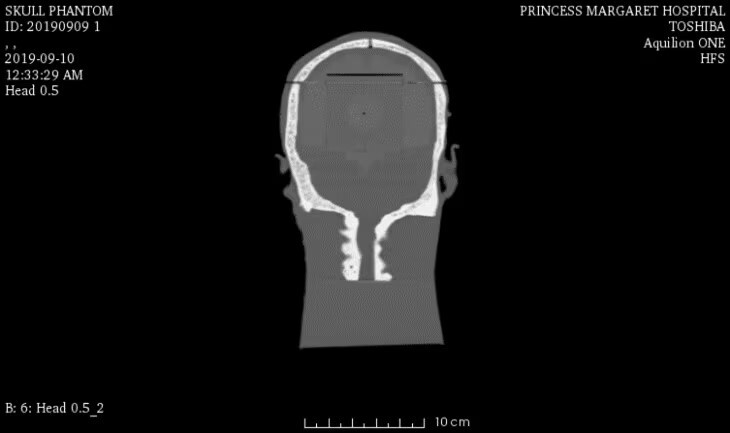

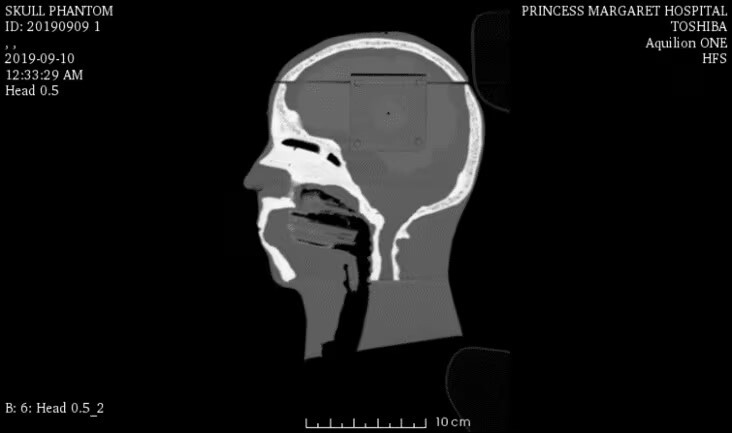

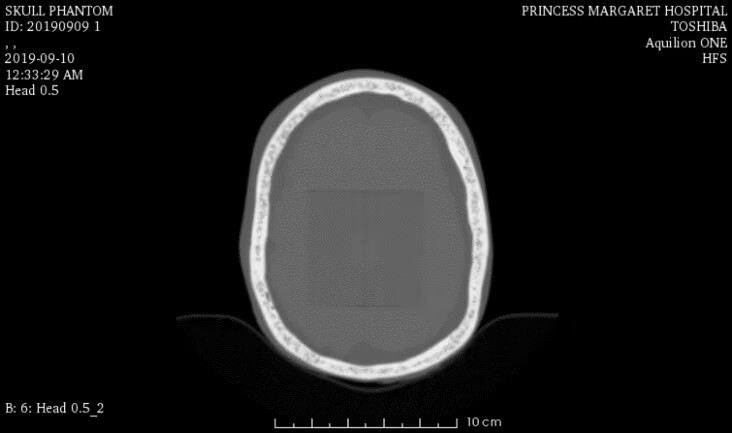

This phantom serves as an ideal tool to study target localization and dose delivery under the image guidance of CT, MRI, and PET. The anthropomorphic features include a lifelike skull with cortical and trabecular bone structures, simulated brain(white and gray matter), cervical vertebrae, sinus cavities, larynx, trachea, and oral cavities.
In addition to this, it can be customized with tissue-equivalent inserts for QA applications.
Anatomy Specifications
- Realistic Skull Phantom
- Realistic Brain Phantom Surrounded by Dura Mater
- Openable Cavity Inside of Head
- Cervical Vertebrae
- Sinus Cavities
- Larynx
- Trachea
- Oral Cavities

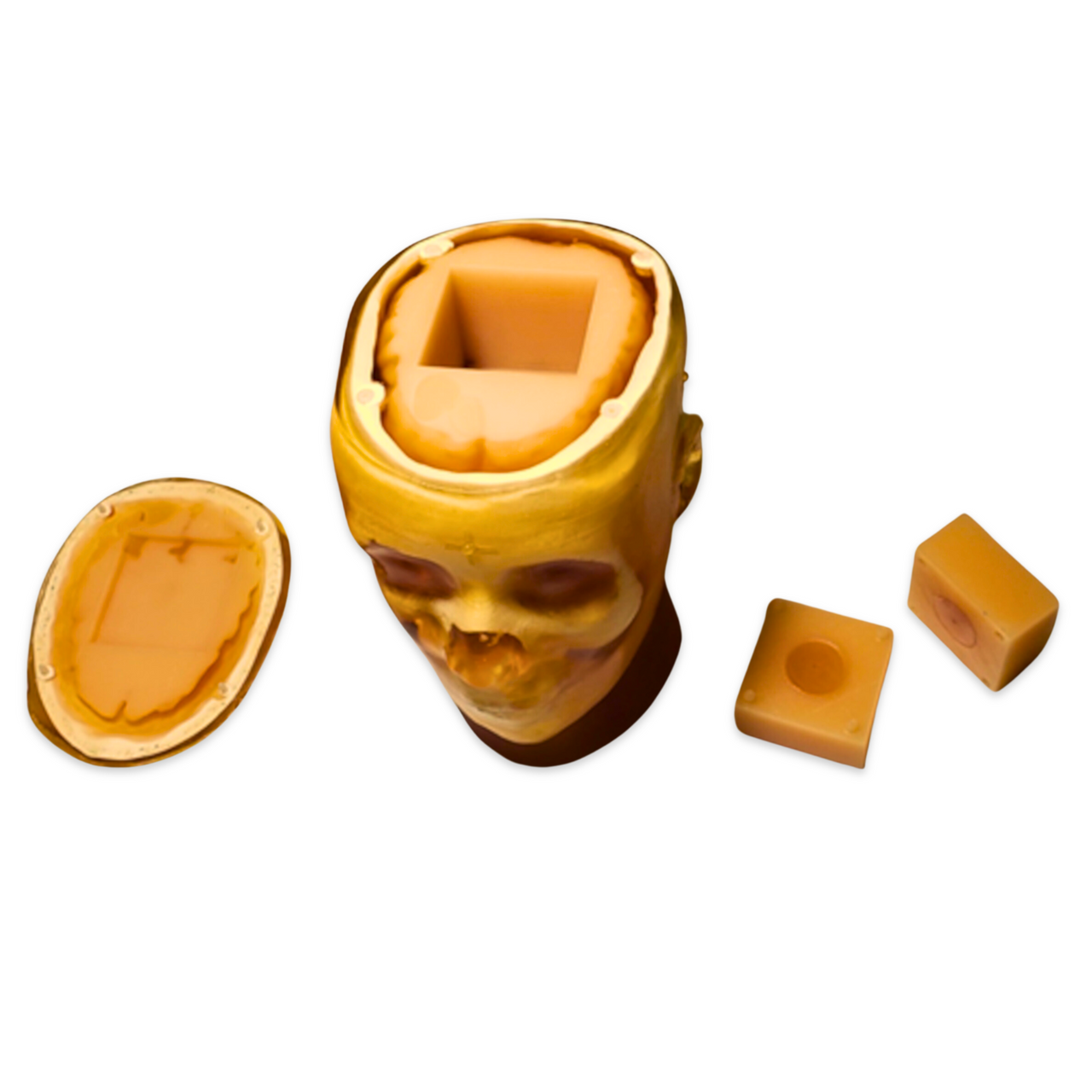

- Custom Target Objects implemented to the Removable Insert
- Custom Targets on the Surface of the Head
- Skin-Mimicking Material Around Skull
X-Ray Phantom Features
- Ability to Perform IGRT QA Procedures under X-Ray CT and MR Image Guidance
- Ability to Perform Machine Quality Checks
- Ability to Conduct Winston-Lutz Test, Study Blind Targets, and Target Localization Techniques
- The Head is Customizable with Different Shaped Targets (2D, 3D) for IGRT and QA Applications.
- Ability to Verify Patient Positioning using Frame or Frameless Systems
- Ability to Verify Treatment Plans in Critical Regions
- Customizable with a Variety of Interchangeable Tissue-Equivalent Inserts Suitable for Dosimetry Applications
Included With Your X-Ray Phantom
- Head QC1 Phantom
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Product Specifications

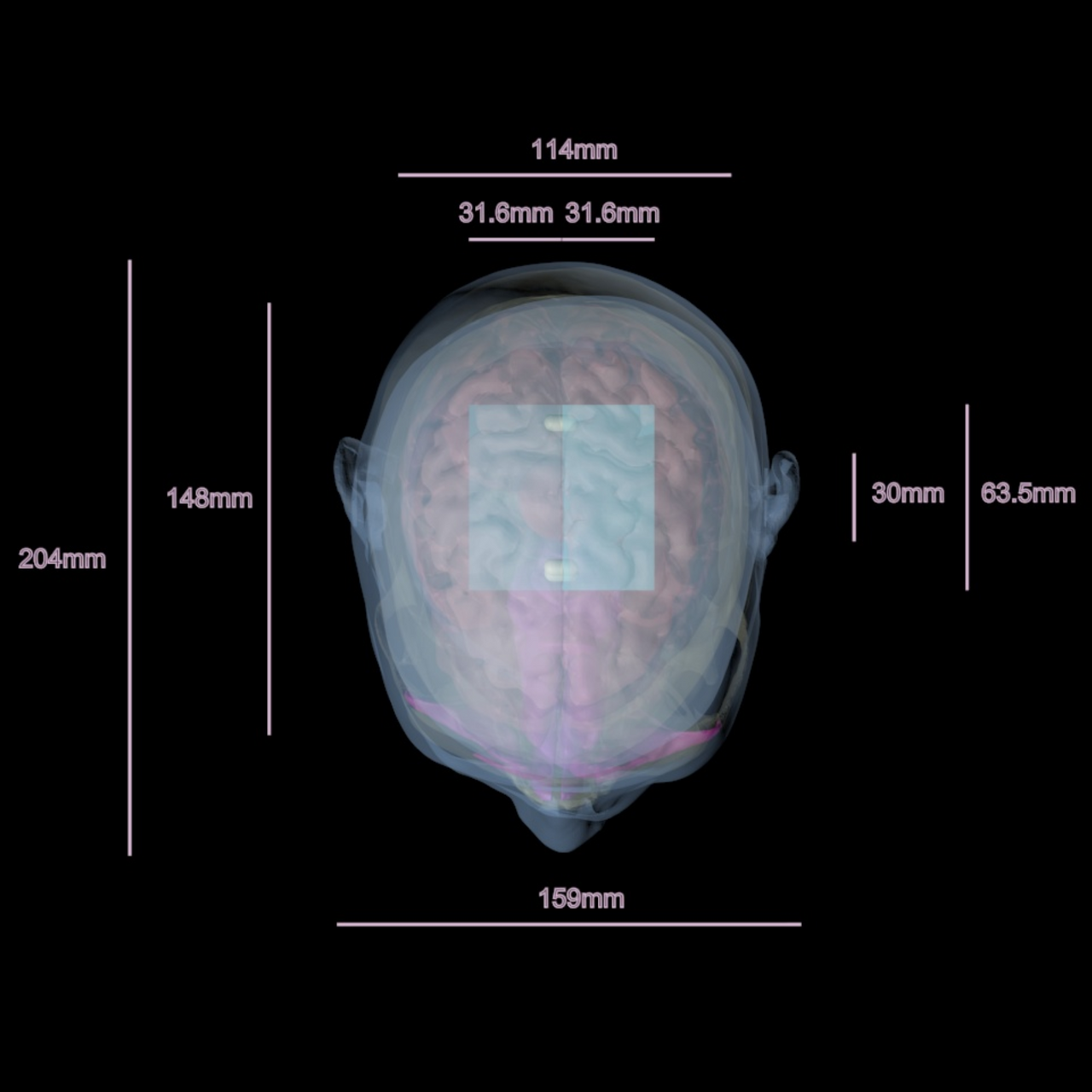

- Product Size: 12 in. x 9 in. x 7 in.
- Product Weight: 17 lbs.
- Shipping Size: 23 in. x 14 in. x 10 in.
- Shipping Weight: 22 lbs.
- Materials Used
- Soft tissues and organs are made of a composition of urethane-based soft resin
- Synthetic bones are made of a patented ceramic-reinforced epoxy-based composite material
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | 1.3 ± 0.2 |
| Skin Tissue | 1400 ± 10 | 1.02 | 60 | 50 | NO | 1.7 ± 0.2 |
Thermal Properties of Bone-Mimicking Tissue
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Skin Tissue | -25 |
