Adult Head (Training, V1) for X-Ray CT, US, MRI
Product Description

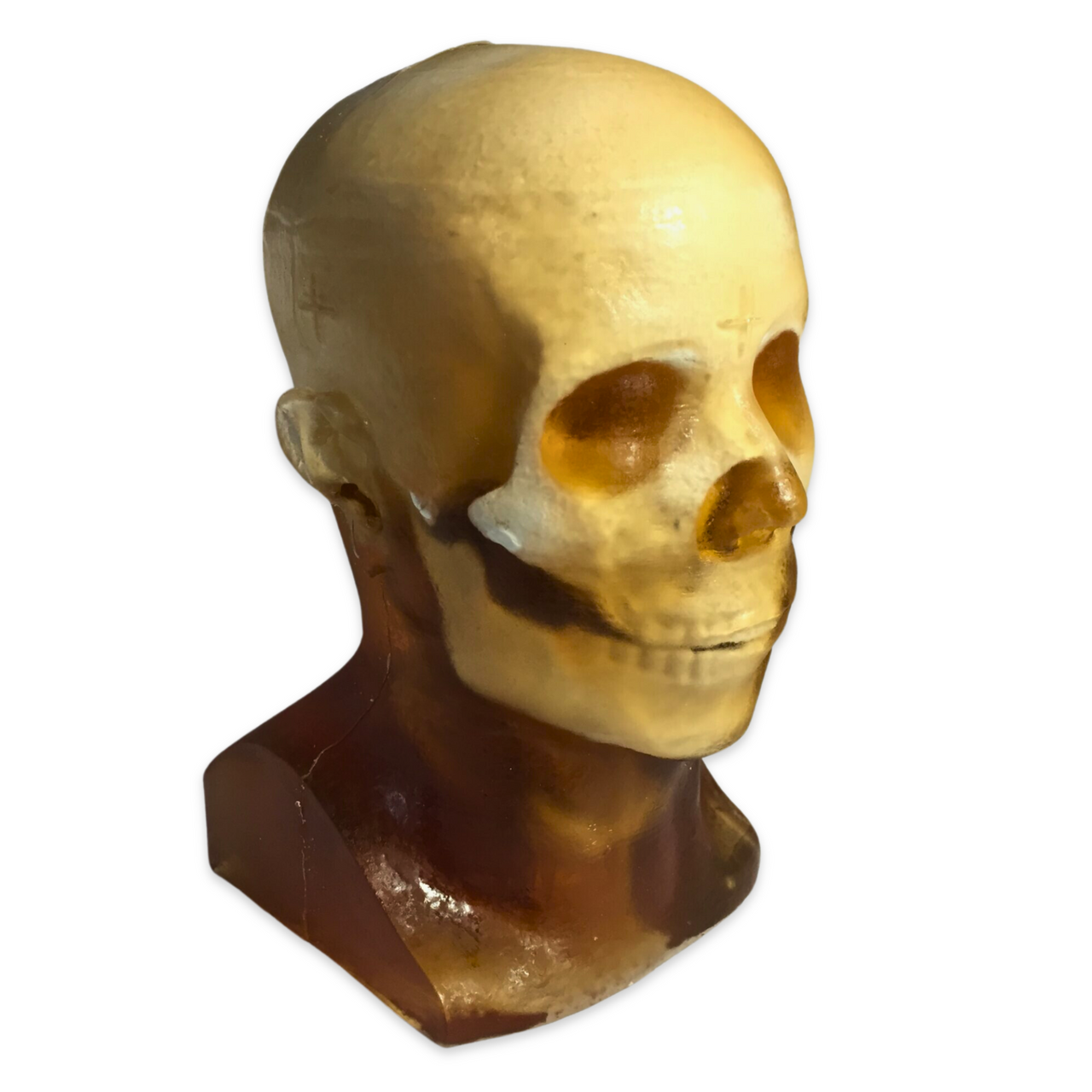

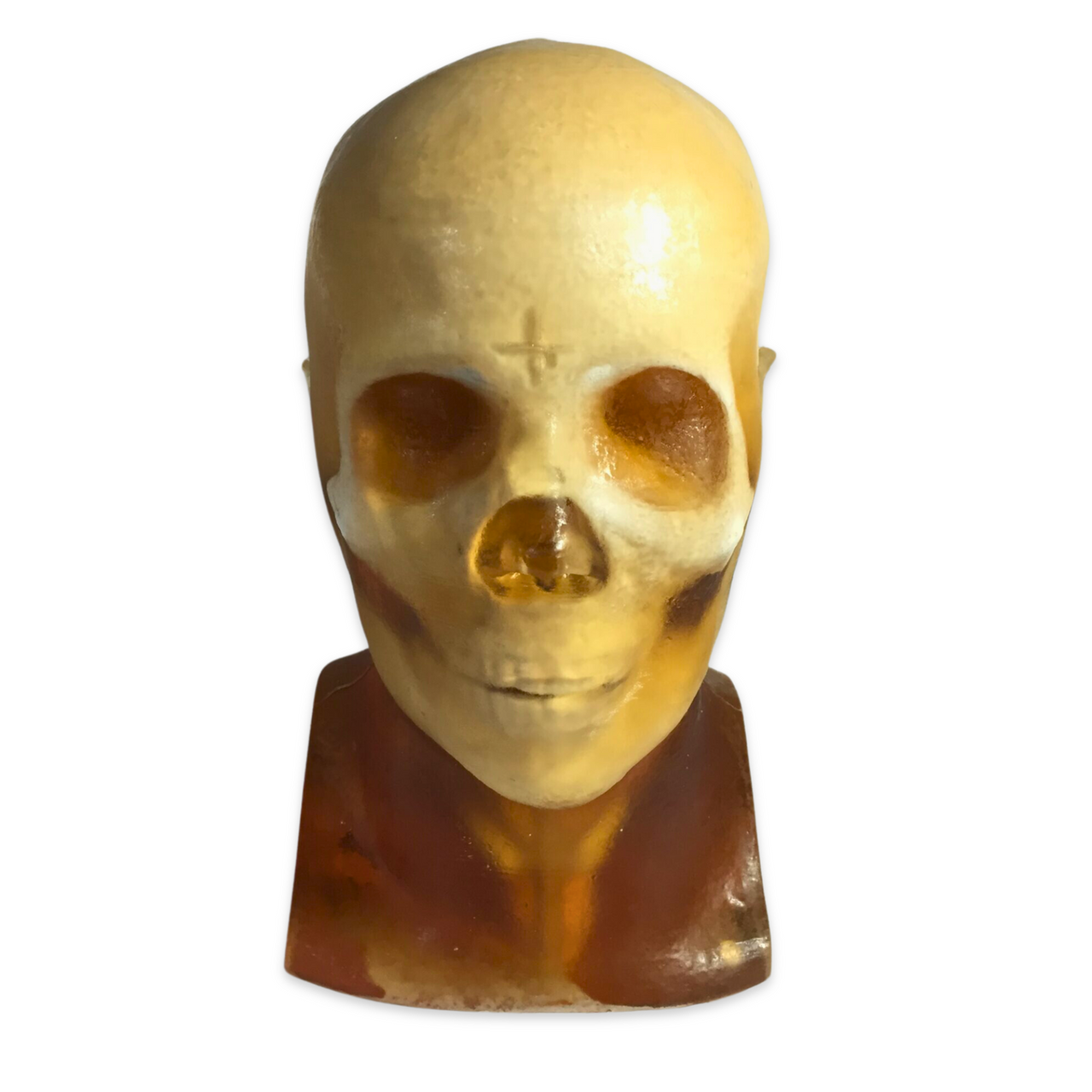

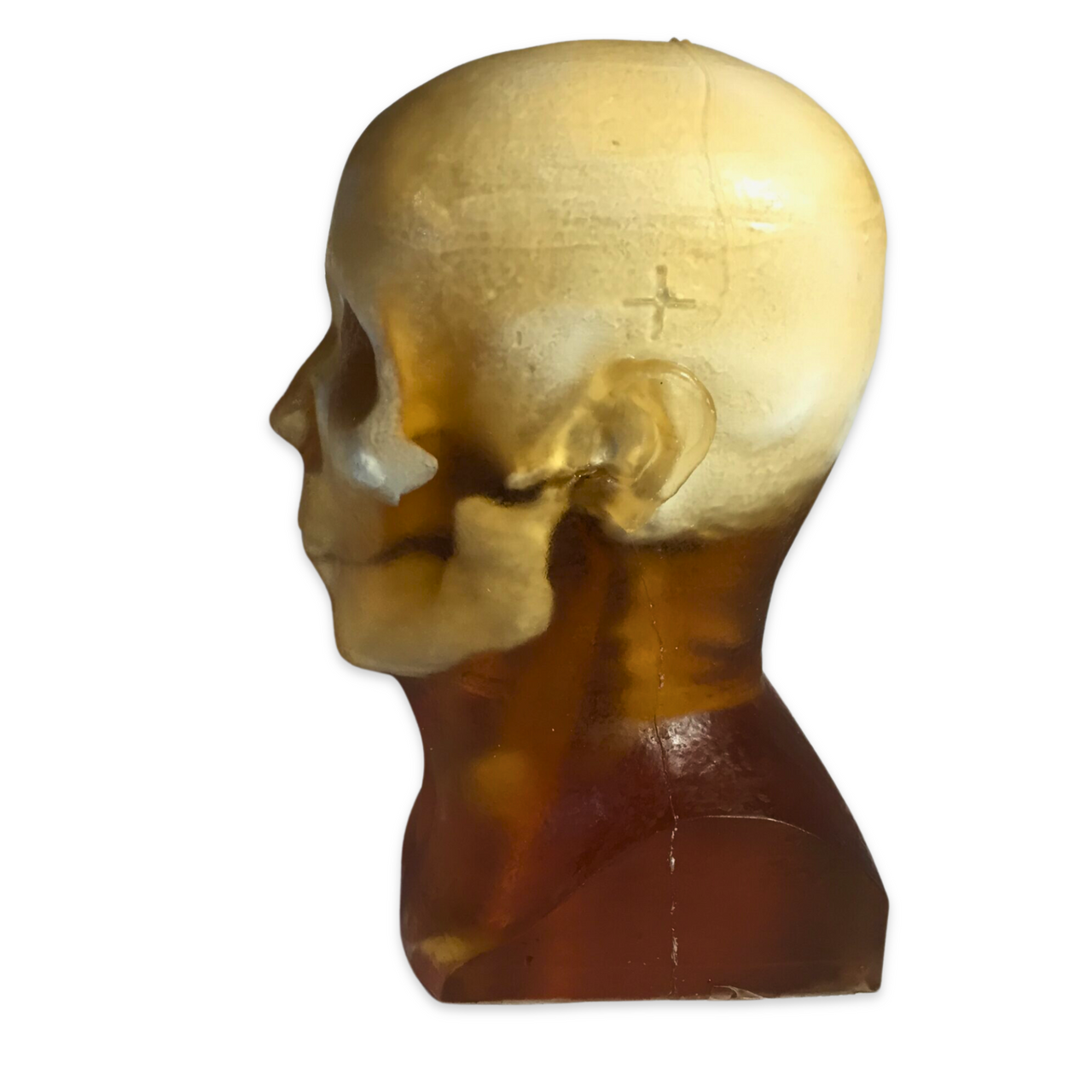

The Adult Head (Training, V1) is a specialized radiology training phantom compatible with X-Ray/CT, MRI, and Ultrasound. It is frequently utilized by medical schools and teaching hospitals to train students and professionals in advanced scanning techniques. The phantom features a realistic three-layered skull structure and tissue-mimicking materials that remain stable over time.
For MRI applications, the tissues exhibit realistic T2 relaxation time values, optimized for T2-weighted and proton-density imaging. T1-weighted imaging is possible, with values typically within the 100 ms range. The model is also suitable for use with various contrast mediums (Barium-sulfate, Iodine, Gadolinium, etc.) for specialized training scenarios.
Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. Protective urethane coating increases body tissue hardness by approx. 30 points (e.g., from OO 60 to OO 90).

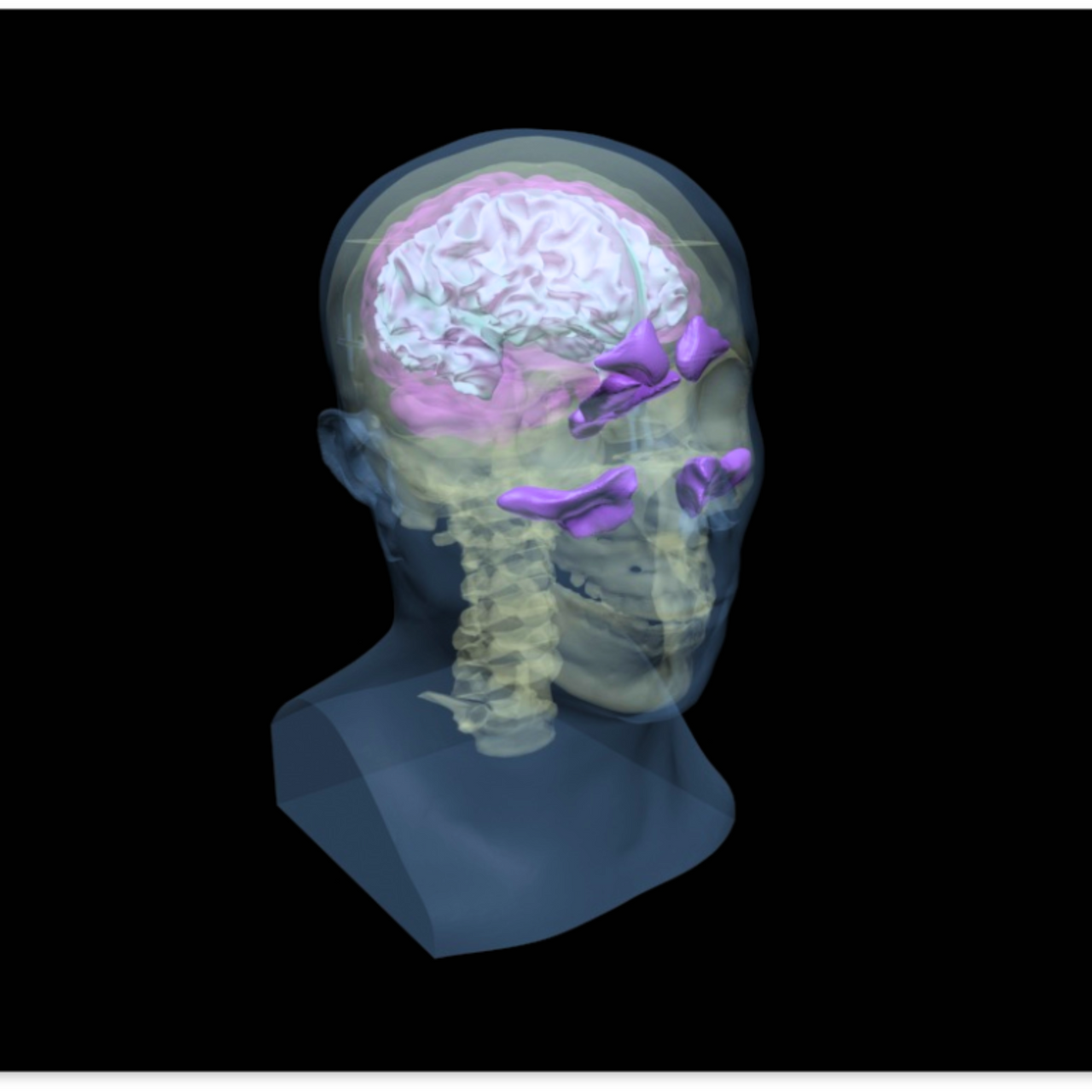

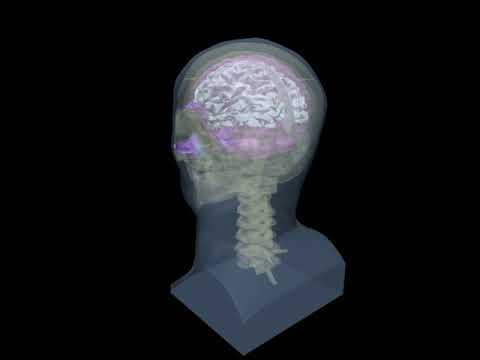

Anatomy
- Skull: Realistic three-layered structure with inner diploe layer.
- Cervical Spine: Realistic vertebrae included.
- Brain: Synthetic tissue featuring Grey and White Matter and Falx Cerebri.
- Sinuses: Frontal Sinus with air gaps and realistic air cavities.
- External: Alignment markings and acoustically correct skin-mimicking material.
Head Phantoms Comparison
| Features | Training, V1 Head | Standard Head | Dynamic Head | Static Head |
|---|---|---|---|---|
| Skull | ? | ? | ? | ? |
| Cervical Spine | ? | ? | Optional | ? |
| White Matter | ? | ? | ? | ? |
| Falx Cerebri | ? | ? | ? | ? |
| Realistic Air Cavities | ? | ? | ? | ? |
| Frontal Sinus w/ Air Gaps | ? | ? | ? | ? |
| Brain (Gray Matter) | ? | ? | ? | ? |
| Alignment Markings | ? | ? | ? | ? |
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00]* | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Skin/Body Tissue | 1400 ± 10 | 1.02 | 1.7 ± 0.2 | 60 | 50 | NO |
*Measured without protective coat; coating increases hardness by approx. 30 points.
HU Values of Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Skin Tissue | -25 |
Included in Order
- Adult Head (Training, V1) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case

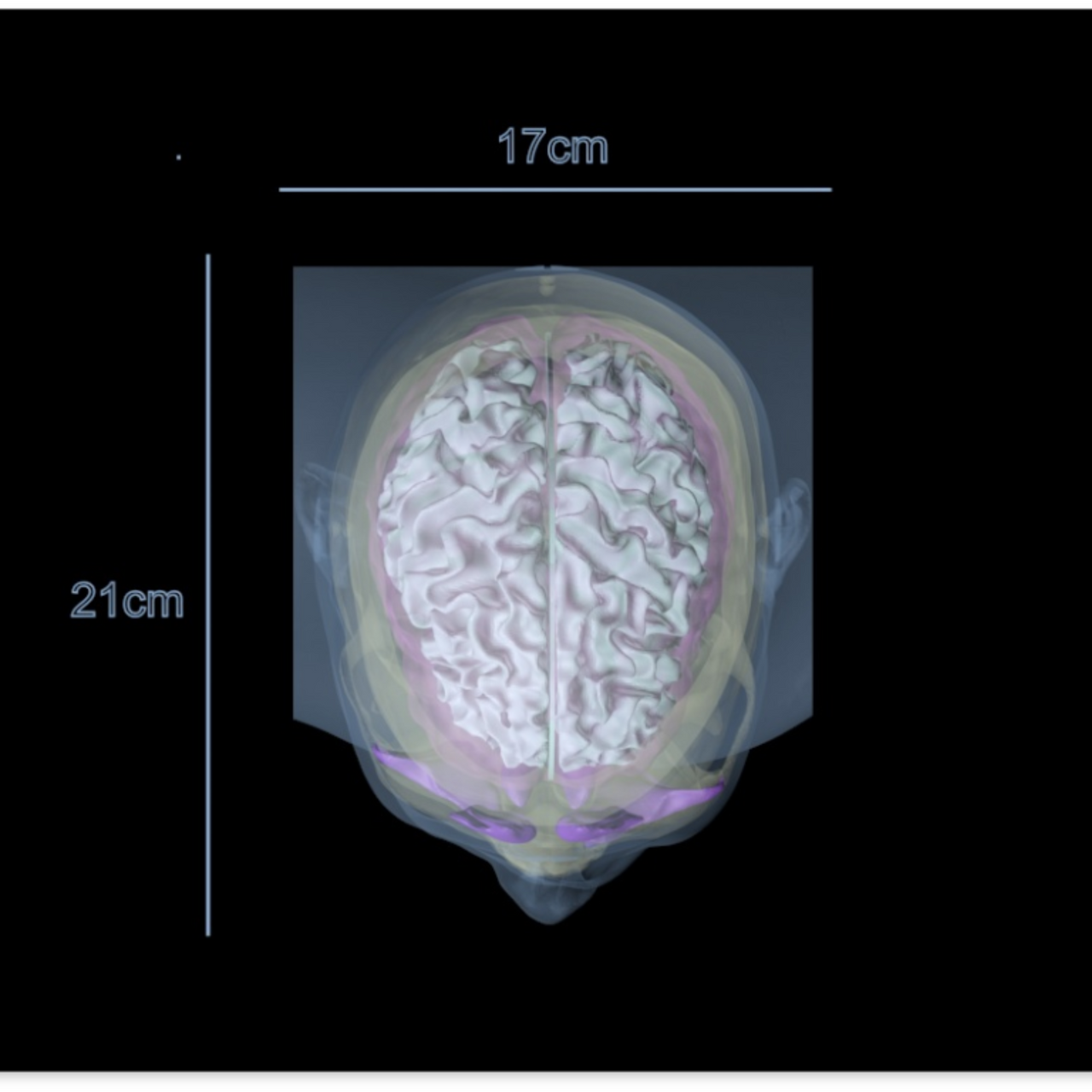

Size & Weight
Phantom: 12 x 9 x 7 Inches | Weight: ~17 Lbs
Shipment: 23 x 14 x 10 Inches | Weight: ~22 Lbs
Materials Used
- Soft tissue and brain components: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
