True Phantom

Advanced Dynamic Adult Male Head Phantom Model

(No reviews yet) Write a Review
SKU:
A-112413
MPN:
HD-C03
Availability:
Typically Ships in 12-16 Weeks. Contact us if you have a firm Delivery Date Requirement.
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
  • Advanced Dynamic Adult Male Head Phantom Model
Retail Price $12,650.00
Today's Price $11,520.00
— You save $1,130.00

Description

Adult Head (Dynamic, Advanced):

The design of this phantom is based on an average human male head and it is made out of several realistic tissue-mimicking materials that are suitable for Ultrasound, X-Ray CT, and MRI applications.

This phantom consists of the following components:

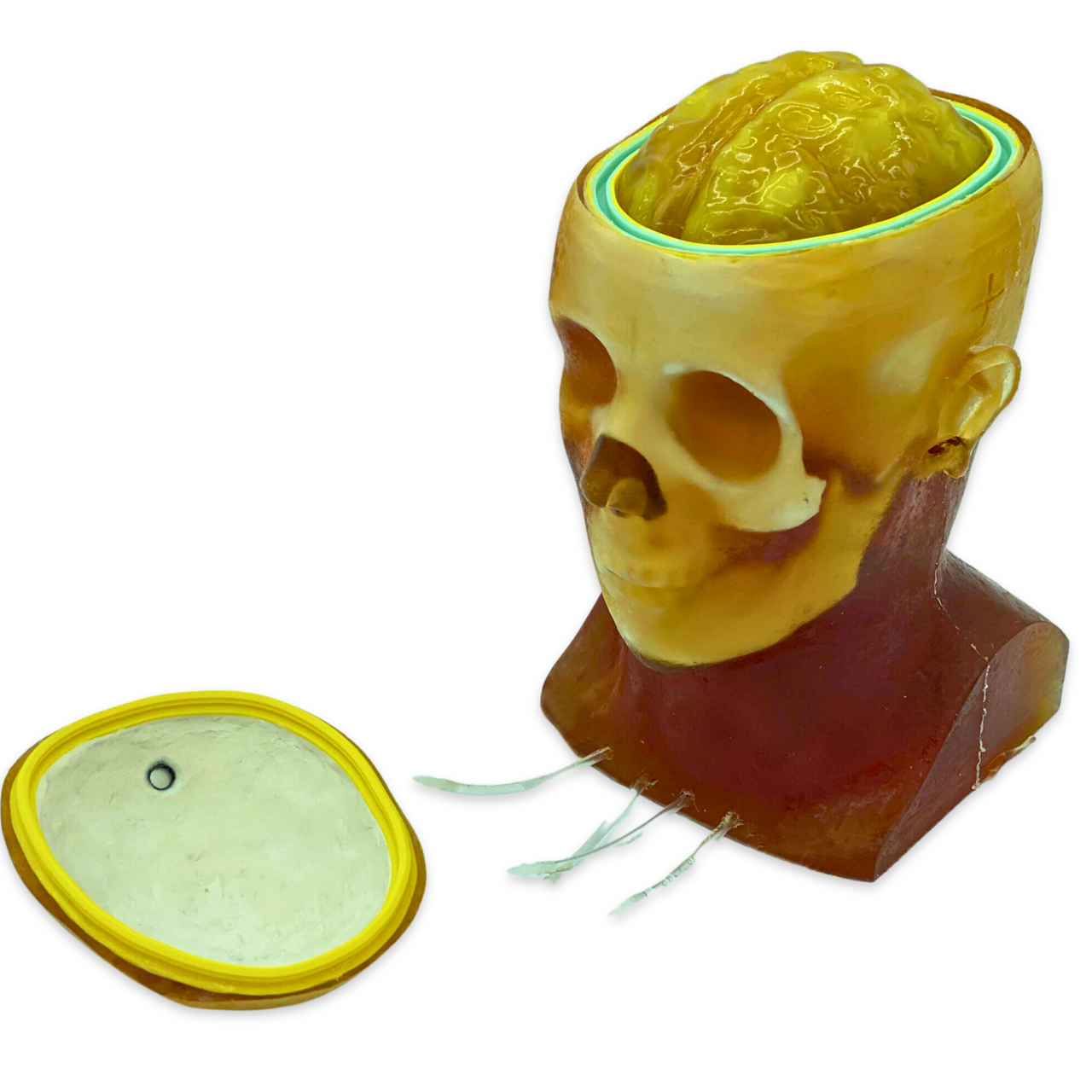

  1. Anatomically correct realistic skull with temporal and suboccipital windows for transcranial Doppler ultrasound

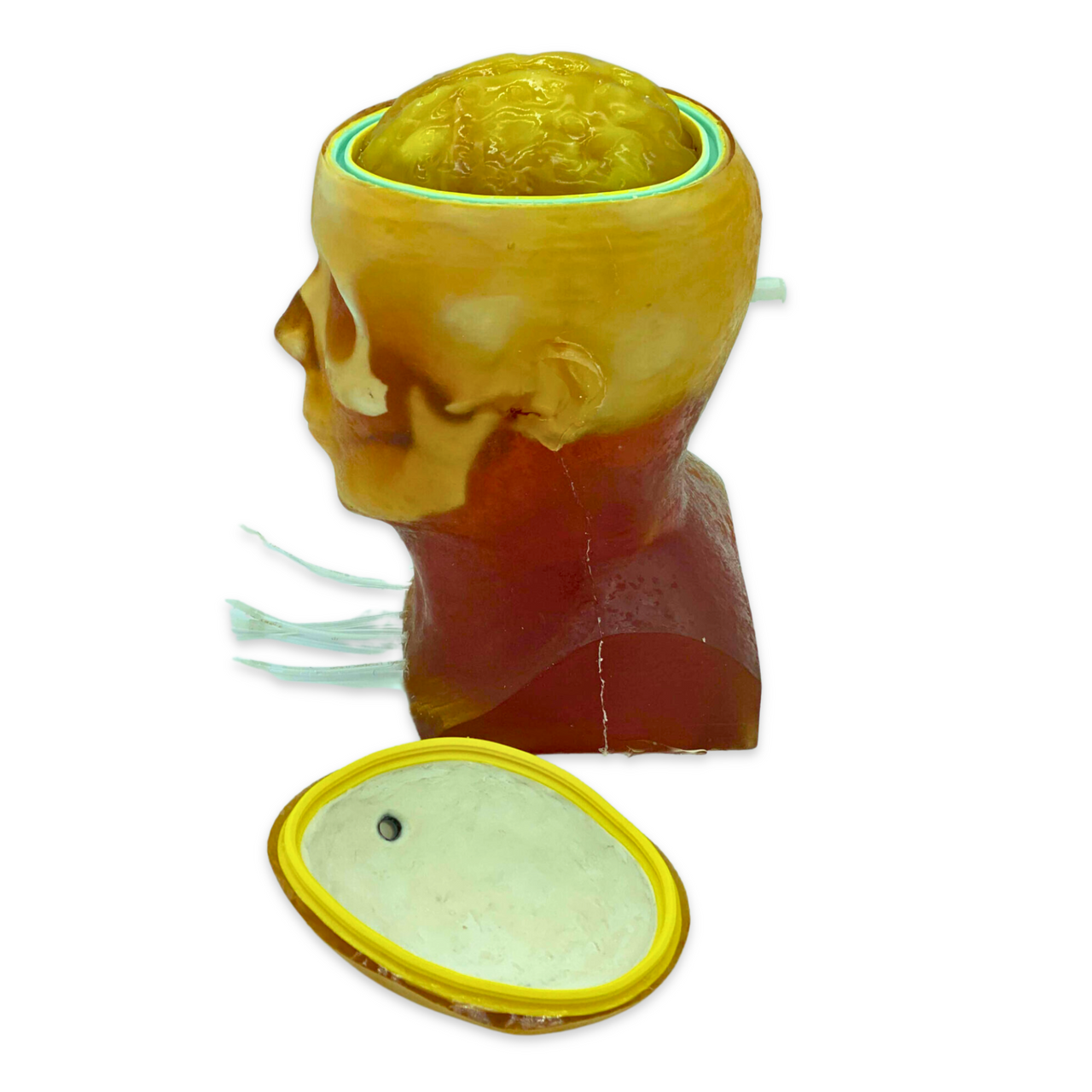

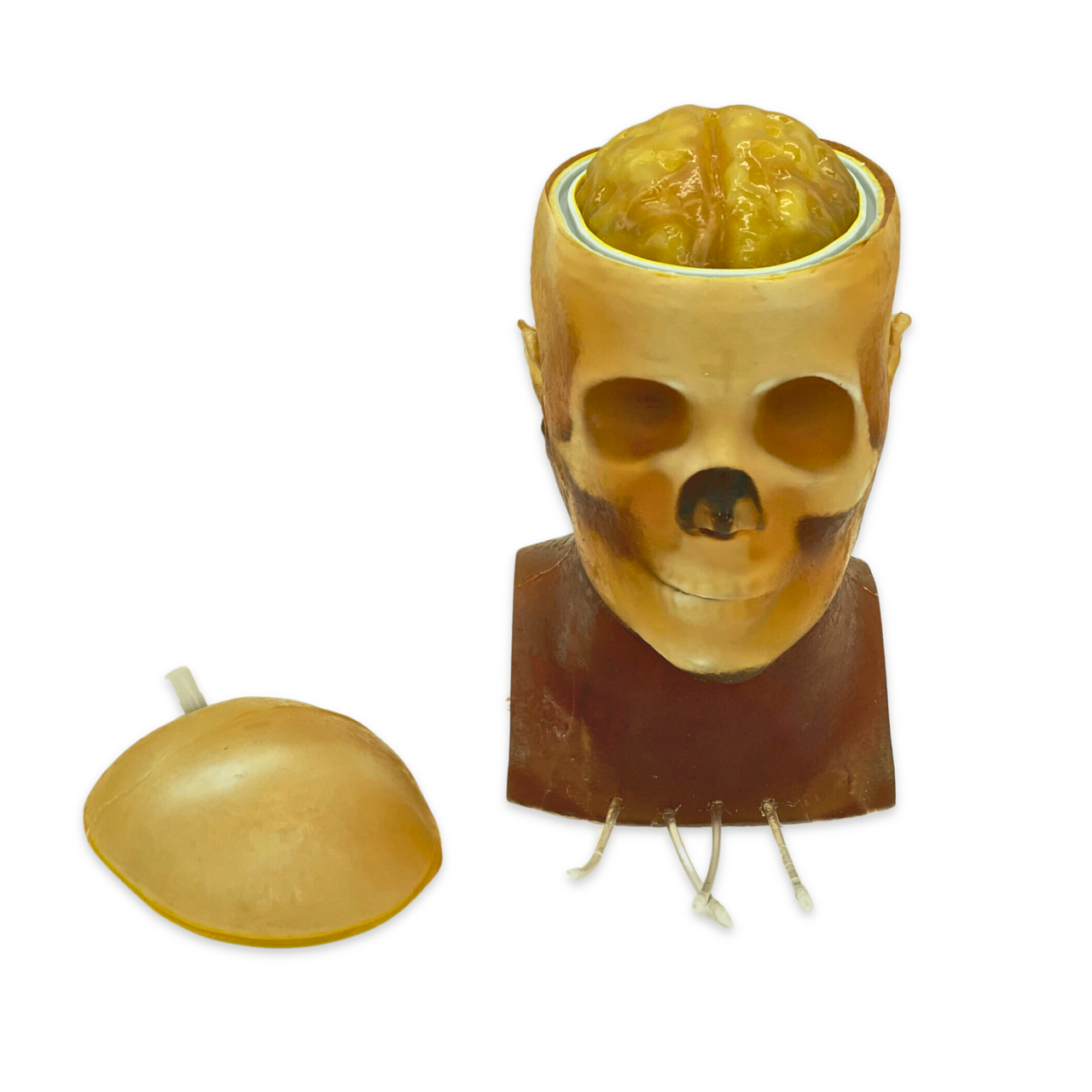

  2. Openable and removable Calvaria
  3. Geometry and dimensions of an average brain
  4. Complex brain vessels incorporated Circle of Willis
    One bifurcation
    One stenosis
    Two aneurysms
    Connecting vessels with the neck
    Plastic connectors
  5. Brain ventricles (water fillable brain cavities to mimic change of pressure inside of the brain)

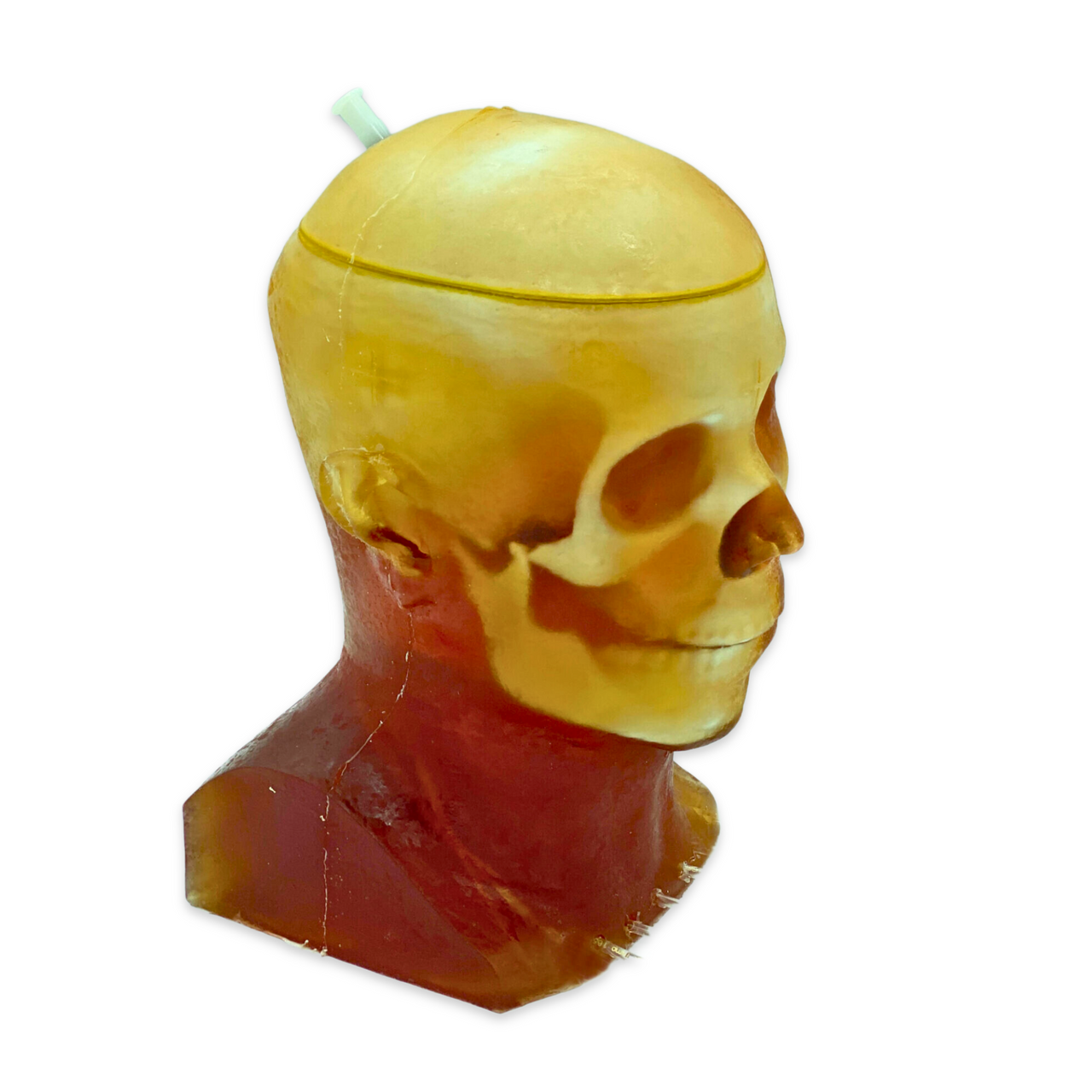

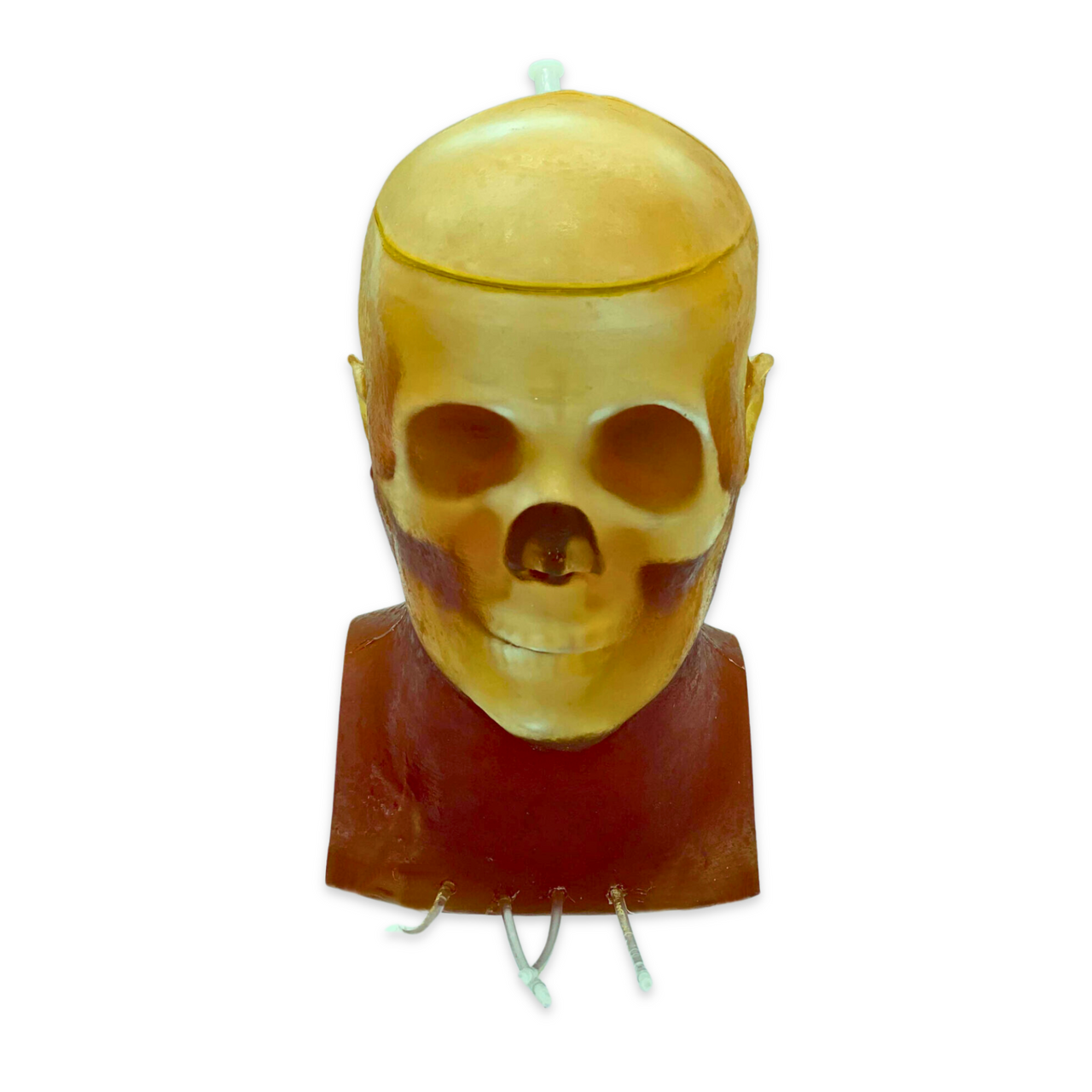

  6. Acoustically correct skin-mimicking material implemented to the skull (the phantom has an appearance of an actual human head)

he phantom is visible on Ultrasound, MR and CT scans. The brain parenchyma is made of an ultra-soft polyurethane-based material that mimics soft tissue and its anatomical shape was created based on the MRI scan of a human brain. The materials used to build the phantom are stable over time and they do not dry out.

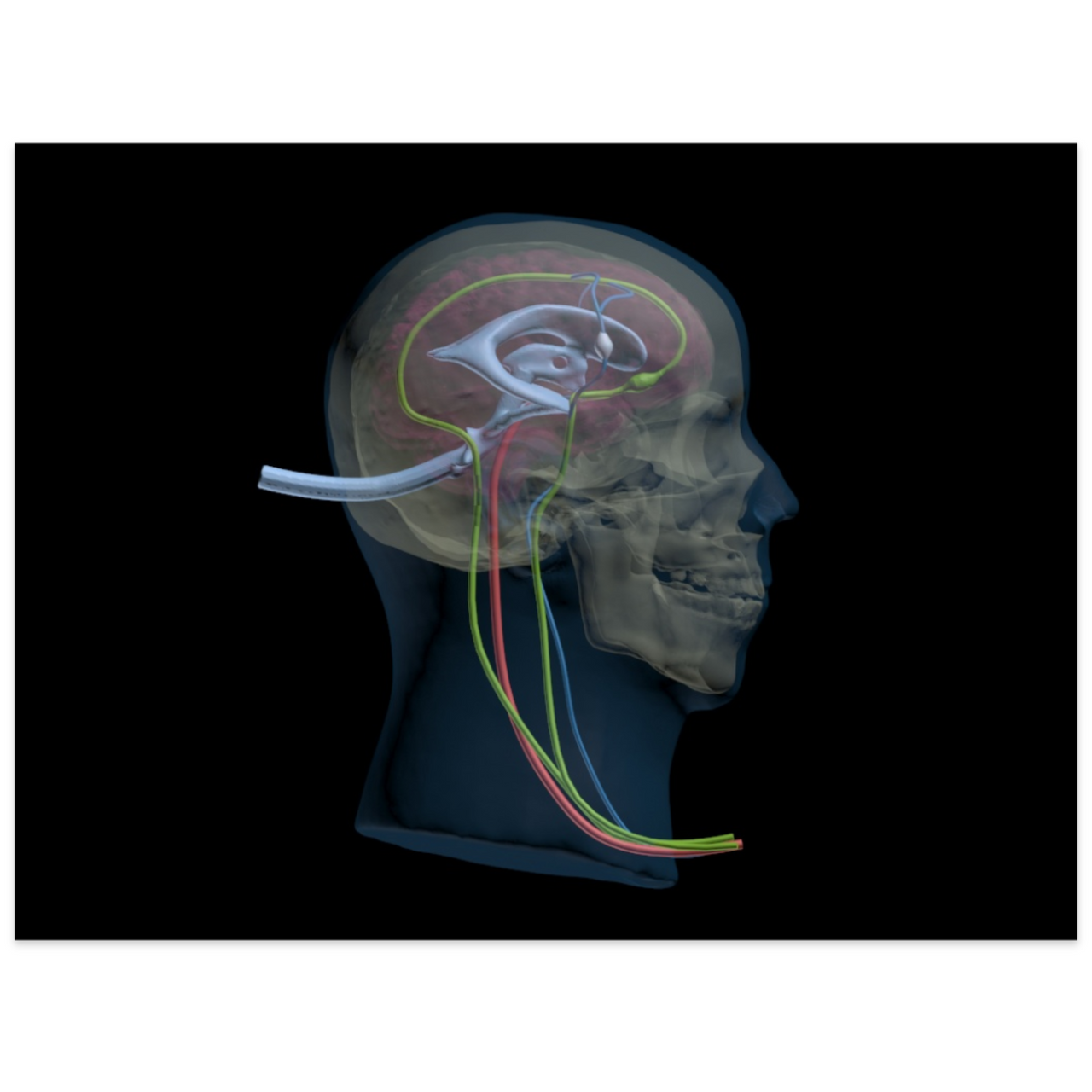

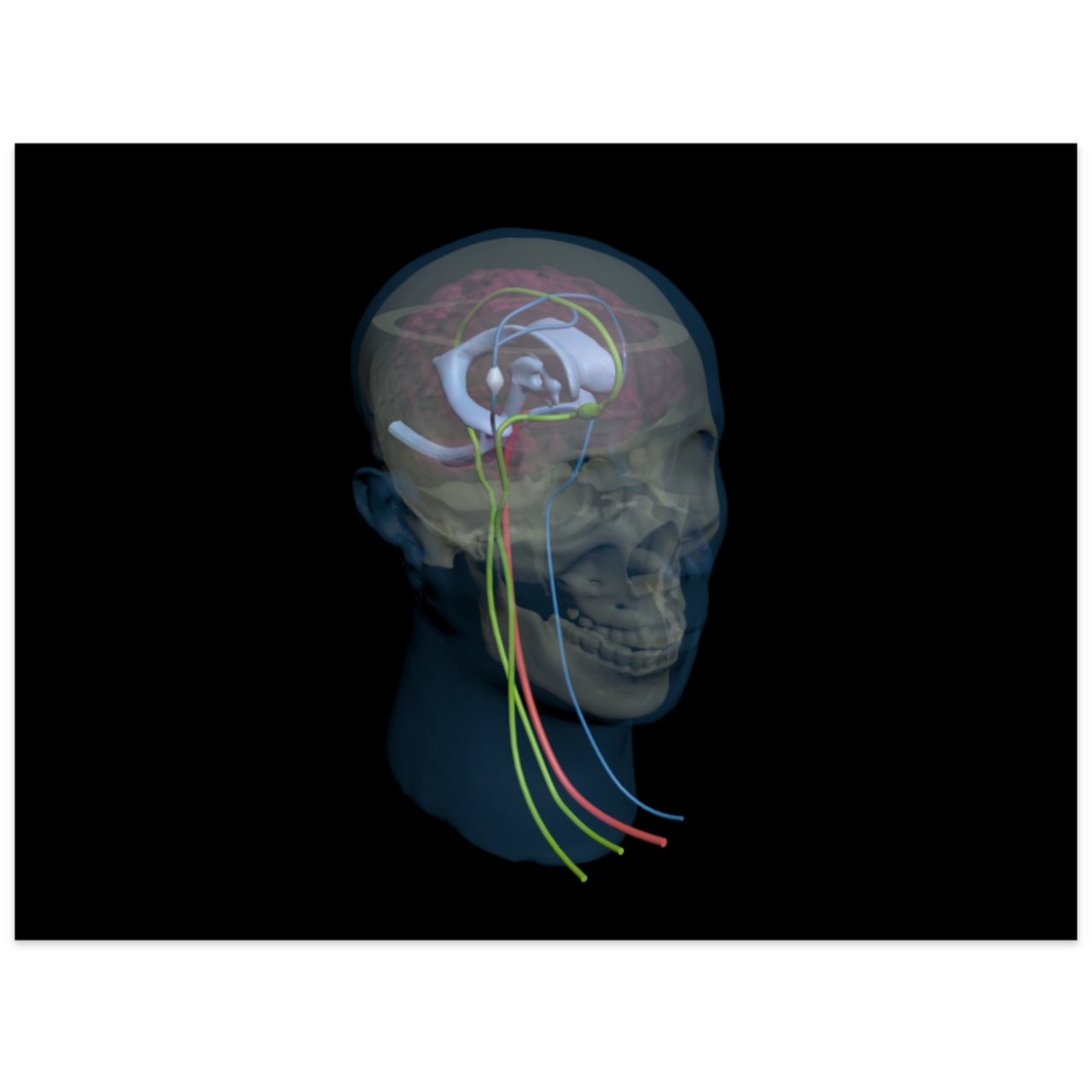

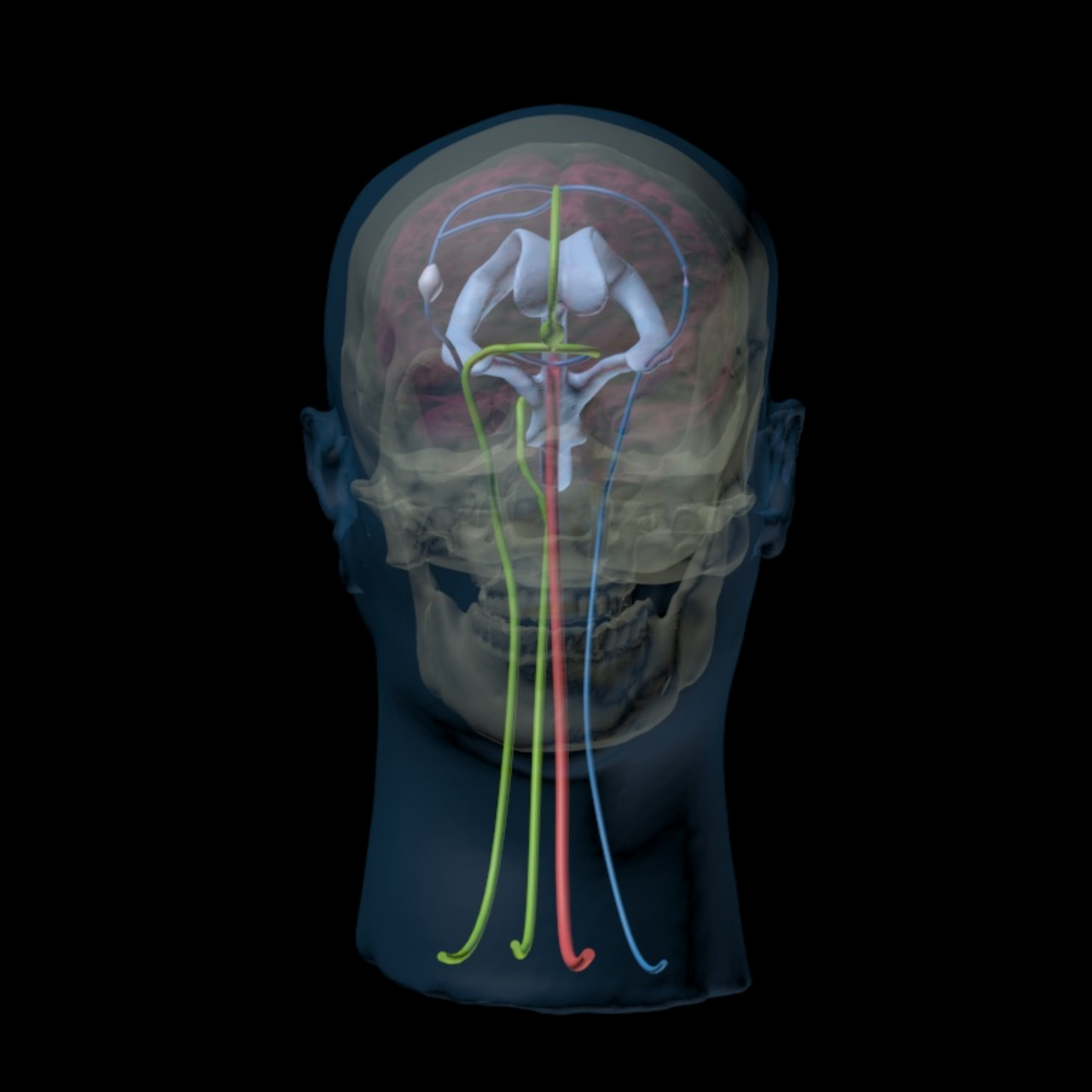

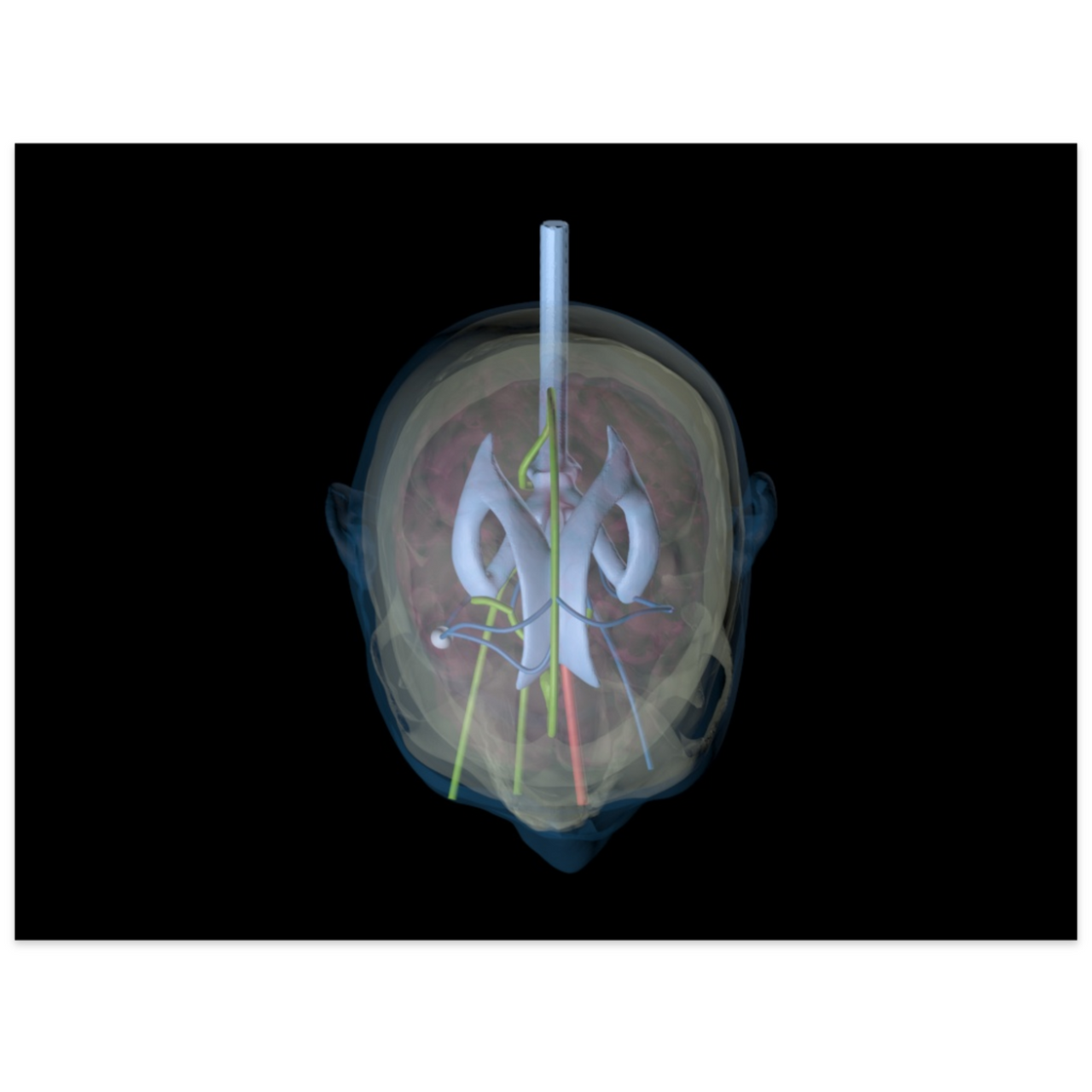

The phantom comprises of realistic blood vessel which can be filled with any commonly used blood mimicking fluid with or without contrast agent. It also comprises of the entire ventricular system (lateral, third and fourth ventricles) which can be used to generate pressure inside the brain, and more closely approximate real cerebral anatomy. The ventricles are inflatable and can be filled with any liquid.

Prior imaging the phantom please fill the ventricles completely with water (or chosen contrast agent) using the tube on the back of the brain. After the ventricles are filled, plug the tube with removable blue silicone plug.

Tissue Properties:

Type of tissue phantom Sound velocity [m/s] Density [g/cm3] Hardness
[Shore OO]
T2 [ms] Attenuation measured at 2.25 MHz [dB/cm]
Cortical bone material used to fabricate the skull bone phantom 3000 ± 30 2.31 N/A N/A  6.4 ± 0.3
Trabecular bone material used to fabricate the trabecular layer within the bone phantom 2800 ± 50 2.03 N/A N/A  21 ± 2
Brain tissue 1400 ± 10 0.99 20 70  1.0 ± 0.2
Skin tissue 1400 ± 10 1.01 60 50  1.7 ± 0.2



Thermal Prpperties Of Our Bone Mimicking Material

Thermal Conductivity: Volumetric Specific Heat Capacity: Thermal Diffusivity: Thermal Resistivity: Specific Heat: Speed of Sound:
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
View AllClose

Warranty Information

2-Years Limited Warranty Against Manufacturer Defects

True Phantom Solutions Inc. (TPS) Products Limited Warranty

The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: support@anatomywarehouse.com

Who qualifies?

TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.

What qualifies?

Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.

Returns/Replacements

Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or support@anatomywarehouse.com in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.

View AllClose

Customers Also Viewed

Adult Male Skull Phantom Adult Male Skull Phantom 1

Adult Male Skull Phantom

True Phantom

Retail Price $5,355.00 - $9,350.00
Today's Price $4,870.00 - $8,480.00
Adult Human Skull Phantom can be used for medical imaging research and treatment planning of non-invasive HIFU brain surgeries. True Phantom Solutions are pioneers in developing these phantoms...
Adult Spine Phantom Model Adult Spine Phantom Model 1

Adult Spine Phantom Model

True Phantom

Retail Price $4,125.00
Today's Price $3,750.00
Our Adult Spine phantom (SE-A01) is a complete ‘average human-sized spine’ consisting of 25 individual vertebrae assembled on top of each other. It is majorly composed of the following...

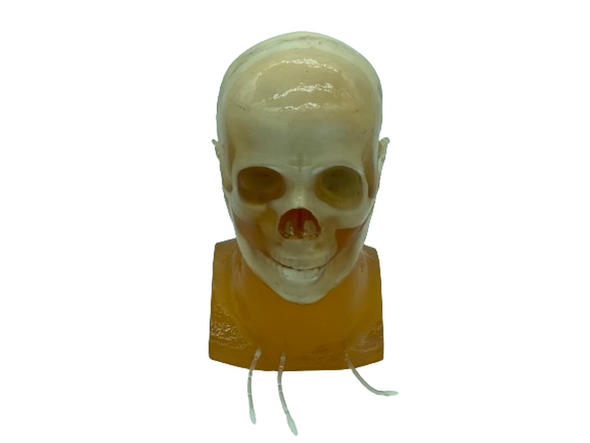

Static Adult Male Head Phantom Model Static Adult Male Head Phantom Model 1
