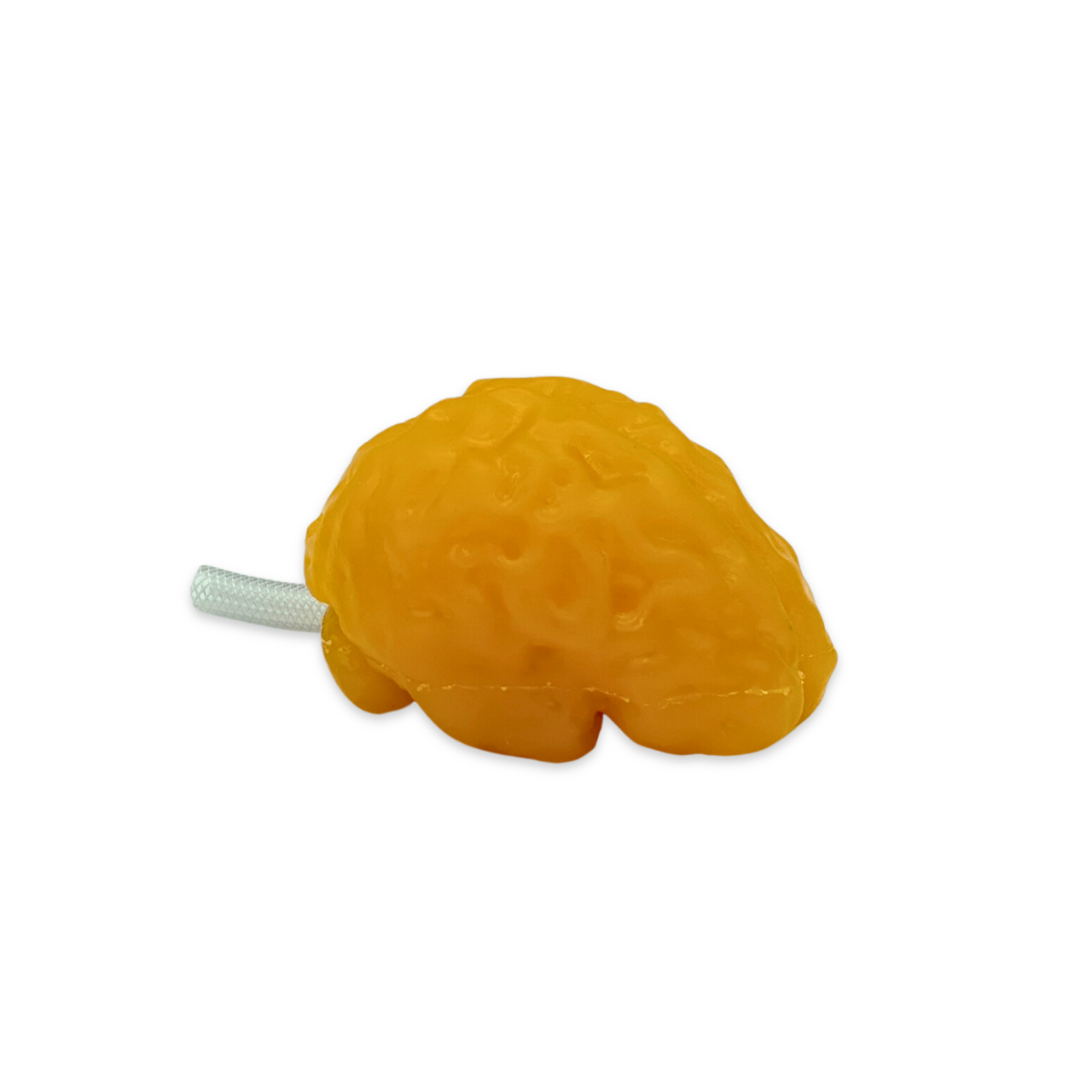

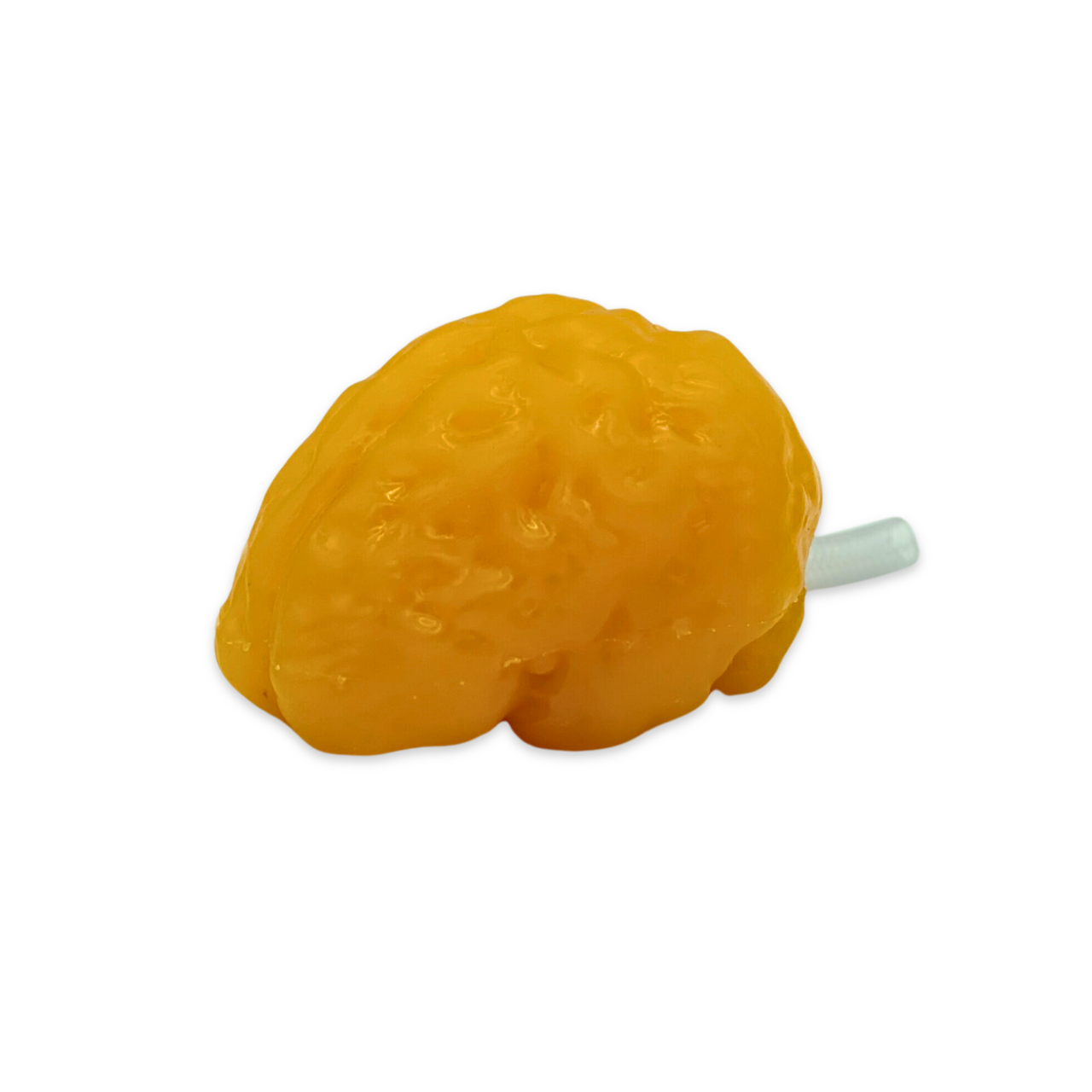

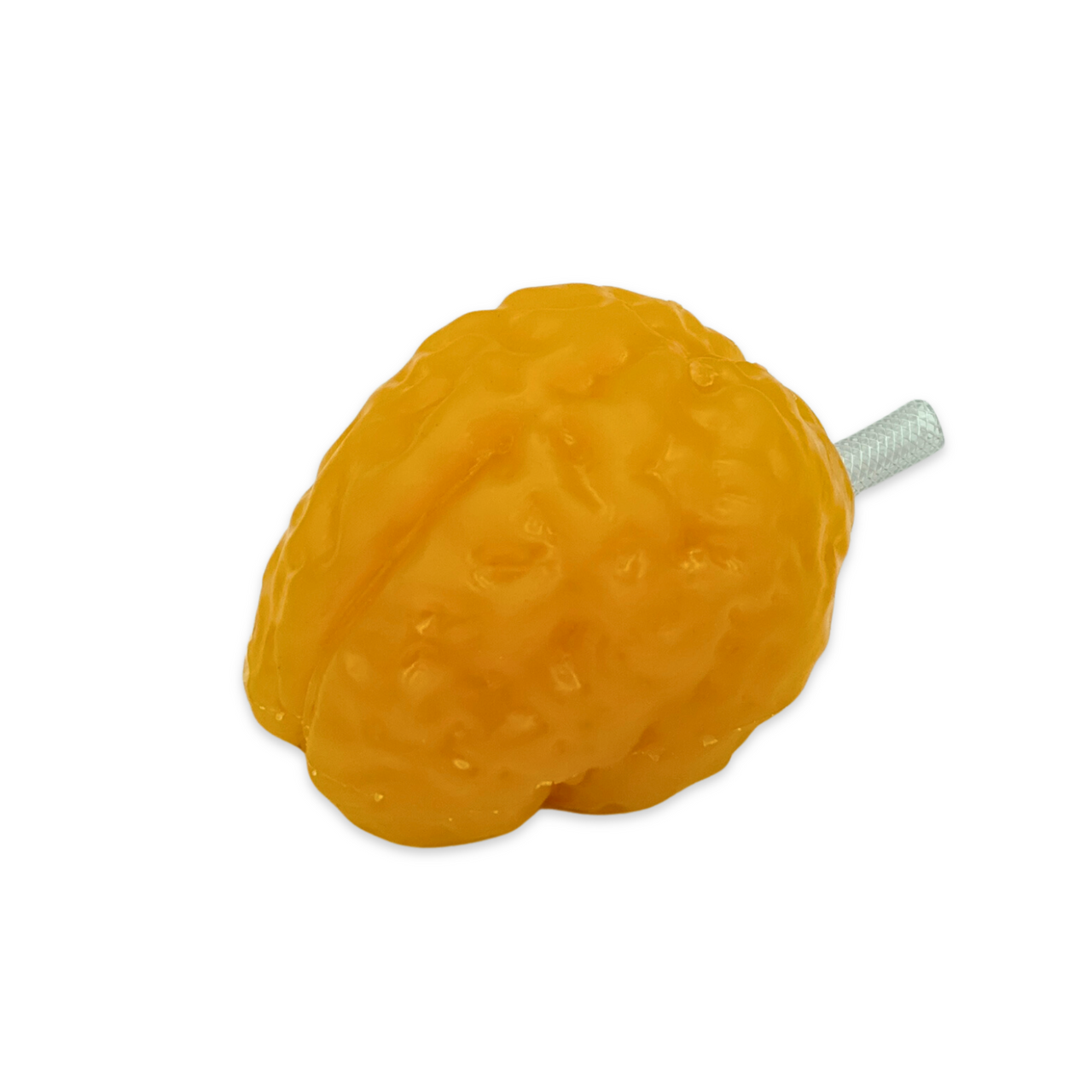

Adult Brain (Standard) for X-Ray CT, US, MRI
Product Description

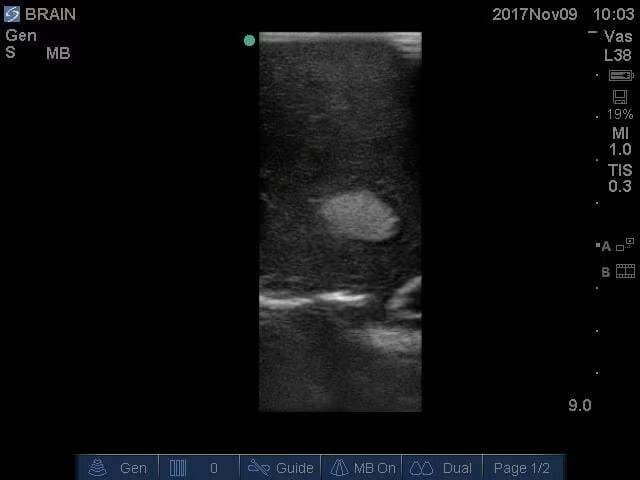

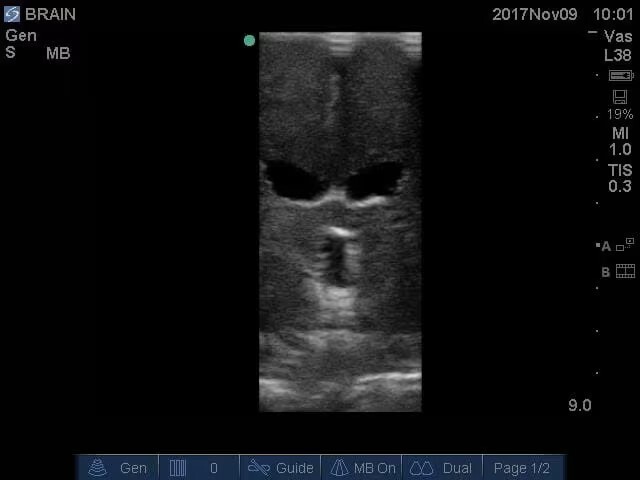

The Adult Brain (Standard) phantom is designed based on an average human brain using realistic tissue-mimicking materials. It is compatible with Ultrasound, MRI, and X-Ray/CT applications and can be used with a variety of contrast mediums, including Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based mediums.

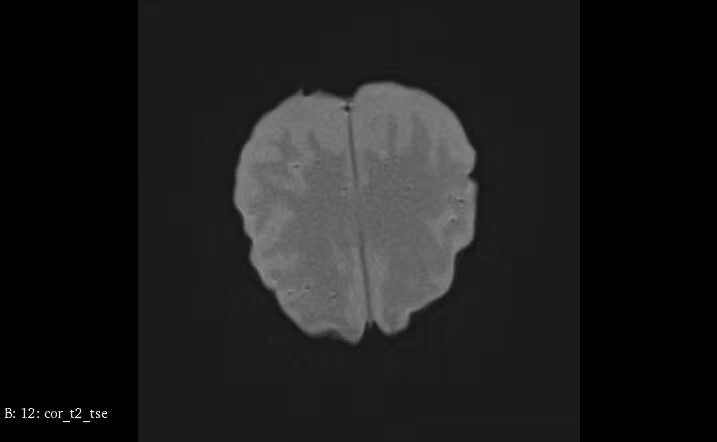

For MRI, the phantom provides realistic T2 relaxation time values, making it highly suitable for T2-weighted and Proton Density imaging methods. T1-weighted imaging is possible, though T1 values are less realistic (averaging around 100 ms).
Note: Customization of features and material properties is available upon special request to meet specific project requirements.

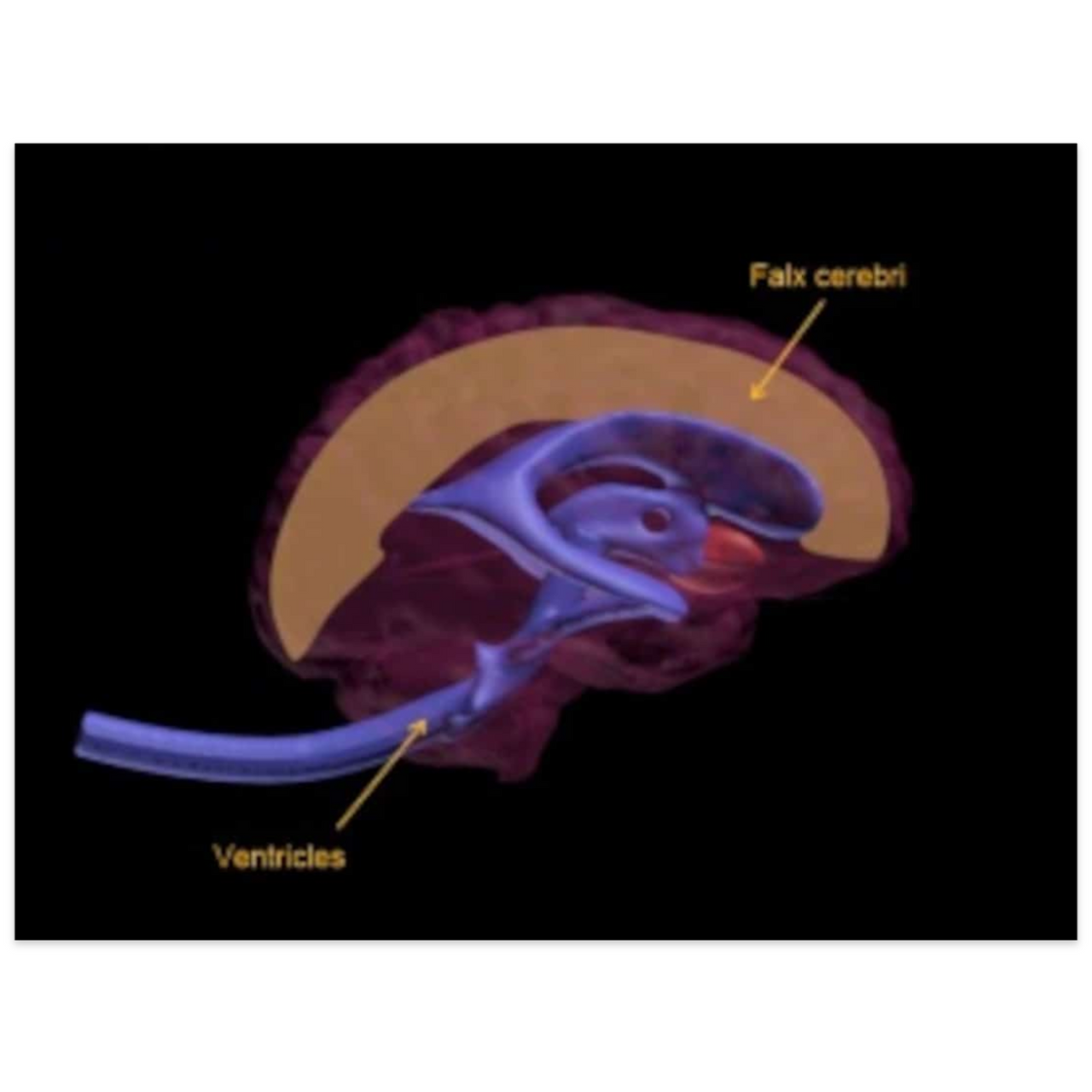

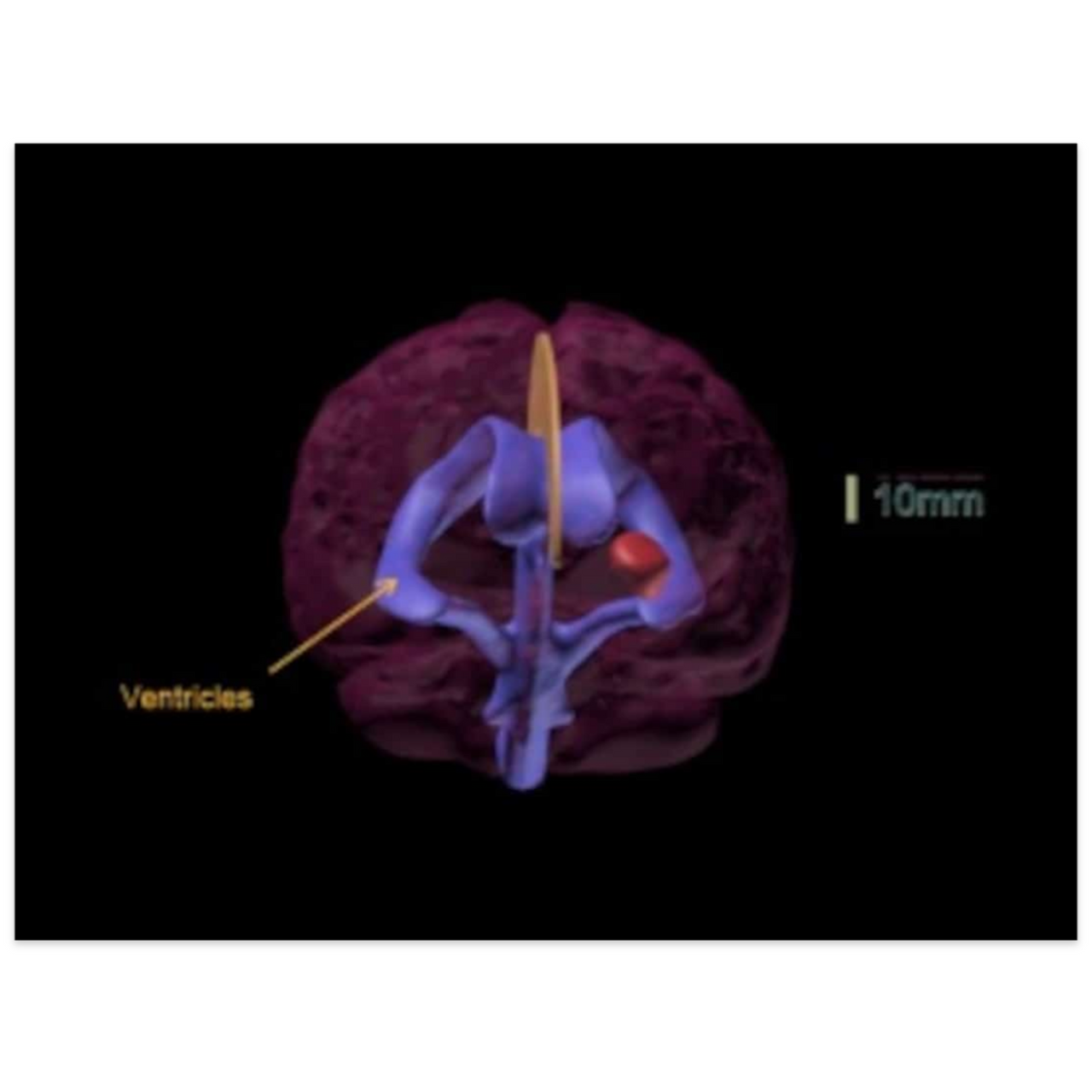

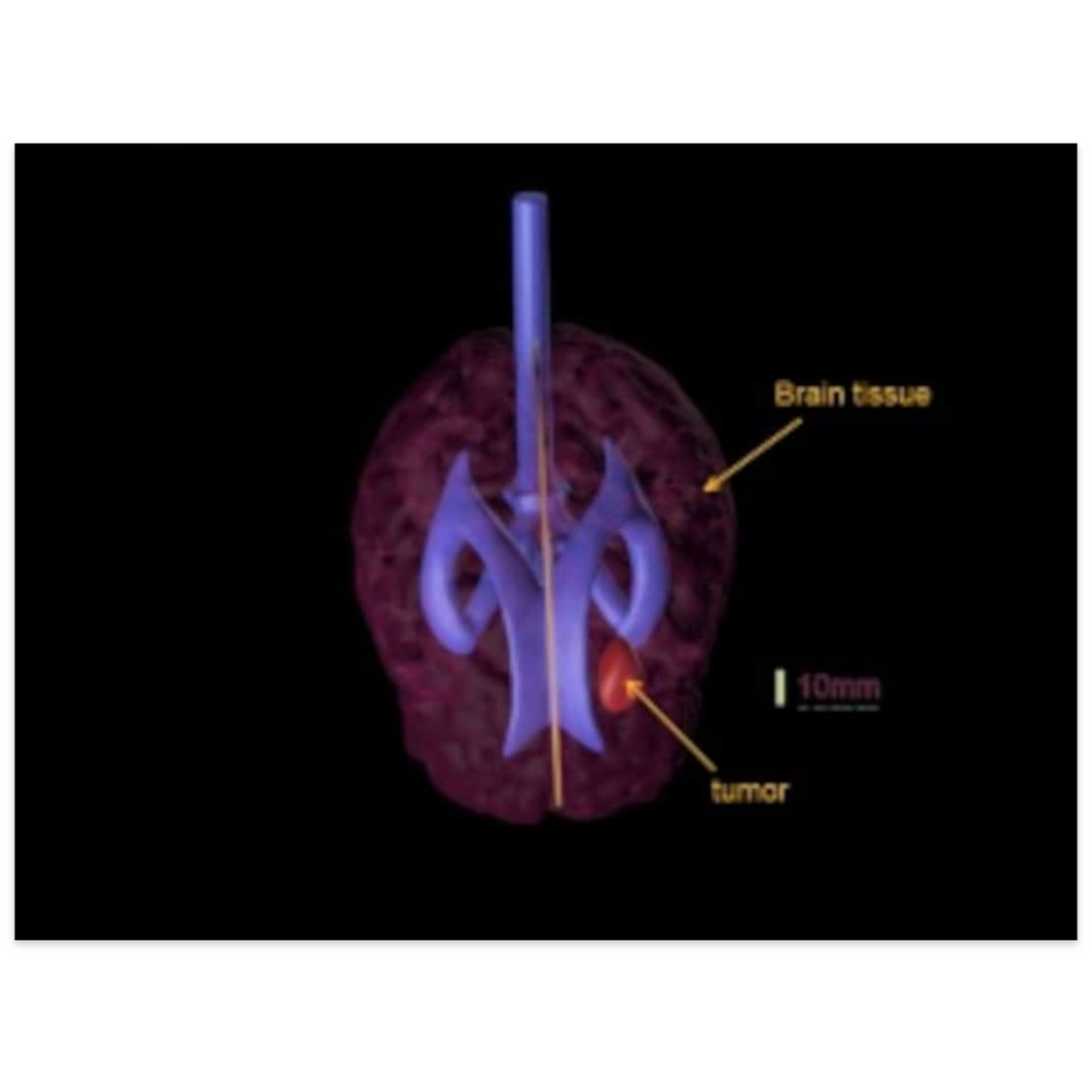

Anatomy
- Gray Matter
- Brain Ventricles

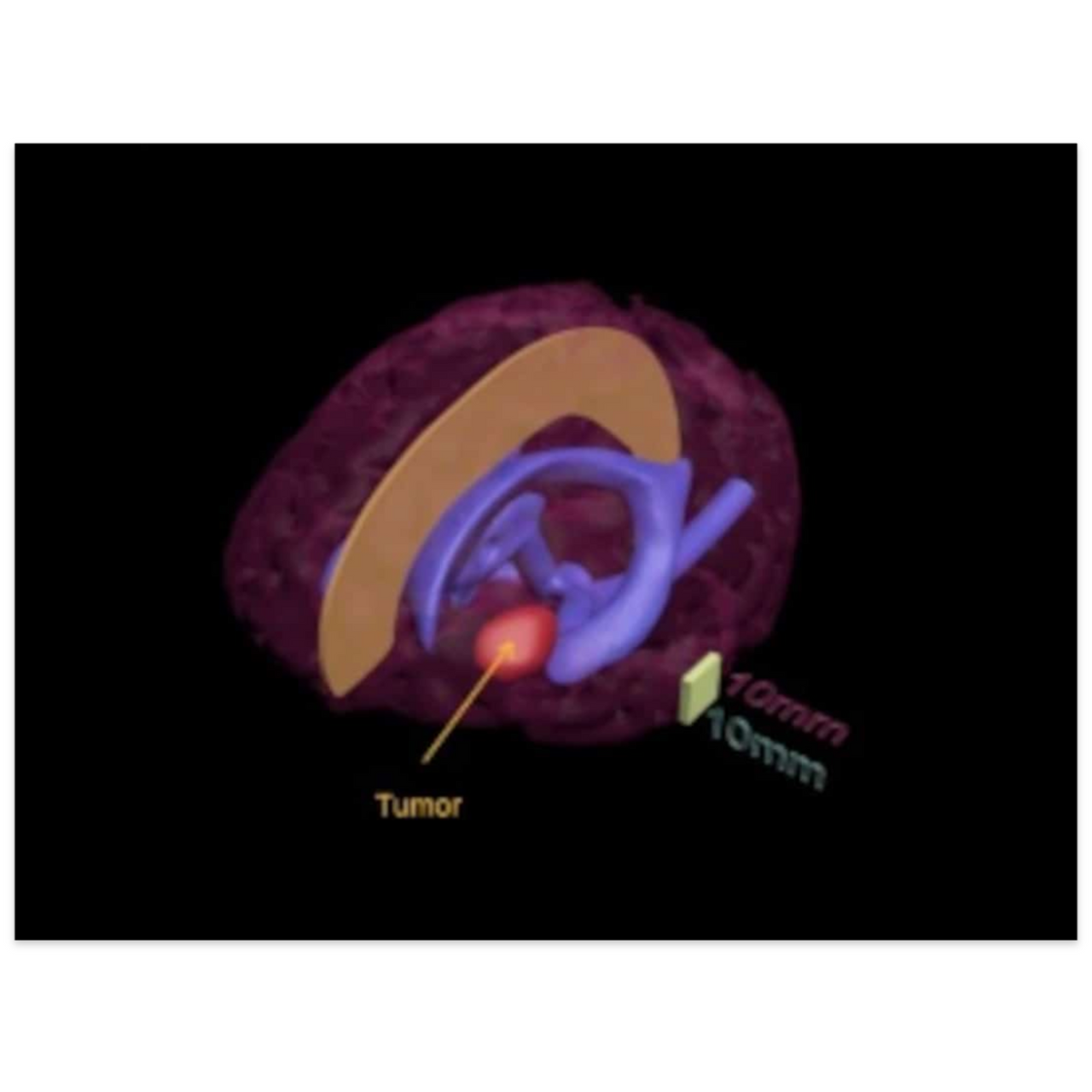

- Brain Tumor
- Falx Cerebri
Brain Phantom Comparison
| Features | Standard Brain | Complex Brain | Basic Brain |
|---|---|---|---|
| Gray Matter | ? | ? | ? |
| Brain Ventricles | ? | ? | ? |
| Brain Tumor | ? | ? | ? |
| White Matter | ? | ? | ? |
| One Bifurcation | ? | ? | ? |
| Falx Cerebri | ? | ? | ? |
| Blood Vessels (2mm ID) | ? | ? | ? |
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Brain Grey Matter | 1400 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 |
| Brain White Matter | 1400 ± 10 | 1.01 | 35 | 60 | YES | 1.3 ± 0.2 |
| Falx Cerebri | 1400 ± 10 | 1.01 | 60 | 50 | YES | 1.7 ± 0.2 |
| Tumor Feature | 1400 ± 10 | 1.00 | 30 | 65 | YES | 1.2 ± 0.2 |

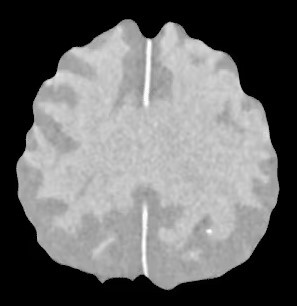

HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
Optional Add-ons
- White Matter
- Tumor
- Temporal Bone / Calvaria
- Stenosis / Aneurysm / Hematoma
- Brain Vessels / Bifurcation / Simple or Complex Blood Vessels
- Brain Ventricles / Brain Parenchyma
- Skin Feature
- Foreign Objects
Included in Order
- Adult Brain (Standard) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 5 x 6 x 5 Inches | Weight: ~2 Lbs
Shipment: 12 x 10 x 10 Inches | Weight: ~6 Lbs
Materials Used
- Soft tissue: Composition of urethane-based soft resin
