Description
Adult Brain (Complex) for X-Ray CT, US, MRI
Product Description

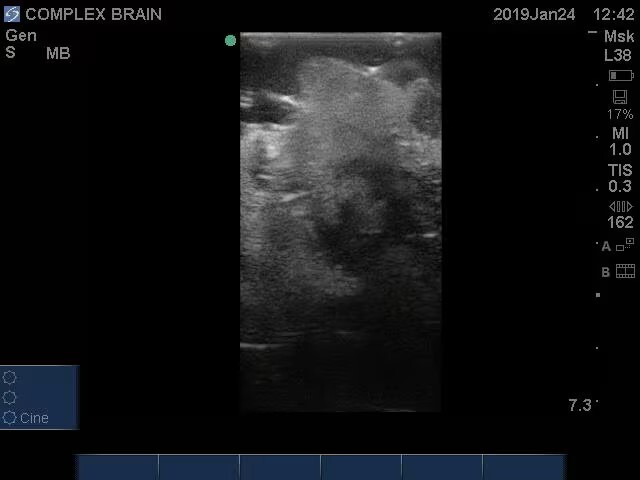

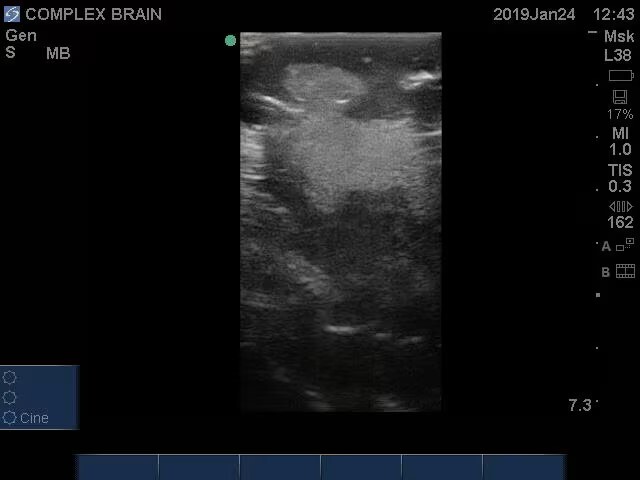

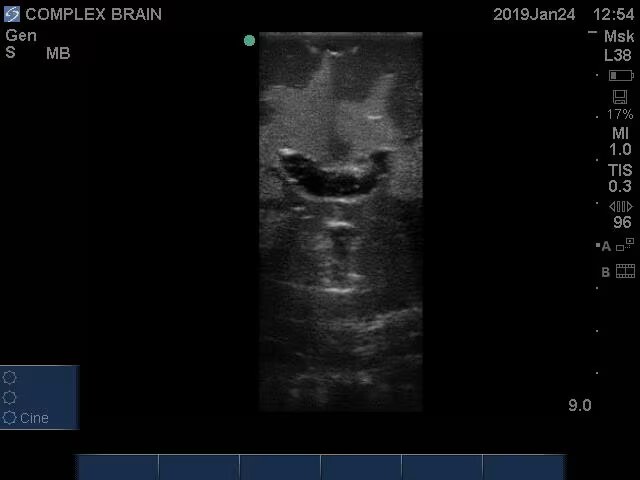

The Adult Brain (Complex) phantom is constructed using realistic tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT. This advanced model includes complex arteries and vessels, making it an ideal tool for angiography training and research. It is compatible with multiple contrast mediums, including Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based mediums.

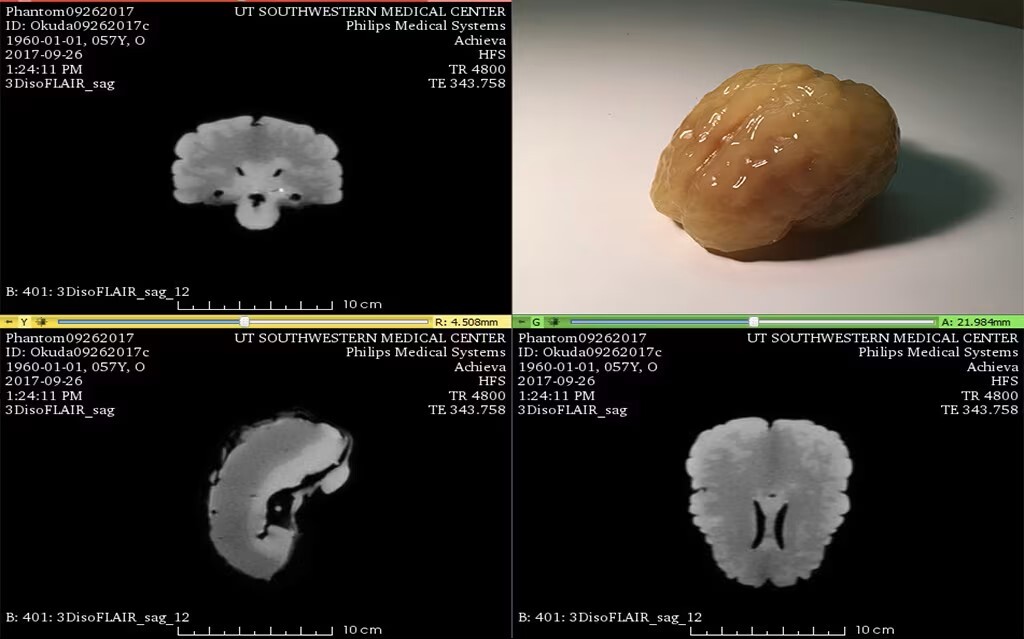

For MRI applications, the phantom provides realistic T2 relaxation time values, perfectly suiting T2-weighted and Proton Density imaging methods. T1-weighted imaging is possible, with T1 values falling within a range of approximately 100 ms.
Note: Customization of phantom features and material properties is available upon special request to meet specific project needs.

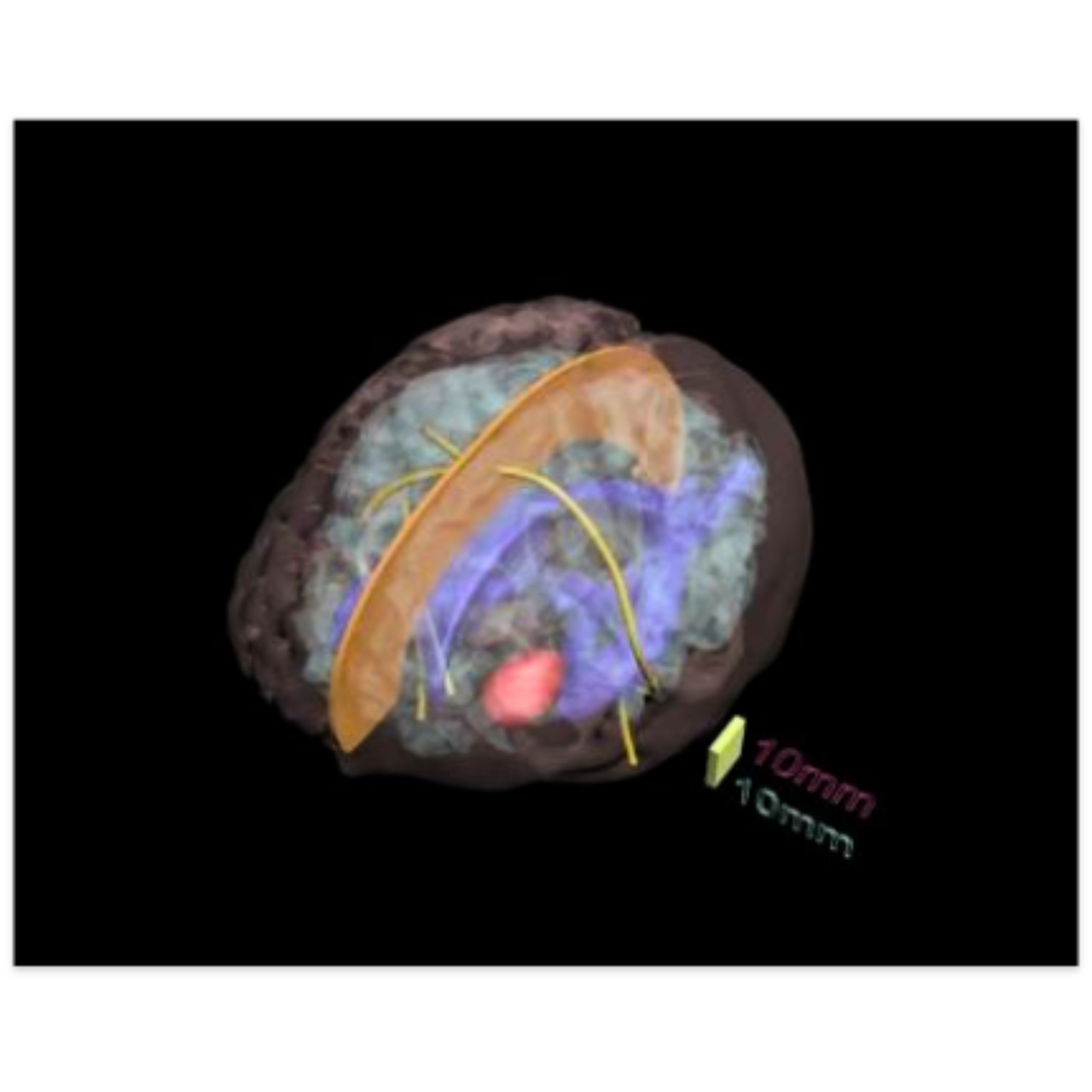

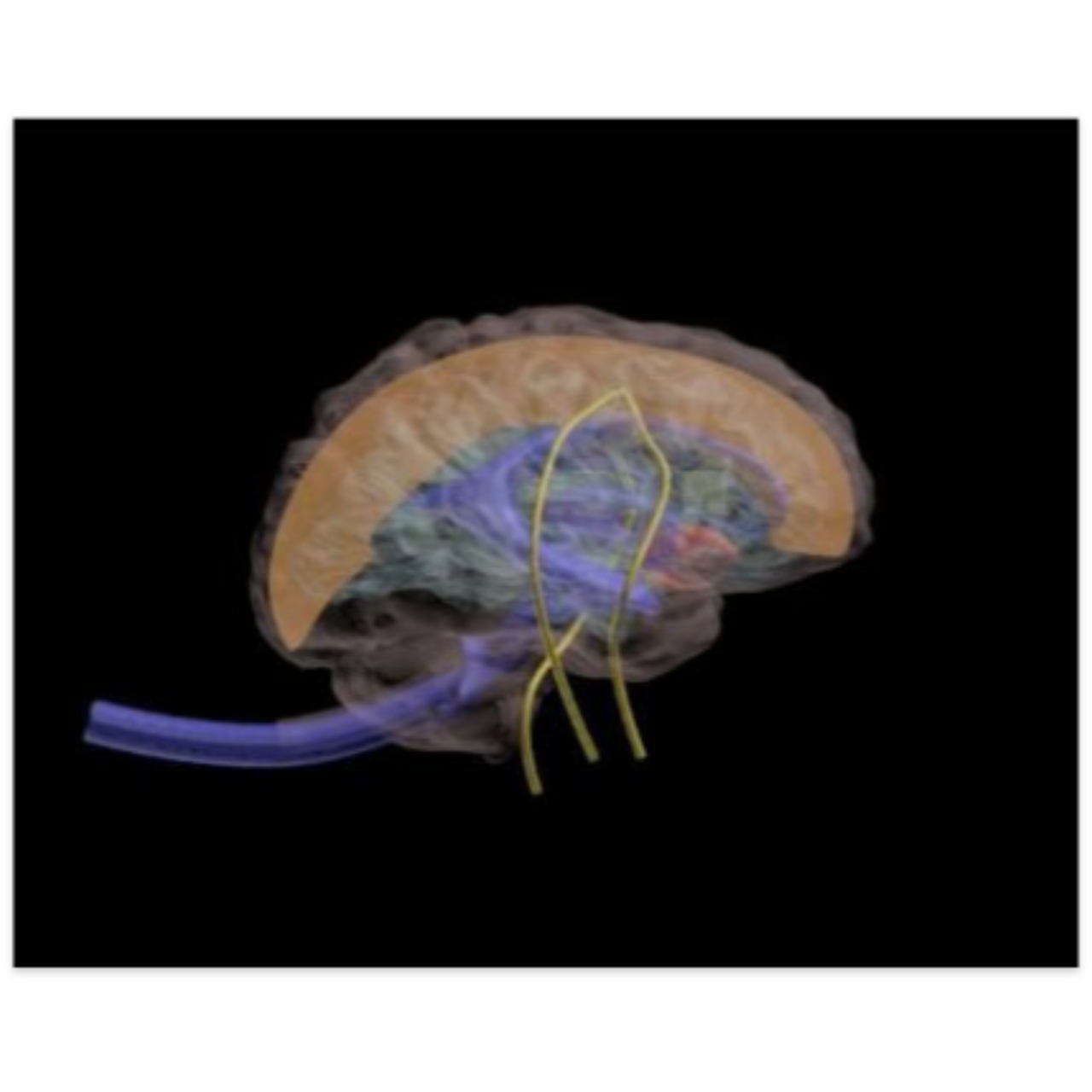

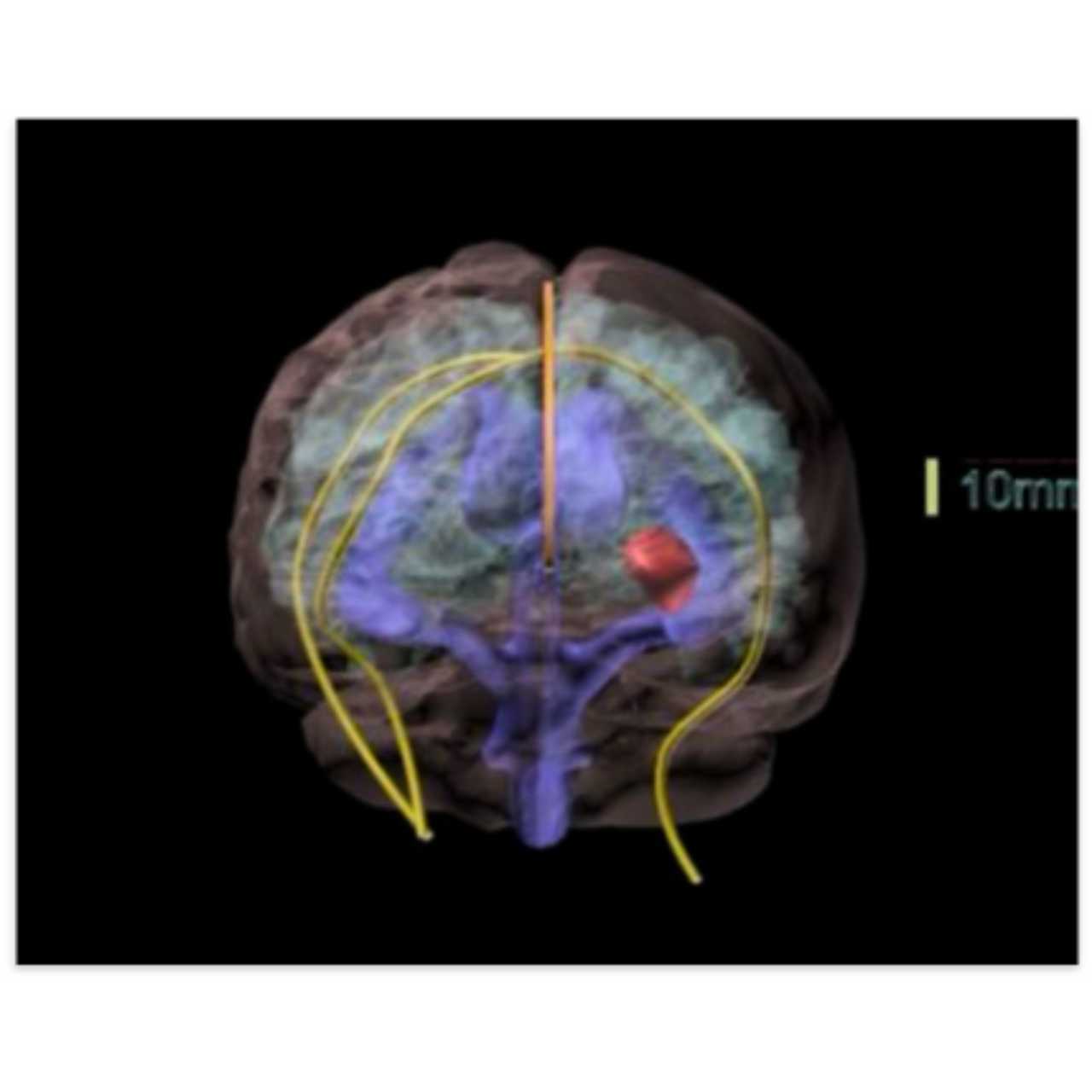

Anatomy
- Gray Matter
- White Matter
- Brain Ventricles
- One Bifurcation
- Falx Cerebri
- Brain Tumor
- Blood Vessels with a 2mm Inner Diameter
Brain Phantom Comparison
| Features | Standard Brain | Complex Brain | Basic Brain |
|---|---|---|---|
| Gray Matter | ? | ? | ? |
| Brain Ventricles | ? | ? | ? |
| Brain Tumor | ? | ? | ? |
| White Matter | ? | ? | ? |
| One Bifurcation | ? | ? | ? |
| Falx Cerebri | ? | ? | ? |
| Blood Vessels (2mm ID) | ? | ? | ? |
Technical Properties

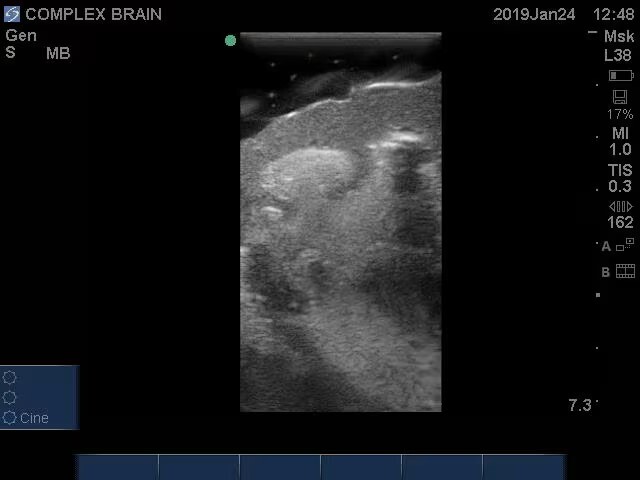

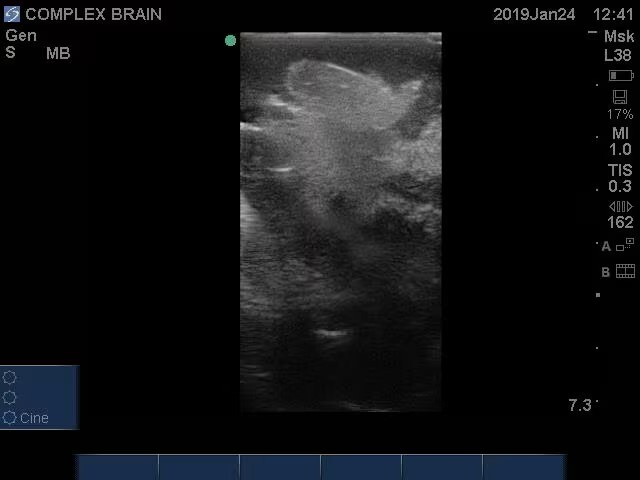

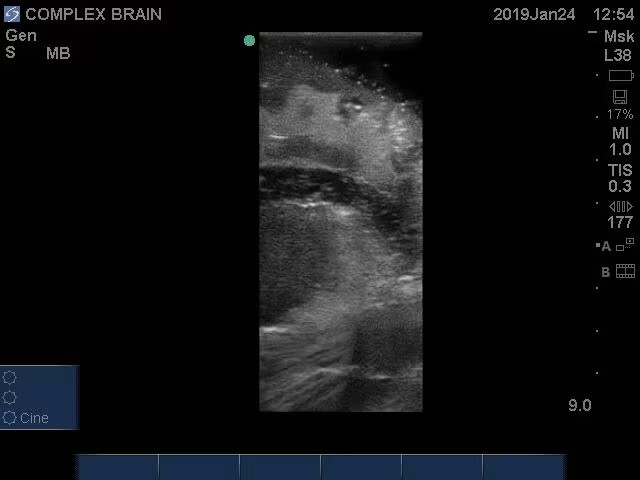

| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Brain Grey Matter | 1400 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 |
| Brain White Matter | 1400 ± 10 | 1.01 | 35 | 60 | YES | 1.3 ± 0.2 |
| Falx Cerebri | 1400 ± 10 | 1.01 | 60 | 50 | YES | 1.7 ± 0.2 |
| Tumor Feature | 1400 ± 10 | 1.00 | 30 | 65 | YES | 1.2 ± 0.2 |

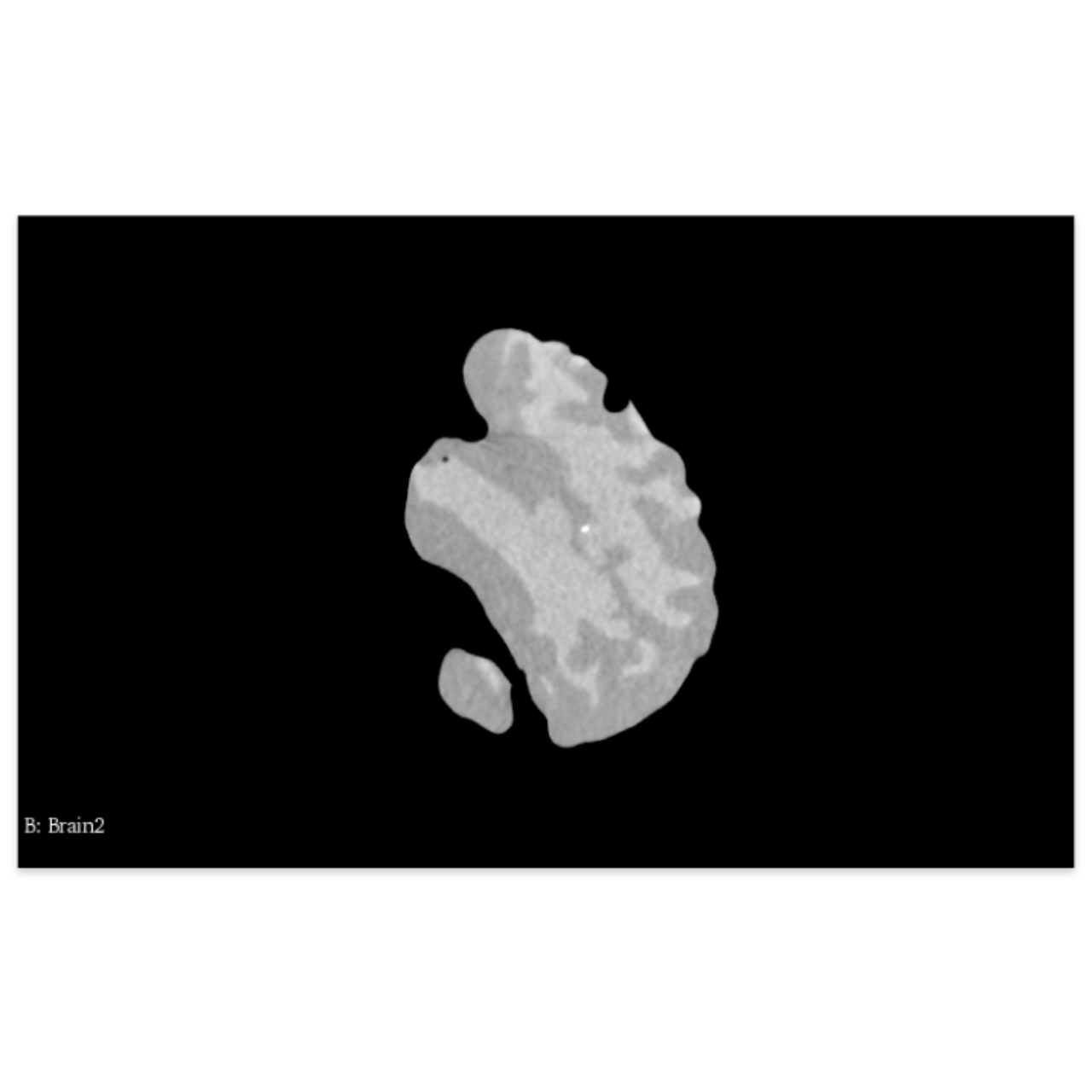

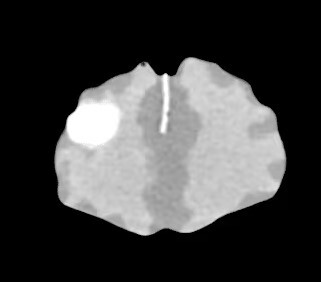

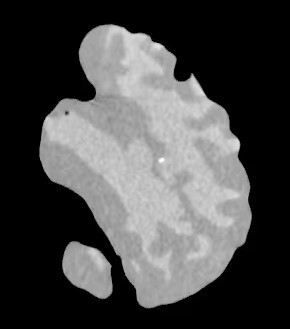

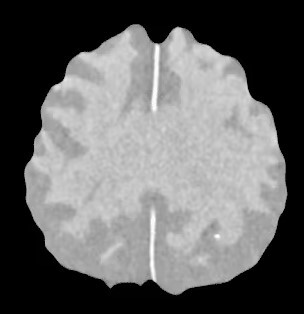

HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Brain Tissue | -25 |
Optional Add-ons
- Tumor / Hematoma / Aneurysm
- Temporal Bone / Calvaria
- Stenosis / Simple or Complex Blood Vessels
- Brain Vessels / Brain Parenchyma
- Skin Feature
- Foreign Objects
Included in Order

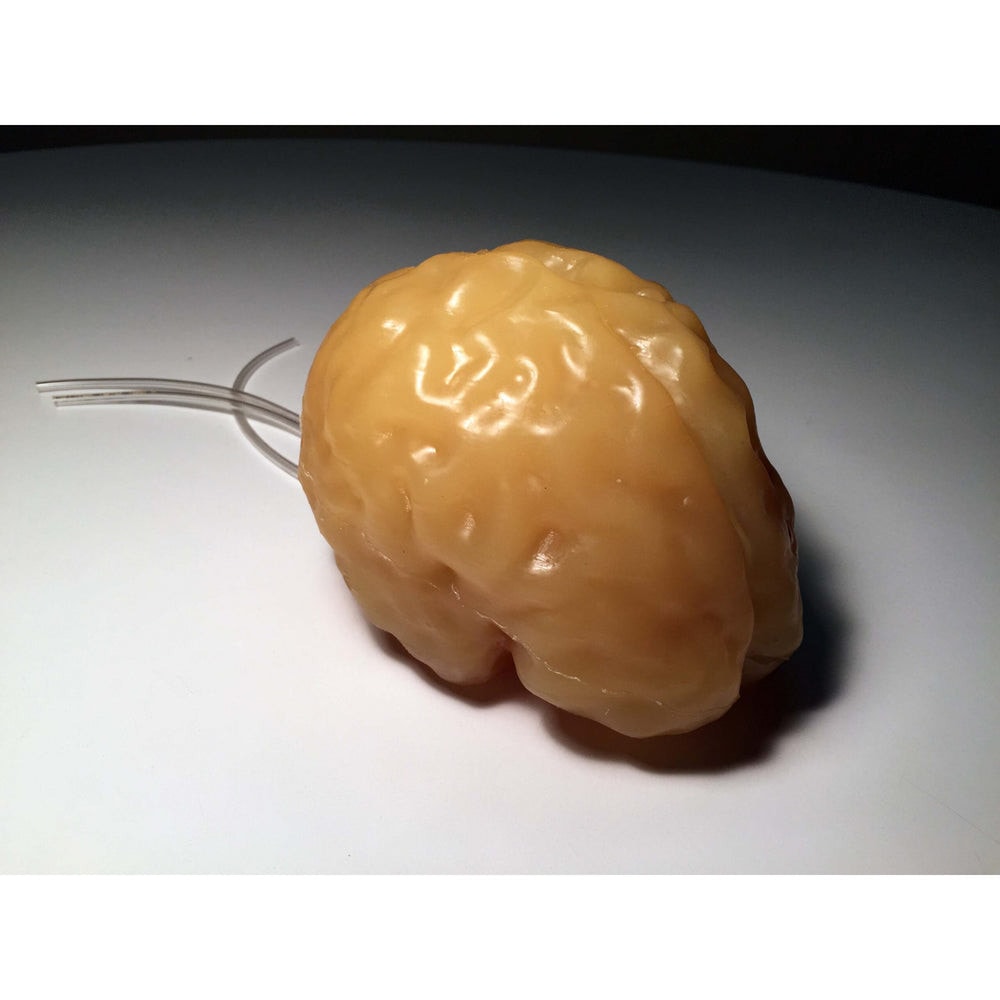

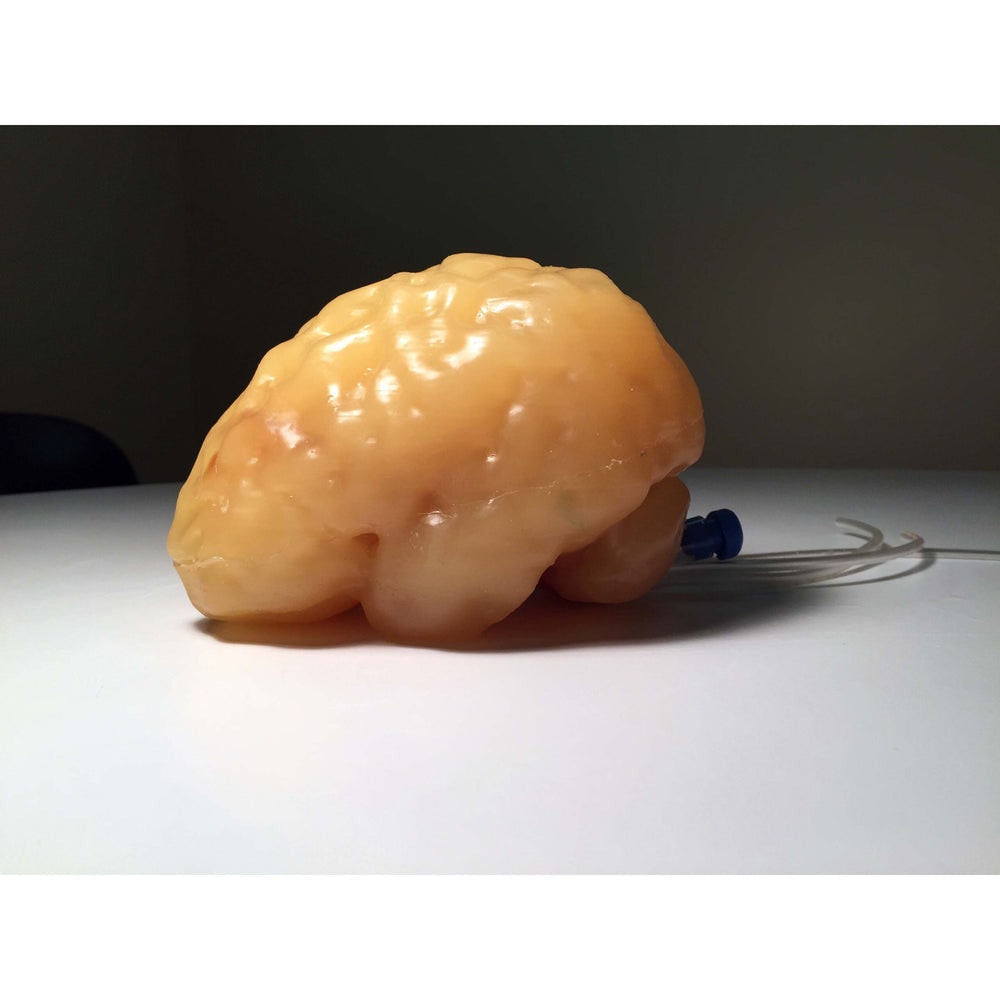

- Adult Brain (Complex) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 5 x 6 x 5 Inches | Weight: ~2 Lbs
Shipment: 12 x 10 x 10 Inches | Weight: ~6 Lbs
Materials Used
- Soft tissue: Composition of urethane-based soft resin
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
