Description

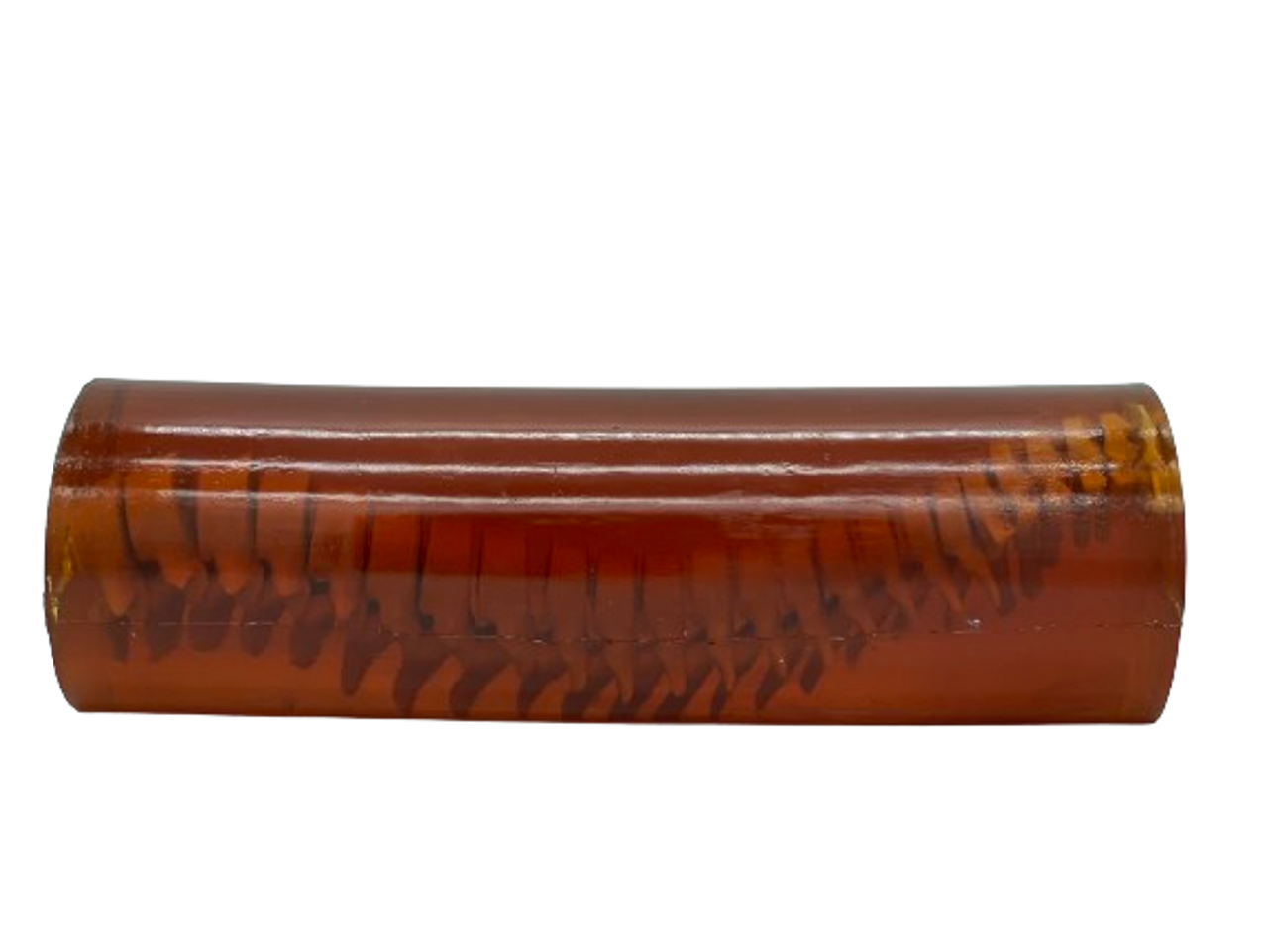

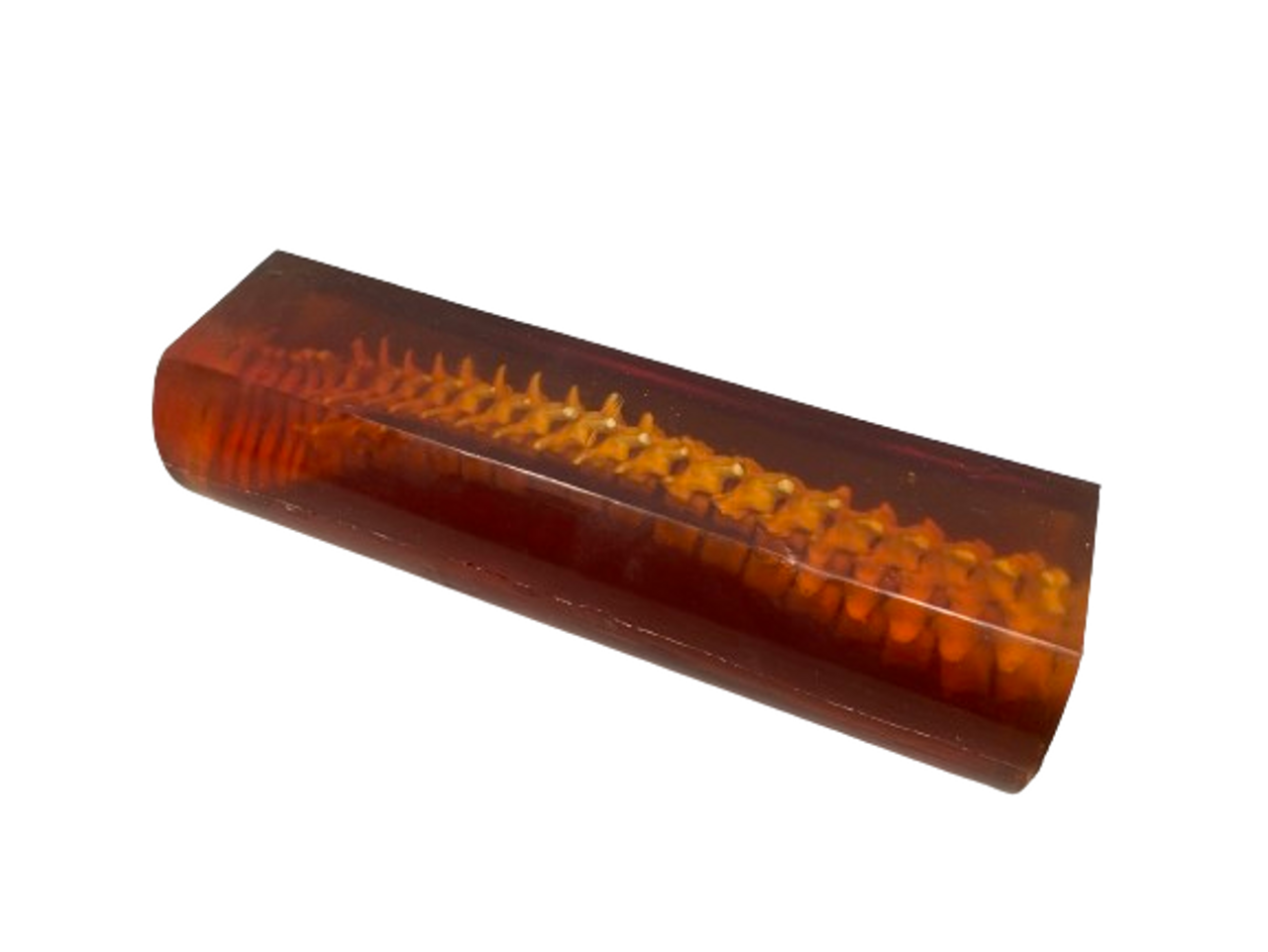

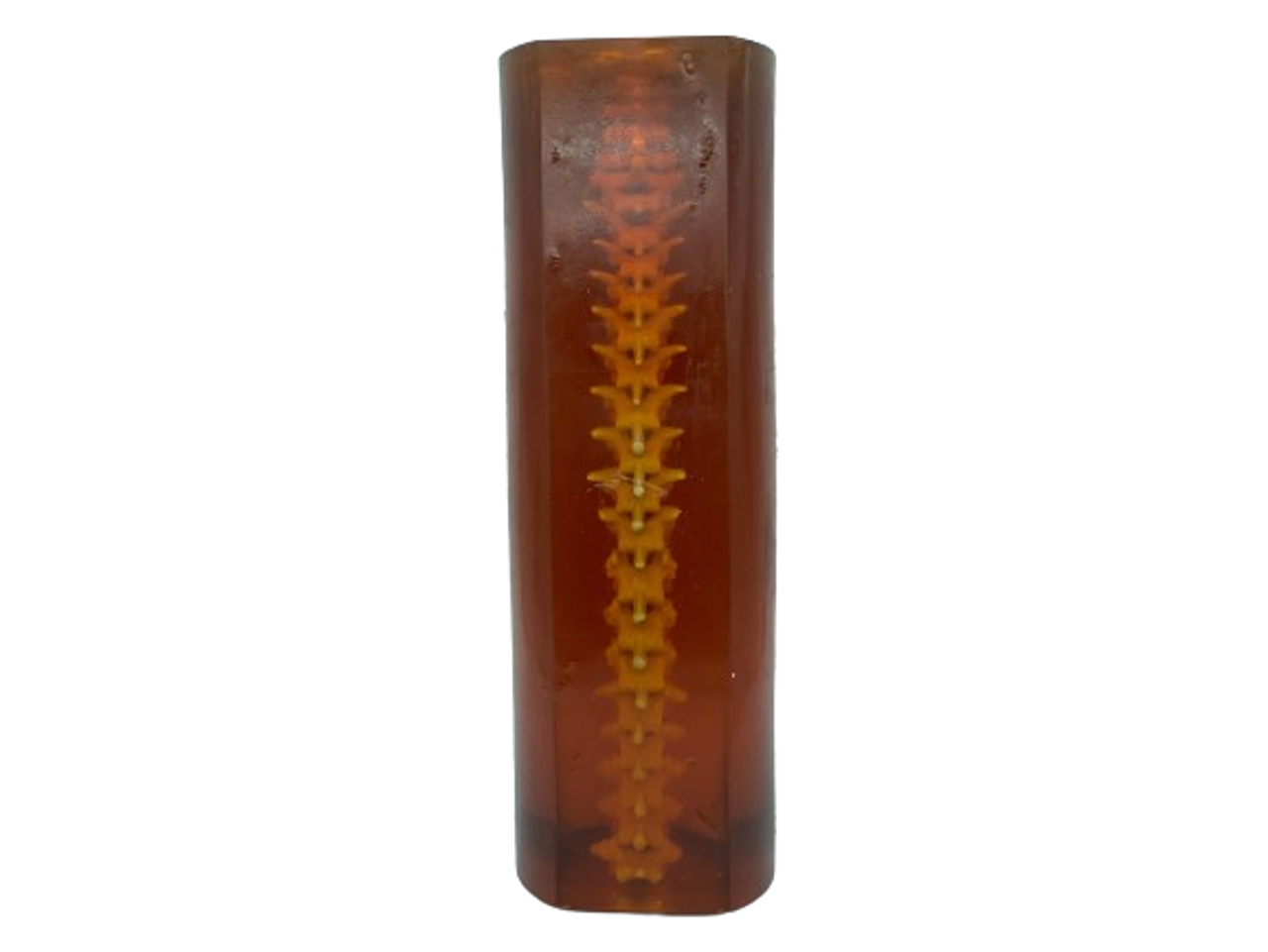

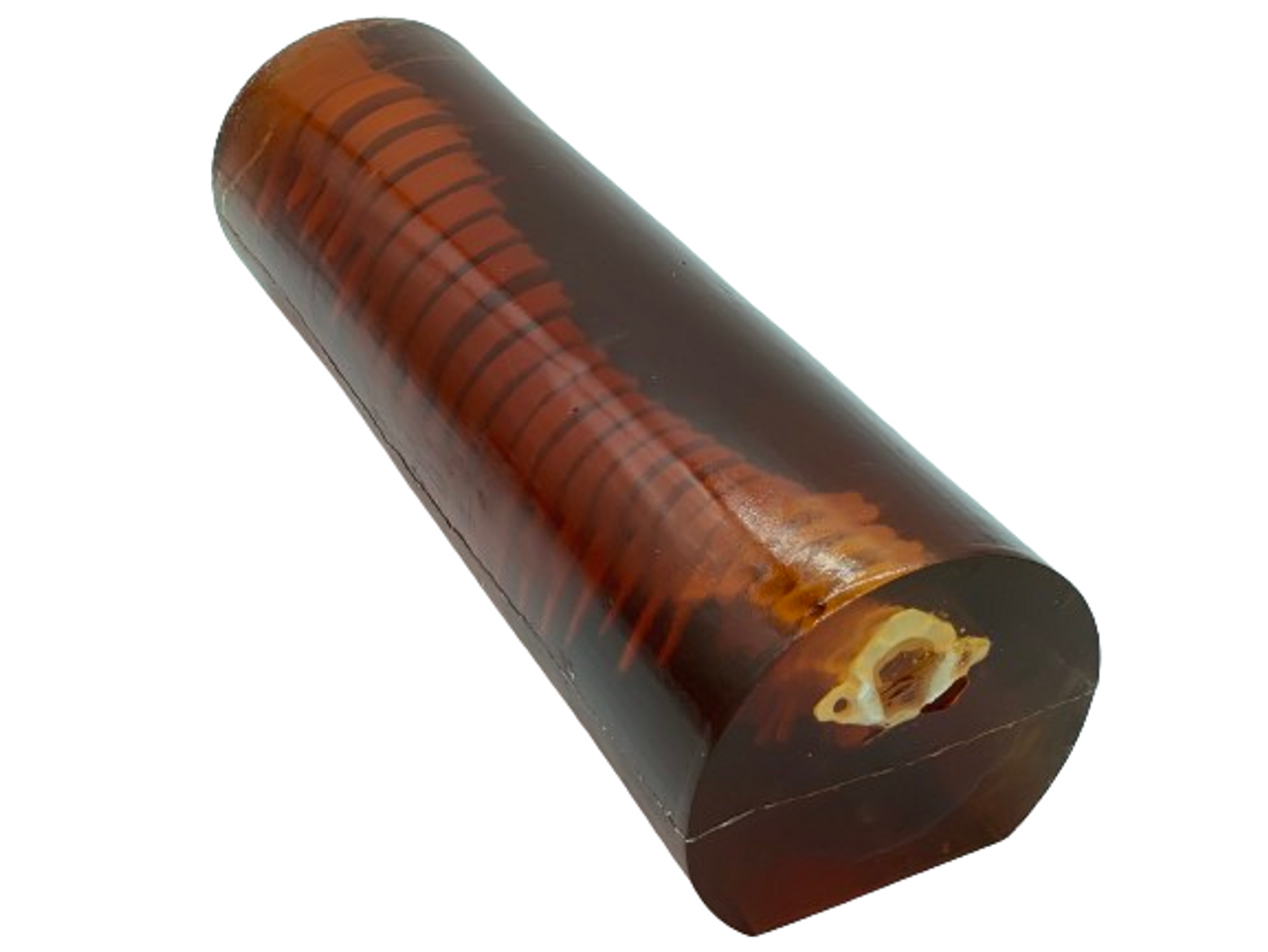

Our Adult Spine phantom (SE-A01) is a complete ‘average human-sized spine’ consisting of 25 individual vertebrae assembled on top of each other. It is majorly composed of the following components.
- The Cervical vertebrae (C1 to C7)
- The thoracic vertebrae (T1 to T12)
- The lumbar vertebrae (L5 L1A)

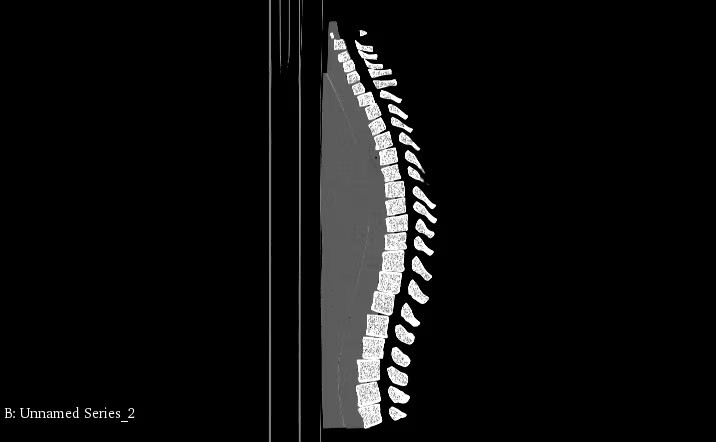

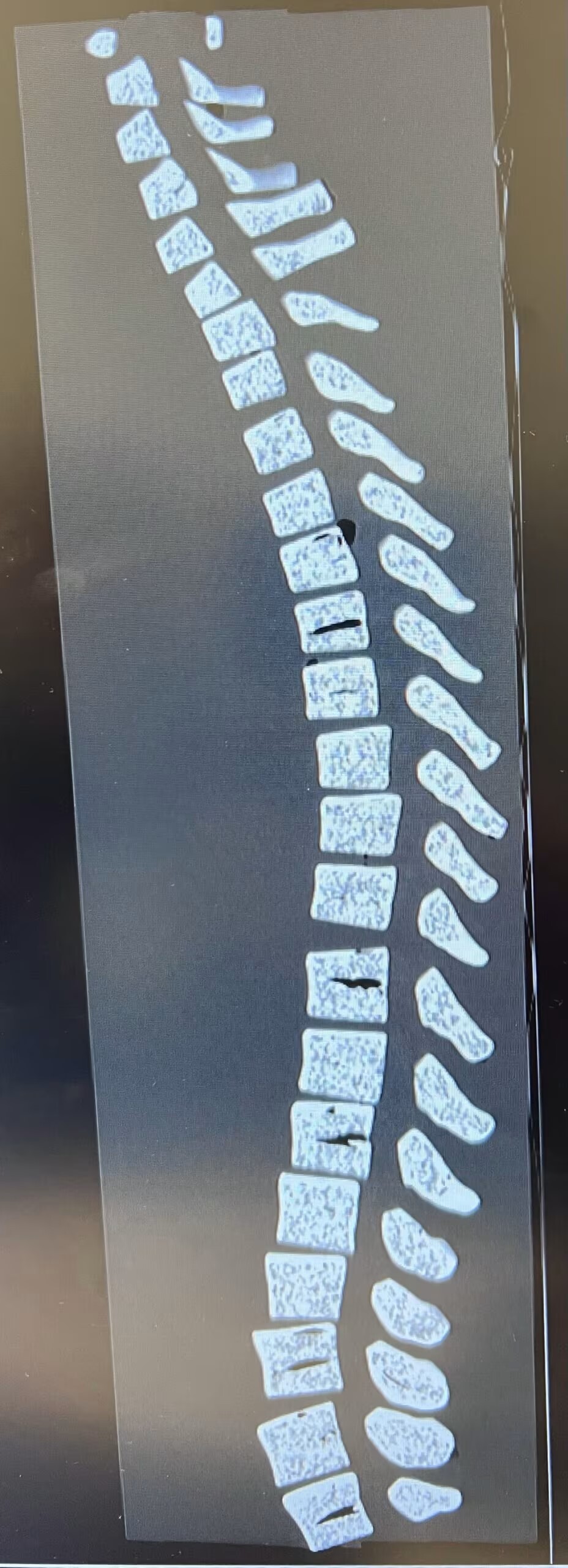

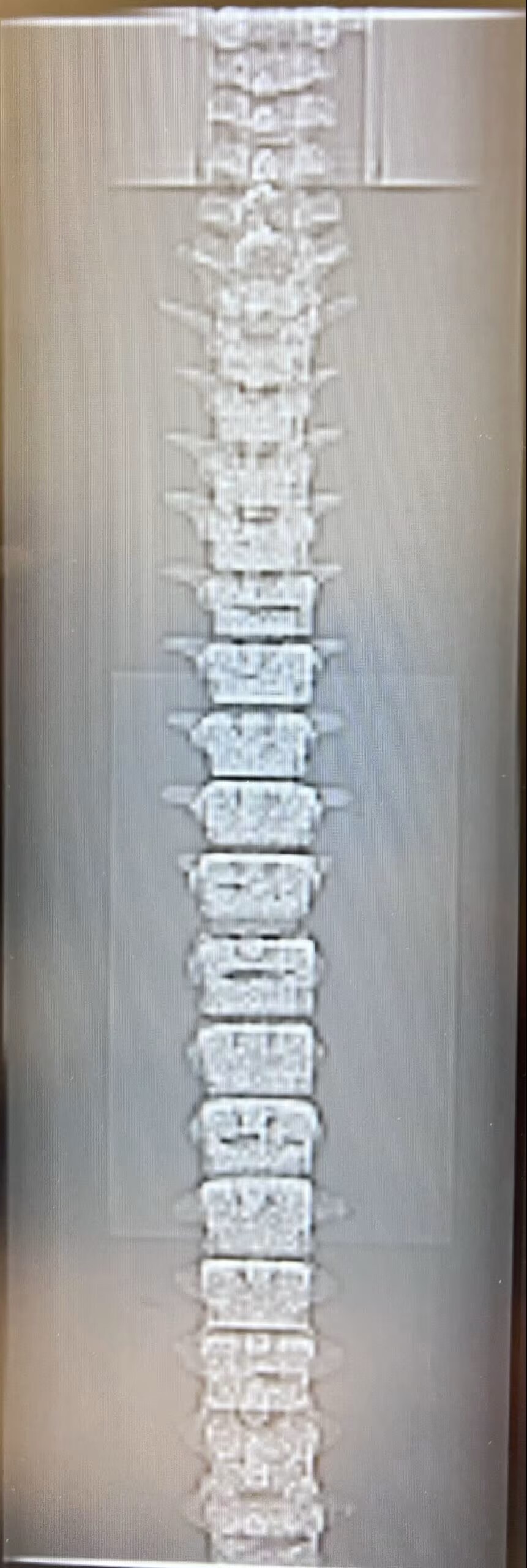

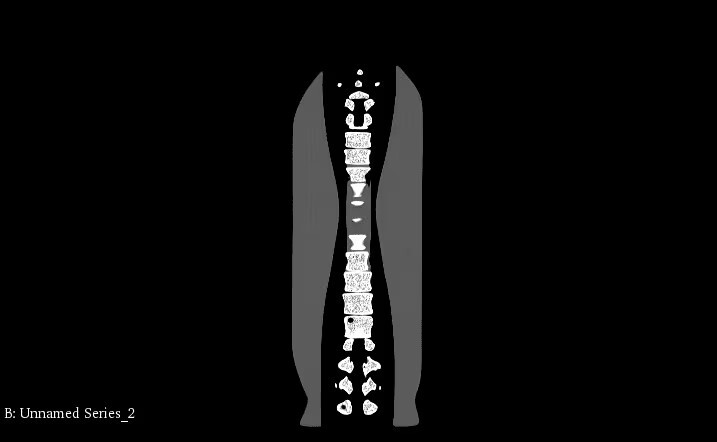

It can be further customized by adding an empty spinal canal behind the vertebrae that can be filled with water for ultrasound applications. Another option would be to have a spinal canal filled with a fake spinal cord for medical imaging applications. All our phantoms are compatible with ultrasound, X-ray CT and MRI. Upon request, the spine phantom can be installed/embedded inside a body mimicking tissue such as the thorax and torso for various sonography & radiology applications.
The Phantom is designed based on average human anatomy and it is made out of realistic patented bone material that is suitable for Ultrasound, MRI, and CT applications. It can be used for medical imaging research & treatment planning of various medical procedures. (Upon request, it can be modified for a lumbar or spine lumbar practice phantom with soft tissue-mimicking material surrounding it)
The vertebrae have a realistic three-layered structure and the inner porosity can be adjusted according to the requirement of the particular project.
Spine for R&D
| Type of the tissues: | Sound velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation measured at 2.25 MHz [dB/cm] |
| Cortical bone material used to fabricate the bone phantom | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular bone material used to fabricate the bone phantom | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
Thermal Properties Of Our Bone Mimicking Material
| Thermal Conductivity: | Volumetric Specific Heat Capacity: | Thermal Diffusivity: | Thermal Resistivity: | Specific Heat: | Speed of Sound: |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: support@anatomywarehouse.com
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or support@anatomywarehouse.com in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
