Description

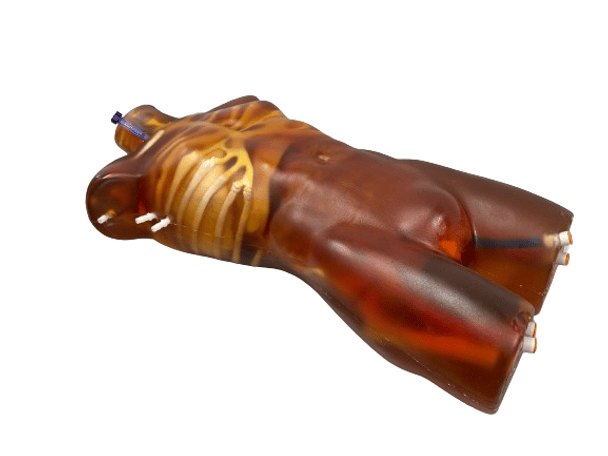

Adult Torso (Cardiac/FAST) for X-Ray CT, US
Product Description
The Adult Human Torso (Cardiac/FAST) is an anatomically realistic simulator covering the area from the neck to the pelvis. It is optimized for Ultrasound and X-Ray/CT applications, making it an ideal tool for angiography and Focused Assessment with Sonography in Trauma (FAST) training. The phantom includes all essential internal organs and a specialized beating heart system.
The skeletal structure is assembled from individually cast bones using patented ceramic-reinforced epoxy, featuring a three-layered vertebrae structure. The heart system includes a dedicated heart pump to simulate realistic heart wall motion, adjustable heart rates (20140 BPM), and asymmetrical displacement of chambers. This model is compatible with Iodine-based and Microbubble contrast mediums.

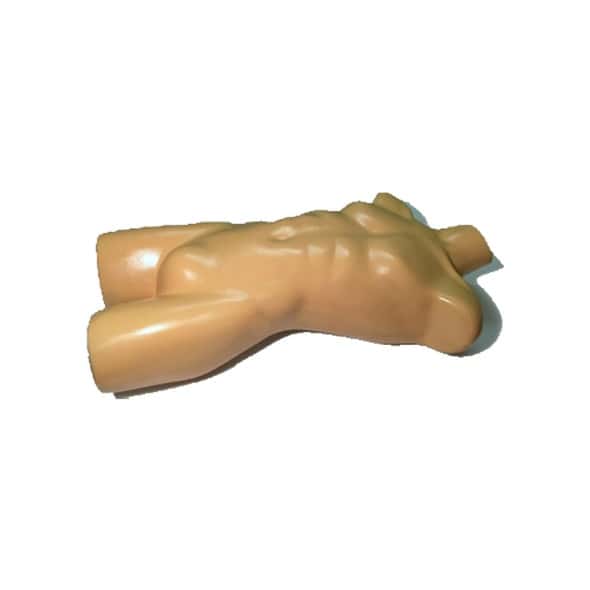

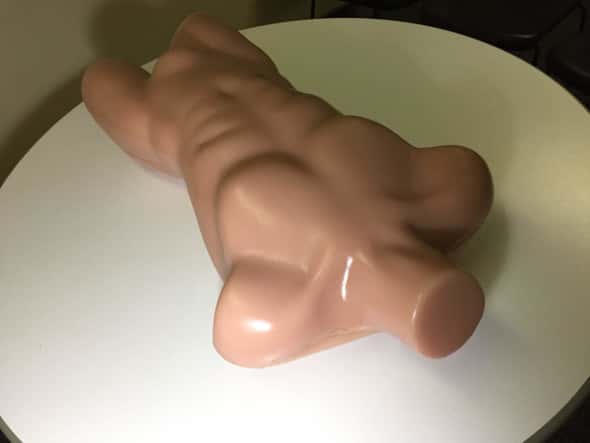

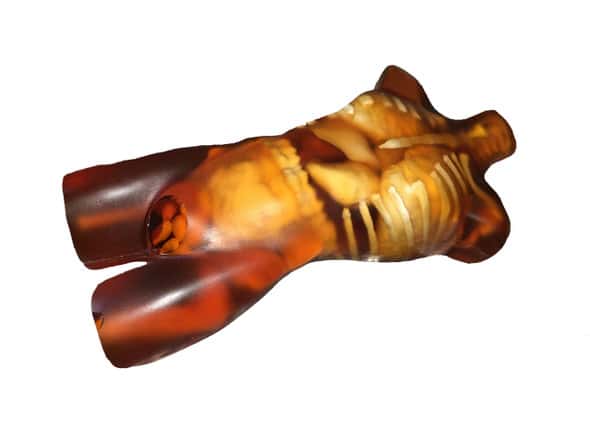

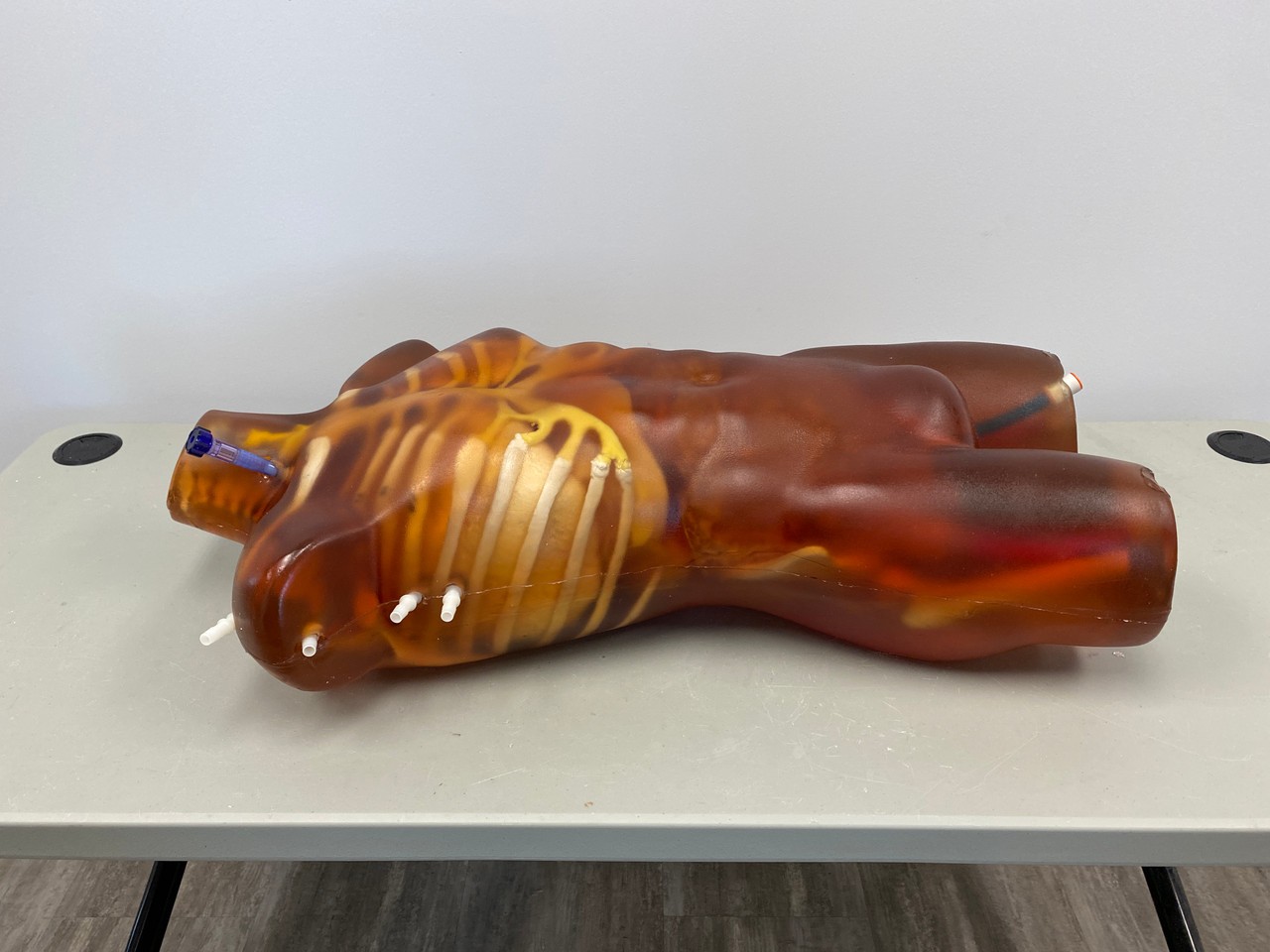

Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. The beating heart system requires the included TPS heart pump for full functionality.

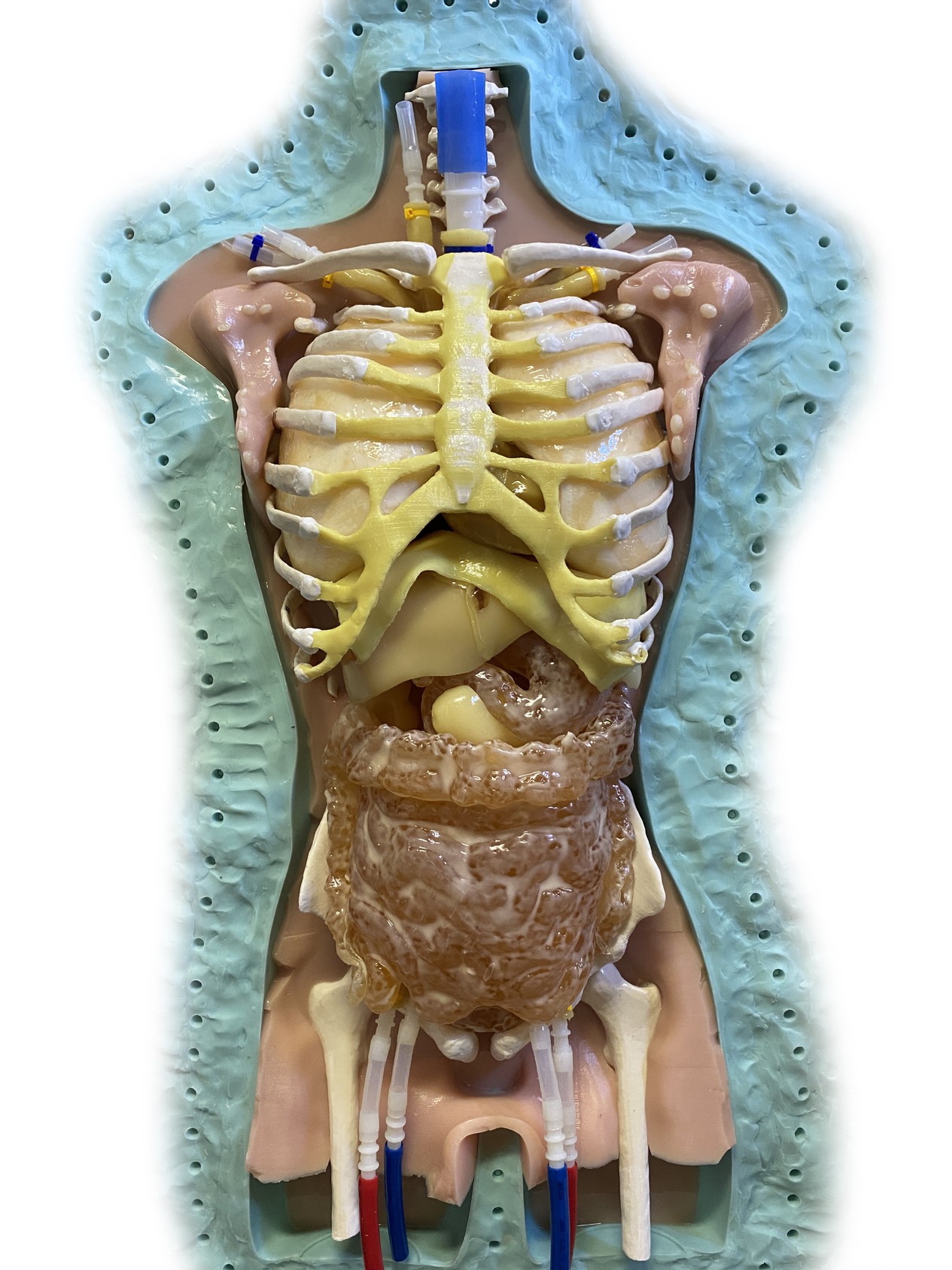

Anatomy

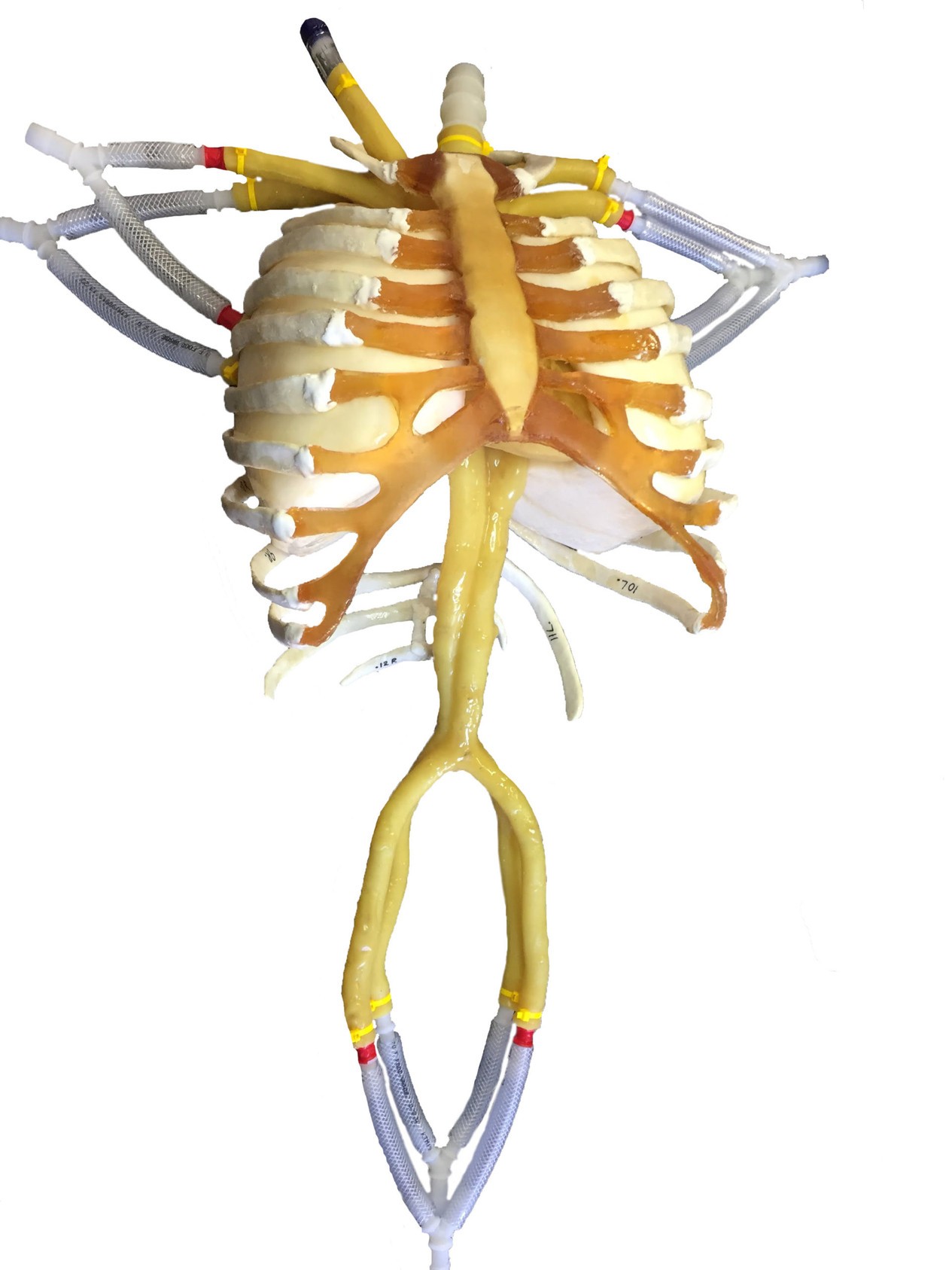

- Skeletal: Complete Spine, Complete Ribcage, Shoulders, Clavicles, Pelvis, and Partial Femoral Bones.
- Organs: Trachea, Lungs, Diaphragm, Liver (with ligaments), Gallbladder (with bile ducts), Stomach, Kidneys, Spleen, Pancreas, Large/Small Intestines, Bladder, and Prostate.
- Heart: Detailed chambers (RV: 60ml, LV: 63ml, RA: 45ml, LA: 29ml) with moderator band, papillary muscles, aorta, SVC/IVC, and flexible valvular structures.
Beating Heart Features
- Realistic cyclic motion of heart walls and diastole/systole hysteresis.
- Water-fillable chambers with minimal air pockets.
- Access for intravenous catheter insertion.
- Adjustable heart rate (20 140 BPM) and stroke volume (40 150 ml).
Included Pathologies
- Hemorrhages in the liver, pericardium, and urinary bladder.
- Tumor in the bile duct obstructing outflow.
- Two tumors in the left kidney and an anal tumor.
- Colon polyps inside the intestines.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | Speckles |
|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A |
HU Values (Averaged at 120kV)
| Tissue Type | HU Value | Tissue Type | HU Value |
|---|---|---|---|
| Body Tissue | -25 | Kidneys | 110 |
| Cortical Bone | 1300 | Liver | 110 |
| Lungs | -850 | Pancreas / Spleen | 110 |
| Heart / Aorta | 40 | Bladder / Gallbladder | 35 |
Included in Order
- Adult Torso (Cardiac/FAST) Phantom

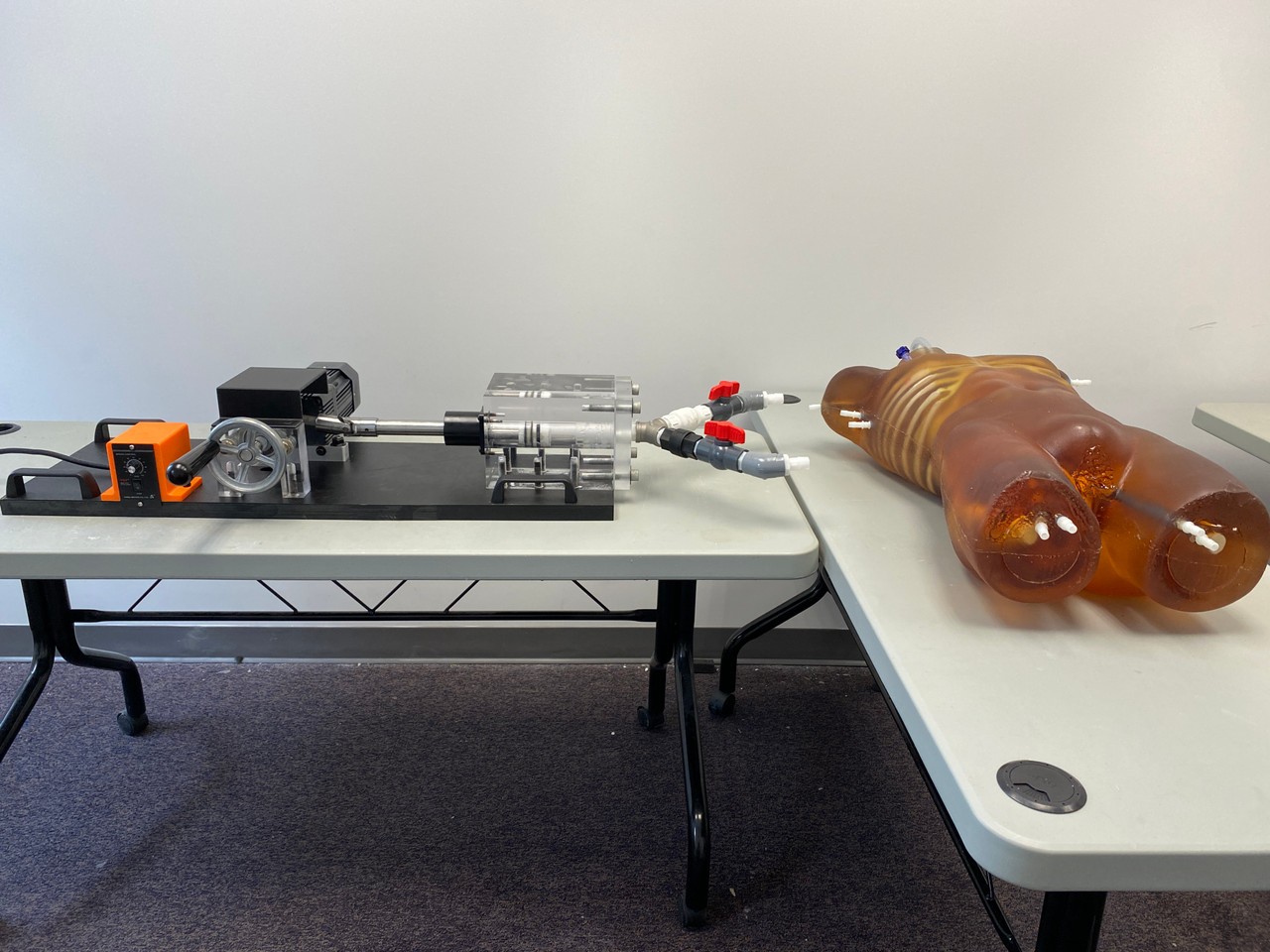

- TPS Heart Pump
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 34 x 18 x 10 Inches | Weight: ~88 Lbs
Heart Pump: 36 x 12 x 8 Inches | Weight: ~88 Lbs
Imaging Scans

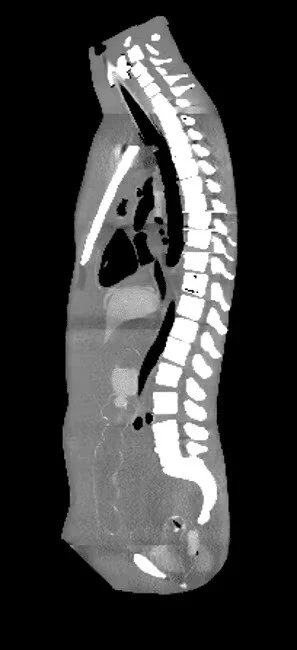

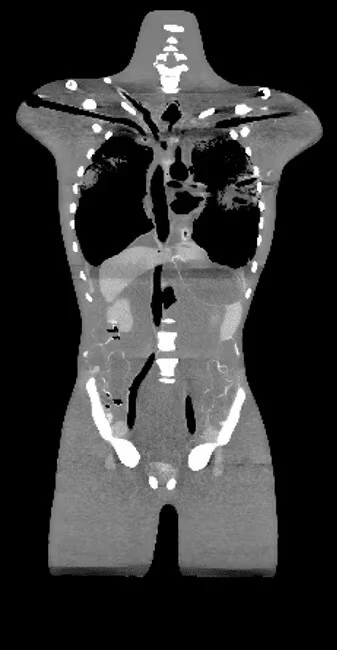

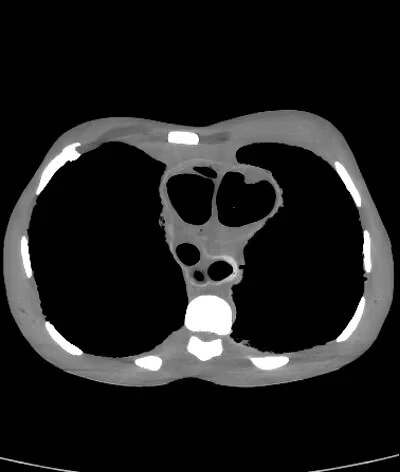

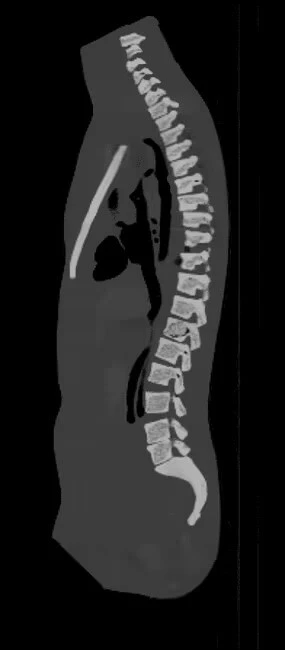

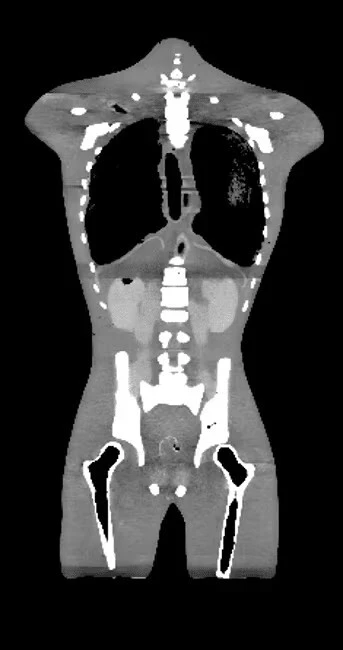

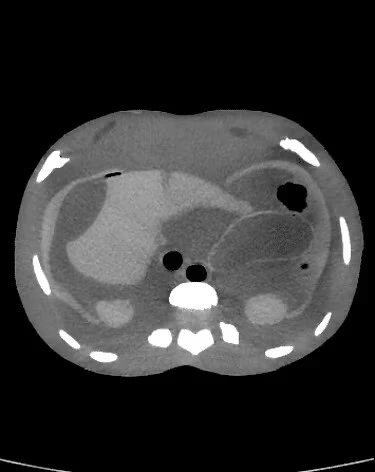

CT Image Scans

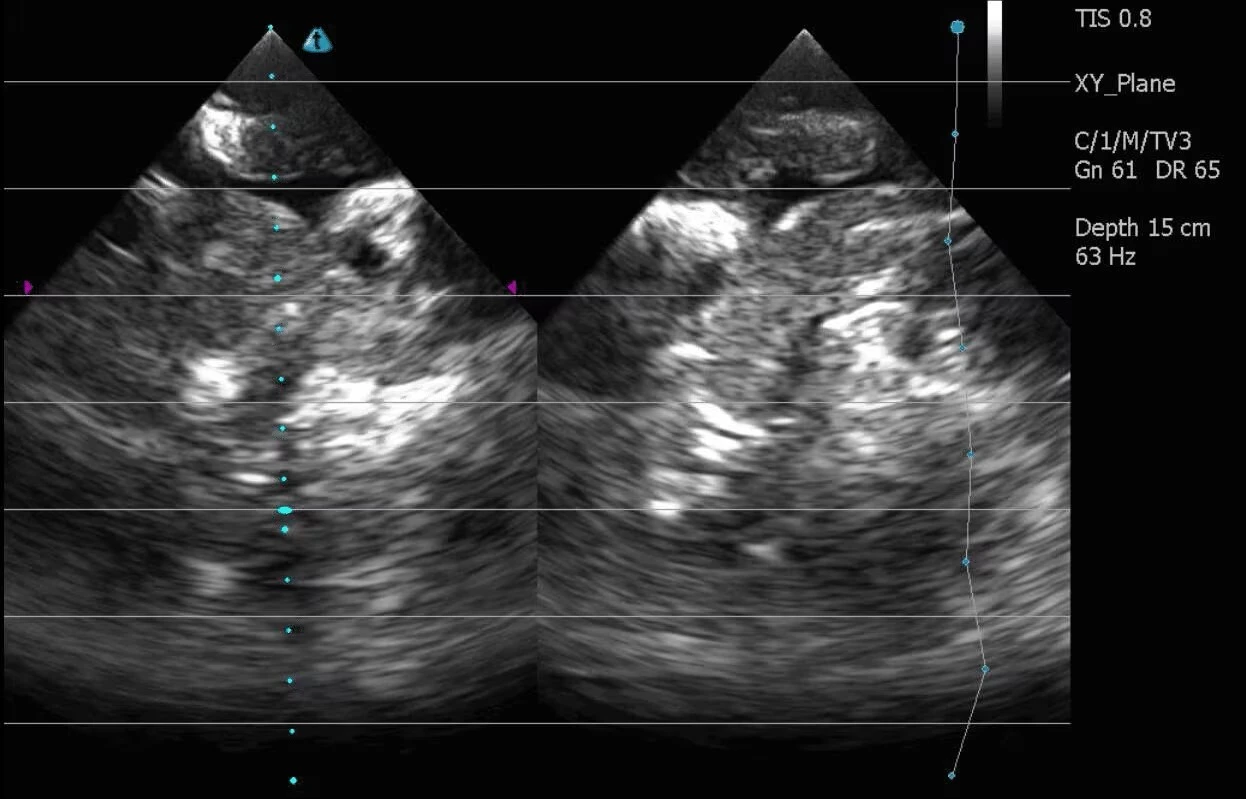

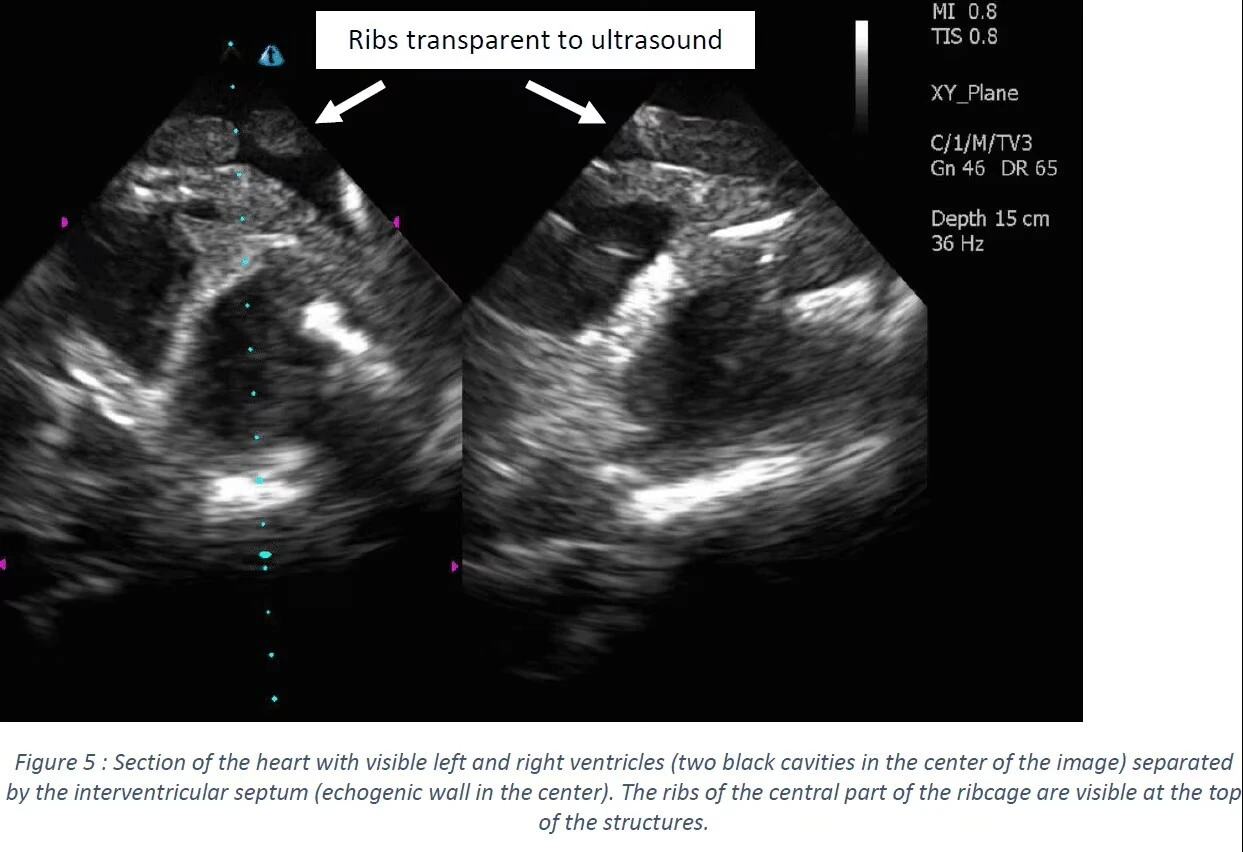

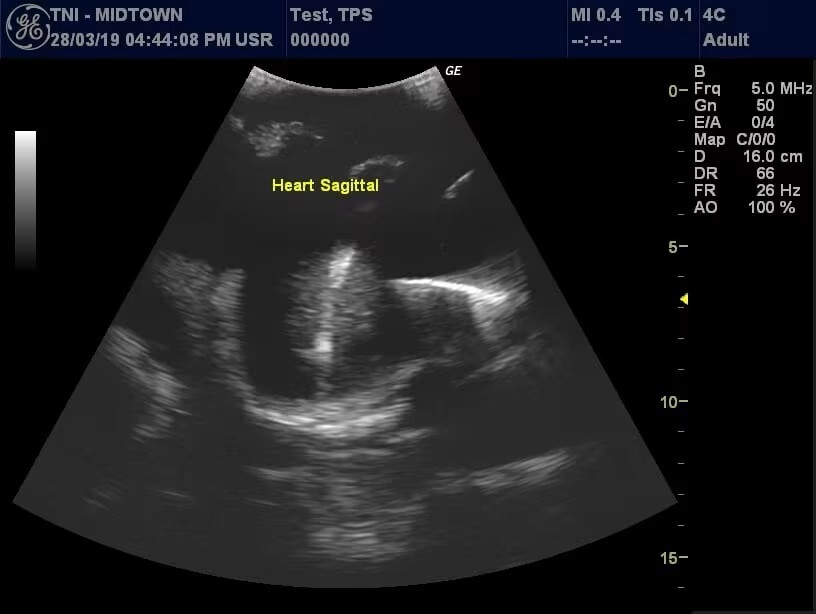

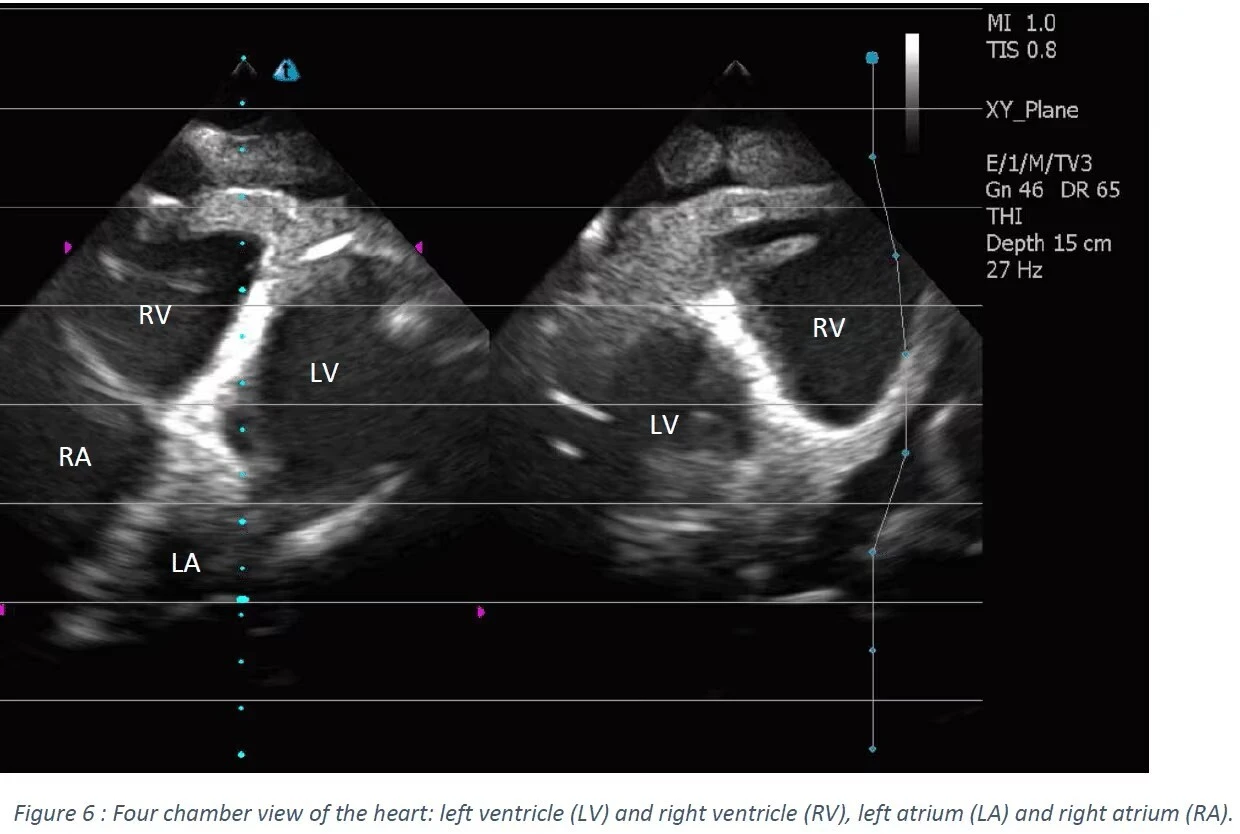

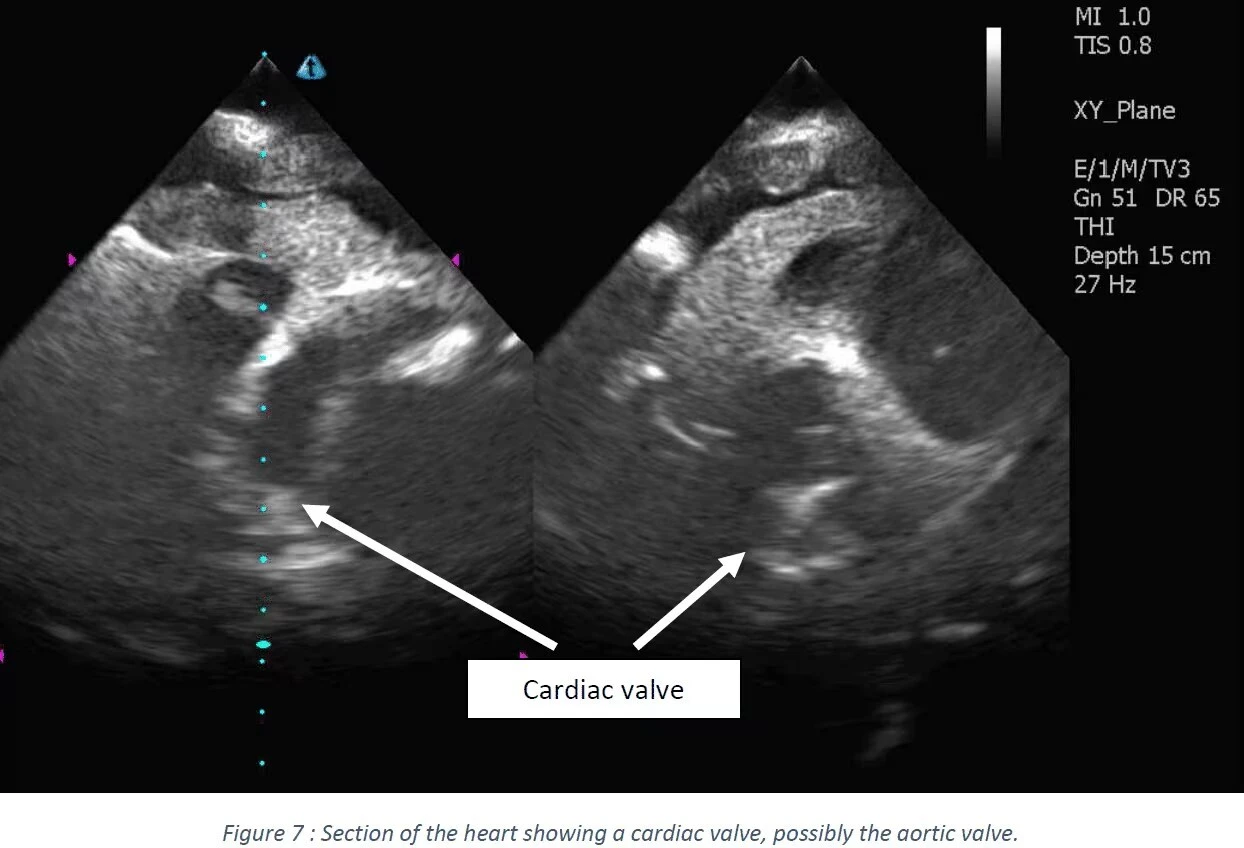

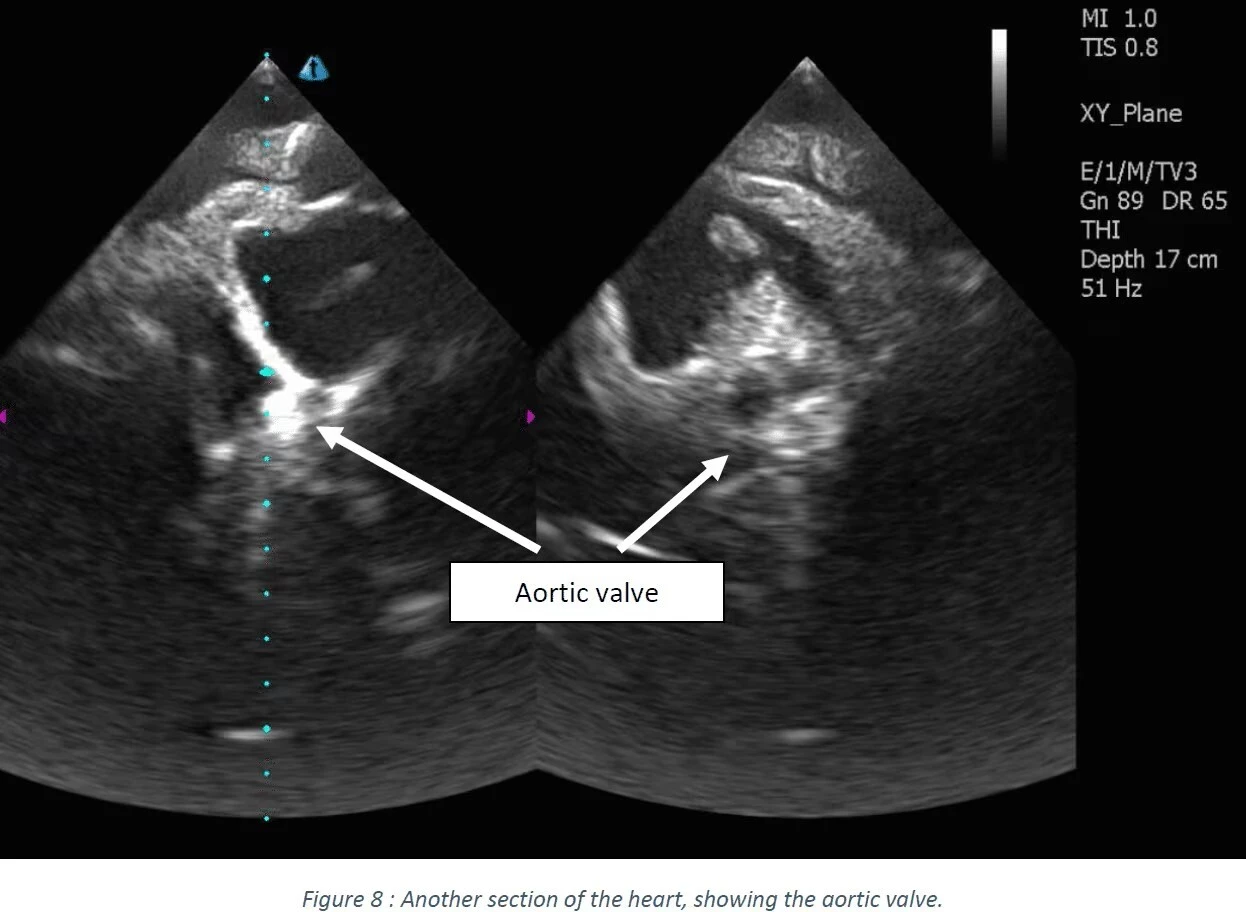

Heart Ultrasound Image Scans

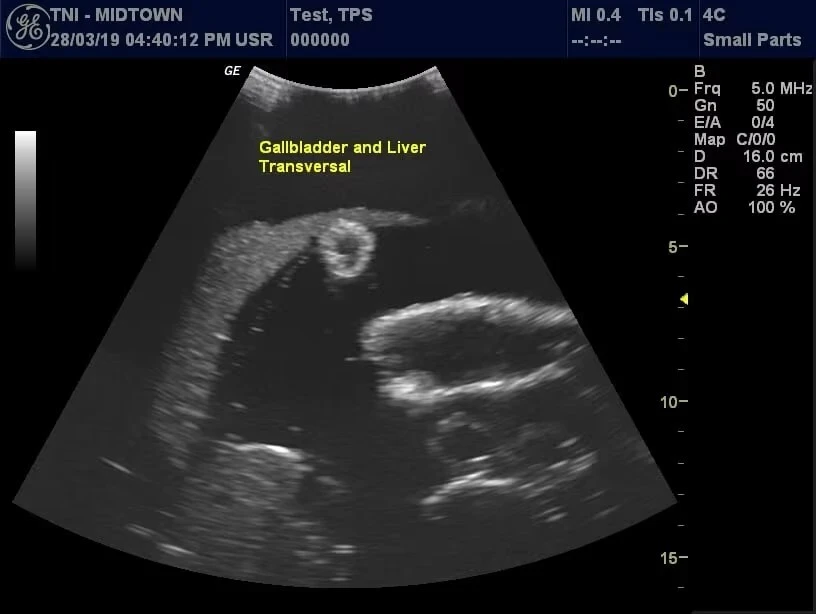

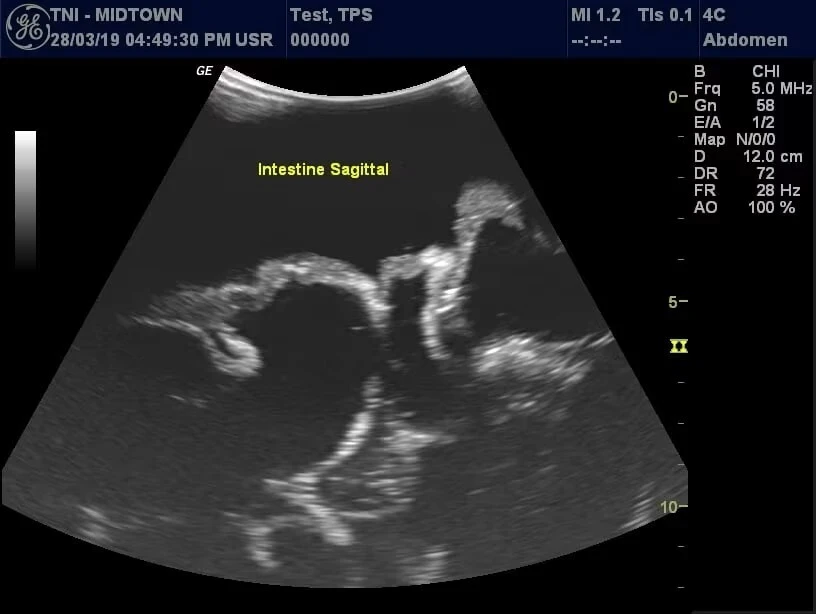

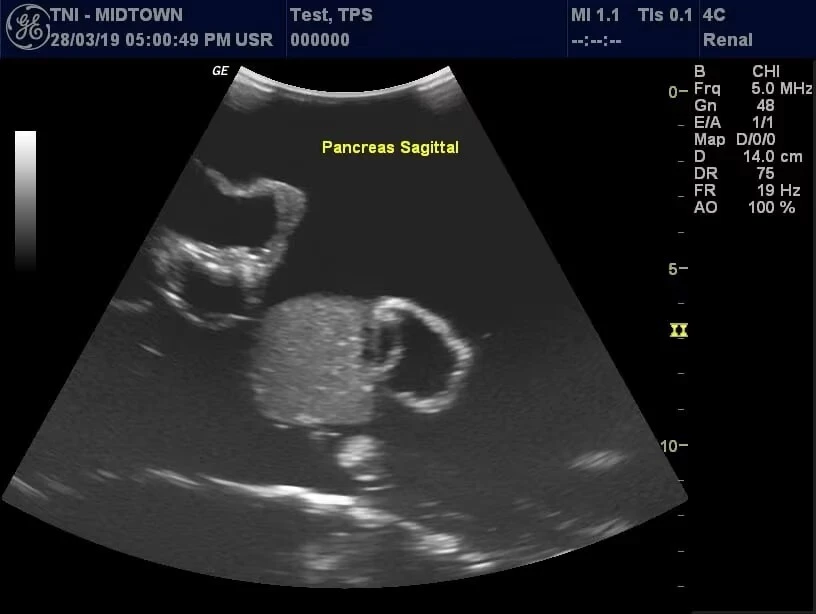

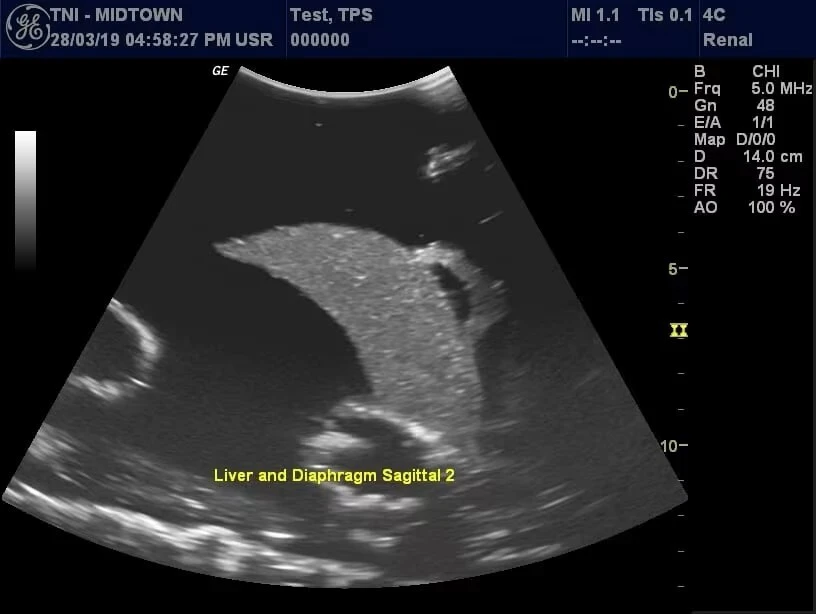

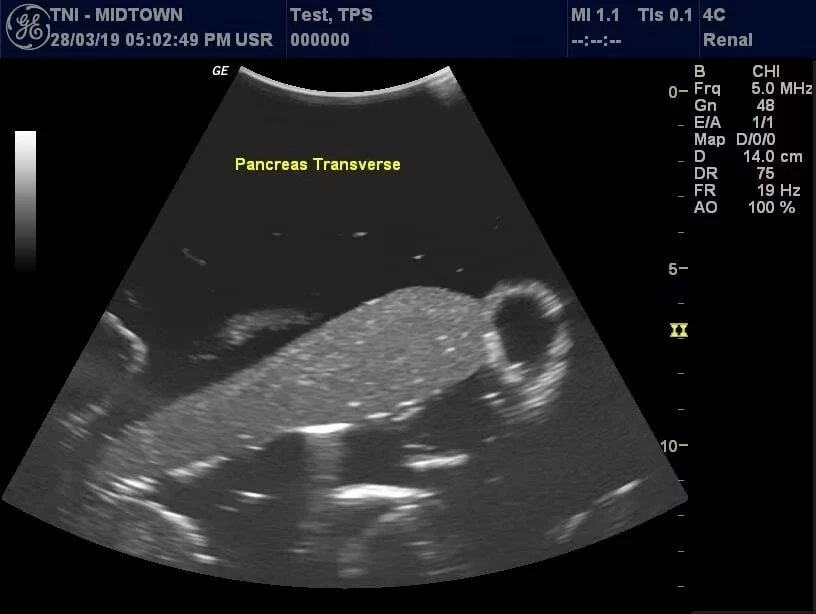

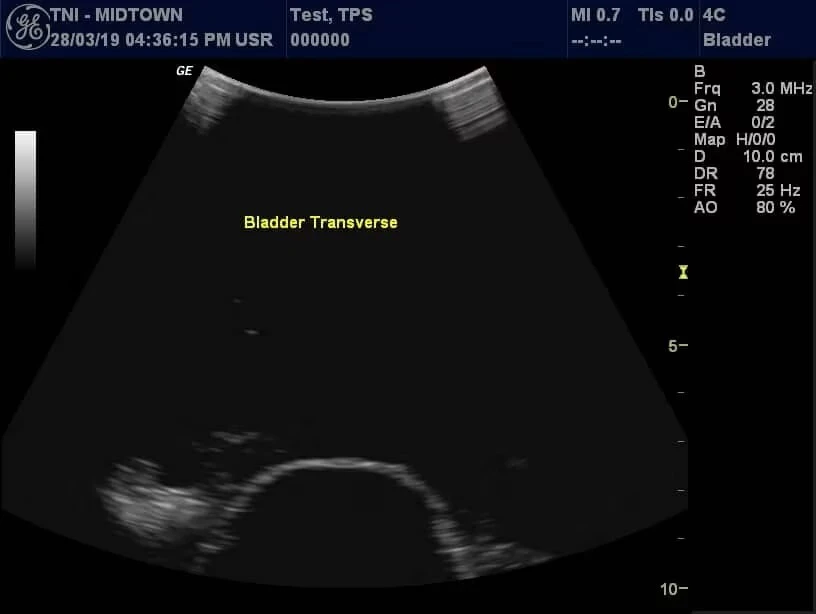

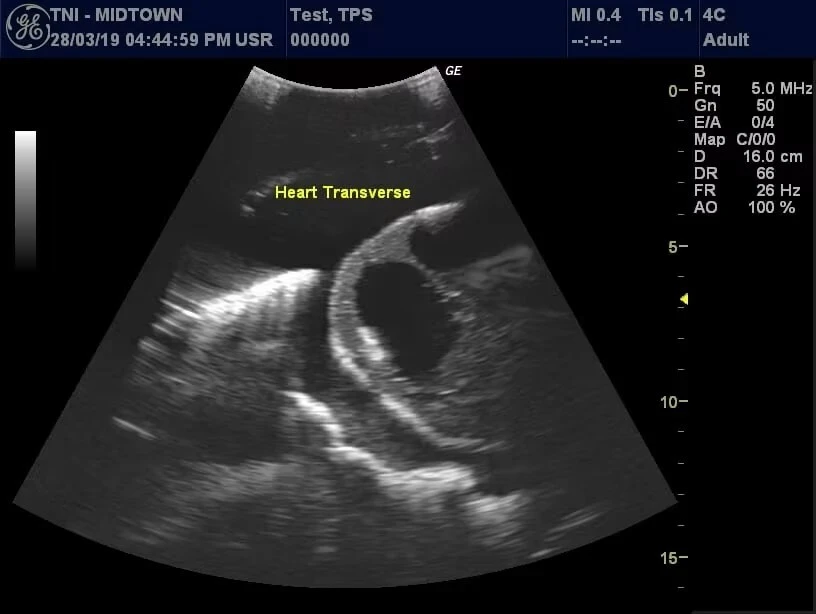

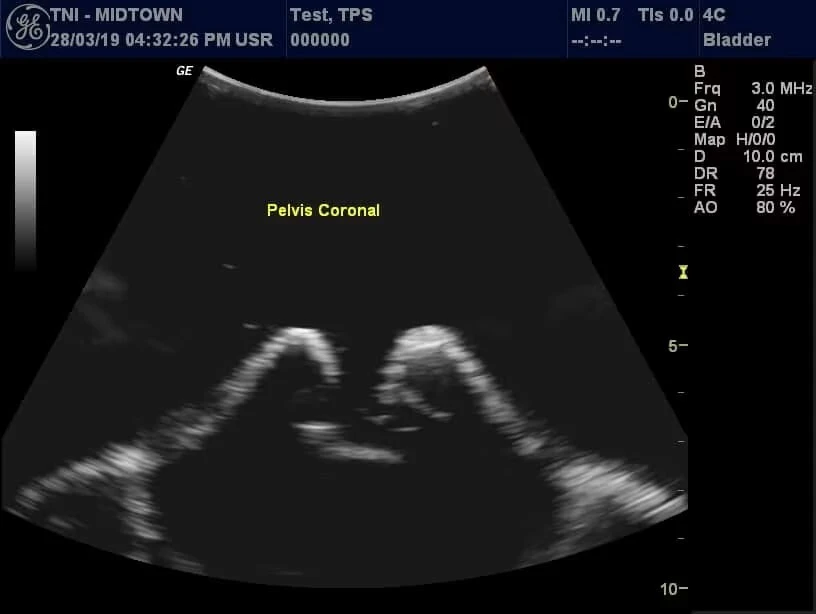

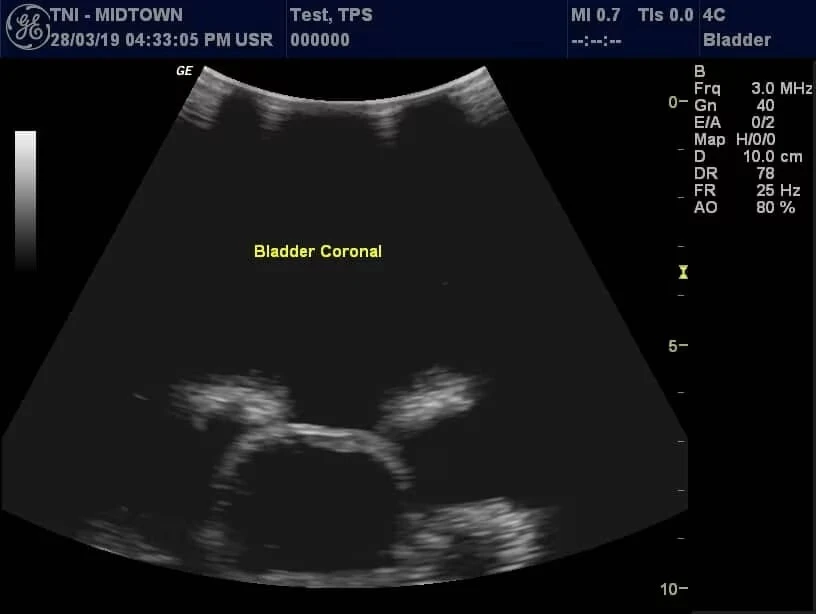

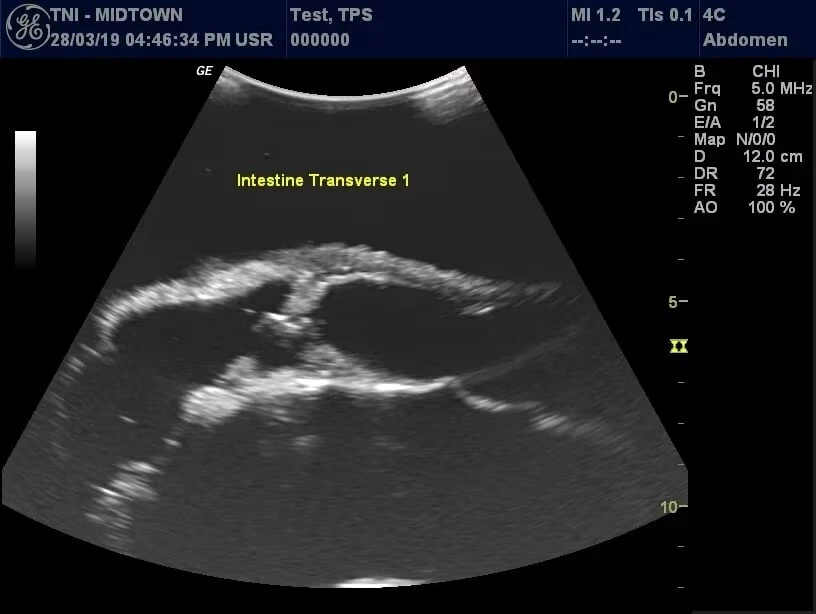

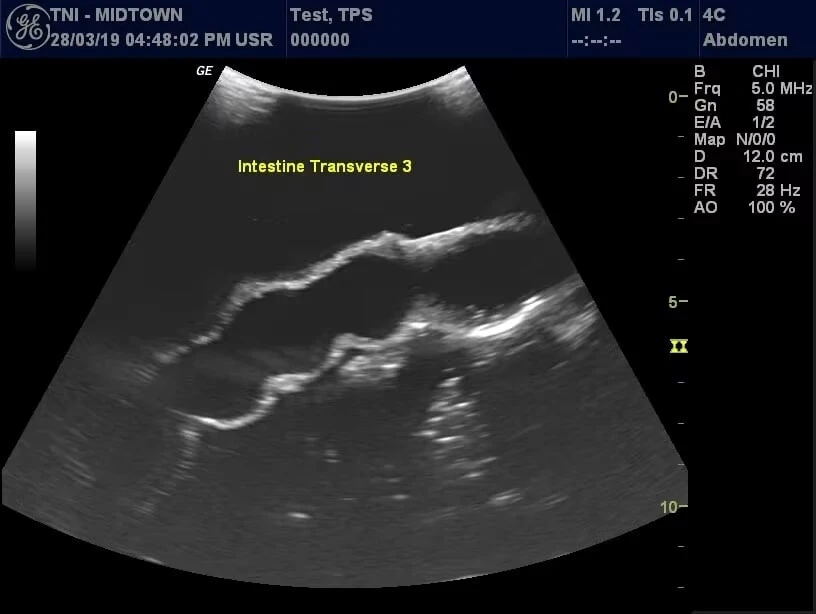

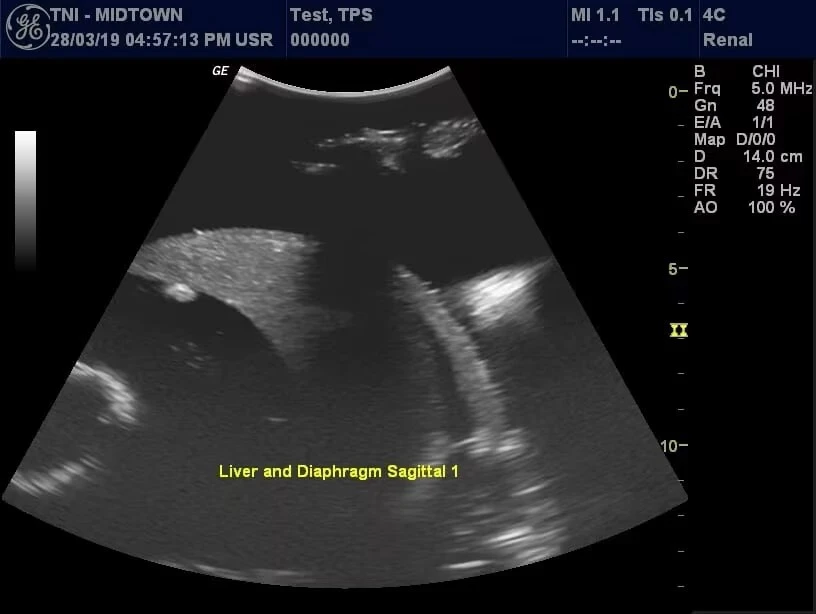

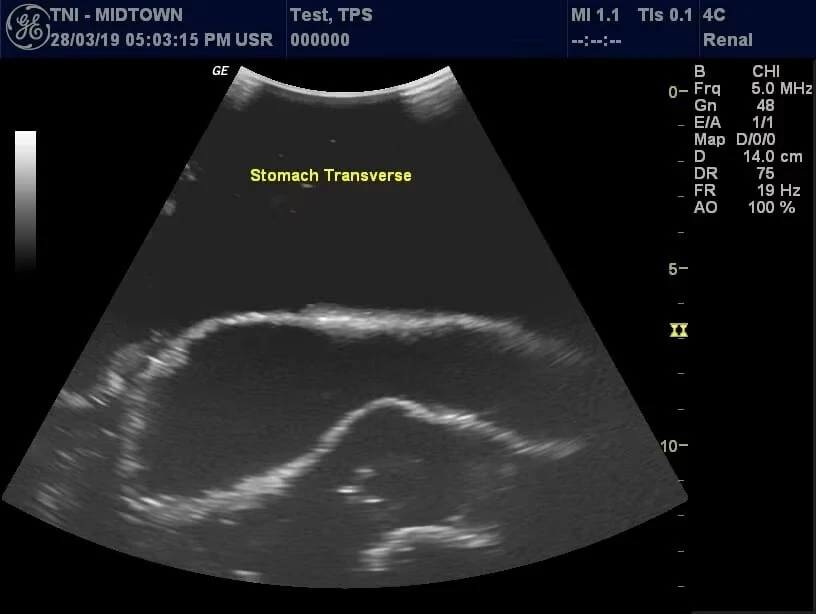

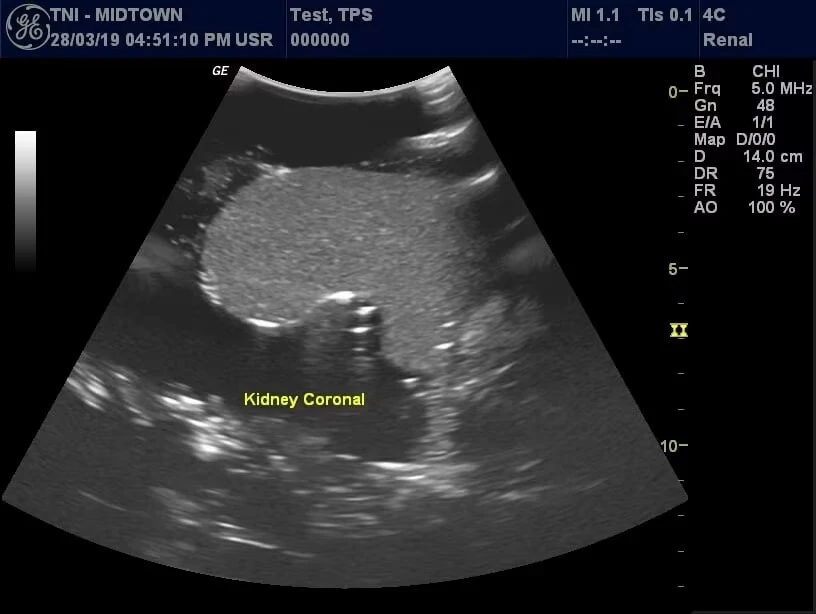

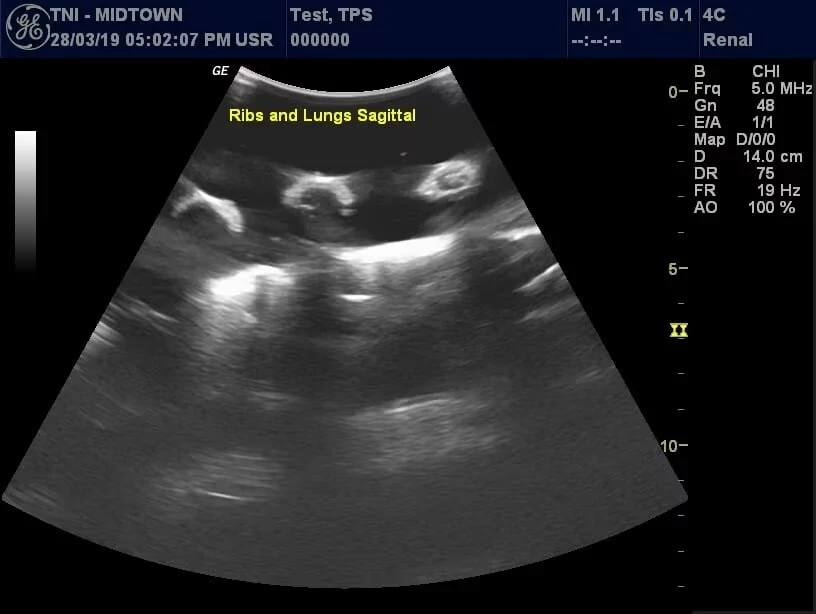

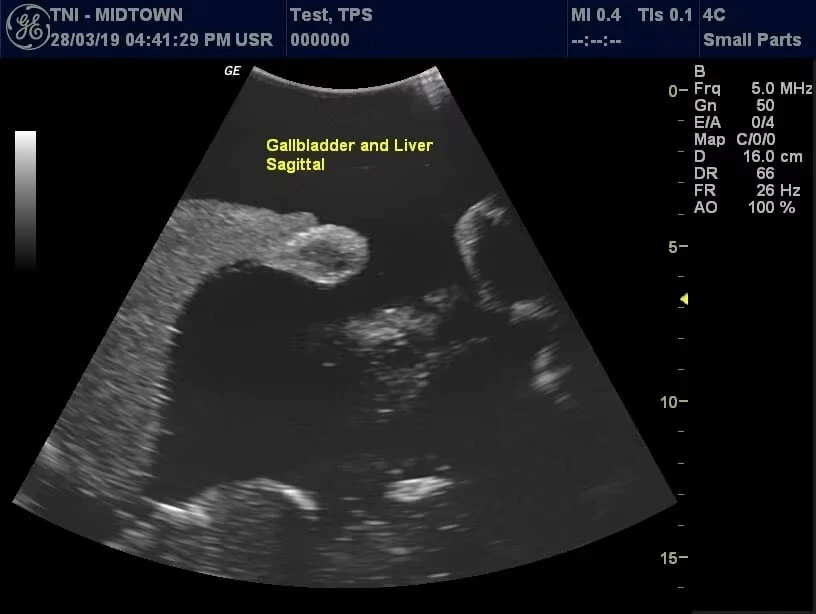

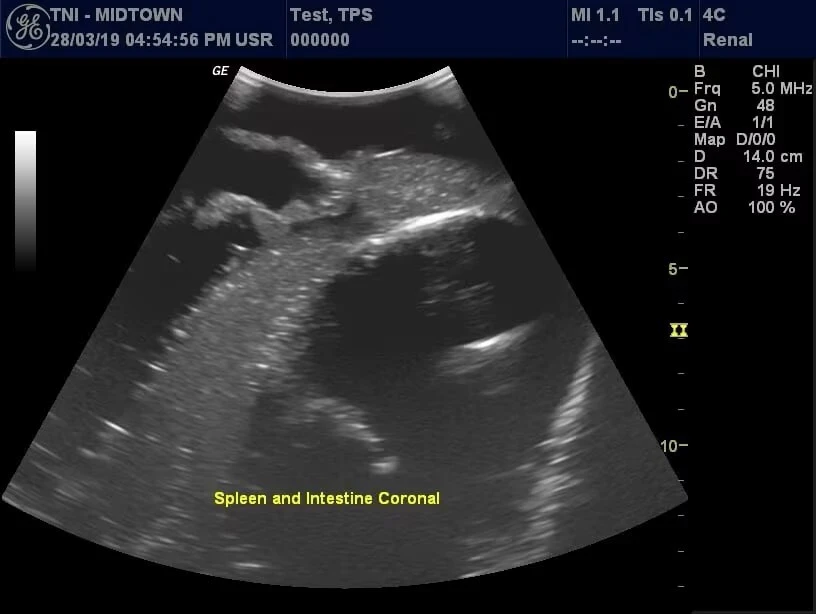

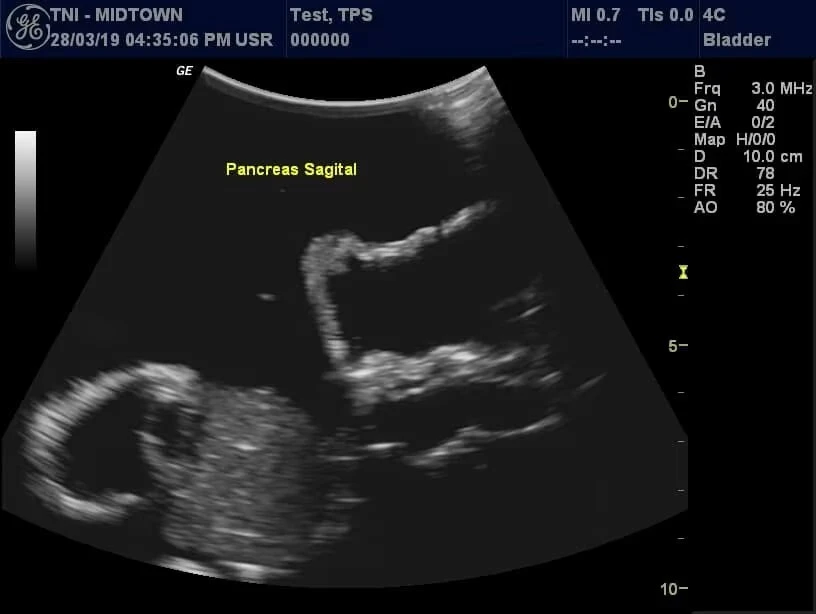

Torso Ultrasound Image Scans
