Adult Female Torso Phantom for X-Ray CT, US
Product Description

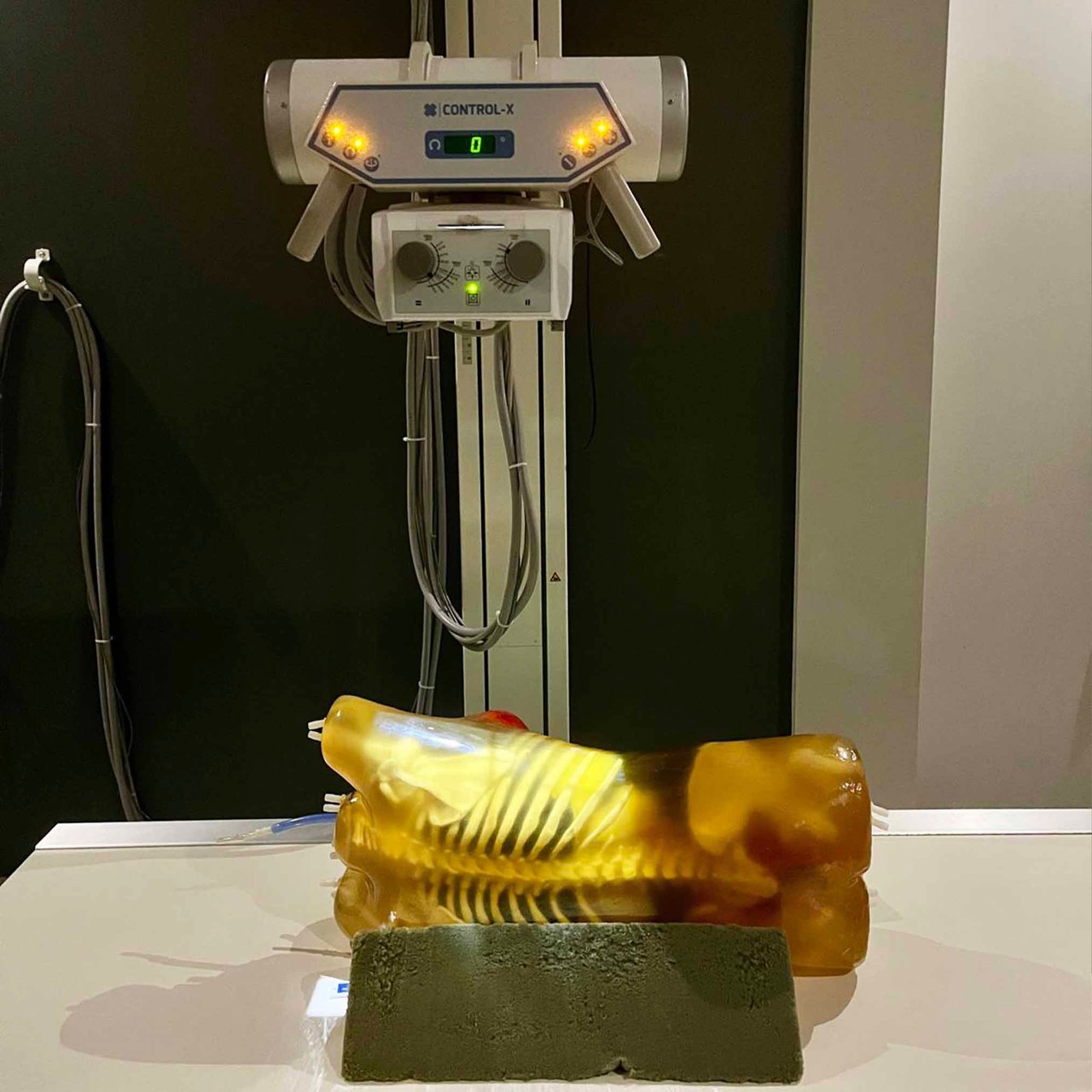

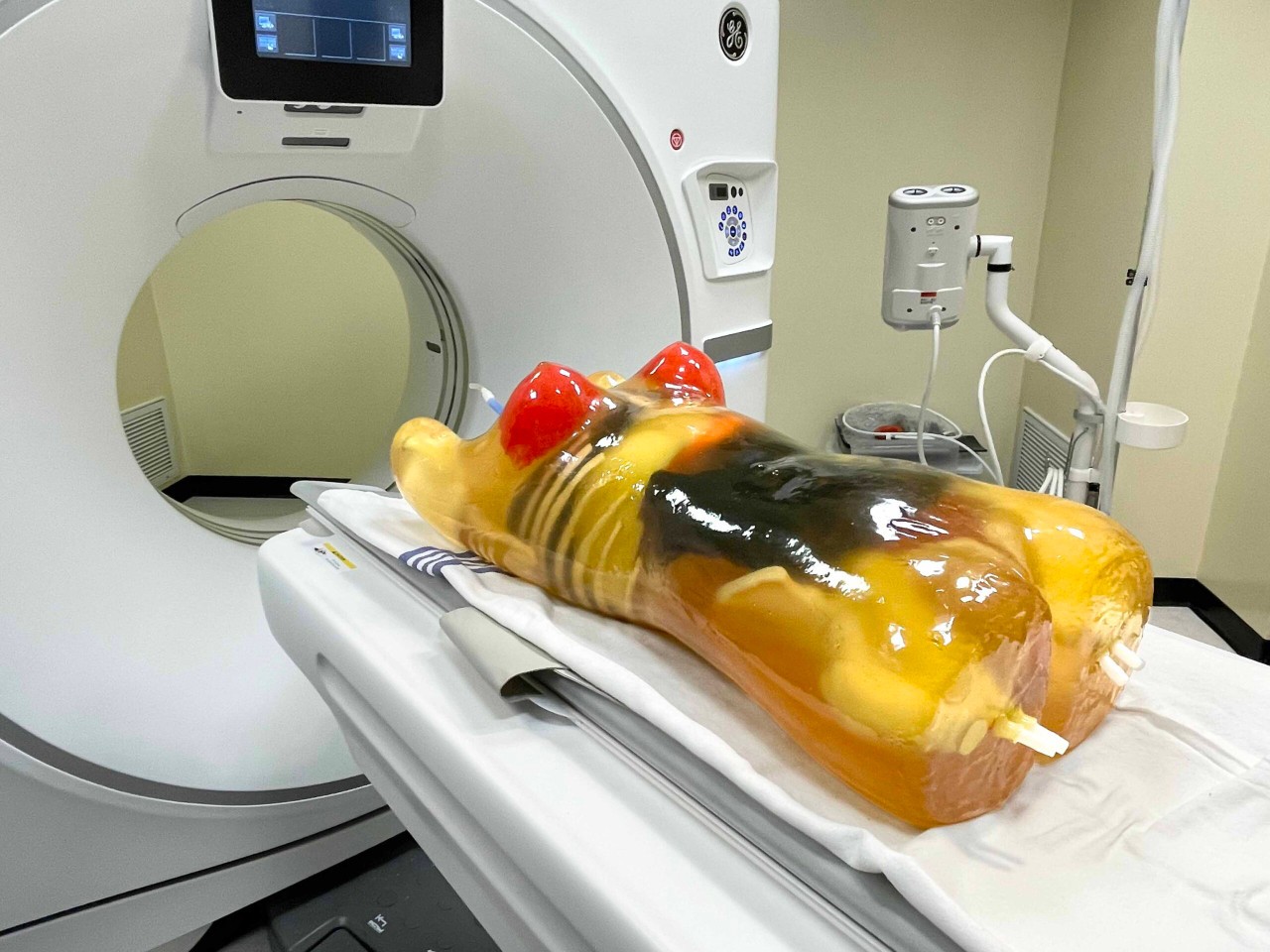

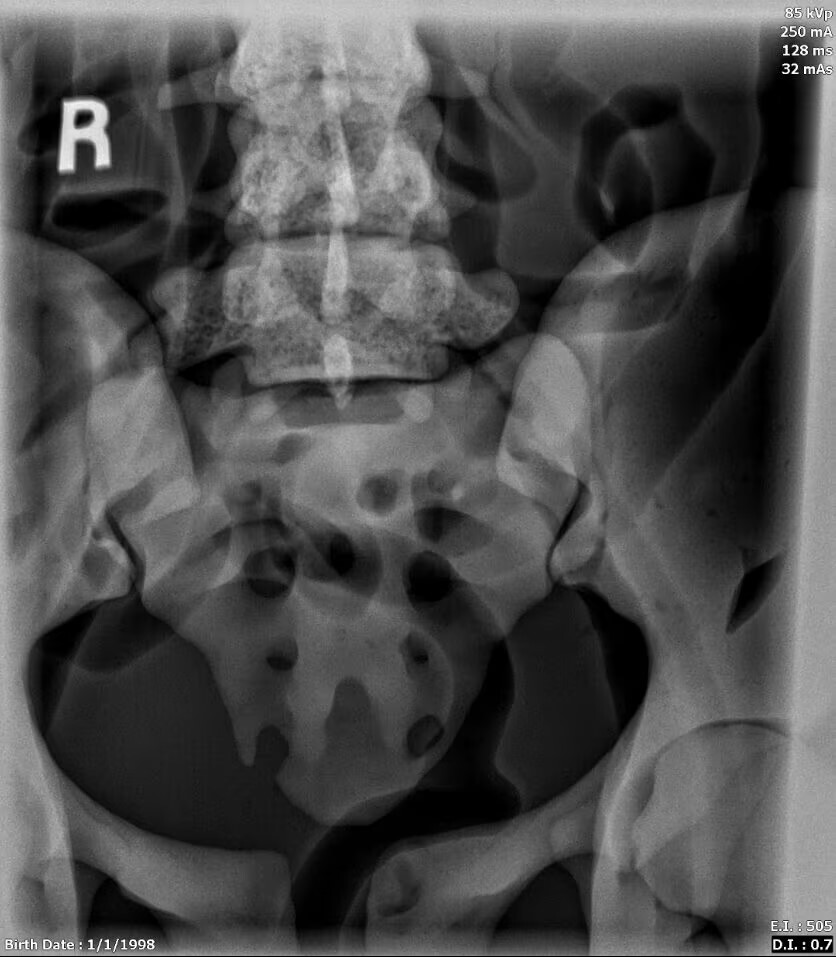

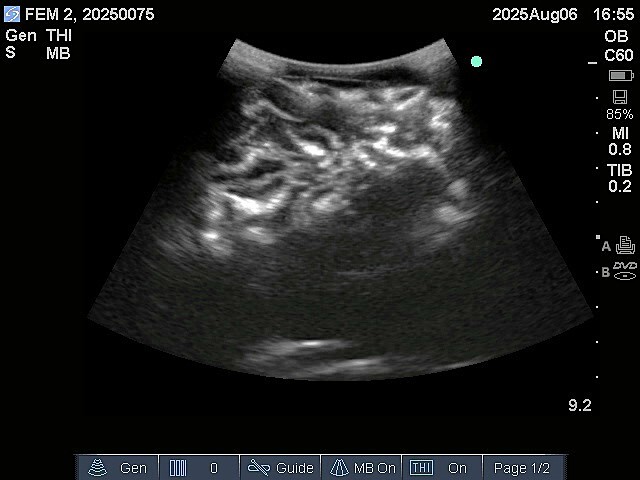

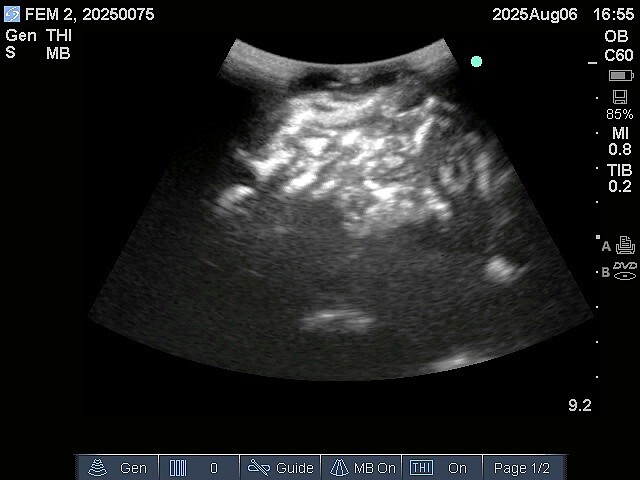

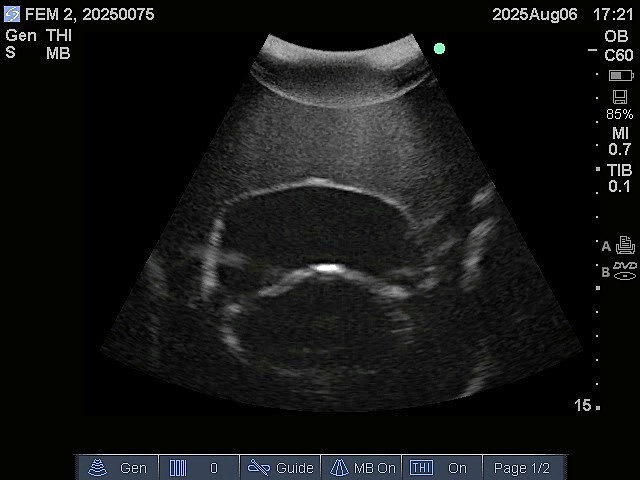

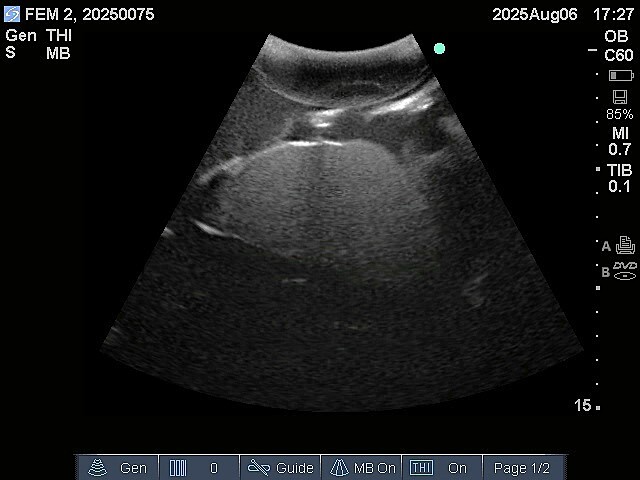

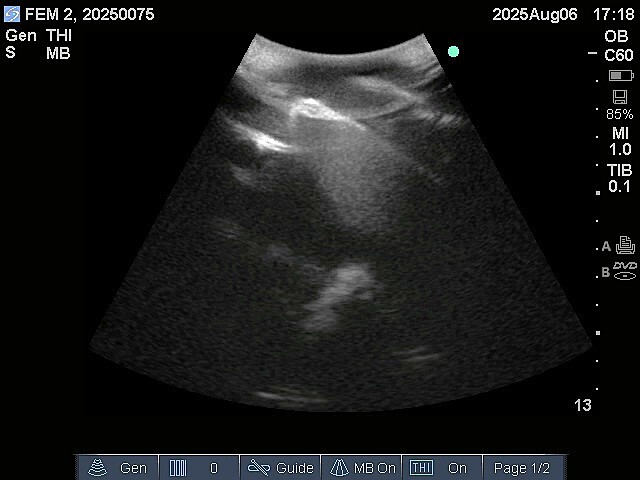

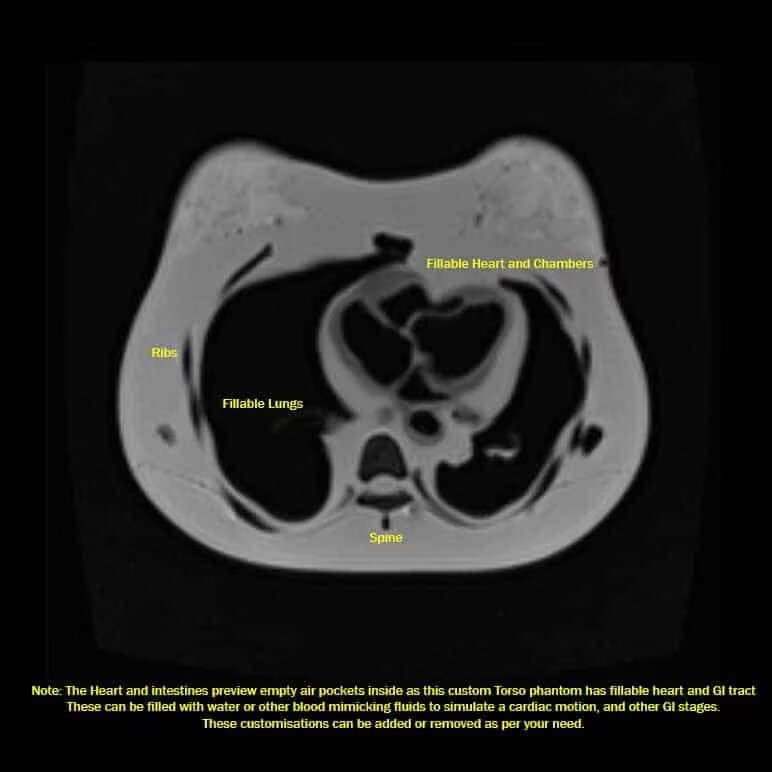

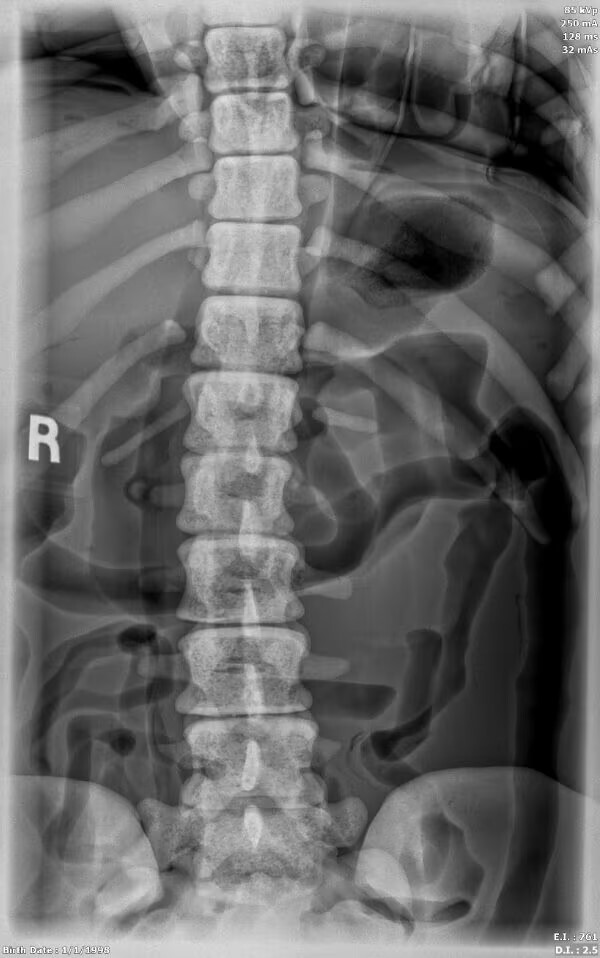

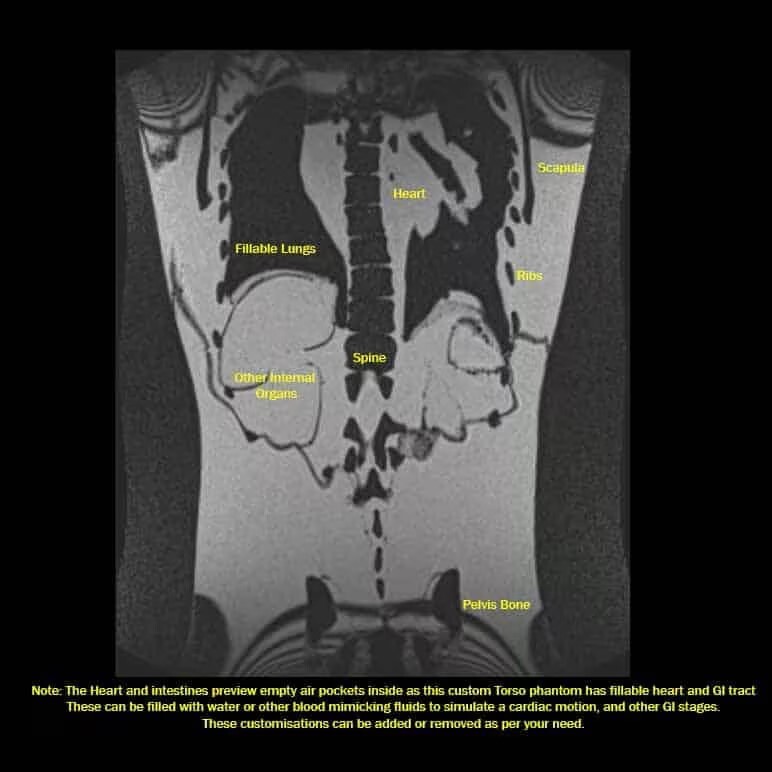

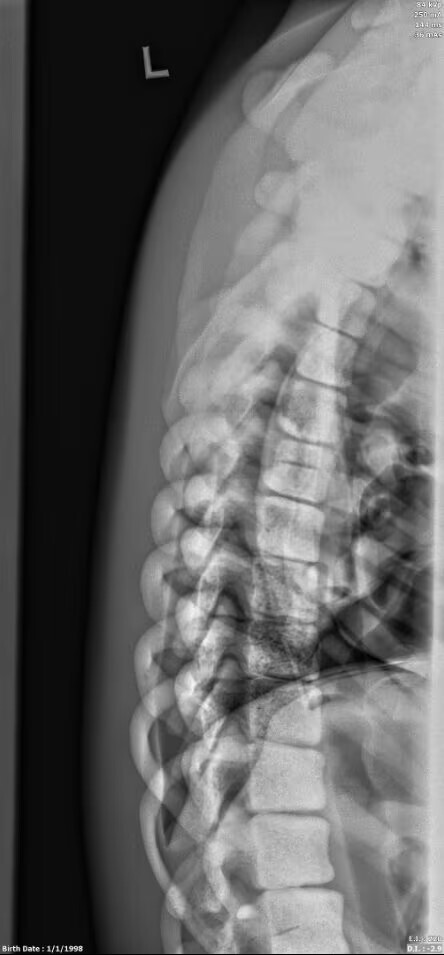

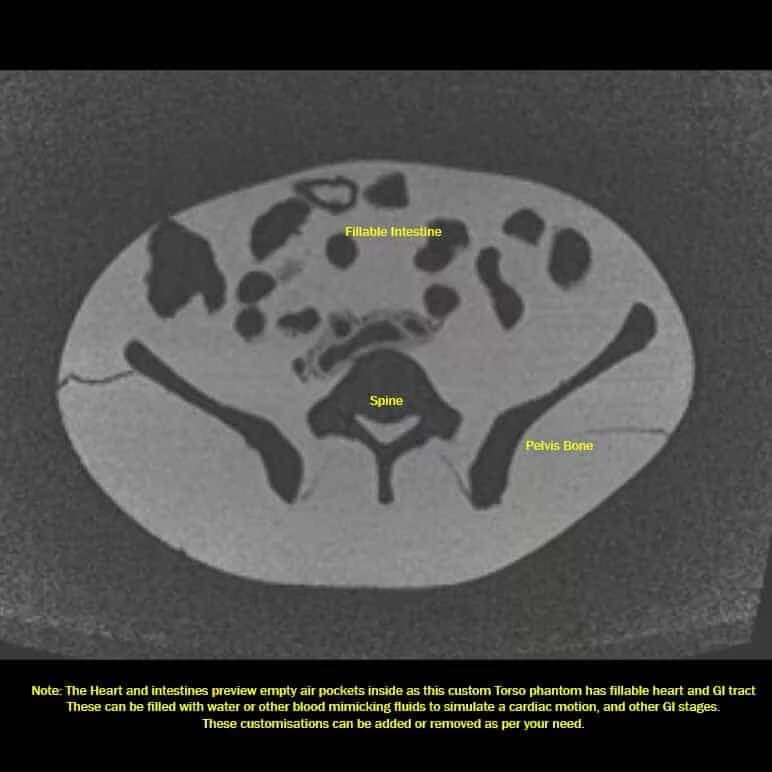

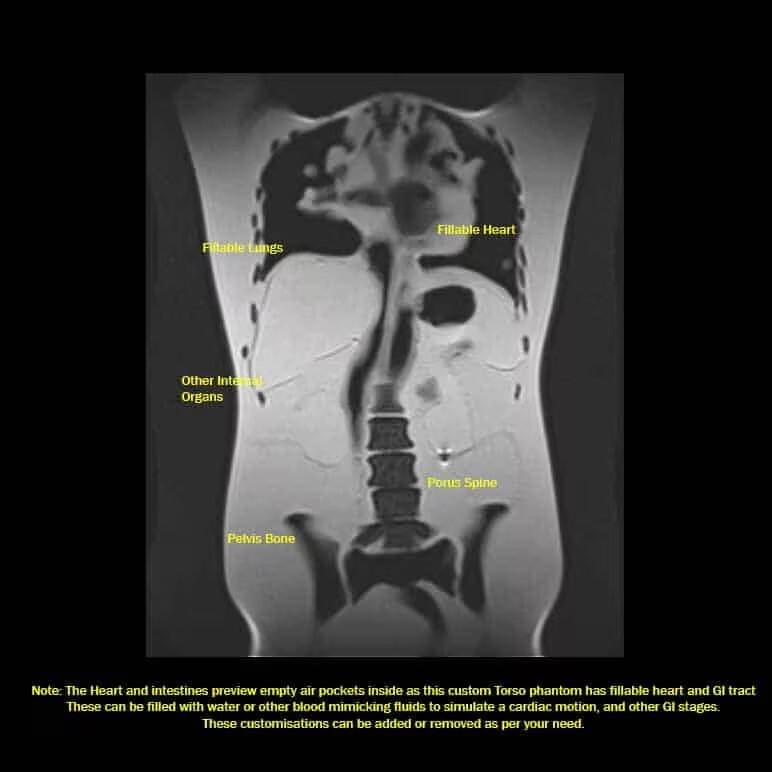

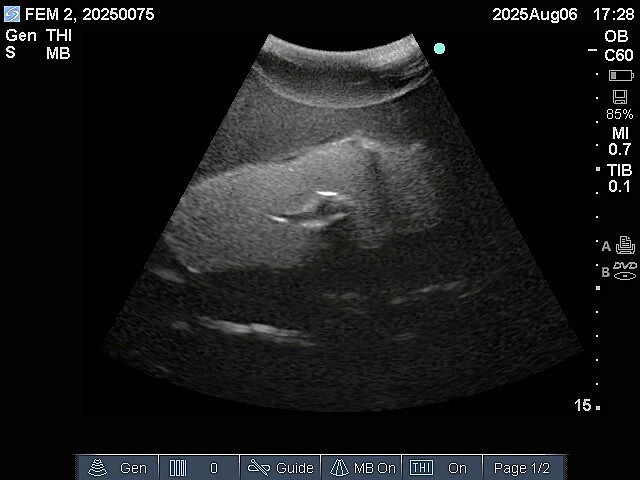

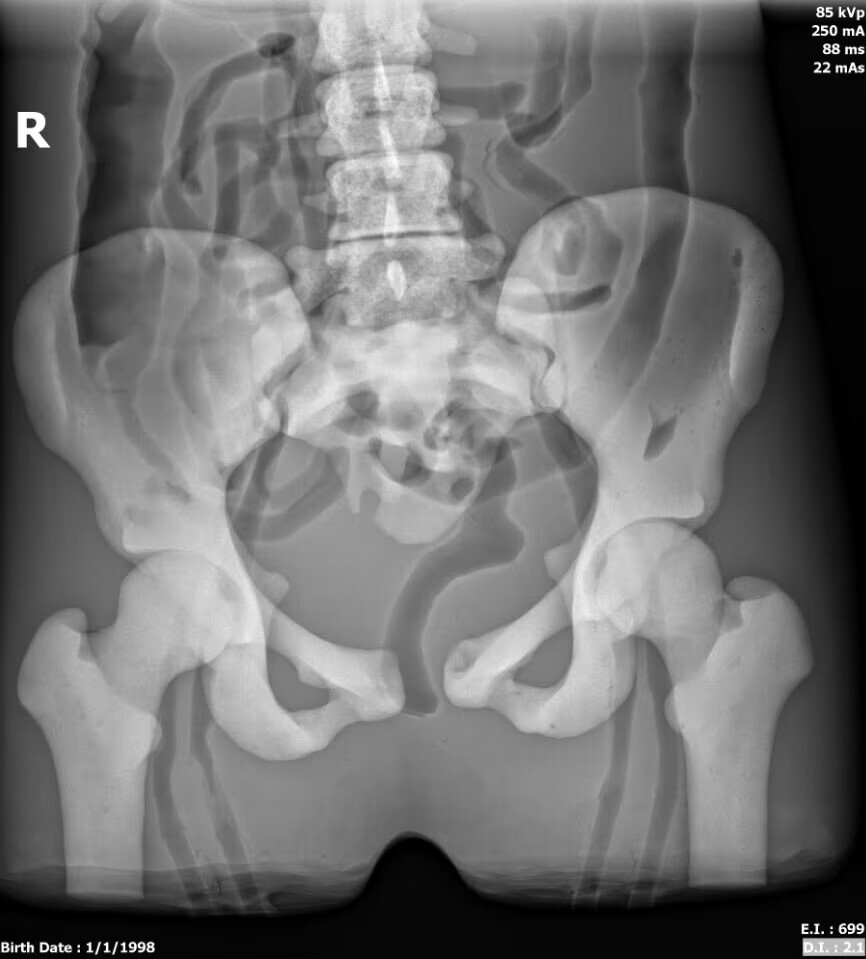

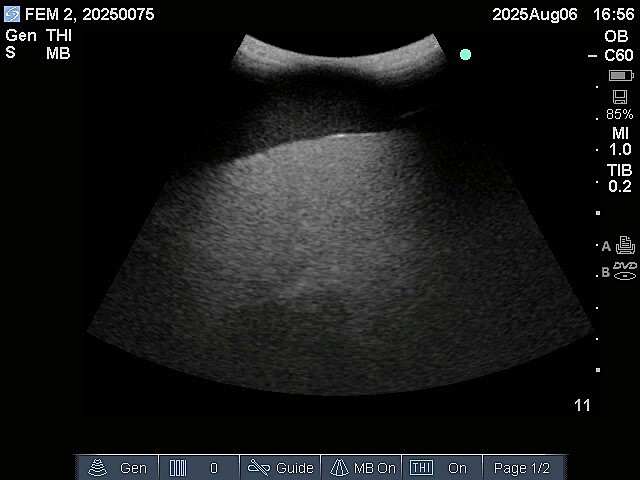

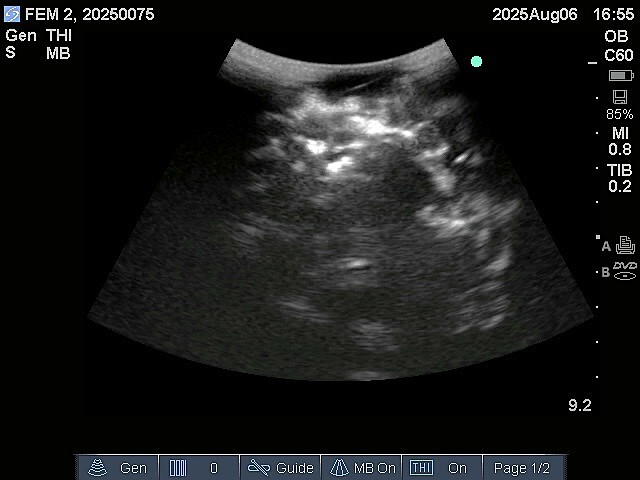

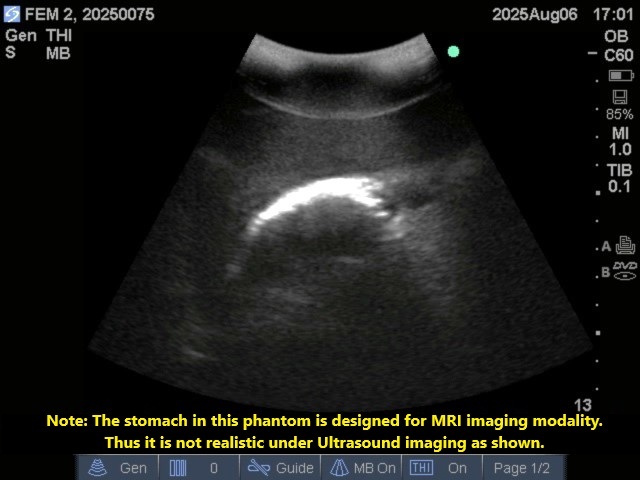

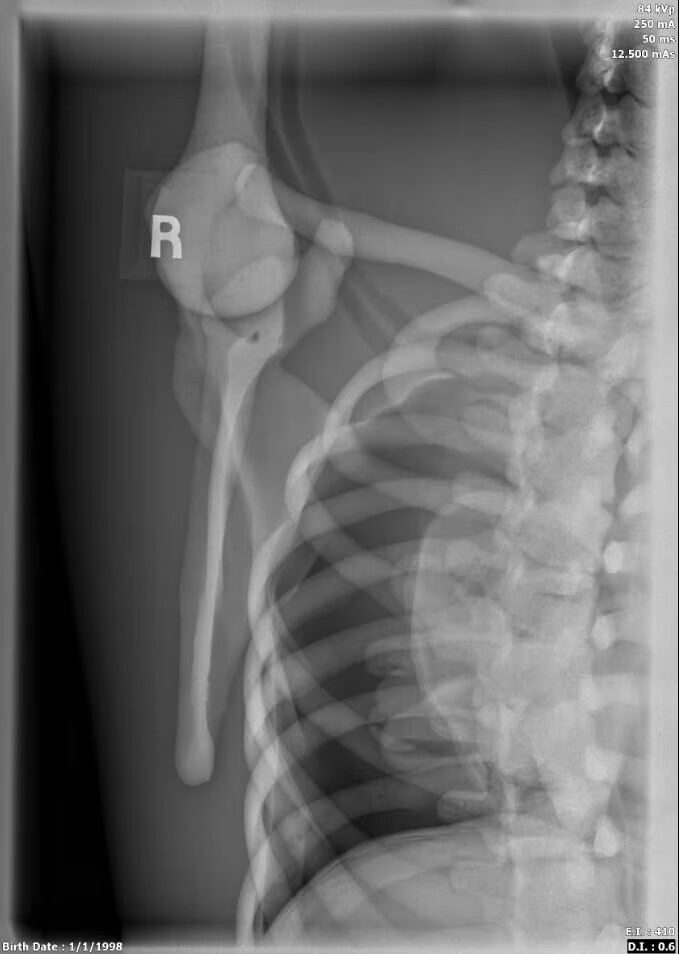

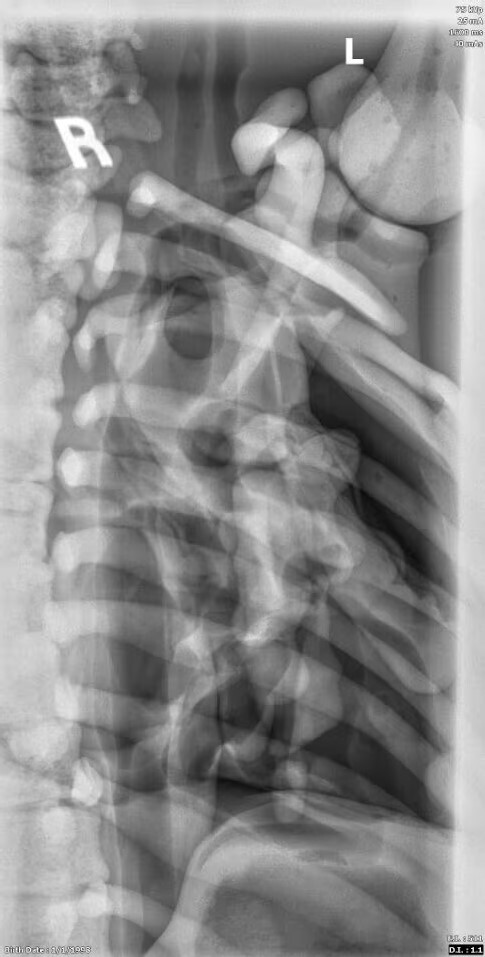

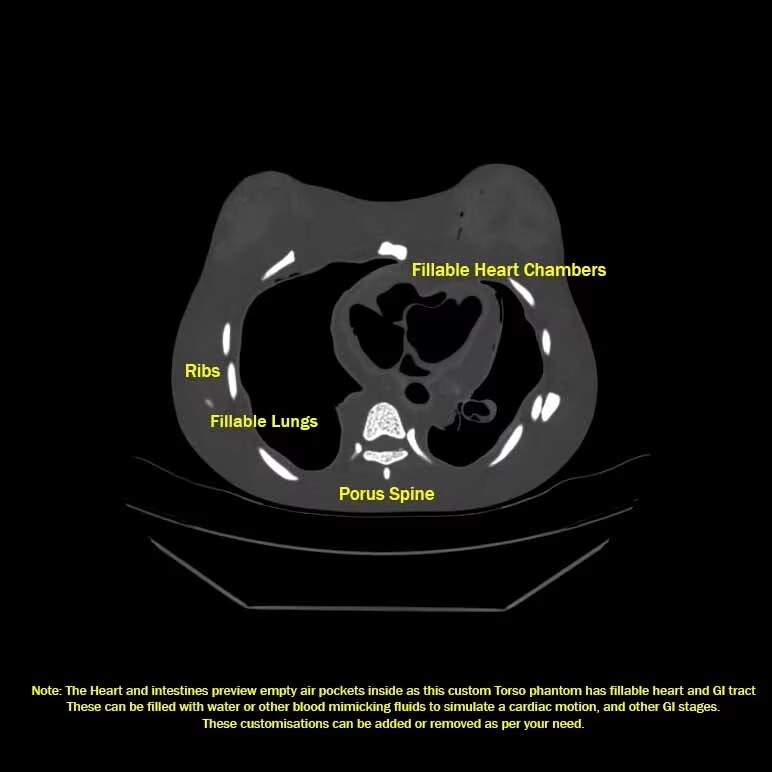

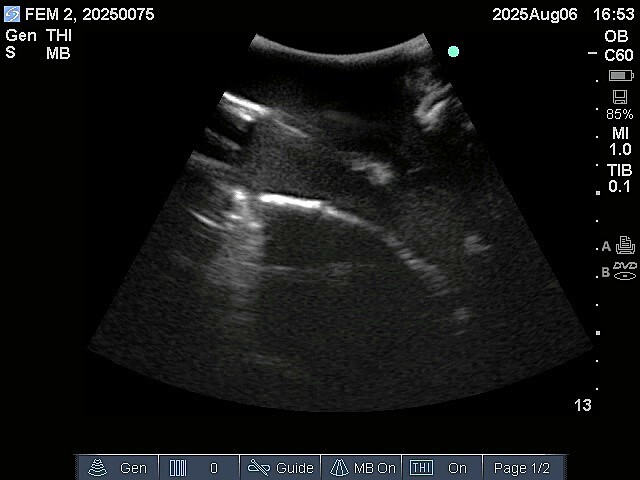

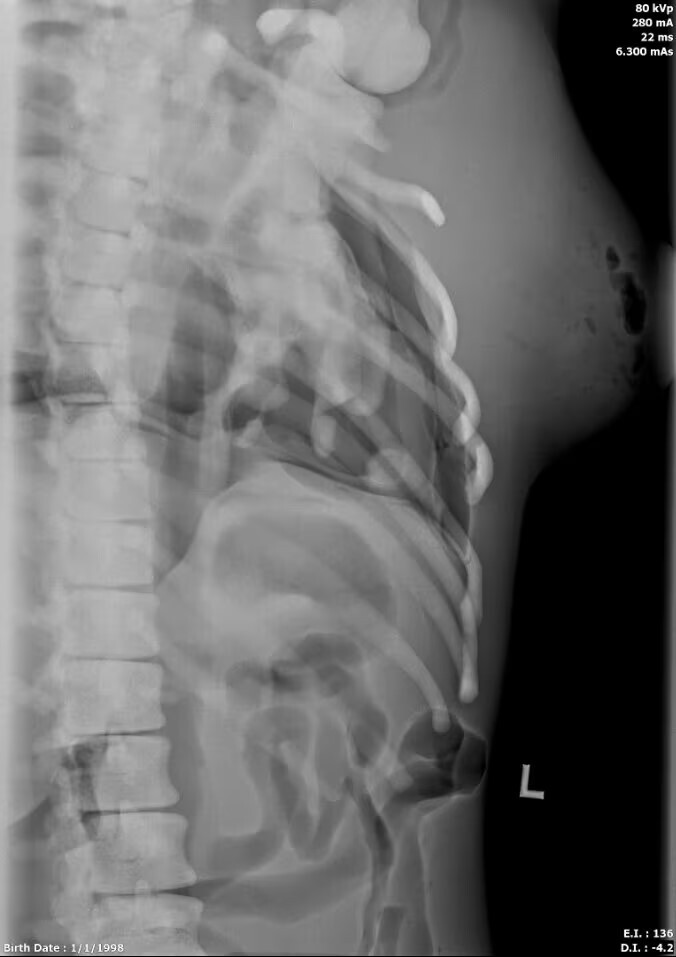

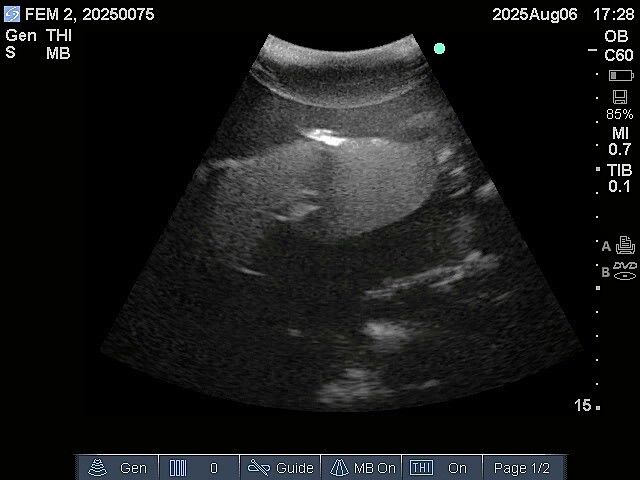

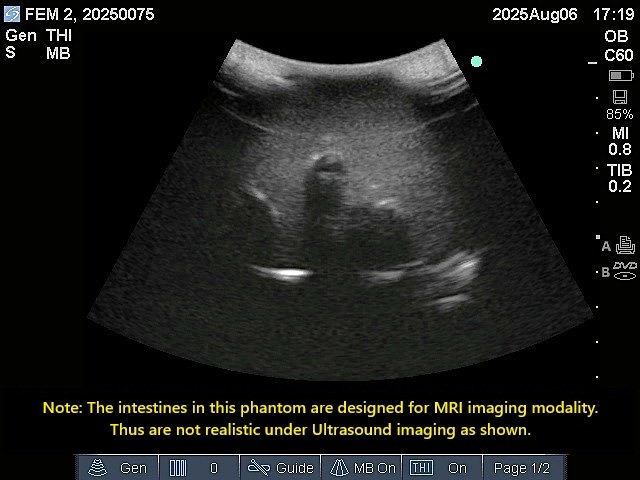

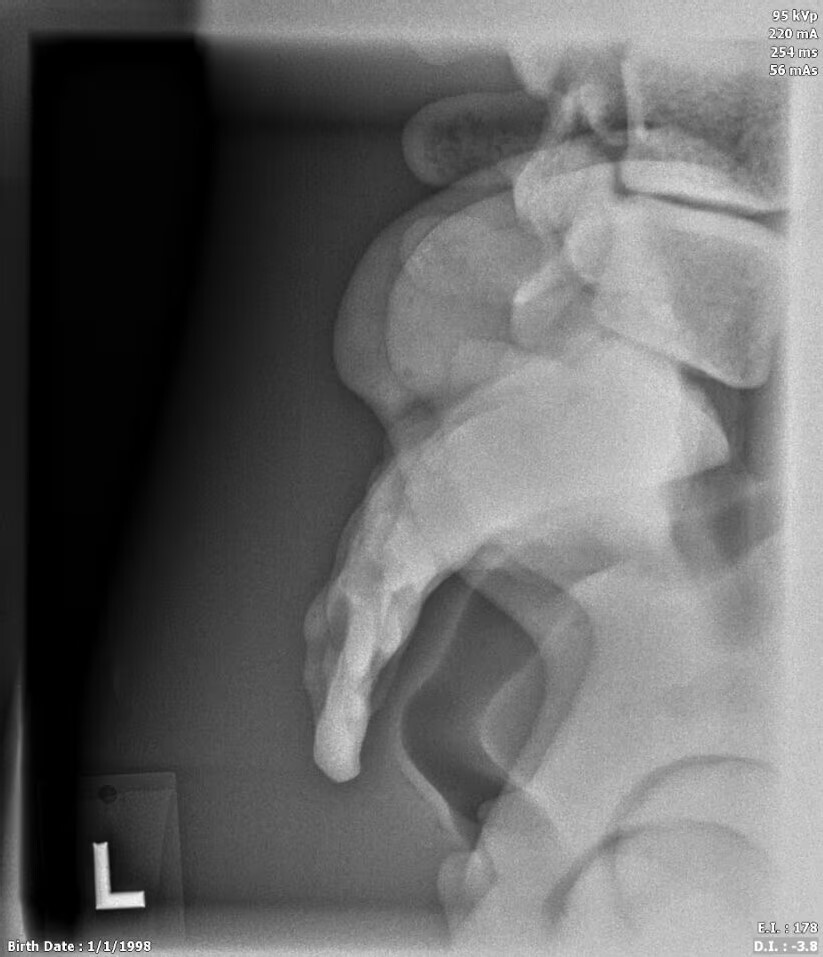

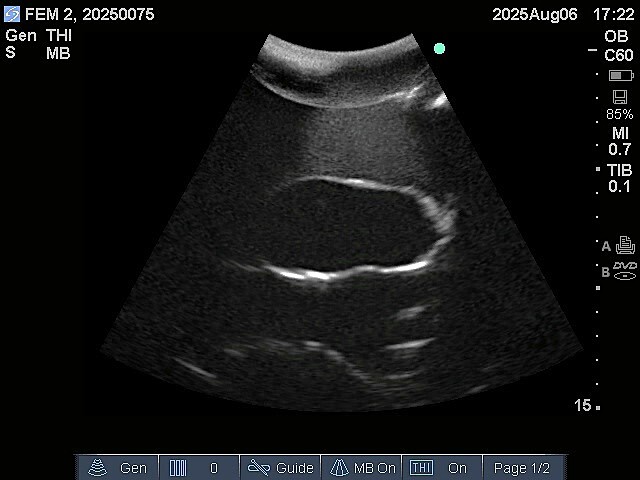

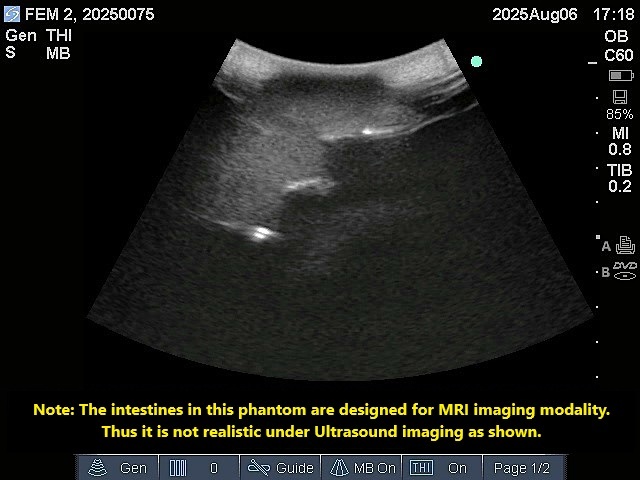

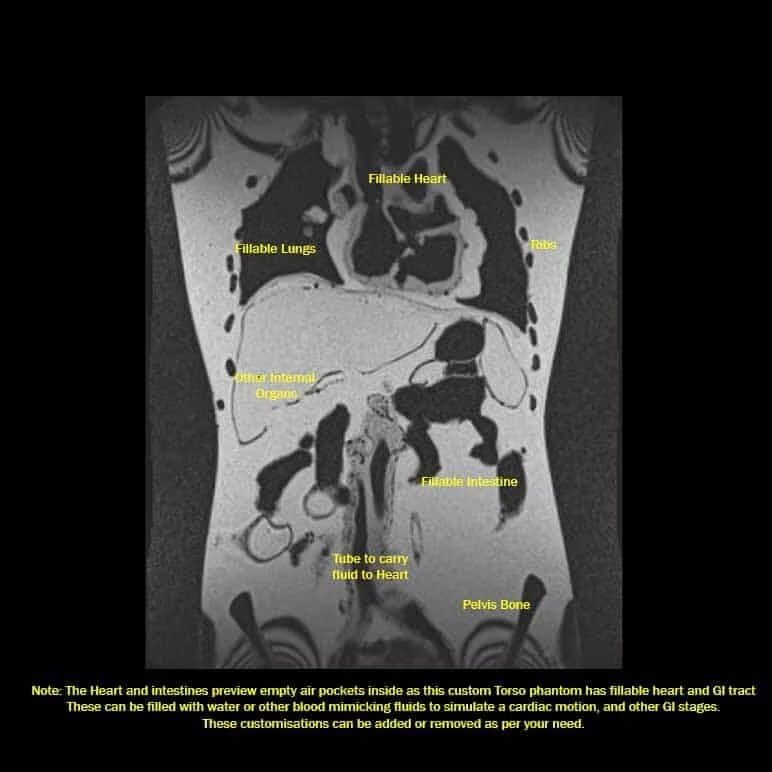

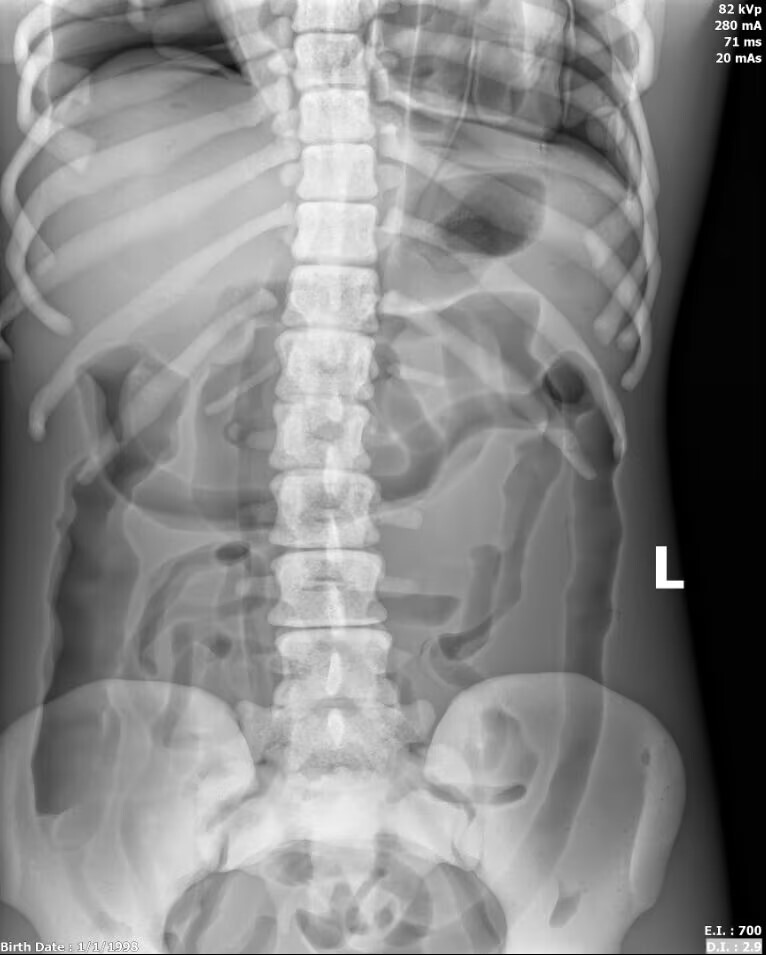

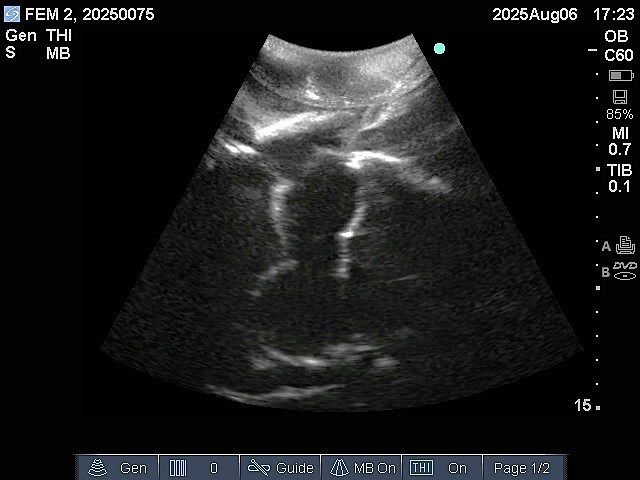

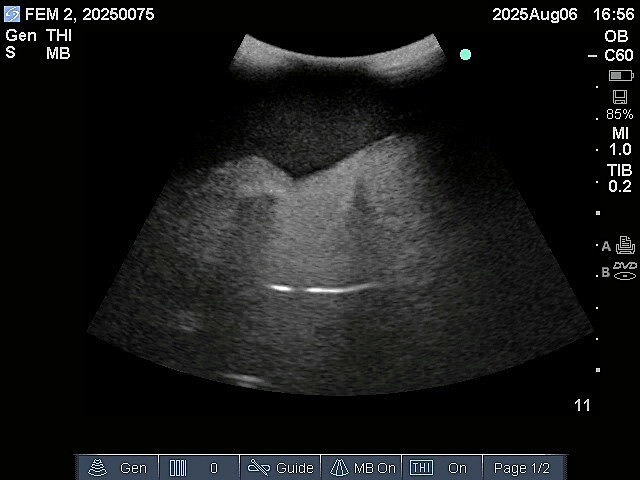

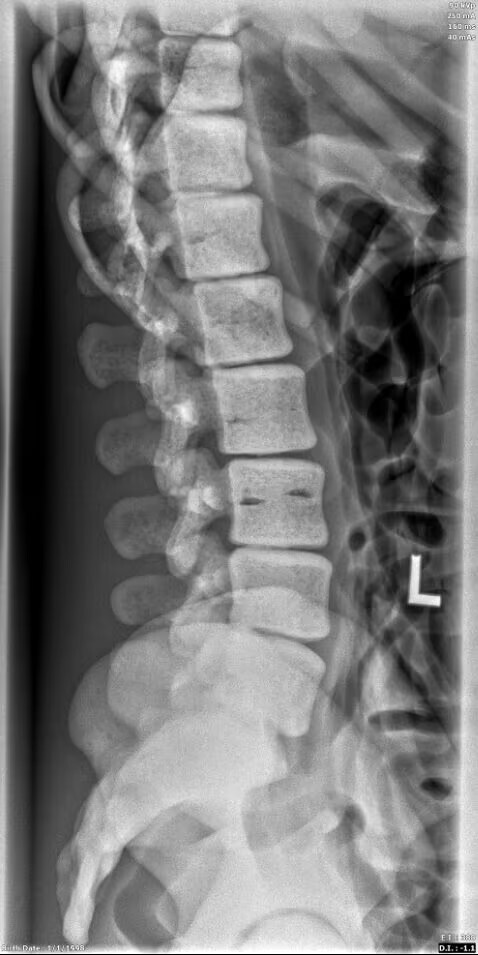

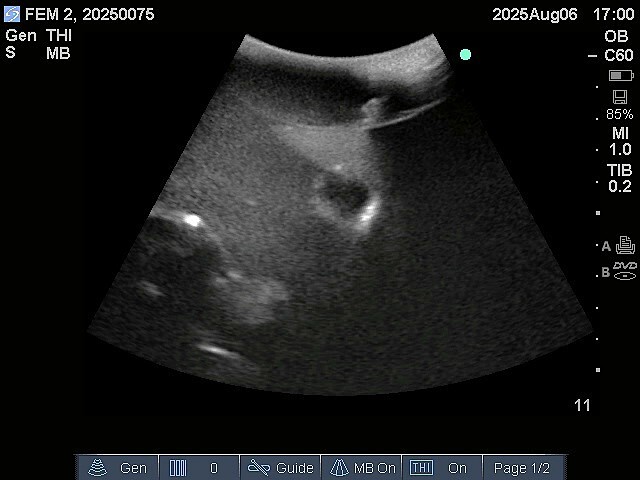

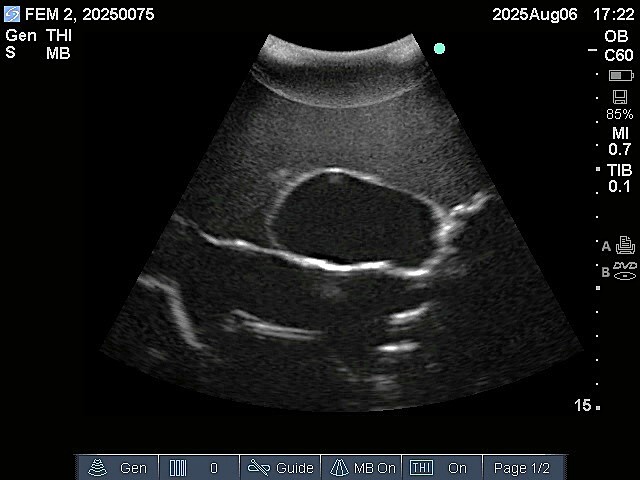

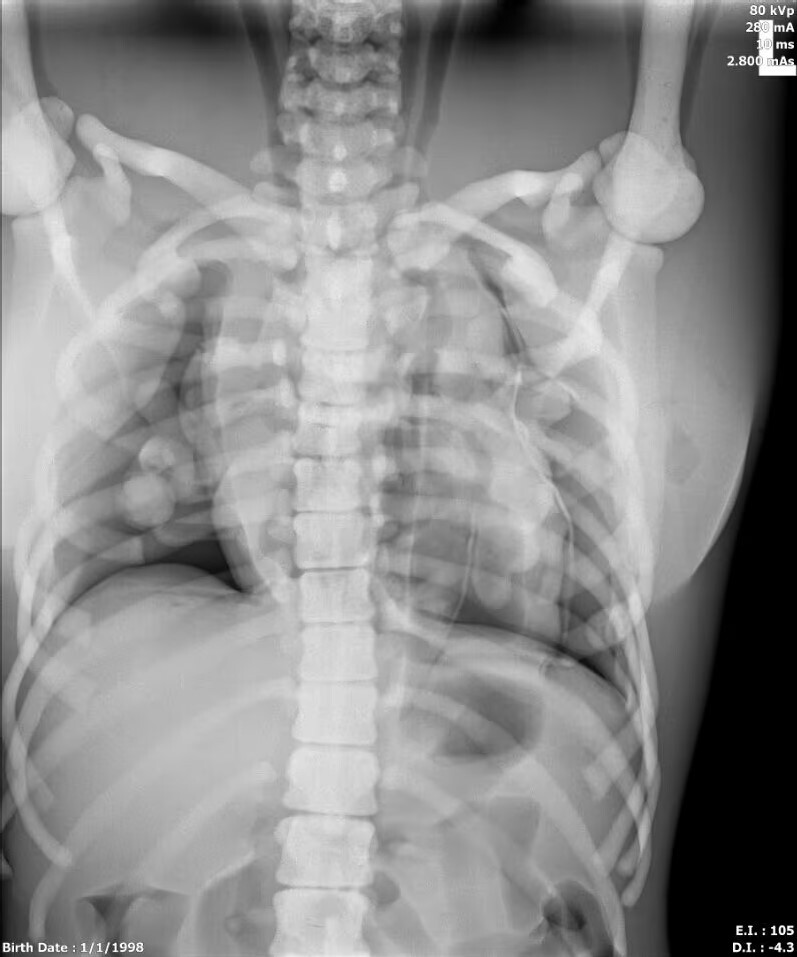

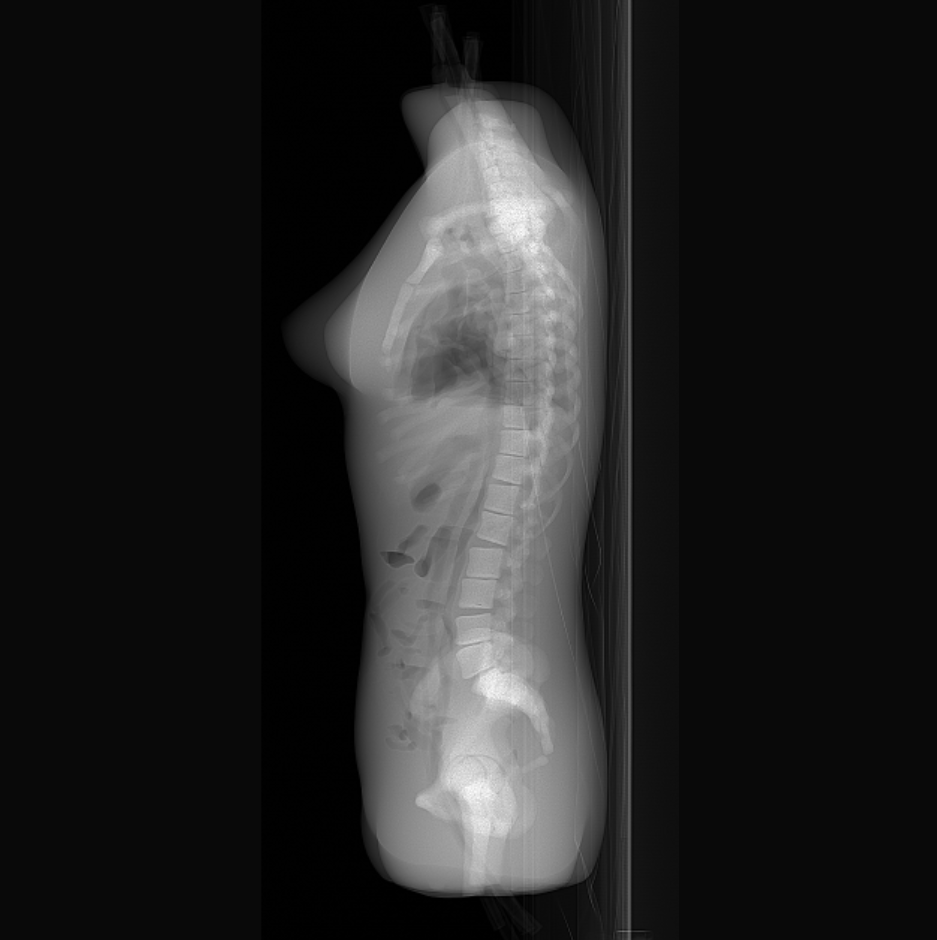

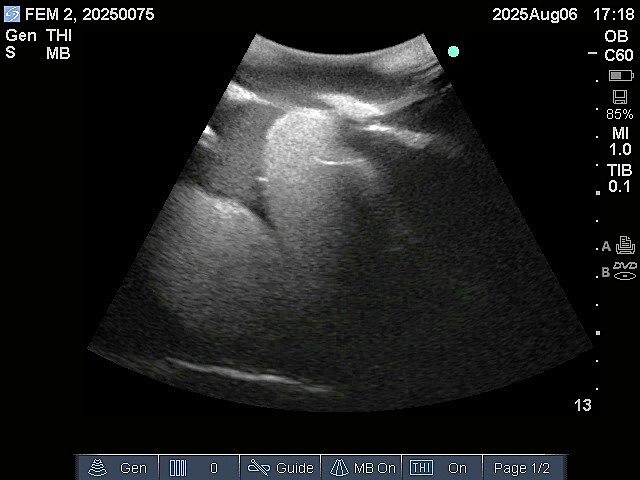

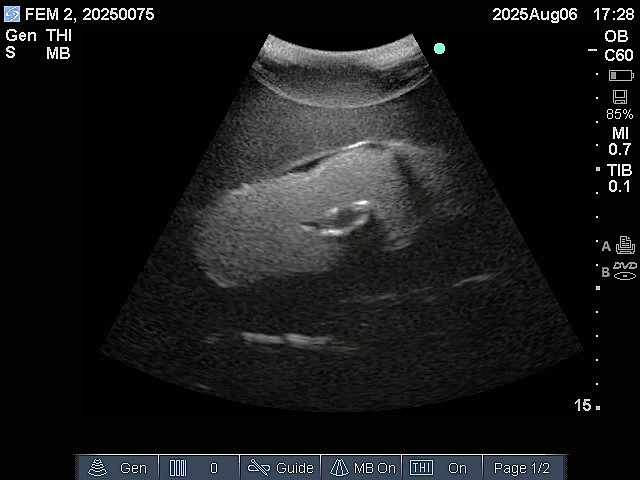

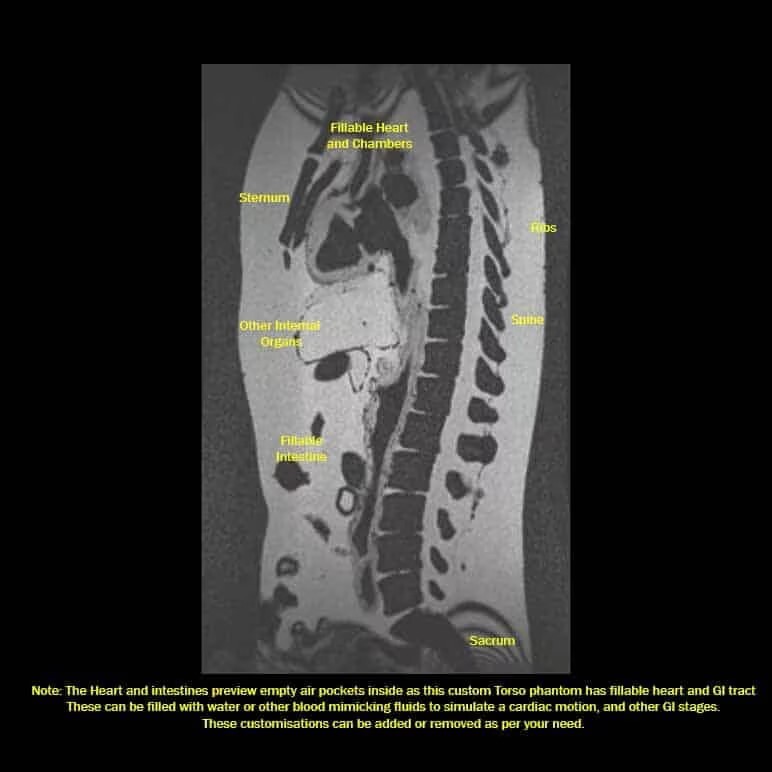

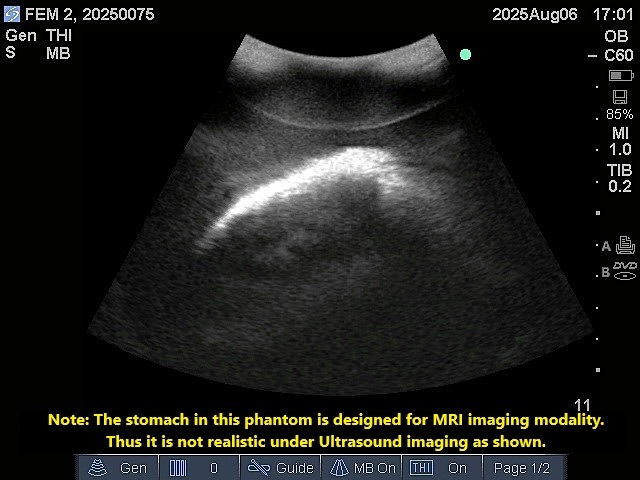

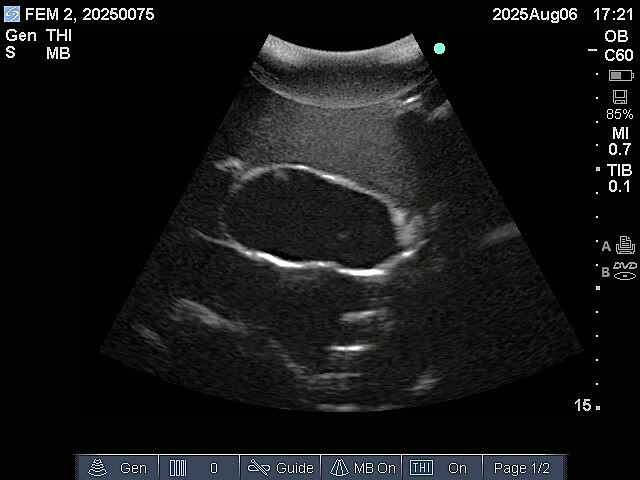

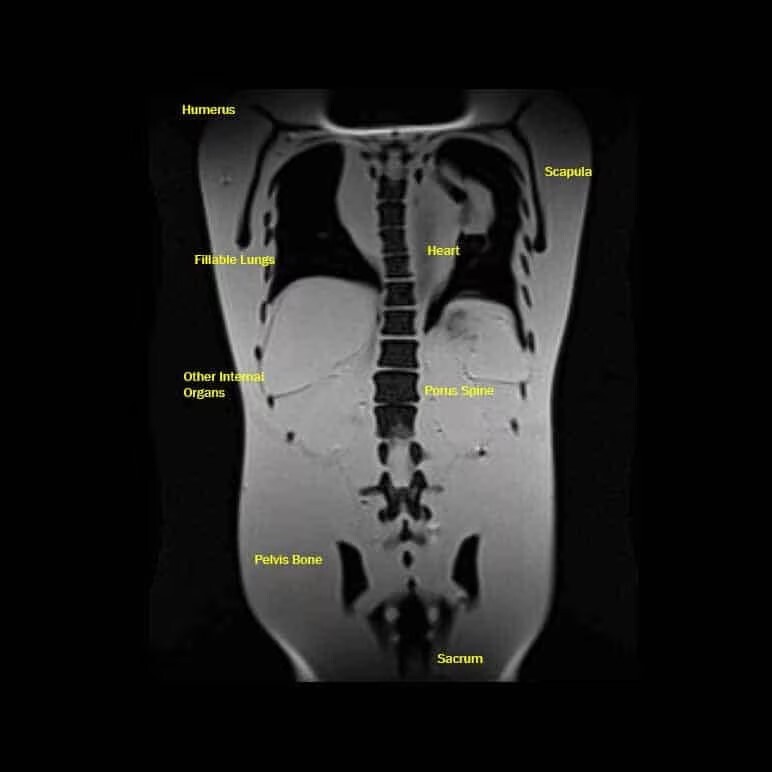

The Adult Female Torso Phantom is a groundbreaking simulator designed using a CT dataset from a healthy 35-year-old female patient (168 cm tall, BMI 22). Developed using advanced AI software and algorithms to ensure exceptional anatomical precision, this phantom sets a new standard for medical imaging education in women's health. It is optimized for X-Ray, CT, and Ultrasound modalities and is compatible with MRI (though GI tract results may be less realistic).
The phantom features realistic tissue-mimicking materials for both soft tissue and bone. It is an essential tool for training in radiology, gynecology, and breast oncology. The synthetic skeleton is assembled from individually cast bones with vertebrae featuring a three-layered structure. The model supports various contrast mediums including Barium-sulfate, Iodine, Gadolinium, and Iron Oxide.

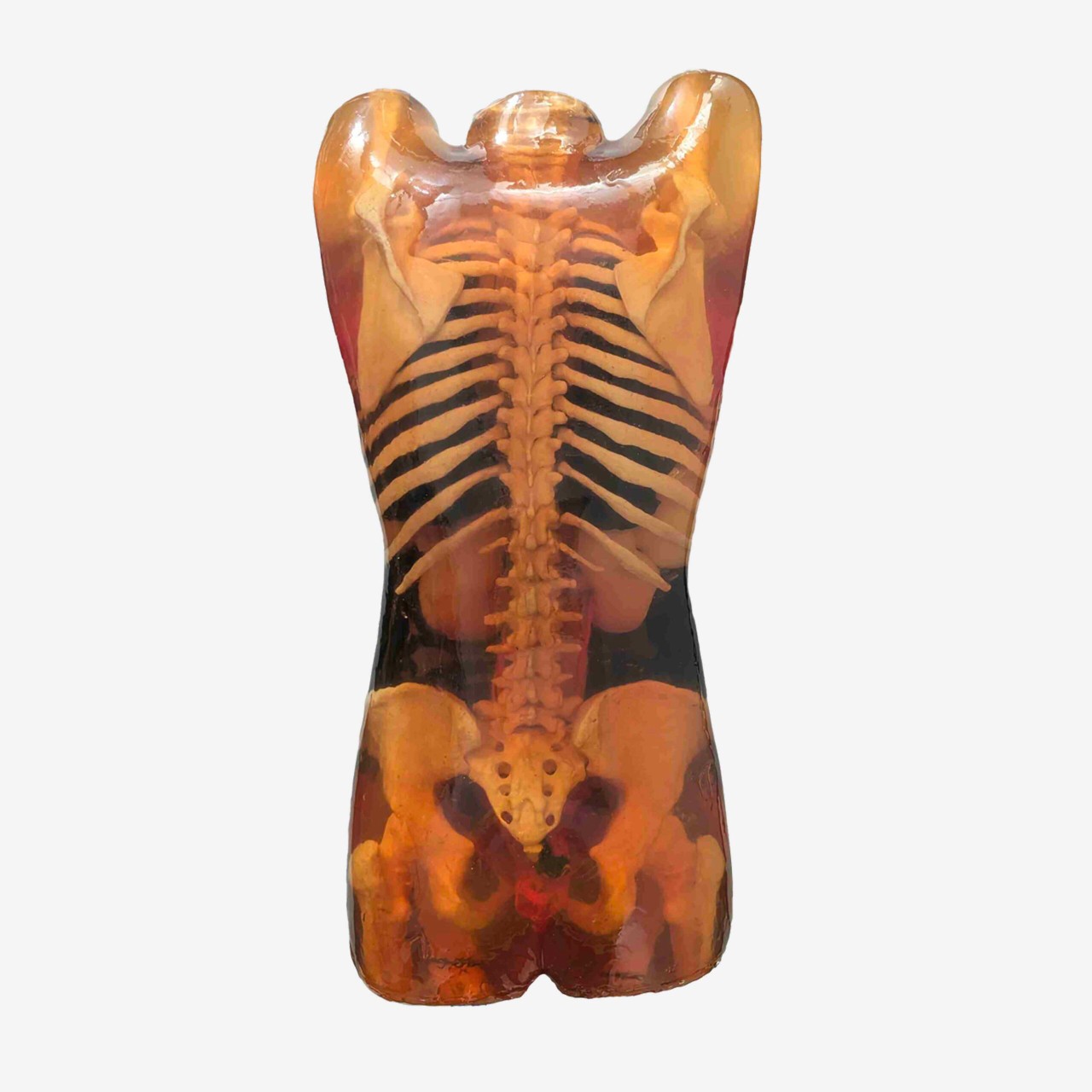

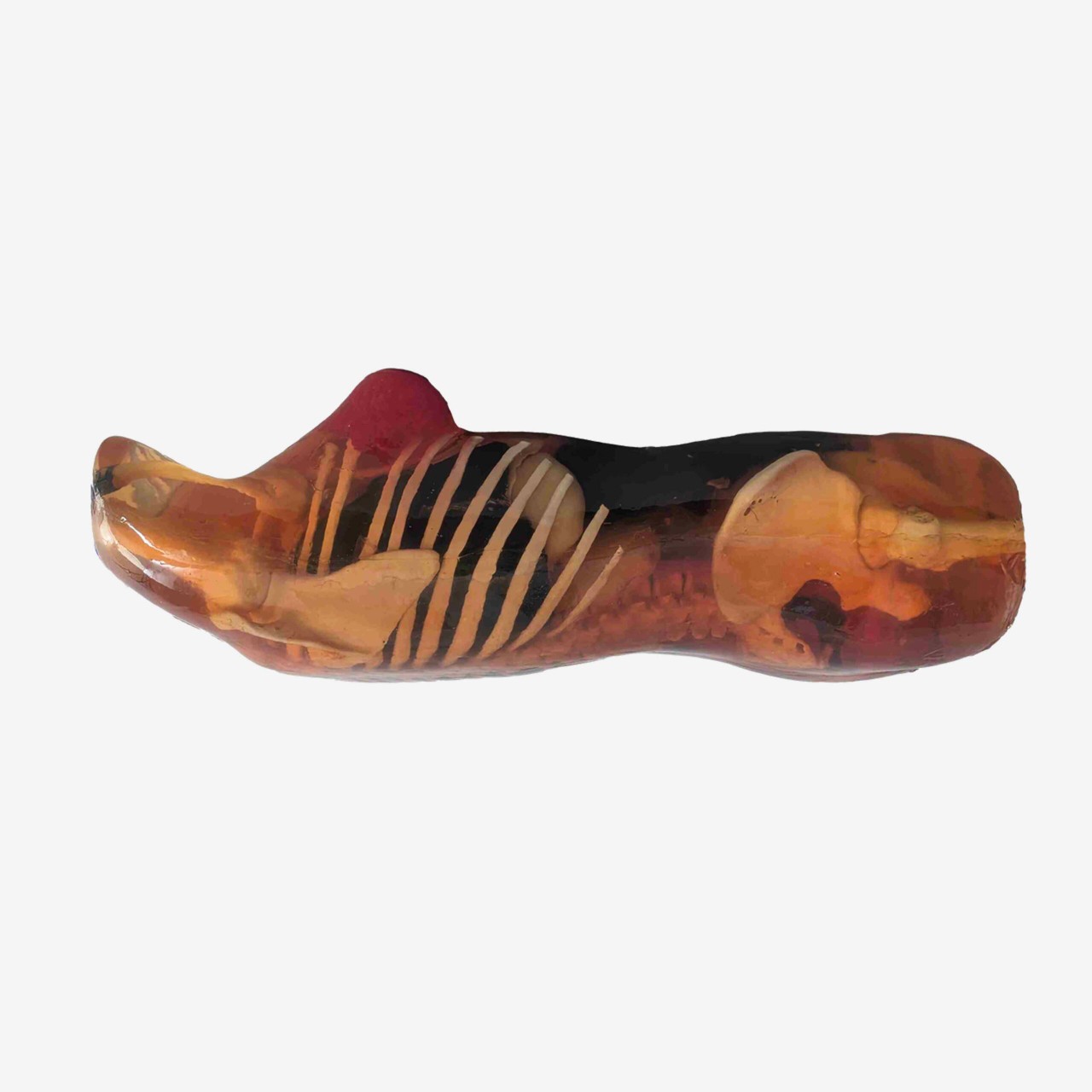

Note: By default, the phantom has a translucent amber appearance. A skin feature, custom fat layers (to increase BMI to 28 or 35), and dynamic heart/lung pumps for respiratory motion simulation are available upon request.
Anatomy

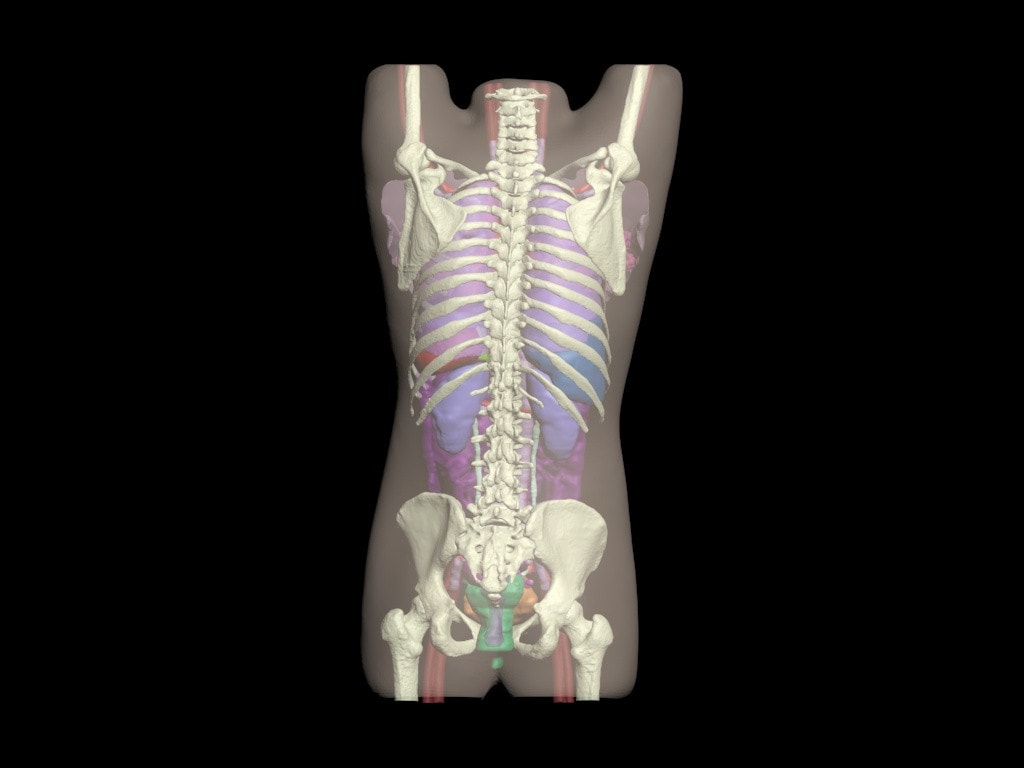

- Skeletal: Complete Spine, Complete Ribcage, Shoulders, Clavicles, Pelvis, and Partial Femoral Bones.
- Thoracic/Abdominal Organs: Trachea (6.15mm circular), Heart, Lungs, Diaphragm, Liver, Gallbladder, Stomach, Kidneys, Spleen, Pancreas, and Large/Small Intestines.
- Female Reproductive System: Cervix, Vaginal Canal, Ovaries, Uterus, and Bladder.
- Breast Anatomy: Body Tissue Mimicking Material, Mammary Fat Tissues, and Mammary Gland Tissues.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |

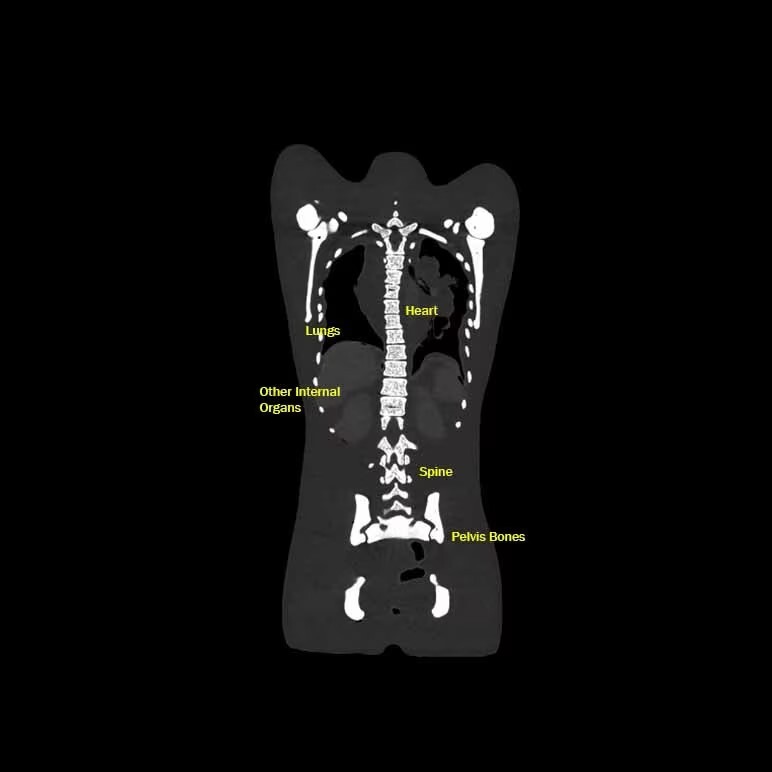

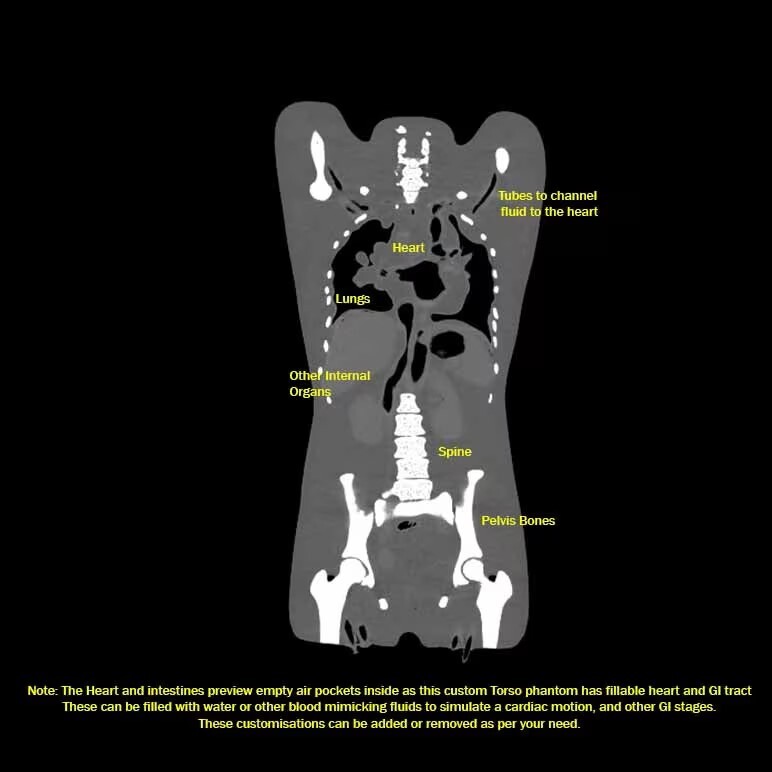

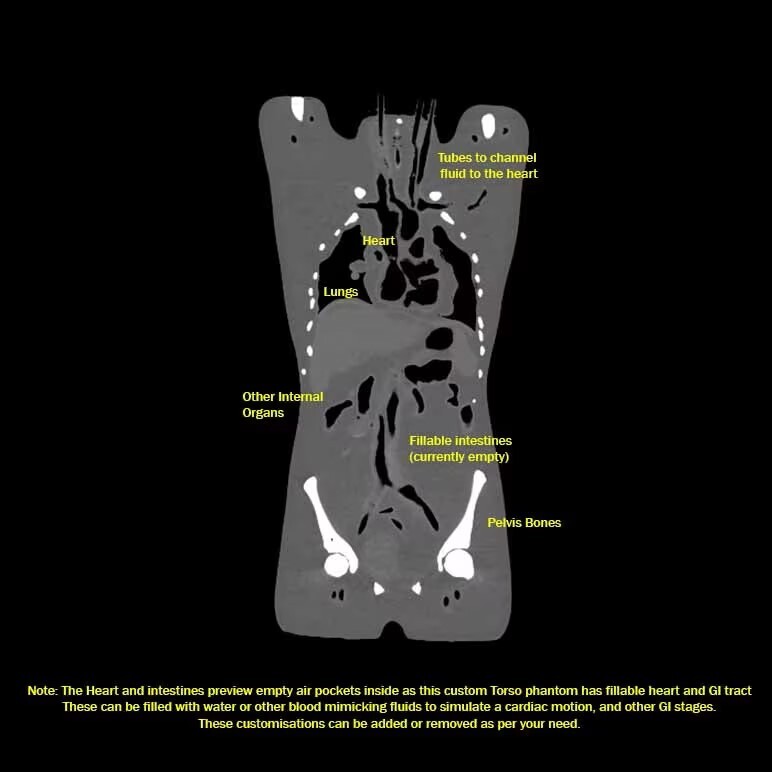

HU Values (Averaged)
| Tissue Type | HU Value | Tissue Type | HU Value |
|---|---|---|---|
| Body Tissue / Mammary Fat | -25 | Cervix / Ovaries / Uterus | 50 |
| Cortical Bone | 1300 | Vaginal Canal | 50 |
| Lungs / Stomach | -850 | Mammary Gland Tissues | 35 |
| Heart / Aorta | 40 | Bladder / Gallbladder | 35 |
| Liver / Kidneys / Spleen | 110 | Rectum / Sigmoid Wall | 100 |
Included in Order
- Adult Female Torso Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 29 x 14 x 11 Inches | Weight: ~80 Lbs
Shipment: 46 x 36 x 17 Inches | Weight: ~136 Lbs (shipped on a wooden pallet)
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
