Adult Torso (Dynamic) for X-Ray CT, US
Product Description

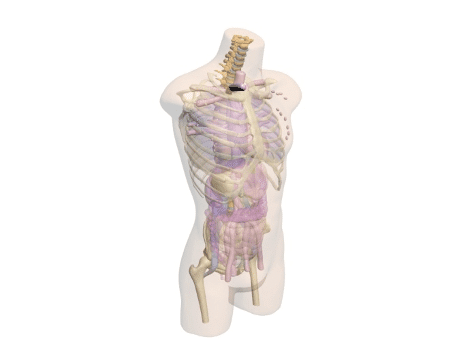

The Adult Human Torso (Dynamic) is a high-fidelity simulator designed for medical imaging training and research. Covering the area from the neck to the pelvis, it features anatomically realistic organs and a complete skeletal structure. This phantom is specifically engineered for multi-modality use with X-Ray/CT and Ultrasound, making it an ideal choice for angiography and respiratory motion studies.
The "Dynamic" model is distinguished by its ability to simulate lifelike physiological motions. It features a beating heart system and inflatable breathing lungs, which can be connected to the included heart and lung pumps to replicate both cardiac and respiratory cycles. The synthetic materials mimic the acoustical, physical, and mechanical properties of real human biological tissues, supporting the use of Iodine-based and Microbubble contrast mediums.
Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. The hollow elliptical trachea (10x15mm) allows for scope or catheter insertion.
Anatomy
- Skeletal: Complete Spine, Complete Ribcage, Shoulders, Clavicles, Pelvis, and Partial Femoral Bones.
- Organs: Trachea (elliptical scope-compatible), Diaphragm, Liver (with ligaments), Gallbladder (with bile ducts), Stomach, Kidneys, Spleen, Pancreas, Large/Small Intestines, Bladder, and Prostate.

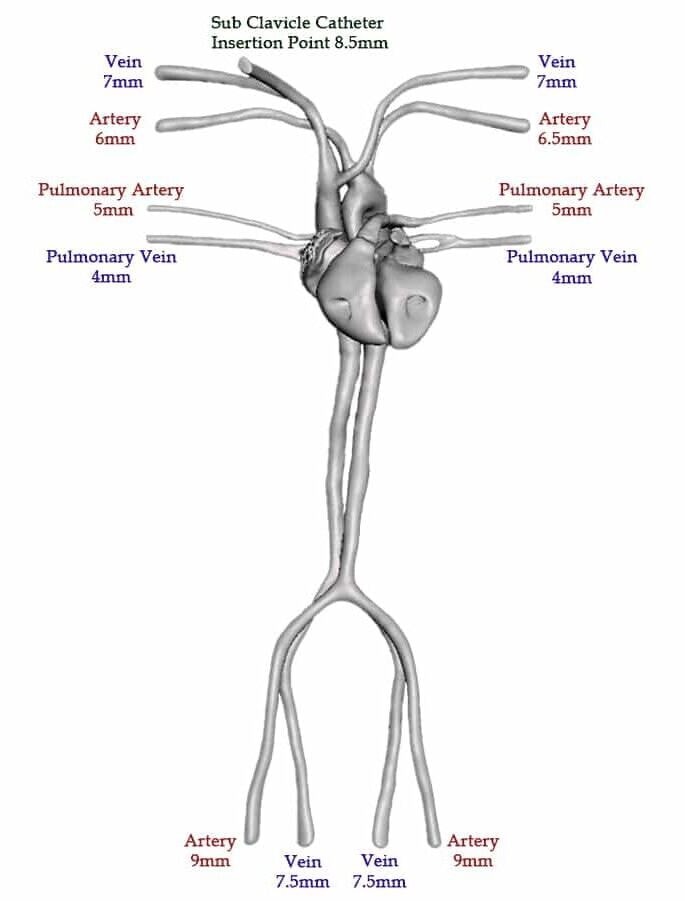

- Dynamic Features: Inflatable Breathing Lungs and a Beating Heart with detailed chambers (RV: 60ml, LV: 63ml, RA: 45ml, LA: 29ml).
Dynamic System Features
- Beating Heart: Cyclic motion of heart walls with hysteresis (diastole/systole), water-fillable chambers, and adjustable heart rate (20140 BPM).
- Breathable Lungs: Realistic cyclic respiratory motion with adjustable rate (045 breaths per minute) and breath volume (250ml1200ml).

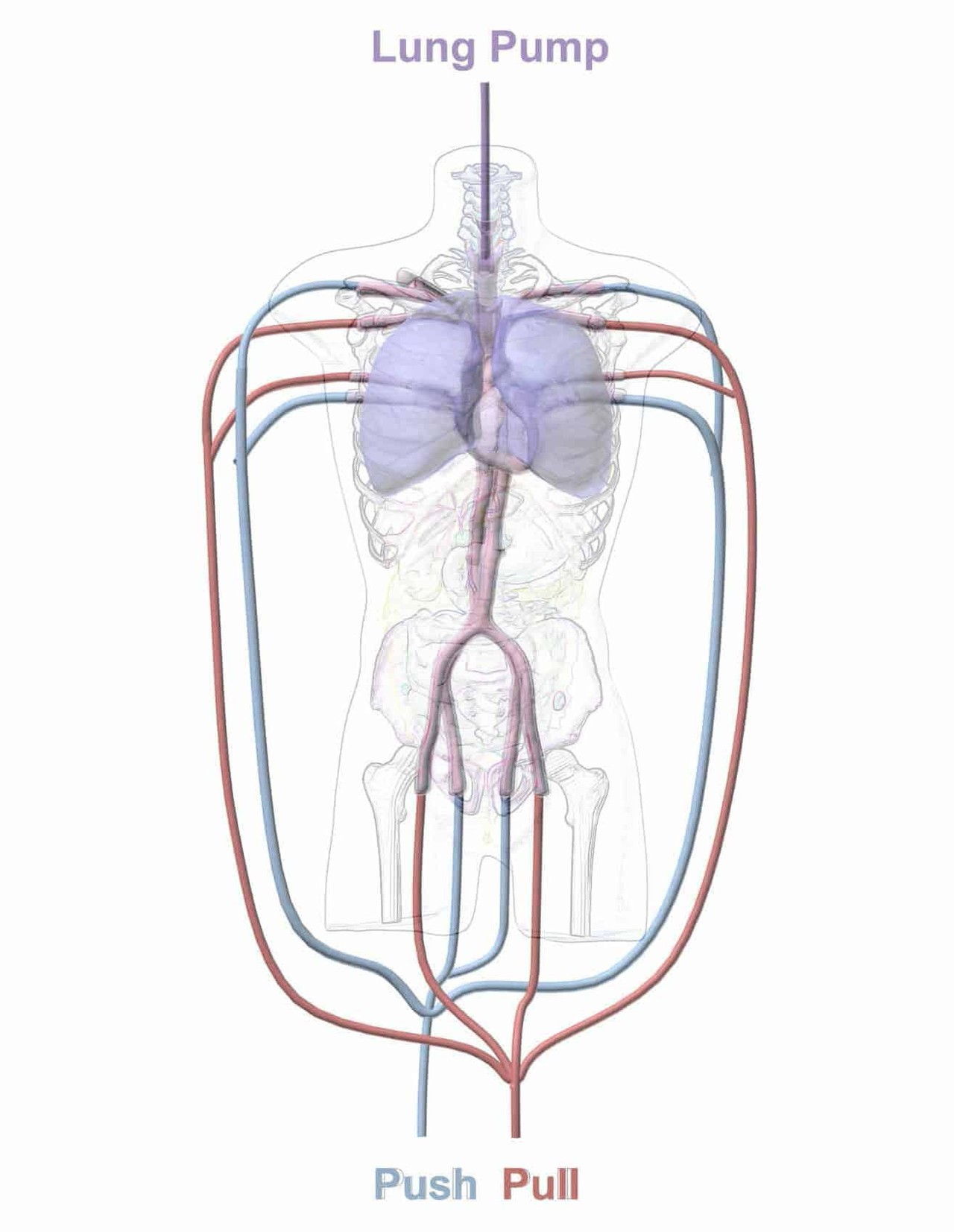

- Heart/Lung Pumps: Complete pump systems provided to drive physiological simulations.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
HU Values (Averaged at 120kV)
| Tissue Type | HU Value | Tissue Type | HU Value |
|---|---|---|---|
| Body Tissue | -25 | Kidneys / Liver | 110 |
| Cortical Bone | 1300 | Pancreas / Spleen | 110 |
| Lungs (deflated/avg) | -850 | Bladder / Gallbladder | 35 |
| Heart / Aorta | 40 | Rectum / Sigmoid Wall | 100 |
Included in Order
- Adult Torso (Dynamic) Phantom
- Heart Pump
- Lung Pump
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 34 x 18 x 10 Inches | Weight: ~88 Lbs
Total Shipment: ~142 Lbs (shipped in a hard carry case on a wooden pallet)
Imaging Scans

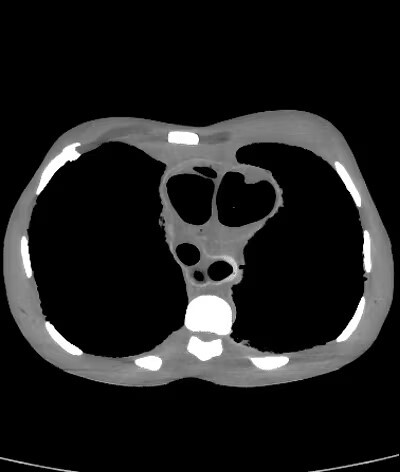

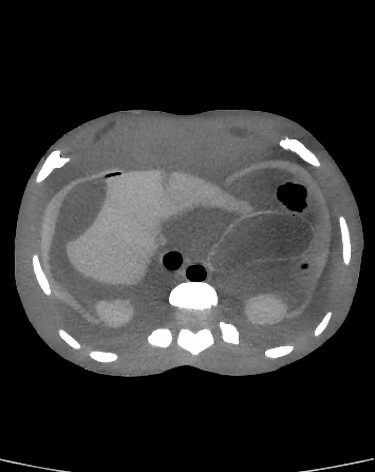

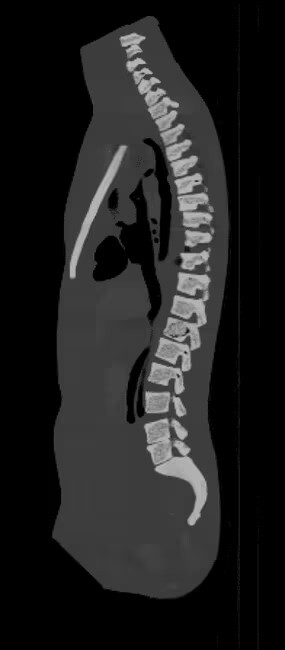

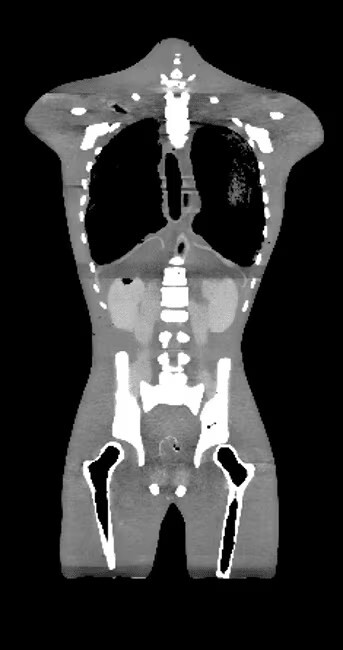

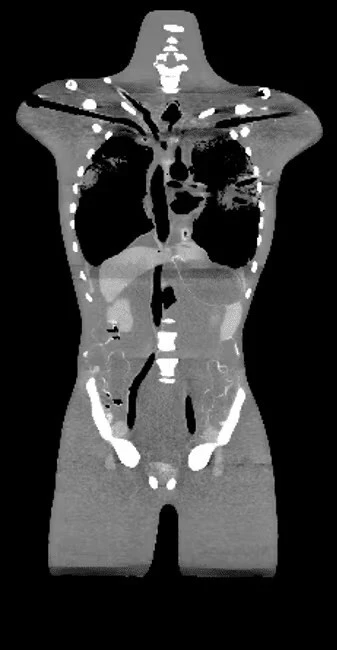

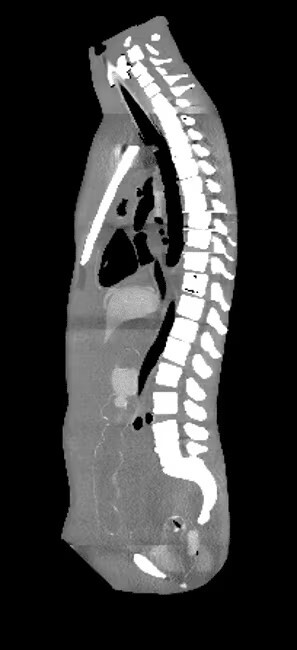

Torso CT Scans

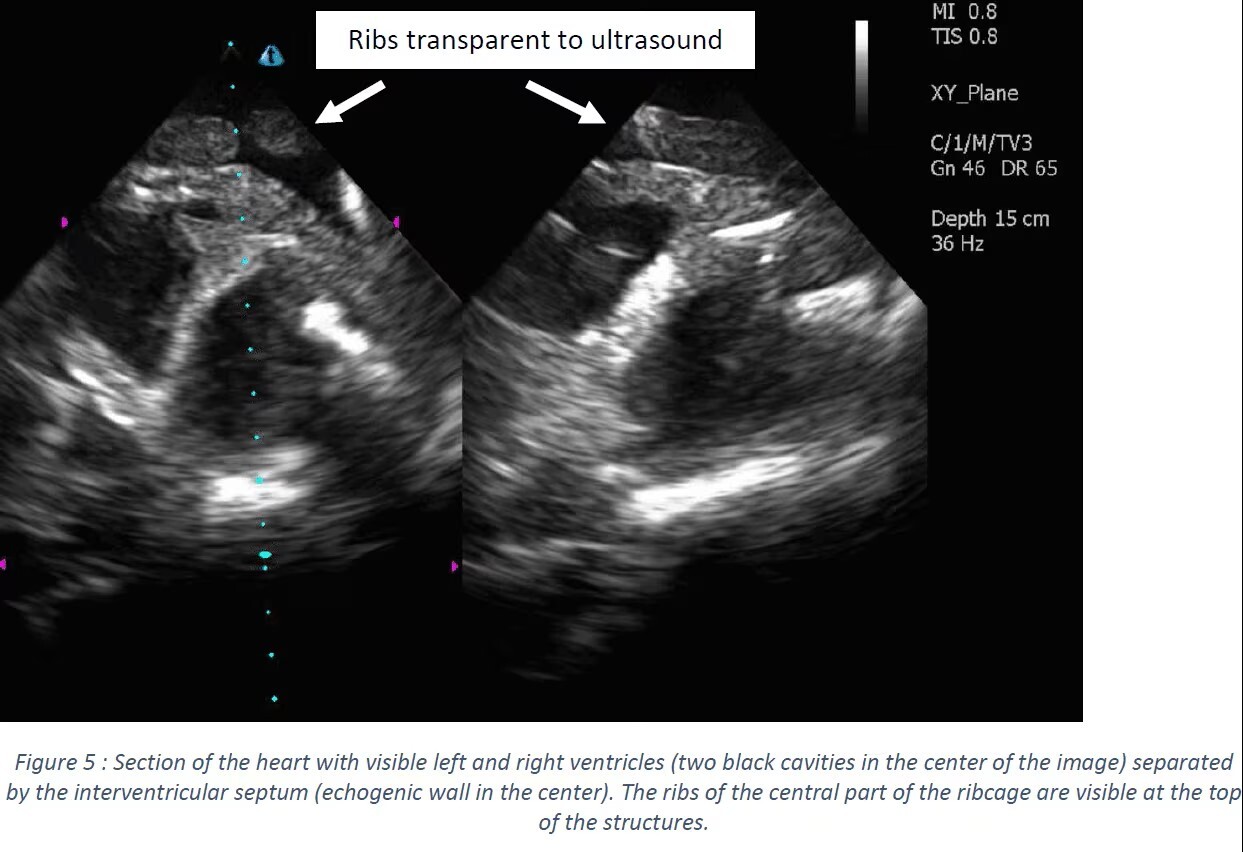

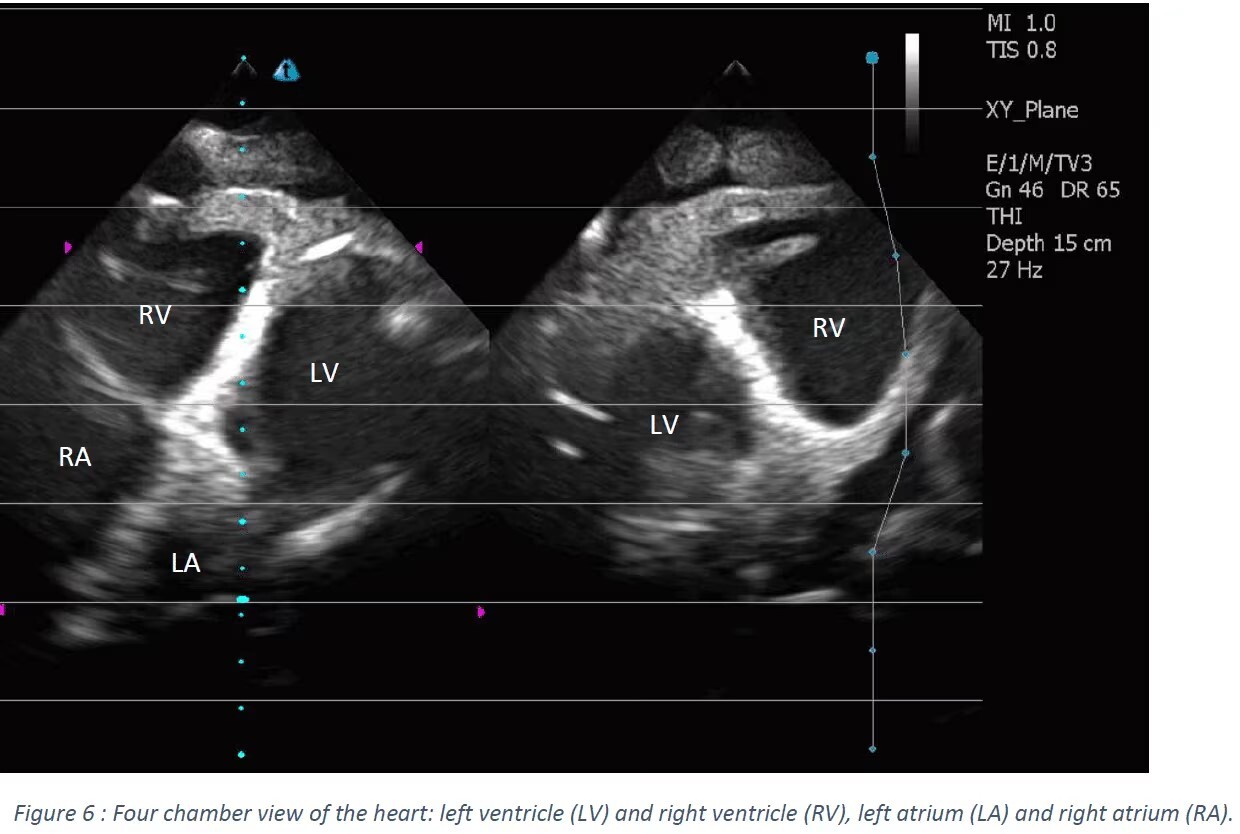

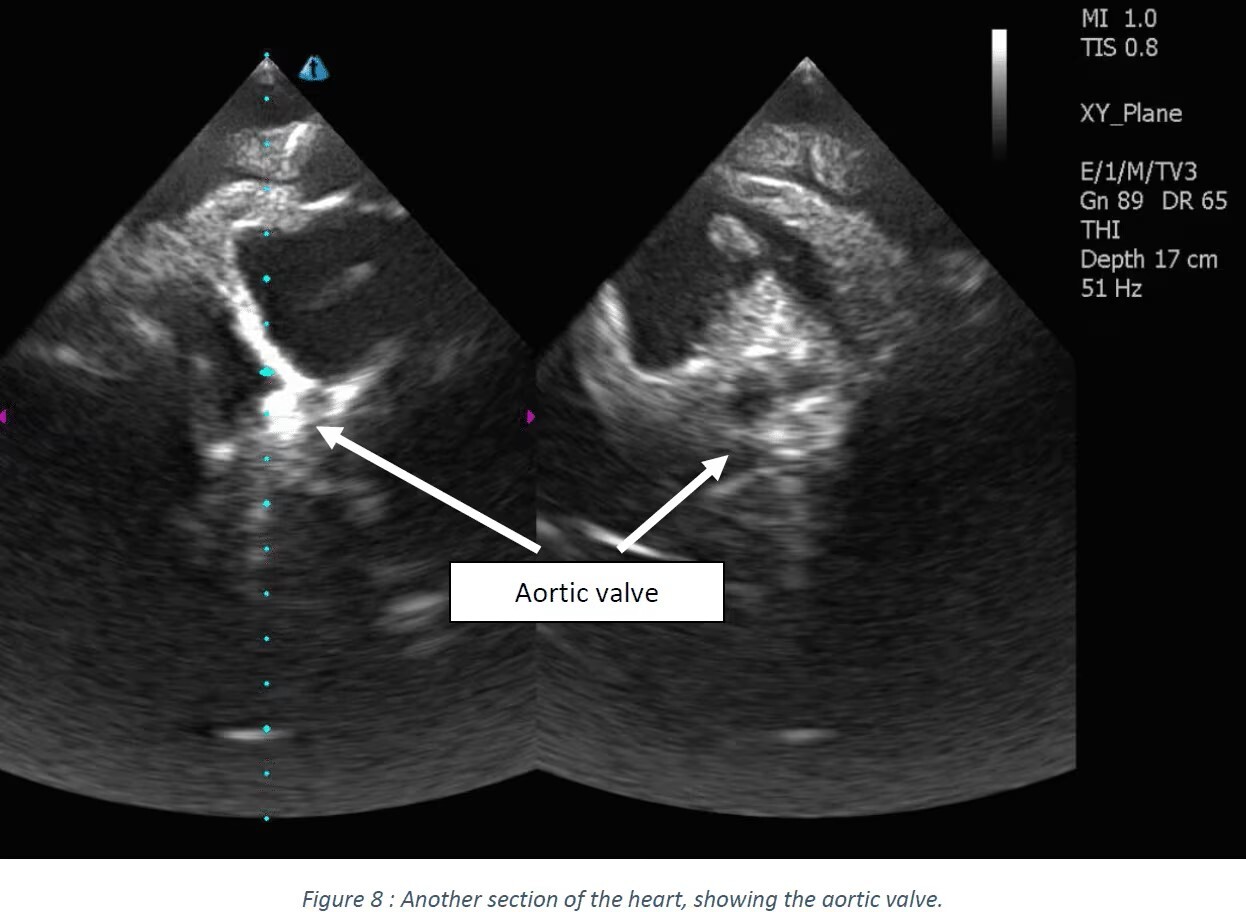

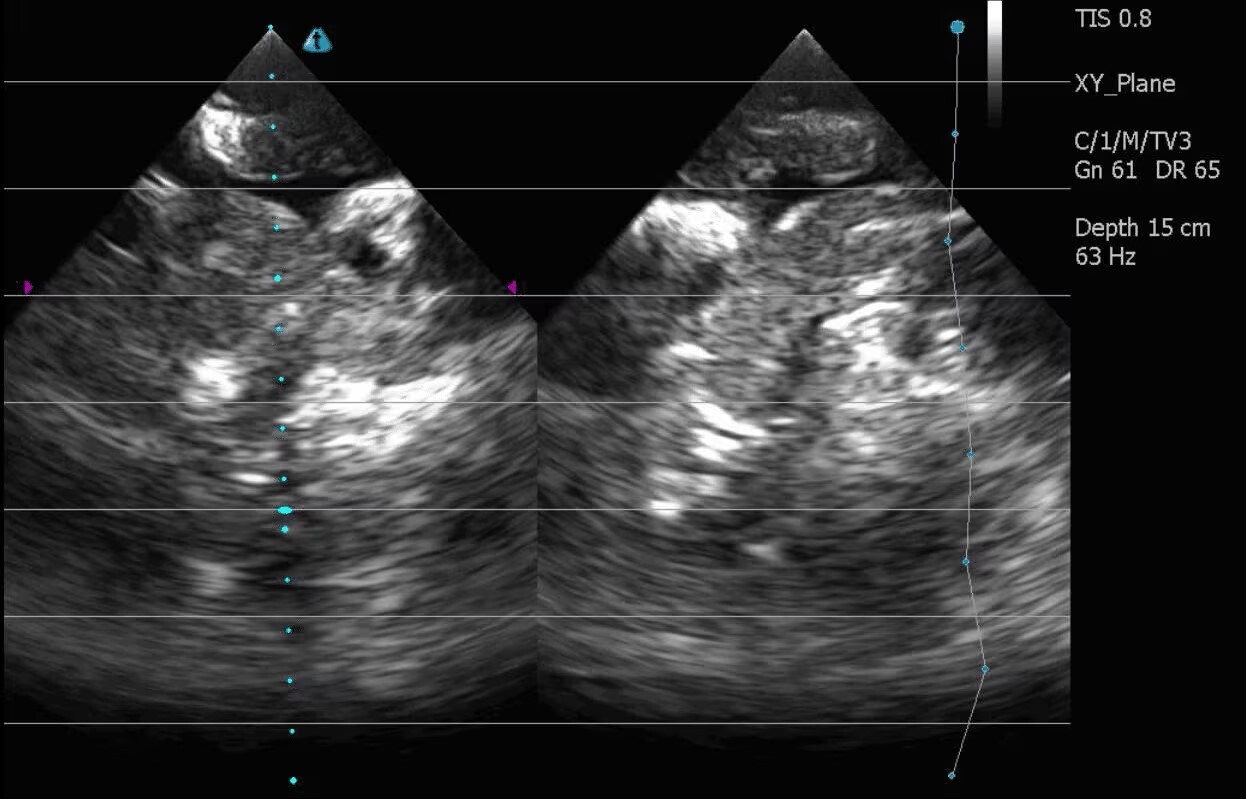

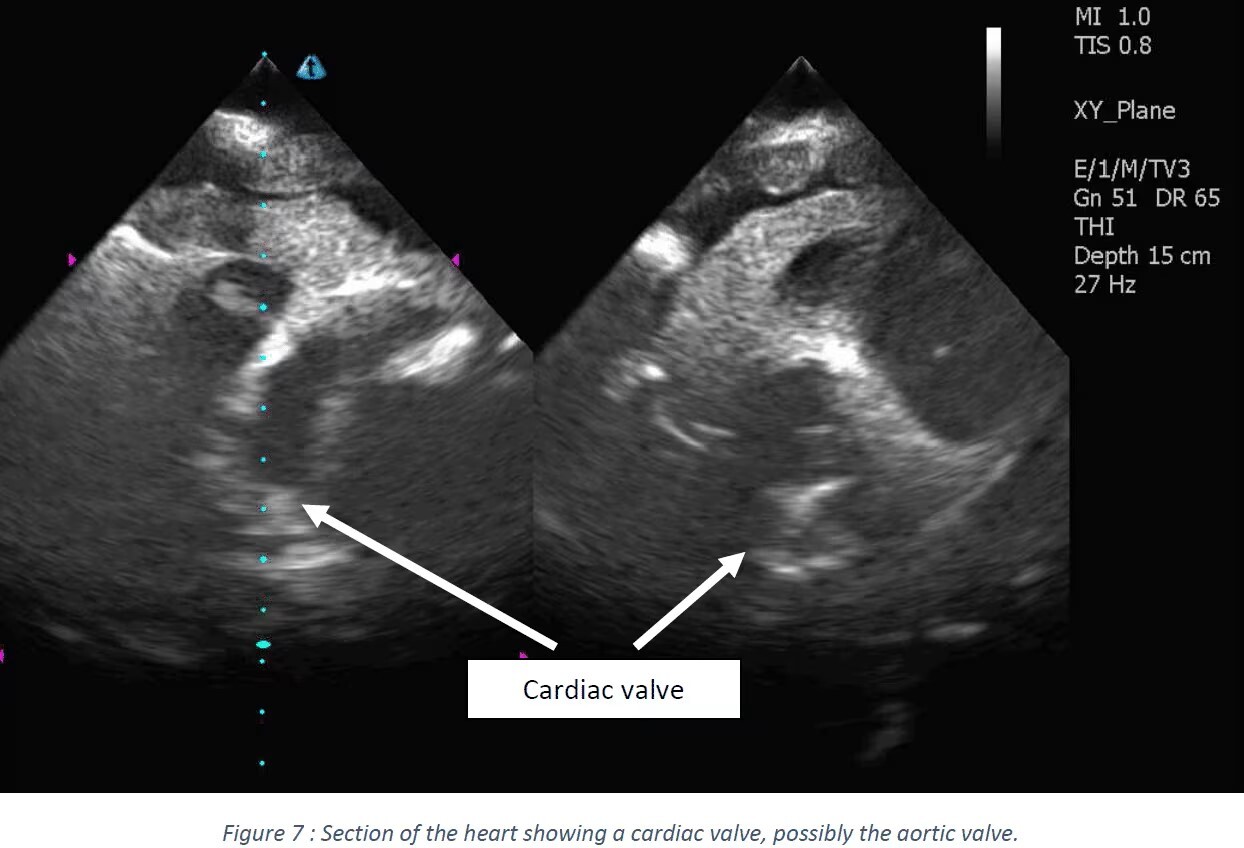

Heart Ultrasound Scans

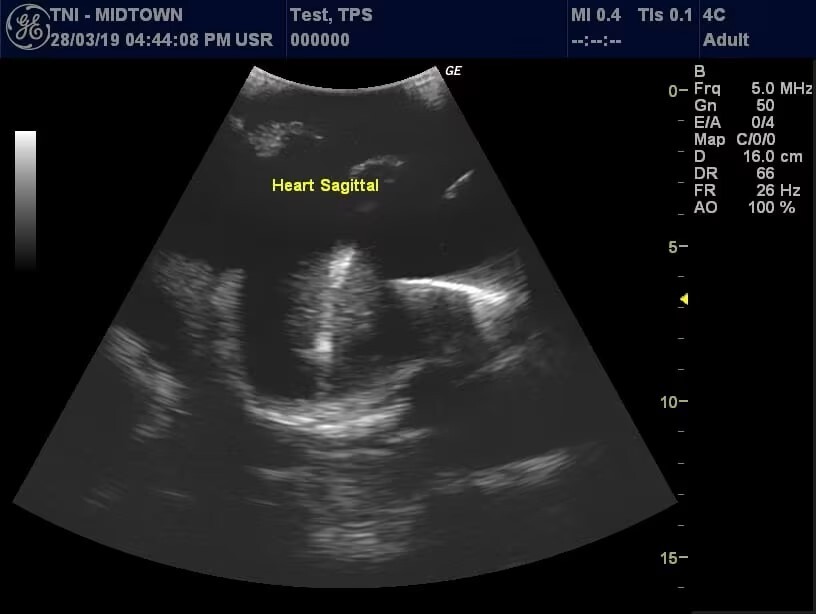

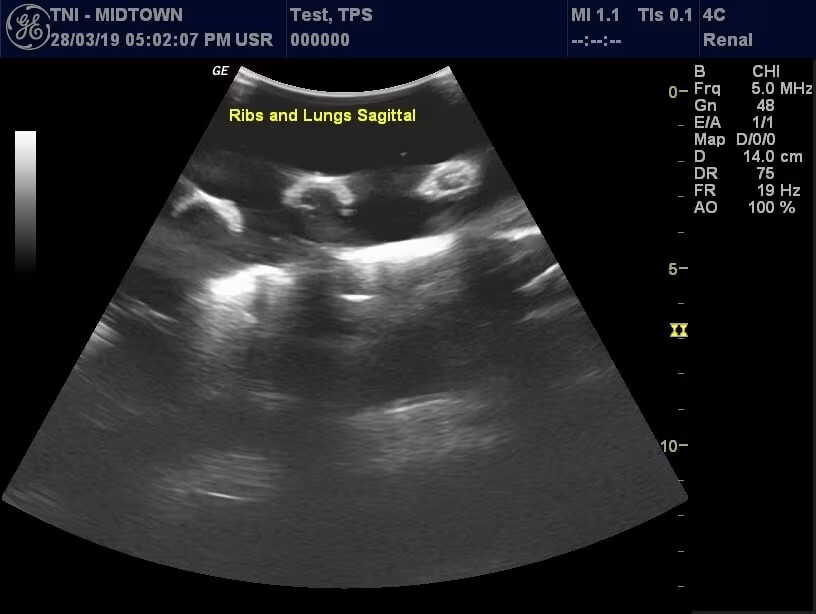

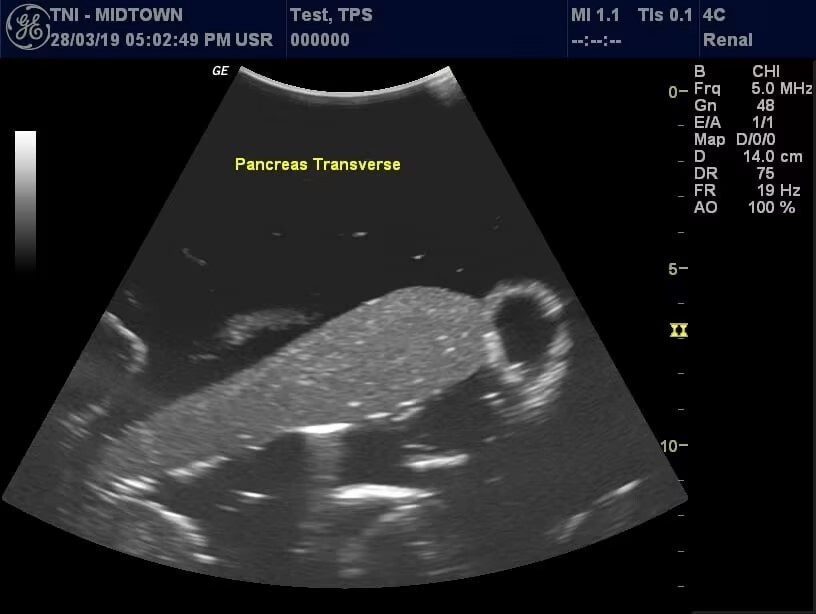

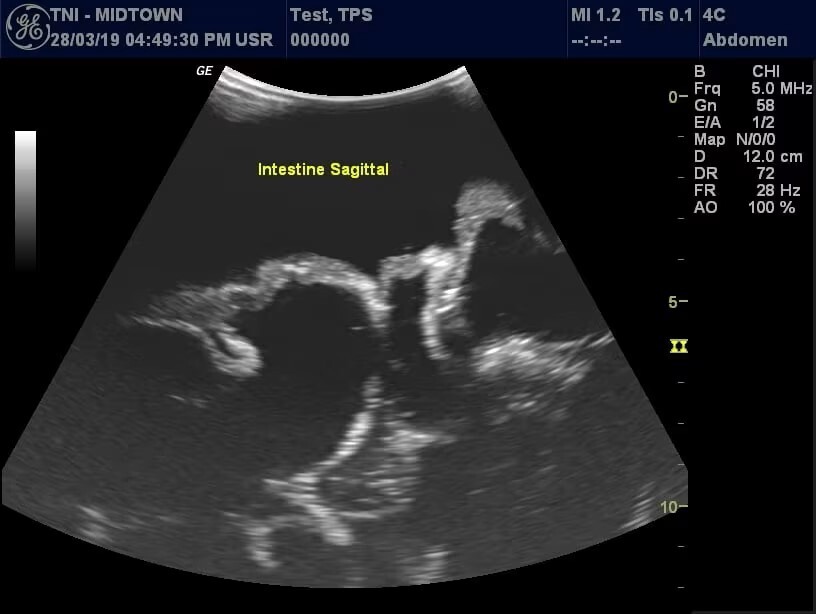

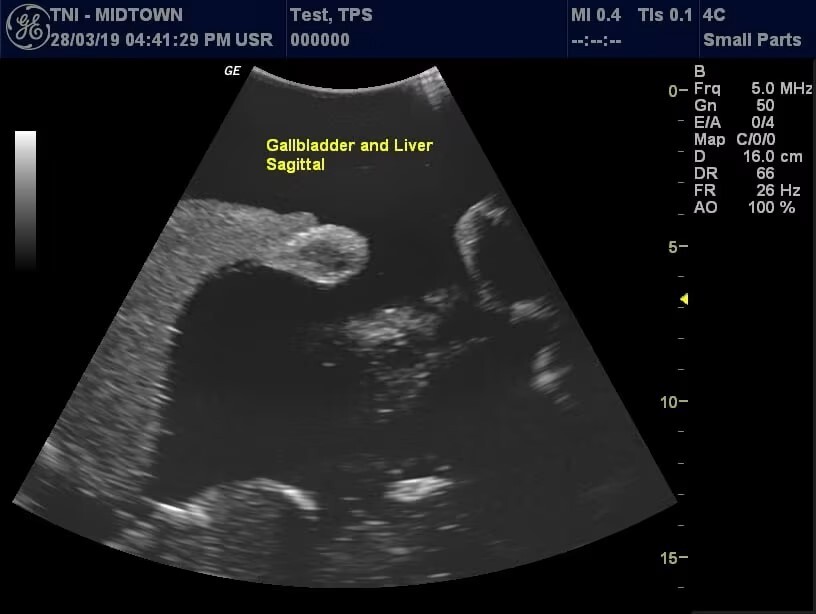

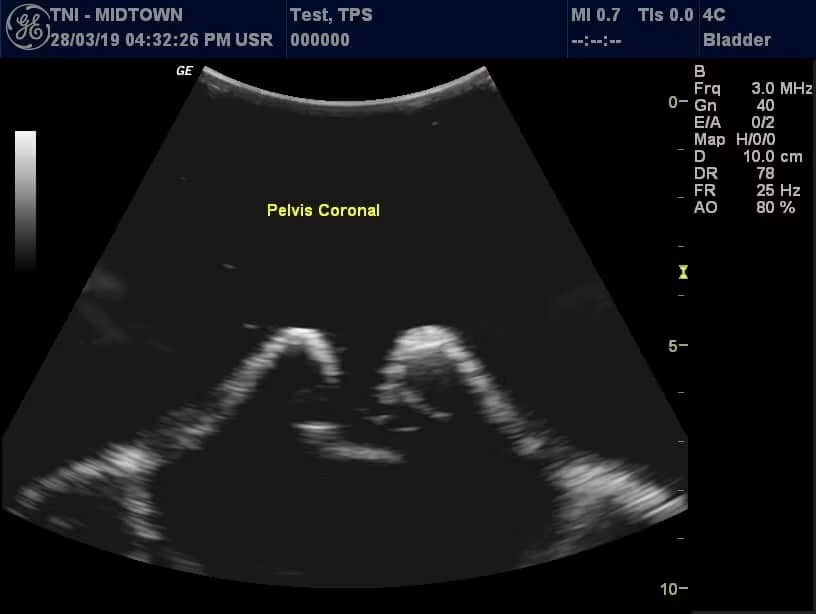

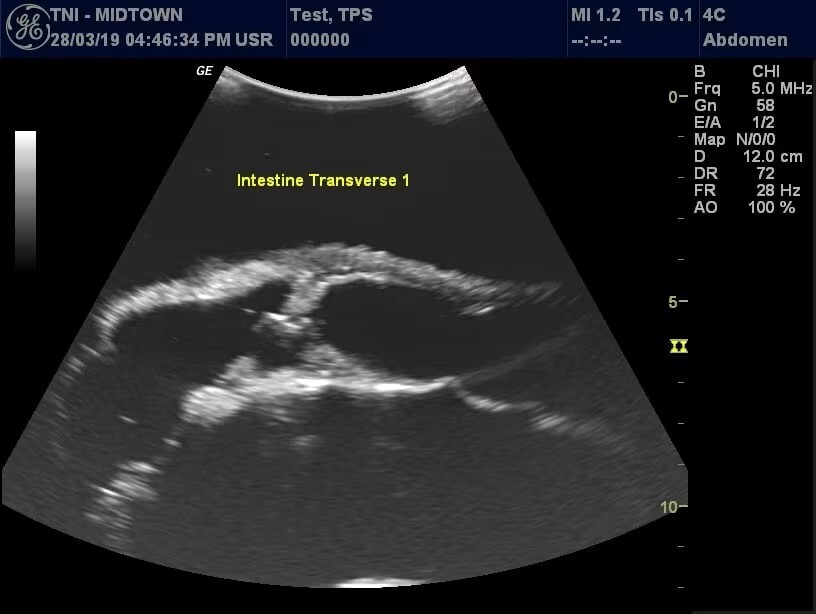

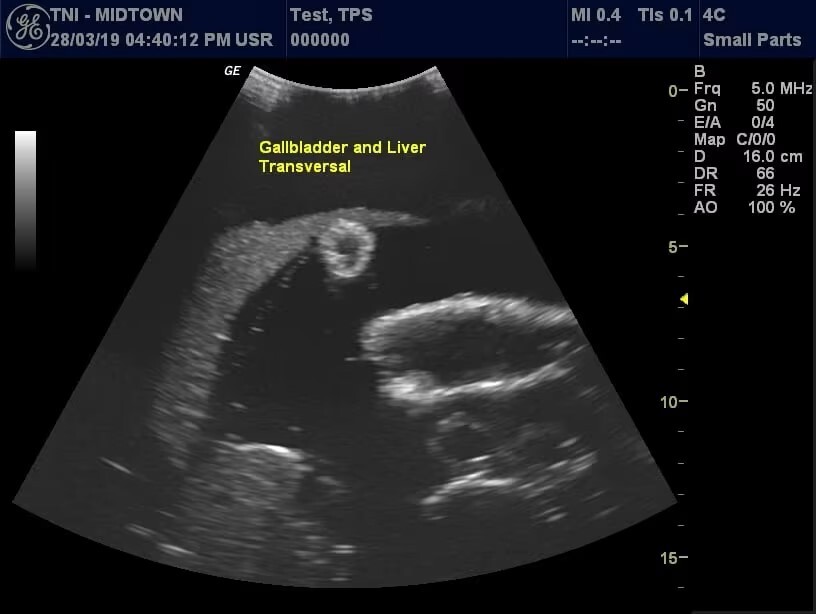

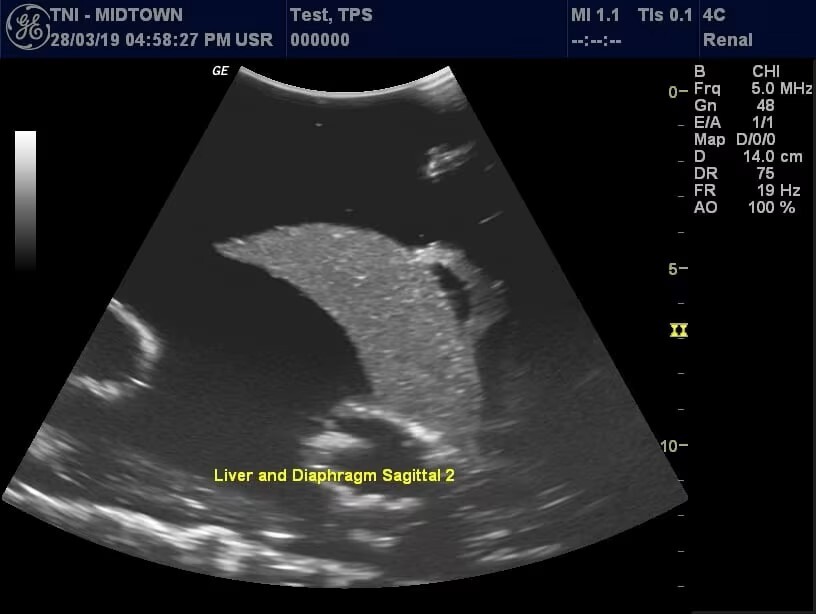

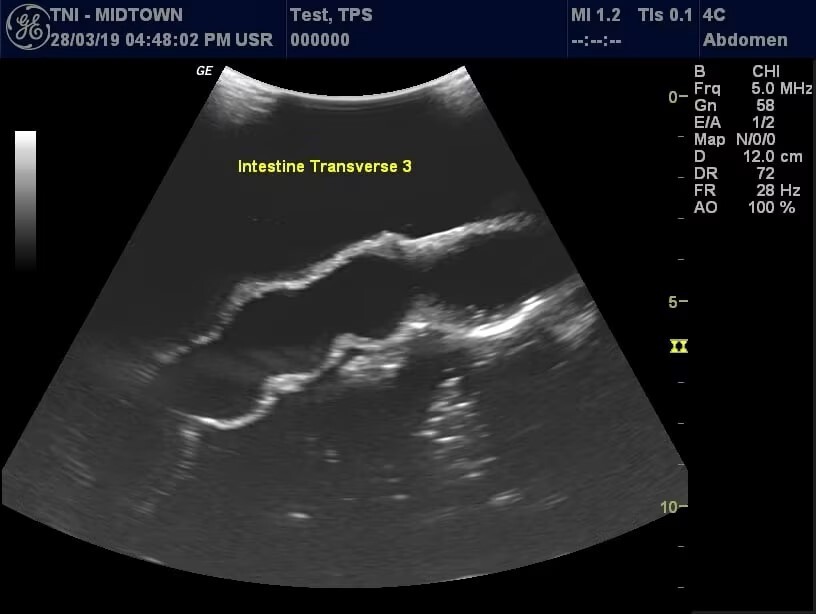

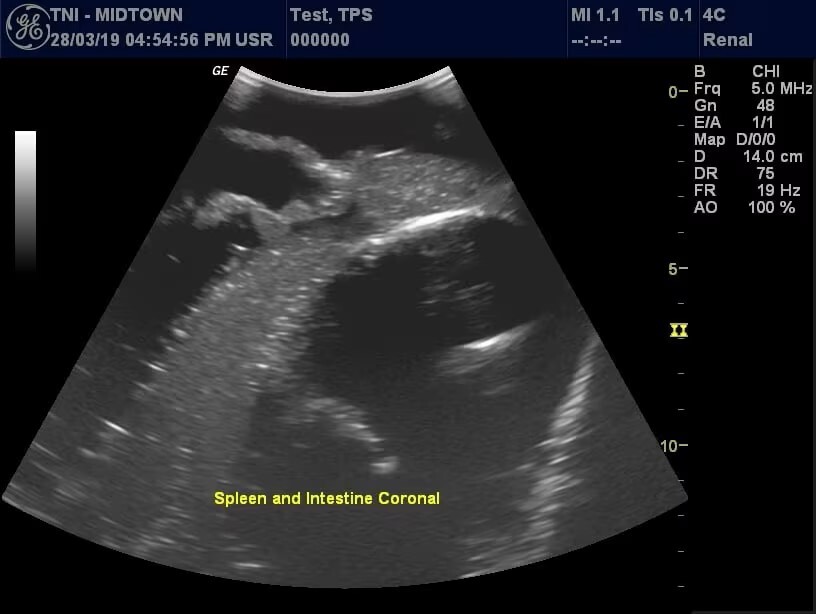

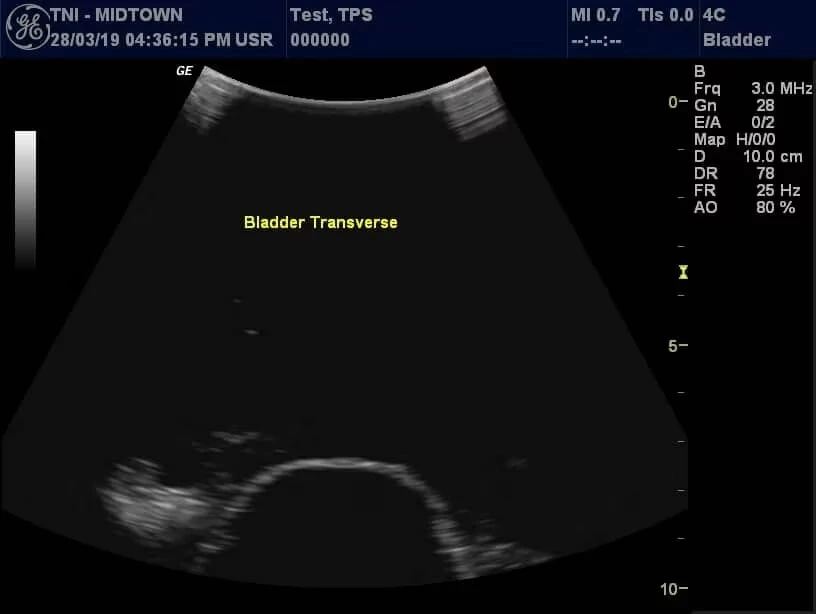

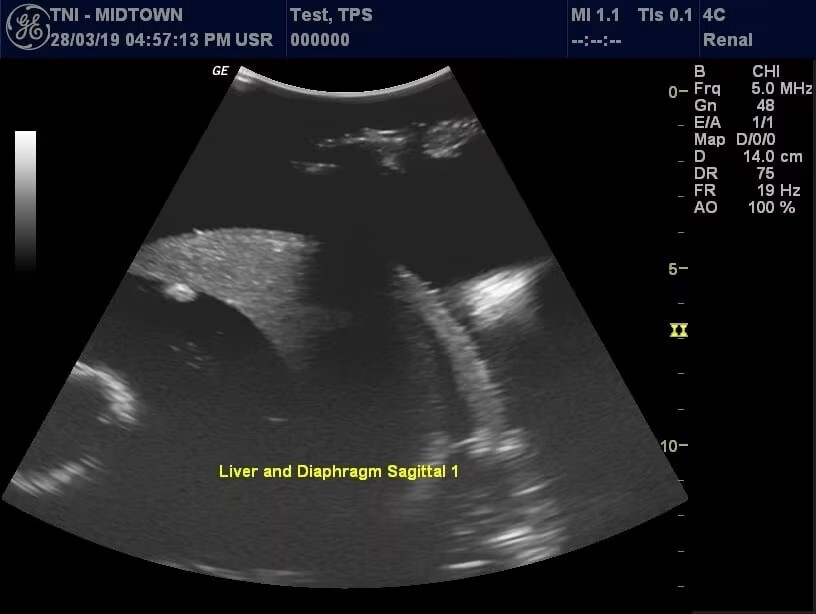

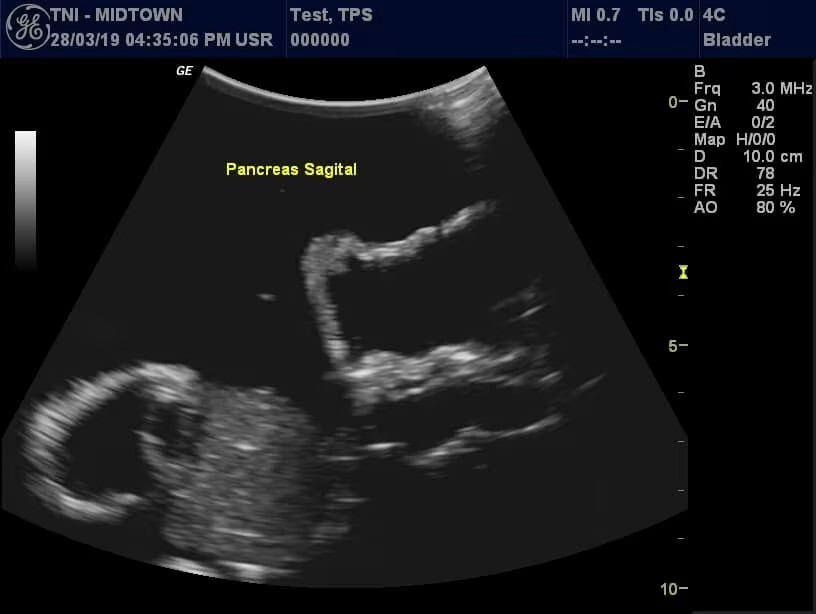

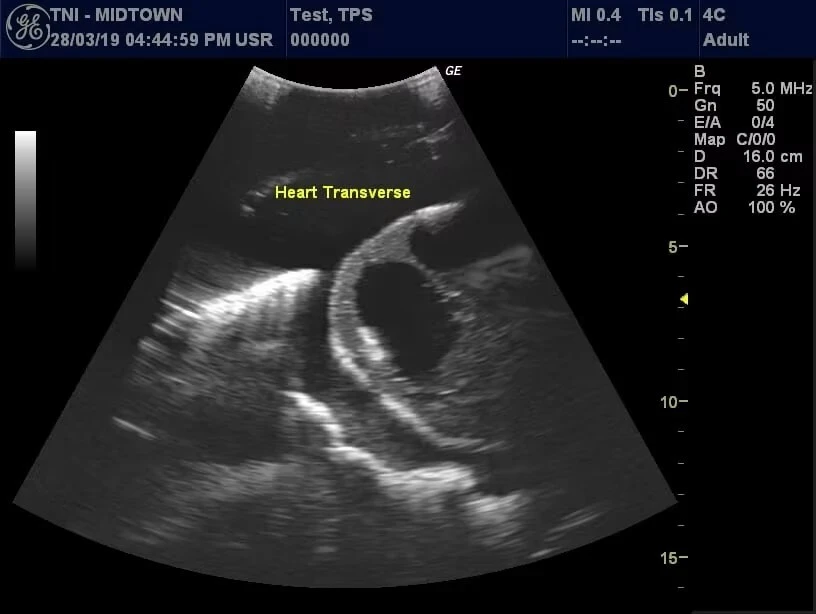

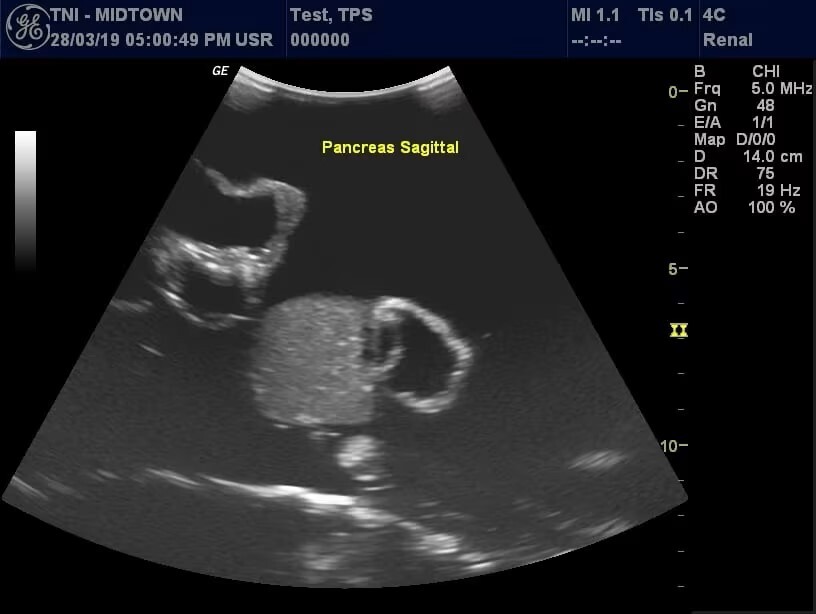

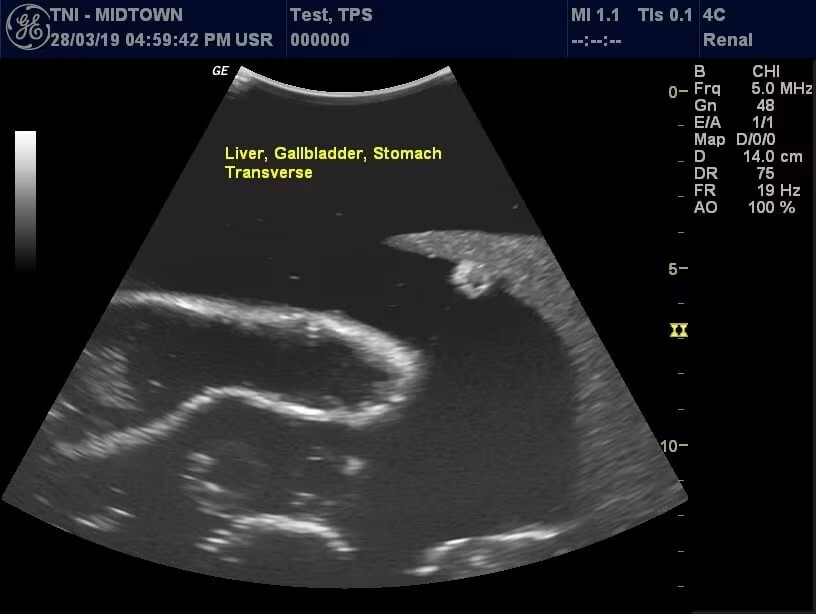

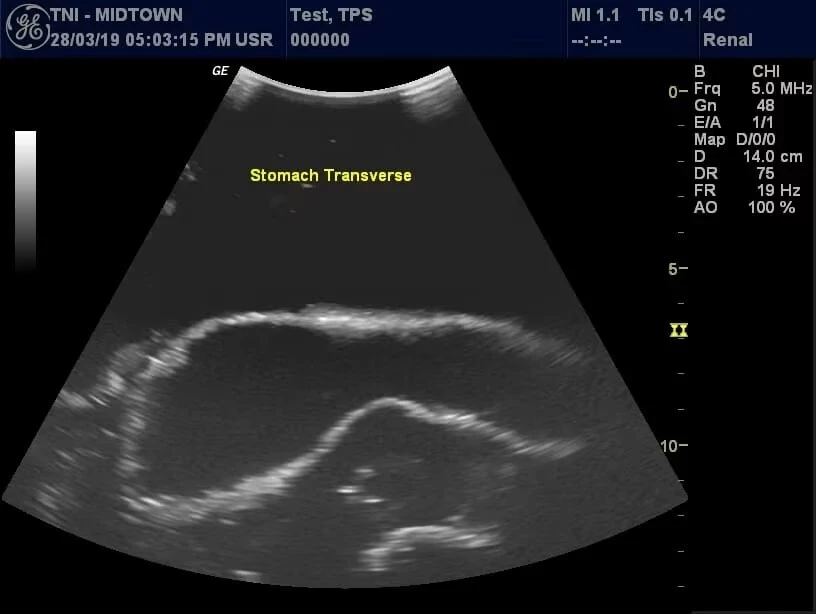

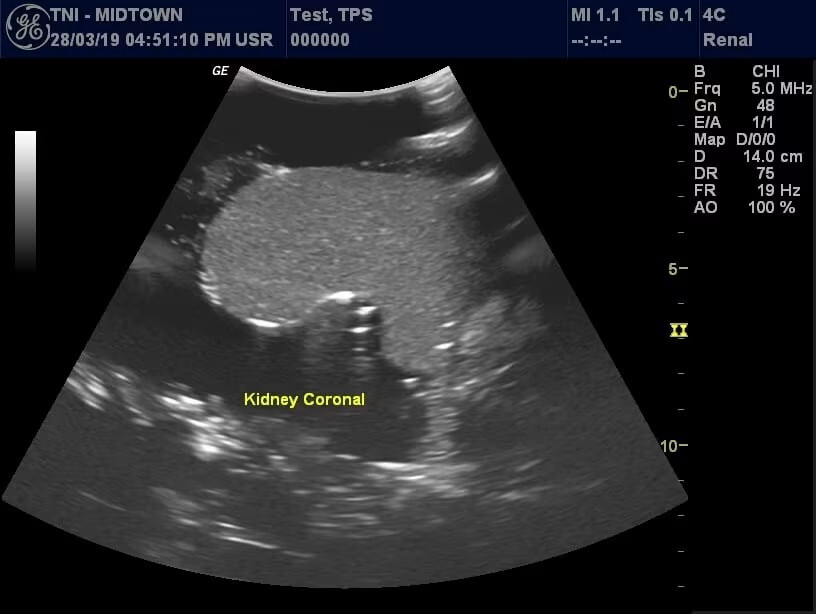

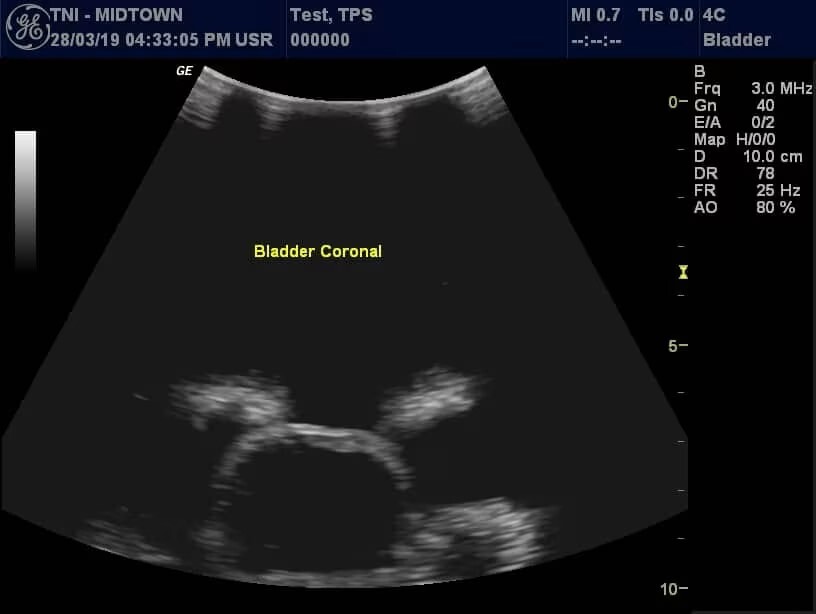

Torso Ultrasound Scans
