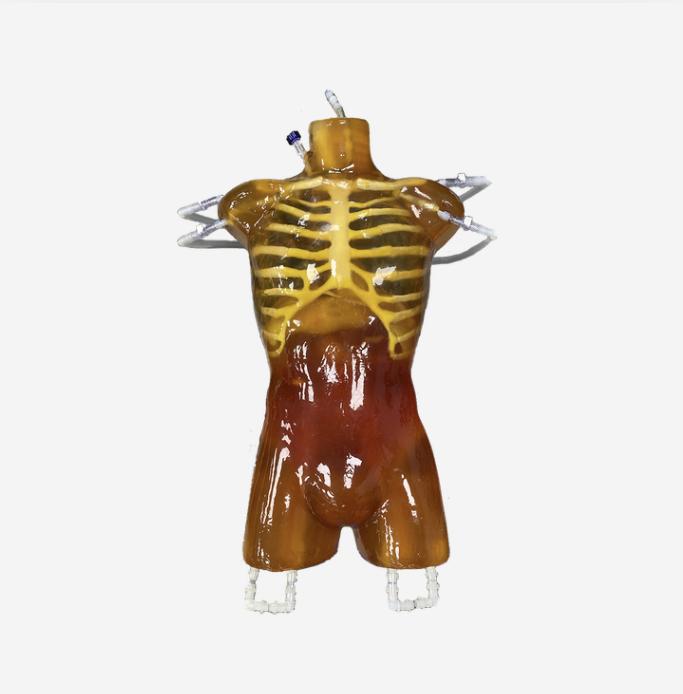

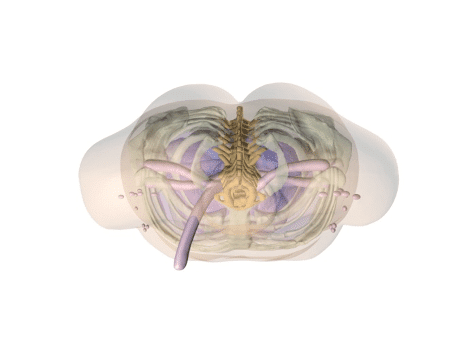

Adult Torso (Dynamic) for X-Ray CT, MRI
Product Description
The Adult Human Torso (Dynamic) for MRI and X-Ray/CT is a state-of-the-art simulator designed for lifelike medical imaging research and clinical training. Extending from the neck to the pelvic area, it includes a beating heart system and breathable lungs. This phantom is an ideal tool for angiography and respiratory motion studies, compatible with Barium-sulfate, Iodine, Gadolinium, and Microbubble contrast mediums.
Constructed with patented synthetic bones and realistic urethane-based tissue-mimicking resins, the phantom mimics the mechanical and acoustical properties of a human body. For MRI applications, the tissues provide realistic T2 relaxation time values (65-70 ms), ensuring high-fidelity results for T2-weighted and proton-density imaging methods.

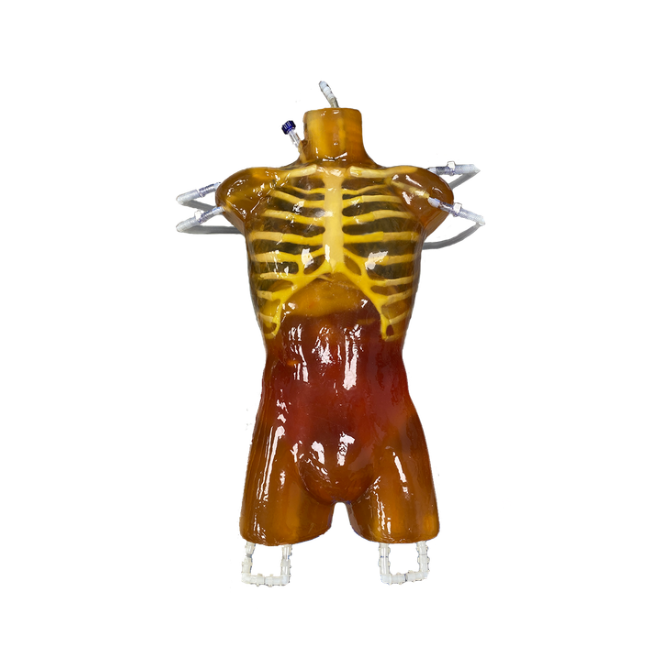

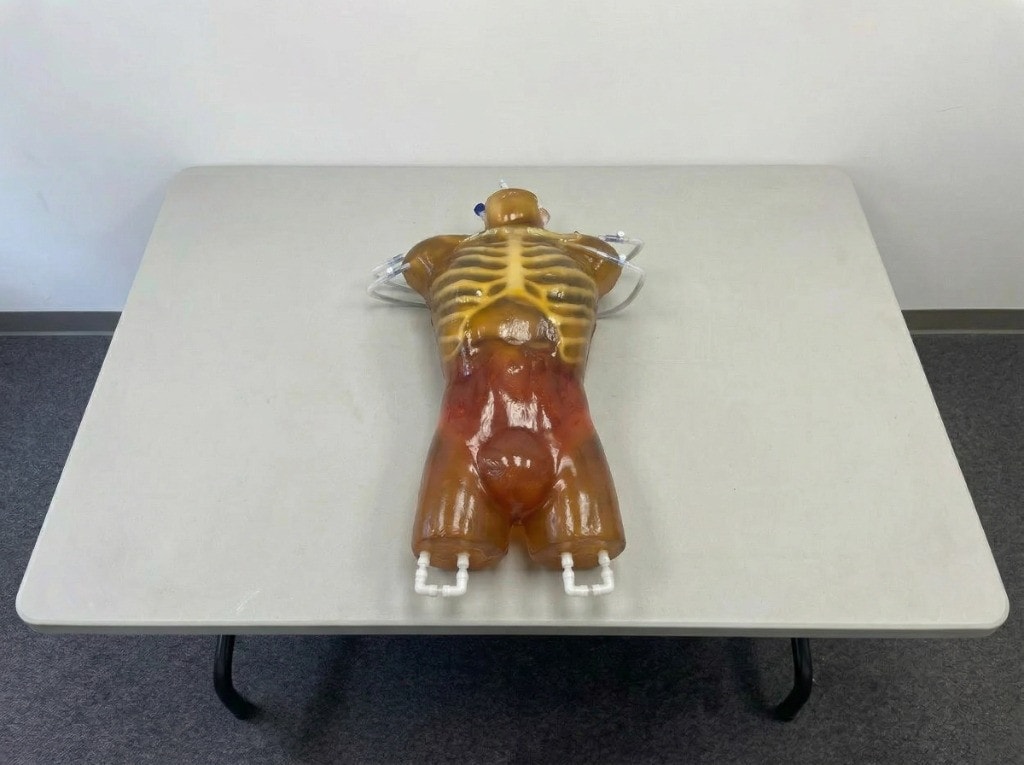

Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. This dynamic package includes both a TPS heart pump and a TPS lung pump to enable physiological motions.

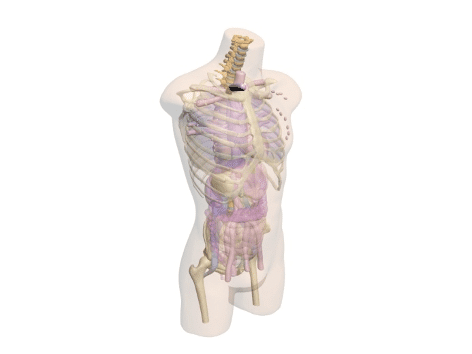

Anatomy
- Skeletal: Complete Spine, Complete Ribcage, Shoulders, Clavicles, Pelvis, and Partial Femoral Bones.
- Organs: Hollow Trachea (elliptical, 10x15mm for scope insertion), Diaphragm, Liver (with ligaments), Gallbladder (with bile ducts), Stomach, Kidneys, Spleen, Pancreas, Large/Small Intestines, Bladder, and Prostate.
- Dynamic Features: Inflatable Breathing Lungs and a Beating Heart with detailed chambers (RV: 60ml, LV: 63ml).
Dynamic System Features
- Beating Heart: Cyclic motion of heart walls with diastole/systole hysteresis, water-fillable chambers, and adjustable heart rate (20140 BPM).
- Breathable Lungs: Realistic cyclic respiratory motion with adjustable rate (045 breaths per minute) and breath volume (250ml1200ml).
- System Setup: Complete systems installed on stable plexiglass or Garolite (G10) bases.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00]* | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 35 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
*Measured without protective coat; coating adds ~30 points to Shore OO value.
HU Values (Averaged at 120kV)
| Tissue Type | HU Value | Tissue Type | HU Value |
|---|---|---|---|
| Body Tissue | -25 | Kidneys / Liver | 110 |
| Cortical Bone | 1300 | Pancreas / Spleen | 110 |
| Lungs | -850 | Bladder / Gallbladder | 35 |
| Heart / Aorta | 40 | Rectum / Sigmoid Wall | 100 |
Included in Order
- Adult Torso (Dynamic) Phantom
- Heart Pump & Lung Pump
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 34 x 18 x 10 Inches | Weight: ~88 Lbs
Heart Pump: 36 x 12 x 8 Inches | Weight: ~88 Lbs
Lung Pump: 36 x 12 x 8 Inches | Weight: ~48 Lbs
Total Shipment: Weight ~294 Lbs (shipped on a wooden pallet)
Imaging Scans

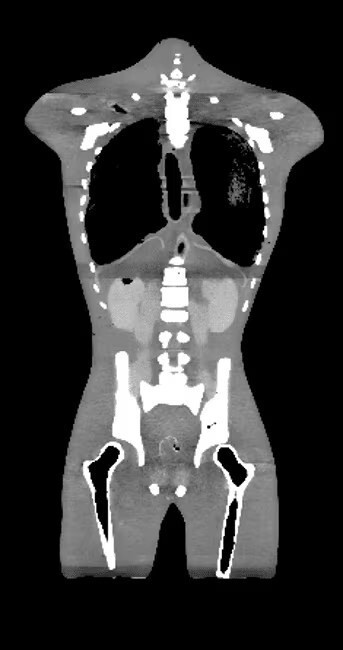

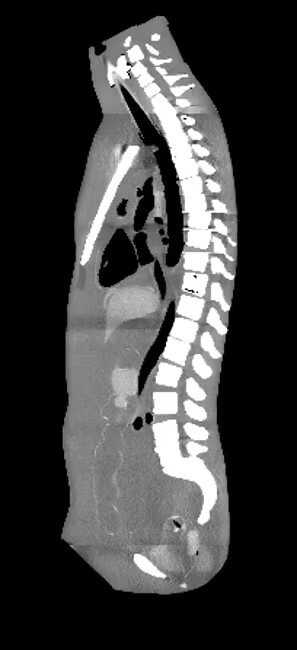

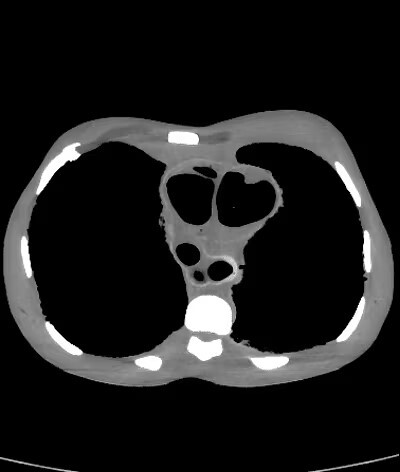

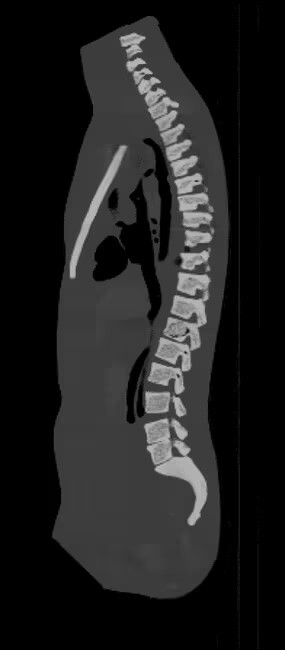

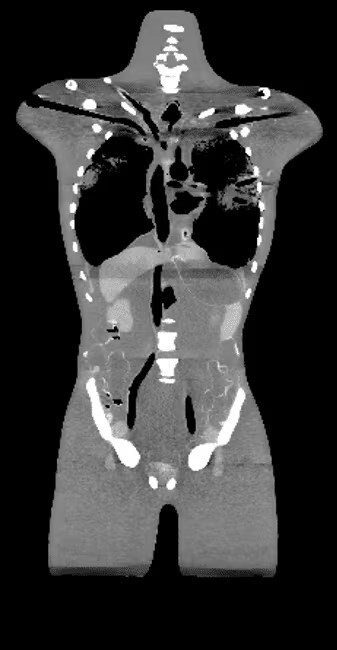

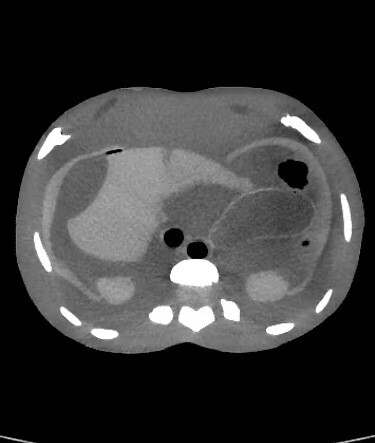

CT Image Scans

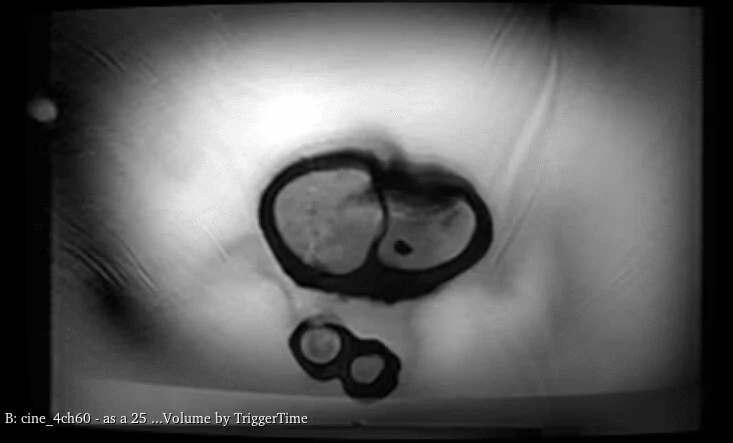

MRI Image Scans
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
