Pediatric Full Body for X-Ray CT, MRI
Product Description

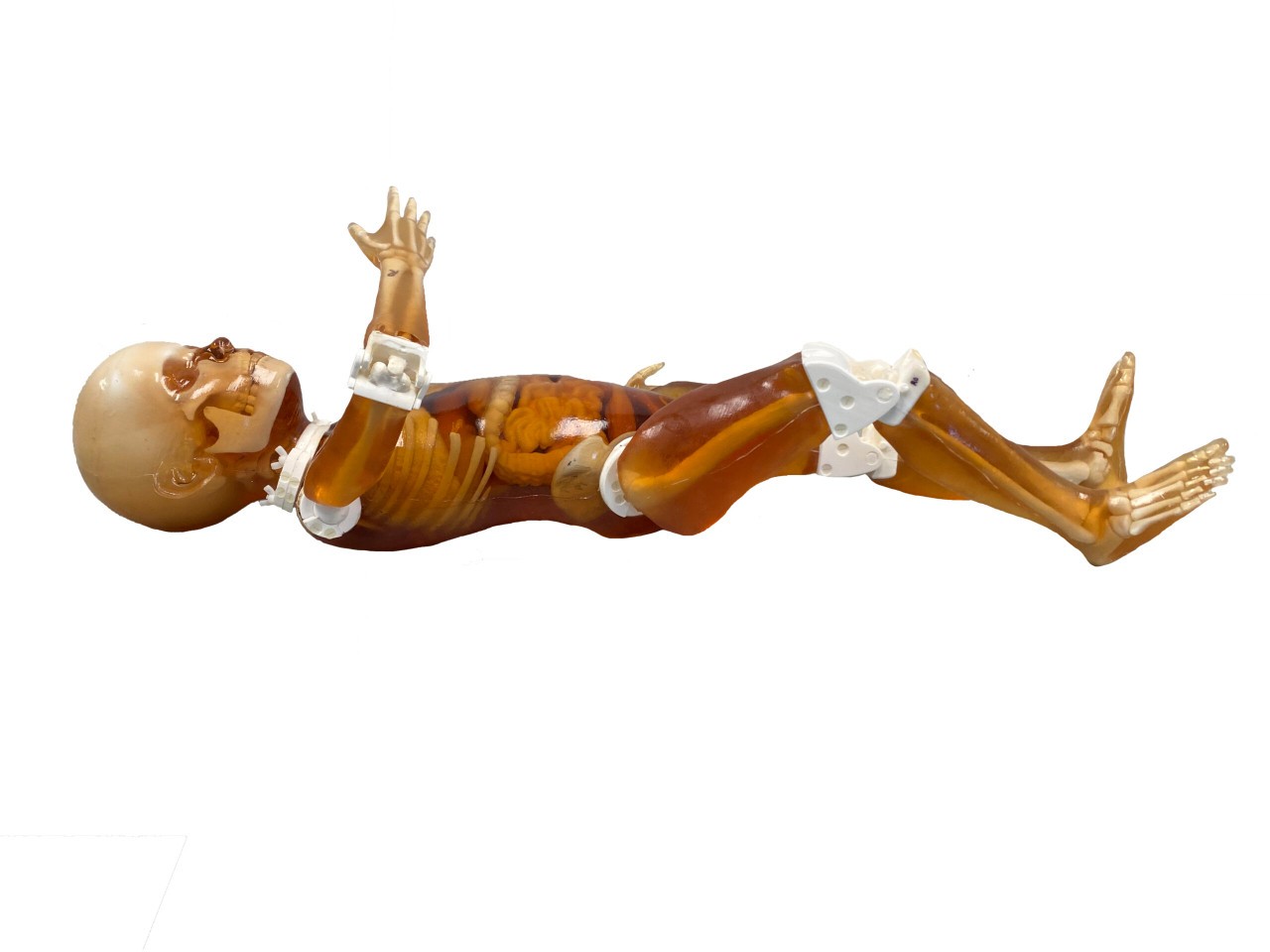

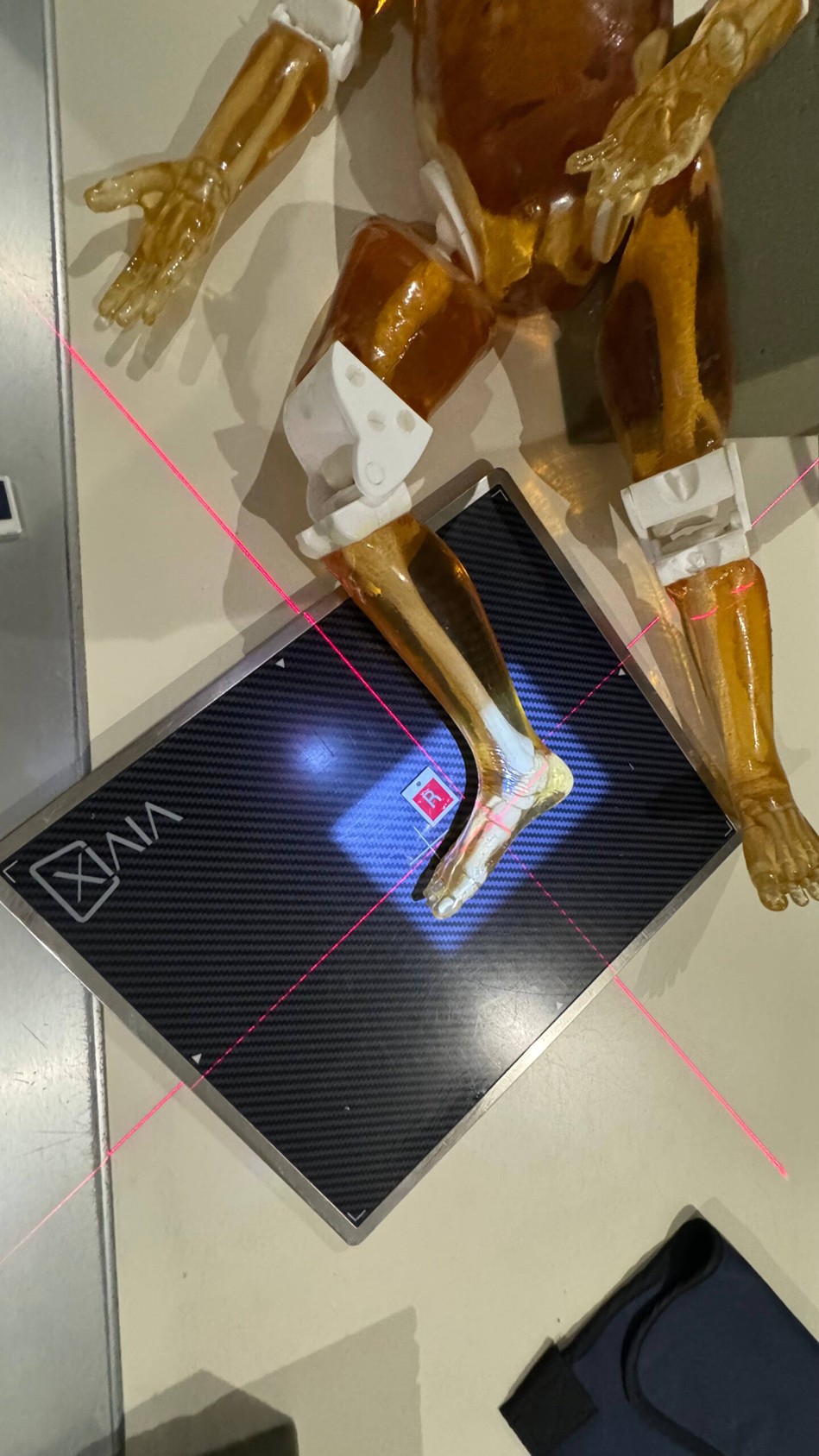

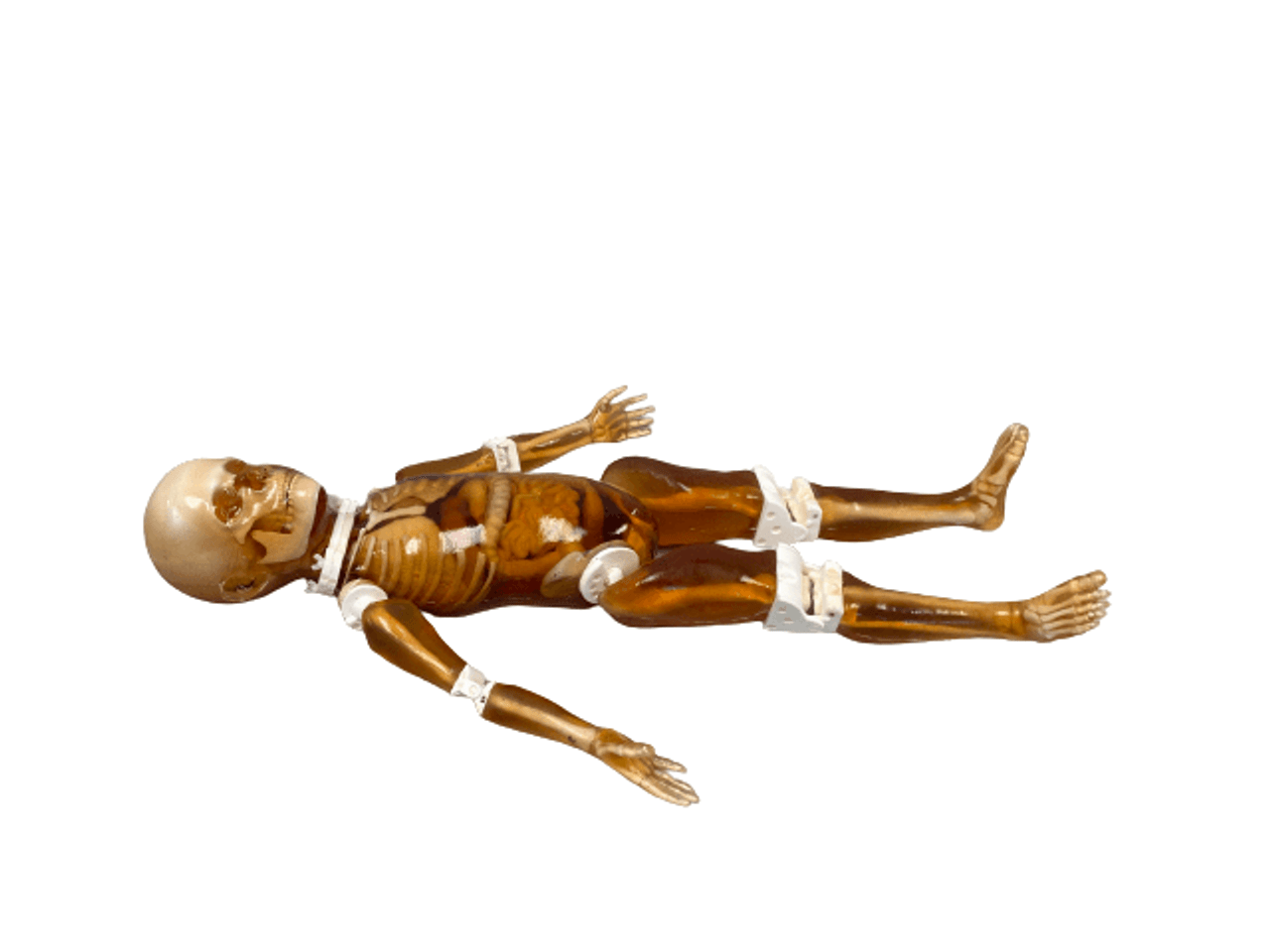

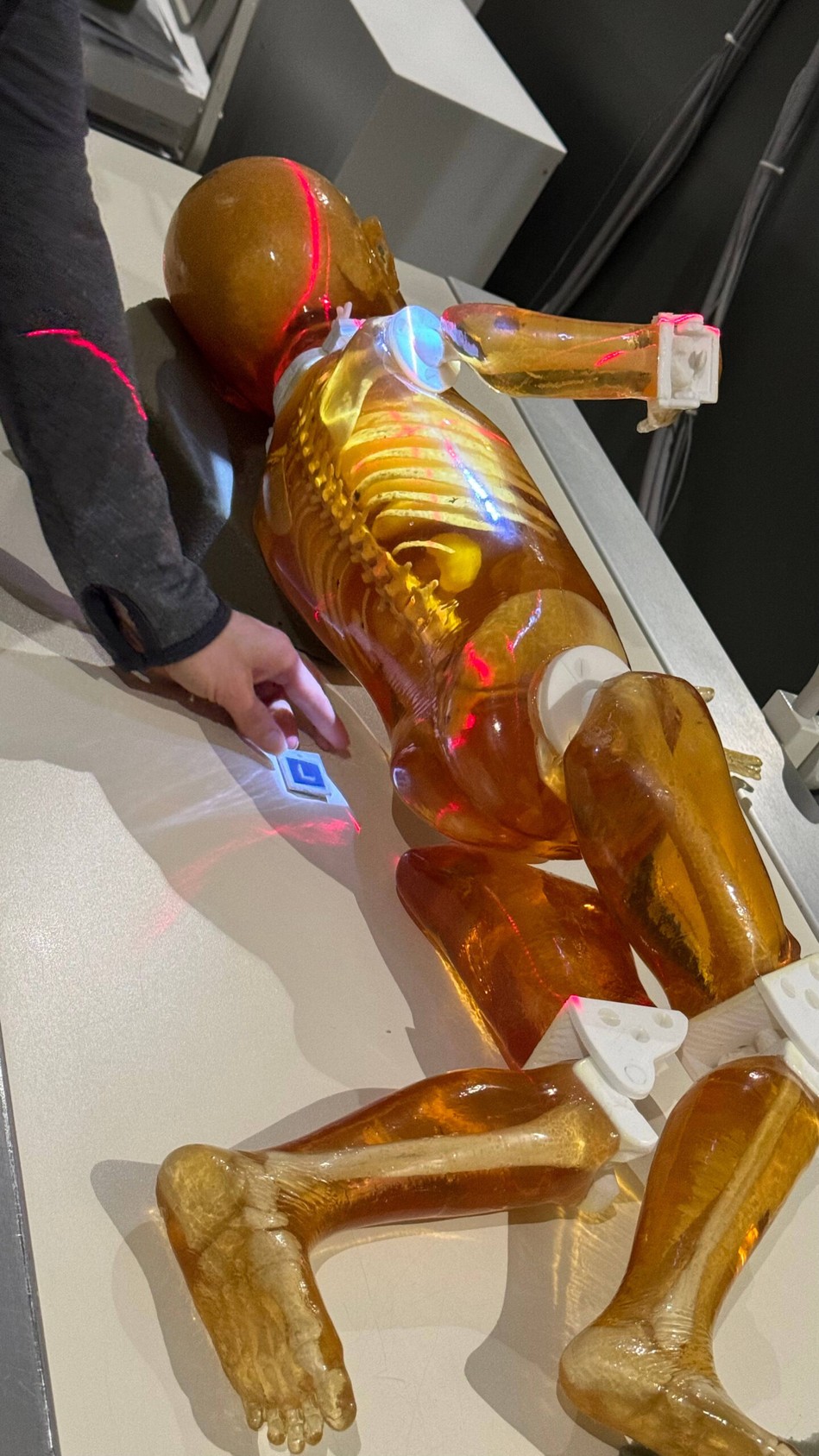

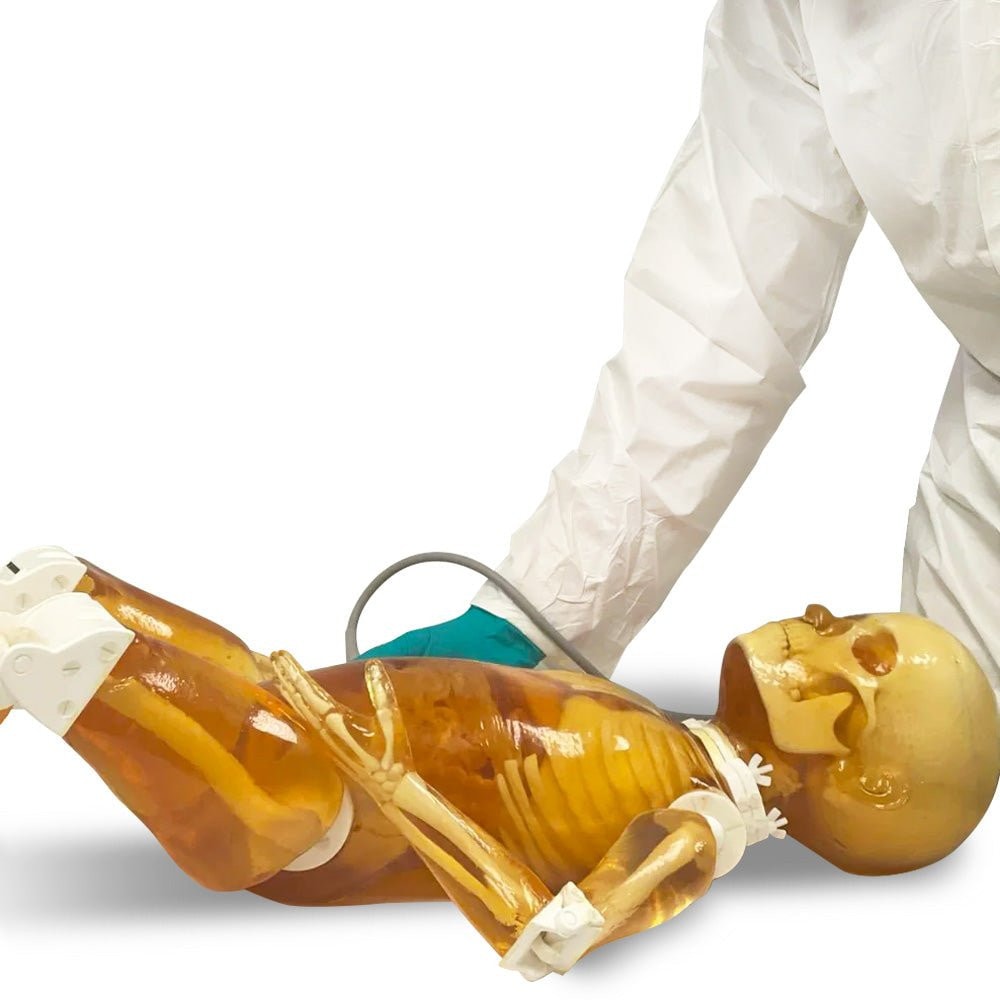

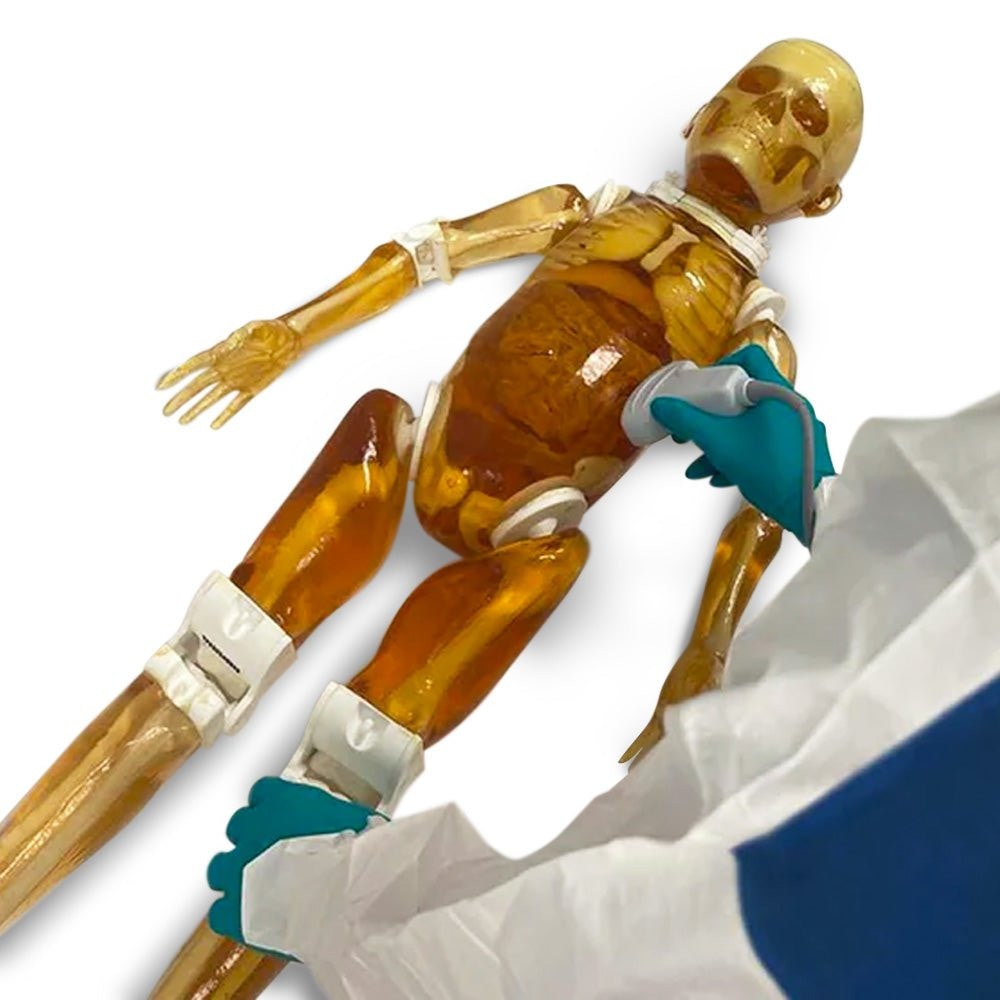

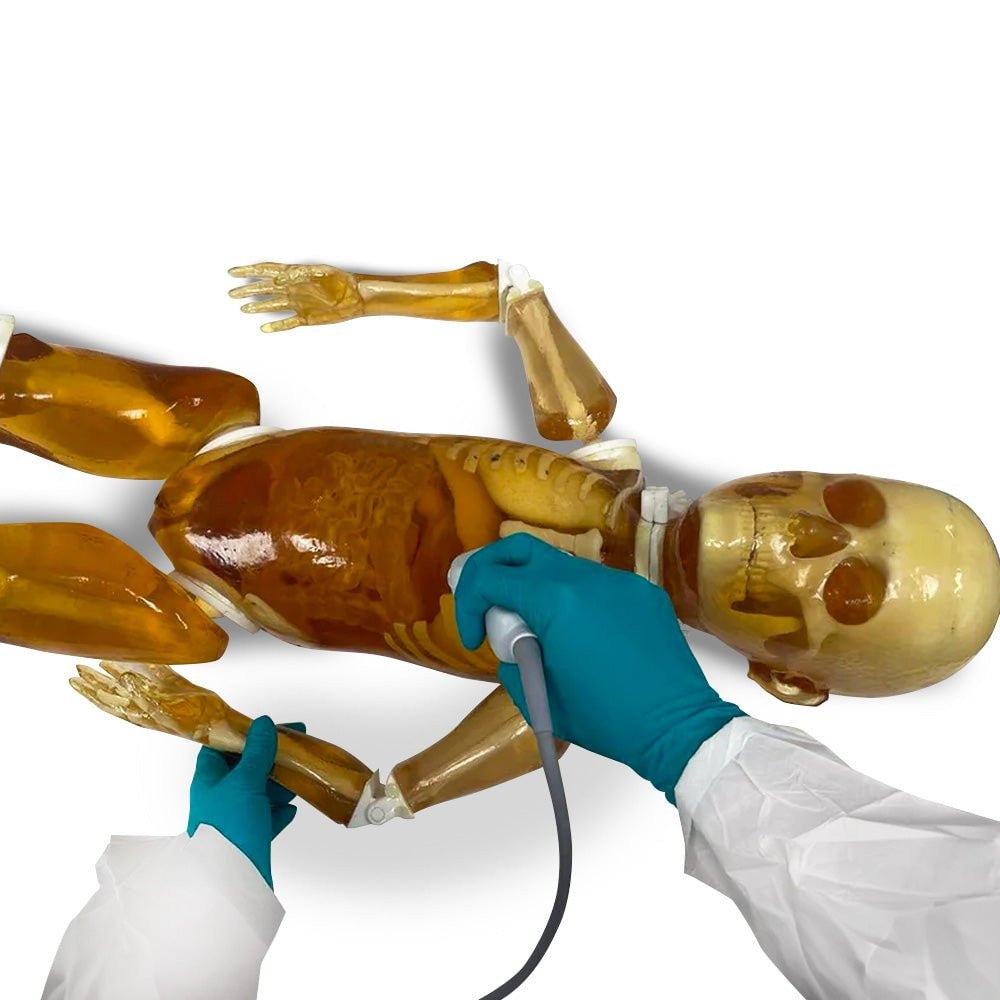

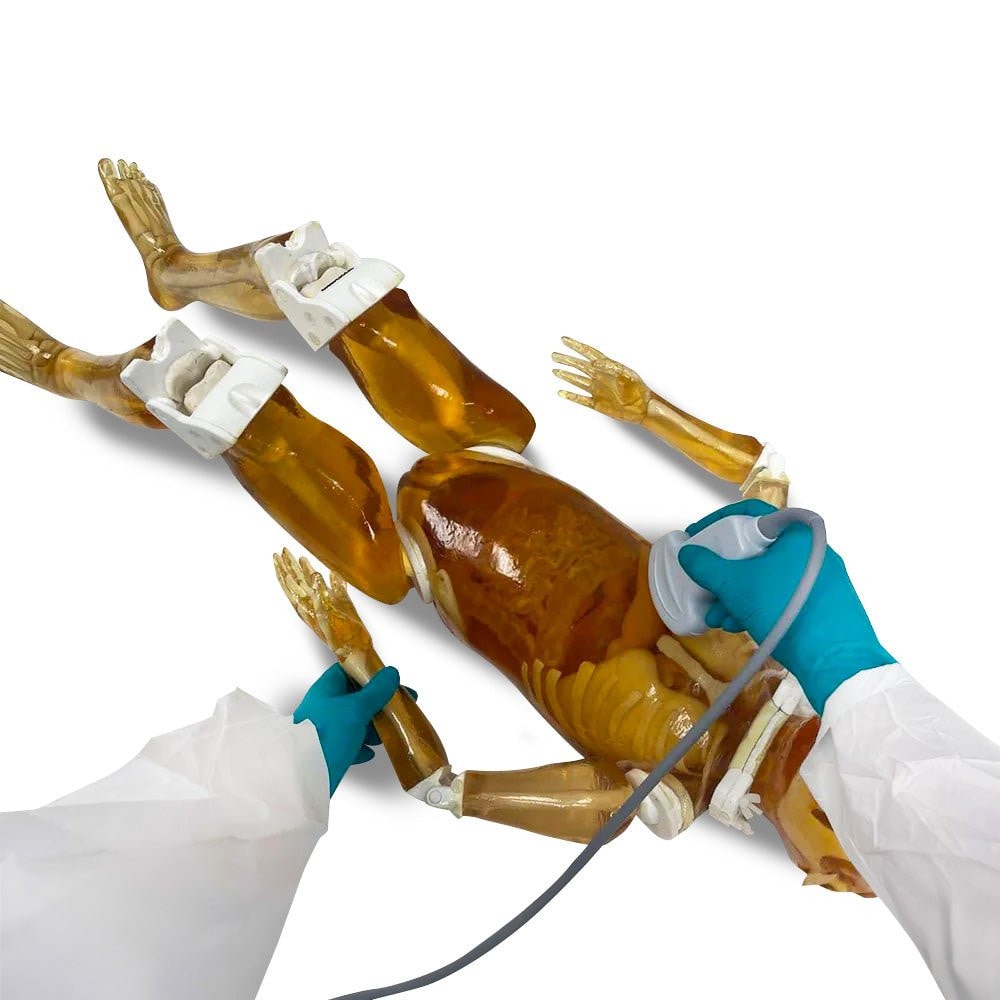

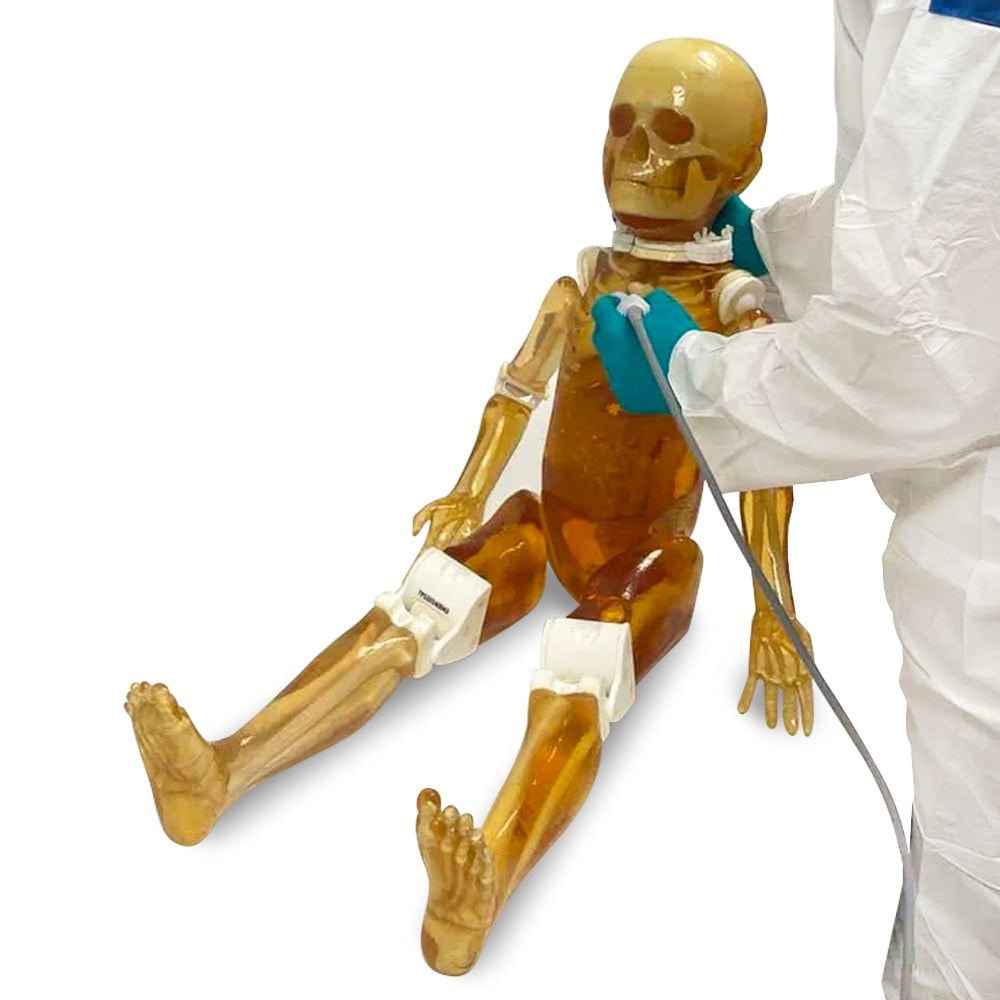

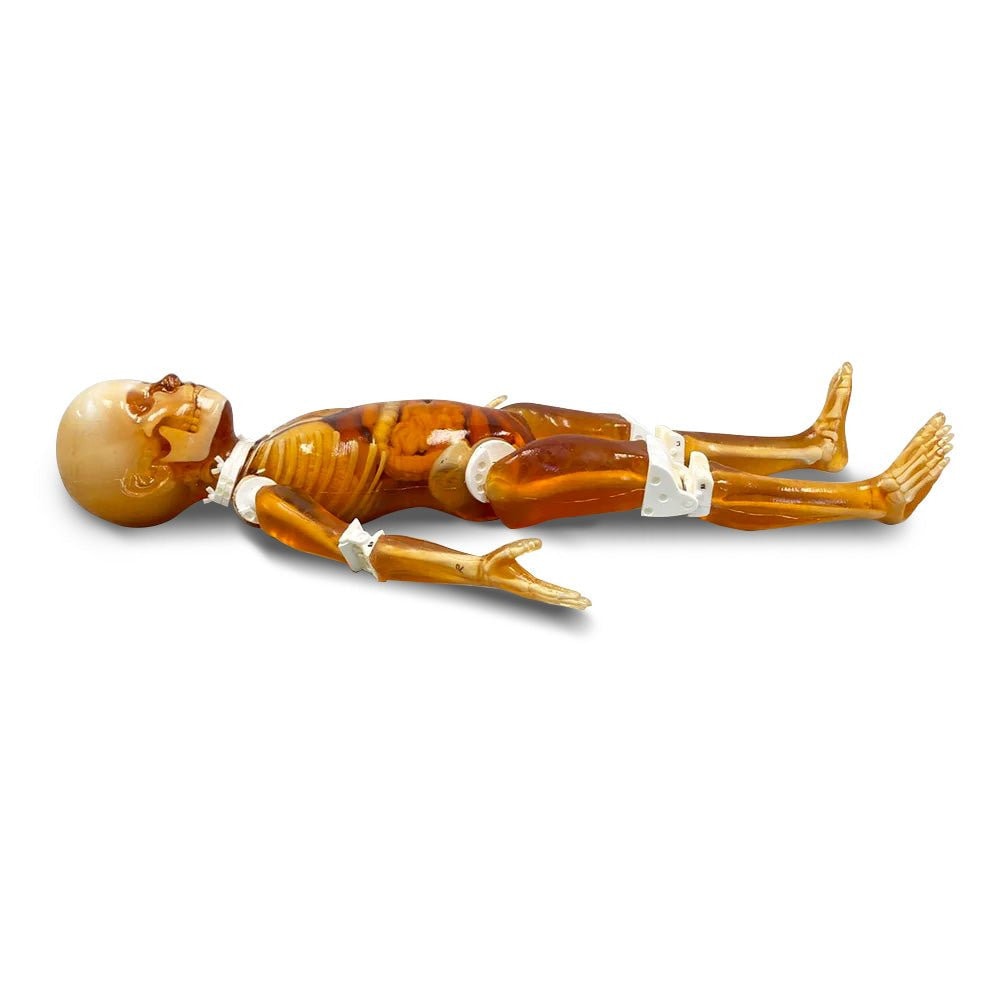

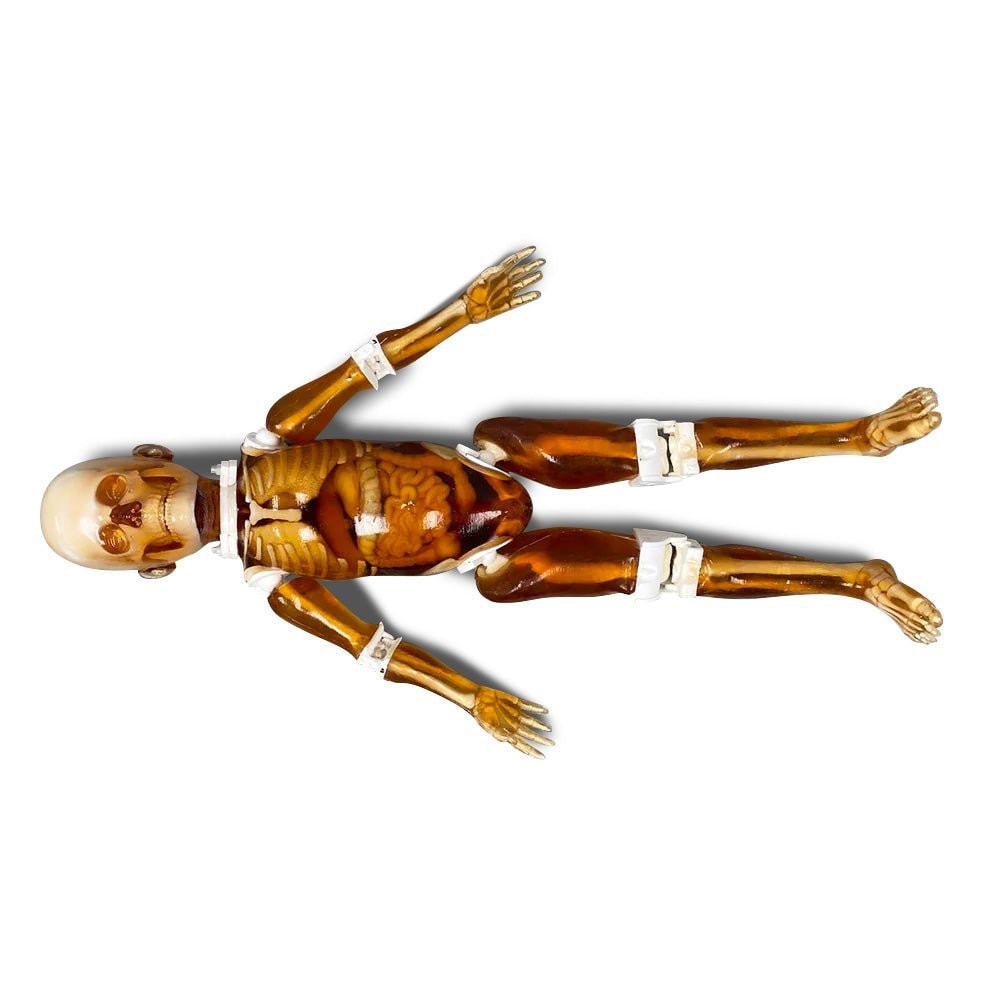

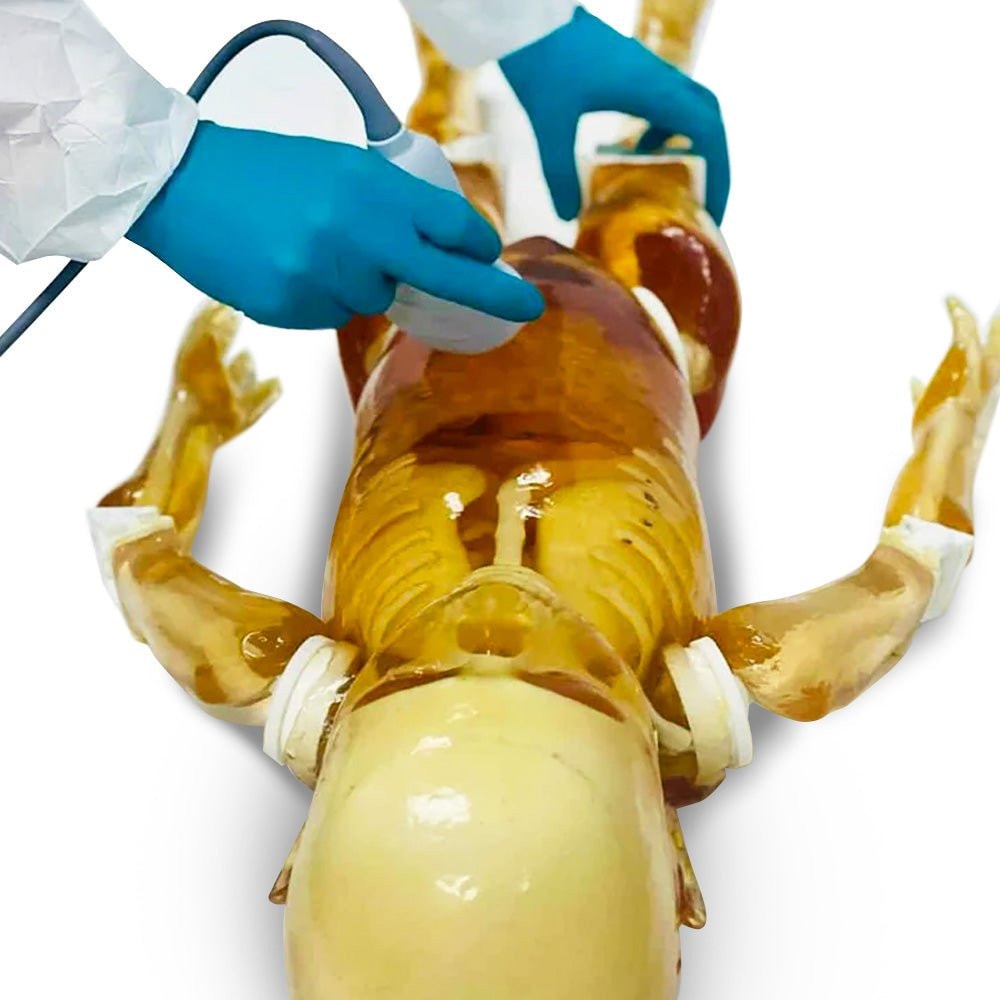

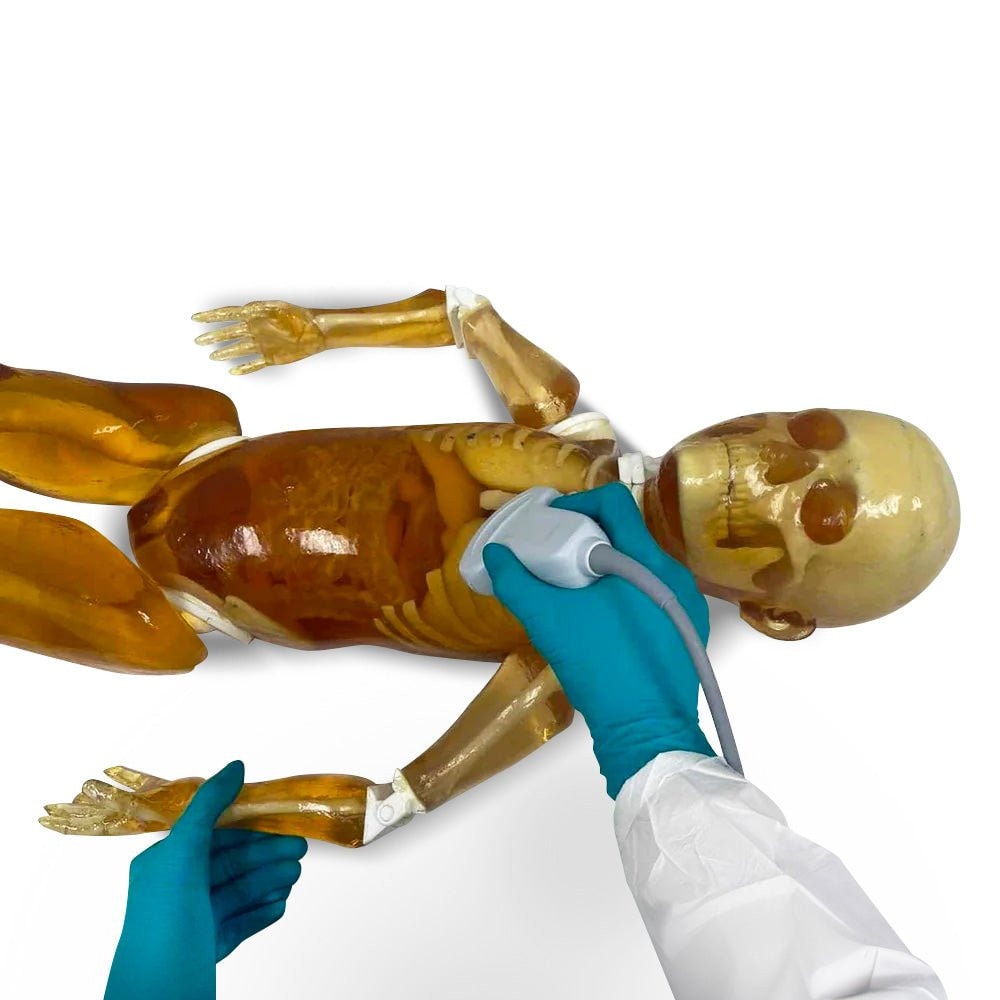

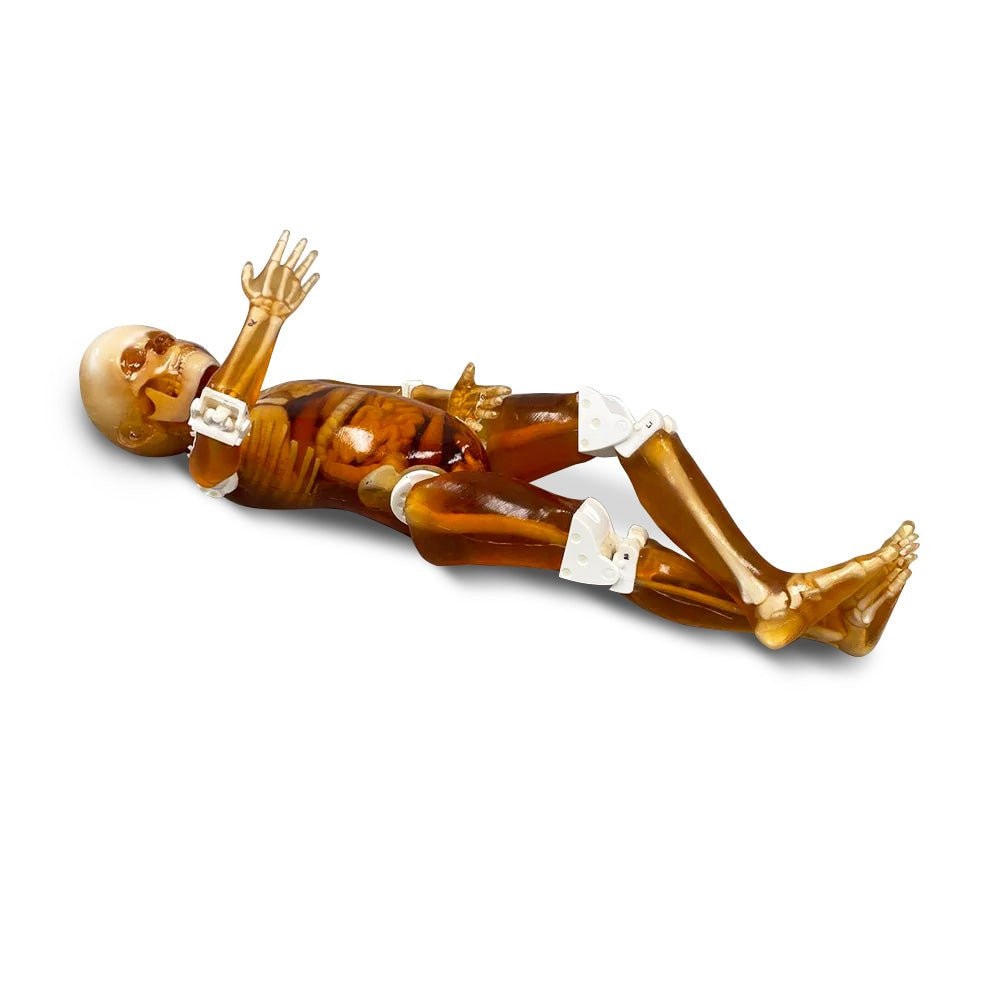

The Pediatric Full Body Phantom is an anthropomorphic, life-size training tool designed based on the model of a 4-year-old child (102 cm/40" height). It is fully compatible with X-Ray/CT and MRI, featuring anatomically realistic organs and bones constituted in 10 body parts. It is primarily used for training patient positioning techniques and visual evaluation to find optimal scanning conditions.
For MRI, the tissues offer realistic T2 relaxation time values, making it ideal for T2-weighted and proton-density imaging. The skeleton is built from individually cast bones using patented materials with a realistic three-layered structure. The phantom provides a safe, ethical alternative to volunteers or cadavers for education and research.
Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. Standard phantoms include a protective coat that increases hardness by approximately 30 points (from Shore OO 35 to OO 65).
Anatomy
- Pediatric Full Body (10 Parts): Detachable head, torso, and limbs with movable hip, knee, and elbow joints.

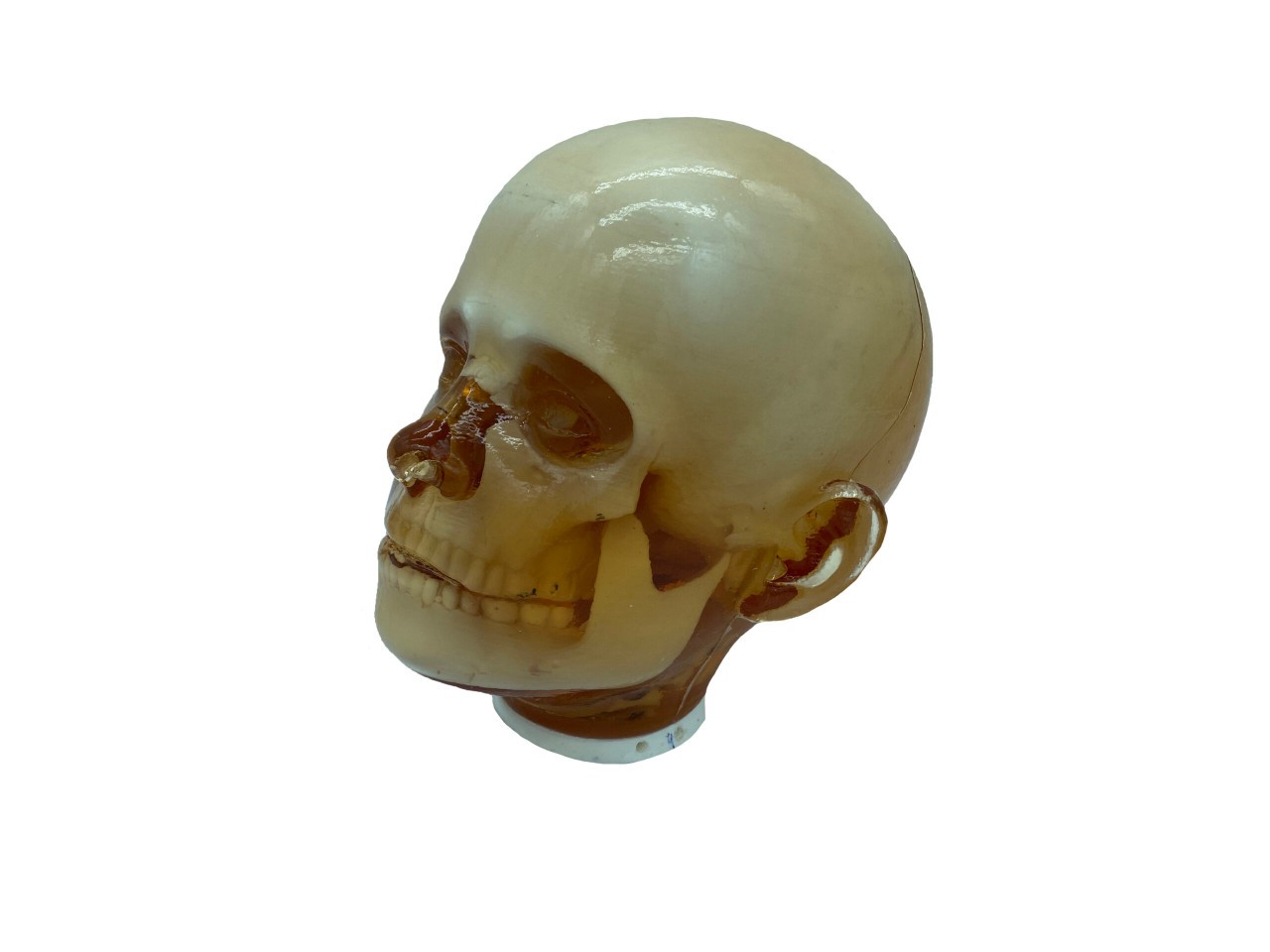

- Head: Skull and Brain Matter.

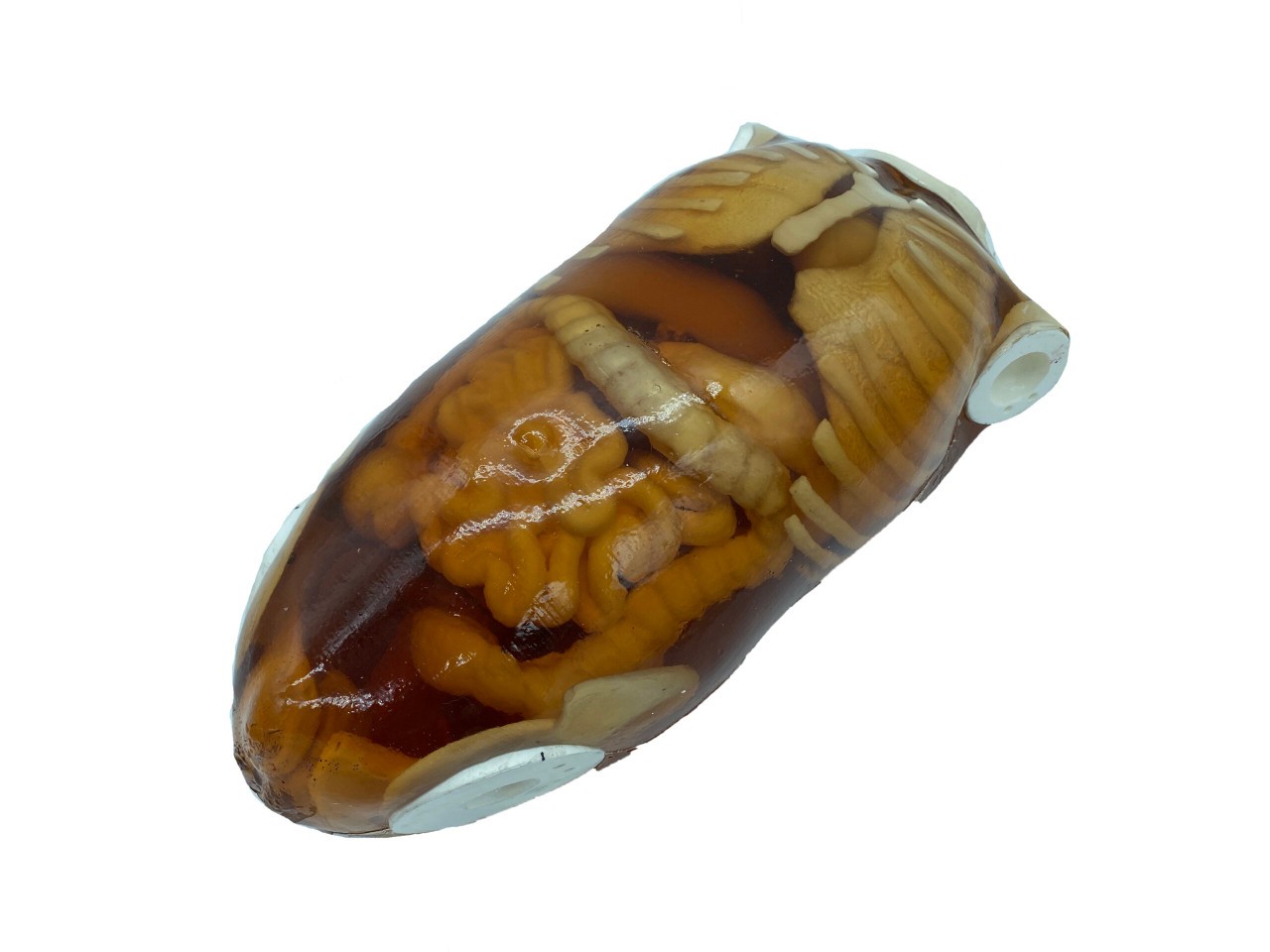

- Torso: Complete Spine, Ribcage, Shoulders, Clavicles, and Pelvis.
- Internal Organs: Trachea, Heart, Lungs, Diaphragm, Liver (with ligaments/bile ducts), Gallbladder, Stomach, Kidneys, Spleen, Pancreas, Large/Small Intestines, Bladder, and Prostate.
- Arms: Humerus, Elbow Joints, Radius, Ulna, Wrist, and Fingers.
- Legs: Femur, Knee Joints, Tibia, Fibula, Foot, and Toes.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00]* | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 35 | 55 | NO/LOW |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
*Measured without protective coat; coating increases hardness by approx. 30 points.
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of Tissue-Mimicking Materials
| Tissue Type | HU Value (Average) | Tissue Type | HU Value (Average) |
|---|---|---|---|
| Body Tissue | -25 | Lungs | -850 |
| Brain Tissue | 800 | Pancreas / Spleen / Kidneys / Liver | 110 |
| Trabecular Bone | 800 | Bladder / Gallbladder | 35 |
| Cortical Bone | 1300 | Rectum / Sigmoid Colon Wall | 100 |
| Aorta / Vena Cava / Heart | 40 | Diaphragm | 80 |
| Trachea (Tissue) | 80 | Intestines (Tissue) | 80 |
| Trachea (Air) | -1000 | Intestines (Air) | -1000 |
| Stomach | -850 | - | - |
Included in Order
- Pediatric Full Body Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 40 x 8 x 27 Inches | Weight: ~40 Lbs (20 kg)
Shipment: 32 x 23 x 13 Inches (with case) | Weight: ~99 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Imaging Scans

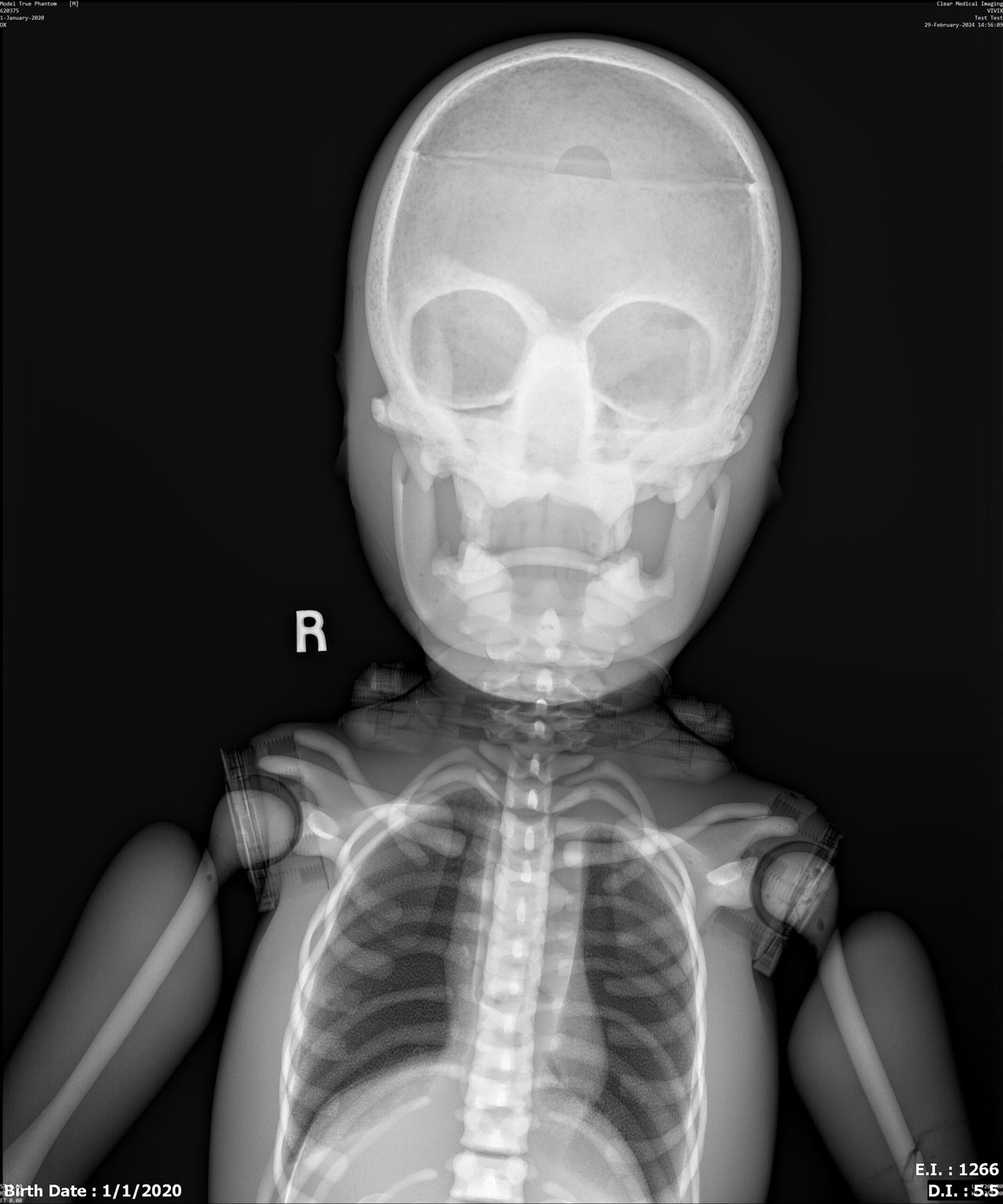

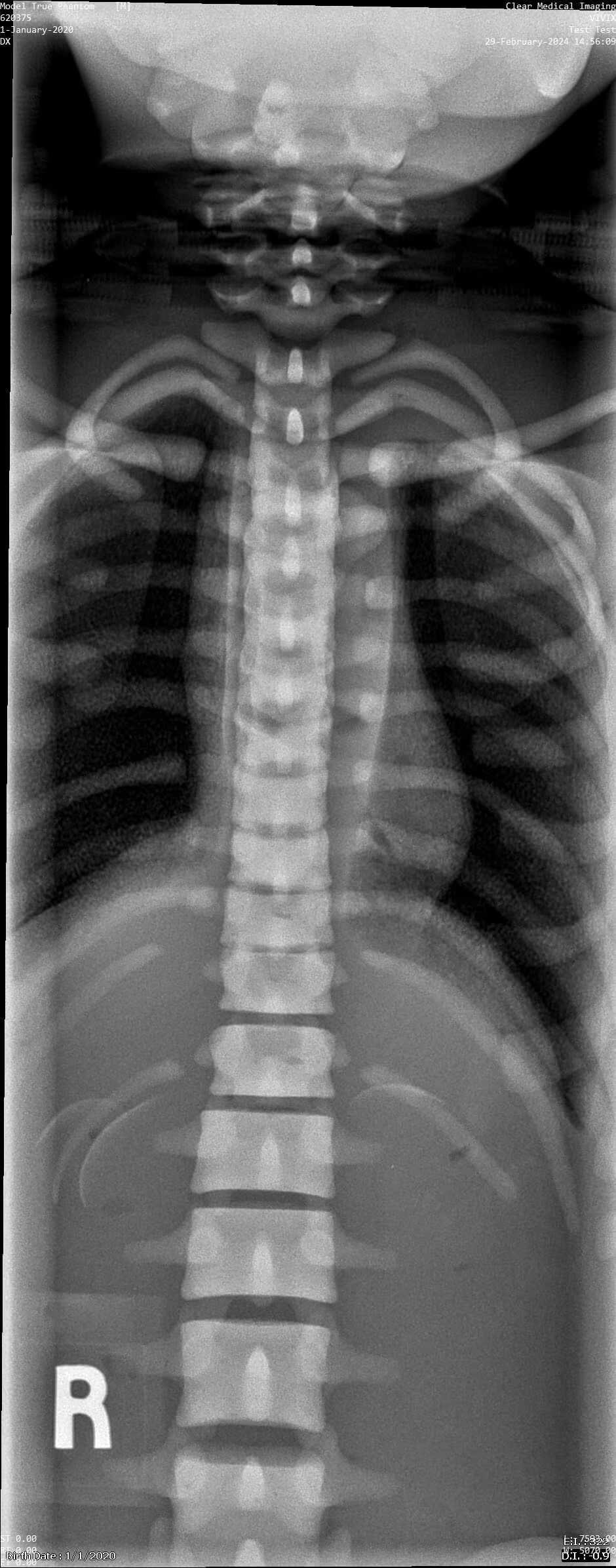

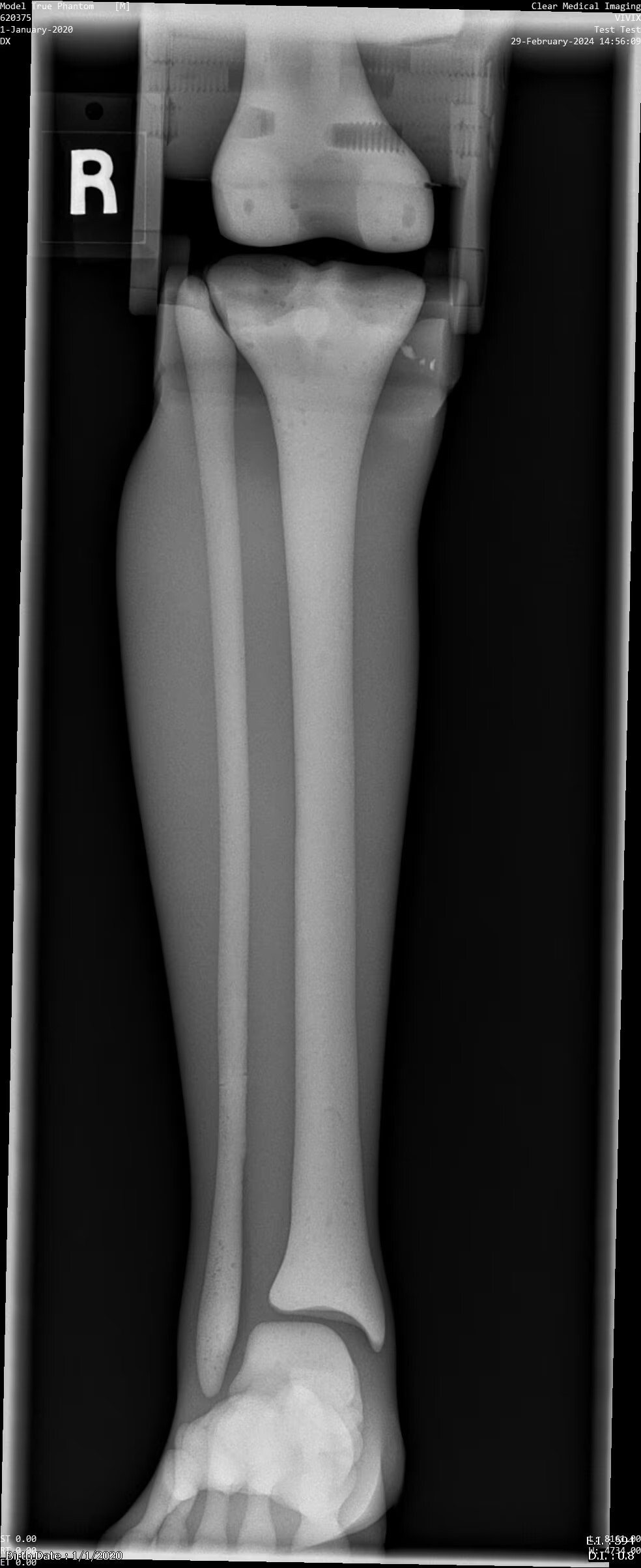

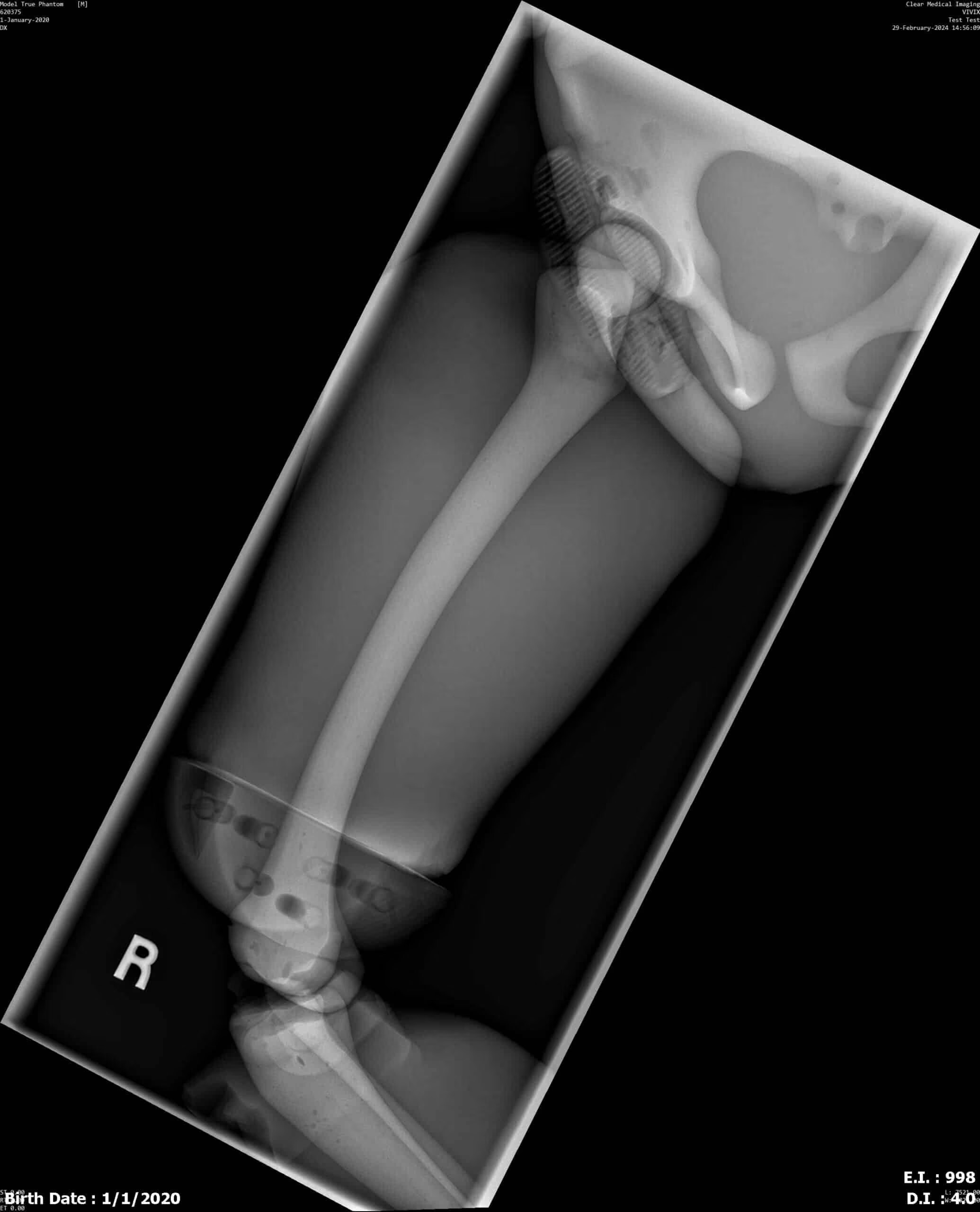

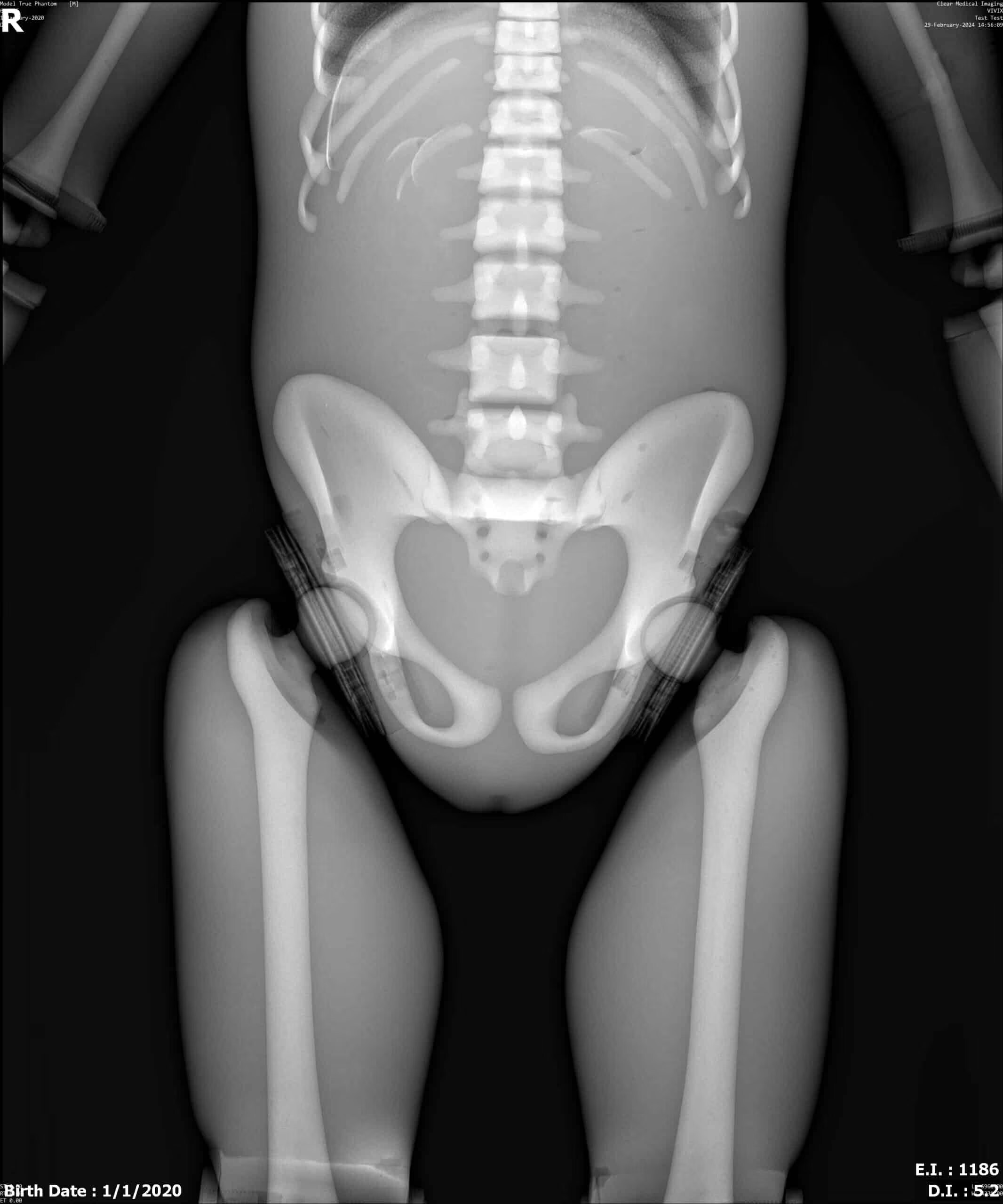

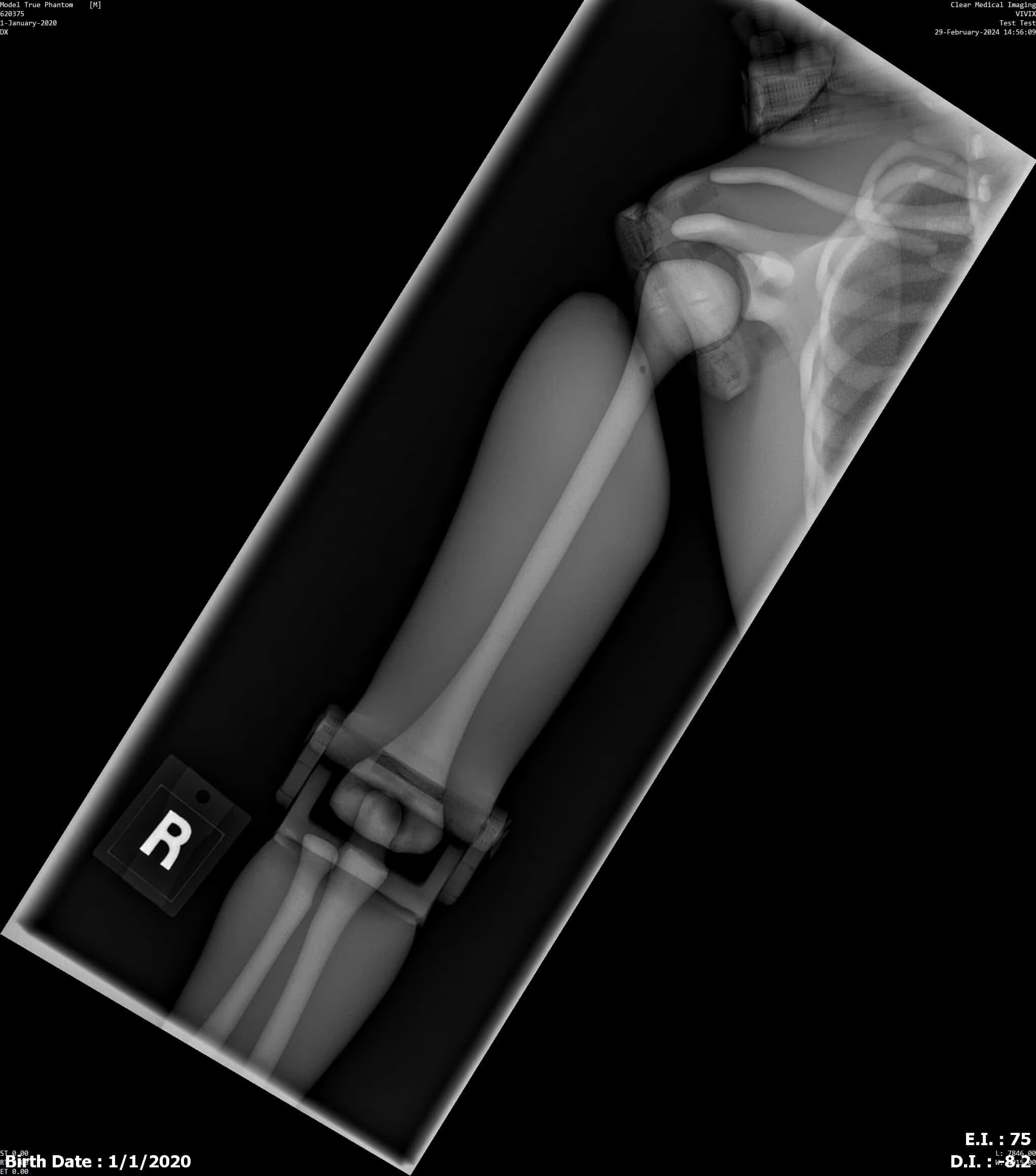

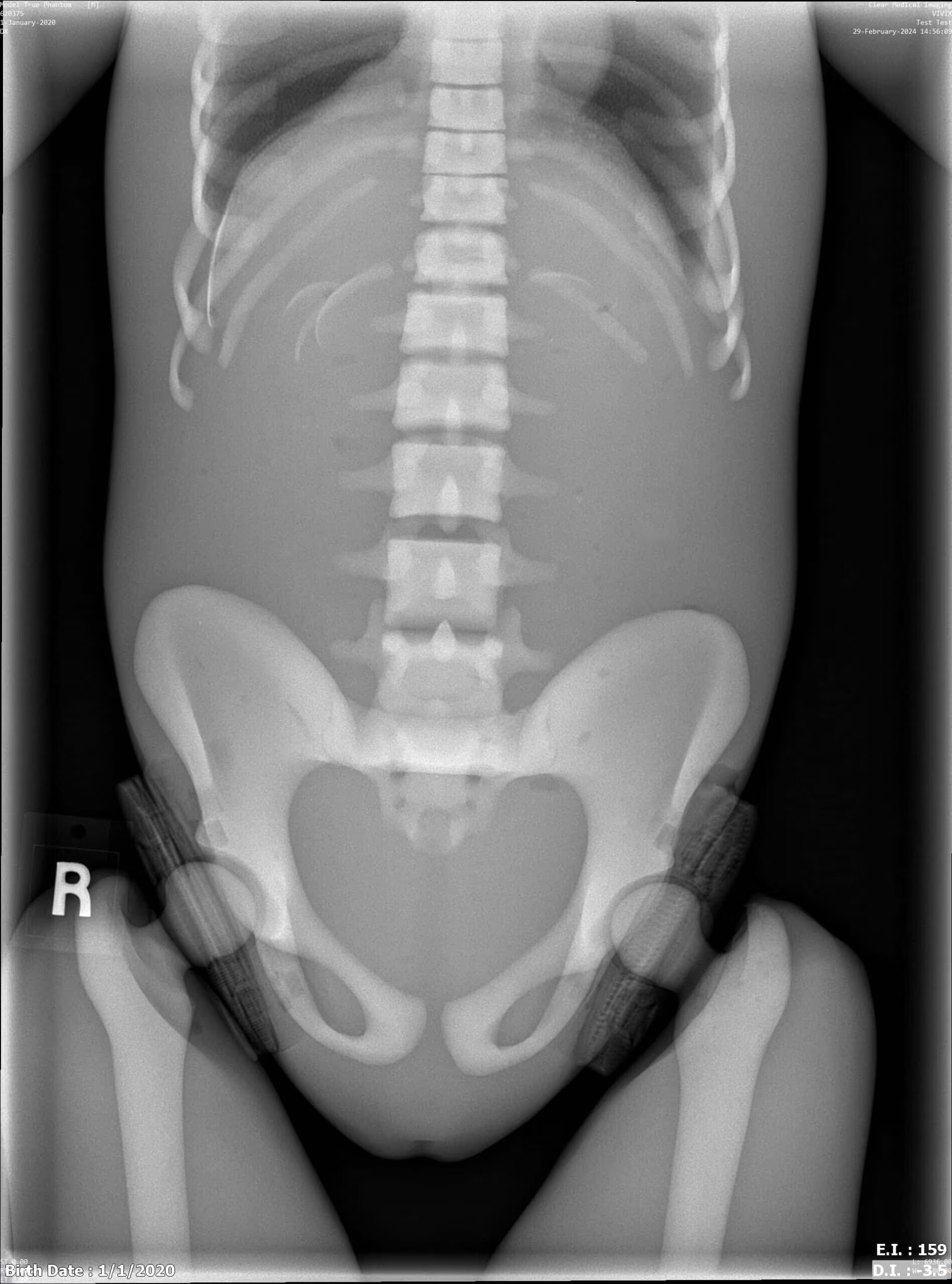

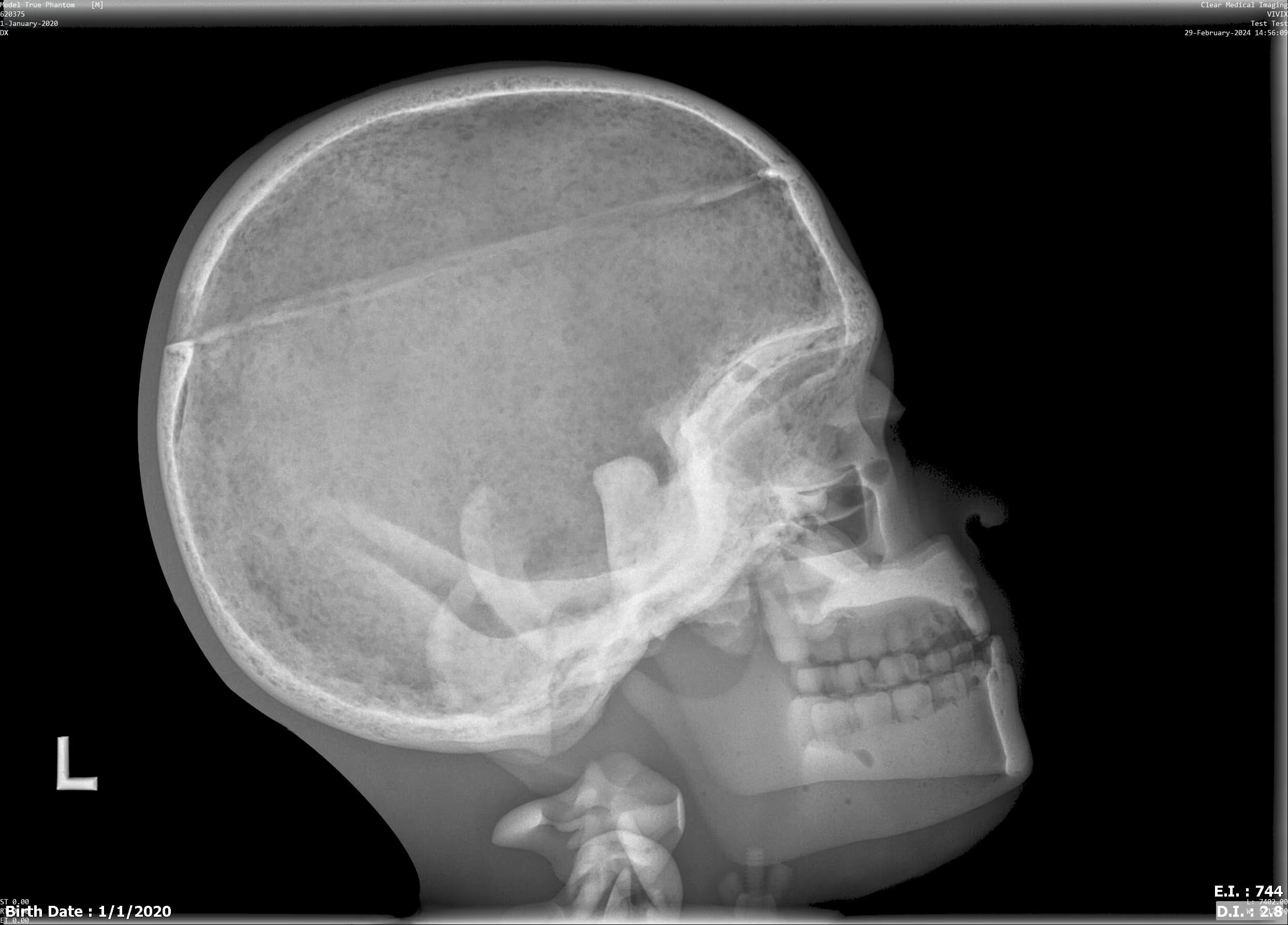

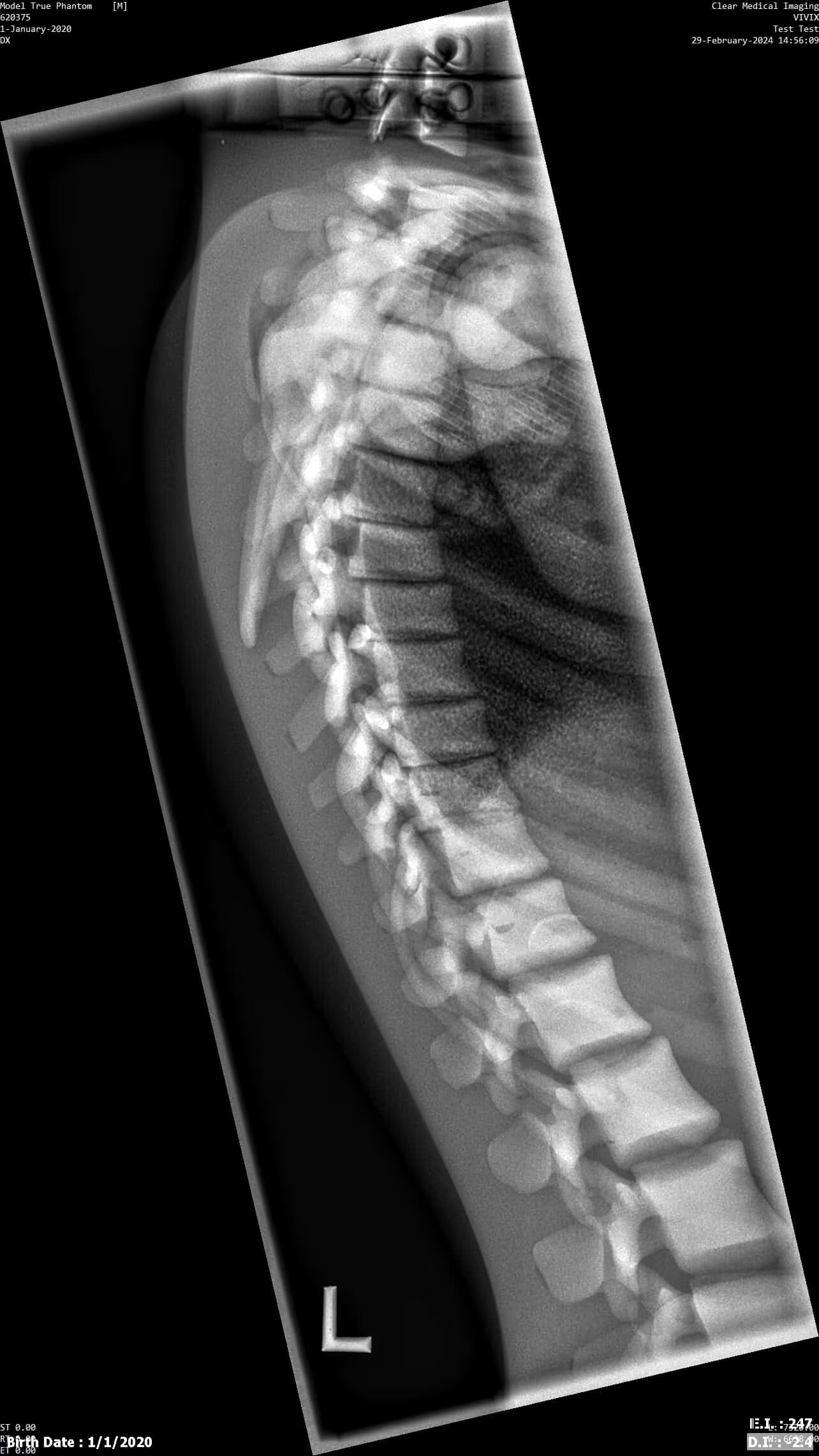

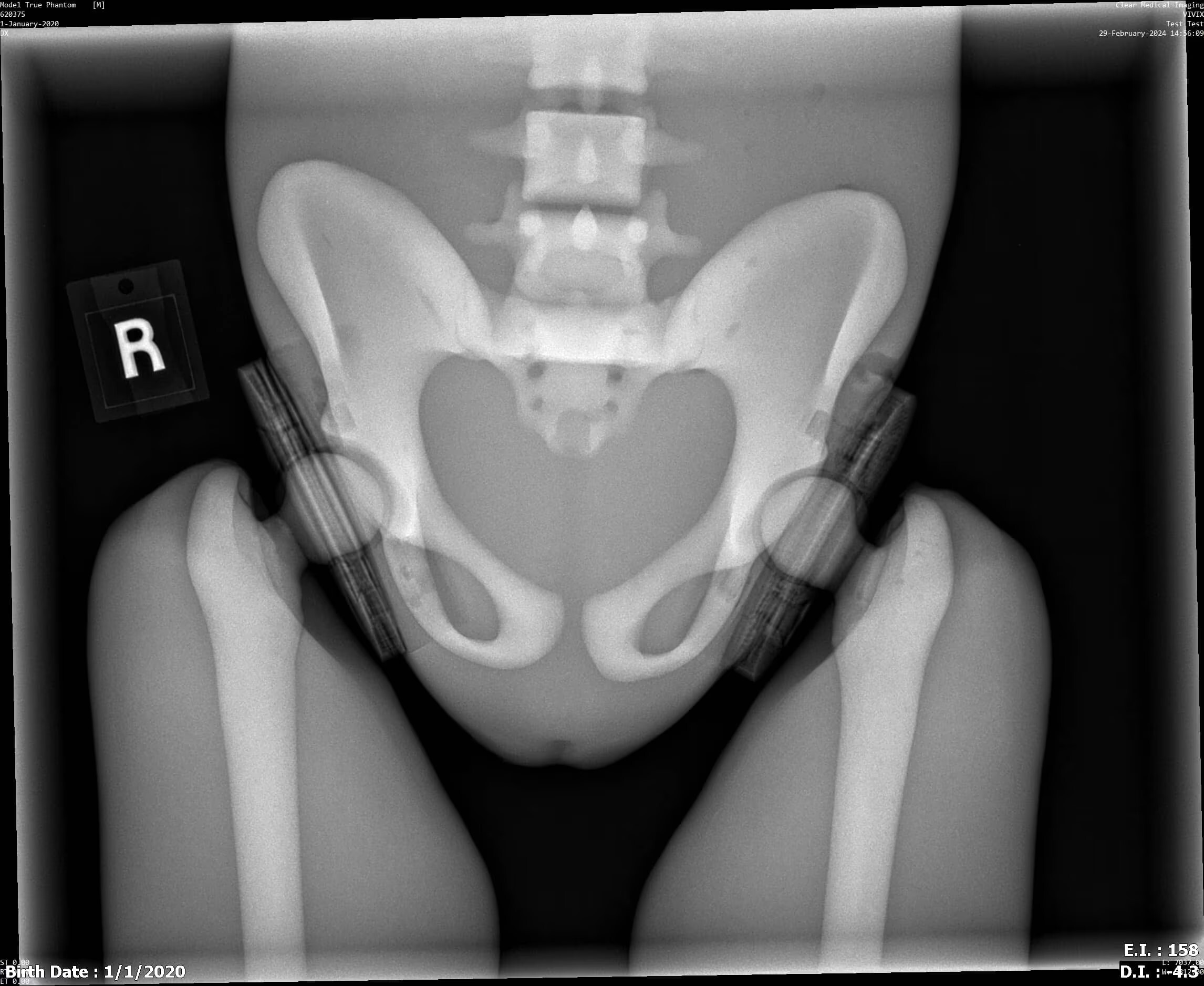

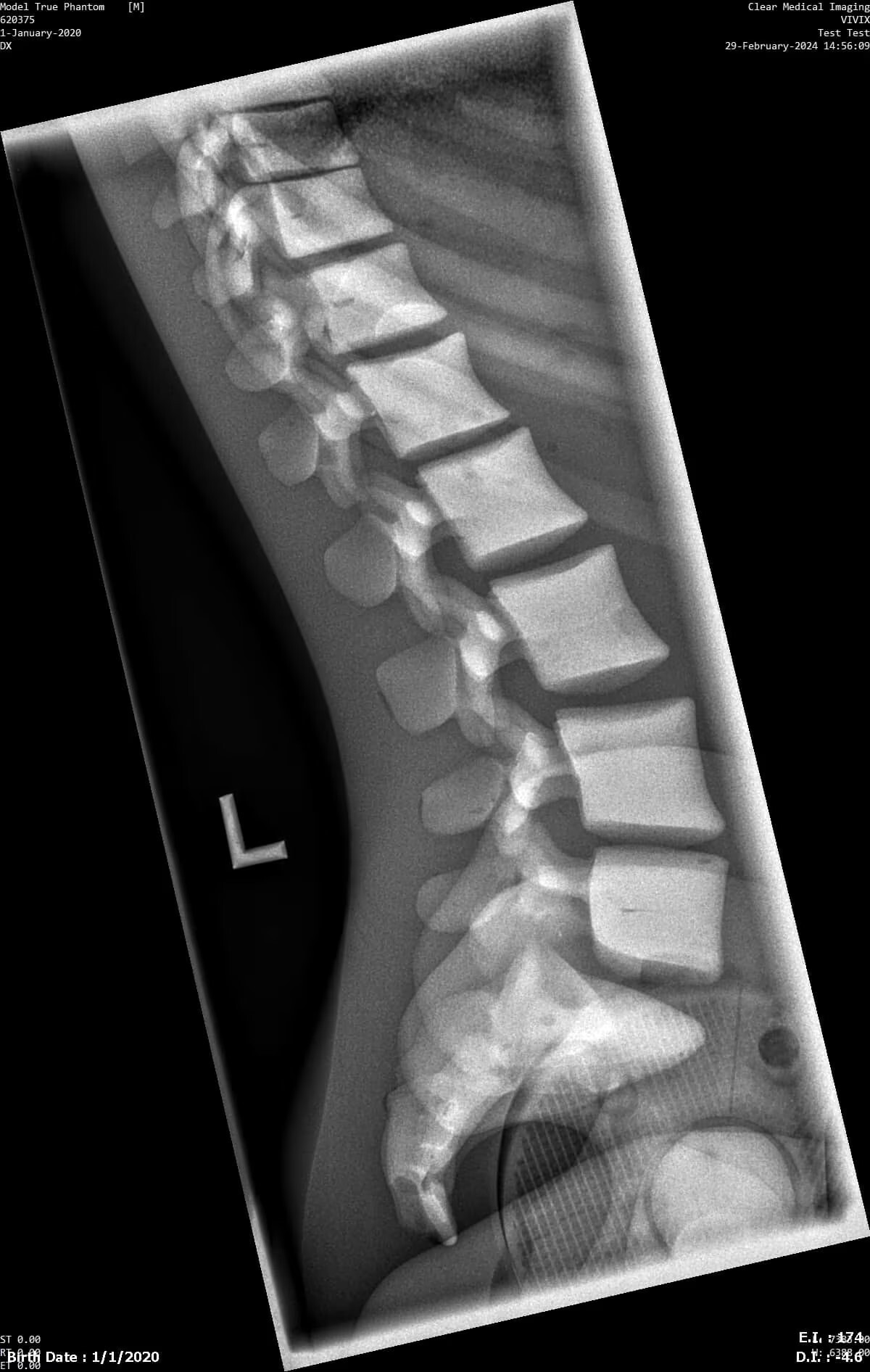

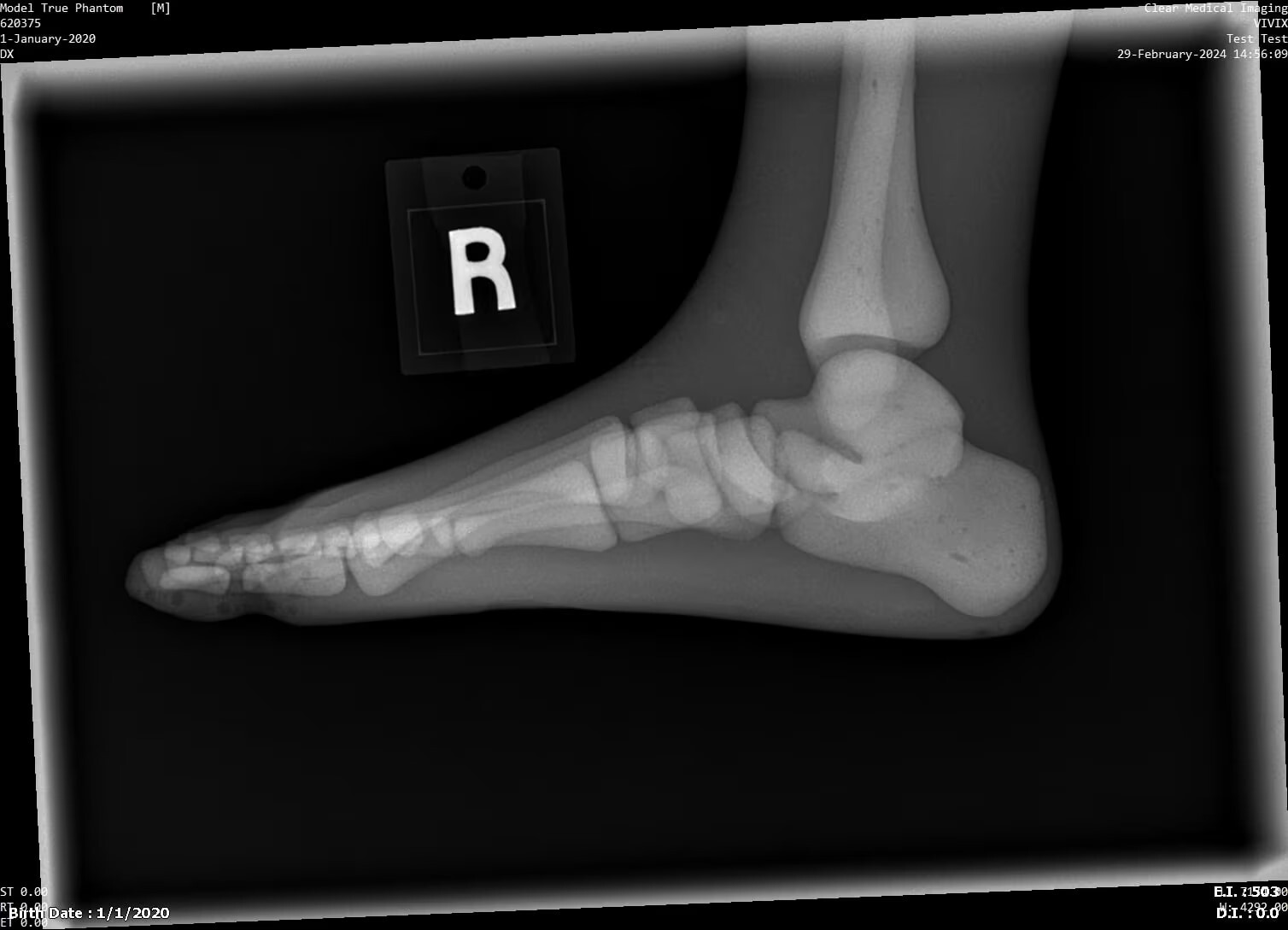

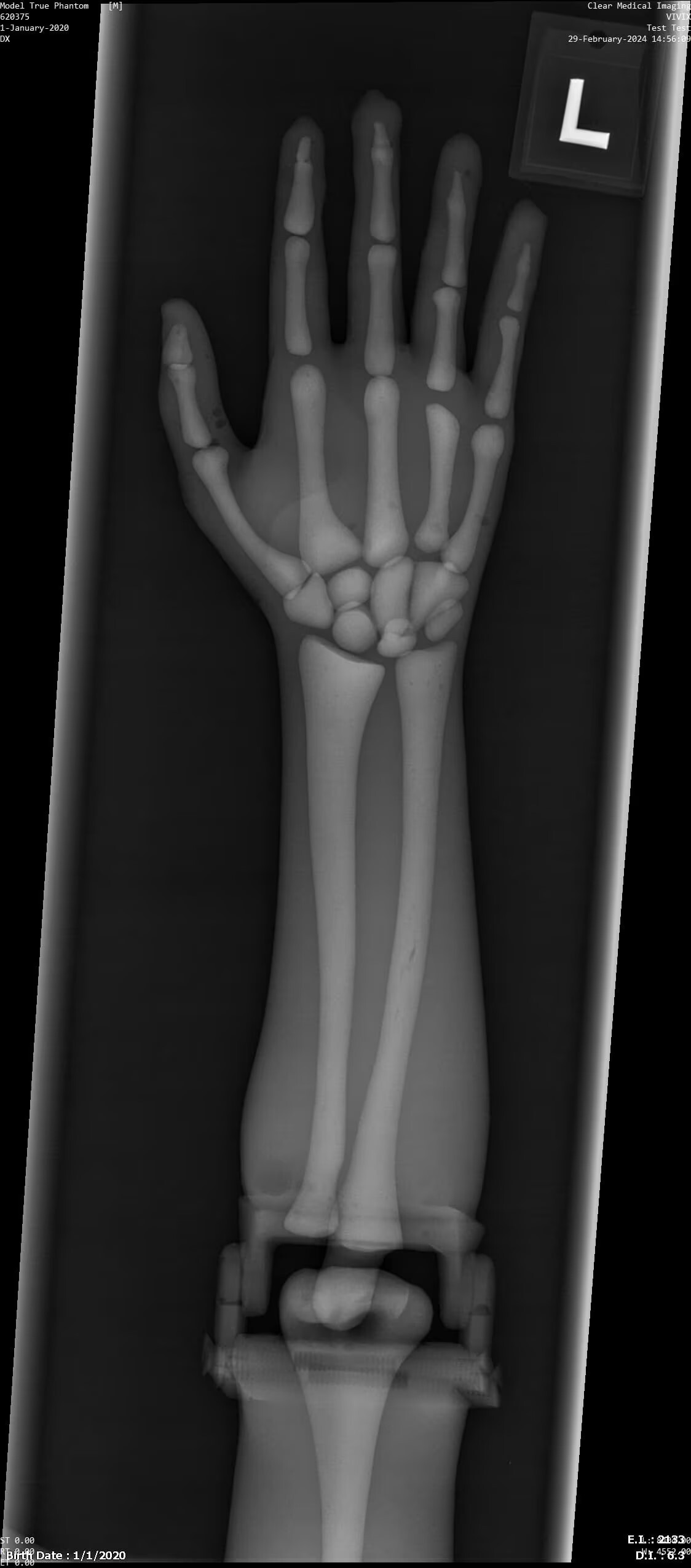

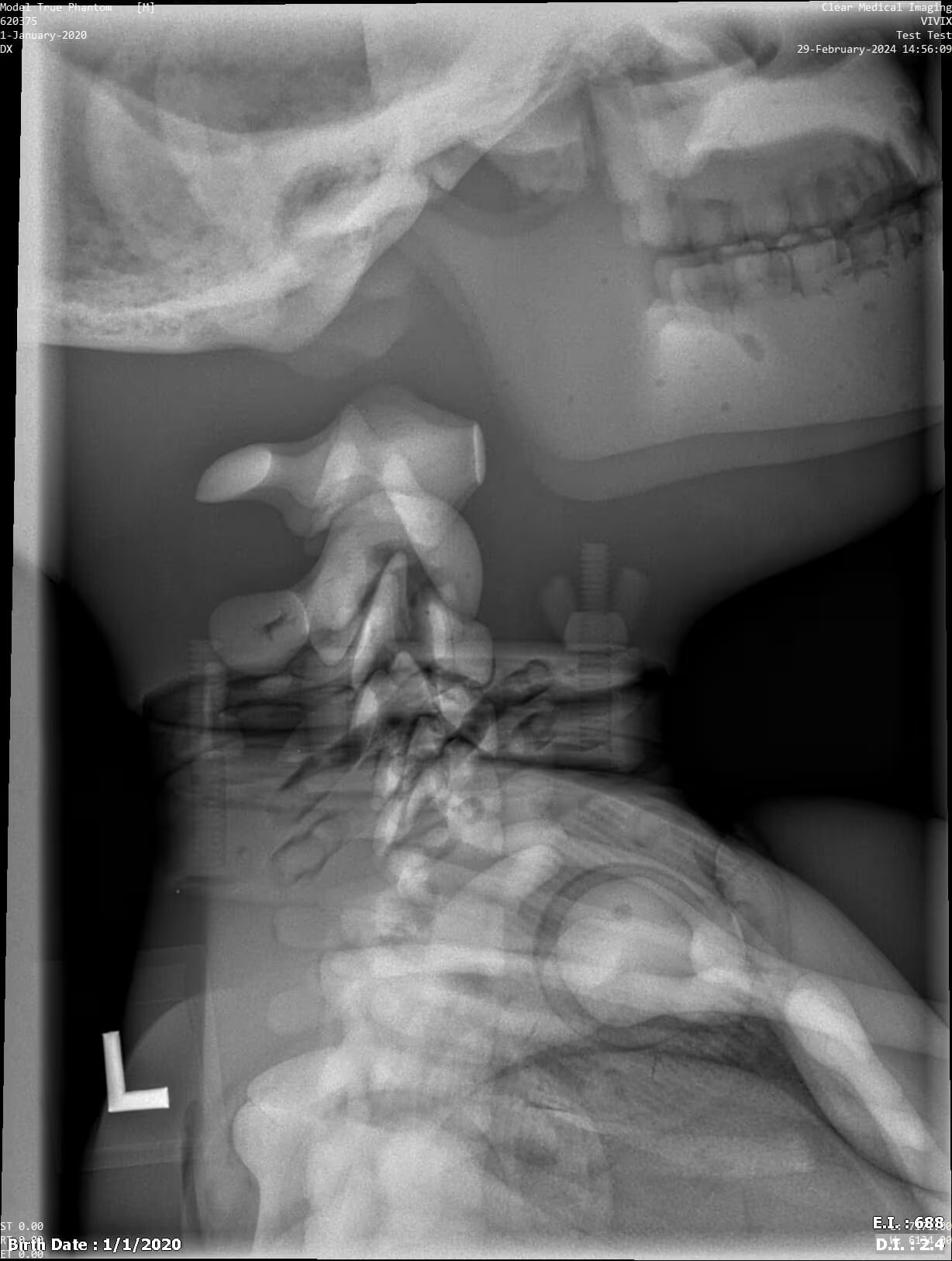

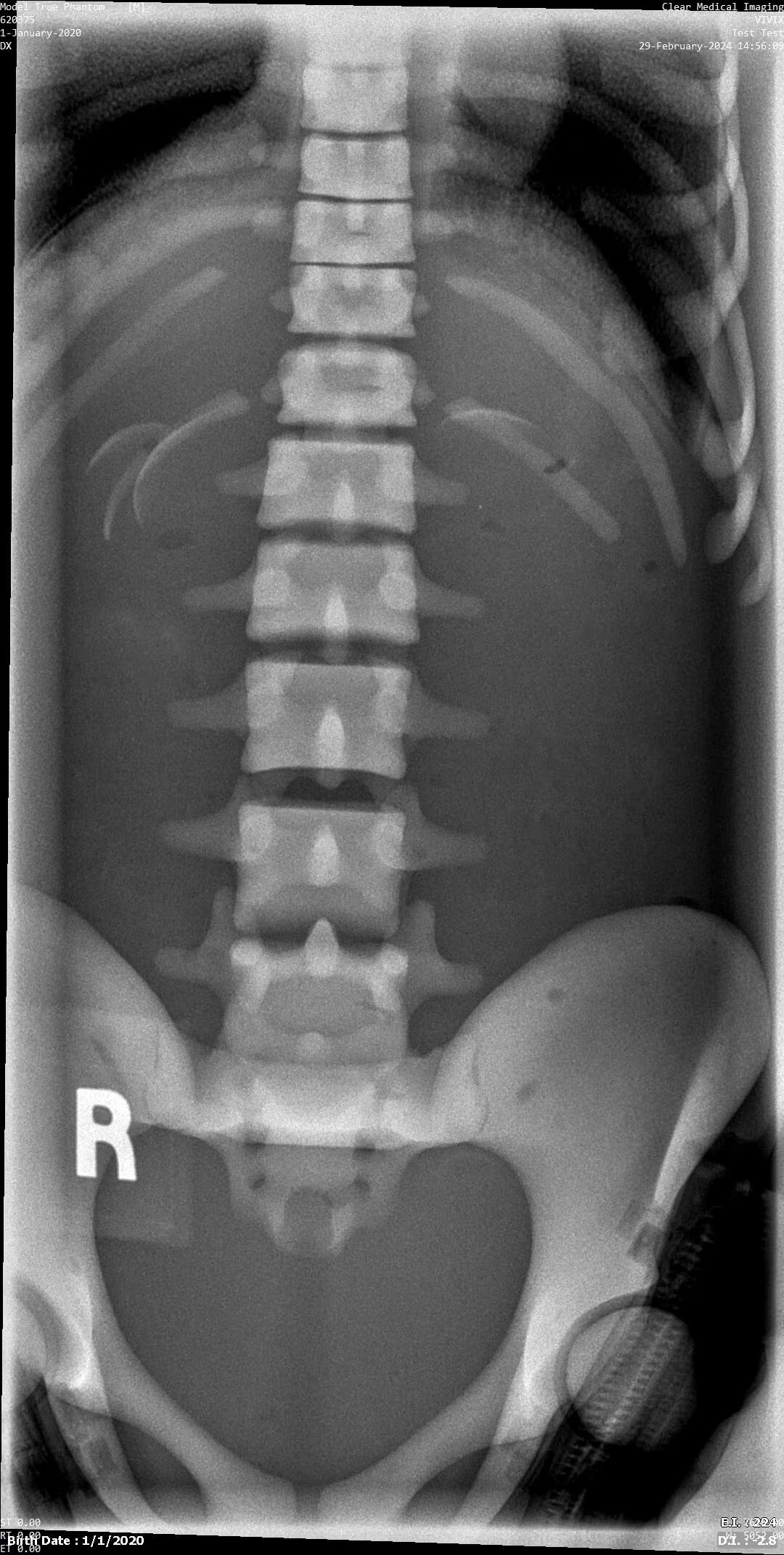

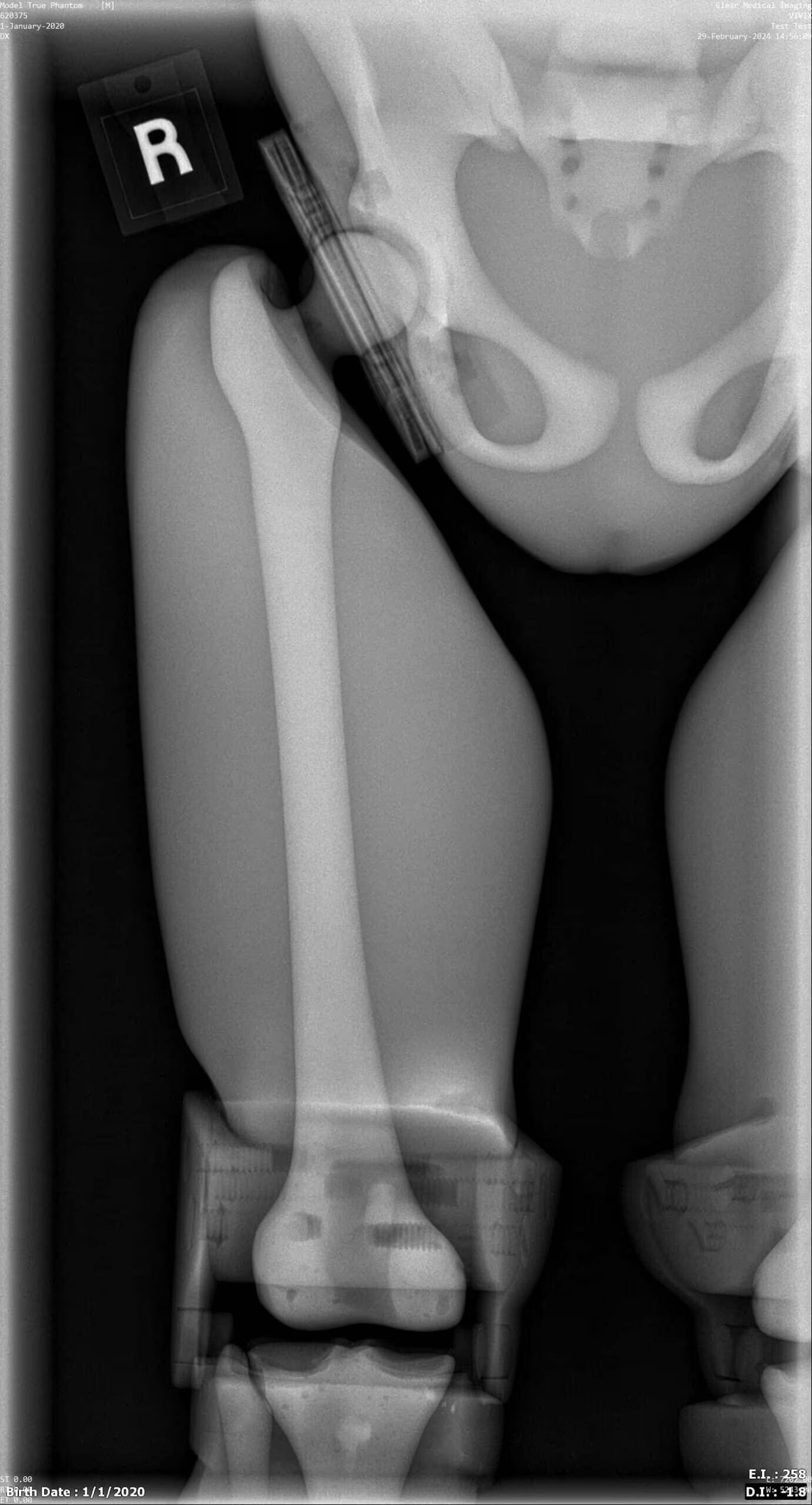

X-Ray Image Scans
