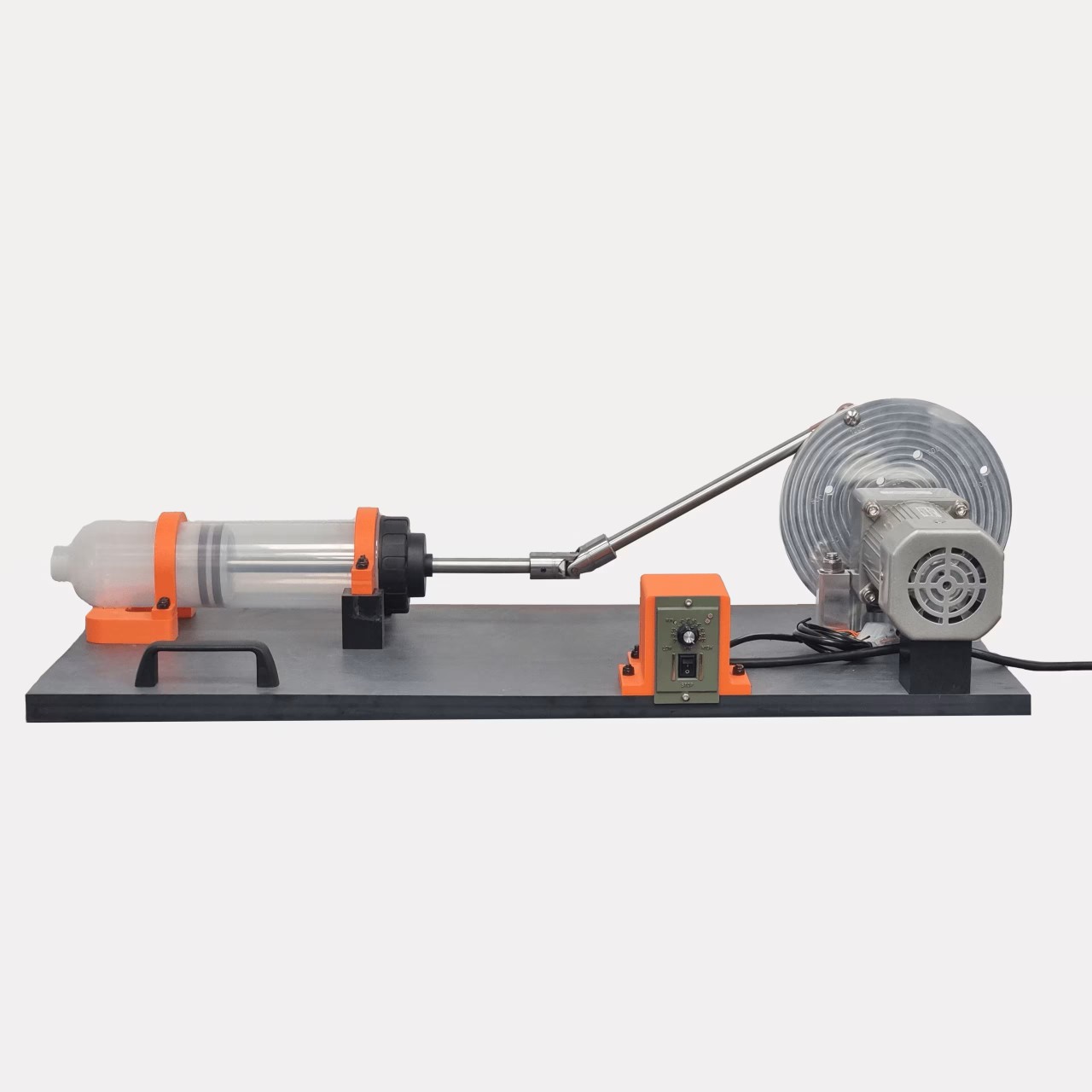

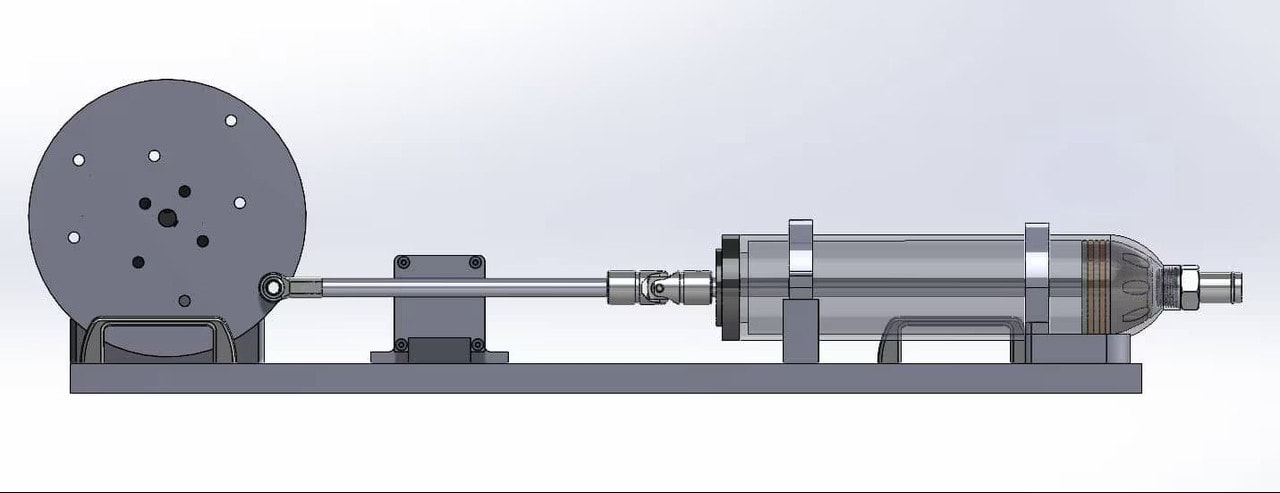

Lung Pump
Product Description

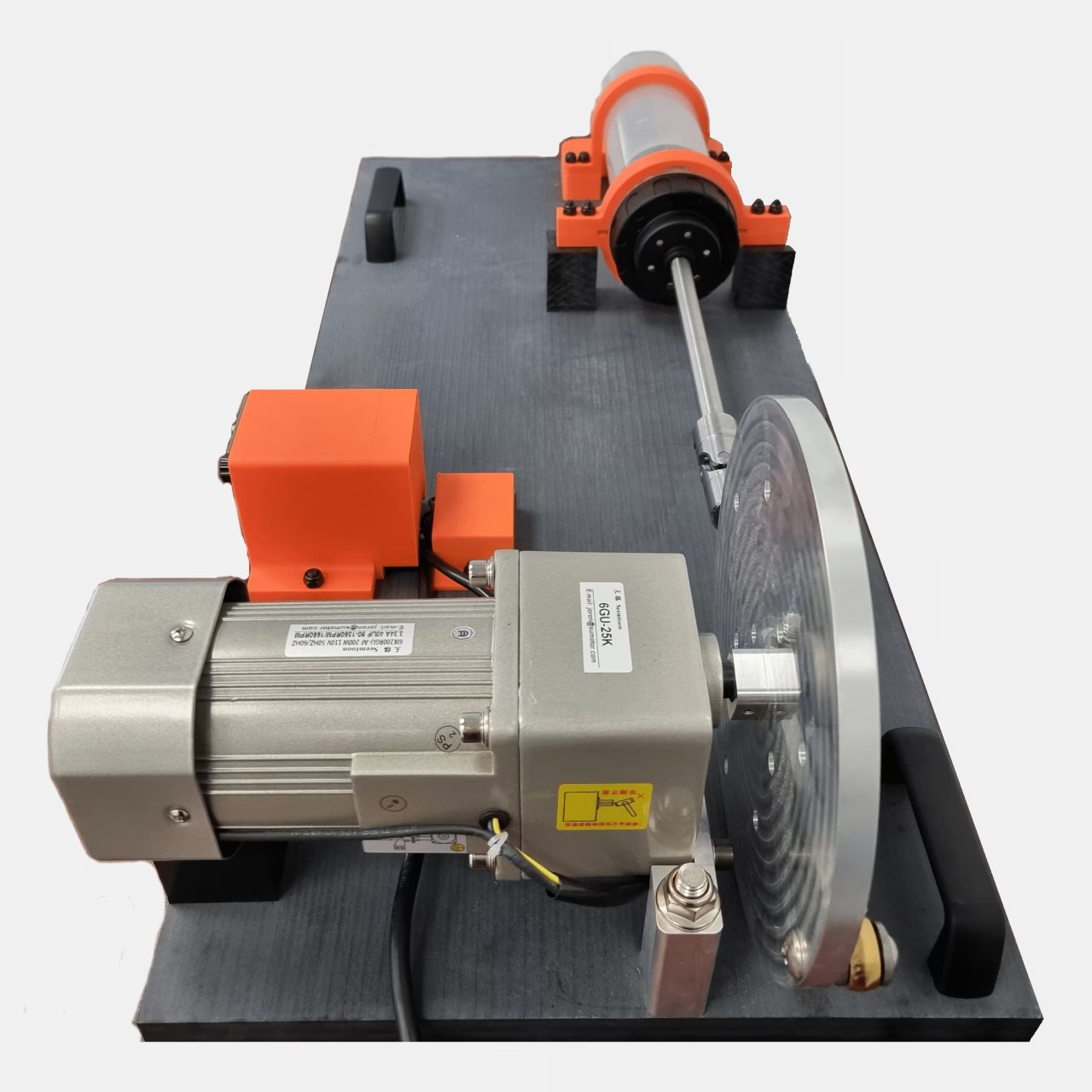

The Lung Pump is a sophisticated respiratory simulator designed to create lifelike breathing dynamics for medical education, clinical training, and research. Its primary function is to modify static lungs into dynamic, inflatable lungs, enabling realistic cyclic respiratory motion. The system is housed on a secure base, providing stability and ease of use in various training environments.

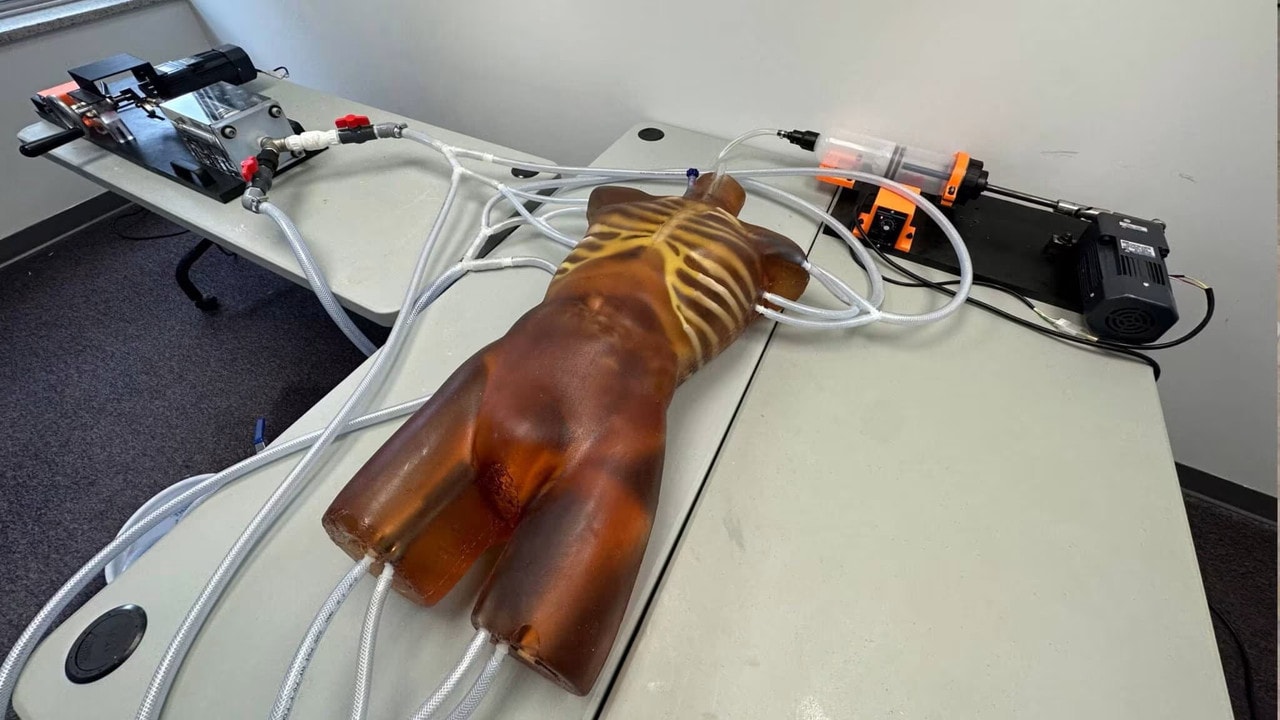

This tool is highly adaptable, allowing healthcare professionals to simulate diverse patient conditions and respiratory challenges. When used in conjunction with dynamic torso phantoms, it provides an immersive experience by simulating the actual motion of lungs within a chest cavity.
Note: This product includes only the Lung Pump. For MRI applications, the pump must be installed in a separate room from the MRI scanner due to its metal components. Any torso or heart pumps shown in reference materials must be purchased separately.
Key Features
- Dynamic Motion: Converts static lung models into dynamic inflatable lungs with realistic cyclic motion.
- Adjustable Respiration: Cyclic respiratory motion can be set between 0 to 45 breaths per minute.

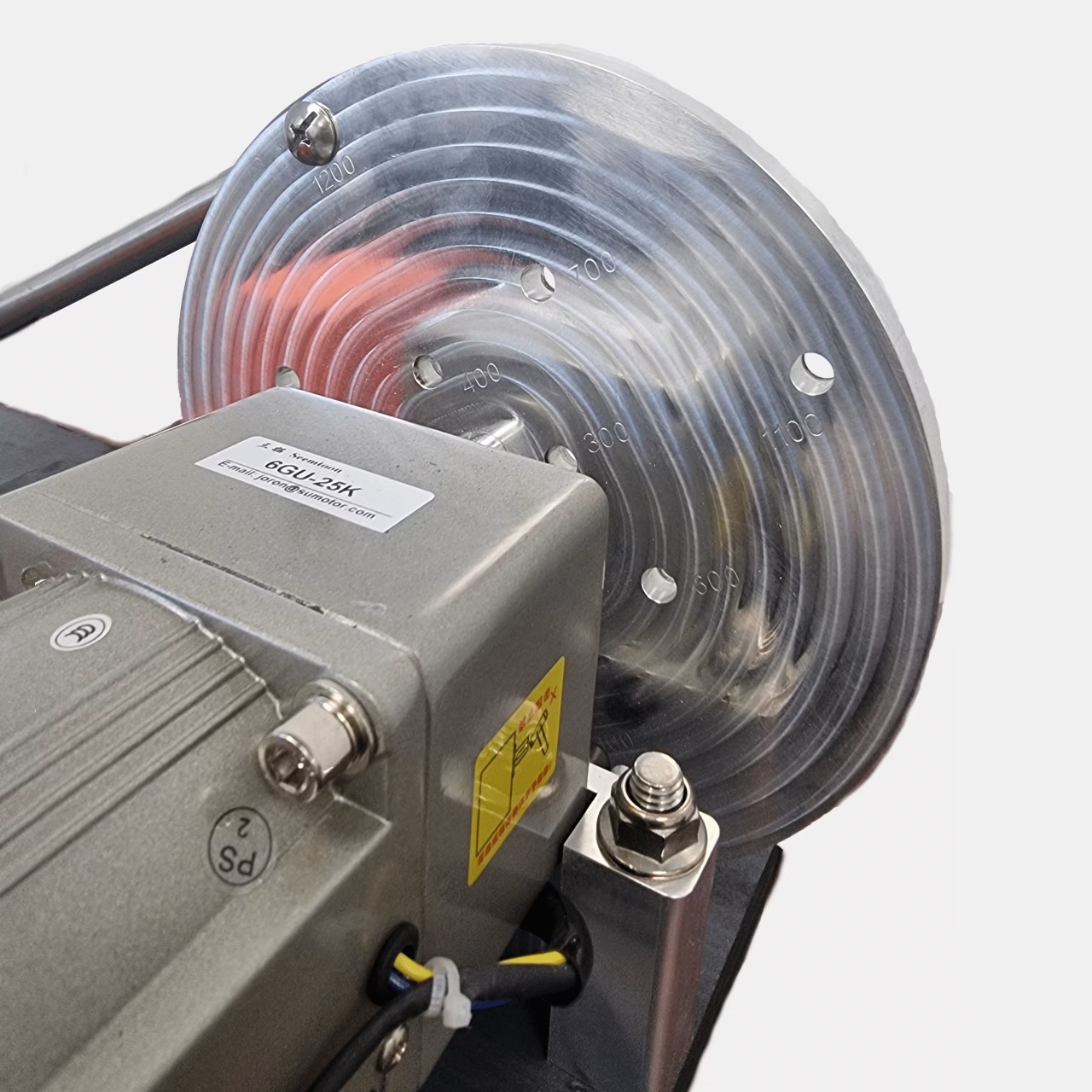

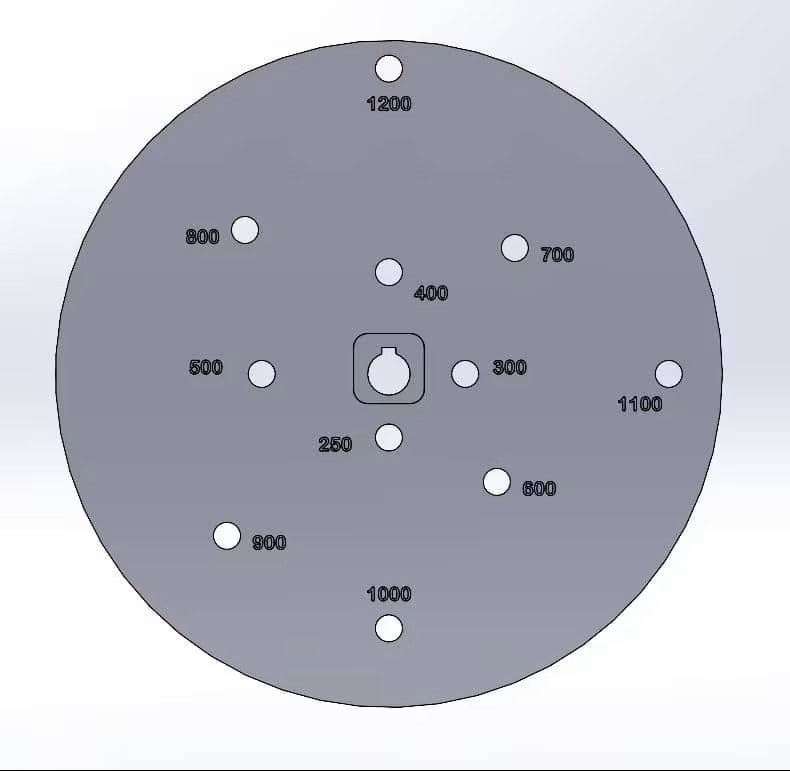

- Customizable Volume: Breath volume is adjustable from 250ml to 1200ml (available in 100ml increments after 300ml).
- Stable Construction: Complete system installed on a durable Garolite (G10) or plexiglass base.
- Compatibility: Designed to work with Dynamic Torsos (e.g., TO-A04, TO-A05) to simulate internal lung motion.
Technical Specifications
| Parameter | Specification |
|---|---|
| Respiratory Rate Range | 0 45 breaths per minute |
| Breath Volume Options | 250ml, 300ml 1200ml (in 100ml increments) |
| Compatible Modalities | X-Ray/CT, Ultrasound, MRI (with remote installation) |
Included in Order
- Lung Pump
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
Size & Weight
Pump: 36 x 12 x 8 Inches | Weight: ~48 Lbs
Shipment: 49 x 17 x 13 Inches | Weight: ~62.5 Lbs
Materials Used
- Housing: Metal and Plexiglass parts
- Base: Garolite (G10)
Customization
Customization is offered for this product to meet specific respiratory simulation requirements or research project needs.
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
