Rat Phantom (Cylindrical) for X-Ray CT, MRI
Product Description

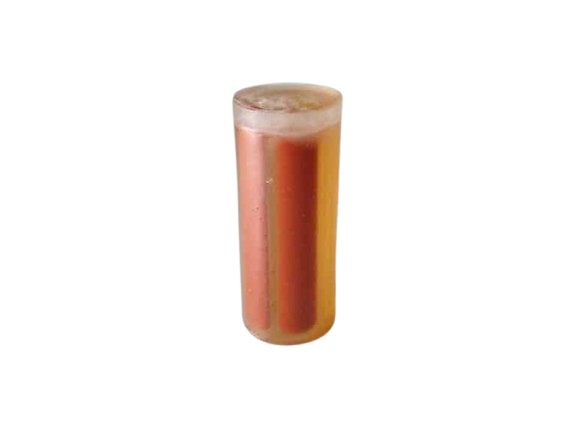

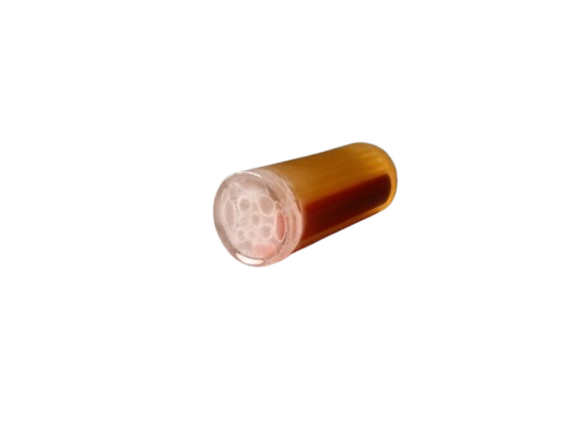

The Rat Phantom (Cylindrical) is designed to mimic the complex anatomy of small laboratory animals (such as a rat or mouse) in a simplified geometrical form. This cylinder measures 27mm in diameter and 70mm in height. It is a powerful tool optimized for the testing and calibration of various medical imaging devices, including X-Ray/CT and MRI scanners.
The phantom features five distinct tissue-mimicking materials with varying acoustic and physical properties. For MRI applications, these tissues provide realistic T2 relaxation time values, making the phantom an excellent fit for T2-weighted and proton-density imaging methods. The model is modular and can be customized in size, shape, and internal features to meet specific bio-medical research needs.
Note: The internal "Soft Body Tissue" is designed with high optical transparency and no speckles to provide superior imaging results. Custom internal geometries can be fabricated upon request.

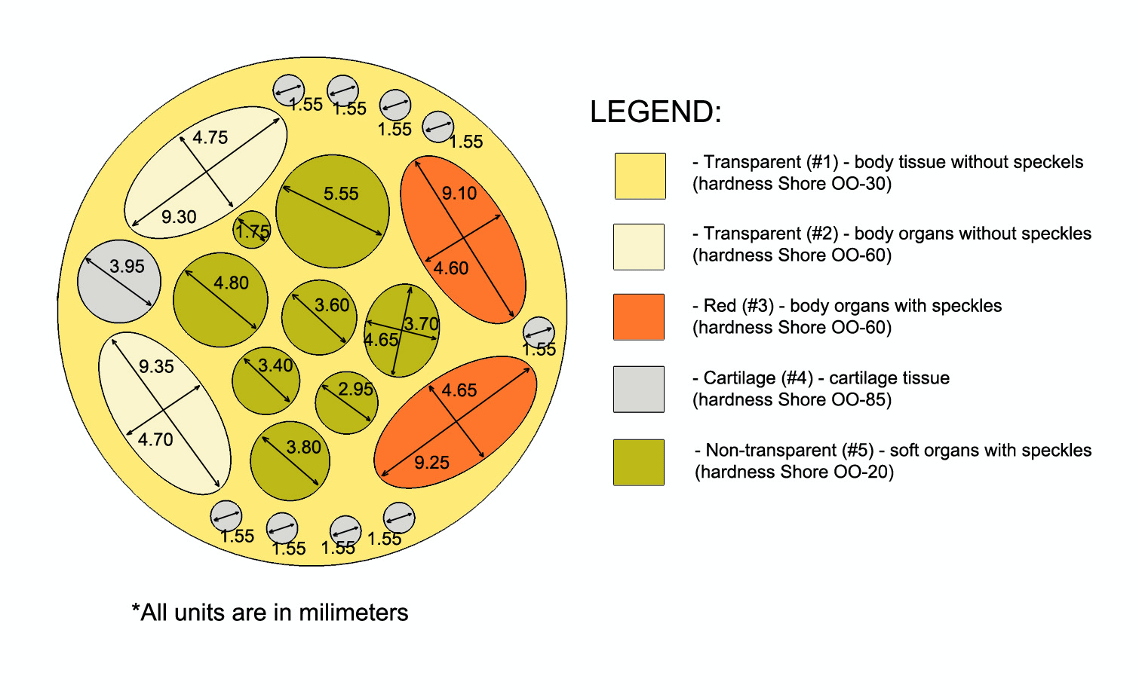

Anatomy Simulation
- Soft Body Tissue: Transparent and speckle-free for optimal imaging.
- Organs without Speckles: Softer tissue that appears brighter on T2-weighted MRI images.
- Organs with Speckles: Stiffer and denser tissues (e.g., muscles) that appear bright on T2 images.
- Cartilage Tissue: Very stiff and attenuative tissue that appears dark on T2-weighted images.
- Soft Organs with Speckles: The softest tissues (e.g., liver, kidneys), appearing the brightest on T2 images.
Technical Properties
| Tissue Type | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| (#1) Transparent | 1400 ± 10 | 1.00 | 40 | 50 | NO | 1.5 ± 0.2 |
| (#2) Transparent | 1400 ± 10 | 1.01 | 30 | 65 | NO | 1.2 ± 0.2 |
| (#3) Red | 1400 ± 10 | 1.04 | 30 | 65 | YES | 1.2 ± 0.2 |
| (#4) Cartilage | 1850 ± 10 | 1.06 | 85 | 20 | N/A | 30 ± 2 |
| (#5) Non-Transparent | 1400 ± 10 | 1.00 | 20 | 75 | YES | 1.0 ± 0.2 |
Included in Order
- Rat (Cylindrical) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 1 x 1 x 3 Inches | Weight: ~1 Lb
Shipment: 10 x 8 x 6 Inches | Weight: ~3 Lbs
Materials Used
- Soft tissues and organs: Composition of urethane-based soft resin.
- Synthetic bones: Ceramic-reinforced urethane-based composite material.
