Description

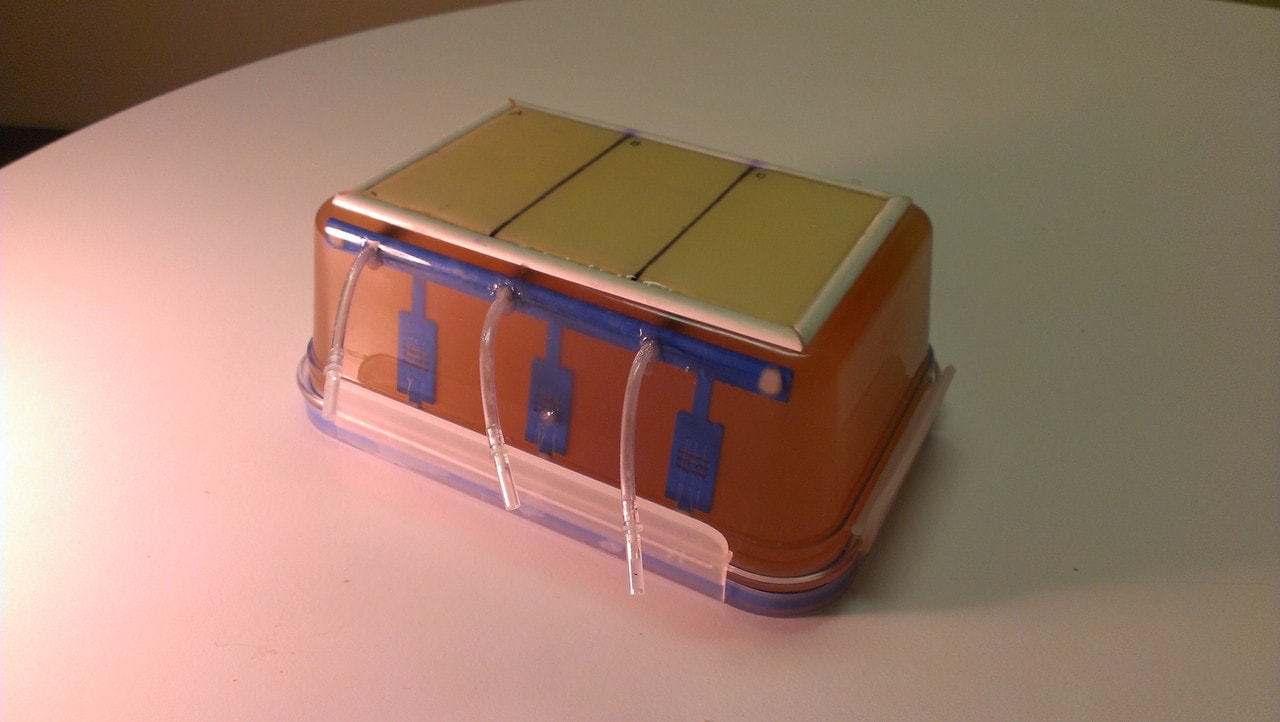

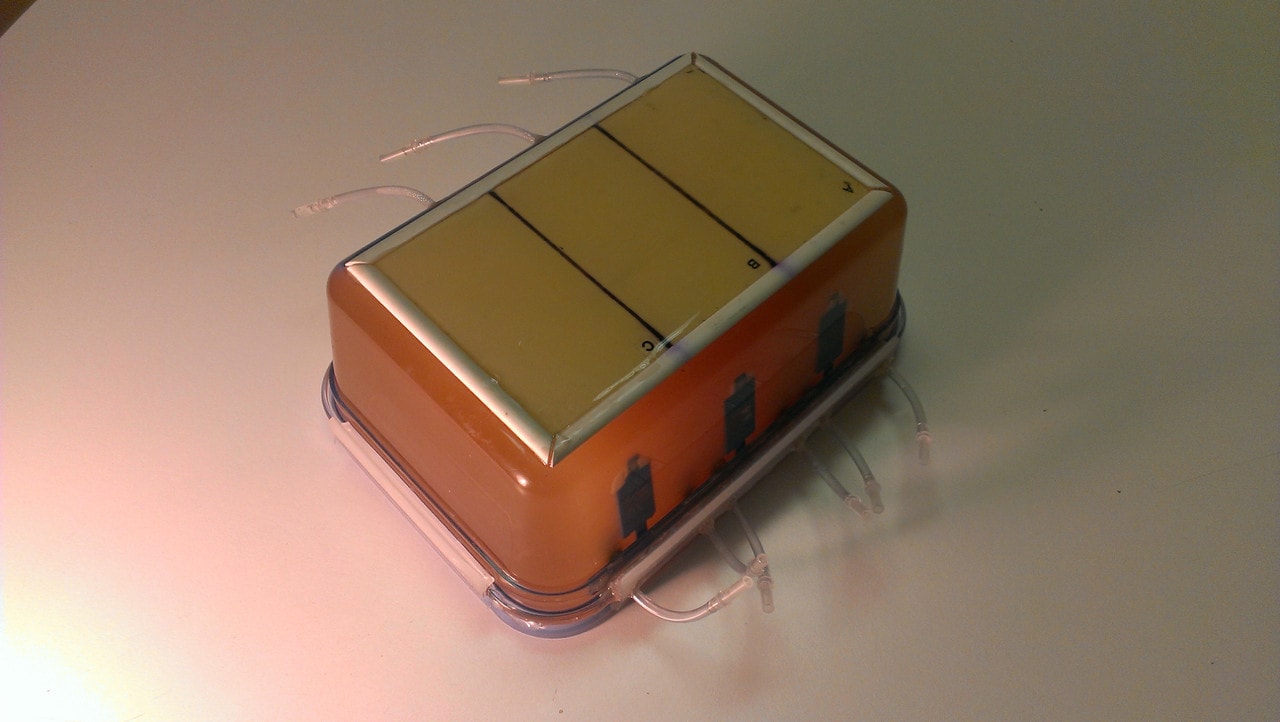

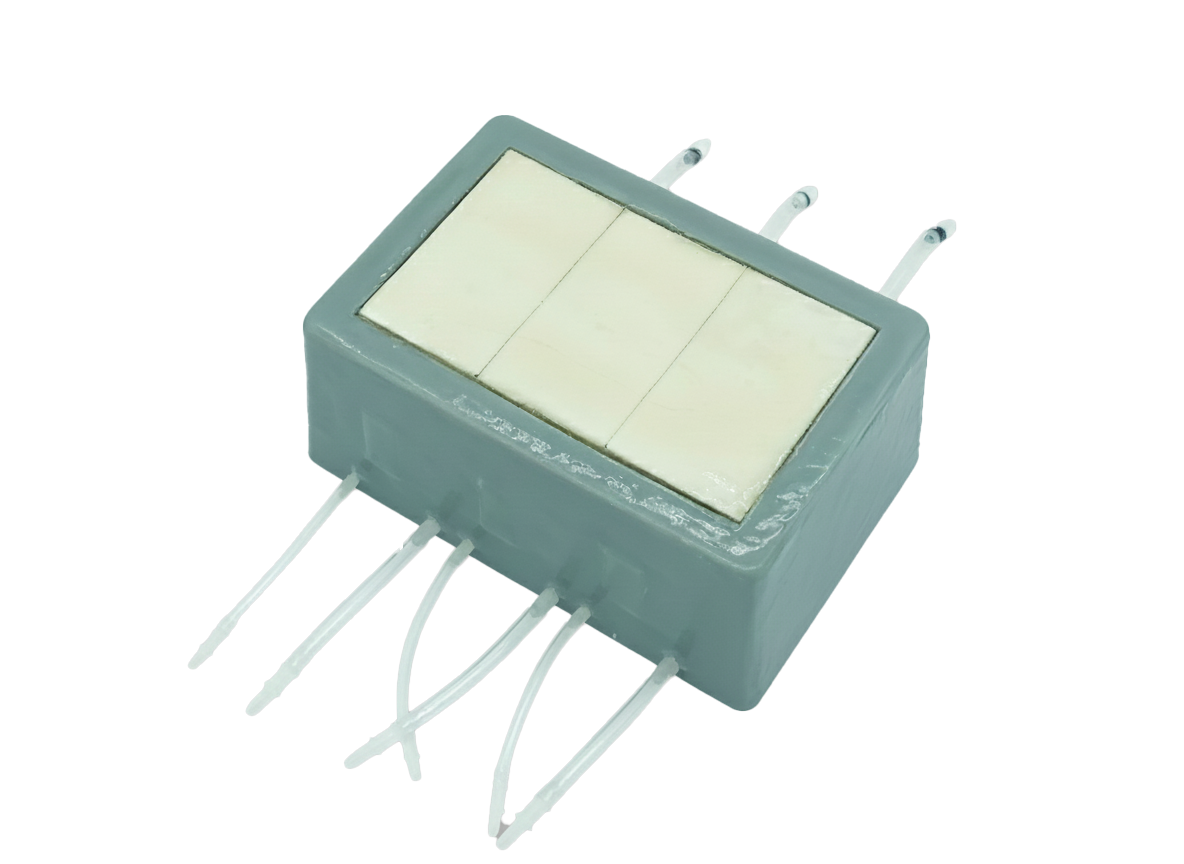

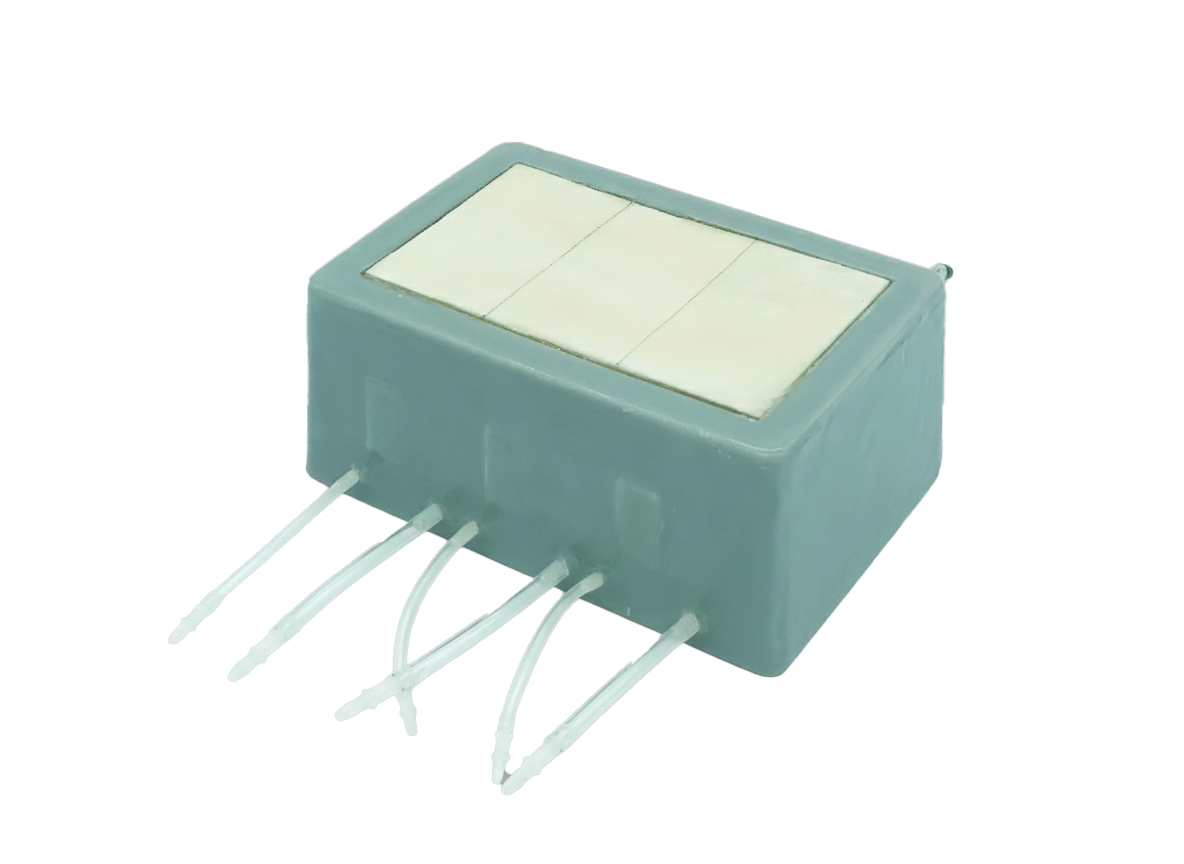

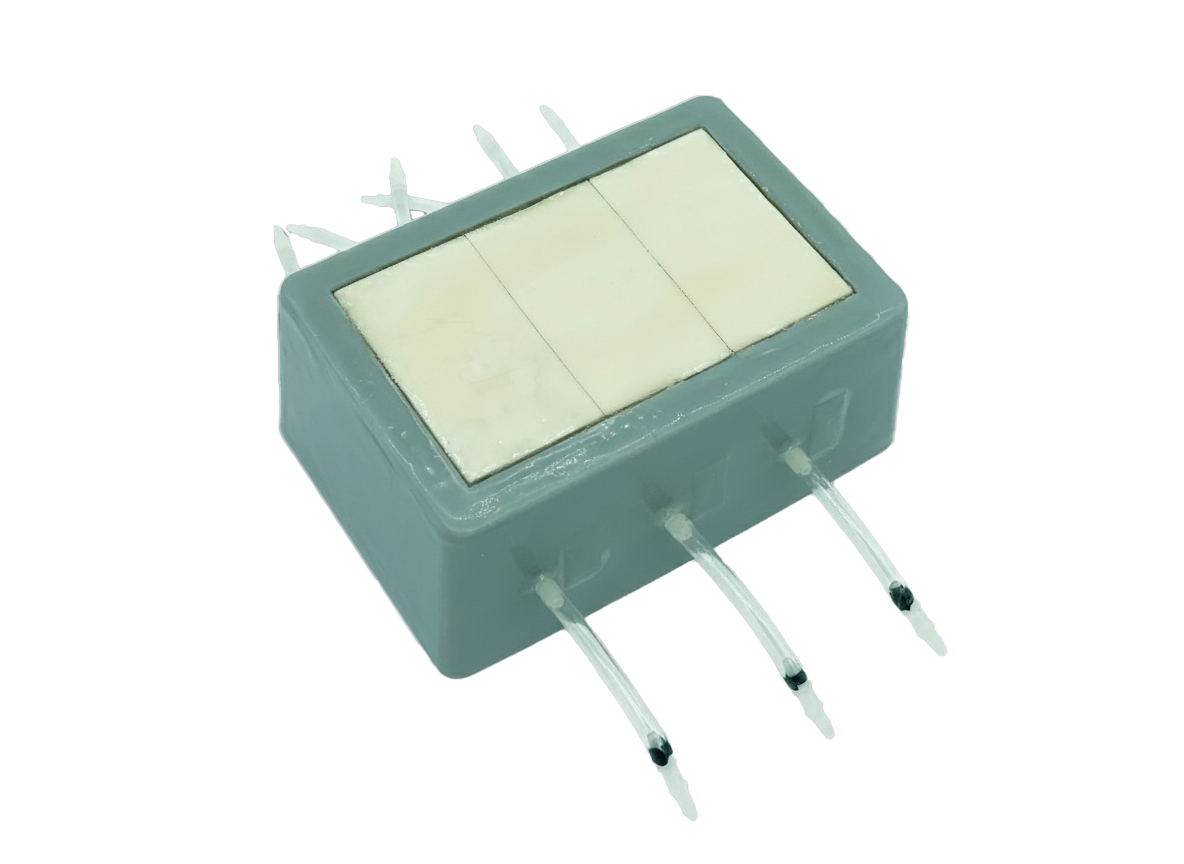

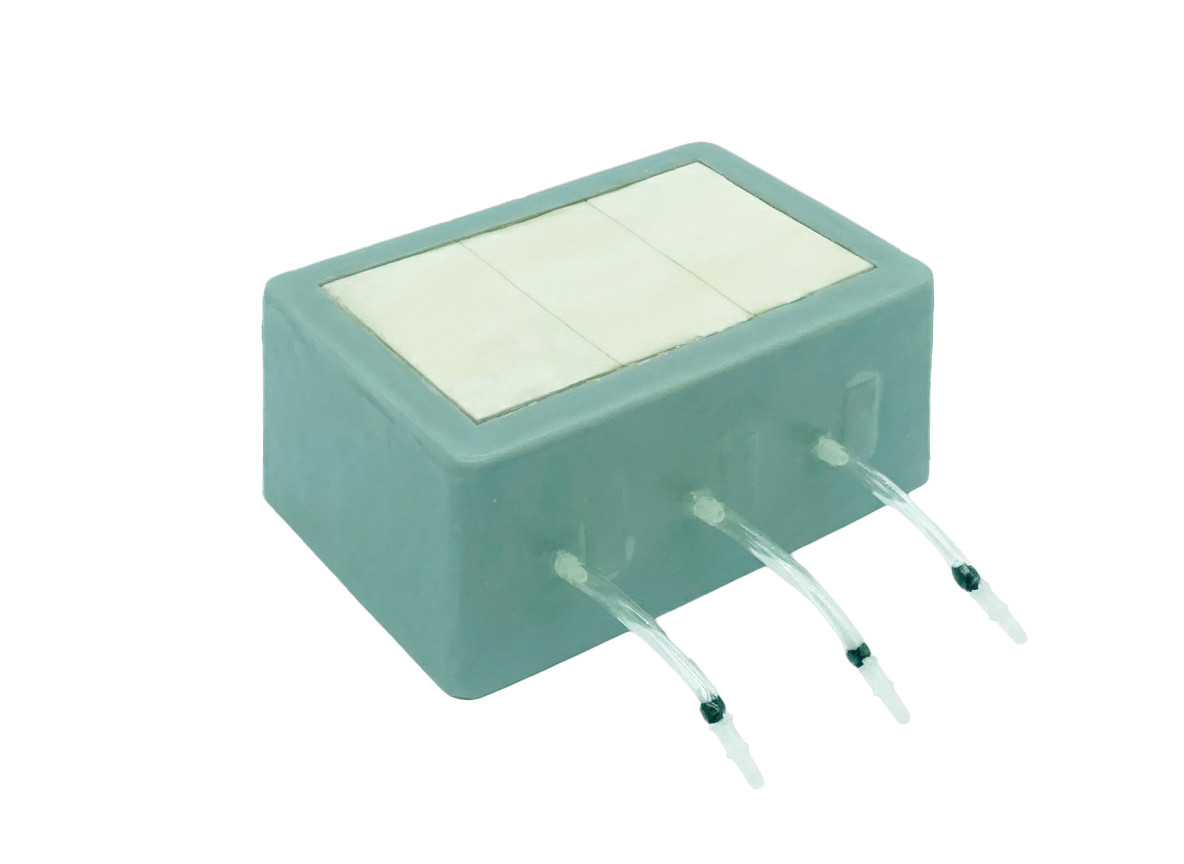

Doppler Phantoms are used for medical imaging research and development, training, and testing purposes. The bone plate installed on the top of this phantom mimics the skull bone, which in this case simulates only the 2D projection of the skull with a realistic internal porosity structure. The internal blood vessels can be filled either with water or with most of the commonly used blood-mimicking fluids.
The phantom can be customized in multiple ways to suit the needs of a wide variety of applications.
Anatomy features:
- Partial skull phantom with a customized thickness;
- Filling the phantom with the acoustically correct brain mimicking material

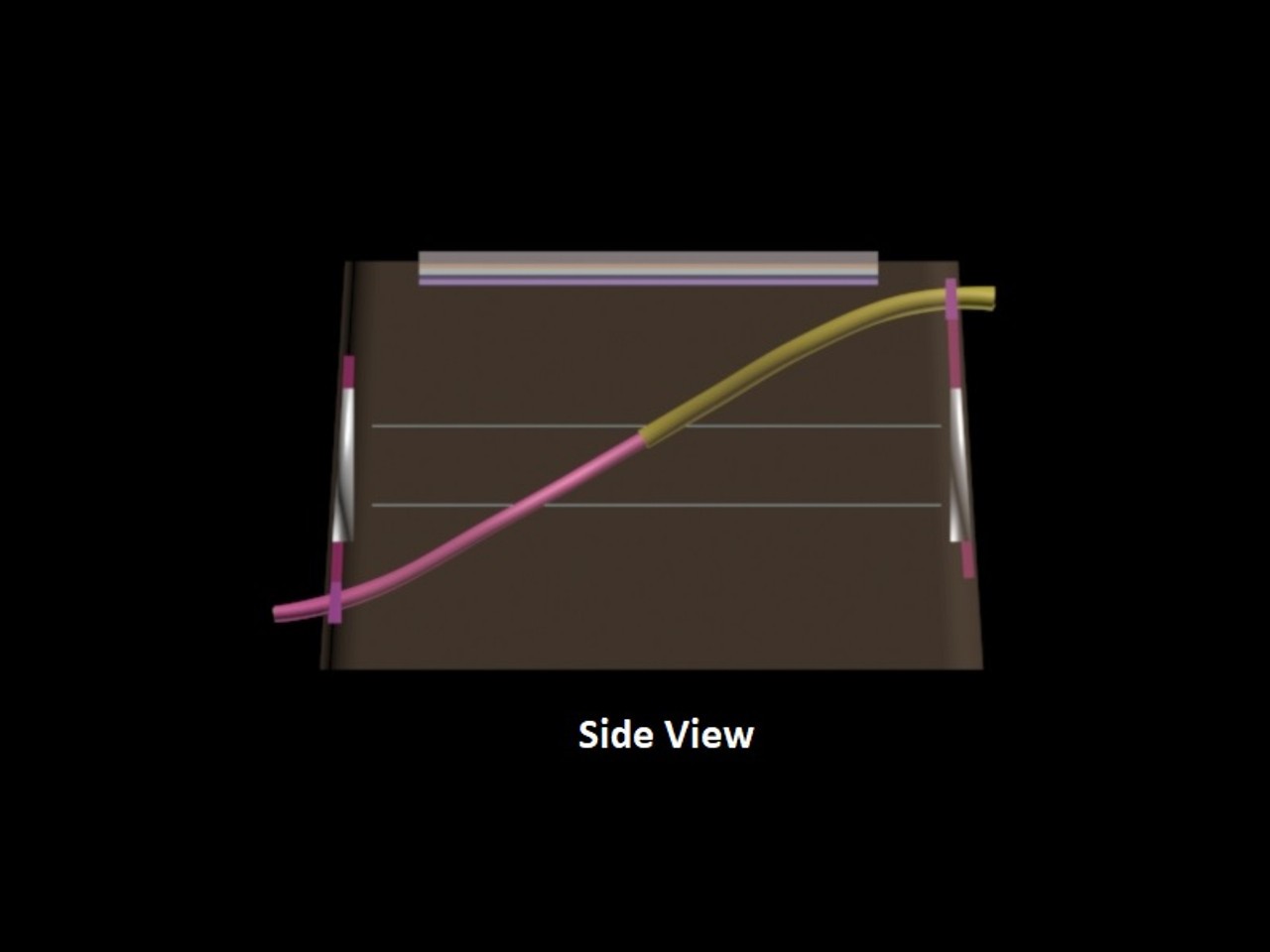

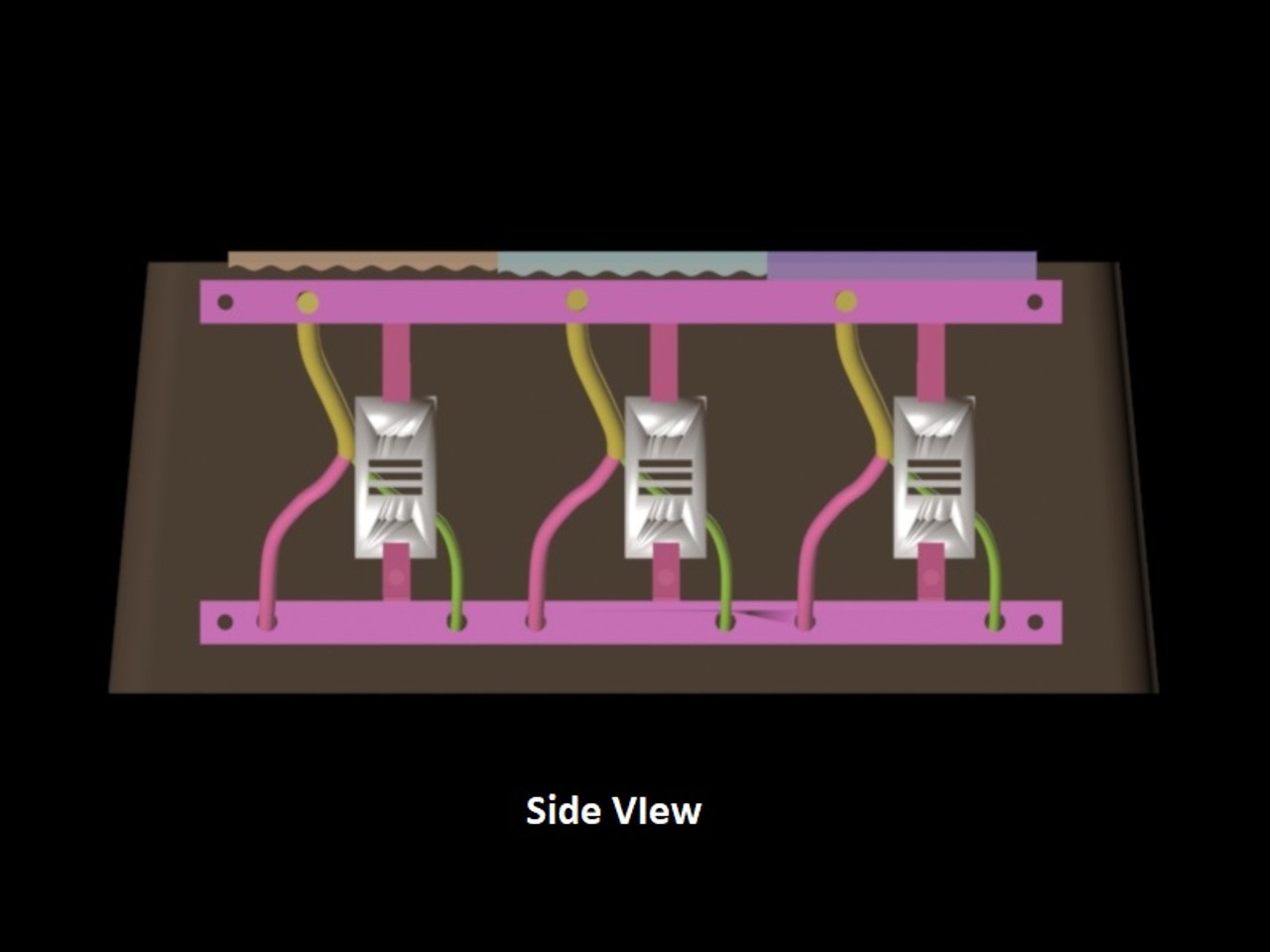

- Custom blood vessels
- Standard tubes and connectors connected to the custom vessels
- Incorporating the phantom within a standard compact box
- Implementing a thin film on top of the phantom
- Custom target wires
Dimensions
- Phantom Size: 8 x 6 x 4 in.
- Phantom Weight: 1 lbs. (approx)
- Shipping Size: 12 x 10 x 10 in.
- Shipping Weight: 6 lbs. (approx)
| Type of tissue phantom | Sound velocity [m/s] | Density [g/cm3] | Attenuation measured at 2.25 MHz [dB/cm] |
| Cortical bone material used to fabricate the skull bone phantoms | 3000 ± 30 | 2.31 | 6.4 ± 0.3 |
|
Trabecular bone material used to fabricate the trabecular layer within the bone phantoms |
2800 ± 50 | 2.03 | 21 ± 2 |
|
Brain matter |
1400 ± 10 | 0.99 | 1.0 ± 0.2 |
| Skin tissue | 1400 ± 10 | 1.02 | 1.7 ± 0.2 |
Properties of the Simplified Phantom:
| Section number | Cortical outer thickness [mm] | Trabecular thickness [mm] | Cortical inner thicness [mm] | Total thickness [mm] | |
|
A |
1.5 ± 0.2 | 1 ± 0.2 | 1.0 ± 0.2 | 3.5 ± 0.2 | |
| B | 1.5 ± 0.2 | 2 ± 0.2 | 1.0 ± 0.2 | 4.5 ± 0.2 | |
| C | 2.5 ± 0.2 | 3 ± 0.2 | 1.0 ± 0.2 | 6.5 ± 0.2 | |
