Newborn Torso for X-Ray CT, US
Product Description

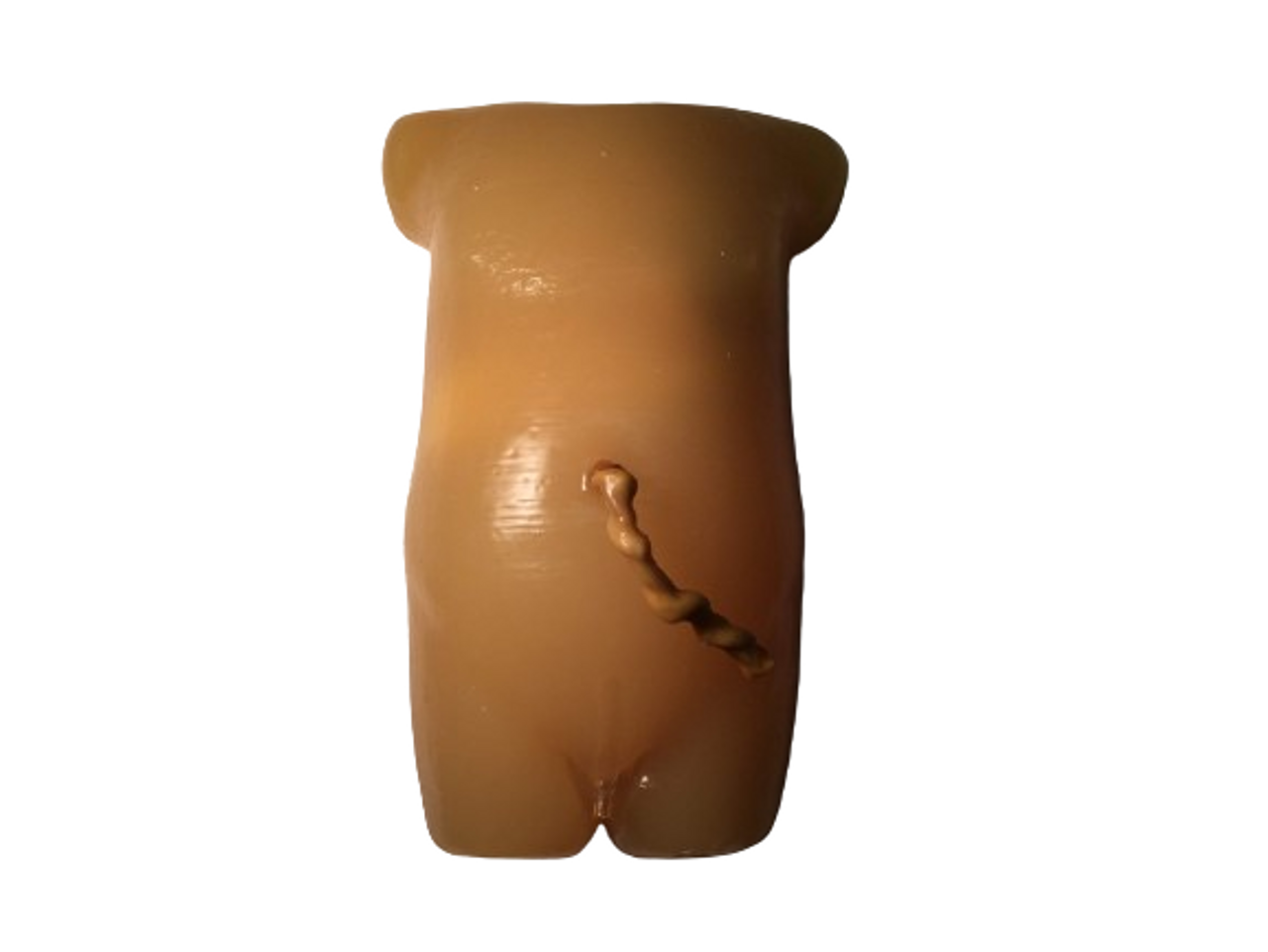

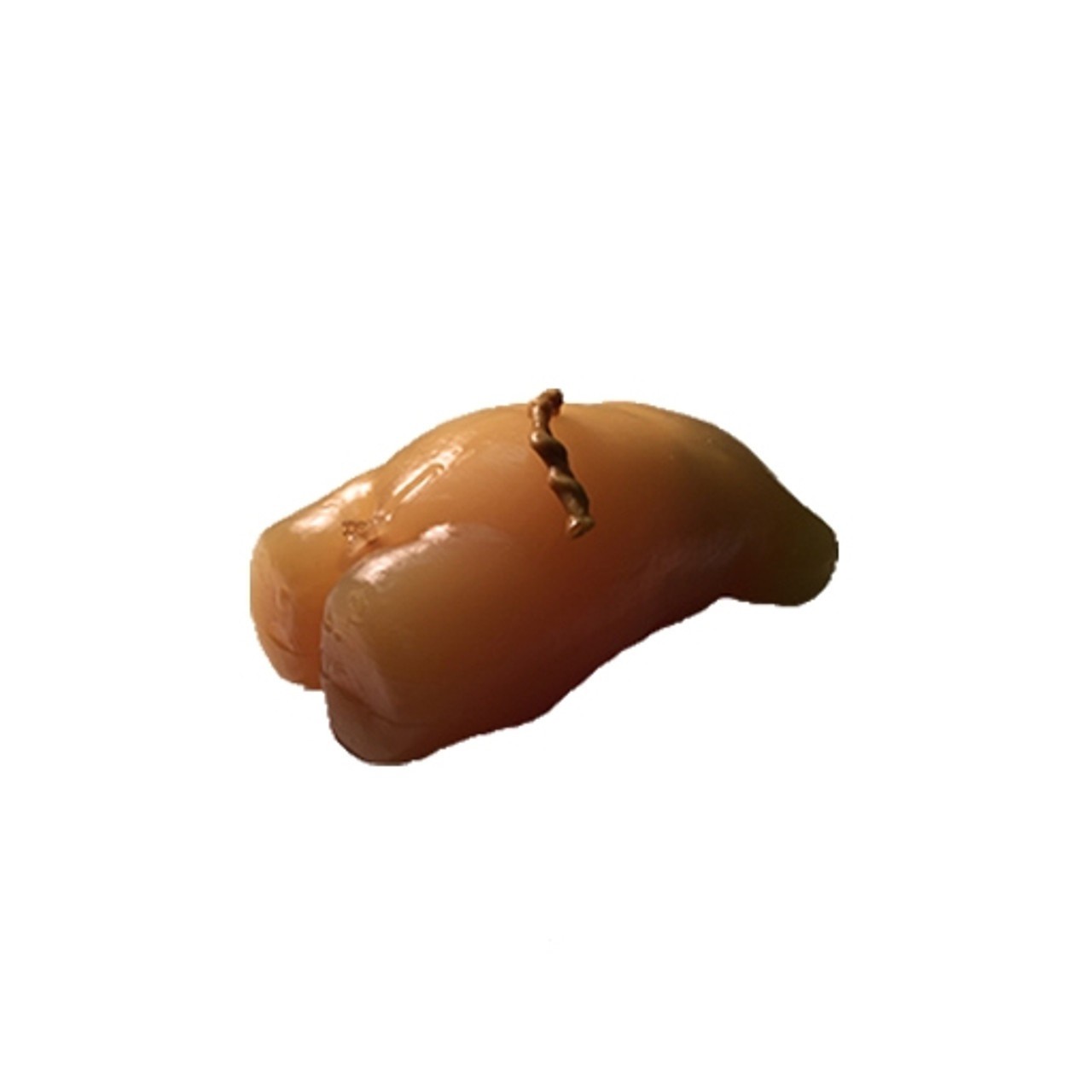

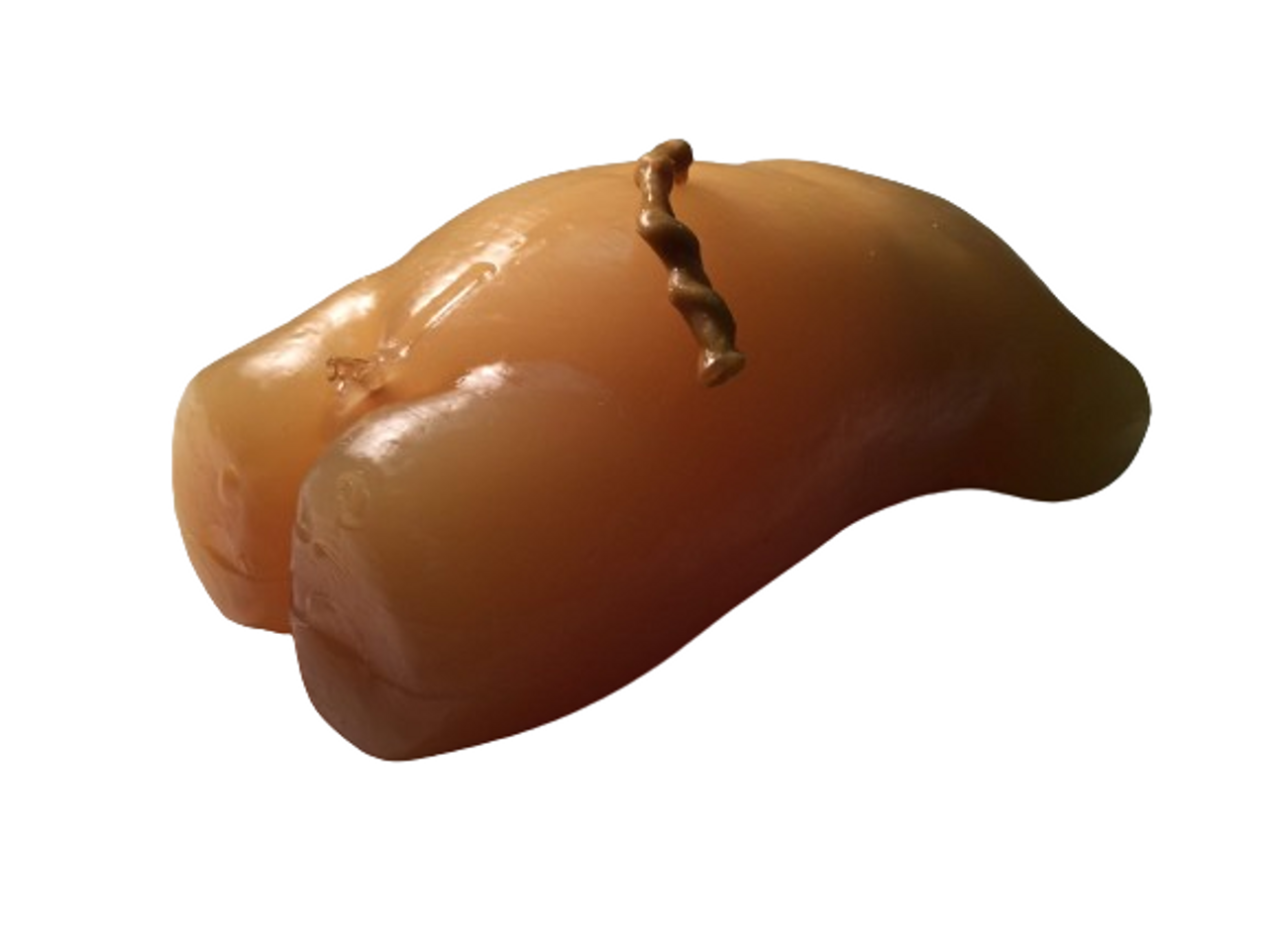

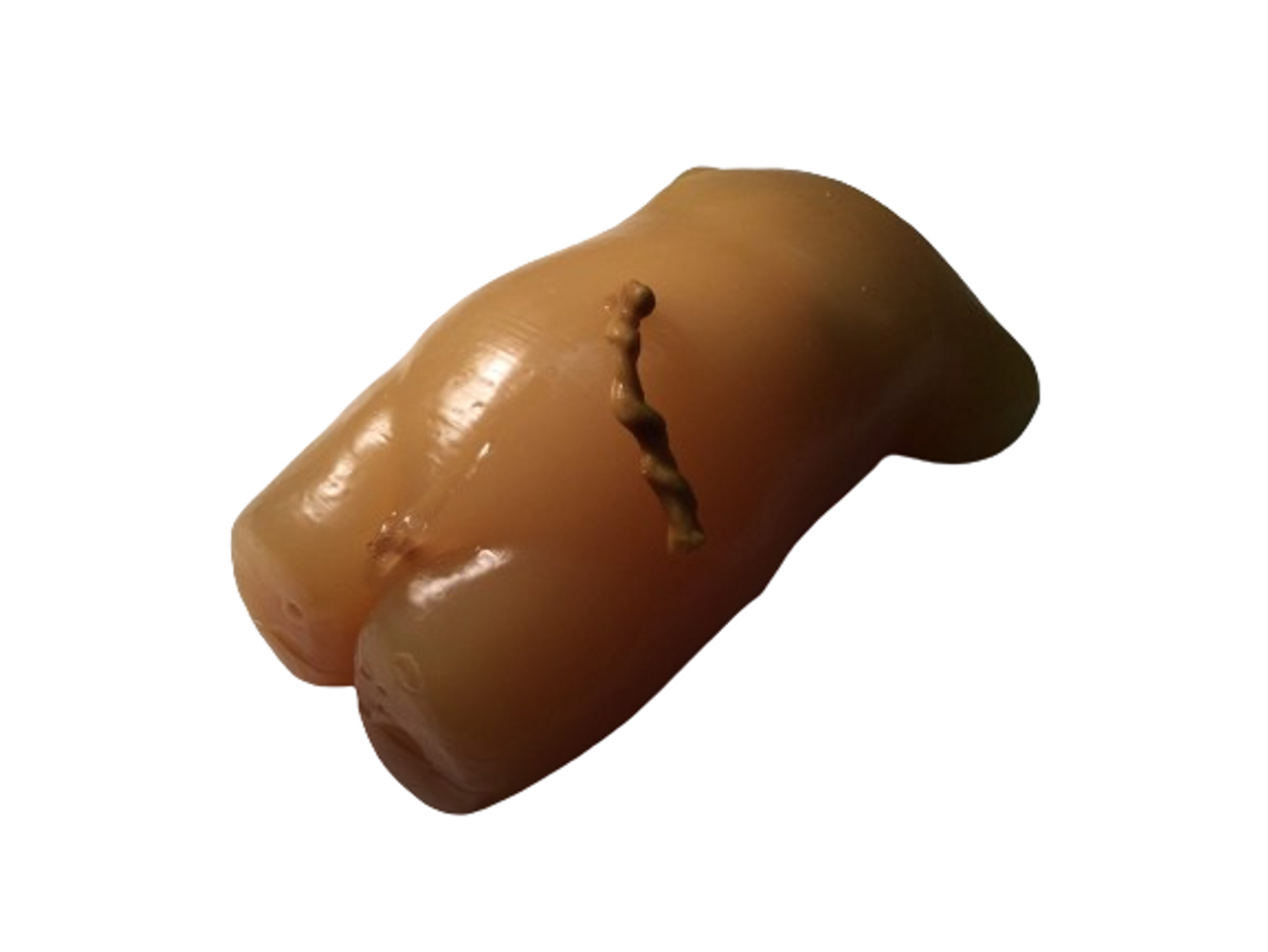

The Newborn Torso phantom was developed in collaboration with the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program at the University of Calgary. This simulator is a vital tool for training in Ultrasound-guided procedures, including bladder catheterization and catheter insertion through the umbilical cord. It is constructed from realistic tissue-mimicking resins optimized for Ultrasound and X-Ray/CT imaging methods.
Designed based on the average anatomy of a newborn, the phantom features realistic internal organ positioning and tissue properties, including ultrasound speckles for a lifelike scanning experience. The water-fillable umbilical cord and bladder allow for practical, hands-on training for medical practitioners and students in a pediatric context.

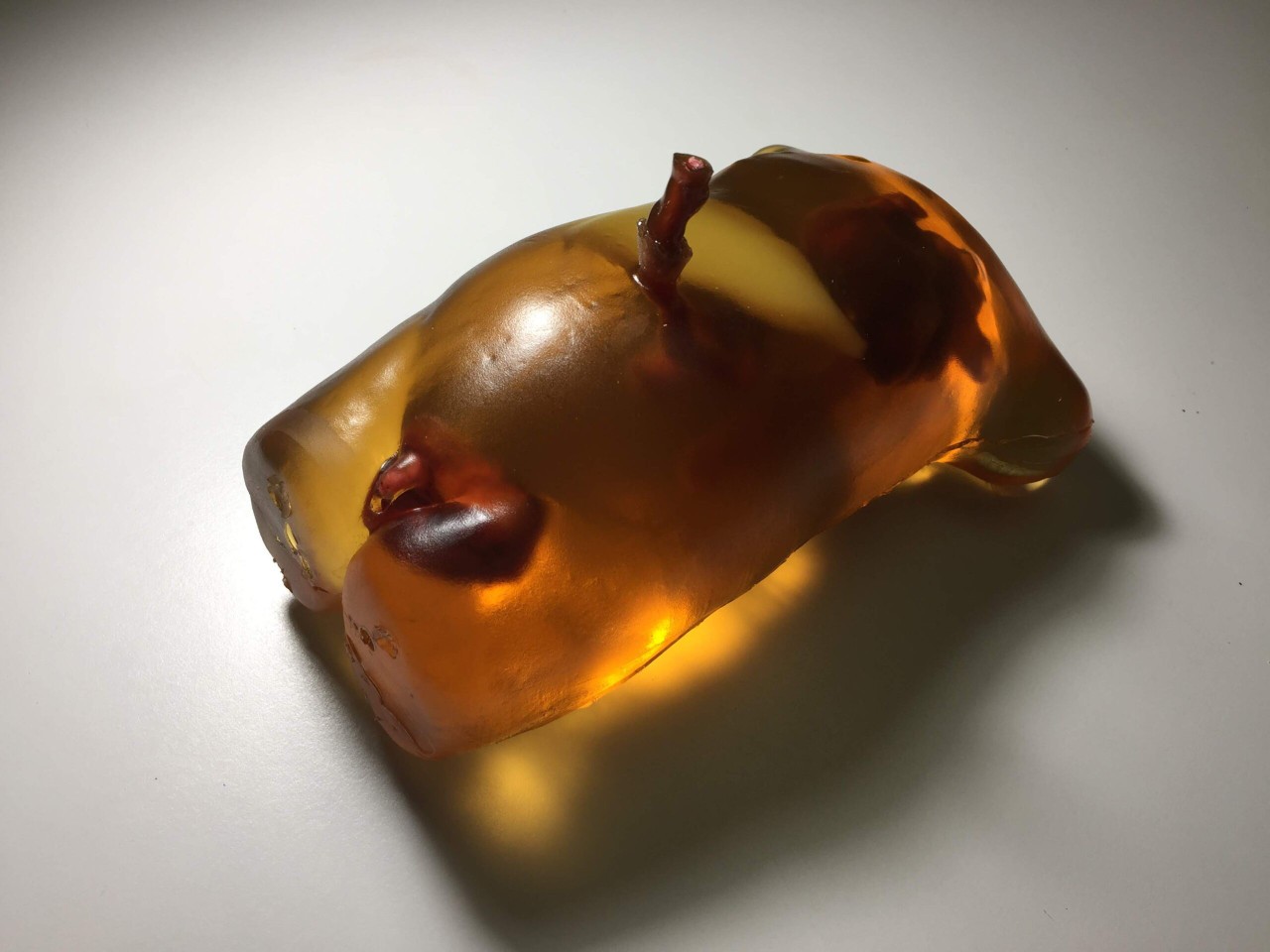

Note: By default, the phantom comes in a translucent amber appearance. An opaque skin feature can be achieved upon request. This product is fully customizable to meet specific research or training requirements.

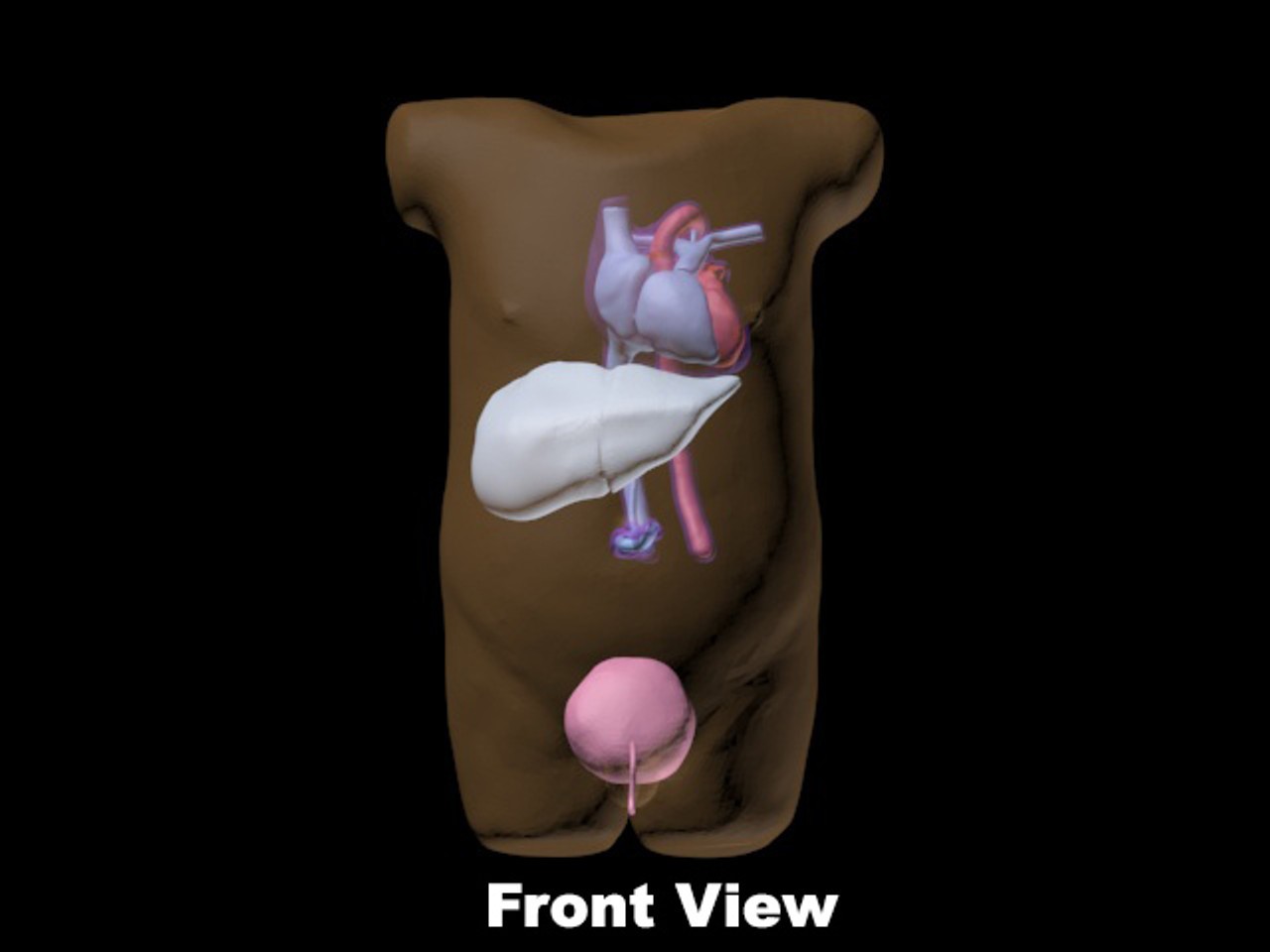

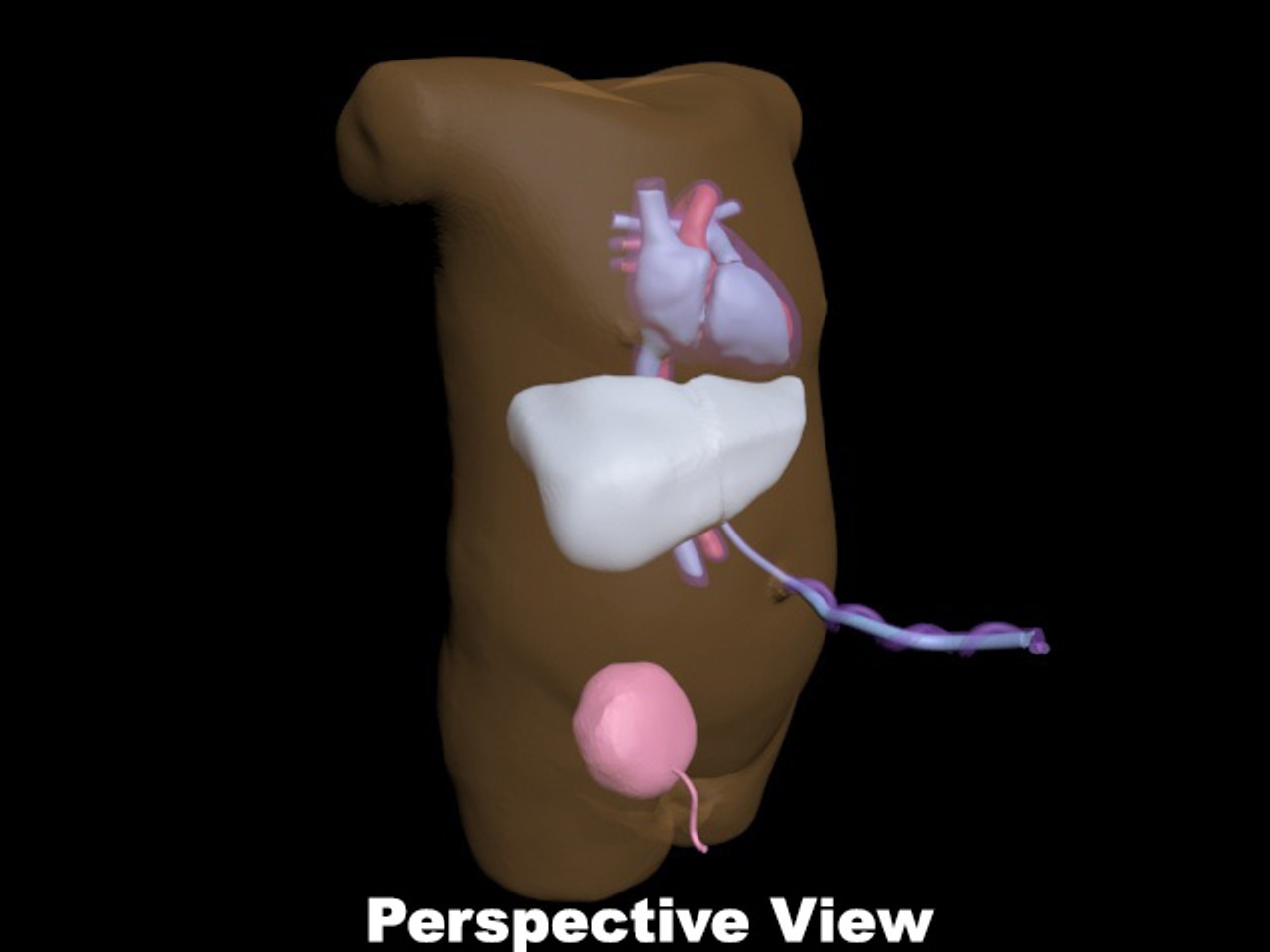

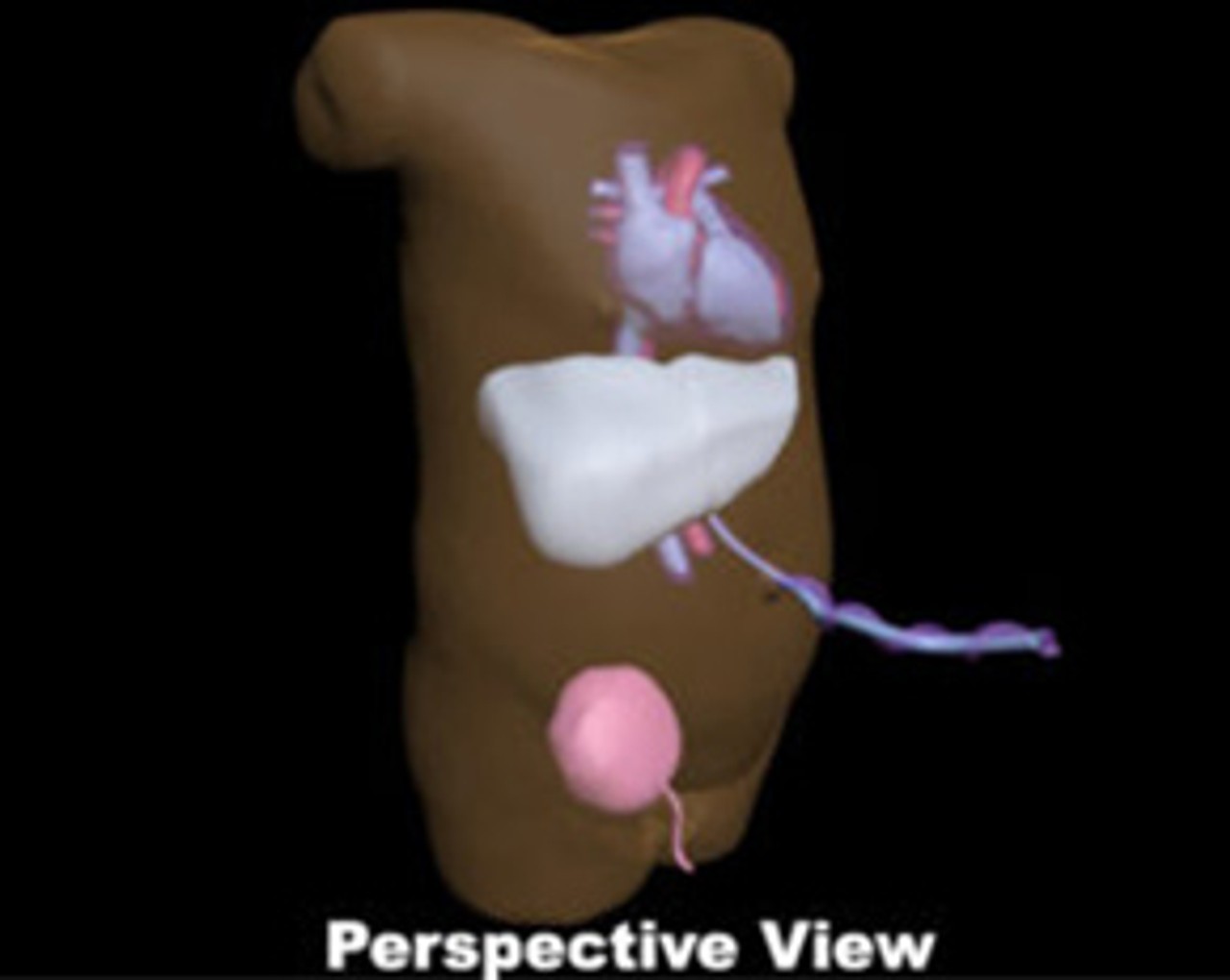

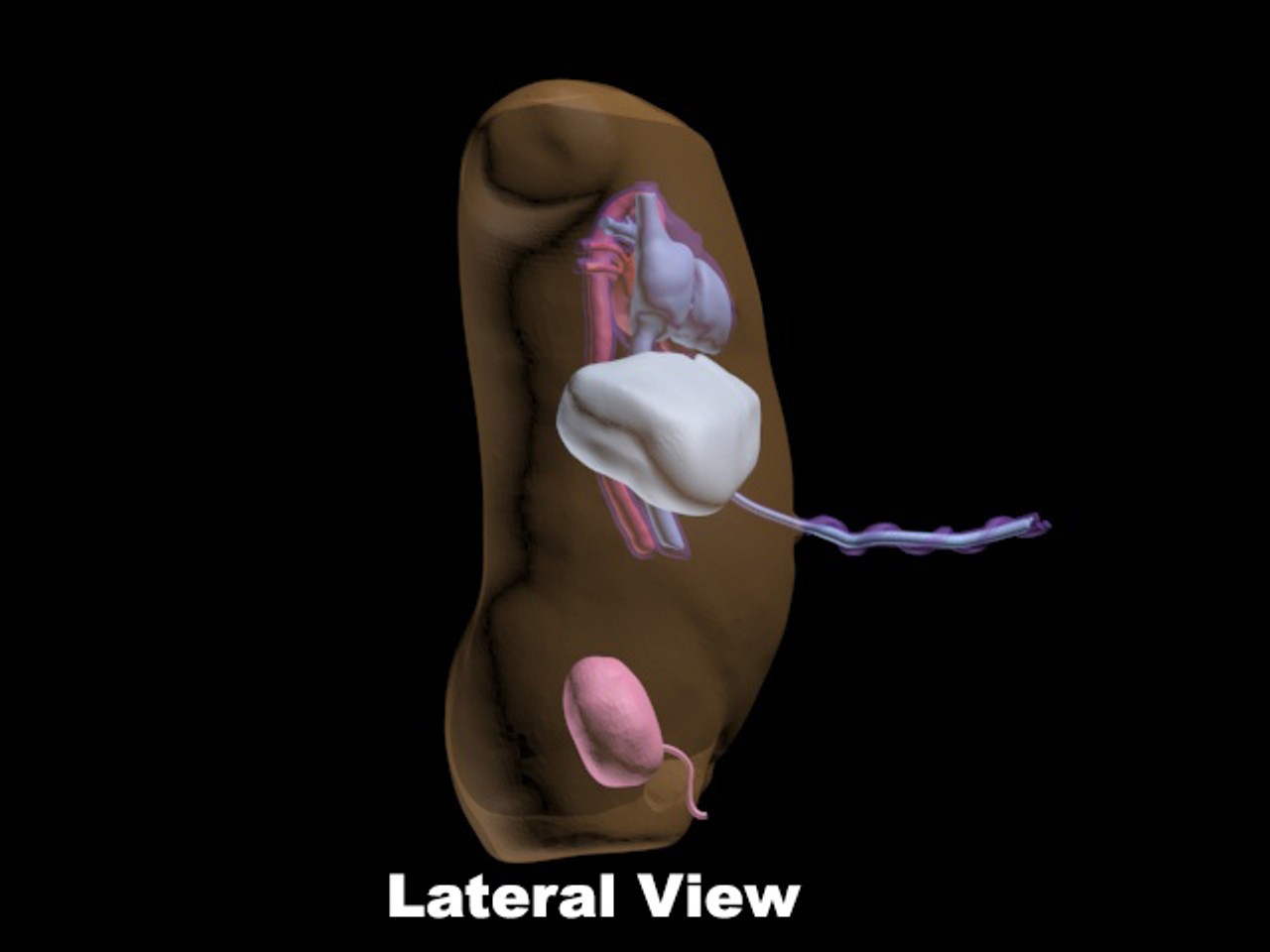

Anatomy
- Heart
- Aorta
- Inferior Vena Cava
- Water-Fillable Umbilical Cord
- Liver
- Water-Fillable Bladder
- Realistic Body Tissue
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 |
| Organs without Speckles | 1400 ± 10 | 0.99 | 20 | 70 | NO | 1.0 ± 0.2 |
| Body Tissue | 1410 ± 10 | 1.00 | 30 | 65 | NO/LOW | 1.2 ± 0.2 |
HU Values (Averaged)
| S.No. | Tissue Type | HU Value (Average) |
|---|---|---|
| 1 | Body Tissue | -25 |
| 2 | Aorta / IVC / Heart | 40 |
| 3 | Bladder | 35 |
| 4 | Liver | 110 |
Included in Order
- Newborn Torso Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 6 x 5 x 9 Inches | Weight: ~4 Lbs
Shipment: 16 x 12 x 10 Inches | Weight: ~8 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
Imaging Scans
Ultrasound Image Scans
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
