Rat Phantom (Anatomical) for X-Ray CT, US
Product Description
The Rat Phantom (Anatomical) is designed based on the average anatomy of a rat or mouse. It is a powerful tool optimized for X-Ray/CT and Ultrasound imaging, making it ideal for testing and calibration-related work for various medical imaging devices. This phantom is highly versatile and can be customized with extra chambers or features to meet the specific needs of bio-medical research projects.

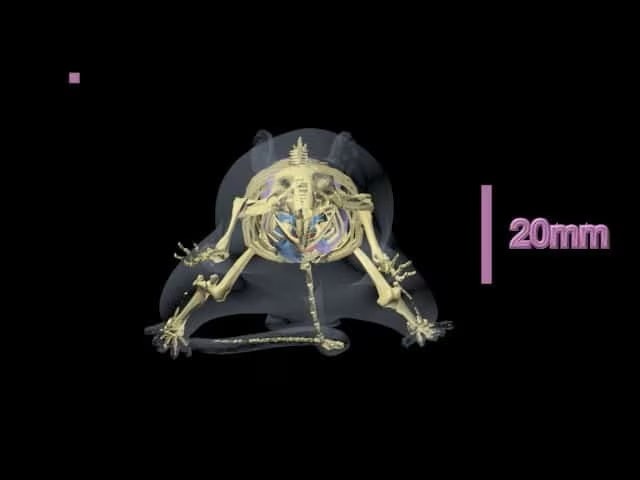

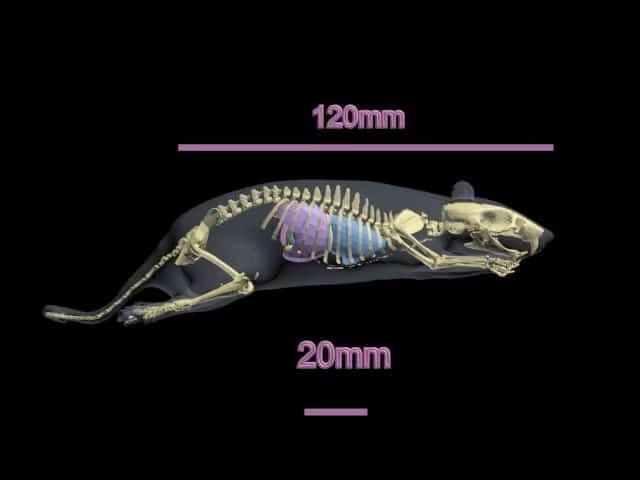

The model features a complete skeleton and a realistic suite of internal organs. The size, shape, and internal properties of the phantom can be modified upon request to excel in a selected imaging application. It uses patented synthetic bone material and realistic urethane-based soft resins to mimic the acoustical and physical properties of real biological tissues.

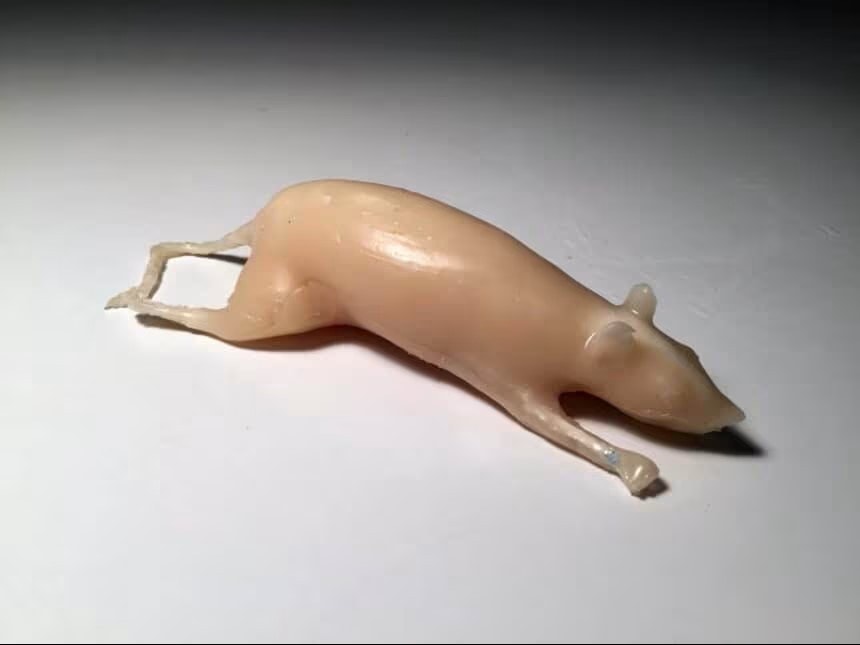

Note: By default, the phantom comes in a translucent amber appearance. An opaque version or a skin feature can be included upon request. A model compatible with MRI is also available (SKU: RT-A01).
Anatomy
- Complete Rat Skeleton
- Heart
- Lungs
- Diaphragm
- Liver
- Kidneys
- Pancreas
- Spleen
Technical Properties
| Type of Tissue | HU Value | Density [g/cm³] | Hardness [Shore OO] | Speed of Sound (m/s) | Attenuation (dB/cm @ 2.25 MHz) |
|---|---|---|---|---|---|
| Soft Tissue | -15 | 1.01 | 35 | 1415 | 1.3 |
| Bones | 1300 | 2.31 | N/A | No Data | No Data |
| Lungs | -900 | 0.13 | N/A | N/A | N/A |
| Organs | 110 | 1.01 | 20 | 1435 | 1.0 |
Included in Order
- Rat (Anatomical) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 7 x 3 x 2 Inches | Weight: ~1 Lb
Shipment: 10 x 8 x 6 Inches | Weight: ~3 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
Imaging Scans

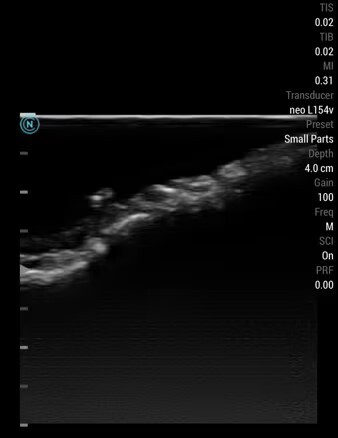

Ultrasound Image Scans
