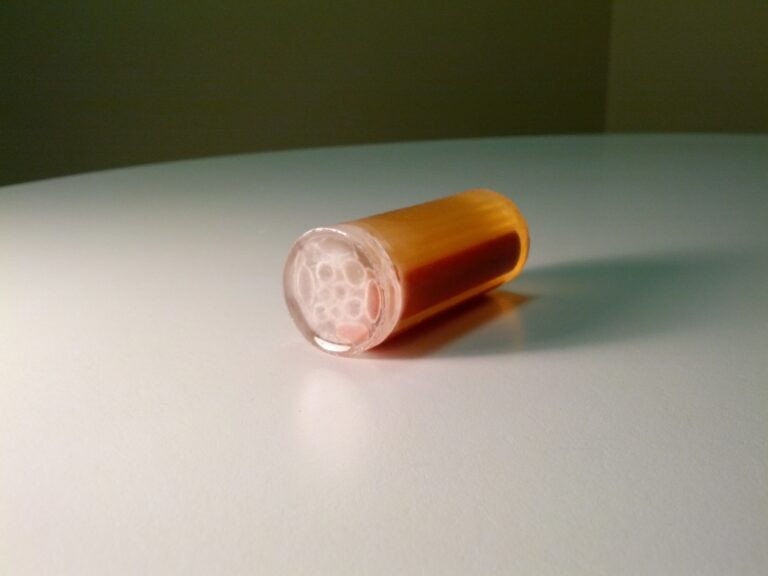

Rat Phantom (Cylindrical) for X-Ray CT, US
Product Description
The Rat Phantom (Cylindrical) is a specialized tool designed specifically for Research & Development applications. Its precise cylindrical shape, measuring 27 mm in diameter and 70 mm in height, mimics the dimensions of small laboratory animals such as mice. This phantom is a durable and stable platform for testing and calibrating medical imaging devices optimized for X-Ray/CT and Ultrasound.
The model contains five distinct tissue types with tailored ultrasonic properties, including varying levels of echogenicity and attenuation. The materials are engineered from synthetic resins to maintain stability over long periods. This phantom is modular, allowing for customization of size, shape, and internal anatomical features based on specific biomedical research requirements.
Note: The "Soft Body Tissue" in this phantom is translucent and designed with no ultrasonic speckles to provide high optical transparency and improved imaging results.
Anatomy & Features
- Soft Body Tissue: Translucent with no ultrasonic speckles.
- Organs/Objects without Speckles: Low ultrasound echogenicity; appears dark on ultrasonic images.
- Organs/Objects with Speckles: Stiffer and more echogenic than surrounding tissue (e.g., muscles).
- Cartilage Tissue: Stiff and significantly more attenuative than other organs.
- Soft Organs with Speckles: Soft organs with high speckle levels and low attenuation (e.g., kidneys, liver).
Technical Properties
| Tissue Type | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|
| (#1) Transparent | 1400 ± 10 | 1.01 | 30 | NO | 1.3 ± 0.2 |
| (#2) Transparent | 1400 ± 10 | 1.03 | 60 | NO | 1.8 ± 0.2 |
| (#3) Red | 1400 ± 10 | 1.04 | 60 | YES | 1.8 ± 0.2 |
| (#4) Cartilage | 1850 ± 10 | 1.06 | 85 | NO | 30 ± 2 |
| (#5) Non-Transparent | 1400 ± 10 | 1.00 | 20 | YES | 1.0 ± 0.2 |
Included in Order
- Rat (Cylindrical) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 1 x 1 x 3 Inches | Weight: ~1 Lb
Shipment: 10 x 8 x 6 Inches | Weight: ~3 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
- Synthetic bones/cartilage: Patented ceramic-reinforced urethane-based composite material.
