Anatomy Lab All-purpose Pediatric Care Simulator

(1 review) Write a Review
SKU:
A-106722
UPC:
646819824255
Availability:
Limited Stock Available, Order Now
  • Anatomy Lab All-purpose Pediatric Care Simulator
  • Anatomy Lab All-purpose Pediatric Care Simulator
  • Anatomy Lab All-purpose Pediatric Care Simulator
Retail Price $2,330.00
Today's Price $1,979.00
— You save $351.00
Frequently bought together:

Description

Outline

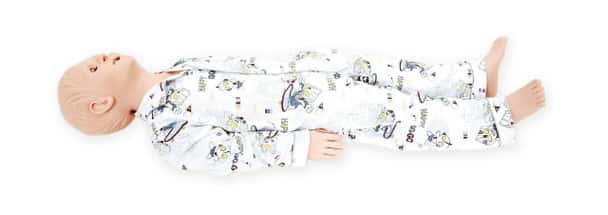

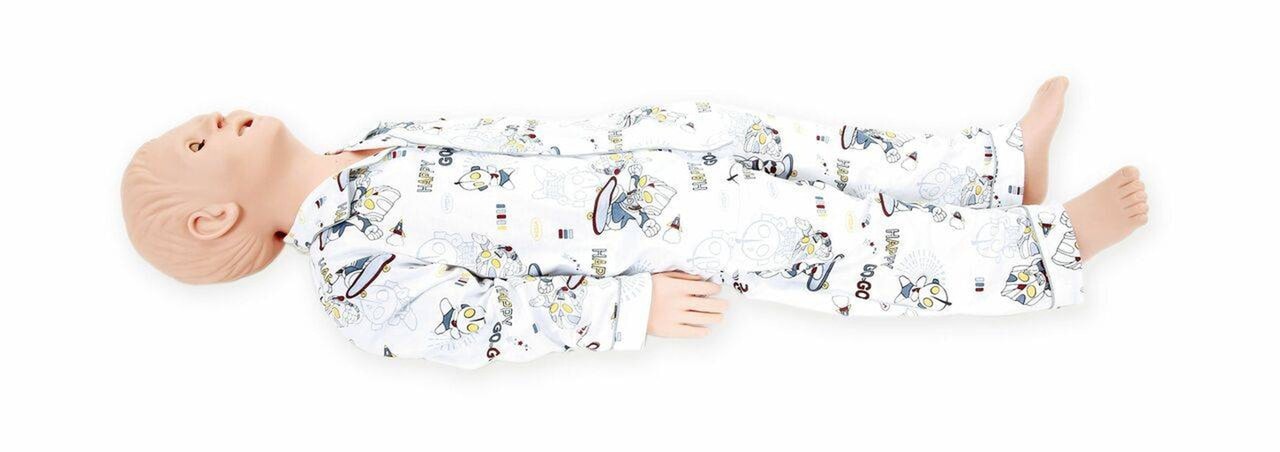

This simulator is a 5 Year Old Multipurpose Patient Care simulator allows to take advanced simulation and remains fully functional.

Skills Gained

  • Practice of IV puncture with realistic "pop"; and blood backflow
  • Catheterization
  • Enema administration
  • Practice of body enswathement, scouring bath and changing clothes
  • Care and medication on ocular region
  • Oral hygiene, auditorius scour
  • Tracheotomy care, finger stick
  • Intramuscular injection

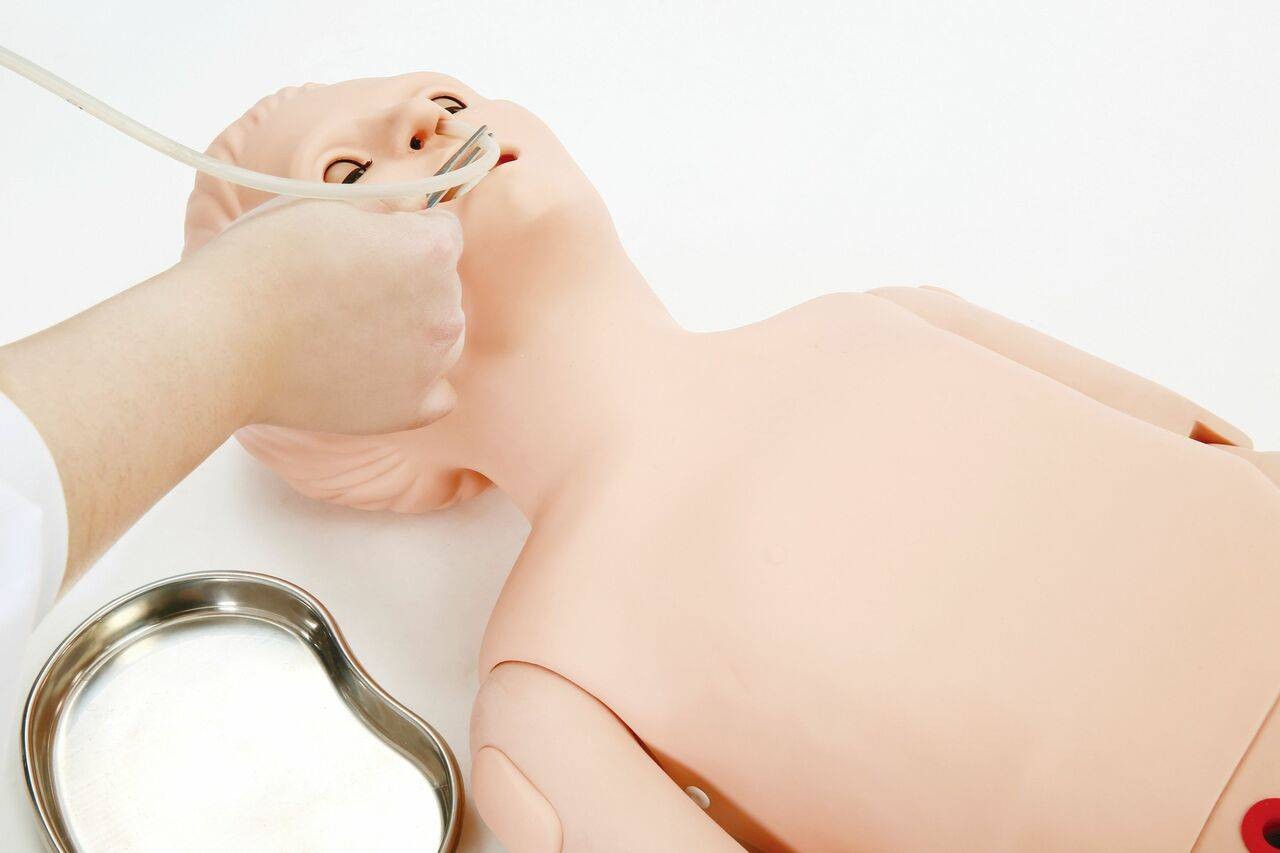

  • Placement of nasal and oral gastric tubes, TB experiment

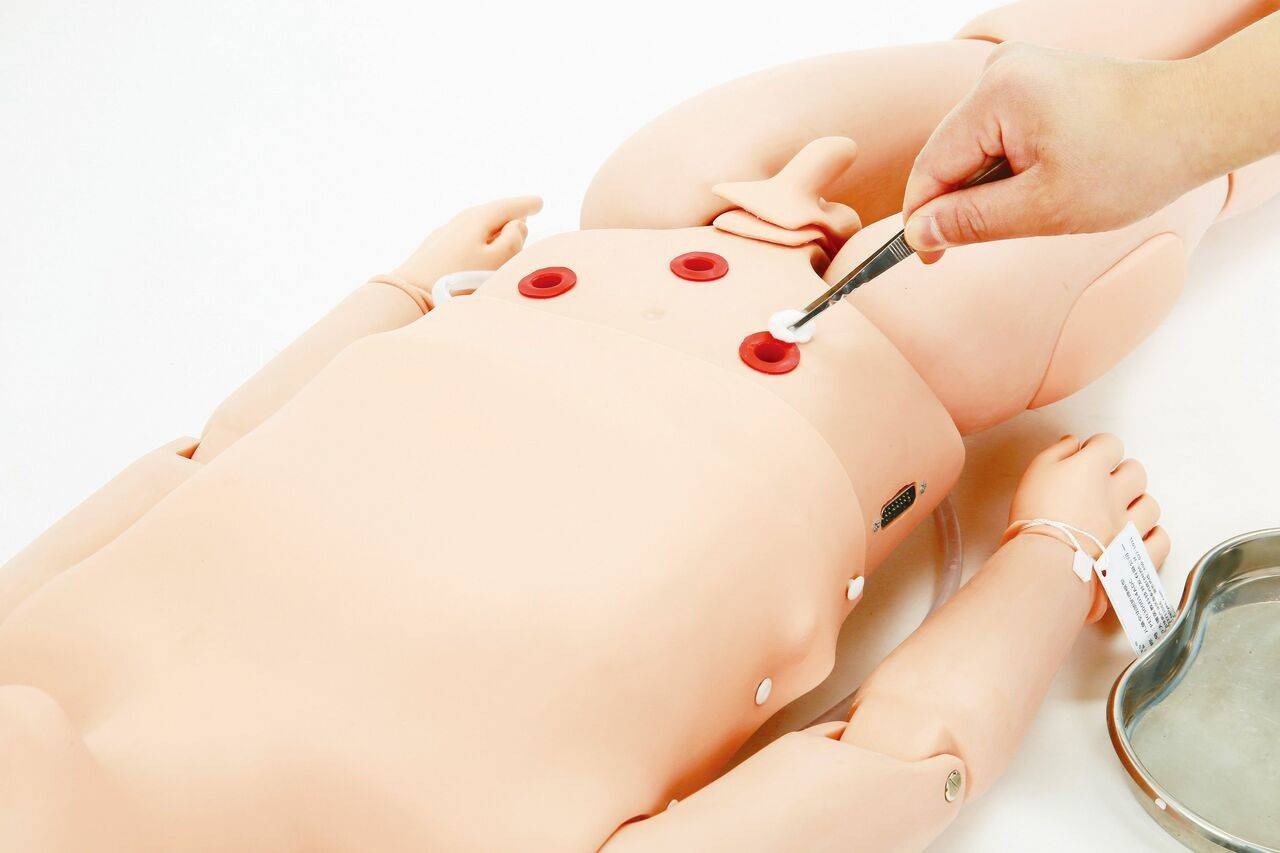

  • Colostomy and ileotomy care
  • Venipuncture training, intraosseous injection

Features

  • Anatomy: Anatomical structure includes: blinking eyes, teeth, tongue, canals auricularis, tracheotomy wound, elbow vein and antebrachium vein, abdominal wall, ileostomy, vastus lateralis, male/female organs, anus, stomach, lungs, bladder
  • Realism:
    • Active joints in various decubitus positions include: cervical vertebra, shoulder joint, elbow joint, wrist joint, hip joint and knee joint
    • Inside organs include stomach, lung, bladder and intestinal bag
    • Interchangeable male and female pudendum
  • Key Features:
    • IV training arm with realistic "pop";and blood backflow
    • BPSim module (Optional)
      • Non-invasive blood pressure can be measured with real BP monitor; stethoscope included Korotkoff sound
      • Pressure value is displayed through dynamic mmHg, value can be precisely set to 1mmHg
      • Systolic blood pressure, diastolic blood pressure, volume and pulse rate can be set. Adjustable range: 0-300mmHg
      • Systolic & diastolic pressure, volume and heart rate can be displayed on the LED screen simultaneously
      • Automatic calibration, low power consumption. The system will shut down after 10 mins of non-operation. Battery can be used for at least 1 semester
    • AUDSim module (Optional)
      • 54 normal and abnormal heart sounds (14), breath sounds (13) and bowel sounds (6),as well as patient's voice (21) for selection
      • User-friendly interface, easy to operate
      • 5 different kinds of sounds can be played at the same time and at any combination with corresponding status showing on the screen
      • Multi-language interface (Chinese and English)
      • Earphone can be used for self-study. Teacher can use sound box to broadcast sounds to demonstrate. There is also a speaker inside the simulator
      • 5V DC power supply

Specifications
Packed weight: 33.2 lbs.
Dimensions: 44.2 in. x 20.2 in. x 9.6 in

Components:

  1. Pediatric Care Simulator
  2. Clothes
  3. Adapter
  4. 5V3A Power
  5. Instruction Manual
  6. 8# Catheter
  7. 14# Catheter
  8. 2ml Syringe
  9. 5ml Syringe
  10. 50ml Syringe
  11. Stethoscope
  12. Bottle type infusion device
  13. Liquid reservoir
  14. IV Arm
  15. BP Arm
  16. Pressure hemostasis in right upper
  17. Simulated calf
  18. Finger blood collection module
  19. Sphygmomanometer
  20. Blood Pressure Simulator
  21. Male genital
  22. Female genital

Q & A

Q: Can you intubate this Pediatric Care Simulator?
A: This simulator has nasogastric intubation, but not endotracheal intubation

View AllClose

Warranty Information

Anatomy Lab
Warranty Period: 1 Year
Reliable Realism

The Anatomy Lab’s mission is to provide quality, affordable models and medical task trainers to every client. The Anatomy Lab offers a One Year Warranty for all its products and extensive product support every step of the way, including product manuals and care instructions.

What the Warranty Covers

The Anatomy Lab is made for a range of applications, which is why we understand that accidents can happen. To ensure you have a product you can count on, whether you’re a beginner or professional, The Anatomy Lab Warranty covers a variety of matters:

  • If at any time during this warranty period your Anatomy Lab product does not live up to its guarantee of quality, we will repair or replace the model.
  • Here is what’s covered:
    • If your anatomical model or medical task trainer breaks or significantly degrades from normal everyday use, defined as:
      • Display, disassembly, and reassembly of parts designed to be removed from the product.
      • Functionality, such as blood draw, catheterization, irrigation, airway management and the like, utilizing parts and accessories included with the Anatomy Lab (or approved equivalent, such as correct gauge of needle, compatible mixtures, and medical devices).
      • Indoor use without extreme exposure to UV light, heat or cold.
      • Care and storage in accordance with the Anatomy Lab Care & Maintenance Guide.
    • If your anatomical model or medical task trainer does not perform as described.
  • If you lose a part or hardware, we will help you find a replacement (shipping costs may apply).

Warranty Limitations

The Anatomy Lab stands by its products and is proud to know that clients use them in a variety of settings, including medical offices, in the lab and even in creative studios. Because this product fits a variety of applications, unfortunately, the warranty does have some limitations.

  • We cannot cover misuse, improper storage, mishandling, or mistreatment under warranty. Because we provide models for education and training, repurposing models for use outside of demonstration, such as mechanical testing, device validation, or other clinical applications outside of education, the warranty shall be voided. Examples include:
    • Dropping or abusing your product.
    • Improper cleaning or storage of your product.
    • Modifications to the product, such as markings, additional or negated hardware, drilling, cutting, or otherwise altering your anatomical model.
    • Utilizing unapproved accessories or devices, for example, incorrect size needles or catheters, or unapproved mixtures of solutions.
    • Improper assembly or use outside of medical simulation.
    • Excessive stress on functional parts, such as vertebral stress or joint over-extension.
  • Damage due to negligence, theft, property damage, or the like are not covered by The Anatomy Lab warranty.
  • While we will always be here to support you, we cannot provide customers with a return label for any products shipped to a location outside of the United States.

How to File a Warranty Claim

Our dedicated Customer Service team is available to help over phone, email or chat and we will work with you to find the most cost and time effective solution that suits your needs.

  • The best way to protect your purchase is to register your product online right when you receive it, so you never have to worry about losing the receipt or contacting us outside of the warranty period. Visit this page to register your product under warranty. You will need to provide the following information:
    • First and Last Name
    • Email Address
    • Place of Purchase
    • Order Number
    • Date of Purchase
  • Customer must provide proof of purchase alongside any claim of defect, or warranty cannot be honored. This ensures the authenticity of the model.
  • Photographs must be provided when a warranty claim is made, indicating the defect in the model and the current condition of the model before it is retrieved by The Anatomy Lab.
  • All decisions regarding warranty matters shall be at the sole discretion of The Anatomy Lab or its Authorized Dealers.
View AllClose

Additional Information

View AllClose

1 Review

  • 5
    Nursing Aid Addition

    Posted by Drake P on Aug 8th 2019

    Nice new addition to our nursing lab. We previously had adult manikins for our students to practice on, but having a child manikin is a different thing all together. Not only are children harder to work on because of their size, but also the mentally. Having this model to practice on is a good segway to real life.
