Description
Adult Foot for X-Ray CT, US, MRI
Product Description

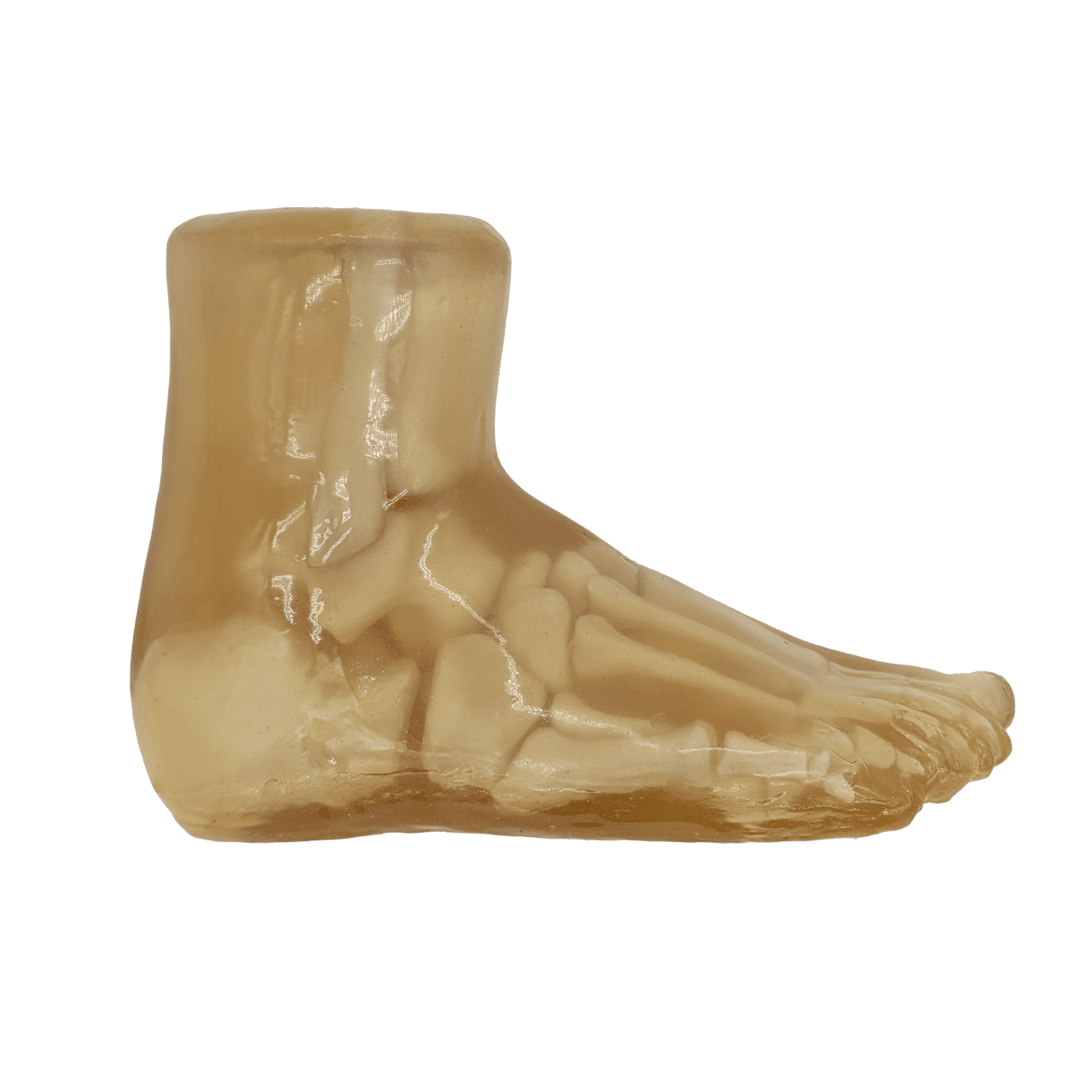

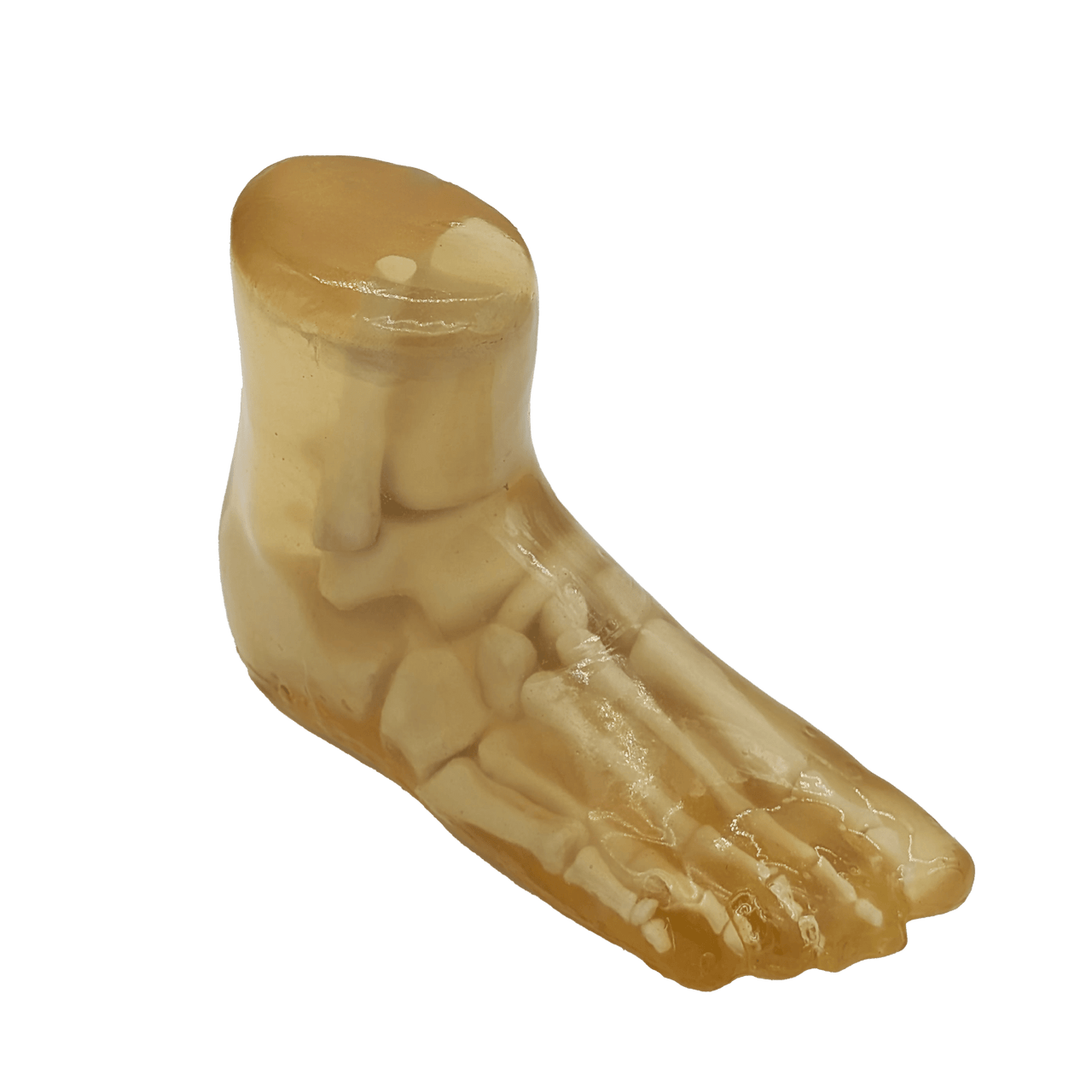

The Adult Foot phantom is designed based on the average anatomy of an adult human male foot. It features synthetic bones crafted from patented bone material and soft tissues made from realistic urethane-based tissue-mimicking materials. This phantom is an ideal tool for radiology training, medical imaging research, and orthopedic studies, supporting X-Ray/CT, US, and MRI imaging modalities.
The bones are individually cast by hand and assembled by expert technicians to ensure anatomical accuracy. The phantom can be scanned repeatedly across different modalities without any risk of radiation, making it a safe and durable tool for educational and testing purposes.
Note: By default, the phantom comes in a translucent amber appearance. An opaque skin finish can be included upon request.
Anatomy
- Partial Tibia
- Partial Fibula
- 26 Foot Bones
- Realistic Soft Body Tissue
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included in Order
- Adult Foot Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 3.6 x 9.5 x 5.9 Inches (9 x 24 x 15 cm) | Weight: ~2.7 Lbs (1.2 kg)
Shipment: 23 x 14 x 10 Inches | Weight: ~11 lbs
Materials Used
- Soft tissue components: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Customization
This product can be further customized to match a wide variety of project requirements or specific pathologies upon request.
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
