Adult Pelvis for X-Ray CT, US, MRI
Product Description

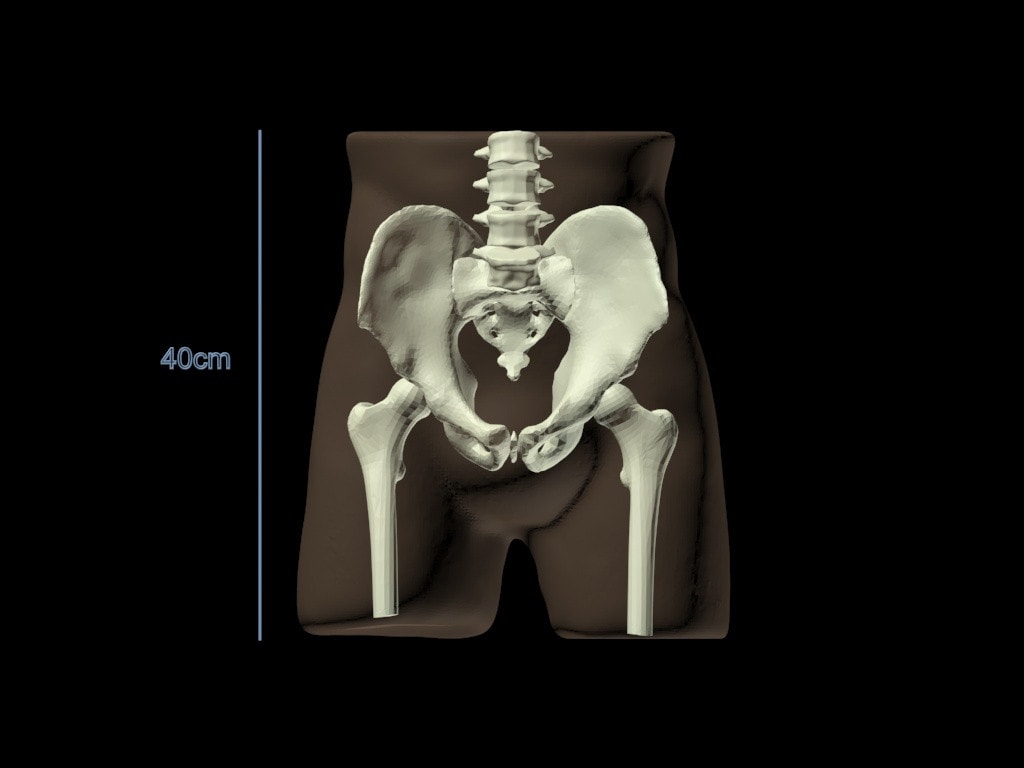

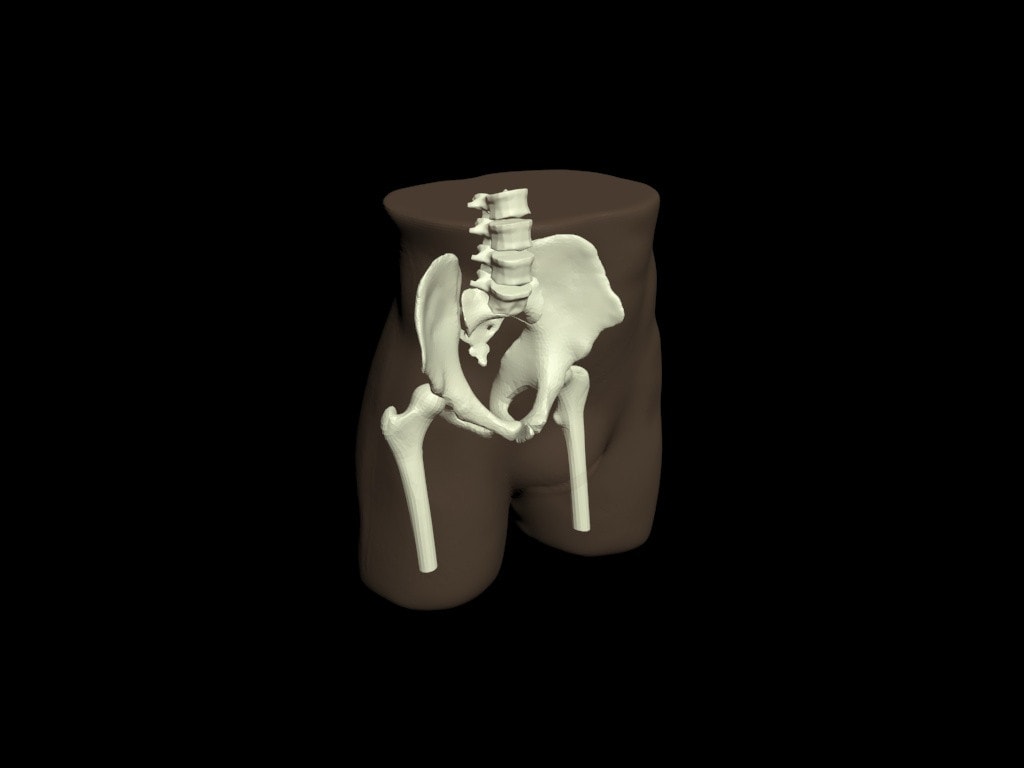

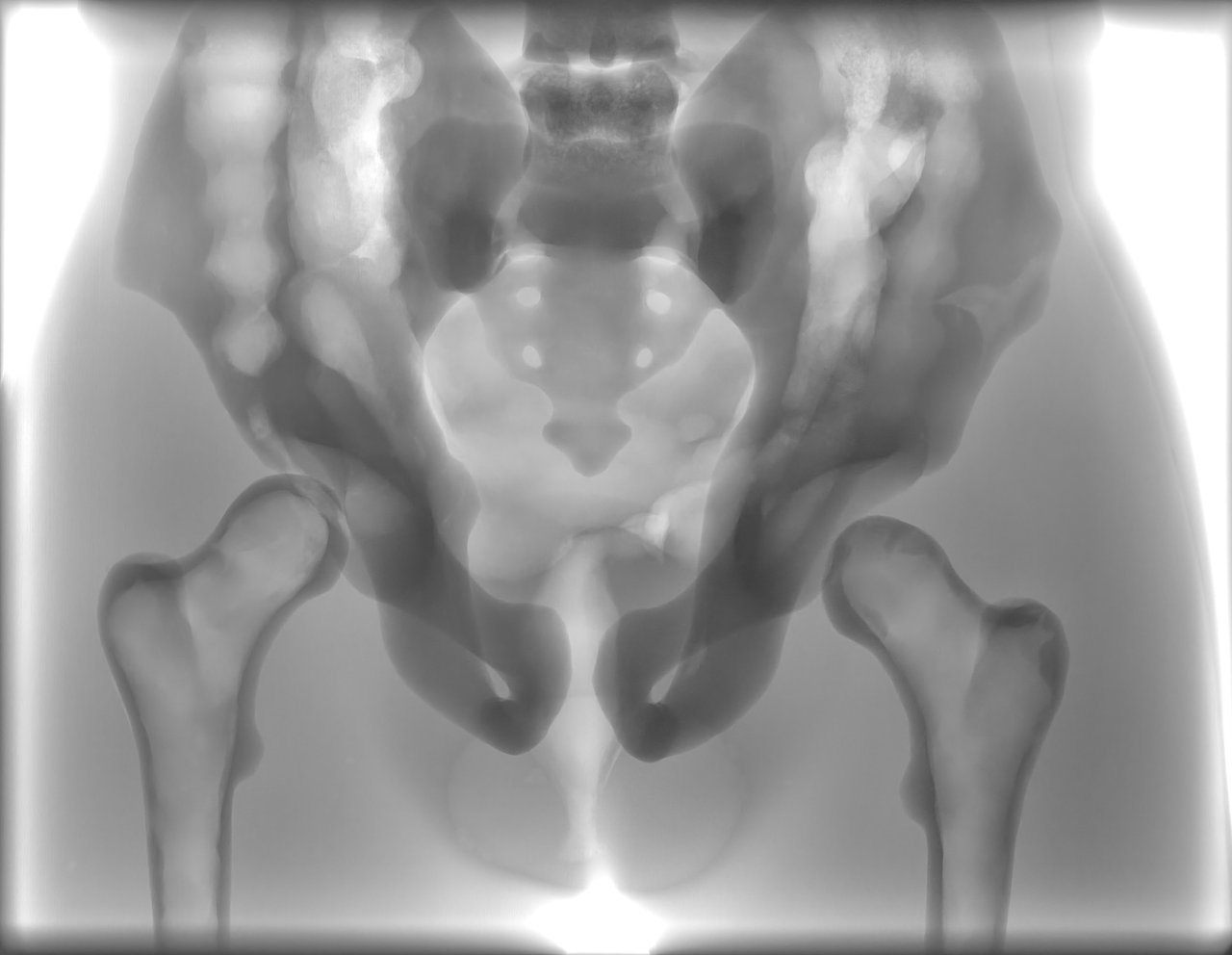

The Adult Pelvis Phantom is a high-fidelity simulator modeled after an average adult human male. It is a multi-modality tool compatible with X-Ray/CT, Ultrasound, and MRI imaging. The synthetic bones are made from patented bone-mimicking material, accurately replicating cortical and trabecular structures. This phantom is ideal for medical imaging research, radiology training, and calibration procedures.
For MRI, the tissues provide realistic T2 relaxation time values (50 ms), making it excellent for T2-weighted and proton-density imaging. T1-weighted imaging is possible, with values typically within the 100 ms range. The model's skeletal structure features adjustable inner porosity to suit diverse research requirements.

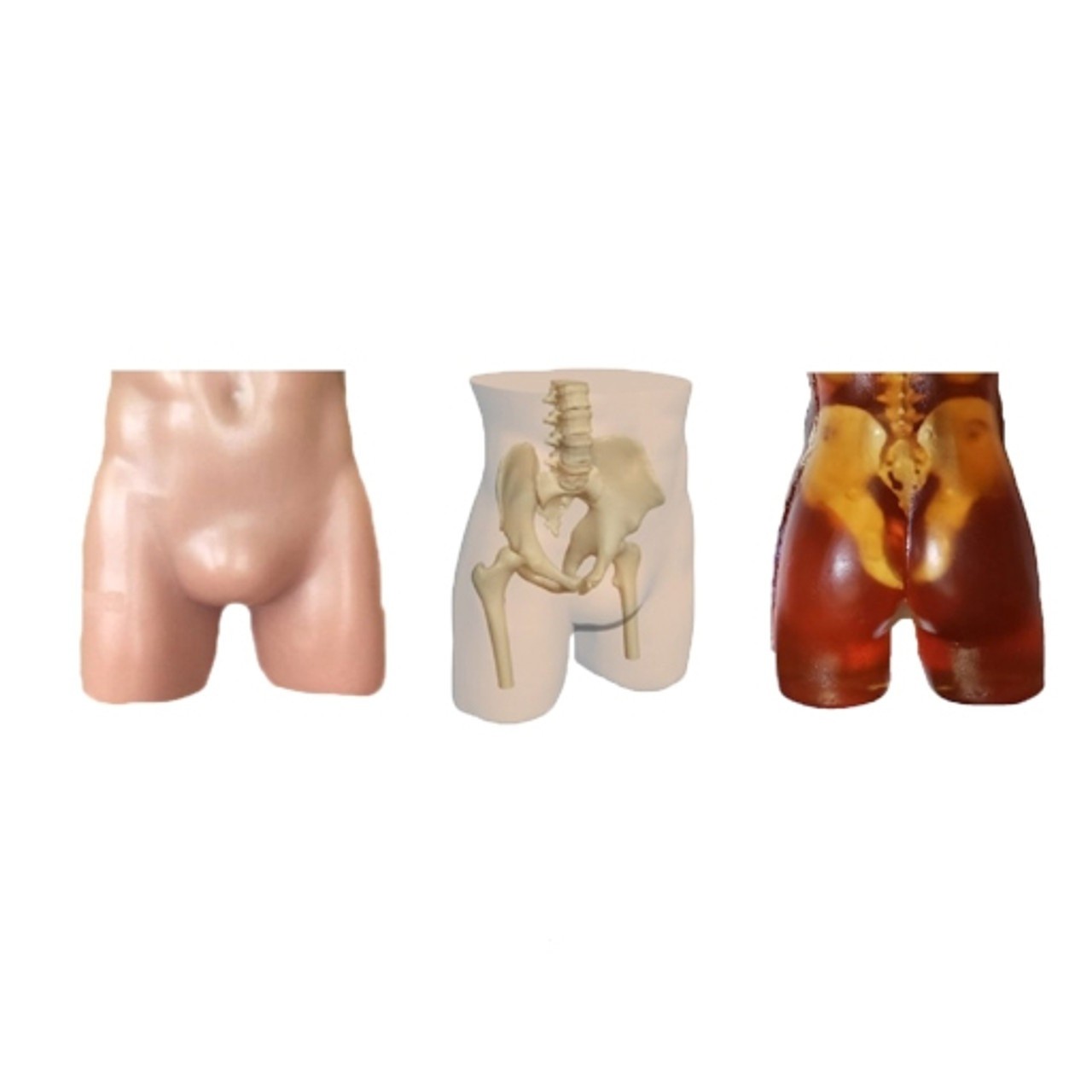

Note: By default, the phantom comes in a translucent amber appearance. A skin feature and custom fat layers (to increase BMI, e.g., up to 33) can be included upon request. The model is available in two versions: "Without Organs" or "With Organs".
Anatomy
- Spine (L5 L2)
- Pelvis Bone
- Partial Left and Right Femoral Bones
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (Average) |
|---|---|---|
| 1 | Soft Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Bladder* | 35 |
| 5 | Rectum Wall* | 100 |
| 6 | Sigmoid Colon Wall* | 100 |
*Applicable to the "With Organs" model variant.
Included in Order
- Adult Pelvis Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight

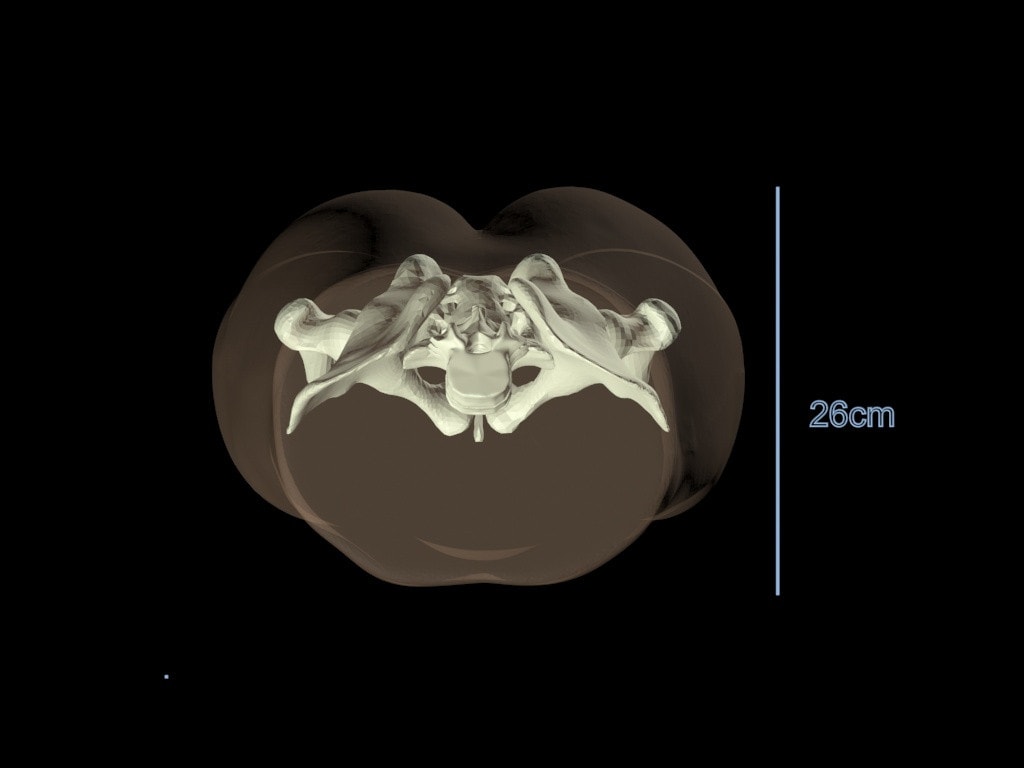

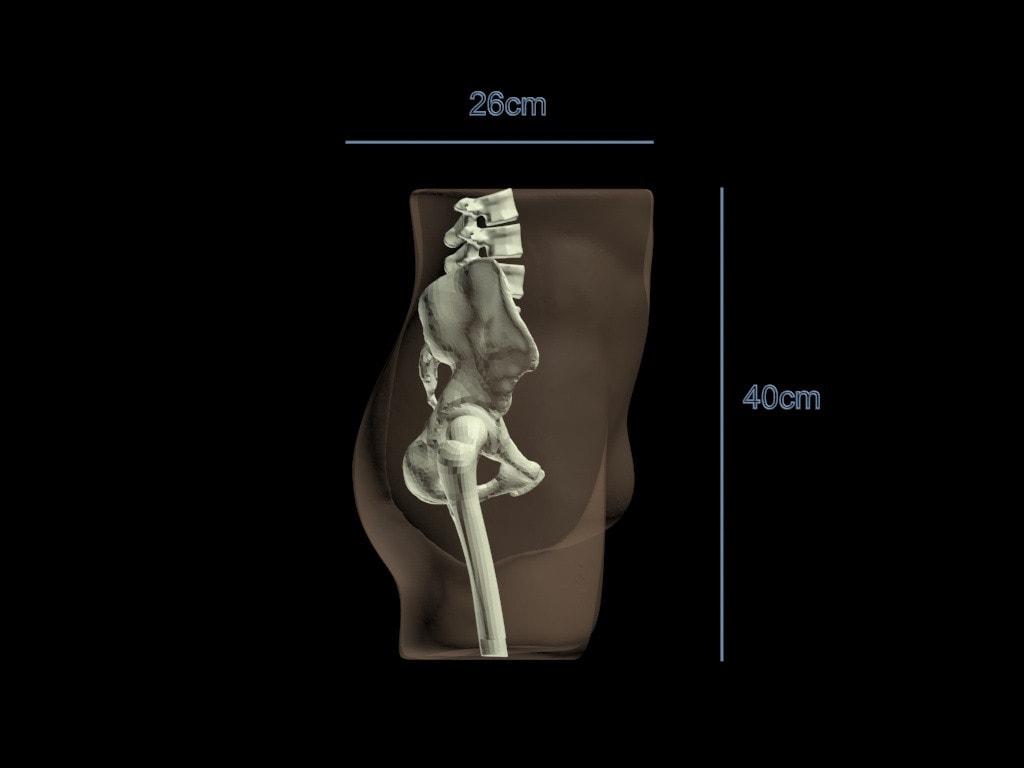

Phantom: 14 x 10 x 16 Inches | Weight: ~49 Lbs
Shipment: 32 x 23 x 13 Inches | Weight: ~88 Lbs
Materials Used
- Soft tissue and components: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
