Description
Adult Full Body for X-Ray CT, US
Product Description

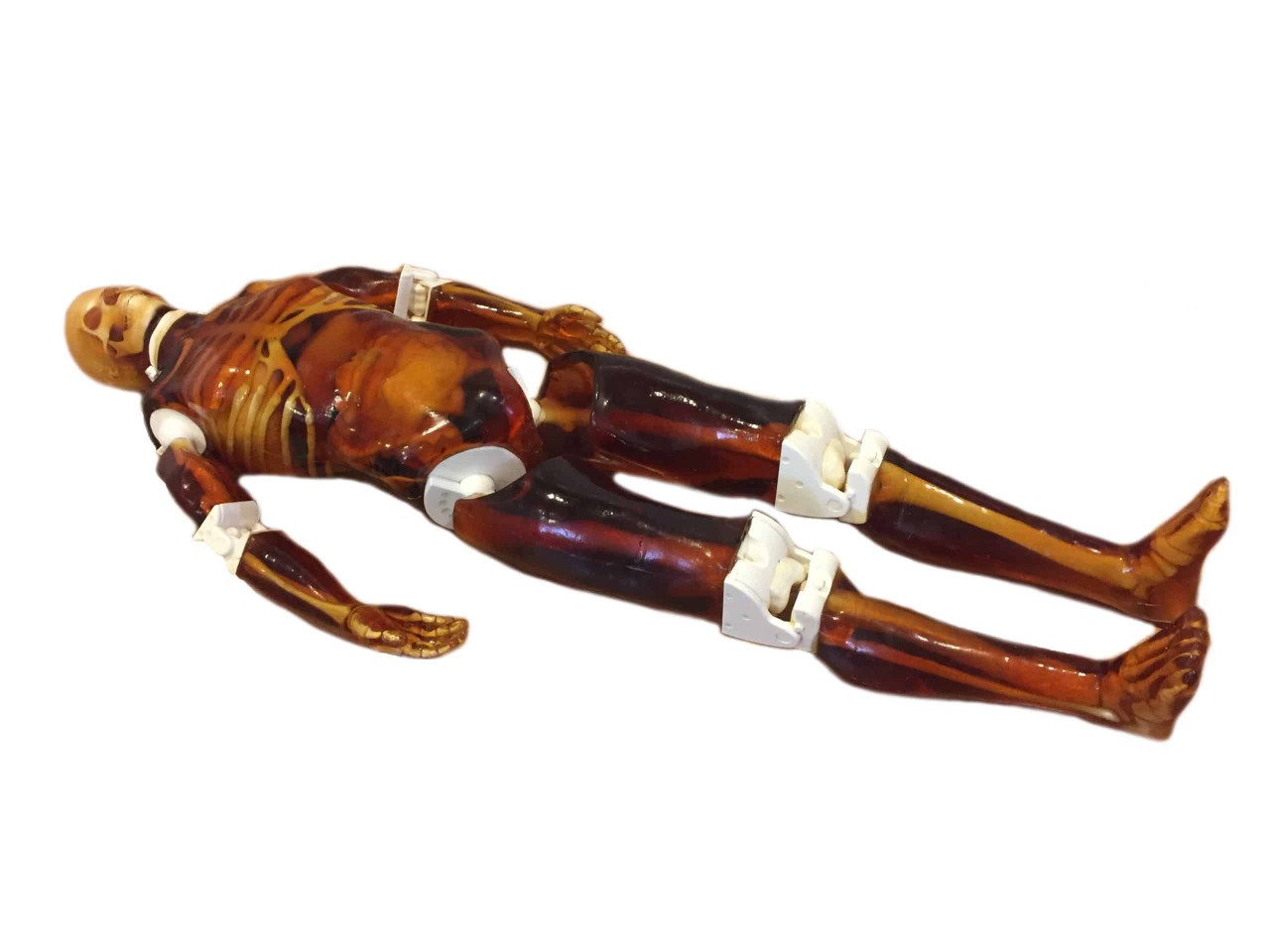

The Adult Full Body Phantom (FB-A03) is a versatile training simulator designed for multi-modality imaging including X-Ray/CT and Ultrasound. Based on an adult male body (172 cm height, 70 kg weight), this phantom consists of 10 detachable parts and features rotatable shoulders alongside movable hip, knee, and elbow joints. It serves as an ethical and sustainable alternative to cadavers for radiology students and researchers.
The internal skeleton is made of individually cast bones using patented materials with adjustable three-layered structures and inner porosity. While this specific model is optimized for Ultrasound and X-Ray, it provides high-fidelity feedback for finding optimal scanning conditions. The model is highly customizable and can be ordered with specific pathologies or in different skin appearances.
Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. Please note that major muscles in the arms and legs are not included in this specific model (FB-A03).
Anatomy

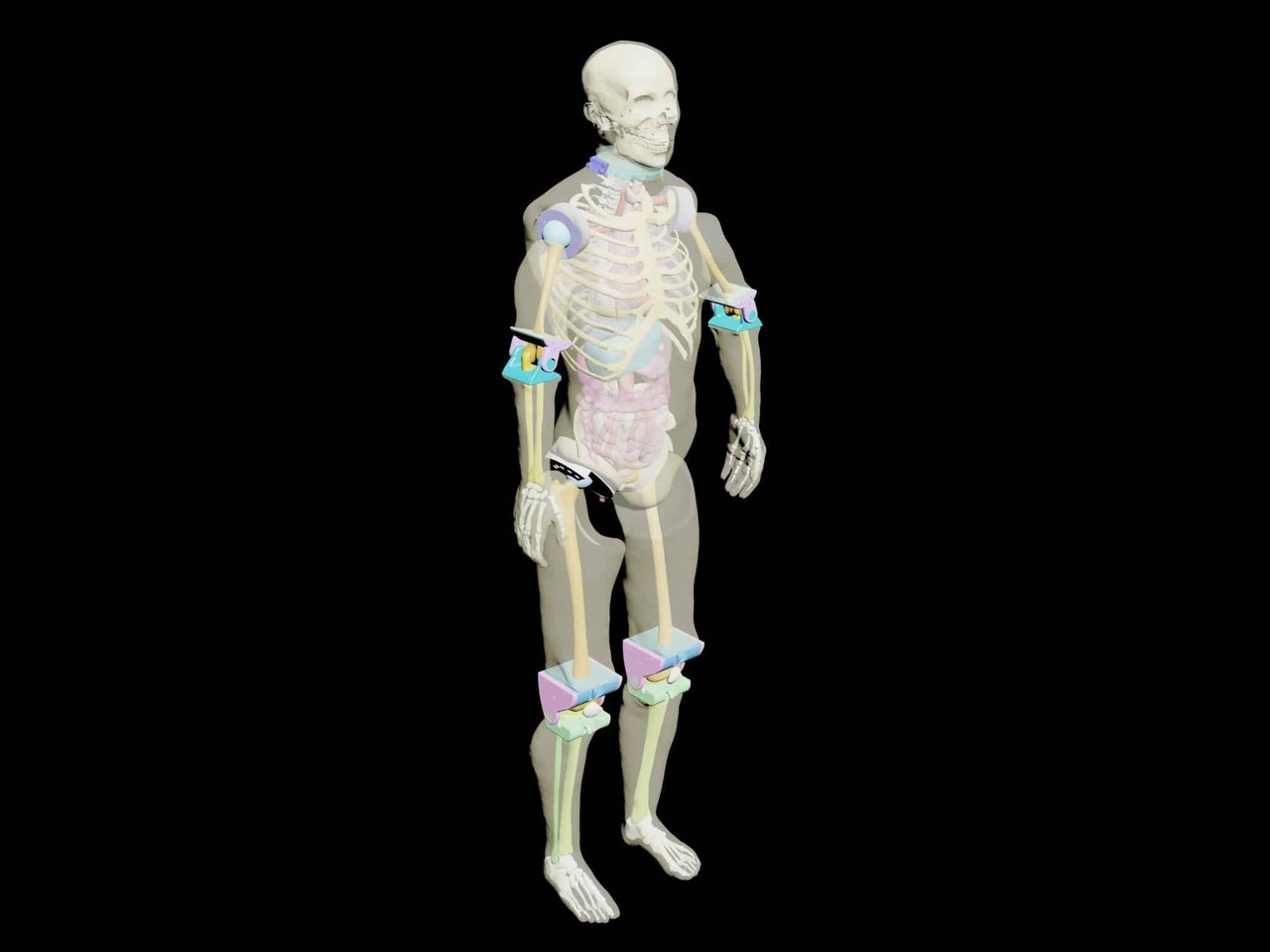

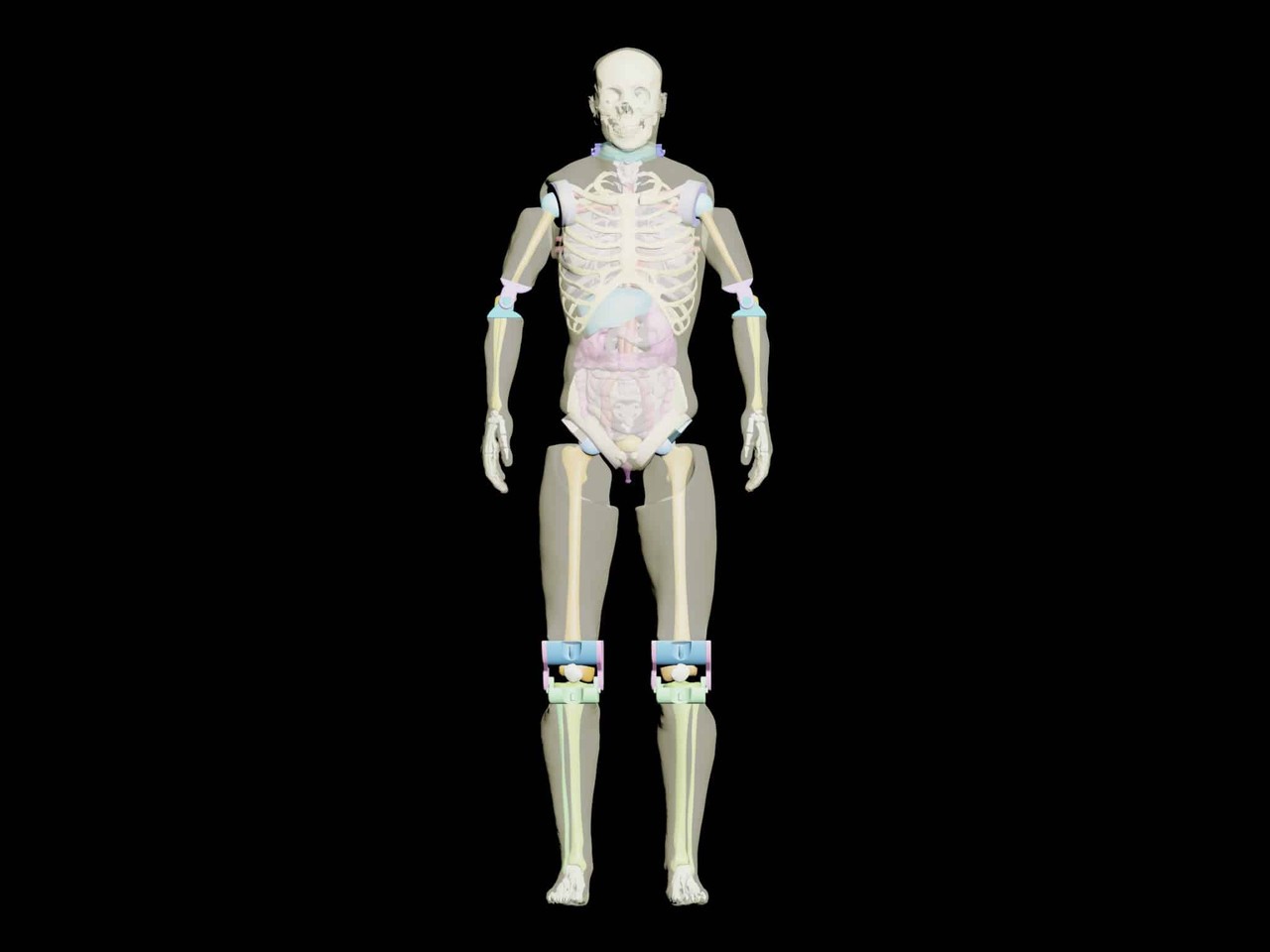

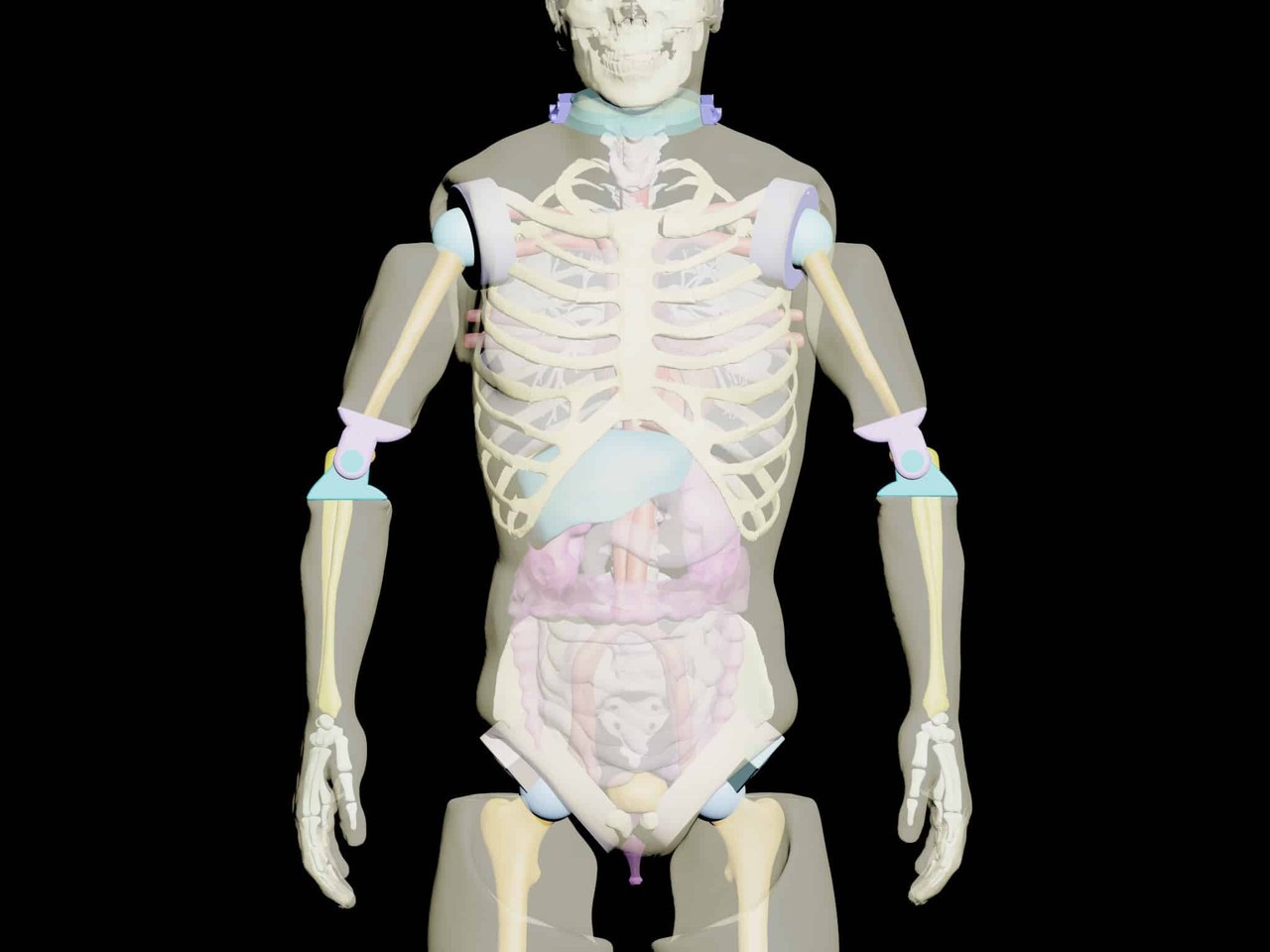

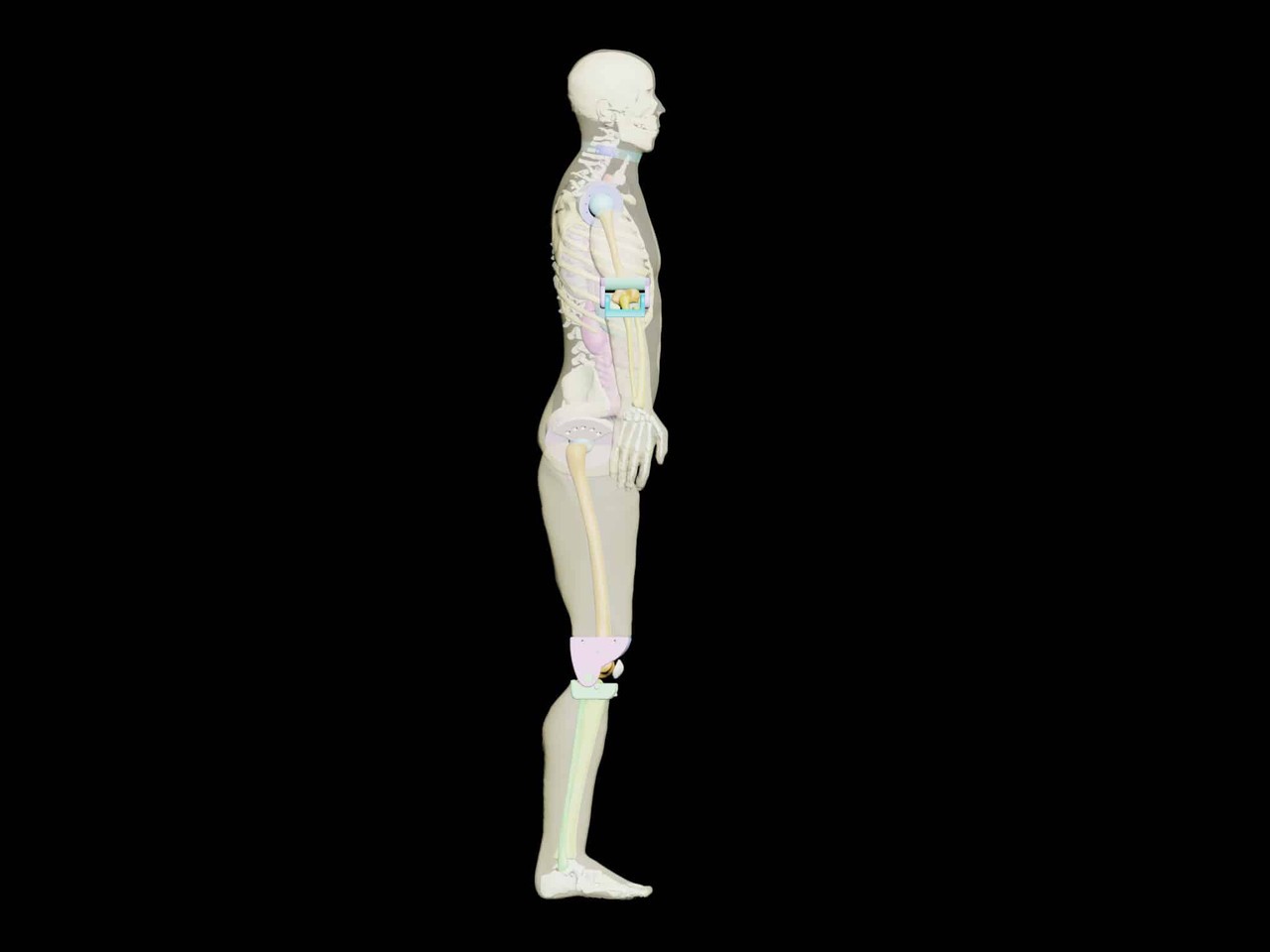

- Full Human Body (10 Parts): Detachable head, torso, and limbs with movable joints.

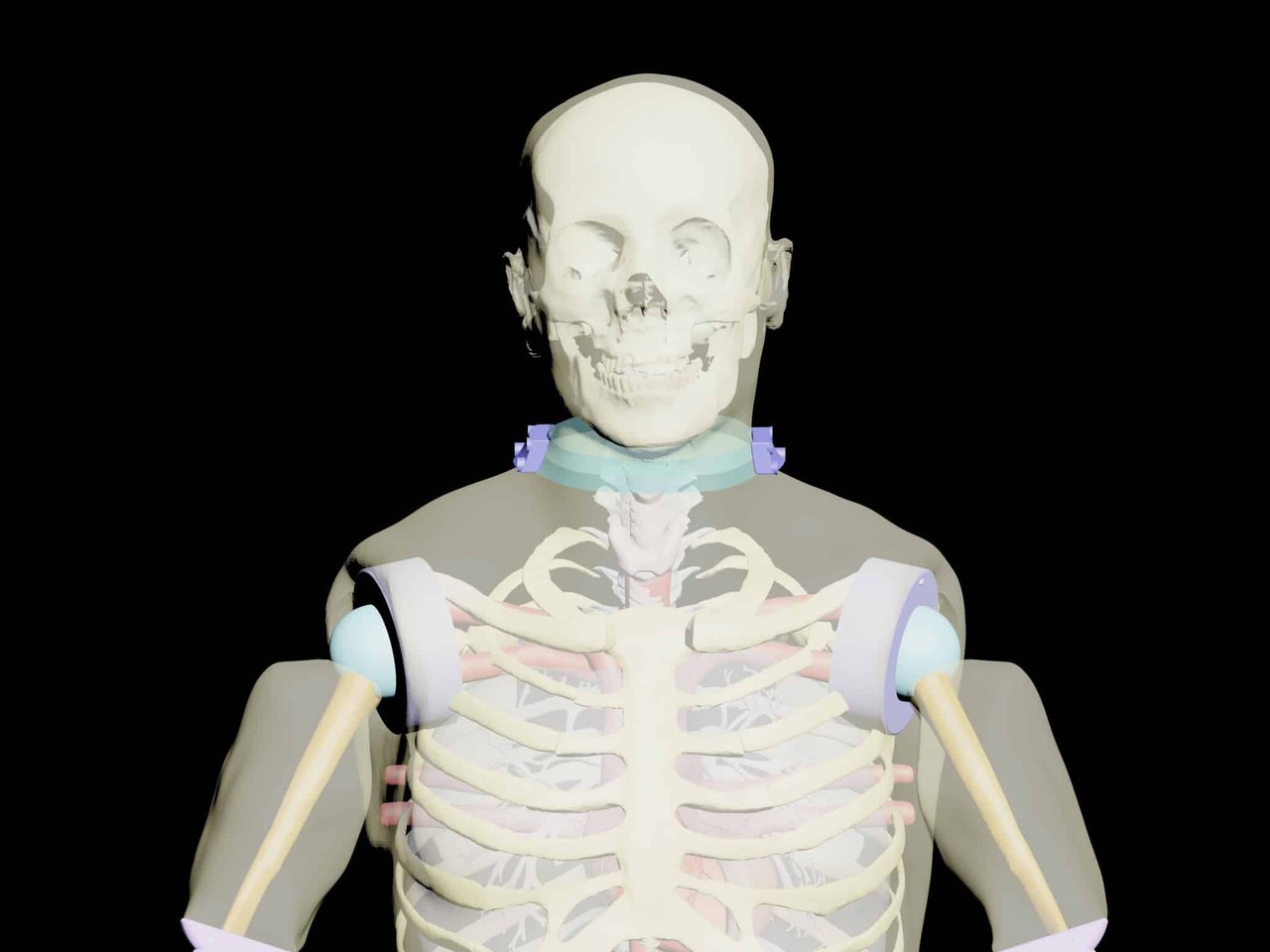

- Adult Head: Skull, Brain (Grey and White Matter), Air Cavities, and Frontal Sinus.
- Adult Torso: Spine, Ribcage, Shoulders, Clavicles, Pelvis, Trachea, Heart, Lungs with Bronchi, Diaphragm, Liver, Gallbladder, Stomach, Kidneys, Spleen, Pancreas, Large/Small Intestines, Bladder, and Prostate.
- Adult Arms: Humerus, Elbow Joints, Radius, Ulna, Wrist, and Fingers.

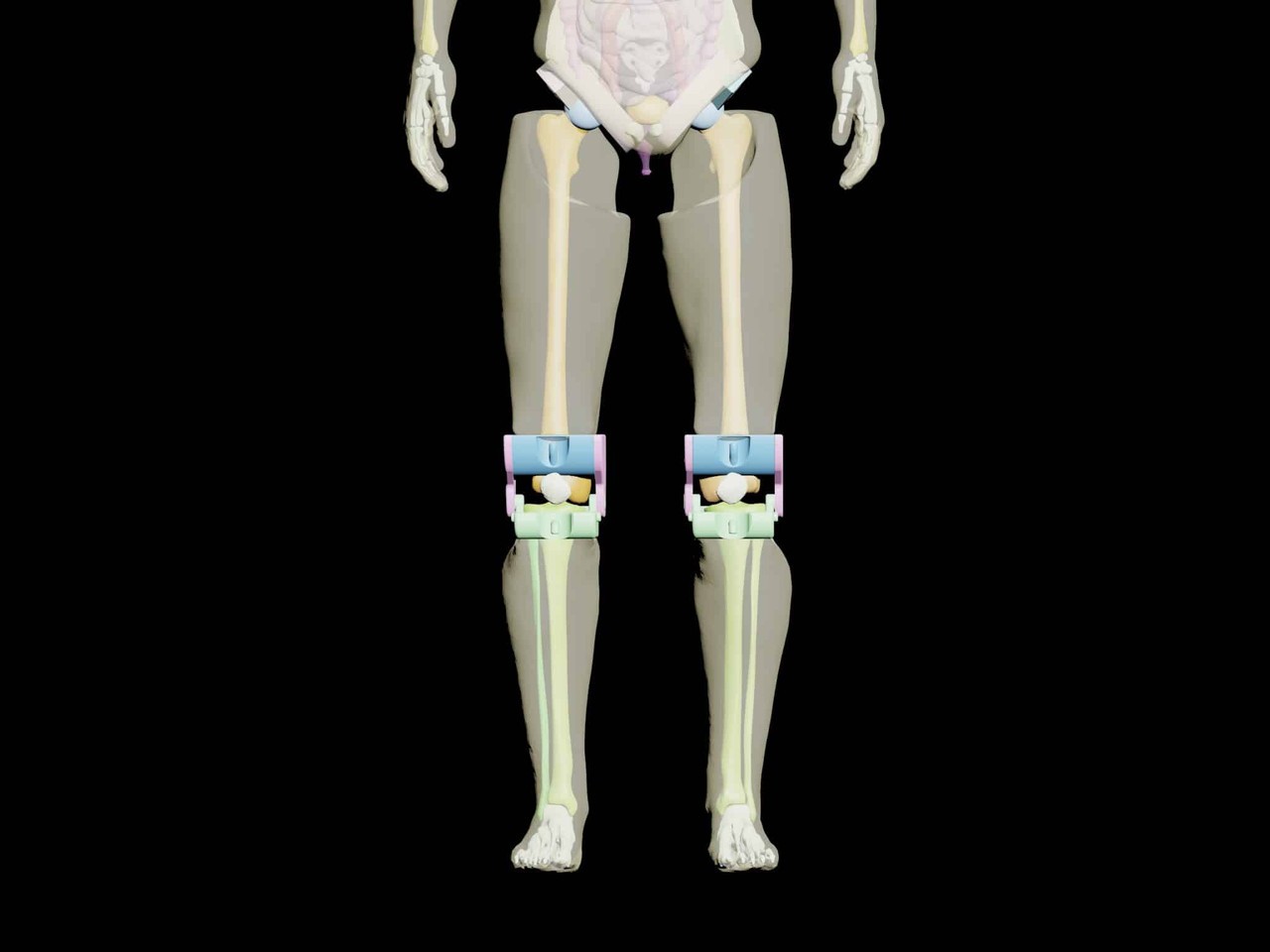

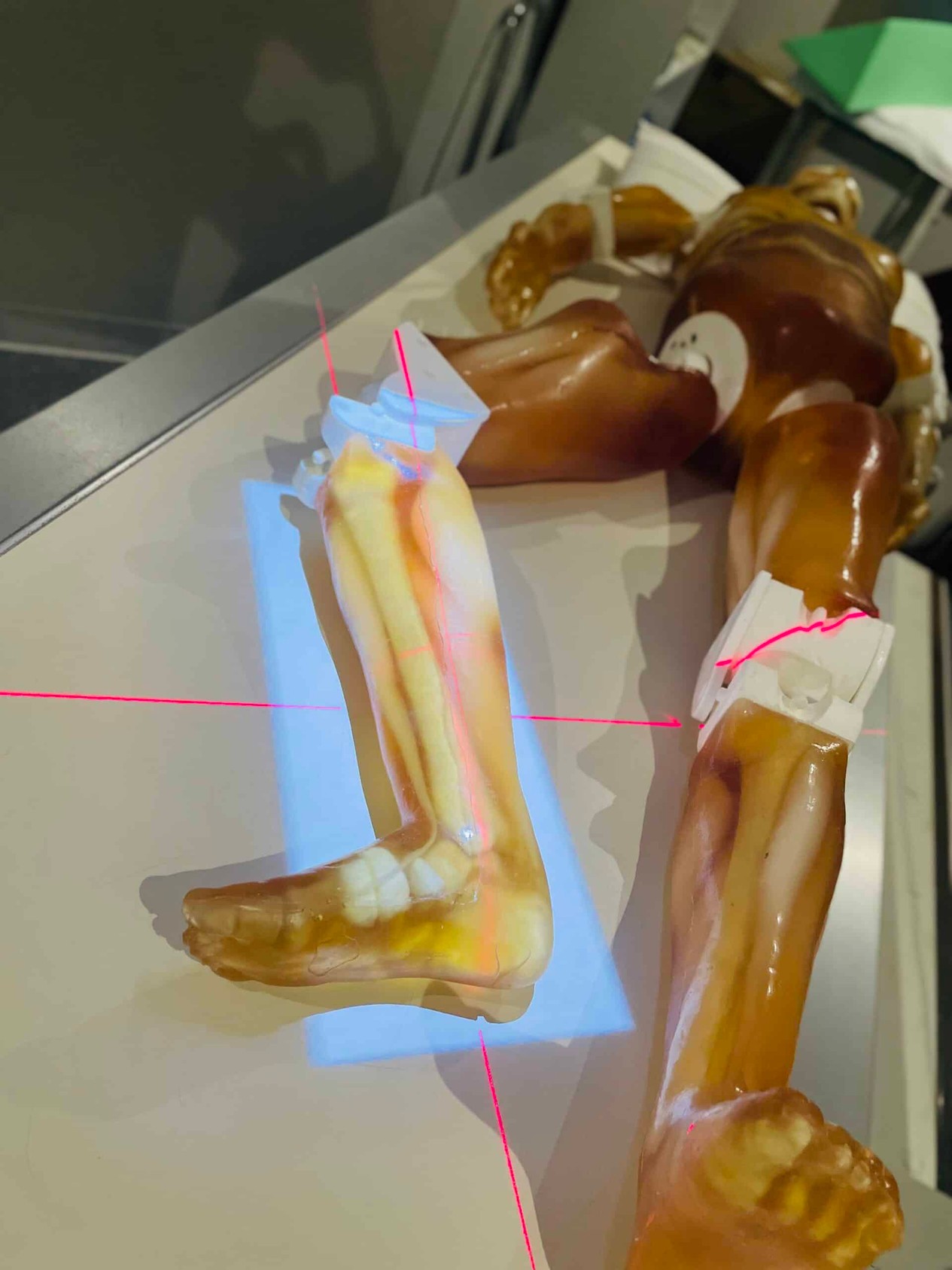

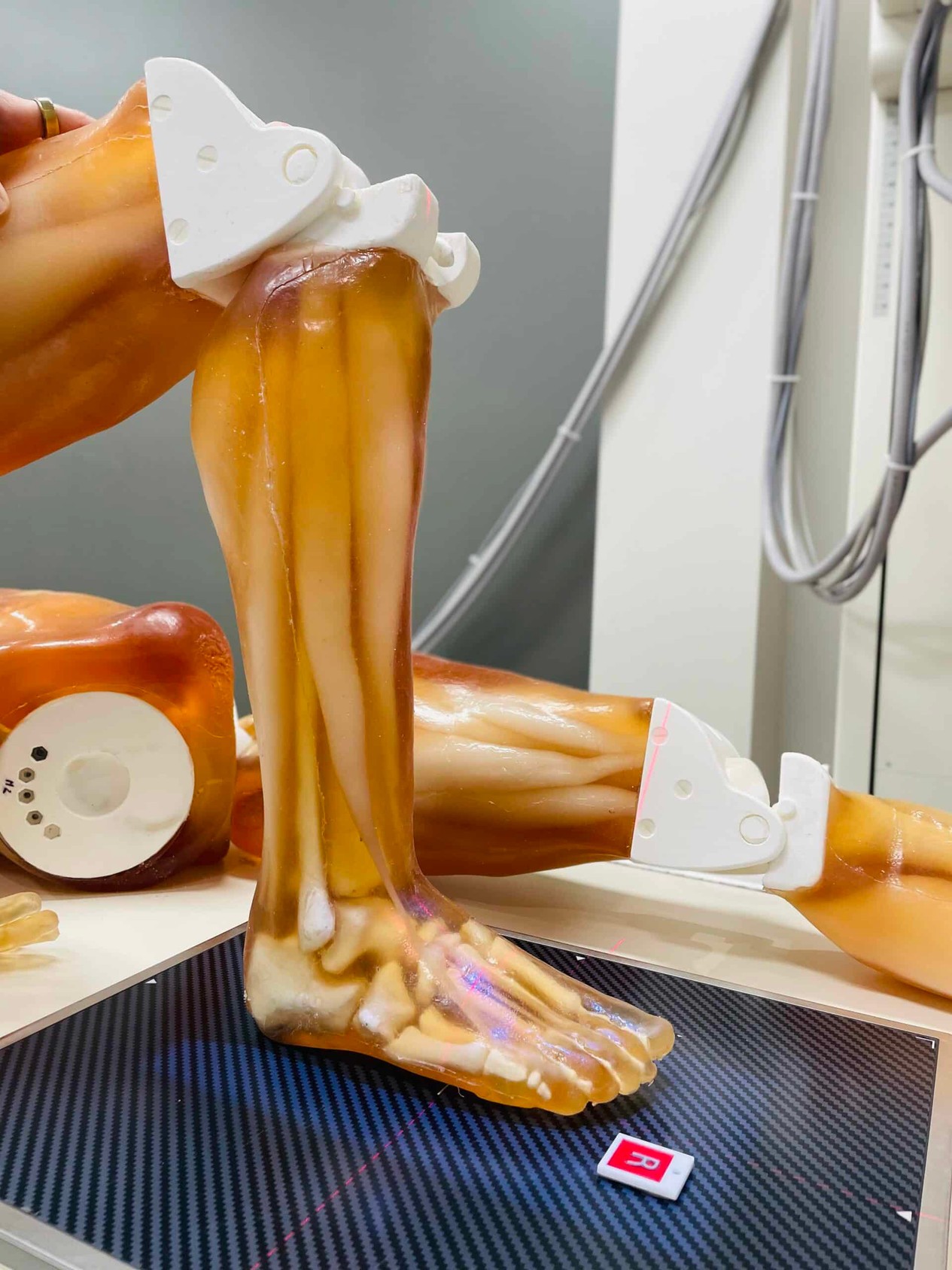

- Adult Legs: Femur, Knee Joints, Tibia, Fibula, Foot, and Toes.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of Tissue-Mimicking Materials
| Tissue Type | HU Value (Average) | Tissue Type | HU Value (Average) |
|---|---|---|---|
| Body / Brain Tissue | -25 | Lungs / Stomach | -850 |
| Trabecular Bone | 800 | Spleen / Kidneys / Liver / Pancreas | 110 |
| Cortical Bone | 1300 | Bladder / Gallbladder | 35 |
| Aorta / Vena Cava / Heart | 40 | Rectum / Sigmoid Colon Wall | 100 |
| Trachea (Tissue) | 80 | Diaphragm / Intestines (Tissue) | 80 |
| Trachea (Air) | -1000 | Intestines (Air) | -1000 |

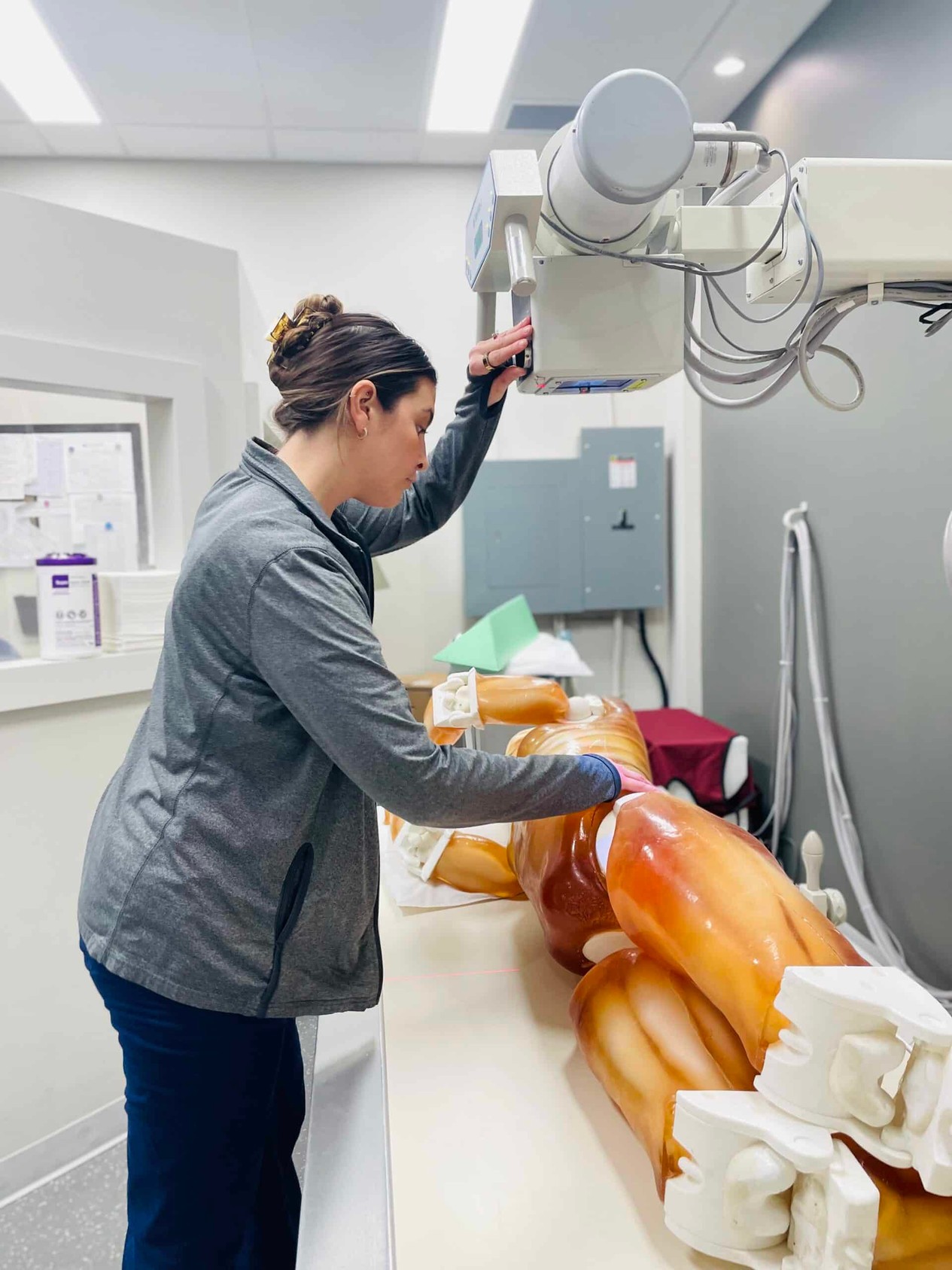

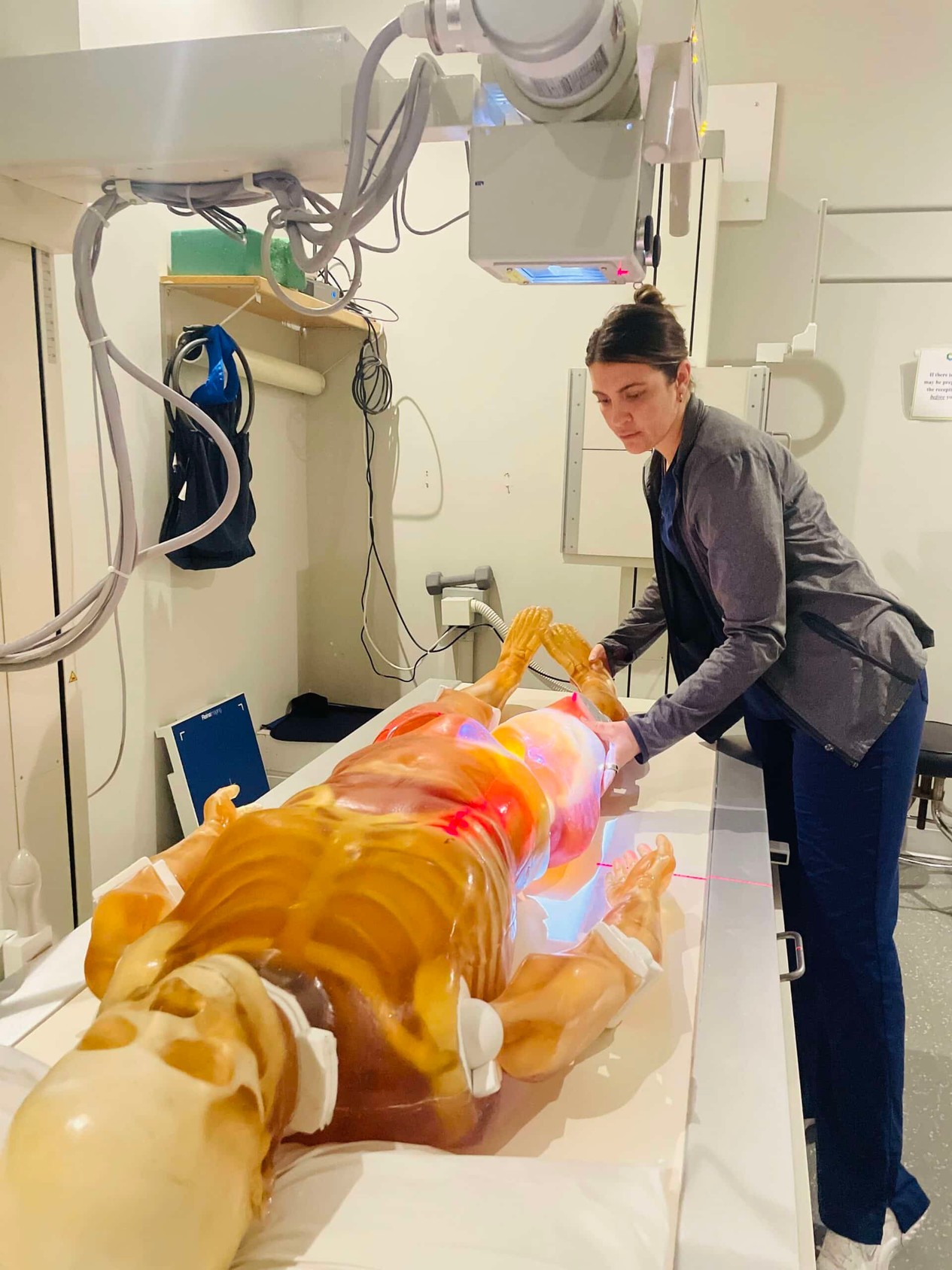

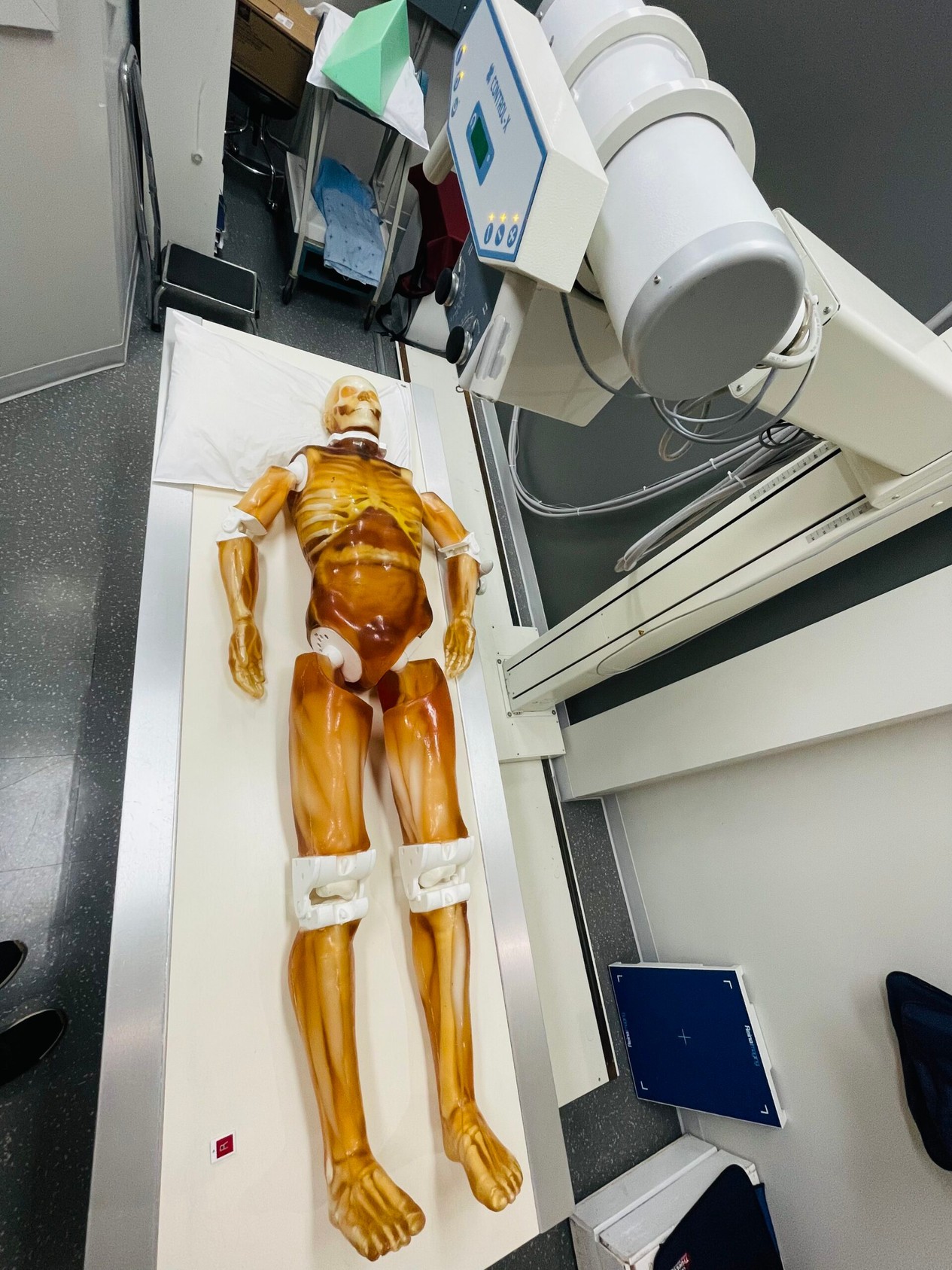

X-Ray Positioning Reference
| Anatomy | Projection | E.I. | D.I. | kVp | mAs |
|---|---|---|---|---|---|
| Skull | AP | 375 | -0.2 | 85 | 20 |
| Skull | LAT | 286 | -1.4 | 75 | 8 |
| Chest | AP/PA | 412 | 0.6 | 80 | 5 |
| Abdomen | LAT | 862 | 2.4 | 85 | 25 |
| Pelvis | AP | 650 | 1.8 | 85 | 25 |
Included in Order
- Adult Full Body Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 69 Inches (175 cm) | Weight: ~155 Lbs (70 kg)
Shipment: 46 x 36 x 17 Inches | Weight: ~199 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
