Adult Full Body (with Muscles) for X-Ray CT, US
Product Description

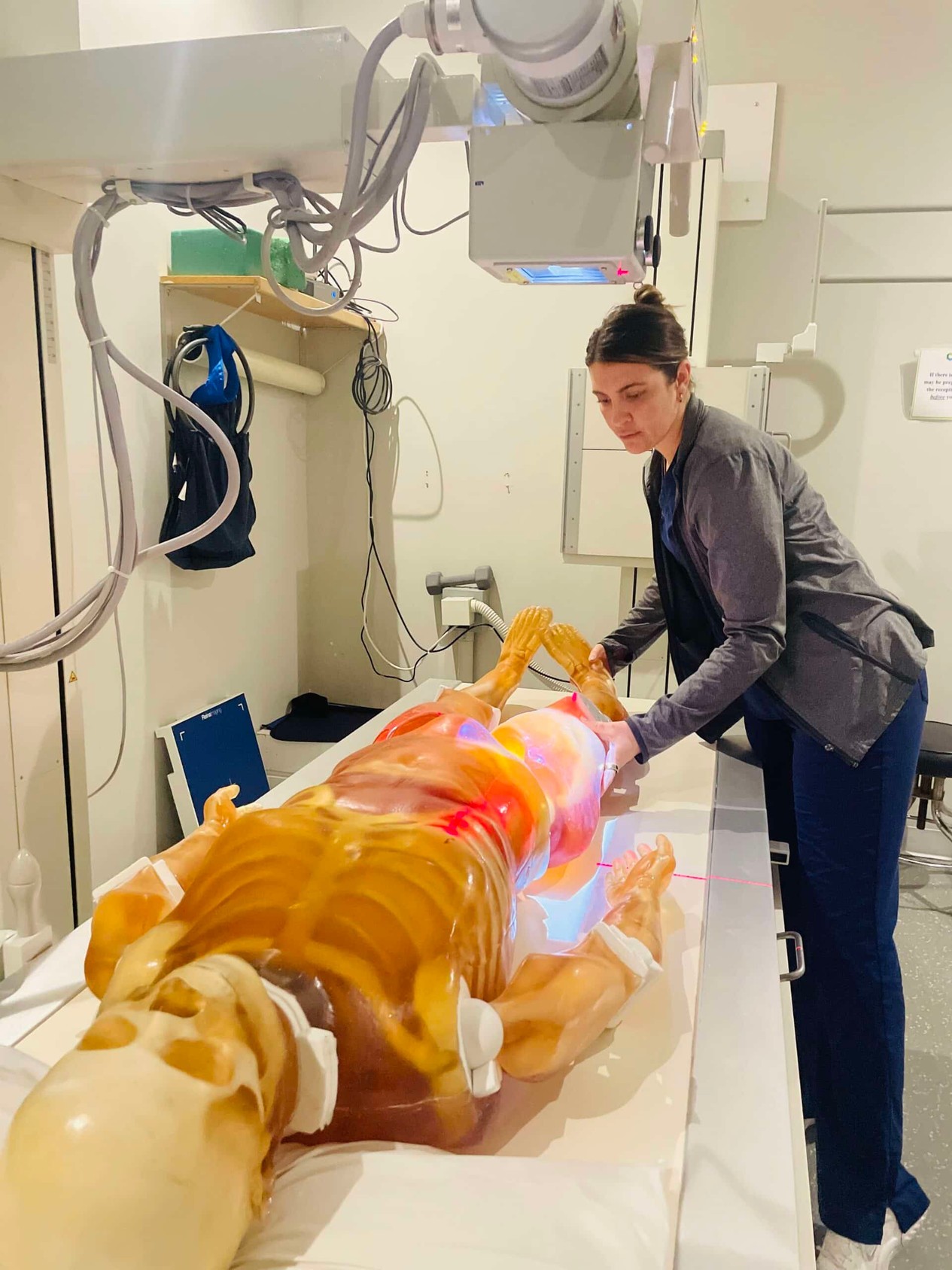

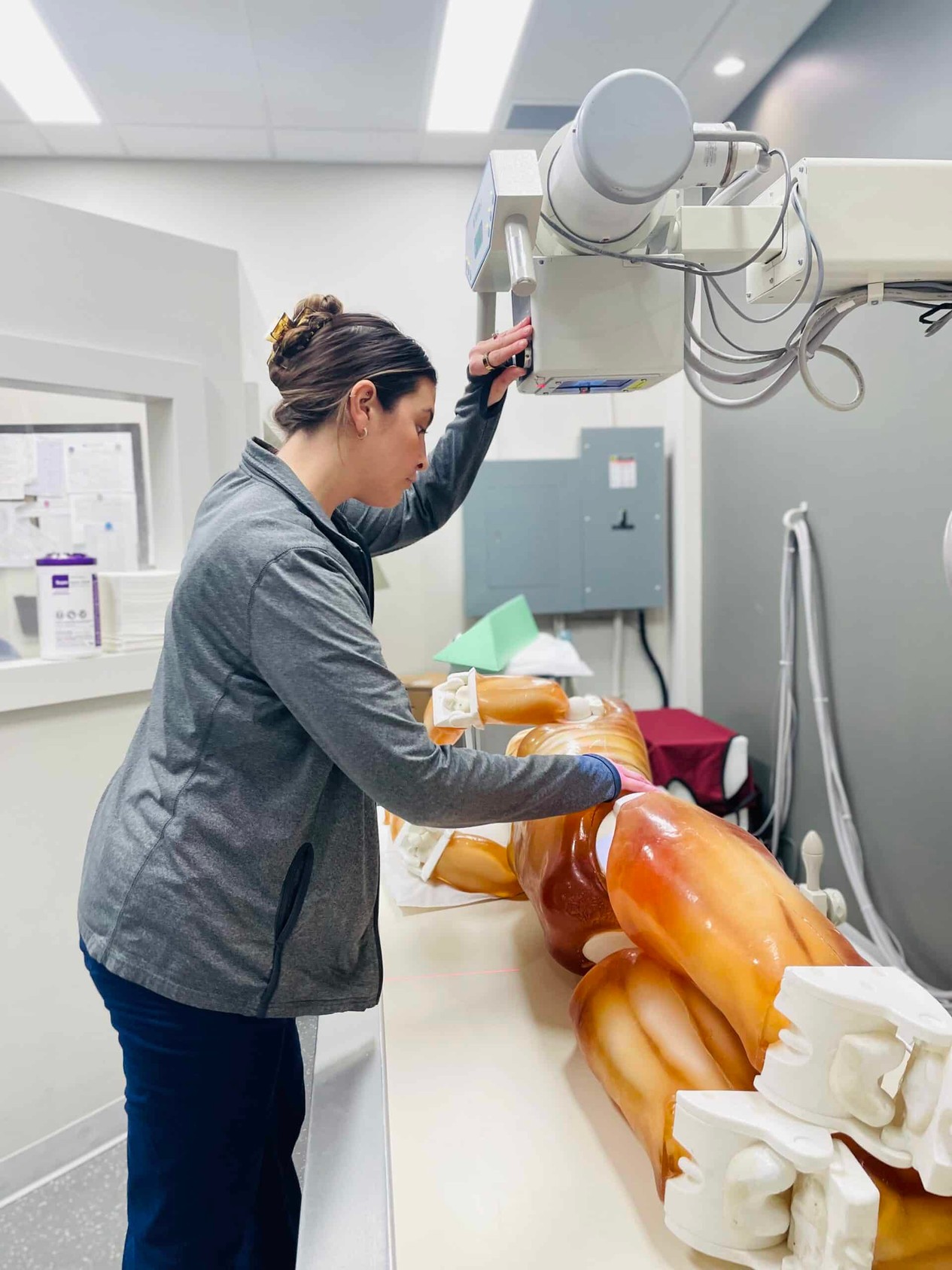

The Adult Full Body Phantom with Muscles (FB-A04) is a versatile training product compatible with X-Ray/CT and Ultrasound. Specifically enhanced to mimic major muscle structures in the arms and legs, it is primarily used for hands-on diagnostic imaging experience and evaluating optimal scanning conditions. The model is based on an adult male body weighing approximately 70 kg (154 lb) and measuring 172 cm (69 in) in height.
The internal skeleton is constructed from patented synthetic material featuring a realistic three-layered bone structure with adjustable inner porosity. This phantom serves as a sustainable, ethical alternative to cadavers or volunteers, allowing for repeated radiation exposure without deterioration. It is detachable into 10 parts for flexibility in positioning and transport.
Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. This specific model includes major muscle mimicking material in the limbs.
Anatomy
- Full Human Body (10 Parts): Detachable head, torso, and limbs with movable hip, knee, and elbow joints.
- Adult Head: Skull, Brain (including Grey and White matter), Air Cavities, and Frontal Sinus.
- Adult Torso: Spine, Ribcage, Shoulders, Clavicles, Pelvis, Trachea, Heart, Lungs with Bronchi, Diaphragm, Liver, Gallbladder, Stomach, Kidneys, Spleen, Pancreas, Large/Small Intestines, Bladder, and Prostate.
- Adult Arms: Humerus, Elbow Joints, Radius, Ulna, Wrist, Fingers, and Major Muscles.
- Adult Legs: Femur, Knee Joints, Tibia, Fibula, Foot, Toes, and Major Muscles.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00]* | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Muscle Tissue | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
*Measured without the protective coat; coating increases hardness by approx. 30 points.
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of Tissue-Mimicking Materials
| Tissue Type | HU Value (Average) | Tissue Type | HU Value (Average) |
|---|---|---|---|
| Body / Brain Tissue | -25 | Lungs / Stomach | -850 |
| Trabecular Bone | 800 | Spleen / Kidneys / Liver / Pancreas | 110 |
| Cortical Bone | 1300 | Bladder / Gallbladder | 35 |
| Aorta / Vena Cava / Heart | 40 | Rectum / Sigmoid Colon Wall | 100 |
| Trachea (Tissue) | 80 | Diaphragm / Intestines (Tissue) | 80 |
| Trachea (Air) | -1000 | Intestines (Air) | -1000 |
X-Ray Positioning Reference
| Anatomy | Projection | E.I. | D.I. | kVp | mAs |
|---|---|---|---|---|---|
| Skull | AP | 375 | -0.2 | 85 | 20 |
| Skull | LAT | 286 | -1.4 | 75 | 8 |
| Chest | AP/PA | 412 | 0.6 | 80 | 5 |
| Abdomen | LAT | 862 | 2.4 | 85 | 25 |
| Pelvis | AP | 650 | 1.8 | 85 | 25 |
Included in Order
- Adult Full Body (with Muscles) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 69 Inches (172 cm) | Weight: ~155 Lbs (70 kg)
Shipment: 46 x 36 x 17 Inches | Weight: ~199 Lbs
Materials Used
- Soft tissue, muscles, and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
