Adult Leg (Muscles) for X-Ray CT, US, MRI
Product Description

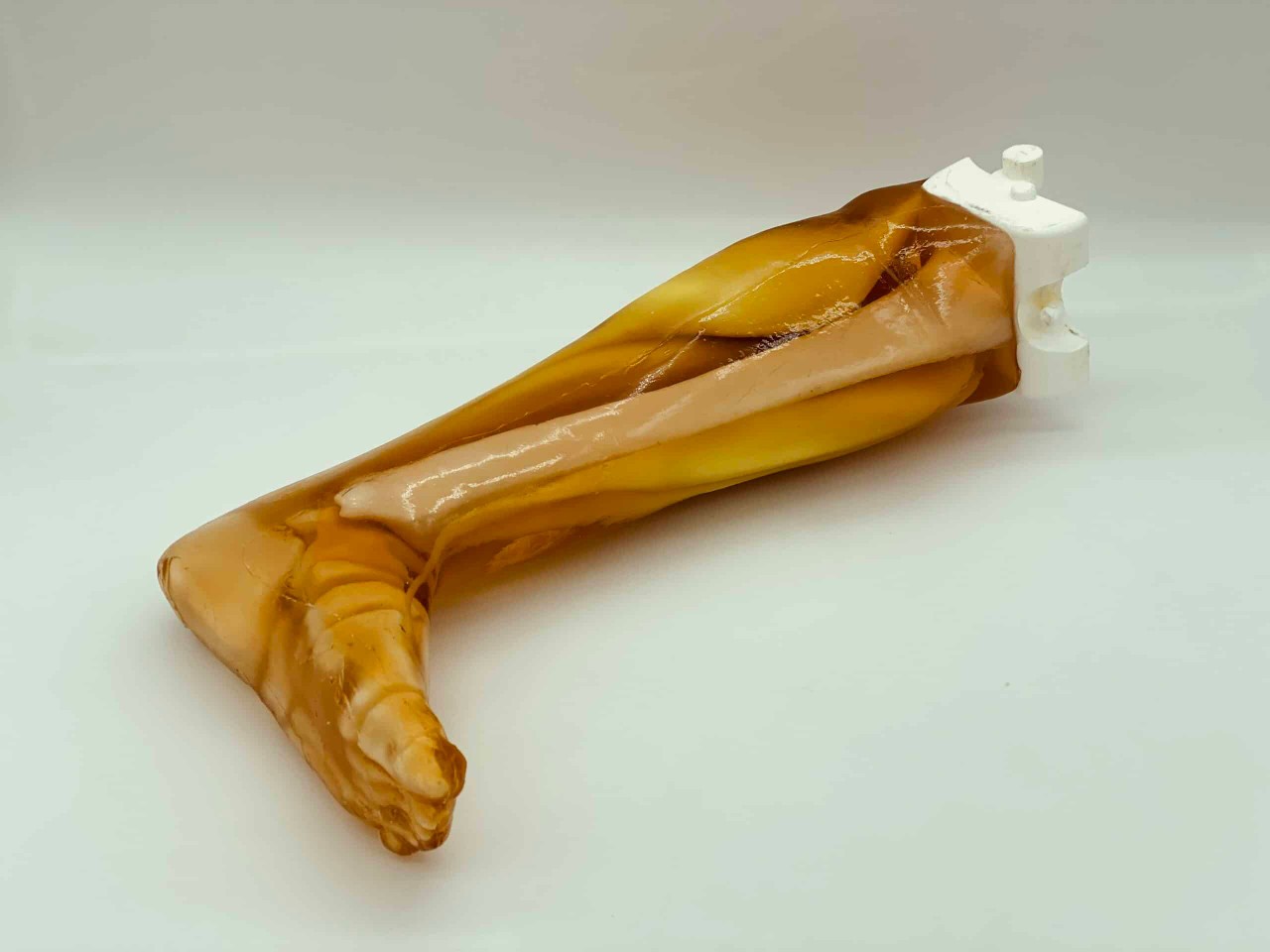

The Adult Leg (Muscles) Phantom is an advanced training and research tool designed for multi-modality imaging across X-Ray/CT, Ultrasound, and MRI. Based on the average anatomy of a human male leg, it includes both essential bony structures and major muscle tissue features. This phantom is ideal for studying orientation and positioning techniques, as well as testing medical imaging devices.
The phantom includes realistic soft tissues and major muscles made from urethane-based materials. For MRI applications, the tissues provide realistic T2 relaxation time values (50-60 ms), making it suitable for T2-weighted and proton-density imaging. The skeletal components use patented bone-mimicking material to accurately replicate cortical and trabecular properties.
Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. This specific model (LG-A02) includes major muscle tissues in addition to the standard bony structures.

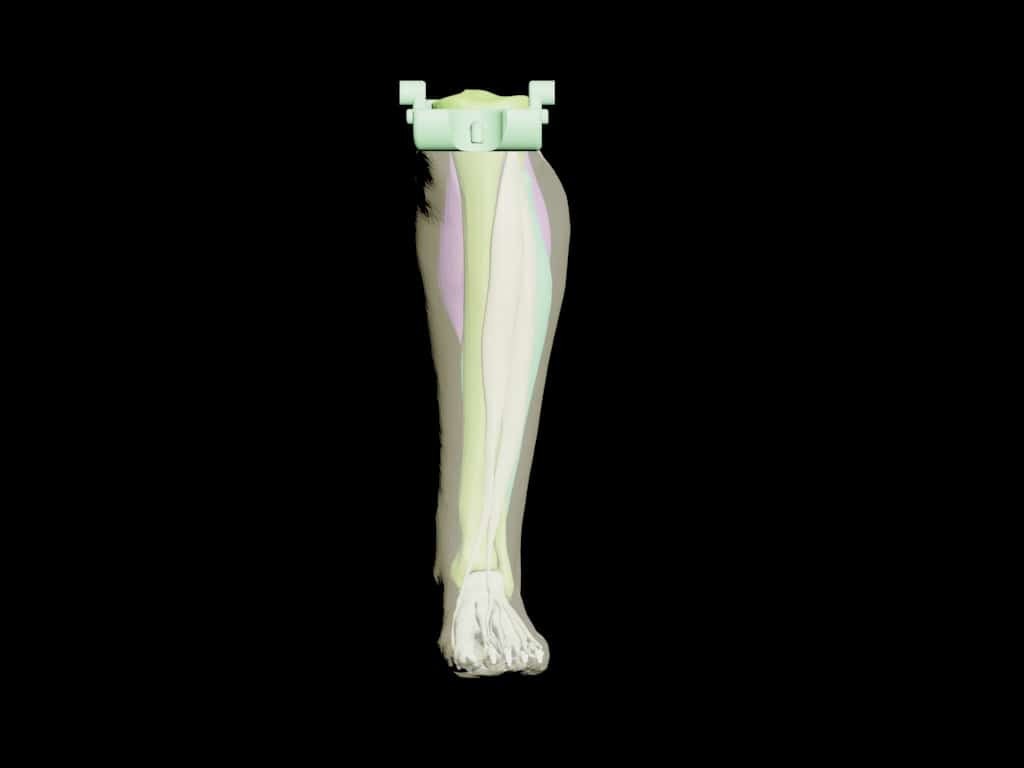

Anatomy
- Fibula Bone

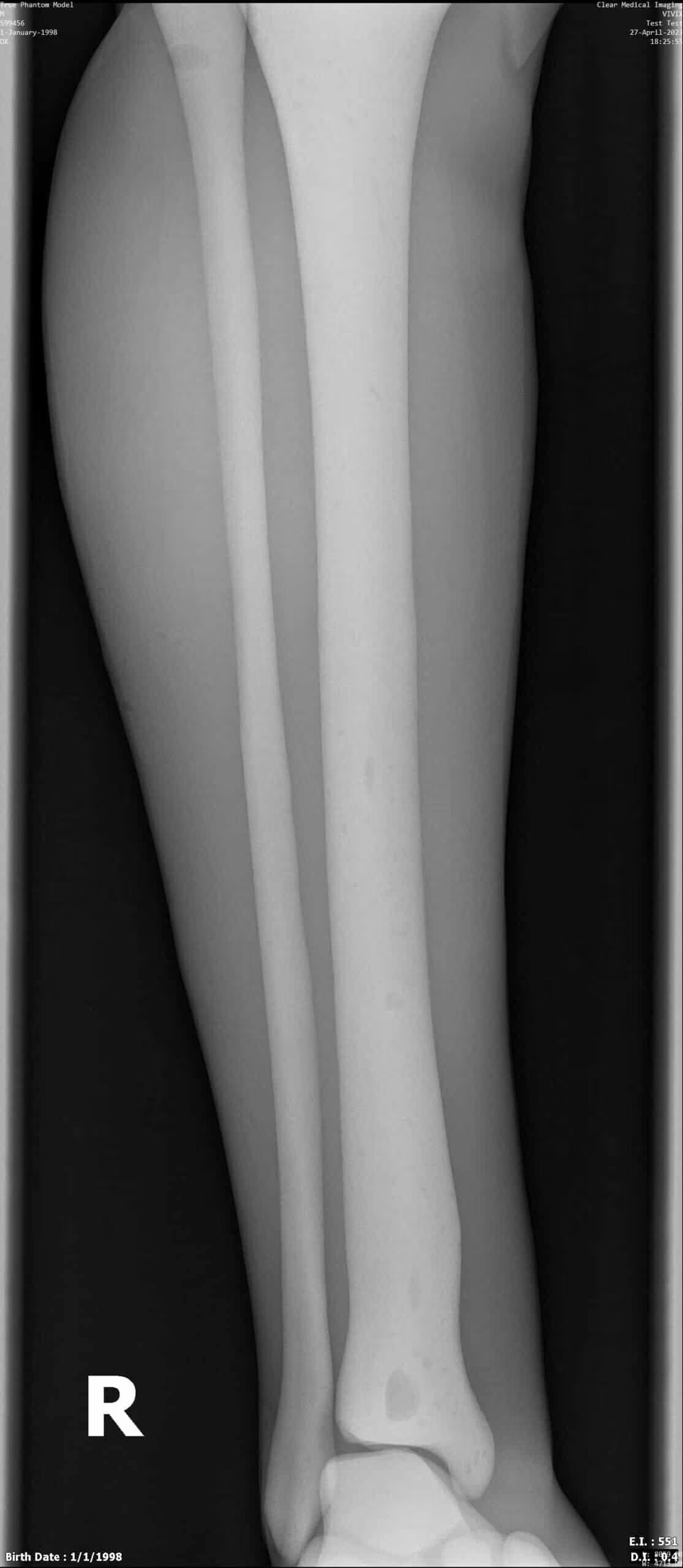

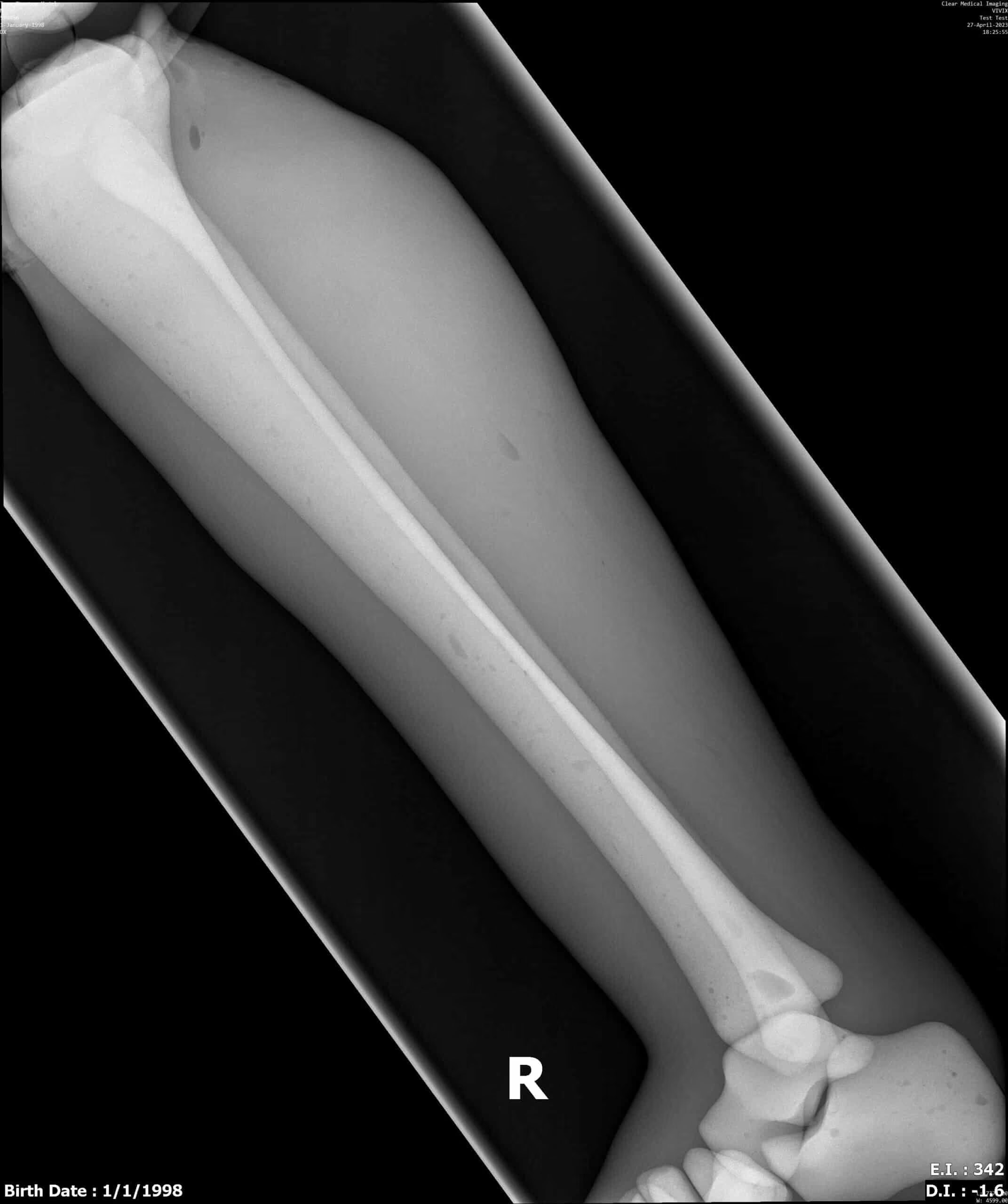

- Tibia Bone

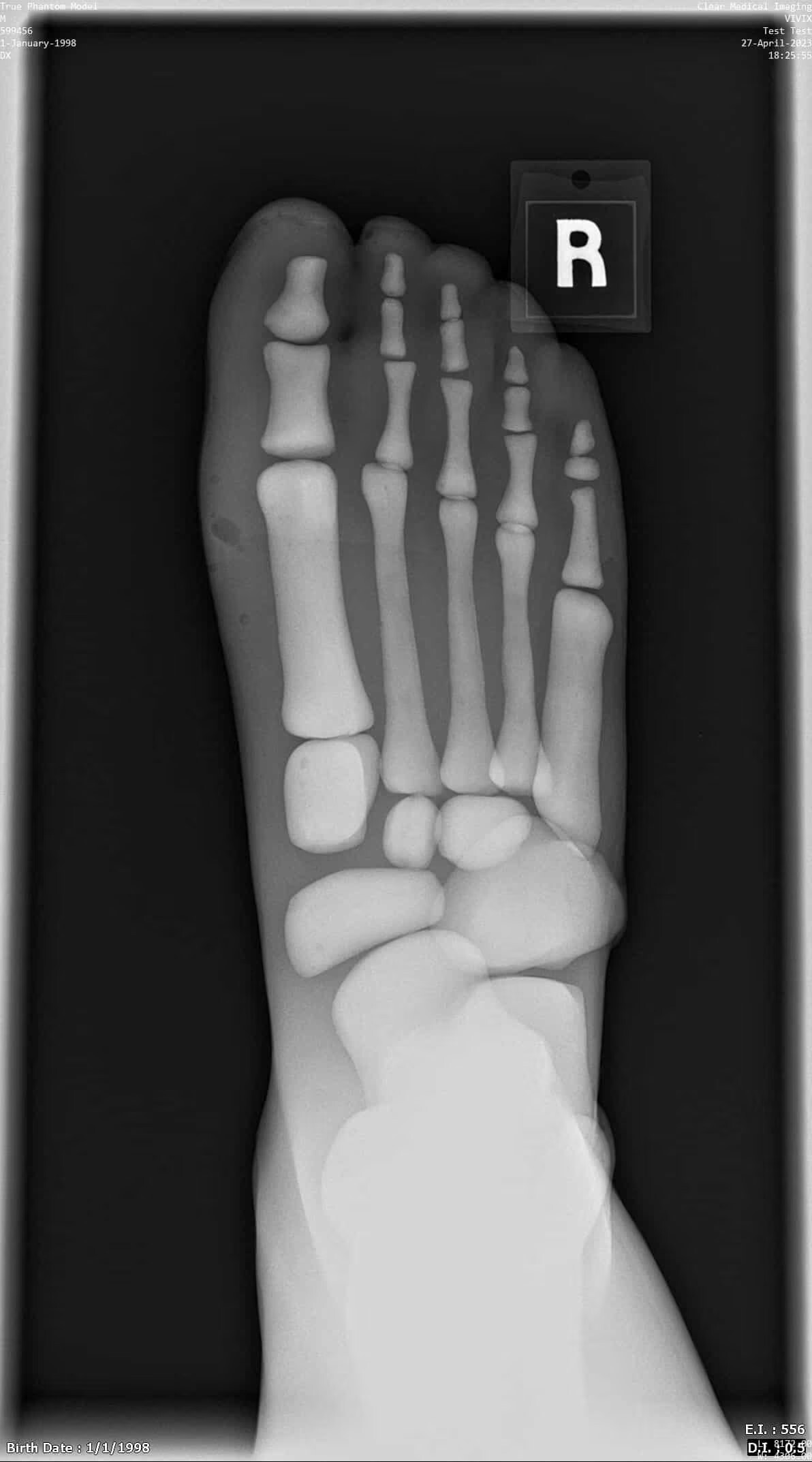

- Foot Bones
- Major Muscle Tissues
- Realistic Soft Body Tissue
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Body Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Muscle Tissue | 1400 ± 10 | 1.01 | 35 | 60 ms | N/A | 1.3 ± 0.2 |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included in Order
- Adult Leg (Muscles) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
Size & Weight
Phantom: 38 x 10 x 7 Inches | Weight: ~26.5 Lbs
Shipment: 36 x 24 x 12 Inches | Weight: ~35 Lbs
Materials Used
- Soft tissue and muscle: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
