Adult Knee for X-Ray CT, US, MRI
Product Description

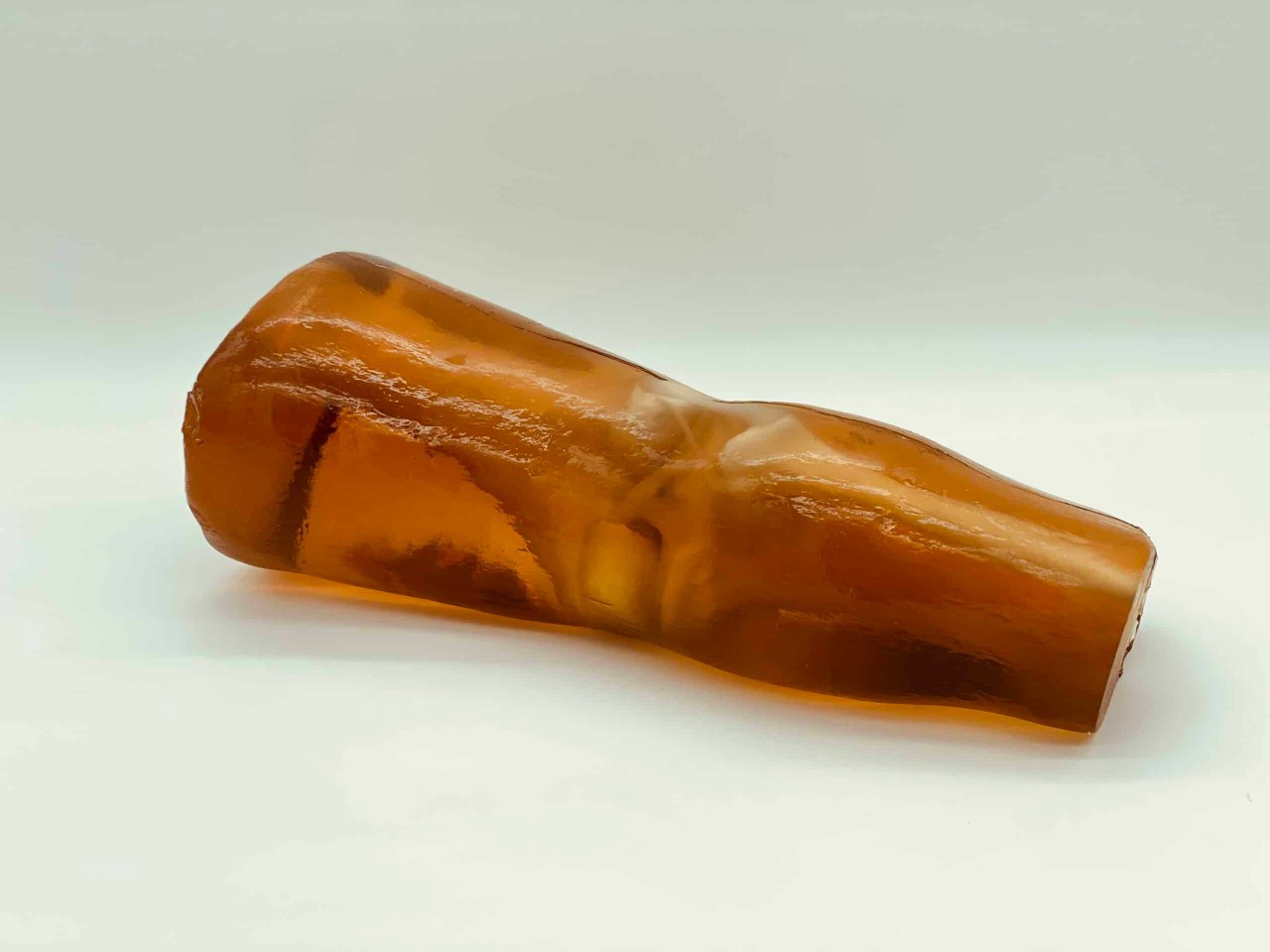

The Adult Knee phantom is designed based on the anatomy of an average adult human male knee. It is a multi-modality tool compatible with X-Ray/CT, Ultrasound, and MRI imaging. The phantom utilizes patented synthetic bone material and realistic urethane-based tissue-mimicking materials for soft tissues, tendons, ligaments, and cartilage. It serves as an essential tool for medical imaging research, radiology training, and orthopedic studies.

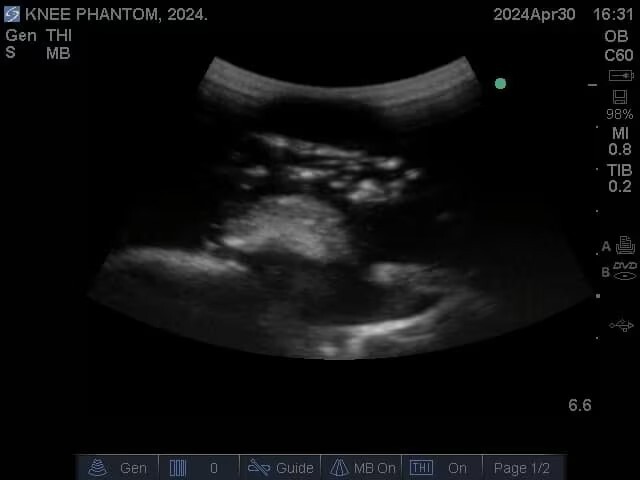

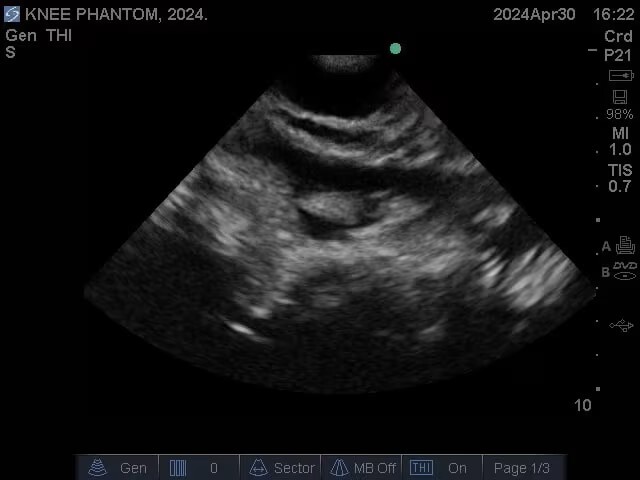

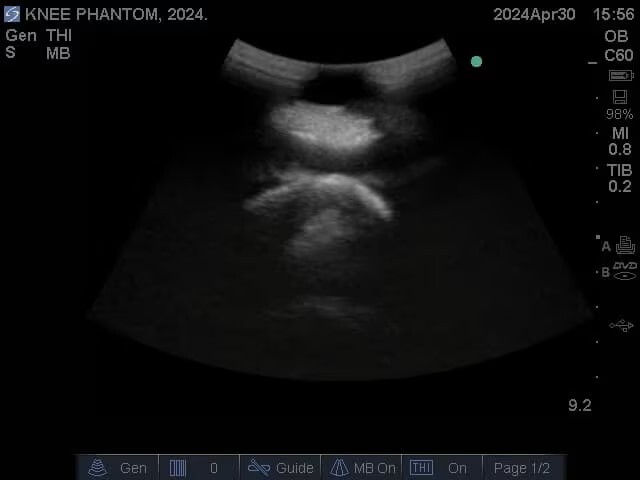

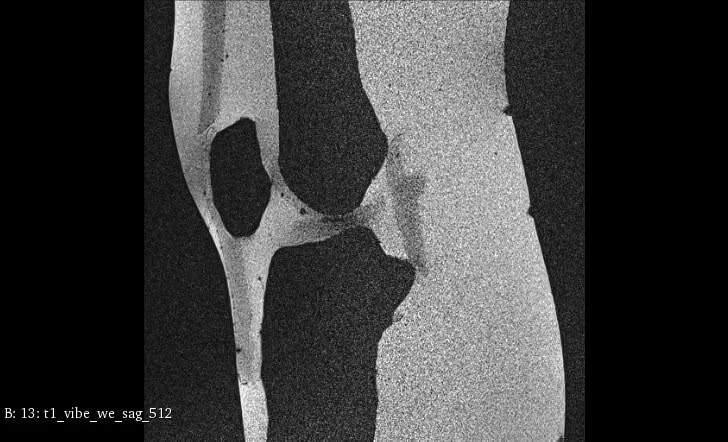

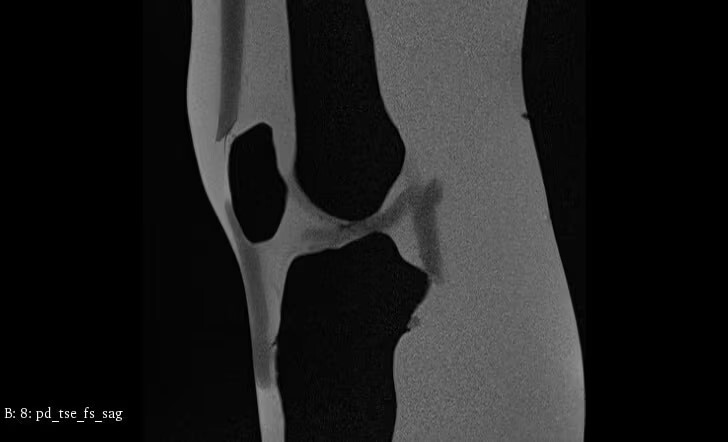

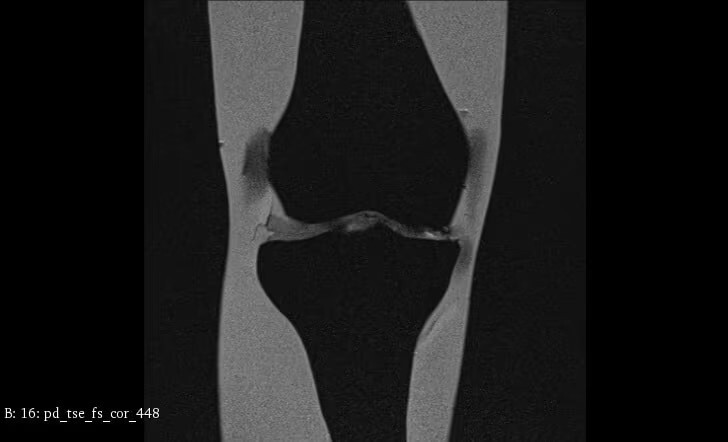

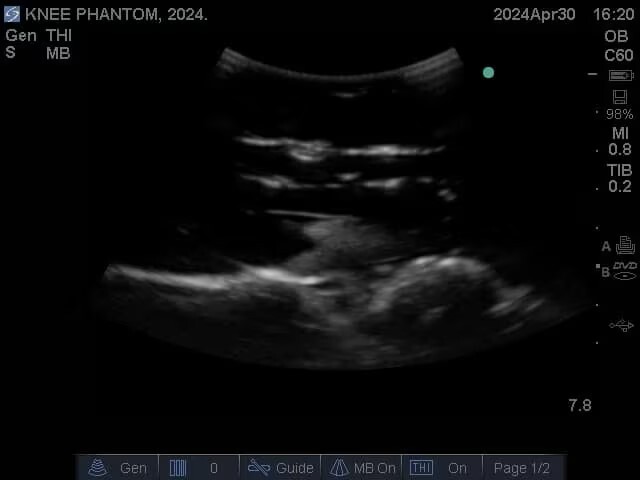

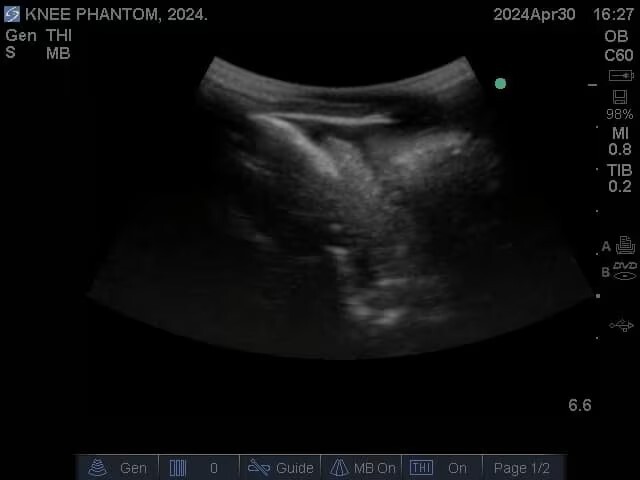

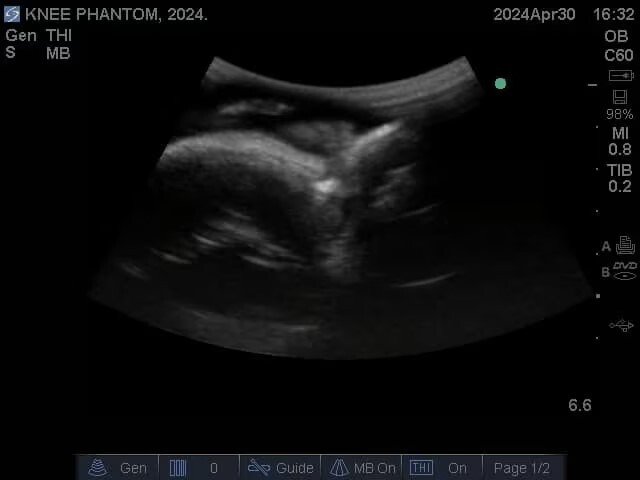

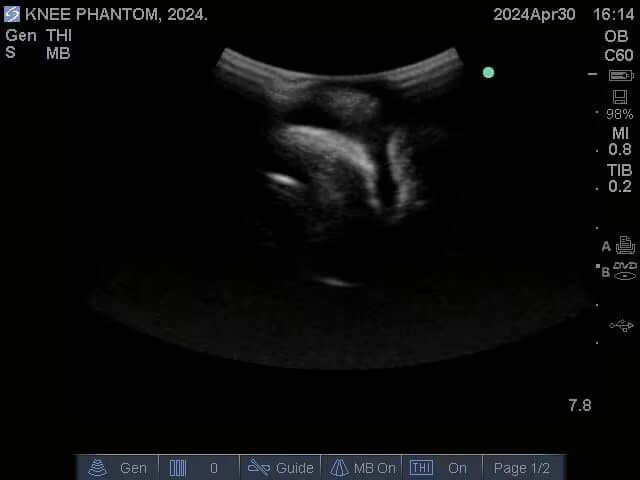

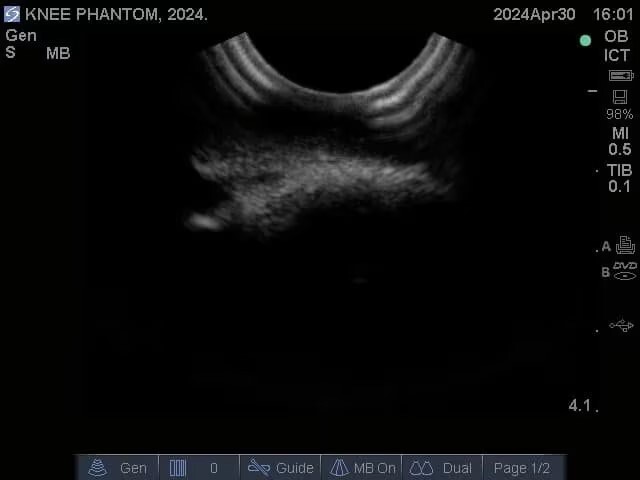

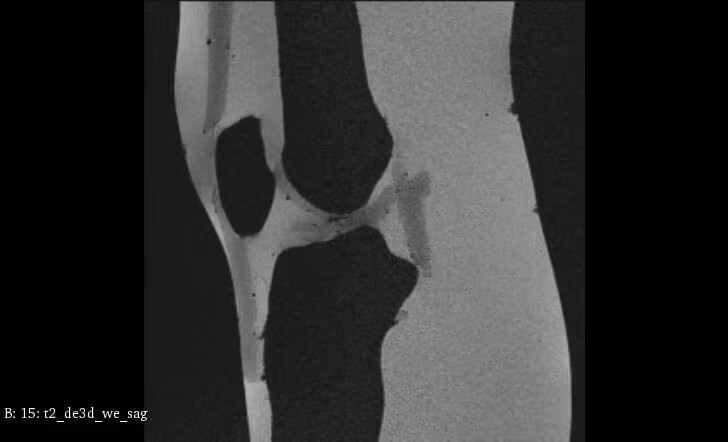

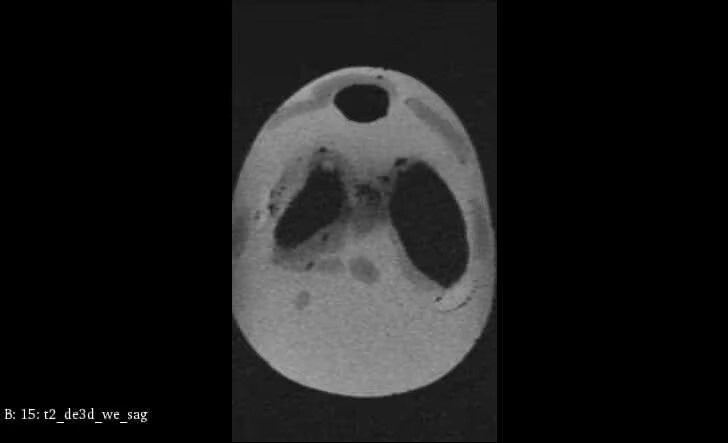

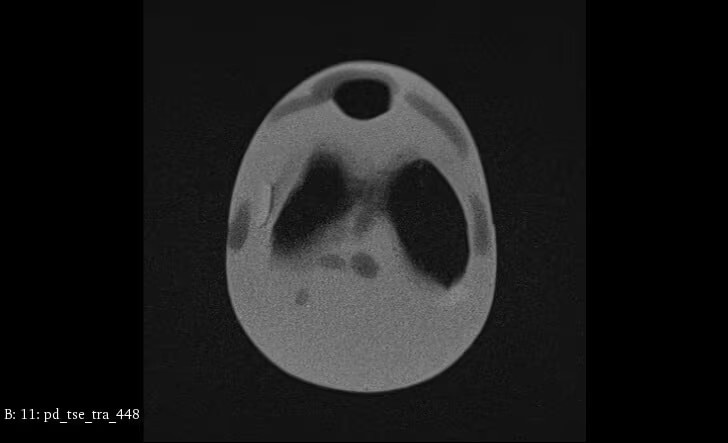

The internal structure replicates the complex biomechanical properties of a real human knee, allowing for high-fidelity testing and calibration. For MRI, the phantom provides realistic T2 relaxation time values (50 ms). This phantom can be customized with specific pathologies or alternative internal features upon request.
Note: By default, the phantom comes in a translucent amber appearance. A skin finish can be included upon request. The model is available in two versions: "Ligaments/Tendons" or "Bones Only".
Anatomy
- Bone Structures: Partial Upper Leg, Partial Lower Leg, Patella.
- Meniscus: Lateral and Medial Meniscus.
- Condyles: Lateral and Medial Femoral Condyles.
- Ligaments and Tendons: Quadriceps Femoris Tendon, Patellar Ligament, Lateral/Medial Patellar Retinaculum, Anterior/Posterior Cruciate Ligament (ACL/PCL), Arcuate Popliteal Ligament, and Oblique Popliteal Ligament.
- Bursa: Subtendinous Bursa (3), Semimembranosus Bursa, Pes anserine Bursa, Infrapatellar Bursa, Prepatellar Bursa, and Iliotibial Band Bursa.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included in Order
- Adult Knee Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 6 x 7 x 15 Inches | Weight: ~18 Lbs
Shipment: 32 x 23 x 13 Inches | Weight: ~26 Lbs
Materials Used
- Soft tissue and components: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
