Adult Knee (Bones Only) for X-Ray CT, US, MRI
Product Description

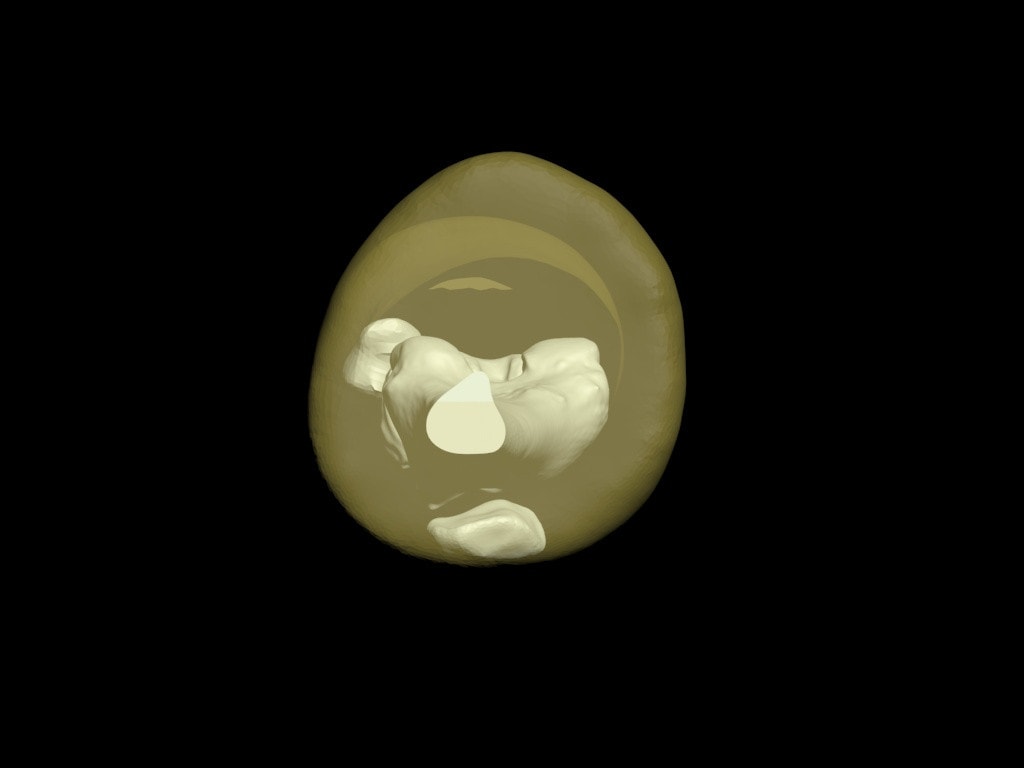

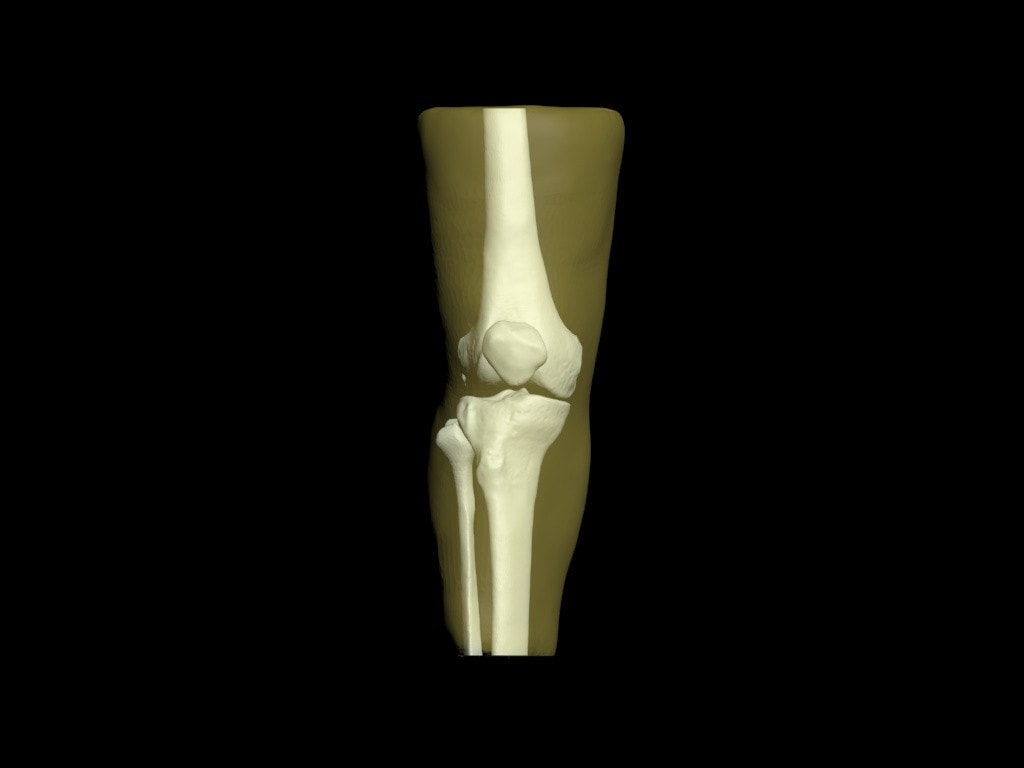

The Adult Knee (Bones Only) phantom is designed based on the average anatomy of an adult human male knee. It is a multi-modality tool compatible with X-Ray/CT, Ultrasound, and MRI imaging. The phantom features synthetic bones cast from patented epoxy-based bone material and realistic urethane-based tissue-mimicking material for the surrounding soft tissue. This simplified version focuses on the skeletal structure, making it an efficient tool for radiology training, medical imaging research, and orthopedic testing.

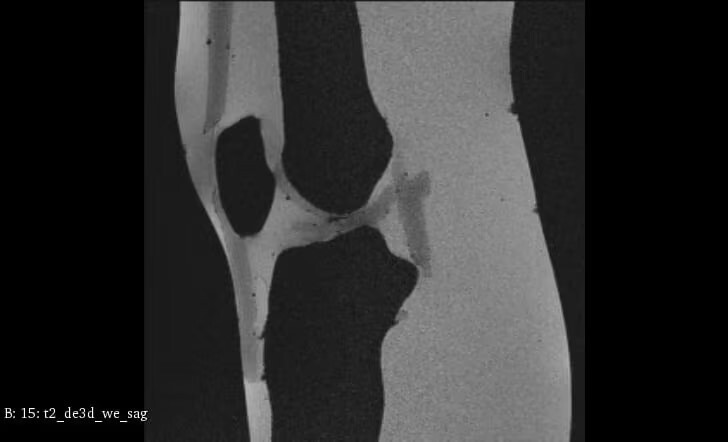

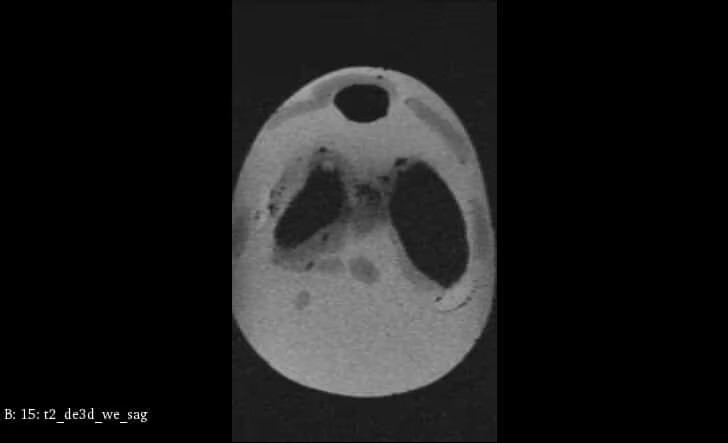

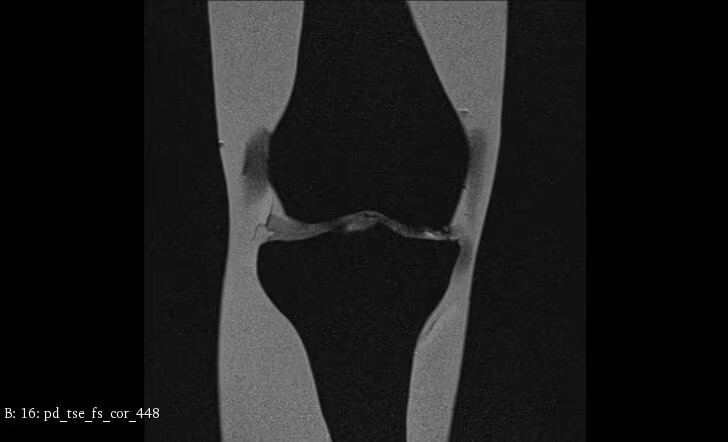

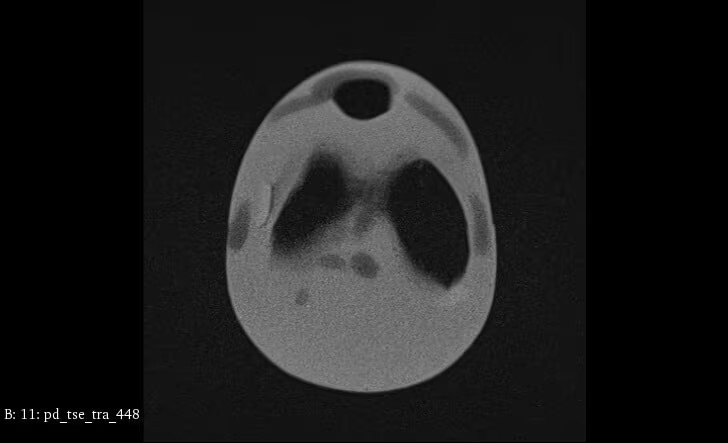

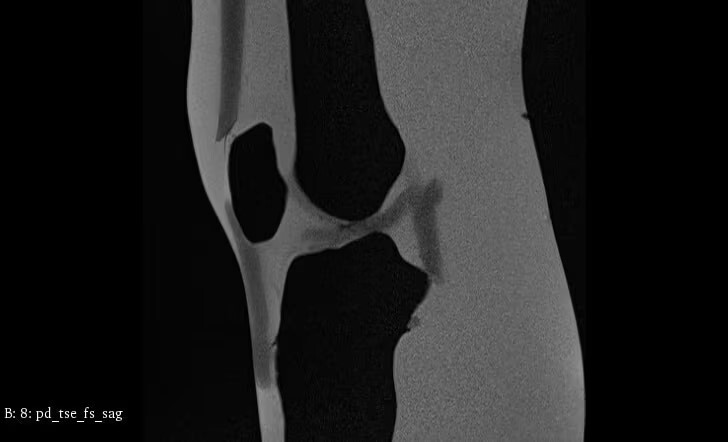

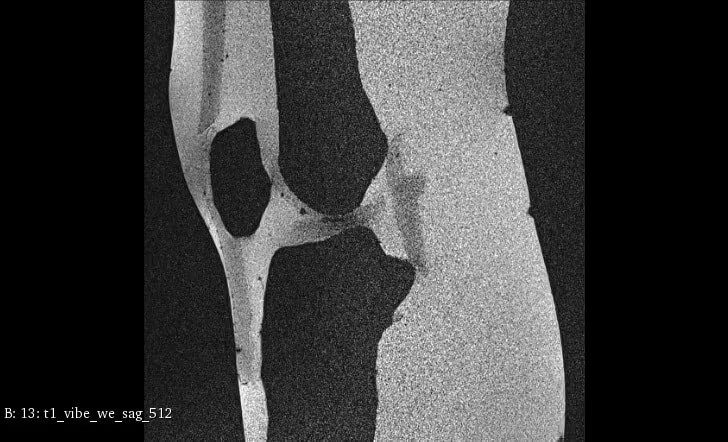

For MRI, the tissues provide realistic T2 relaxation time values (50 ms). The synthetic bones accurately replicate the properties of cortical and trabecular bone, supporting high-fidelity imaging and calibration across different modalities.
Note: By default, the phantom comes in a translucent amber appearance. A skin finish can be included upon request. This specific model (KE-A03) is the "Bones Only" version and does not include ligaments or tendons.
Anatomy
- Partial Upper Leg
- Partial Lower Leg
- Lateral Femoral Condyle
- Medial Femoral Condyle
- Realistic Soft Body Tissue
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Body Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included in Order
- Adult Knee (Bones Only) Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 6 x 7 x 15 Inches | Weight: ~18 Lbs
Shipment: 32 x 23 x 13 Inches | Weight: ~26 Lbs
Materials Used
- Soft tissue components: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
