Description
Adult Sectional Abdomen (Portable FAST Simulator)
Product Description

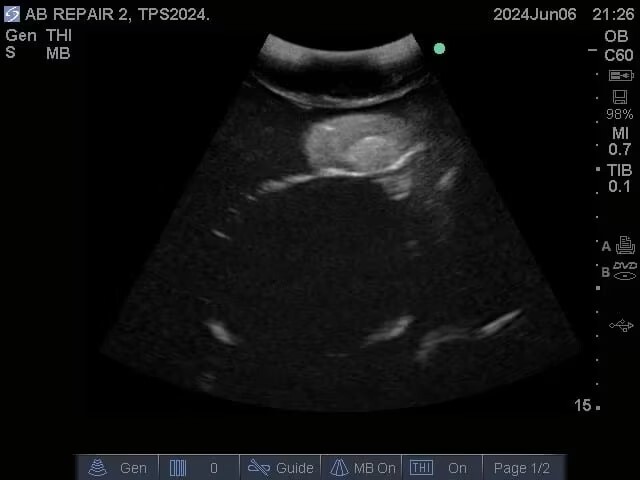

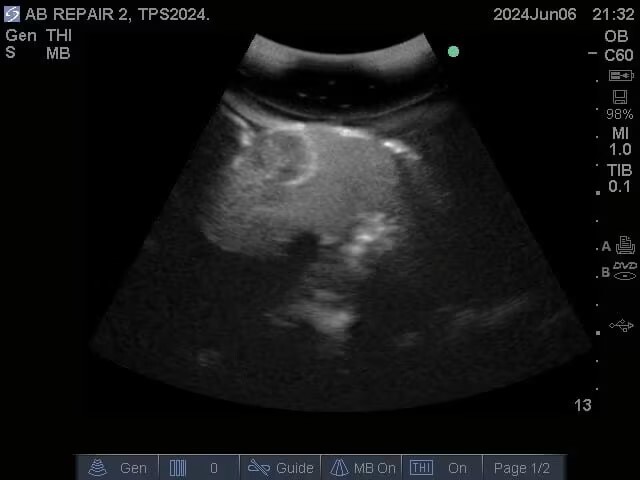

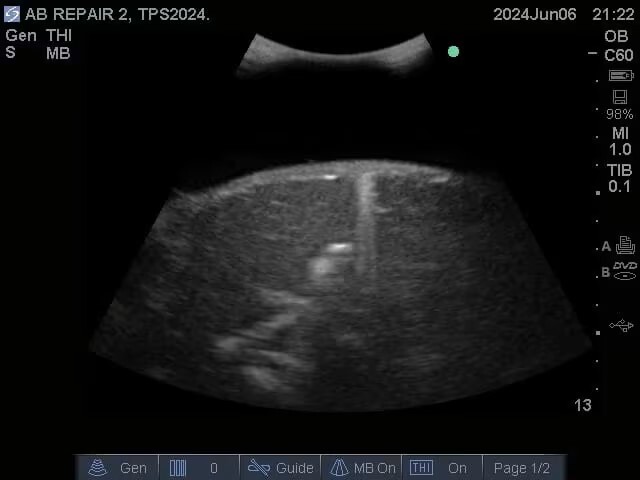

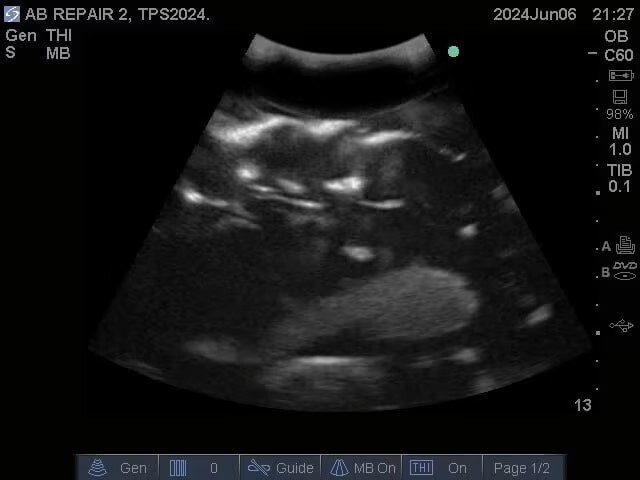

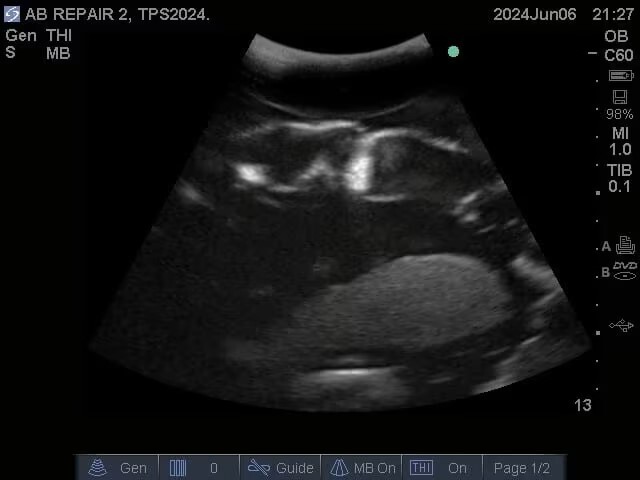

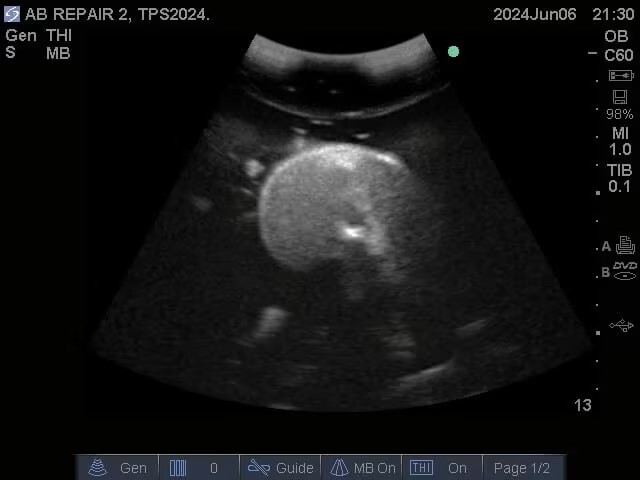

The Adult Sectional Abdomen is a high-fidelity, portable simulator designed specifically for Focused Assessment with Sonography in Trauma (FAST) and Focused Acute Medicine Ultrasound (FAMUS) training. Modeled after an average adult human male, it is fully compatible with X-Ray/CT and Ultrasound modalities. This phantom is a vital tool for ultrasound technicians and medical students to master procedural training and lesion detection.
The phantom features 13 distinct lesions (1-2 cm in diameter) placed at various depths and locations near the liver and kidneys to simulate realistic clinical scenarios. The synthetic bones are made from patented ceramic-reinforced epoxy, including vertebrae with a realistic three-layered structure. The soft tissues and organs are composed of urethane-based resins that mimic human acoustical and mechanical properties.
Note: By default, the phantom comes in a translucent amber appearance. An opaque, skin-colored version is available upon request. The product can be further customized with additional pathologies for specialized training needs.

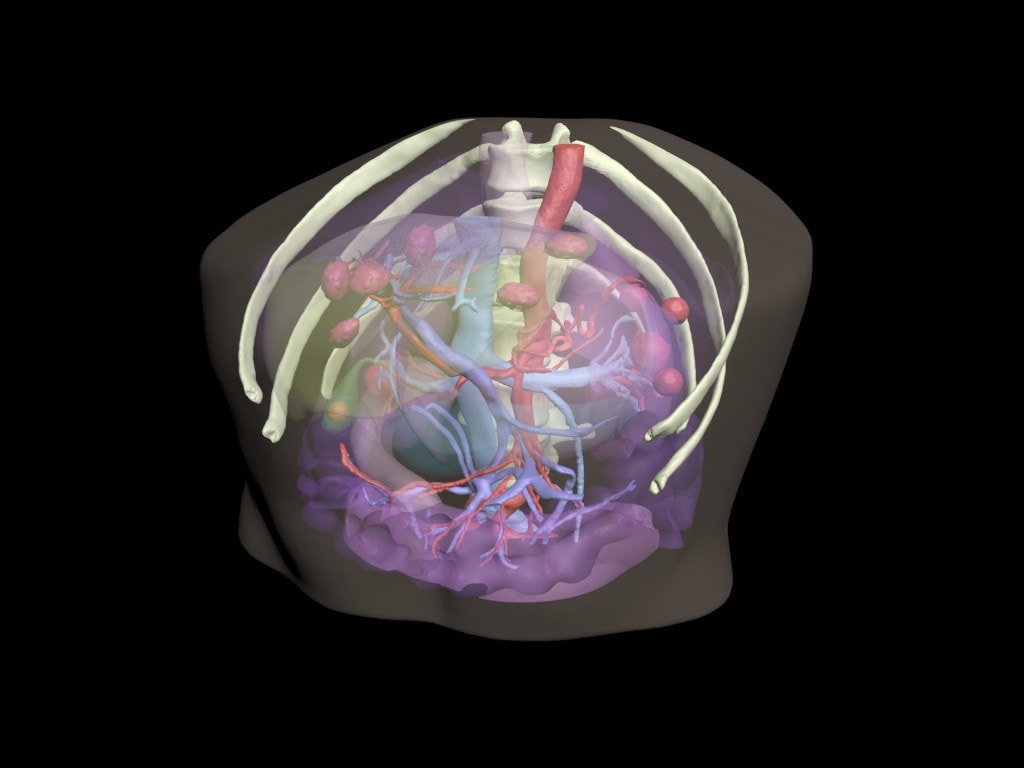

Anatomy
- Partial Spine and Ribs (10-12)
- Diaphragm
- Liver (with vessels and bile duct)
- Spleen
- Stomach
- Upper Large Intestine
- Kidneys (with vessels)
- Pancreas and Gallbladder
- Abdominal Vasculature
Integrated Lesions (13 total)
- 6 lesions in the liver
- 4 lesions in the kidneys (2 in each)
- 1 lesion in the gallbladder
- 1 lesion in the spleen
- 1 interstitial tumor "floating" below the diaphragm/above the left kidney
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00] | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Lesion Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |

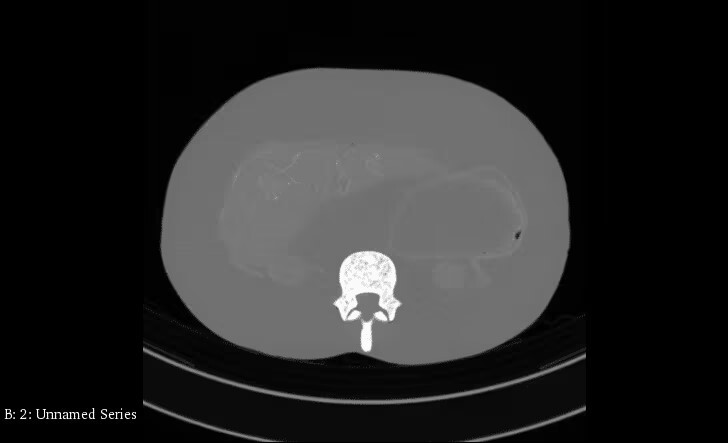

HU Values (Averaged)
| Tissue Type | HU Value | Tissue Type | HU Value |
|---|---|---|---|
| Body Tissue | -25 | Pancreas / Spleen | 110 |
| Cortical Bone | 1300 | Kidneys / Liver | 110 |
| Trabecular Bone | 800 | Bladder | 35 |
Included in Order
- Adult Sectional Abdomen Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
Size & Weight
Phantom: 11 x 9 x 8 Inches | Weight: ~22 Lbs
Shipment: 32 x 23 x 13 Inches | Weight: ~30 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
