Cylindrical Skull for X-Ray CT, US, MRI
Product Description

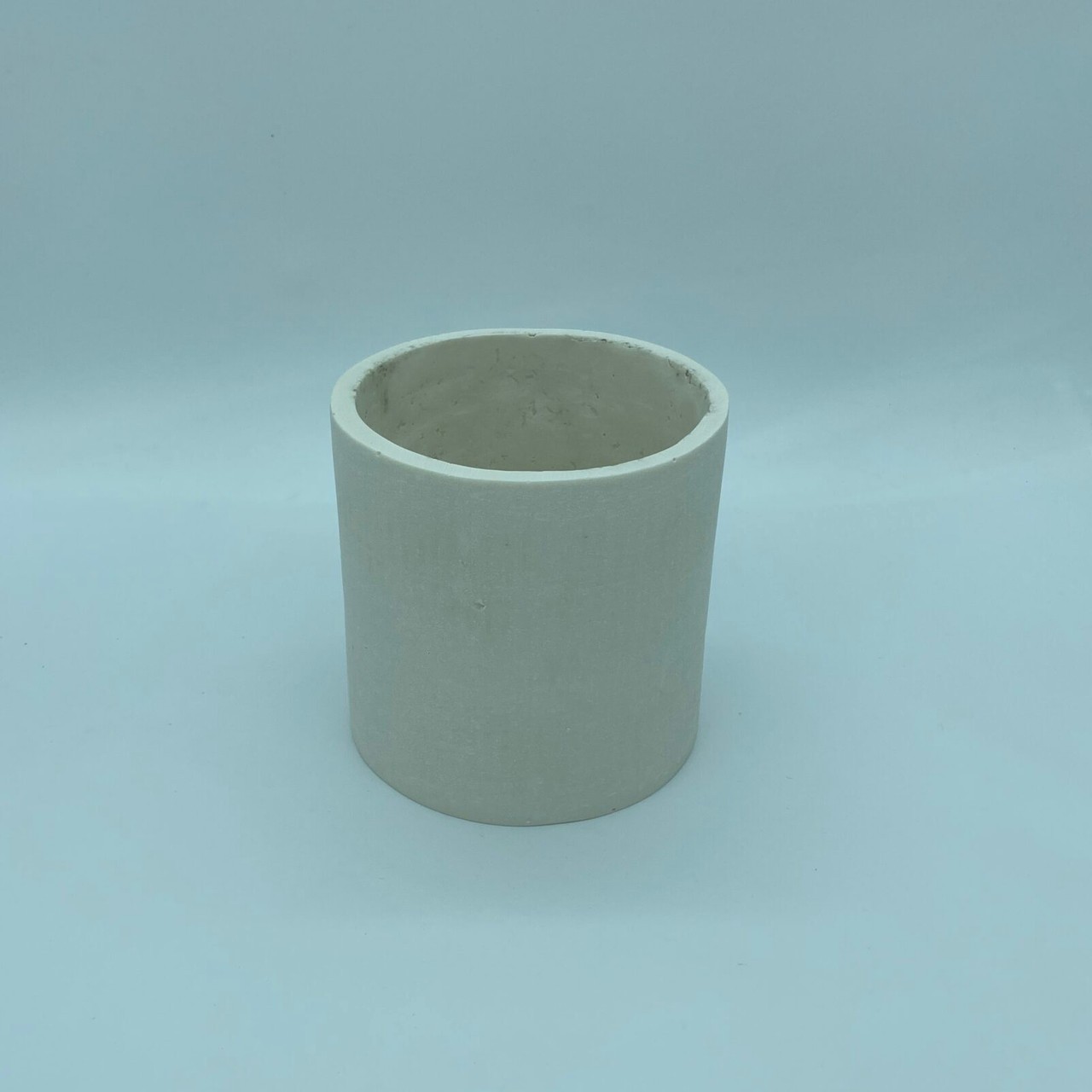

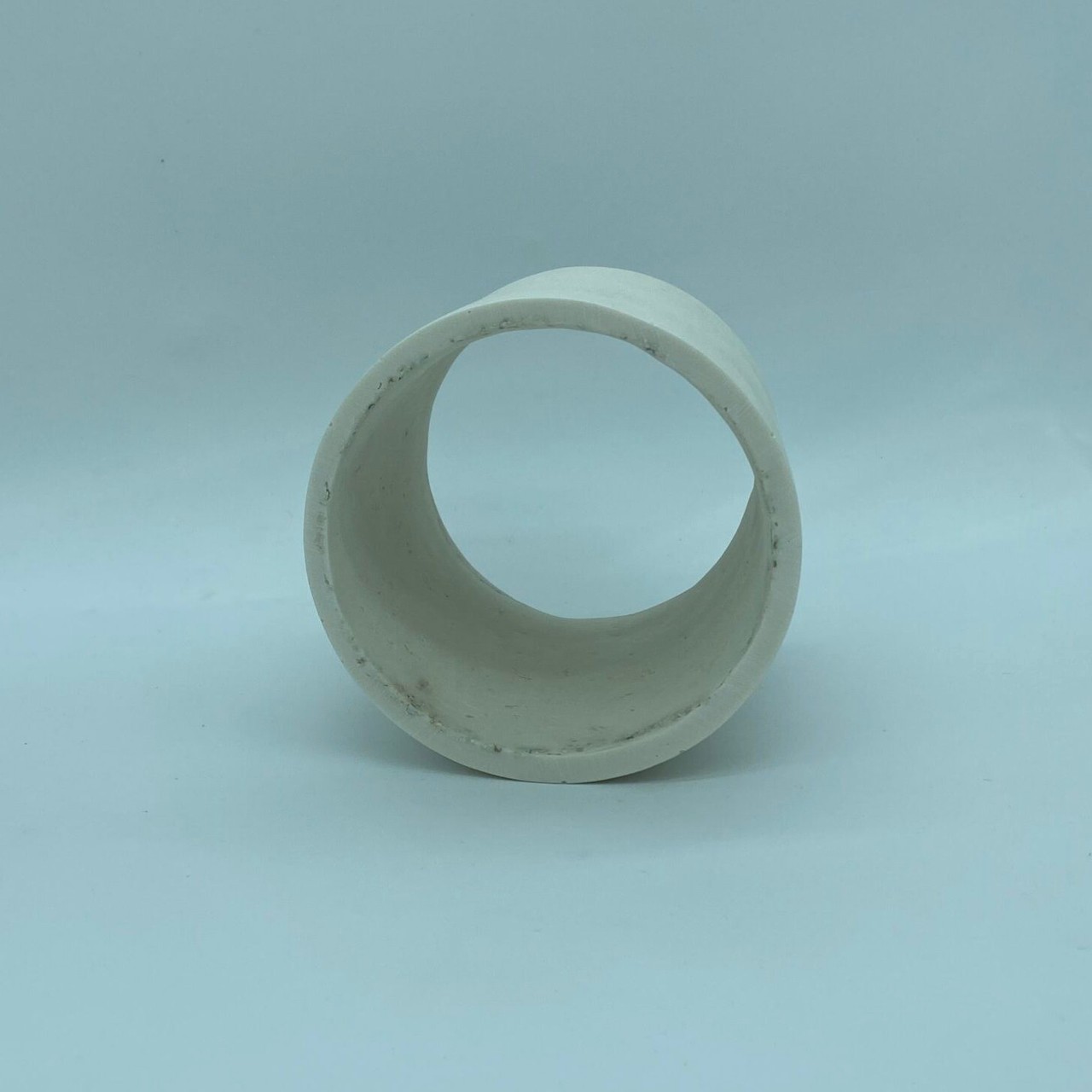

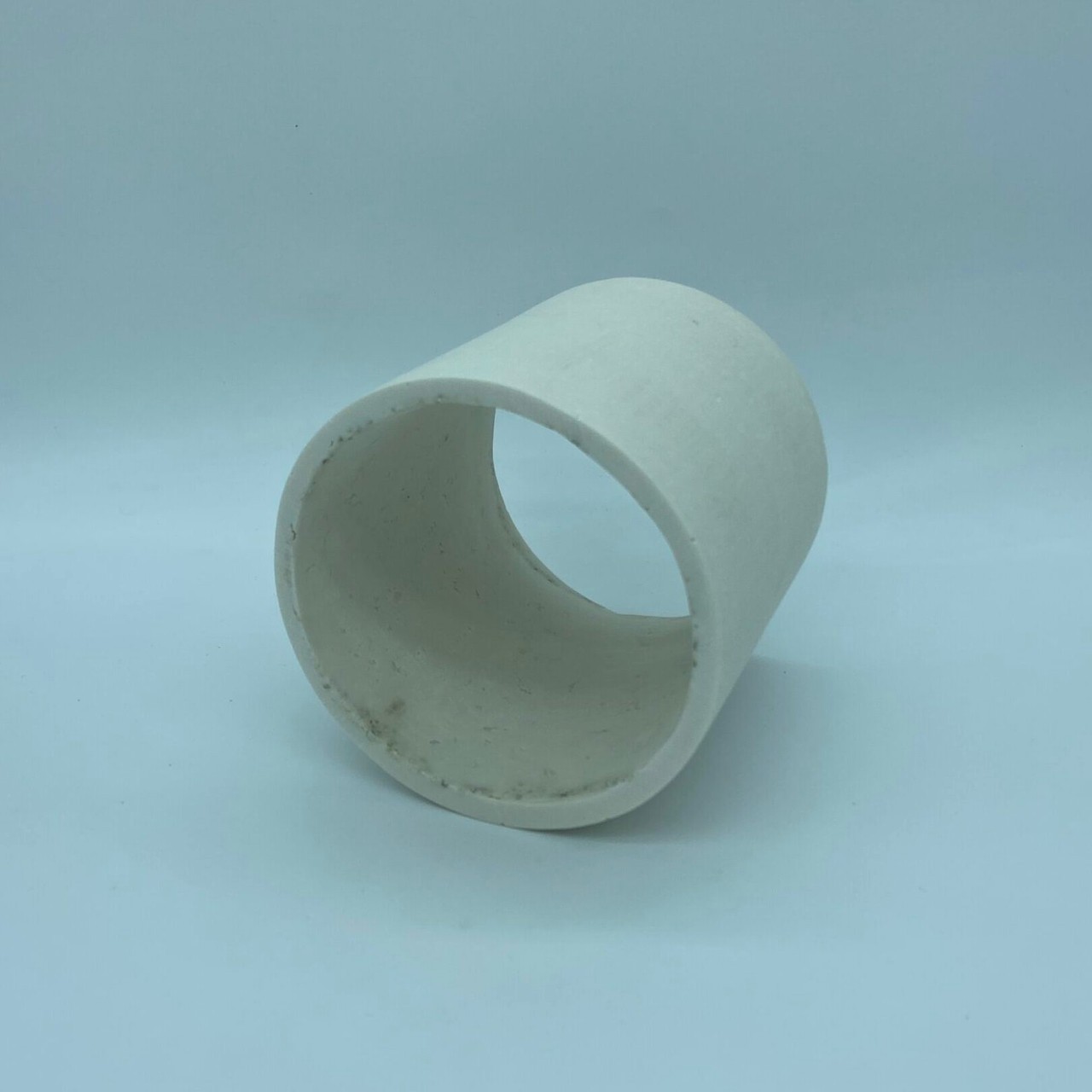

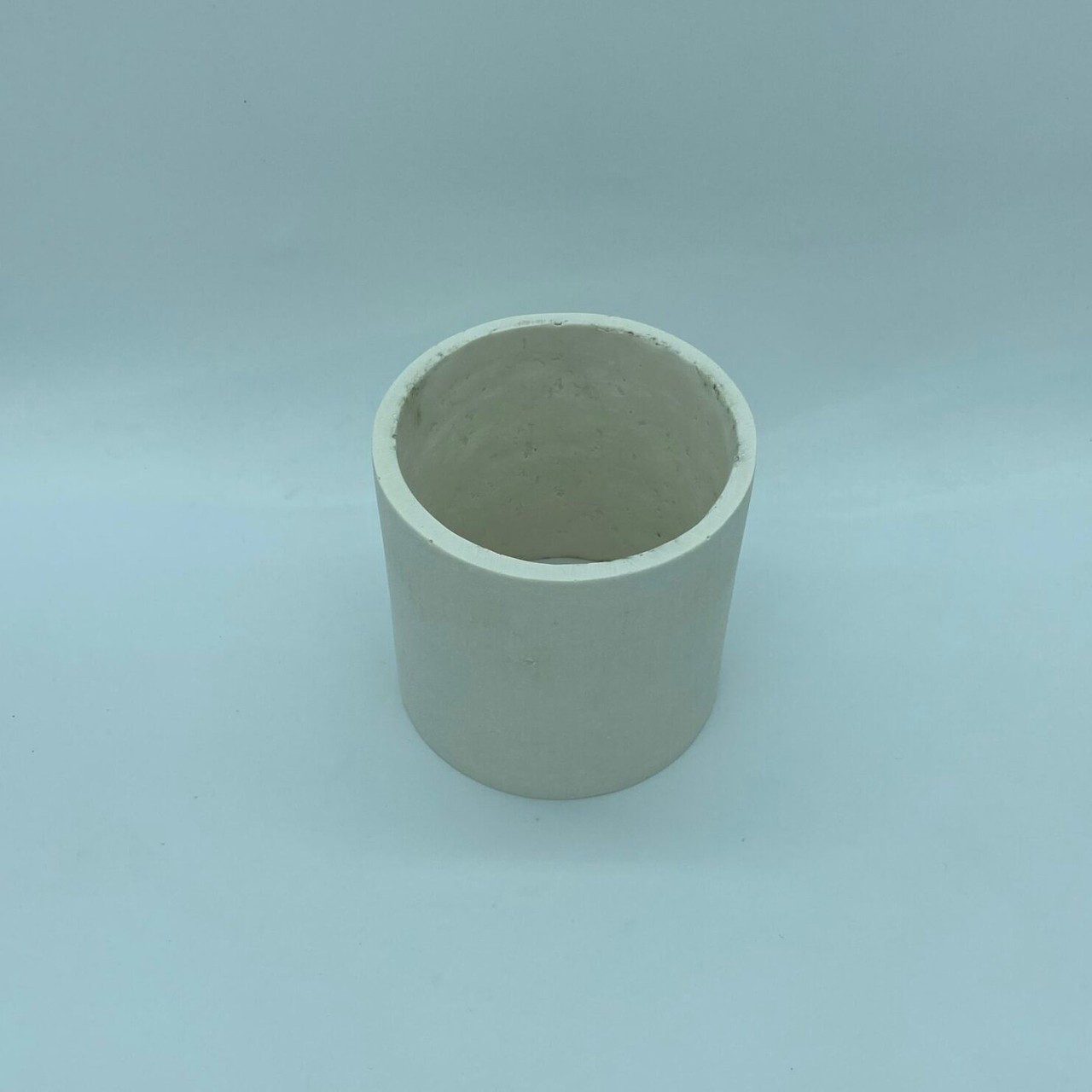

The Cylindrical Skull Phantom is a specialized geometrical research tool designed for imaging research and development. It accurately replicates the physical and acoustical properties of a real human skull using patented bone-mimicking material. This phantom is fully compatible with Ultrasound, MRI, and X-Ray/CT applications, making it an ideal choice for testing and system calibration.
The model features a realistic three-layered bone structure, including cortical bone and trabecular bone (diploe). The inner porosity of the bone layers can be adjusted to meet specific project requirements. For MRI, the synthetic bone material exhibit realistic T2 relaxation time values, supporting high-quality T2-weighted and proton density imaging results.

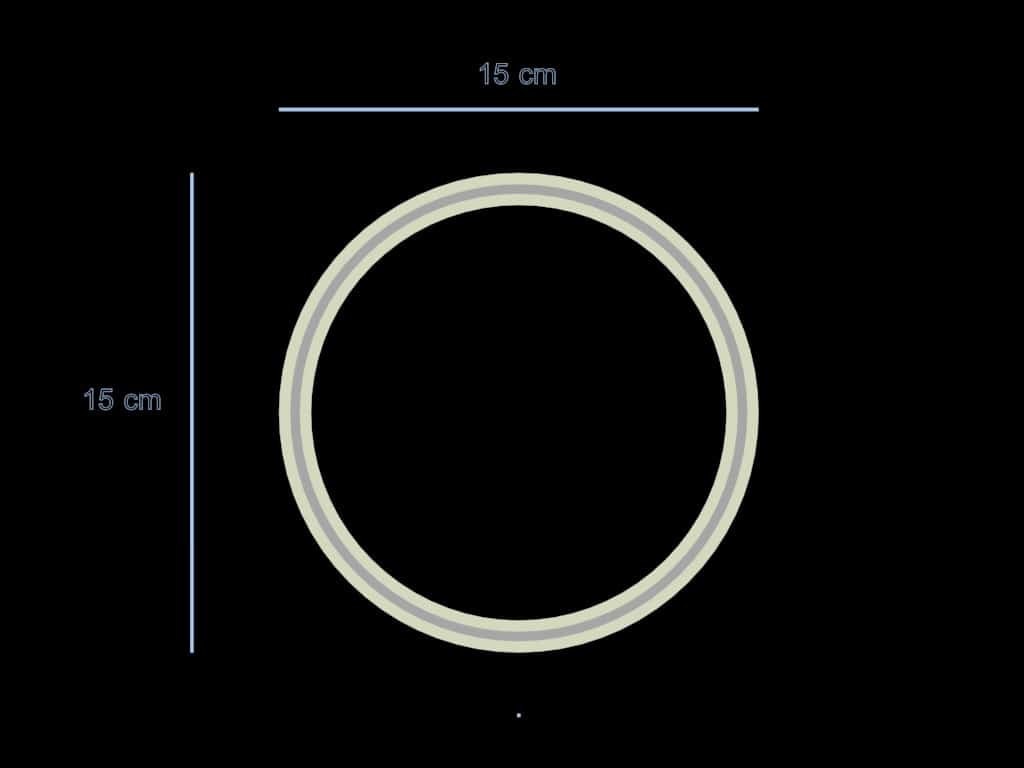

Note: This geometrical model focuses on the skeletal structure of the skull in a cylindrical format (15 cm x 15 cm). Full customization of bone density and dimensions is available upon request.
Anatomy
- Cylindrical Skull Structure (15 cm x 15 cm)
- 10mm Bone Thickness
- Cortical Bone
- Trabecular Bone (Inner diploe layer)
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hounsfield Value | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | 1300 | 21 ± 2 |
Thermal Properties of Bone-Mimicking Tissue
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of the Tissue Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included in Order
- Cylindrical Skull Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
Size & Weight
Phantom: 6 x 6 Inches | Weight: ~3.5 Lbs
Shipment: 10 x 8 x 6 Inches | Weight: ~6 Lbs
Materials Used
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
