Cylindrical Head for X-Ray CT, US, MRI
Product Description

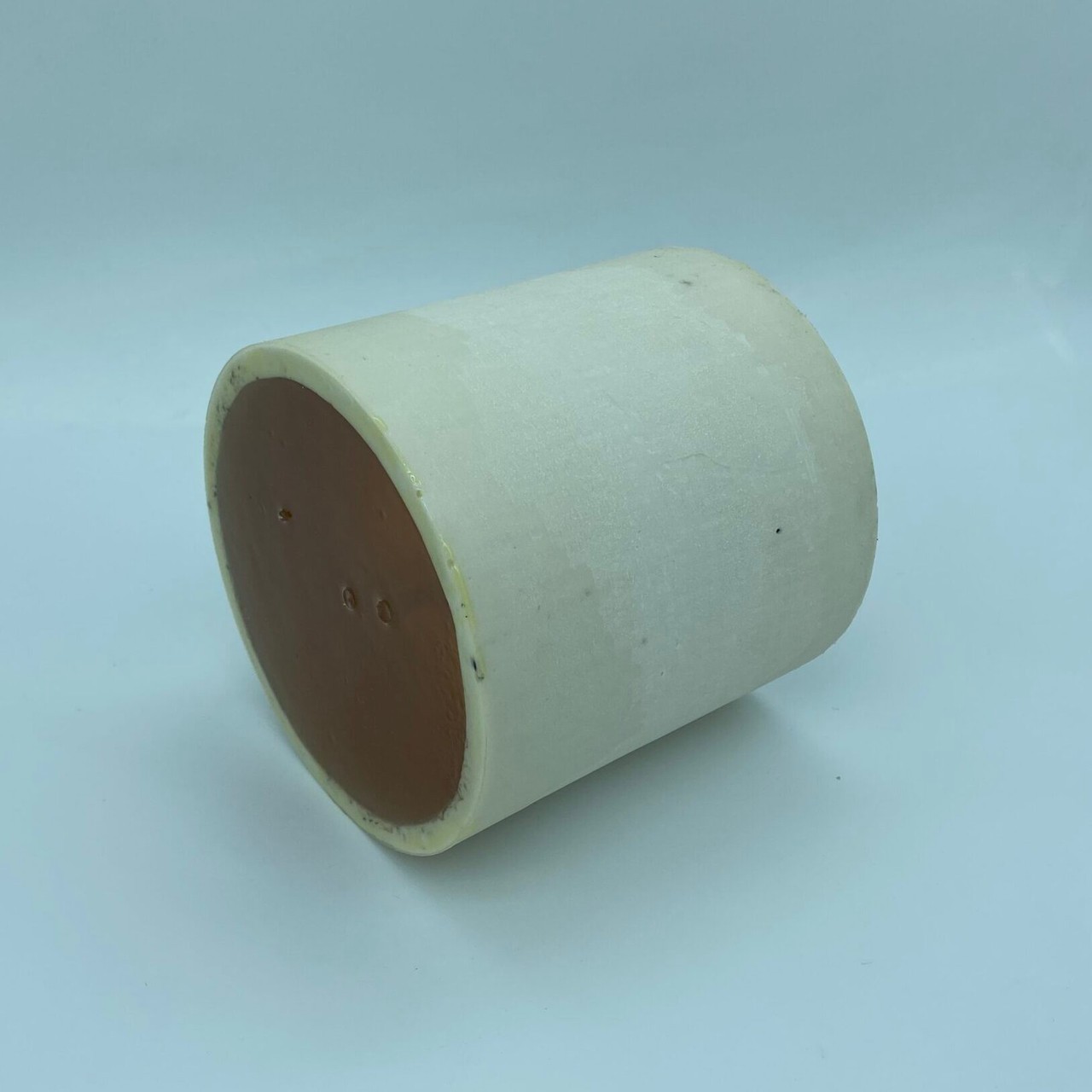

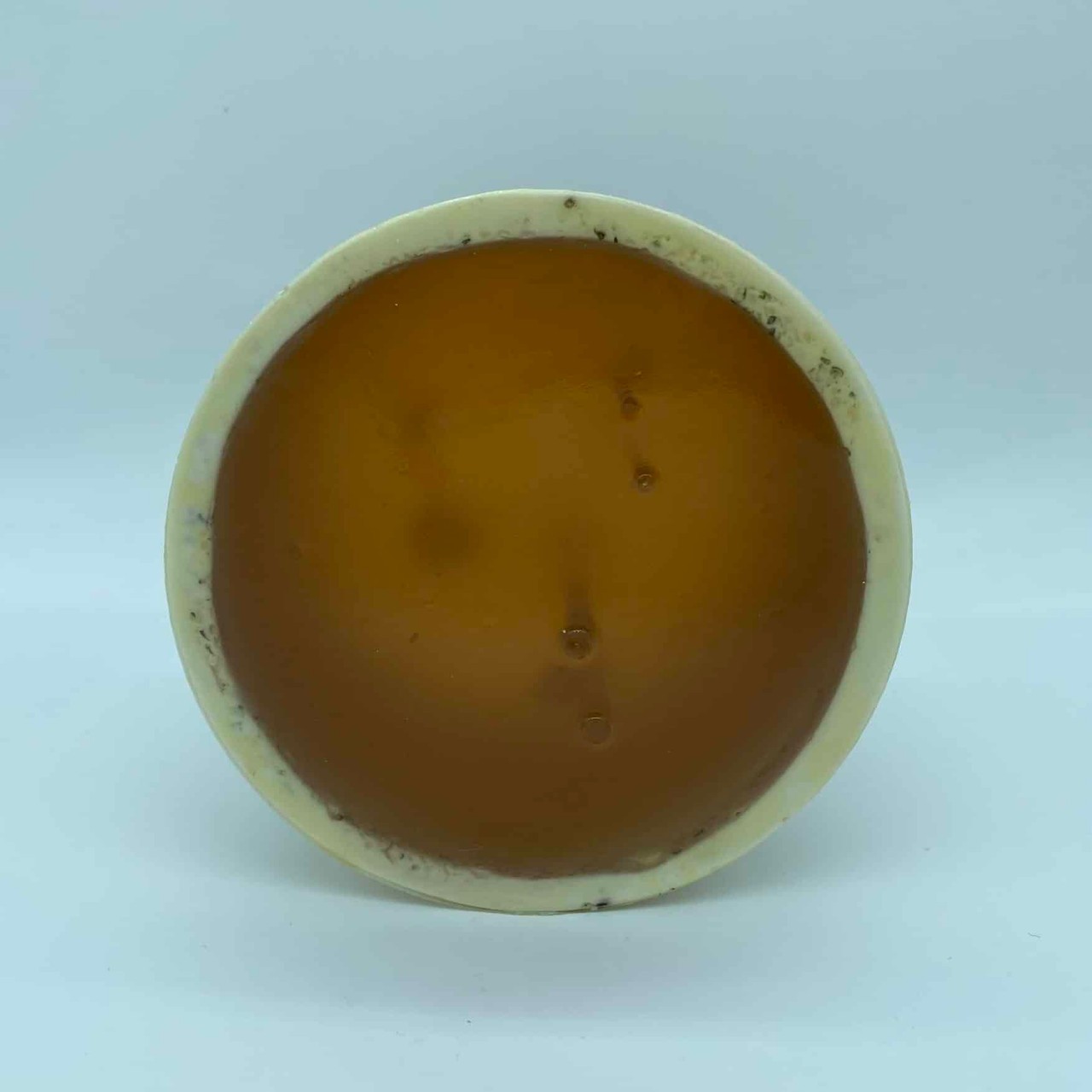

The Cylindrical Head Phantom is an ideal tool for medical imaging research, specifically designed for applications in computed tomography and ultrasound tomography. The phantom features a skull cast from a patented epoxy-based bone material and realistic brain tissue, making it compatible with Ultrasound, MRI, and X-Ray/CT. The cylindrical skull has a realistic three-layered structure with adjustable inner porosity (diploe).
For MRI, the tissues offer realistic T2 relaxation time values, optimized for T2-weighted and proton-density imaging. T1-weighted imaging is possible, with values typically within the 100 ms range. The model realistically mimics the acoustical and biomechanical properties of a real human skull and brain.
Note: This phantom can be fully customized to meet specific project requirements, including adjustments to bone porosity and internal anatomical features.
Anatomy
- Cylindrical 3-layered Skull Phantom (Adjustable inner porosity)
- Realistic Brain Tissue
- 15 cm Diameter
- Blood Vessels (With and without Contrast Agent)
- Tumors
- Alignment Markings
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation (2.25 MHz) [dB/cm] |
|---|---|---|---|---|---|---|
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Tumor | 1400 ± 10 | 1.01 | 30 | 65 | YES | 1.2 ± 0.2 |
Thermal Properties of Bone-Mimicking Tissue
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of the Tissue-Mimicking Materials
| S.No. | Tissue Type | HU Value (average) |
|---|---|---|
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
Included in Order
- Cylindrical Head Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: ~5.9 x 5.9 x 5.9 Inches | Weight: ~8 Lbs
Shipment: 23 x 14 x 10 Inches | Weight: ~16 Lbs
Materials Used
- Soft tissue and brain: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
