Description

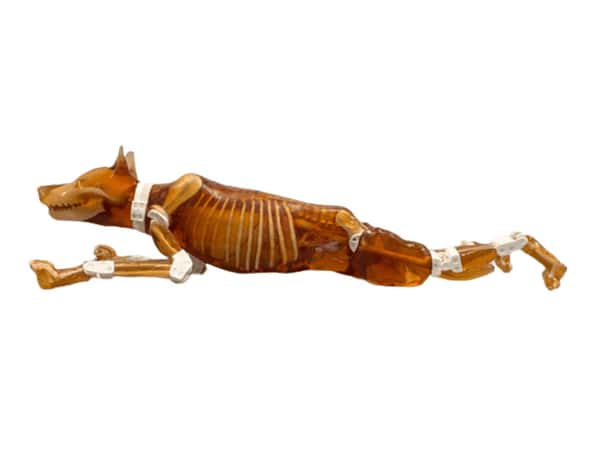

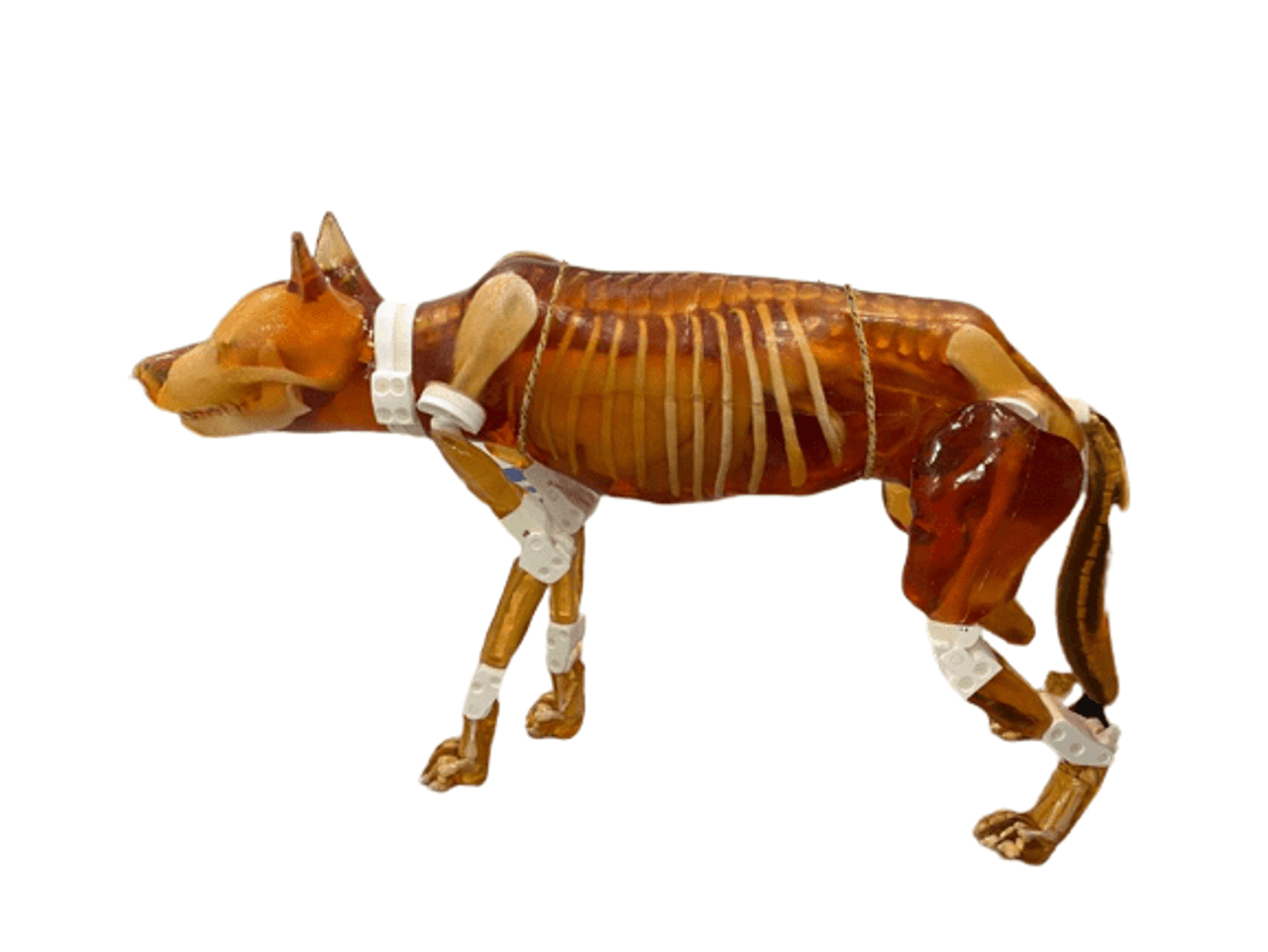

The newly designed detachable dog phantom is a training simulator, independent of external hardware/software. The phantom is compatible with Ultrasound, X-RAY/CT, and MR imaging. It has all the right features to be an ideal teaching tool for sonographers, radiographers, veterinary residents, and other vet professionals.
Unlike its predecessor, the new detachable dog phantom has improved anatomical structures and removable body parts(head, limbs, torso, and tail). This improvement is an added advantage as it helps perform various positioning techniques under the US, X-RAY/CT, and MR imaging modalities.
This product is available in the following options:

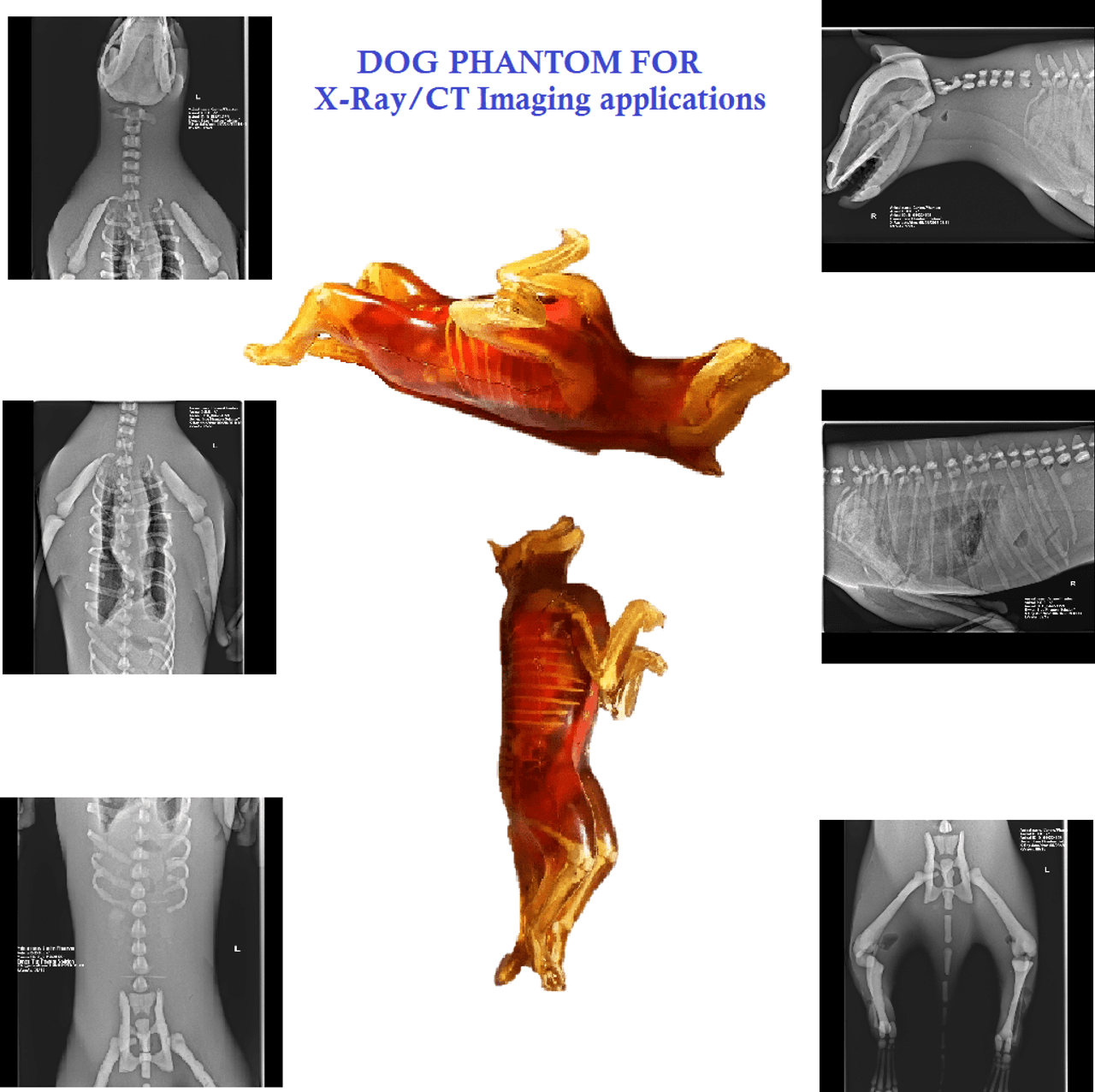

- Dog Phantom for Ultrasound and X-RAY/CT imaging
- Dog phantom for X-RAy/CT and MR imaging
- Dog phantom for Research & Development applications
Body Parts and Anatomical structures:
1. Adult Dog Head for the US, X-RAY/CT, MRI – 1 Unit
- Anatomically correct realistic skull phantom with the jaw bone
- Realistic brain tissue
2. Adult Dog Torso for US, X-RAY/CT, MRI – 1 Unit
Bones included:
- Complete Spine
- Complete Ribcage
- Shoulder (Scapula bones)
- Pelvis
- Thoracic organs included:
- Anatomically correct Heart
- Realistic blood vessel structure connected with the heart
- Lungs
- Diaphragm
- Major abdominal organs included:
- Stomach
- Liver and gallbladder

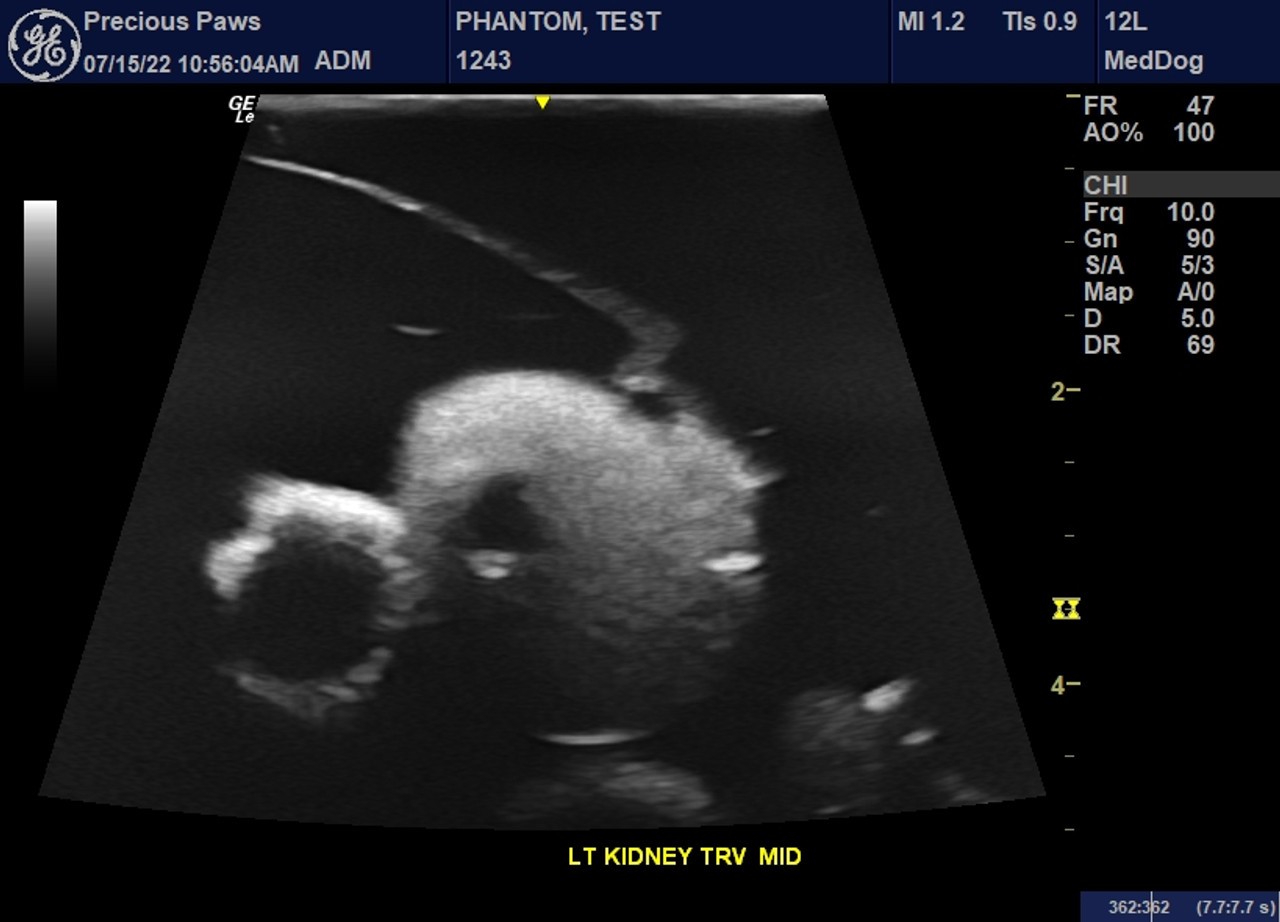

- Kidneys
- Spleen

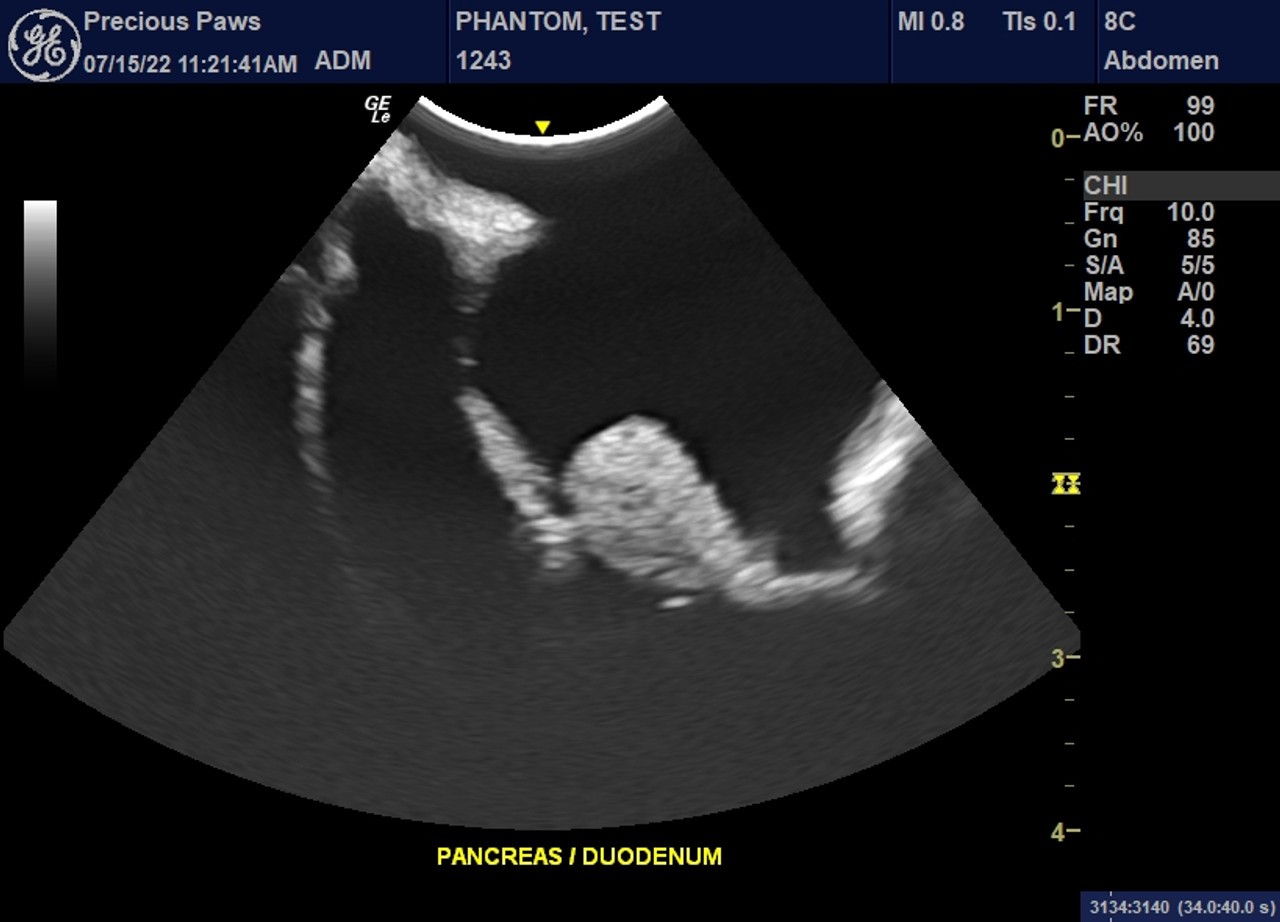

- Pancreas
- Fine arteries for kidneys
- Bladder
- Ureters and Uterine
- Large & small intestines
3. Adult Dog Front Arms for US, X-RAY/CT, MRI – 2 Units
- Arm (Humerus)
- Elbow joints
- Forearm (Radius, Ulna)
- Paw (wrist with fingers)
- Acoustically correct skin-mimicking material surrounding the leg
4. Adult Dog Rear Legs for US, X-RAY/CT, MRI – 2 Units
- Thigh (Femur)
- Knee joints
- Leg (Tibia, Fibula)
- Paw (Finger bones)
- Acoustically correct skin-mimicking material surrounding the leg
5. Adult Dog Tail for US, X-RAY/CT, MRI – 1 Unit
- Anatomically correct realistic tail bones
- Realistic tissue-mimicking material
Optional features, upon request:
- Internal hemorrhages at bilateral chambers, pelvic area, pericardial area, perisplenic areas, etc.
- Lesions and tumors at precise locations.
- Customizing the phantom with motion or bleeding.
Materials used:
Soft tissue and organs
- Composition of Urethane base resin
Synthetic bones are available in two options:
- Composition of Urethane base plastic
- Patented ceramic-reinforced epoxy-based composite material
Dimensions and Weight:
Product size: 45.66 in. x 25.98 in. x 16.92 in. (approx.)
Product weight: 39.68 lbs (approx.)
Includes:
- Adult Female Dog

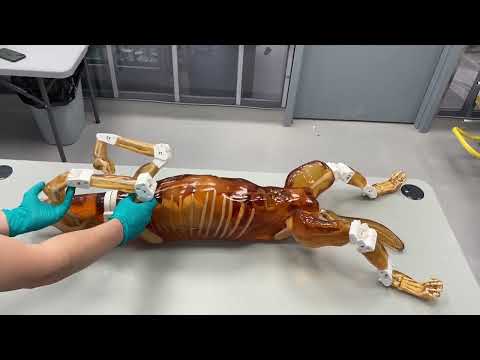

- Design video
- User Manual with assembly instructions
- Hard carry and storage case (Optional)
Q & A
Q: Can this phantom be used to perform ultrasounds?
A: Yes! An Ultrasound and X-Ray/CT version is available.
