Pediatric Full Body for X-Ray CT, US
Product Description

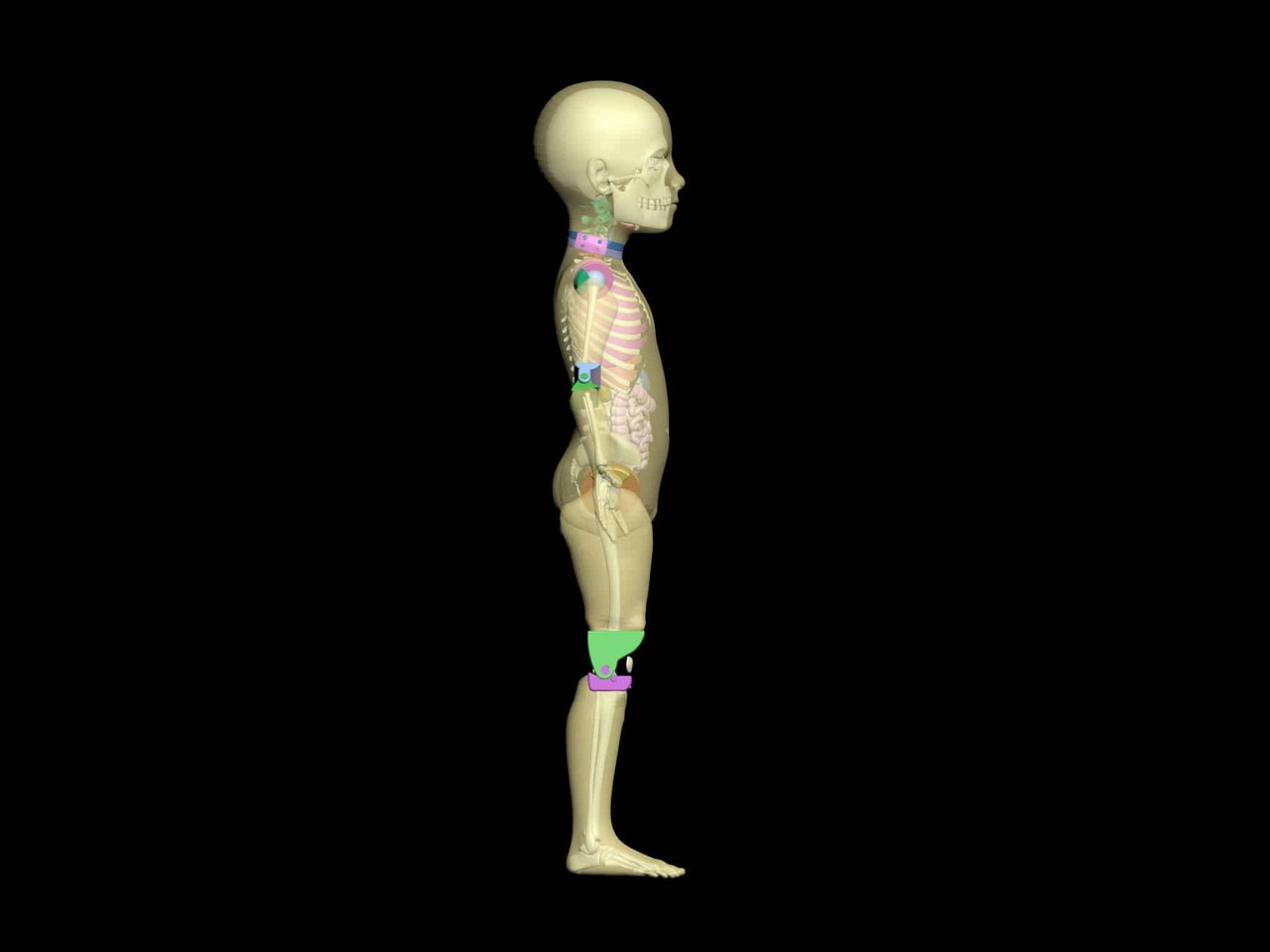

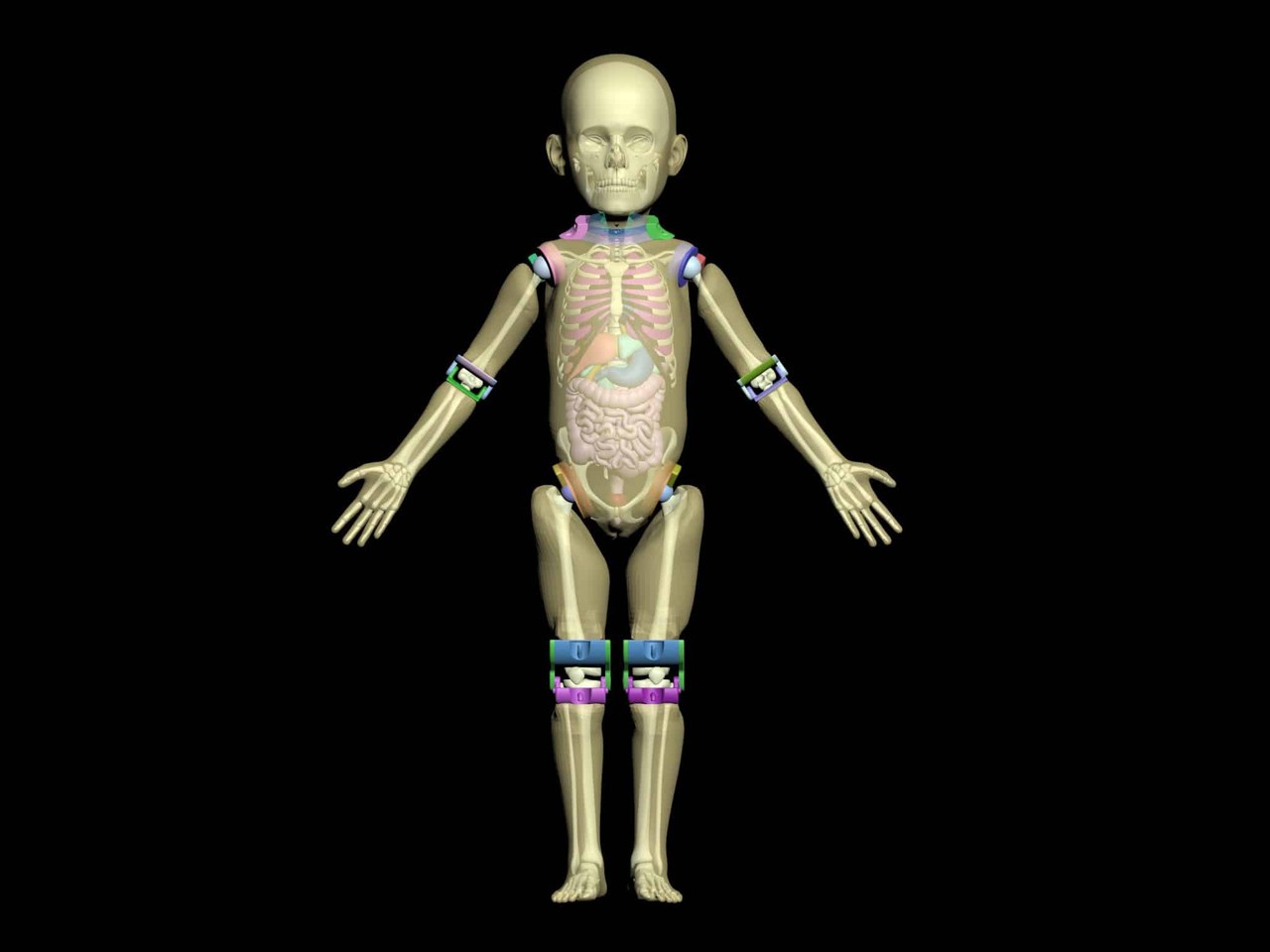

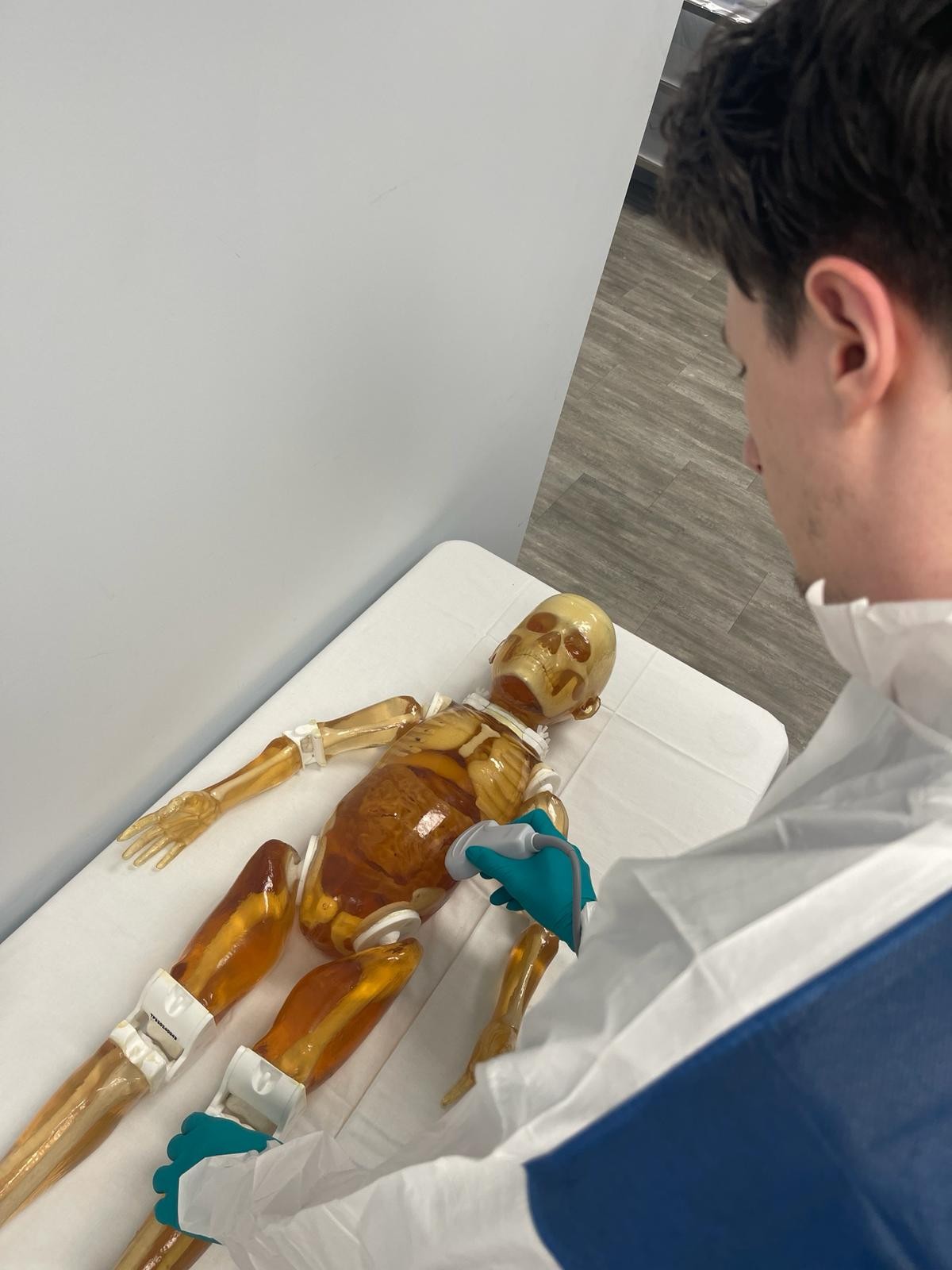

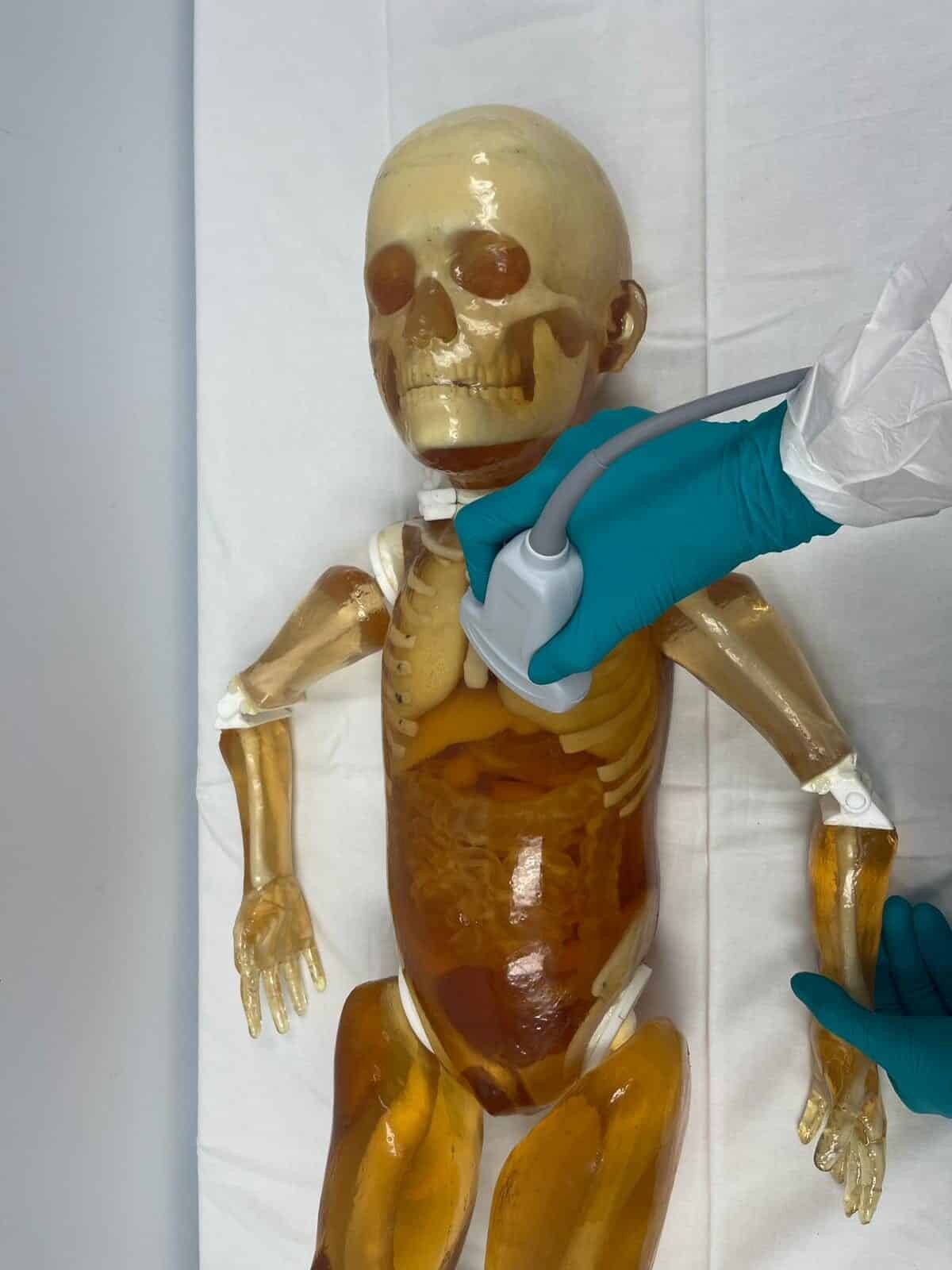

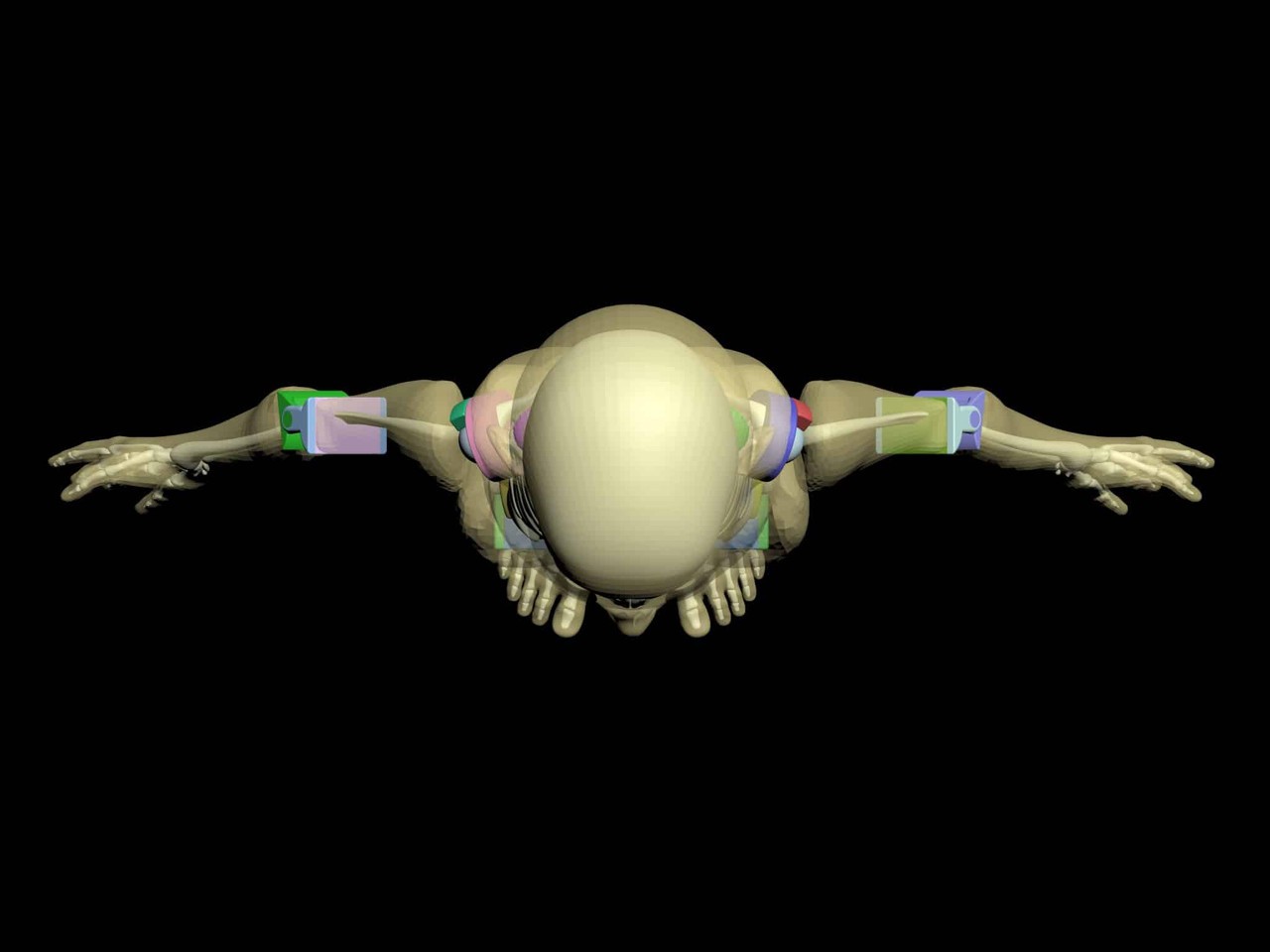

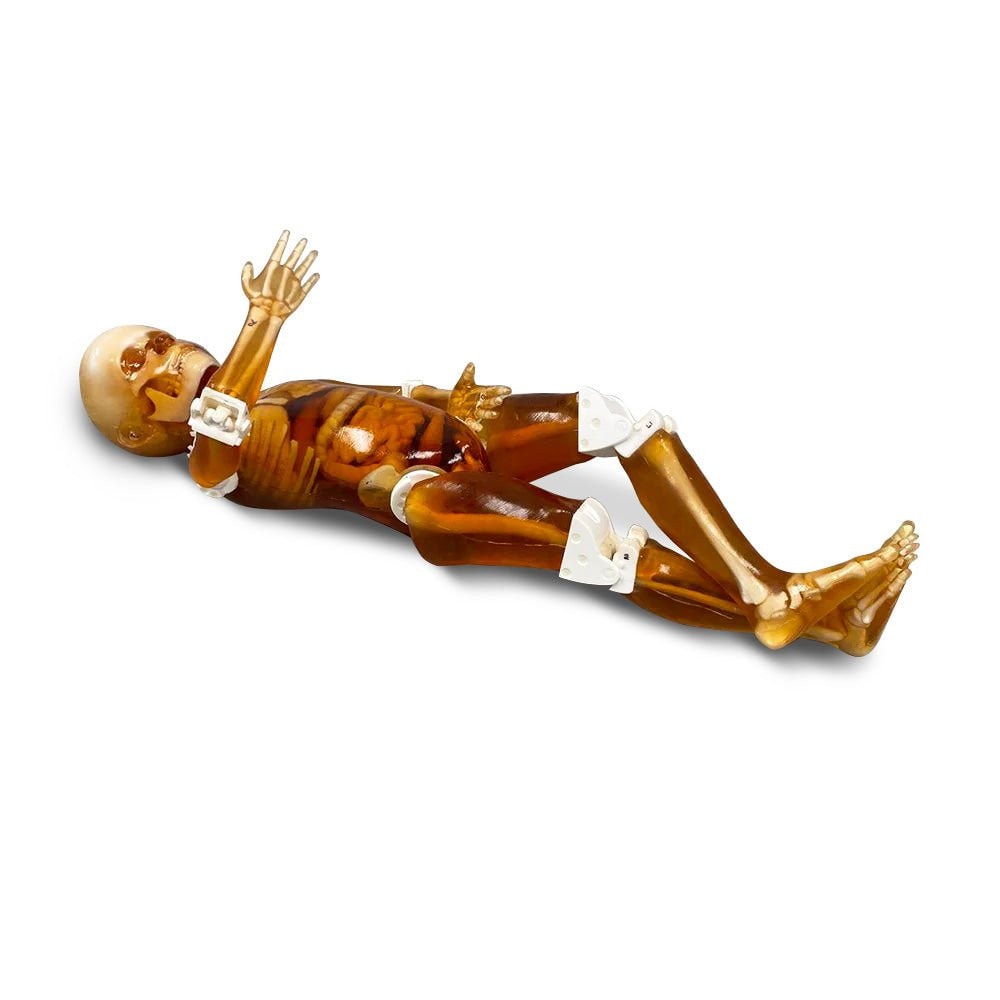

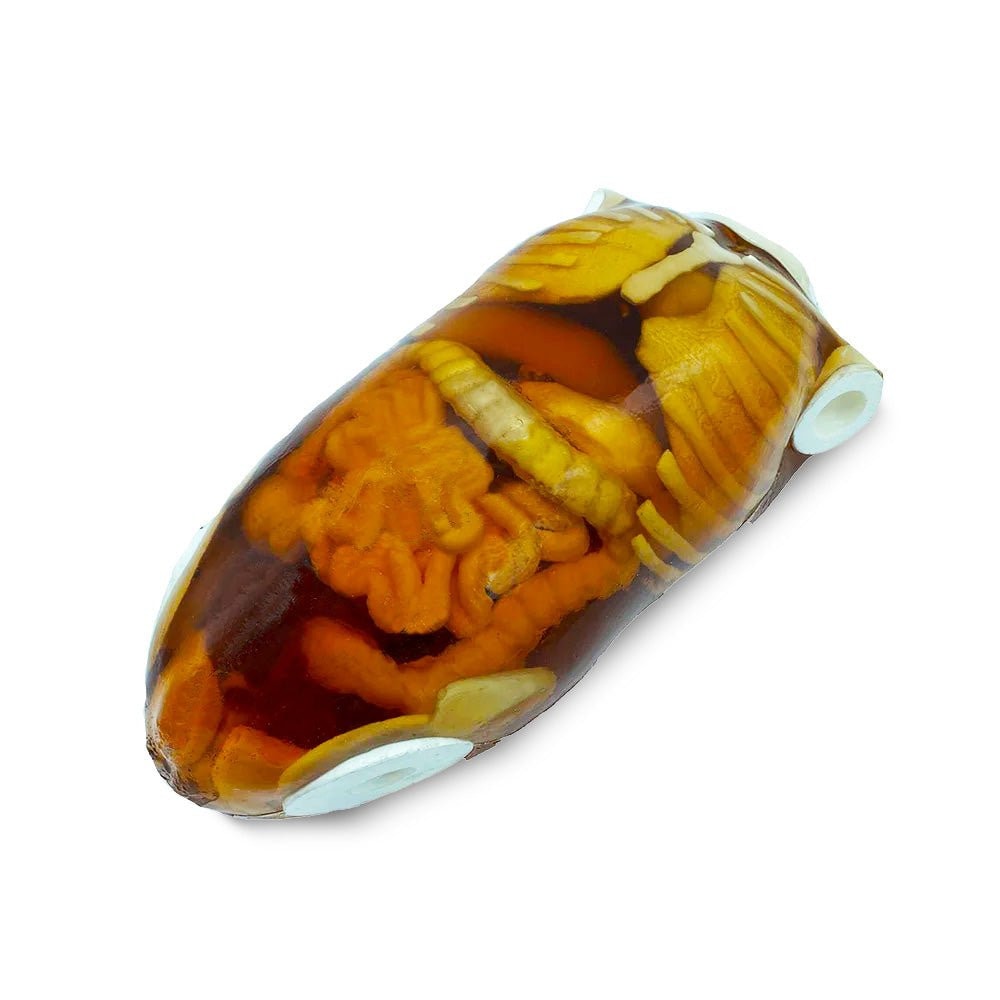

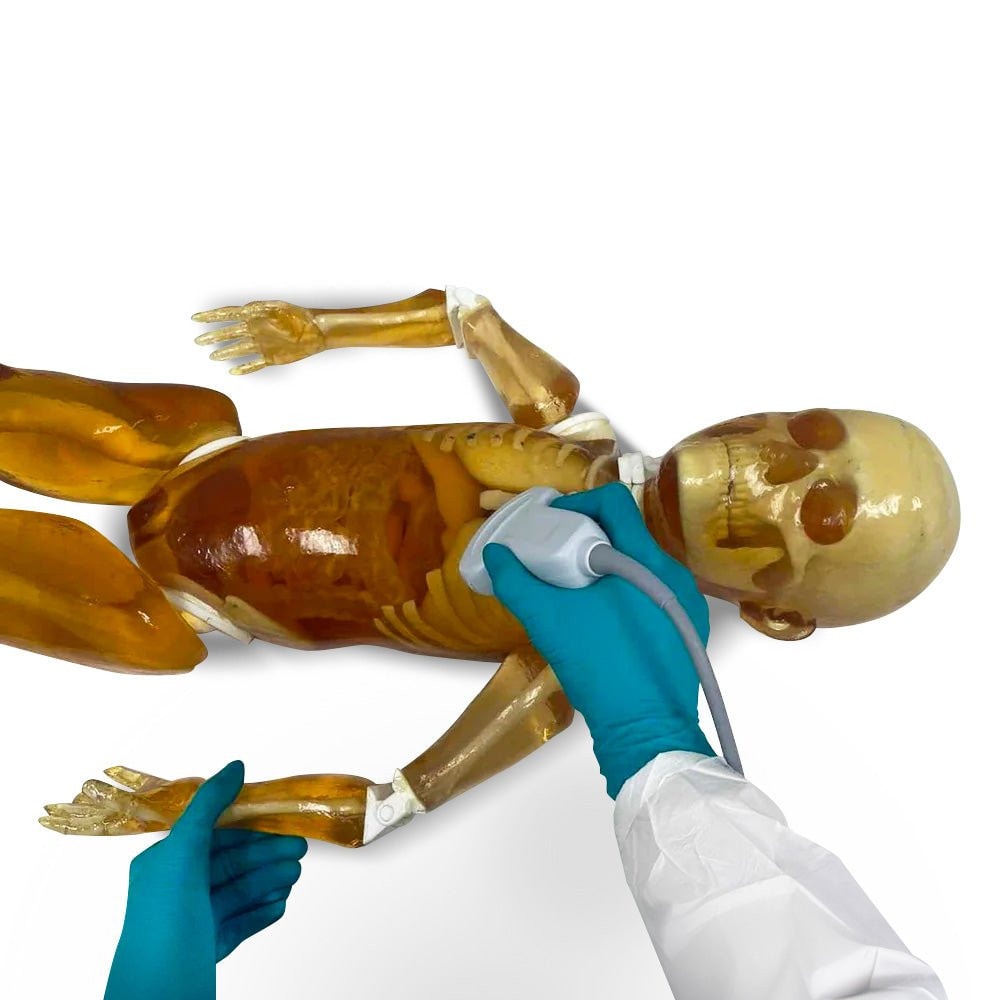

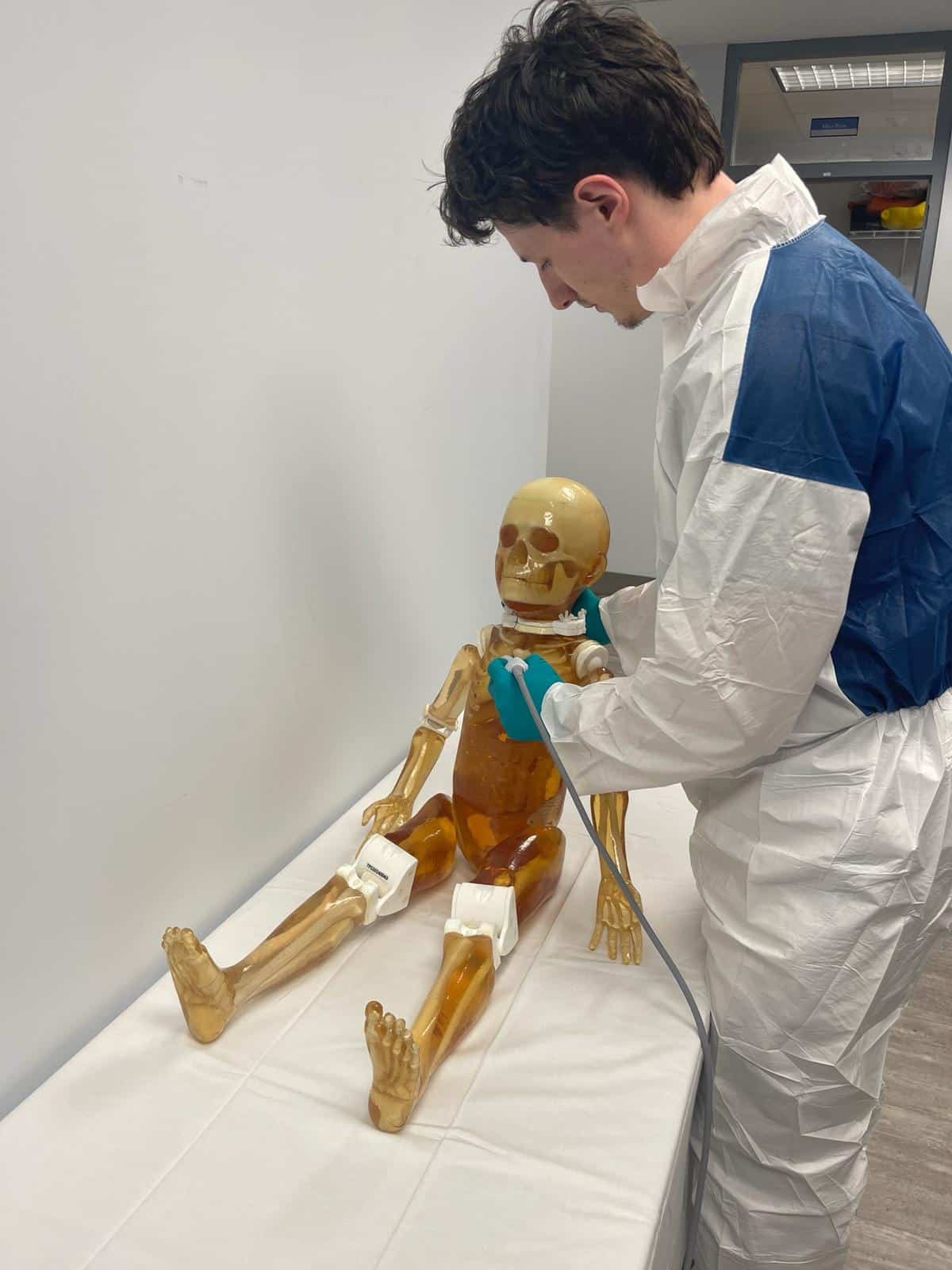

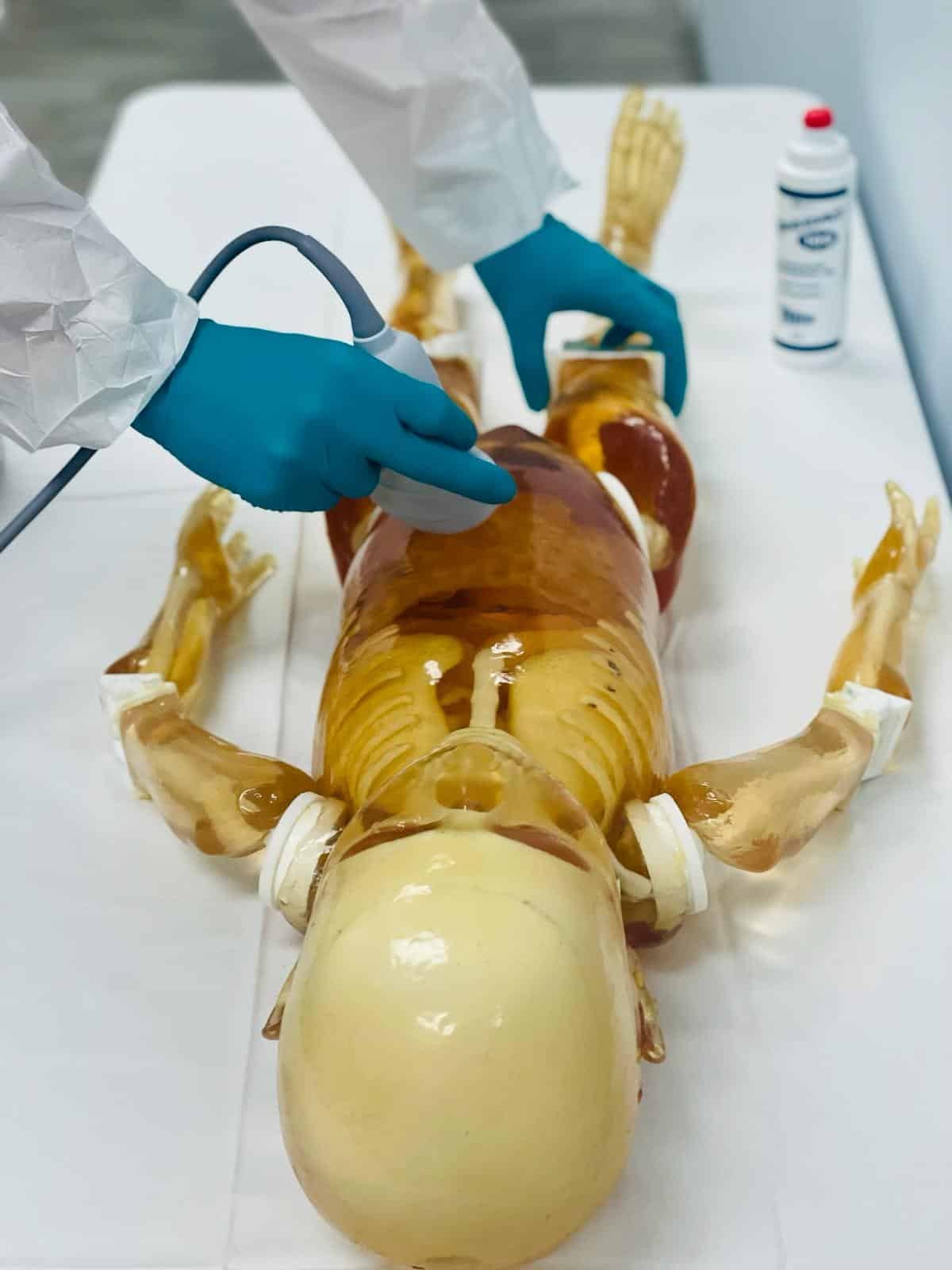

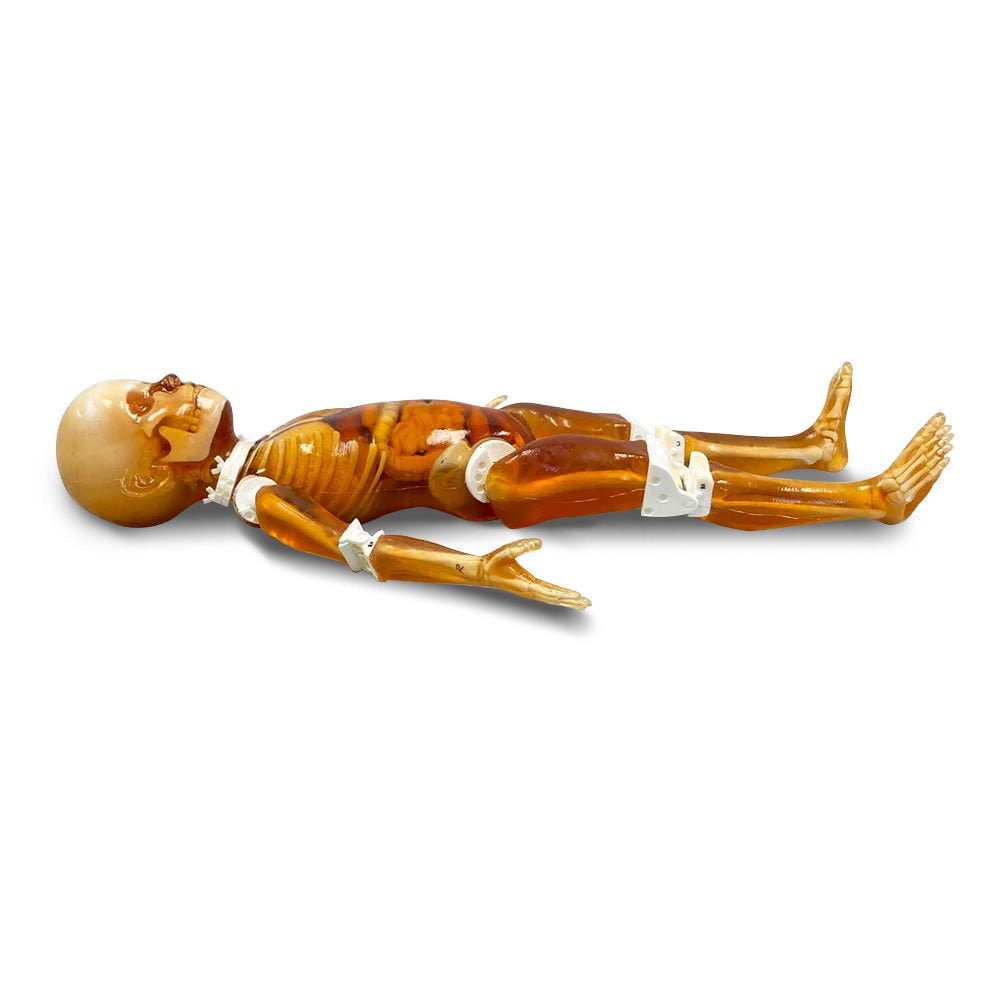

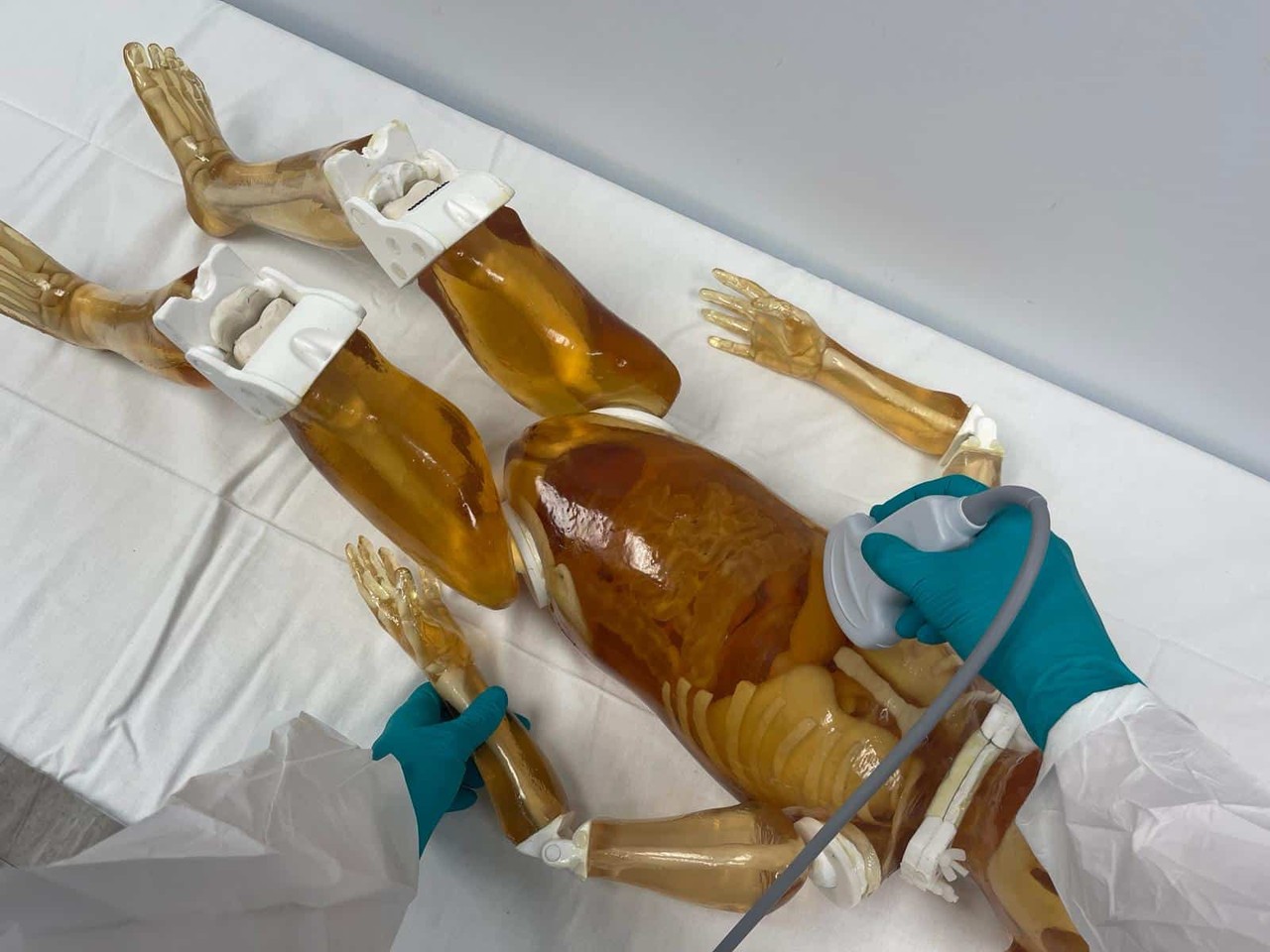

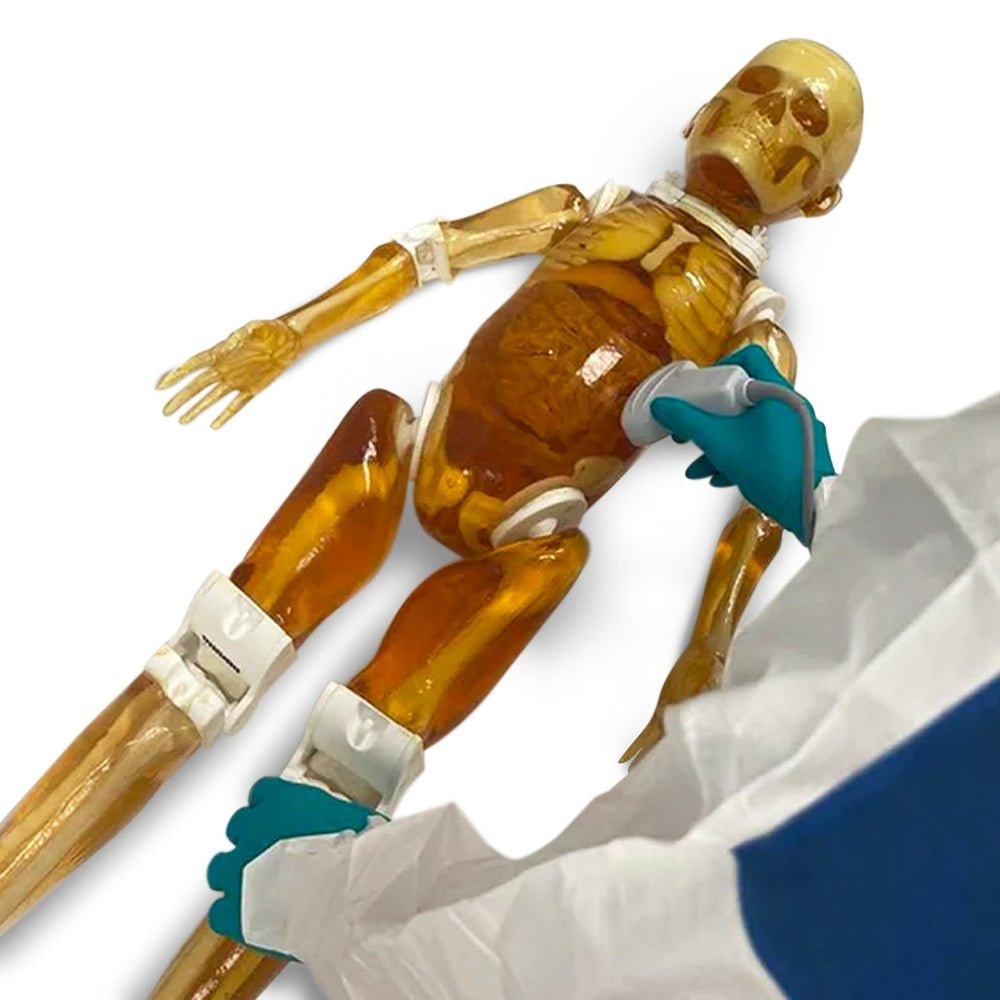

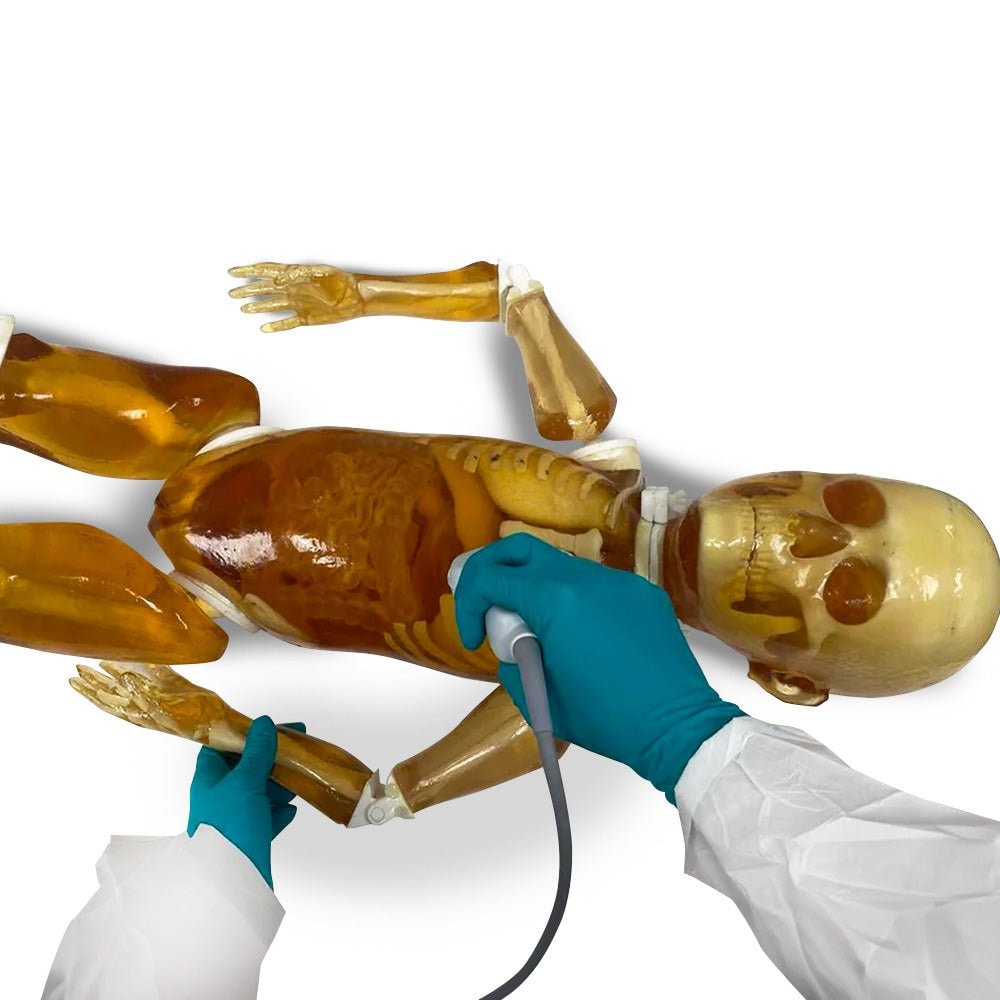

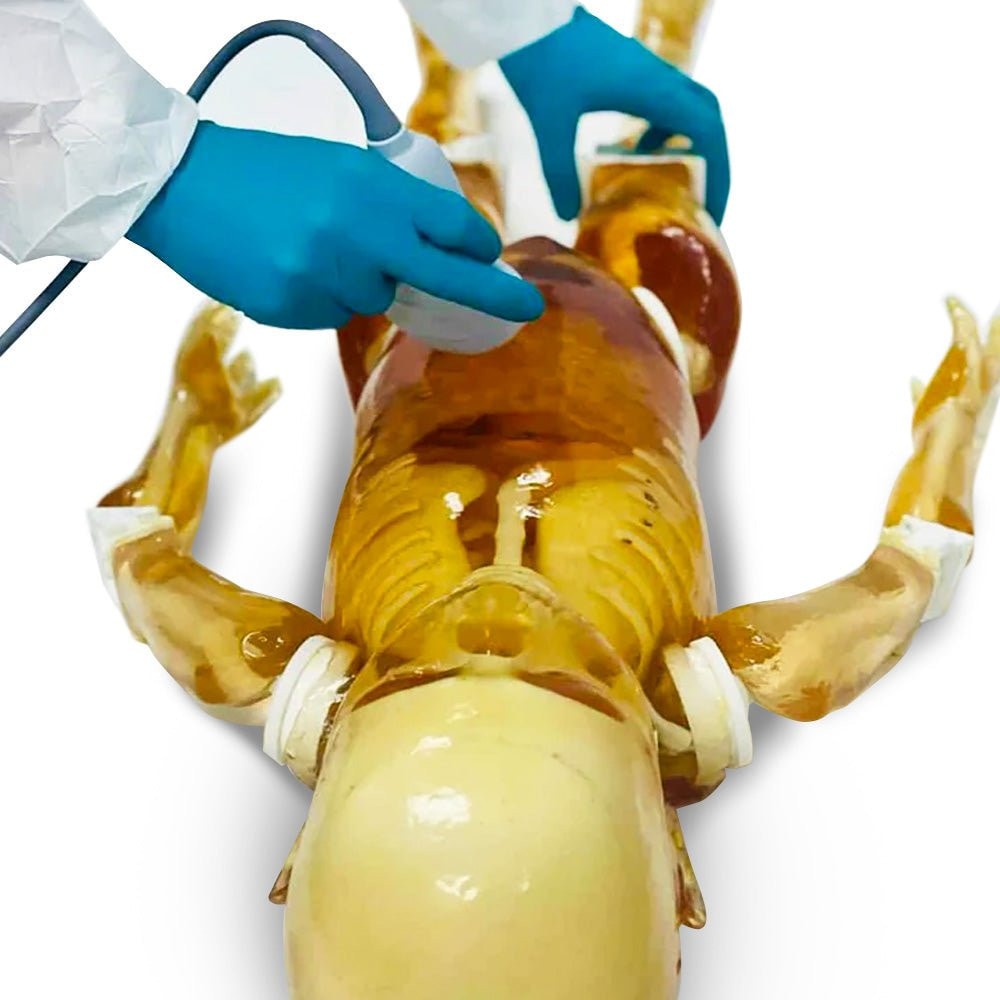

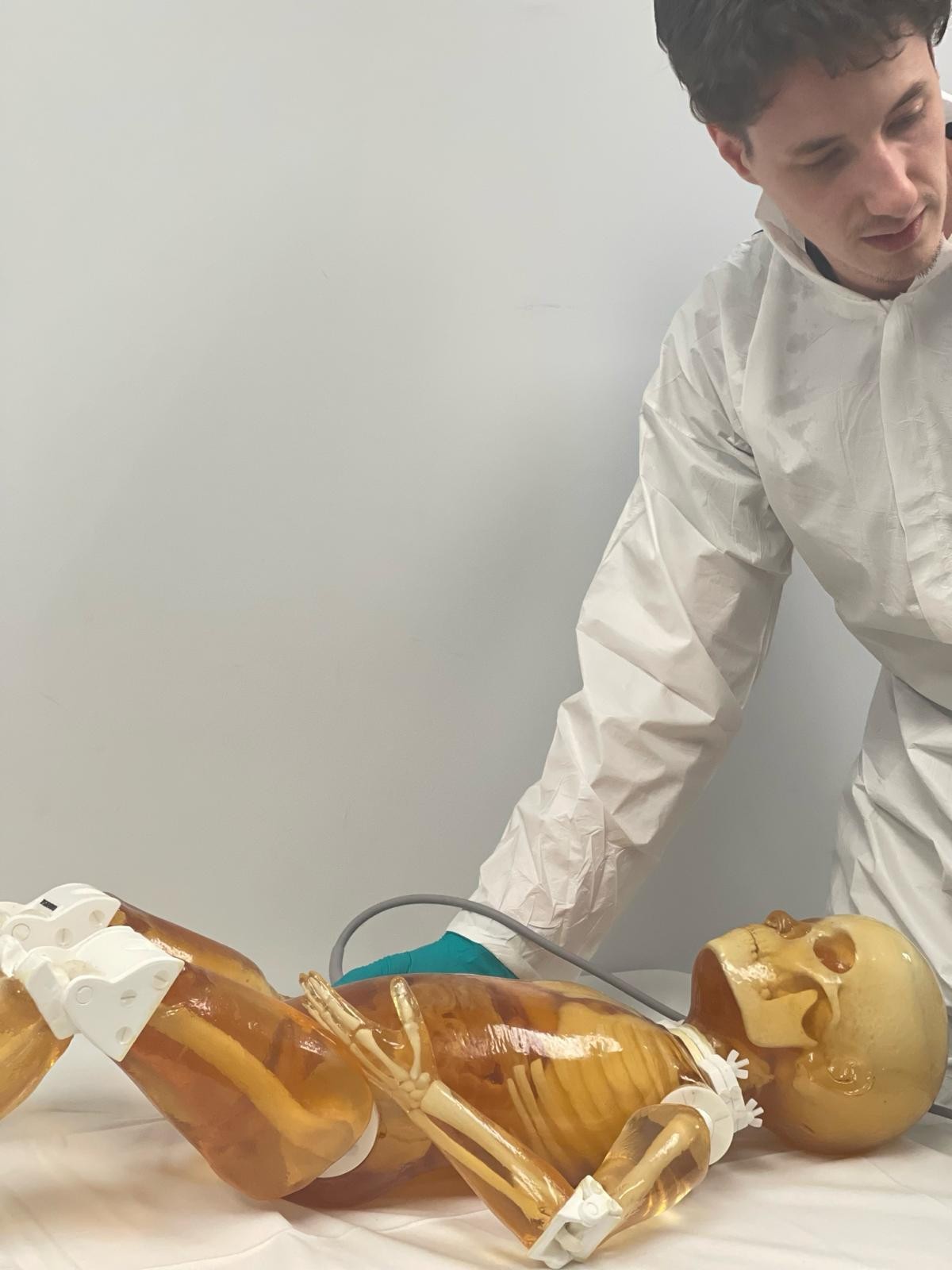

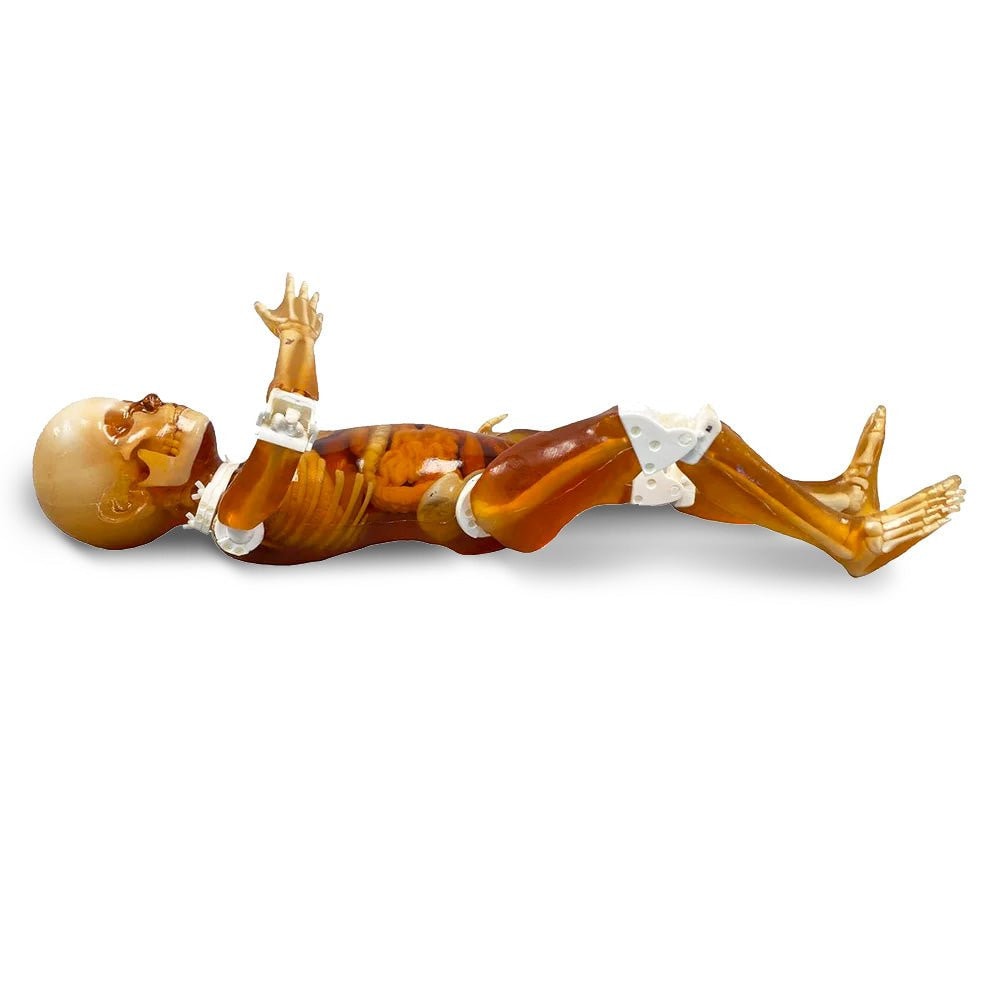

The Pediatric Full Body Phantom for X-Ray CT and Ultrasound is a life-size, anthropomorphic training tool designed based on the model of a 4-year-old child (102 cm / 40" height). It is constituent of 10 body parts and is primarily used by medical schools and teaching hospitals to train radiology students in various patient positioning techniques and visual evaluation for optimal scanning conditions.
Constructed with realistic tissue-mimicking materials, the phantom includes a skeleton built from individually cast bones using a patented epoxy-based composite material with a realistic three-layered structure. This model presents a sustainable, ethical choice for research and education, as it can withstand repeated radiation without deterioration.

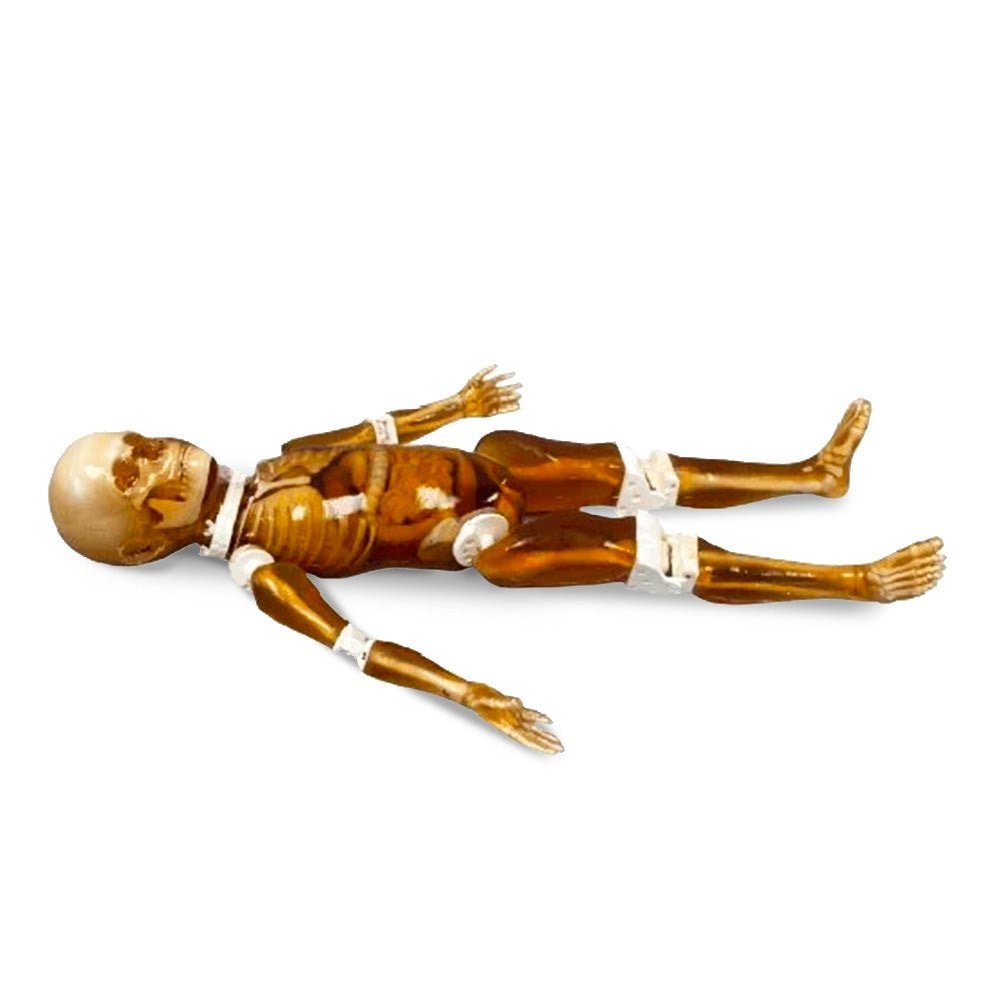

Note: By default, the phantom comes in a translucent amber appearance. A skin feature can be included upon request. All standard phantoms are coated with a protective layer of harder urethane rubber, which increases the "Body Tissue" hardness from Shore OO 30 to approximately OO 60.
Anatomy

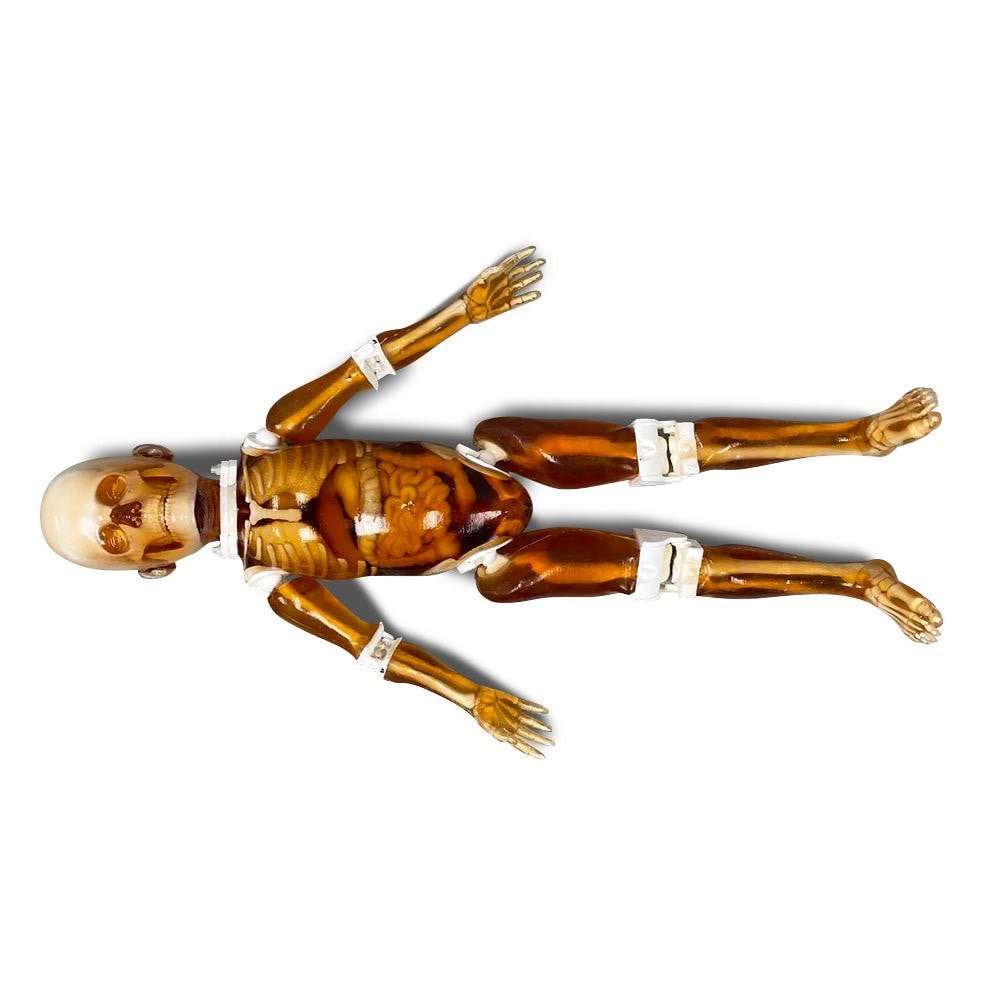

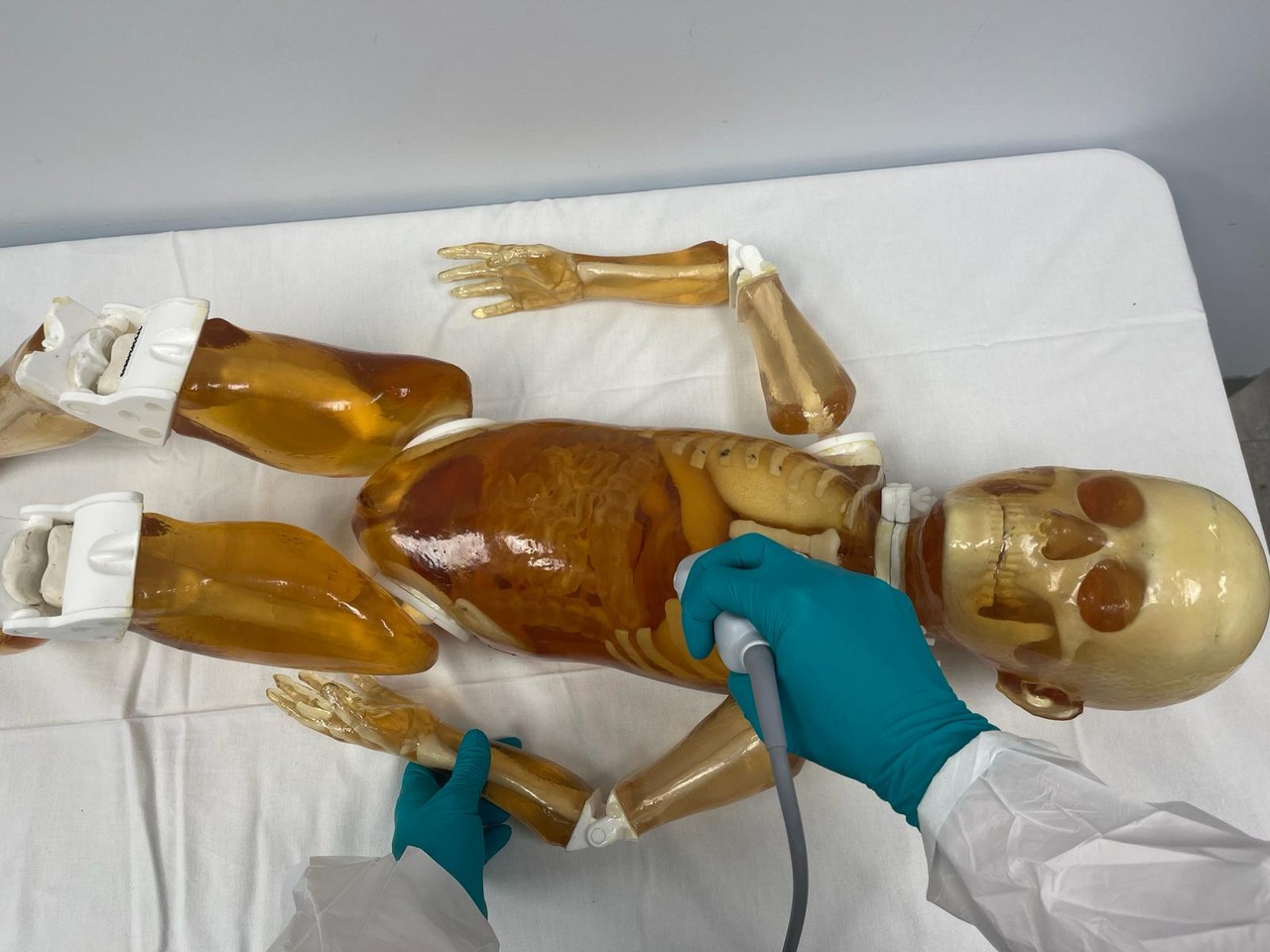

- Pediatric Full Body (10 Parts): Detachable head, torso, and limbs with rotatable shoulders (360° around / 180° sideways) and movable hip, knee, and elbow joints.
- Pediatric Human Head: Skull, Brain, and Gray Matter.
- Pediatric Human Torso: Spine, Ribcage, Shoulders, Clavicles, and Pelvis.
- Torso Organs: Trachea, Heart, Lungs, Diaphragm, Liver (with ligaments and bile ducts), Gallbladder, Stomach, Kidneys, Spleen, Pancreas, Large and Small Intestines, Bladder, and Prostate.

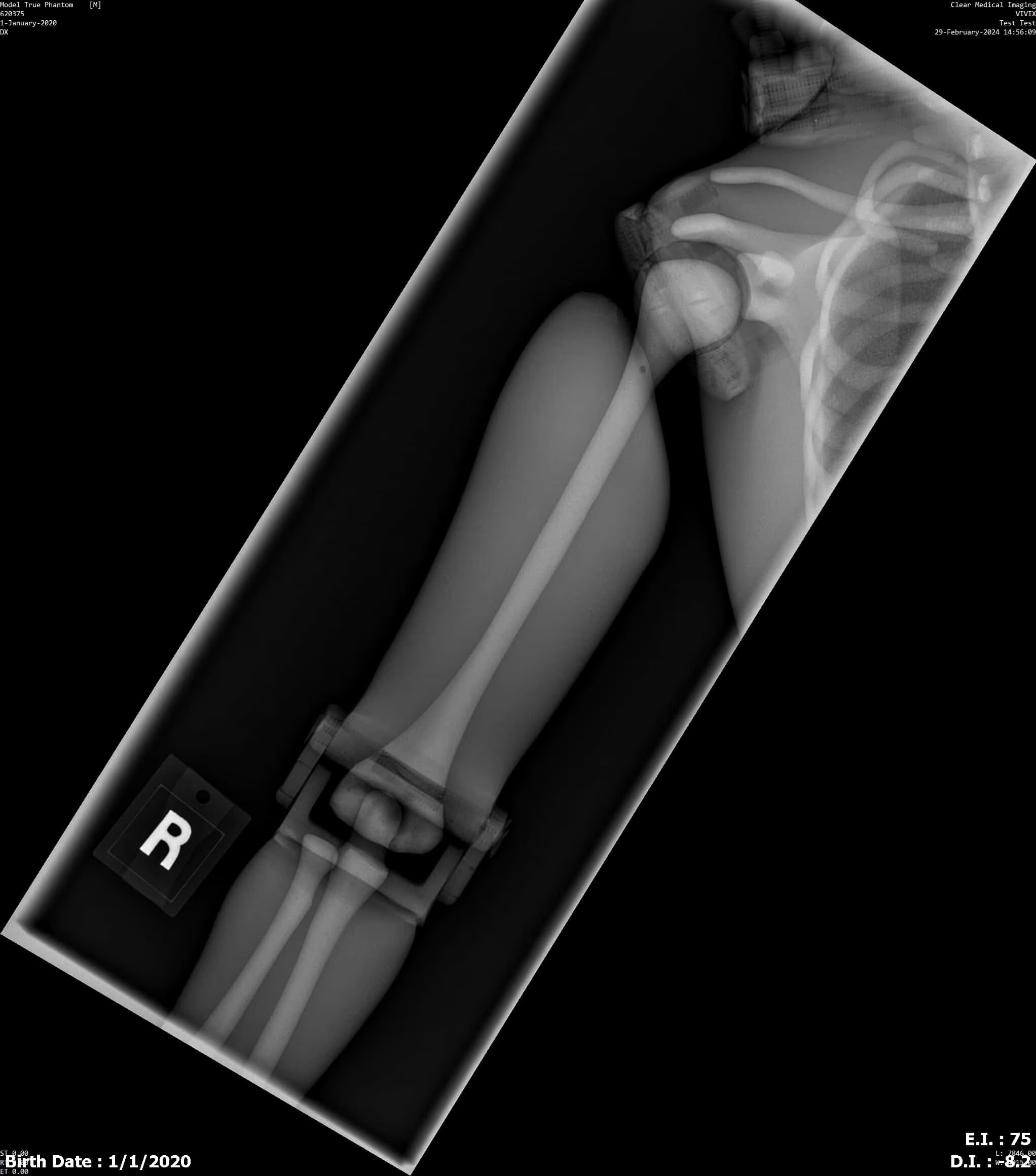

- Pediatric Human Arms: Humerus, Elbow Joints, Radius, Ulna, Wrist, and Fingers.
- Pediatric Human Legs: Femur, Knee Joints, Tibia, Fibula, Foot, and Toes.
Technical Properties
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Attenuation (2.25 MHz) [dB/cm] | Hardness [Shore 00]* | T2 [ms] | Speckles |
|---|---|---|---|---|---|---|
| Organs with Speckles | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
*Hardness measured without the protective coat; coating adds ~30 points to Shore OO value.
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of Tissue-Mimicking Materials
| Tissue Type | HU Value (Average) | Tissue Type | HU Value (Average) |
|---|---|---|---|
| Body Tissue | -25 | Spleen | 110 |
| Brain Tissue | -25 | Kidneys / Liver / Pancreas | 110 |
| Trabecular Bone | 800 | Bladder / Gallbladder | 35 |
| Cortical Bone | 1300 | Rectum / Sigmoid Colon Wall | 100 |
| Aorta / Vena Cava / Heart | 40 | Diaphragm | 80 |
| Trachea (Tissue) | 80 | Intestines (Tissue) | 80 |
| Trachea (Air) | -1000 | Intestines (Air) | -1000 |
| Lungs | -850 | Stomach | -850 |

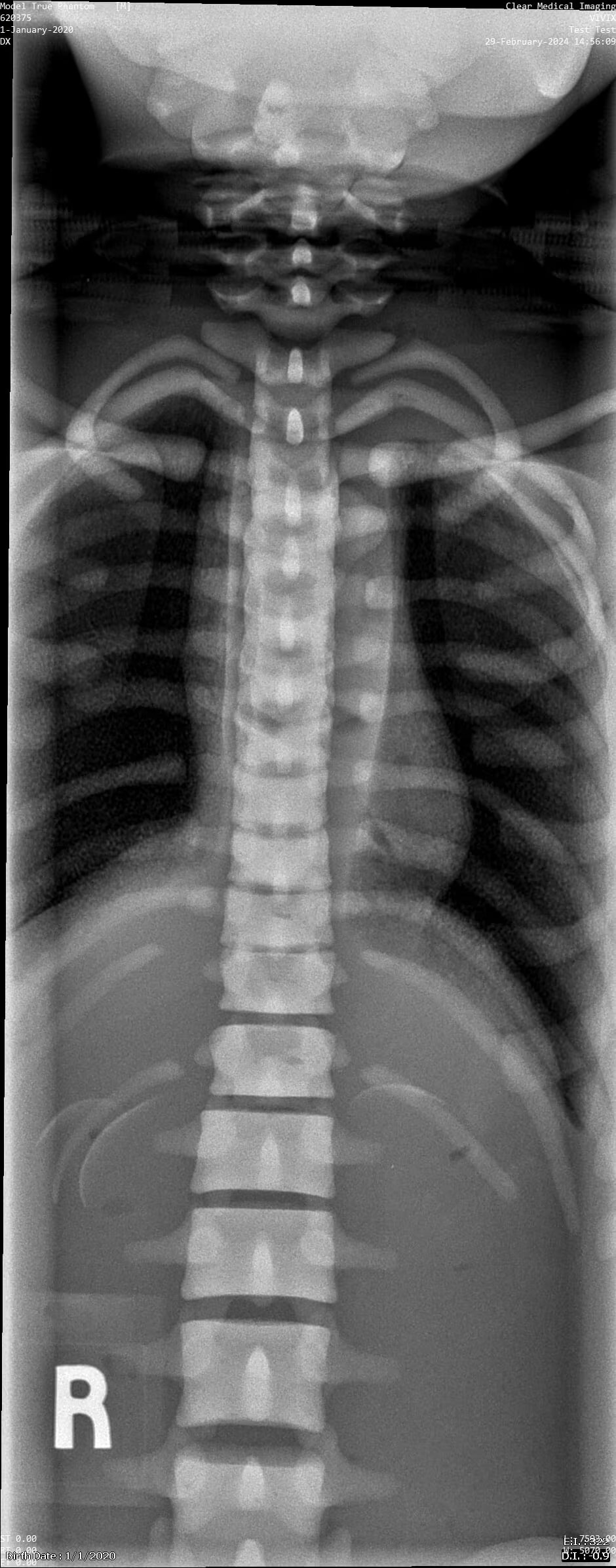

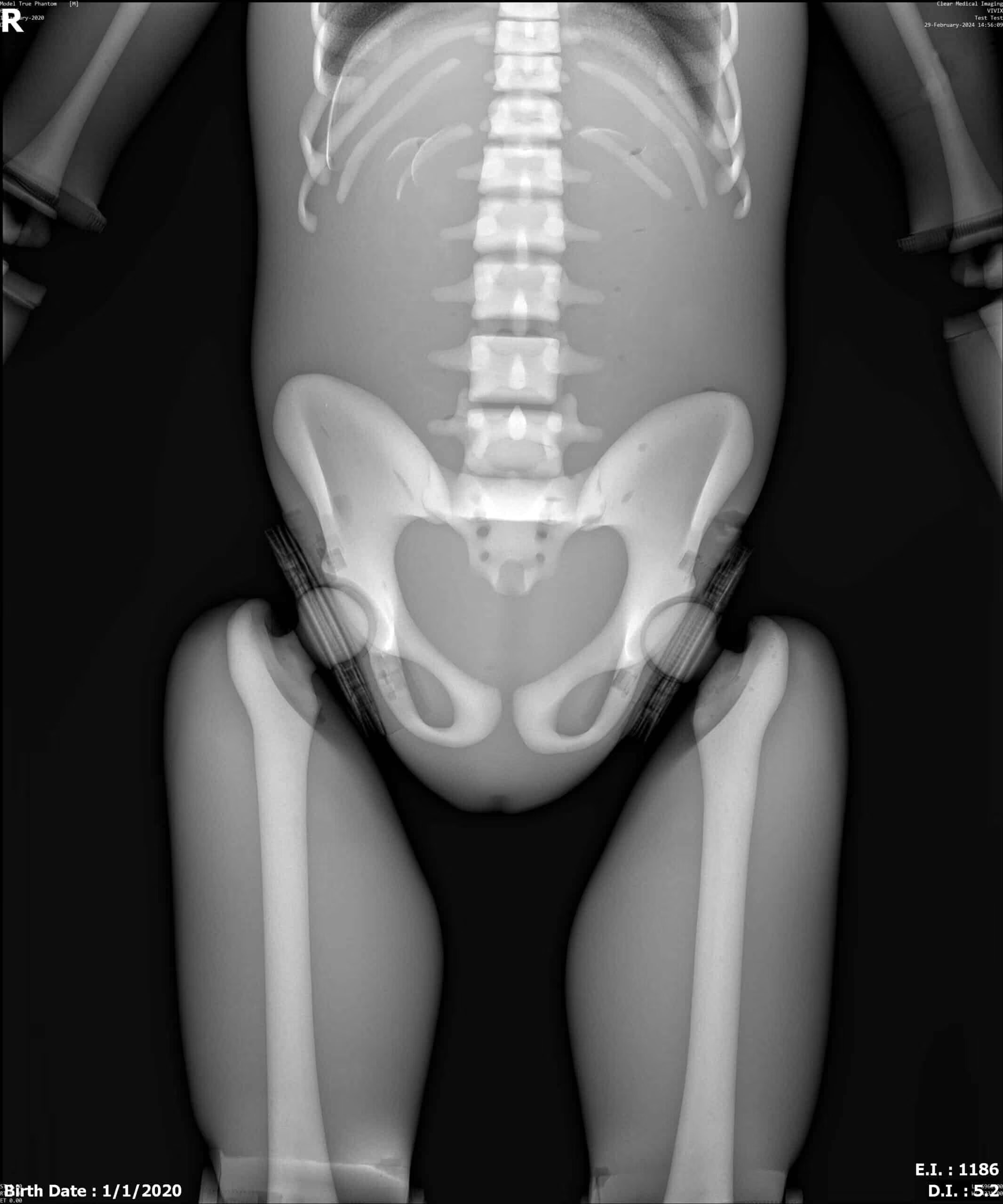

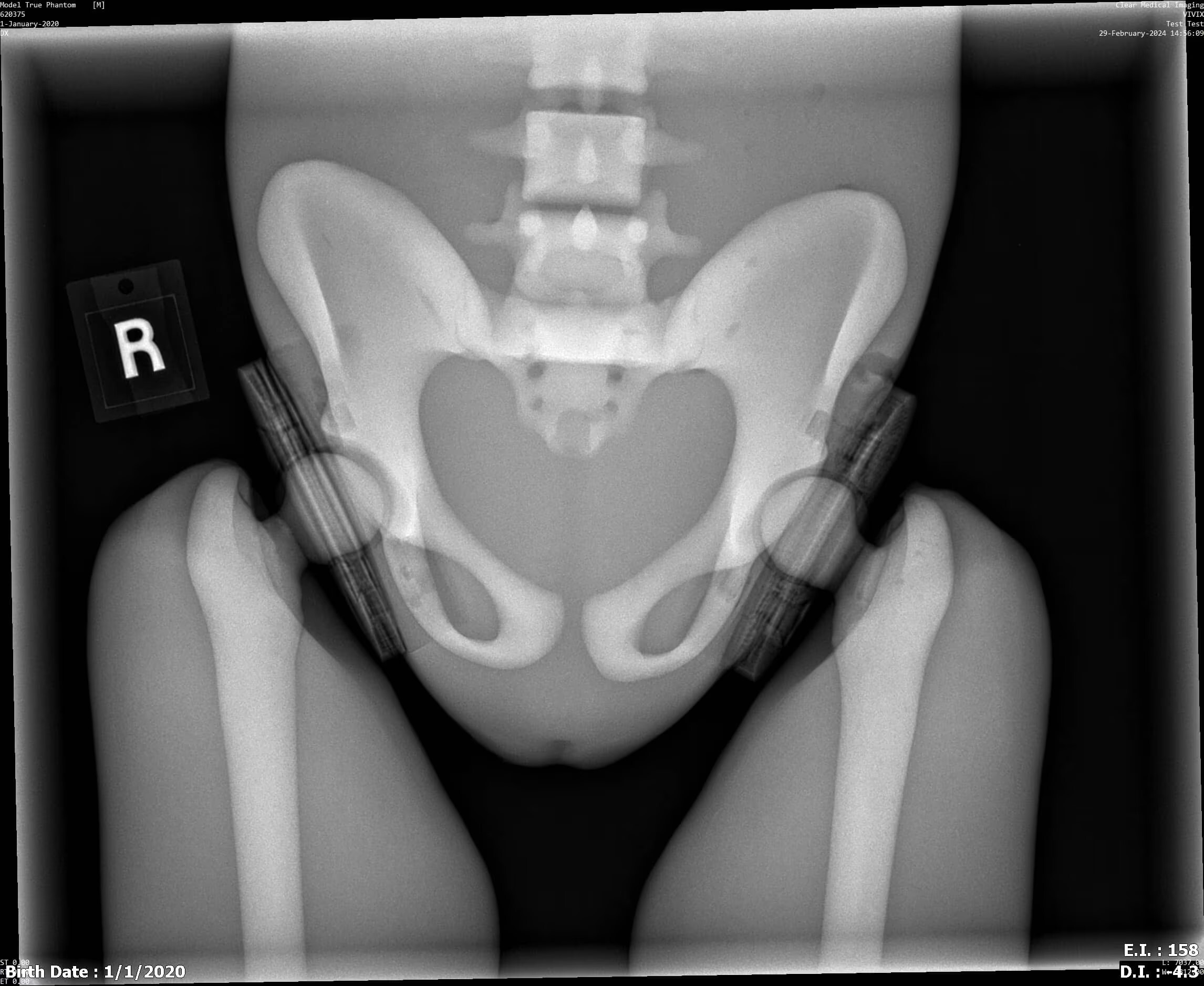

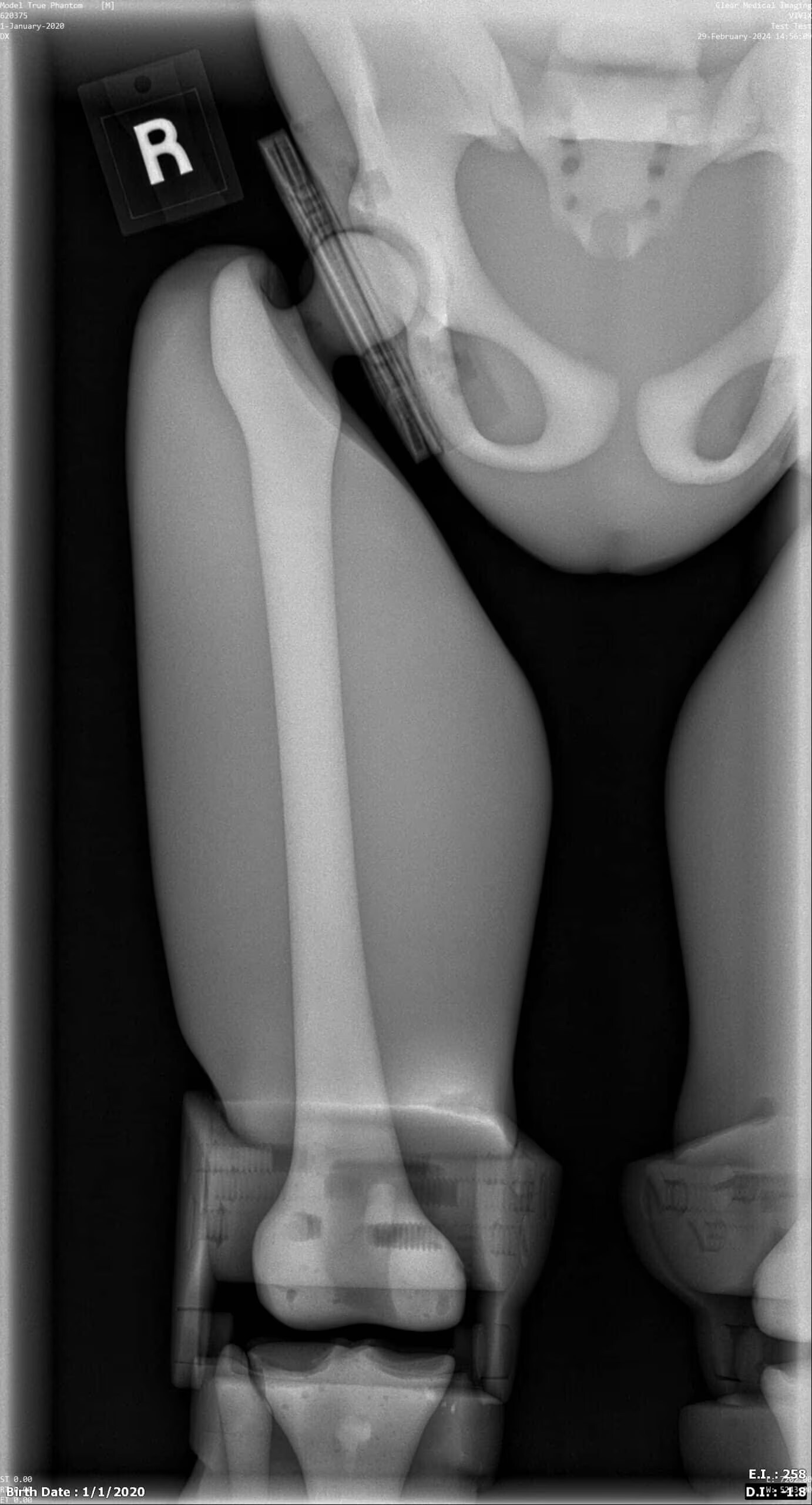

X-Ray Settings Reference
| Anatomy | Projection | kVp | mAs |
|---|---|---|---|
| Ribs/ Chest | AP/PA | 80 | 8 |

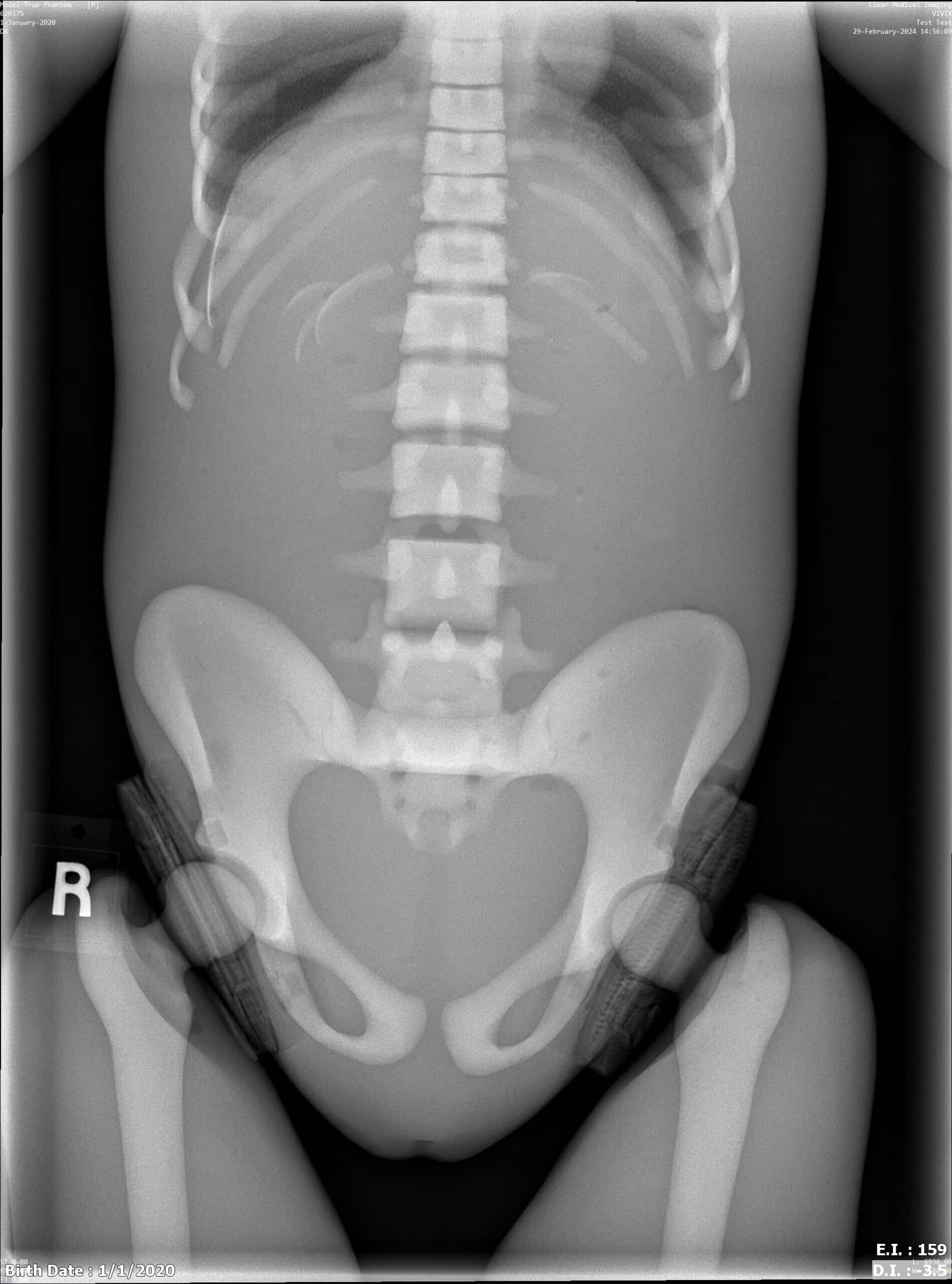

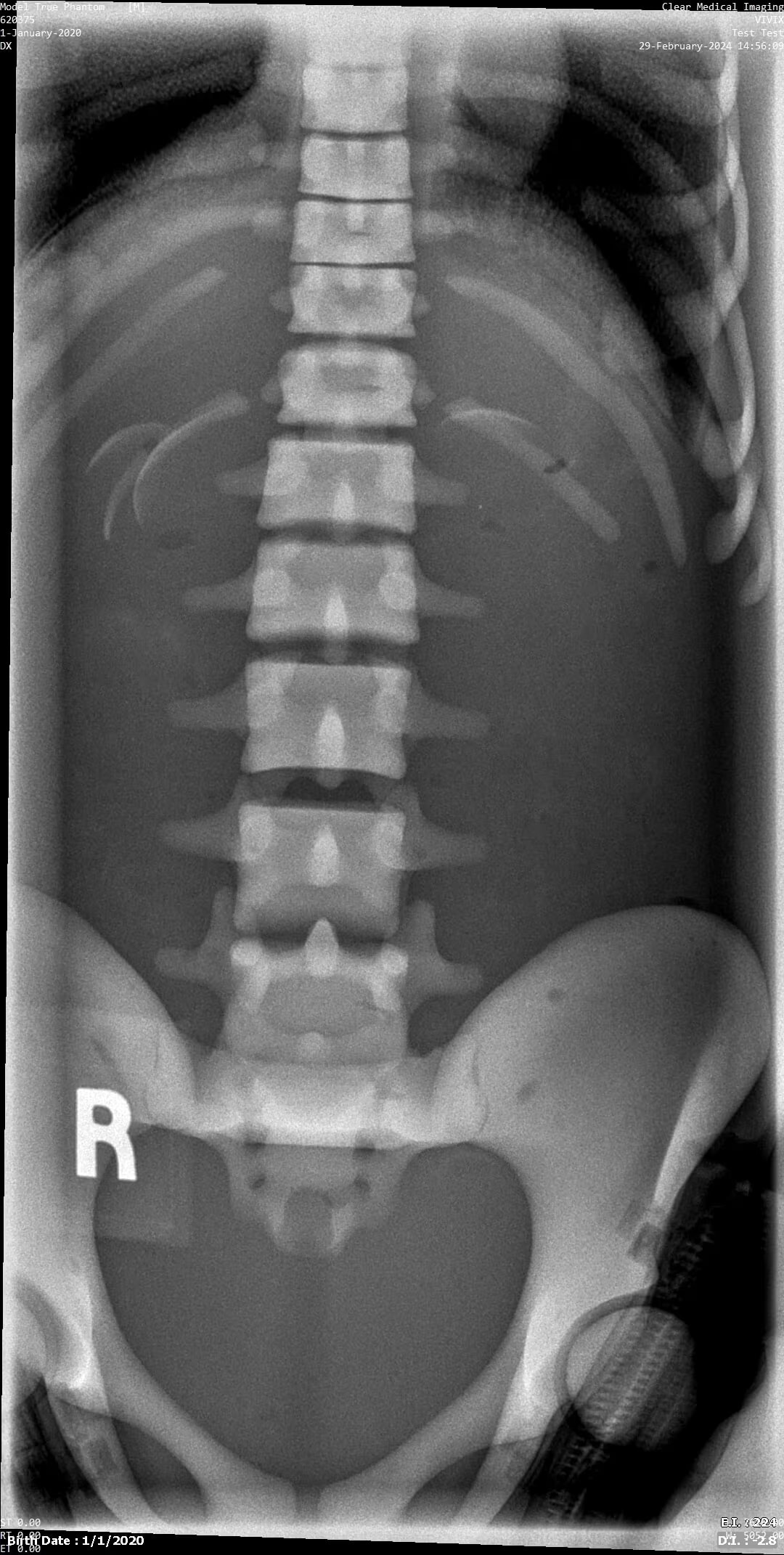

| Abdomen | AP | 78 | 18 |

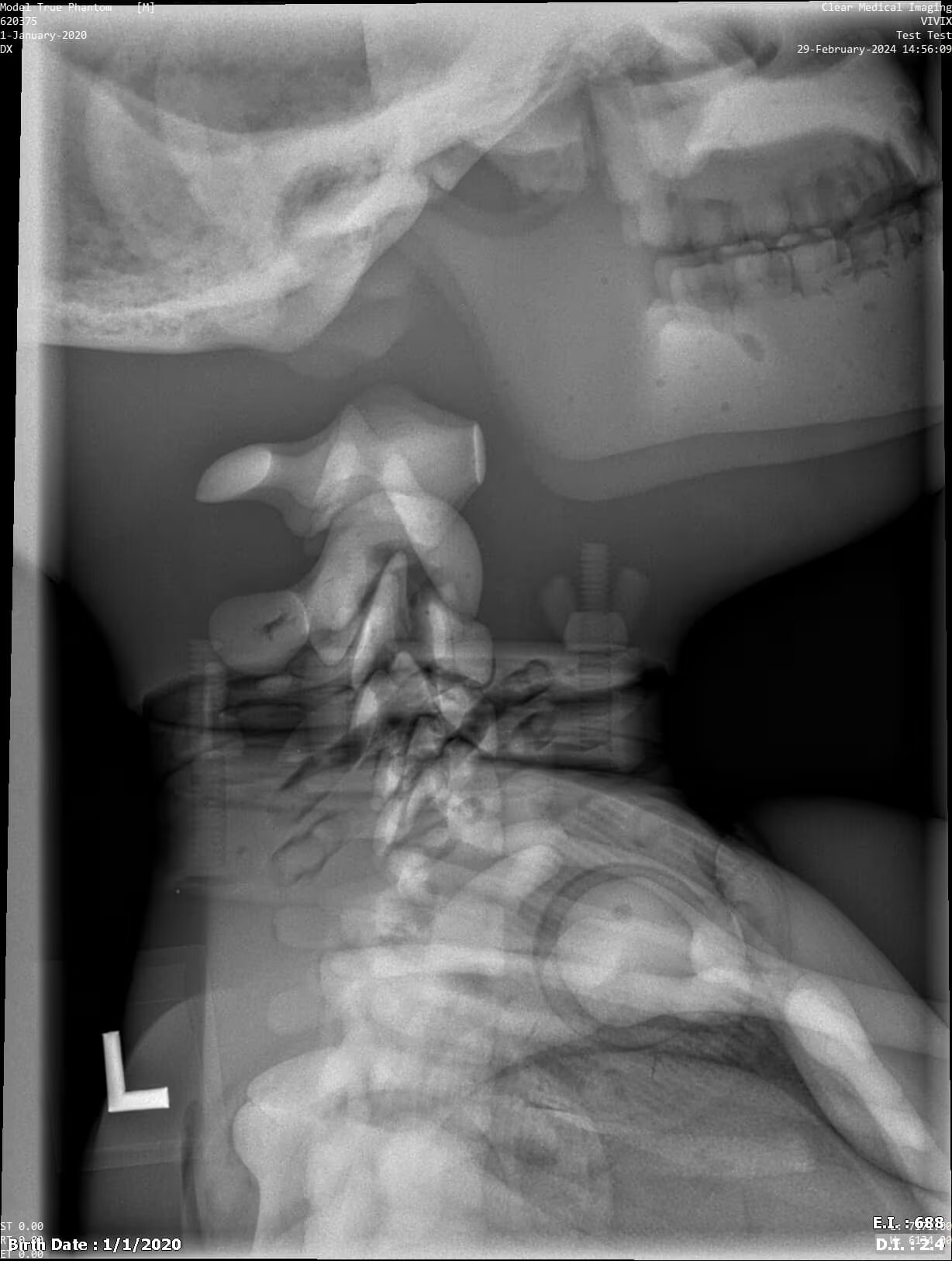

| Cervical Spine | Lateral | 80 | 8 |

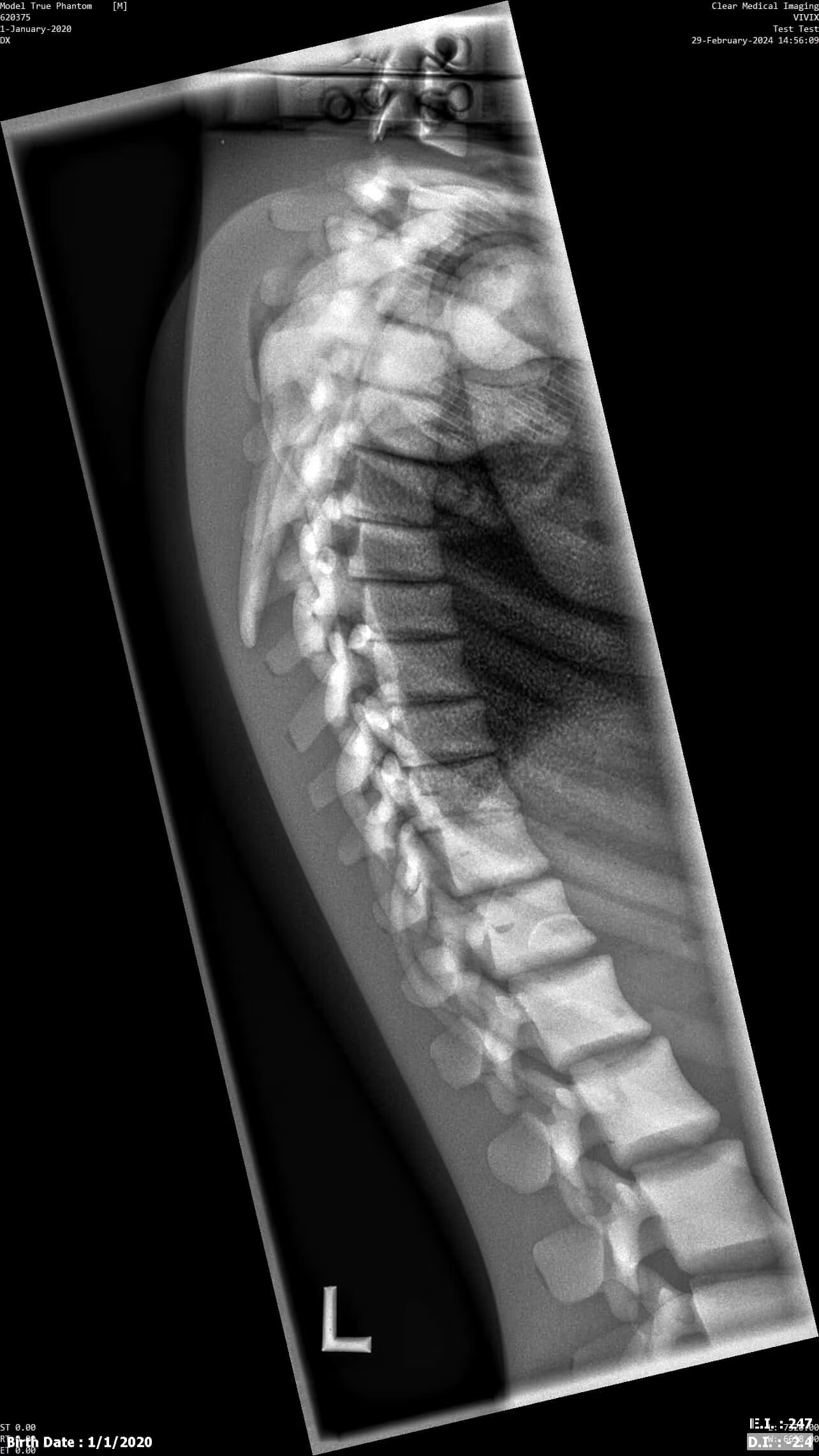

| Thoracic Spine | AP | 74 | 12.5 |

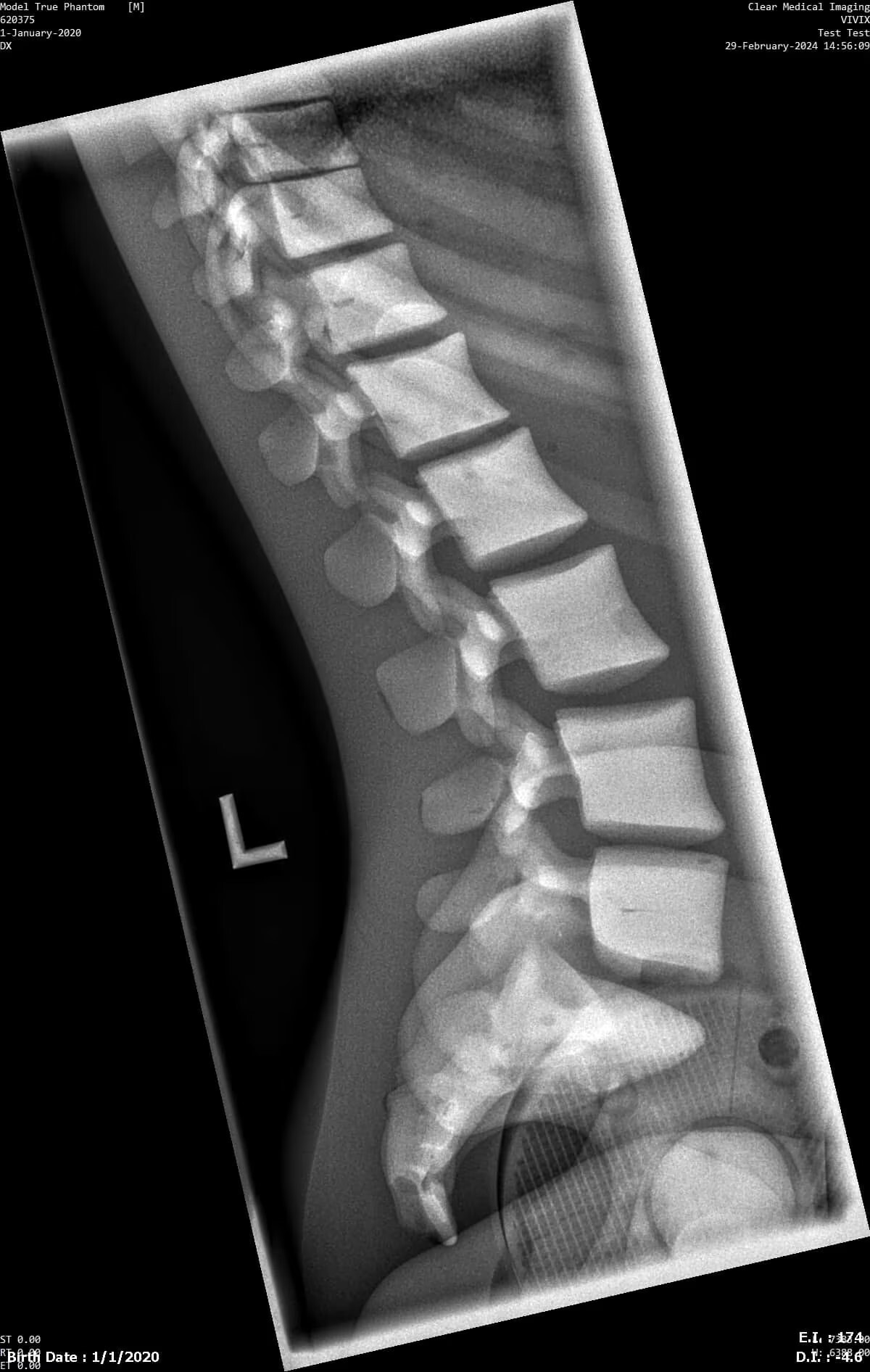

| Lumbar Spine | AP | 78 | 8 |

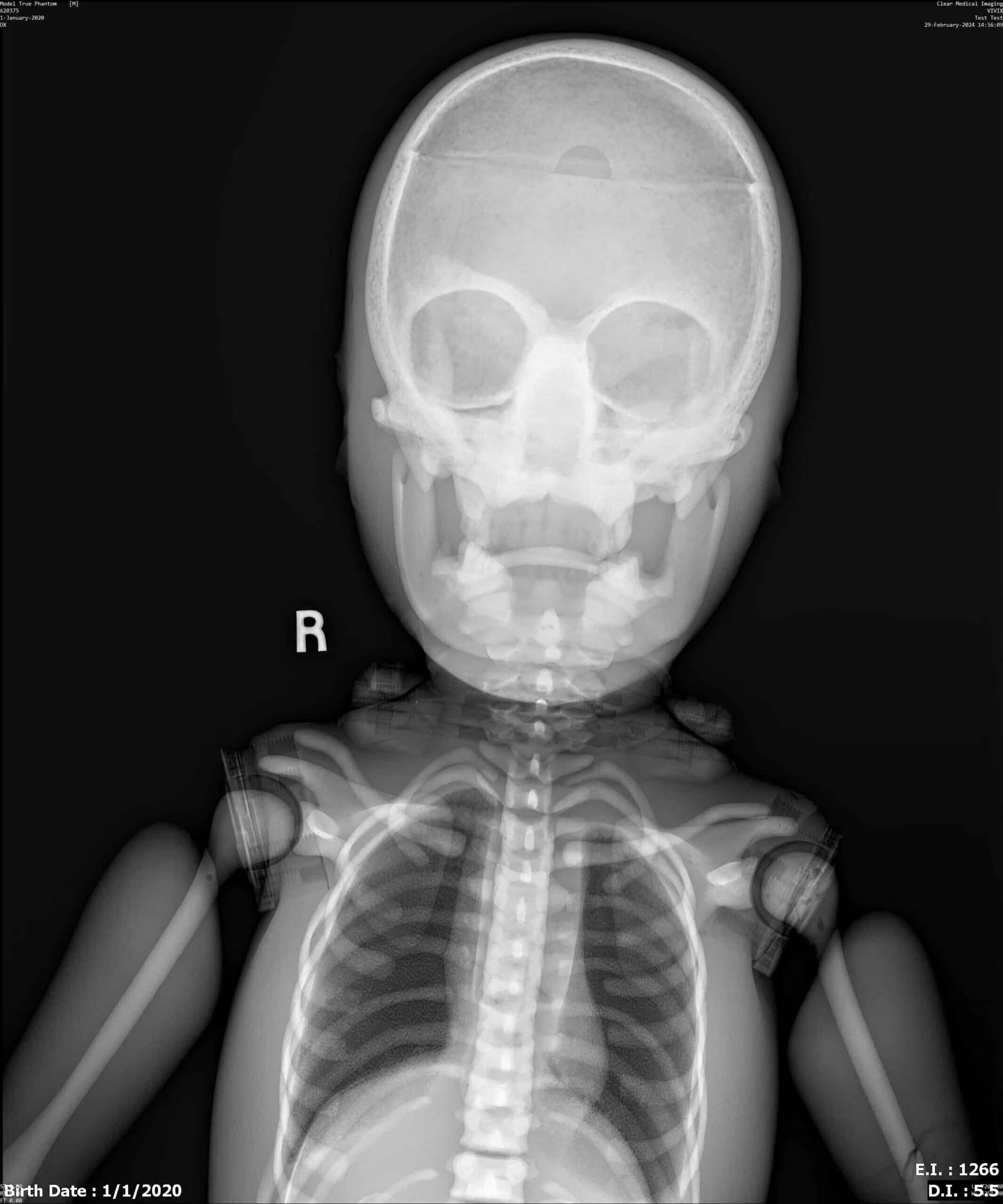

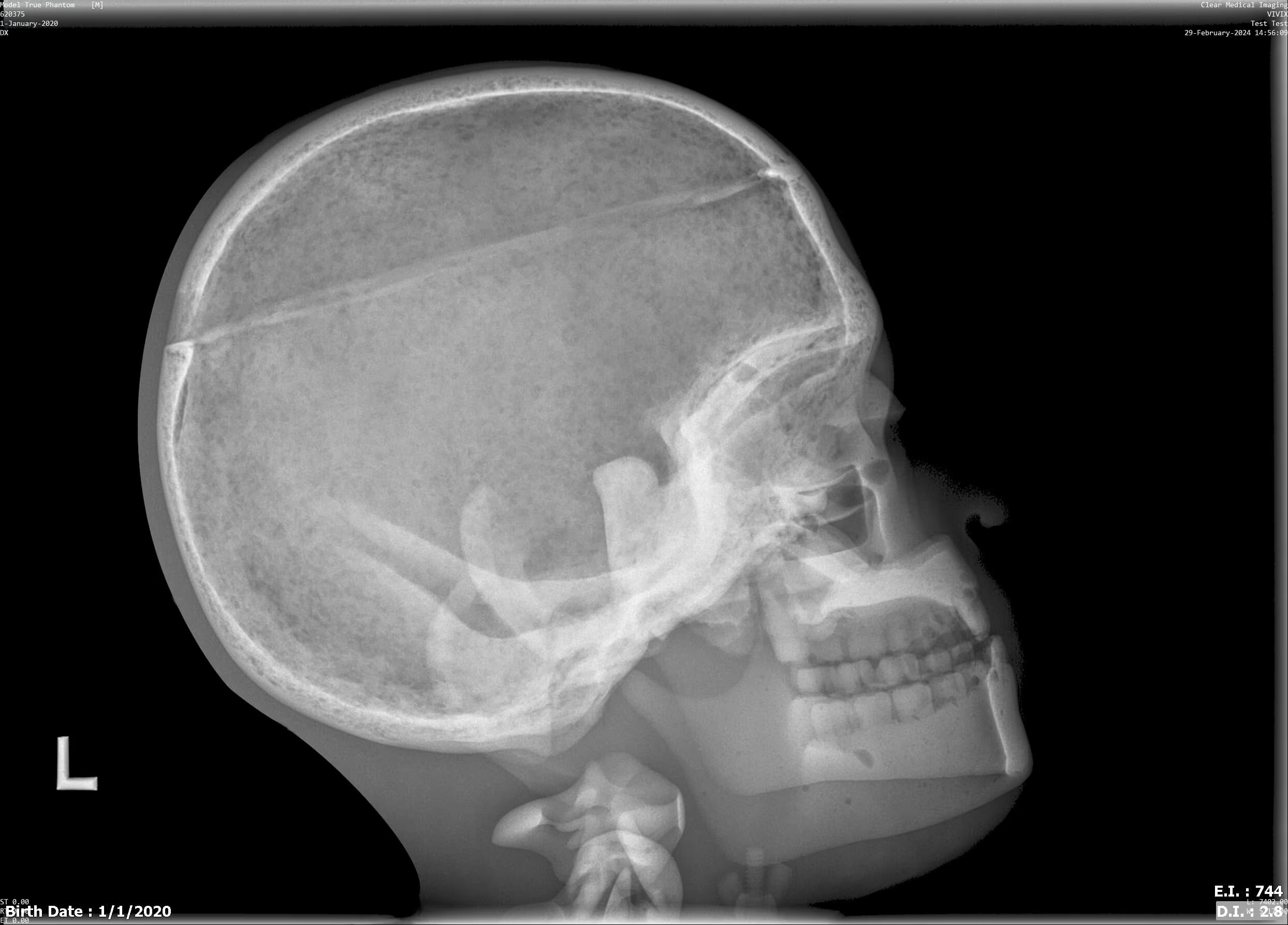

| Skull | AP | 88 | 16 |
Included in Order
- Pediatric Full Body Phantom
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Hard Carry Case
Size & Weight
Phantom: 40 x 8 x 27 Inches | Weight: ~40 Lbs (20 kg)
Shipment: 47 x 26 x 18 Inches (with case) | Weight: ~122.2 Lbs
Materials Used
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
