Adult Full Body for X-Ray Positioning and Imaging
Product Description

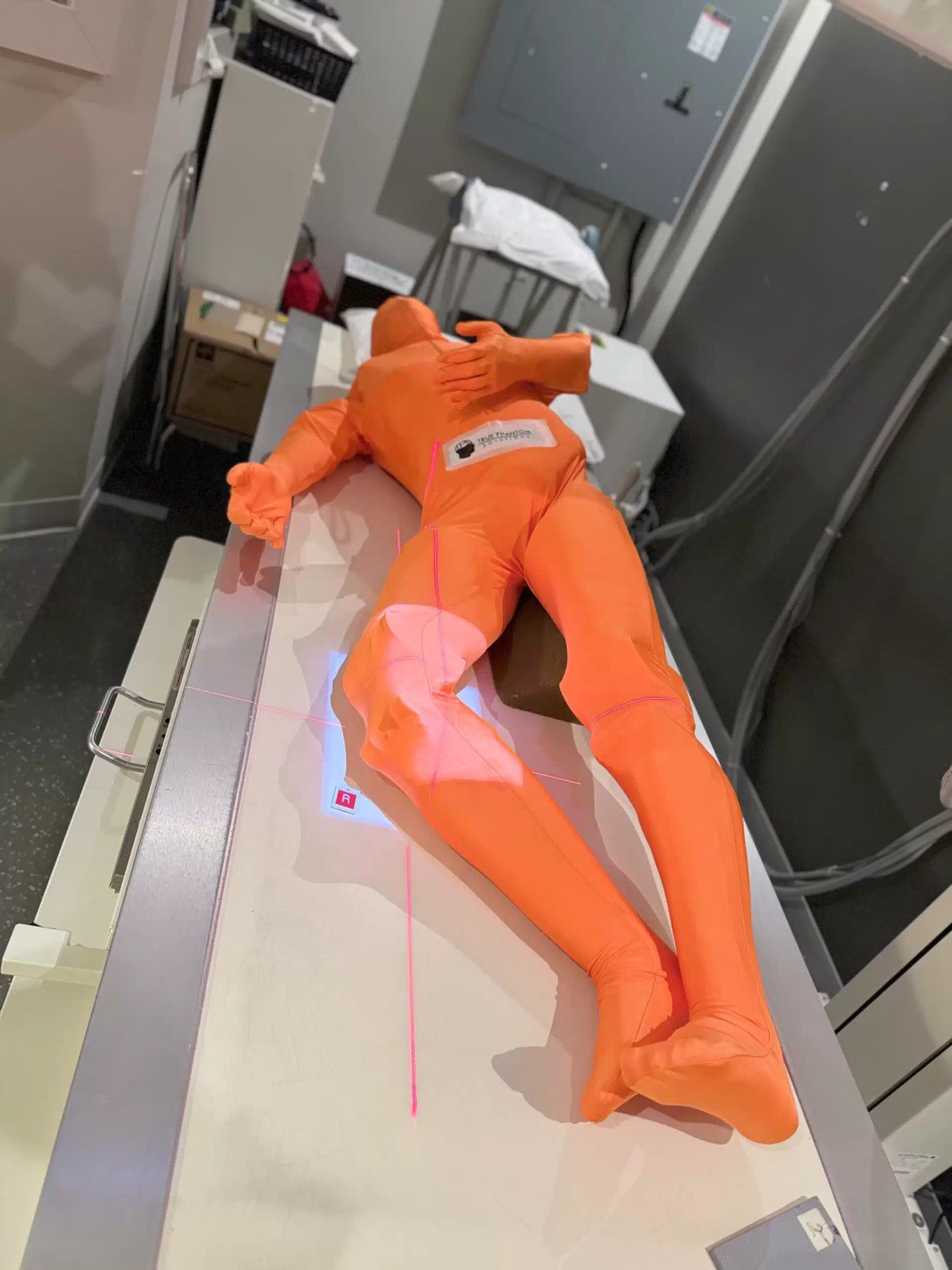

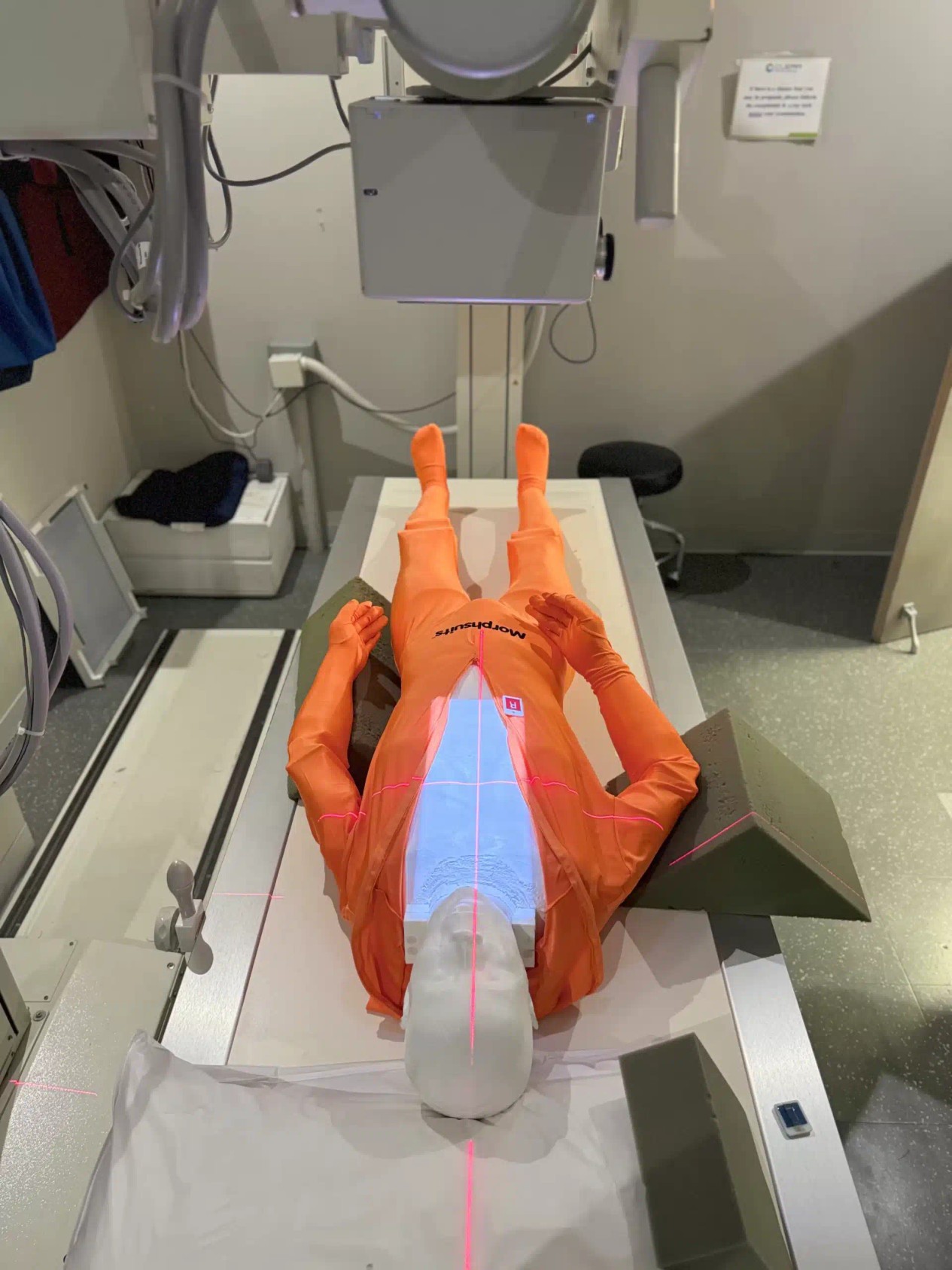

The Adult Full Body Phantom (FB-A05) is an advanced X-ray positioning and imaging training tool designed for radiology students and professionals. Weighing approximately 20 kg (44 lbs), its lightweight construction facilitates easy transport and repositioning for practicing a wide variety of X-ray techniques. The phantom features articulating joints to provide a realistic range of motion that mimics human movement.
Constructed from durable synthetic materials, this model can withstand repeated radiation exposure without deterioration. The synthetic bones feature a realistic three-layered structure with adjustable inner porosity. A removable and washable synthetic jumpsuit is included to protect the phantom from dust and debris.
Note: Radiographic results may differ from clinical results as the primary design focus is on positioning. By default, the phantom comes in a translucent amber appearance; a skin feature can be included upon request.

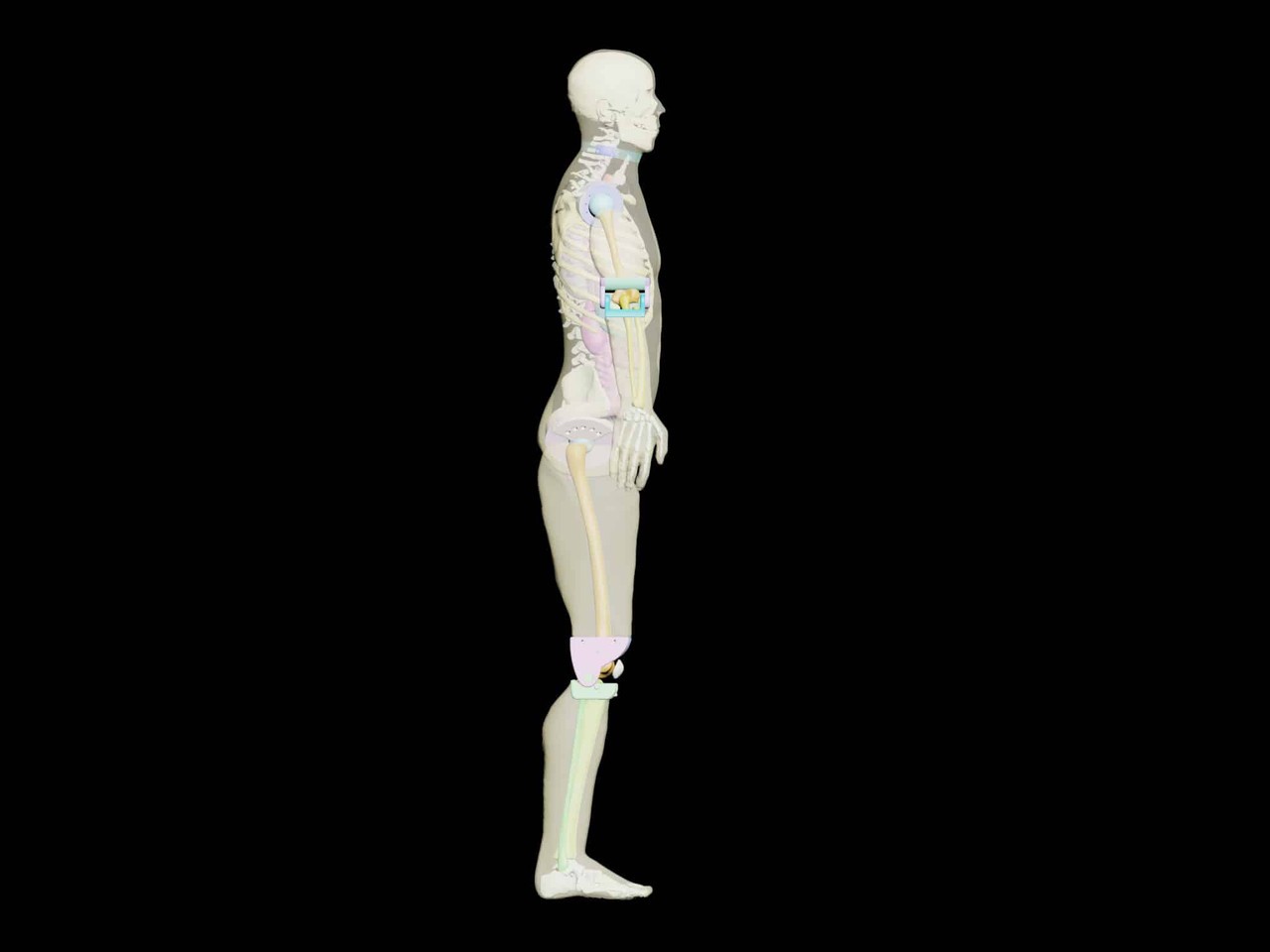

Anatomy
- Full Human Body (10 Parts): Detachable head, torso, and limbs with foam body tissue.
- Articulating Joints: Rotatable shoulders (360° rotation / 180° sideways) and movable hip, knee, and elbow joints.
- Adult Head: Skull, Air Cavities, and Frontal Sinus with air gaps.

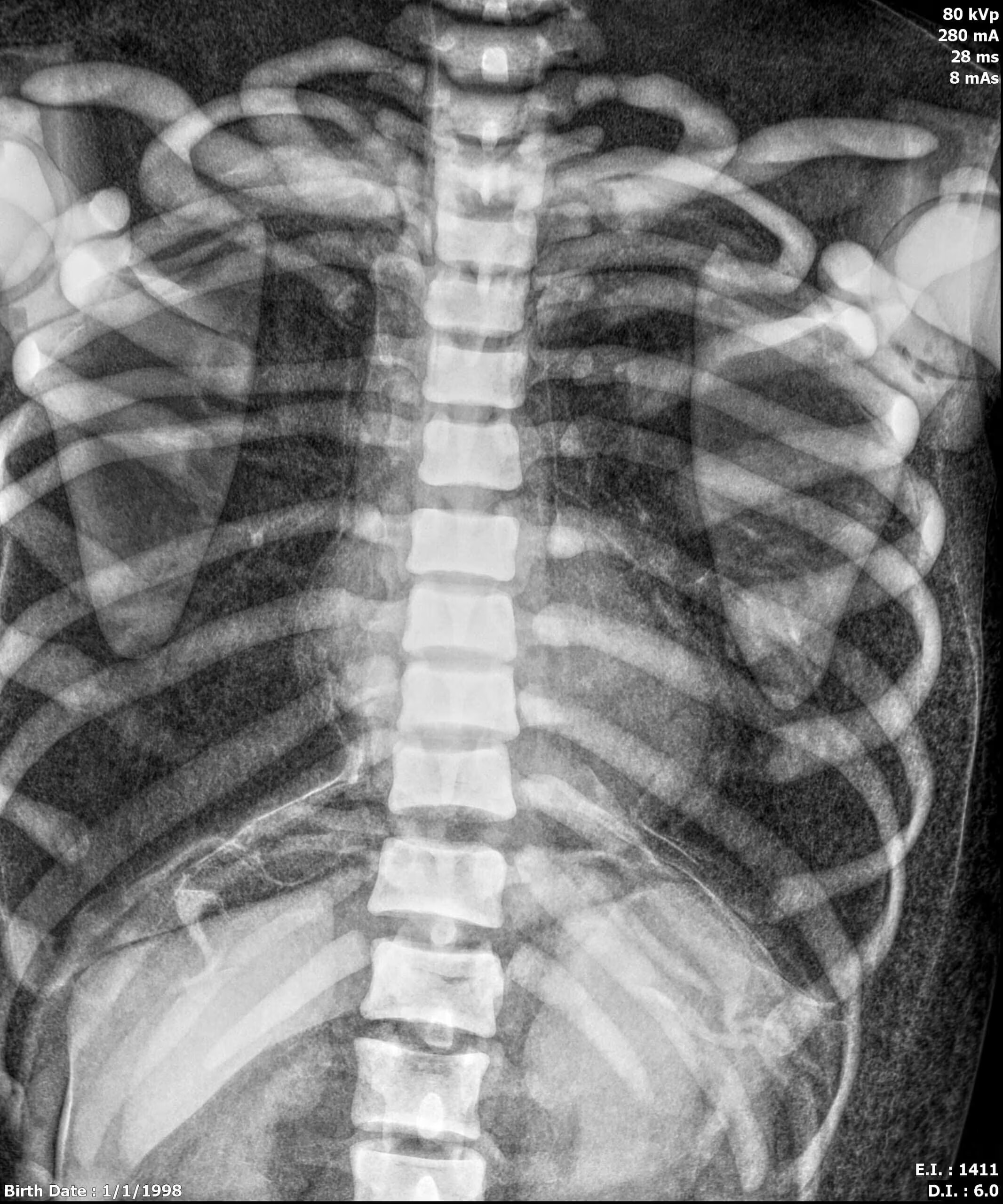

- Adult Torso: Spine, Ribcage, Shoulders, Clavicles, Pelvis, Trachea, Heart, Lungs with Bronchi, Diaphragm, Liver, Gallbladder, Stomach, Kidneys, Spleen, Pancreas, Large/Small Intestines, Bladder, and Prostate.

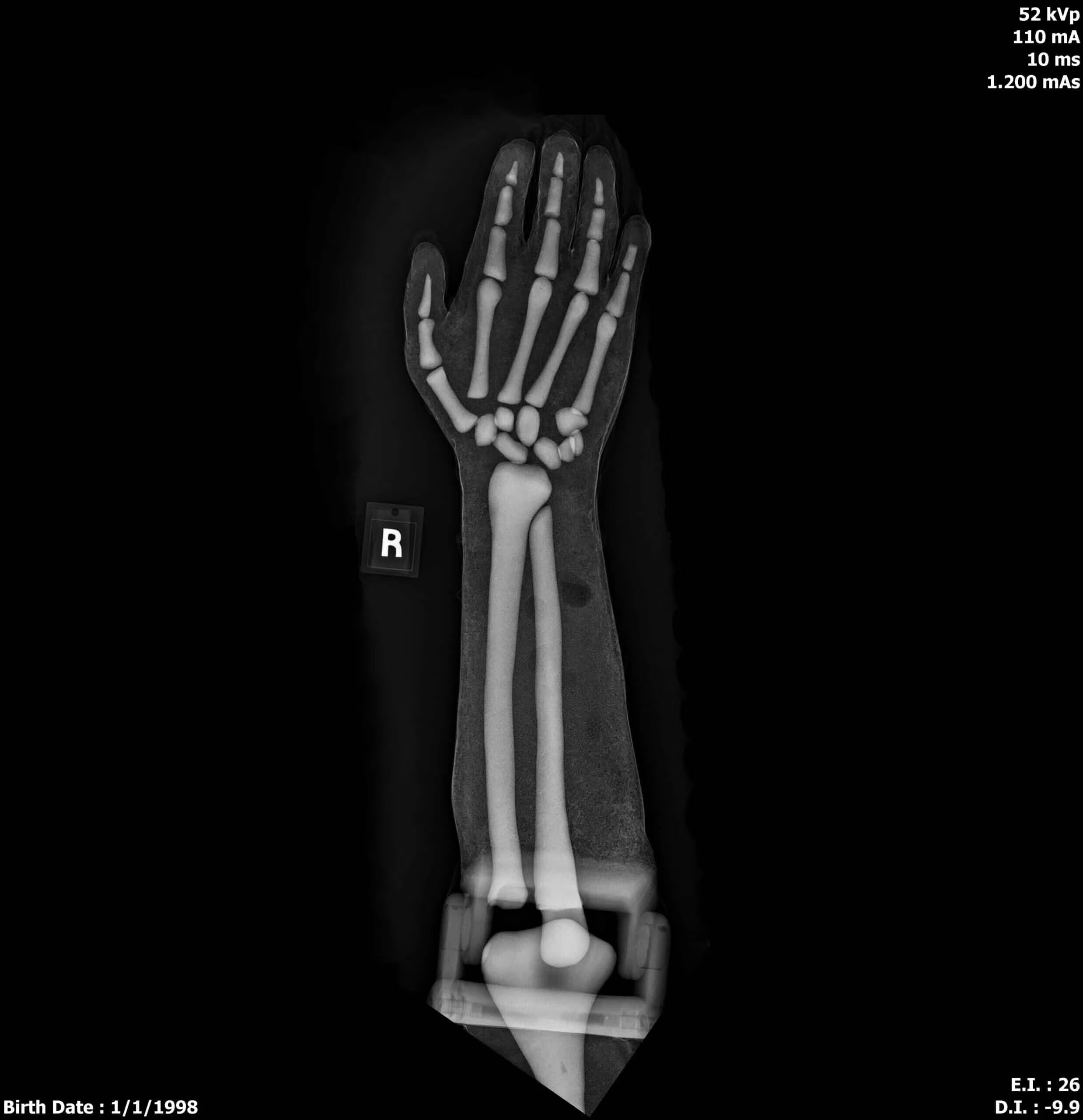

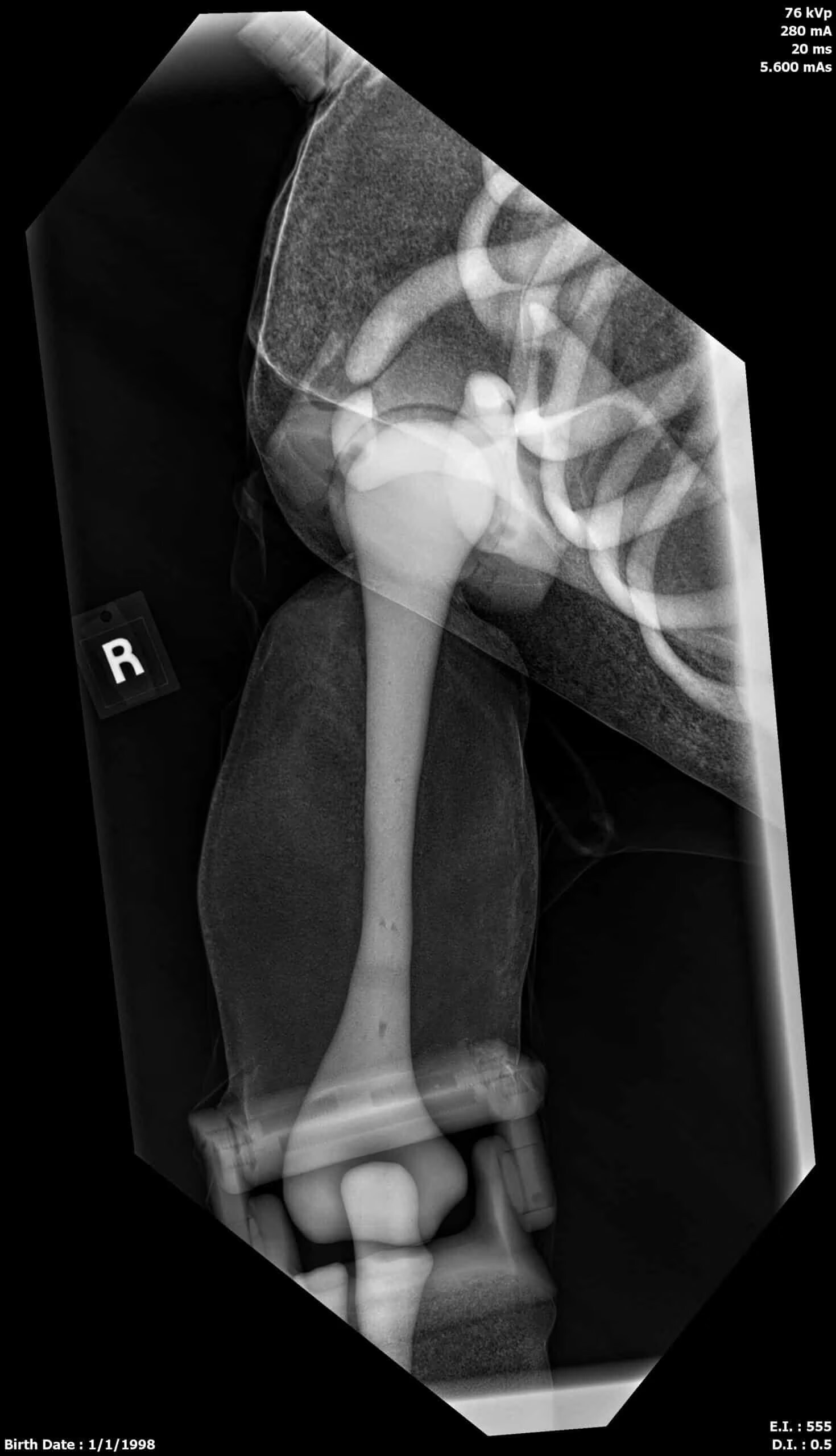

- Adult Arms: Humerus, Elbow Joints, Radius, Ulna, Wrist, and Fingers.

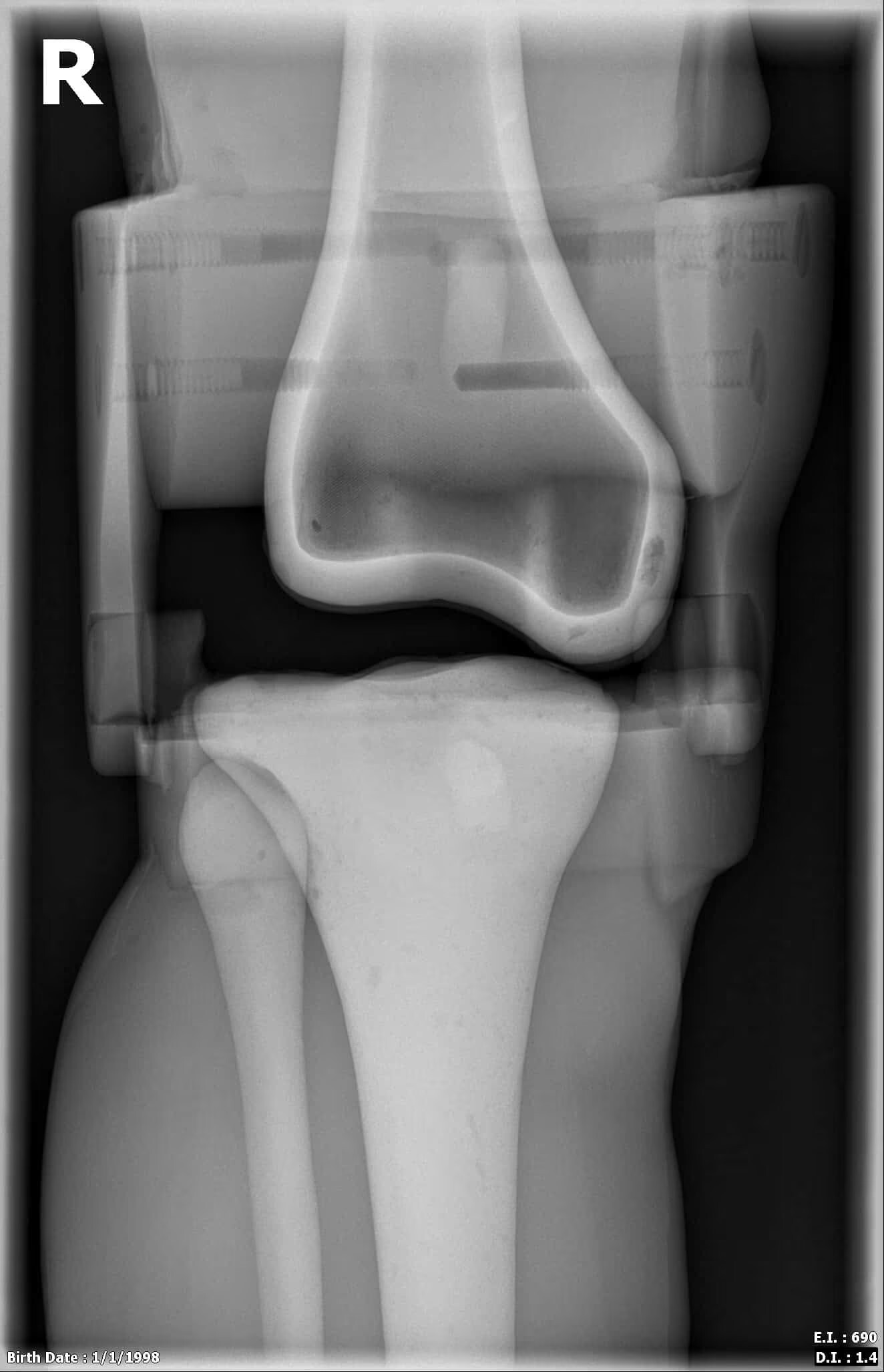

- Adult Legs: Femur, Knee Joints, Tibia, Fibula, Foot, and Toes.
Thermal Properties of Bone-Mimicking Material
| Thermal Conductivity | Volumetric Specific Heat | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
|---|---|---|---|---|---|
| 0.776 W/ m K | 1.040 MJ/ m³ K | 0.746 mm²/ s | 1.289 m K/ W | 0.978 J/ g °C | 3070 m/s |
HU Values of Tissue-Mimicking Materials
| Tissue Type | HU Value (Average) | Tissue Type | HU Value (Average) |
|---|---|---|---|
| Trabecular Bone | 800 | Kidneys | 110 |
| Cortical Bone | 1300 | Bladder | 35 |
| Aorta / Vena Cava / Heart | 40 | Rectum / Sigmoid Colon Wall | 100 |
| Trachea (Tissue) | 80 | Liver / Pancreas / Spleen | 110 |
| Trachea (Air) | -1000 | Gallbladder | 35 |
| Lungs / Stomach | -850 | Intestines (Tissue) | 80 |
| Diaphragm | 80 | Intestines (Air) | -1000 |
X-Ray Settings Reference
| Anatomy | Projection | kVp | mA | ms | mAs |
|---|---|---|---|---|---|

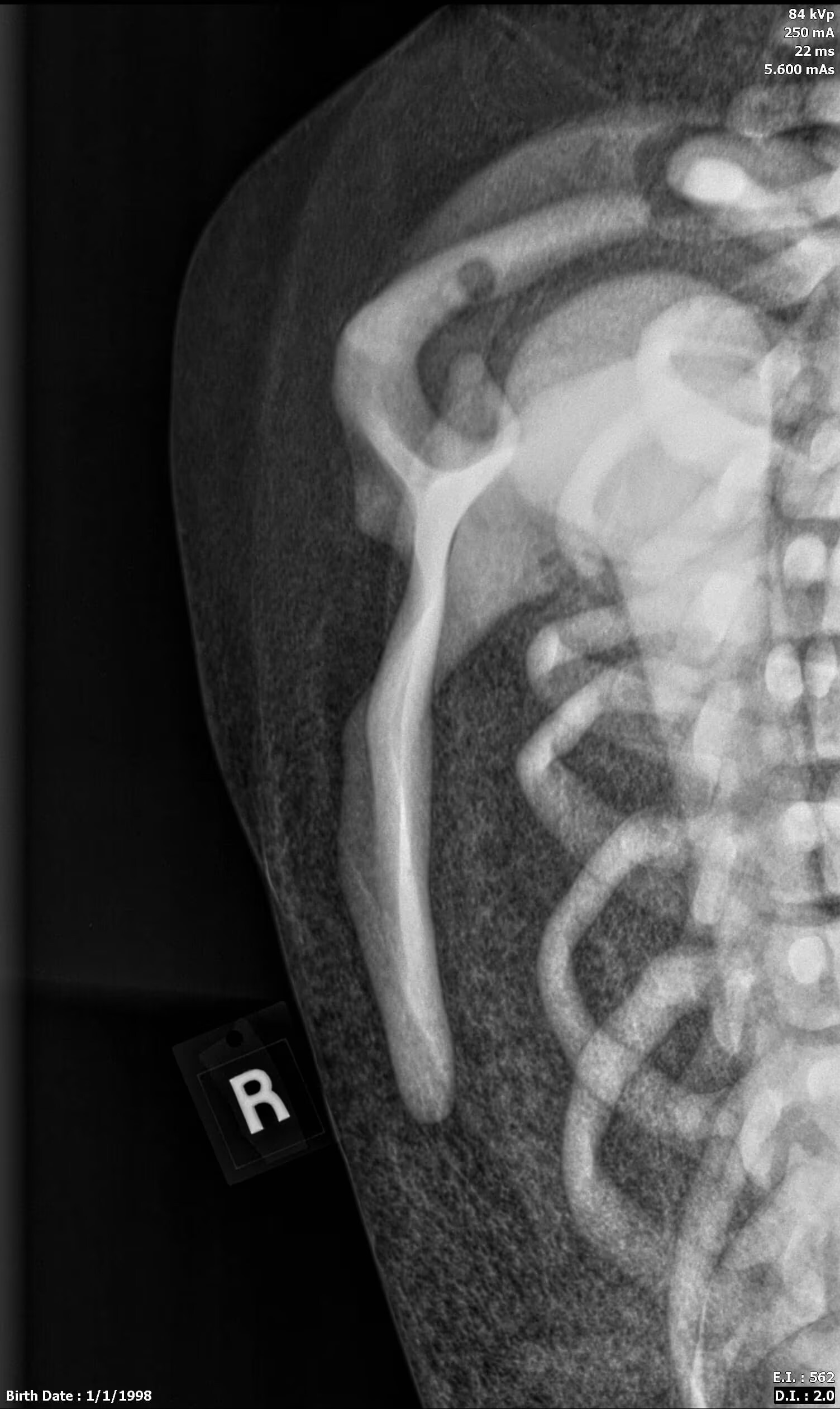

| Shoulder | LAT | 84 | 250 | 22 | 5.6 |

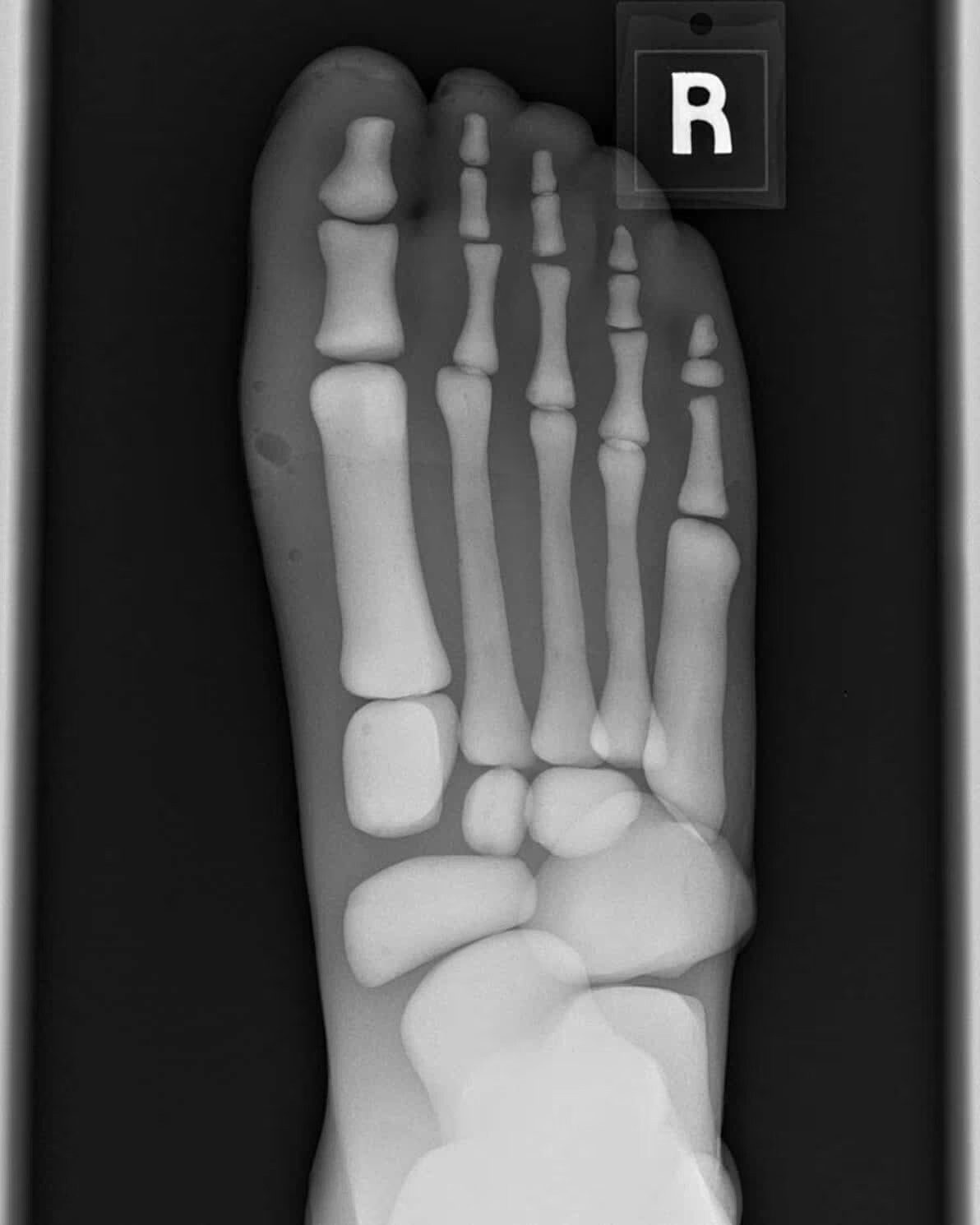

| Foot | AP | 60 | 160 | 10 | 1.6 |

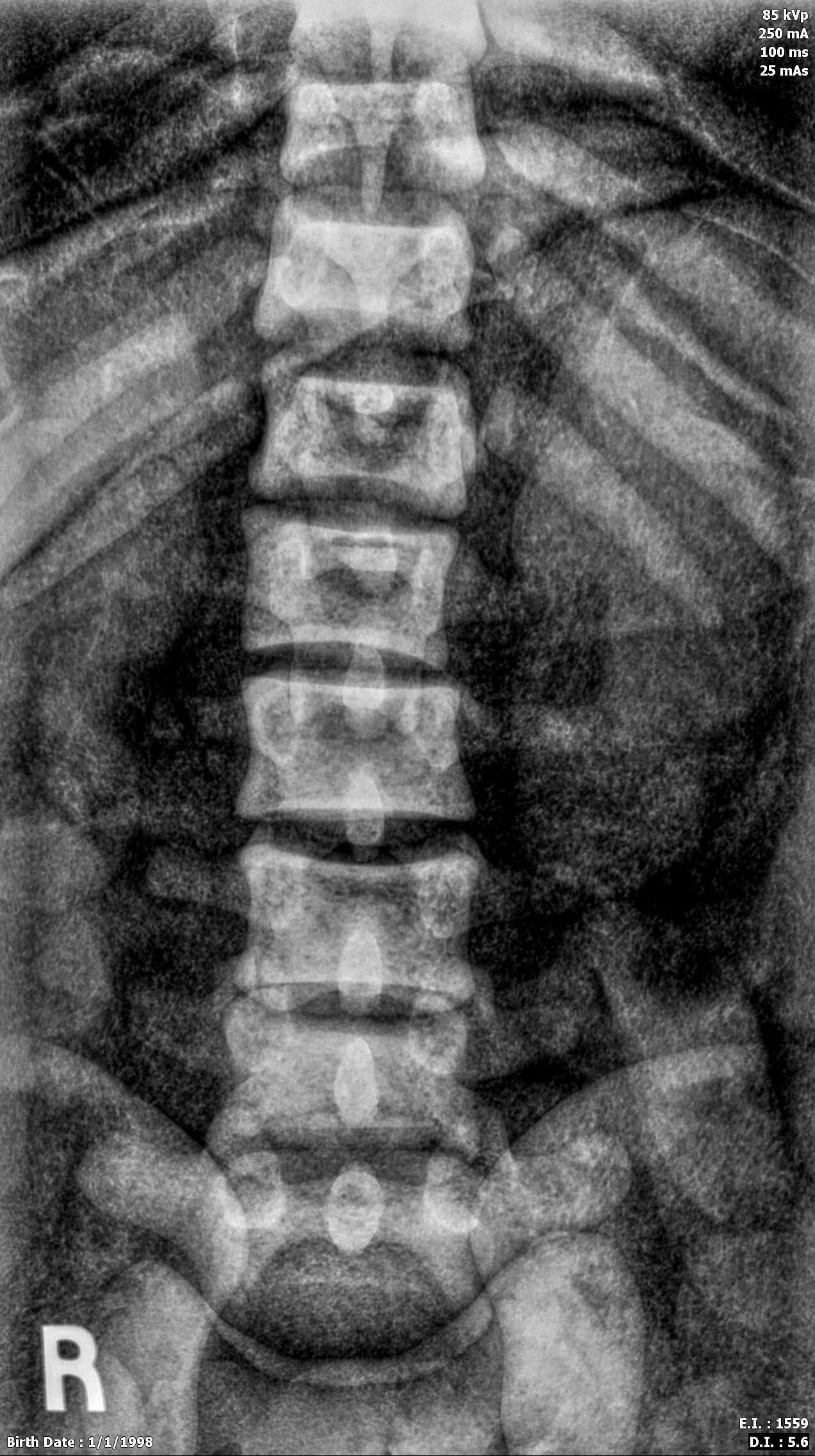

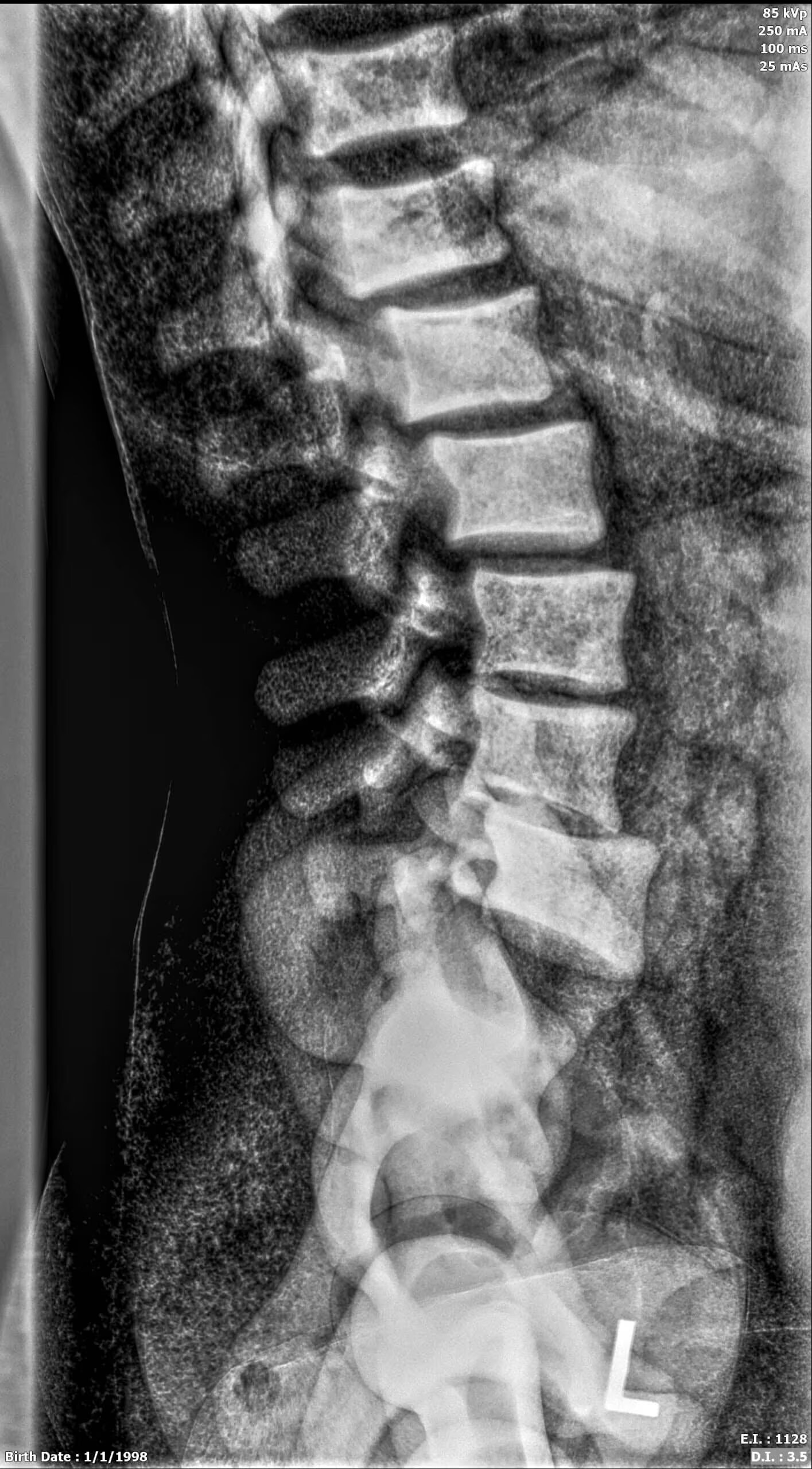

| L-spine | LAT | 85 | 250 | 100 | 25 |

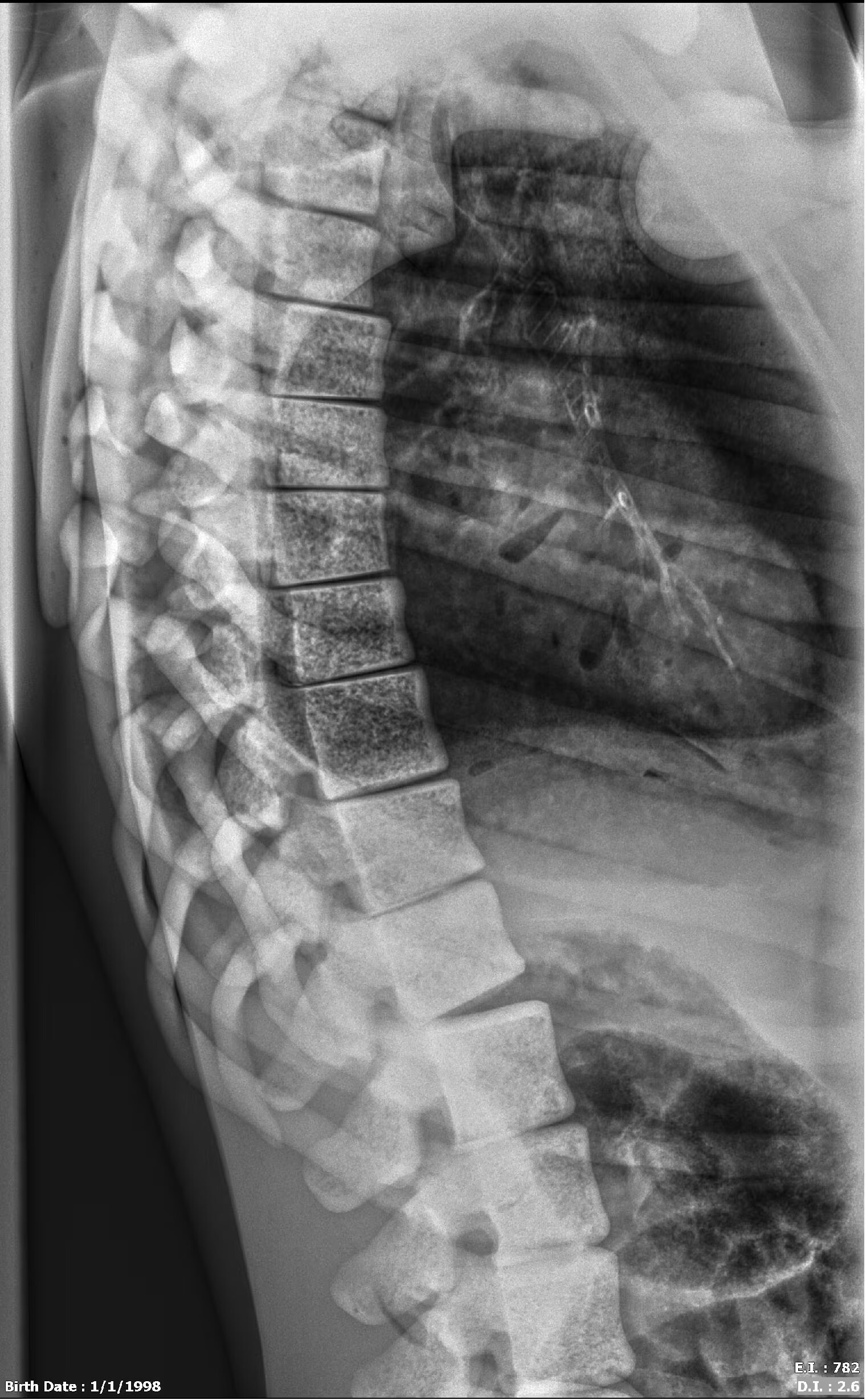

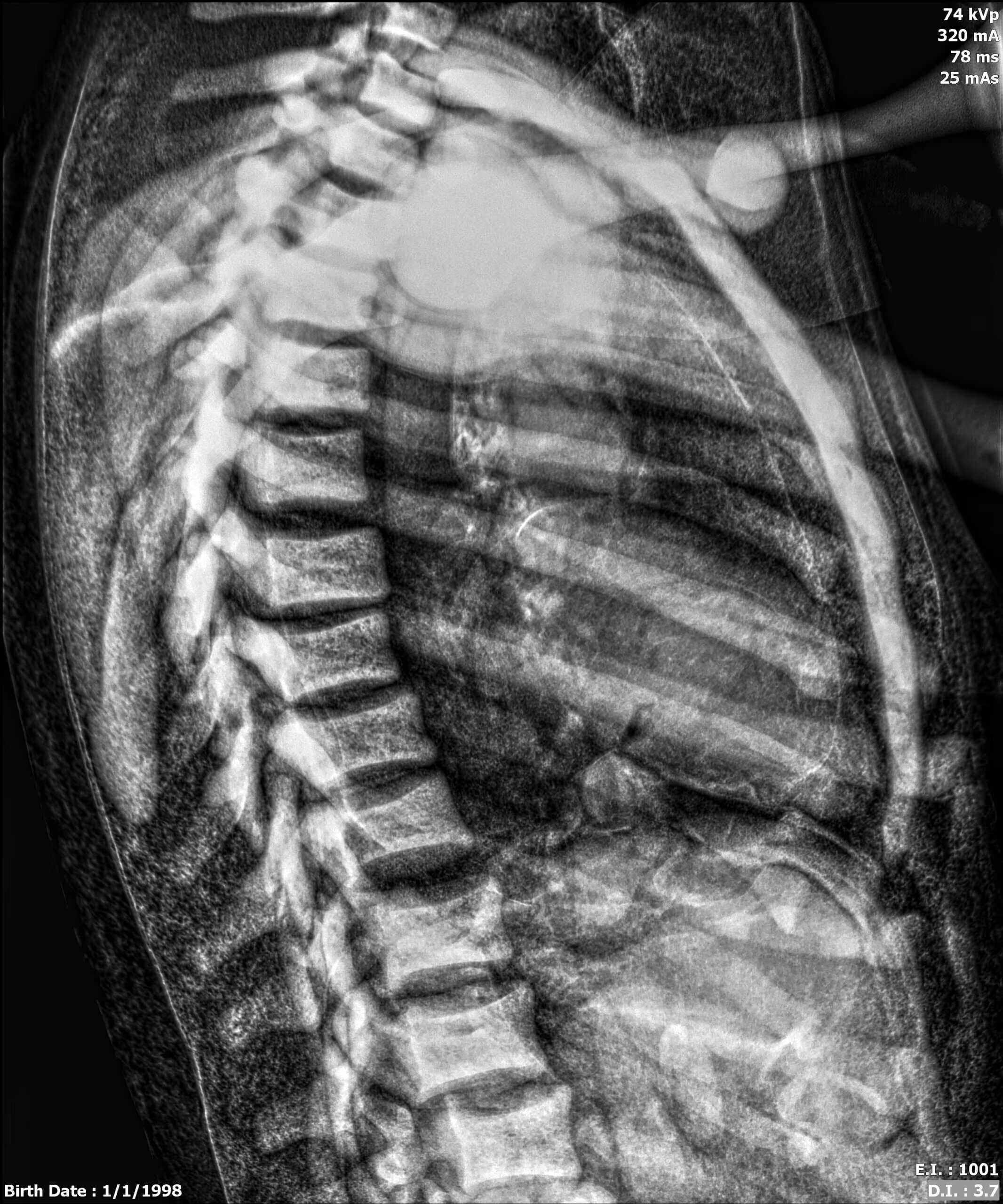

| T-spine | LAT | 74 | 320 | 78 | 25 |

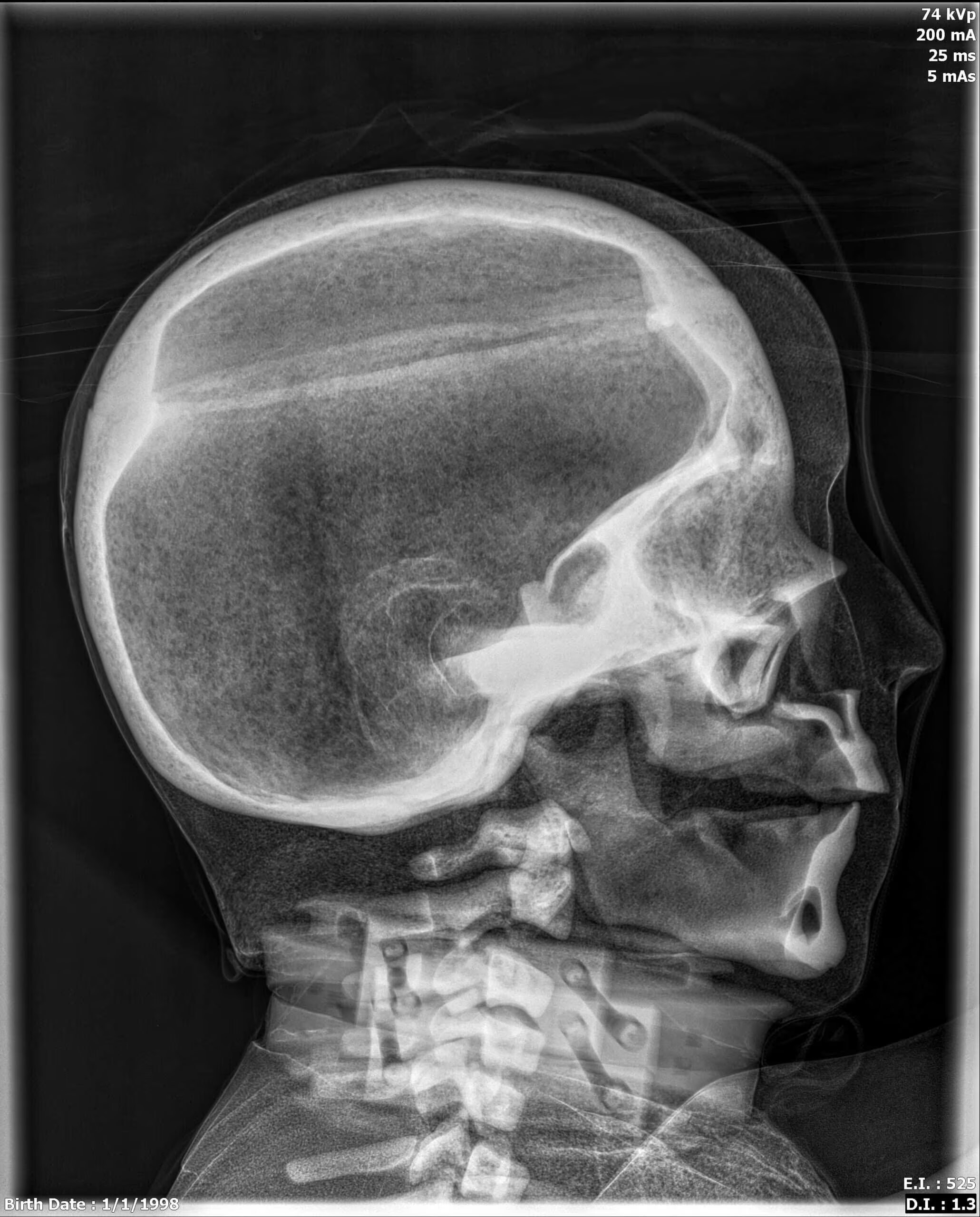

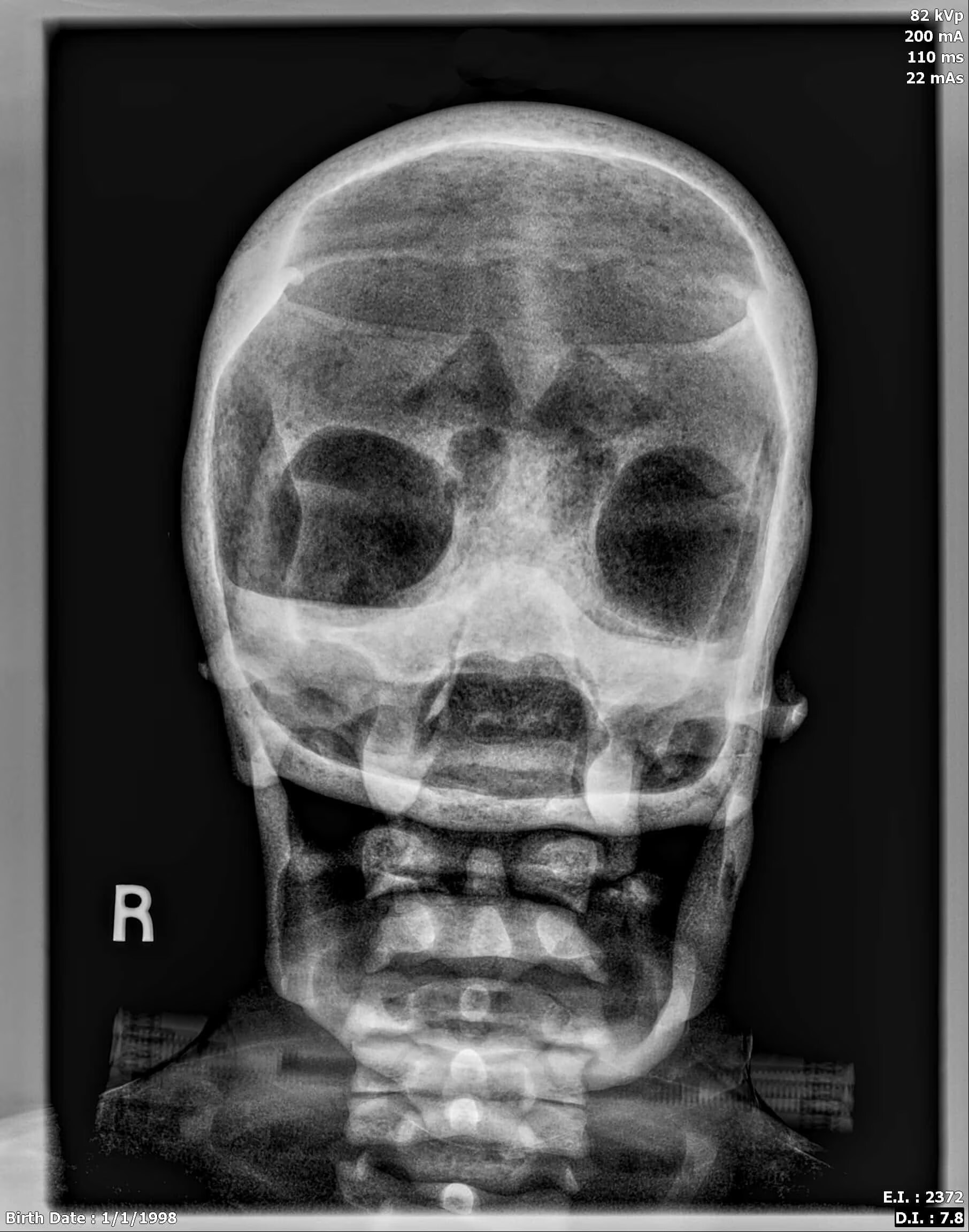

| Skull | AP | 82 | 200 | 110 | 22 |
| Pelvis | AP | 85 | 250 | 88 | 22 |
Included in Order
- Adult Full Body Phantom
- Protective Washable Jumpsuit
- User Manual / Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
Size & Weight
Phantom: 69 Inches | Weight: ~44 Lbs (20 kg)
Shipment: 63 x 34 x 42 Inches | Weight: ~90 Lbs
Materials Used
- Soft tissue and organs: Foam body tissue; composition of urethane-based soft resin for internal organs.
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material.
Warranty Information
2-Years Limited Warranty Against Manufacturer Defects
True Phantom Solutions Inc. (TPS) Products Limited Warranty
The TPS products are guaranteed to be free from defects in material and workmanship, under normal use, for a period of two years after date of shipment. This warranty covers the repair or replacement of a product when is sent prepaid to TPS. TPS does not assume liability for installation, abuse, alteration, insufficient application data provided for a design or misuse. We are responsible for the condition of our product. We would love to help you resolve any issues. Please let us know if you have received any defective items by contacting us here: [email protected]
Who qualifies?
TPS customers who buy directly from True Phantom Solutions Inc.. Products purchased from other third-party sellers are NOT eligible for TPS limited warranty. Purchased from other channels may offer different or altered warranties.
What qualifies?
Valid only for items with manufacturer defects, flaws produced by a manufacturer error, or defects caused during production. Products must be in their original storage case (if provided) or one with comparable protection.
Returns/Replacements
Any product requiring a return/replacement (for warranty or non-warranty repair) requires pre-approval from Anatomy Warehouse prior to shipment. Contact Anatomy Warehouse customer service department at 800-422-1134 or [email protected] in order to obtain a RPA (Return/Replacement Product Authorization) number. The RPA number should be clearly marked on the returned package label and your packing list, or shipping document. Return product freight prepaid in its original storage case (if provided) or one with comparable protection. True Phantom Solutions will not accept return shipments sent freight collect. Product damage incurred during return shipment, from poor packing, will not be warranted by True Phantom Solutions.
